RYOBI RSDS800-K Rotary Hammer Parts

SKU: RYOBI RSDS800-K
€35.47
VAT included

RYOBI RSDS800-K Rotary Hammer Spare Parts

Fix Your Ryobi RSDS800-K Rotary Hammer. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee..

Ryobi RSDS800-K Rotary Hammer
RYOBI RSDS800-K Rotary Hammer Parts
  • RYOBI RSDS800-K Rotary Hammer Parts
  • RYOBI RSDS800-K Rotary Hammer Parts - Drawing
TTI Industries

RYOBI RSDS800-K Rotary Hammer Parts

SKU: RYOBI RSDS800-K Condition: New
€35.47
VAT included

RYOBI RSDS800-K Rotary Hammer Spare Parts

Fix Your Ryobi RSDS800-K Rotary Hammer. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee..

Ryobi RSDS800-K Rotary Hammer
settings 56 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN: Usually Ships in 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N: AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS
Machine Type: Rotary Hammer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
56 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 7/10 BUSINESS DAYS

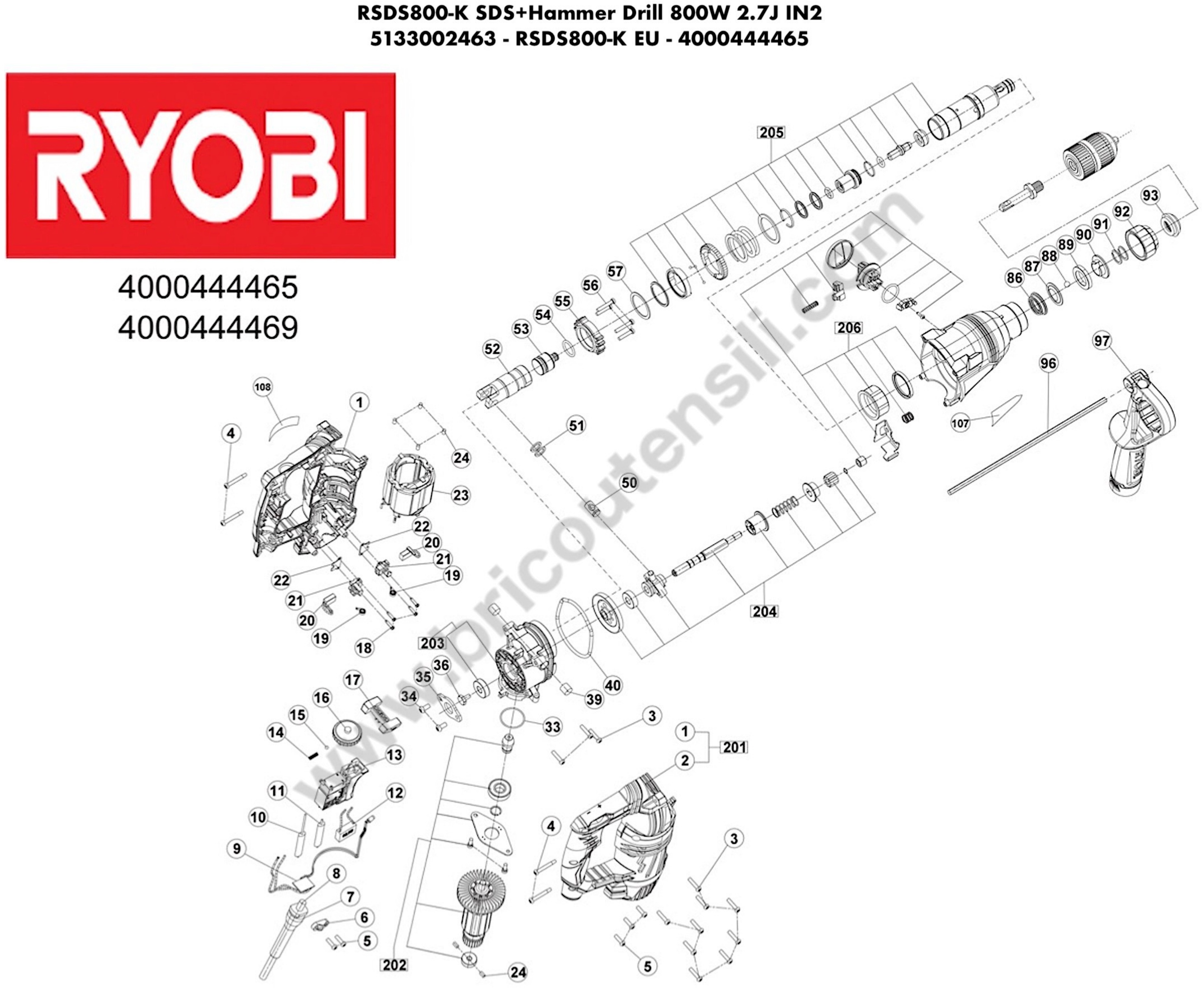

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5131033866 HOUSING €32.47
2
 photo_cameraImage coming soon 5131033867 HOUSING €0.10 Not available for order
3
 photo_cameraImage coming soon 5131033868 SCREW Discontinued €0.10 Not available for order
4
 photo_cameraImage coming soon 5131033869 SCREW Discontinued €0.10 Not available for order
5
 photo_cameraImage coming soon 5131033870 SCREW Discontinued €0.10 Not available for order
6
 photo_cameraImage coming soon 5131033871 CHAIN CLAMP BODY Discontinued €0.10 Not available for order
7
 photo_cameraImage coming soon 5131033872 CABLE ENTRY SLEEVE €2.54
8
 photo_cameraImage coming soon 5131033873 POWER CORD €29.23
9
 photo_cameraImage coming soon 5131033875 LAMP Discontinued €0.10 Not available for order
10
 photo_cameraImage coming soon 5131033876 WIRE €4.96
11
 photo_cameraImage coming soon 5131033877 WIRE €4.96
12
 photo_cameraImage coming soon 5131033878 CAPACITOR €4.96
13
 photo_cameraImage coming soon 5131033879 SWITCH €32.47
14
 photo_cameraImage coming soon 5131033880 SPRING Discontinued €0.10 Not available for order
15
 photo_cameraImage coming soon 5131033881 BALL €2.54
16
 photo_cameraImage coming soon 5131033882 THUMB WHEEL €4.96
17
 photo_cameraImage coming soon 5131033883 BUTTON €2.54
18
 photo_cameraImage coming soon 5131033884 SCREW Discontinued €0.10 Not available for order
19
 photo_cameraImage coming soon 5131033885 BRUSH SPRING Discontinued €0.10 Not available for order
20
 photo_cameraImage coming soon 5131033886 CARBON BRUSH €8.19
21
 photo_cameraImage coming soon 5131033887 CARBON HOLDER €5.78
22
 photo_cameraImage coming soon 5131033888 INSULATION BOARD Discontinued €0.10 Not available for order
23
 photo_cameraImage coming soon 5131033889 FIELD LEAD GROMMET €50.26
24
 photo_cameraImage coming soon 5131033890 RUBBER BUFFER Discontinued €0.10 Not available for order
33
 photo_cameraImage coming soon 5131033891 O-RING €5.78
34
 photo_cameraImage coming soon 5131033892 SCREW €3.38
35
 photo_cameraImage coming soon 5131033893 BEARING COVER Discontinued €0.10 Not available for order
36
 photo_cameraImage coming soon 5131033894 SCREW €3.38
39
 photo_cameraImage coming soon 5131033895 FELT €7.39
40
 photo_cameraImage coming soon 5131033896 GASKET €2.54
50
 photo_cameraImage coming soon 5131033897 PISTON PIN €9.01
51
 photo_cameraImage coming soon 5131033898 WASHER €4.96
52
 photo_cameraImage coming soon 5131033899 CYLINDER Discontinued €0.10 Not available for order
53
 photo_cameraImage coming soon 5131033900 PERCUSSION BODY €13.87
54
 photo_cameraImage coming soon 5131033901 O-RING €2.54
55
 photo_cameraImage coming soon 5131033902 DISTANCE SLEEVE €21.95
56
 photo_cameraImage coming soon 5131033903 SCREW €3.38
57
 photo_cameraImage coming soon 5131033904 WASHER €3.38
86
 photo_cameraImage coming soon 5131033905 SPRING €3.38
87
 photo_cameraImage coming soon 5131033906 WASHER €3.38
88
 RYOBI RSDS800-K Steel Ball 5131033907 RYOBI RSDS800-K Steel Ball €3.48
89
 photo_cameraImage coming soon 5131033908 WASHER €4.96
90
 RYOBI RSDS800-K Bearing Bush 5131033909 RYOBI RSDS800-K Bearing Bush €6.30
91
 photo_cameraImage coming soon 5131033910 RING €3.38
92
 photo_cameraImage coming soon 5131033911 COLLET €3.38
93
 photo_cameraImage coming soon 5131033912 RUBBER CAP €3.38
96
 photo_cameraImage coming soon 5131033913 DEPTH GAUGE Discontinued €0.10 Not available for order
97
 photo_cameraImage coming soon 5131033914 AUXILIARY HANDLE €23.58
107
 photo_cameraImage coming soon 5131033915 LABEL €2.54
108
 photo_cameraImage coming soon 5131033916 LABEL Discontinued €0.10 Not available for order
201
 photo_cameraImage coming soon 5131033917 HOUSING €61.59
202
 photo_cameraImage coming soon 5131033918 ARMATURE €90.71
203
 photo_cameraImage coming soon 5131033919 GEAR BOX ASSY €57.55
204
 photo_cameraImage coming soon 5131033920 PERCUSSION BODY €115.80
205
 photo_cameraImage coming soon 5131033921 SPINDLE €127.13
206
 photo_cameraImage coming soon 5131033922 HOUSING COVER €48.65

Shipping and delivery information will be available shortly.

RYOBI RSDS800-K Rotary Hammer Spare Parts

Fix Your Ryobi RSDS800-K Rotary Hammer. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Drill Driver and their spare part.
RSDS800-K Rotary Hammer

RSDS800-K ROTARY HAMMER IN2 Spare Parts
4000444465 RSDS800-K EU 5133002463
# Part Num. Description
1 5131033866 HOUSING
2 5131033867 HOUSING
3 5131033868 SCREW Discontinued
4 5131033869 SCREW Discontinued
5 5131033870 SCREW Discontinued
6 5131033871 CHAIN CLAMP BODY Discontinued
7 5131033872 CABLE ENTRY SLEEVE
8 5131033873 POWER CORD
9 5131033875 LAMP Discontinued
10 5131033876 WIRE
11 5131033877 WIRE
12 5131033878 CAPACITOR
13 5131033879 SWITCH
14 5131033880 SPRING Discontinued
15 5131033881 BALL
16 5131033882 THUMB WHEEL
17 5131033883 BUTTON
18 5131033884 SCREW Discontinued
19 5131033885 BRUSH SPRING Discontinued
20 5131033886 CARBON BRUSH
21 5131033887 CARBON HOLDER
22 5131033888 INSULATION BOARD Discontinued
23 5131033889 FIELD LEAD GROMMET
24 5131033890 RUBBER BUFFER Discontinued
33 5131033891 O-RING
34 5131033892 SCREW
35 5131033893 BEARING COVER Discontinued
36 5131033894 SCREW
39 5131033895 FELT
40 5131033896 GASKET
50 5131033897 PISTON PIN
51 5131033898 WASHER
52 5131033899 CYLINDER Discontinued
53 5131033900 PERCUSSION BODY
54 5131033901 O-RING
55 5131033902 DISTANCE SLEEVE
56 5131033903 SCREW
57 5131033904 WASHER
86 5131033905 SPRING
87 5131033906 WASHER
88 5131033907 BALL
89 5131033908 WASHER
90 5131033909 BEARING BUSH
91 5131033910 RING
92 5131033911 COLLET
93 5131033912 RUBBER CAP
96 5131033913 DEPTH GAUGE Discontinued
97 5131033914 AUXILIARY HANDLE
107 5131033915 LABEL
108 5131033916 LABEL Discontinued
201 5131033917 HOUSING
202 5131033918 ARMATURE
203 5131033919 GEAR BOX ASSY
204 5131033920 PERCUSSION BODY
205 5131033921 SPINDLE
206 5131033922 HOUSING COVER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s AEG websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to AEG brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
RYOBI RSDS800-K
6 Items

Data sheet

SHIPPING IN
Usually Ships in 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N
AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS
Machine Type
Rotary Hammer

Specific References

New

Download

RYOBI RSDS800-K Drawing

RYOBI RSDS800-K Drawing

Download (388.3KB)
