TTI Industries

RYOBI RPD680-K Percussion Drill Parts

SKU: RYOBI RPD680-K
€16.49
VAT included

RYOBI RPD680-K Percussion Drill Spare Parts

Fix Your Ryobi RPD680-K Percussion Drill. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

RYOBI RPD680-K
RYOBI RPD680-K Percussion Drill Parts
  • RYOBI RPD680-K Percussion Drill Parts
  • RYOBI RPD680-K Percussion Drill - Drawing
TTI Industries

RYOBI RPD680-K Percussion Drill Parts

SKU: RYOBI RPD680-K Condition: New
€16.49
VAT included

RYOBI RPD680-K Percussion Drill Spare Parts

Fix Your Ryobi RPD680-K Percussion Drill. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

RYOBI RPD680-K
settings 27 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:: AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
27 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

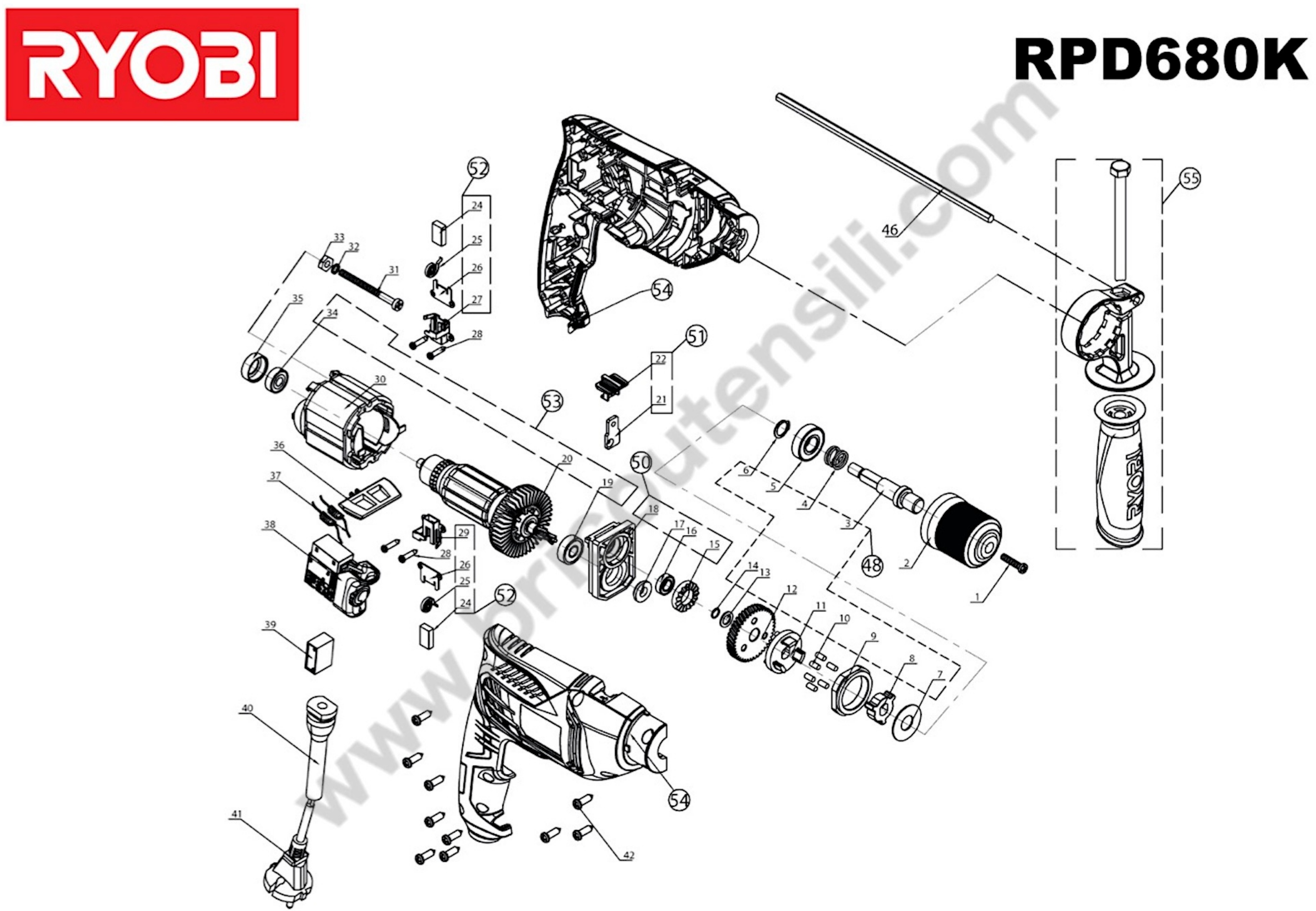

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
000
 photo_cameraImage coming soon 4931392302 SWISS ADAPTER €18.90
001
 photo_cameraImage coming soon 5131031880 SCREW €6.12
002
 photo_cameraImage coming soon 5131031881 CHUCK €53.31
003
 photo_cameraImage coming soon 5131031883 SHAFT €7.83
004
 photo_cameraImage coming soon 5131031884 SPRING €2.69
005
 photo_cameraImage coming soon 5131031885 BALL BEARING €9.55
006
 photo_cameraImage coming soon 5131031886 RING OF CIRCUIT BREAKER €2.69
011
 photo_cameraImage coming soon 5131031891 GEARWHEEL SET €7.83
012
 photo_cameraImage coming soon 5131031892 GEAR €9.55
014
 photo_cameraImage coming soon 5131031894 SPRING €2.69
016
 photo_cameraImage coming soon 5131031897 BALL BEARING €9.55
019
 photo_cameraImage coming soon 5131031910 BALL BEARING €9.55
021
 photo_cameraImage coming soon 5131031901 DRIVING PLATE €2.69
022
 photo_cameraImage coming soon 5131031902 PUSH-BUTTON €5.26
024
 RYOBI RPD680-K Carbon Brush 5131031904 RYOBI RPD680-K Carbon Brush €8.06
030
 photo_cameraImage coming soon 5131031914 STATOR ASSEMBLY €34.44
034
 photo_cameraImage coming soon 5131031912 BALL BEARING €9.55
035
 photo_cameraImage coming soon 5131031918 BEARING SLEEVE €2.69
037
 photo_cameraImage coming soon 5131031920 CHOKING COIL €5.26
038
 photo_cameraImage coming soon 5131031921 SWITCH €28.44
039
 photo_cameraImage coming soon 5131031922 CAPACITOR €5.26
041
 photo_cameraImage coming soon 5131031924 POWER CORD €17.27
048
 photo_cameraImage coming soon 5131031882 SHAFT €44.73
050
 photo_cameraImage coming soon 5131031895 CLUTCH HOUSING €12.98
051
 photo_cameraImage coming soon 5131031900 PUSH-BUTTON €5.26
052
 photo_cameraImage coming soon 5131031903 CARBON HOLDER SET €19.86
053
 photo_cameraImage coming soon 5131031909 ARMATURE ASSEMBLY €53.31

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

RYOBI RPD680-K Percussion Drill Spare Parts

Fix Your Ryobi RPD680-K Percussion Drill. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Drill Driver and their spare part.
RPD680-K Percussion Drill
RYOBI RPD680-K 680W PERCUSSION DRILL IN2
5133002016 - RPD680-K - 4000444087
# Part Num. Description
000 4931392302 SWISS ADAPTER
5131031934 LABEL
5131031935 LABEL
001 5131031880 SCREW
002 5131031881 CHUCK
003 5131031883 SHAFT
004 5131031884 SPRING
005 5131031885 BALL BEARING
006 5131031886 RETAINING RING
007 5131031887 STOP WASHER
008 5131031888 CAM
009 5131031889 BRACKET
010 5131031890 CYLINDER PIN
011 5131031891 GEARWHEEL SET
012 5131031892 GEAR
013 5131031893 WASHER
014 5131031894 SPRING
015 5131031896 RATCHET
016 5131031897 BALL BEARING
017 5131031898 SEALING WASHER
018 5131031899 CLUTCH HOUSING
019 5131031910 BALL BEARING
020 5131031911 ARMATURE
021 5131031901 DRIVING PLATE
022 5131031902 PUSH-BUTTON
024 5131031904 CARBON BRUSH
025 5131031905 SPRING PLATE
026 5131031906 COVER PLATE
027 5131031907 BRUSH HOLDER
028 5131031913 SCREW
029 5131031908 BRUSH HOLDER
030 5131031914 STATOR
031 5131031915 SCREW
032 5131031916 WASHER
033 5131031917 NUT
034 5131031912 BALL BEARING
035 5131031918 BEARING SLEEVE
036 5131031919 PUSH BUTTON
037 5131031920 CHOKING COIL
038 5131031921 SWITCH
039 5131031922 CAPACITOR
040 5131031923 PROTECTION SLEEVE
041 5131031924 POWER CORD
042 5131031925 SCREW
046 5131031933 DEPTH GAUGE
048 5131031882 SHAFT
050 5131031895 CLUTCH HOUSING
051 5131031900 PUSH-BUTTON
052 5131031903 CARBON HOLDER SET
053 5131031909 ARMATURE ASSEMBLY
054 5131031926 HOUSING SET ASSY
055 5131031929 AUXILIARY HANDLE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s AEG websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to AEG brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
RYOBI RPD680-K
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:
AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS

Specific References

New

Download

RYOBI RPD680-K Drawing

RYOBI RPD680-K Drawing

Download (318.2KB)
