Rurmec Spare Parts for Sander RL125-14

SKU: 306.400
€8.70
VAT included

Rurmec Spare Parts for Sander RL125-14

Rurmec original spare parts for to replace broken parts for to fix Sander RL125 - 306.400.

Fix Your Sander RL125-14. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Rurmec Spare Parts for Sander RL125-14
  • Rurmec Spare Parts for Sander RL125-14
  • Rurmec Spare Parts for Sander RL125-14

Rurmec Spare Parts for Sander RL125-14

SKU: 306.400 Condition: New
€8.70
VAT included

Rurmec Spare Parts for Sander RL125-14

Rurmec original spare parts for to replace broken parts for to fix Sander RL125 - 306.400.

Fix Your Sander RL125-14. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 13 spare parts

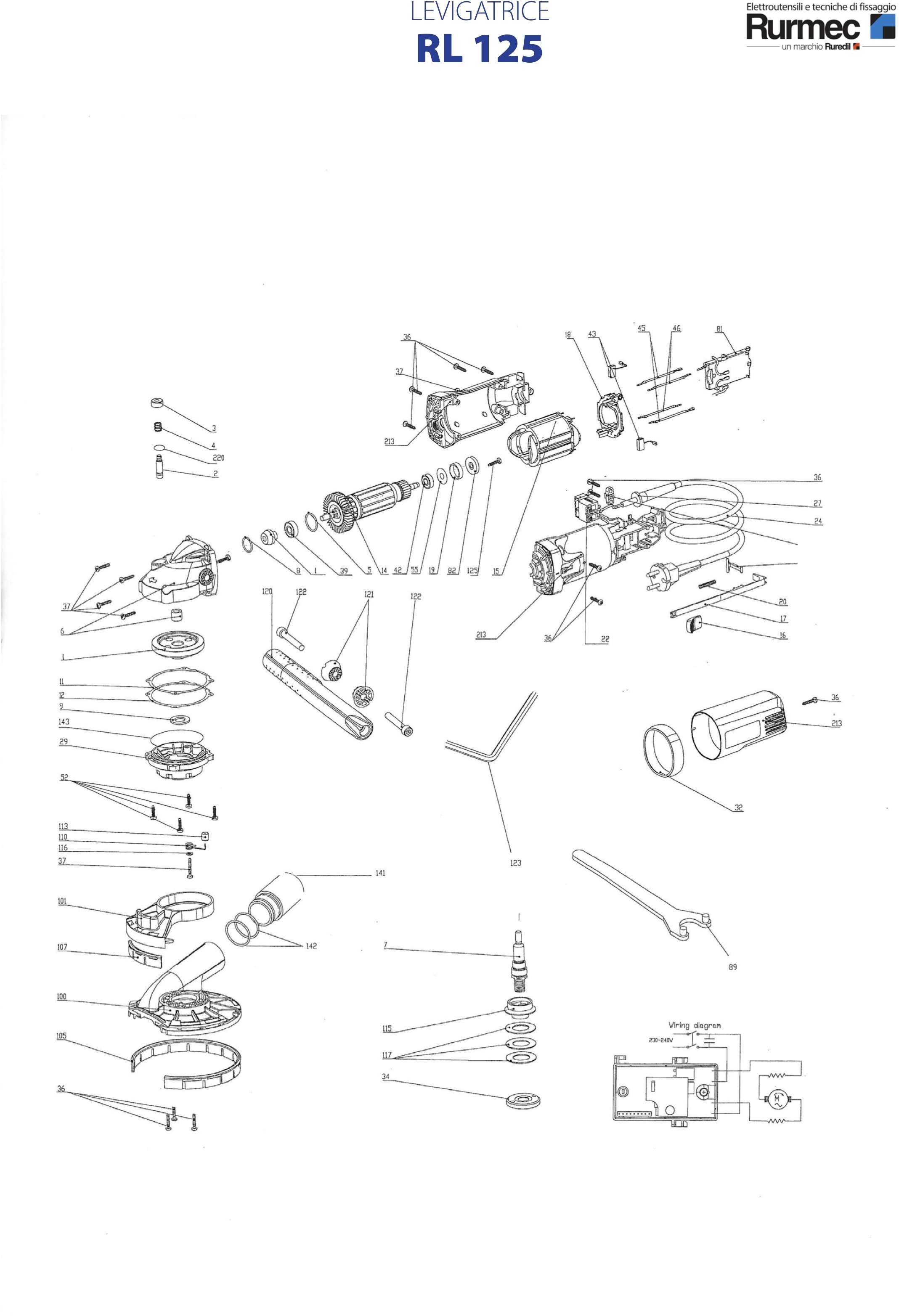

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

13 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
photo_cameraImage coming soon 300.063 EXTENSION HOSE RL80 €8.04
1
Carbon Brush Set for Core-Drill Rurmec EVP20 337.015 Carbon Brush Set for Core-Drill Rurmec EVP20 €22.43
2
photo_cameraImage coming soon 337.014 Brush holder COMPLETE EVP20 €9.92
19
photo_cameraImage coming soon 331.635 NEEDLE BEARING HK 1010 €9.18
29
photo_cameraImage coming soon 337.022 BALL BEARING EVP20 €8.65
32
photo_cameraImage coming soon 337.012 BEARING SFREE 608 2Z €6.40
34
photo_cameraImage coming soon 337.019 SCREW 3.9X70 EVP20 €1.29
36
photo_cameraImage coming soon 331.626 CORD ARMOR €3.48
39
photo_cameraImage coming soon 331.627 CABLE GLAND €1.46
44
photo_cameraImage coming soon 337.018 HOUSING MOTOR EVP20 €33.87
45
photo_cameraImage coming soon 337.020 CONVEYOR AIR EVP20 €4.17
50
photo_cameraImage coming soon 377.079 POWER CORD €19.66
53
photo_cameraImage coming soon 304.568 SPECIAL KEY €9.38

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Rurmec Spare Parts for Sander RL125-14

Rurmec original spare parts for to replace broken parts for to fix Sander RL125 - 306.400.

Fix Your Sander RL125-14. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Sander and the respective parts of the code.


SANDER RL 125-14 da matr.0801 306.400
0 300.063 HOSE EXTENSION
1 337.015 BRUSH 6,3X10X18
2 337.014 CARBON BRUSH HOLDER ASSY
4 224.059 SCREW ZM4X12
5 332.519 SPRING WASHER B4
8 306.450 FLANGE NUT
9 306.451 FLANGE
10 306.452 ROD
11 306.453 SCREW M4X12
12 306.454 WASHER 4
13 306.455 GEAR BOX COVER
14 306.456 BALL BEARING 6201 2RS
15 331.029 SEEGER 32X1,2
16 306.457 GASKET
17 306.458 SPACER
18 306.459 BEVEL GEAR
19 331.635 NEEDLE BEARING HK 1010
20 331.647 SPRING RING 5
21 306.460 SELF TAPPING SCREW HC4,8X25
22 306.461 GEAR CASE
23 306.462 LOCKING PIN
24 306.463 SPRING
25 306.464 O-RING
26 306.465 NUT M 6
27 306.466 BEVEL PINION
28 337.021 SEEGER RING 28 / 1,2
29 337.022 BALL BEARING 6001 2Z
30 306.467 ARMATURE ASSY
32 337.012 BALL BEARING 608 2Z
33 331.679 O-RING 22X2.5
34 337.019 SCREW 3.9X70
35 306.468 FIELD ASSY
36 331.626 CORD ARMOR
37 332.516 SCREW HC 4,8X45
38 306.469 HANDLE GRIP
39 331.627 CABLE GLAND
40 331.628 SCREW HC 4,2X13
41 306.470 SWITCH
43 306.471 SCREW PT 50X16
44 337.018 MOTOR HOUSING
45 337.020 AIR CONVEYOR
46 306.426 FRONT HANDLE
47 306.472 SCREW M 8X20
48 331.817.5 WASHER A8
50 377.079 POWER CORD
51 306.473 SWITCH THERMAL PROTECTION
52 306.474 CLIP
53 304.568 SPECIAL KEY
54 306.449 SUCTION HOOD

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Rurmec websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
306.400
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Rurmec RL125

Diagram Rurmec RL125

Download (377.56KB)
