Rurmec

Rurmec Spare Parts for Groover ST-H68E

SKU: ST-H68E

Rurmec Spare Parts for Groover ST-H68E

Rurmec Genuine spare parts or replacement parts for to repair Groover ST-H68E.

Rurmec Spare Parts for Groover ST-H68E
  • Out-of-Stock
  • Rurmec Spare Parts for Groover ST-H68E
  • Rurmec Spare Parts for Groover ST-H68E - Drawing
Rurmec

Rurmec Spare Parts for Groover ST-H68E

SKU: ST-H68E Condition: New

Rurmec Spare Parts for Groover ST-H68E

Rurmec Genuine spare parts or replacement parts for to repair Groover ST-H68E.

settings 44 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
44 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

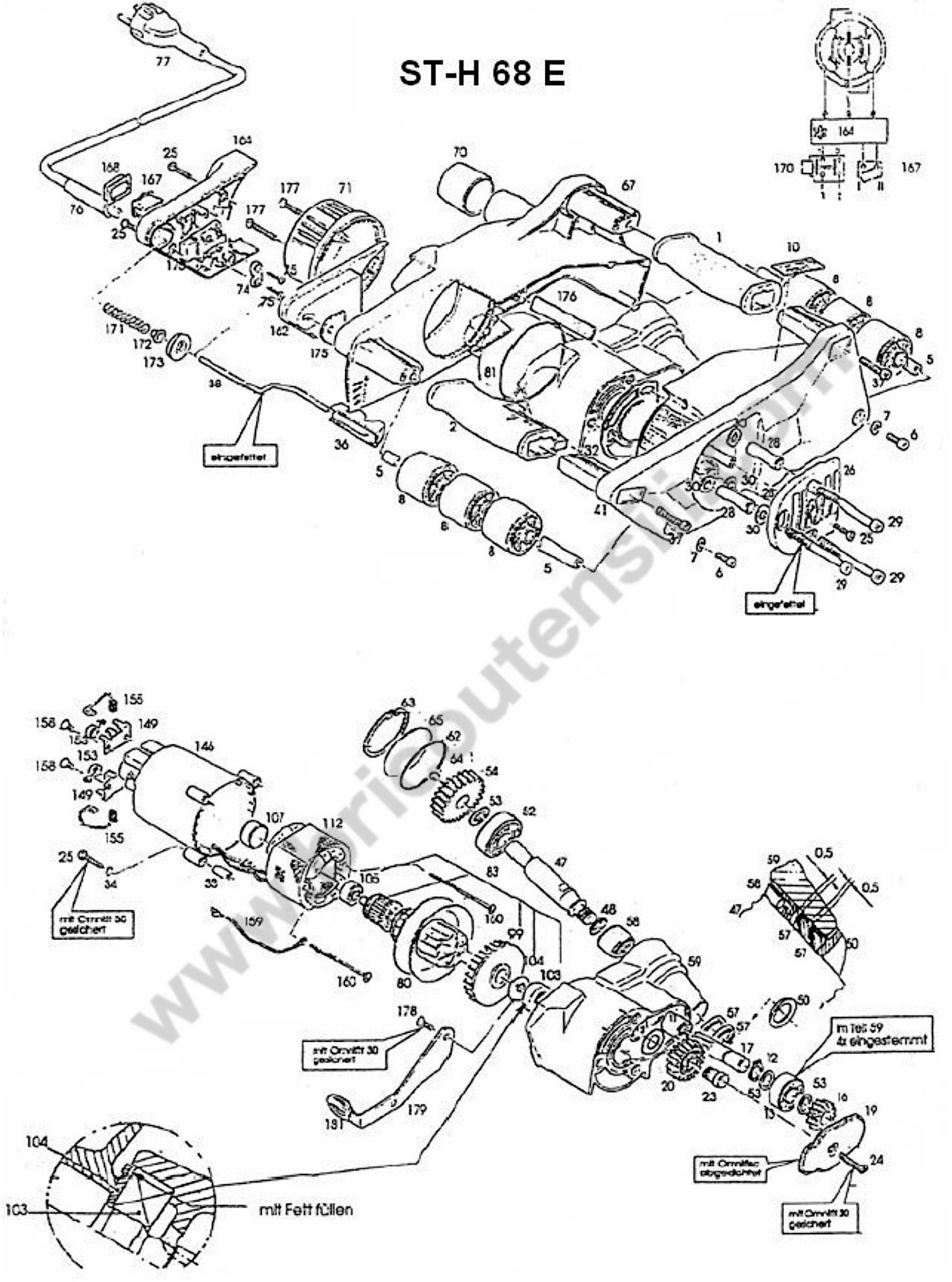

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
photo_cameraImage coming soon 307.239 BOX FOR ST-H68E RED €100.18 Not available for order
1
 photo_cameraImage coming soon 307.001 FRONT HANDLE STH 68 €5.40 Not available for order
2
 photo_cameraImage coming soon 307.002 REAR HANDLE STH68 €7.05 Not available for order
5
 photo_cameraImage coming soon 307.005 PIN ST68H €10.24 Not available for order
10
 photo_cameraImage coming soon 307.010 DATA PLATE STH68 €3.22 Not available for order
11
 photo_cameraImage coming soon 307.011 ROLLER BEARING HK 1516 €6.32 Not available for order
13
 photo_cameraImage coming soon 307.013 BALL BEARING 6202 €8.44 Not available for order
16
 photo_cameraImage coming soon 307.016 GEAR STH68 €28.07 Not available for order
17
 photo_cameraImage coming soon 307.017 TREE DENTATO STH68 €23.03 Not available for order
19
 photo_cameraImage coming soon 307.019 COVER GEAR STH68 €1.73 Not available for order
20
 photo_cameraImage coming soon 307.020 RING GEAR COMPLETE STH68 €40.90 Not available for order
23
 photo_cameraImage coming soon 307.023 COMPASS CENTERING STH68 €6.75 Not available for order
26
 photo_cameraImage coming soon 307.026 COVER AIR INTAKE STH68 €2.61 Not available for order
28
 photo_cameraImage coming soon 307.028 DISTANCE STH68 €2.26 Not available for order
32
 photo_cameraImage coming soon 307.032 WASHER BRAKE STH68 €4.03 Not available for order
36
 photo_cameraImage coming soon 307.036 BUTTON SWITCH STH68 €1.65 Not available for order
38
 photo_cameraImage coming soon 307.038 REED CONTACT STH68 €3.45 Not available for order
41
 photo_cameraImage coming soon 307.041 HOUSING RIGHT STH68 €50.19 Not available for order
47
 photo_cameraImage coming soon 307.047 TREE DOOR CUTTERS COMPL.STH68 €36.40 Not available for order
50
 photo_cameraImage coming soon 307.050 WASHER PROTECTIVE STH68 €3.05
52
 Ball Bearing 6302 for Chaser Rurmec ST-H68E 307.052 Ball Bearing 6302 for Chaser Rurmec ST-H68E €12.56
53
 Protective Washer SS15-21 for Chaser Rurmec ST-H68E 307.053 Protective Washer SS15-21 for Chaser Rurmec ST-H68E €0.51
54
 Gear for Chaser Rurmec ST-H68E 307.054 Gear for Chaser Rurmec ST-H68E €39.71
57
 Shaft Seal For Groover Rurmec ST-H68E 307.057 Shaft Seal For Groover Rurmec ST-H68E €3.84
58
 Needle Bearing HK2016 For Groover Rurmec ST-H68E 307.058 Needle Bearing HK2016 For Groover Rurmec ST-H68E €12.50
65
 photo_cameraImage coming soon 307.065 WASHER CLOSING STH68 €4.47 Not available for order
67
 photo_cameraImage coming soon 307.067 CASING LEFT STH68 €46.49 Not available for order
71
 photo_cameraImage coming soon 307.071 COVER ENGINE STH68 €7.56 Not available for order
77
 photo_cameraImage coming soon 307.077 CABLE STH68 €18.98 Not available for order
80
 photo_cameraImage coming soon 307.080 FAN SLEEVE STH68 €2.79 Not available for order
99
 photo_cameraImage coming soon 313.136 FAN EH25-SD3500-STH68 €2.09 Not available for order
103
 photo_cameraImage coming soon 313.140 BALL BEARING 6001-LLB €9.65 Not available for order
105
 photo_cameraImage coming soon 313.142 BALL BEARING 608-C3 LLB €8.14 Not available for order
112
 photo_cameraImage coming soon 307.112 STATOR STH68 €107.33 Not available for order
146
 photo_cameraImage coming soon 307.146 HOUSING MOTOR STH68 €9.95 Not available for order
149
 photo_cameraImage coming soon 313.171 BRUSH HOLDER FLANGED €11.56 Not available for order
160
 photo_cameraImage coming soon 307.160 MAGNETIC SCREW 4x70 EH25 €3.64 Not available for order
162
 photo_cameraImage coming soon 307.162 COVER STH68 €4.84 Not available for order
164
 photo_cameraImage coming soon 307.164 BOX BREAK. C / DISP.ELETTR. €89.44 Not available for order
167
 photo_cameraImage coming soon 307.167 ROCKER SWITCHES WK3A6 €5.40 Not available for order
168
 photo_cameraImage coming soon 307.168 CUP DUST €1.84 Not available for order
170
 photo_cameraImage coming soon 307.170 PRESSURE SWITCH €6.31 Not available for order
177
 photo_cameraImage coming soon 307.177 SCREW KB 40X20 EH25-SD3500 €3.01 Not available for order
179
 photo_cameraImage coming soon 307.179 REGULATOR DEPTH 'COMPL. €7.60 Not available for order

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Rurmec Spare Parts for Groover ST-H68E

Rurmec Genuine spare parts or replacement parts for to repair Groover ST-H68E.

In the following table, look for the model of the Groover and the respective parts of the code.


Groovers Rurmec ST-H68E
0 307.239 BOX FOR ST-H68E RED
1 307.001 FRONT HANDLE STH 68
2 307.002 REAR HANDLE STH68
5 307.005 PIN ST68H
6 307.006 CYLINDER SCREW M 6X16 STH68
7 307.007 WASHER 6 STH68
8 307.008 ROLLER STH68
10 307.010 DATA PLATE STH68
11 307.011 ROLLER BEARING HK 1516
12 307.012 RING SECURITY 15x1
13 307.013 BALL BEARING 6202
16 307.016 GEAR STH68
17 307.017 TREE DENTATO STH68
18 307.018 SPRING CUP K21.8X12,3X0,35
19 307.019 COVER GEAR STH68
20 307.020 RING GEAR COMPLETE STH68
23 307.023 COMPASS CENTERING STH68
24 307.024 SCREW COUNTERSUNK FX-TT 6X30
25 307.025 SCREW 4X20 STH68
26 307.026 COVER AIR INTAKE STH68
28 307.028 DISTANCE STH68
29 307.029 SCREW CYLINDER M 8x80 STH68
30 307.030 WASHER TIGHTENING 8 STH68
32 307.032 WASHER BRAKE STH68
33 313.147 SHORT DISTANCE EH25-SD3500
34 306.021 WASHER GEAR EH25-SD3500
36 307.036 BUTTON SWITCH STH68
37 307.037 SCREW-CYLINDER MC6S TT6X30
38 307.038 REED CONTACT STH68
41 307.041 HOUSING RIGHT STH68
47 307.047 TREE DOOR CUTTERS COMPL.STH68
48 307.048 WASHER CENTERING STH68
50 307.050 WASHER PROTECTIVE STH68
52 307.052 BALL BEARING 6302
53 307.053 WASHER PROTECTIVE SS15-21
54 307.054 GEAR STH68
57 307.057 SEAL SHAFT STH68
58 307.058 ROLLER BEARING HK2016
59 307.059 GEAR HOUSING STH68
62 307.062 O-RING 60x2 STH68
63 307.063 RING SECURITY J60X2
64 314.116 BALL diam. 10-EH25 STH68
65 307.065 WASHER CLOSING STH68
67 307.067 CASING LEFT STH68
70 307.070 CAP STH68
71 307.071 COVER ENGINE STH68
74 313.164 STOPS CABLE CLAMP
75 313.080 SCREW EH25-SD3500-STH68
76 313.176 PIPE PROTECTION CABLE 087
77 307.077 CABLE STH68
80 307.080 FAN SLEEVE STH68
81 307.081 O-RING 84,5X3 STH68
83 307.083 INDUCED V230 KIT 005 + FAN Cushi
99 313.136 FAN EH25-SD3500-STH68
103 313.140 BALL BEARING 6001-LLB
104 313.141 WASHER CALIBRATED 12x18x1
105 313.142 BALL BEARING 608-C3 LLB
107 313.145 SPRING WASHER 14x21,8x0,3K
112 307.112 STATOR STH68
146 307.146 HOUSING MOTOR STH68
149 313.171 BRUSH HOLDER FLANGED
153 316.170 HAIRSPRING EH25-STH68
155 313.152 BRUSHES EH25-SD3500-STH68
158 313.162 COUNTERSUNK HEAD SCREW M 3x8
159 307.159 CABLE STH68
160 307.160 MAGNETIC SCREW 4x70 EH25
162 307.162 COVER STH68
164 307.164 BOX BREAK. C / DISP.ELETTR.
167 307.167 ROCKER SWITCHES WK3A6
168 307.168 CUP DUST
170 307.170 PRESSURE SWITCH
171 307.171 SPRING STH68
172 307.172 FREEZE STH68
173 307.173 CLOSING PLUG STH68
175 307.175 SEAL STH68
176 307.176 SEALING STRIP STH68
177 307.177 SCREW KB 40X20 EH25-SD3500
178 307.178 COUNTERSUNK SCREW 5X12 STH68
179 307.179 REGULATOR DEPTH 'COMPL.
181 307.181 KNOB STH68

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Rurmec websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

ST-H68E

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Rurmec ST-H68E Drawing

Rurmec ST-H68E Drawing

Download (502.08KB)
