Rurmec Angle Grinder SMA 750 Spare Parts
We are
RURMEC original spare parts dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for

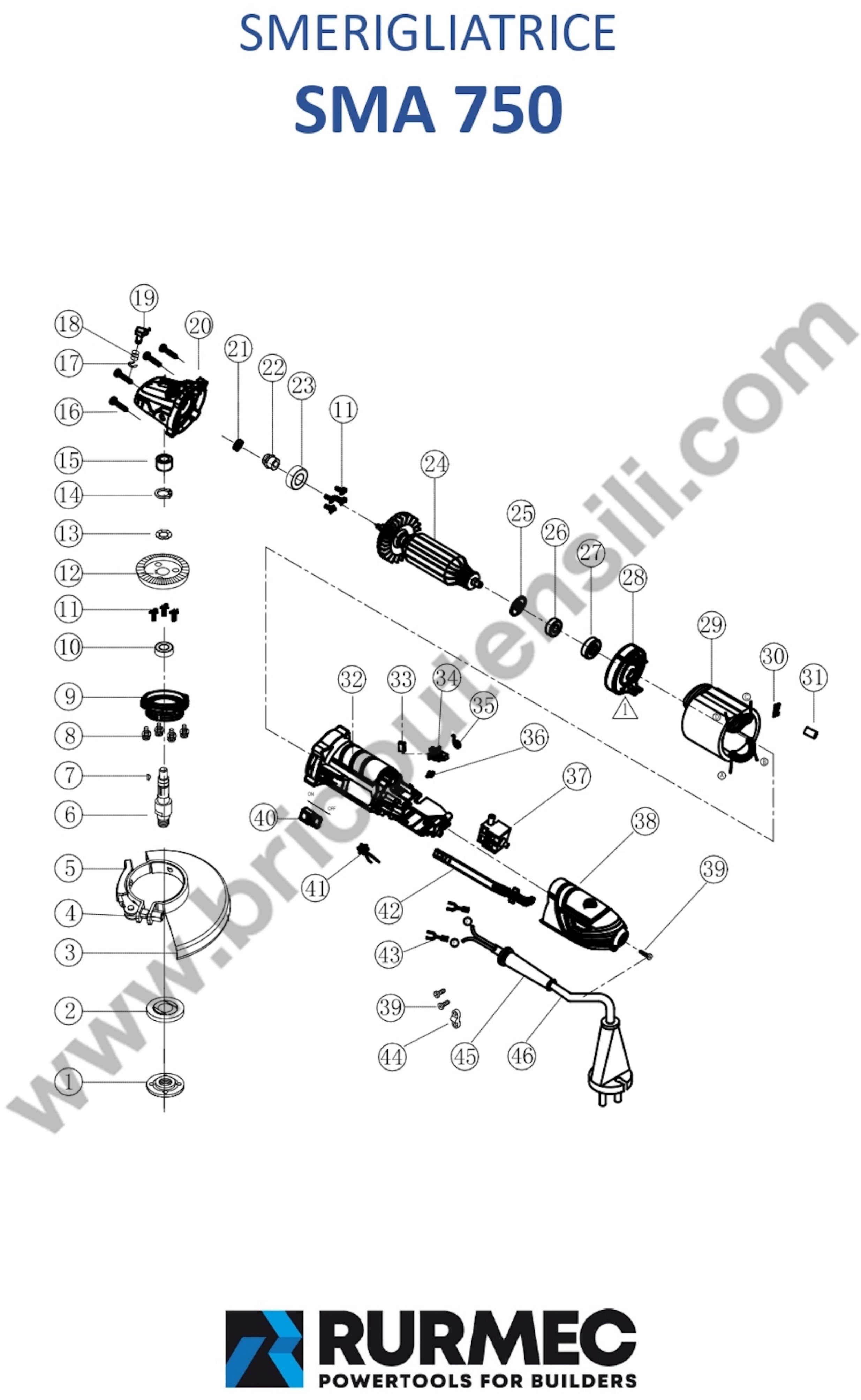

Angle Grinder SMA 750 - 373.005.In the following table, look for the model of the Angle Grinder and the respective parts of the code.

| RURMEC SMA 750 - 373.005 Spare Parts |
| # |
Part Num. |
Description |
| 1 |
373.101 |
UPPER FLANGE |
| 2 |
373.102 |
LOWER FLANGE |
| 3+4+5 |
373.103 |
GUARD |
| 6 |
373.106 |
TOOL SHAFT |
| 7 |
373.107 |
WODROOF 3X3.5X10 |
| 8 |
373.108 |
SCREW M4X16 |
| 9 |
373.109 |
SCATOLA CUSCINETTO |
| 10 |
373.110 |
BEARING 6201 |
| 11 |
373.111 |
SCREW M4X8 |
| 12 |
373.112 |
LARGE GEAR |
| 13 |
373.113 |
GASCKET 10 |
| 14 |
373.114 |
SNAP RING 10 |
| 15 |
371.500.36 |
NEEDLE BEARING HK 0810 |
| 16 |
373.116 |
SCREW ST 4X22 |
| 17 |
373.117 |
SAFETY RING 5 |
| 18 |
373.118 |
KNOB SPRING |
| 19 |
373.119 |
LOCKING KNOB |
| 20 |
373.120 |
GEAR BOX |
| 21 |
373.121 |
NUT M8 |
| 22 |
373.122 |
SMALL GEAR |
| 23 |
373.123 |
BEARING 629 ZZ |
| 24 |
373.124 |
ARMATURE SMA 750 |
| 25 |
373.125 |
DUST RING |
| 26 |
373.126 |
BEARING 627 |
| 27 |
373.127 |
BEARING SLEEVE |
| 28 |
373.128 |
DEFLECTOR |
| 29 |
373.129 |
STATOR SMA 750 |
| 32 |
373.132 |
MOTOR CASE |
| 33 |
373.133 |
BRUSHES (PAIR) |
| 34 |
373.134 |
BRUSH HOLDER (PAIR) |
| 35 |
373.135 |
SPRING BRUSH |
| 36 |
373.136 |
ST 3X8 SCREW |
| 37 |
373.137 |
SWITCH |
| 38 |
373.138 |
MOTOR CASE COVER |
| 39 |
371.500.24 |
ST 4X16 SCREW |
| 40 |
373.140 |
BUTTON |
| 41 |
373.141 |
CAPACITOR |
| 42 |
373.142 |
SWITCH ROD |
| 44 |
373.144 |
CABLE CLAMP |
| 45 |
373.145 |
POWER CORD PROTECTION |
| 46 |
373.146 |
CABLE 750 |
| 47 |
373.147 |
KEY |
| 48 |
373.148 |
SIDE HANDLE |
