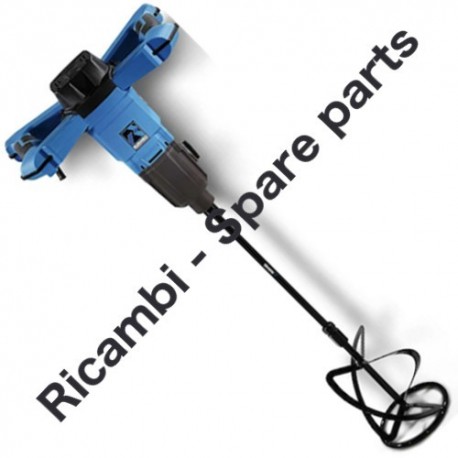

Rurmec Mixer EV23UP Spare Parts

SKU: Rurmec EV23UP
€0.40
VAT included

Rurmec Spare Parts for Mixer EV23UP

We have the original RURMEC Parts for Mixer EV 23 UP, the diagram and parts list and tool repair that help you need to get your tools running like new again.
Rurmec Mixer EV23UP Spare Parts
  • Rurmec Mixer EV23UP Spare Parts
  • Rurmec Mixer EV23UP Spare Parts - Drawing

Rurmec Mixer EV23UP Spare Parts

SKU: Rurmec EV23UP Condition: New
€0.40
VAT included

Rurmec Spare Parts for Mixer EV23UP

We have the original RURMEC Parts for Mixer EV 23 UP, the diagram and parts list and tool repair that help you need to get your tools running like new again.
settings 26 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

26 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 364.001.02 GEARBOX ASSEMBLED €114.39
4
photo_cameraImage coming soon 364.001.04 ASSEMBLED CENTER COVER €47.36
9
photo_cameraImage coming soon 364.001.09 GEAR KNOB €1.49
11
photo_cameraImage coming soon 364.001.11 THIRD STAGE GEAR SHAFT €21.34
12
photo_cameraImage coming soon 364.001.12 SECOND SPEED GEAR €33.67
13
photo_cameraImage coming soon 364.001.13 ASSEMBLED GEAR FORK €4.36
14
photo_cameraImage coming soon 364.001.14 GEAR SHAFT SET SECONDARY €40.52
19
photo_cameraImage coming soon 364.001.60 ARMATURE ASSEMBLED EV23UP €97.17
20
photo_cameraImage coming soon 373.203 BEARING SLEEVE €2.85
21
photo_cameraImage coming soon 364.001.21 ANTI-WIND RING €3.55
23
photo_cameraImage coming soon 364.001.62 FIELD EV23UP €69.25
25
photo_cameraImage coming soon 364.001.24 MOTOR CASING €30.25
26
Rurmec EV22UP Carbon Brush Set 364.001.25 Rurmec EV22UP Carbon Brush Set €15.80
27
Rurmec Brush Holder for Mixer EV22UP 364.001.26 Rurmec Brush Holder for Mixer EV22UP €7.16
28
Rurmec Brush Holder Spring for EV22UP 364.001.27 Rurmec Brush Holder Spring for EV22UP €1.53
29
photo_cameraImage coming soon 364.001.28 WIND SCREEN €2.85
30
photo_cameraImage coming soon 364.001.29 CABLE €22.03
31
photo_cameraImage coming soon 371.002 CABLE PROTECTION €1.49
34-35
photo_cameraImage coming soon 364.001.33 LOWER HANDLE €23.39
36
Rurmec Mixer EV22UP Switch 364.001.35 Rurmec Mixer EV22UP Switch €17.92
37
Rurmec Mixer EV22UP Potentiometer 364.001.36 Rurmec Mixer EV22UP Potentiometer €26.92
38
photo_cameraImage coming soon 364.001.37 SPEED ADJUSTMENT WHEEL €1.49
41
photo_cameraImage coming soon 364.001.40 METAL SUPPORT €116.51
43-44
photo_cameraImage coming soon 364.001.42 UPPER HANDLE €14.85
46
photo_cameraImage coming soon 364.001.45.A SOFT START €47.32
49
photo_cameraImage coming soon 364.001.48 REAR COVER €15.17

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Rurmec Spare Parts for Mixer EV23UP

We have the original RURMEC Parts for Mixer EV 23 UP, the diagram and parts list and tool repair that help you need to get your tools running like new again.

In the following table, look for the model of the Mixer and the respective parts of the code.
RURMEC Parts for Mixer EV 23 UP

RURMEC MIXER EV 23 UP - 364.002 Spare Parts
# Part Num. Description
1 364.001.01 SCREW ST 4.8x55
2 364.001.02 GEARBOX ASSEMBLED
3 371.500.37 INSERT 4x6
4 364.001.04 CENTER COVER ASSEMBLED
5 364.001.05 INNER WHEEL
6 371.950.05 BALL C4
7 371.950.06 SPRING C4
8 364.001.59 O-RING DIA. 23.8x20x1.9
9 364.001.09 GEAR KNOB
10 301.300.57 SCREW ST 3x10
11 364.001.11 THIRD STAGE GEAR SHAFT
12 364.001.12 SECOND GEAR GEAR
13 364.001.13 GEAR FORK ASSEMBLED
14 364.001.14 GEAR SHAFT SECONDARY SET
15 364.001.15 PAPER WASHER
17 364.001.17 ROTOR SPRING
18 371.758 GASKET
19 364.001.60 ARMATURE ASSEMBLED EV23UP
20 373.203 BEARING SLEEVE
21 364.001.21 ANTI-WIND RING
22 364.001.61 SCREW ST 4.8x60
23 364.001.62 FIELD EV23UP
24 364.001.23 EXAGONAL NUT M6
25 364.001.24 MOTOR CASING
26 364.001.25 CARBON BRUSH SET
27 364.001.26 BRUSH HOLDER
28 364.001.27 HELICAL SPRING
29 364.001.28 WIND SCREEN
30 364.001.29 CABLE
31 371.002 CABLE GUARD
32 372.023 CABLE GLAND
33 371.500.24 SCREW ST 4x16
34-35 364.001.33 LOWER HANDLE
36 364.001.35 SWITCH
37 364.001.36 POTENTIOMETER
38 364.001.37 SPEED CONTROLLER WHEEL
39 364.001.38 RIGHT LINE COVER
40 364.001.39 LEFT LINE COVER
41 364.001.40 METAL SUPPORT
42 364.001.41 SCREW M 6x20
43-44 364.001.42 UPPER HANDLE
45 364.001.44 ALARM CONTACT PLATE
46 364.001.45.A ELECTRONIC BOARD
47 364.001.46 ST 3x25 SCREW
48 364.001.47 COVER LAMP
49 364.001.48 REAR COVER
