Rurmec RH 3200 Rotary Hammer Spare Parts

SKU: Rurmec RH3200
€1.22
VAT included

Rurmec RH 3200 Rotary Hammer Spare Parts

We are RURMEC original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Rotary Hammer RT 24.

Rurmec RH 3200 Rotary Hammer Spare Parts
  • Rurmec RH 3200 Rotary Hammer Spare Parts
  • Rurmec RH 3200 Rotary Hammer Spare Parts - Drawing

Rurmec RH 3200 Rotary Hammer Spare Parts

SKU: Rurmec RH3200 Condition: New
€1.22
VAT included

Rurmec RH 3200 Rotary Hammer Spare Parts

We are RURMEC original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Rotary Hammer RT 24.

settings 67 spare parts

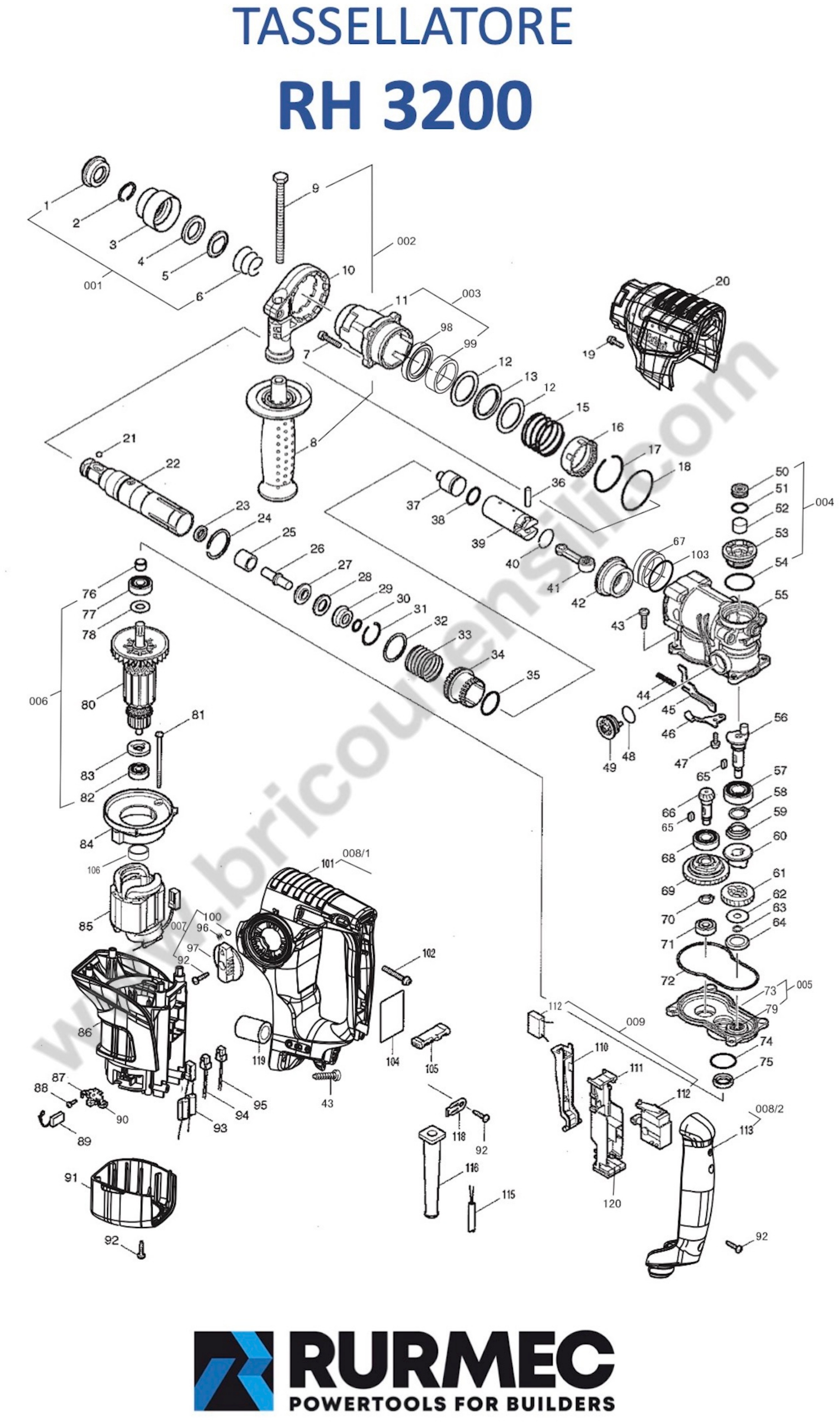

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

67 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
3
photo_cameraImage coming soon 354.103 CHUCK COVER €1.64
4
photo_cameraImage coming soon 354.104 STOPPER 21X32X6 €1.64
8
photo_cameraImage coming soon 354.108 SIDE HANDLE €12.73
9
photo_cameraImage coming soon 354.109 SCREW M8X110 €3.17
10
photo_cameraImage coming soon 354.110 HANDLE HOLDER €6.17
11
photo_cameraImage coming soon 354.111 BARREL €15.67
13
photo_cameraImage coming soon 354.113 DAMPER €1.34
14
photo_cameraImage coming soon 354.179 NEEDLE BEARING HK0810 €6.20
16
photo_cameraImage coming soon 354.116 SLEEVE €1.34
20
photo_cameraImage coming soon 354.120 CRANK HOUSING COVER €15.67
22
photo_cameraImage coming soon 354.122 TOOL HOLDER ASSEMBLED €37.98
23
photo_cameraImage coming soon 354.123 OIL SEAL €1.64
25
photo_cameraImage coming soon 354.125 SLEEVE €3.17
26
photo_cameraImage coming soon 354.126 IMPACT BOLT €9.40
27
photo_cameraImage coming soon 354.127 RING €3.87
29
photo_cameraImage coming soon 354.129 COVER €3.87
30
photo_cameraImage coming soon 354.130 O-RING 16X3.5 €1.64
33
photo_cameraImage coming soon 354.133 SPRING 1.6 €1.95
34
photo_cameraImage coming soon 354.134 LINK GEAR €12.19
36
photo_cameraImage coming soon 354.136 PIN 6X22 €1.74
37
photo_cameraImage coming soon 354.137 PISTON DH 3200 €6.20
38
photo_cameraImage coming soon 354.138 O-RING 22,4X3,1 OF THE PISTON €1.64
39
photo_cameraImage coming soon 354.139 CYLINDER €9.20
41
photo_cameraImage coming soon 354.141 CONNECTING ROD €7.73
42
photo_cameraImage coming soon 354.142 BEVEL GEAR €22.86
45
photo_cameraImage coming soon 354.145 SELECTOR SUPPORT €1.74
46
photo_cameraImage coming soon 354.146 SELECTOR FIXING PLATE €1.74
49
photo_cameraImage coming soon 354.149 SELECTOR KNOB €2.35
53
photo_cameraImage coming soon 354.153 COVER €2.04
55
photo_cameraImage coming soon 354.155 GEAR CASE €45.60
56
photo_cameraImage coming soon 354.156 CRANCK SHAFT €23.77
57
photo_cameraImage coming soon 354.157 BALL BEARING 6002 €6.20
60
photo_cameraImage coming soon 354.160 CLUTCH CAM €7.73
61
photo_cameraImage coming soon 354.161 DRIVE GEAR Z-29 €10.67
66
photo_cameraImage coming soon 354.166 BEVEL GEAR €18.72
67
photo_cameraImage coming soon 354.167 BEARING COLLAR €4.68
68
photo_cameraImage coming soon 354.168 BALL BEARING 6001 €5.90
69
photo_cameraImage coming soon 354.169 CLUTCH ASSEMBLED €36.46
71
photo_cameraImage coming soon 354.171 BALL BEARING 608 €3.87
72
photo_cameraImage coming soon 354.172 OIL SEAL €4.64
73
photo_cameraImage coming soon 354.173 GEARCASE COVER €12.19
75
photo_cameraImage coming soon 354.175 OIL SEAL 12X22X4,5 €2.35
76
photo_cameraImage coming soon 354.176 OIL SEAL €1.64
77
photo_cameraImage coming soon 354.177 BALL BEARING 6000 €5.40
79
photo_cameraImage coming soon 354.179 NEEDLE BEARING HK0810 €6.20
80
photo_cameraImage coming soon 354.180 ARMATURE + FAN DH 3200 €68.34
81
photo_cameraImage coming soon 354.181 ST SCREW 4,2X65 €1.34
82
photo_cameraImage coming soon 354.182 BALL BEARING 627 €4.68
84
photo_cameraImage coming soon 354.184 BAFFLE €3.17
85
photo_cameraImage coming soon 354.185 FIELD ASSY DH 3200 €53.11
86
photo_cameraImage coming soon 354.186 HOUSING MOTOR €29.81
87
photo_cameraImage coming soon 354.187 BRUSHE HOLDER €15.00
89
photo_cameraImage coming soon 354.189 CARBON BRUSHE SET €19.90
90
photo_cameraImage coming soon 354.190 BRUSH SPRING €3.50
91
photo_cameraImage coming soon 354.191 REAR COVER €3.87
93
photo_cameraImage coming soon 354.193 CHOKE COIL UNIT €3.34
94
photo_cameraImage coming soon 354.194 LEAD UNIT 1 €1.64
95
photo_cameraImage coming soon 354.195 LEAD UNIT 2 €1.64
97
photo_cameraImage coming soon 354.197 CHANGE LEVER CPL. €1.64
98
photo_cameraImage coming soon 354.198 OIL SEAL 25X35X7 €3.17
99
photo_cameraImage coming soon 354.199 NEEDLE BEARING HK3012 €4.68
101
photo_cameraImage coming soon 354.201 HANDLE €24.19
110
photo_cameraImage coming soon 354.210 SWITCH BUTTON €1.64
111
photo_cameraImage coming soon 354.211 SWITCH HOLER CPL €2.35
112
photo_cameraImage coming soon 354.212 SWITCH €25.09
113
photo_cameraImage coming soon 354.213 HANDLE COVER €12.19
115
photo_cameraImage coming soon 354.215 CORD DH 3200 €21.33
116
photo_cameraImage coming soon 354.216 CORD GUARD €2.35

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Rurmec RH 3200 Rotary Hammer Spare Parts

We are RURMEC original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Rotary Hammer RH 3200 - 354.001.

In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
Rurmec RH 3200 - 354.001
Rurmec ROTARY HAMMER RH 3200 - 354.001 Spare Parts
# Part Num. Description
1 354.101 FRONT CAP
2 354.102 RING SPRING 19X2MM
3 354.103 CHUCK COVER
4 354.104 STOPPER 21X32X6
5 354.105 GUIDE WASHER
6 354.106 COMPRESSION SPRING 1.5
7 354.107 SCREW M5X25
8 354.108 SIDE HANDLE
9 354.109 SCREW M8X110
10 354.110 HANDLE HOLDER
11 354.111 BARREL
12 354.112 WASHER 31,1X41,3X1,5
13 354.113 DAMPER
14 354.179 NEEDLE BEARING HK0810
15 354.115 SPRING 1.8
16 354.116 SLEEVE
17 354.117 0-RING 44X1,6
18 354.118 O-RING 49X1.5
19 354.119 SCREW M4X16
20 354.120 CRANK HOUSING COVER
21 354.121 STEEL BALL C 7.14
22 354.122 TOOL HOLDER ASSEMBLED
23 354.123 OIL SEAL
24 354.124 RETAINING RING 28.4X30.3X1.5
25 354.125 SLEEVE
26 354.126 IMPACT BOLT
27 354.127 RING
28 354.128 CUSHION RING
29 354.129 COVER
30 354.130 O-RING 16X3.5
31 354.131 O-RING 27.3X2
32 354.132 WASHER 29,3X33,6X1
33 354.133 SPRING 1.6
34 354.134 LINK GEAR
35 354.135 O-RING 28X1.3
36 354.136 PIN 6X22
37 354.137 PISTON DH 3200
38 354.138 O-RING 22,4X3,1 OF THE PISTON
39 354.139 CYLINDER
40 354.140 O-RING 24X1
41 354.141 CONNECTING ROD
42 354.142 BEVEL GEAR
43 354.143 SCREW M5X20
44 354.144 SELECTOR SPRING
45 354.145 SELECTOR SUPPORT
46 354.146 SELECTOR FIXING PLATE
47 354.147 SCREW M4X12
48 354.148 SELECTOR O-RING 21,7X1,9
49 354.149 SELECTOR KNOB
50 354.150 VENT PLATE
51 354.151 O-RING 18.5X1.5
52 354.152 FELT
53 354.153 COVER
54 354.154 O-RING 33X1,9
55 354.155 GEAR CASE
56 354.156 CRANCK SHAFT
57 354.157 BALL BEARING 6002
58 354.158 O-RING 15
59 354.159 CONICAL SPRING 1,2
60 354.160 CLUTCH CAM
61 354.161 DRIVE GEAR Z-29
62 354.162 WASHER 8,2X23X6,1
63 354.163 O-RING 8
64 354.164 WASHER 16,4X26,3
65 354.165 WASHER 4X4X10
66 354.166 BEVEL GEAR
67 354.167 BEARING COLLAR
68 354.168 BALL BEARING 6001
69 354.169 CLUTCH ASSEMBLED
70 354.170 O-RING 10
71 354.171 BALL BEARING 608
72 354.172 OIL SEAL
73 354.173 GEARCASE COVER
74 354.174 O-RING 29X2
75 354.175 OIL SEAL 12X22X4,5
76 354.176 OIL SEAL
77 354.177 BALL BEARING 6000
78 354.178 BEARING WASHER 10.1X20.7X0.5
79 354.179 NEEDLE BEARING HK0810
80 354.180 ARMATURE + FAN DH 3200
81 354.181 ST SCREW 4,2X65
82 354.182 BALL BEARING 627
83 354.183 GASKET
84 354.184 BAFFLE
85 354.185 FIELD ASSY DH 3200
86 354.186 HOUSING MOTOR
87 354.187 BRUSHE HOLDER
88 354.188 ST SCREW 3,2X8
89 354.189 CARBON BRUSHE SET
90 354.190 BRUSH SPRING
91 354.191 REAR COVER
92 354.192 SCREW ST 4.2X16
93 354.193 CHOKE COIL UNIT
94 354.194 LEAD UNIT 1
95 354.195 LEAD UNIT 2
96 354.196 SELECTOR SPRING 0.6
97 354.197 CHANGE LEVER CPL.
98 354.198 OIL SEAL 25X35X7
99 354.199 NEEDLE BEARING HK3012
100 354.200 STEEL BALL C 5.5
101 354.201 HANDLE
102 354.202 SCREW M5X35
103 354.203 O-RING 41X1.4
105 354.205 F/R CHANGE LEVER
110 354.210 SWITCH BUTTON
111 354.211 SWITCH HOLER CPL
112 354.212 SWITCH
113 354.213 HANDLE COVER
115 354.215 CORD DH 3200
116 354.216 CORD GUARD
118 354.218 STRAIN RELIEF
119 354.219 BUSH
120 354.220 STRAIN RELIEF
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s RURMEC websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to RURMEC brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Rurmec RH3200
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Rurmec RH 3200 Drawing

Rurmec RH 3200 Drawing

Download (405.82KB)
