Rurmec Spare Parts for Wall Sander RL1500

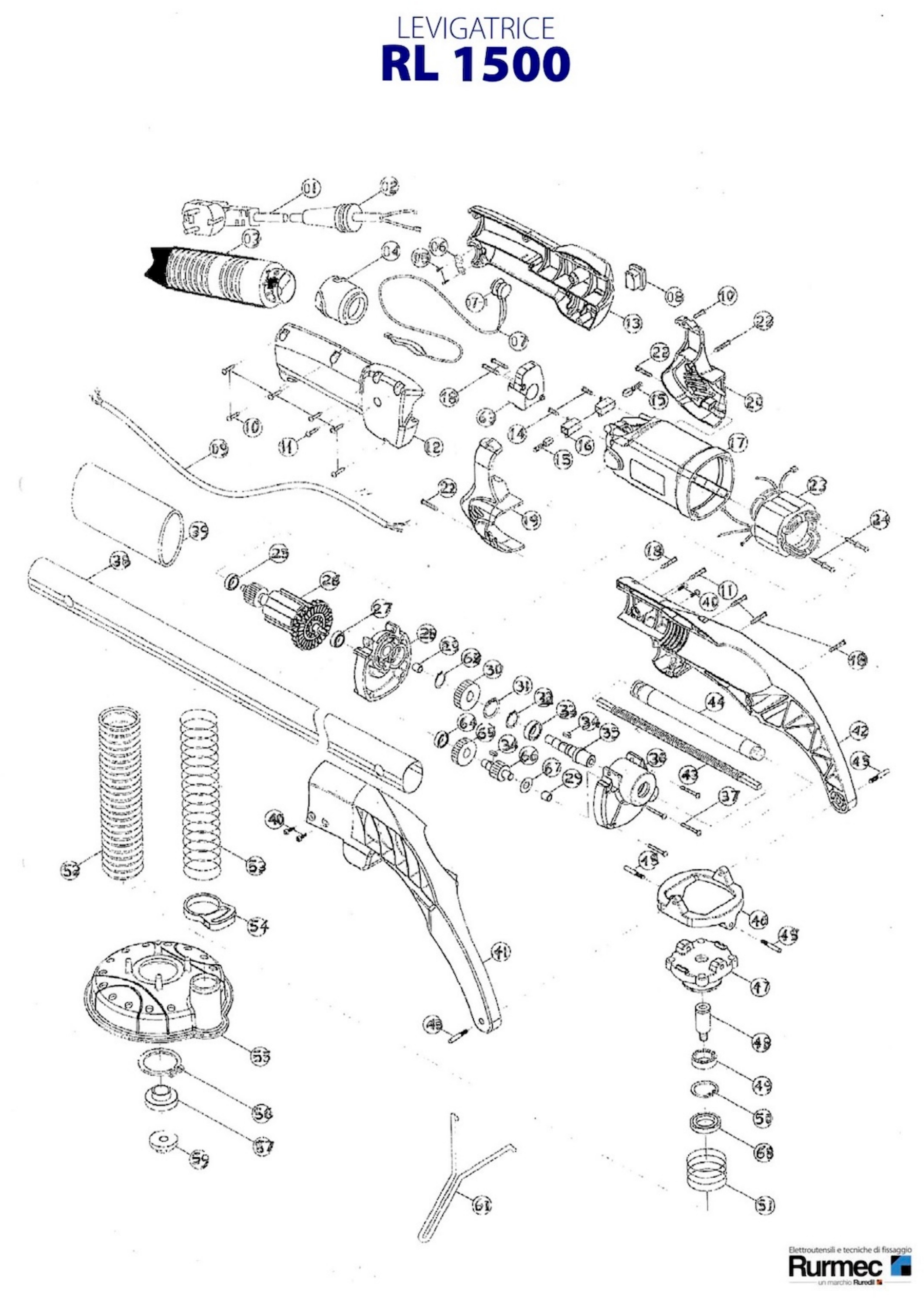

We have the original Spares for RURMEC Wall Sander RL1500, the diagram, parts list and tool repair that help you need to get your tools running like new again.
In the following table, look for the model of the Sander and the respective parts of the code.
| Wall Sander RL1500 |
| # |
Part Num. |
Description |
| 1 |
300.300.04 |
POWER CORD |
| 2 |
367.037 |
CORD GUARD |
| 3 |
300.300.01C |
COMPLETE SUCTION FITTING |
| 4 |
300.300.02 |
CONNECTION |
| 5 |
367.040 |
SCREW M4X14 |
| 6 |
367.039 |
CABLE CLAMP |
| 7 |
300.607 |
RHEOSTAT SPEED CONTROL |
| 8 |
300.300.15.N |
SWITCH |
| 9 |
300.609 |
ROPE |
| 10 |
369.500.70 |
SCREW M4X16 |
| 11 |
367.035 |
SCREW M5X20 |
| 12 |
300.612 |
REAR HANDLE RIGHT |
| 13 |
300.613 |
REAR HANDLE LEFT |
| 14 |
201.035 |
SCREW M4X8 |
| 15 |
300.615 |
CARBON BRUSH |
| 16 |
300.616 |
BRUSH HOLDER |
| 17 |
300.201.21 |
MOTOR HOUSING |
| 18 |
300.300.07 |
SCREW M4X20 |
| 19 |
300.619 |
RIGHT ENGINE BRACKET |
| 20 |
300.620 |
LEFT ENGINE BRACKET |
| 22 |
369.041 |
SCREW M4X25 |
| 23 |
300.500.22 |
STATOR |
| 24 |
300.624 |
SCREW M4X60 |
| 25 |
355.051 |
BALL BEARING 608-2RU |
| 26 |
300.626 |
ARMATURE |
| 27 |
300.300.36 |
BALL BEARING 6000 LLU |
| 28 |
300.628 |
COVER GEAR HOUSING |
| 29 |
367.019 |
NEEDLE BEARING HK 0810 |
| 30 |
300.630 |
FIRST GEAR |
| 31 |
300.500.47 |
INTERNAL SEEGER R-28 |
| 32 |
363.554 |
EXTERNAL SEEGER S-12 |
| 33 |
300.300.44 |
BALL BEARING 6001 W |
| 34 |
367.022 |
WOODRUFF 4X4X8 |
| 35 |
300.635 |
SHAFT RL 1500 |
| 36 |
300.636 |
GEAR BOX |
| 37 |
300.637 |
SCREW M4X45 |
| 38 |
300.638 |
FRAME RL 1500 |
| 39 |
300.639 |
RUBBER HANDLE |
| 40 |
300.640 |
SCREW M5X10 |
| 41 |
300.641 |
RIGHT FORK |
| 42 |
300.642 |
LEFT FORK |
| 43 |
300.300.49 |
SECONDARY TRANSMISSION SHAFT 320mm |
| 44 |
300.644 |
SHAFT COVER RL 1500 |
| 45 |
300.645 |
SPECIAL SCREW M5 |
| 46 |
300.300.72 |
BASIC GUIDE |
| 47 |
300.300.56 |
HOLDER PAD |
| 48 |
300.648 |
CONNECTION SHAFT |
| 49 |
300.300.58 |
BALL BEARING 6002 2RSH |
| 50 |
300.300.59 |
INTERNAL SEEGER R-32 |
| 51 |
300.300.60 |
SPRING |
| 52 |
300.300.61 |
SUCTION HOSE |
| 53 |
300.300.62 |
SPRING |
| 54 |
300.300.63 |
CLAMP |
| 55 |
300.655 |
SUCTION HOOD |
| 56 |
300.300.65 |
SEEGER EXTERNAL S-40 |
| 57 |
300.657 |
FLANGE 22,2mm |
| 59 |
300.659 |
NUT |
| 61 |
300.661 |
SERVICE KEY |
| 62 |
300.300.35 |
SEEGER S-10 |
| 63 |
300.500.11 |
ELECTRONIC CARD |
| 64 |
304.033 |
BALL BEARING 608 ZZ |
| 65 |
300.665 |
SECOND GEAR |
| 66 |
300.666 |
PINION |
| 67 |
300.667 |
WASHER |
| 68 |
300.300.75 |
DUST WASHER 20X32X5 |
