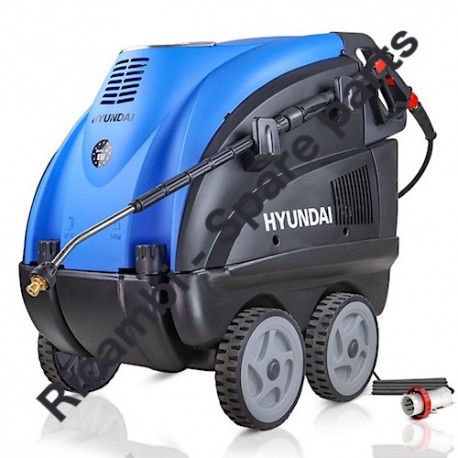

Lavorwash S.p.A.

Lavor NPX 1813XP (HHDW200H HYUNDAI) Parts

SKU: Lavor NPX 1813XP - 8.620.0633
€54.79
VAT included

Lavor Original Parts for Pressure Cleaner NPX 1813XP (HHDW200H HYUNDAI)

Lavor original spare parts for to replace broken parts for to fix Pressure Cleaner NPX 1813XP T 400/50-GR-C/SP.TRIF.(HHDW200H HYUNDAI)  8.620.0633.

Pressure Cleaner NPX 1813XP (HHDW200H HYUNDAI) 8.620.0633
Lavor NPX 1813XP (HHDW200H HYUNDAI) Parts
  • Lavor NPX 1813XP (HHDW200H HYUNDAI) Parts
  • Lavor NPX 1813XP (HHDW200H HYUNDAI) Parts Diagram
  • Lavor NPX 1813XP (HHDW200H HYUNDAI) Parts Diagram - 1
  • Lavor NPX 1813XP (HHDW200H HYUNDAI) Parts Diagram - 2
  • Lavor NPX 1813XP (HHDW200H HYUNDAI) Parts Diagram - 3
  • Lavor NPX 1813XP (HHDW200H HYUNDAI) Parts Diagram - 4
  • Lavor NPX 1813XP (HHDW200H HYUNDAI) Parts Diagram - 5
  • Lavor NPX 1813XP (HHDW200H HYUNDAI) Parts Diagram - 6
  • Lavor NPX 1813XP (HHDW200H HYUNDAI) Parts Diagram - 7
  • Lavor NPX 1813XP (HHDW200H HYUNDAI) Parts Diagram - 8
  • Lavor NPX 1813XP (HHDW200H HYUNDAI) Parts Diagram - 9
  • Lavor NPX 1813XP (HHDW200H HYUNDAI) Parts Diagram - 10
Lavorwash S.p.A.

Lavor NPX 1813XP (HHDW200H HYUNDAI) Parts

SKU: Lavor NPX 1813XP - 8.620.0633 Condition: New
€54.79
VAT included

Lavor Original Parts for Pressure Cleaner NPX 1813XP (HHDW200H HYUNDAI)

Lavor original spare parts for to replace broken parts for to fix Pressure Cleaner NPX 1813XP T 400/50-GR-C/SP.TRIF.(HHDW200H HYUNDAI)  8.620.0633.

Pressure Cleaner NPX 1813XP (HHDW200H HYUNDAI) 8.620.0633
settings 128 spare parts
description 11 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
128 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

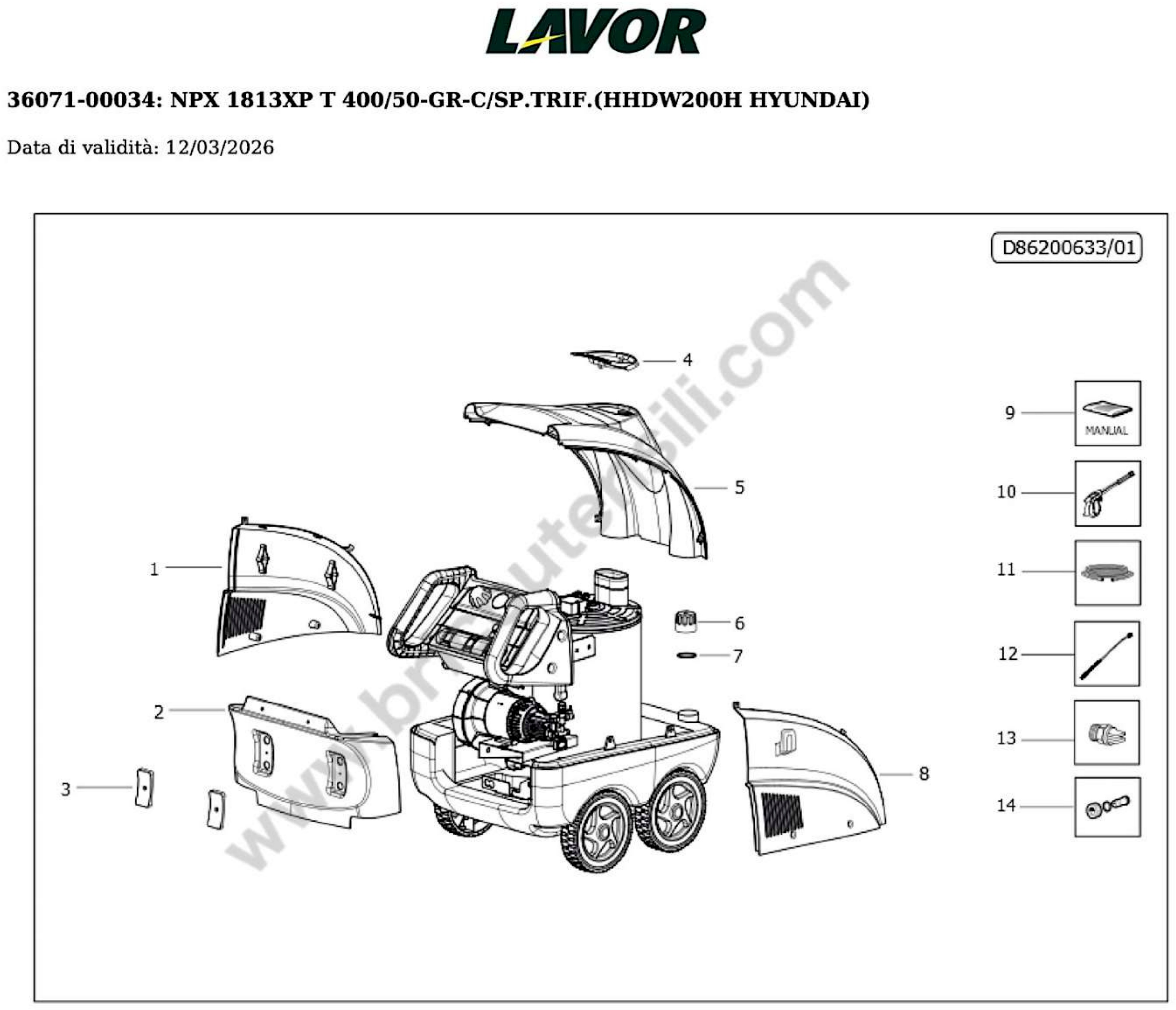

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5.611.0141 LEF SIDE PANEL NPX-LKX-BLACK-W/HOOKS €54.79
2
 photo_cameraImage coming soon 4.613.0182 REAR FAIRING NPX-LKX'04 -BLACK- €48.58
3
 photo_cameraImage coming soon 4.608.0184 WINDING SEAT CLOSURE CAP. NPX'04 BLACK €5.71
4
 photo_cameraImage coming soon 4.607.0726 PROTECTIVE STAINLESS STEEL SHEET NPX/LKX CHIMNEY €15.98
5
 photo_cameraImage coming soon 4.613.0289 UPPER FAIRING NPX-LKX04 -GR- RAL.7046 €78.56
6
 photo_cameraImage coming soon 4.608.0082 GAS OIL-CHEM TANK CAP €15.27
7
 photo_cameraImage coming soon 3.200.0038 O-RING GASKET 53,65X2,62 REF.3212 €1.70
8
 photo_cameraImage coming soon 5.611.0142 RH SIDE PANEL NPX-LKX-BLACK-W/HOOK €54.79
10
 photo_cameraImage coming soon 3.700.0030 GUN AL55 350bar 45l / min 160Â ° C + sw8 3 / 8M + S7 + M22 (30129100) €64.28
11
 photo_cameraImage coming soon 4.618.0143 HIGH PRESSURE HOSE 5/16 315BAR R2 L=10000 1/2 TWIST.-3/8 €142.39
12
 700 mm Lance 1/8 "F High/Low Pressure for Pressure Washers Lavor 3.701.0015 700 mm Lance 1/8 "F High/Low Pressure for Pressure Washers Lavor €37.13
13
 photo_cameraImage coming soon 3.103.0049 HIGH PRESSURE NOZZLE 15040 1/8M (C25040) €16.32
14
 photo_cameraImage coming soon 5.611.0078 HOSE FITTING €10.13

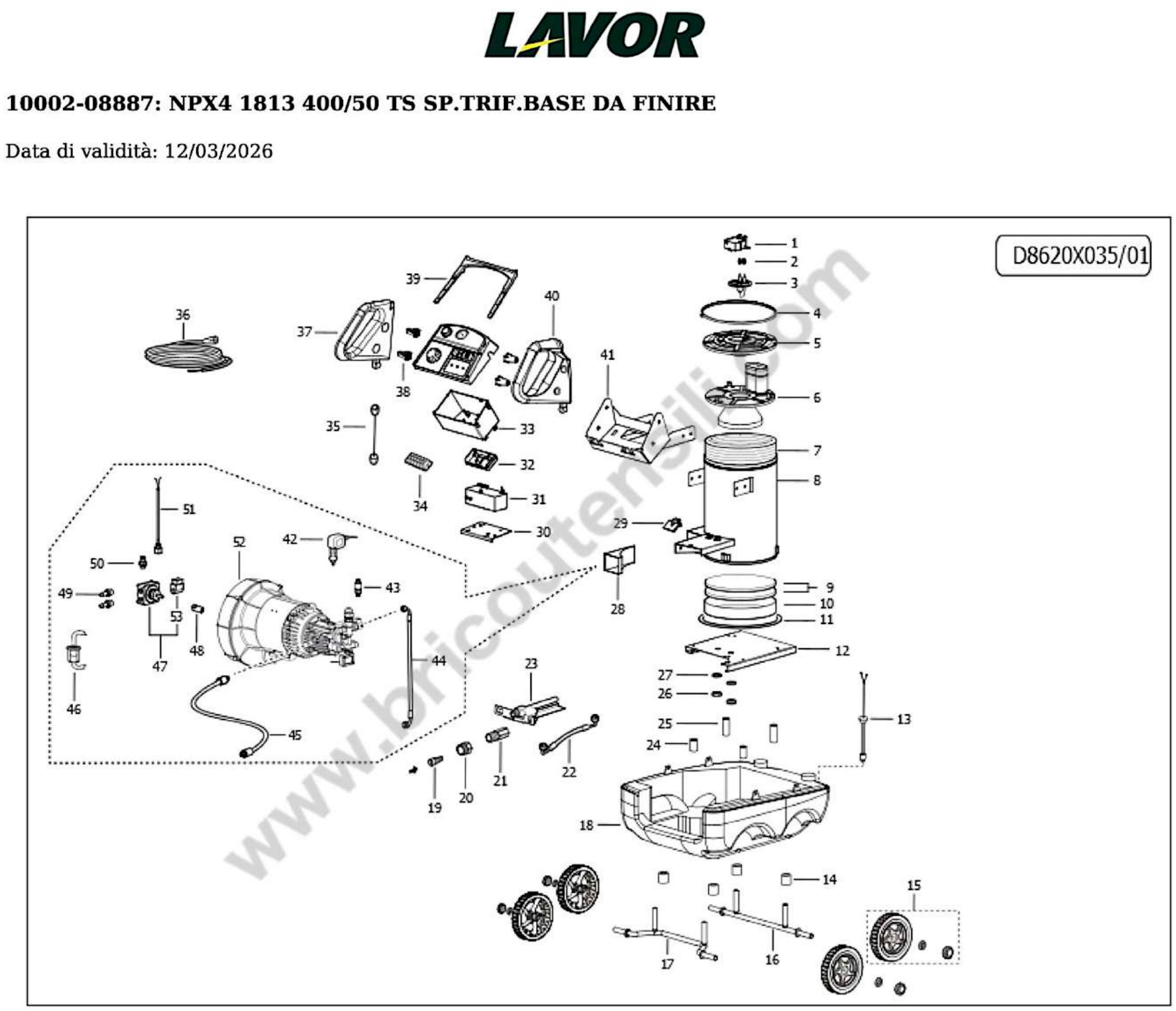

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
photo_cameraImage coming soon 5.601.0493 MTP LWT 400/50 2P 135 H1 30 11.35" for NPX 1813 TS €1,074.77
photo_cameraImage coming soon 5.609.0128 THERMOSTAT BULB BODY ASSEMBLY LKX/NPX'04 EXIT.INN.RAP. ZNT BRASS €113.80
photo_cameraImage coming soon 5.611.0105 NPX/LKX4 TRI F.16A DASHBOARD ASSEMBLY €218.37
photo_cameraImage coming soon 5.611.0169 EXT. BOILER COVER FOR PERFORATED CONE BAND €84.59
photo_cameraImage coming soon 5.611.0335 Complete Burner Flange 1.25-45B (Rilsan) Left With Pre-Filled Flame Cone €10.24
1
 Lavor LKX 2015 Ignition Transformer 5.609.0344 Lavor LKX 2015 Ignition Transformer €63.65
2
 photo_cameraImage coming soon 4.608.0271 ISOL.GASKET FOR H.T. TRANSFER PROF. €3.36
3
 photo_cameraImage coming soon 5.611.0335 Complete Burner Flange 1.25-45B (Rilsan) Left With Pre-Filled Flame Cone €10.24
4
 photo_cameraImage coming soon 3.099.0719 HEATING BAND/330/G8 FIXING OF HEATING COVER TEKNA'04 €19.89
5
 photo_cameraImage coming soon 5.611.0169 EXT. BOILER COVER FOR PERFORATED CONE BAND €84.59
6
 photo_cameraImage coming soon 5.613.0028 INT. COVER CAM.COMB. CHIMNEY L=120 €146.74
8
 photo_cameraImage coming soon 5.613.0274 NPX'04 BOILER BODY PAINTED FOR BAND €140.92
9
 CEMENTED REFRACTORY D.290X20 FOR BOILER 6.605.0247 CEMENTED REFRACTORY D.290X20 FOR BOILER €44.52
10
 photo_cameraImage coming soon 4.607.0006 COIL FIXING STRIP PLATE 20/10 €46.76
11
 Lavor NPX1400 Insulating Rope 4.608.0162 Lavor NPX1400 Insulating Rope €35.27
12
 photo_cameraImage coming soon 5.613.0116 BOILER BASE JOLLY 5 / LKX -VERN ICIATA- €106.07
13
 photo_cameraImage coming soon 3.403.0078 INDICATED. DIESEL LEVEL L=185 W/CABLE L=1320 W/FASTON €54.88
14
 photo_cameraImage coming soon 4.608.0073 SHORT SPACER FOR TANK JOLLY 4/93 €1.74
15
 photo_cameraImage coming soon 6.605.0168 WHEEL D.260X85 FULL BLACK €26.58
16
 photo_cameraImage coming soon 5.613.0402 NPX/LKX FRONT AXLE €34.20
17
 photo_cameraImage coming soon 5.613.0403 REAR AXLE NPX/LKX €30.52
18
 photo_cameraImage coming soon 4.608.0203 DIESEL / DETERGENT TANK J OLLY 5 / LKX €264.90
19
 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 4.008.0031 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 €2.07
20
 photo_cameraImage coming soon 4.006.0088 INTAKE FITTING ADAPTER L=26 M22-3/4G €6.72
21
 photo_cameraImage coming soon 4.606.0019 SUCTION CONNECTOR M22 IDRO COMPACT €5.16
22
 Lavor NPX 1400 Hose 4.618.0043 Lavor NPX 1400 Hose €27.71
23
 photo_cameraImage coming soon 5.609.0128 THERMOSTAT BULB BODY ASSEMBLY LKX/NPX'04 EXIT.INN.RAP. ZNT BRASS €113.80
24
 photo_cameraImage coming soon 4.608.0448 LONG SPACER FOR TANK. JOLLY 4/93 mm57.5 €3.28
25
 photo_cameraImage coming soon 4.608.0448 LONG SPACER FOR TANK. JOLLY 4/93 mm57.5 €3.28
26
 photo_cameraImage coming soon 4.606.0013 COIL FIXING NUT 1/2 BRASS SPEC. €3.25
27
 photo_cameraImage coming soon 3.004.0015 PLAIN WASHER D.22X39X2 UNI6592 €1.63
28
 photo_cameraImage coming soon 4.608.0023 RUBBER SLEEVE JOLLY 4 SNAIL €14.85
29
 photo_cameraImage coming soon 4.607.0072 Substituted by 6.605.0102 MOTOR CLAMP €8.32
30
 photo_cameraImage coming soon 4.607.0293 TLR FIXING PLATE €6.34
31
 photo_cameraImage coming soon 3.402.0026 TLR4FC CONTACTOR €253.26
32
 photo_cameraImage coming soon 4.608.0071 GUIDING CABLE COVER DASHBOARD '93 €6.66
33
 photo_cameraImage coming soon 4.608.0168 NPX4/LKX4/T4 ELECTRICAL BOX €26.96
34
 photo_cameraImage coming soon 3.405.0011 TERMINAL BOARD PA 32/6 €12.60
37
 photo_cameraImage coming soon 4.608.0170 LEFT HANDLE NPX'04-GR-RAL.7021 €47.26
38
 photo_cameraImage coming soon 4.608.0199 BUSH THICKNESS NEW PROFILE HANDLES. €6.72
39
 photo_cameraImage coming soon 4.608.0191 NPX'04 BLACK DASHBOARD FRAME €8.45
40
 photo_cameraImage coming soon 4.608.0169 RIGHT HANDLE NPX'04-GR-RAL.7021 €38.26
41
 photo_cameraImage coming soon 5.613.0192 DASHBOARD SUPPORT/HANDLES NPX/LKX'04 €141.62
42
 photo_cameraImage coming soon 3.704.0009 PRESSURE SWITCH PS2 1/4M 25BAR RED P/N 4090000006 €37.87
43
 photo_cameraImage coming soon 3.714.0026 SAFETY VALVE VLP 100-250BAR-12-17 L/MIN 110GR 1/4M €34.20
44
 photo_cameraImage coming soon 4.618.0035 TUBE R1 PUMP/COIL TG480 €28.57
45
 photo_cameraImage coming soon 4.618.0030 TUBE B.P. D.20X10 3/8M-3/8M. L.450 €26.69
46
 photo_cameraImage coming soon 5.611.0308 GR. DIESEL FILTER (PAPER) NPX SUNTEC PUMP €8.52
48
 Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400 6.605.0173 Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400 €29.06
49
 photo_cameraImage coming soon 4.606.0088 RUBBER HOLDER 1/4 G M D.7 €3.36
51
 photo_cameraImage coming soon 4.612.0043 CABLE FOR DIESEL PUMP L=1000 STRIPPED TERMINALS €5.47
52
 photo_cameraImage coming soon 5.601.0493 MTP LWT 400/50 2P 135 H1 30 11.35" for NPX 1813 TS €1,074.77
53
 photo_cameraImage coming soon 3.414.0010 COIL 230/50HZ FOR DANFOSS GAS PUMP (071N1006) €59.71

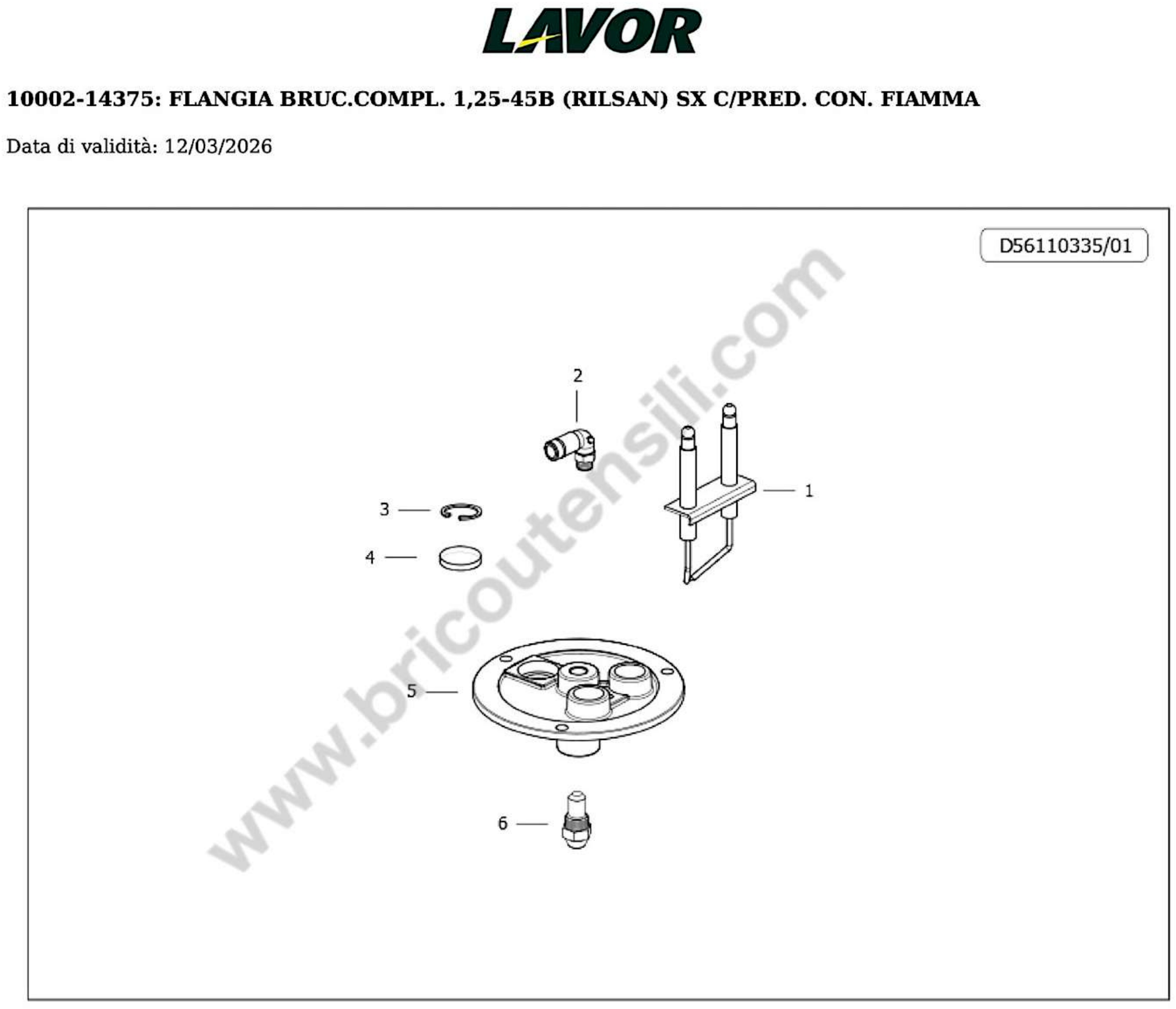

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.614.0004C ELECTRODE O772589000 €14.98
2
 photo_cameraImage coming soon 3.100.0075 CONIC CONNECTION M 1/8 F D.4 CURVED FOR GASOIL HOSE VITON O- €14.98
3
 photo_cameraImage coming soon 3.555.1098 EXTERNAL SEEGER ZJ D.22 (3019003500) €1.63
4
 photo_cameraImage coming soon 3.555.1099 CAP D21,75X2 (3200007400) €4.50
6
 Diesel Nozzle for Pressure Washers Lavor NPX 1400 3.104.0028 Diesel Nozzle for Pressure Washers Lavor NPX 1400 €28.36
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Lavor LKX 2015LP External Cover 5.613.0200 Lavor LKX 2015LP External Cover €40.44
2
 photo_cameraImage coming soon 5.610.0105 DEFLECTOR D.82 €29.76

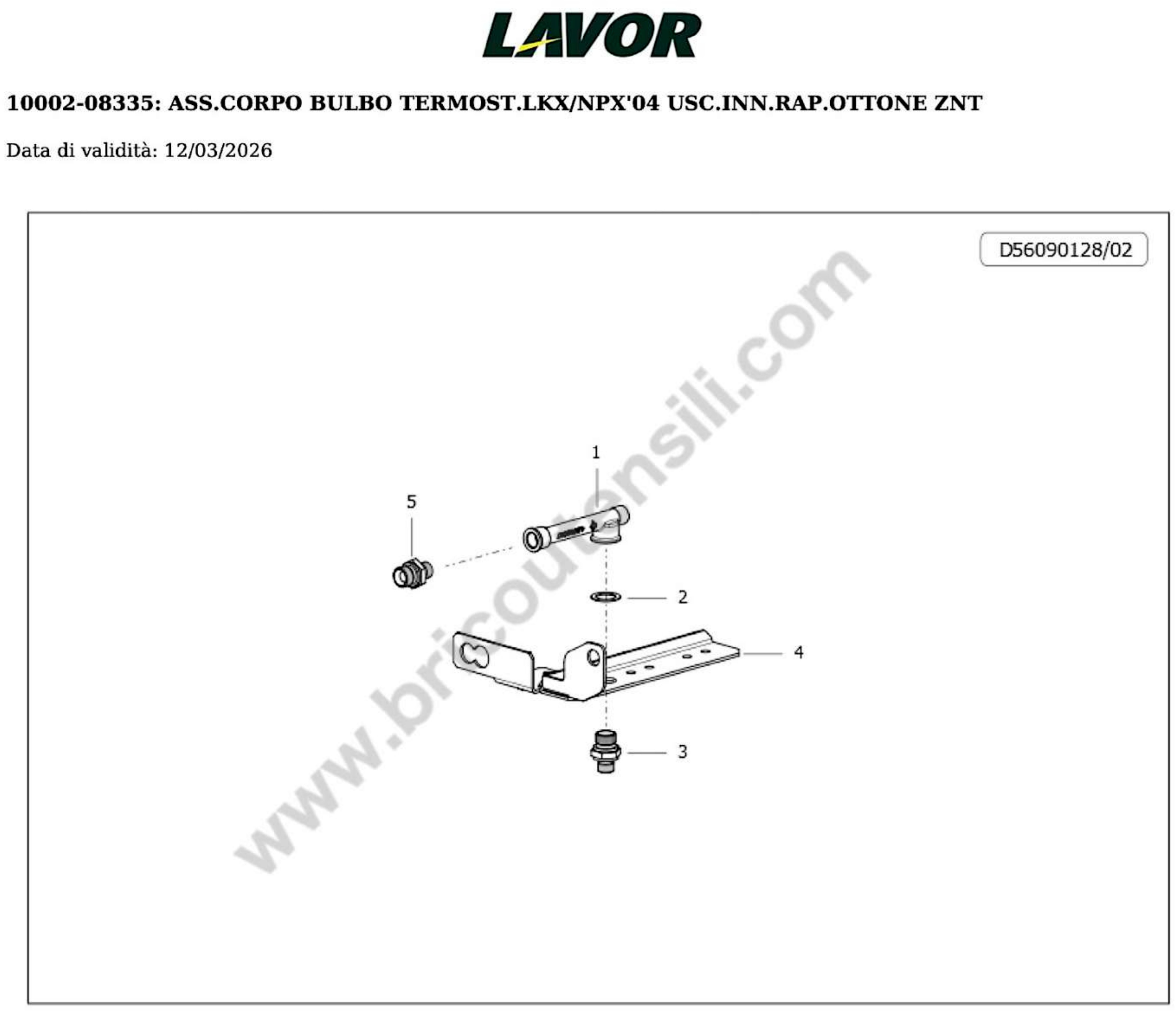

Page 5 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.606.0087 BULB ASSY €49.01
2
 photo_cameraImage coming soon 3.004.0004 ALUMINIUM WASHER 21X30XSP 1,5 €1.74
3
 photo_cameraImage coming soon 3.100.0020 REDUCTION M.GAS/M.GAS 1/2-3/8 €8.03
4
 photo_cameraImage coming soon 5.613.0191 THERMOSTAT/ALARM BULB SUPPORT. NPX/LKX'04 €28.78
5
 photo_cameraImage coming soon 3.100.0018 RAPID COUPLING 3/8 M. 08 (465) €14.98
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
Ceramic Piston Body Guide for Pressure Cleaner Lavor NPX 1400 5.007.0063 Ceramic Piston Body Guide for Pressure Cleaner Lavor NPX 1400 €153.20
Brass Head Injectors 1.9 for Pressure Cleaner Lavor NPX 1400 5.008.0145 Brass Head Injectors 1.9 for Pressure Cleaner Lavor NPX 1400 €243.77
photo_cameraImage coming soon 5.606.0144 MOTOR LW.T 400/50 D. 135 2P H130 X NPX 1500 (MALE CENTRE) €450.14
photo_cameraImage coming soon 5.609.0252 FRONT FLANGE 135 (FEMALE EDGE) €28.29
1
 photo_cameraImage coming soon 4.608.0017 Substituted by 6.605.0086 PUMP SIDE HALF FEMALE SCREW GMV D.150 €79.81
2
 photo_cameraImage coming soon 4.607.0257 FAN CONNECTION €12.02
3
 photo_cameraImage coming soon 4.007.0080 FAN FIXING RING D.25,5 €28.68
4
 PVC Fan for Pressure Washers Lavor NPX 1400 - NPX 1500 4.608.0083 PVC Fan for Pressure Washers Lavor NPX 1400 - NPX 1500 €30.42
5
 photo_cameraImage coming soon 3.099.0054 FEATHER KEY 5X5X20 UNI 6604 €1.74
6
 photo_cameraImage coming soon 4.608.0129 Substituted by 6.605.0086 HALF COVER MOTORSIDE €79.81
7
 photo_cameraImage coming soon 4.606.0114 CONVEYOR THICKNESS FOR MOTOR D.135 €3.36
8
 photo_cameraImage coming soon 5.606.0144 MOTOR LW.T 400/50 D. 135 2P H130 X NPX 1500 (MALE CENTRE) €450.14
9
 photo_cameraImage coming soon 5.609.0252 FRONT FLANGE 135 (FEMALE EDGE) €28.29
10
 photo_cameraImage coming soon 3.001.0029 BEARING €29.76
11
 photo_cameraImage coming soon 4.605.0047 PLATE 11.35' X BALL BEARING €12.68
12
 photo_cameraImage coming soon 4.607.0208 AXIAL BEARING €25.19
13
 photo_cameraImage coming soon 3.200.0002 O-RING GASKET 90X2,5 €1.70
14
 Ceramic Piston Body Guide for Pressure Cleaner Lavor NPX 1400 5.007.0063 Ceramic Piston Body Guide for Pressure Cleaner Lavor NPX 1400 €153.20
15
 O-Ring 12.4x1.78 for Pressure Washers Lavor NPX 1400 - NPX 1500 3.200.0004 O-Ring 12.4x1.78 for Pressure Washers Lavor NPX 1400 - NPX 1500 €1.70
16
 Oil Seal Spacer D.19 for Pressure Washers Lavor NPX 1400 - NPX 1500 4.008.0391 Oil Seal Spacer D.19 for Pressure Washers Lavor NPX 1400 - NPX 1500 €1.70
17
 photo_cameraImage coming soon 4.606.0041 SECOND SEALING HOLDER RING 130/8 ESP.1 €10.35
18
 Brass Head Injectors 1.9 for Pressure Cleaner Lavor NPX 1400 5.008.0145 Brass Head Injectors 1.9 for Pressure Cleaner Lavor NPX 1400 €243.77
19
 photo_cameraImage coming soon 5.009.0207 CAP ASSY €14.27
20
 photo_cameraImage coming soon 4.607.0233 MOTOR AIR CONVOY €39.67
21
 photo_cameraImage coming soon 4.608.0021 SETTING THROTTLE GMV 150 €3.36
22
 photo_cameraImage coming soon 4.608.0022 SETTING THROTTLE LEVER GMV 150 €1.74
23
 photo_cameraImage coming soon 3.100.0075 CONIC CONNECTION M 1/8 F D.4 CURVED FOR GASOIL HOSE VITON O- €14.98
24
 Double Pipe Diesel Pump for Pressure Washer Lavor NPX 1500 3.551.0062 Double Pipe Diesel Pump for Pressure Washer Lavor NPX 1500 €144.48
25
 photo_cameraImage coming soon 3.414.0010 COIL 230/50HZ FOR DANFOSS GAS PUMP (071N1006) €59.71
26
 Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400 6.605.0173 Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400 €29.06
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 7
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3.499.0129 LIGHT TYPE 81F 220V BLACK BODY RED GEM €4.79
2
 photo_cameraImage coming soon 3.401.0063 MICRODISCONNECTOR ETA 3140-F230-P7TI-SGRX-3AC415V-16A €102.75
3
 Lavor Adjustment Knob for MEK 1108 4.608.0164 Lavor Adjustment Knob for MEK 1108 €5.83
4
 Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500 3.107.0004 Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500 €33.35
5
 photo_cameraImage coming soon 4.608.0205 DASHBOARD NPX4/LKX4 THREE-PHASE-GR-W/PAMPOGR. €30.33
6
 Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500 3.403.0091 Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500 €40.24
7
 photo_cameraImage coming soon 3.105.0003 DETERGENT REGULATING COCK WITHRUBBER HOLDER D.7 €37.19
Page 8 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 8
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.605.0117 MOTOR FLANGE 135 €31.45
2
 photo_cameraImage coming soon 3.201.0019 OIL SEAL RING D.25X40X7 DOUBLELIP €14.52
Page 9 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 9
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Lavor MCHPV 1515LP Kit 111 LW 6.005.0120 Lavor MCHPV 1515LP Kit 111 LW €28.38
2
 photo_cameraImage coming soon 6.005.0129 COMPLETE BY-PASS KIT TEST.OCT.'99 TS €75.88
3
 Lavor NPX1400 Outlet Coupling 5.609.0079 Lavor NPX1400 Outlet Coupling €12.26
4
 photo_cameraImage coming soon 6.005.0071 KIT 71 LW NON-RETURN VALVE REPAIR €17.54
5
 photo_cameraImage coming soon 4.606.0001 1/4G CAP €3.36
6
 LAVOR Brass Pump Head for NPX 1400 Pressure Washers 4.606.0085 LAVOR Brass Pump Head for NPX 1400 Pressure Washers €147.90
7
 photo_cameraImage coming soon 5.609.0158 ASSEMBLY CONNECTOR 1/8 G + CAPM7 TS €14.85
8
 photo_cameraImage coming soon 6.005.0293 BOX+MICRO+CABLE 3X1 FOR TS BRASS HEAD '99 €29.18
9
 photo_cameraImage coming soon 6.005.0119 KIT 110 LW HEAD PISTONS BUSHINGS OCT.'99 €34.83
10
 photo_cameraImage coming soon 6.005.0118 LW KIT OF WATER SEAL RINGS BRASS HEAD '99 €48.71
11
 photo_cameraImage coming soon 6.005.0578 KIT 6 VALVES *AUTO SUCTION* (COMP.OR) TEST.OCT.'99 €23.29
12
 photo_cameraImage coming soon 5.609.Y154 HOSE ASSEMBLY D.1 C / OR-SPRING L = 7 wire D.0.4-BALL D.5.5 €6.53
13
 photo_cameraImage coming soon 5.609.0064 VALVE CAP ASSY + OR €13.32
14
 photo_cameraImage coming soon 6.005.0020 KIT 23 LAVOR €29.18
Page 10 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 10
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Lavor Oil Lever Indicator for NPX 1400 3.099.0003 Lavor Oil Lever Indicator for NPX 1400 €4.14
2
 photo_cameraImage coming soon 5.009.0094 BEST FINNED GUIDE BODY ASSEMBLY WITH SEALS €87.38
4
 photo_cameraImage coming soon 6.005.0006 KIT 5 LW OIL SEAL RINGS TEST.OCT'97-'99-BEST-OMNIA €87.37
5
 STEI Screw 3/8" for Pressure Washers Lavor NPX 1400 - NPX 1500 3.002.0004 STEI Screw 3/8" for Pressure Washers Lavor NPX 1400 - NPX 1500 €1.70
6
 photo_cameraImage coming soon 6.005.0032 KIT OF 3 PISTONS D.15 OCT. TEST. '99 €118.99

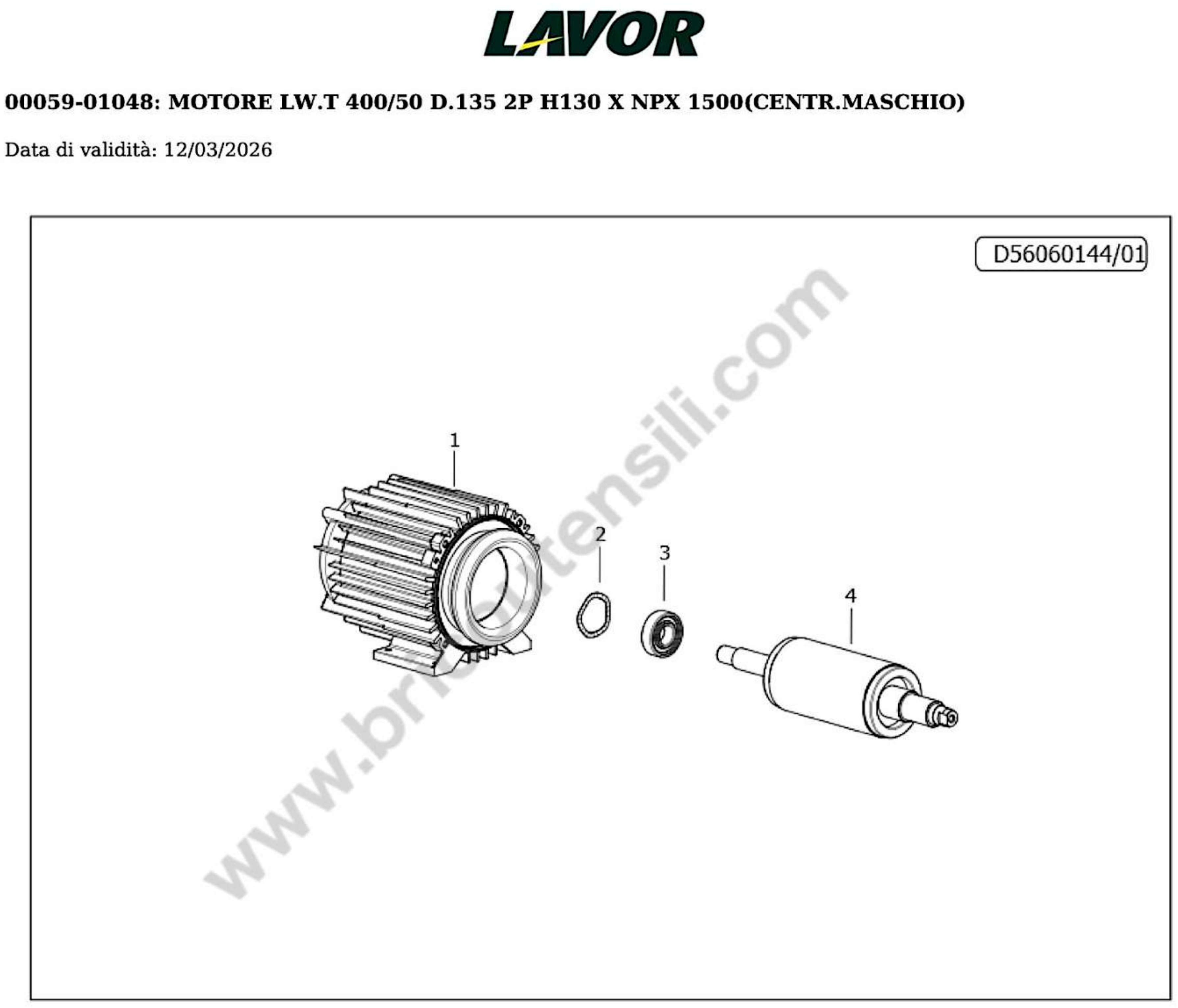

Page 11 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 11
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5.602.0065 LW.T 400/50 2P HOUSING D.135 H.130 (MALE CENTRE) €118.98
2
 photo_cameraImage coming soon 3.099.0002 UNLOADING RING 40X47 €77.91
3
 photo_cameraImage coming soon 3.001.0001 BALL RADIAL BEARING 6204-2Z €14.95
4
 photo_cameraImage coming soon 5.605.0032 ROTOR SHAFT D.70 H130 FOR MOTOR D.135 THREE-PHASE WITH FAN €14.94

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Original Parts for Pressure Cleaner NPX 1813XP (HHDW200H HYUNDAI)

Lavor original spare parts for to replace broken parts for to fix Pressure Cleaner NPX 1813XP T 400/50-GR-C/SP.TRIF.(HHDW200H HYUNDAI)  8.620.0633.

In the following tables, look for the spare part and its respective code.
Lavor NPX 1813XP (HHDW200H HYUNDAI) 8.620.0633

Pressure Cleaner NPX 1813XP ( HYUNDAI ) 8.620.0633
Pag.1
Pos. Codice Description
0 8.620.X035 NPX4 1813 400/50 TS THREE-WAY BASE SPRING TO BE FINISHED
1 5.611.0141 LEFT SIDE PANEL NPX-LKX-BLACK-W/HOOKS
2 4.613.0182 REAR FAIRING NPX-LKX'04-BLACK-
3 4.608.0184 COVER CAP FOR WINDOW REGULATOR HOUSING NPX'04 BLACK
4 4.607.0726 STAINLESS STEEL CHIMNEY PROTECTION PLATE NPX/LKX
5 4.613.0289 UPPER FAIRING NPX-LKX04-GR-RAL.7046
6 4.608.0082 FUEL TANK CAP-CHEM-N-
7 3.200.0038 SEAL OR 53.65X2.62 REF. 3212
8 5.611.0142 RH SIDE PANEL NPX-LKX-BLACK-W/HOOK
9 7.700.0543 MANUAL HHDW200H+CE HYUNDAI A5 32F 2L (NPX 1813)
10 3.700.0030 AL55 GUN 350BAR 45L/MIN 160GR+SW8 3/8M+S7+M22 (30129100)
11 4.618.0143 HOSE 5/16 R1 - 315 bar (31.5 MPa) 10M W/QUICK COUPLING 1/2 GIR-3/8
12 3.701.0015 STAINLESS STEEL LANCE L.700 COATED+RED+QUICK COUPLING M22 41102850
13 3.103.0049 A.P. NOZZLE 15040 1/8M 1/8MC4-04/15
14 5.611.0078 KIT Plastic Intake Hose Holder 3/4" D.19"
NPX4 1813 400/50 TS SP.TRIF.BASE DA FINIRE Pag.2
0 5.611.0335 Complete Burner Flange 1.25-45B (Rilsan) Left With Pre-Filled Flame Cone
0 5.611.0169 External Cover for Perforated Cone Band
0 5.609.0128 Thermostat Bulb Body Assy. LKX/NPX'04, Quick Connect Outlet, Zinc Plated Brass
0 5.601.0493 MTP LWT 400/50 2P 135 H1 30 11.35" for NPX 1813 TS
0 5.611.0105 DASHBOARD ASSEMBLY NPX/LKX4 TRI F.16A
1 5.609.0344 Ignition Transmitter 220-240V 50/60Hz With Pipette NPX-LKX + Cable (Power)
2 4.608.0271 Insulation Gasket for Deep Heat Transmitter
3 5.611.0335 Complete Burner Flange 1.25-45B (RILSAN) LH W/PREDICT. FLAME CONE
4 3.099.0719 BAND ALZ/330/G8 FIXING COVER BOILER '04
5 5.611.0169 EXTERNAL COVER BOILER FOR DRILLED CONE BAND
6 5.613.0028 INTERNAL COVER CAM. COMB. CHIMNEY L=120
8 5.613.0274 PAINTED BODY FOR BAND NPX'04 BOILER
9 6.605.0247 REFRACTORY KIT FOR PRO NPX/LKX BOILER
10 4.607.0006 COOLER FIXING BAND 15/10 STAINLESS STEEL SHEET METAL
11 4.608.0162 INSULATING CORD FOR BOILER BASE L=975
12 5.613.0116 JOLLY 5/LKX BOILER BASE - PAINTED
13 3.403.0078 FUEL LEVEL GAUGE L=185 WITH CABLE L=1320 WITH FASTON
14 4.608.0073 SHORT SPACER FOR JOLLY 4/93 TANK
15 6.605.0168 WHEEL KIT 30060155 + STUD + LOCK COLUMBIA - HYPER C - HYPER L
16 5.613.0402 FRONT AXLE NPX/LKX
17 5.613.0403 NPX/LKX REAR AXLE
18 4.608.0203 NPX4/LKX4 DIESEL/DETERGENT TANK
19 4.008.0031 WATER FILTER D.16 CONICAL
20 4.006.0088 SUMPTION CONNECTOR ADAPTER L=26 M22-3/4G
21 4.606.0019 SUMPTION CONNECTOR L=60 M22-3/8G
22 4.618.0043 HOSE R1 3/8 L=375 C.1/2F. 90' ROTARY / C.3/8F. 90' ROTARY
23 5.609.0128 THERMOSTAT BULB BODY ASSY. LKX/NPX'04 QUICK-RELEASE OUTLET, ZNT BRASS
24 4.608.0448 LONG SPACER FOR JOLLY TANK 4/93 MM 57.5
25 4.608.0448 LONG SPACER FOR JOLLY TANK 4/93 MM 57.5
26 4.606.0013 COIL FIXING NUT 1/2 OT SPECIAL
27 3.004.0015 FLAT WASHER D. 22X39 TH. 3 ZNT UNI6592
28 4.608.0023 RUBBER SLEEVE FOR JOLLY 4 SNAIL
29 4.607.0072 MOTOR MOUNTING BRACKET
30 4.607.0293 TLR MOUNTING PLATE
31 3.402.0026 TLR4FC REMOTE CONTROL SWITCH
32 4.608.0071 DASHBOARD CABLE GLAND COVER '93
33 4.608.0168 NPX4/LKX4/TEKNA4 ELECTRIC BOX
34 3.405.0011 PA 32/6 TERMINAL BLOCK
36 4.612.0135 POWER CABLE H05VV-F 4X1.5 6M WITH THREE-PHASE PLUG 34990616
37 4.608.0170 LEFT HANDLE NPX'04-GR-RAL.7021
38 4.608.0199 NEW HANDLE THICKNESS BUSHING, DEPTH
39 4.608.0191 BLACK DASHBOARD FRAME
40 4.608.0169 NPX'04 RH HANDLE - GR - RAL.7021
41 5.613.0192 NPX/LKX'04 DASHBOARD/HANDLE SUPPORT
42 3.704.0009 PS2 PRESSURE SWITCH 1/4M 25BAR RED
43 3.714.0026 VLP SAFETY VALVE 100-250BAR - 12-17 L/MIN 110G 1/4M
44 4.618.0035 R1 HOSE 250BAR L=600 W/CONNECTOR 1/2-3/8F 90G
45 4.618.0030 R1 B.P.HOSE L=450 CONNECTOR 3/8M-3/8M
46 5.611.0308 NPX DIESEL FILTER (PAPER) SUNTEC PUMP
48 6.605.0173 PLASTIC JOINT KIT FOR DIESEL PUMP (3 PCS.)
49 4.606.0088 HOLDER 1/4 G M D.7
51 4.612.0043 CABLE FOR DIESEL PUMP L=1000 STRIPPED TERMINALS
52 5.601.0493 MTP LWT 400/50 2P 135 H1 30 11.35' X NPX 1813 TS
53 3.414.0010 230/50HZ COIL FOR DANFOSS GAS PUMP (071N1006)
FLANGIA BRUC.COMPL. 1,25-45B (RILSAN) SX C/PRED. CON. FIAMMA Pag.3
1 4.614.0004C PAIR OF STANDARDIZED PROFESSIONAL ELECTRODES WITH BRACKET
2 3.100.0075 M 1/8 CONICAL FEMALE D.4 CURVED CONNECTOR
3 3.555.1098 ZJ TYPE SEEGER D22
4 3.555.1099 TP FLAME CENTRE D. 21.75X2 (GLASS)
5 4.605.0223 STANDARD BURNER FLANGE
6 3.104.0028 OIL NOZZLE 1.25 45/B
COP.EST.CALDAIA X FASCIA CONO FORATO Pag.4
1 5.613.0200 EXTERNAL COVER FOR BOILER '04
2 5.610.0105 DEFLECTOR WITH CONE D.82 WITH HOLES
ASS.CORPO BULBO TERMOST.LKX/NPX'04 USC.INN.RAP.OTTONE ZNT Pag.5
1 4.606.0087 PROFESSIONAL THERMOSTAT BULB BODY
2 3.004.0004 ALUMINUM WASHER 21X30XTH.1.5
3 3.100.0020 NIPPLE 1/2G-3/8G
4 5.613.0191 THERMOSTAT BULB SUPPORT/STARTER NPX/LKX '04
5 3.100.0018 QUICK COUPLING 3/8M-1/2M 08 ZNT
MTP LWT 400/50 2P 135 H1 30 11.35' X NPX 1813 TS Pag.6
0 5.609.0252 FRONT FLANGE MOTOR 135 X WITH FIN GUIDE (FEMALE EDGE)
0 5.008.0145 HEAD '99 INJECTION D.1.9 TS FOR HOT HYDRO
0 5.007.0063 WITH PISTON GUIDE D.15 CER. BEST WITH FIN W/LIGHT
0 5.606.0144 MOTOR LW.T 400/50 D.135 2P H130 FOR NPX 1500 (MALE CENTRAL)
1 4.608.0017 HALF-SPIRAL COUPLING GMV D.150
2 4.607.0257 CONNECTOR FOR NPX FAN FOR COUPLING BLACK
3 4.007.0080 STOP RING D. 25.5 FOR FIRE 100 FAN
4 4.608.0083 PVC FAN D. 180 WITH LOWERED HUB
5 3.099.0054 KEY 5X5X20 UNI 6604A
6 4.608.0129 MOTOR SIDE HALF-NUTCH 150-135 NPX
7 4.606.0114 HALF-NUTCH SPACER FOR MOTOR D. 135
8 5.606.0144 MOTOR LW.T 400/50 D. 135 2P H130 FOR NPX 1500 (MALE CENTER)
9 5.609.0252 MOTOR FRONT FLANGE 135 X WITH FIN GUIDE (FEMALE EDGE)
10 3.001.0029 ANGLE BALL BEARING 730 5-BE (25X62X17)
11 4.605.0047 PLATE 11.35' FOR BALL BEARING
12 4.607.0208 THROTTLE BALL BEARING 30X 73X18 X PLATE S0610
13 3.200.0002 OR SEAL 90X2.5
14 5.007.0063 PISTON GUIDE D15 BEST W/FOILS/LIGHT
15 3.200.0004 SEAL OR 12.4X1.78 SH.70 REF. 2050
16 4.008.0391 OIL SEAL SPACER
17 4.606.0041 SECONDARY SEAL SUPPORT RING 130/8
18 5.008.0145 OCT. '99 INJECTION HEAD D. 1.9 TS FOR HOT HYDRO
19 5.009.0207 ASSEMBLY CAP FOR BEST OIL CHAMBER VERTICAL + OR SH.90
20 4.607.0233 ENGINE AIR CONVEYOR D. 135
21 4.608.0021 ADJUSTMENT THROTTLE FOR GM V 150
22 4.608.0022 LEVER FOR ADJUSTMENT THROTTLE GMV 150
23 3.100.0075 M 1/8 TAPERED F D. 4 CURVED CONNECTOR
24 3.551.0062 DUAL-PIPE DIESEL PUMP RH 230/50-60
25 3.414.0010 230/50HZ COIL FOR DANFOSS GAS PUMP (071N1006)
26 6.605.0173 PLASTIC PUMP JOINT KIT DIESEL (3 PCS.)

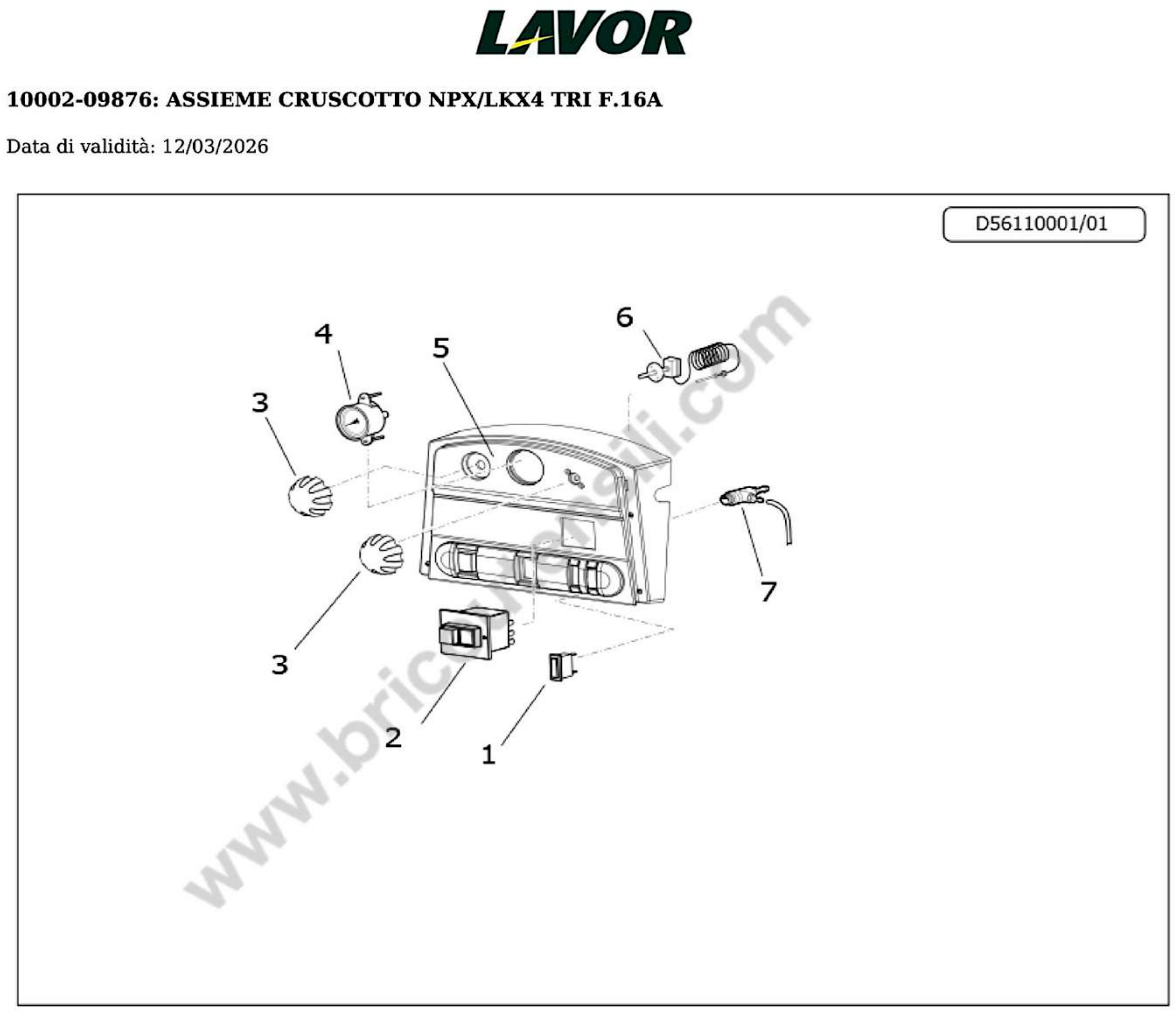

ASSIEME CRUSCOTTO NPX/LKX4 TRI F.16A Pag.7
1 3.499.0129 TYPE 81F WARNING LIGHT 220V BLACK BODY RED LENS
2 3.401.0063 ETA MICRO-DISCONNECTOR 3140-F230-P7TI-SGRX-3AC415V-16A
3 4.608.0164 THERMOSTAT ADJUSTMENT KNOB -N-
4 3.107.0004 MANOMETER D.50 0/315 BAR 1/4 REAR + BRACKET
5 4.608.0205 NPX4/LKX4 THREE-PHASE DASHBOARD -GR-W/BUMPERGR.
6 3.403.0091 THERMOSTAT 30/150 BULB D. 6.5 (3 CLOSED FASTONS)
7 3.105.0003 DET. REG. TAP WITH HOLDER D. 7 (PART NO. 6990A 3/4 TURN)

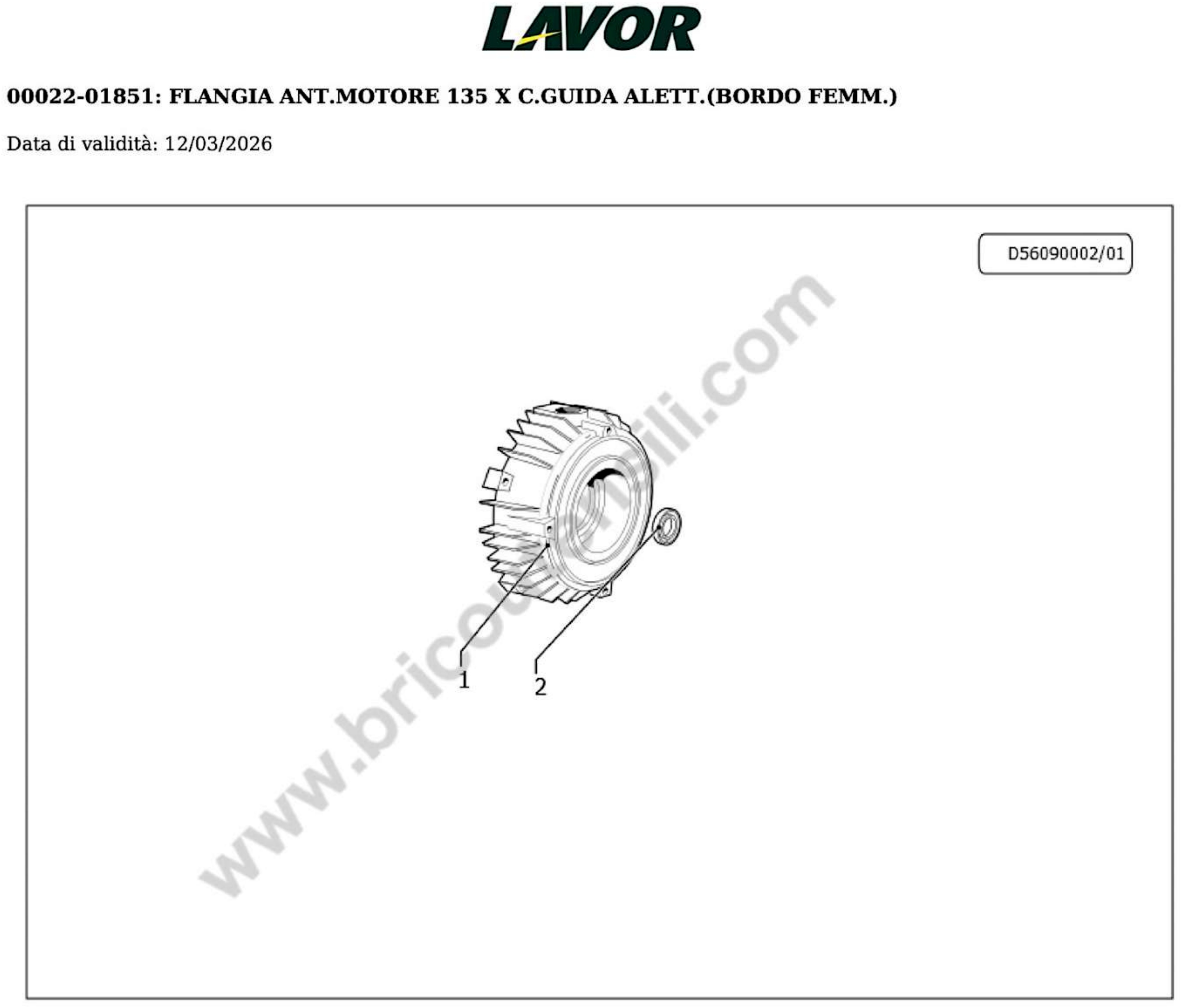

FLANGIA ANT.MOTORE 135 X C.GUIDA ALETT.(BORDO FEMM.) Pag.8
1 4.605.0117 MOTOR FLANGE 135 X WITH FINNED GUIDE (FEMALE EDGE)
2 3.201.0019 OIL SEAL RING D. 25X40X7 DOUBLE LIP

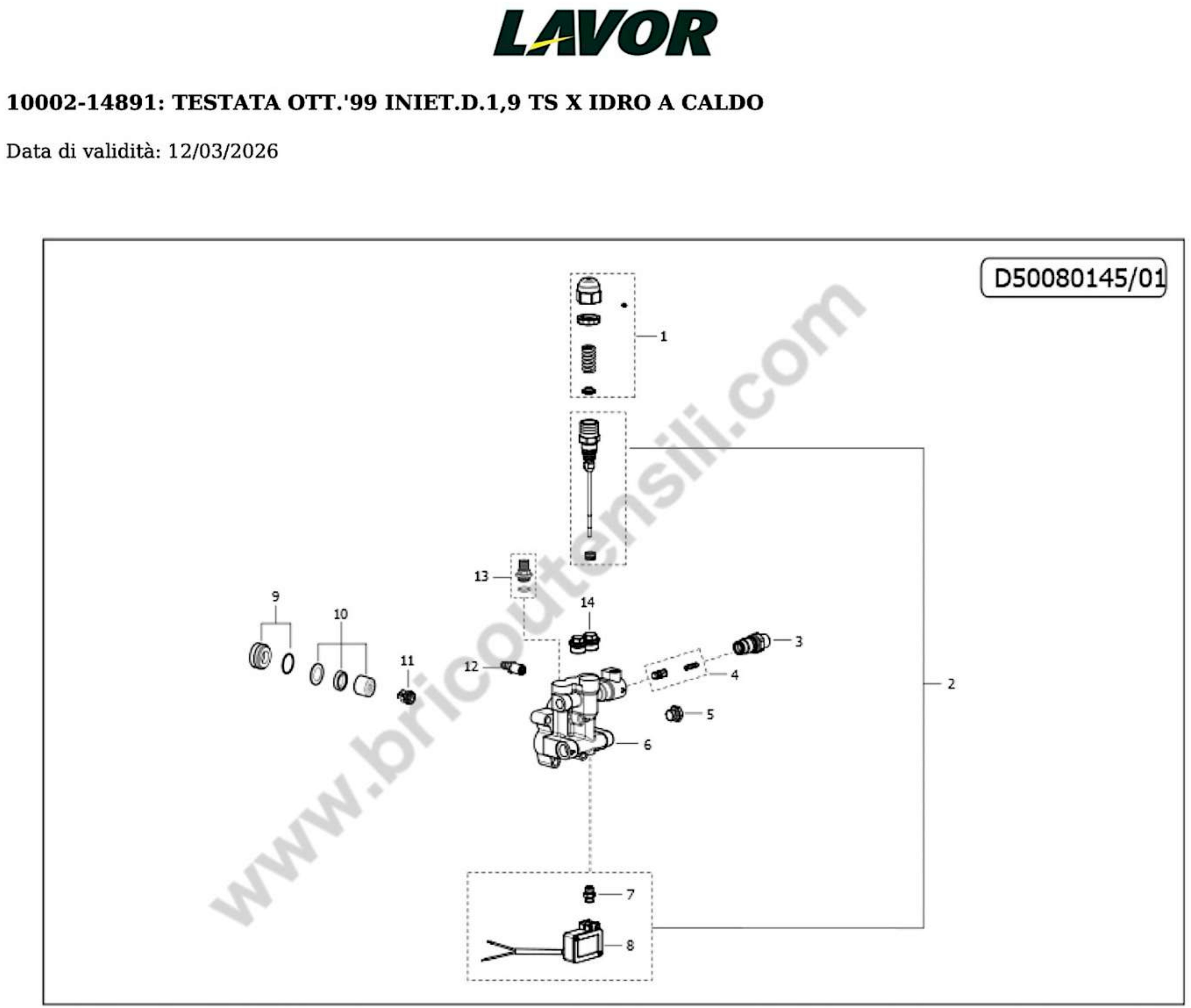

TESTATA OTT.'99 INIET.D.1,9 TS X IDRO A CALDO Pag.9
1 6.005.0120 PRESSURE REGULATOR KIT, BRASS TEST, '99
2 6.005.0129 COMPLETE BYPASS KIT, BRASS TEST, '99 TS FOR HOT
3 5.609.0079 OUTLET FITTING ASSEMBLY, BRASS TEST, '99 D. 1.9 + O-RING
4 6.005.0071 71 LW NON-RETURN VALVE REPAIR KIT
5 4.606.0001 1/4 GAS T.E. CAP
6 4.606.0085 BRASS HEAD, '99
7 5.609.0158 1/8 FITTING ASSEMBLY WITH M7 CAP
8 6.005.0293 MICROBOX KIT 3 WIRES + SCREWS
9 6.005.0119 110 LW PISTON BUSHINGS KIT BRASS HEAD '99
10 6.005.0118 110 LW BRASS HEAD WATER SEAL RINGS KIT BRASS HEAD '99
11 6.005.0578 6 AUTO SUCTION VALVE KIT (OR COMPONENTS) BRASS HEAD '99
12 5.609.Y154 110 GAUGE HOLDER ASSEMBLY D.1 WITH OR-SPRING L=7-BALL D.5.5
13 5.609.0064 ASSEMBLY INTAKE VALVE CAP CAPILLARY + OR
14 6.005.0020 23 LW INTAKE VALVE CAPS

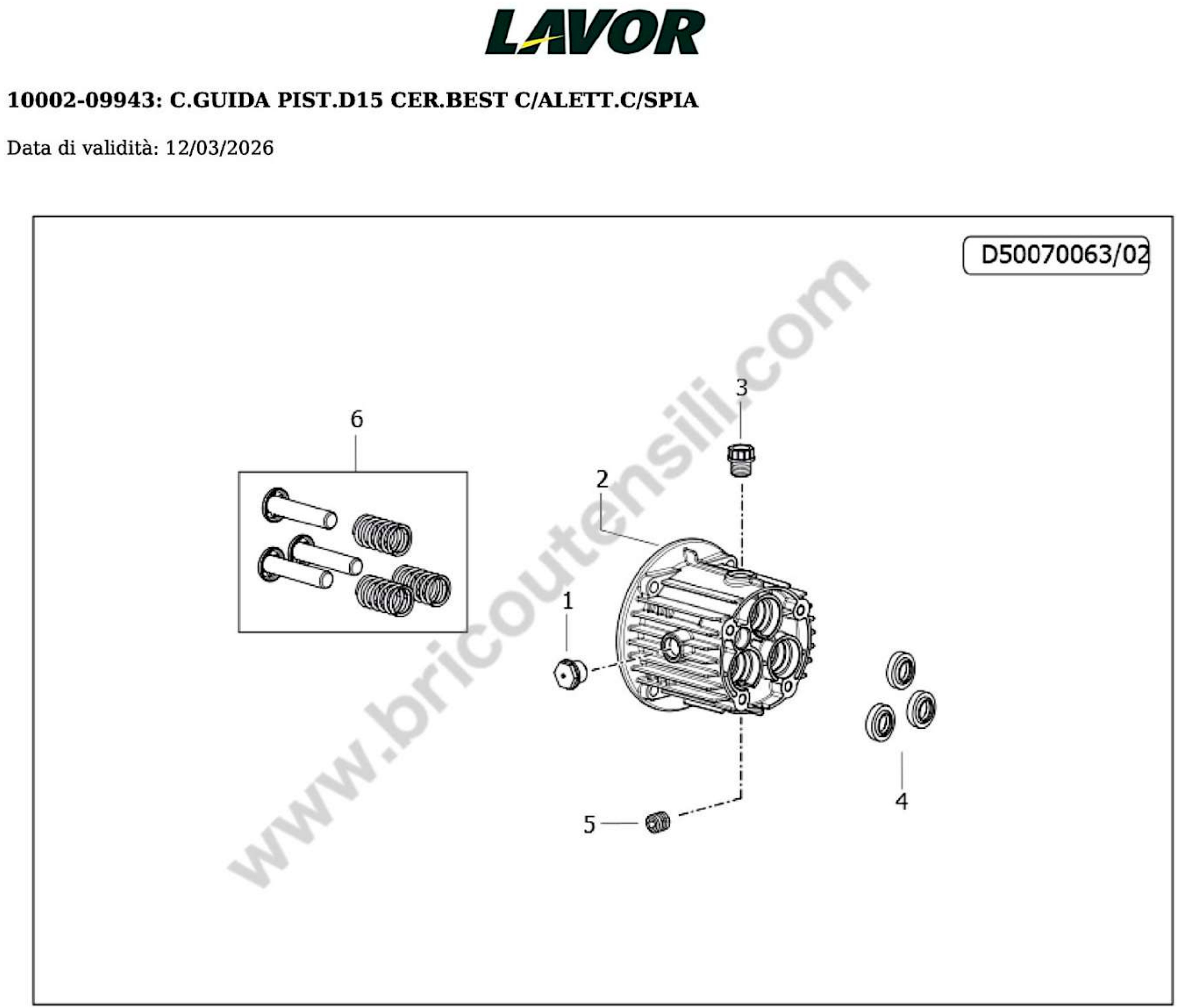

C.GUIDA PIST.D15 CER.BEST C/ALETT.C/SPIA Pag.10
1 3.099.0003 OIL LEVEL LIGHT SLNS-3/8 HOBBY
2 5.009.0094 ASSEMBLY WITH BEST FINNED GUIDE WITH SEALS
4 6.005.0006 5 LW OIL SEAL RINGS KIT BRASS HEAD '97-'99 BEST OMNIA
5 3.002.0004 3/8 STEI SCREW G.DIN 906 (OIL DRAIN PLUG)
6 6.005.0032 3-PISTON KIT D15, OCT. '99
MOTORE LW.T 400/50 D.135 2P H130 X NPX 1500(CENTR.MASCHIO) Pag.11
1 5.602.0065 HOUSING LWT 400/50 2P D.135 H.130 (MALE CENTER)
2 3.099.0002 COMPENSATION RING 40X46.5X3 4-WAVE
3 3.001.0001 BALL RADIAL BEARING 6204-2Z (FOR ELECTRIC MOTOR 150°C)
4 5.605.0032 ROTOR SHAFT D.70 H.130 FOR D.135 THREE-PHASE MOTOR WITH FAN
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Lavor NPX 1813XP - 8.620.0633
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

NPX HHDW200H HYUNDAI Diagram

NPX HHDW200H HYUNDAI Diagram

Download (534.49KB)

You might also like

Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 4.008.0031
Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24
Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 Original replacement part Lavor, Inlet Water Filter H20 D.16 Conical for Pressurte Washers STORM II 17 - STORM II PLUS 21 - BEST 24.  Part for the following products: -...
AVAILABLE €2.07
Details
Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 3.107.0004
Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500
Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Pressure Gauge D.50 0/315 BAR - 1/4 Rear thread + Bracket (ref 129 939 81) for Pressure Washers NPX 1400 - NPX...
on 7/10 Business Days Approx. €33.35
Details
PVC Fan for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 4.608.0083
PVC Fan for Pressure Washers Lavor NPX 1400 - NPX 1500
PVC Fan for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, PVC Fan D.180 Lowered Hub for Pressure Washers NPX 1400 - NPX 1500. Part for the following products: - ...
Last items in stock €30.42
Details
Quick Coupling for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 5.009.0340
Quick Coupling for Pressure Washers Lavor NPX 1400 - NPX 1500
Quick Coupling for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Quick Coupling Assy + O-Ring + Ring Nut for Pressure Washers NPX 1400 - NPX 1500. Part for the following products: - Pressure Washer Lavor...
Last items in stock €15.06
Details
Thermostate Knob for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 4.608.0019
Thermostate Knob for Pressure Washers Lavor NPX 1400 - NPX 1500
Thermostate Knob for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Black Thermostate Knob 3079/1t for Pressure Washers NPX 1400 - NPX 1500. Part for the following products: - Pressure Washer Lavor NPX 1400...
on 10 Business Days Approx €10.03
Details
Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 3.100.0043
Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500
Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, 3/8 M Rotating Quick Coupling for Pressure Washers NPX 1400 - NPX 1500. Part for the following products: - Pressure Washer Lavor NPX 1400 -...
AVAILABLE €17.59
Details
Hose Coupling Omnia for Pressure Washers Lavor NPX 1500
Lavorwash S.p.A. SKU: 5.009.0136
Hose Coupling Omnia for Pressure Washers Lavor NPX 1500
Hose Coupling Omnia for Pressure Washers Lavor NPX 1500 Genuine replacement part  Lavor , Hose Coupling Omnia Complete with O-Rings for  Pressure Washer NPX 1500  - 8.605.0049. Part for the following products: -  Pressure Washer Lavor...
on 10 Business Days Approx €3.27
Details
Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018
Lavorwash S.p.A. SKU: 3.200.0019
Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018
Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018 Genuine replacement part Lavor, Gasket O-Ring 12.4X1.78 SHORE 90 for Pressure Washer Pressure Washer FKX 1018 230/50 TS -R- (VAPORNOVA)- 8052001. Part for the following...
AVAILABLE €1.70
Details
O-Ring 25.12x1.78 for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 3.200.0003
O-Ring 25.12x1.78 for Pressure Washers Lavor NPX 1400 - NPX 1500
O-Ring 25.12x1.78 for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, O-Ring Gasket 25.12x1.78 REF.2100 for Pressure Washers  NPX 1400  8.605.0048 - NPX 1500 8.605.0049. Part for the following products: -...
AVAILABLE €1.70
Details
Diesel Filter Unit for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 5.611.0043
Diesel Filter Unit for Pressure Washer Lavor Missouri
Diesel Filter Unit for Pressure Washer Lavor Missouri Genuine part Lavor, Diesel Filter Unit JOLLY 4 '93 / MISSOURI / MEK for Pressure Washers Missouri - NPX 1400 - NPX 1500. Part for the following...
Usually Ships in: 10 Business Days Approx. €15.19
Details
Electrodes for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 4.614.0001
Electrodes for Pressure Cleaner Lavor NPX 1400
Electrodes for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Unified Electrodes with Bracket for Boilerfor Pressure Cleaners NPX 1400 - NPX 1500 - LKX 40 - NPX 1511 XP T...
on 10 Business Days Approx €36.16
Details
High Pressure Nozzle for Pressure Washer Lavor NPX 1500
Lavorwash S.p.A. SKU: 3.103.0047
High Pressure Nozzle for Pressure Washer Lavor NPX 1500
High Pressure Nozzle for Pressure Washer Lavor NPX 1500 Genuine replacement part  Lavor , High Pressure Nozzle 1/8 Male cod.1503 for  Pressure Washer NPX 1500  - 8.605.0049. Part for the...
on 10 Business Days Approx €16.18
Details
Diesel Pump Coil for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 3.414.0002
Diesel Pump Coil for Pressure Cleaner Lavor NPX 1400
Diesel Pump Coil for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Diesel Pump Coil 230V 50/60Hz 9W 100%  ED 25 Bar IP65 Delta Pump for Pressure Cleaners NPX 1400 - NPX 1500 Part for the following products: -...
on 10 Business Days Approx €40.38
Details
Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 6.605.0173
Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400
Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Diesel Pump Red Plastic Coupling Set for Engine EME/UNIELECTRICp for Pressure Cleaners NPX 1400 - NPX 1500 Part for the following products: -...
Last items in stock €29.06
Details
Washer SNHORt for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 3.004.0022
Washer SNHOR for Pressure Cleaner Lavor NPX 1400
Washer SNHOR for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Washer SNHOR D.8x13 sp.0.8 for Pressure Cleaners NPX 1400 - NPX 1500 Part for the following products: -  Pressure Cleaner Lavor NPX 1400 - 8.605.0048 -...
on 10 Business Days Approx €1.71
Details
Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 3.403.0091
Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500
Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Thermostat 30/150 Bulb d.6.5 (3 Faston) for Pressure Washers NPX 1400 - NPX 1500. Part for the following...
on 10 Business Days Approx €40.24
Details
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 4.608.0078
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Dashboard Gasket '93 (3x900) for Pressure Cleaners NPX 1400 - NPX 1500 - LKX 40. Part for the following products: -  Pressure Cleaner NPX 1400 230/50...
Last items in stock €3.32
Details
Pressure Switch for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 3.704.0006
Pressure Switch for Pressure Washer Lavor Missouri
Pressure Switch for Pressure Washer Lavor Missouri Genuine part Lavor, Pressure Switch 25 Bar 1/8 Red L.700 Faston F. for Pressure Washers  MISSOURI - YUKON 1310 - NPX 1500 - LKX 40. Part...
Last items in stock €30.90
Details
HP Tube R2 400 BAR for Pressure Washer Lavor NPX 1400
Lavorwash S.p.A. SKU: 4.618.0033
HP Tube R2 400 BAR for Pressure Washer Lavor NPX 1400
HP Tube R2 400 BAR for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, HP Tube R2 400 BAR L=300 From Coil to Block JOLLY 4/93 for Pressure Washers NPX 1400 - NPX 1500. Part for the following products: -...
Last items in stock €26.97
Details
Diesel Nozzle for Pressure Washers Lavor NPX 1400
Lavorwash S.p.A. SKU: 3.104.0028
Diesel Nozzle for Pressure Washers Lavor NPX 1400
Diesel Nozzle for Pressure Washers Lavor NPX 1400 Genuine replacement part Lavor, Diesel Nozzle 1,25 45-B for Pressure Washers NPX 1400 - NPX 1500 - LKX 31 - LKX 40. Part for the following...
Last items in stock €28.36
Details
Pistons Guide Body for Pressure Washer Lavor NPX 1500
Lavorwash S.p.A. SKU: 4.005.0055
Pistons Guide Body for Pressure Washer Lavor NPX 1500
Pistons Guide Body for Pressure Washer Lavor NPX 1500 Genuine replacement part Lavor, Pistons Guide Body OMNIA 130/8 Aluminium for Pressure Washers NPX 1400 - NPX 1500. Part for the following products: -  Pressure Washer LKX 40 -...
Last items in stock €94.47
Details
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1500
Lavorwash S.p.A. SKU: 4.618.0014
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1500
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Pressure Gauge Pipe 2x380 Max 630 Bar 1/4 F. Gir. 1/4 F Gir. for Pressure Washers NPX 1400 - NPX...
Usually Ships in: 10/15 Business Days Approx. €26.46
Details
Burner Flange Cpl for Pressure Washer Lavor NPX 1400
Lavorwash S.p.A. SKU: 5.611.0027
Burner Flange Cpl for Pressure Washer Lavor NPX 1400
Burner Flange Complete for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Burner Flange Complete for Pressure Washers NPX 1400 - NPX 1500. Part for the following...
Last items in stock €84.30
Details
Double Pipe Diesel Pump for Pressure Washer Lavor NPX 1500
Lavorwash S.p.A. SKU: 3.551.0062
Double Pipe Diesel Pump for Pressure Washer Lavor NPX 1500
Double Pipe Diesel Pump R. for Pressure Washer Lavor NPX 1500 Genuine replacement part Lavor, Double Pipe Diesel Pump Right Suntec with Coil 220V 50/60Hz for Pressure Washers NPX 1500. Part for the following products:...
on 7/10 Business Days Approx. €144.48
Details
Lavor MCHPV 1515LP Kit 111 LW
Lavorwash S.p.A. SKU: 6.005.0120
Lavor MCHPV 1515LP Kit 111 LW
Lavor MCHPV 1515LP Kit 111 LW Genuine replacement part Lavor, Kit 111 LW Pressure Regulator For Brass Head Test.Oct.'99 for Pressure Cleaner MCHPV 1515LP 400-415/SC1 - 8.626.0002. Part for the following products:...
on 10 Business Days Approx. €28.38
Details
Lavor Ontario 1211LP Pressure Gauge D.40
Lavorwash S.p.A. SKU: 3.107.0006
Lavor Ontario 1211LP Pressure Gauge D.40
Lavor Ontario 1211LP Pressure Gauge D.40 Genuine replacement part Lavor, Pressure Gauge D.40 0/300 BAR 1/8" Glycerine for Pressure Cleaner Ontario 1211LP - 86590033. Part for the following products: - ...
Last items in stock €26.50
Details
Lavor LKX 2015 Ignition Transformer
Lavorwash S.p.A. SKU: 5.609.0344
Lavor LKX 2015 Ignition Transformer
Lavor LKX 2015 Ignition Transformer Genuine replacement part Lavor, Ignition Transformer 220-240V 50/60Hz C/PIPET.NPX-LKX + CAVO (POTENZ.) for LKX 2015. Part for the following products: - 8.621.2935 - Pressure Washer LKX...
Usually Ships in: 10/15 Business Days Approx. €63.65
Details
Lavor Oil Lever Indicator for NPX 1400
Lavorwash S.p.A. SKU: 3.099.0003
Lavor Oil Lever Indicator for NPX 1400
Lavor Oil Lever Indicator for Pressure Washer NPX 1500 Genuine replacement part Lavor, Oil Lever Indicator SLNS-3/8 HOBBY for Pressure Cleaner NPX 1400 - NPX 1500 - MCHPV 1515LP. Part for the following products: -  Pressure Cleaner...
Usually Ships in: 10/15 Business Days Approx. €4.14
Details
Lavor Adjustment Knob for MEK 1108
Lavorwash S.p.A. SKU: 4.608.0164
Lavor Adjustment Knob for MEK 1108
Lavor Adjustment Knob for Pressure Cleaner MEK 1108 Genuine replacement part Lavorwash, Black Thermostat Adjustment Knob for Pressure Cleaner DAKOTA-R 2007XP - MISSOURI - MEK 1108. Part for the following products: - ...
Last items in stock €5.83
Details
LAVOR Brass Pump Head for NPX 1400 Pressure Washers
Lavorwash S.p.A. SKU: 4.606.0085
LAVOR Brass Pump Head for NPX 1400 Pressure Washers
LAVOR Brass Pump Head for NPX 1400 Pressure Washers Original Lavor Spare Part: Brass Pump Head '99 for LAVOR NPX 1400 Pressure Washers. Compatible with the following products: -  Lavor NPX 1400 - 86050048 -  Lavor NPX 1400...
Usually Ships in: 10/15 Business Days Approx €147.90
Details
Lavor NPX1400 Outlet Coupling
Lavorwash S.p.A. SKU: 5.609.0079
Lavor NPX1400 Outlet Coupling
Lavor Outlet Coupling for Pressure Washer NPX1400 Genuine replacement part Lavor, Outlet Coupling For Brass Head '99 D.1,9 +Or for Pressure Cleaner NPX1400 - LKX 55. Part for the following products: - ...
Last items in stock €12.26
Details
Lavor Pressure Washer NPX 1400 Hose
Lavorwash S.p.A. SKU: 4.618.0043
Lavor NPX 1400 Hose
Lavor Pressure Washer NPX 1400 Boiler Hose Genuine replacement part Lavor, Boiler Hose R1 3/8 L=375 C.1/2F.GIR 90' / C.3/8F GIR 90' for Pressure Cleaner LKX 40 - LKX 31. Part for the following products: -  Pressure Washer Lavor...
Last items in stock €27.71
Details
Lavor LKX 2015LP External Cover
Lavorwash S.p.A. SKU: 5.613.0200
Lavor LKX 2015LP External Cover
Lavor LKX 2015LP External Cover Genuine replacement part Lavor, External Cover Of Aisi 430 Ba Tekna 4 Stainless Steel Boiler for Pressure Cleaner LKX 2015LP - NPX 1813XP. Part for the following products: - ...
Usually Ships in: 10/15 Business Days Approx. €40.44
Details
Lavor Pressure Washer NPX1400 Insulating Rope
Lavorwash S.p.A. SKU: 4.608.0162
Lavor NPX1400 Insulating Rope
Lavor Pressure Washer NPX1400 Insulating Rope Genuine replacement part Lavor, Insulating Rope For Boiler Base L=990 for Pressure Washer NPX1400 - LKX 31 - LKX 55. Part for the following products: - ...
Last items in stock €35.27
Details
Comments (0)
