Lavorwash S.p.A.

Lavor TORRENS 2015 (KREMER) Parts

SKU: Lavor TORRENS 8.627.0020C
€97.98
VAT included

Lavor Original Parts for TORRENS 2015 (KREMER)

Fix Your Pressure Cleaner IDRO TORRENS 2015 400/50-GR-TS(KR-5300HW KREMER) - 8.627.0020C. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee
Lavor TORRENS 2015 (KREMER) Parts
  • Lavor TORRENS 2015 (KREMER) Parts
  • Lavor TORRENS 2015 (KREMER) Parts Drawing
  • Lavor TORRENS 2015 (KREMER) Parts Drawing - 1
  • Lavor TORRENS 2015 (KREMER) Parts Drawing - 2
  • Lavor TORRENS 2015 (KREMER) Parts Drawing - 3
  • Lavor TORRENS 2015 (KREMER) Parts Drawing - 4
  • Lavor TORRENS 2015 (KREMER) Parts Drawing - 5
  • Lavor TORRENS 2015 (KREMER) Parts Drawing - 6
  • Lavor TORRENS 2015 (KREMER) Parts Drawing - 7
  • Lavor TORRENS 2015 (KREMER) Parts Drawing - 8
  • Lavor TORRENS 2015 (KREMER) Parts Drawing - 9
Lavorwash S.p.A.

Lavor TORRENS 2015 (KREMER) Parts

SKU: Lavor TORRENS 8.627.0020C Condition: New
€97.98
VAT included

Lavor Original Parts for TORRENS 2015 (KREMER)

Fix Your Pressure Cleaner IDRO TORRENS 2015 400/50-GR-TS(KR-5300HW KREMER) - 8.627.0020C. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee
settings 82 spare parts
description 10 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
82 spare parts

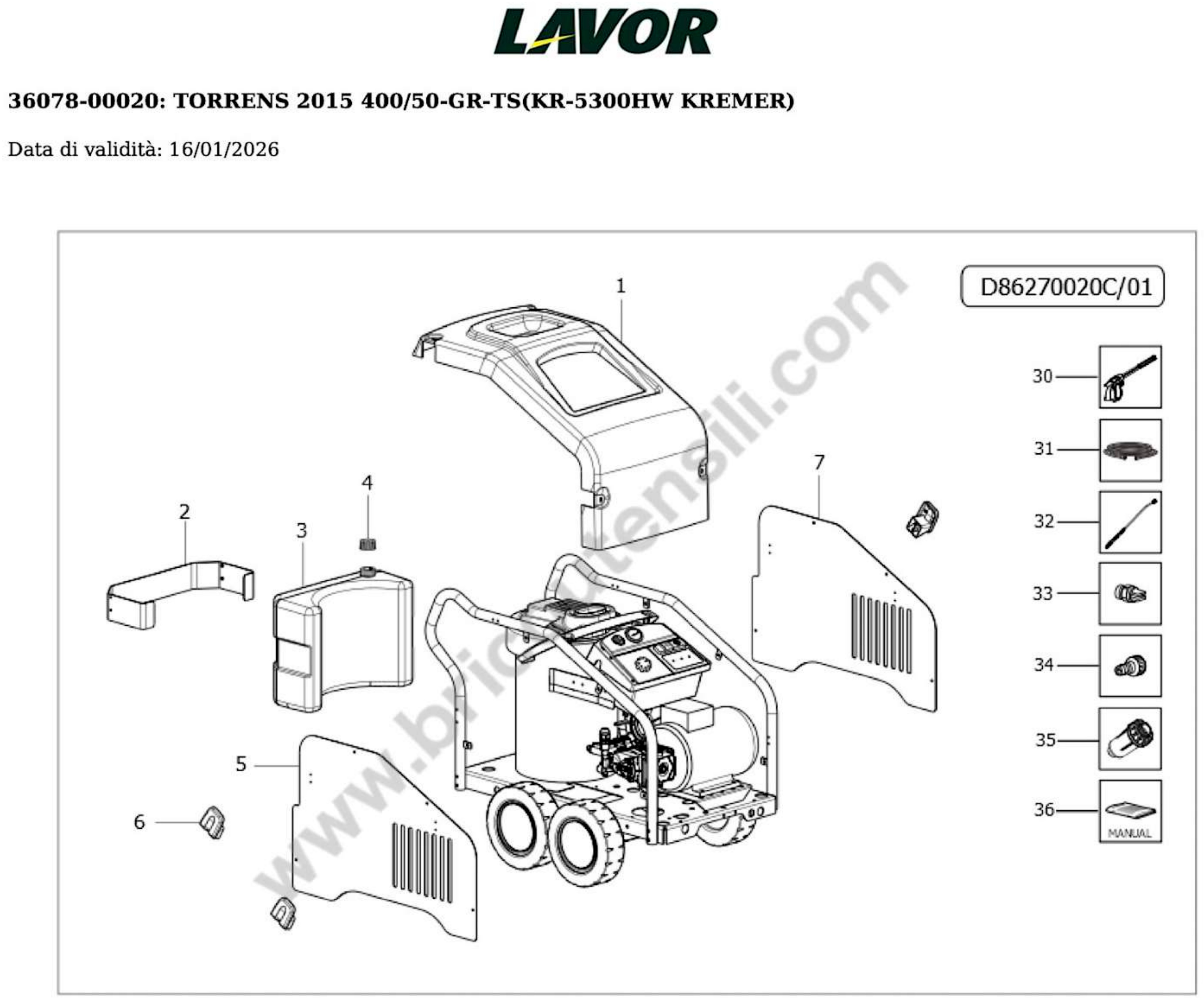

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
3
 photo_cameraImage coming soon 4.608.0393 FUEL TANK FOR TORRENS -N- €97.98
5
 photo_cameraImage coming soon 4.613.0315 TORRENS LEFT SIDE PANEL -BLACK- €72.74
6
 photo_cameraImage coming soon 4.608.0245 CABLE REEL INSERT FOR VERTICAL (PP+20%TC) €3.27
7
 photo_cameraImage coming soon 4.613.0314 TORRENS RIGHT SIDE PANEL -BLACK- €72.74
31
 photo_cameraImage coming soon 4.618.0012 HOSE 5/16 R1 310BAR L = 10000 C / HOSES AND ATT. 3/8-3 / 8 €139.43
32
 700 mm Lance 1/8 "F High/Low Pressure for Pressure Washers Lavor 3.701.0015 700 mm Lance 1/8 "F High/Low Pressure for Pressure Washers Lavor €37.13
33
 Lavor Nozzle for ONTARIO 1211LP 3.103.0050 Lavor Nozzle for ONTARIO 1211LP €14.73
35
 Water Inlet Filter 3/4F-3/4 M for High Pressure Washers Lavor 3.102.0011 Water Inlet Filter 3/4F-3/4 M for High Pressure Washers Lavor €9.96
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

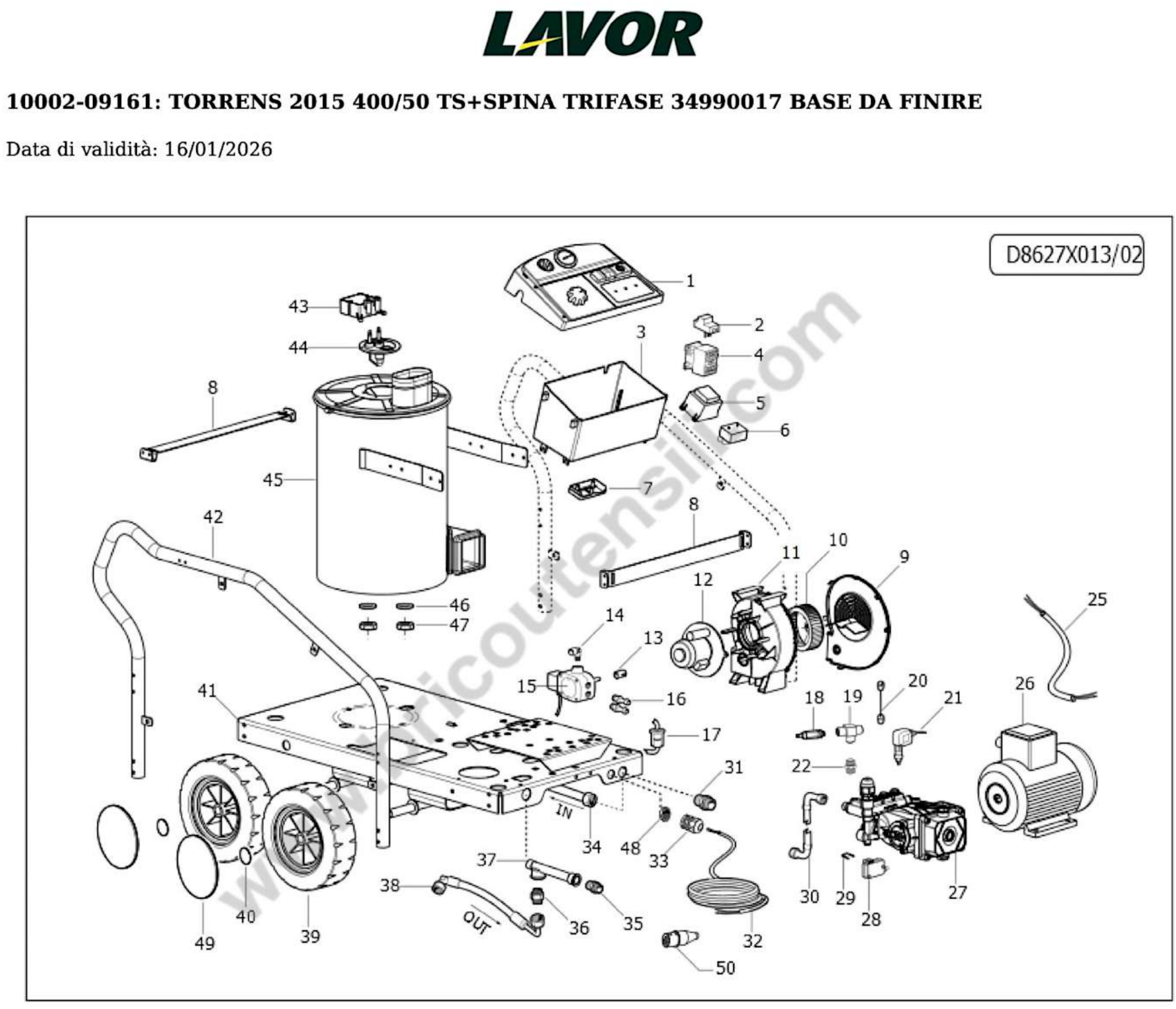

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
photo_cameraImage coming soon 5.611.0204 TORRENS DASHBOARD ASSEMBLY WITHOUT LED BOARD (TAMP.-EN-) €178.80
1
 photo_cameraImage coming soon 5.611.0204 TORRENS DASHBOARD ASSEMBLY WITHOUT LED BOARD (TAMP.-EN-) €178.80
2
 Lavor LKX 2015LP Thermal Relay DPER 21 3.402.0045 Lavor LKX 2015LP Thermal Relay DPER 21 €26.31
4
 photo_cameraImage coming soon 3.402.0002 KN12 CONTACTOR 24V 50HZ 380 / 5,5KW AC3 €36.98
6
 photo_cameraImage coming soon 3.403.0034 ELECTRIC BOARD W/FUEL DELAY (RTD 230/50-60) €49.35
9
 photo_cameraImage coming soon 4.608.0181 CONVEYOR COVER TEKNA4ESP.00 €12.26
11
 photo_cameraImage coming soon 4.608.0404 HOT AIR CONVEYOR TEXAS €26.46
12
 photo_cameraImage coming soon 3.300.0031 BURNER MOTOR 220V 50HZ 1.6A 250W 2700RPM CL.F S1 IP44 €114.00
15
 Double Pipe Diesel Pump for Pressure Washer Lavor NPX 1500 3.551.0062 Double Pipe Diesel Pump for Pressure Washer Lavor NPX 1500 €144.48
16
 photo_cameraImage coming soon 4.606.0088 RUBBER HOLDER 1/4 G M D.7 €3.36
17
 photo_cameraImage coming soon 3.102.0017 FUEL FILTER FB1 (PAPER 30 MICRONS) €7.56
18
 photo_cameraImage coming soon 5.609.0260 MAX PRESSURE VALVE 250BAR 1/8 €24.79
19
 photo_cameraImage coming soon 3.100.0514 1/8G F/F/F BRASS T-FITTING €25.71
20
 photo_cameraImage coming soon 4.618.0003 PRESSURE GAUGE TUBE 2X630 70MPa(B.P.120MPa) 1/4 F/GIR-1/4 F/GIR €26.69
21
 photo_cameraImage coming soon 3.704.0006C PR5 PRESSURE SWITCH 25BAR 1/8 L=720 (2 WIRES) €39.86
25
 photo_cameraImage coming soon 4.612.0029 CABLE €13.10
30
 photo_cameraImage coming soon 4.618.0175 HOSE 3/8" R2 400BAR L=520 1/2" G 90G-3/8" G 90G €32.04
32
 photo_cameraImage coming soon 4.612.0032 POWER CABLE H05VV-F 4X2.5 L=6700 €39.86
34
 photo_cameraImage coming soon 4.618.0165 HOSE LP L=750 1/2" CONNECTOR-90G 1/2" SWIVEL CONNECTOR €28.00
35
 photo_cameraImage coming soon 3.100.0023 NIPPLE 3/8 CIL.SV. 3/8 CIL.SV €3.45
36
 photo_cameraImage coming soon 3.100.0020 REDUCTION M.GAS/M.GAS 1/2-3/8 €8.03
37
 photo_cameraImage coming soon 4.606.0087 BULB ASSY €49.12
38
 photo_cameraImage coming soon 4.618.0176 3/8" H.P. PIPE R2 400 BAR L=720 1/2" G 90G - 3/8" G 90G €35.34
39
 photo_cameraImage coming soon 3.006.0026 WHEEL D.260X85 BLACK €28.65
40
 photo_cameraImage coming soon 3.099.0029 CHROME-PLATED STARLOCK WHEEL LOCKING RING D.20 €14.95
43
 photo_cameraImage coming soon 5.609.0126 ACCESS. TRANSFER. 220-240V 50/60Hz W/O CAV. €80.46
46
 photo_cameraImage coming soon 3.004.0015 PLAIN WASHER D.22X39X2 UNI6592 €1.74
47
 photo_cameraImage coming soon 4.606.0013 COIL FIXING NUT 1/2 BRASS SPEC. €3.36
49
 photo_cameraImage coming soon 3.099.0794 STUD D.135 WHEEL COVER BLACK WHEEL D.260 €14.38
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 Switch 0/1 Black Button for Pressure Washers Lavor 3.401.0178 Switch 0/1 Black Button for Pressure Washers Lavor €6.91
3
 Lavor Thermostat Knob for LKX 2015LP 5.611.0161 Lavor Thermostat Knob for LKX 2015LP €3.36
5
 photo_cameraImage coming soon 3.107.0004C 50MM PRESSURE GAUGE 0/315 BAR 1/4" EXTERNAL CONNECTOR + BRACKET €33.46
6
 photo_cameraImage coming soon 3.105.0003C DET REGULATOR TAP WITH HOLDER D.7 €15.09
7
 Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500 3.403.0091 Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500 €35.00

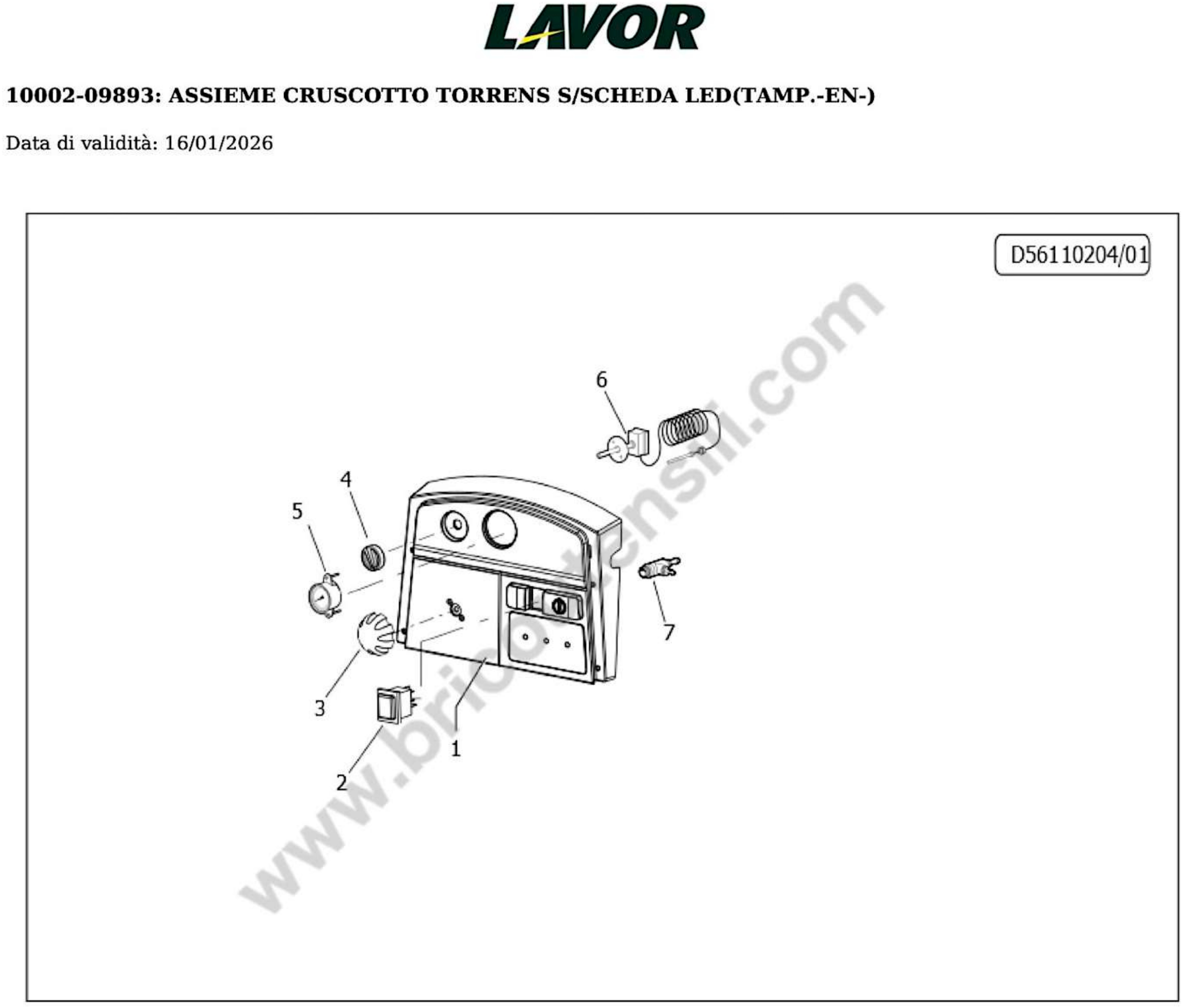

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.614.0004C ELECTRODE O772589000 €15.09

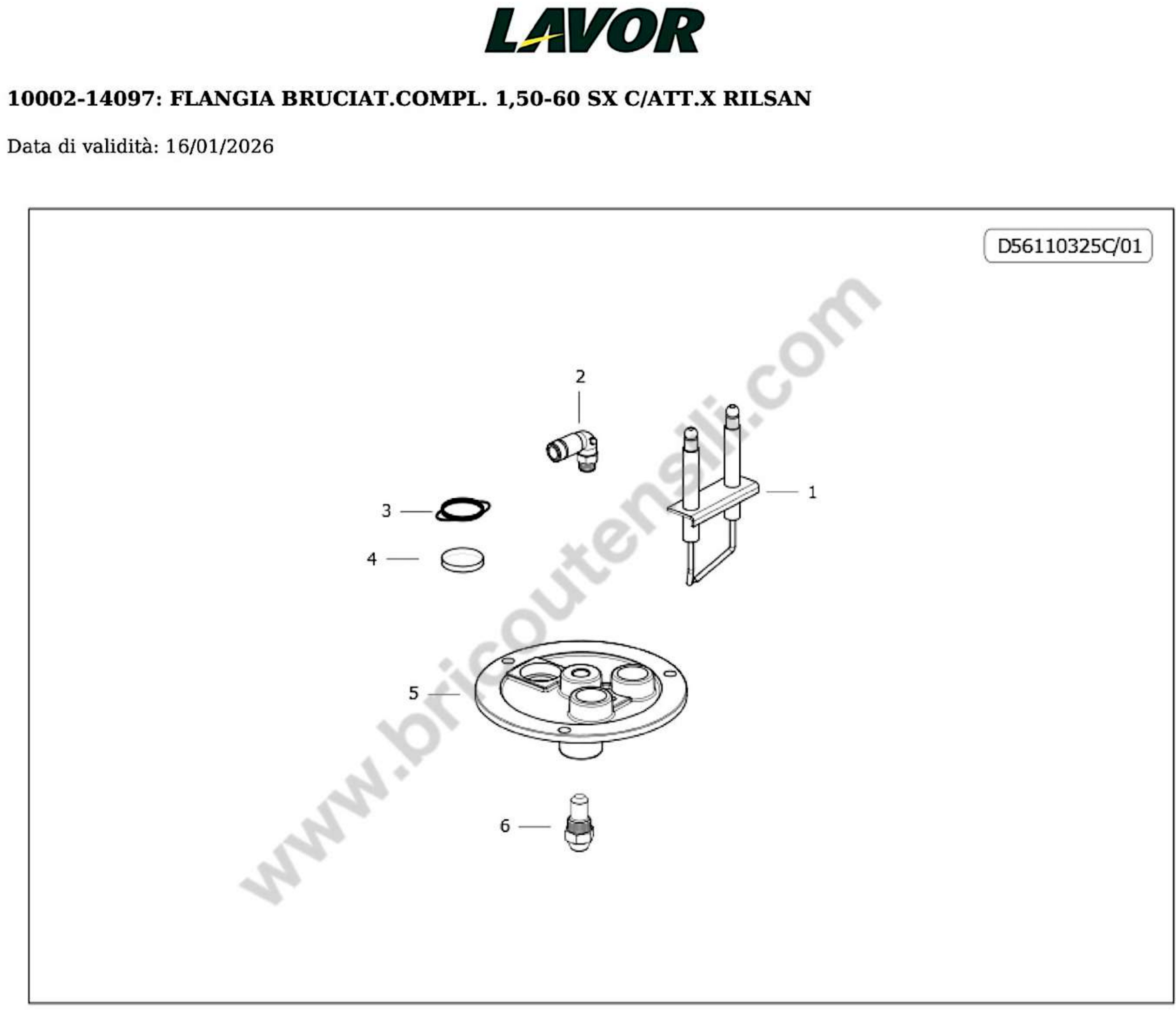

Page 5 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 5.611.0107 EXTERNAL COVER FOR BAND/THICKNESS 3mm €66.09
3
 photo_cameraImage coming soon 5.613.0027 COMBUST.CHAMB.INWARD COVER CHIMM. L=110 €139.45
4
 photo_cameraImage coming soon 4.604.0030 CKX H425 COIL €107.40
6
 photo_cameraImage coming soon 5.613.0230 INTERNAL CASING FOR BOILER COMPL. TEKNA4 -PAINTED- €111.56
7
 photo_cameraImage coming soon 4.607.0006 COIL FIXING STRIP PLATE 20/10 €46.76
8
 photo_cameraImage coming soon 6.605.0143 PRO 'SERIES 4' BOILER REFRACTORY KIT €74.51

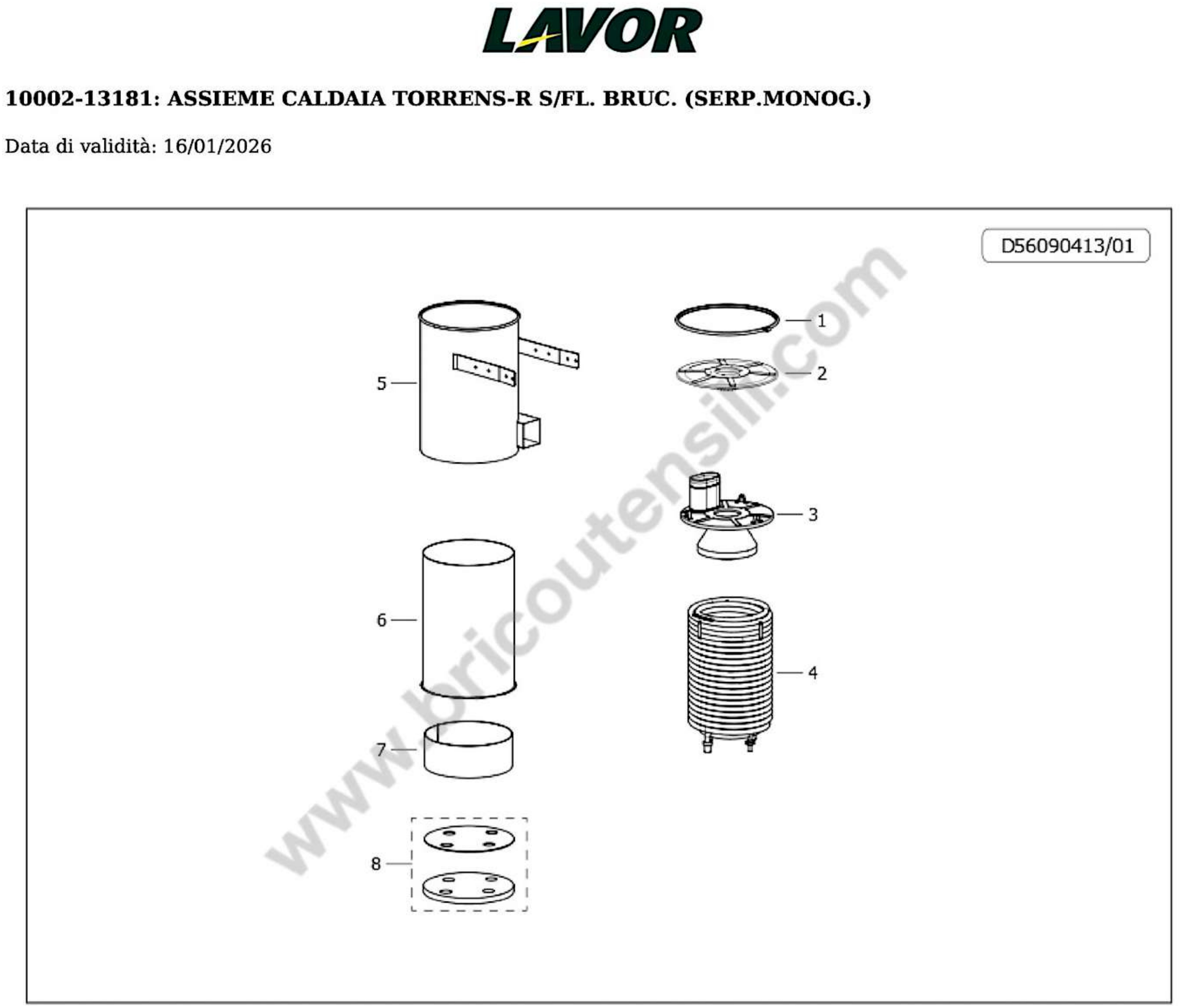

Page 6 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

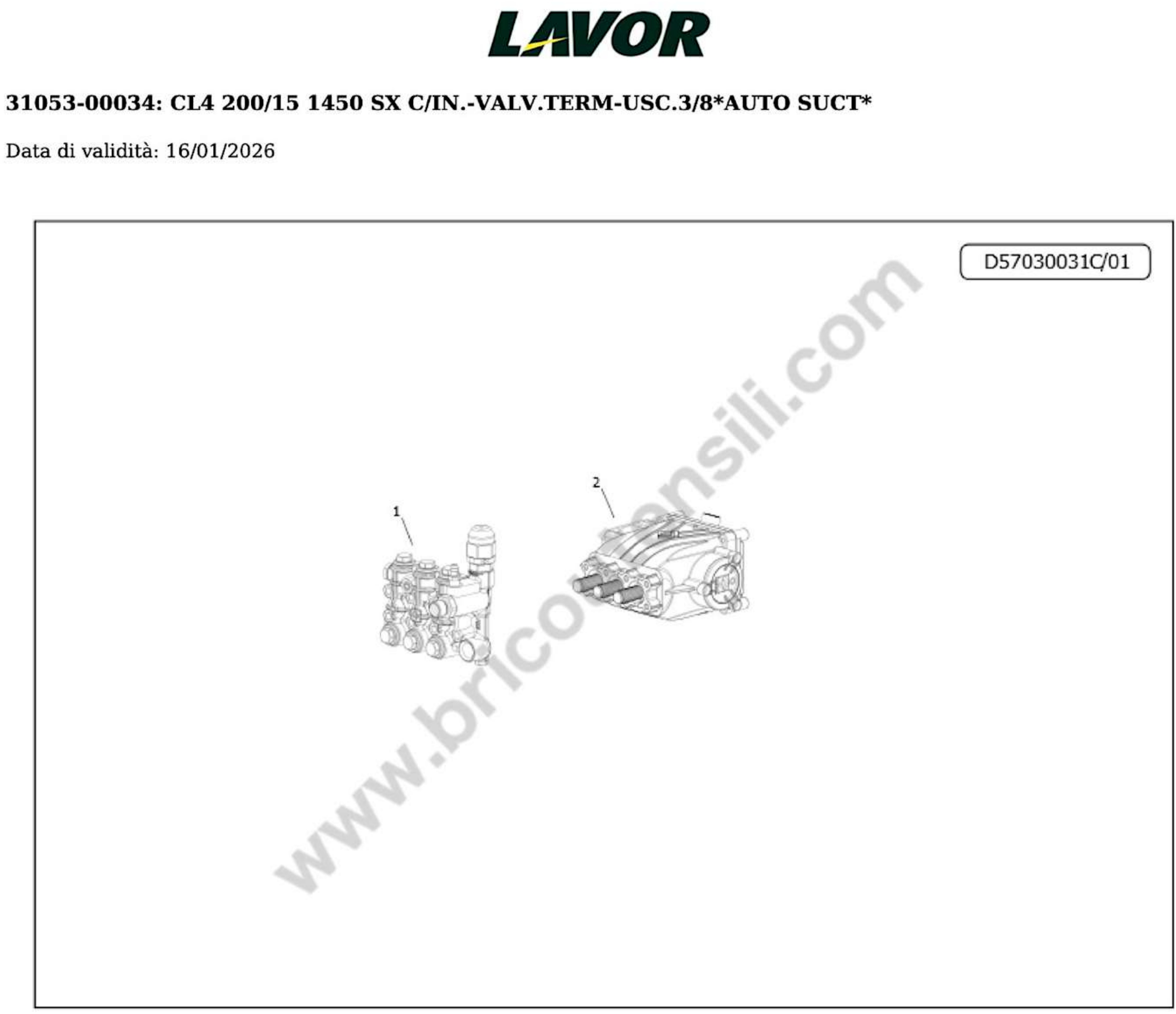

Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
LAVOR CL4 Pump Assy Kit D.18 1450RPM 15L 5.609.0314 LAVOR CL4 Pump Assy Kit D.18 1450RPM 15L €259.91
2
 LAVOR CL4 Pump Assy Kit D.18 1450RPM 15L 5.609.0314 LAVOR CL4 Pump Assy Kit D.18 1450RPM 15L €259.91
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

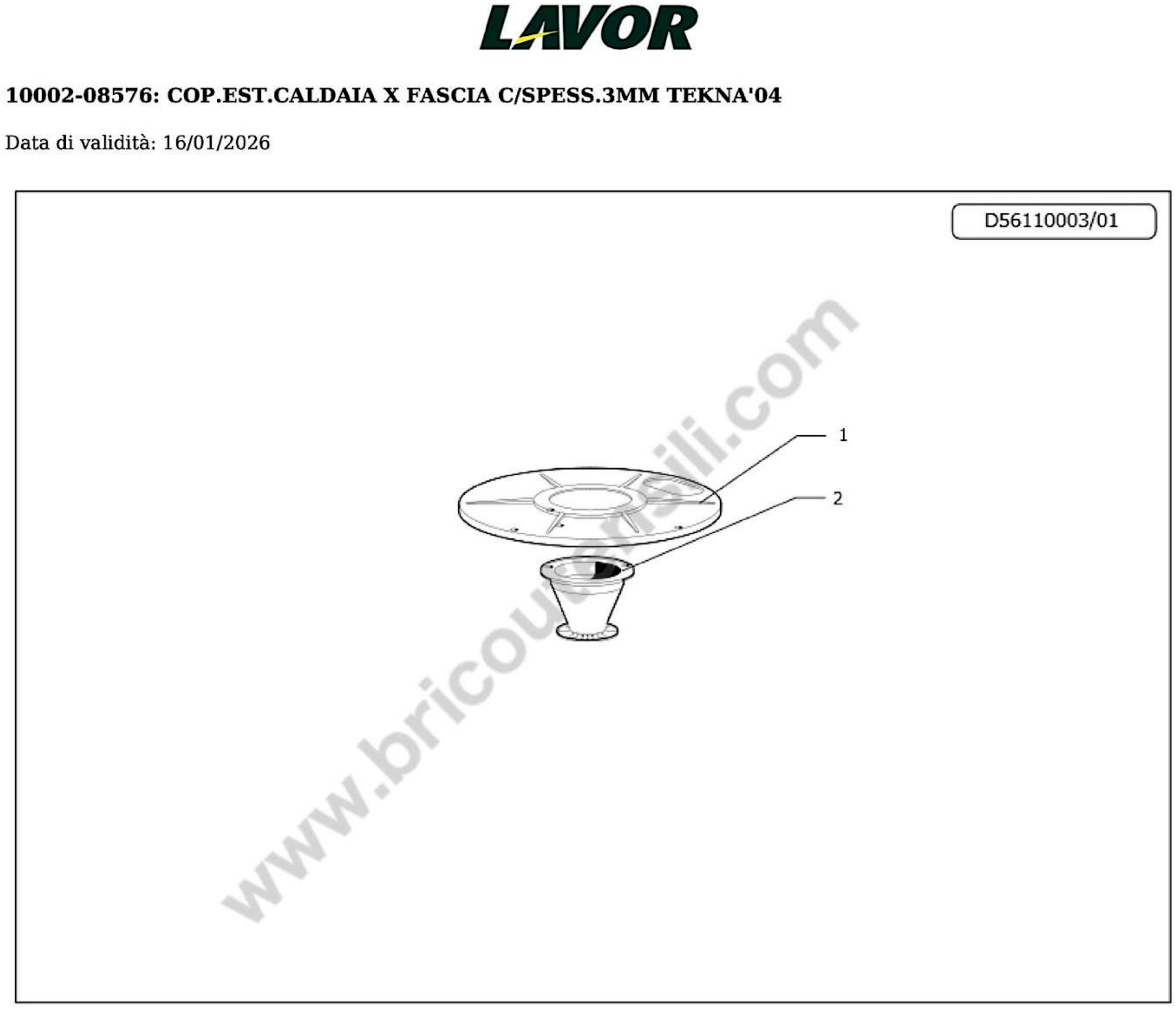

Esploso pagina 7
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Lavor LKX 2015LP External Cover 5.613.0200 Lavor LKX 2015LP External Cover €42.95
2
 photo_cameraImage coming soon 5.610.0104 DEFLECTOR WITH CONE D.81 WITHOUT HOLES €28.65

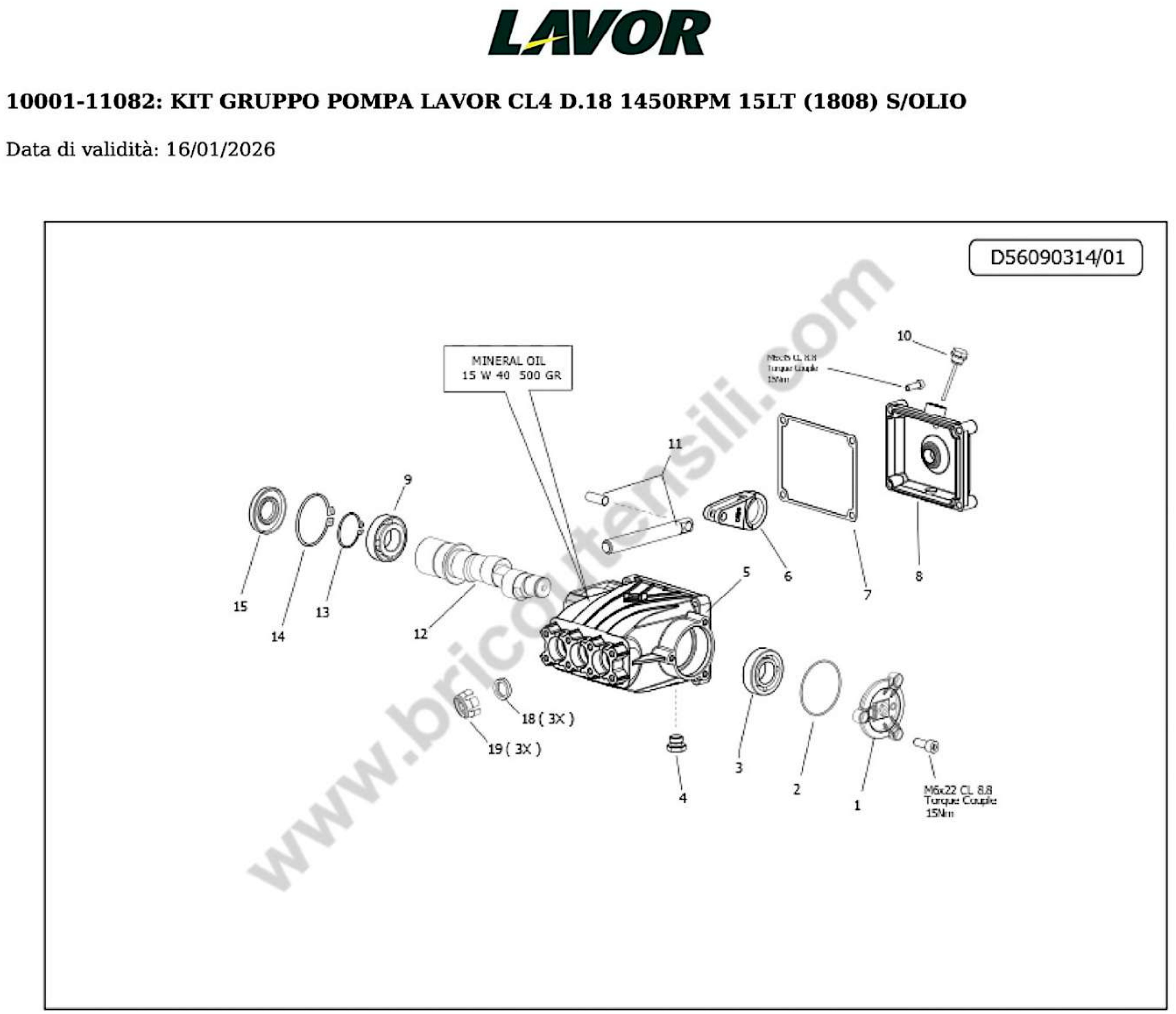

Page 8 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 8
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.605.0096 PUMP BEARING COVER 1808 €7.56
2
 photo_cameraImage coming soon 3.200.0219 GASKET OR 44,04X3,53 NBR SH.70 €1.70
3
 photo_cameraImage coming soon 3.001.0096 RADIAL BALL BEARING 6305 (25X62X17) -NSK- €23.94
4
 photo_cameraImage coming soon 4.606.0161 G3/8 CAP €9.98
5
 photo_cameraImage coming soon 4.605.0157C PUMP COVER D18 €61.48
6
 photo_cameraImage coming soon 6.605.0180 ALUMINUM CONNECTING RODS KIT FOR LP CL4-15 PUMP €16.17
7
 photo_cameraImage coming soon 3.200.0249 GASKET OR 98.02X3.53 NBR SH.70 €1.66
8
 photo_cameraImage coming soon 4.605.0174C POSTER COVER. CRANKCASE CL4-15 BLACK X GUARN.OR €18.92
9
 photo_cameraImage coming soon 3.001.0097 RADIAL BALL BEARING 6304 (20X52X15) HIGH QUALITY -NSK- €18.92
10
 photo_cameraImage coming soon 3.099.1480 OIL CAP (L=58 STICK) €3.36
11
 photo_cameraImage coming soon 6.605.0212 KIT OF 3 PISTONS + PINS FOR LP CL4-18 PUMP €64.00
12
 photo_cameraImage coming soon 4.607.0533 PUMP SHAFT IN LINE C = 14.4 MACHINED X 1808 €97.20
13
 photo_cameraImage coming soon 3.099.0831 CIRCLIP FOR SHAFT D.25 UNI7435 €1.74
14
 photo_cameraImage coming soon 3.099.0750 INTERIOR CIRCLIP 62 UNI 7437-75 €3.36
15
 photo_cameraImage coming soon 3.201.0058 Replaced by 6.005.0306 RING SHAFT SEAL D.25X62X 10 DIN AS €25.22
18
 photo_cameraImage coming soon 6.605.0210 OIL SEAL KIT D.18 FOR CL4 PUMP €12.68
19
 photo_cameraImage coming soon 4.608.0472 OIL SEAL SPACER 22X25.6X14.5 €6.41

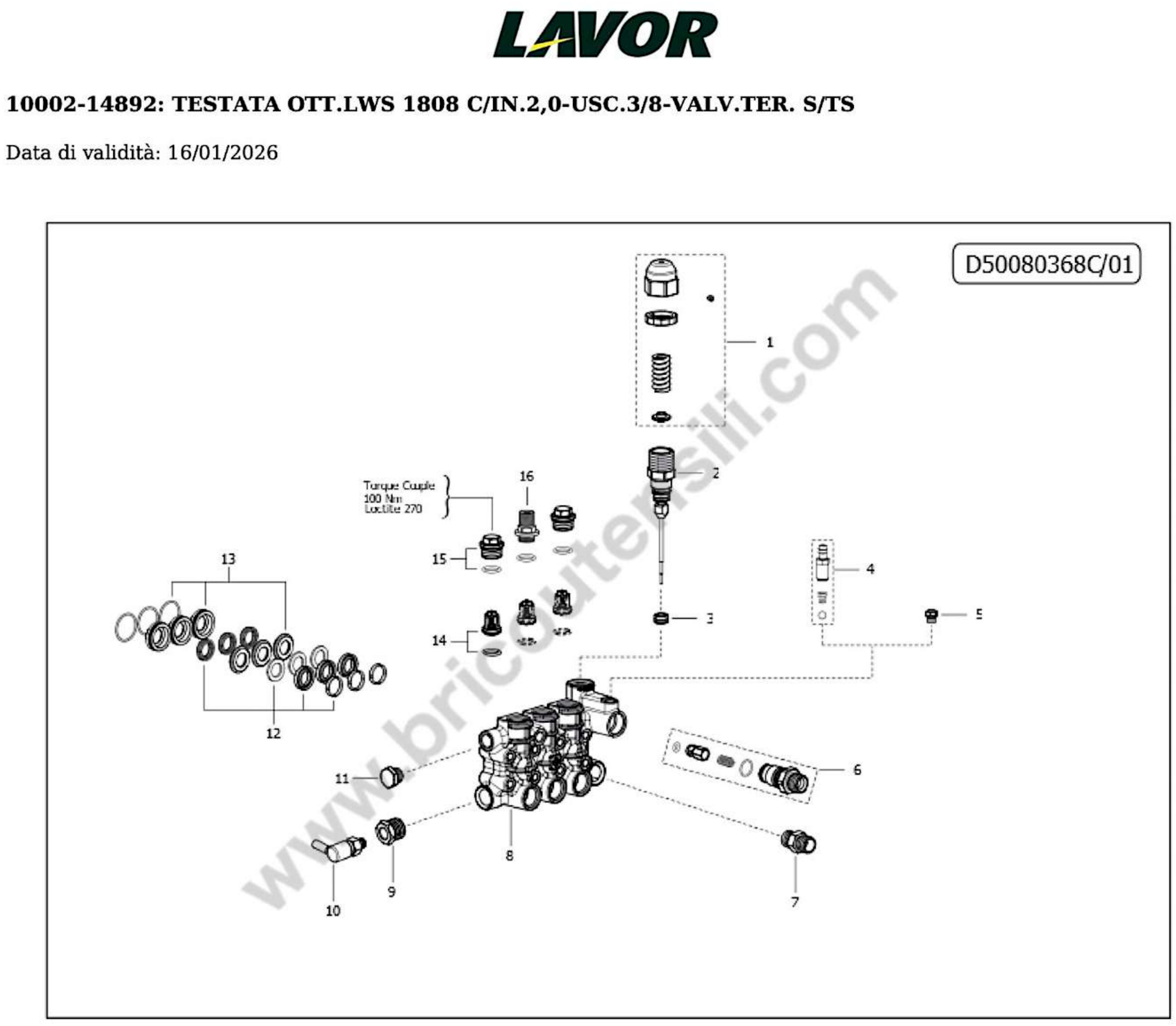

Page 9 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 9
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Lavor MCHPV 1515LP Kit 111 LW 6.005.0120 Lavor MCHPV 1515LP Kit 111 LW €28.38
3
 photo_cameraImage coming soon 5.609.0080 SEAL SEAT ASSY + OR €14.80
4
 photo_cameraImage coming soon 5.609.0154C HOSE HOLDER DETERGENT SUCTIONKIT WITH OR AND SPRING €9.55
7
 photo_cameraImage coming soon 3.100.0019 NIPPLE 1/2 CYL. 1/2 CYL. €7.55
8
 Lavor Head for Pressure Cleaner LKX 2015LP 4.606.0223 Lavor Head for Pressure Cleaner LKX 2015LP €140.00
9
 photo_cameraImage coming soon 3.100.0030 REDUCTION 1/2M 1/4F €7.55
11
 photo_cameraImage coming soon 4.606.0001 1/4G CAP €3.36
12
 photo_cameraImage coming soon 6.005.0305 KIT 277 LW WATER SEALS LWS1808 €81.52
13
 photo_cameraImage coming soon 6.605.0123 KIT OF 3 PUMP BUSHINGS 1808 €29.29
14
 photo_cameraImage coming soon 6.005.0578 KIT 6 VALVES *AUTO SUCTION* (COMP.OR) TEST.OCT.'99 €23.29
15
 photo_cameraImage coming soon 5.009.0101C PLUG SUCTION/DELIVERY VALVE WITH MOUNTED OR €6.41
16
 photo_cameraImage coming soon 5.609.0064 VALVE CAP ASSY + OR €13.32

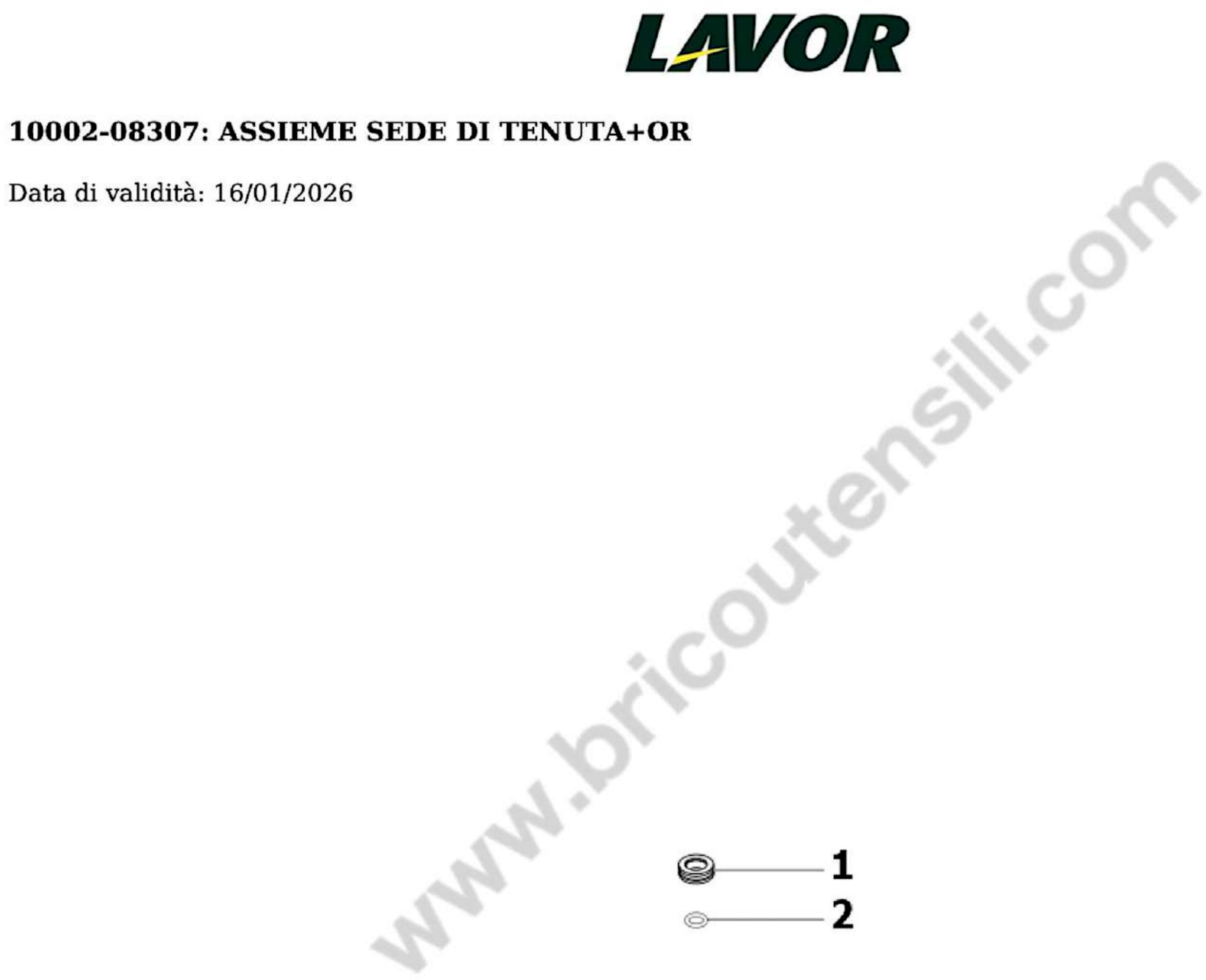

Page 10 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 10
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.607.0203 SEAL SEAT €7.38
2
 photo_cameraImage coming soon 3.200.0057 OR SEAL 9.25X1.78 SH.90 REF. 2037 €1.63

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Original Parts for TORRENS 2015 (KREMER)

Fix Your Pressure Cleaner IDRO TORRENS 2015 400/50-GR-TS(KR-5300HW KREMER) - 8.627.0020C. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee

In the following tables, look for the spare part and its respective code.
IDRO TORRENS 2015 (KREMER) - 8.627.0020C

IDRO TORRENS 2015 (KREMER) - 8.627.0020C
Chassis Pag.1
# Part Num Description
0 8.627.X013 TORRENS 2015 400/50 TS + THREE-PHASE PLUG
1 4.613.0422 TORRENS TOP HOUSING -GR- RAL.7046
2 4.607.0662 CAN SUPPORT BRACKET
3 4.608.0393 FUEL TANK FOR TORRENS -N-
4 4.608.0538 FUEL TANK CAP FOR TORRENS -B-
5 4.613.0315 TORRENS LEFT SIDE PANEL -BLACK-
6 4.608.0245 CABLE REEL INSERT FOR VERTICAL
7 4.613.0314 TORRENS RIGHT SIDE PANEL -BLACK-
30 3.713.0011 AL 28 GUN 3/8 M + EXTENSION 55
31 4.618.0012 HOSE 5/16 R1 310 BAR 10 M
32 3.701.0015 STAINLESS STEEL LANCE L.700 COVERED + RED + QUICK COUPLING
33 3.103.0050 H.P. NOZZLE 1/8M 15045
34 TORRENS INLET CONNECTOR D.16
35 3.102.0011 WATER FILTER 3/4F-3/4M MESH 140
36 7.700.0537 KREMER KR-4200HW/KR-5300HW MANUAL
TORRENS 2015 400/50 TS+SPINA TRIFASE 34990017 BASE DA FINIRE Pag.2
0 5.611.0204 TORRENS DASHBOARD ASSEMBLY WITHOUT LED BOARD (TAMP.-EN-)
0 5.611.0325C COMPLETE BURNER FLANGE 1.50-60 LH WITH RILSAN CONNECTOR
0 5.609.0413 TORRENS-R BOILER ASSEMBLY WITHOUT BURNER FLANGE (SINGLE-SIDED CYLINDER)
0 5.703.0031C CL4 200/15 1450 LH W/IN-THERMAL VALVE-OUT 3/8 AUTO SUCT
1 5.611.0204 TORRENS DASHBOARD ASSEMBLY W/O LED BOARD (TAMPER-EN-)
2 3.402.0045 THERMAL RELAY DPER21 12-18A
3 4.608.0594 TORRENS-R ELECTRIC BOX
4 3.402.0002 KN22 REMOTE CONTROLLER 24V 50HZ 7.5KW AC3
5 TRANSFORMER 220-380V 24V 2A
6 3.403.0034 ELECTRIC BOARD W/FUEL DELAY (RTD 230/50-60)
8 4.607.0572 TEKNA 4 HANDLE FIXING BRACKET
9 4.608.0181 TEKNA 4 CONVEYOR COVER
10 3.099.2085 162X63 LH FAN. DM 12.7 HOLE WITH SCREW
11 4.608.0404 HOT AIR CONVEYOR TEXAS
12 3.300.0031 BURNER MOTOR 220V 50HZ 1.6A 250W 2700RPM CL.F S1 IP44
13 3.099.0012C PLASTIC COUPLING FOR DIESEL PUMP - MOTOR -A-
14 3.100.0558 STRAIGHT CONNECTOR G1/8M - D.4 FOR RILSAN TUBE -C-
15 3.551.0062 DUAL-PIPE DIESEL PUMP RH 230/50-60
16 4.606.0088 PORT 1/4 G M D.7
17 3.102.0017 FUEL FILTER FB1 (PAPER 30 MICRONS)
18 5.609.0260 SAFETY VALVE MAX 250BAR 1/8 WITH PORT
19 3.100.0514 1/8G F/F/F BRASS T-FITTING
20 4.618.0003 2X630 PRESSURE GAUGE TUBE 70MPA (LOP 120MPA) 1/4 F/GIR-1/4 F/GIR
21 3.704.0006C PR5 PRESSURE SWITCH 25BAR 1/8 L=720 (2 WIRES)
22 3.100.0515 1/8M-1/8M BRASS NIPPLE CH.12
25 4.612.0029 POWER CABLE 4X2.5 L=760 H05VV-F
26 3.302.0019 ELECTRIC MOTOR TR. 220-380/50 HP7.5 4P A.C. FL90 S1 CL.F CN
27 5.703.0031C CL4 200/15 1450 LH W/IN-THERMAL VALVE-OUTLET 3/8" AUTO SUCT
30 4.618.0175 HOSE 3/8" R2 400BAR L=520 1/2" G 90G-3/8" G 90G
31 4.606.0234 INLET 3/4" FOR CKX
32 4.612.0032 POWER CABLE H05VV-F 4X2.5 L=6700
33 3.406.0067C CABLE GLAND PG.16 TEAR-RESISTANT WITH RING NUT
34 4.618.0165 HOSE LP L=750 1/2" CONNECTOR-90G 1/2" SWIVEL CONNECTOR
35 3.100.0023 NIPPLE 3/8" M - 3/8" M
36 3.100.0020 NIPPLE 1/2" G - 3/8" G
37 4.606.0087 PROFESSIONAL THERMOSTAT BULB BODY
38 4.618.0176 3/8" H.P. PIPE R2 400 BAR L=720 1/2" G 90G - 3/8" G 90G
39 3.006.0026 BLACK SOLID WHEEL D.260X85
40 3.099.0029 CHROME-PLATED STARLOCK WHEEL LOCKING RING D.20
41 5.613.0291 TEKNA '04 PAINTED FRAME (4 WHEELS)
42 5.613.0292 TEKNA 4-WHEEL HANDLE
43 5.609.0126 IGNITION TRANSFER 220-240V 50/60HZ WITH PIPET NPX-LKX + CABLE
44 5.611.0325C COMPLETE BURNER FLANGE 1.50-60 LH WITH RILSAN CONNECTOR
45 5.609.0413 TORRENS-R BOILER ASSEMBLY WITHOUT BURNER FLANGE (SINGLE-GROOVED COIL)
46 3.004.0015 FLAT WASHER D.22X39 THICKNESS 3 UNI6592 ZNT
47 4.606.0013 COIL FIXING NUT 1/2" OT SPECIAL
49 3.099.0794 135mm WHEEL COVER CAP FOR 260mm THREE-PHASE WHEEL COVER - GREY - RAL 9006
50 3.499.0017 3-PHASE PLUG 3P+N+E 16A-6H 380/415V
ASSIEME CRUSCOTTO TORRENS S/SCHEDA LED(TAMP.-EN-) Pag.3
1 4.608.0595 TORRENS-R SINGLE-PHASE DASHBOARD
2 3.401.0178 0/1 BLACK PUSH/BUTTON SWITCH IP55 12/10
3 5.611.0161 BLACK THERMOSTAT KNOB WITH INSERT
4 4.608.0530 TORRENS DETERGENT KNOB
5 3.107.0004C 50MM PRESSURE GAUGE 0/315 BAR 1/4" EXTERNAL CONNECTOR + BRACKET
6 3.105.0003C DET REGULATOR TAP WITH HOLDER D.7
7 3.403.0091 30/150MM THERMOSTAT, 6.5MM BULB (3 CLOSED FASTONS)
FLANGIA BRUCIAT.COMPL. 1,50-60 SX C/ATT.X RILSAN Pag.4
1 4.614.0004C PAIR OF STANDARD PROFESSIONAL ELECTRODES W/BRACKET
2 3.100.0557 L-SHAPED CONNECTOR G1/8M - D.4 FOR RILSAN TUBE -C-
3 4.608.0599C GLASS COVER
4 4.608.0598C GLASS FOR BURNER FLANGE
5 4.605.0001C MACHINED BURNER FLANGE
6 3.104.0033C OIL NOZZLE 1.50 60 TORRENS-R
ASSIEME CALDAIA TORRENS-R S/FL. BRUC. (SERP.MONOG.) Pag.5
1 3.099.2093 BOILER COVER FIXING BAND TORRENS-R
2 5.611.0107 BOILER EXTERNAL COVER FOR BAND WITH 3MM THICKNESS TEKNA'04
3 5.613.0027 COMBINATION CAM. CHIMNEY INTERNAL COVER L=110
4 4.604.0030 CKX H425 COIL
5 5.613.0445 BOILER EXTERNAL CASING
6 5.613.0230 COMPLETE BOILER INTERNAL CASING
7 4.607.0006 COIL FIXING BAND 15/10 STAINLESS STEEL SHEET METAL
8 6.605.0143 PRO 'SERIES 4' BOILER REFRACTORY KIT
CL4 200/15 1450 SX C/IN.-VALV.TERM-USC.3/8*AUTO SUCT* Pag.6
0 5.609.0314 LAVOR CL4 PUMP KIT D.18 1450 RPM 15LT (1808) OIL-FREE
0 5.008.0368C BRASS HEAD LWS 1808 WITH 2.0 IN - 3/8 OUT - TERMINAL VALVE WITHOUT VALVE
1 5.008.0368C BRASS HEAD LWS 1808 WITH 2.0 IN - 3/8 OUT - TERMINAL VALVE WITHOUT VALVE
2 5.609.0314 LAVOR CL4 PUMP KIT D.18 1450 RPM 15LT (1808) OIL-FREE
COP.EST.CALDAIA X FASCIA C/SPESS.3MM TEKNA'04 Pag.7
1 5.613.0200 EXTERNAL COVER FOR '04 BOILER
2 5.610.0104 DEFLECTOR WITH CONE D.81 WITHOUT HOLES
KIT GRUPPO POMPA LAVOR CL4 D.18 1450RPM 15LT (1808) S/OLIO Pag.8
1 4.605.0096 BEARING COVER
2 3.200.0219 SEAL OR 44.04X3.53 NBR SH.70
3 3.001.0096 BALL RADIAL BEARING 6305 (25X62X17) - NSK-
4 4.606.0161 TEE CAP 3/8 GAS
5 4.605.0157C PUMP COVER D18
6 6.605.0180 ALUMINIUM CONNECTING RODS KIT FOR LP PUMP CL4-15
7 3.200.0249 SEAL OR 98.02X3.53 NBR SH.70
8 4.605.0174C REAR COVER FOR CL4 PUMP WITH OR SEAT
9 3.001.0097 6304 BALL BEARING (20X52X15) HIGH QUALITY - NSK-
10 3.099.1480 TP CRCO OIL FW3
11 6.605.0212 KIT OF 3 PISTONS + PINS FOR LP CL4-18 PUMP
12 4.607.0533 IN-LINE PUMP SHAFT C=14.4 MACHINED X 1808
13 3.099.0831 CIRCLIP FOR SHAFT D.25 UNI7435
14 3.099.0750 INTERIOR CIRCLIP 62 UNI 7437-75
15 3.201.0058 SEAL RING D.25X62X10 DIN AS
18 6.605.0210 OIL SEAL KIT D.18 FOR CL4 PUMP
19 4.608.0472 OIL SEAL SPACER 22X25.6X14.5
TESTATA OTT.LWS 1808 C/IN.2,0-USC.3/8-VALV.TER. S/TS Pag.9
1 6.005.0120 KIT PRESSURE REGULATOR TESTED OCT. '99
3 5.609.0080 SEAL SEAT ASSEMBLY + O-RING
4 5.609.0154C GAUGE HOLDER ASSEMBLY D. 1 W/O-RING AND SPRING L=7
6 6.005.0422C KIT 367 LW EXTERNAL INJECTION-RETURN VALVE-GAUGE HOLDER LWS18
7 3.100.0019 NIPPLE 1/2 CYL. 1/2 CYL.
8 4.606.0223 HEAD WORK LINE 1808
9 3.100.0030 REDUCTION 1/2M 1/4F
11 4.606.0001 PLUG T.E. 1/4 BAS
12 6.005.0305 KIT 277 LW WATER SEAL LWS1808
13 6.605.0123 KIT 3 PUMP BUSHINGS 1808
14 6.005.0578 KIT 6 AUTO SUCTION VALVES (OR COMPONENTS) TESTED OCT. '99
15 5.009.0101C PLUG INLET/DELIVERY VALVE WITH O-RING MOUNTED
16 5.609.0064 ASSEMBLY OF INLET VALVE CAP, CAPILLARY DISCHARGE VALVE CAP + O-RING
ASSIEME SEDE DI TENUTA+OR Pag.10
1 4.607.0203 SEAL SEAT
2 3.200.0057 OR SEAL 9.25X1.78 SH.90 REF. 2037
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Lavor TORRENS 8.627.0020C
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

Lavor IDRO TORRENS 2015 Diagram

Lavor IDRO TORRENS 2015 Diagram

Download (507.07KB)

You might also like

Lance 6.002.0340 Nozzle Head Holder for Trigger Guns Lavor
Lavorwash S.p.A. SKU: 6.002.0340
Lance 6.002.0340 Nozzle Head Holder for Trigger Guns Lavor
Lance 6.002.0340 Nozzle Head Holder for Trigger Guns Lavor Genuine Replacement part Lavor, Lance 6.002.0340 Nozzle Head Holder for Cold Water Pressure Washers Trigger Guns Lavor Fury 110 - Ride 110 - Race 125...
Last items in stock €10.11
Details
Head Turbo Nozzle Ø 1,025 for Lance Lavor
Lavorwash S.p.A. SKU: 6.002.0346
Head Turbo Nozzle Ø 1,025 for Lance Lavor
Head Turbo Nozzle Ø 1,025 for Lance Lavor Genuine Replacement part Lavor, Head cod. 6.002.0346 Turbo Nozzle Ø 1,025 for Lance Lavor 6.002.0340. Part suitable for the following high pressure...
Last items in stock €7.50
Details
Quick Coupling 3/4F for High Pressure Washers Lavor
Lavorwash S.p.A. SKU: 3.100.0082
Quick Coupling 3/4F for High Pressure Washers Lavor
Quick Coupling 3/4F  for High Pressure Washers Lavor Genuine Replacement part Lavor, Quick Coupling 3/4F 3.100.0082 for Cold Water High Pressure Washers Fury 110 - Ride 110 - Race 125...
AVAILABLE €1.63
Details
Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 4.008.0031
Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24
Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 Original replacement part Lavor, Inlet Water Filter H20 D.16 Conical for Pressurte Washers STORM II 17 - STORM II PLUS 21 - BEST 24.  Part for the following products: -...
AVAILABLE €2.07
Details
Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 6.005.0079
Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24
Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24 Original replacement part Lavor, Kit 79 LW Oil Seal for Partner D.12/Fibra per Pressure Washers ARMY 110 - MARINE 125 - NAVY 140...
Last items in stock €14.50
Details
Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 6.005.0226
Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24
Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24 Original replacement part Lavor, Kit 209 O-Ring for PT'03 per Pressure Washers ARMY 110 - MARINE 125 - NAVY 140 - ENDURO 145 - BEST 24. Part for the following products: -...
Usually Ships in: 7/10 Business Days Approx. €11.43
Details
Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145
Lavorwash S.p.A. SKU: 5.008.0261
Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145
Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145 Original replacement part Lavor, Head PT'03 EVO D.12 for ENDURO 145 - ARMY 110 - MARINE 125 - NAVY 140 - RAPTOR 21 - STORM II 18 - STORM II PLUS 21. Part for the following...
AVAILABLE €28.99
Details
Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145
Lavorwash S.p.A. SKU: 6.005.0311
Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145
Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145 Original replacement part Lavor, Kit 283 LW Needle Bearing for Motorpump PT'03 (U76) for ENDURO 145 - ARMY 110 - MARINE 125 - NAVY 140 - RAPTOR 21 - STORM II. Part for the...
Last items in stock €7.56
Details
Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110
Lavorwash S.p.A. SKU: 6.005.0588
Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110
Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110 Original replacement part Lavor, Kit LW Intake Delivery Valves for High Pressure Washers ARMY 110 - MARINE 125 - NAVY 140. Part for the following products: - R80880029C -...
AVAILABLE €27.72
Details
Lance S'02V 1,00 (Blu) for Pressure Washer EXPRESS PLUS Sale
Lavorwash S.p.A. SKU: 6.002.0263
Lance S'02V 1,00 (Blu) for Pressure Washer EXPRESS PLUS
Lance S'02V 1,00 (Blu) for Pressure Washer EXPRESS PLUS Genuine Part Lavor, Lance S'02V 1,00 (Blu) for Pressure Washer 8.084.0006C Lavor IDRO EXPRESS PLUS 220-240/50Hz. Part suitable for the following high pressure washers: -...
AVAILABLE €13.00
Details
Capacitor 55mF 450V for Pressurte Washer Lavor GIANT 24
Lavorwash S.p.A. SKU: 3.404.0095
Capacitor 55mF 450V for Pressurte Washer Lavor GIANT 24
Capacitor 55mF 450V for Pressurte Washer Lavor GIANT 24 Original replacement part Lavor, Capacitor 55mF 450V D.50x94 F/M per Pressure Washers GIANT 24 - GIANT 28 - TEMPESTA 24 - TEMPESTA 28. Part for the following products: - 81050002...
AVAILABLE €20.13
Details
Quick Coupling for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 5.009.0340
Quick Coupling for Pressure Washers Lavor NPX 1400 - NPX 1500
Quick Coupling for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Quick Coupling Assy + O-Ring + Ring Nut for Pressure Washers NPX 1400 - NPX 1500. Part for the following products: - Pressure Washer Lavor...
Last items in stock €15.06
Details
Thermostate Knob for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 4.608.0019
Thermostate Knob for Pressure Washers Lavor NPX 1400 - NPX 1500
Thermostate Knob for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Black Thermostate Knob 3079/1t for Pressure Washers NPX 1400 - NPX 1500. Part for the following products: - Pressure Washer Lavor NPX 1400...
on 10 Business Days Approx €10.03
Details
Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 3.100.0043
Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500
Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, 3/8 M Rotating Quick Coupling for Pressure Washers NPX 1400 - NPX 1500. Part for the following products: - Pressure Washer Lavor NPX 1400 -...
AVAILABLE €17.59
Details
Piston Guide Body With Complete Valve Head for Lavor Missouri
Lavorwash S.p.A. SKU: 5.007.0231
Piston Guide Body With Complete Valve Head for Lavor Missouri
Piston Guide Body With Complete Valve Head for Lavor Missouri Genuine part Lavor, Piston Guide Body PT'03 - Ceramic Pistons Diameter 12 mm + Total-Stop, Turned With Complete Valve Head With Intake Springs 17K. Part for the following...
Usually Ships in: 7/10 Business Days Approx. €52.53
Details
Suction Valve Ass'y for Pressure Cleaner Lavor Missouri
Lavorwash S.p.A. SKU: 5.009.0534
Suction Valve Ass'y for Pressure Cleaner Lavor Missouri
Suction Valve Ass'y for Pressure Cleaner Lavor Missouri Genuine part Lavor, Suction Valve Ass'y for '03 Head for Pressure Cleaners MISSOURI - EAGLE 24. Part for the following products: -  86190601 - IDRO MISSOURI 230/50 TS -G- LWS -...
on 7/10 Business Days Approx €9.28
Details
Delivery Valve Brass Cap for Pressure Cleaner Lavor Missouri
Lavorwash S.p.A. SKU: 5.009.0745
Delivery Valve Brass Cap for Pressure Cleaner Lavor Missouri
Delivery Valve Brass Cap for Pressure Cleaner Lavor Missouri Genuine part Lavor, Delivery Valve Brass Cap with O-Ring for '03 Head for Pressure Cleaners MISSOURI - EAGLE 24. Part for the following products: -  86190601 - IDRO MISSOURI...
AVAILABLE €5.03
Details
Radial Ball Bearing 6203RS for Pressure Cleaner Lavor Missouri
Lavorwash S.p.A. SKU: 3.001.0020
Radial Ball Bearing 6203RS for Pressure Cleaner Lavor Missouri
Radial Ball Bearing 6203RS for Pressure Cleaner Lavor Missouri Genuine part Lavor, Radial Ball Bearing 6203RS for Pressure Cleaners MISSOURI - Giant 24 - Giant 28 - Tempesta 24 - Tormenta 28. Part for the following products: -...
on 7/10 Business Days Approx €13.71
Details
Transformer 230-240V for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 5.009.0686
Transformer 230-240V for Pressure Washer Lavor Missouri
Transformer 230-240V for Pressure Washer Lavor Missouri Genuine part Lavor, Ignition Transformer 230-240V/50-60Hz with Pipette for Pressure Washers Burner FKX-PARANA ' - RIO (EMC) + Cable Part for the following products: -  86190601...
Usually Ships in: 10/15 Business Days Approx. €100.43
Details
Diesel Filter Unit for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 5.611.0043
Diesel Filter Unit for Pressure Washer Lavor Missouri
Diesel Filter Unit for Pressure Washer Lavor Missouri Genuine part Lavor, Diesel Filter Unit JOLLY 4 '93 / MISSOURI / MEK for Pressure Washers Missouri - NPX 1400 - NPX 1500. Part for the following...
Usually Ships in: 10 Business Days Approx. €15.19
Details
Pressure Adjustment Valve for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 5.009.0304
Pressure Adjustment Valve for Pressure Washer Lavor Missouri
Pressure Adjustment Valve for Pressure Washer Lavor Missouri Genuine part Lavor, Pressure Adjustment Valve Ass'y for Pump ULKA (Spring L=20) for Pressure Washers MISSOURI FKX-PARANA' - MISSOURI - RIO (EMC) + Cable. Part for the...
on 7/10 Business Days Approx. €28.99
Details
Electrodes for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 4.614.0001
Electrodes for Pressure Cleaner Lavor NPX 1400
Electrodes for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Unified Electrodes with Bracket for Boilerfor Pressure Cleaners NPX 1400 - NPX 1500 - LKX 40 - NPX 1511 XP T...
on 10 Business Days Approx €36.16
Details
Diesel Pump for Pressure Cleaner Lavor NPX 1400 Sale
Lavorwash S.p.A. SKU: 3.551.0037
Diesel Pump for Pressure Cleaner Lavor NPX 1400
Diesel Pump for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Double Pipe Diesel Pump + Electrode 220V Right for Pressure Cleaners NPX 1400 - LKX 40 Part for the...
Last items in stock €113.24
Details
Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 6.605.0173
Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400
Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Diesel Pump Red Plastic Coupling Set for Engine EME/UNIELECTRICp for Pressure Cleaners NPX 1400 - NPX 1500 Part for the following products: -...
Last items in stock €29.06
Details
Washer SNHORt for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 3.004.0022
Washer SNHOR for Pressure Cleaner Lavor NPX 1400
Washer SNHOR for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Washer SNHOR D.8x13 sp.0.8 for Pressure Cleaners NPX 1400 - NPX 1500 Part for the following products: -  Pressure Cleaner Lavor NPX 1400 - 8.605.0048 -...
on 10 Business Days Approx €1.71
Details
Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 3.403.0091
Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500
Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Thermostat 30/150 Bulb d.6.5 (3 Faston) for Pressure Washers NPX 1400 - NPX 1500. Part for the following...
on 10 Business Days Approx €35.00
Details
Micro Breaker for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 3.401.0025
Micro Breaker for Pressure Cleaner Lavor NPX 1400
Micro Breaker for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Micro Breaker 3120 - F551-P7T1-W02D-16A for Pressure Cleaners NPX 1400 - NPX 1500. Part for the following products: -  Pressure Cleaner NPX 1400 230/50...
on 10 Business Days Approx €46.23
Details
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 4.608.0078
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Dashboard Gasket '93 (3x900) for Pressure Cleaners NPX 1400 - NPX 1500 - LKX 40. Part for the following products: -  Pressure Cleaner NPX 1400 230/50...
Last items in stock €3.32
Details
Pressure Switch for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 3.704.0006
Pressure Switch for Pressure Washer Lavor Missouri
Pressure Switch for Pressure Washer Lavor Missouri Genuine part Lavor, Pressure Switch 25 Bar 1/8 Red L.700 Faston F. for Pressure Washers  MISSOURI - YUKON 1310 - NPX 1500 - LKX 40. Part...
Last items in stock €30.90
Details
Diesel Nozzle for Pressure Washers Lavor NPX 1400
Lavorwash S.p.A. SKU: 3.104.0028
Diesel Nozzle for Pressure Washers Lavor NPX 1400
Diesel Nozzle for Pressure Washers Lavor NPX 1400 Genuine replacement part Lavor, Diesel Nozzle 1,25 45-B for Pressure Washers NPX 1400 - NPX 1500 - LKX 31 - LKX 40. Part for the following...
Last items in stock €28.36
Details
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1500
Lavorwash S.p.A. SKU: 4.618.0014
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1500
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Pressure Gauge Pipe 2x380 Max 630 Bar 1/4 F. Gir. 1/4 F Gir. for Pressure Washers NPX 1400 - NPX...
Usually Ships in: 10/15 Business Days Approx. €26.46
Details
Lavor MCHPV 1515LP Kit 111 LW
Lavorwash S.p.A. SKU: 6.005.0120
Lavor MCHPV 1515LP Kit 111 LW
Lavor MCHPV 1515LP Kit 111 LW Genuine replacement part Lavor, Kit 111 LW Pressure Regulator For Brass Head Test.Oct.'99 for Pressure Cleaner MCHPV 1515LP 400-415/SC1 - 8.626.0002. Part for the following products:...
on 10 Business Days Approx. €28.38
Details
Lavor LKX 31 Diesel Filter Unit
Lavorwash S.p.A. SKU: 5.611.0067
Lavor LKX 31 Diesel Filter Unit
Lavor LKX 31 Diesel Filter Unit Genuine replacement part Lavor, Diesel Filter Unit Assy (PAPER) for LKX 31 - 40 - 55 - 2015. Part for the following products: - 8.611.0160 - Pressure Washer LKX 31 TS AC 230/50 CM-G -...
Last items in stock €19.50
Details
Lavor LKX 2015 Burn Flange
Lavorwash S.p.A. SKU: 5.611.0192
Lavor LKX 2015 Burn Flange
Lavor LKX 2015 Burn Flange Genuine replacement part Lavor, Cmplete Burn Flange 1.50-45B (RILSAN) With preparation for flame control for LKX 2015. Part for the following products: - 8.621.2935 - Pressure Washer LKX 2015LP T...
on 10 Business Days Approx. €97.88
Details
Lavor LKX 2015 Ignition Transformer
Lavorwash S.p.A. SKU: 5.609.0344
Lavor LKX 2015 Ignition Transformer
Lavor LKX 2015 Ignition Transformer Genuine replacement part Lavor, Ignition Transformer 220-240V 50/60Hz C/PIPET.NPX-LKX + CAVO (POTENZ.) for LKX 2015. Part for the following products: - 8.621.2935 - Pressure Washer LKX...
Usually Ships in: 10/15 Business Days Approx. €63.65
Details
Lavor Head for Pressure Cleaner LKX 2015LP
Lavorwash S.p.A. SKU: 4.606.0223
Lavor Head for Pressure Cleaner LKX 2015LP
Lavor Head for Pressure Cleaner LKX 2015LP Original replacement part Lavorwash, Lavor Headboard 1808 Line for Pressure Washer LKX 2015LP. Part for the following products: -  High Pressure Cleaner LKX 2015LP T 400-415/50 -GR -...
Last items in stock €140.00
Details
Lavor LKX1515LP AC Contactor KN22
Lavorwash S.p.A. SKU: 3.402.0051
Lavor LKX1515LP AC Contactor KN22
Lavor AC Contactor KN22 400/50HZ 7,5 KW AC3 for LKX 1515LP Original replacement part Lavorwash, AC Contactor KN22 400/50HZ 7,5 KW AC3 for Pressure Washer LKX 1515LP - LKX 2015LP. Part for the following products: - High...
Usually Ships in: 10 Business Days Approx. €36.66
Details
Lavor LKX 31 Single Pipe Diesel Pump
Lavorwash S.p.A. SKU: 3.551.0063
Lavor LKX 31 Double Pipe Diesel Pump
Lavor LKX 31 Double Pipe Diesel Pump Genuine replacement part Lavor, Double Pipe Diesel Pump + 24V ELECTRODE. D DX for LKX 31 - 40 - 55 - 1515. Part for the following products: - 8.611.0160 - LKX 31 TS AC 230/50 CM-G -...
Usually Ships in: 10/15 Business Days Approx. €103.22
Details
LAVOR CL4 Pump Assy Kit D.18 1450RPM 15L New
Lavorwash S.p.A. SKU: 5.609.0314
LAVOR CL4 Pump Assy Kit D.18 1450RPM 15L
LAVOR CL4 Pump Assembly Kit D.18 1450RPM 15L (1808) Original Lavor Spare Part: LAVOR CL4 D.18 1450RPM 15L (1808) Pump Kit. Oil-free version for KR-7300WH - TORRENS. Part for the following products: -  Lavor KR-7300WH -...
Last items in stock €259.91
Details
Comments (0)
