Lavorwash S.p.A.

Lavor PROFESSIONAL 130 EVOLUTION Parts

SKU: Lavor 130 EVOLUTION 8.014.0029
€18.11
VAT included

Lavor Original Parts for Pressure Cleaner PROFESSIONAL 130 EVOLUTION

Lavor original spare parts for to replace broken parts for to fix PROFESSIONAL 130 EVOLUTION - 8.014.0029.

Fix Your Pressure Cleaner. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

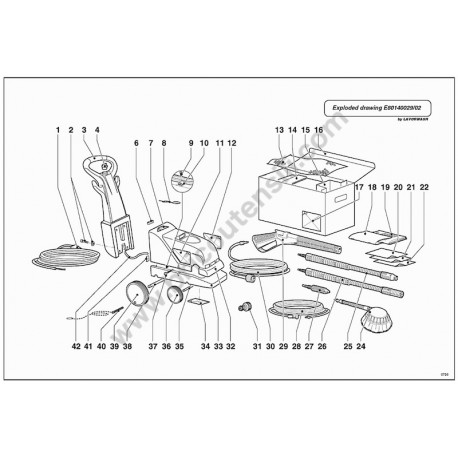

Lavor Pressure Cleaner PROFESSIONAL 130 EVOLUTION Parts Diagram
  • Lavor Pressure Cleaner PROFESSIONAL 130 EVOLUTION Parts Diagram
  • Lavor Pressure Cleaner PROFESSIONAL 130 EVOLUTION Parts Diagram - 1
Lavorwash S.p.A.

Lavor PROFESSIONAL 130 EVOLUTION Parts

SKU: Lavor 130 EVOLUTION 8.014.0029 Condition: New
€18.11
VAT included

Lavor Original Parts for Pressure Cleaner PROFESSIONAL 130 EVOLUTION

Lavor original spare parts for to replace broken parts for to fix PROFESSIONAL 130 EVOLUTION - 8.014.0029.

Fix Your Pressure Cleaner. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

settings 75 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Shipped in: 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
75 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.012.0071 Substituted by 4.012.0149 CABLE H05RN-F 3X1 MT.5 €26.83
2
 photo_cameraImage coming soon 5.012.0010 UNIVERSAL CART SCREW €9.42
3
 photo_cameraImage coming soon 4.008.0213 TANK HANDLE FOR VULKER EXP.01 €45.31
4
 photo_cameraImage coming soon 4.608.0027 BLACK PLUG D.30 FOR TANK €10.03
5
 photo_cameraImage coming soon 3.404.0017 CAPACITOR 25mF 450V D.39x94 F/M €11.18
6
 photo_cameraImage coming soon 4.008.0277 FIX PAD CABLE HOLDER €1.72
8
 photo_cameraImage coming soon 4.007.0114 NOZZLE CLEANING PIN €1.65
9
 photo_cameraImage coming soon 3.002.0112 CROSS HEAD -TORX SCREW 3,9x25HI-LO ZNT €1.72
10
 photo_cameraImage coming soon 4.007.0106 FIXING BRACKET '93 €16.78
13
 photo_cameraImage coming soon 7.099.0049 BUBBLE WRAP SHEET 50X60 GR. 55 X TRIPLE €1.68
16
 photo_cameraImage coming soon 7.001.0224 WHITE TANKER-KARJET PACKAGING 250X690H385 €21.75
19
 photo_cameraImage coming soon 7.100.0083 HOBBY USE-MAINTENANCE INSTRUCTIONS I-GB-F-D-E-NL-GR-S-SF-N-P €21.75
23
 Lavor Piston Recall Spring for FKX 1018 4.007.0025 Lavor Piston Recall Spring for FKX 1018 €2.12
24
 photo_cameraImage coming soon 3.601.0035 ROTATING HYDRO BRUSH W/HANDLE €23.63
25
 photo_cameraImage coming soon 6.002.0104 Substituted by 6.002.0209C S93 LANCE D.1.05 GREY-REINFORCED €14.66
26
 photo_cameraImage coming soon 6.002.0147 Substituted by 6.002.0327 ROTOX LANCE S.97 PLAST.D1.05 2P GREY €20.94
27
 photo_cameraImage coming soon 6.002.0116 REINFORCED COMPLETE LOW PRESSURE LANCE €6.51
28
 photo_cameraImage coming soon 6.003.0038 PIPE CLEANING HOSES MT4 + COGET + NOZZLE €43.18
29
 photo_cameraImage coming soon 6.001.0020 S'96 COMPLETE GUN WITH REINFORCED QUICK COUPLING €25.11
30
 photo_cameraImage coming soon 4.018.0030 1/4 HOSE 130 BAR 6M €60.11
31
 photo_cameraImage coming soon 3.100.0005 Substituted by 3.100.0082 QUICK COUPLING INLET CONNECTOR €3.04
32
 photo_cameraImage coming soon 4.013.0161 TANKER TOP HOUSING (BLUE RAL5002) €28.65
33
 photo_cameraImage coming soon 4.008.0185 Substituted by 5.011.0066 UNIFIED TROLLEY €43.13
35
 photo_cameraImage coming soon 4.007.0102 WHEEL SHAFT SKANER WITH TROLLEY €3.40
37
 photo_cameraImage coming soon 3.002.0113 SCREW 3,9X16 HI-LO TES.ESTETIC.TORX ZN €1.68
38
 photo_cameraImage coming soon 4.007.0105 TANKER AXE €5.35
39
 photo_cameraImage coming soon 4.008.0184 WHEEL D.150X30X15 €14.95
40
 photo_cameraImage coming soon 5.011.0025 COMPLETE BRAKE PIVOT FOR JET FIRE T VV €12.57
41
 photo_cameraImage coming soon 3.099.0075 SCREW HOLDER TE M6 €1.65
42
 photo_cameraImage coming soon 4.008.0172 TRANSPARENT TUBE D.6X9 L.510 €1.72
43
 photo_cameraImage coming soon 4.007.0014 VALVE SPRING DETERGENT CHECK De4,5 / 6 L = 7 WIRE D.0,3 €2.50
49
 Gasket O-Ring 11,1x1,78 for Pressure Washer Lavor GIANT 24 3.200.0013 Gasket O-Ring 11,1x1,78 for Pressure Washer Lavor GIANT 24 €1.66
50
 Oil Seal 14x22x5/7 for Pressure Washer Lavor FKX 1018 3.201.0004 Oil Seal 14x22x5/7 for Pressure Washer Lavor FKX 1018 €12.55
51
 photo_cameraImage coming soon 3.002.0094 SCREW TCEI M6X30 ZNT €1.72
53
 photo_cameraImage coming soon 4.006.0109 TAPERED 1/8 CAP €7.67
54
 Gasket O-Ring 9.92X2.62 for Pressure Washer Lavor FKX 1018 3.200.0018 Gasket O-Ring 9.92X2.62 for Pressure Washer Lavor FKX 1018 €1.66
55
 Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018 3.200.0019 Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018 €1.70
56
 photo_cameraImage coming soon 5.009.0101 CAP VALVE SUCTION DELIVERY-ORMOUNTED €6.91
57
 Delivery Suction Valve for Pressure Washer Lavor FKX 1018 5.009.0005 Delivery Suction Valve for Pressure Washer Lavor FKX 1018 €9.23
58
 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 4.008.0031 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 €2.07
60
 photo_cameraImage coming soon 5.009.0030 CONNECTOR FOR INJECTOR D.1,8 C OMPL.W.OR €3.32
62
 Oil Seal Spacer D.14 for Pressure Washer Lavor FKX 1018 4.008.0348 Oil Seal Spacer D.14 for Pressure Washer Lavor FKX 1018 €1.66
63
 photo_cameraImage coming soon 4.006.0036 SEALING HOLDER RING D.14 €9.96
65
 Water Seal N 14-12 D.14x22x6 for Pressure Washer Lavor FKX 1018 3.201.0009 Water Seal N 14-12 D.14x22x6 for Pressure Washer Lavor FKX 1018 €5.13
66
 Complete Suction Valve for Pressure Washer Lavor FKX 1018 5.009.0015 Complete Suction Valve for Pressure Washer Lavor FKX 1018 €5.78
67
 photo_cameraImage coming soon 4.005.0077 Substituted by 4.005.0156 MANIFOLD PARTNER'93 DEEP SEATS €16.24
68
 photo_cameraImage coming soon 3.002.0093 Substituted by 4.007.0229 SCREW TCEI M6X70 ZNT SWAGEFORM €1.57
77
 photo_cameraImage coming soon 5.009.0033 PARTNER VALVE CAP WITH O-RING €8.36
78
 photo_cameraImage coming soon 4.007.0064 VALVE SPRING DIAM.10X25 €3.23
79
 photo_cameraImage coming soon 5.009.0177 ASS.PISTON D.14 X DERLYN VALVE100 €9.28
80
 photo_cameraImage coming soon 5.009.0217 PARTNER VALVE BODY, 3.5-2.05, WITH O-RING ASSEMBLY €5.54
83
 photo_cameraImage coming soon 5.008.0048 PARTENR HEAD '93 WITHOUT INDICATOR €0.00
85
 photo_cameraImage coming soon 5.006.0091 '96 ENGINE, DIAMETER 125, H 80, 230/50, 2P, PART. €124.20
87
 photo_cameraImage coming soon 3.406.0011 BUSHING FOR PG.11 CABLE TERMINA €1.72
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

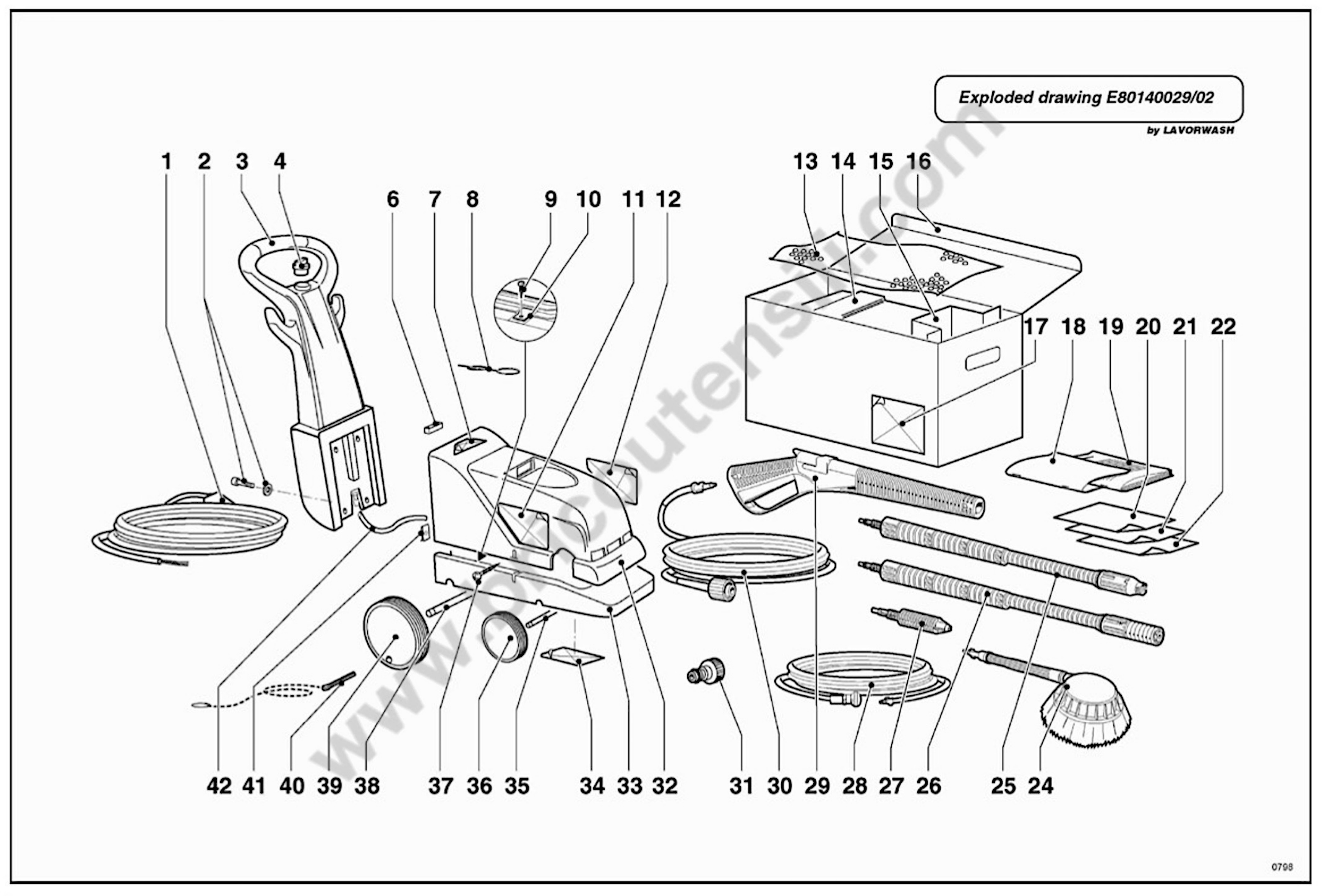

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5.009.0213 EXT SWITCH WITH PROTECTION 12(10) €6.72
2
 photo_cameraImage coming soon 3.406.0004 CABLE TERMINAL PG.11 €1.72
3
 photo_cameraImage coming soon 4.008.0354 ELECTRICAL BOX PART'96 + COVER FOR SWITCH CORN.TS €5.21
4
 photo_cameraImage coming soon 3.002.0111 SCREW TC-TORX M4X10 ZNT €1.72
5
 photo_cameraImage coming soon 3.404.0017 CAPACITOR 25mF 450V D.39x94 F/M €11.18
7
 photo_cameraImage coming soon 4.008.0236 FAN COVER FOR MOTOR '96 €14.95
8
 photo_cameraImage coming soon 3.099.0049 LOCKING RING D.23 FAN FB80 €14.80
9
 photo_cameraImage coming soon 4.008.0092 FAN FB80 WITH HOLE D.16,5 (PARTNER) €5.11
10
 photo_cameraImage coming soon 5.002.0065 '96 CASING D.125 H.80 230/50 2P €134.61
11
 Radial Ball Bearing 6203RS for Pressure Cleaner Lavor Missouri 3.001.0020 Radial Ball Bearing 6203RS for Pressure Cleaner Lavor Missouri €13.71
12
 photo_cameraImage coming soon 5.005.0026 ROTOR SHAFT 125'96 D.65 H.80 230/50 CYL €27.89
13
 photo_cameraImage coming soon 3.002.0115 SCREW TC M5X35 SWAGEFORM ZNT €1.72
14
 photo_cameraImage coming soon 4.005.0102 FRONTAL MOTOR FLANGE D.125 €18.68
15
 Oil Seal 20-35-6-6.5 for Washer Lavor GIANT 24 3.201.0001 Oil Seal 20-35-6-6.5 for Washer Lavor GIANT 24 €2.76
17
 photo_cameraImage coming soon 4.005.0078 INCLIN.PLATE 6.45 CILINDRIC HOLE €11.39
18
 Lavor Disk As for KARJET PROFI130 3.001.0003 Lavor Disk As for KARJET PROFI130 €3.33
19
 photo_cameraImage coming soon 3.001.0004 NEW CODE 3.001.0025 NEEDLE ROLLER CAGE MOD. AXK4565 STEEL €4.38
20
 Lavor Thrust Shoe for LP 20 EHR 4.007.0001 Lavor Thrust Shoe for LP 20 EHR €5.83
21
 photo_cameraImage coming soon 5.009.0090 ASSEMBL.BOLT/PISTON D.14 RETIFIED €14.52
22
 Gasket O-Ring 85x2.5 for Pressure Washer Lavor NPX 1500 3.200.0014 Gasket O-Ring 85x2.5 for Pressure Washer Lavor NPX 1500 €3.27
23
 Lavor Piston Recall Spring for FKX 1018 4.007.0025 Lavor Piston Recall Spring for FKX 1018 €2.12
24
 photo_cameraImage coming soon 3.601.0035 ROTATING HYDRO BRUSH W/HANDLE €23.63
25
 photo_cameraImage coming soon 6.002.0104 Substituted by 6.002.0209C S93 LANCE D.1.05 GREY-REINFORCED €14.66
26
 photo_cameraImage coming soon 6.002.0147 Substituted by 6.002.0327 ROTOX LANCE S.97 PLAST.D1.05 2P GREY €20.94
41
 photo_cameraImage coming soon 4.006.0001 OMNIA DETERGENT INJECTOR HOSE HOLDER, HOLE D.1 €1.56
42
 photo_cameraImage coming soon 3.005.0001 BALL INOX 420 DIAM.5 (accuracy grade G 500) €1.72
43
 photo_cameraImage coming soon 4.007.0014 VALVE SPRING DETERGENT CHECK De4,5 / 6 L = 7 WIRE D.0,3 €2.50
49
 Gasket O-Ring 11,1x1,78 for Pressure Washer Lavor GIANT 24 3.200.0013 Gasket O-Ring 11,1x1,78 for Pressure Washer Lavor GIANT 24 €1.66
50
 Oil Seal 14x22x5/7 for Pressure Washer Lavor FKX 1018 3.201.0004 Oil Seal 14x22x5/7 for Pressure Washer Lavor FKX 1018 €12.55
51
 photo_cameraImage coming soon 3.002.0094 SCREW TCEI M6X30 ZNT €1.72
53
 photo_cameraImage coming soon 4.006.0109 TAPERED 1/8 CAP €7.67
54
 Gasket O-Ring 9.92X2.62 for Pressure Washer Lavor FKX 1018 3.200.0018 Gasket O-Ring 9.92X2.62 for Pressure Washer Lavor FKX 1018 €1.66
55
 Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018 3.200.0019 Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018 €1.70
56
 photo_cameraImage coming soon 5.009.0101 CAP VALVE SUCTION DELIVERY-ORMOUNTED €6.91
57
 Delivery Suction Valve for Pressure Washer Lavor FKX 1018 5.009.0005 Delivery Suction Valve for Pressure Washer Lavor FKX 1018 €9.23
58
 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 4.008.0031 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 €2.07
60
 photo_cameraImage coming soon 5.009.0030 CONNECTOR FOR INJECTOR D.1,8 C OMPL.W.OR €3.32
62
 Oil Seal Spacer D.14 for Pressure Washer Lavor FKX 1018 4.008.0348 Oil Seal Spacer D.14 for Pressure Washer Lavor FKX 1018 €1.66
63
 photo_cameraImage coming soon 4.006.0036 SEALING HOLDER RING D.14 €9.96
65
 Water Seal N 14-12 D.14x22x6 for Pressure Washer Lavor FKX 1018 3.201.0009 Water Seal N 14-12 D.14x22x6 for Pressure Washer Lavor FKX 1018 €5.13
66
 Complete Suction Valve for Pressure Washer Lavor FKX 1018 5.009.0015 Complete Suction Valve for Pressure Washer Lavor FKX 1018 €5.78
67
 photo_cameraImage coming soon 4.005.0077 Substituted by 4.005.0156 MANIFOLD PARTNER'93 DEEP SEATS €16.24
68
 photo_cameraImage coming soon 3.002.0093 Substituted by 4.007.0229 SCREW TCEI M6X70 ZNT SWAGEFORM €1.57
77
 photo_cameraImage coming soon 5.009.0033 PARTNER VALVE CAP WITH O-RING €8.36
78
 photo_cameraImage coming soon 4.007.0064 VALVE SPRING DIAM.10X25 €3.23
79
 photo_cameraImage coming soon 5.009.0177 ASS.PISTON D.14 X DERLYN VALVE100 €9.28
80
 photo_cameraImage coming soon 5.009.0217 PARTNER VALVE BODY, 3.5-2.05, WITH O-RING ASSEMBLY €5.54
83
 photo_cameraImage coming soon 5.008.0048 PARTENR HEAD '93 WITHOUT INDICATOR €0.00
85
 photo_cameraImage coming soon 5.006.0091 '96 ENGINE, DIAMETER 125, H 80, 230/50, 2P, PART. €124.20
87
 photo_cameraImage coming soon 3.406.0011 BUSHING FOR PG.11 CABLE TERMINA €1.72

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Original Parts for Pressure Cleaner PROFESSIONAL 130 EVOLUTION

Lavor original spare parts for to replace broken parts for to fix PROFESSIONAL 130 EVOLUTION - 8.014.0029.


In the following tables, look for the spare part and its respective code.
Lavor Lavor Original Parts for Pressure Cleaner PROFESSIONAL 130 EVOLUTION Lavor original spare parts for to replace broken parts for to fix PROFESSIONAL 130 EVOLUTION - 8.014.0029.

Professional 130 Ecolution - 8.014.0029
IDRO TANKER PROF.130 EVOL.230/50-BLU-(EMMETRE) Pag.1
# Part Num Description
1 4.012.0071 CABLE H05RN-F 3X1 5.2 m F/F THICKNESS SCREW EXP.03
2 5.012.0010 STANDARD TROLLEY SCREW KIT
3 4.008.0213 TANK HANDLE FOR VULKER EXP.01
4 4.608.0027 CAP DIAM. 30 FOR FIRE 100 TANK EXP.03
6 4.008.0277 CABLE CLIP FOR FIXED WALL (LWS) EXP.00
7 7.101.0631 LAVORWASH WARNINGS STICKER
8 4.007.0114 NOZZLE CLEANING PIN D.0.8 EXP.04
9 3.002.0112 TC-TORX SCREW T15 3.9X25 HI-LOZNT
10 4.007.0106 ELECTRIC/PUMP FIXING BRACKET '93 EXP.01
11 7.101.1620 RIGHT FAIRING STICKER PROFESSIONAL 130
12 7.101.1621 LEFT FAIRING STICKER PROFESSIONAL 130
13 7.099.0049 BUBBLE WRAP SHEET 50X60 GR. 55 X TRIPLE
14 7.002.0113 BOTTOM REINFORCED BOX FOR TANKER-KARJET W. 685
15 7.002.0112 INTERNAL SPACING FOR EMME TANKER-KARJET BOX
16 7.001.0224 WHITE TANKER-KARJET PACKAGING 250X690H385
17 7.101.1622 PROFESSIONAL 130 EVOLUTION PACKAGING STICKER
18 7.100.0526 PROFESSIONAL 130 COVER
19 7.100.0083 HOBBY USE-MAINTENANCE INSTRUCTIONS I-GB-F-D-E-NL-GR-S-SF-N-P
20 7.100.0148 SERVICE CENTERS LIST INSERT 09-01 LWS
21 7.100.0249 BRAKE ASSEMBLY INSERT
22 7.100.0258 SERVICE REQUEST INSERT (EMMETRE)
24 3.601.0035 ROTARY WATER BRUSH WITH FIXED HANDLE, REF. (5116)
25 6.002.0104 LANCE S93 D. 1.05 (GREY) REF.
26 6.002.0147 ROTOX S.97 PLAS. LANCE D.1.05 (2-PIN GRAY)
27 6.002.0116 REINFORCED COMPLETE LOW PRESSURE LANCE
28 6.003.0038 4M PIPE CLEANER + COGET + EXP. 04 NOZZLE
29 6.001.0020 S'96 COMPLETE GUN WITH REINFORCED QUICK COUPLING
30 4.018.0030 1/4 HOSE 130 BAR 6M
31 3.100.0005 3/4 BLACK QUICK COUPLING WITH SEAL (UNIFLEX)
32 4.013.0161 TANKER TOP HOUSING (BLUE RAL5002)
33 4.008.0185 UNIFIED TROLLEY EXP. 07
34 7.101.1619 STICKER TECHNICAL DATA PROFESSIONAL 130 EVOL. 230/50 -IN-
35 4.007.0102 SKANER CARELLATA WHEEL AXLE EXP. 02
36 3.006.0010 WHEEL D. 100X25 HOLE D. 8 (L.WASH.)
37 3.002.0113 SCREW 3.9X16 HI-LO COSMETIC TEST.TORX WHITE ZNT
38 4.007.0105 TANKER AXLE EXP. 03
39 4.008.0184 INTEGRAL WHEEL DIAM. 150x30x15 EXP. 01
40 5.011.0025 BRAKE PIN COMPL. JET FIRE "TUV"
41 3.099.0075 DOUBLE PRESTOLA FOR M6 TE SCREW
42 4.008.0172 TRANSPARENT TUBE D.6x9 L.510 EXP.01
MOT.PARTNER'96 230/50 D.125X80S/M(6,45)C/INIETTORE Pag.2
0 5.001.0199 PARTNER '96 MOTOR 230/50
1 5.009.0213 SWITCH ASSEMBLY + TRANSPARENT PROTECTION 12 (10)
2 3.406.0004 WATERPROOF CABLE GLAND PG.11
3 4.008.0354 ELECTRICAL BOX PART.'96 + COVER FOR TS CORN SWITCH
4 3.002.0111 TC-TORX SCREW M4x10 TRIFLOBE Z
5 3.404.0017 CAPTAINER 25mF 450V WITHOUT FAST CABLE M.39x94
7 4.008.0236 FAN COVER FOR '96 MOTOR WITH GRILLE EXP.07
8 3.099.0049 STOP RING D.23 FOR FB 80 FAN
9 4.008.0092 FB80 FAN WITH D.16.5 HOLE (PARTNER) EXP.03
10 5.002.0065 '96 CASING D.125 H.80 230/50 2P
11 3.001.0020 RADIAL BALL BEARING 6203 2RS
12 5.005.0026 ROTOR SHAFT 125'96 D.65 H.80 230/50 CYL
13 3.002.0115 TCEI SCREW M5X35 TRILOBAL ZNT
14 4.005.0102 FRONT ENGINE FLANGE D.125/96 PART. EXP. 04
15 3.201.0001 SEAL RING 20/35/6/6.5 BABSL
16 3.001.0007 RADIAL BALL BEARING 6304
17 4.005.0078 PLATE INCL. 6.45 CYLINDER BORE EXP.08
18 3.001.0003 AXIAL BEARING WHEEL ASS4565
19 3.001.0004 PLASTIC ROLLER CAGE TYPE AXK4565
20 4.007.0001 THRUST WHEEL (C10Pb) FINISHED EXP.07
21 5.009.0090 GROUND PISTON/STOP ASSEMBLY D.14
22 3.200.0014 NITRILE O-RING 85 X 2.5
23 4.007.0025 PISTON RETURN SPRING D.14-12 EXP.07
41 4.006.0001 OMNIA DETERGENT INJECTOR HOSE HOLDER, HOLE D.1
42 3.005.0001 420 STAINLESS STEEL BALL DIAM.5 (precision grade G 500)
43 4.007.0014 DETERGENT CHECK VALVE SPRING D.4.5/6 L=7 THREAD D.0.3
49 3.200.0013 OR-RING 11.1 X 1.78 REF. 114
50 3.201.0004 OIL SEAL RING D.14X22X5/7
51 3.002.0094 SCREW TCEI M6X30 ZNT TRILOBAL
53 4.006.0109 1/8" TAPERED CAP EXP. 01
54 3.200.0018 OR SEAL 9.92X2.62 SHORE90
55 3.200.0019 OR SEAL 12.4X1.78 SHORE90
56 5.009.0101 INTAKE/DEPLOYMENT VALVE CAP WITH MOUNTED OR
57 5.009.0005 INTAKE/DEPLOYMENT VALVE LAVOR1
58 4.008.0031 WATER INTAKE FILTER D.16 TAPERED EXP. 00
60 5.009.0030 PARTNER INJECTOR CONNECTOR D.1.8 COMPLETE WITH OR
62 4.008.0348 OIL SEAL SPACER D.14 EXP. 02
63 4.006.0036 SEAL SUPPORT RING D.14 HIGH EXP. 10
65 3.201.0009 WATER SEAL N 14-12 D.14X22X6
66 5.009.0015 COMPLETE INTAKE VALVE TOP
67 4.005.0077 PARTNER '93 HEAD WITH DEEP SEATS IMPREG.
68 3.002.0093 TCEI SCREW M6x70 ZNT TRILOBAL
77 5.009.0033 PARTNER VALVE CAP WITH O-RING
78 4.007.0064 PARTNER VALVE SPRING, DIAMETER 6.6, OD 10, L=25, THREAD DIAMETER 1.7
79 5.009.0177 PISTON ASSEMBLY, DIAMETER 14 FOR INDERLYN 100 VALVE
80 5.009.0217 PARTNER VALVE BODY, 3.5-2.05, WITH O-RING ASSEMBLY
81 4.005.0047 PISTON GUIDE BODY, DIAMETER 14 WITH INNER ADJUSTMENT, PARTNER EXP. 10
82 5.007.0077 STEEL PISTON GUIDE BODY, 3.5X2.05 + INNER 1.8
83 5.008.0048 PARTNER CYLINDER HEAD, '93, WITHOUT INDICATOR (SEALS)
85 5.006.0091 '96 ENGINE, DIAMETER 125, H 80, 230/50, 2P, PART.
87 3.406.0011 RING FOR PG.11, TEAR-RESISTANT
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Lavor 130 EVOLUTION 8.014.0029
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

esploso

Download (853.82KB)

You might also like

Lance 6.002.0340 Nozzle Head Holder for Trigger Guns Lavor
Lavorwash S.p.A. SKU: 6.002.0340
Lance 6.002.0340 Nozzle Head Holder for Trigger Guns Lavor
Lance 6.002.0340 Nozzle Head Holder for Trigger Guns Lavor Genuine Replacement part Lavor, Lance 6.002.0340 Nozzle Head Holder for Cold Water Pressure Washers Trigger Guns Lavor Fury 110 - Ride 110 - Race 125...
Last items in stock €10.11
Details
Head Turbo Nozzle Ø 1,025 for Lance Lavor
Lavorwash S.p.A. SKU: 6.002.0346
Head Turbo Nozzle Ø 1,025 for Lance Lavor
Head Turbo Nozzle Ø 1,025 for Lance Lavor Genuine Replacement part Lavor, Head cod. 6.002.0346 Turbo Nozzle Ø 1,025 for Lance Lavor 6.002.0340. Part suitable for the following high pressure...
Last items in stock €7.50
Details
Quick Coupling 3/4F for High Pressure Washers Lavor
Lavorwash S.p.A. SKU: 3.100.0082
Quick Coupling 3/4F for High Pressure Washers Lavor
Quick Coupling 3/4F  for High Pressure Washers Lavor Genuine Replacement part Lavor, Quick Coupling 3/4F 3.100.0082 for Cold Water High Pressure Washers Fury 110 - Ride 110 - Race 125...
AVAILABLE €1.63
Details
Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 6.005.0079
Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24
Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24 Original replacement part Lavor, Kit 79 LW Oil Seal for Partner D.12/Fibra per Pressure Washers ARMY 110 - MARINE 125 - NAVY 140 - ENDURO 145 COMP. Part for the following...
Usually Shipped on: 7/10 Business Days Approx. €14.50
Details
Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 6.005.0226
Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24
Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24 Original replacement part Lavor, Kit 209 O-Ring for PT'03 per Pressure Washers ARMY 110 - MARINE 125 - NAVY 140 - ENDURO 145 - BEST 24. Part for the following products: -...
Usually Ships in: 7/10 Business Days Approx. €11.43
Details
Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145
Lavorwash S.p.A. SKU: 5.008.0261
Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145
Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145 Original replacement part Lavor, Head PT'03 EVO D.12 for ENDURO 145 - ARMY 110 - MARINE 125 - NAVY 140 - RAPTOR 21 - STORM II 18 - STORM II PLUS 21. Part for the following...
AVAILABLE €28.99
Details
Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145
Lavorwash S.p.A. SKU: 6.005.0311
Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145
Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145 Original replacement part Lavor, Kit 283 LW Needle Bearing for Motorpump PT'03 (U76) for ENDURO 145 - ARMY 110 - MARINE 125 - NAVY 140 - RAPTOR 21 - STORM II. Part for...
AVAILABLE €5.50
Details
Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110
Lavorwash S.p.A. SKU: 6.005.0588
Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110
Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110 Original replacement part Lavor, Kit LW Intake Delivery Valves for High Pressure Washers ARMY 110 - MARINE 125 - NAVY 140. Part for the following products: - R80880029C -...
AVAILABLE €27.72
Details
Lance S'02V 1,00 (Blu) for Pressure Washer EXPRESS PLUS Sale
Lavorwash S.p.A. SKU: 6.002.0263
Lance S'02V 1,00 (Blu) for Pressure Washer EXPRESS PLUS
Lance S'02V 1,00 (Blu) for Pressure Washer EXPRESS PLUS Genuine Part Lavor, Lance S'02V 1,00 (Blu) for Pressure Washer 8.084.0006C Lavor IDRO EXPRESS PLUS 220-240/50Hz. Part suitable for the following high pressure washers: -...
AVAILABLE €13.00
Details
Oil Seal 17X35X7 for Pressure Washer Lavor FKX 1018
Lavorwash S.p.A. SKU: 3.201.0008
Oil Seal 17X35X7 for Pressure Washer Lavor FKX 1018
Oil Seal 17X35X7 for Pressure Washer Lavor FKX 1018 Genuine replacement part Lavor, Oil Seal D.17X35X7 for Pressure Washer Pressure Washer FKX 1018 230/50 TS -R- (VAPORNOVA)- 8052001. Part for the following products: -  81020001...
AVAILABLE €7.21
Details
Oil Seal Spacer D.14 for Pressure Washer Lavor FKX 1018
Lavorwash S.p.A. SKU: 4.008.0348
Oil Seal Spacer D.14 for Pressure Washer Lavor FKX 1018
Oil Seal Spacer D.14 for Pressure Washer Lavor FKX 1018 Genuine replacement part Lavor, Oil Seal Spacer D.14 for Pressure Washer Pressure Washer FKX 1018 230/50 TS -R- (VAPORNOVA)- 8052001. Part for the following products: -...
AVAILABLE €1.66
Details
Water Holding N 14-12 D.14x22x6 for Pressure Washer Lavor FKX 1018
Lavorwash S.p.A. SKU: 3.201.0009
Water Seal N 14-12 D.14x22x6 for Pressure Washer Lavor FKX 1018
Water Seal N 14-12 D.14x22x6 for Pressure Washer Lavor FKX 1018 Genuine replacement part Lavor, Water Seal N 14-12 D.14x22x6 for Pressure Washer Pressure Washer FKX 1018 230/50 TS -R- (VAPORNOVA)- 8052001. Part for the following...
Usually Ships in: 10 Business Days Approx. €5.13
Details
Complete Suction Valve for Pressure Washer Lavor FKX 1018
Lavorwash S.p.A. SKU: 5.009.0015
Complete Suction Valve for Pressure Washer Lavor FKX 1018
Complete Suction Valve for Pressure Washer Lavor FKX 1018 Genuine replacement part Lavor, Complete Suction Valve for Pressure Washer Pressure Washer FKX 1018 230/50 TS -R- (VAPORNOVA)- 8052001. Part...
on 10 Business Days Approx €5.78
Details
Gasket O-Ring 11,1x1,78 for Pressure Washer Lavor GIANT 24
Lavorwash S.p.A. SKU: 3.200.0013
Gasket O-Ring 11,1x1,78 for Pressure Washer Lavor GIANT 24
Gasket O-Ring 11,1x1,78 for Pressure Washer Lavor GIANT 24 Original replacement part Lavor, Gasket O-Ring 11,1x1,78 Rif.114 for Pressure Washers GIANT 24 - GIANT 28 - TEMPESTA 24 - MARSHALL 2300 - KARJET PROFI 130. Part for the...
AVAILABLE €1.66
Details
Gasket O-Ring 9.92X2.62 for Pressure Washer Lavor FKX 1018
Lavorwash S.p.A. SKU: 3.200.0018
Gasket O-Ring 9.92X2.62 for Pressure Washer Lavor FKX 1018
Gasket O-Ring 9.92X2.62 for Pressure Washer Lavor FKX 1018 Genuine replacement part Lavor, Gasket O-Ring 9.92X2.62 SHORE 90 for Pressure Washer Pressure Washer FKX 1018 230/50 TS -R- (VAPORNOVA)- 8052001. Part for the following...
AVAILABLE €1.66
Details
Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018
Lavorwash S.p.A. SKU: 3.200.0019
Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018
Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018 Genuine replacement part Lavor, Gasket O-Ring 12.4X1.78 SHORE 90 for Pressure Washer Pressure Washer FKX 1018 230/50 TS -R- (VAPORNOVA)- 8052001. Part for the following...
AVAILABLE €1.70
Details
Delivery Suction Valve for Pressure Washer Lavor FKX 1018
Lavorwash S.p.A. SKU: 5.009.0005
Delivery Suction Valve for Pressure Washer Lavor FKX 1018
Delivery Suction Valve for Pressure Washer Lavor FKX 1018 Genuine replacement part Lavor, Delivery Suction Valve for Pressure Washer Pressure Washer FKX 1018 230/50 TS -R- (VAPORNOVA)- 8052001. Part for...
Usually Ships in: 7/10 Business Days Approx. €9.23
Details
Radial Ball Bearing 6203RS for Pressure Cleaner Lavor Missouri
Lavorwash S.p.A. SKU: 3.001.0020
Radial Ball Bearing 6203RS for Pressure Cleaner Lavor Missouri
Radial Ball Bearing 6203RS for Pressure Cleaner Lavor Missouri Genuine part Lavor, Radial Ball Bearing 6203RS for Pressure Cleaners MISSOURI - Giant 24 - Giant 28 - Tempesta 24 - Tormenta 28. Part for the following products: -...
on 7/10 Business Days Approx €13.71
Details
Oil Seal 14x22x5/7 for Pressure Washer Lavor FKX 1018
Lavorwash S.p.A. SKU: 3.201.0004
Oil Seal 14x22x5/7 for Pressure Washer Lavor FKX 1018
Oil Seal 14x22x5/7 for Pressure Washer Lavor FKX 1018 Genuine replacement part Lavor, Kit 19 LW Oil Seal D.14x22x5/7 for Pressure Washer Pressure Washer FKX 1018 230/50 TS -R- (VAPORNOVA)- 8052001. Part for the following products: -...
AVAILABLE €12.55
Details
Lavor Disk As for KARJET PROFI130
Lavorwash S.p.A. SKU: 3.001.0003
Lavor Disk As for KARJET PROFI130
Lavor Disk As for Pressure Cleaner KARJET PROFI130 Original replacement part Lavorwash, Disk As for Pressure Cleaners KARJET PROFI130 - FKX 1018. Part for the following products: -  Pressure Cleaner Lavor KARJET PROFI130 -...
Usually Ships in: 10 Business Days Approx. €3.33
Details
Lavor Bearing Washer for LP 20 EHR
Lavorwash S.p.A. SKU: 4.007.0001
Lavor Thrust Shoe for LP 20 EHR
Lavor Thrust Shoe for Pressure Cleaner LP 20 EHR Original replacement part Lavorwash, Thrust Shoe D.65x30x6 (C10pb) Finished for Pressure Cleaners LP 20 EHR - FKX 1018. Part for the following products: - ...
Usually Ships in: 10 Business Days Approx. €5.83
Details
Lavor Piston Recall Spring for FKX 1018
Lavorwash S.p.A. SKU: 4.007.0025
Lavor Piston Recall Spring for FKX 1018
Lavor Piston Recall Spring for Pressure Cleaner FKX 1018 Original replacement part Lavorwash, Piston Recall Spring D.14- 12 for Pressure Cleaners FKX 1018 - MACH 20. Part for the following products: - ...
Usually Ships in: 10 Business Days Approx. €2.12
Details
Lavor Needle Roller Cage for EQ18
Lavorwash S.p.A. SKU: 3.001.0025
Lavor Needle Roller Cage for EQ18
Lavor Needle Roller Cage for Pressure Cleaner EQ18 Original replacement part Lavorwash, Needle Roller Cage Type Axk4565 -STEEL- for Pressure Cleaners EQ18 - MISSOURI. Part for the following products: - ...
Usually Ships in: 10 Business Days Approx. €3.48
Details
Comments (0)
