Lavorwash S.p.A.

Lavor Pressure Cleaner LKX 2015LPT Parts

SKU: LKX 2015LPT- 8.621.2991
€53.25
VAT included

Lavor Pressure Cleaner LKX 2015LPT Parts

Fix Your Hot Water High Pressure Cleaner LKX 2015LP T 400/50(COLL.220/50)-GR-C/VASCH+LANCIA A/B-LAVOR. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee

Lavor Pressure Cleaner LKX 2015LPT Parts
  • Lavor Pressure Cleaner LKX 2015LPT Parts
  • Lavor Pressure Cleaner LKX 2015LPT Parts Drawing
  • Lavor Pressure Cleaner LKX 2015LPT Parts Drawing - 1
  • Lavor Pressure Cleaner LKX 2015LPT Parts Drawing - 2
  • Lavor Pressure Cleaner LKX 2015LPT Parts Drawing - 3
  • Lavor Pressure Cleaner LKX 2015LPT Parts Drawing - 4
  • Lavor Pressure Cleaner LKX 2015LPT Parts Drawing - 5
  • Lavor Pressure Cleaner LKX 2015LPT Parts Drawing - 6
  • Lavor Pressure Cleaner LKX 2015LPT Parts Drawing - 7
  • Lavor Pressure Cleaner LKX 2015LPT Parts Drawing - 8
  • Lavor Pressure Cleaner LKX 2015LPT Parts Drawing - 9
  • Lavor Pressure Cleaner LKX 2015LPT Parts Drawing - 10
  • Lavor Pressure Cleaner LKX 2015LPT Parts Drawing - 11
Lavorwash S.p.A.

Lavor Pressure Cleaner LKX 2015LPT Parts

SKU: LKX 2015LPT- 8.621.2991 Condition: New
€53.25
VAT included

Lavor Pressure Cleaner LKX 2015LPT Parts

Fix Your Hot Water High Pressure Cleaner LKX 2015LP T 400/50(COLL.220/50)-GR-C/VASCH+LANCIA A/B-LAVOR. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee

settings 132 spare parts
description 12 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
132 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

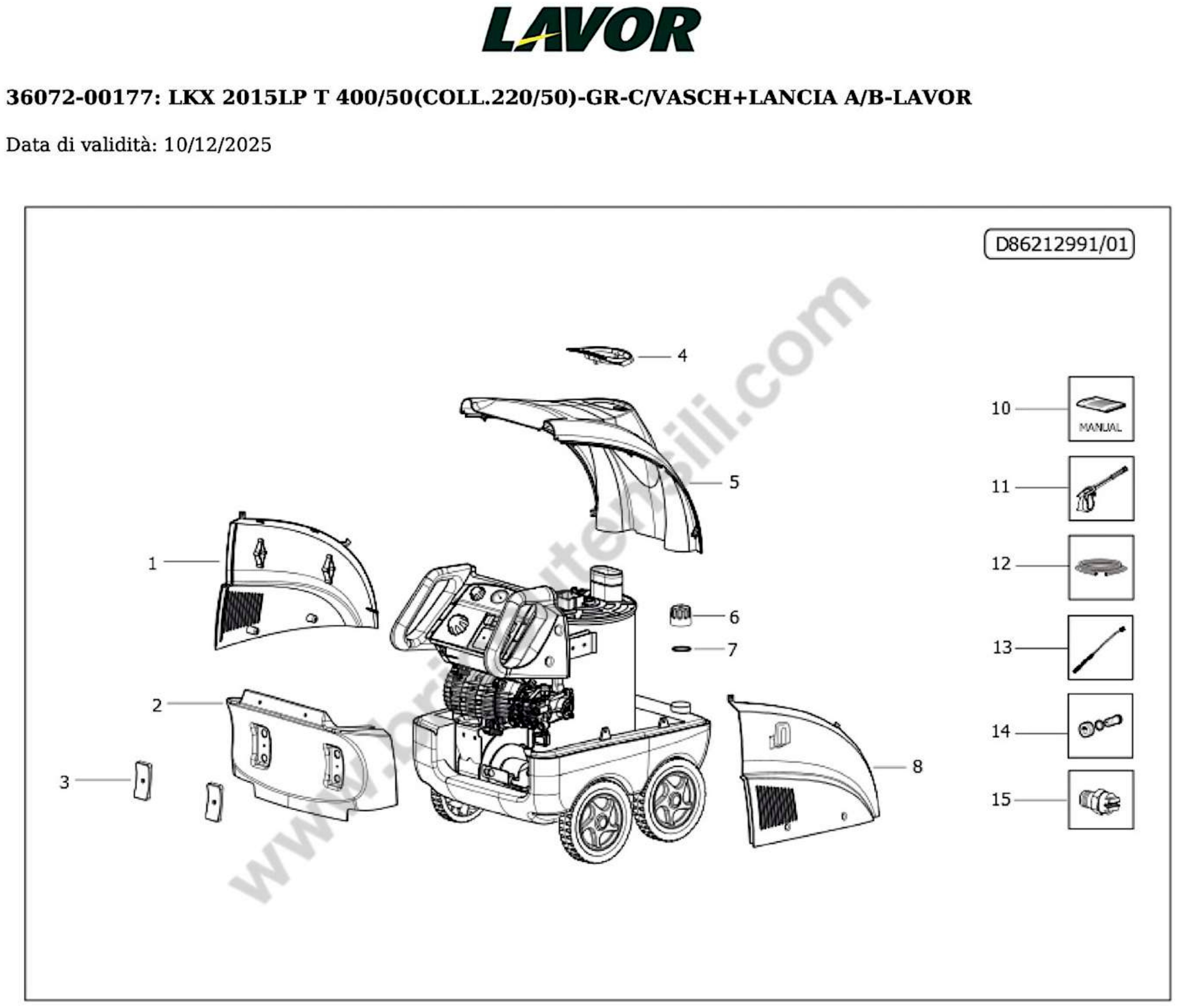

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5.611.0285 LEFT SIDE SIDE NPX-LKX -BLACK- W/HOOKS W/PAD.-DEEP WORK- €53.69
2
 photo_cameraImage coming soon 4.613.0182 REAR FAIRING NPX-LKX'04 -BLACK- €48.58
3
 photo_cameraImage coming soon 4.608.0184 WINDING SEAT CLOSURE CAP. NPX'04 BLACK €5.71
4
 photo_cameraImage coming soon 4.607.0726 PROTECTIVE STAINLESS STEEL SHEET NPX/LKX CHIMNEY €15.98
5
 photo_cameraImage coming soon 4.613.0289 UPPER FAIRING NPX-LKX04 -GR- RAL.7046 €78.56
6
 photo_cameraImage coming soon 4.608.0082 GAS OIL-CHEM TANK CAP €15.27
7
 photo_cameraImage coming soon 3.200.0038 O-RING GASKET 53,65X2,62 REF.3212 €1.70
8
 photo_cameraImage coming soon 5.611.0286 RIGHT SIDE PANEL NPX-LKX -BLACK- W/HOOK W/PAD-DEEP WORK- €53.69
10
 photo_cameraImage coming soon 7.700.0596 MANUAL LKX/HYPER L-LR/HLR LAVOR A5 196F 19L €6.94
11
 photo_cameraImage coming soon 3.700.0030 GUN AL55 350bar 45l / min 160Â ° C + sw8 3 / 8M + S7 + M22 (30129100) €64.28
12
 photo_cameraImage coming soon 4.618.0143 HIGH PRESSURE HOSE 5/16 315BAR R2 L=10000 1/2 TWIST.-3/8 €142.39
13
 700 mm Lance 1/8 "F High/Low Pressure for Pressure Washers Lavor 3.701.0015 700 mm Lance 1/8 "F High/Low Pressure for Pressure Washers Lavor €37.13
14
 photo_cameraImage coming soon 5.611.0078 HOSE FITTING €10.13
15
 Lavor Nozzle for ONTARIO 1211LP 3.103.0050 Lavor Nozzle for ONTARIO 1211LP €16.21
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

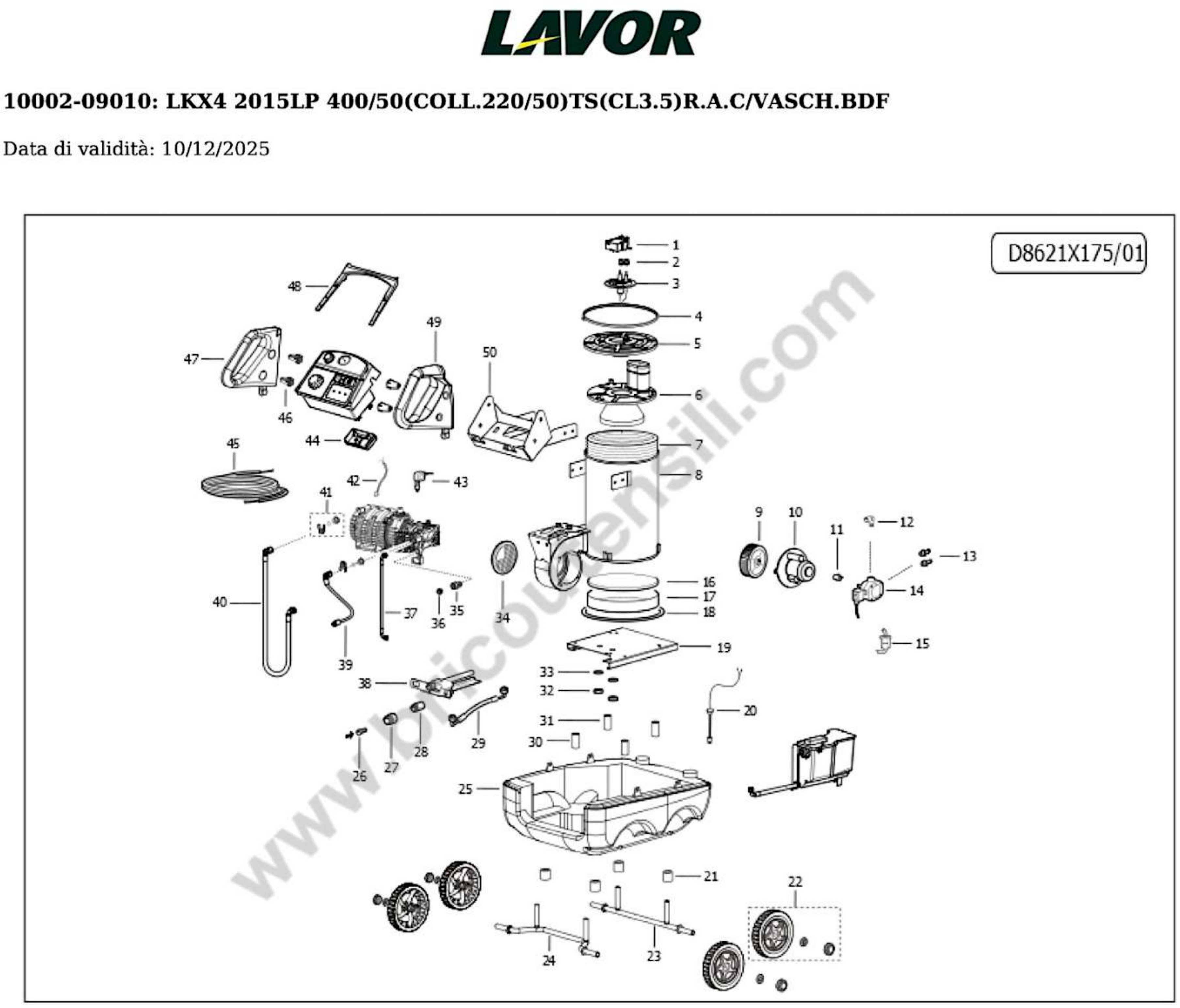

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
photo_cameraImage coming soon 5.609.0128 THERMOSTAT BULB BODY ASSEMBLY LKX/NPX'04 EXIT.INN.RAP. ZNT BRASS €113.80
photo_cameraImage coming soon 5.611.0169 EXT. BOILER COVER FOR PERFORATED CONE BAND €84.59
Lavor LKX 2015 Burn Flange 5.611.0192 Lavor LKX 2015 Burn Flange €97.88
1
 Lavor LKX 2015 Ignition Transformer 5.609.0344 Lavor LKX 2015 Ignition Transformer €63.65
2
 photo_cameraImage coming soon 4.608.0271 ISOL.GASKET FOR H.T. TRANSFER PROF. €3.36
3
 Lavor LKX 2015 Burn Flange 5.611.0192 Lavor LKX 2015 Burn Flange €97.88
4
 photo_cameraImage coming soon 3.099.0719 HEATING BAND/330/G8 FIXING OF HEATING COVER TEKNA'04 €19.89
5
 photo_cameraImage coming soon 5.611.0169 EXT. BOILER COVER FOR PERFORATED CONE BAND €84.59
6
 photo_cameraImage coming soon 5.613.0028 INT. COVER CAM.COMB. CHIMNEY L=120 €146.74
7
 photo_cameraImage coming soon 4.604.0003 LOW COIL H.415 €519.25
8
 photo_cameraImage coming soon 5.613.0396 BOILER BODY LKX'04 MOT. R.A. CL4 PUMP FOR PAINTED BAND. €118.21
9
 photo_cameraImage coming soon 3.099.0028 FAN 146x72 LH.HOLE DM 12.7 €29.49
10
 photo_cameraImage coming soon 3.300.0003 MOTOR X BRUC. 100W / 230-240 / 50H z IP55 €194.80
11
 Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400 6.605.0173 Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400 €29.06
12
 photo_cameraImage coming soon 3.100.0075 CONIC CONNECTION M 1/8 F D.4 CURVED FOR GASOIL HOSE VITON O- €14.98
13
 photo_cameraImage coming soon 4.606.0088 RUBBER HOLDER 1/4 G M D.7 €3.36
14
 Lavor LKX 31 Double Pipe Diesel Pump 3.551.0063 Lavor LKX 31 Double Pipe Diesel Pump €103.22
15
 Lavor LKX 31 Diesel Filter Unit 5.611.0067 Lavor LKX 31 Diesel Filter Unit €19.50
16
 photo_cameraImage coming soon 4.608.0536 VERMICULITE PANEL THICKNESS 20MM DIAM. 290MM 2 HOLES €27.23
17
 photo_cameraImage coming soon 4.607.0006 COIL FIXING STRIP PLATE 20/10 €46.76
18
 Lavor NPX1400 Insulating Rope 4.608.0162 Lavor NPX1400 Insulating Rope €35.27
19
 photo_cameraImage coming soon 5.613.0116 BOILER BASE JOLLY 5 / LKX -VERN ICIATA- €106.07
20
 photo_cameraImage coming soon 3.403.0078 INDICATED. DIESEL LEVEL L=185 W/CABLE L=1320 W/FASTON €54.88
21
 photo_cameraImage coming soon 4.608.0073 SHORT SPACER FOR TANK JOLLY 4/93 €1.74
22
 photo_cameraImage coming soon 6.605.0168 WHEEL D.260X85 FULL BLACK €26.58
23
 photo_cameraImage coming soon 5.613.0402 NPX/LKX FRONT AXLE €34.20
24
 photo_cameraImage coming soon 5.613.0403 REAR AXLE NPX/LKX €30.52
25
 photo_cameraImage coming soon 4.608.0203 DIESEL / DETERGENT TANK J OLLY 5 / LKX €264.90
26
 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 4.008.0031 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 €2.07
27
 photo_cameraImage coming soon 4.006.0088 INTAKE FITTING ADAPTER L=26 M22-3/4G €6.72
28
 photo_cameraImage coming soon 4.606.0019 SUCTION CONNECTOR M22 IDRO COMPACT €5.16
29
 Lavor NPX 1400 Hose 4.618.0043 Lavor NPX 1400 Hose €27.71
30
 photo_cameraImage coming soon 4.608.0448 LONG SPACER FOR TANK. JOLLY 4/93 mm57.5 €3.28
31
 photo_cameraImage coming soon 4.608.0448 LONG SPACER FOR TANK. JOLLY 4/93 mm57.5 €3.28
32
 photo_cameraImage coming soon 4.606.0013 COIL FIXING NUT 1/2 BRASS SPEC. €3.25
33
 photo_cameraImage coming soon 3.004.0015 PLAIN WASHER D.22X39X2 UNI6592 €1.63
34
 photo_cameraImage coming soon 5.609.0023 VENTILATOR PROTECTION GRID ASSEMBLY €3.95
35
 photo_cameraImage coming soon 4.606.0136 INLET CONNECTOR WITH DET. SUCTION 3/8-1/2 G - 3/4 G €7.33
36
 photo_cameraImage coming soon 4.606.0182 DIAMETER REDUCING BUSHING FOR DET. SUCTION €7.23
37
 photo_cameraImage coming soon 4.618.0210 HOSE R1 250BAR L=600 W/CONNECTION 1/2-3/8F 90° (RACC.SFALS.60°)-PUMP/ SERP. €49.98
38
 photo_cameraImage coming soon 5.609.0128 THERMOSTAT BULB BODY ASSEMBLY LKX/NPX'04 EXIT.INN.RAP. ZNT BRASS €113.80
39
 Lavor Cooling Hose for LKX 2015LP 4.618.0126 Lavor Cooling Hose for LKX 2015LP €29.90
40
 photo_cameraImage coming soon 4.618.0138 B.P. HOSE L=810 INLET - HOT STATION MOTOR €52.11
41
 photo_cameraImage coming soon 6.605.0223 KIT STOPPERS FOR ENGINE HOSES. R.A. (46080480/482) €9.35
42
 photo_cameraImage coming soon 3.403.0003 THERMAL PROTECTOR L01.080.05.1000 CABLES * UL * €19.69
43
 photo_cameraImage coming soon 3.704.0009 PRESSURE SWITCH PS2 1/4M 25BAR RED P/N 4090000006 €37.87
44
 photo_cameraImage coming soon 4.608.0071 GUIDING CABLE COVER DASHBOARD '93 €6.66
45
 photo_cameraImage coming soon 4.612.0032 POWER CABLE H05VV-F 4X2.5 L=6700 €39.86
46
 photo_cameraImage coming soon 4.608.0199 BUSH THICKNESS NEW PROFILE HANDLES. €6.72
47
 photo_cameraImage coming soon 4.608.0170 LEFT HANDLE NPX'04-GR-RAL.7021 €47.26
48
 photo_cameraImage coming soon 4.608.0191 NPX'04 BLACK DASHBOARD FRAME €8.45
49
 photo_cameraImage coming soon 4.608.0169 RIGHT HANDLE NPX'04-GR-RAL.7021 €38.26
50
 photo_cameraImage coming soon 5.613.0192 DASHBOARD SUPPORT/HANDLES NPX/LKX'04 €141.62

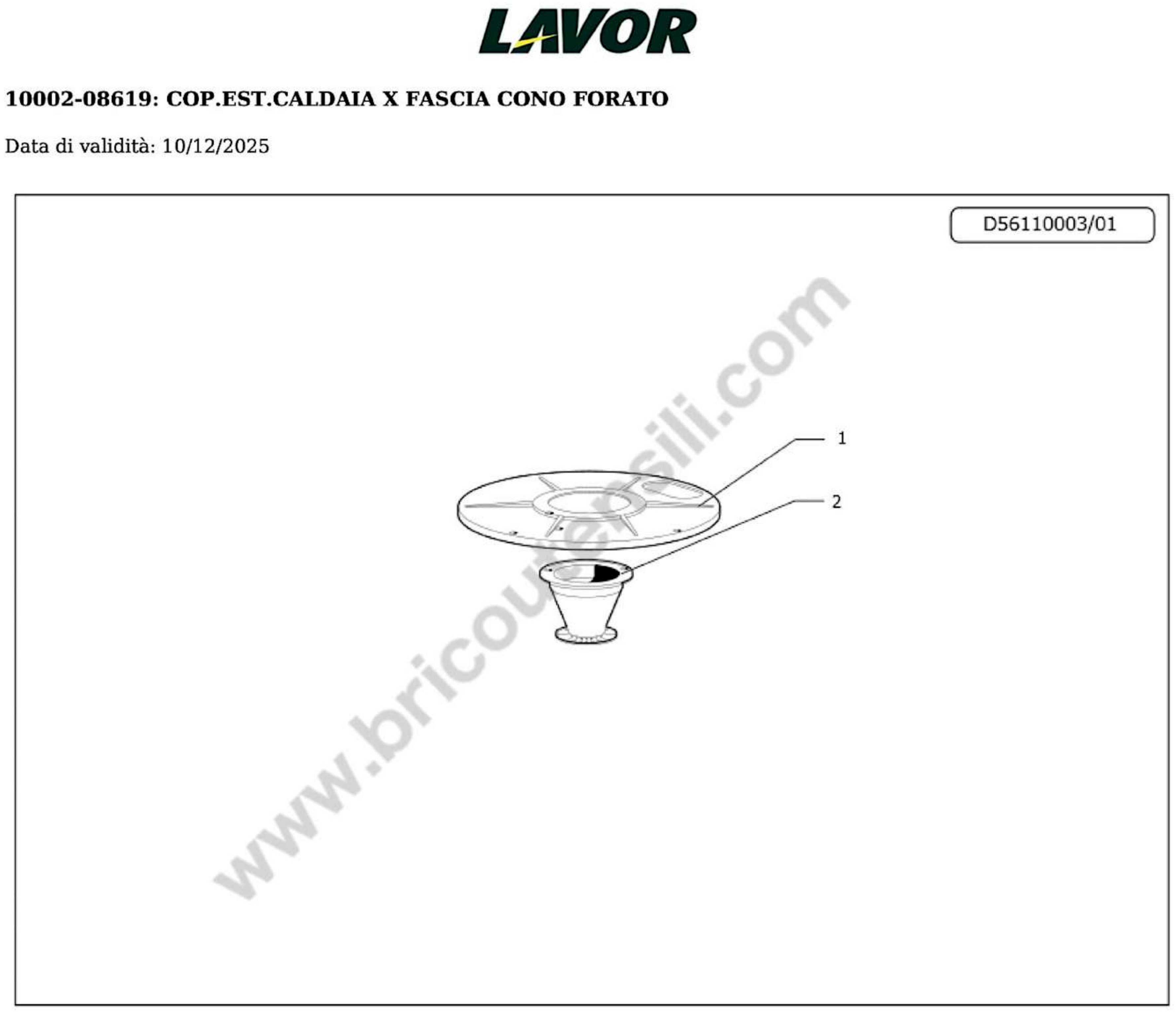

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Lavor LKX 2015LP External Cover 5.613.0200 Lavor LKX 2015LP External Cover €40.44
2
 photo_cameraImage coming soon 5.610.0105 DEFLECTOR D.82 €29.76

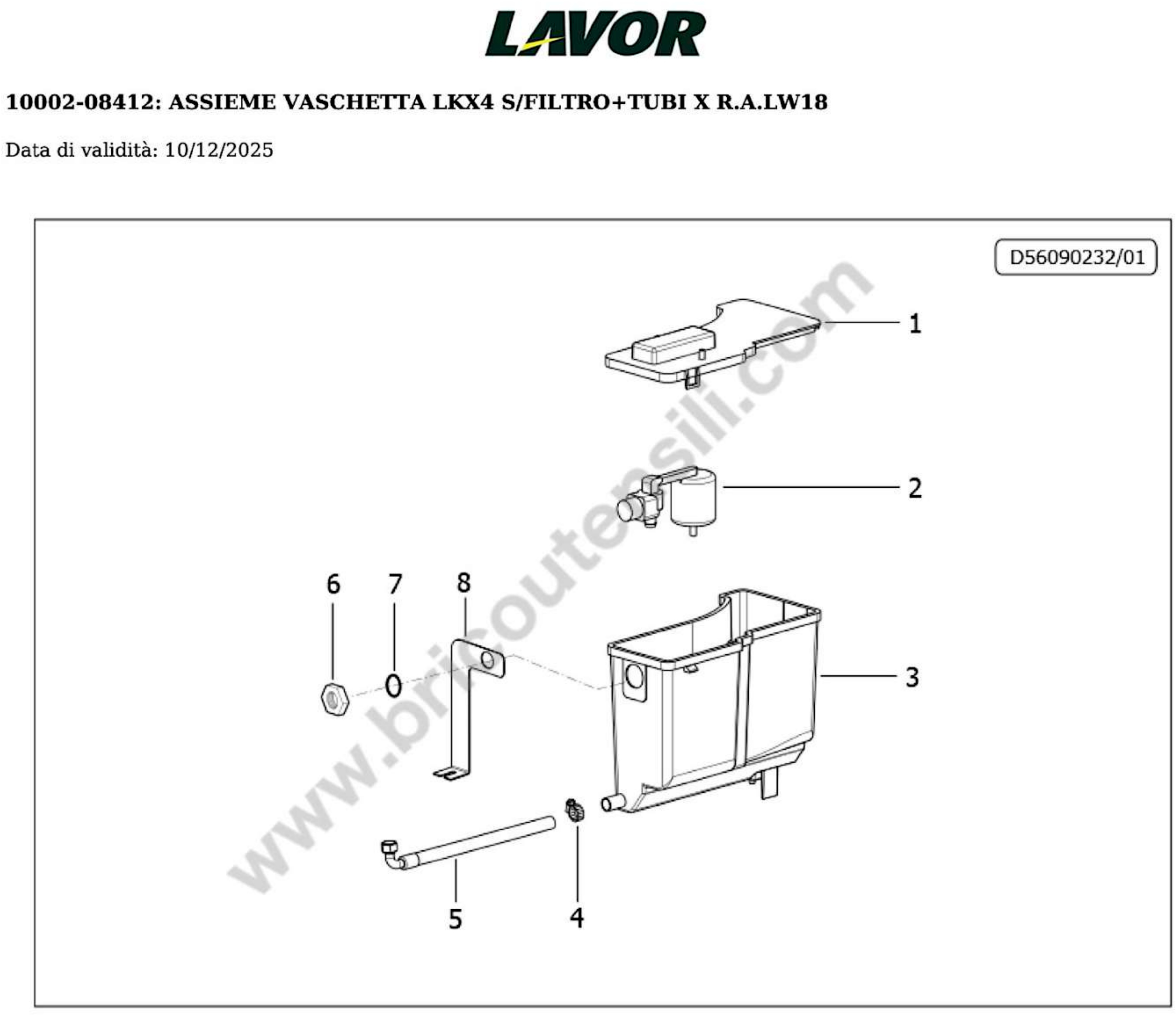

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.608.0231 SMALL TANK CAP LWS FOR PROF. PRESS. CLEANERS €11.87
2
 photo_cameraImage coming soon 3.749.0493 FLOAT TAP 3/4 M (FOR TEKNA) €73.91
3
 photo_cameraImage coming soon 4.608.0230 SMALL TANK LWS FOR PROF. PRESSURE CLEANERS €29.21
4
 photo_cameraImage coming soon 3.099.1320 20-32 SCREW CLAMP €3.23
5
 photo_cameraImage coming soon 4.618.0104 HOSE L.P.L.=390 3/4 90GR ID. 19 TANK/PUMP €26.99
6
 photo_cameraImage coming soon 4.506.0063 WASHER 3/4 FOR OR 4112 €10.42
7
 photo_cameraImage coming soon 3.200.0124 SEAL OR 4112 ID=28.17 ID. SECTION=3.53 €1.63
8
 photo_cameraImage coming soon 4.607.0325 TANK SUPPORT BRACKET LKX4 €37.52
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

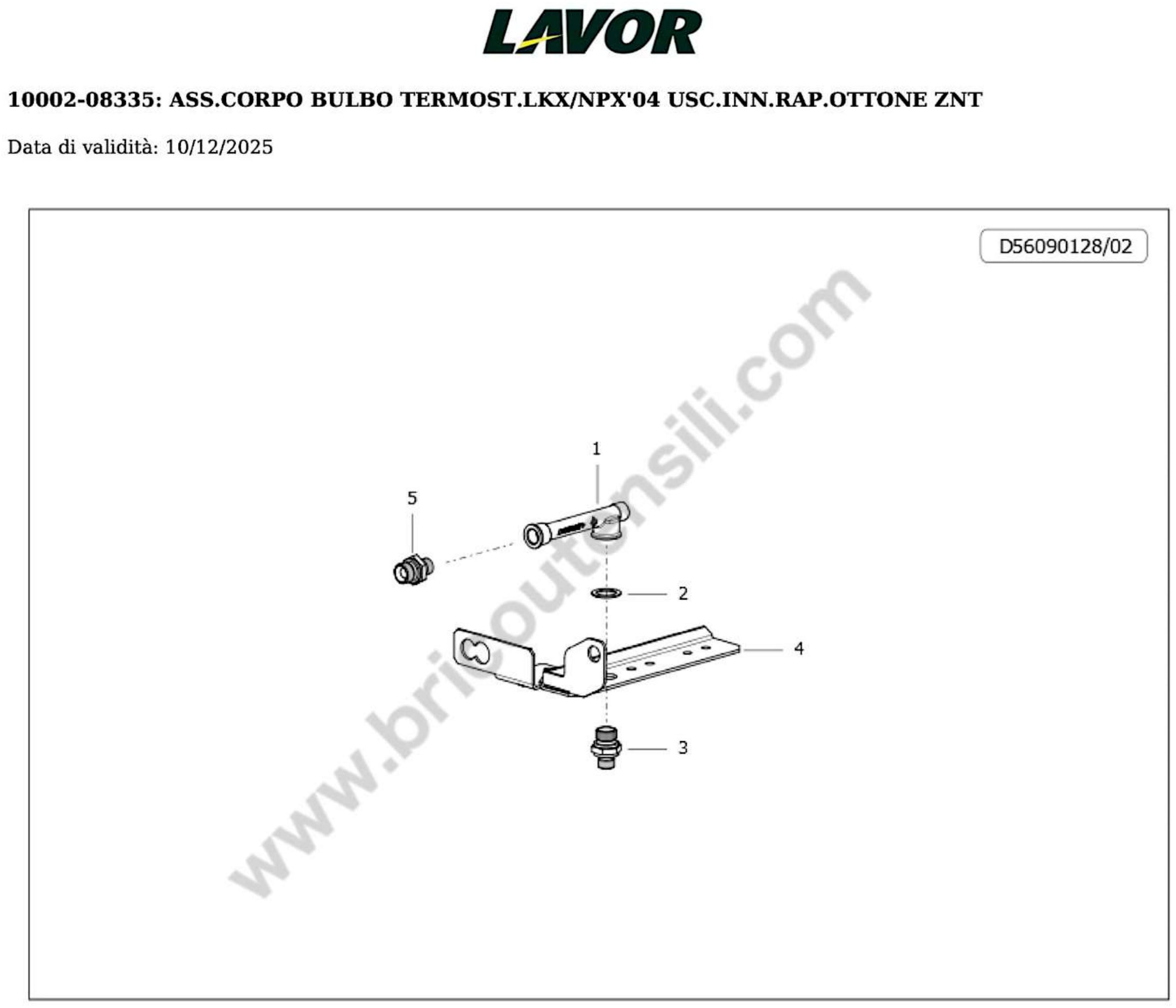

Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.606.0087 BULB ASSY €49.01
2
 photo_cameraImage coming soon 3.004.0004 ALUMINIUM WASHER 21X30XSP 1,5 €1.74
3
 photo_cameraImage coming soon 3.100.0020 REDUCTION M.GAS/M.GAS 1/2-3/8 €8.03
4
 photo_cameraImage coming soon 5.613.0191 THERMOSTAT/ALARM BULB SUPPORT. NPX/LKX'04 €28.78
5
 photo_cameraImage coming soon 3.100.0018 RAPID COUPLING 3/8 M. 08 (465) €14.98

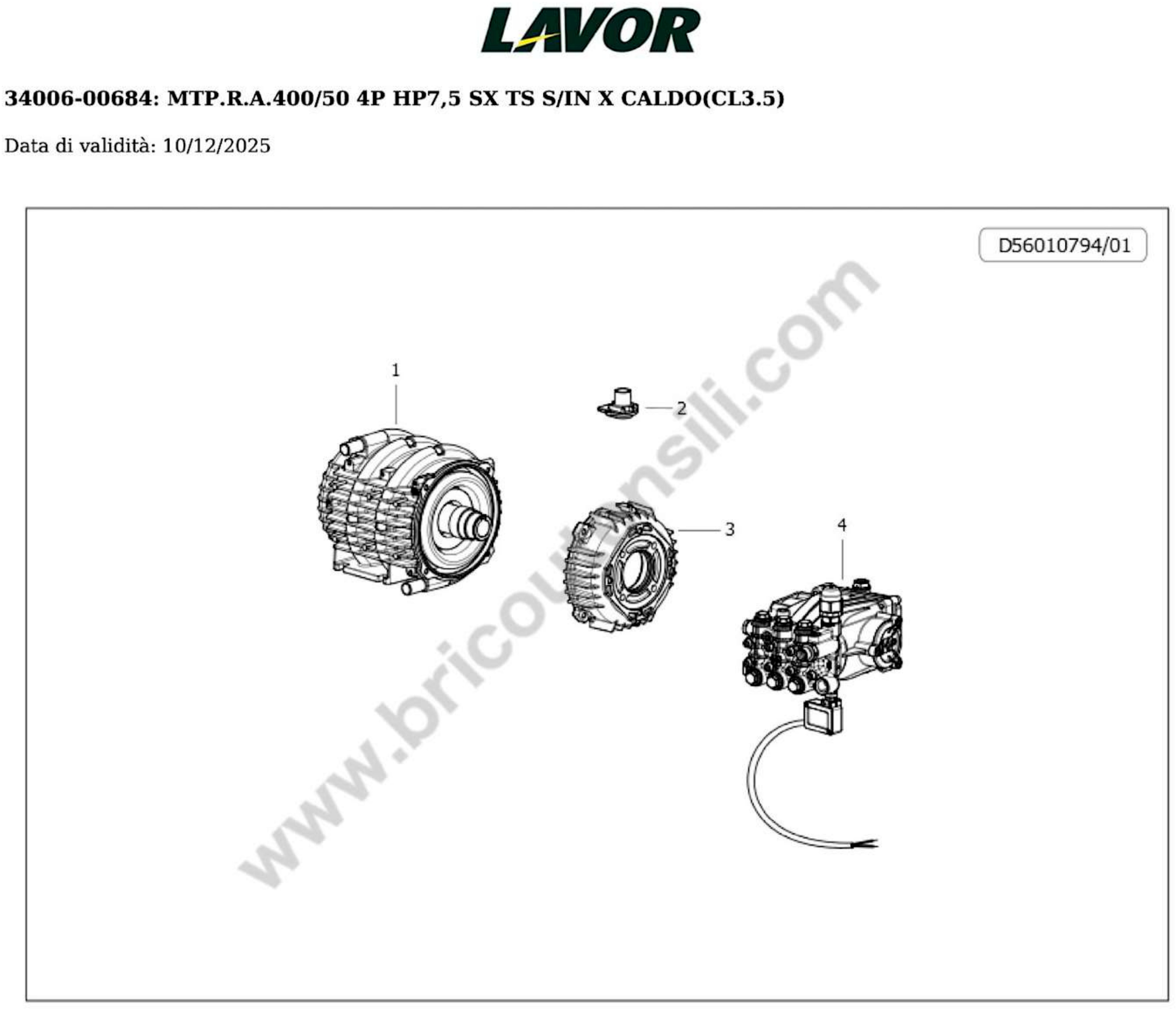

Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
photo_cameraImage coming soon 5.606.0104 LW R.A. ENGINE 400/50 D.152x135 WORK LINE €817.06
photo_cameraImage coming soon 5.705.0002 CL3.5 200/15 1450 LH D.18CERT.W/IN.W/TS-OUT.3/8 (HOT) €518.29
1
 photo_cameraImage coming soon 5.606.0104 LW R.A. ENGINE 400/50 D.152x135 WORK LINE €817.06
2
 photo_cameraImage coming soon 4.605.0070 CABLEHOLDER M22 €5.83
3
 photo_cameraImage coming soon 4.605.0071 FRONT FLANGE MOTOR D.152 FOR PUMP D.90 WORKED €55.59
4
 photo_cameraImage coming soon 5.705.0002 CL3.5 200/15 1450 LH D.18CERT.W/IN.W/TS-OUT.3/8 (HOT) €518.29
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

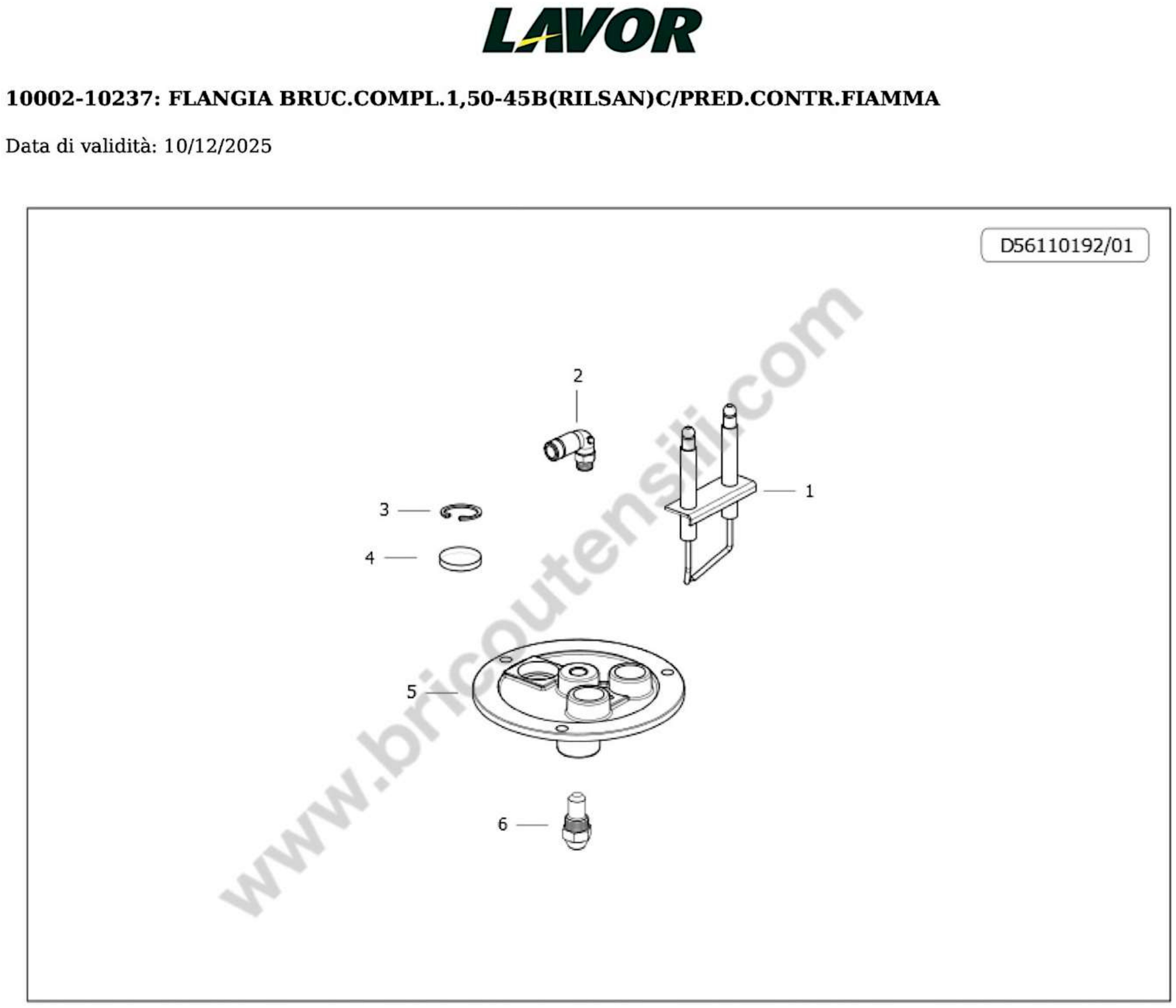

Esploso pagina 7
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.614.0004 STANDARDIZED ELECTRODES COUPLE WITH ROD €36.46
2
 photo_cameraImage coming soon 3.100.0075 CONIC CONNECTION M 1/8 F D.4 CURVED FOR GASOIL HOSE VITON O- €14.98
3
 photo_cameraImage coming soon 3.555.1098 EXTERNAL SEEGER ZJ D.22 (3019003500) €1.63
4
 photo_cameraImage coming soon 3.555.1099 CAP D21,75X2 (3200007400) €4.50
6
 photo_cameraImage coming soon 3.104.0027 DIESEL NOZZLE 1.50 45/B €25.28
Page 8 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

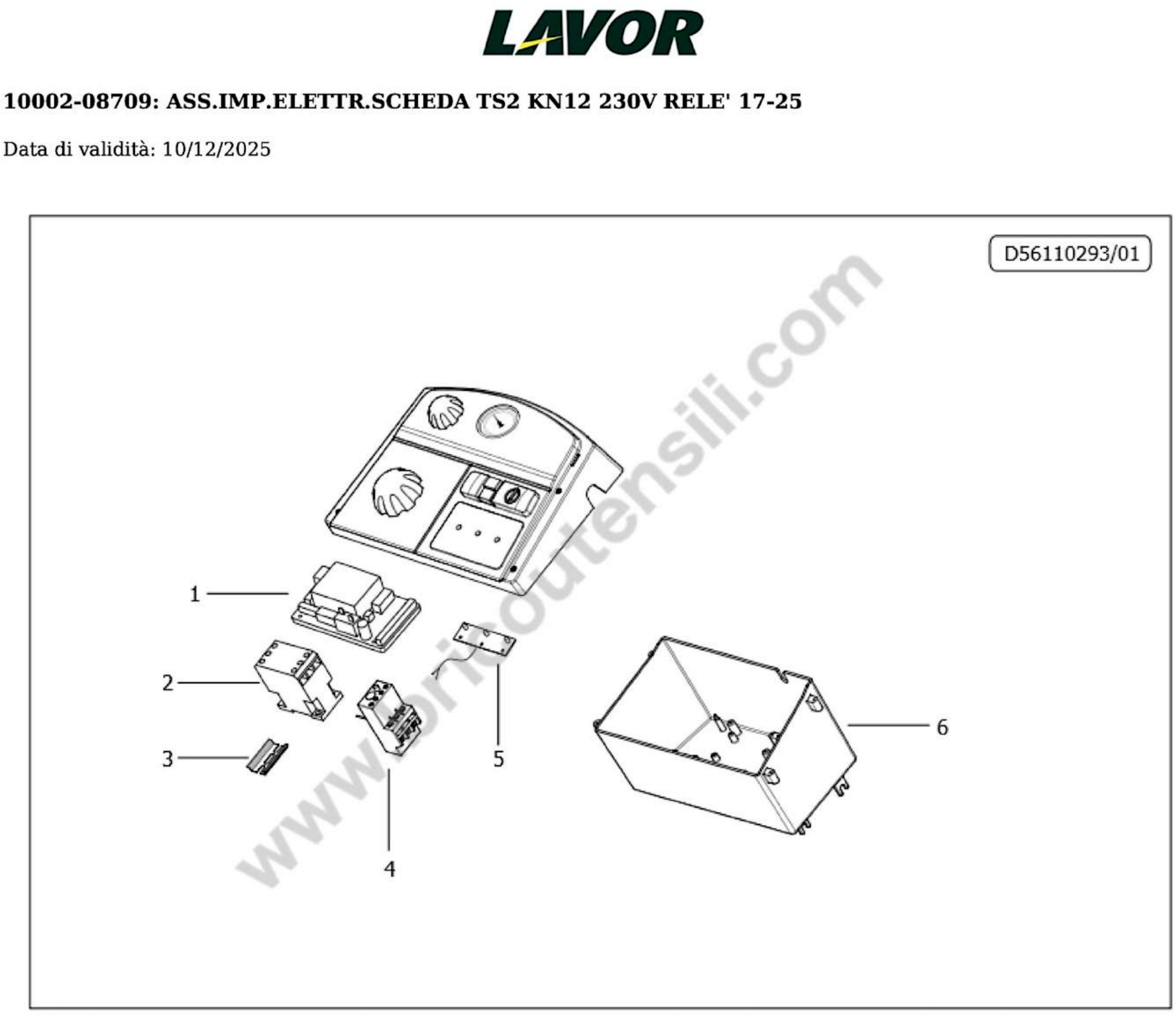

Esploso pagina 8
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
photo_cameraImage coming soon 5.611.0155 ASSEMBLY DASHBOARD LKX4-T4 FOR TS2 (TAMP.-EN-) €164.22
1
 photo_cameraImage coming soon 3.403.0171 TOTAL STOP BOARD TS2 €186.29
2
 photo_cameraImage coming soon 3.402.0053 CONTROLLER KN22 230/50HZ 4 KW AC3 €35.60
3
 photo_cameraImage coming soon 4.607.0230 DIN BAR FOR ELECTRICAL BOX L=50 €7.41
4
 photo_cameraImage coming soon 3.402.0046 THERMAL RELAY KNR1-D1322 17-25A €28.65
5
 photo_cameraImage coming soon 3.403.0172 TS2 LED BOARD €15.75
6
 photo_cameraImage coming soon 4.608.0168 NPX4/LKX4/T4 ELECTRICAL BOX €26.96
Page 9 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

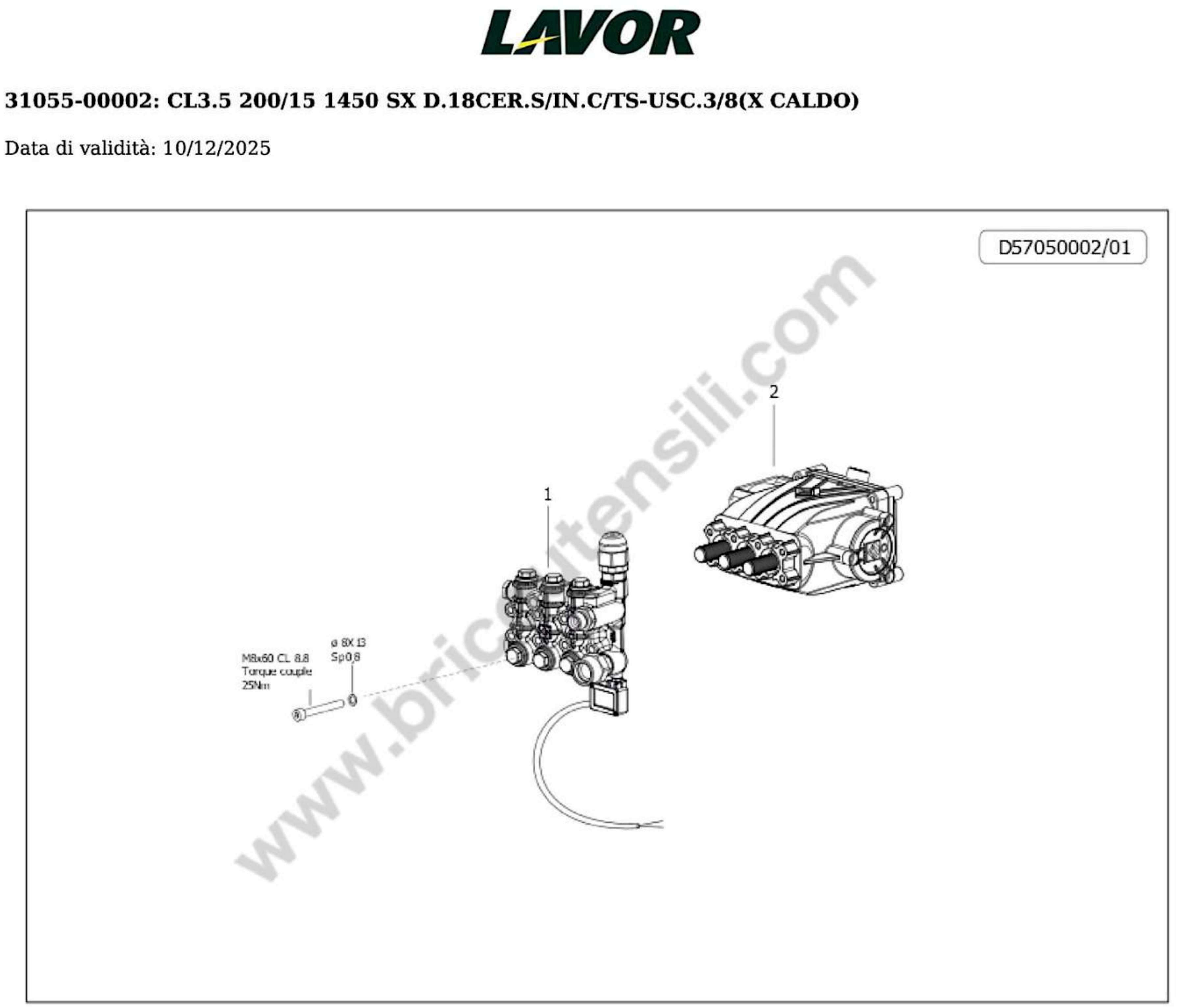

Esploso pagina 9
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
photo_cameraImage coming soon 5.008.0365 BRASS HEAD LWS 1808 WITHOUT INLET 3/8 OUTLET WITHOUT TS (HOT) €276.48
photo_cameraImage coming soon 5.609.0399 PUMP KIT CL3.5 D.18CER 1450RPM 15LT WITHOUT OIL AND SOCKETS €179.91
1
 photo_cameraImage coming soon 5.008.0365 BRASS HEAD LWS 1808 WITHOUT INLET 3/8 OUTLET WITHOUT TS (HOT) €276.48
2
 photo_cameraImage coming soon 6.605.0259 PUMP KIT CL3.5 D.18CER. 1450rpm 15lt €257.64
Page 10 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

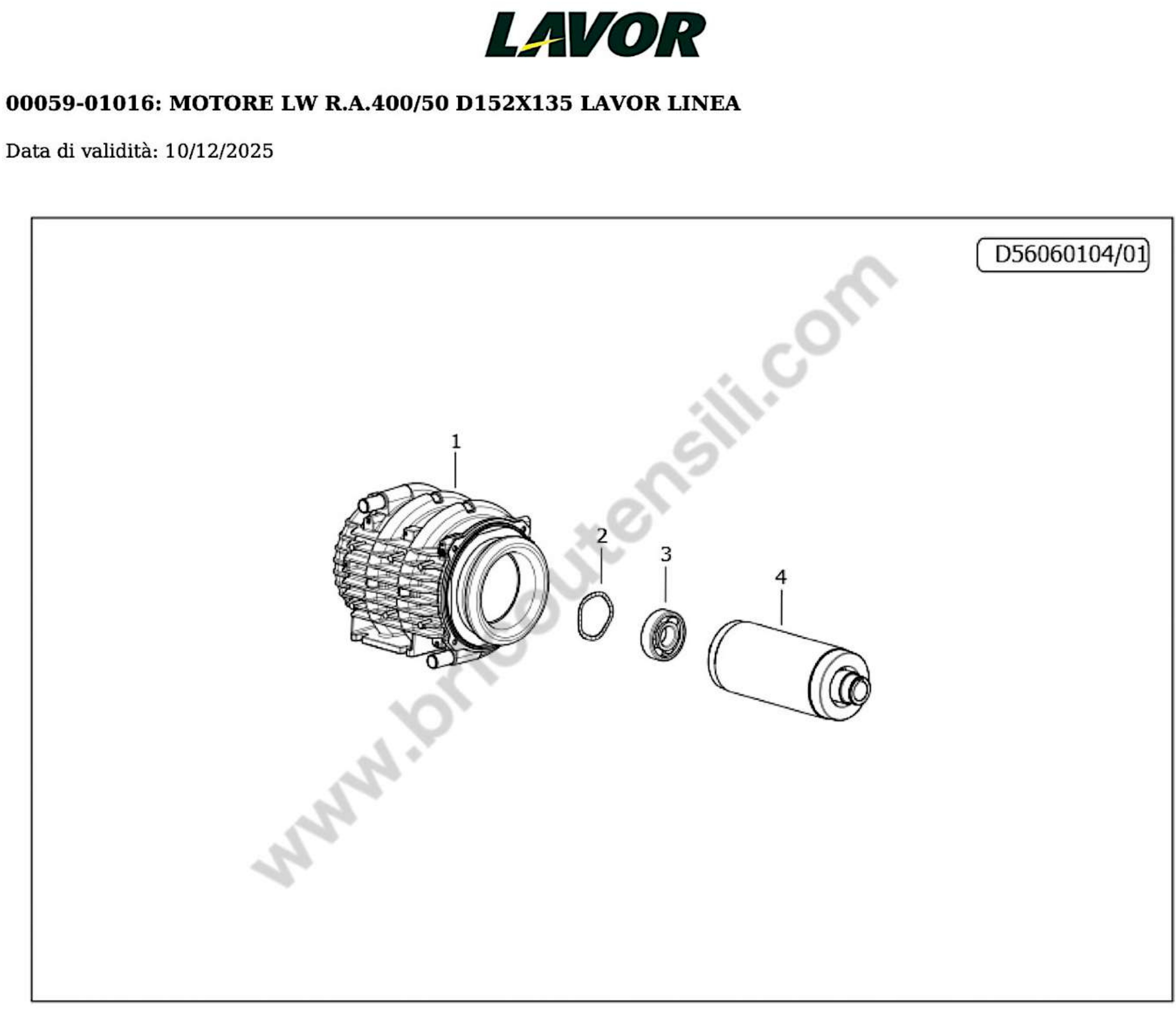

Esploso pagina 10
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5.602.0044 CASE R.A.400/50 4P D152 H135 €143.74
2
 photo_cameraImage coming soon 3.099.0805 RING 61x51x0,4 H.3,5 €1.72
3
 photo_cameraImage coming soon 3.001.0066 RADIAL SPHERE BEARING 6305 2RSKBC (25x62x17) €11.41
4
 photo_cameraImage coming soon 5.605.0055 ROTARY SHAFT 90X135 R.A. LAV.LIN EA €98.20
Page 11 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

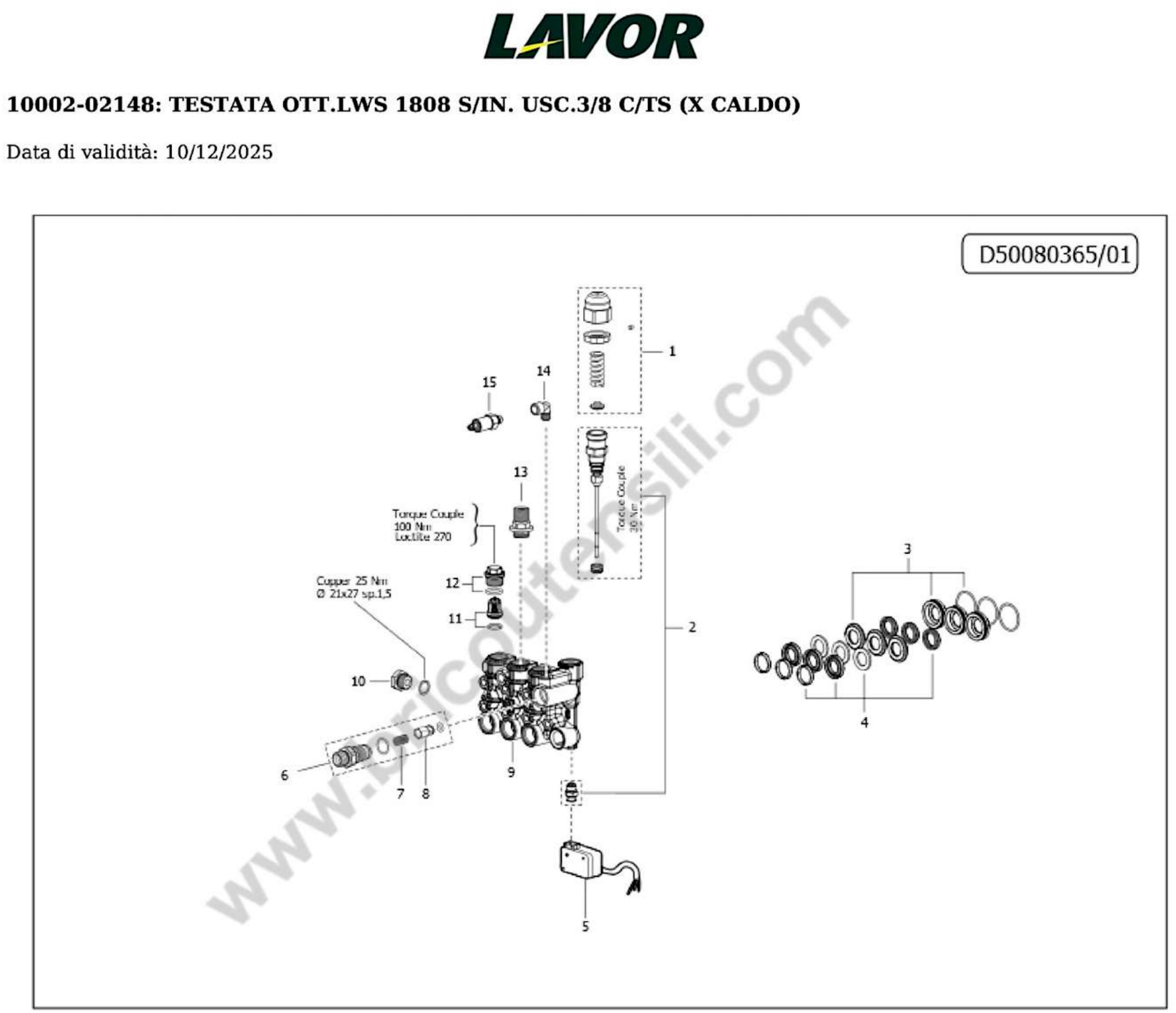

Esploso pagina 11
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Lavor MCHPV 1515LP Kit 111 LW 6.005.0120 Lavor MCHPV 1515LP Kit 111 LW €28.38
2
 photo_cameraImage coming soon 6.005.0289 KIT 264 LW REPAIR. WORK BY-PASS. TS LINE €49.79
3
 photo_cameraImage coming soon 6.605.0123 KIT OF 3 PUMP BUSHINGS 1808 €29.29
4
 photo_cameraImage coming soon 6.005.0305 KIT 277 LW WATER SEALS LWS1808 €81.52
5
 photo_cameraImage coming soon 6.005.0571 2 WIRE MICRO BOX KIT + SCREWS (MICRO GRAY) €41.10
6
 photo_cameraImage coming soon 6.005.0631 VALVE GUIDE KIT - CHECK VALVE S/S INLET (LWS18) €15.49
7
 photo_cameraImage coming soon 4.607.0311 WORK RETAINING VALVE SPRING 18 €1.72
8
 photo_cameraImage coming soon 5.609.0143 RETURN VALVE ASSEMBLY WITH/O-RING LAVOR 18 €14.71
9
 Lavor Head for Pressure Cleaner LKX 2015LP 4.606.0223 Lavor Head for Pressure Cleaner LKX 2015LP €140.00
10
 photo_cameraImage coming soon 4.606.0160 T.E. PLUG 1/2 GAS €5.13
11
 photo_cameraImage coming soon 6.005.0578 KIT 6 VALVES *AUTO SUCTION* (COMP.OR) TEST.OCT.'99 €23.29
12
 photo_cameraImage coming soon 5.009.0101 CAP VALVE SUCTION DELIVERY-ORMOUNTED €6.91
13
 photo_cameraImage coming soon 5.609.0064 VALVE CAP ASSY + OR €13.32
14
 photo_cameraImage coming soon 3.100.0025 ELBOW 1/8 M-1/8 F €7.32
15
 photo_cameraImage coming soon 3.714.0071 SAFETY VALVE VLP 100-250bar - 12-17 l/min 110°C 1/8M (4073500019) €103.21
Page 12 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

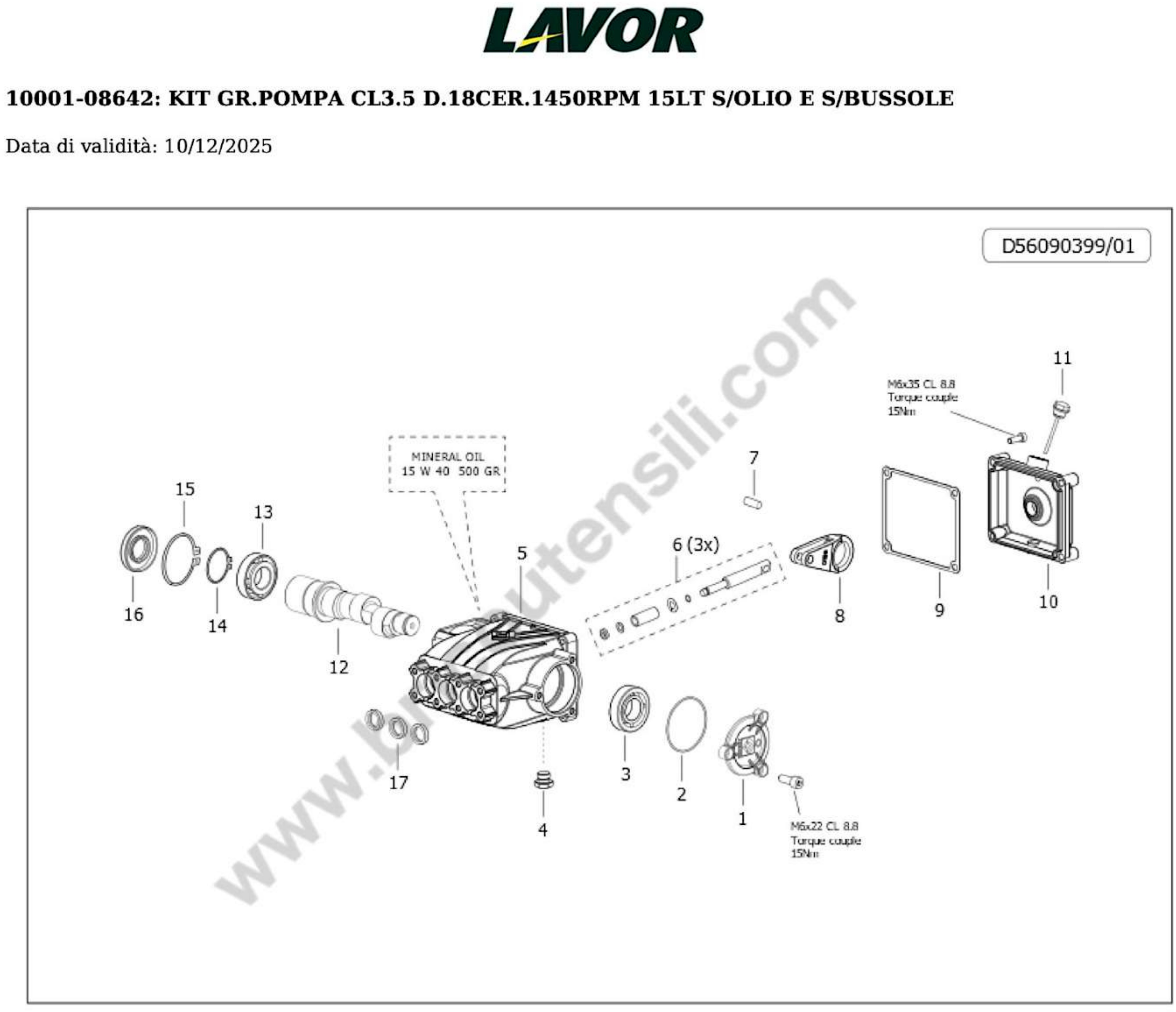

Esploso pagina 12
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.605.0096 PUMP BEARING COVER 1808 €7.56
2
 photo_cameraImage coming soon 3.200.0219 GASKET OR 44,04X3,53 NBR SH.70 €1.70
3
 photo_cameraImage coming soon 3.001.0096 RADIAL BALL BEARING 6305 (25X62X17) -NSK- €23.94
4
 photo_cameraImage coming soon 4.606.0161 G3/8 CAP €9.98
5
 photo_cameraImage coming soon 4.605.0171C CL4-18 MACHINED IN-LINE PUMP CARTER for CERAMIC PISTONS €87.51
6
 photo_cameraImage coming soon 6.605.0258 KIT OF 3 CERAMIC PISTONS FOR CL3.5-18 PUMP €98.57
7
 photo_cameraImage coming soon 4.607.0826 PIN FOR CL4-15 PUMP PISTON GUIDE PIN €1.57
8
 photo_cameraImage coming soon 4.605.0156C ALUMINUM CONNECTING ROD FOR CL4-15 PUMP €9.40
9
 photo_cameraImage coming soon 3.200.0249 GASKET OR 98.02X3.53 NBR SH.70 €1.66
10
 photo_cameraImage coming soon 4.605.0174C POSTER COVER. CRANKCASE CL4-15 BLACK X GUARN.OR €18.92
11
 photo_cameraImage coming soon 3.099.1480 OIL CAP (L=58 STICK) €3.36
12
 photo_cameraImage coming soon 4.607.0533 PUMP SHAFT IN LINE C = 14.4 MACHINED X 1808 €97.20
13
 photo_cameraImage coming soon 3.001.0097 RADIAL BALL BEARING 6304 (20X52X15) HIGH QUALITY -NSK- €18.92
14
 photo_cameraImage coming soon 6.605.0113 SEEGER KIT D.25 €16.36
15
 photo_cameraImage coming soon 6.605.0114 SEEGER KIT D.62 €29.62
16
 photo_cameraImage coming soon 3.201.0058 Replaced by 6.005.0306 RING SHAFT SEAL D.25X62X 10 DIN AS €25.22
17
 photo_cameraImage coming soon 6.005.0306 KIT 278 LW OIL SEALS + OR LWS1508/1808 €28.93

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Pressure Cleaner LKX 2015LPT Parts

Fix Your Hot Water High Pressure Cleaner LKX 2015LP T 400/50(COLL.220/50)-GR-C/VASCH+LANCIA A/B-LAVOR. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee

In the following tables, look for the spare part and its respective code.
LAVOR - LKX 2015LPT- 8.621.2991

LKX 2015LPT- 8.621.2991
Pag.1
# Part Num Description
0 8.621.X175 LKX4 2015LP 400/50 (COLL. 220/50) TS (CL 3.5) R.A.C. W/BDF TANK
1 5.611.0285 LEF SIDE PANEL NPX-LKX-BLACK-W/HOOKS W/BUFFER-PROF. WORKING
2 4.613.0182 REAR FAIRING NPX-LKX'04-BLACK-
3 4.608.0184 COVER CAP FOR WINDOW REGULATOR SEAT NPX'04 BLACK
4 4.607.0726 STAINLESS STEEL CHIMNEY PROTECTION PLATE NPX/LKX
5 4.613.0289 TOP FAIRING NPX-LKX04-GR-RAL 7046
6 4.608.0082 FUEL TANK CAP-CHEM-N-
7 3.200.0038 SEAL OR 53.65X2.62 REF. 3212
8 5.611.0286 RH SIDE PANEL NPX-LKX-BLACK-W/HOOK WITH BUFFER-PROF. WORKING
10 7.700.0596 MANUAL LKX/HYPER L-LR/HLR+CE LAVOR A5 196F 19L
11 3.700.0030 AL55 GUN 350BAR 45L/MIN 160GR+SW8 3/8M+S7+M22 (30129100)
12 4.618.0143 HOSE 5/16 R1 - 315 bar (31.5 MPa) 10M W/QUICK CONNECTOR 1/2 GIR-3/8
13 3.701.0015 STAINLESS STEEL LANCE L.700 COATED+RED+QUICK CONNECTOR M22 41102850
14 5.611.0078 PLASTIC SUCTION HOSE HOLDER KIT 3/4 D.19
15 3.103.0050 NOZZLE A.P. 1/8M 15045
LKX4 2015LP 400/50(COLL.220/50)TS(CL3.5)R.A.C/VASCH.BDF Pag.2
0 5.611.0169 BOILER EXTERNAL COVER FOR DRILLED CONE BAND
0 5.609.0232 LKX4 TANK ASSEMBLY WITHOUT FILTER + TUBES FOR LW18 THERMOSTAT
0 5.609.0128 LKX/NPX'04 THERMOSTAT BULB BODY ASSEMBLY WITH CONNECTOR OUTLET, ZNT BRASS
0 5.601.0794 MTP THERMOSTAT 400/50 4P HP7.5 LH TS WITHOUT INLET FOR HOT (CL3.5)
0 5.611.0192 COMPLETE BURNER FLANGE 1.50-45B (RILSAN) WITH PRE-PRECED FLAME CONTROL
0 5.611.0293 ELECTRICAL SYSTEM ASSEMBLY, TS2 KN12 BOARD 230V RELAY 17-25
1 5.609.0344 ACCESS TRANSFORMER 220-240V 50/60Hz C/PIPET.NPX-LKX+CABLE(POWER)
2 4.608.0271 ISOL.GASKET FOR PROF.H.T. TRANSFER
3 5.611.0192 COMPLETE BURN FLANGE 1.50-45B(RILSAN)C/PREAD.CONTR.FLAME
4 3.099.0719 HEIGHT BAND/330/G8 BOILER COVER FIXING'04
5 5.611.0169 BOILER EXTERNAL COVER FOR PERFORATED CONE BAND
6 5.613.0028 COP.INT.CAM.COMB.CHIMN O L=120
7 4.604.0003 LOW COIL H.415 L=30MT
8 5.613.0396 BOILER BODY LKX'04 MOTOR CL4 PUMP
9 3.099.0028 FAN 146X72 LEFT. HOLE DM 12.7
10 3.300.0003 BURNER MOTOR 100W/230-240/50HZ C80 IP55
11 6.605.0173 PLASTIC JOINT KIT FOR DIESEL PUMP (3 PCS.)
12 3.100.0075 M 1/8 CONICAL FEMALE D.4 CURVED CONNECTOR
13 4.606.0088 1/4 G M D.7 HOSE HOLDER
14 3.551.0063 DUAL-PIPE DIESEL PUMP RH 24V 50/60HZ
15 5.611.0067 TEKNA'95-LKX FUEL FILTER (NYLON)
16 4.608.0536 VERMICULITE PANEL THICKNESS 20MM DIAM. 290MM 2 HOLES
17 4.607.0006 COOLER FASTENING BAND 15/10 STAINLESS STEEL SHEET METAL
18 4.608.0162 INSULATING CORD FOR BOILER BASE L=975
19 5.613.0116 JOLLY 5/LKX BOILER BASE - PAINTED
20 3.403.0078 FUEL LEVEL GAUGE L=185 WITH CABLE L=1320 WITH FASTON
21 4.608.0073 SHORT SPACER FOR JOLLY 4/93 TANK
22 6.605.0168 WHEEL KIT 30060155 + STUD + LOCK COLUMBIA - HYPER C - HYPER L
23 5.613.0402 FRONT AXLE NPX/LKX
24 5.613.0403 NPX/LKX REAR AXLE
25 4.608.0203 NPX4/LKX4 DIESEL/DETERGENT TANK
26 4.008.0031 WATER FILTER D.16 CONICAL
27 4.006.0088 SUMPTION CONNECTOR ADAPTER L=26 M22-3/4G
28 4.606.0019 SUMPTION CONNECTOR L=60 M22-3/8G
29 4.618.0043 HOSE R1 3/8 L=375 C.1/2F. 90' ROTARY SHAFT / C.3/8F. 90' ROTARY SHAFT
30 4.608.0448 LONG SPACER FOR JOLLY TANK 4/93 MM 57.5
31 4.608.0448 LONG SPACER FOR JOLLY TANK 4/93 MM 57.5
32 4.606.0013 SPECIFIC 1/2" OT COIL FIXING NUT
33 3.004.0015 FLAT WASHER D.22X39 TH.3 ZNT UNI6592
34 5.609.0023 FAN PROTECTION GRILLE ASSEMBLY
35 4.606.0136 INLET CONNECTOR WITH DET. SUCTION 3/8-1/2 G - 3/4 G
36 4.606.0182 DIAMETER REDUCING BUSHING FOR DET. SUCTION
37 4.618.0210 R1 250 BAR HOSE L=600 W/CONNECTOR 1/2-3/8 F 90 GROUP (OFFSET CONNECTOR 60 GROUP)
38 5.609.0128 THERMAL BULB BODY ASSEMBLY LKX/NPX'04 CONNECTOR OUTLET RAPID BRASS GALVANIZED
39 4.618.0126 R1 B.P. HOSE L=400 CONNECTOR 3/8 M - ELBOW (R.A. MOTOR - LKX INLET)
40 4.618.0138 B.P. HOSE L=810 INLET - HOT STATION MOTOR
41 6.605.0223 HOSE RETAINING KIT FOR R.A. MOTOR (46080480/482)
42 3.403.0003 THERMAL PROTECTOR L01.080.05. UL CABLES L=1200
43 3.704.0009 PS2 PRESSURE SWITCH 1/4 M 25 BAR RED
44 4.608.0071 DASHBOARD CABLE GLAND COVER '93
45 4.612.0032 CABLE POWER SUPPLY H05VV-F 4X2.5 L=6700
46 4.608.0199 SHIM BUSHING FOR NEW HANDLES, PROF.
47 4.608.0170 LEFT HANDLE NPX'04-GR-RAL.7021
48 4.608.0191 DASHBOARD FRAME NPX'04 BLACK
49 4.608.0169 RIGHT HANDLE NPX'04-GR-RAL.7021
50 5.613.0192 DASHBOARD/HANDLE SUPPORT NPX/LKX'04
COP.EST.CALDAIA X FASCIA CONO FORATO Pag.3
1 5.613.0200 EXTERNAL COVER FOR BOILER '04
2 5.610.0105 DEFLECTOR WITH CONE D.82 W/HOLES
ASSIEME VASCHETTA LKX4 S/FILTRO+TUBI X R.A.LW18 Pag.4
1 4.608.0231 TRAY COVER LWS FOR PROF.
2 3.749.0493 FLOAT TAP 3/4 M (FOR TEKNA)
3 4.608.0230 LWS TANK FOR PROFESSIONAL (3 LT)
4 3.099.1320 20-32 SCREW CLAMP
5 4.618.0104 HOSE L.P.L.=390 3/4 90GR ID. 19 TANK/PUMP
6 4.506.0063 WASHER 3/4 FOR OR 4112
7 3.200.0124 SEAL OR 4112 ID=28.17 ID. SECTION=3.53
8 4.607.0325 TANK SUPPORT BRACKET LKX4
ASS.CORPO BULBO TERMOST.LKX/NPX'04 USC.INN.RAP.OTTONE ZNT Pag.5
1 4.606.0087 THERMOSTAT BULB BODY PROFESSIONAL
2 3.004.0004 ALUMINUM WASHER 21X30XTHICKNESS 1.5
3 3.100.0020 NIPPLE 1/2G-3/8G
4 5.613.0191 THERMOSTAT BULB SUPPORT/STARTER NPX/LKX'04
5 3.100.0018 QUICK CONNECTOR 3/8M-1/2M 08 ZNT
MTP.R.A.400/50 4P HP7,5 SX TS S/IN X CALDO(CL3.5) Pag.6
0 5.705.0002 CL3.5 200/15 1450 LH D.18CERT.W/IN.W/TS-OUT.3/8 (HOT)
0 5.606.0104 LW MOTOR R.A.400/50 D152X135 LAVOR LINEA
1 5.606.0104 LW MOTOR R.A.400/50 D152X135 LAVOR LINEA
2 4.605.0070 M22 CABLE GLAND FOR R.A. MOTOR
3 4.605.0071 FRONT FLANGE MOTOR D152 FOR PUMP D.90 MACHINED (ORANGE1)
4 5.705.0002 CL3.5 200/15 1450 LH D.18 CER. S/IN. W/TS-OUT.3/8 (HOT)
FLANGIA BRUC.COMPL.1,50-45B(RILSAN)C/PRED.CONTR.FIAMMA Pag.7
1 4.614.0004 PAIR OF PROFESSIONAL ELECTRODES WITH BRACKET
2 3.100.0075 M 1/8 TAPERED FEMALE D.4 CURVED CONNECTOR
3 3.555.1098 ZJ TYPE SEEGER D22
4 3.555.1099 TP FLAME CENTRE D.21.75X2 (GLASS)
5 4.605.0223 STANDARD BURNER FLANGE
6 3.104.0027 FUEL NOZZLE 1.50 45/B
ASS.IMP.ELETTR.SCHEDA TS2 KN12 230V RELE' 17-25 Pag.8
0 5.611.0155 LKX4-T4 DASHBOARD ASSEMBLY FOR TS2 (TAMP.-EN-)
1 3.403.0171 TS2 TOTAL STOP CARD
2 3.402.0053 KN22 RELAY SWITCH 230/50HZ 4 KW AC3
3 4.607.0230 DIN RAIL FOR BOX ELECTRIC L=50
4 3.402.0046 THERMAL RELAY KNR1-D1322 17-25A
5 3.403.0172 LED BOARD TS2
6 4.608.0168 ELECTRIC BOX NPX4/LKX4/TEKNA4
CL3.5 200/15 1450 SX D.18CER.S/IN.C/TS-USC.3/8(X CALDO) Pag.9
0 5.008.0365 BRASS HEAD LWS 1808 WITHOUT INLET 3/8 OUTLET WITHOUT TS (HOT)
0 5.609.0399 PUMP KIT CL3.5 D.18CER 1450RPM 15LT WITHOUT OIL AND SOCKETS
1 5.008.0365 BRASS HEAD LWS 1808 WITHOUT INLET 3/8 OUTLET C/TS (HOT)
2 6.605.0259 PUMP CRANKCASE KIT CL3.5 D.18CER. 1450RPM 15L
MOTORE LW R.A.400/50 D152X135 LAVOR LINEA Pag.10
1 5.602.0044 HOUSING R.A. 400/50 4P D152 H135
2 3.099.0805 COMPENSATION RING 61X51X0.4 H.3.5-62D-
3 3.001.0066 BALL RADIAL BEARING 6305 2RS (25X62X17) (KBC) FOR ELECTRIC MOTOR
4 5.605.0055 ROTARY SHAFT 90X135 R.A. LINEAR WASHER
TESTATA OTT.LWS 1808 S/IN. USC.3/8 C/TS (X CALDO) Pag.11
1 6.005.0120 PRESSURE REGULATOR KIT TESTED OCT. '99
2 6.005.0289 LW BYPASS REPAIR KIT 264 TS LINE WASHER
3 6.605.0123 KIT OF 3 PUMP BUSHINGS 1808
4 6.005.0305 LW WATER SEAL KIT 277 LWS1808
5 6.005.0571 MICRO SWITCH KIT 2 WIRES + SCREWS (GREY MICRO)
6 6.005.0631 VALVE GUIDE KIT - CHECK VALVE S/S INLET (LWS18)
7 4.607.0311 CHECK VALVE SPRING LAVOR 18
8 5.609.0143 CHECK VALVE ASSEMBLY WITH O-RING
9 4.606.0223 HEAD LAVOR LINE 1808
10 4.606.0160 T.E. CAP 1/2 GAS
11 6.005.0578 KIT OF 6 AUTO SUCTION VALVES (OR COMP.) TESTED OCT. '99
12 5.009.0101 INLET/DELIVERY VALVE CAP WITH O-RING MOUNTED
13 5.609.0064 ASSEMBLY OF VALVE CAP, INLET, DISCHARGE, CAPILLARY VALVE + O-RING
14 3.100.0025 ELBOW CONNECTOR 1/8 M-1/8 F
15 3.714.0071 SAFETY VALVE VLP 100-250 BAR - 12-17 L/MIN 110 GPM 1/8 M
KIT GR.POMPA CL3.5 D.18CER.1450RPM 15LT S/OLIO E S/BUSSOLE Pag.12
1 4.605.0096 BEARING COVER
2 3.200.0219 OR SEAL 44.04X3.53 NBR SH.70
3 3.001.0096 BALL BEARING 6305 (25X62X17) - NSK-
4 4.606.0161 TEE CAP 3/8 GAS
5 4.605.0171C CL4-18 IN-LINE PUMP CASE, MACHINED FOR CERAMIC PISTONS
6 6.605.0258 KIT OF 3 CERAMIC PISTONS FOR CL3.5-18 PUMP
7 4.607.0826 PIN FOR PISTON GUIDE PIN FOR CL4-15 PUMP
8 4.605.0156C ALUMINUM CONNECTING ROD FOR CL4-15 PUMP
9 3.200.0249 SEAL OR 98.02X3.53 NBR SH.70
10 4.605.0174C REAR COVER FOR CL4 PUMP CASE WITH OR SEAT
11 3.099.1480 TP CRCO OIL FW3
12 4.607.0533 IN-LINE PUMP SHAFT C=14.4 MACHINED X 1808
13 3.001.0097 RAD. BALL BEARING 6304 (20X52X15) HIGH QUALITY - NSK
14 6.605.0113 KIT OF 5 SEEGER RINGS D.25 FOR SHAFTS
15 6.605.0114 KIT OF 3 SEEGER RINGS D.62
16 3.201.0058 SEAL RING D.25X62X10 DIN AS
17 6.005.0306 KIT 278 LW OIL SEALS + OR LWS1508/1808
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
LKX 2015LPT- 8.621.2991
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

Lavor LKX 2015LPT Drawing

Lavor LKX 2015LPT Drawing

Download (578.7KB)

You might also like

Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 4.008.0031
Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24
Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 Original replacement part Lavor, Inlet Water Filter H20 D.16 Conical for Pressurte Washers STORM II 17 - STORM II PLUS 21 - BEST 24.  Part for the following products: -...
AVAILABLE €2.07
Details
Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 6.605.0173
Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400
Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Diesel Pump Red Plastic Coupling Set for Engine EME/UNIELECTRICp for Pressure Cleaners NPX 1400 - NPX 1500 Part for the following products: -...
Last items in stock €29.06
Details
Washer SNHORt for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 3.004.0022
Washer SNHOR for Pressure Cleaner Lavor NPX 1400
Washer SNHOR for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Washer SNHOR D.8x13 sp.0.8 for Pressure Cleaners NPX 1400 - NPX 1500 Part for the following products: -  Pressure Cleaner Lavor NPX 1400 - 8.605.0048 -...
on 10 Business Days Approx €1.71
Details
Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 3.403.0091
Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500
Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Thermostat 30/150 Bulb d.6.5 (3 Faston) for Pressure Washers NPX 1400 - NPX 1500. Part for the following...
on 10 Business Days Approx €40.24
Details
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 4.608.0078
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Dashboard Gasket '93 (3x900) for Pressure Cleaners NPX 1400 - NPX 1500 - LKX 40. Part for the following products: -  Pressure Cleaner NPX 1400 230/50...
Last items in stock €3.32
Details
Pressure Switch for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 3.704.0006
Pressure Switch for Pressure Washer Lavor Missouri
Pressure Switch for Pressure Washer Lavor Missouri Genuine part Lavor, Pressure Switch 25 Bar 1/8 Red L.700 Faston F. for Pressure Washers  MISSOURI - YUKON 1310 - NPX 1500 - LKX 40. Part...
Last items in stock €30.90
Details
Diesel Nozzle for Pressure Washers Lavor NPX 1400
Lavorwash S.p.A. SKU: 3.104.0028
Diesel Nozzle for Pressure Washers Lavor NPX 1400
Diesel Nozzle for Pressure Washers Lavor NPX 1400 Genuine replacement part Lavor, Diesel Nozzle 1,25 45-B for Pressure Washers NPX 1400 - NPX 1500 - LKX 31 - LKX 40. Part for the following...
Last items in stock €28.36
Details
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1500
Lavorwash S.p.A. SKU: 4.618.0014
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1500
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Pressure Gauge Pipe 2x380 Max 630 Bar 1/4 F. Gir. 1/4 F Gir. for Pressure Washers NPX 1400 - NPX...
Usually Ships in: 10/15 Business Days Approx. €26.46
Details
Thermal Switch MS 25 for Pressure Cleaner Lavor LKX 55 TS
Lavorwash S.p.A. SKU: 3.401.0049
Thermal Switch MS 25 for Pressure Cleaner Lavor LKX 55 TS
Thermal Switch MS 25 10/16 AMP for Pressure Cleaner Lavor LKX 55 TS Genuine replacement part Lavor, Thermal Switch MS 25 10/16 AMP (4006111101) for Pressure Cleaner LKX 55 TS 230/400-50 CM -G - 8.611.0084. Part...
on 10 Business Days Approx. €137.06
Details
Lavor MCHPV 1515LP Kit 111 LW
Lavorwash S.p.A. SKU: 6.005.0120
Lavor MCHPV 1515LP Kit 111 LW
Lavor MCHPV 1515LP Kit 111 LW Genuine replacement part Lavor, Kit 111 LW Pressure Regulator For Brass Head Test.Oct.'99 for Pressure Cleaner MCHPV 1515LP 400-415/SC1 - 8.626.0002. Part for the following products:...
on 10 Business Days Approx. €28.38
Details
Lavor LKX 31 Diesel Filter Unit
Lavorwash S.p.A. SKU: 5.611.0067
Lavor LKX 31 Diesel Filter Unit
Lavor LKX 31 Diesel Filter Unit Genuine replacement part Lavor, Diesel Filter Unit Assy (PAPER) for LKX 31 - 40 - 55 - 2015. Part for the following products: - 8.611.0160 - Pressure Washer LKX 31 TS AC 230/50 CM-G -...
Last items in stock €19.50
Details
Lavor LKX 2015 Burn Flange
Lavorwash S.p.A. SKU: 5.611.0192
Lavor LKX 2015 Burn Flange
Lavor LKX 2015 Burn Flange Genuine replacement part Lavor, Cmplete Burn Flange 1.50-45B (RILSAN) With preparation for flame control for LKX 2015. Part for the following products: - 8.621.2935 - Pressure Washer LKX 2015LP T...
on 10 Business Days Approx. €97.88
Details
Lavor LKX 2015 Ignition Transformer
Lavorwash S.p.A. SKU: 5.609.0344
Lavor LKX 2015 Ignition Transformer
Lavor LKX 2015 Ignition Transformer Genuine replacement part Lavor, Ignition Transformer 220-240V 50/60Hz C/PIPET.NPX-LKX + CAVO (POTENZ.) for LKX 2015. Part for the following products: - 8.621.2935 - Pressure Washer LKX...
Usually Ships in: 10/15 Business Days Approx. €63.65
Details
Lavor Brass Head for LKX 2015LP
Lavorwash S.p.A. SKU: 5.008.0364
Lavor Brass Head for LKX 2015LP
Lavor Brass Head for Pressure Cleaner LKX 2015LP Original replacement part Lavorwash, Brass Head LWS 1808 C/IN.2,0 USC.3/8 C/TS (X HOT) for Pressure Washer LKX 2015LP. Part for the following products: -  High Pressure Cleaner LKX...
Usually Ships in: 10 Business Days Approx. €251.09
Details
Lavor Adjustment Knob for MEK 1108
Lavorwash S.p.A. SKU: 4.608.0164
Lavor Adjustment Knob for MEK 1108
Lavor Adjustment Knob for Pressure Cleaner MEK 1108 Genuine replacement part Lavorwash, Black Thermostat Adjustment Knob for Pressure Cleaner DAKOTA-R 2007XP - MISSOURI - MEK 1108. Part for the following products: - ...
Last items in stock €5.83
Details
Lavor Thermostat Knob for LKX 2015LP
Lavorwash S.p.A. SKU: 5.611.0161
Lavor Thermostat Knob for LKX 2015LP
Lavor Thermostat Knob for Pressure Cleaner LKX 2015LP Original replacement part Lavorwash, Black Thermostat Knob Whit Insert for Pressure Washer LKX 2015LP. Part for the following products: -  High Pressure Cleaner LKX 2015LP T...
Usually Ships in: 10 Business Days Approx. €3.36
Details
Lavor Head for Pressure Cleaner LKX 2015LP
Lavorwash S.p.A. SKU: 4.606.0223
Lavor Head for Pressure Cleaner LKX 2015LP
Lavor Head for Pressure Cleaner LKX 2015LP Original replacement part Lavorwash, Lavor Headboard 1808 Line for Pressure Washer LKX 2015LP. Part for the following products: -  High Pressure Cleaner LKX 2015LP T 400-415/50 -GR -...
Last items in stock €140.00
Details
Lavor Replacement Kit TS2 Card Total Stop
Lavorwash S.p.A. SKU: 6.605.0250
Lavor Replacement Kit TS2 Card Total Stop
Lavor Replacement Kit TS2 Card 34030171 Total Stop Original replacement part Lavorwash, Replacement Kit TS2 Card 34030171 Total Stop for Pressure Washer LKX 2015LP. Part for the following products: -  High Pressure Cleaner LKX 2015LP...
Usually Ships in: 10 Business Days Approx. €175.13
Details
Lavor LKX 2015LP Thermal Relay DPER 21 12-18A
Lavorwash S.p.A. SKU: 3.402.0045
Lavor LKX 2015LP Thermal Relay DPER 21
Lavor Thermal Relay DPER 21 12-18A for  LKX 2015LP Original replacement part Lavorwash, Thermal Relay DPER 21 12-18Afor Pressure Washer LKX 2015LP. Part for the following products: -  High Pressure Cleaner LKX 2015LP T...
Usually Ships in: 10 /15Business Days Approx. €29.65
Details
Lavor LKX1515LP AC Contactor KN22
Lavorwash S.p.A. SKU: 3.402.0051
Lavor LKX1515LP AC Contactor KN22
Lavor AC Contactor KN22 400/50HZ 7,5 KW AC3 for LKX 1515LP Original replacement part Lavorwash, AC Contactor KN22 400/50HZ 7,5 KW AC3 for Pressure Washer LKX 1515LP - LKX 2015LP. Part for the following products: - High...
Usually Ships in: 10 Business Days Approx. €36.87
Details
Lavor LKX 31 Single Pipe Diesel Pump
Lavorwash S.p.A. SKU: 3.551.0063
Lavor LKX 31 Double Pipe Diesel Pump
Lavor LKX 31 Double Pipe Diesel Pump Genuine replacement part Lavor, Double Pipe Diesel Pump + 24V ELECTRODE. D DX for LKX 31 - 40 - 55 - 1515. Part for the following products: - 8.611.0160 - LKX 31 TS AC 230/50 CM-G -...
Usually Ships in: 10/15 Business Days Approx. €103.22
Details
Lavor Pressure Washer NPX1400 Insulating Rope
Lavorwash S.p.A. SKU: 4.608.0162
Lavor NPX1400 Insulating Rope
Lavor Pressure Washer NPX1400 Insulating Rope Genuine replacement part Lavor, Insulating Rope For Boiler Base L=990 for Pressure Washer NPX1400 - LKX 31 - LKX 55. Part for the following products: - ...
Last items in stock €35.27
Details
Lavor Cooling Hose for LKX 2015LP
Lavorwash S.p.A. SKU: 4.618.0126
Lavor Cooling Hose for LKX 2015LP
Lavor Cooling Hose for Pressure Washer LKX 2015LP Genuine replacement part Lavor, Reinforced Cooling Hose Low-Pressure Motor Circuit for Pressure Washer LKX 2015LP. Part for the following products: - Pressure Washer Lavor LKX2015LP...
Last items in stock €29.90
Details
Comments (0)
