Lavorwash S.p.A.

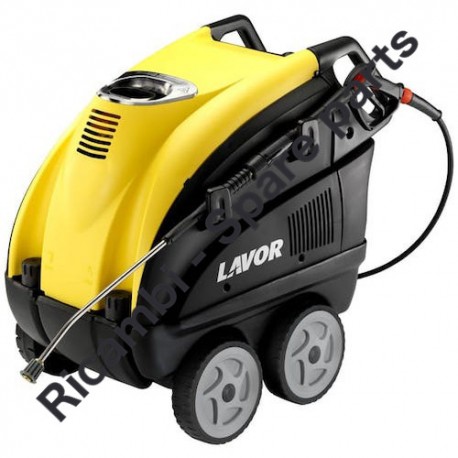

Lavor LKX1510GL Spare Parts

SKU: Lavor LKX1510GL - 8.621.3050
€54.33
VAT included

Lavor Original Parts for LKX 1510GL M

Fix Your Pressure Cleaner LKX 1510GL M 230/50-G-SP.SCHUKO-LAVOR - 8.621.3050. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee
Lavor LKX1510GL Spare Parts
  • Lavor LKX1510GL Spare Parts
  • Lavor LKX1510GL Spare Parts Drawing
  • Lavor LKX1510GL Spare Parts Drawing - 1
  • Lavor LKX1510GL Spare Parts Drawing - 2
  • Lavor LKX1510GL Spare Parts Drawing - 3
  • Lavor LKX1510GL Spare Parts Drawing - 4
  • Lavor LKX1510GL Spare Parts Drawing - 5
  • Lavor LKX1510GL Spare Parts Drawing - 6
  • Lavor LKX1510GL Spare Parts Drawing - 7
  • Lavor LKX1510GL Spare Parts Drawing - 8
  • Lavor LKX1510GL Spare Parts Drawing - 9
  • Lavor LKX1510GL Spare Parts Drawing - 10
  • Lavor LKX1510GL Spare Parts Drawing - 11
Lavorwash S.p.A.

Lavor LKX1510GL Spare Parts

SKU: Lavor LKX1510GL - 8.621.3050 Condition: New
€54.33
VAT included

Lavor Original Parts for LKX 1510GL M

Fix Your Pressure Cleaner LKX 1510GL M 230/50-G-SP.SCHUKO-LAVOR - 8.621.3050. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee
settings 135 spare parts
description 13 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
135 spare parts
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
9
 photo_cameraImage coming soon 7.700.0596 MANUAL LKX/HYPER L-LR/HLR LAVOR A5 196F 19L €6.94
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5.611.0141 LEF SIDE PANEL NPX-LKX-BLACK-W/HOOKS €54.79
2
 photo_cameraImage coming soon 4.613.0182 REAR FAIRING NPX-LKX'04 -BLACK- €48.58
3
 photo_cameraImage coming soon 4.608.0142 PLASTIC BASE FOR PARANA' €290.48
4
 photo_cameraImage coming soon 4.607.0726 PROTECTIVE STAINLESS STEEL SHEET NPX/LKX CHIMNEY €15.98
5
 photo_cameraImage coming soon 4.613.0181 UPPER FAIRING NPX-LKX04-G-PANT.108C €75.63
6
 photo_cameraImage coming soon 4.608.0082 GAS OIL-CHEM TANK CAP €15.27
7
 photo_cameraImage coming soon 3.201.0038 SEAL OR 53.65X2.62 REF. 3212 €15.85
8
 photo_cameraImage coming soon 5.611.0142 RH SIDE PANEL NPX-LKX-BLACK-W/HOOK €54.79
9
 photo_cameraImage coming soon 7.700.0596 MANUAL LKX/HYPER L-LR/HLR LAVOR A5 196F 19L €6.94
10
 photo_cameraImage coming soon 3.700.0030 GUN AL55 350bar 45l / min 160Â ° C + sw8 3 / 8M + S7 + M22 (30129100) €64.28
11
 photo_cameraImage coming soon 4.618.0143 HIGH PRESSURE HOSE 5/16 315BAR R2 L=10000 1/2 TWIST.-3/8 €142.39
12
 700 mm Lance 1/8 "F High/Low Pressure for Pressure Washers Lavor 3.701.0015 700 mm Lance 1/8 "F High/Low Pressure for Pressure Washers Lavor €37.13
13
 photo_cameraImage coming soon 5.611.0078 HOSE FITTING €10.13
14
 photo_cameraImage coming soon 5.611.0108 HINGE FOR TEKNA 4 HOOD COMPL. €29.21
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
photo_cameraImage coming soon 5.609.0128 THERMOSTAT BULB BODY ASSEMBLY LKX/NPX'04 EXIT.INN.RAP. ZNT BRASS €113.80
photo_cameraImage coming soon 5.611.0169 EXT. BOILER COVER FOR PERFORATED CONE BAND €84.59
photo_cameraImage coming soon 5.611.0193 COMPLETE BURNER FLANGE 1.25-45B (RILSAN) W/FLAME CONTROL PRE-PREDICATION €123.34
1
 Lavor LKX 2015 Ignition Transformer 5.609.0344 Lavor LKX 2015 Ignition Transformer €63.65
2
 photo_cameraImage coming soon 4.608.0271 ISOL.GASKET FOR H.T. TRANSFER PROF. €3.36
3
 photo_cameraImage coming soon 5.611.0193 COMPLETE BURNER FLANGE 1.25-45B (RILSAN) W/FLAME CONTROL PRE-PREDICATION €123.34
4
 photo_cameraImage coming soon 3.099.0719 HEATING BAND/330/G8 FIXING OF HEATING COVER TEKNA'04 €19.89
5
 photo_cameraImage coming soon 5.611.0169 EXT. BOILER COVER FOR PERFORATED CONE BAND €84.59
6
 photo_cameraImage coming soon 5.613.0028 INT. COVER CAM.COMB. CHIMNEY L=120 €146.74
7
 photo_cameraImage coming soon 4.604.0003 LOW COIL H.415 €519.25
8
 photo_cameraImage coming soon 5.613.0396 BOILER BODY LKX'04 MOT. R.A. CL4 PUMP FOR PAINTED BAND. €118.21
9
 photo_cameraImage coming soon 3.099.0028 FAN 146x72 LH.HOLE DM 12.7 €29.49
10
 photo_cameraImage coming soon 3.300.0003 MOTOR X BRUC. 100W / 230-240 / 50H z IP55 €194.80
11
 Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400 6.605.0173 Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400 €29.06
12
 photo_cameraImage coming soon 3.100.0075 CONIC CONNECTION M 1/8 F D.4 CURVED FOR GASOIL HOSE VITON O- €14.98
13
 photo_cameraImage coming soon 4.606.0088 RUBBER HOLDER 1/4 G M D.7 €3.36
14
 photo_cameraImage coming soon 4.612.0043 CABLE FOR DIESEL PUMP L=1000 STRIPPED TERMINALS €5.47
15
 Lavor LKX 31 Double Pipe Diesel Pump 3.551.0063 Lavor LKX 31 Double Pipe Diesel Pump €103.22
16
 Lavor LKX 31 Diesel Filter Unit 5.611.0067 Lavor LKX 31 Diesel Filter Unit €19.50
17
 photo_cameraImage coming soon 3.102.0005 DIESEL FILTER FB15/P (AK3012) W/BRASS PLATE €7.55
18
 CEMENTED REFRACTORY D.290X20 FOR BOILER 6.605.0247 CEMENTED REFRACTORY D.290X20 FOR BOILER €44.52
19
 photo_cameraImage coming soon 4.607.0006 COIL FIXING STRIP PLATE 20/10 €46.76
20
 Lavor NPX1400 Insulating Rope 4.608.0162 Lavor NPX1400 Insulating Rope €35.27
21
 photo_cameraImage coming soon 5.613.0116 BOILER BASE JOLLY 5 / LKX -VERN ICIATA- €106.07
22
 photo_cameraImage coming soon 3.403.0078 INDICATED. DIESEL LEVEL L=185 W/CABLE L=1320 W/FASTON €54.88
23
 photo_cameraImage coming soon 4.608.0073 SHORT SPACER FOR TANK JOLLY 4/93 €1.74
24
 photo_cameraImage coming soon 6.605.0168 WHEEL D.260X85 FULL BLACK €26.58
25
 photo_cameraImage coming soon 5.613.0402 NPX/LKX FRONT AXLE €34.20
26
 photo_cameraImage coming soon 5.613.0403 REAR AXLE NPX/LKX €30.52
27
 photo_cameraImage coming soon 4.608.0203 DIESEL / DETERGENT TANK J OLLY 5 / LKX €264.90
28
 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 4.008.0031 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 €2.07
29
 photo_cameraImage coming soon 4.006.0088 INTAKE FITTING ADAPTER L=26 M22-3/4G €6.72
30
 photo_cameraImage coming soon 4.606.0019 SUCTION CONNECTOR M22 IDRO COMPACT €5.16
31
 Lavor NPX 1400 Hose 4.618.0043 Lavor NPX 1400 Hose €27.71
32
 photo_cameraImage coming soon 4.608.0448 LONG SPACER FOR TANK. JOLLY 4/93 mm57.5 €3.28
33
 photo_cameraImage coming soon 4.608.0448 LONG SPACER FOR TANK. JOLLY 4/93 mm57.5 €3.28
34
 photo_cameraImage coming soon 4.606.0013 COIL FIXING NUT 1/2 BRASS SPEC. €3.25
35
 photo_cameraImage coming soon 3.004.0015 PLAIN WASHER D.22X39X2 UNI6592 €1.63
36
 photo_cameraImage coming soon 5.609.0023 VENTILATOR PROTECTION GRID ASSEMBLY €3.95
37
 photo_cameraImage coming soon 5.609.0128 THERMOSTAT BULB BODY ASSEMBLY LKX/NPX'04 EXIT.INN.RAP. ZNT BRASS €113.80
38
 photo_cameraImage coming soon 4.618.0030 TUBE B.P. D.20X10 3/8M-3/8M. L.450 €26.69
39
 photo_cameraImage coming soon 4.618.0210 HOSE R1 250BAR L=600 W/CONNECTION 1/2-3/8F 90° (RACC.SFALS.60°)-PUMP/ SERP. €49.98
40
 photo_cameraImage coming soon 3.714.0070 SAFETY VALVE VLP 100-250bar - 8-12 l/min 110°C 1/8M (4073500018) €37.72
41
 photo_cameraImage coming soon 4.607.0905 MOTOR PLATE 1507 D.135 (CL4) FOR HYPER L €18.39
42
 photo_cameraImage coming soon 4.608.0071 GUIDING CABLE COVER DASHBOARD '93 €6.66
43
 photo_cameraImage coming soon 4.608.0168 NPX4/LKX4/T4 ELECTRICAL BOX €26.96
44
 photo_cameraImage coming soon 3.704.0009 PRESSURE SWITCH PS2 1/4M 25BAR RED P/N 4090000006 €37.87
45
 photo_cameraImage coming soon 3.404.0098 CAPACTOR 70MF 450V D.50X120 F/M €27.16
46
 photo_cameraImage coming soon 4.012.0292 CABLE H05VV-F 3X1.5 MT.6.4 SP.SCHUKO ANTI-SPLASH F/F €32.38
47
 Lavor LKX 2015LP Thermal Relay DPER 21 3.402.0045 Lavor LKX 2015LP Thermal Relay DPER 21 €29.65
48
 photo_cameraImage coming soon 4.608.0199 BUSH THICKNESS NEW PROFILE HANDLES. €6.72
49
 photo_cameraImage coming soon 4.608.0170 LEFT HANDLE NPX'04-GR-RAL.7021 €47.26
50
 photo_cameraImage coming soon 4.608.0191 NPX'04 BLACK DASHBOARD FRAME €8.45
51
 photo_cameraImage coming soon 4.608.0169 RIGHT HANDLE NPX'04-GR-RAL.7021 €38.26
52
 photo_cameraImage coming soon 5.613.0192 DASHBOARD SUPPORT/HANDLES NPX/LKX'04 €141.62
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
photo_cameraImage coming soon 5.611.0155 ASSEMBLY DASHBOARD LKX4-T4 FOR TS2 (TAMP.-EN-) €164.22
1
 photo_cameraImage coming soon 3.403.0171 TOTAL STOP BOARD TS2 €186.29
2
 photo_cameraImage coming soon 3.402.0053 CONTROLLER KN22 230/50HZ 4 KW AC3 €35.60
3
 photo_cameraImage coming soon 4.607.0230 DIN BAR FOR ELECTRICAL BOX L=50 €7.41
4
 photo_cameraImage coming soon 3.403.0173 TS2-LED CONNECTOR (2 CABLES FOR SINGLE PHASE) €6.48
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
photo_cameraImage coming soon 5.606.0158 MOTOR LWM 230/50 D.135 H.140 4P SHEET CABLE FOR D.90 €426.79
photo_cameraImage coming soon 5.700.X004 PUMP CL3 150/11 1450 LH WITH INLET, W/ST OUTLET 3/8 (HOT) €490.28
1
 photo_cameraImage coming soon 4.608.0294 MOTOR FAN COVER FOR D.135 €7.22
2
 photo_cameraImage coming soon 3.099.2040 PLASTIC MOTOR FAN F90 (WITH CLAMPS) €5.88
3
 photo_cameraImage coming soon 5.606.0158 MOTOR LWM 230/50 D.135 H.140 4P SHEET CABLE FOR D.90 €426.79
4
 photo_cameraImage coming soon 4.605.0105 MOTOR FLANGE D.135 €21.62
5
 photo_cameraImage coming soon 5.700.X004 PUMP CL3 150/11 1450 LH WITH INLET, W/ST OUTLET 3/8 (HOT) €490.28
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.606.0087 BULB ASSY €49.01
2
 photo_cameraImage coming soon 3.004.0004 ALUMINIUM WASHER 21X30XSP 1,5 €1.74
3
 photo_cameraImage coming soon 3.100.0020 REDUCTION M.GAS/M.GAS 1/2-3/8 €8.03
4
 photo_cameraImage coming soon 5.613.0191 THERMOSTAT/ALARM BULB SUPPORT. NPX/LKX'04 €28.78
5
 photo_cameraImage coming soon 3.100.0018 RAPID COUPLING 3/8 M. 08 (465) €14.98
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.614.0004 STANDARDIZED ELECTRODES COUPLE WITH ROD €36.46
2
 photo_cameraImage coming soon 3.100.0075 CONIC CONNECTION M 1/8 F D.4 CURVED FOR GASOIL HOSE VITON O- €14.98
3
 photo_cameraImage coming soon 3.555.1098 EXTERNAL SEEGER ZJ D.22 (3019003500) €1.63
4
 photo_cameraImage coming soon 3.555.1099 CAP D21,75X2 (3200007400) €4.50
6
 Diesel Nozzle for Pressure Washers Lavor NPX 1400 3.104.0028 Diesel Nozzle for Pressure Washers Lavor NPX 1400 €28.36
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 7
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Lavor LKX 2015LP External Cover 5.613.0200 Lavor LKX 2015LP External Cover €40.44
2
 photo_cameraImage coming soon 5.610.0105 DEFLECTOR D.82 €29.76
Page 8 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 8
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.608.0332 DASHBOARD LKX4-TEKNA TS 2 BOARD -GR- RAL7021 C/TAMP.-EN- €34.58
2
 Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500 3.107.0004 Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500 €33.35
3
 photo_cameraImage coming soon 4.618.0003 PRESSURE GAUGE TUBE 2X630 70MPa(B.P.120MPa) 1/4 F/GIR-1/4 F/GIR €26.69
4
 photo_cameraImage coming soon 3.105.0003 DETERGENT REGULATING COCK WITHRUBBER HOLDER D.7 €37.19
5
 photo_cameraImage coming soon 3.401.0177 SWITCH 0/1 GREEN/RED PUSH/BUTTON IP55 12/10 €7.55
6
 Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500 3.403.0091 Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500 €40.24
7
 Lavor Thermostat Knob for LKX 2015LP 5.611.0161 Lavor Thermostat Knob for LKX 2015LP €3.36
8
 Lavor Adjustment Knob for MEK 1108 4.608.0164 Lavor Adjustment Knob for MEK 1108 €5.83
Page 9 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 9
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5.602.0076 LWM 230/50 HOUSING, 4P, D. 135 H. 140 (MALE CENTRAL) €214.18
2
 photo_cameraImage coming soon 3.099.0002 UNLOADING RING 40X47 €77.91
3
 photo_cameraImage coming soon 3.001.0001 BALL RADIAL BEARING 6204-2Z €14.95
4
 photo_cameraImage coming soon 5.605.0077 HOLLOW SHAFT + ROTOR, D. 80 H. 140, 4P, SINGLE-PHASE FOR PUMPS D.90 €94.89
Page 10 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 10
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
photo_cameraImage coming soon 3.554.0034 K LW 3020S LH WORKING €225.18
photo_cameraImage coming soon 5.008.0216 BRASTED HEAD LWS 1507 WITH 3/8 OUTLET - IN. 2.0 WITH TS FOR HOT €280.21
1
 photo_cameraImage coming soon 5.008.0216 BRASTED HEAD LWS 1507 WITH 3/8 OUTLET - IN. 2.0 WITH TS FOR HOT €280.21
2
 photo_cameraImage coming soon 3.554.0034 K LW 3020S LH WORKING €225.18
Page 11 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 11
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Lavor MCHPV 1515LP Kit 111 LW 6.005.0120 Lavor MCHPV 1515LP Kit 111 LW €28.38
2
 photo_cameraImage coming soon 6.005.0290 KIT 265 LW REPAIR BY-PASS LW 18 TS €50.06
3
 photo_cameraImage coming soon 6.605.0089 BUSH KIT D.15 FOR PUMP LP 1507 €36.26
4
 photo_cameraImage coming soon 6.605.0088 SEALS KIT A.P. D.15 FOR LP 1507 PUMP €50.76
5
 photo_cameraImage coming soon 6.005.0571 2 WIRE MICRO BOX KIT + SCREWS (MICRO GRAY) €41.10
6
 photo_cameraImage coming soon 6.005.0219 KIT 202 LW 2.0 INJECT. - PORT.RET.VALVE (5609Y154) LWS18 €31.17
7
 photo_cameraImage coming soon 4.607.0311 WORK RETAINING VALVE SPRING 18 €1.72
8
 photo_cameraImage coming soon 5.609.0143 RETURN VALVE ASSEMBLY WITH/O-RING LAVOR 18 €14.71
9
 photo_cameraImage coming soon 4.606.0196 HEAD LAVOR LINE 1507 €167.78
10
 photo_cameraImage coming soon 6.005.0030 KIT 28 LAVOR DETERGENT'S SUCTION €20.98
11
 photo_cameraImage coming soon 3.100.0143 T FITTING 1/8G M/F/F (ART.466) €11.93
12
 photo_cameraImage coming soon 5.009.0101 CAP VALVE SUCTION DELIVERY-ORMOUNTED €6.91
13
 photo_cameraImage coming soon 6.005.0578 KIT 6 VALVES *AUTO SUCTION* (COMP.OR) TEST.OCT.'99 €23.29
14
 photo_cameraImage coming soon 3.100.0118 T-FITTING 1/4 M/M-1/4F (E2117001) €14.01
15
 photo_cameraImage coming soon 4.006.0109 TAPERED 1/8 CAP €7.67
Page 12 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 12
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3.555.0057 CLAMP FOR CAP 1004.0012.00 €5.93
2
 photo_cameraImage coming soon 3.555.0250 COVER 0402036000 €12.44
4
 photo_cameraImage coming soon 3.555.0079 SPACER 3019.0011.00 €3.32
5
 photo_cameraImage coming soon 3.555.0251 BEARING 20X52X15 €29.65
7
 photo_cameraImage coming soon 3.099.1480 OIL CAP (L=58 STICK) €3.36
8
 photo_cameraImage coming soon 6.605.0090 KIT 3 PISTONS + PIN FOR PUMP LP 1507 €100.32
10
 photo_cameraImage coming soon 3.555.0252 CONNECTING ROD €21.66
11
 photo_cameraImage coming soon 3.555.0067 GASKET 3019.0033.00 €5.24
12
 photo_cameraImage coming soon 3.555.0246 OIL INDICATOR €2.00
13
 photo_cameraImage coming soon 3.555.0253 OR-GASKET 2X24 1210045100 €1.63
15
 photo_cameraImage coming soon 3.555.0087 CASES COVER0402.0142.00 €14.43
16
 photo_cameraImage coming soon 3.200.0070 O-RING 14X2 €1.63
17
 photo_cameraImage coming soon 3.555.0016 CAP 3/8G €30.22
18
 photo_cameraImage coming soon 6.605.0111 OIL GASKET KIT €12.20
19
 photo_cameraImage coming soon 4.607.0533 PUMP SHAFT IN LINE C = 14.4 MACHINED X 1808 €97.20
20
 photo_cameraImage coming soon 3.555.0072 KEY 8X7X28 1602.0045.00 €5.50
21
 photo_cameraImage coming soon 3.555.0254 BEARING 25X62X17 €37.04
22
 photo_cameraImage coming soon 6.605.0114 SEEGER KIT D.62 €29.62
23
 photo_cameraImage coming soon 6.605.0113 SEEGER KIT D.25 €16.36
24
 photo_cameraImage coming soon 6.005.0306 KIT 278 LW OIL SEALS + OR LWS1508/1808 €28.93

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Original Parts for LKX 1510GL M

Fix Your Pressure Cleaner LKX 1510GL M 230/50-G-SP.SCHUKO-LAVOR - 8.621.3050. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee

In the following tables, look for the spare part and its respective code.
LKX 1510GL M - 8.621.3050

LKX 1510GL M 230/50-G-SP.SCHUKO-LAVOR Pag.1
# Part Num Description
0 8.621.X146 LKK4 12111P 230/50 TS(CL3)BDF(TS2)SP.SCHUKO
1 5.611.0141 LEF SIDE PANEL NPX-LKX-BLACK-W/HOOKS
2 4.613.0182 REAR FAIRING NPX-LKX'04-BLACK-
3 4.608.0142 COVER CAP FOR WINDOW REGULATOR HOUSING NPX'04 BLACK
4 4.607.0726 STAINLESS STEEL CHIMNEY PROTECTION PLATE NPX/LKX
5 4.613.0181 UPPER FAIRING NPX-LKX04-G-PANT.108C
6 4.608.0082 FUEL TANK CAP-CHEM-N-
7 3.201.0038 SEAL OR 53.65X2.62 REF. 3212
8 5.611.0142 RH SIDE PANEL NPX-LKX-BLACK-W/HOOK
9 7.700.0596 MANUAL LKX/HYPER L-LR/HLR+CE LAVOR A5 198F 19L
10 3.700.0030 AL55 GUN 350BAR 45L/MIN 160GR+SW8 3/8M+S7+M22 (30129100)
11 4.618.0143 HOSE 5/16 R1 - 315 bar (31.5 MPa) 10M W/QUICK CONNECTOR 1/2 GIR-3/8
12 3.701.0015 STAINLESS STEEL LANCE L.700 COATED+ROS.+RAPID CONNECTOR M22 41102850
13 5.611.0078 PLASTIC SUCTION HOSE HOLDER KIT 3/4 D.19
14 5.611.0108 H.P. NOZZLE 1/8M 15045
LKX4 1211LP 230/50 TS(CL3)BDF(TS2)SP.SCHUKO Pag.2
0 5.611.0156 ELECTRIC SYSTEM ASSEMBLY TS2 KN22 BOARD 230V
0 5.601.0790 MTP.LWM 230/50 4P 1508 LH W/IN.W/TS FOR HOT (CL3)
0 5.609.0128 THERMAL BULB BODY ASSEMBLY LKX/NPX'04 CONNECTOR OUTLET, ZNT BRASS
0 5.611.0193 BURNER FLANGE COMPLETE 1.25-45B RH (RILSAN) WITH PRE-DRIVEN FLAME CONTROL
0 5.611.0169 BOILER EXTERNAL COVER FOR DRILLED CONE BAND
1 5.609.0344 ACC.TRANSF.220-240V 50/60Hz W/PIPET.NPX-LKX+CABLE(POWERED)
2 4.608.0271 INSULATION GASKET FOR PROF. HEAT TRANSFER
3 5.611.0193 COMPLETE BURN FLANGE 1.25-45B RIGHT (RILSAN) W/PREAD.CONTROL FLAME
4 3.099.0719 HEIGHT BAND/330/G8 BOILER COVER FIXING'04
5 5.611.0169 BOILER EXTERNAL COVER FOR PERFORATED CONE BAND
6 5.613.0028 COP.INT.CAM.COMB.CHIMN O L=120
7 4.604.0003 LOW COIL H.415 L=30MT
8 5.613.0396 BOILER BODY LKX'04 MOTOR CL4 PUMP
9 3.099.0028 FAN 146X72 LEFT. HOLE DM 12.7
10 3.300.0003 BURNER MOTOR 100W/230-240/50HZ C80 IP55
11 6.605.0173 PLASTIC JOINT KIT FOR DIESEL PUMP (3PCS)
12 3.100.0075 M 1/8 CONICAL FEMALE CONNECTOR D.4 CURVED
13 4.606.0088 1/4 G M D.7 HOSE HOLDER
14 4.612.0043 CABLE FOR DIESEL PUMP L=1000, STRIPPED TERMINALS
15 3.551.0063 DIESEL PUMP DOUBLE PIPE RH 24V 50/60HZ
16 5.611.0067 DIESEL FILTER GR.(NYLON)TEKNA'95-LKX
17 3.102.0005 FUEL FILTER FB15/P (AK3012) WITH BRASS PLATE
18 6.605.0247 REFRACTORY KIT FOR PRO NPX/LKX BOILER
19 4.607.0006 COOLER FASTENING BAND 15/10 STAINLESS STEEL SHEET METAL
20 4.608.0162 INSULATING CORD FOR BOILER BASE L=975
21 5.613.0116 JOLLY 5/LKX BOILER BASE - PAINTED
22 3.403.0078 FUEL LEVEL GAUGE L=185 WITH CABLE L=1320 WITH FASTON
23 4.608.0073 SHORT SPACER FOR JOLLY 4/93 TANK
24 6.605.0168 WHEEL KIT 30060155 + STUD + LOCK COLUMBIA-HYPER C-HYPER L
25 5.613.0402 FRONT AXLE NPX/LKX
26 5.613.0403 REAR AXLE NPX/LKX
27 4.608.0203 FUEL/DETERGENT TANK NPX4/LKX4
28 4.008.0031 H2O FILTER D.16 CONICAL
29 4.006.0088 INTAKE CONNECTOR ADAPTER L=26 M22-3/4G
30 4.606.0019 INTAKE CONNECTOR L=60 M22-3/8G
31 4.618.0043 R1 TUBE 3/8 L=375 C.1/2F 90° ROTARY / C.3/8F 90° ROTARY
32 4.608.0448 LONG SPACER FOR JOLLY TANK 4/93 MM 57.5
33 4.608.0448 LONG SPACER FOR JOLLY TANK 4/93 MM 57.5
34 4.606.0013 COIL FIXING NUT 1/2" SPECIFIC BRASS
35 3.004.0015 FLAT WASHER D.22X39 THK.3 ZNT UNI6592
36 5.609.0023 FAN PROTECTION GRILLE ASSEMBLY
37 5.609.0128 THERMAL BULB BODY ASSEMBLY LKX/NPX'04 RAPID INN. OUTLET, ZNT BRASS
38 4.618.0030 L.P. TUBE R1 L=450 CONNECTOR 3/8M - 3/8M
39 4.618.0210 R1 HOSE 250BAR L=600 W/FITTING 1/2-3/8F 90° (OFFSET FITTING 60°)
40 3.714.0070 SAFETY VALVE VLP 100-250BAR – 8-12 L/MIN 110G 1/8M
41 4.607.0905 MOTOR PLATE 1507 D.135 (CL4) FOR HYPER L
42 4.608.0071 DASHBOARD CABLE GLAND COVER '93
43 4.608.0168 ELECTRIC BOX NPX4/LKX4/TEKNA4
44 3.704.0009 PS2 PRESSURE SWITCH 1/4M 25BAR RED
45 3.404.0098 CAPACTOR 70MF 450V D.50X120 F/M
46 4.012.0292 H05VV-F CABLE 3X1.5 MT 6.4 THICKNESS SCHUKO ANTI-SPIKE F/F
47 3.402.0045 THERMAL RELAY DPER21 12-18A
48 4.608.0199 SHIM BUSHING FOR NEW HANDLES, PROF.
49 4.608.0170 LEFT HANDLE NPX'04-GR-RAL.7021
50 4.608.0191 DASHBOARD FRAME NPX'04 BLACK
51 4.608.0169 RIGHT HANDLE NPX'04-GR-RAL.7021
52 5.613.0192 DASHBOARD SUPPORT / HANDLES NPX / LKX '04
ASSIEME IMP.ELETTR.SCHEDA TS2 KN22 230V Pag.3
0 5.611.0155 DASHBOARD ASSEMBLY LKX4-T4 FOR TS2 (TAMP.-EN-)
1 3.403.0171 TOTAL STOP BOARD TS2
2 3.402.0053 CONTROLLER KN22 230/50HZ 4 KW AC3
3 4.607.0230 DIN RAIL FOR ELECTRIC BOX W=50
4 3.403.0173 TS2-LED CONNECTOR (2 CABLES FOR SINGLE PHASE)
MTP.LWM 230/50 4P 1508 SX C/IN.C/TS X CALDO(CL3) Pag.4
0 5.606.0158 MOTOR LWM 230/50 D.135 H.140 4P SHEET CABLE FOR D.90
0 5.700.X004 PUMP CL3 150/11 1450 LH WITH INLET, W/ST OUTLET 3/8 (HOT)
1 4.608.0294 MOTOR FAN COVER D.135 (ALUMINIUM FAN)
2 3.099.2040 PLASTIC MOTOR FAN F90 (WITH CLAMPS)
3 5.606.0158 MOTOR LWM 230/50 D.135 H140 4P CABLE SHAFT FOR D.90
4 4.605.0105 MOTOR FLANGE D.135 CENTERING D.90 (FEMALE EDGE)
5 5.700.X004 PUMP CL3 150/11 1450 LH WITH INLET, W/ST OUTLET 3/8 (HOT)
ASS.CORPO BULBO TERMOST.LKX/NPX'04 USC.INN.RAP.OTTONE ZNT Pag.5
1 4.606.0087 PROFESSIONAL THERMOSTAT BULB BODY
2 3.004.0004 ALUMINUM WASHER 21X30X THICKNESS 1.5
3 3.100.0020 NIPPLE 1/2G - 3/8G
4 5.613.0191 THERMOSTAT BULB SUPPORT / NPX / LKX '04 STARTER
5 3.100.0018 QUICK COUPLING 3/8M - 1/2M 08 ZNT
FLANGIA BRUC.COMPL.1,25-45B DX (RILSAN) C/PRED.CONTR.FIAMMA Pag.6
1 4.614.0004 PAIR OF PROFESSIONAL ELECTRODES W/BRACKET
2 3.100.0075 M 1/8 TAPERED F/D.4 CURVED CONNECTOR
3 3.555.1098 ZJ TYPE SEEGER D22
4 3.555.1099 TP FLAME CENTRE D.21.75X2 (GLASS)
5 4.605.0223 STANDARD BURNER FLANGE
6 3.104.0028 OIL NOZZLE 1.25 45/B
COP.EST.CALDAIA X FASCIA CONO FORATO Pag.7
1 5.613.0200 EXTERNAL COVER FOR '04 BOILER
2 5.610.0105 DEFLECTOR WITH CONE D.82 WITH HOLES
ASSIEME CRUSCOTTO LKX4-T4 PER TS2(TAMP.-EN-) Pag.8
1 4.608.0332 LKX4-TEKNA DASHBOARD TS 2-GR-RAL7021 CARD WITH BUFFER-EN-
2 3.107.0004 PRESSURE GAUGE D.50 0/315 BAR 1/4 REAR + BRACKET
3 4.618.0003 PRESSURE GAUGE TUBE 2X630 70MPA (B.P. 120MPA) 1/4 F/GIR-1/4 F/GIR
4 3.105.0003 DET. REGULATOR TAP WITH GAS HOLDER D.7 (ID No. 6990A 3/4 TURN)
5 3.401.0177 0/1 SWITCH, GREEN/RED PUSH/BUTTON, IP55, 12/10
6 3.403.0091 THERMOSTAT, 30/150, BULB D. 6.5 (3 CLOSED FASTONS)
7 5.611.0161 BLACK THERMOSTAT KNOB WITH INSERT
8 4.608.0164 THERMOSTAT ADJUSTMENT KNOB -N-
MOTORE LWM 230/50 D.135 H140 4P ALB.CAVO PER D.90 Pag.9
1 5.602.0076 LWM 230/50 HOUSING, 4P, D. 135 H. 140 (MALE CENTRAL)
2 3.099.0002 COMPENSATION RING, 40X46.5X3, 4 WAVES (217N COMPRESSED AT 50%)
3 3.001.0001 6204-2Z BALL RADIAL BEARING (FOR ELECTRIC MOTOR, 150°C)
4 5.605.0077 HOLLOW SHAFT + ROTOR, D. 80 H. 140, 4P, SINGLE-PHASE FOR PUMPS D.90
POMPA CL3 150/11 1450 SX C/IN.C/TS USC.3/8(X CALDO) Pag.10
0 5.008.0216 BRASTED HEAD LWS 1507 WITH 3/8 OUTLET - IN. 2.0 WITH TS FOR HOT
0 3.554.0034 K LW 3020S LH WORKING
1 5.008.0216 BRASTED HEAD LWS 1507 WITH 3/8 OUTLET - IN. 2.0 WITH TS FOR HOT
2 3.554.0034 K LW 3020S LH WORKING
TESTATA OTT.LWS 1507 C/USC.3/8-IN.2,0 C/TS X CALDO Pag.11
1 6.005.0120 PRESSURE REGULATOR KIT TEST.OCT.'99
2 6.005.0290 265 LW BY-PASS REPAIR KIT LW 18 TS
3 6.605.0089 D15 BUSHING KIT FOR LP 1507 PUMP
4 6.605.0088 D15 A.P. SEAL KIT FOR LP 1507 PUMP
5 6.005.0571 MICRO BOX KIT 2 WIRES + SCREWS (GREY MICRO)
6 6.005.0219 202 LW INJECT. KIT 2.0 - RETURN VALVE FOR GAS HOLDER (5609Y154) LWS18
7 4.607.0311 LAVOR 18 CHECK VALVE SPRING
8 5.609.0143 LAVOR 18 CHECK VALVE ASSEMBLY WITH O-RING
9 4.606.0196 LAVOR LINE 1507 HEAD
10 6.005.0030 LW 28 DETERGENT SUCTION KIT
11 3.100.0143 VALVE CAP
12 5.009.0101 INLET/DELIVERY FLYWHEEL WITH O-RING MOUNTED
13 6.005.0578 KIT OF 6 SELF-SUCTION VALVES (OR COMPONENTS) TESTED OCT. '99
14 3.100.0118 T-FITTING 1/4 M/M-1/4F (E2117001)
15 4.006.0109 PLUG 1/8 BAS CONICAL L=6.5
K LW 3020S SX LAVOR Pag.12
1 3.555.0057 FLIP TP CLOSE CRT LW
2 3.555.0250 COP LAT CRT AW TRANSPARENT
4 3.555.0079 SEEGER ES 20 C72
5 3.555.0251 BEARING 1CSF 20X 52X15-6304
7 3.099.1480 TP CRCO OIL FW3
8 6.605.0090 KIT OF 3 PISTONS + PIN FOR LP 1507 PUMP
10 3.555.0252 BI AL X LW
11 3.555.0067 SEEGER TYPE ZJ D28
12 3.555.0246 TLO LW-FW WITH RED LEVEL DOT
13 3.555.0253 GUOR 2.0 X 24
15 3.555.0087 COP CRT LW
16 3.200.0070 SEAL OR 14X2 SH.70
17 3.555.0016 TP G3/8 OT58
18 6.605.0111 OIL SEAL KIT D15 FOR LP PUMP 1507-1808
19 4.607.0533 INLINE PUMP SHAFT C=14.4 MACHINED X 1808
20 3.555.0072 LING A 8X7X25 UNI6604-6.8
21 3.555.0254 BEARING 1CSF 25X 62X17-6305 ZVL-ZKL
22 6.605.0114 KIT OF 3 SEEGER RINGS D.62
23 6.605.0113 KIT OF 5 SEEGER RINGS D.25 FOR SHAFTS
24 6.005.0306 KIT 278 LW OIL SEALS + OR LWS1508/1808
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Lavor LKX1510GL - 8.621.3050
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

Lavor LKX1510GL Parts Drawing

Lavor LKX1510GL Parts Drawing

Download (576.96KB)

You might also like

Lance 6.002.0340 Nozzle Head Holder for Trigger Guns Lavor
Lavorwash S.p.A. SKU: 6.002.0340
Lance 6.002.0340 Nozzle Head Holder for Trigger Guns Lavor
Lance 6.002.0340 Nozzle Head Holder for Trigger Guns Lavor Genuine Replacement part Lavor, Lance 6.002.0340 Nozzle Head Holder for Cold Water Pressure Washers Trigger Guns Lavor Fury 110 - Ride 110 - Race 125...
Last items in stock €10.11
Details
Head Turbo Nozzle Ø 1,025 for Lance Lavor
Lavorwash S.p.A. SKU: 6.002.0346
Head Turbo Nozzle Ø 1,025 for Lance Lavor
Head Turbo Nozzle Ø 1,025 for Lance Lavor Genuine Replacement part Lavor, Head cod. 6.002.0346 Turbo Nozzle Ø 1,025 for Lance Lavor 6.002.0340. Part suitable for the following high pressure...
Last items in stock €7.50
Details
Quick Coupling 3/4F for High Pressure Washers Lavor
Lavorwash S.p.A. SKU: 3.100.0082
Quick Coupling 3/4F for High Pressure Washers Lavor
Quick Coupling 3/4F  for High Pressure Washers Lavor Genuine Replacement part Lavor, Quick Coupling 3/4F 3.100.0082 for Cold Water High Pressure Washers Fury 110 - Ride 110 - Race 125...
AVAILABLE €1.63
Details
Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 4.008.0031
Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24
Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 Original replacement part Lavor, Inlet Water Filter H20 D.16 Conical for Pressurte Washers STORM II 17 - STORM II PLUS 21 - BEST 24.  Part for the following products: -...
AVAILABLE €2.07
Details
Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 6.005.0079
Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24
Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24 Original replacement part Lavor, Kit 79 LW Oil Seal for Partner D.12/Fibra per Pressure Washers ARMY 110 - MARINE 125 - NAVY 140 - ENDURO 145 COMP. Part for the following...
Usually Shipped on: 7/10 Business Days Approx. €14.50
Details
Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 6.005.0226
Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24
Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24 Original replacement part Lavor, Kit 209 O-Ring for PT'03 per Pressure Washers ARMY 110 - MARINE 125 - NAVY 140 - ENDURO 145 - BEST 24. Part for the following products: -...
Usually Ships in: 7/10 Business Days Approx. €11.43
Details
Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145
Lavorwash S.p.A. SKU: 5.008.0261
Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145
Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145 Original replacement part Lavor, Head PT'03 EVO D.12 for ENDURO 145 - ARMY 110 - MARINE 125 - NAVY 140 - RAPTOR 21 - STORM II 18 - STORM II PLUS 21. Part for the following...
AVAILABLE €28.99
Details
Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145
Lavorwash S.p.A. SKU: 6.005.0311
Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145
Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145 Original replacement part Lavor, Kit 283 LW Needle Bearing for Motorpump PT'03 (U76) for ENDURO 145 - ARMY 110 - MARINE 125 - NAVY 140 - RAPTOR 21 - STORM II. Part for...
AVAILABLE €5.50
Details
Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110
Lavorwash S.p.A. SKU: 6.005.0588
Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110
Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110 Original replacement part Lavor, Kit LW Intake Delivery Valves for High Pressure Washers ARMY 110 - MARINE 125 - NAVY 140. Part for the following products: - R80880029C -...
AVAILABLE €27.72
Details
Lance S'02V 1,00 (Blu) for Pressure Washer EXPRESS PLUS Sale
Lavorwash S.p.A. SKU: 6.002.0263
Lance S'02V 1,00 (Blu) for Pressure Washer EXPRESS PLUS
Lance S'02V 1,00 (Blu) for Pressure Washer EXPRESS PLUS Genuine Part Lavor, Lance S'02V 1,00 (Blu) for Pressure Washer 8.084.0006C Lavor IDRO EXPRESS PLUS 220-240/50Hz. Part suitable for the following high pressure washers: -...
AVAILABLE €13.00
Details
Capacitor 55mF 450V for Pressurte Washer Lavor GIANT 24
Lavorwash S.p.A. SKU: 3.404.0095
Capacitor 55mF 450V for Pressurte Washer Lavor GIANT 24
Capacitor 55mF 450V for Pressurte Washer Lavor GIANT 24 Original replacement part Lavor, Capacitor 55mF 450V D.50x94 F/M per Pressure Washers GIANT 24 - GIANT 28 - TEMPESTA 24 - TEMPESTA 28. Part for the following products: - 81050002...
AVAILABLE €20.13
Details
Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 3.107.0004
Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500
Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Pressure Gauge D.50 0/315 BAR - 1/4 Rear thread + Bracket (ref 129 939 81) for Pressure Washers NPX 1400 - NPX...
on 7/10 Business Days Approx. €33.35
Details
Quick Coupling for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 5.009.0340
Quick Coupling for Pressure Washers Lavor NPX 1400 - NPX 1500
Quick Coupling for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Quick Coupling Assy + O-Ring + Ring Nut for Pressure Washers NPX 1400 - NPX 1500. Part for the following products: - Pressure Washer Lavor...
Last items in stock €15.06
Details
Thermostate Knob for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 4.608.0019
Thermostate Knob for Pressure Washers Lavor NPX 1400 - NPX 1500
Thermostate Knob for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Black Thermostate Knob 3079/1t for Pressure Washers NPX 1400 - NPX 1500. Part for the following products: - Pressure Washer Lavor NPX 1400...
on 10 Business Days Approx €10.03
Details
Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 3.100.0043
Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500
Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, 3/8 M Rotating Quick Coupling for Pressure Washers NPX 1400 - NPX 1500. Part for the following products: - Pressure Washer Lavor NPX 1400 -...
AVAILABLE €17.59
Details
Piston Guide Body With Complete Valve Head for Lavor Missouri
Lavorwash S.p.A. SKU: 5.007.0231
Piston Guide Body With Complete Valve Head for Lavor Missouri
Piston Guide Body With Complete Valve Head for Lavor Missouri Genuine part Lavor, Piston Guide Body PT'03 - Ceramic Pistons Diameter 12 mm + Total-Stop, Turned With Complete Valve Head With Intake Springs 17K. Part for the following...
Usually Ships in: 7/10 Business Days Approx. €52.53
Details
Suction Valve Ass'y for Pressure Cleaner Lavor Missouri
Lavorwash S.p.A. SKU: 5.009.0534
Suction Valve Ass'y for Pressure Cleaner Lavor Missouri
Suction Valve Ass'y for Pressure Cleaner Lavor Missouri Genuine part Lavor, Suction Valve Ass'y for '03 Head for Pressure Cleaners MISSOURI - EAGLE 24. Part for the following products: -  86190601 - IDRO MISSOURI 230/50 TS -G- LWS -...
on 7/10 Business Days Approx €9.28
Details
Delivery Valve Brass Cap for Pressure Cleaner Lavor Missouri
Lavorwash S.p.A. SKU: 5.009.0745
Delivery Valve Brass Cap for Pressure Cleaner Lavor Missouri
Delivery Valve Brass Cap for Pressure Cleaner Lavor Missouri Genuine part Lavor, Delivery Valve Brass Cap with O-Ring for '03 Head for Pressure Cleaners MISSOURI - EAGLE 24. Part for the following products: -  86190601 - IDRO MISSOURI...
AVAILABLE €5.03
Details
Radial Ball Bearing 6203RS for Pressure Cleaner Lavor Missouri
Lavorwash S.p.A. SKU: 3.001.0020
Radial Ball Bearing 6203RS for Pressure Cleaner Lavor Missouri
Radial Ball Bearing 6203RS for Pressure Cleaner Lavor Missouri Genuine part Lavor, Radial Ball Bearing 6203RS for Pressure Cleaners MISSOURI - Giant 24 - Giant 28 - Tempesta 24 - Tormenta 28. Part for the following products: -...
on 7/10 Business Days Approx €13.71
Details
Transformer 230-240V for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 5.009.0686
Transformer 230-240V for Pressure Washer Lavor Missouri
Transformer 230-240V for Pressure Washer Lavor Missouri Genuine part Lavor, Ignition Transformer 230-240V/50-60Hz with Pipette for Pressure Washers Burner FKX-PARANA ' - RIO (EMC) + Cable Part for the following products: -  86190601...
Usually Ships in: 10/15 Business Days Approx. €100.43
Details
Diesel Filter Unit for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 5.611.0043
Diesel Filter Unit for Pressure Washer Lavor Missouri
Diesel Filter Unit for Pressure Washer Lavor Missouri Genuine part Lavor, Diesel Filter Unit JOLLY 4 '93 / MISSOURI / MEK for Pressure Washers Missouri - NPX 1400 - NPX 1500. Part for the following...
Usually Ships in: 10 Business Days Approx. €15.19
Details
Pressure Adjustment Valve for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 5.009.0304
Pressure Adjustment Valve for Pressure Washer Lavor Missouri
Pressure Adjustment Valve for Pressure Washer Lavor Missouri Genuine part Lavor, Pressure Adjustment Valve Ass'y for Pump ULKA (Spring L=20) for Pressure Washers MISSOURI FKX-PARANA' - MISSOURI - RIO (EMC) + Cable. Part for the...
on 7/10 Business Days Approx. €28.99
Details
Electrodes for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 4.614.0001
Electrodes for Pressure Cleaner Lavor NPX 1400
Electrodes for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Unified Electrodes with Bracket for Boilerfor Pressure Cleaners NPX 1400 - NPX 1500 - LKX 40 - NPX 1511 XP T...
on 10 Business Days Approx €36.16
Details
Diesel Pump for Pressure Cleaner Lavor NPX 1400 Sale
Lavorwash S.p.A. SKU: 3.551.0037
Diesel Pump for Pressure Cleaner Lavor NPX 1400
Diesel Pump for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Double Pipe Diesel Pump + Electrode 220V Right for Pressure Cleaners NPX 1400 - LKX 40 Part for the...
Last items in stock €113.24
Details
Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 6.605.0173
Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400
Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Diesel Pump Red Plastic Coupling Set for Engine EME/UNIELECTRICp for Pressure Cleaners NPX 1400 - NPX 1500 Part for the following products: -...
Last items in stock €29.06
Details
Washer SNHORt for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 3.004.0022
Washer SNHOR for Pressure Cleaner Lavor NPX 1400
Washer SNHOR for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Washer SNHOR D.8x13 sp.0.8 for Pressure Cleaners NPX 1400 - NPX 1500 Part for the following products: -  Pressure Cleaner Lavor NPX 1400 - 8.605.0048 -...
on 10 Business Days Approx €1.71
Details
Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 3.403.0091
Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500
Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Thermostat 30/150 Bulb d.6.5 (3 Faston) for Pressure Washers NPX 1400 - NPX 1500. Part for the following...
on 10 Business Days Approx €40.24
Details
Micro Breaker for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 3.401.0025
Micro Breaker for Pressure Cleaner Lavor NPX 1400
Micro Breaker for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Micro Breaker 3120 - F551-P7T1-W02D-16A for Pressure Cleaners NPX 1400 - NPX 1500. Part for the following products: -  Pressure Cleaner NPX 1400 230/50...
on 10 Business Days Approx €46.23
Details
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 4.608.0078
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Dashboard Gasket '93 (3x900) for Pressure Cleaners NPX 1400 - NPX 1500 - LKX 40. Part for the following products: -  Pressure Cleaner NPX 1400 230/50...
Last items in stock €3.32
Details
Pressure Switch for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 3.704.0006
Pressure Switch for Pressure Washer Lavor Missouri
Pressure Switch for Pressure Washer Lavor Missouri Genuine part Lavor, Pressure Switch 25 Bar 1/8 Red L.700 Faston F. for Pressure Washers  MISSOURI - YUKON 1310 - NPX 1500 - LKX 40. Part...
Last items in stock €30.90
Details
Diesel Nozzle for Pressure Washers Lavor NPX 1400
Lavorwash S.p.A. SKU: 3.104.0028
Diesel Nozzle for Pressure Washers Lavor NPX 1400
Diesel Nozzle for Pressure Washers Lavor NPX 1400 Genuine replacement part Lavor, Diesel Nozzle 1,25 45-B for Pressure Washers NPX 1400 - NPX 1500 - LKX 31 - LKX 40. Part for the following...
Last items in stock €28.36
Details
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1500
Lavorwash S.p.A. SKU: 4.618.0014
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1500
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Pressure Gauge Pipe 2x380 Max 630 Bar 1/4 F. Gir. 1/4 F Gir. for Pressure Washers NPX 1400 - NPX...
Usually Ships in: 10/15 Business Days Approx. €26.46
Details
Lavor MCHPV 1515LP Kit 111 LW
Lavorwash S.p.A. SKU: 6.005.0120
Lavor MCHPV 1515LP Kit 111 LW
Lavor MCHPV 1515LP Kit 111 LW Genuine replacement part Lavor, Kit 111 LW Pressure Regulator For Brass Head Test.Oct.'99 for Pressure Cleaner MCHPV 1515LP 400-415/SC1 - 8.626.0002. Part for the following products:...
on 10 Business Days Approx. €28.38
Details
Lavor LKX 31 Diesel Filter Unit
Lavorwash S.p.A. SKU: 5.611.0067
Lavor LKX 31 Diesel Filter Unit
Lavor LKX 31 Diesel Filter Unit Genuine replacement part Lavor, Diesel Filter Unit Assy (PAPER) for LKX 31 - 40 - 55 - 2015. Part for the following products: - 8.611.0160 - Pressure Washer LKX 31 TS AC 230/50 CM-G -...
Last items in stock €19.50
Details
Lavor LKX 2015 Burn Flange
Lavorwash S.p.A. SKU: 5.611.0192
Lavor LKX 2015 Burn Flange
Lavor LKX 2015 Burn Flange Genuine replacement part Lavor, Cmplete Burn Flange 1.50-45B (RILSAN) With preparation for flame control for LKX 2015. Part for the following products: - 8.621.2935 - Pressure Washer LKX 2015LP T...
on 10 Business Days Approx. €97.88
Details
Lavor LKX 2015 Ignition Transformer
Lavorwash S.p.A. SKU: 5.609.0344
Lavor LKX 2015 Ignition Transformer
Lavor LKX 2015 Ignition Transformer Genuine replacement part Lavor, Ignition Transformer 220-240V 50/60Hz C/PIPET.NPX-LKX + CAVO (POTENZ.) for LKX 2015. Part for the following products: - 8.621.2935 - Pressure Washer LKX...
Usually Ships in: 10/15 Business Days Approx. €63.65
Details
Lavor Adjustment Knob for MEK 1108
Lavorwash S.p.A. SKU: 4.608.0164
Lavor Adjustment Knob for MEK 1108
Lavor Adjustment Knob for Pressure Cleaner MEK 1108 Genuine replacement part Lavorwash, Black Thermostat Adjustment Knob for Pressure Cleaner DAKOTA-R 2007XP - MISSOURI - MEK 1108. Part for the following products: - ...
Last items in stock €5.83
Details
Lavor Thermostat Knob for LKX 2015LP
Lavorwash S.p.A. SKU: 5.611.0161
Lavor Thermostat Knob for LKX 2015LP
Lavor Thermostat Knob for Pressure Cleaner LKX 2015LP Original replacement part Lavorwash, Black Thermostat Knob Whit Insert for Pressure Washer LKX 2015LP. Part for the following products: -  High Pressure Cleaner LKX 2015LP T...
Usually Ships in: 10 Business Days Approx. €3.36
Details
Lavor Head for Pressure Cleaner LKX 2015LP
Lavorwash S.p.A. SKU: 4.606.0223
Lavor Head for Pressure Cleaner LKX 2015LP
Lavor Head for Pressure Cleaner LKX 2015LP Original replacement part Lavorwash, Lavor Headboard 1808 Line for Pressure Washer LKX 2015LP. Part for the following products: -  High Pressure Cleaner LKX 2015LP T 400-415/50 -GR -...
Last items in stock €140.00
Details
Lavor LKX1515LP AC Contactor KN22
Lavorwash S.p.A. SKU: 3.402.0051
Lavor LKX1515LP AC Contactor KN22
Lavor AC Contactor KN22 400/50HZ 7,5 KW AC3 for LKX 1515LP Original replacement part Lavorwash, AC Contactor KN22 400/50HZ 7,5 KW AC3 for Pressure Washer LKX 1515LP - LKX 2015LP. Part for the following products: - High...
Usually Ships in: 10 Business Days Approx. €36.87
Details
Lavor LKX 31 Single Pipe Diesel Pump
Lavorwash S.p.A. SKU: 3.551.0063
Lavor LKX 31 Double Pipe Diesel Pump
Lavor LKX 31 Double Pipe Diesel Pump Genuine replacement part Lavor, Double Pipe Diesel Pump + 24V ELECTRODE. D DX for LKX 31 - 40 - 55 - 1515. Part for the following products: - 8.611.0160 - LKX 31 TS AC 230/50 CM-G -...
Usually Ships in: 10/15 Business Days Approx. €103.22
Details
Lavor Pressure Washer NPX1400 Insulating Rope
Lavorwash S.p.A. SKU: 4.608.0162
Lavor NPX1400 Insulating Rope
Lavor Pressure Washer NPX1400 Insulating Rope Genuine replacement part Lavor, Insulating Rope For Boiler Base L=990 for Pressure Washer NPX1400 - LKX 31 - LKX 55. Part for the following products: - ...
Last items in stock €35.27
Details
Comments (0)
