Lavorwash S.p.A.

Lavor QUICK 36E Parts

SKU: QUICK 36E - 8.518.0004
€257.84
VAT included

Lavor Pro Original Parts for Floor Scrubber Drier QUICK 36E

Lavor original spare parts for to replace broken parts for to fix Floor Scrubber Drier QUICK 36E 220-240V GR.CH./SC. LAVOR - 8.518.0004.

Fix Your Floor Scrubber Drier QUICK 36E. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts.
Lavor Floor Scrubber Drier QUICK 36E Parts
  • Lavor Floor Scrubber Drier QUICK 36E Parts
  • Lavor Floor Scrubber Drier QUICK 36E Parts Drawing
  • Lavor Floor Scrubber Drier QUICK 36E Parts Drawing - 5
  • Lavor Floor Scrubber Drier QUICK 36E Parts Drawing - 6
  • Lavor Floor Scrubber Drier QUICK 36E Parts Drawing - 1
  • Lavor Floor Scrubber Drier QUICK 36E Parts Drawing - 2
  • Lavor Floor Scrubber Drier QUICK 36E Parts Drawing - 3
  • Lavor Floor Scrubber Drier QUICK 36E Parts Drawing - 4
  • Lavor Floor Scrubber Drier QUICK 36E Parts Drawing - 7
  • Lavor Floor Scrubber Drier QUICK 36E Parts Drawing - 8
Lavorwash S.p.A.

Lavor QUICK 36E Parts

SKU: QUICK 36E - 8.518.0004 Condition: New
€257.84
VAT included

Lavor Pro Original Parts for Floor Scrubber Drier QUICK 36E

Lavor original spare parts for to replace broken parts for to fix Floor Scrubber Drier QUICK 36E 220-240V GR.CH./SC. LAVOR - 8.518.0004.

Fix Your Floor Scrubber Drier QUICK 36E. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts.
settings 79 spare parts
description 9 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
79 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

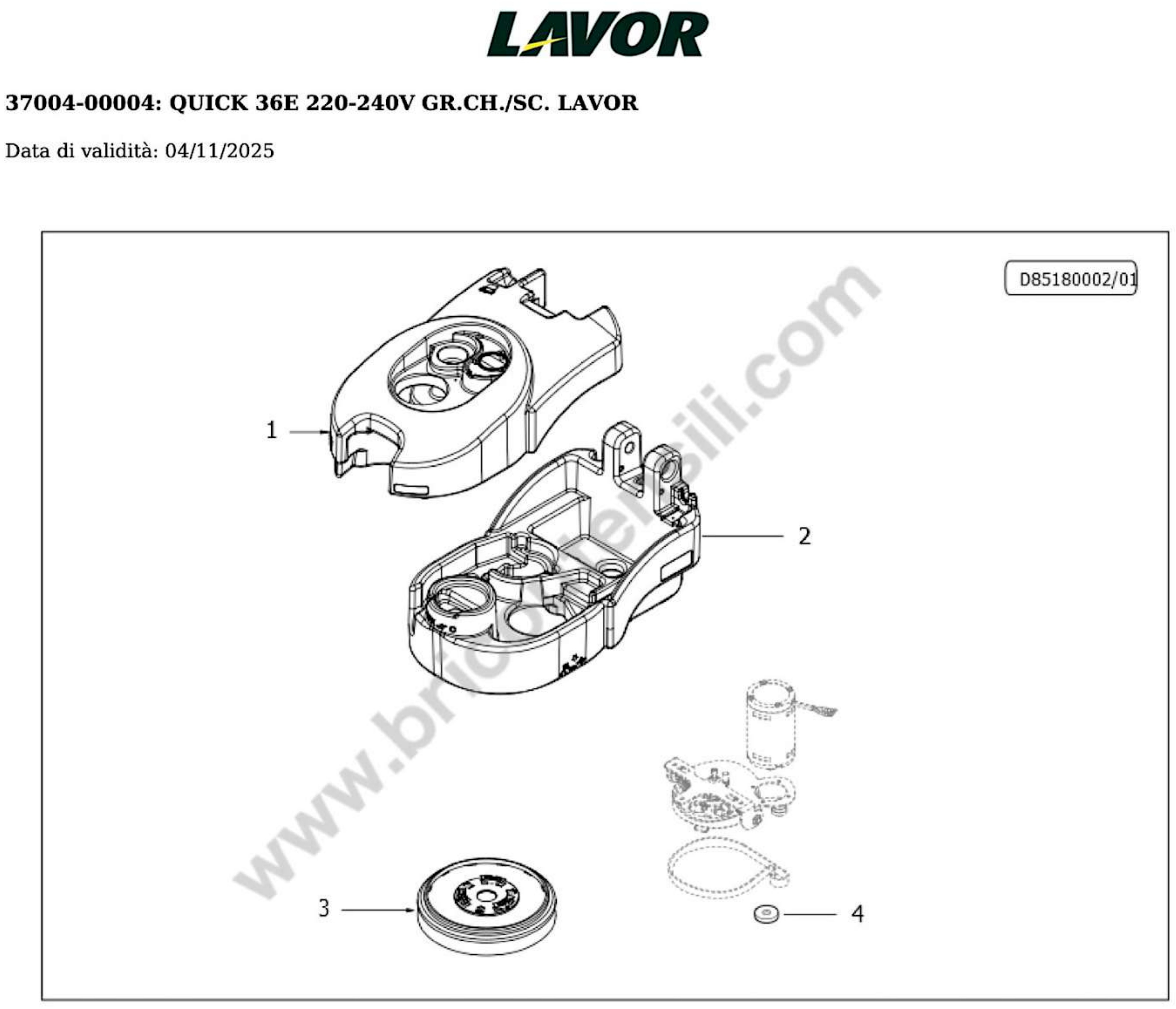

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
photo_cameraImage coming soon 5.509.1447 FLICK/QUICK RECOVERY GROUP €127.70
photo_cameraImage coming soon 5.509.2172 FLICK/QUICK SQUEGEE GROUP '16 €250.33
photo_cameraImage coming soon 5.511.2213 ORDER BRUSH ASSEMBLY Y21B MOD PP0.6 D360 €57.45
1
 photo_cameraImage coming soon 4.508.1050 GREY RECOVERY TANK €211.15
2
 photo_cameraImage coming soon 4.508.1042 SOLUTION WATER TANK €314.31
3
 photo_cameraImage coming soon 5.511.2213 ORDER BRUSH ASSEMBLY Y21B MOD PP0.6 D360 €57.45
4
 photo_cameraImage coming soon 4.508.0420 FLP BODYWORK PROTECTION BUSH €3.26
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

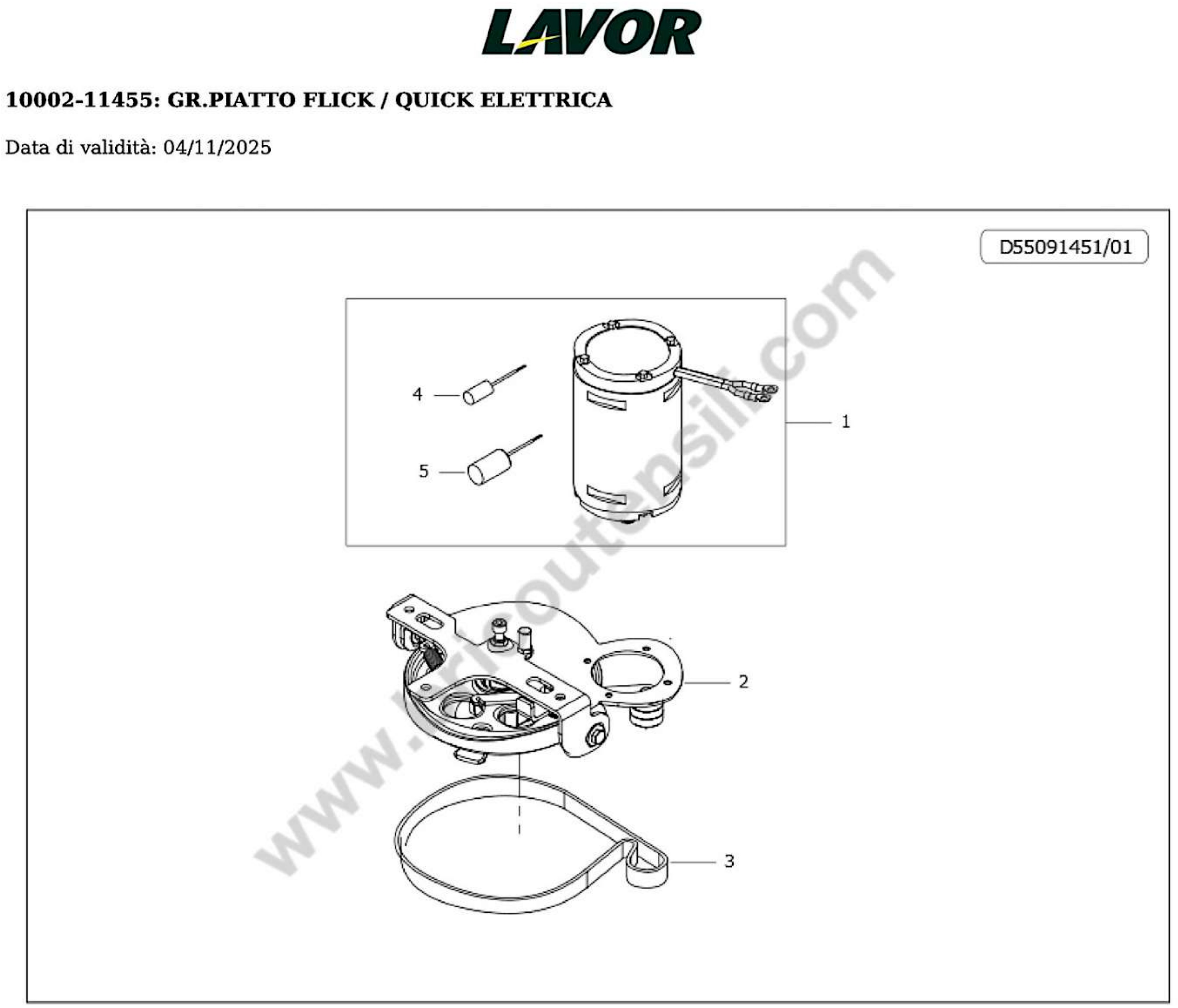

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6.505.0070 REPLACEMENT KIT FOR QUICK FLAT CUTTER MOTOR WITH CONDENSER €409.98
3
 Belt PJ762 for Floor Scrubber Drier SCL QUICK 36B CBT 3.099.1394 Belt PJ762 for Floor Scrubber Drier SCL QUICK 36B CBT €17.50
4
 photo_cameraImage coming soon 3.404.0077 CAPACITATOR 12.5MF 425V 10000H/CL.B - 475V 3000H/CL.C.C/CABLE €15.40
5
 photo_cameraImage coming soon 3.404.0076 START CAPACITOR 40MF +/- 5% 220/240V D. 50X95 €93.87
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

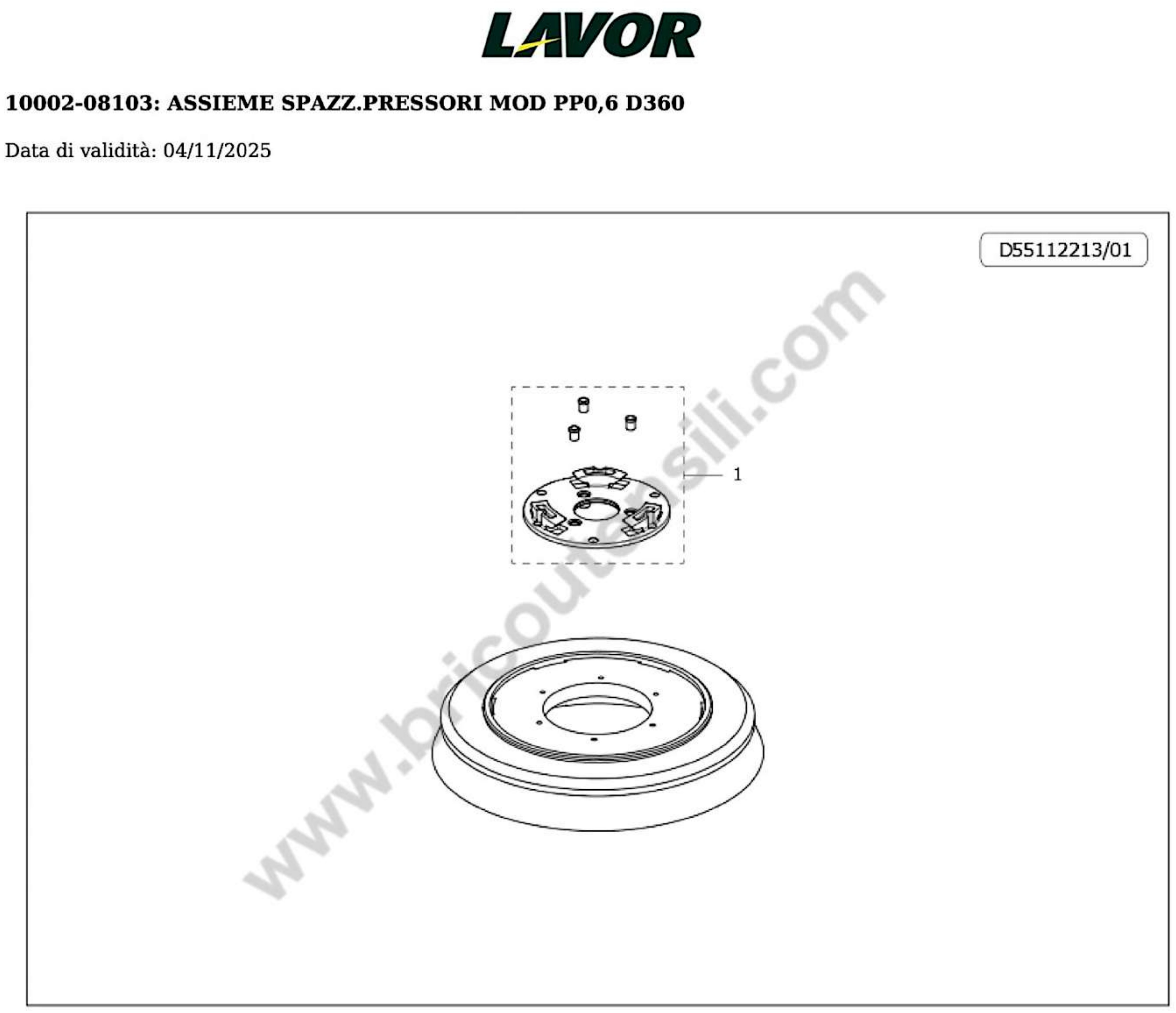

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5.511.2201 BIDIRECTIONAL BRUSH CONNECTOR ASSEMBLY WITH PRESSURES €17.92

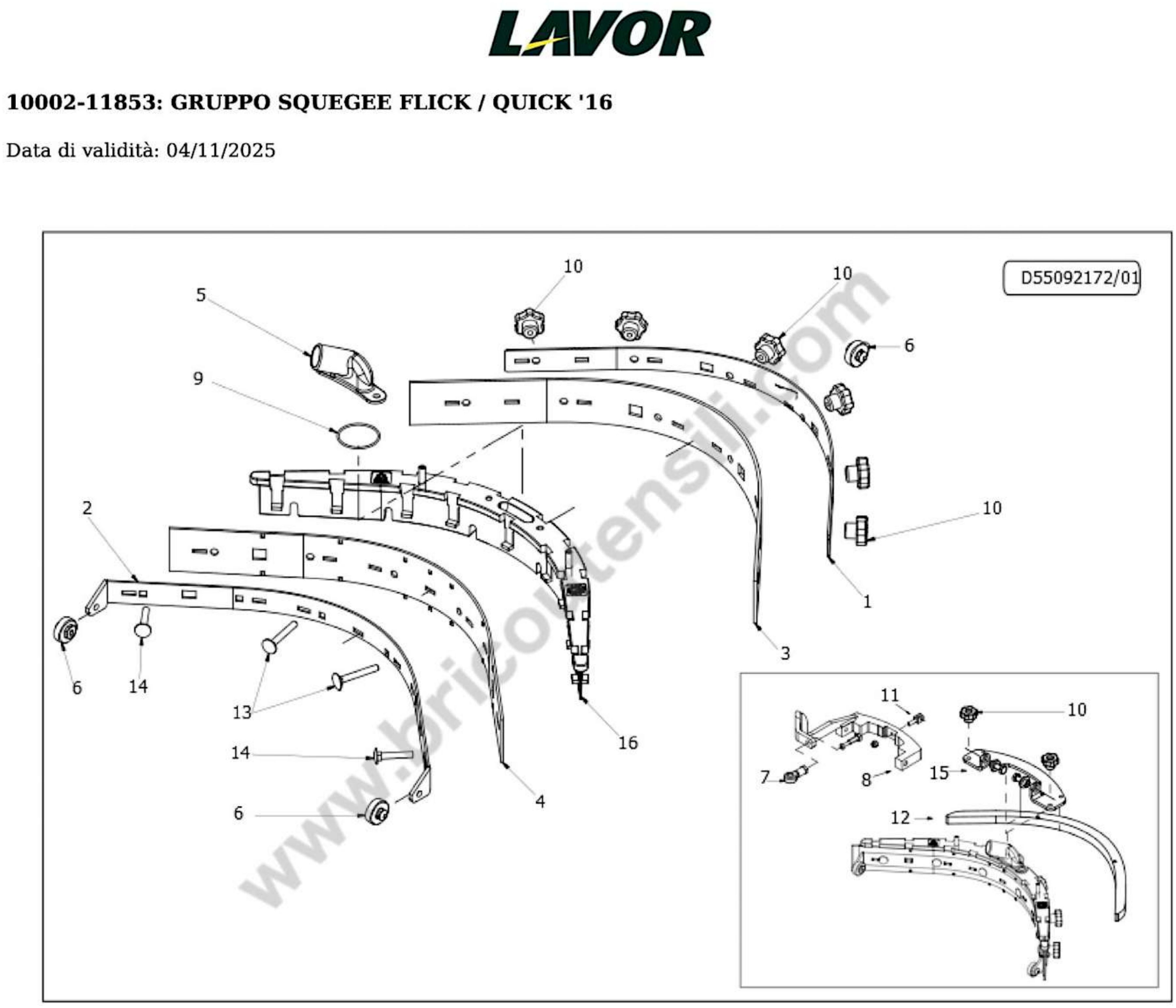

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5.513.0313 REAR SQUEEGEE BLADE HOLDER PLATE €32.38
2
 photo_cameraImage coming soon 4.507.1554 BLADE HOLDER - FRONT €29.30
3
 Rear Squeegee Blade for Floor Scrubber Drier SCL QUICK 36B CBT 4.508.1101 Rear Squeegee Blade for Floor Scrubber Drier SCL QUICK 36B CBT €8.75
4
 Front Squeegee Blade for Floor Scrubber Drier SCL QUICK 36B CBT 4.508.1100 Front Squeegee Blade for Floor Scrubber Drier SCL QUICK 36B CBT €8.75
5
 photo_cameraImage coming soon 4.508.1039 VACCUM RACCORD €11.58
6
 photo_cameraImage coming soon 6.505.0082 WHEEL SET €9.17
7
 photo_cameraImage coming soon 3.099.1226 SPHERE CONNECTION €48.67
8
 photo_cameraImage coming soon 5.513.0245 SWINGING SQUEEGEE SUPPORT €145.72
9
 photo_cameraImage coming soon 3.200.0212 O-RING €3.23
10
 photo_cameraImage coming soon 3.099.0477 KNOB M6 (THREADED PASS-THROUGH HOLE) €4.39
11
 photo_cameraImage coming soon 4.507.1273 LIFT SQUEEGEE CABLE FORK €11.65
12
 photo_cameraImage coming soon 4.507.1245 SQUEEGEE SUPPORT €39.42
13
 photo_cameraImage coming soon 3.002.0822 SCREW M6 X 45 €1.72
14
 photo_cameraImage coming soon 3.002.0820 SCREW M6 X 35 €1.72
15
 photo_cameraImage coming soon 4.507.1130 SQUEGEE BALLAST €184.39
16
 photo_cameraImage coming soon 4.508.1557 SQUEGEE €27.44
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

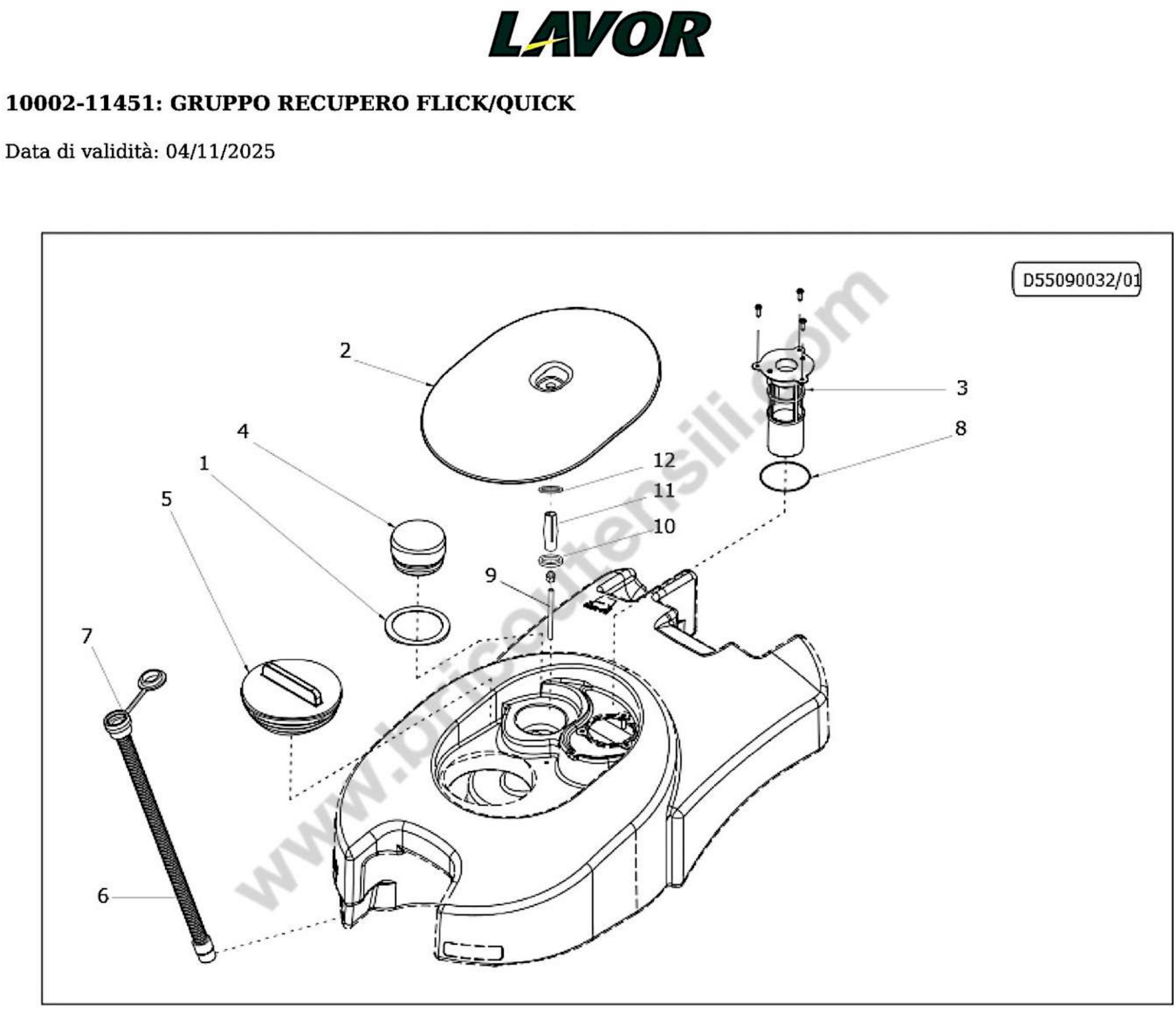

Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 7.503.0376 STICKER FOR SUCTION MOTOR COMP ARTMENT €30.96
2
 photo_cameraImage coming soon 5.511.1400 VACCUM COVER ASSEMBLY €57.67
3
 photo_cameraImage coming soon 5.511.1401 FLOAT ASSEMBLY €49.98
4
 photo_cameraImage coming soon 5.511.1511 KIT FILTRE €49.51
5
 photo_cameraImage coming soon 5.511.0203 RECOVERY TANK CAP ASSEMBLY €28.80
6
 Lavor SCL QUICK 36B CBT Exhaust Pipe 3.752.0256 Lavor SCL QUICK 36B CBT Exhaust Pipe €24.90
7
 Drain Hose Cap for Floor Scrubber Drier SCL QUICK 36B CBT 4.208.0274 Drain Hose Cap for Floor Scrubber Drier SCL QUICK 36B CBT €5.35
8
 photo_cameraImage coming soon 3.200.0077 OR GASKET 64,39X1,78 NBR SH70 €1.67
9
 photo_cameraImage coming soon 4.507.0813 THREADED BAR M6X60 €10.52
10
 photo_cameraImage coming soon 4.507.1487 SPACER FOR COVER €10.25
11
 photo_cameraImage coming soon 4.508.0565 INSERT €10.63
12
 photo_cameraImage coming soon 4.508.1610 RING FOR COVER €3.34
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

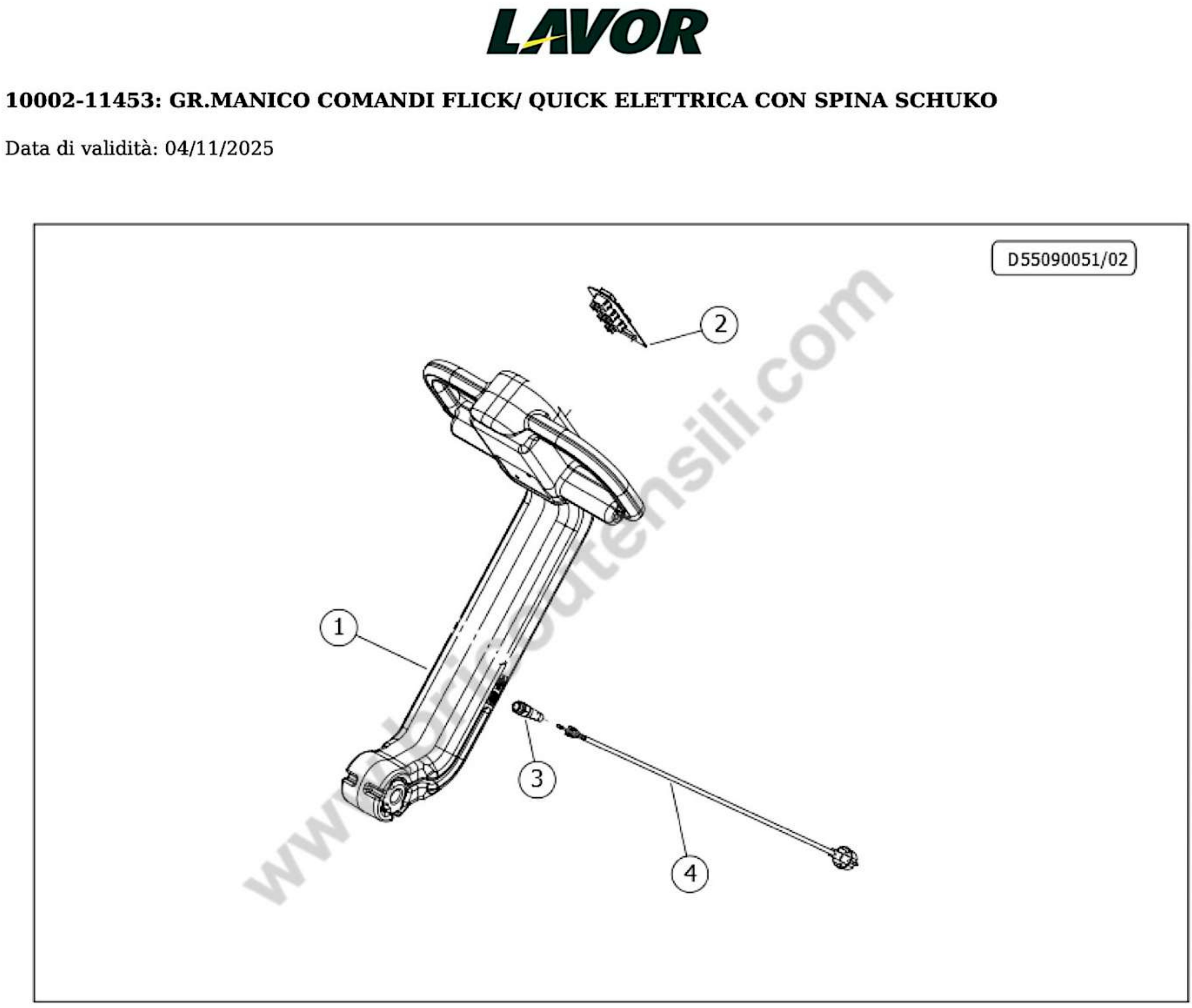

Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
photo_cameraImage coming soon 3.499.0398 WIRED DASHBOARD ASSEMBLY (FLICK/QUICK) €158.39
photo_cameraImage coming soon 5.511.1404 CONTROL HANDLE ASSEMBLY €311.01
1
 photo_cameraImage coming soon 5.511.1404 CONTROL HANDLE ASSEMBLY €311.01
2
 photo_cameraImage coming soon 3.499.0398 WIRED DASHBOARD ASSEMBLY (FLICK/QUICK) €158.39
3
 photo_cameraImage coming soon 3.406.0040 PG 11 BLACK CABLE GLAND WITH TEAR PROTECTION €4.14
4
 photo_cameraImage coming soon 3.499.0394 H005VV-F CABLE 3X1.5 THICK SCHUKO L=1M WITH BLADE-TYPE CABLE TERMINAL €12.98

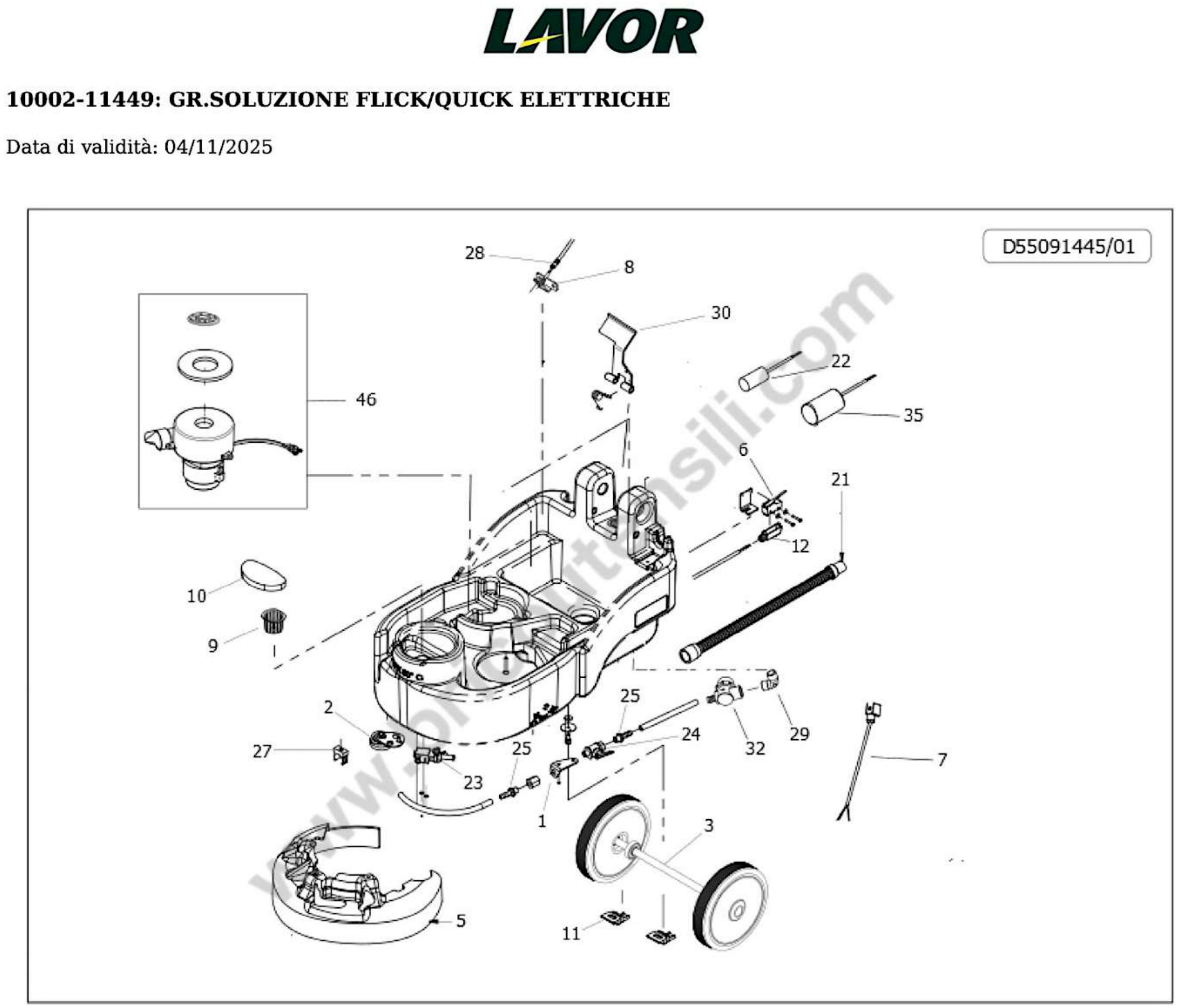

Page 7 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 7
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
photo_cameraImage coming soon 5.511.1397 WHEEL AXLE ASSEMBLY €155.67
1
 photo_cameraImage coming soon 4.507.1123 WATER VALVE SUPPORT €35.14
2
 photo_cameraImage coming soon 5.511.1407 BUMPER WHEEL SUPPORT COMPLETE €45.99
3
 photo_cameraImage coming soon 5.511.1397 WHEEL AXLE ASSEMBLY €155.67
5
 photo_cameraImage coming soon 4.513.0375 BRUSH CARTER €121.70
6
 photo_cameraImage coming soon 3.401.0175 230V 16A TOGGLE MICROSWITCH €32.83
7
 photo_cameraImage coming soon 3.499.0395 SOLENOID VALVE WIRING €13.85
8
 photo_cameraImage coming soon 4.507.1251 SQUEEGEE LIFT CABLE SUPPORT €29.49
9
 photo_cameraImage coming soon 4.508.1064 DETERGENT TANK FILTER €1.68
10
 photo_cameraImage coming soon 4.508.0739 SPONGE FILTER €1.63
11
 photo_cameraImage coming soon 4.508.0689 FIXING WHEEL AXLE €1.73
12
 photo_cameraImage coming soon 3.401.0176 IP65 TERMINAL COVER PROTECTION €6.48
21
 Vac Hose for Floor Scrubber Drier SCL QUICK 36B CBT 3.752.0190 Vac Hose for Floor Scrubber Drier SCL QUICK 36B CBT €22.41
22
 photo_cameraImage coming soon 3.404.0077 CAPACITATOR 12.5MF 425V 10000H/CL.B - 475V 3000H/CL.C.C/CABLE €15.40
23
 photo_cameraImage coming soon 3.412.0029 2-WAY SOLENOID VALVE 1/4 220-230V 50/60HZ €71.37
24
 photo_cameraImage coming soon 3.105.0012 VALVE €29.49
25
 photo_cameraImage coming soon 3.100.0340 HOSE FITTING UNION G1/4 D10 €3.73
27
 photo_cameraImage coming soon 3.099.1409 CLIPS €1.72
28
 Lavor SCL QUICK 36B CBT Squeegee Lift Cable 3.099.1459 Lavor SCL QUICK 36B CBT Squeegee Lift Cable €36.86
29
 photo_cameraImage coming soon 3.100.0357 ELBOW 1/2'M 1/2'M €12.43
30
 photo_cameraImage coming soon 5.513.0230 HANDLE LOCK PEDAL €113.90
32
 Water Filter for Floor Scrubber Drier SCL QUICK 36B CBT 3.102.0020 Water Filter for Floor Scrubber Drier SCL QUICK 36B CBT €53.43
35
 photo_cameraImage coming soon 3.404.0076 START CAPACITOR 40MF +/- 5% 220/240V D. 50X95 €93.87
46
 photo_cameraImage coming soon 5.511.1398 SUCTION MOTOR ASSEMBLY €135.69
Page 8 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

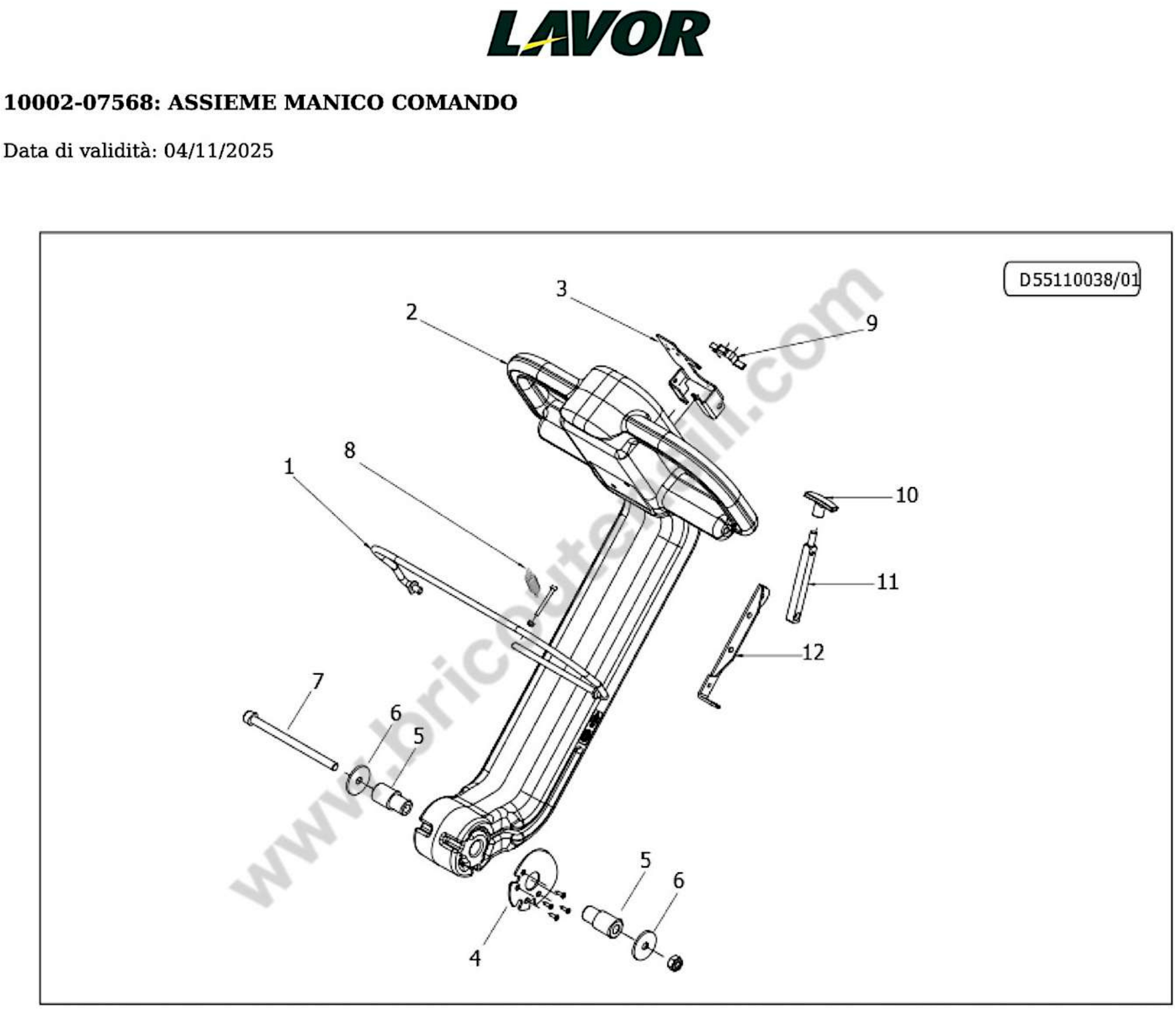

Esploso pagina 8
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6.505.0137 CONTROL ROD KIT WITH SCREW FOR QUICK €47.62
2
 photo_cameraImage coming soon 4.508.1035 HANDLE €164.35
3
 photo_cameraImage coming soon 4.507.1248 MICROSWITCH INSIDE SUPPORT €37.60
4
 photo_cameraImage coming soon 4.507.1269 STOP BUSH €44.04
5
 photo_cameraImage coming soon 4.508.1026 HANDLE FIXING WASHER €13.92
6
 photo_cameraImage coming soon 3.004.0105 PLAIN WASHER D.10X40X2.5 INOX UNI6593 €1.72
7
 photo_cameraImage coming soon 3.002.0819 SCREW 10 X 150 €13.92
8
 photo_cameraImage coming soon 4.507.0522 SPRING €3.49
9
 photo_cameraImage coming soon 3.401.0157 MICROSWITCH WITH LEVER 20A 250 V €14.87
10
 photo_cameraImage coming soon 3.099.1338 TIE ROD €5.26
11
 photo_cameraImage coming soon 4.507.1119 COMAND LEVER €34.81
12
 photo_cameraImage coming soon 4.507.1247 SQUEEGEE LEVER SUPPORT €35.82
Page 9 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

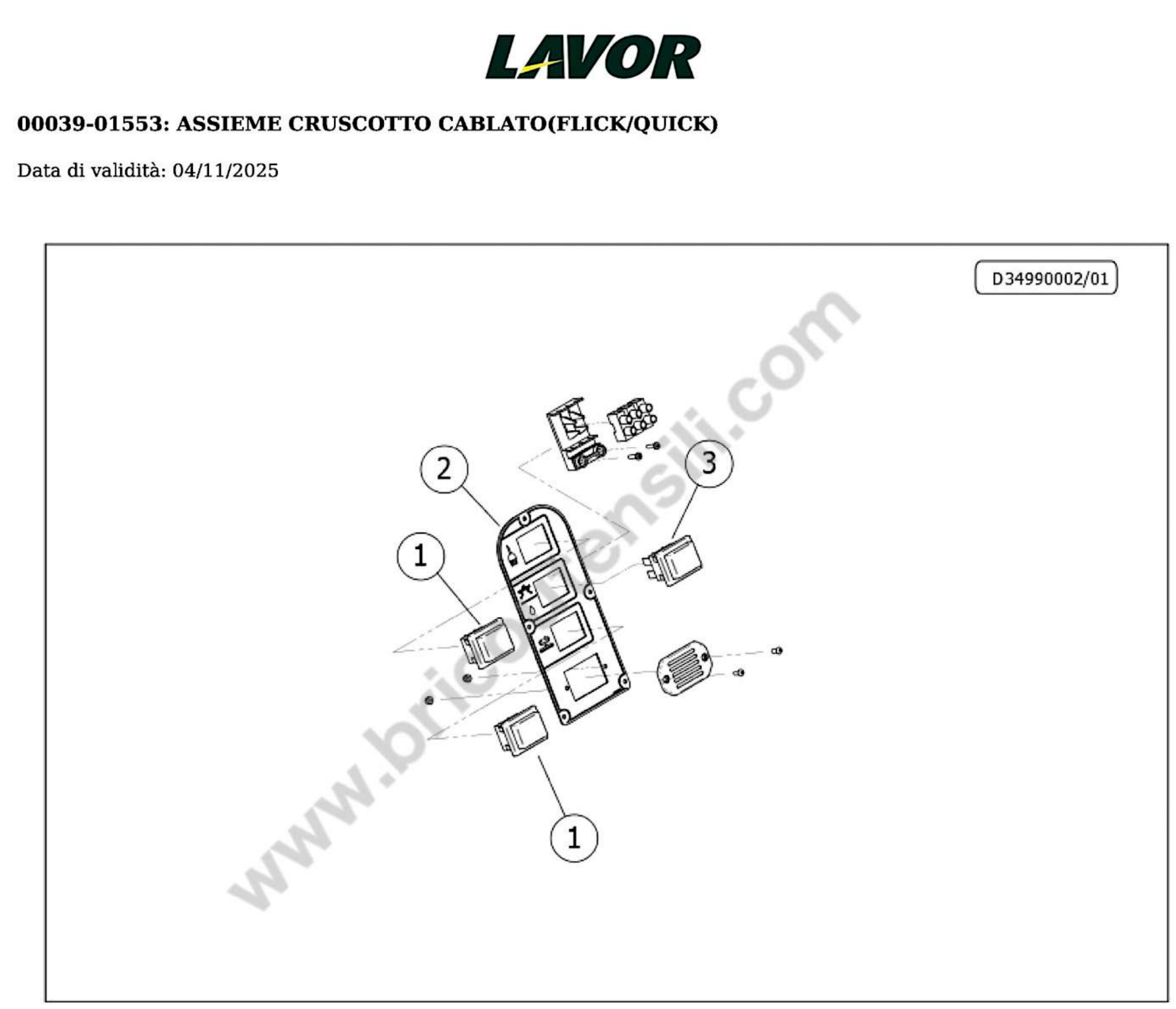

Esploso pagina 9
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5.009.0879 SWITCH ASSEMBLY €13.19
2
 photo_cameraImage coming soon 4.505.0879 DASH BOARD €18.20
3
 photo_cameraImage coming soon 3.401.0109 DOUBLE BLACK SWITCH WITH PROTECTION €8.37

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Pro Original Parts for Floor Scrubber Drier QUICK 36E

Lavor original spare parts for to replace broken parts for to fix Floor Scrubber Drier QUICK 36E 220-240V GR.CH./SC. LAVOR - 8.518.0004.

In the following tables, look for the spare part and its respective code.
QUICK 36E - 8.518.0004

QUICK 36E 220-240V GR.CH./SC. LAVOR - 8.518.0004
Pag.1
0 5.509.2172 FLICK/QUICK SQUEGEE GROUP '16
0 5.509.1447 FLICK/QUICK RECOVERY GROUP
0 5.509.1449 FLICK/QUICK ELECTRIC CONTROL HANDLE WITH SCHUKO PLUG
0 5.509.1445 FLICK/QUICK ELECTRIC SOLUTION GROUP
0 5.509.1451 FLICK/QUICK ELECTRIC PLATE GROUP
0 5.511.2213 PRESSOR BRUSH ASSEMBLY MOD. PP0.6 D360
1 4.508.1050 FLICK/QUICK UPPER RECOVERY TANK, CHROME GROUP, RAL 7040
2 4.508.1042 FLICK/QUICK LOWER SOLUTION TANK, SCREEN GROUP, RAL 7021
3 5.511.2213 PRESSOR BRUSH ASSEMBLY MOD. PP0.6 D360
4 4.508.0420 FLP BODYWORK PROTECTION BUSH
GR.PIATTO FLICK / QUICK ELETTRICA Pag.2
0 5.511.2311 QUICK Y21B FLAT CUTTER ASSEMBLY
1 6.505.0070 REPLACEMENT KIT FOR QUICK FLAT CUTTER MOTOR WITH CONDENSER
3 3.099.1394 BRUSH BELT
4 3.404.0077 CAPACITATOR 12.5MF 425V 10000H/CL.B - 475V 3000H/CL.C.C/CABLE
5 3.404.0076 START CAPACITOR 40MF +/- 5% 220/240V D. 50X95
ASSIEME SPAZZ.PRESSORI MOD PP0,6 D360 Pag.3
1 5.511.2201 ASSIEME INNESTO SPAZZOLA BIDIREZIONALE CON PRESSORI
GRUPPO SQUEGEE FLICK / QUICK '16 Pag.4
1 5.513.0313 SQG REAR BLADE STOP. QUICK
2 4.507.1554 QUICK FRONT BLADE STOP.
3 4.508.1101 REAR SQUEEGEE BLADE (NATURAL RUBBER)
4 4.508.1100 FRONT SQUEEGEE BLADE (NATURAL RUBBER)
5 4.508.1039 INTAKE COLLET
6 6.505.0082 KIT OF 1 WHEEL D.35 SQG. QUICK VERSION '16 / DYNAMIC
7 3.099.1226 BALL JOINT, HOLE D=8, M8 FEMALE SHAFT (STEEL-STEEL)
8 5.513.0245 SQG SWING ARM
9 3.200.0212 OR SEAL 2150 37.82X1.78 NBR SH.90
10 3.099.0477 M6 THROUGH-N-HANDWHEEL
11 4.507.1273 PIN FOR LIFTING CABLE, SQG
12 4.507.1245 SUPPORT
13 3.002.0822 TT WITH SQG SUPPORT M6x45 UNI5731 STAINLESS STEEL
14 3.002.0820 M6x35 UNI 5732 STAINLESS STEEL ROUND HEAD SCREW WITH SQUARE UNDERHEAD
15 4.507.1130 SQUEGEE BALLAST
16 4.508.1557 QUICK SQUEGEE
GRUPPO RECUPERO FLICK/QUICK Pag.5
1 7.503.0376 ENGINE COMPARTMENT STICKER FOR SWIFT B INTAKE
2 5.511.1400 INTAKE COVER ASSEMBLY
3 5.511.1401 QUICK FLOAT ASSEMBLY
4 5.511.1511 FILTER + SPONGE KIT
5 5.511.0203 RECOVERY TANK CAP KIT WITH SEAL
6 3.752.0256 EXHAUST PIPE
7 4.208.0274 DIAM.32mm CAP
8 3.200.0077 2262 O-RING 64.39X1.78 NBR SH.70
9 4.507.0813 M6X60 STAINLESS STEEL THREADED ROD
10 4.507.1487 QUICK COVER FIXING SPACER
11 4.508.0565 QUICK INSERT
12 4.508.1610 COVER SEALING RING
GR.MANICO COMANDI FLICK/ QUICK ELETTRICA CON SPINA SCHUKO Pag.6
0 5.511.1404 CONTROL HANDLE ASSEMBLY
0 3.499.0398 WIRED DASHBOARD ASSEMBLY (FLICK/QUICK)
1 5.511.1404 CONTROL HANDLE ASSEMBLY
2 3.499.0398 WIRED DASHBOARD ASSEMBLY (FLICK/QUICK)
3 3.406.0040 PG 11 BLACK CABLE GLAND WITH TEAR PROTECTION
4 3.499.0394 H005VV-F CABLE 3X1.5 THICK SCHUKO L=1M WITH BLADE-TYPE CABLE TERMINAL
GR.SOLUZIONE FLICK/QUICK ELETTRICHE Pag.7
0 5.511.1397 WHEEL AXLE ASSEMBLY
1 4.507.1123 WATER TAP BRACKET
2 5.511.1407 WHEEL BUMPER ASSEMBLY
3 5.511.1397 WHEEL AXLE ASSEMBLY
5 4.513.0375 FLICK/QUICK BRUSH COVER
6 3.401.0175 230V 16A TOGGLE MICROSWITCH
7 3.499.0395 SOLENOID VALVE WIRING
8 4.507.1251 SQG LIFTING BRACKET
9 4.508.1064 SWIFT/FLICK DETERGENT TANK FILTER
10 4.508.0739 FILTERING SPONGE
11 4.508.0689 WHEEL FIXING AXLE
12 3.401.0176 IP65 TERMINAL COVER PROTECTION
21 3.752.0190 VAC HOSE
22 3.404.0077 12.5MF CAPACITOR 425V 10000H/CL.B - 475V 3000H/CL.C.C/CABLE
23 3.412.0029 2-WAY SOLENOID VALVE 1/4 220-230V 50/60HZ
24 3.105.0012 BALL VALVE TAP 1/4 F 1/4 M
25 3.100.0340 HOLDER FITTING G1/4 D10
27 3.099.1409 HOSE CLIP D.25
28 3.099.1459 SQUEEGEE LIFT CABLE COMPLETE
29 3.100.0357 90 CONNECTOR G1/2 M - G1/2 M
30 5.513.0230 RELEASE PEDAL
32 3.102.0020 WATER FILTER 1/2G D.13
35 3.404.0076 START CAPACITOR 40MF +/- 5% 220/240V D.50X95
46 5.511.1398 SUCTION MOTOR ASSEMBLY
ASSIEME PIATTO QUICK Y21B Pag.8
1 5.513.0244 FIXED BRUSH SUPPORT
2 4.507.1125 MOBILE BRUSH PLATE SUPPORT
3 4.507.1272 BRUSH PLATE TRACTION SPRING
4 4.507.1124 BELT TENSIONER LEVER
5 3.001.0032 6002 2RS1 RADIAL BALL BEARING
6 5.511.1385 PULLEY ASSEMBLY
7 4.507.1613 BRUSH COUPLING FOR ATTACHMENT WITH PRESSURES
8 4.508.1758 BRUSH COUPLING CONICAL CENTERING WITH CENTRAL SCREW
ASSIEME MANICO COMANDO Pag.9
1 6.505.0137 CONTROL ROD KIT WITH SCREW FOR QUICK
2 4.508.1035 DARK GREY GUIDE HANDLE RAL.7021
3 4.507.1248 INTERNAL SQUARE CONTROL SUPPORT. EXP. B
4 4.507.1269 SAFETY LOCK SELECTOR
5 4.508.1026 SIDE JOINT PIN
6 3.004.0105 FLAT WASHER D.10X40 THICKNESS 2.5 STAINLESS STEEL UNI6593
7 3.002.0819 TCEI SCREW M10X150 UNI 5931 STAINLESS STEEL
8 4.507.0522 TRACTION LEVER SPRING
9 3.401.0157 MICROSWITCH WITH LEVER XG02-86-P23
10 3.099.1338 BLACK TIE ROD L=60 FEMALE M8
11 4.507.1119 SQUEGEE CONTROL LEVER
12 4.507.1247 SQUARE LEVER SUPPORT
ASSIEME CRUSCOTTO CABLATO(FLICK/QUICK) Pag.10
1 5.009.0879 SINGLE SWITCH ASSEMBLY + TRANSPORT PROTECTION 12V (QUICK)
2 4.505.0879 CONTROL PANEL WITHOUT HOUR METER HOUSING
3 3.401.0109 BLACK DOUBLE SWITCH 0-1 WITH TRANSPORT PROTECTION
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
QUICK 36E - 8.518.0004
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

Lavor QUICK 36E Parts Drawing

Lavor QUICK 36E Parts Drawing

Download (791.09KB)

You might also like

Brush + Bearing Ass'y for Floor Scrubber Drier Lavor Pro Sprinter
Lavorwash S.p.A. SKU: 6.505.0041
Brush + Bearing Ass'y for Floor Scrubber Drier Lavor Pro Sprinter
Brush + Bearing Ass'y for Floor Scrubber Drier Lavor Pro Sprinter Genuine replacement part Lavor, Brush + Bearing Assembly for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following products: -  Floor Scrubber...
Usually Ships in: 7/10 Business Days Approx. €6.40
Details
Flexible Hose for Floor Scrubber Drier Lavor Pro Sprinter
Lavorwash S.p.A. SKU: 5.509.0008
Flexible Hose for Floor Scrubber Drier Lavor Pro Sprinter
Flexible Hose for Floor Scrubber Drier Lavor Pro Sprinter Genuine replacement part Lavor, Flexible Hose Ass'y L.800 MW for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following products:...
Last items in stock €29.49
Details
Squeegee + Support for Floor Scrubber Drier Lavor Pro Sprinter
Lavorwash S.p.A. SKU: 5.509.0010
Squeegee + Support for Floor Scrubber Drier Lavor Pro Sprinter
Squeegee + Support Ass'y for Floor Scrubber Drier Lavor Pro Sprinter Genuine replacement part Lavor, Squeegee + Support Assembly for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following products: -  Floor...
Usually Ships in: 7/10 Business Days Approx. €14.85
Details
Belt 336 RPP3-12 for Floor Scrubber Drier Lavor Pro Sprinter
Lavorwash S.p.A. SKU: 3.099.0278
Belt 336 RPP3-12 for Floor Scrubber Drier Lavor Pro Sprinter
Belt 336 RPP3-12 for Floor Scrubber Drier Lavor Pro Sprinter Genuine replacement part Lavor, Belt 336 RPP3-12 for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following...
Usually Shipped on: 10 Business Days Approx. €29.49
Details
Boiler Kit for Floor Scrubber Drier Lavor Crystal Clean
Lavorwash S.p.A. SKU: 6.505.0087
Boiler Kit for Floor Scrubber Drier Lavor Crystal Clean
Boiler Kit for Floor Scrubber Drier Lavor Crystal Clean Genuine replacement part Lavor, Boiler Kit for Floor Scrubber Drier Crystal Clean. Part for the following products: -  Floor Scrubber Drier Lavor...
Usually Shipped in 10/15 Business Days Approx. €87.31
Details
Suction Motor for Floor Scrubber Drier Lavor Crystal Clean
Lavorwash S.p.A. SKU: 6.505.0040
Suction Motor for Floor Scrubber Drier Lavor Crystal Clean
Suction Motor Kit for Floor Scrubber Drier Lavor Crystal Clean Genuine replacement part Lavor, Suction Motor Kit 230V/50-60Hz 800 W for Floor Scrubber Drier Crystal Clean. Part for the...
Usually Ships in: 7/10 Business Days Approx. €76.38
Details
Vac Motor Ass'y for Floor Scrubber Drier SCL QUICK 36B CBT
Lavorwash S.p.A. SKU: 5.511.1399
Vac Motor Ass'y for Floor Scrubber Drier SCL QUICK 36B CBT
Vac Motor FLICK/QUICK Ass'y for Floor Scrubber Drier SCL QUICK 36B CBT Genuine replacement part Lavor, Vac Motor FLICK/QUICK Assembly for Floor Scrubber Drier SCL QUICK 36B CBT - 85180003. Part for the following...
Last items in stock €165.21
Details
Front Squeegee Blade for Floor Scrubber Drier SCL QUICK 36B CBT
Lavorwash S.p.A. SKU: 4.508.1100
Front Squeegee Blade for Floor Scrubber Drier SCL QUICK 36B CBT
Front Squeegee Blade for Floor Scrubber Drier SCL QUICK 36B CBT Genuine replacement part Lavor, Front Squeegee Blade (NATURAL RUBBER) 537X50X1,5 for Floor Scrubber Drier SCL QUICK 36B CBT - 85180003. Part for the following products:...
Usually Ships in: 10 Business Days Approx. €8.75
Details
Rear Squeegee Blade for Floor Scrubber Drier SCL QUICK 36B CBT
Lavorwash S.p.A. SKU: 4.508.1101
Rear Squeegee Blade for Floor Scrubber Drier SCL QUICK 36B CBT
Rear Squeegee Blade for Floor Scrubber Drier SCL QUICK 36B CBT Genuine replacement part Lavor, Rear Squeegee Blade (NATURAL RUBBER) 590X50X3 for Floor Scrubber Drier SCL QUICK 36B CBT - 85180003. Part for the following products: -...
Usually Ships in: 10 Business Days Approx. €8.75
Details
Water Filter for Floor Scrubber Drier SCL QUICK 36B CBT
Lavorwash S.p.A. SKU: 3.102.0020
Water Filter for Floor Scrubber Drier SCL QUICK 36B CBT
Water Filter for Floor Scrubber Drier SCL QUICK 36B CBT Genuine replacement part Lavor, Water Filter G 1/2" D.13 SHURFLO 255-223 for Floor Scrubber Drier SCL QUICK 36B CBT - 85180003. Part for the...
Last items in stock €53.43
Details
Vac Hose for Floor Scrubber Drier SCL QUICK 36B CBT
Lavorwash S.p.A. SKU: 3.752.0190
Vac Hose for Floor Scrubber Drier SCL QUICK 36B CBT
Vac Hose for Floor Scrubber Drier SCL QUICK 36B CBT Genuine replacement part Lavor, Vacuum Hose Squeegee D.25 with Sleeves for Floor Scrubber Drier SCL QUICK 36B CBT - 85180003. Part for the following products: -  Floor Scrubber...
Usually Ships in: 10 Business Days Approx. €22.41
Details
Drain Hose Cap for Floor Scrubber Drier SCL QUICK 36B CBT
Lavorwash S.p.A. SKU: 4.208.0274
Drain Hose Cap for Floor Scrubber Drier SCL QUICK 36B CBT
Drain Hose Cap for Floor Scrubber Drier SCL QUICK 36B CBT Genuine replacement part Lavor, Cap d.32MM for Drain Hose with Stop Ring for Floor Scrubber Drier SCL QUICK 36B CBT - 85180003. Part for the following...
Usually Ships in: 10 Business Days Approx. €5.35
Details
Belt PJ762 for Floor Scrubber Drier SCL QUICK 36B CBT
Lavorwash S.p.A. SKU: 3.099.1394
Belt PJ762 for Floor Scrubber Drier SCL QUICK 36B CBT
POLY-V Belt PJ762 for Floor Scrubber Drier SCL QUICK 36B CBT Genuine replacement part Lavor, POLY-V Belt PJ762/300J EL H =7 Teeth for Floor Scrubber Drier SCL QUICK 36B CBT - 85180003. Part for the following products: -  Floor...
Usually Ships in: 10 Business Days Approx. €17.50
Details
Lavor SCL QUICK 36B CBT Pulley Assy
Lavorwash S.p.A. SKU: 5.511.1385
Lavor SCL QUICK 36B CBT Pulley Assy
Floor Scrubber Drier SCL QUICK 36B CBT Free Pulley Assembly Genuine replacement part Lavor, Free Pulley Assembly for Floor Scrubber Drier SCL QUICK 36B CBT - 85180003. Part for the following products: -  Floor Scrubber...
on 10 Business Days Approx. €106.77
Details
Lavor SCL QUICK 36B CBT Squeegee Lift Cable
Lavorwash S.p.A. SKU: 3.099.1459
Lavor SCL QUICK 36B CBT Squeegee Lift Cable
Lavor SCL QUICK 36B CBT Squeegee Lift Cable Complete Genuine replacement part Lavor, Squeegee Lift Cable Complete for Floor Scrubber Drier SCL QUICK 36B CBT - 85180003. Part for the following products: -  Floor...
Last items in stock €36.86
Details
Lavor SCL QUICK 36B CBT Exhaust Pipe
Lavorwash S.p.A. SKU: 3.752.0256
Lavor SCL QUICK 36B CBT Exhaust Pipe
Lavor SCL QUICK 36B CBT Exhaust Pipe Genuine replacement part Lavor, Exhaust Pipe for Floor Scrubber Drier SCL QUICK 36B CBT - 85180003. Part for the following products: -  Floor Scrubber Drier SCL QUICK 36B CBT - 85180003 - Code:...
AVAILABLE €24.90
Details
Lavor Traction Spring Lever for SCL QUICK 36B CBT
Lavorwash S.p.A. SKU: 00030-00682 ex 4.507.0522
Lavor Traction Spring Lever for SCL QUICK 36B CBT
Lavor Traction Spring Lever for Floor Scrubber Drier SCL QUICK 36B CBT Original replacement part Lavorwash, Traction Lever Spring for Floor Scrubber Drier SCL QUICK 36B CBT - L1 36B CBT. Part for the following products: -  Floor...
Usually Ships in: 10 Business Days Approx. €3.09
Details
Comments (0)
