Lavorwash S.p.A.

Lavor Pressure Cleaner LW 3000 Parts

SKU: LW 3000 - 8.009.0012
€30.37
VAT included

Lavor Original Parts for Pressure Cleaner LW 3000

Lavor original spare parts for to replace broken parts for to fix Pressure Cleaner IDRO LW 3000 230/50 -G - 8.009.0012.

Fix Your Pressure Cleaner. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

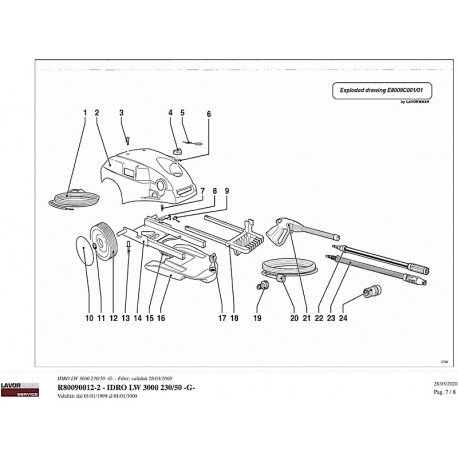

Lavor Pressure Cleaner LW 3000 Parts Drawing
  • Lavor Pressure Cleaner LW 3000 Parts Drawing
  • Lavor Pressure Cleaner LW 3000 Parts Drawing - 1
Lavorwash S.p.A.

Lavor Pressure Cleaner LW 3000 Parts

SKU: LW 3000 - 8.009.0012 Condition: New
€30.37
VAT included

Lavor Original Parts for Pressure Cleaner LW 3000

Lavor original spare parts for to replace broken parts for to fix Pressure Cleaner IDRO LW 3000 230/50 -G - 8.009.0012.

Fix Your Pressure Cleaner. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 86 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
86 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.012.0149 CABLE H05VV-F 3X1 SCHUKO PLUGMT.5,4 F/F rev 04 €29.49
2
 photo_cameraImage coming soon 4.013.0090 HT 2000/3000 HOUSING WITH PRESSURE GAUGE - G- PANT. 108C €29.49
3
 photo_cameraImage coming soon 3.002.0103 TC SCREW M6X60 TRILOBAL, ZNT €1.72
4
 photo_cameraImage coming soon 4.008.0819 PRESSURE REGULATOR KNOB BEST B LACK €3.32
5
 photo_cameraImage coming soon 4.007.0114 NOZZLE CLEANING PIN €1.65
6
 photo_cameraImage coming soon 4.006.0176 OVERSIZED HOUSING LOCKING RING FOR LW-LS21 €3.55
7
 photo_cameraImage coming soon 3.002.0102 AUTOTHREAD. SCREW TE 3,9X13 UN I 6949 ZNT €1.72
8
 photo_cameraImage coming soon 4.007.0098 CABLE TIE-DOWN BRACKET €5.09
9
 photo_cameraImage coming soon 3.406.0018 HEYCO SR6 P-4 CABLE CLAMP €1.72
10
 photo_cameraImage coming soon 3.099.0066 WHEEL CAP FOR SP150, RED RAL 3020 €3.32
11
 photo_cameraImage coming soon 3.099.0051 LOCK FOR WHEEL BLOK 12 €1.68
12
 photo_cameraImage coming soon 3.006.0023 WHEEL D.150 HOLE 12 BLACK (SP 150) €14.80
13
 photo_cameraImage coming soon 3.099.0071 ALUMINUM EXPANSION RIVET 4.9x18 €1.72
14
 photo_cameraImage coming soon 5.013.0015 TROLLEY WITH REMOVABLE HANDLE, VER. N. €41.39
15
 photo_cameraImage coming soon 4.008.0172 TRANSPARENT TUBE D.6X9 L.510 €1.72
16
 photo_cameraImage coming soon 4.008.0523 LP-LW DETERGENT TANK €30.05
17
 photo_cameraImage coming soon 4.608.0027 BLACK PLUG D.30 FOR TANK €10.03
18
 photo_cameraImage coming soon 4.008.0168 EXTRACTIBLE HANDLE FOR CARRIAG E €30.05
19
 Quick Coupling 3/4F for High Pressure Washers Lavor 3.100.0082 Quick Coupling 3/4F for High Pressure Washers Lavor €1.63
20
 High Pression Hose for Pressure Washer BEST 24 4.018.0061 High Pression Hose for Pressure Washer BEST 24 €30.00
21
 photo_cameraImage coming soon 6.001.0028 GUN S'99 €34.95
23
 Adjustable Lance 6.002.0191C S'99 High/Low Pressure Ø 1.1 6.002.0191C Adjustable Lance 6.002.0191C S'99 High/Low Pressure Ø 1.1 €16.28
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
photo_cameraImage coming soon 5.001.0225 MOTOP. OMNIA'97 230/50 H. 90 LI TOP OUTPUT + SIDE MANUAL SWITCH, NF WIRING €437.30
1
 photo_cameraImage coming soon 5.009.0165 FRAME FOR SEALING SWITCH AND HOBBY €9.55
2
 photo_cameraImage coming soon 5.009.0213 EXT SWITCH WITH PROTECTION 12(10) €6.72
3
 photo_cameraImage coming soon 3.404.0022 CAPACITOR 30mF 450V F/M €11.77
4
 photo_cameraImage coming soon 3.200.0037 OR SEAL 40.65X5.35 REF. 6162 €1.67
5
 photo_cameraImage coming soon 3.099.0055 RING NUT 1/2 F HOLE D. 12.5 (REF. 200.020) ITEM OUT OF STOCK €1.72
6
 photo_cameraImage coming soon 3.200.0034 OR SEAL 9.12X3.53 €1.67
7
 photo_cameraImage coming soon 4.008.0125 STARJET ELECTRIC BOX LID €1.55
8
 photo_cameraImage coming soon 3.002.0112 CROSS HEAD -TORX SCREW 3,9x25HI-LO ZNT €1.72
9
 photo_cameraImage coming soon 4.008.0137 FOAM RUBBER SEAL 124X59X3.2 TH. 3 €5.78
10
 photo_cameraImage coming soon 4.007.0100 STUD FOR SCREW GROUND ZNT €7.28
11
 photo_cameraImage coming soon 4.008.0135 ELECTRIC BOX FOR LIQUID ELECTRIC MOTOR WITH INT. HOLE €8.76
12
 photo_cameraImage coming soon 4.008.0030 FAN COVER FOR INTEGRATED CASING, M. PLASTIC €10.32
13
 photo_cameraImage coming soon 3.099.0049 LOCKING RING D.23 FAN FB80 €14.80
14
 photo_cameraImage coming soon 3.099.0001 80mm FAN WITH PREDISPOSITION LOCKING RING €5.32
15
 photo_cameraImage coming soon 5.002.0027 LI 230/50 HOUSING, 90 mm HIGH CABLES, EXP. 1 €111.86
16
 photo_cameraImage coming soon 3.001.0001 BALL RADIAL BEARING 6204-2Z €14.95
17
 photo_cameraImage coming soon 5.005.0001 ROTOR SHAFT, 65 mm, 90 mm, NORMAL €28.39
18
 photo_cameraImage coming soon 5.009.0002 BEST MOTOR FLANGE (FINISHED) €28.10
19
 photo_cameraImage coming soon 3.200.0002 O-RING GASKET 90X2,5 €1.70
20
 Oil Seal 20-35-6-6.5 for Washer Lavor GIANT 24 3.201.0001 Oil Seal 20-35-6-6.5 for Washer Lavor GIANT 24 €2.76
21
 photo_cameraImage coming soon 3.002.0015 AUTOTAPPING SCREW TCEI M6X25 ZNT €3.32
22
 photo_cameraImage coming soon 3.001.0031 ANTERIOR RADIAL FOR CASING 20X52X15 - 6304 €6.01
23
 photo_cameraImage coming soon 4.005.0005 DIE CASTED PLATE G.7.15' €10.52
24
 photo_cameraImage coming soon 3.002.0011 SCREW TCEI M8X22 UNI 5931 ZNT €3.32
25
 Lavor Disk As for KARJET PROFI130 3.001.0003 Lavor Disk As for KARJET PROFI130 €3.33
26
 Lavor Needle Roller Cage for EQ18 3.001.0025 Lavor Needle Roller Cage for EQ18 €3.48
27
 Lavor Thrust Shoe for LP 20 EHR 4.007.0001 Lavor Thrust Shoe for LP 20 EHR €5.83
28
 photo_cameraImage coming soon 5.009.0086 PISTON ASSY €11.03
29
 Piston Recall Spring for Pressure Washers Lavor NPX 1400 - NPX 1500 4.007.0011 Piston Recall Spring for Pressure Washers Lavor NPX 1400 - NPX 1500 €10.03
30
 photo_cameraImage coming soon 3.002.0003 HEXAGON SOCKET HEAD CAP SCREWM8X25 UNI 5931 ZNT €3.32
31
 Lavor Body Guide for NPX 1400 4.005.0184 Lavor Body Guide for NPX 1400 €66.79
32
 photo_cameraImage coming soon 3.201.0002 O-RINGBADSLSF 15X25,4X5 /7 €7.48
37
 photo_cameraImage coming soon 5.009.0271 PRESSURE REGULATOR €28.10
38
 photo_cameraImage coming soon 3.200.0036 O-RING 4X2,5 SH.70 VITON €1.67
39
 photo_cameraImage coming soon 5.609.0041 SET OF CHECK VALVE + OR €14.70
40
 photo_cameraImage coming soon 4.007.0324 SPRING FOR CHECK VALVE WIRE D.0.5 €1.72
41
 photo_cameraImage coming soon 4.006.0169 INJECTOR DIAM. 1.8 FOR PARTNER/OMNIA €8.37
42
 photo_cameraImage coming soon 3.200.0022 O-RING 9,25X1,78 €1.67
43
 photo_cameraImage coming soon 3.200.0026 OR SEAL 14X1.78 NBR SH 70 €1.67
44
 photo_cameraImage coming soon 4.006.0168 OUTLET CONNECTION M22X15 €6.66
45
 Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018 3.200.0019 Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018 €1.70
46
 photo_cameraImage coming soon 5.009.0101 CAP VALVE SUCTION DELIVERY-ORMOUNTED €6.91
47
 Delivery Suction Valve for Pressure Washer Lavor FKX 1018 5.009.0005 Delivery Suction Valve for Pressure Washer Lavor FKX 1018 €9.23
48
 photo_cameraImage coming soon 6.005.0030 KIT 28 LAVOR DETERGENT'S SUCTION €20.98
49
 photo_cameraImage coming soon 3.005.0001 BALL INOX 420 DIAM.5 (accuracy grade G 500) €1.72
50
 photo_cameraImage coming soon 4.007.0014 VALVE SPRING DETERGENT CHECK De4,5 / 6 L = 7 WIRE D.0,3 €2.50
51
 photo_cameraImage coming soon 4.006.0109 TAPERED 1/8 CAP €7.67
52
 photo_cameraImage coming soon 4.607.0095 SPRING D.8X16 WIRE 0.8 ESP.00 €3.87
53
 photo_cameraImage coming soon 3.005.0009 BALL 11/32 INOX 420 B €1.72
54
 photo_cameraImage coming soon 4.607.0098 VALVE L2 SEAL SEAT €5.28
55
 Gasket O-Ring 11,1x1,78 for Pressure Washer Lavor GIANT 24 3.200.0013 Gasket O-Ring 11,1x1,78 for Pressure Washer Lavor GIANT 24 €1.66
56
 photo_cameraImage coming soon 4.006.0170 SEATED DISTANCE SPACER FOR OMNIA'97 HEADER €14.14
58
 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 4.008.0031 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 €2.07
59
 photo_cameraImage coming soon 4.005.0124 ALLUMINIUM HEAD €118.54
60
 photo_cameraImage coming soon 3.002.0139 SCREW TCEI M8X35 ZNT €1.72
61
 photo_cameraImage coming soon 4.006.0011 SUCTION VALVE SPACER €6.99
62
 photo_cameraImage coming soon 3.107.0009 GAUGE 1/8'' €29.49
63
 photo_cameraImage coming soon 5.009.0127 ADJUSTING VALVE ROD ASSEMBLING €28.10
73
 photo_cameraImage coming soon 5.009.0053 BAYONET OIL CAP WITH MOUNTED ORING €1.72
74
 photo_cameraImage coming soon 5.009.0207 CAP ASSY €14.27
75
 photo_cameraImage coming soon 5.009.0008 COMPLETE BUSHING FOR SECOND WATER SEAL €9.55
76
 O-Ring 25.12x1.78 for Pressure Washers Lavor NPX 1400 - NPX 1500 3.200.0003 O-Ring 25.12x1.78 for Pressure Washers Lavor NPX 1400 - NPX 1500 €1.70
77
 Water Sealing Ring for Pressure Washers Lavor NPX 1400 - NPX 1500 3.201.0003 Water Sealing Ring for Pressure Washers Lavor NPX 1400 - NPX 1500 €5.27

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Original Parts for Pressure Cleaner LW 3000

Fix Your Pressure Cleaner IDRO LW 3000 230/50 -G - 8.009.0012. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
LW 3000 - 8.009.0012
IDRO LW 3000 23/5 -G - 8.009.0012
Chassis Pag.1
# Part Num Description
1 4.012.0149 H05RN-F 3X1 CABLE, 5.2 METRES, SCHUKO F/F
2 4.013.0090 HT 2000/3000 HOUSING WITH PRESSURE GAUGE - G- PANT. 108C
3 3.002.0103 TC SCREW M6X60 TRILOBAL, ZNT
4 4.008.0819 BLACK PRESSURE ADJUSTMENT KNOB
5 4.007.0114 NOZZLE CLEANING NEEDLE, D.0.8 ES P.04
6 4.006.0176 OVERSIZED HOUSING LOCKING RING FOR LW-LS21
7 3.002.0102 SELF-TAPPING SCREW TE 3.9x13 UNI 6950 ZNT
8 4.007.0098 CABLE TIE-DOWN BRACKET
9 3.406.0018 HEYCO SR6 P-4 CABLE CLAMP
10 3.099.0066 WHEEL CAP FOR SP150, RED RAL 3020
11 3.099.0051 BLOK 12 WHEEL LOCK (HUB D.12)
12 3.006.0023 WHEEL D.150, HOLE 12, BLACK (SP 150)
13 3.099.0071 ALUMINUM EXPANSION RIVET 4.9x18
14 5.013.0015 TROLLEY WITH REMOVABLE HANDLE, VER. N.
15 4.008.0172 TRANSPARENT TUBE 6x9 L=510mm
16 4.008.0523 LP-LW DETERGENT TANK
17 4.608.0027 DIA. 30 CAP FOR FIRE 100 TANK -N-
18 4.008.0168 REMOVABLE HANDLE FOR TROLLEY
19 3.100.0082 3/4 BLACK QUICK COUPLING WITH SEAL
20 4.018.0061 EXT HOSE 1/4 140BAR L=8000 1/4F-GIR.M22x1,5 D.15
21 6.001.0028 EXT GUN S'01 UL
23 6.002.0191C EXT LANCIA S'99 1.10 A/B (GREEN)
Motor Pump Pag.2
0 5.001.0225 MOTOP. OMNIA'97 230/50 H. 90 LI TOP OUTPUT + SIDE MANUAL SWITCH, NF WIRING
1 5.009.0165 HOB SWITCH COVER ASSEMBLY
2 5.009.0213 EXTERNAL SWITCH 0/1 BIP16(8)-12(10)A
3 3.404.0022 EXTERNAL CAPACITOR 30mF 450V F/M
4 3.200.0037 OR SEAL 40.65X5.35 REF. 6162
5 3.099.0055 RING NUT 1/2 F HOLE D. 12.5 (REF. 200.020) ITEM OUT OF STOCK
6 3.200.0034 OR SEAL 9.12X3.53
7 4.008.0125 STARJET ELECTRIC BOX LID
8 3.002.0112 TC-TORX SCREW T15 3.9X25 HI-LO ZNT
9 4.008.0137 FOAM RUBBER SEAL 124X59X3.2 TH. 3
10 4.007.0100 STUD FOR SCREW GROUND ZNT
11 4.008.0135 ELECTRIC BOX FOR LIQUID ELECTRIC MOTOR WITH INT. HOLE
12 4.008.0030 FAN COVER FOR INTEGRATED CASING, M. PLASTIC
13 3.099.0049 STOP RING D.23 FOR FAN
14 3.099.0001 80mm FAN WITH PREDISPOSITION LOCKING RING
15 5.002.0027 LI 230/50 HOUSING, 90 mm HIGH CABLES, EXP. 1
16 3.001.0001 6204-2Z RADIAL BALL BEARING (X ELECTRIC MOTOR, 150°C)
17 5.005.0001 ROTOR SHAFT, 65 mm, 90 mm, NORMAL
18 5.009.0002 BEST MOTOR FLANGE (FINISHED)
19 3.200.0002 OR SEAL, 90 x 2.5 mm
20 3.201.0001 SEAL RING, 20/35/6/6.5 mm, BABS L
21 3.002.0015 M6 x 25 T-Slot Screw, ZNT
22 3.001.0031 6304 RADIAL BALL BEARING
23 4.005.0005 6.45 DIE-CAST PLATE
24 3.002.0011 M8 x 22 T-Slot Screw, 8.8 mm, ZNT, WHITE, UNI 5931
25 3.001.0003 EXTERNAL THROTTLE BEARING ROLLER WHEEL AS4565
26 3.001.0025 AXK4565 TYPE NEEDLE ROLLER CAGE PLASTIC
27 4.007.0001 EXTERNAL THRUST BEARING D.65x30x6 (C10Pb) FINISHED
28 5.009.0086 PISTON/STOP ASSEMBLY D.15 OMNIA RECT.
29 4.007.0011 PISTON RETURN SPRING D.15 d.3 L.45
30 3.002.0003 TCEI SCREW M8X25 UNI 5931 ZNT
31 4.005.0184 PISTON GUIDE BODY BEST FOR BAYONET CAP
32 3.201.0002 BADSLSF SEALING RING 15X25, 4X5/7
37 5.009.0271 PRESSURE REGULATOR FOR OMNIA '97
38 3.200.0036 OR SEAL 4X2.5 SH.70 VITON
39 5.609.0041 EXTERNAL CHECK VALVE HEX. BRASS
40 4.007.0324 EXTERNAL VALVE SPRING CHECK VALVE D.4.8-6 L=20 THREAD 0.6 STAINLESS STEEL
41 4.006.0169 INJECTOR DIAM. 1.8 FOR PARTNER/OMNIA
42 3.200.0022 OR SEAL 9.25X1.78 REF. 2037
43 3.200.0026 OR SEAL 14X1.78 NBR SH 70
44 4.006.0168 OUTLET FITTING M22X1.5 FOR OMNIA'97
45 3.200.0019 OR SEAL 12.4X1.78 SH90
46 5.009.0101 INLET/OUTLET VALVE CAP WITH O-RING MOUNTED
47 5.009.0005 INLET/OUTLET VALVE LOBBER 1
48 6.005.0030 HOSE HOSE FOR DETERGENT SUCTION COMPLETE WITH O-RING
49 3.005.0001 420 STAINLESS STEEL BALL DIAM. 5 (precision grade G 500)
50 4.007.0014 EXTERNAL DETERGENT CHECK VALVE SPRING 4.5/6 L=7 THREAD D.0.3 STAINLESS STEEL
51 4.006.0109 1/8 BAS TAPERED CAP
52 4.607.0095 D.8X16 SPRING 0.8 THREAD
53 3.005.0009 11/32 STAINLESS STEEL 420 B BALL
54 4.607.0098 STAINLESS STEEL VALVE SEAL SEAT L2
55 3.200.0013 OR SEAL 11.1 X 1.78 REF. 114
56 4.006.0170 SEAL SEAT SPACER FOR OMNIA'97 HEAD
58 4.008.0031 WATER INTAKE FILTER D.16 TAPERED
59 4.005.0124 OMNIA '97 HEAD, IMPREGNATED ALUMINUM
60 3.002.0139 TCEI SCREW M8X35 ZNT
61 4.006.0011 SPACER FOR INTAKE VALVE
62 3.107.0009 PRESSURE GAUGE D.40 0/160 BAR 1/8 G GLYCERINE-FREE
63 5.009.0127 ASSEMBLY OF REGULATOR ROD FOR COMPENSATOR VALVE WITH CONNECTOR
73 5.009.0053 BAYONET OIL CAP WITH MOUNTED ORING
74 5.009.0207 ASSEMBLY CAP FOR BEST OIL CHAMPION VERTICAL + OR SH90
75 5.009.0008 COMPLETE BUSHING FOR SECOND WATER SEAL
76 3.200.0003 OR SEAL 25.12 X 1.78 RI F.2100
77 3.201.0003 SEAL RING N.15X22X4 WATER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
LW 3000 - 8.009.0012
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

Lavor LW 3000 Parts Drawing

Lavor LW 3000 Parts Drawing

Download (963.38KB)

You might also like

Adjustable Lance 6.002.0191C S'99 High/Low Pressure Ø 1.1
Lavorwash S.p.A. SKU: 6.002.0191C
Adjustable Lance 6.002.0191C S'99 High/Low Pressure Ø 1.1
Adjustable Lance 6.002.0191C S'99 High/Low Pressure Ø 1.1 Genuine Replacement part Lavor, Adjustable Lance S'99 High/Low Pressure Ø 1.1 for Pressure Washers Predator 160 WPS - Tuono 20 - Rhino 150. Part suitable for the following high...
AVAILABLE €16.28
Details
Quick Coupling 3/4F for High Pressure Washers Lavor
Lavorwash S.p.A. SKU: 3.100.0082
Quick Coupling 3/4F for High Pressure Washers Lavor
Quick Coupling 3/4F  for High Pressure Washers Lavor Genuine Replacement part Lavor, Quick Coupling 3/4F 3.100.0082 for Cold Water High Pressure Washers Fury 110 - Ride 110 - Race 125...
AVAILABLE €1.63
Details
Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 4.008.0031
Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24
Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 Original replacement part Lavor, Inlet Water Filter H20 D.16 Conical for Pressurte Washers STORM II 17 - STORM II PLUS 21 - BEST 24.  Part for the following products: -...
AVAILABLE €2.07
Details
High Pression Hose for Pressure Washer BEST 24
Lavorwash S.p.A. SKU: 4.018.0061
High Pression Hose for Pressure Washer BEST 24
High Pression Hose for Pressure Washer BEST 24 Genuine Part Lavor, High Pression Hose 1/4 18MPa L8000 1/4 Female Swivel M22x1,5K15 for Pressure Washer HPC BEST 24 230/50 - Y - TS EU HOSE REEL 2 L LWS. Part suitable for...
Last items in stock €30.00
Details
Kit Valve Total-Stop Automatic Stop System for Washers Lavor ARMY 110
Lavorwash S.p.A. SKU: 5.009.0716
Kit Valve Total-Stop Automatic Stop System for Washers Lavor ARMY 110
Kit Valve Total-Stop Automatic Stop System for Washers Lavor ARMY 110 Original replacement part Lavor, Kit Valvola Total-Stop Automatic Stop System PT'03 Cable L=530 Spring 13KG for ARMY 110 - MARINE 125 - NAVY 140. Part for the...
Usually Ships in: 7/10 Business Days Approx. €16.00
Details
Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145
Lavorwash S.p.A. SKU: 5.008.0261
Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145
Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145 Original replacement part Lavor, Head PT'03 EVO D.12 for ENDURO 145 - ARMY 110 - MARINE 125 - NAVY 140 - RAPTOR 21 - STORM II 18 - STORM II PLUS 21. Part for the following...
AVAILABLE €28.99
Details
Plate Assembly with Crown for Pressure Washer Lavor ENDURO 145
Lavorwash S.p.A. SKU: 5.009.0726
Plate Assembly with Crown for Pressure Washer Lavor ENDURO 145
Plate Assembly with Crown for Pressure Washer Lavor ENDURO 145 Original replacement part Lavor, Plate Assembly 5'30 PT'03 (U76) with Crown Z 62 for ENDURO 145 - ARMY 110 - MARINE 125 - NAVY 140 - RAPTOR 21 - STORM II 18. Part for the...
Last items in stock €6.90
Details
Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145
Lavorwash S.p.A. SKU: 6.005.0311
Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145
Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145 Original replacement part Lavor, Kit 283 LW Needle Bearing for Motorpump PT'03 (U76) for ENDURO 145 - ARMY 110 - MARINE 125 - NAVY 140 - RAPTOR 21 - STORM II. Part for...
AVAILABLE €5.50
Details
Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110
Lavorwash S.p.A. SKU: 6.005.0588
Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110
Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110 Original replacement part Lavor, Kit LW Intake Delivery Valves for High Pressure Washers ARMY 110 - MARINE 125 - NAVY 140. Part for the following products: - R80880029C -...
AVAILABLE €27.72
Details
Oil Seal 20-35-6-6.5 for Washer Lavor GIANT 24
Lavorwash S.p.A. SKU: 3.201.0001
Oil Seal 20-35-6-6.5 for Washer Lavor GIANT 24
Oil Seal 20-35-6-6.5 for Washer Lavor GIANT 24 Original replacement part Lavor, Oil Seal 20/35/6/6,5 BABS L for Pressure Washers GIANT 24 - GIANT 28 - TEMPESTA 24 - TORMENTA 28 - VERTIGO 28 PLUS. Part for the following products: -...
AVAILABLE €2.76
Details
Gasket O-Ring 11,1x1,78 for Pressure Washer Lavor GIANT 24
Lavorwash S.p.A. SKU: 3.200.0013
Gasket O-Ring 11,1x1,78 for Pressure Washer Lavor GIANT 24
Gasket O-Ring 11,1x1,78 for Pressure Washer Lavor GIANT 24 Original replacement part Lavor, Gasket O-Ring 11,1x1,78 Rif.114 for Pressure Washers GIANT 24 - GIANT 28 - TEMPESTA 24 - MARSHALL 2300 - KARJET PROFI 130. Part for the...
AVAILABLE €1.66
Details
Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018
Lavorwash S.p.A. SKU: 3.200.0019
Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018
Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018 Genuine replacement part Lavor, Gasket O-Ring 12.4X1.78 SHORE 90 for Pressure Washer Pressure Washer FKX 1018 230/50 TS -R- (VAPORNOVA)- 8052001. Part for the following...
AVAILABLE €1.70
Details
O-Ring 25.12x1.78 for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 3.200.0003
O-Ring 25.12x1.78 for Pressure Washers Lavor NPX 1400 - NPX 1500
O-Ring 25.12x1.78 for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, O-Ring Gasket 25.12x1.78 REF.2100 for Pressure Washers  NPX 1400  8.605.0048 - NPX 1500 8.605.0049. Part for the following products: -...
AVAILABLE €1.70
Details
Pin 10x70 for Pressure Washer Lavor Predator 160 WPS
Lavorwash S.p.A. SKU: 4.007.0205
Pin 10x70 for Pressure Washer Lavor Predator 160 WPS
Pin 10x70 for Pressure Washer Lavor Predator 160 WPS Genuine replacement part Lavor, Pin 10x70 for Drive Wooble Plate Assembly with Crown for Pressure Washer Predator 160 WPS 220-240~50/60 -V/N- TS EU C/AVV. LWS 8.101.0012. Part for...
AVAILABLE €7.68
Details
Delivery Suction Valve for Pressure Washer Lavor FKX 1018
Lavorwash S.p.A. SKU: 5.009.0005
Delivery Suction Valve for Pressure Washer Lavor FKX 1018
Delivery Suction Valve for Pressure Washer Lavor FKX 1018 Genuine replacement part Lavor, Delivery Suction Valve for Pressure Washer Pressure Washer FKX 1018 230/50 TS -R- (VAPORNOVA)- 8052001. Part for...
Usually Ships in: 7/10 Business Days Approx. €9.23
Details
Fiber Head for Pressure Cleaner Lavor ED
Lavorwash S.p.A. SKU: 5.008.0157
Fiber Head for Pressure Cleaner Lavor ED
Fiber Head for Pressure Cleaner Lavor ED Original replacement part Lavor, Fiber Head Ed'99 TS Direct for Pressure Cleaner Lavor ED 230/50 -G- TS 2 LANCE-EU- (LWS) - 80270701-1 Part for the following products: -  Pressure Cleaner Lavor...
Last items in stock €57.84
Details
Lavor Body Guide for NPX 1400
Lavorwash S.p.A. SKU: 4.005.0184
Lavor Body Guide for NPX 1400
Lavor Body Guide for Pressure Cleaner NPX 1400 Genuine replacement part Lavor, Piston Body Guide best whit wings 01' for Pressure Cleaner NPX 1400 - TANGO KW 24. Part for the following products: -  Pressure Cleaner Lavor NPX...
Last items in stock €66.79
Details
Lavor Disk As for KARJET PROFI130
Lavorwash S.p.A. SKU: 3.001.0003
Lavor Disk As for KARJET PROFI130
Lavor Disk As for Pressure Cleaner KARJET PROFI130 Original replacement part Lavorwash, Disk As for Pressure Cleaners KARJET PROFI130 - FKX 1018. Part for the following products: -  Pressure Cleaner Lavor KARJET PROFI130 -...
Usually Ships in: 10 Business Days Approx. €3.33
Details
Lavor Bearing Washer for LP 20 EHR
Lavorwash S.p.A. SKU: 4.007.0001
Lavor Thrust Shoe for LP 20 EHR
Lavor Thrust Shoe for Pressure Cleaner LP 20 EHR Original replacement part Lavorwash, Thrust Shoe D.65x30x6 (C10pb) Finished for Pressure Cleaners LP 20 EHR - FKX 1018. Part for the following products: - ...
Usually Ships in: 10 Business Days Approx. €5.83
Details
Lavor Needle Roller Cage for EQ18
Lavorwash S.p.A. SKU: 3.001.0025
Lavor Needle Roller Cage for EQ18
Lavor Needle Roller Cage for Pressure Cleaner EQ18 Original replacement part Lavorwash, Needle Roller Cage Type Axk4565 -STEEL- for Pressure Cleaners EQ18 - MISSOURI. Part for the following products: - ...
Usually Ships in: 10 Business Days Approx. €3.48
Details
Lavor Traction Spring Lever for SCL QUICK 36B CBT
Lavorwash S.p.A. SKU: 00030-00682 ex 4.507.0522
Lavor Traction Spring Lever for SCL QUICK 36B CBT
Lavor Traction Spring Lever for Floor Scrubber Drier SCL QUICK 36B CBT Original replacement part Lavorwash, Traction Lever Spring for Floor Scrubber Drier SCL QUICK 36B CBT - L1 36B CBT. Part for the following products: -  Floor...
Usually Ships in: 10 Business Days Approx. €3.09
Details
Comments (0)
