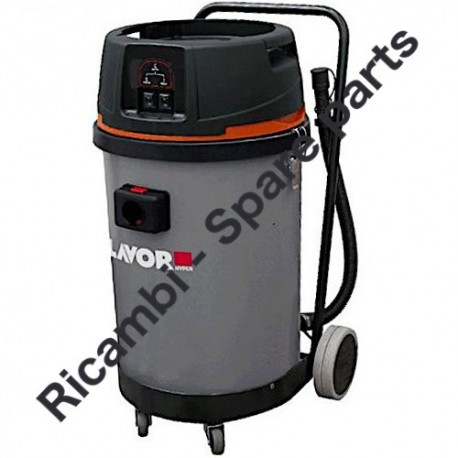

Lavorwash S.p.A.

Lavor SP378F W&D Parts

SKU: SP378F W&D - 8.217.0513
€25.92
VAT included

Lavor Parts for Vacum Cleaner SP378F W&D

Lavor original spare parts for to replace broken parts for to fix Vacum Cleaner SP378F W&D 220-240/50-60 EU SCIROCCO C/SCARICO - 8.217.0513.
Lavor SP378F W&D Parts
  • Lavor SP378F W&D Parts
  • Lavor SP378F W&D Parts Drawing
  • Lavor SP378F W&D Parts Drawing - 1
Lavorwash S.p.A.

Lavor SP378F W&D Parts

SKU: SP378F W&D - 8.217.0513 Condition: New
€25.92
VAT included

Lavor Parts for Vacum Cleaner SP378F W&D

Lavor original spare parts for to replace broken parts for to fix Vacum Cleaner SP378F W&D 220-240/50-60 EU SCIROCCO C/SCARICO - 8.217.0513.
settings 36 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
36 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

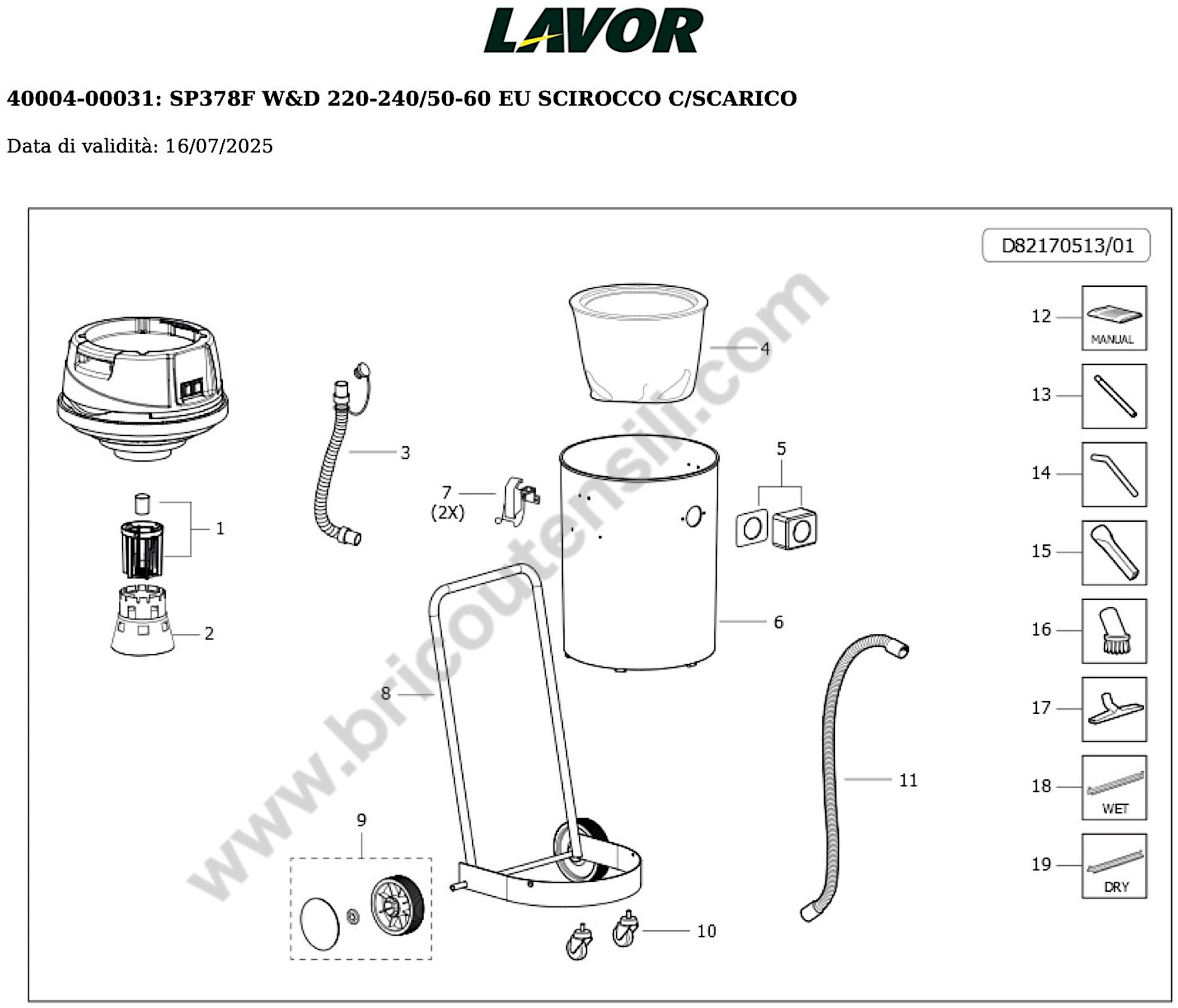

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6.205.0145 WINDY BASKET + FLOAT KIT €25.17
2
 photo_cameraImage coming soon 4.208.0076 PROF. EXTRACTOR FILTER TENSION CONE '03 BLACK €30.05
3
 photo_cameraImage coming soon 6.205.0075 EXHAUST HOSE KIT FOR PROFESSIONAL EXTRACTION (0.68 m) €42.91
4
 photo_cameraImage coming soon 5.509.0039 CLOTH FILTER BAG FOR DOMUS/TAURUS €28.66
5
 photo_cameraImage coming soon 6.205.0071 NOZZLE + GASKET KIT FOR PROFESSIONAL VACUUM CLEANERS €99.36
6
 photo_cameraImage coming soon 4.208.0390 DOMUS-TAURUS '03 ECO DRUM WITH HOLE IN REAR SCREW, GR.CH. RAL.7046 €104.70
7
 photo_cameraImage coming soon 3.099.0454 HOOK 2.05/621 ZINC-PLATED FOR TAURUS '03 TANK €62.88
8
 photo_cameraImage coming soon 5.213.0005 SIMPLE FRAME FOR DOMUS/TAURUS FOR EXHAUST PIPE, THICKNESS 0.3 €122.04
9
 photo_cameraImage coming soon 6.205.0069 WHEEL KIT D.175 WITH BLACK STUD €28.91
10
 photo_cameraImage coming soon 3.006.0058 PIVOT WHEEL D.60 H.82 M10X20 FOR VERSION ECO (A122211TGN) €14.80
11
 photo_cameraImage coming soon 5.209.0021 FLEX HOSE 2.5 M D.40 COMPLETE €27.51
12
 photo_cameraImage coming soon 7.300.0707 LIBECCIO-SCIROCCO MANUAL + CE LAVOR 18L A5 48F €2.15
13
 photo_cameraImage coming soon 3.753.0110 STRAIGHT PIPE D.40 CHROMED STEEL €7.55
14
 photo_cameraImage coming soon 3.753.0109 CURVED PIPE D.40 CHROMED STEEL €8.39
15
 photo_cameraImage coming soon 3.754.0048 FLAT NOZZLE D.40 FOR ZEUS - DOMUS - TAURUS €3.09
16
 photo_cameraImage coming soon 3.754.0049 ROUND BRUSH D.40 FOR ZEUS - DOMUS - TAURUS €4.50
17
 photo_cameraImage coming soon 3.754.0083 BRUSH BODY, D.37 L=400 (SP) WITH CLAMPS, GREY RAL 7046 €13.12
18
 photo_cameraImage coming soon 3.754.0246 PROFESSIONAL LIQUID ACCESSORY FOR BRUSH BODY, L=400 (SP) €9.00
19
 photo_cameraImage coming soon 3.754.0084 BRISTLE ACCESSORY FOR BRUSH BODY, L=400 (SP) €13.12
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.208.0321 PROFESSIONAL SUCTION HANDLE, P82.0322 BLACK €3.32
2
 photo_cameraImage coming soon 4.208.0322 LIBECCIO/SCIROCCO HEAD BLACK (P82.0322) €30.44
3
 photo_cameraImage coming soon 4.008.0277 FIX PAD CABLE HOLDER €1.72
4
 photo_cameraImage coming soon 3.406.0031 CABLE GLAND 60X12X15.5 EPDM BLACK €3.32
5
 photo_cameraImage coming soon 4.012.0217 H05VV-F CABLE 2X1.5 7.5 MT. SCHUKO ANTI-SPRING WITH TERMINAL TIP €47.14
6
 photo_cameraImage coming soon 4.208.0360 UNDER-COVER 3 MOTORS-A-PANT.158C PROF. ASPIRATOR'03 €30.05
7
 photo_cameraImage coming soon 4.215.0015 HLC24AU SP60 SMOOTH SPONGE DEPTH 340MM 3 MOTORS (REF.1024) €38.16
8
 photo_cameraImage coming soon 4.208.0071 3 MOTORS OVER-SEPARATOR BLACK PROF. ASPIRATOR'03 €35.70
9
 photo_cameraImage coming soon 4.212.0025 2 MOTOR CONTROL SWITCH WIRING (TAURUS) €3.32
10
 photo_cameraImage coming soon 4.212.0006 1.5 SECTION WIRING FOR DEEP SUCTION UNITS WITHOUT ANTI-STATIC PLATE €6.99
11
 photo_cameraImage coming soon 4.208.0069 SWITCH HOLDER FOR DEEP SUCTION UNITS, '03 BLACK €3.32
12
 photo_cameraImage coming soon 5.009.0538 SWITCH ASSY + PROTECTION COVER14 (14) €14.95
13
 photo_cameraImage coming soon 6.205.0204 MOTOR REPLACEMENT KIT 37550018 WITH ADAPTER - LAVOR - €92.70
14
 photo_cameraImage coming soon 6.205.0070 SEAL KIT + PROFESSIONAL INTAKE VALVE (TAURUS/DOMUS/COSTELL.) €57.93
15
 photo_cameraImage coming soon 4.215.0126 AIR OUTLET SPONGE MM 80X25X1250 PPI 60-AU- €22.97
16
 photo_cameraImage coming soon 4.208.0072 LOWER SEPARATOR 3 MOTORS BLACK PROFESSIONAL INTAKE '03 €38.49
17
 photo_cameraImage coming soon 4.208.0293 ENGINE BASE, DEEP SUCTION, '03, GR.SC. RAL.7016 (PANT.432C) €30.05

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Parts for Vacum Cleaner SP378F W&D

Lavor original spare parts for to replace broken parts for to fix Vacum Cleaner SP378F W&D 220-240/50-60 EU SCIROCCO C/SCARICO - 8.217.0513.

In the following tables, look for the spare part and its respective code.
SP378F W&D - 8.217.0513
SP378F W&D 220-240/50-60 EU SCIROCCO C/SCARICO - 8.217.0513
Pag.1
# Part Num Description
0 5.211.0162 FREE HEAD ASS.-SCIR.3MOT.-N/A-CABLE 7.5M THICKNESS SCHUKO W/O PLATE
1 6.205.0145 BASKET+FLOAT KIT FOR WINDY
2 4.208.0076 FILTER TENSION CONE FOR PROF. ASPIRATOR '03 BLACK
3 6.205.0075 DRAIN PIPE KIT FOR PROF. ASPIRATOR (0.68M)
4 5.509.0039 CLOTH FILTER BAG FOR DOMUS/TAURUS
5 6.205.0071 NOZZLE+SEAL KIT X PROFESSIONAL VACUUM CLEANERS
6 4.208.0390 DOMUS-TAURUS'03 ECO DRUM W/HOLE IN REAR SCREEN GR.CH.RAL.7046
7 3.099.0454 HOOK 2.05/621 ZNT FOR TAURUS '03 DRUM
8 5.213.0005 SIMPLE FRAME FOR DOMUS/TAURUS FOR EXHAUST PIPE TH.03
9 6.205.0069 WHEEL KIT D.175 W/BLACK STUD
10 3.006.0058 PIVOT WHEEL D.60 H82 M10X20 FOR VERS. ECO (A122211TGN)
11 5.209.0021 FLEXIBLE HOSE MT.2,5 D.40 COMPLETE
12 7.300.0707 MANUAL LIBECCIO-SCIROCCO +CE LAVOR 18L A5 48F
13 3.753.0110 STRAIGHT HOSE D.40 CHROMED STEEL
14 3.753.0109 CURVED HOSE D.40 CHROMED STEEL
15 3.754.0048 FLAT LANCE D.40 FOR ZEUS-DO MUS-TAURUS
16 3.754.0049 CIRCULAR BRUSH D.40 FOR ZEUS-DOMUS-TAURUS
17 3.754.0083 BRUSH BODY D.37 L=400(SP)W/CLAMPS GREY RAL.7046
18 3.754.0246 PROFESSIONAL LIQUID ACCESSORY FOR BRUSH BODY L=400(SP.)
19 3.754.0084 BRISTLED ACCESSORY FOR BRUSH BODY L=400(SP.)
ASS.TESTATA LIB.-SCIR.3MOT.-N/A-CAVO 7,5M SP.SCHUKO S/PIAST. Pag.2
1 4.208.0321 PROFESSIONAL ASPIRATION HANDLE P82.0322 BLACK
2 4.208.0322 BLACK LIBECCIO/SCIROCCO HEAD (P82.0322)
3 4.008.0277 FIXED WALL CABLE CLIP
4 3.406.0031 CABLE GLAND 60X12X15.5 EPDM BLACK
5 4.012.0217 CABLE H05VV-F 2X1.5 MT.7.5 THICKNESS SCHUKO ANTISPECT.W/TERMIN. TIP
6 4.208.0360 UNDER-COVER 3 MOTORS-A-PANT.158C PROF. ASPIRATOR'03
7 4.215.0015 HLC24AU SP60 SMOOTH SPONGE DEPTH 340MM 3 MOTORS (REF.1024)
8 4.208.0071 3 MOTORS OVER-SEPARATOR BLACK PROF. ASPIRATOR'03
9 4.212.0025 2 MOTOR CONTROL SWITCH WIRING (TAURUS)
10 4.212.0006 WIRING SECTION 1.5 FOR PROF. ASPIRATORS WITHOUT ANTISTATIC PLATE
11 4.208.0069 PROF. ASPIRATOR SWITCH HOLDER BLACK '03
12 5.009.0538 SWITCH ASSEMBLY 0/1 + TRANSPARENT PROTECTION 14(14)
13 6.205.0204 MOTOR REPLACEMENT KIT 37550018 WITH ADAPTER-WORKING
14 6.205.0070 GASKET KIT + PROFESSIONAL INTAKE VALVE (TAURUS/DOMUS/COSTELL.)
15 4.215.0126 AIR OUTLET SPONGE MM80X25X1250 PPI 60-AU-
16 4.208.0072 LOWER SEPARATOR 3 MOTORS BLACK PROFESSIONAL INTAKE '03
17 4.208.0293 ENGINE BASE PROFESSIONAL INTAKE '03 GR.SC.RAL.7016(PANT.432C)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
SP378F W&D - 8.217.0513
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

Lavor SP378F W&D Parts Drawing

Lavor SP378F W&D Parts Drawing

Download (559.11KB)
