Lavorwash S.p.A.

Lavor LX278F W&D Parts

SKU: LX278F W&D - 8.216.0515
€453.38
VAT included

Lavor Parts for Vacum Cleaner LX278F W&D

Lavor original spare parts for to replace broken parts for to fix Vacum Cleaner LX278F W&D 220-240/50-60 EU LIBECCIO C/SCARICO - 8.216.0515.
Lavor LX278F W&D Parts
  • Lavor LX278F W&D Parts
  • Lavor LX278F W&D Parts Drawing
  • Lavor LX278F W&D Parts Drawing - 1
Lavorwash S.p.A.

Lavor LX278F W&D Parts

SKU: LX278F W&D - 8.216.0515 Condition: New
€453.38
VAT included

Lavor Parts for Vacum Cleaner LX278F W&D

Lavor original spare parts for to replace broken parts for to fix Vacum Cleaner LX278F W&D 220-240/50-60 EU LIBECCIO C/SCARICO - 8.216.0515.
settings 35 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
35 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

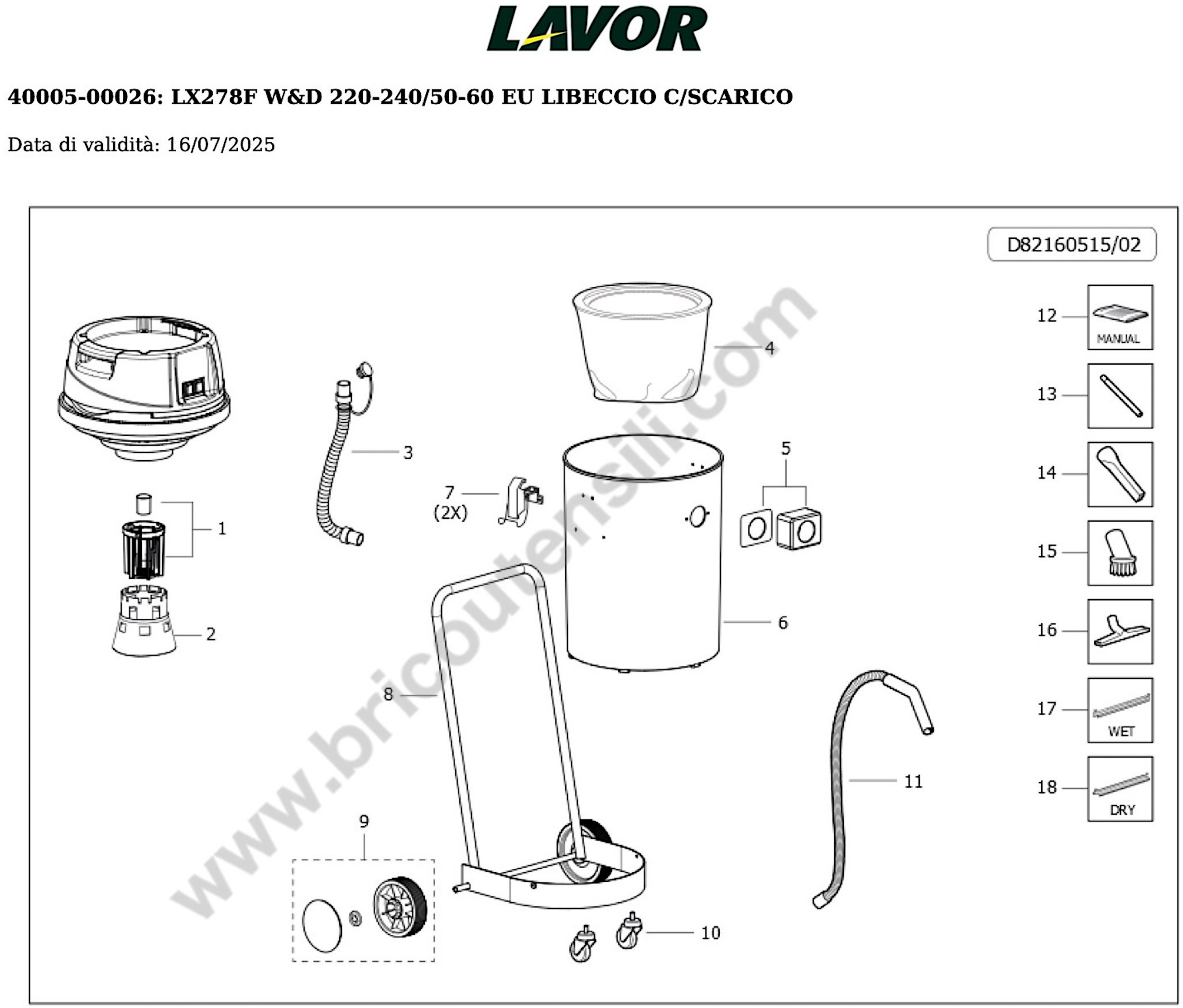

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
photo_cameraImage coming soon 5.211.0168 ASSEMBLY FREE-STANDING/SUCTION HEAD 2 MOTORS - N/A - 7.5M CABLE, SCHUKO, WITH PLATE €440.18
1
 photo_cameraImage coming soon 6.205.0145 WINDY BASKET + FLOAT KIT €25.17
2
 photo_cameraImage coming soon 4.208.0076 PROF. EXTRACTOR FILTER TENSION CONE '03 BLACK €30.05
3
 photo_cameraImage coming soon 6.205.0075 EXHAUST HOSE KIT FOR PROFESSIONAL EXTRACTION (0.68 m) €42.91
4
 photo_cameraImage coming soon 5.509.0039 CLOTH FILTER BAG FOR DOMUS/TAURUS €28.66
5
 photo_cameraImage coming soon 6.205.0071 NOZZLE + GASKET KIT FOR PROFESSIONAL VACUUM CLEANERS €99.36
6
 photo_cameraImage coming soon 3.751.0024 DOMUS/TAURUS DRUM FOR ECO D.420X585H WITH EXHAUST HOLE €108.30
7
 photo_cameraImage coming soon 3.099.0454 HOOK 2.05/621 ZINC-PLATED FOR TAURUS '03 TANK €62.88
8
 photo_cameraImage coming soon 5.213.0005 SIMPLE FRAME FOR DOMUS/TAURUS FOR EXHAUST PIPE, THICKNESS 0.3 €122.04
9
 photo_cameraImage coming soon 6.205.0069 WHEEL KIT D.175 WITH BLACK STUD €28.91
10
 photo_cameraImage coming soon 3.006.0058 PIVOT WHEEL D.60 H.82 M10X20 FOR VERSION ECO (A122211TGN) €14.80
11
 photo_cameraImage coming soon 5.209.0102 2.5M FLEXIBLE HOSE D.40 WITH RVA CU AIR SYSTEM €43.03
13
 photo_cameraImage coming soon 3.753.0039 PVC EXTENSION D.45 L=0.5M €4.14
14
 photo_cameraImage coming soon 3.754.0048 FLAT NOZZLE D.40 FOR ZEUS - DOMUS - TAURUS €3.09
15
 photo_cameraImage coming soon 3.754.0049 ROUND BRUSH D.40 FOR ZEUS - DOMUS - TAURUS €4.50
16
 photo_cameraImage coming soon 3.754.0201 BRUSH BODY, D.40, L=400, FOR EXTENSION, PLATE (SP) WITH GRIPPER, RAL 7046 €9.80
17
 photo_cameraImage coming soon 3.754.0085 LIQUID ACCESSORY FOR BRUSH BODY, L=400 (SP) €15.12
18
 photo_cameraImage coming soon 3.754.0084 BRISTLE ACCESSORY FOR BRUSH BODY, L=400 (SP) €13.12
28
 photo_cameraImage coming soon 7.300.0707 LIBECCIO-SCIROCCO MANUAL + CE LAVOR 18L A5 48F €2.15
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

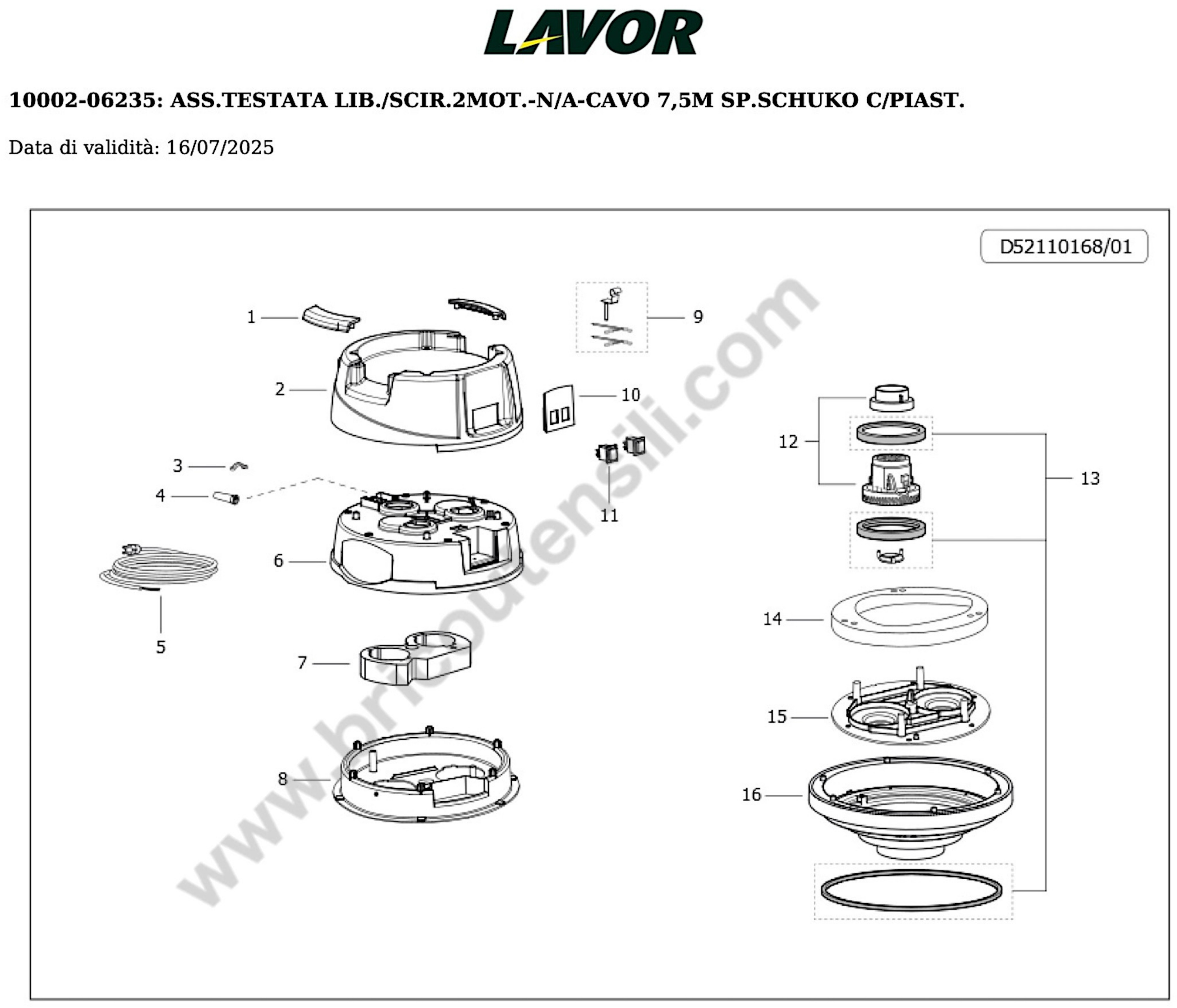

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.208.0321 PROFESSIONAL SUCTION HANDLE, P82.0322 BLACK €3.32
2
 photo_cameraImage coming soon 4.208.0322 LIBECCIO/SCIROCCO HEAD BLACK (P82.0322) €30.44
3
 photo_cameraImage coming soon 4.008.0277 FIX PAD CABLE HOLDER €1.72
4
 photo_cameraImage coming soon 3.406.0031 CABLE GLAND 60X12X15.5 EPDM BLACK €3.32
5
 photo_cameraImage coming soon 4.012.0217 H05VV-F CABLE 2X1.5 7.5 MT. SCHUKO ANTI-SPRING WITH TERMINAL TIP €47.14
6
 photo_cameraImage coming soon 4.208.0349 UNDER-COVER FOR 2 MOTORS-A-PANT. 158C, DEEP SUCTION, '03 €30.05
7
 photo_cameraImage coming soon 4.215.0097 HLC 24 AU SPONGE, 60MM THICK, SMOOTH, D.340MM, 2 MOTORS FOR CONSTELLATION €14.80
8
 photo_cameraImage coming soon 4.208.0086 SUPER SEPARATOR FOR 2 MOTORS, BLACK, DEEP SUCTION, '03 €33.09
9
 photo_cameraImage coming soon 6.205.0074 ANTISTATIC KIT FOR DOMUS/TAURUS €28.32
10
 photo_cameraImage coming soon 4.208.0069 SWITCH HOLDER FOR DEEP SUCTION UNITS, '03 BLACK €3.32
11
 photo_cameraImage coming soon 5.009.0213 EXT SWITCH WITH PROTECTION 12(10) €6.72
12
 photo_cameraImage coming soon 6.205.0204 MOTOR REPLACEMENT KIT 37550018 WITH ADAPTER - LAVOR - €92.70
13
 photo_cameraImage coming soon 6.205.0070 SEAL KIT + PROFESSIONAL INTAKE VALVE (TAURUS/DOMUS/COSTELL.) €57.93
14
 photo_cameraImage coming soon 4.215.0126 AIR OUTLET SPONGE MM 80X25X1250 PPI 60-AU- €22.97
15
 photo_cameraImage coming soon 4.208.0087 LOWER SEPARATOR FOR 2 BLACK PROFESSIONAL INTAKE MOTORS '03 €37.45
16
 photo_cameraImage coming soon 4.208.0293 ENGINE BASE, DEEP SUCTION, '03, GR.SC. RAL.7016 (PANT.432C) €30.05

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Parts for Vacum Cleaner LX278F W&D

Lavor original spare parts for to replace broken parts for to fix Vacum Cleaner LX278F W&D 220-240/50-60 EU LIBECCIO C/SCARICO - 8.216.0515.

In the following tables, look for the spare part and its respective code.
LX278F W&D - 8.216.0515
LX278F W&D 220-240/50-60 EU LIBECCIO C/SCARICO - 8.216.0515
Pag.1
# Part Num Description
0 5.211.0168 ASSEMBLY FREE-STANDING/SUCTION HEAD 2 MOTORS - N/A - 7.5M CABLE, SCHUKO, WITH PLATE
1 6.205.0145 BASKET + FLOAT KIT FOR WINDY
2 4.208.0076 FILTER TENSION CONE FOR PROFESSIONAL VACUUM CLEANER '03 BLACK
3 6.205.0075 DRAIN HOSE KIT FOR PROFESSIONAL VACUUM CLEANER (0.68M)
4 5.509.0039 CLOTH FILTER BAG FOR DOMUS/TAURUS
5 6.205.0071 NOZZLE KIT + SEAL FOR PROFESSIONAL VACUUM CLEANERS
6 3.751.0024 DOMUS/TAURUS DRUM FOR ECO D.420X585H WITH EXHAUST HOLE
7 3.099.0454 2.05/621 ZNT HOOK FOR TAURUS DRUM '03
8 5.213.0005 SIMPLE FRAME FOR DOMUS/TAURUS FOR EXHAUST PIPE TH.03
9 6.205.0069 WHEEL KIT D.175 WITH BLACK STUD
10 3.006.0058 PIVOT WHEEL D.60 H.82 M10X20 FOR VERSION ECO (A122211TGN)
11 5.209.0102 2.5M FLEXIBLE HOSE, D.40, WITH RVA CURVE
13 3.753.0039 PVC EXTENSION, D.45, L=0.5M
14 3.754.0048 FLAT LANCE, D.40, FOR ZEUS-DO MUS-TAURUS
15 3.754.0049 CIRCULAR BRUSH, D.40, FOR ZEUS-DOMUS-TAURUS
16 3.754.0201 BRUSH BODY, D.40, L=400, FOR EXTENSION, PLATE (SP) WITH GRIPPER, RAL 7046
17 3.754.0085 LIQUID ACCESSORY FOR BRUSH BODY, L=400, SP
18 3.754.0084 BRISTLE ACCESSORY FOR BRUSH BODY, L=400, SP
28 7.300.0707 LIBECCIO-SCIROCCO MANUAL + CE LAVOR 18L A5 48F
ASS.TESTATA LIB./SCIR.2MOT.-N/A-CAVO 7,5M SP.SCHUKO C/PIAST. Pag.2
1 4.208.0321 PROF. SUCTION HANDLE, P82.0322, BLACK
2 4.208.0322 HEAD LIBECCIO/SCIROCCO BLACK (P82.0322)
3 4.008.0277 FIXED WALL CABLE CLIP
4 3.406.0031 CABLE GLAND 60X12X15.5 EPDM BLACK
5 4.012.0217 CABLE H05VV-F 2X1.5 7.5 MT. SCHUKO ANTI-SPATTER WITH TERMINAL TIP
6 4.208.0349 UNDER COVER FOR 2 MOTORS - 158C PROFESSIONAL SUCTION '03
7 4.215.0097 HLC 24 AU SPONGE, THICKNESS 60, SMOOTH, D. 340MM, 2 MOTORS FOR COSTELLATION
8 4.208.0086 SUPER SEPARATOR FOR 2 MOTORS, BLACK, PROFESSIONAL SUCTION '03
9 6.205.0074 ANTISTATIC KIT FOR DOMUS/TAURUS
10 4.208.0069 SWITCH HOLDER FOR PROFESSIONAL SUCTION '03, BLACK
11 5.009.0213 SWITCH ASSEMBLY 0/1 BEEP, 12(10)A + TRANSPARENT PROTECTION
12 6.205.0204 MOTOR REPLACEMENT KIT 37550018 WITH ADAPTER - LAVOR
13 6.205.0070 SEAL KIT + VALVE FOR PROFESSIONAL SUCTION (TAURUS/DOMUS/COSTELL.)
14 4.215.0126 AIR OUTLET SPONGE 80X25X1250MM PPI 60-AU-
15 4.208.0087 SEPARATOR LOWER 2 MOTORS BLACK, DEEP SUCTION, '03
16 4.208.0293 ENGINE BASE, DEEP SUCTION, '03, GR.SC. RAL.7016 (PANT.432C)
