Lavorwash S.p.A.

Lavor SP278F W&D Parts

SKU: SP278F W&D -8.216.0516
€380.14
VAT included

Lavor Parts for Vacum Cleaner SP278F W&D

Lavor original spare parts for to replace broken parts for to fix Vacum Cleaner SP278F W&D 220-240/50-60 EU SCIROCCO C/SCARICO -8.216.0516.
Lavor SP278F W&D Parts
  • Lavor SP278F W&D Parts
  • Lavor SP278F W&D Parts Drawing
  • Lavor SP278F W&D Parts Drawing - 1
Lavorwash S.p.A.

Lavor SP278F W&D Parts

SKU: SP278F W&D -8.216.0516 Condition: New
€380.14
VAT included

Lavor Parts for Vacum Cleaner SP278F W&D

Lavor original spare parts for to replace broken parts for to fix Vacum Cleaner SP278F W&D 220-240/50-60 EU SCIROCCO C/SCARICO -8.216.0516.
settings 35 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
35 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
photo_cameraImage coming soon 5.211.0166 LIBECCIO/SCIROCCO 2-MOTOR HEAD ASSEMBLY - N/A - SCHUKO PLUG WITHOUT PLATE €369.07
1
 photo_cameraImage coming soon 6.205.0145 WINDY BASKET + FLOAT KIT €25.17
2
 photo_cameraImage coming soon 4.208.0076 PROF. EXTRACTOR FILTER TENSION CONE '03 BLACK €30.05
3
 photo_cameraImage coming soon 6.205.0075 EXHAUST HOSE KIT FOR PROFESSIONAL EXTRACTION (0.68 m) €42.91
4
 photo_cameraImage coming soon 5.509.0039 CLOTH FILTER BAG FOR DOMUS/TAURUS €28.66
5
 photo_cameraImage coming soon 6.205.0071 NOZZLE + GASKET KIT FOR PROFESSIONAL VACUUM CLEANERS €99.36
6
 photo_cameraImage coming soon 4.208.0390 DOMUS-TAURUS '03 ECO DRUM WITH HOLE IN REAR SCREW, GR.CH. RAL.7046 €104.70
7
 photo_cameraImage coming soon 3.099.0454 HOOK 2.05/621 ZINC-PLATED FOR TAURUS '03 TANK €62.88
8
 photo_cameraImage coming soon 5.213.0005 SIMPLE FRAME FOR DOMUS/TAURUS FOR EXHAUST PIPE, THICKNESS 0.3 €122.04
9
 photo_cameraImage coming soon 6.205.0069 WHEEL KIT D.175 WITH BLACK STUD €28.91
10
 photo_cameraImage coming soon 3.006.0058 PIVOT WHEEL D.60 H.82 M10X20 FOR VERSION ECO (A122211TGN) €14.80
11
 photo_cameraImage coming soon 5.209.0021 FLEX HOSE 2.5 M D.40 COMPLETE €27.51
12
 photo_cameraImage coming soon 7.300.0707 LIBECCIO-SCIROCCO MANUAL + CE LAVOR 18L A5 48F €2.15
13
 photo_cameraImage coming soon 3.753.0110 STRAIGHT PIPE D.40 CHROMED STEEL €7.55
14
 photo_cameraImage coming soon 3.753.0109 CURVED PIPE D.40 CHROMED STEEL €8.39
15
 photo_cameraImage coming soon 3.754.0048 FLAT NOZZLE D.40 FOR ZEUS - DOMUS - TAURUS €3.09
16
 photo_cameraImage coming soon 3.754.0049 ROUND BRUSH D.40 FOR ZEUS - DOMUS - TAURUS €4.50
17
 photo_cameraImage coming soon 3.754.0083 BRUSH BODY, D.37 L=400 (SP) WITH CLAMPS, GREY RAL 7046 €13.12
18
 photo_cameraImage coming soon 3.754.0246 PROFESSIONAL LIQUID ACCESSORY FOR BRUSH BODY, L=400 (SP) €9.00
19
 photo_cameraImage coming soon 3.754.0084 BRISTLE ACCESSORY FOR BRUSH BODY, L=400 (SP) €13.12
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.208.0321 PROFESSIONAL SUCTION HANDLE, P82.0322 BLACK €3.32
2
 photo_cameraImage coming soon 4.208.0322 LIBECCIO/SCIROCCO HEAD BLACK (P82.0322) €30.44
3
 photo_cameraImage coming soon 4.008.0277 FIX PAD CABLE HOLDER €1.72
4
 photo_cameraImage coming soon 3.406.0031 CABLE GLAND 60X12X15.5 EPDM BLACK €3.32
5
 photo_cameraImage coming soon 4.012.0217 H05VV-F CABLE 2X1.5 7.5 MT. SCHUKO ANTI-SPRING WITH TERMINAL TIP €47.14
6
 photo_cameraImage coming soon 4.208.0349 UNDER-COVER FOR 2 MOTORS-A-PANT. 158C, DEEP SUCTION, '03 €30.05
7
 photo_cameraImage coming soon 4.215.0097 HLC 24 AU SPONGE, 60MM THICK, SMOOTH, D.340MM, 2 MOTORS FOR CONSTELLATION €14.80
8
 photo_cameraImage coming soon 4.208.0086 SUPER SEPARATOR FOR 2 MOTORS, BLACK, DEEP SUCTION, '03 €33.09
9
 photo_cameraImage coming soon 4.212.0006 1.5 SECTION WIRING FOR DEEP SUCTION UNITS WITHOUT ANTI-STATIC PLATE €6.99
10
 photo_cameraImage coming soon 4.208.0069 SWITCH HOLDER FOR DEEP SUCTION UNITS, '03 BLACK €3.32
11
 photo_cameraImage coming soon 5.009.0213 EXT SWITCH WITH PROTECTION 12(10) €6.72
12
 photo_cameraImage coming soon 6.205.0204 MOTOR REPLACEMENT KIT 37550018 WITH ADAPTER - LAVOR - €92.70
13
 photo_cameraImage coming soon 6.205.0070 SEAL KIT + PROFESSIONAL INTAKE VALVE (TAURUS/DOMUS/COSTELL.) €57.93
14
 photo_cameraImage coming soon 4.215.0126 AIR OUTLET SPONGE MM 80X25X1250 PPI 60-AU- €22.97
15
 photo_cameraImage coming soon 4.208.0087 LOWER SEPARATOR FOR 2 BLACK PROFESSIONAL INTAKE MOTORS '03 €37.45

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Parts for Vacum Cleaner SP278F W&D

Lavor original spare parts for to replace broken parts for to fix Vacum Cleaner SP278F W&D 220-240/50-60 EU SCIROCCO C/SCARICO -8.216.0516.

In the following tables, look for the spare part and its respective code.

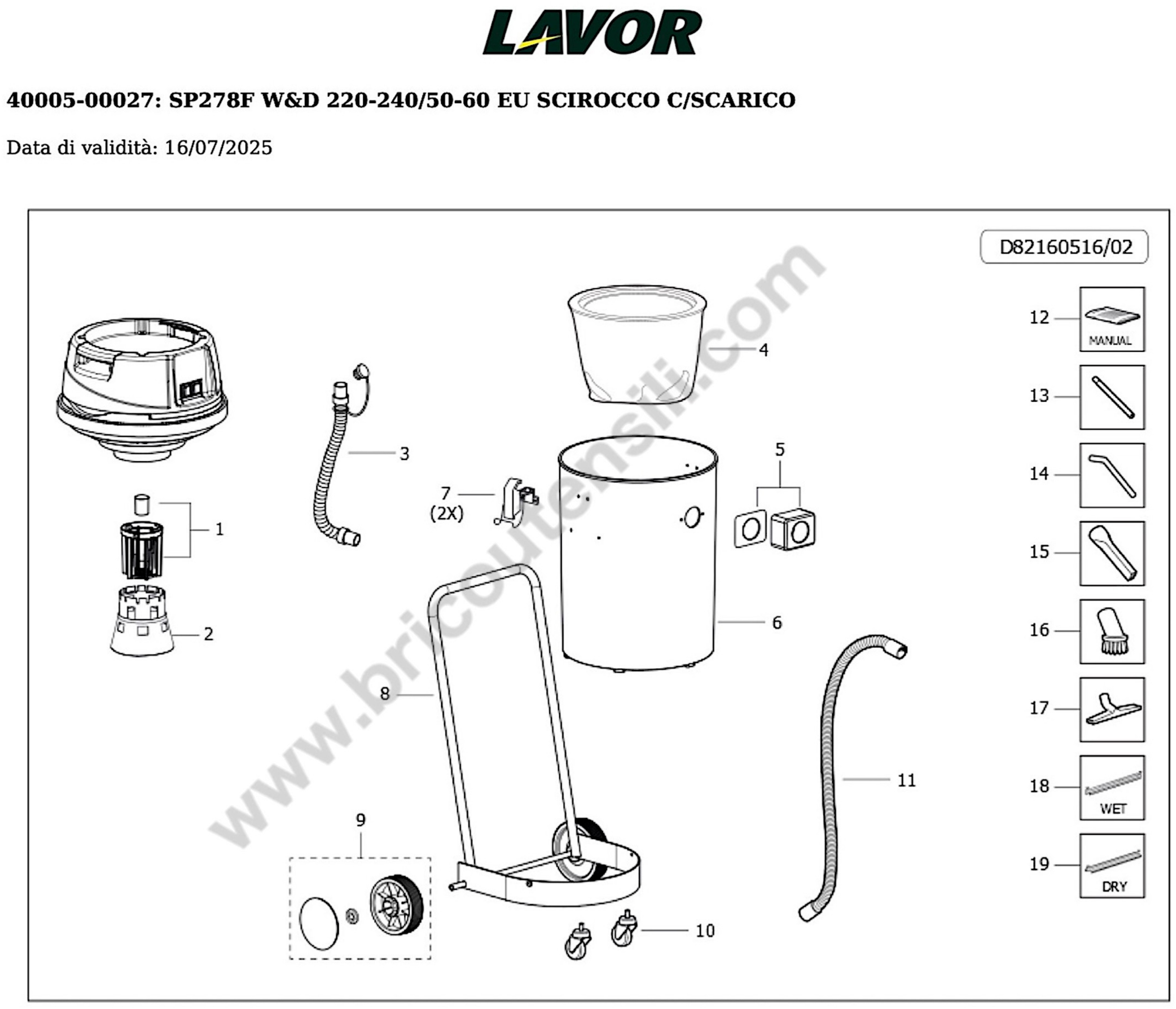

SP278F W&D -8.216.0516
SP278F W&D 220-240/50-60 EU SCIROCCO C/SCARICO
Pag.1
# Part Num Description
0 5.211.0166 LIBECCIO/SCIROCCO 2-MOTOR HEAD ASSEMBLY - N/A - SCHUKO PLUG WITHOUT PLATE
1 6.205.0145 BASHER + FLOAT KIT FOR WINDY
2 4.208.0076 FILTER TENSION CONE FOR PROFESSIONAL EXTRACTION '03 BLACK
3 6.205.0075 EXHAUST HOSE KIT FOR PROFESSIONAL EXTRACTION (0.68 m)
4 5.509.0039 CLOTH FILTER BAG FOR DOMUS/TAURUS
5 6.205.0071 NOZZLE KIT + SEAL FOR PROFESSIONAL VACUUM CLEANERS
6 4.208.0390 DOMUS-TAURUS '03 ECO DRUM WITH HOLE IN REAR SCREW, GR.CH. RAL.7046
7 3.099.0454 HOOK 2.05/621 ZNT FOR TAURUS '03 DRUM
8 5.213.0005 SIMPLE FRAME FOR DOMUS/TAURUS FOR EXHAUST PIPE, THICKNESS 0.3
9 6.205.0069 WHEEL KIT D.175 WITH BLACK STUD
10 3.006.0058 PIVOT WHEEL D.60 H82 M10X20 FOR VERSION ECO (A122211TGN)
11 5.209.0021 2.5M FLEXIBLE HOSE, D.40, COMPLETE
12 7.300.0707 LIBECCIO-SCIROCCO MANUAL + CE LAVOR 18L A5 48F
13 3.753.0110 STRAIGHT HOSE, D.40, CHROMED STEEL
14 3.753.0109 CURVED HOSE, D.40, CHROMED STEEL
15 3.754.0048 FLAT LANCE, D.40, FOR ZEUS-DOMUS-TAURUS
16 3.754.0049 ROUND BRUSH, D.40, FOR ZEUS-DOMUS-TAURUS
17 3.754.0083 BRUSH BODY, D.37, L=400 (SP) WITH CLAMPS, GREY RAL 7046
18 3.754.0246 PROFESSIONAL LIQUID ACCESSORY FOR BRUSH BODY, L=400 (SP)
19 3.754.0084 BRIST ACCESSORY FOR BRUSH BODY, L=400 (SP)

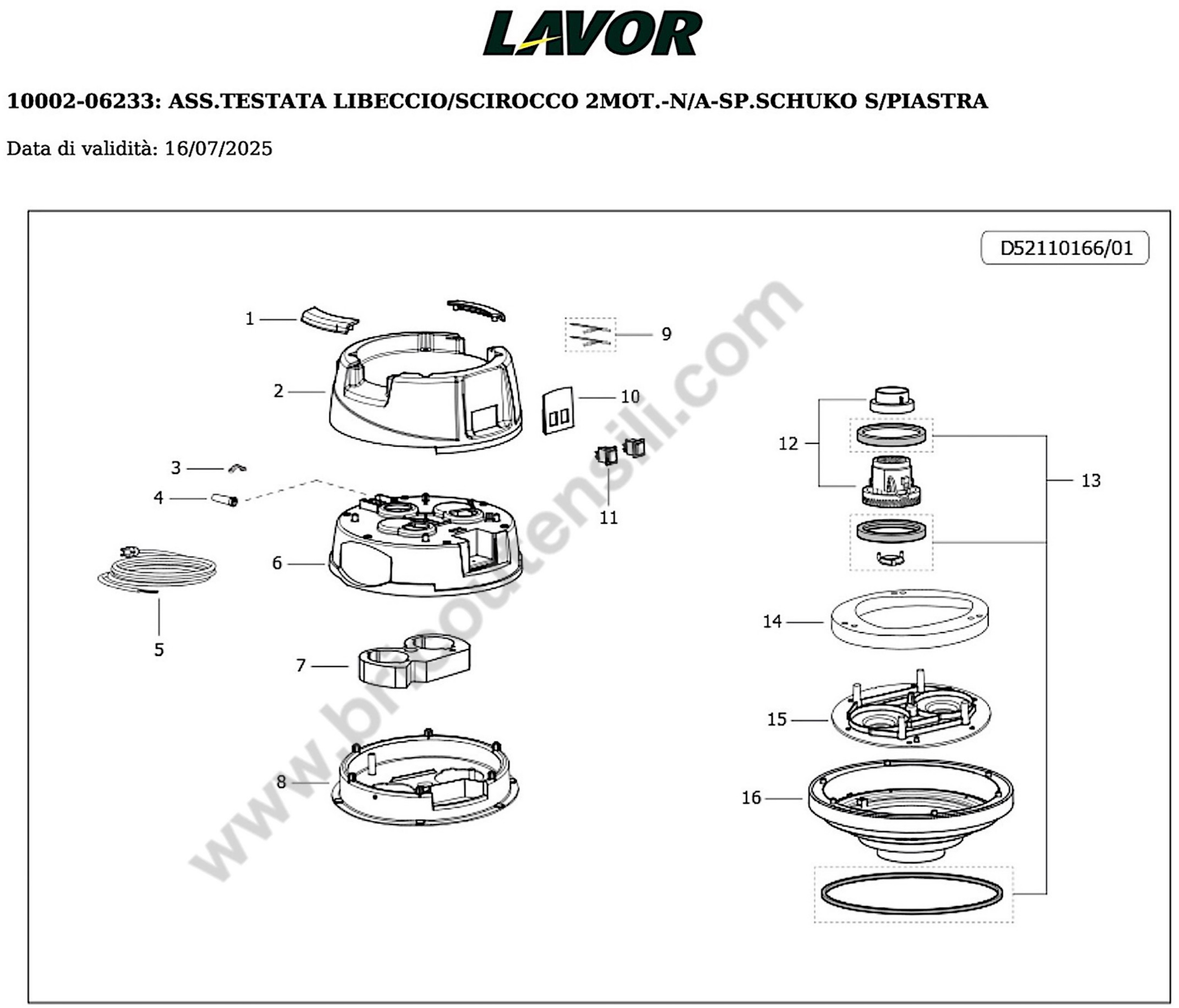

ASS.TESTATA LIBECCIO/SCIROCCO 2MOT.-N/A-SP.SCHUKO S/PIASTRA Pag.2
1 4.208.0321 PROFESSIONAL SUCTION HANDLE, P82.0322 BLACK
2 4.208.0322 LIBECCIO/SCIROCCO HEAD BLACK (P82.0322)
3 4.008.0277 FIXED WALL CABLE CLIP
4 3.406.0031 CABLE GLAND 60X12X15.5 EPDM BLACK
5 4.012.0217 H05VV-F CABLE 2X1.5, 7.5M, SCHUKO ANTI-FIRE WITH TIP TERMINAL
6 4.208.0349 UNDER-COVER FOR 2 MOTORS-A-PANT. 158C, DEEP SUCTION, '03
7 4.215.0097 HLC 24 AU SPONGE, 60MM THICK, SMOOTH, D.340MM, 2 MOTORS FOR CONSTELLATION
8 4.208.0086 SUPER SEPARATOR FOR 2 MOTORS, BLACK, DEEP SUCTION, '03
9 4.212.0006 1.5 SECTION WIRING FOR DEEP SUCTION UNITS WITHOUT ANTI-STATIC PLATE
10 4.208.0069 SWITCH HOLDER FOR DEEP SUCTION UNITS, '03 BLACK
11 5.009.0213 SWITCH ASSEMBLY 0/1 BIP.12(10)A + TRANSPARENT PROTECTION
12 6.205.0204 MOTOR REPLACEMENT KIT 37550018 WITH ADAPTER - LAVOR -
13 6.205.0070 SEAL KIT + PROFESSIONAL INTAKE VALVE (TAURUS/DOMUS/COSTELL.)
14 4.215.0126 AIR OUTLET SPONGE MM 80X25X1250 PPI 60-AU-
15 4.208.0087 LOWER SEPARATOR FOR 2 BLACK PROFESSIONAL INTAKE MOTORS '03
