Lavorwash S.p.A.

Lavor WINDY 378 PF Parts

SKU: WINDY 378 PF W&D - 8.256.0002
€6.86
VAT included

Lavor Parts for Vacum Cleaner WINDY 378 PF W&D

Lavor original spare parts for to replace broken parts for to fix Vacum Cleaner WINDY 378 PF W&D 220-240/50-60 EU - 8.256.0002.
Lavor WINDY 378 PF Parts
  • Lavor WINDY 378 PF Parts
  • Lavor WINDY 378 PF Parts Drawing
Lavorwash S.p.A.

Lavor WINDY 378 PF Parts

SKU: WINDY 378 PF W&D - 8.256.0002 Condition: New
€6.86
VAT included

Lavor Parts for Vacum Cleaner WINDY 378 PF W&D

Lavor original spare parts for to replace broken parts for to fix Vacum Cleaner WINDY 378 PF W&D 220-240/50-60 EU - 8.256.0002.
settings 33 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
33 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

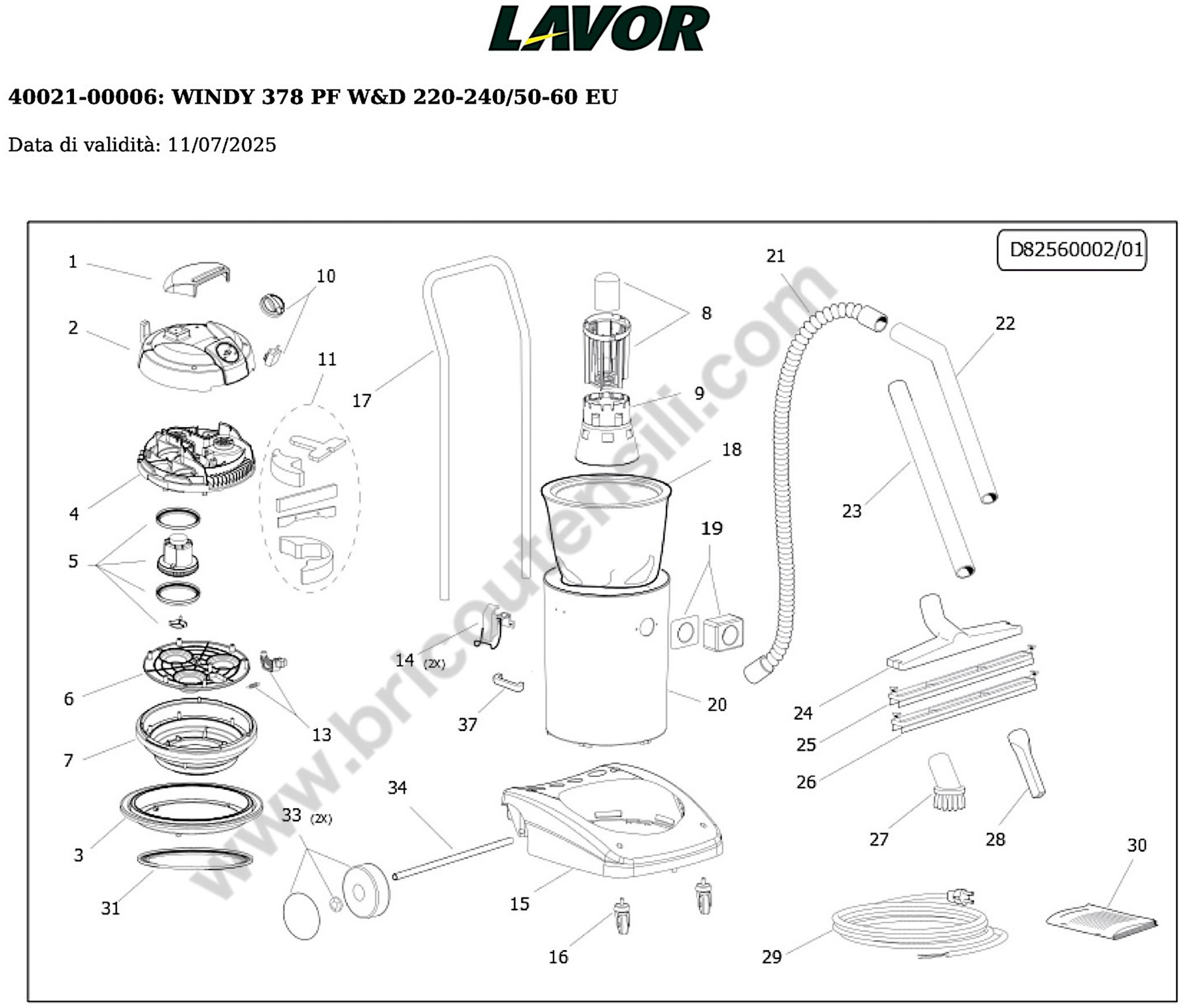

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.208.0528 WINDY HANDLE, LIGHT GREY RAL.7046 (P82.0487) €6.66
2
 photo_cameraImage coming soon 4.208.0512 WINDY END CAP, CLEAR GREY RAL.7016 (PANT.432C) WITH ROTARY INTERLOCK €29.18
3
 photo_cameraImage coming soon 4.208.0656 WINDY EXTRACTOR MOTOR BASE ADAPTER, RAL 7016 €22.70
4
 photo_cameraImage coming soon 4.208.0520 WINDY UNDER-COVER, LIGHT GREY, RAL 7046 (P82.0487) €39.24
5
 photo_cameraImage coming soon 6.205.0140 WINDY MOTOR 230/50 KIT + GASKETS €52.94
6
 photo_cameraImage coming soon 4.208.0523 WINDY LOWER MOTOR SEPARATOR, BLACK (P82.0487) WITH FILTER SHAKER €17.10
7
 photo_cameraImage coming soon 4.208.0521 WINDY MOTOR BASE, CLEAR GREY, RAL 7016 (PANT.432C)-P82.0487 €35.37
8
 photo_cameraImage coming soon 6.205.0145 WINDY BASKET + FLOAT KIT €25.17
9
 photo_cameraImage coming soon 4.208.0076 PROF. EXTRACTOR FILTER TENSION CONE '03 BLACK €30.05
10
 photo_cameraImage coming soon 6.205.0141 ROTARY KNOB + SWITCH + 230V WIRING KIT FOR WINDY €27.24
11
 photo_cameraImage coming soon 6.205.0142 SOUNDPROOFING SPONGE KIT FOR WINDY €57.51
13
 photo_cameraImage coming soon 6.205.0143 FILTER SHAKER LEVER + SPRING KIT FOR WINDY €13.68
14
 photo_cameraImage coming soon 3.099.0454 HOOK 2.05/621 ZINC-PLATED FOR TAURUS '03 TANK €62.88
15
 photo_cameraImage coming soon 4.208.0287 DOMUS-TAURUS '03 ECO BASE, GR.SC.RAL.7016 (PANT.432C) €56.03
16
 photo_cameraImage coming soon 3.006.0058 PIVOT WHEEL D.60 H.82 M10X20 FOR VERSION ECO (A122211TGN) €14.80
17
 photo_cameraImage coming soon 4.207.0003 DOMUS TAUR HANDLE €50.43
18
 photo_cameraImage coming soon 5.509.2176 CLOTH FILTER BAG + RING + CLIP FOR WINDY 78LT €28.76
19
 photo_cameraImage coming soon 6.205.0071 NOZZLE + GASKET KIT FOR PROFESSIONAL VACUUM CLEANERS €99.36
20
 photo_cameraImage coming soon 4.208.0428 DOMUS-TAURUS'03 ECO DRUM WITH HOLE, GR. CHROME, RAL 7046 €99.44
21
 photo_cameraImage coming soon 5.209.0021 FLEX HOSE 2.5 M D.40 COMPLETE €27.51
22
 photo_cameraImage coming soon 3.753.0109 CURVED PIPE D.40 CHROMED STEEL €8.39
23
 photo_cameraImage coming soon 3.753.0110 STRAIGHT PIPE D.40 CHROMED STEEL €7.55
24
 photo_cameraImage coming soon 3.754.0083 BRUSH BODY, D.37 L=400 (SP) WITH CLAMPS, GREY RAL 7046 €13.12
25
 photo_cameraImage coming soon 3.754.0085 LIQUID ACCESSORY FOR BRUSH BODY, L=400 (SP) €15.12
26
 photo_cameraImage coming soon 3.754.0084 BRISTLE ACCESSORY FOR BRUSH BODY, L=400 (SP) €13.12
27
 photo_cameraImage coming soon 3.754.0049 ROUND BRUSH D.40 FOR ZEUS - DOMUS - TAURUS €4.50
28
 photo_cameraImage coming soon 3.754.0048 FLAT NOZZLE D.40 FOR ZEUS - DOMUS - TAURUS €3.09
29
 photo_cameraImage coming soon 4.012.0217 H05VV-F CABLE 2X1.5 7.5 MT. SCHUKO ANTI-SPRING WITH TERMINAL TIP €47.14
30
 photo_cameraImage coming soon 7.300.0516 MANUAL WINDY/WD+CE LAVOR 16L A5 48F €2.15
31
 photo_cameraImage coming soon 4.215.0013 CONDUCTIVE SEAL 410X445 THICK 5MM EPDM 45SH (DOMUS-TAURUS) €18.63
33
 photo_cameraImage coming soon 6.205.0069 WHEEL KIT D.175 WITH BLACK STUD €28.91
34
 photo_cameraImage coming soon 4.207.0005 AXLE FOR ZEUS-DOMUS-TAURUS IF VACUUM CLEANER D.15 L.490 €4.75
37
 photo_cameraImage coming soon 4.208.0132 HANDLE FOR ZEUS-DOMUS-TAURUS ECO DRUM €3.43

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Parts for Vacum Cleaner WINDY 378 PF W&D

Lavor original spare parts for to replace broken parts for to fix Vacum Cleaner WINDY 378 PF W&D 220-240/50-60 EU - 8.256.0002.

In the following tables, look for the spare part and its respective code.
WINDY 378 PF W&D - 8.256.0002
WINDY 378 PF W&D 220-240/50-60 EU - 8.256.0002

Pag.1
# Part Num Description
1 4.208.0528 WINDY HANDLE, LIGHT GREY RAL.7046 (P82.0487)
2 4.208.0512 WINDY HEAD, CLEAR GREY RAL.7016 (PANT.432C) WITH ROTARY SWITCH
3 4.208.0656 WINDY EXTRACTOR MOTOR BASE ADAPTER, RAL.7016
4 4.208.0520 WINDY UNDER-COVER, LIGHT GREY RAL.7046 (P82.0487)
5 6.205.0140 WINDY MOTOR KIT 230/50 + GASKETS
6 4.208.0523 LOWER SEPARATOR WINDY BLACK MOTORS (P82.0487) WITH FILTER SHAKER
7 4.208.0521 WINDY MOTOR BASE, GR.SC.RAL.7016 (PANT.432C) - P82.0487
8 6.205.0145 BASHER + FLOAT KIT FOR WINDY
9 4.208.0076 FILTER TENSION CONE, PROF. '03 BLACK
10 6.205.0141 ROTARY KNOB + SWITCH + 230V WIRING KIT FOR WINDY
11 6.205.0142 SOUNDPROOFING SPONGE KIT FOR WINDY
13 6.205.0143 FILTER SHAKER LEVER + SPRING KIT FOR WINDY
14 3.099.0454 HOOK 2.05/621 ZNT FOR TAURUS DRUM '03
15 4.208.0287 DOMUS-TAURUS '03 ECO BASE, GR.SC.RAL.7016 (PANT.432C)
16 3.006.0058 PIVOT WHEEL D.60 H.82 M10X20 FOR VERSION ECO (A122211TGN)
17 4.207.0003 DOMUS TAURUS ECO STEEL/CATAPHRAGM HANDLE, BLACK
18 5.509.2176 CLOTH FILTER BAG + RING + CLIP FOR WINDY 78LT
19 6.205.0071 NOZZLE KIT + SEAL FOR PROFESSIONAL VACUUM CLEANERS
20 4.208.0428 DOMUS-TAURUS'03 ECO DRUM WITH HOLE, GR. CHROME, RAL 7046
21 5.209.0021 2.5M FLEXIBLE HOSE, D.40, COMPLETE
22 3.753.0109 CURVED HOSE, D.40, CHROME-PLATED STEEL
23 3.753.0110 STRAIGHT HOSE, D.40, CHROME-PLATED STEEL
24 3.754.0083 BRUSH BODY, D.37, L=400 (SP) WITH CLAMPS, GREY, RAL 7046
25 3.754.0085 LIQUID ACCESSORY FOR BRUSH BODY, L=400 (SP)
26 3.754.0084 BRIST ACCESSORY FOR BRUSH BODY L=400 (SP.)
27 3.754.0049 CIRCULAR BRUSH D.40 FOR ZEUS-DOMUS-TAURUS
28 3.754.0048 FLAT LANCE D.40 FOR ZEUS-DOMUS-TAURUS
29 4.012.0217 H05VV-F CABLE 2X1.5, 7.5 METRES, SCHUKO ANTI-SPIKE, WITH TIP TERMINAL
30 7.300.0516 WINDY/WD MANUAL + CE LAVOR 16L A5 48F
31 4.215.0013 CONDUCTIVE SEAL 410X445, 5MM THICK, EPDM 45SH (DOMUS-TAURUS)
33 6.205.0069 WHEEL KIT D.175 WITH BLACK STUD
34 4.207.0005 AXLE FOR ZEUS-DOMUS-TAURUS IF VACUUM CLEANER D.15, L.490
37 4.208.0132 HANDLE FOR ZEUS-DOMUS-TAURUS ECO DRUM
