Lavorwash S.p.A.

Lavor LX150F W&D Parts

SKU: LX150F W&D - 8.215.0517
€15.24
VAT included

Lavor Parts for Vacum Cleaner LX150F W&D

Lavor original spare parts for to replace broken parts for to fix Vacum Cleaner LX150F W&D 220-240/50-60 EU LIBECCIO - 8.215.0517.
Lavor LX150F W&D Parts
  • Lavor LX150F W&D Parts
  • Lavor LX150F W&D Parts Drawing
  • Lavor LX150F W&D Parts Drawing - 1
Lavorwash S.p.A.

Lavor LX150F W&D Parts

SKU: LX150F W&D - 8.215.0517 Condition: New
€15.24
VAT included

Lavor Parts for Vacum Cleaner LX150F W&D

Lavor original spare parts for to replace broken parts for to fix Vacum Cleaner LX150F W&D 220-240/50-60 EU LIBECCIO - 8.215.0517.
settings 32 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
CODICE ARTICOLO
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
32 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
photo_cameraImage coming soon 5.211.0183 ZEUS HEAD ASSEMBLY - N/A - SCHUKO SOCKET WITH ANTISTATIC €14.80
1
 photo_cameraImage coming soon 4.208.0135 FILTER CONE FOR '03 PROFESSIONAL VACUUM CLEANER, BLACK, LOWERED €42.50
2
 photo_cameraImage coming soon 6.205.0008 FILTER BAG + RING KIT ZEUS CB8013298100118 €28.32
3
 photo_cameraImage coming soon 6.205.0071 NOZZLE + GASKET KIT FOR PROFESSIONAL VACUUM CLEANERS €99.36
4
 photo_cameraImage coming soon 3.751.0032 ZEUS AISI 430BA STAINLESS STEEL DRUM €40.57
5
 photo_cameraImage coming soon 4.208.0323 BASE FOR KRONOS '06 TANK - BLACK €18.80
6
 photo_cameraImage coming soon 5.212.0145 SCREWS + WASHERS + WHEELS SET FOR WINDY €27.51
7
 photo_cameraImage coming soon 3.099.0454 HOOK 2.05/621 ZINC-PLATED FOR TAURUS '03 TANK €62.88
8
 photo_cameraImage coming soon 5.213.0006 ZEUS ECO HANDLE WITH M8 THREADED INSERTS €43.03
9
 photo_cameraImage coming soon 5.209.0102 2.5M FLEXIBLE HOSE D.40 WITH RVA CU AIR SYSTEM €43.03
10
 photo_cameraImage coming soon 7.300.0707 LIBECCIO-SCIROCCO MANUAL + CE LAVOR 18L A5 48F €2.15
11
 photo_cameraImage coming soon 3.753.0039 PVC EXTENSION D.45 L=0.5M €4.14
12
 photo_cameraImage coming soon 3.754.0048 FLAT NOZZLE D.40 FOR ZEUS - DOMUS - TAURUS €3.09
13
 photo_cameraImage coming soon 3.754.0049 ROUND BRUSH D.40 FOR ZEUS - DOMUS - TAURUS €4.50
14
 photo_cameraImage coming soon 3.754.0200 BRUSH BODY D.40 L=300 X PLUG PROTECTION (SP) WITH CLAMPS, RAL 7046 €9.13
15
 photo_cameraImage coming soon 3.754.0170 LIQUID ACCESSORY FOR BRUSH BODY WITH CLIPS L=300(SP) €4.06
16
 photo_cameraImage coming soon 3.754.0169 BRISTLED ACCESSORY FOR BRUSH BODY WITH CLIPS L=300(SP) €5.67
17
 photo_cameraImage coming soon 6.205.0011 SPONGE FILTER KIT FOR GN-LAVOR €13.75
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.208.0346 '03 BLACK PROFESSIONAL VACUUM CLEANER HANDLE €4.33
2
 photo_cameraImage coming soon 4.208.0345 ZEUS '03 HEAD 1 BLACK SWITCH €30.05
3
 photo_cameraImage coming soon 5.009.0213 EXT SWITCH WITH PROTECTION 12(10) €6.72
4
 photo_cameraImage coming soon 3.401.0129 ILR CAP 35X25 €1.72
5
 photo_cameraImage coming soon 4.208.0024 BLACK GN HEAD €12.80
6
 photo_cameraImage coming soon 6.205.0114 ANTISTATIC KIT FOR ZEUS VACUUM CLEANER €4.81
7
 photo_cameraImage coming soon 4.012.0221 ELECTRIC CABLE H05VV-F 2X0,75 MT.7,5 SCHUKO PLUG WATERPROOF F/F €30.17
8
 photo_cameraImage coming soon 4.208.0001 HANDLE HOUSING FOR BLACK VACUUM CLEANER €1.72
9
 photo_cameraImage coming soon 4.208.0341 HOSE FOR 158C PANTRY VACUUM CLEANER FOR ZEUS €10.71
10
 photo_cameraImage coming soon 6.205.0230 MOTOR KIT 37550069 WITHOUT ADAPTER - WORKING €138.59
11
 photo_cameraImage coming soon 5.211.0003 COMPLETE BLACK LOWER COVER FOR TWO-STAGE MOTORS €32.82
12
 photo_cameraImage coming soon 4.208.0342 DRAIN ADAPTER COVER FOR ZEUS-A-PANT.158C €19.13
13
 photo_cameraImage coming soon 4.215.0003 FOAM RUBBER ADHESIVE FAN COVER SEAL 240X16X3 €6.01
14
 photo_cameraImage coming soon 6.205.0072 SPONGE/SEAL KIT FOR PROFESSIONAL ASPIRATORS (ZEUS/APOLLO/KRONOS) €28.91

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Parts for Vacum Cleaner LX150F W&D

Lavor original spare parts for to replace broken parts for to fix Vacum Cleaner LX150F W&D 220-240/50-60 EU LIBECCIO - 8.215.0517.

In the following tables, look for the spare part and its respective code.
LX150F W&D - 8.215.0517
LX150F W&D 220-240/50-60 EU LIBECCIO - 8.215.0517

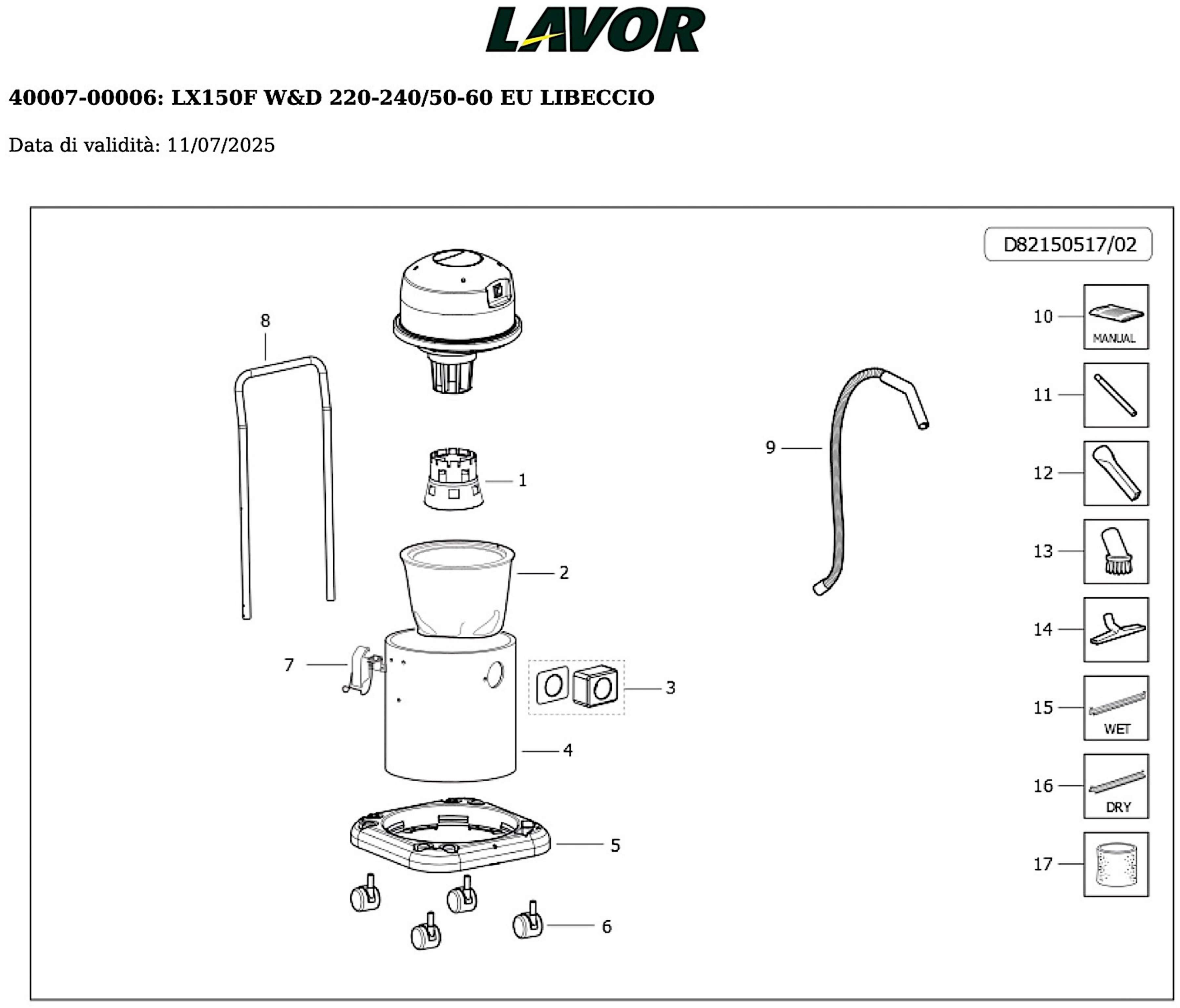

Pag.1
# Part Num Description
0 5.211.0183 ZEUS HEAD ASSEMBLY - N/A - SCHUKO SOCKET WITH ANTISTATIC
1 4.208.0135 FILTER CONE FOR '03 PROFESSIONAL VACUUM CLEANER, BLACK, LOWERED
2 6.205.0008 FILTER BAG + RING KIT ZEUS CB8013298100118
3 6.205.0071 NOZZLE KIT + SEAL PROFESSIONAL VACUUM CLEANERS
4 3.751.0032 ZEUS AISI 430BA STAINLESS STEEL DRUM
5 4.208.0323 BASE FOR KRONOS '06 DRUM, BLACK
6 5.212.0145 SCREW CORNER + WASHERS + WHEELS FOR WINDY
7 3.099.0454 2.05/621 ZNT HOOK FOR TAURUS '03 DRUM
8 5.213.0006 ZEUS ECO HANDLE WITH M8 THREADED INSERTS
9 5.209.0102 2.5M FLEXIBLE HOSE D.40 WITH RVA CU AIR SYSTEM
10 7.300.0707 LIBECCIO-SCIROCCO MANUAL + CE LAVOR 18L A5 48F
11 3.753.0039 PVC EXTENSION D.45 L=0.5M
12 3.754.0048 FLAT LANCE D.40 FOR ZEUS-DO MUS-TAURUS
13 3.754.0049 CIRCULAR BRUSH D.40 FOR ZEUS-DOMUS-TAURUS
14 3.754.0200 BRUSH BODY D.40 L=300 X PLUG PROTECTION (SP) WITH CLAMPS, RAL 7046
15 3.754.0170 LIQUID ACCESSORY FOR BRUSH BODY WITH CLAMPS, L=300 (SP)
16 3.754.0169 BRISTLE ACCESSORY FOR BRUSH BODY WITH CLAMPS, L=300 (SP)
17 6.205.0011 SPONGE FILTER KIT FOR GN-LAVOR

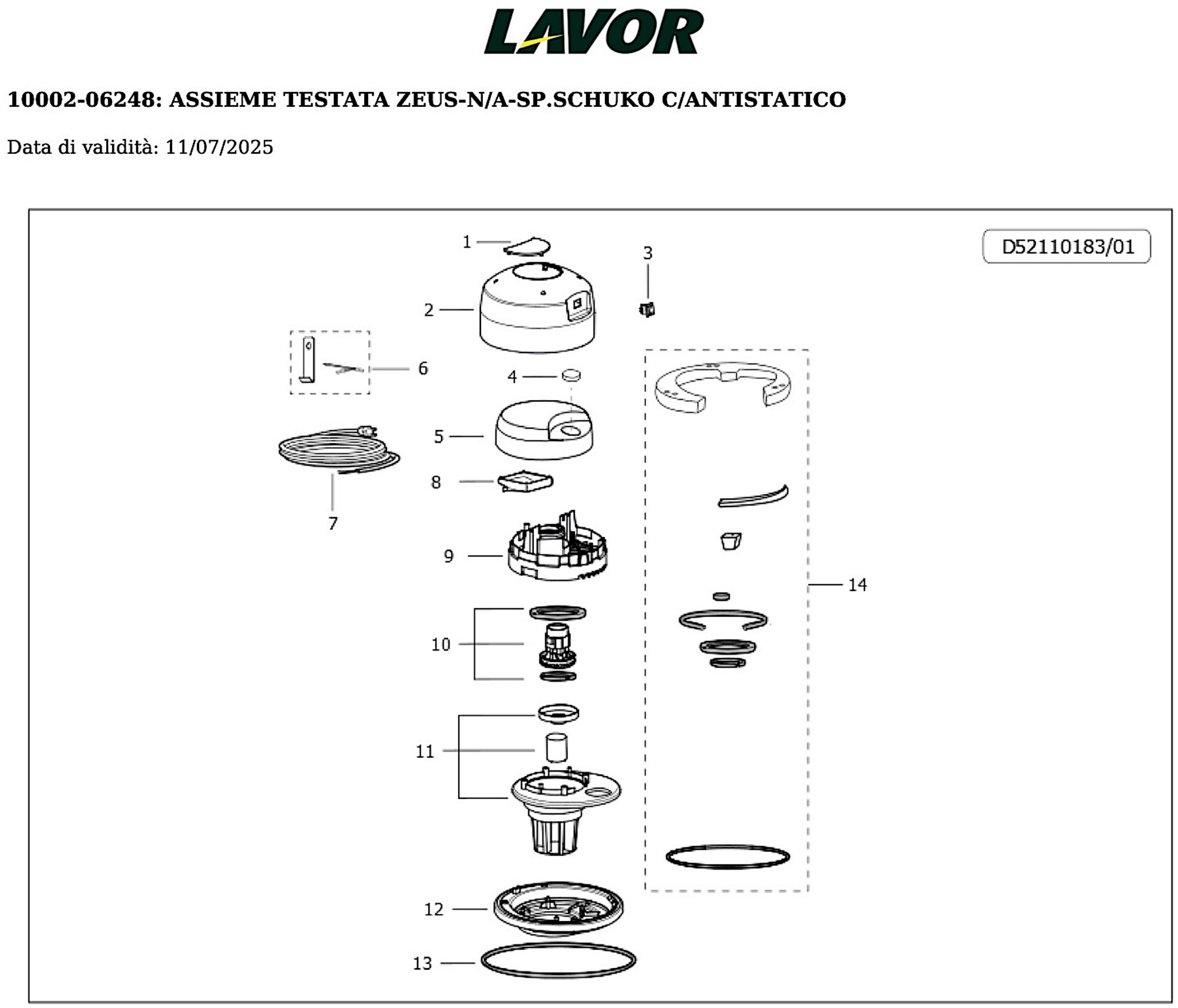

Pag.2
1 4.208.0346 '03 BLACK PROFESSIONAL VACUUM CLEANER HANDLE
2 4.208.0345 ZEUS '03 HEAD 1 BLACK SWITCH
3 5.009.0213 0/1 BIPPER SWITCH ASSEMBLY 12(10)A + TRANSPARENT PROTECTION
4 3.401.0129 ILR CAP 35X25
5 4.208.0024 BLACK GN HEAD
6 6.205.0114 ANTISTATIC KIT FOR ZEUS VACUUM CLEANER
7 4.012.0221 H05VV-F CABLE 2X0.75 7.5 MT SCHUKO ANTI-STICK F/F
8 4.208.0001 HANDLE HOUSING FOR BLACK VACUUM CLEANER
9 4.208.0341 HOSE FOR 158C PANTRY VACUUM CLEANER FOR ZEUS
10 6.205.0230 MOTOR KIT 37550069 WITHOUT ADAPTER - WORKING
11 5.211.0003 COMPLETE BLACK LOWER COVER FOR TWO-STAGE MOTORS
12 4.208.0342 DRAIN ADAPTER COVER FOR ZEUS-A-PANT.158C
13 4.215.0003 FOAM RUBBER ADHESIVE FAN COVER SEAL 240X16X3
14 6.205.0072 SPONGE/SEAL KIT FOR PROFESSIONAL ASPIRATORS (ZEUS/APOLLO/KRONOS)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
LX150F W&D - 8.215.0517
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

Lavor LX150F W&D Parts Drawing

Lavor LX150F W&D Parts Drawing

Download (529.49KB)
