Lavor Vacum Cleaner WHISPER V8 Parts

SKU: WHISPER V8 - 8.214.0601C
€5.21
VAT included

Lavor Parts for Vacum Cleaner WHISPER V8

Lavor original spare parts for to replace broken parts for to fix Vacum Cleaner WHISPER V8 220-240V~50-60Hz EU LAVOR (DRY) - 8.214.0601C.
Lavor Vacum Cleaner WHISPER V8 Parts
  • Lavor Vacum Cleaner WHISPER V8 Parts
  • Lavor Vacum Cleaner WHISPER V8 Parts Drawing
Lavorwash S.p.A.

Lavor Vacum Cleaner WHISPER V8 Parts

SKU: WHISPER V8 - 8.214.0601C Condition: New
€5.21
VAT included

Lavor Parts for Vacum Cleaner WHISPER V8

Lavor original spare parts for to replace broken parts for to fix Vacum Cleaner WHISPER V8 220-240V~50-60Hz EU LAVOR (DRY) - 8.214.0601C.
settings 23 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
23 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

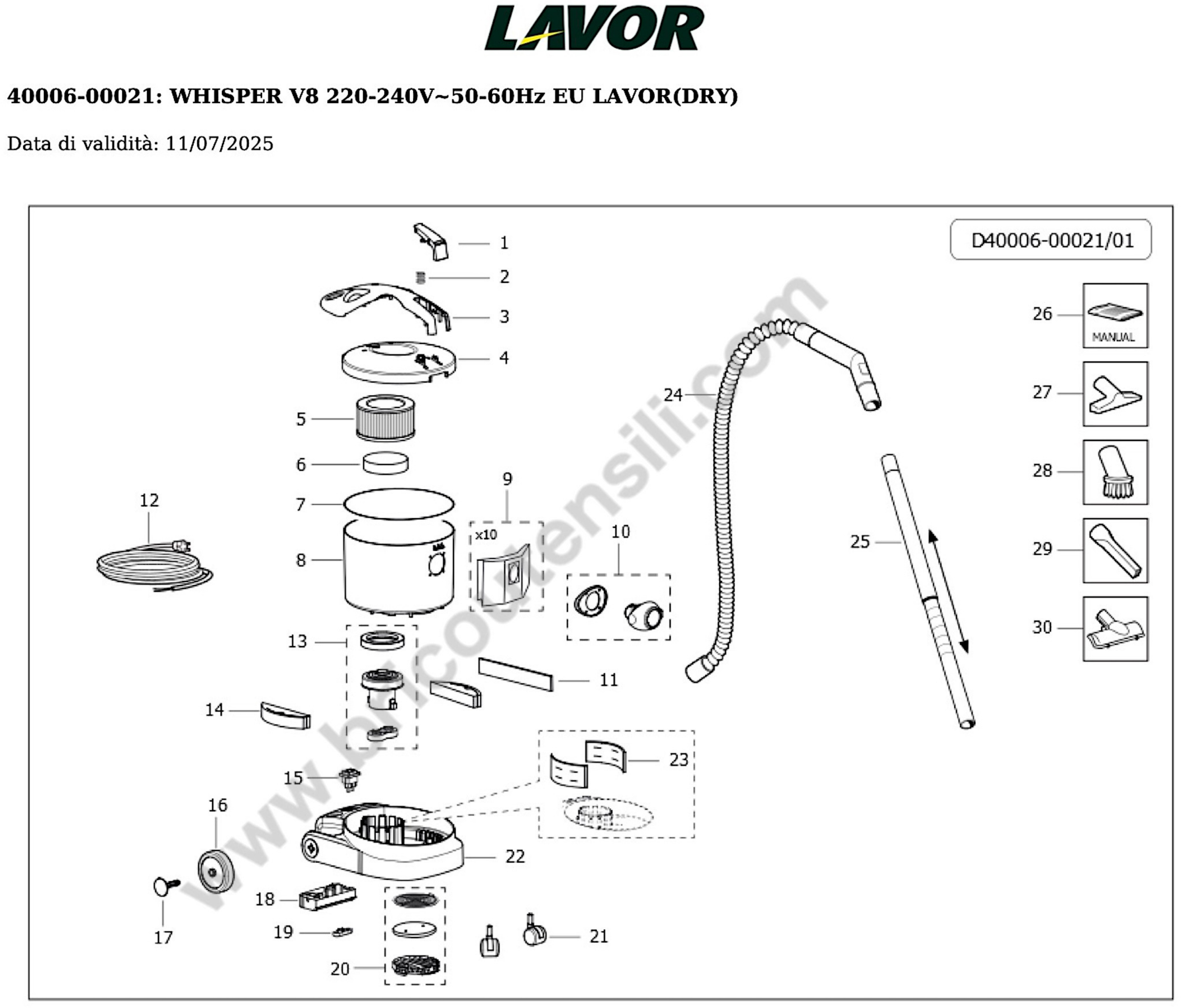

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.208.0685 Cover Hook WHISPER V8 Grey RAL.7046 (Pantone 430C) €5.06
2
 photo_cameraImage coming soon 4.007.0162 PISTON SPRING LAVOR 12 IN C98 €1.72
3
 photo_cameraImage coming soon 4.208.0686 Handle with Accessory Holder WHISPER V8 Grey RAL.7046 (Pantone 430C) €20.62
4
 photo_cameraImage coming soon 4.208.0279 Bin Lid – WHISPER V8 – Dark Grey RAL.7016 (Pantone 432C) €11.53
5
 photo_cameraImage coming soon 3.752.0274C Sealed HEPA Filter PTFE H13, 110 Pleats for SILENT €23.17
6
 photo_cameraImage coming soon 00005-02534 SPUGNA Filter X Motor WHISPER PPI50 €1.24
8
 photo_cameraImage coming soon 4.208.0275 WHISPER V8 Drum – Light Grey – RAL.7046 €30.05
9
 photo_cameraImage coming soon 5.212.0149 Kit of 10 Dust Collection Microfiber Filters WHISPER / SAHARA / SILENT / BOOSTER €36.43
10
 photo_cameraImage coming soon 6.205.0054 Complete Deflector Kit + Gasket for WHISPER / SAHARA €28.91
12
 photo_cameraImage coming soon 4.012.0561C H05VV-F CABLE 2X0.75, 10M, WITH SCHUKO PLUG, SPLASH-PROOF, R-RAL3020 €19.41
13
 photo_cameraImage coming soon 6.205.0239 Motor Kit (37550137) + Seals Set €39.60
15
 photo_cameraImage coming soon 5.009.0213 EXT SWITCH WITH PROTECTION 12(10) €6.72
18
 photo_cameraImage coming soon 4.208.0812 Electrical Cover – WHISPER V8 – Dark Grey RAL.7016 (Pantone 432C) €14.96
19
 photo_cameraImage coming soon 4.008.0277 FIX PAD CABLE HOLDER €1.72
20
 photo_cameraImage coming soon 6.205.0058 Carbon Filter Kit for WHISPER €12.05
21
 photo_cameraImage coming soon 3.754.0017C HEAVY-DUTY TWIN SWIVEL WHEELS D.50 WITH STEEL PIN €1.71
22
 photo_cameraImage coming soon 4.208.0813 Bin Base – WHISPER V8 – Dark Grey RAL.7016 (Pantone 432C) €37.72
24
 photo_cameraImage coming soon 00080-05191 Flexible Hose 2.5 m D.32 mm with Curved Handle for WHISPER €19.72
25
 photo_cameraImage coming soon 3.753.0158 TELESCOPIC TUBE D.32 L=780 IN METAL €25.74
27
 photo_cameraImage coming soon 00080-05159 Small Rectangular Nozzle D.32 mm (for SILENT) €2.82
28
 photo_cameraImage coming soon 3.754.0304 ROUND BRUSH D.32 FOR SILENT €4.97
29
 photo_cameraImage coming soon 3.754.0305 FLAT NOZZLE D.32 (FOR SILENT) €2.89
30
 photo_cameraImage coming soon 00080-05199 Combined Brush D.32 mm with Wheels for WHISPER €23.45

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Parts for Vacum Cleaner WHISPER V8

Lavor original spare parts for to replace broken parts for to fix Vacum Cleaner WHISPER V8 220-240V~50-60Hz EU LAVOR (DRY) - 8.214.0601C.

In the following tables, look for the spare part and its respective code.
Vacum Cleaner WHISPER V8 - 8.214.0601C
WHISPER V8 - 8.214.0601C
Pag.1
# Part Num Description
1 4.208.0685 Cover Hook WHISPER V8 Grey RAL.7046 (Pantone 430C)
2 4.007.0162 Return Spring for Pistons LAVOR 12 in C98
3 4.208.0686 Handle with Accessory Holder WHISPER V8 Grey RAL.7046 (Pantone 430C)
4 4.208.0279 Bin Lid – WHISPER V8 – Dark Grey RAL.7016 (Pantone 432C)
5 3.752.0274C Sealed HEPA Filter PTFE H13, 110 Pleats for SILENT
6 — Foam Filter for WHISPER Motor PPI50
7 — Adhesive Gasket 930x9x6 EPDM Foam
8 4.208.0275 WHISPER V8 Drum – Light Grey – RAL.7046
9 5.212.0149 Kit of 10 Dust Collection Microfiber Filters WHISPER / SAHARA / SILENT / BOOSTER
10 6.205.0054 Complete Deflector Kit + Gasket for WHISPER / SAHARA
11 4.215.0136C Thermal Insulating Foam for SILENT Motor – Textile Fiber
12 4.012.0561C H05VV-F Cable 2x0.75 mm², 10 m, Schuko Plug, Splash-proof, Red RAL3020
13 6.205.0239 Motor Kit (37550137) + Seals Set
14 — Soundproofing Foam for WHISPER (50 PPI)
15 5.009.0213 0/1 Switch Assembly Bipolar 12(10)A + Transparent Protection
16 — Wheel D.125 mm Black Body (Rubber)
17 4.208.0684 WHISPER V8 Wheel Axle Grey RAL.7046 (Pantone 430C)
18 4.208.0812 Electrical Cover – WHISPER V8 – Dark Grey RAL.7016 (Pantone 432C)
19 4.008.0277 Fixed Wall Cable Clamp
20 6.205.0058 Carbon Filter Kit for WHISPER
21 3.754.0017C Heavy-Duty Twin Swivel Wheels D.50 mm with Steel Axle
22 4.208.0813 Bin Base – WHISPER V8 – Dark Grey RAL.7016 (Pantone 432C)
23 — WHISPER Motor Gasket PPI50
24 00080-05191 Flexible Hose 2.5 m D.32 mm with Curved Handle for WHISPER
25 3.753.0158 Telescopic Tube D.32 mm, Length 780 mm, Metal
26 — WHISPER User Manual A5 – 18L – 60 Pages
27 00080-05159 Small Rectangular Nozzle D.32 mm (for SILENT)
28 3.754.0304 Round Brush D.32 mm for SILENT
29 3.754.0305 Flat Nozzle D.32 mm (for SILENT)
30 00080-05199 Combined Brush D.32 mm with Wheels for WHISPER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
WHISPER V8 - 8.214.0601C
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

Lavor WHISPER V8 Parts Drawing

Lavor WHISPER V8 Parts Drawing

Download (286.31KB)
