Lavorwash S.p.A.

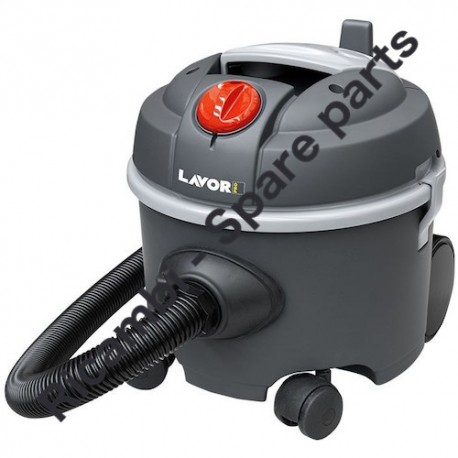

Lavor Vacum Cleaner Silent Parts

SKU: Silent - 8.246.0001C
€24.57
VAT included

Lavor Parts for Vacum Cleaner Silent

Lavor original spare parts for to replace broken parts for to fix Vacum Cleaner Silent - 82460001c.
Lavor Vacum Cleaner Silent Parts
  • Lavor Vacum Cleaner Silent Parts
  • Lavor Vacum Cleaner Silent Parts Drawing
  • Lavor Vacum Cleaner Silent Parts Drawing - 1
Lavorwash S.p.A.

Lavor Vacum Cleaner Silent Parts

SKU: Silent - 8.246.0001C Condition: New
€24.57
VAT included

Lavor Parts for Vacum Cleaner Silent

Lavor original spare parts for to replace broken parts for to fix Vacum Cleaner Silent - 82460001c.
settings 21 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
21 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

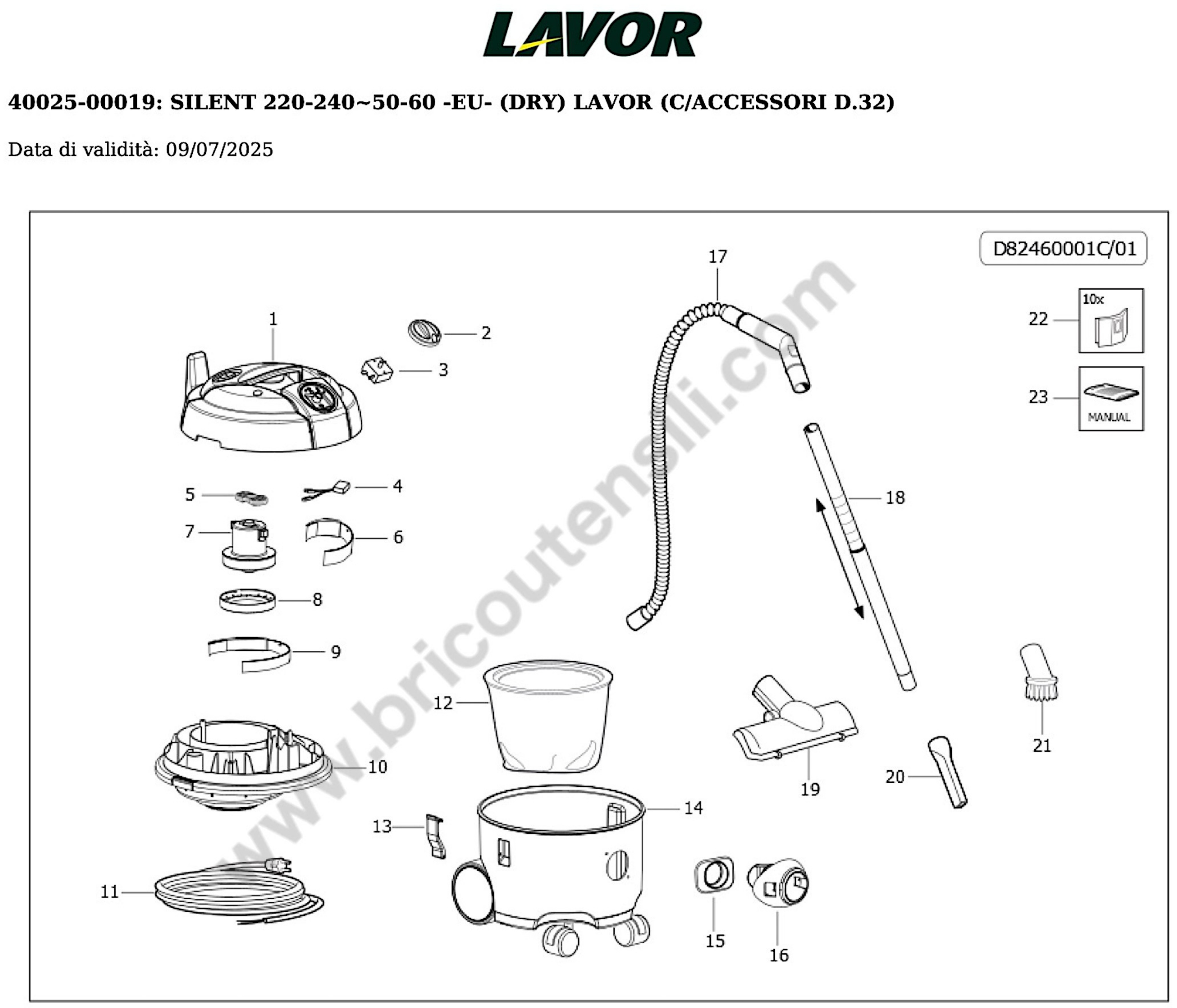

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5.209.0309 COVER WITH HANDLE FOR SILENT UNIT WITH WORKING SEAL –C– €23.86
3
 photo_cameraImage coming soon 3.401.0251 DOUBLE-POLE ROTARY SWITCH 16(16)A (0-1) WITH SHAFT L=15 €4.97
4
 photo_cameraImage coming soon 4.212.0044 DOUBLE CABLE 18AWG L=450 WITH EMI FILTER €6.16
5
 photo_cameraImage coming soon 4.215.0146 UPPER MOTOR GASKET 3755X111 FOR SILENT €3.57
7
 photo_cameraImage coming soon 3.755.0137 SINGLE-STAGE BRUSH MOTOR 220-240V 50-60HZ 800W €38.71
8
 photo_cameraImage coming soon 4.215.0132 LOWER MOTOR GASKET KC SILENT €3.75
9
 photo_cameraImage coming soon 4.215.0134C SOUND-ABSORBING FOAM FOR SILENT MOTOR, MELAMINE RESIN €10.00
11
 photo_cameraImage coming soon 4.012.0561C H05VV-F CABLE 2X0.75, 10M, WITH SCHUKO PLUG, SPLASH-PROOF, R-RAL3020 €19.41
12
 photo_cameraImage coming soon 5.209.0207C CLOTH FILTER BAG WITH GASKET (FOR SILENT) €17.89
13
 photo_cameraImage coming soon 4.208.0666 HOOK FOR SILENT – LIGHT GREY – RAL.7046 (P82.0564) €1.68
14
 photo_cameraImage coming soon 5.209.0307 DRUM ASSEMBLY WITH WHEELS FOR SILENT –C– €30.79
15
 photo_cameraImage coming soon 4.208.0259 GASKET FOR WHISPER DEFLECTOR €8.13
16
 photo_cameraImage coming soon 5.209.0308 DEFLECTOR ASSEMBLY WITH BUTTON AND SPRING FOR SILENT €11.98
17
 photo_cameraImage coming soon 5.209.0306 FLEXIBLE HOSE 2M D.32 COMPLETE WITH CURVED END FOR SILENT €18.91
18
 photo_cameraImage coming soon 3.753.0158 TELESCOPIC TUBE D.32 L=780 IN METAL €25.74
19
 photo_cameraImage coming soon 3.754.0302 COMBINATION NOZZLE D.32 WITH WHEELS FOR SILENT €21.89
20
 photo_cameraImage coming soon 3.754.0305 FLAT NOZZLE D.32 (FOR SILENT) €2.89
21
 photo_cameraImage coming soon 3.754.0304 ROUND BRUSH D.32 FOR SILENT €4.97
22
 photo_cameraImage coming soon 10001-13222 SET OF 10 COLLECTION FILTERS FOR SILENT/WHISPER LAVOR €21.78
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

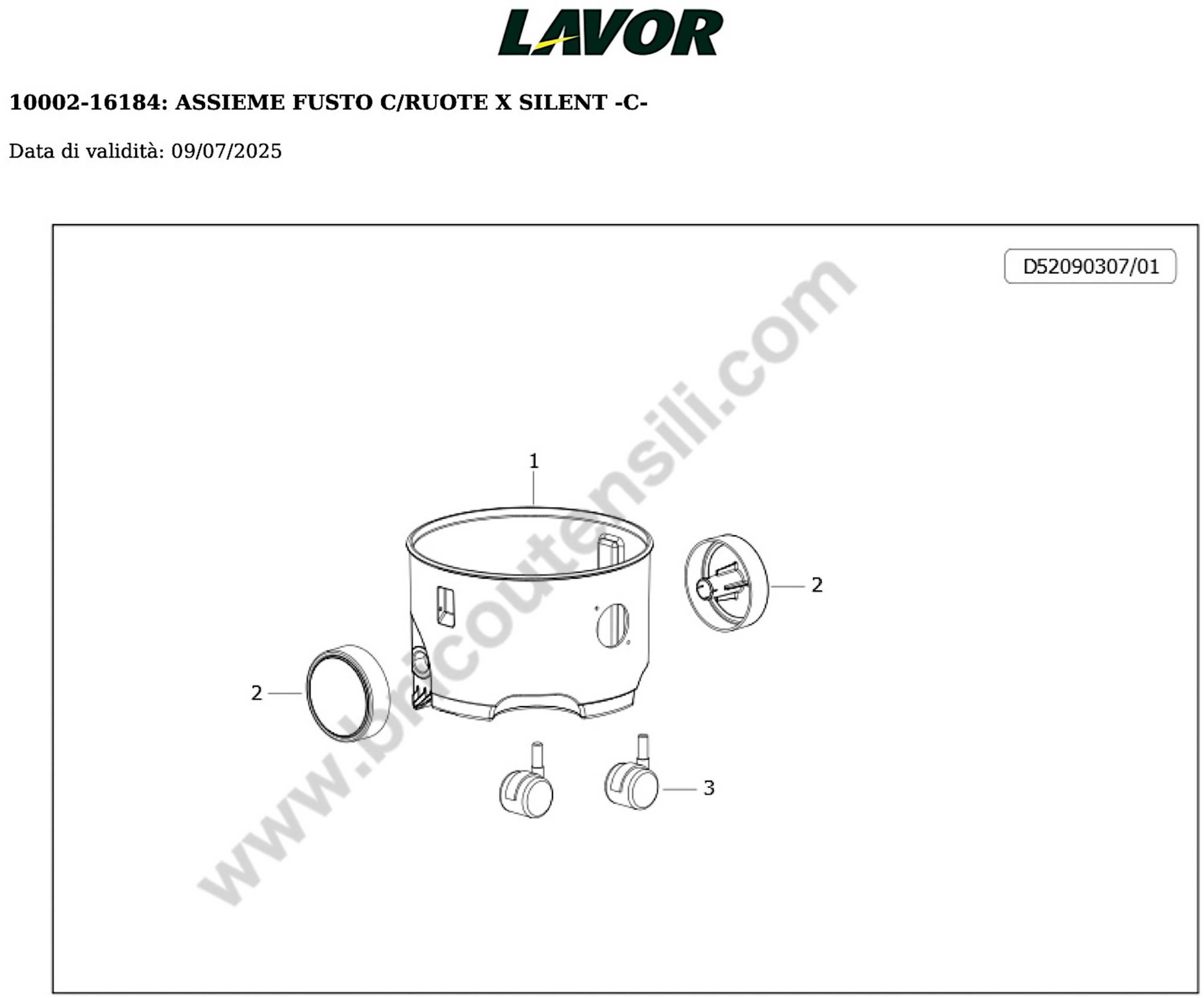

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.208.0635 DRUM BODY SILENT DARK GREY RAL.7016 (PANTONE 432C) (P82.0564) €41.07
3
 photo_cameraImage coming soon 3.754.0017C HEAVY-DUTY TWIN SWIVEL WHEELS D.50 WITH STEEL PIN €1.71

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Parts for Vacum Cleaner Silent

Lavor original spare parts for to replace broken parts for to fix Vacum Cleaner Silent - 82460001c.

In the following tables, look for the spare part and its respective code.
Vacum Cleaner Silent - 82460001c
SILENT 220-240~50-60 -EU- (DRY) LAVOR - 8.246.0001c
Pag.1
# Part Num Description
1 5.209.0309 COVER WITH HANDLE FOR SILENT UNIT WITH WORKING SEAL –C–
2 4.208.0639C SWITCH KNOB FOR SILENT –R– RAL.3020 (P82.0564)
3 3.401.0251 DOUBLE-POLE ROTARY SWITCH 16(16)A (0-1) WITH SHAFT L=15
4 4.212.0044 DOUBLE CABLE 18AWG L=450 WITH EMI FILTER
5 4.215.0146 UPPER MOTOR GASKET 3755X111 FOR SILENT
6 4.215.0136C INSULATING SPONGE FOR SILENT MOTOR, TEXTILE FIBER
7 3.755.0137 SINGLE-STAGE BRUSH MOTOR 220-240V 50-60HZ 800W
8 4.215.0132 LOWER MOTOR GASKET KC SILENT
9 4.215.0134C SOUND-ABSORBING FOAM FOR SILENT MOTOR, MELAMINE RESIN
10 — SILENT MOTOR BASE (C) – DARK GREY – RAL.7046 (P82.0564)
11 4.012.0561C H05VV-F CABLE 2X0.75, 10M, WITH SCHUKO PLUG, SPLASH-PROOF, R-RAL3020
12 5.209.0207C CLOTH FILTER BAG WITH GASKET (FOR SILENT)
13 4.208.0666 HOOK FOR SILENT – LIGHT GREY – RAL.7046 (P82.0564)
14 5.209.0307 DRUM ASSEMBLY WITH WHEELS FOR SILENT –C–
15 4.208.0259 GASKET FOR WHISPER DEFLECTOR
16 5.209.0308 DEFLECTOR ASSEMBLY WITH BUTTON AND SPRING FOR SILENT
17 5.209.0306 FLEXIBLE HOSE 2M D.32 COMPLETE WITH CURVED END FOR SILENT
18 3.753.0158 TELESCOPIC TUBE D.32 L=780 IN METAL
19 3.754.0302 COMBINATION NOZZLE D.32 WITH WHEELS FOR SILENT
20 3.754.0305 FLAT NOZZLE D.32 (FOR SILENT)
21 3.754.0304 ROUND BRUSH D.32 FOR SILENT
22 10001-13222 SET OF 10 COLLECTION FILTERS FOR SILENT/WHISPER LAVOR
23 7.300.0760 USER MANUAL SILENT 20L A5 ??F (Note: "??F" unclear — possibly format code)
DRUM ASSEMBLY WITH WHEELS FOR SILENT -C- Page 2
1 4.208.0635 DRUM BODY SILENT DARK GREY RAL.7016 (PANTONE 432C) (P82.0564)
2 4.208.0661C SILENT VACUUM CLEANER WHEEL – BLACK – (P82.0564)
3 3.754.0017C HEAVY-DUTY TWIN SWIVEL WHEELS D.50 WITH STEEL PIN
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Silent - 8.246.0001C
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

Lavor Silent Parts Drawing

Lavor Silent Parts Drawing

Download (452.71KB)
