Lavorwash S.p.A.

Lavor Floor Sweeper SDM-R 53G Parts

SKU: LAVOR SDM-R 53G - 0.055.0306
€792.83
VAT included

Lavor Pro Original Parts for Floor Sweeper LAVOR SDM-R 53G

Lavor original spare parts for to replace broken parts for to fix Floor Sweeper LAVOR SDM-R 53G - 0.055.0306.

Fix Your Floor Sweeper LAVOR SDM-R 53G - 0.055.0306. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Lavor Floor Sweeper SDM-R 53G Parts
  • Lavor Floor Sweeper SDM-R 53G Parts
  • Lavor Floor Sweeper SDM-R 53G Parts Drawing
  • Lavor Floor Sweeper SDM-R 53G Parts Drawing - 1
  • Lavor Floor Sweeper SDM-R 53G Parts Drawing - 2
Lavorwash S.p.A.

Lavor Floor Sweeper SDM-R 53G Parts

SKU: LAVOR SDM-R 53G - 0.055.0306 Condition: New
€792.83
VAT included

Lavor Pro Original Parts for Floor Sweeper LAVOR SDM-R 53G

Lavor original spare parts for to replace broken parts for to fix Floor Sweeper LAVOR SDM-R 53G - 0.055.0306.

Fix Your Floor Sweeper LAVOR SDM-R 53G - 0.055.0306. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 33 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
CODICE ARTICOLO
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
33 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

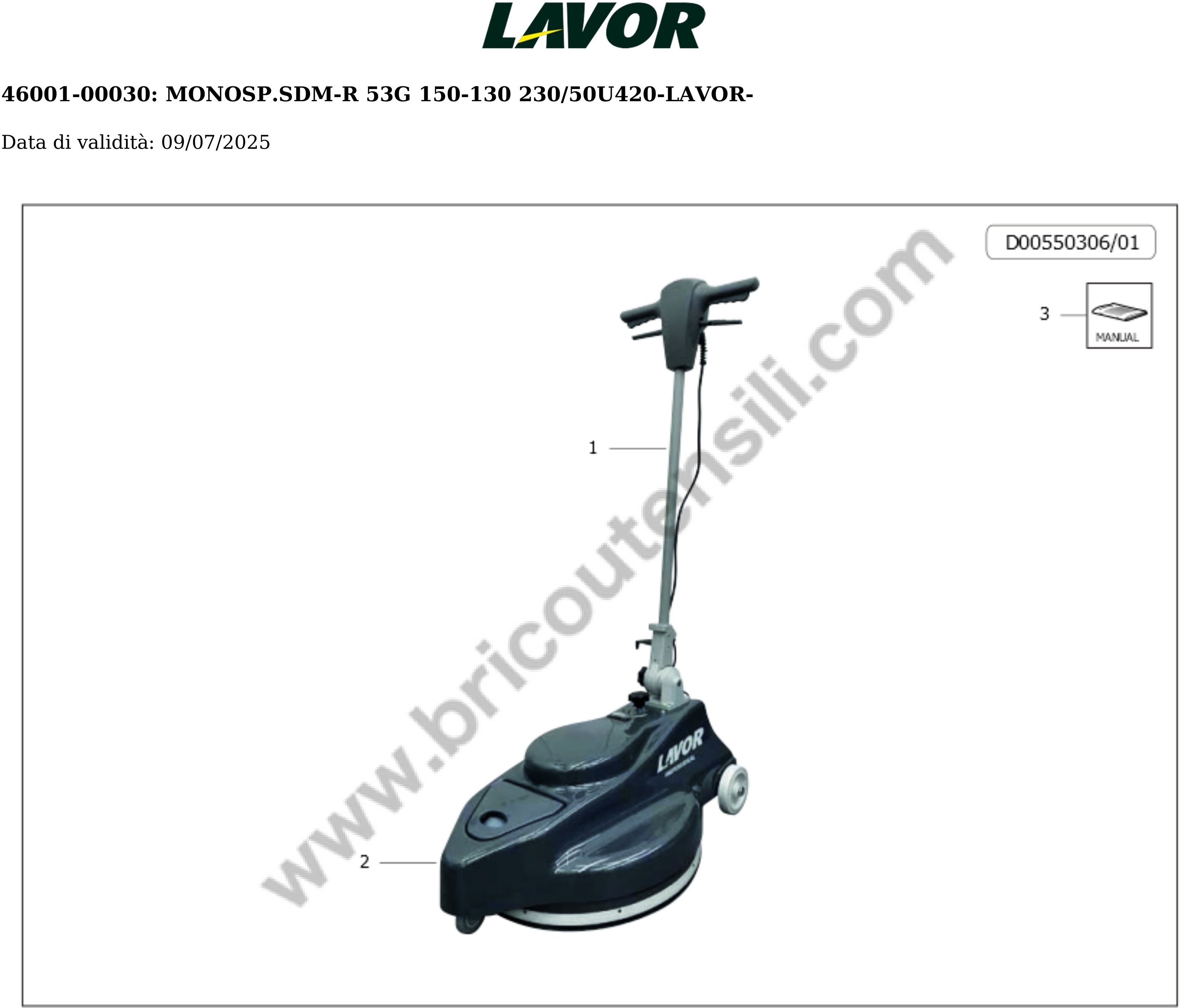

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
photo_cameraImage coming soon 0.955.0294K Complete handle – KC064001 €769.75
1
 photo_cameraImage coming soon 0.955.0294K Complete handle – KC064001 €769.75
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
21
 photo_cameraImage coming soon 0.955.0281K Wheel cover (KC063015) €10.60
24
 photo_cameraImage coming soon 0.955.0204K Wheel D.125 KC060016 €76.05
37
 photo_cameraImage coming soon 0.955.0266K Upper cover for electric motor (KC061004) €207.81
43
 photo_cameraImage coming soon 0.955.0232K Start capacitor SDM-R 45G 16-160 (KC022037) €93.16
44
 photo_cameraImage coming soon 0.955.0233K Capacitor (KC022039) €59.66
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
101
 photo_cameraImage coming soon 0.955.0205K Front handle half-shell (KC060001) €103.97
102
 photo_cameraImage coming soon 0.955.0208K Handle adjustment lever (KC060004) €49.75
103
 photo_cameraImage coming soon 0.955.0210K Switch lever (KC060003) €44.80
104
 photo_cameraImage coming soon 0.955.0211K Safety button spring (KC063001) €9.46
105
 photo_cameraImage coming soon 0.955.0212K Safety button (KC060007) €13.18
106
 photo_cameraImage coming soon 0.955.0213K Switch (KC022061) €151.95
107
 photo_cameraImage coming soon 0.955.0206K Rear handle half-shell (KC060002) €132.85
110
 photo_cameraImage coming soon 0.955.0207K Rear handle cover (KC060006) €41.07
112
 photo_cameraImage coming soon 0.955.0209K Solution dosing lever (KC060005) €34.87
114
 photo_cameraImage coming soon 0.955.0255K Socket cap €15.95
115
 photo_cameraImage coming soon 0.955.0269K Spring €4.06
116
 photo_cameraImage coming soon 0.955.0251K Pin €3.07
118
 photo_cameraImage coming soon 0.955.0237K Cable clamp (KC022064) €15.95
120
 photo_cameraImage coming soon 0.955.0254K Ring (KC060008) €4.92
121
 photo_cameraImage coming soon 0.955.0271K Steel rod (KC063003) €49.75
122
 photo_cameraImage coming soon 0.955.0270K Handle shaft (KC063002) €52.17
123
 photo_cameraImage coming soon 0.955.0226K Red electric cable (KC022022) €4.22
124
 photo_cameraImage coming soon 0.955.0274K Wide spring (KC063006) €12.55
125
 photo_cameraImage coming soon 0.955.0273K Handle regulator (KC063005) €134.09
126
 photo_cameraImage coming soon 0.955.0238K Cable gland (KC022065) €4.92
127
 photo_cameraImage coming soon 0.955.0215K Motor power cable (KC022010) €15.25
130
 photo_cameraImage coming soon 0.955.0263K Cover (KC061001-2) €35.05
131
 photo_cameraImage coming soon 0.955.0249K Pin 6x35 (KC033356) €4.22
132
 photo_cameraImage coming soon 0.955.0272K Gear for handle adjustment (KC063004) €146.47
134
 photo_cameraImage coming soon 0.955.0264K Plug (KC061002-2) €35.05
135
 photo_cameraImage coming soon 0.955.0262K Handle support (KC061000-2) €84.39
138
 photo_cameraImage coming soon 0.955.0247K Pin for spring 4×20 (KC033352) €4.22

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Pro Original Parts for Floor Sweeper LAVOR SDM-R 53G

Lavor original spare parts for to replace broken parts for to fix Floor Sweeper LAVOR SDM-R 53G - 0.055.0306.

Fix Your Floor Sweeper LAVOR SDM-R 53G - 0.055.0306. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
LAVOR SDM-R 53G - 0.055.0306
MONOSP.SDM-R 53G 150-130 230/50U420 - 0.055.0306

Pag.1
# Part Num Description
0 0.955.0310K Motor assembly SDM-R 53G 150–130, 230V/50Hz – KC054000-G
0 0.955.0294K Complete handle – KC064001
1 0.955.0294K Complete handle – KC064001
2 0.955.0310K Motor assembly SDM-R 53G 150–130, 230V/50Hz – KC054000-G
3 7.504.0218 User manual for single-brush machines SDM-R / ODM-R 35–45–53, 11L, A5, 36F – LAVOR

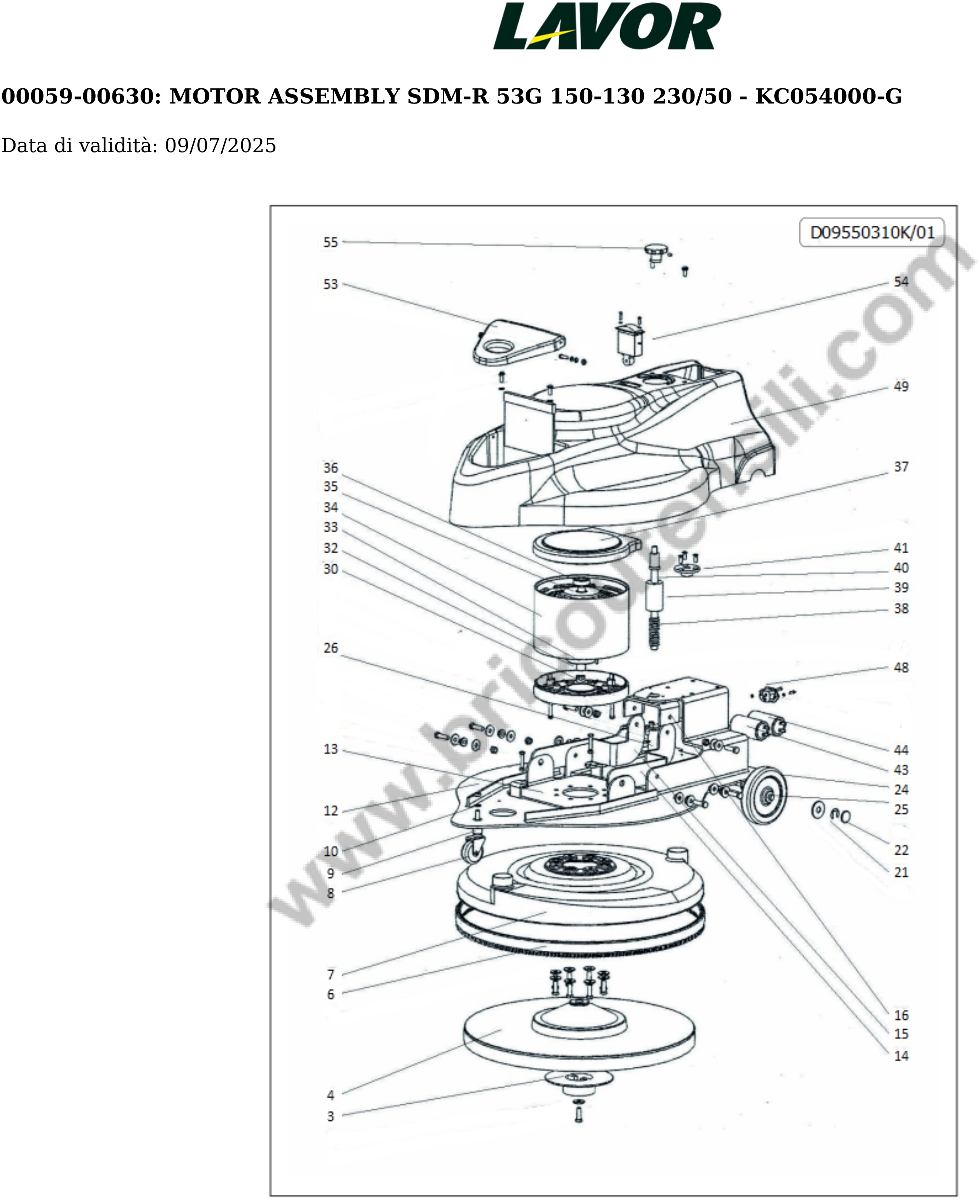

MOTOR ASSEMBLY SDM-R 53G 150-130 230/50 - KC054000-G Pag.2
3 0.955.0322K Locking plate
4 0.955.0323K Floor pad holder
6 0.955.0324K Bumper
7 0.955.0325K Base for SDM-R 53 G
8 0.955.0326K Swivel wheel
9 0.955.0327K Wheel spacer
10 0.955.0244K Rubber washer M8 (KC033301)
12 0.955.0328K Frame SDM-R 53 G
13 0.955.0329K Motor frame SDM-R 53 G
14 0.955.0330K Left support
15 0.955.0331K Right support
16 0.955.0332K Central support
21 0.955.0281K Wheel cover (KC063015)
22 0.955.0333K Wheel cap
24 0.955.0204K Wheel D.125 KC060016
25 0.955.0334K Wheel axle
26 0.955.0335K Spacer
30 0.955.0267K Motor cover (KC061005)
32 0.955.0336K Motor shaft
33 0.955.0229K Bearing (KC022030)
34 0.955.0337K Stator
35 0.955.0234K Centrifugal switch (KC022060-30A)
36 0.955.0230K Bearing (KC022031)
37 0.955.0266K Upper cover for electric motor (KC061004)
38 0.955.0338K Spring
39 0.955.0339K Spacer
40 0.955.0340K Adjustment screw
41 0.955.0341K Adjustment flange
43 0.955.0232K Start capacitor SDM-R 45G 16-160 (KC022037)
44 0.955.0233K Capacitor (KC022039)
48 0.955.0236K Power socket (KC022063)
49 0.955.0342K SDM-R 53 G fairing
53 0.955.0343K Filter cover
54 0.955.0344K Brush pressure indicator
55 0.955.0345K Adjustment knob

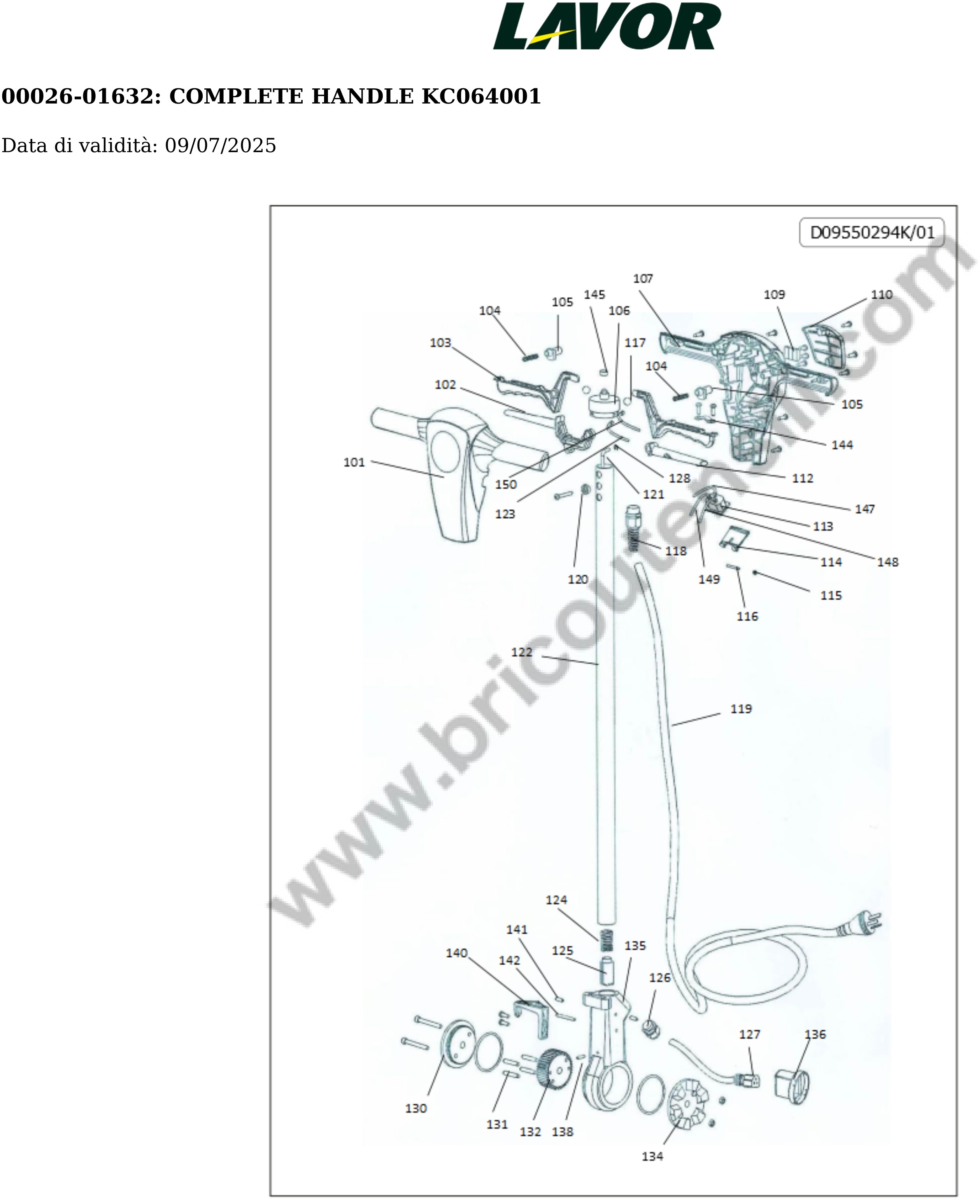

COMPLETE HANDLE KC064001 Pag.3
101 0.955.0205K Front handle half-shell (KC060001)
102 0.955.0208K Handle adjustment lever (KC060004)
103 0.955.0210K Switch lever (KC060003)
104 0.955.0211K Safety button spring (KC063001)
105 0.955.0212K Safety button (KC060007)
106 0.955.0213K Switch (KC022061)
107 0.955.0206K Rear handle half-shell (KC060002)
109 0.955.0239K Wiring (KC022066)
110 0.955.0207K Rear handle cover (KC060006)
112 0.955.0209K Solution dosing lever (KC060005)
113 0.955.0235K Power socket (KC022062)
114 0.955.0255K Socket cap
115 0.955.0269K Spring
116 0.955.0251K Pin
117 0.955.0250K Ball (KC033510)
118 0.955.0237K Cable clamp (KC022064)
119 0.955.0320K Power cable with EU plug
120 0.955.0254K Ring (KC060008)
121 0.955.0271K Steel rod (KC063003)
122 0.955.0270K Handle shaft (KC063002)
123 0.955.0226K Red electric cable (KC022022)
124 0.955.0274K Wide spring (KC063006)
125 0.955.0273K Handle regulator (KC063005)
126 0.955.0238K Cable gland (KC022065)
127 0.955.0215K Motor power cable (KC022010)
130 0.955.0263K Cover (KC061001-2)
131 0.955.0249K Pin 6x35 (KC033356)
132 0.955.0272K Gear for handle adjustment (KC063004)
134 0.955.0264K Plug (KC061002-2)
135 0.955.0262K Handle support (KC061000-2)
136 0.955.0259K Socket cover (KC060014)
138 0.955.0247K Pin for spring 4×20 (KC033352)
140 0.955.0260K Bracket for power cable (KC060015)
141 0.955.0248K Pin for spring 4×18 (KC033354)
142 0.955.0321K Pin for spring 4×45
144 0.955.0256K Cable lock bar (KC060010)
145 0.955.0241K Switch padding (KC022083)
147 0.955.0227K Green/yellow electric cable (KC022023)
148 0.955.0225K Blue electric cable (KC022021)
149 0.955.0224K Brown electric cable (KC022020)
150 0.955.0228K Blue electric cable (KC022024)

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
