Lavor Pressure Cleaner Washer 15 Parts

Name: Lavor Pressure Cleaner Washer 15 Parts
Brand: Lavorwash S.p.A.
SKU: Lavor WASHER 15 - 8.067.0601
Availability: InStock

SKU: Lavor WASHER 15 - 8.067.0601

€6.86

VAT included

Lavor Original Parts for Pressure Cleaner Washer 15

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner IDRO WASHER 15 230/50 -G- TS EU LWS - 8.067.0601.

Fix Your Pressure Cleaner. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

14 spare parts

Page 1 View exploded Usually Ships in: 10 BUSYNESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
2	Image coming soon	5.009.0213 EXT SWITCH WITH PROTECTION 12(10)	€6.72
3	Image coming soon	3.201.0014 OIL SEAL RING D.12X20X5/7	€5.38
4	Image coming soon	6.005.0106 KIT 104 LW	€25.99
6	Image coming soon	5.009.0453 HEAD ASSY ED '01 WITH WELDED C APS	€28.10
8	Image coming soon	6.005.0204 TOTAL STOP KIT	€10.39
9	Image coming soon	5.008.0186 FIBER HEAD SD-EKO ISS WELDED CAPS	€66.31

Page 2 View exploded Usually Ships in: 10 BUSYNESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	4.008.0852 BLACK HANDLE FOR JET	€14.91
2	Image coming soon	4.013.0465 1 FAIRING DX-SX WASHER (1500W) -G- PANT.108C	€55.82
3	Image coming soon	5.009.0213 EXT SWITCH WITH PROTECTION 12(10)	€6.72
4	Image coming soon	4.008.0791 BLACK WHEEL FOR TIGER	€15.13
5	Image coming soon	4.012.0156 CABLE H05VV-F 2X0,75 MT.5,4 F/ F SCHUKO PLUG	€10.71
7		4.008.0031 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24	€2.07
10		6.005.0321 Set Trigger Gun 6.005.0321 + 4 mt. Hose for Pressure Washers Lavor	€43.16
16	Image coming soon	6.002.0258 LANCE S'02V 1,00 ALTO (WHITE NOZZLE)	€10.39
24		3.100.0082 Quick Coupling 3/4F for High Pressure Washers Lavor	€1.63

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Original Parts for Pressure Cleaner Washer 15

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner IDRO WASHER 15 230/50 -G- TS EU LWS - 8.067.0601.

In the following tables, look for the spare part and its respective code.

IDRO WASHER 15 230/50 -G- TS EU LWS - 8.067.0601

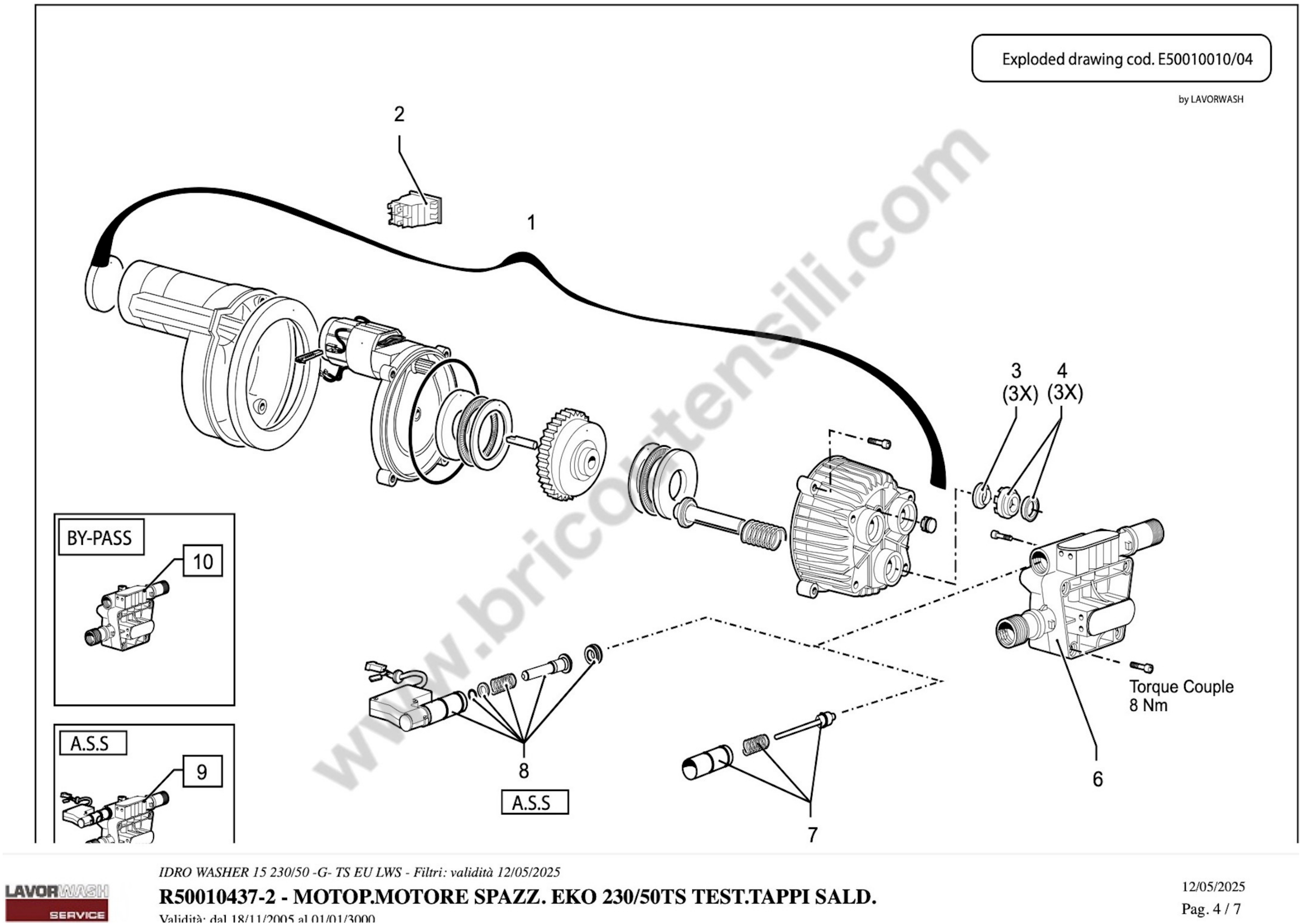

Motorpump - Engine Pag.1
Pos.	Codice
0	5.001.0437	MOTOR BRUSH MOTOR EKO 230/50 TS
1	5.009.0500	1 EKO 230/50 MOTOR ASSEMBLY + GUIDE BODY + PLATE
2	5.009.0213	1 EXT SWITCH ASSEMBLY 0/1 BEEP 12(10)A + TRANSPARENT PROTECTION
3	3.201.0014	1 OIL SEAL RING D.12x20X5/7
4	6.005.0106	KIT 104 LW PISTON BUSHINGS + WATER SEAL RINGS MOTOR IN FIBER
6	5.009.0453	HEAD ASSEMBLY ED '01 WITH WELDED PI CAPS
8	6.005.0204	KIT 190 TS BRUSH FIBER WELDED CAPS
9	5.008.0186	1 SD-EKO TS FIBER HEAD WELDED CAPS (ROD 2pcs)

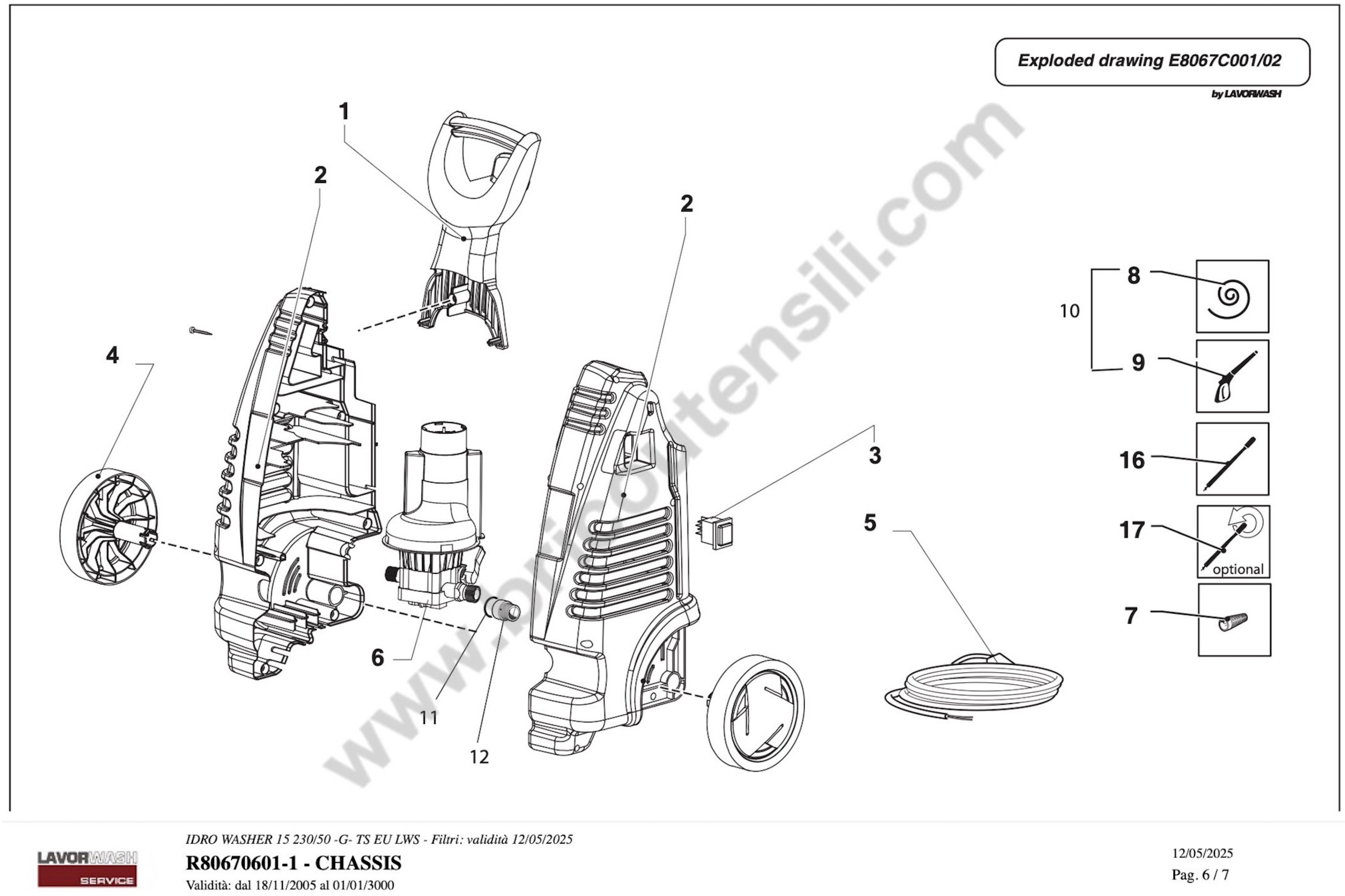

Chassis Pag.2
1	4.008.0852	1 HANDLE FOR JET-WASHER BLACK
2	4.013.0465	1 FAIRING DX-SX WASHER (1500W) -G- PANT.108C
3	5.009.0213	1 EXT SWITCH ASSEMBLY 0/1 BIP. 12(10)A + TRANSPARENT PROTECTION
4	4.008.0791	1 BLACK TIGER WHEEL
5	4.012.0156	1 CABLE H05VV-F 2X0.75 MT.5.4 SP.SCHUKO F/F-F/M
6	5.001.0437	MOTOR BRUSH EKO 230/50 TS
7	4.008.0031	1 ORD FILTER ASPIRATION H2O D.16 CONICAL
10	6.005.0321	1 EXT GUN S'02 EUROPA W/TUBE 3mt
16	6.002.0258	1 EXT LANCE S'02V 1.025 -BLACK- (WHITE UG)
24	3.100.0082	1 QUICK CONNECTOR 3/4 BLACK WITH SEAL

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Lavor WASHER 15 - 8.067.0601

Available 6 Items

Data sheet

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

Condition New

Download

Lavor Washer 15 Parts Drawing

Download (680.31KB)
