Lavorwash S.p.A.

Lavor Pressure Cleaner LKX30TS Parts

SKU: Lavor LKX30TS - 8.611.0001
€1.73
VAT included

Lavor Original Parts for Pressure Cleaner LKX 30 TS 8.611.0001

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner LKX 30 TS 8.611.0001

Fix Your Pressure Cleaner LKX 30 TS 8.611.0001. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee

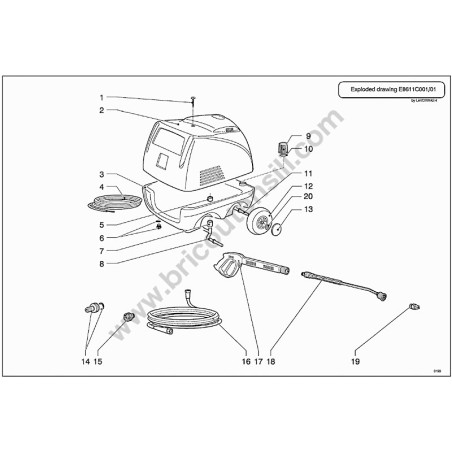

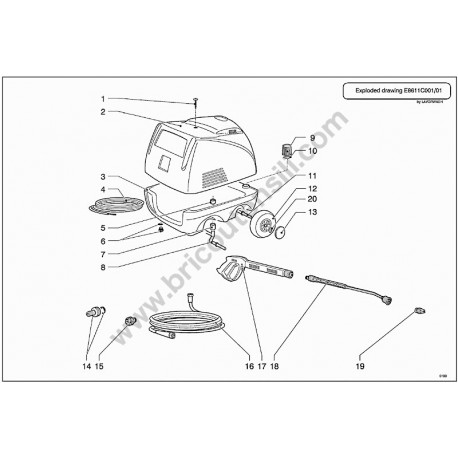

Lavor Pressure Cleaner LKX 30 TS Parts Diagram
  • Lavor Pressure Cleaner LKX 30 TS Parts Diagram
  • Lavor Pressure Cleaner LKX 30 TS Parts Diagram - 1
  • Lavor Pressure Cleaner LKX 30 TS Parts Diagram - 2
Lavorwash S.p.A.

Lavor Pressure Cleaner LKX30TS Parts

SKU: Lavor LKX30TS - 8.611.0001 Condition: New
€1.73
VAT included

Lavor Original Parts for Pressure Cleaner LKX 30 TS 8.611.0001

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner LKX 30 TS 8.611.0001

Fix Your Pressure Cleaner LKX 30 TS 8.611.0001. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee

settings 110 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
110 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

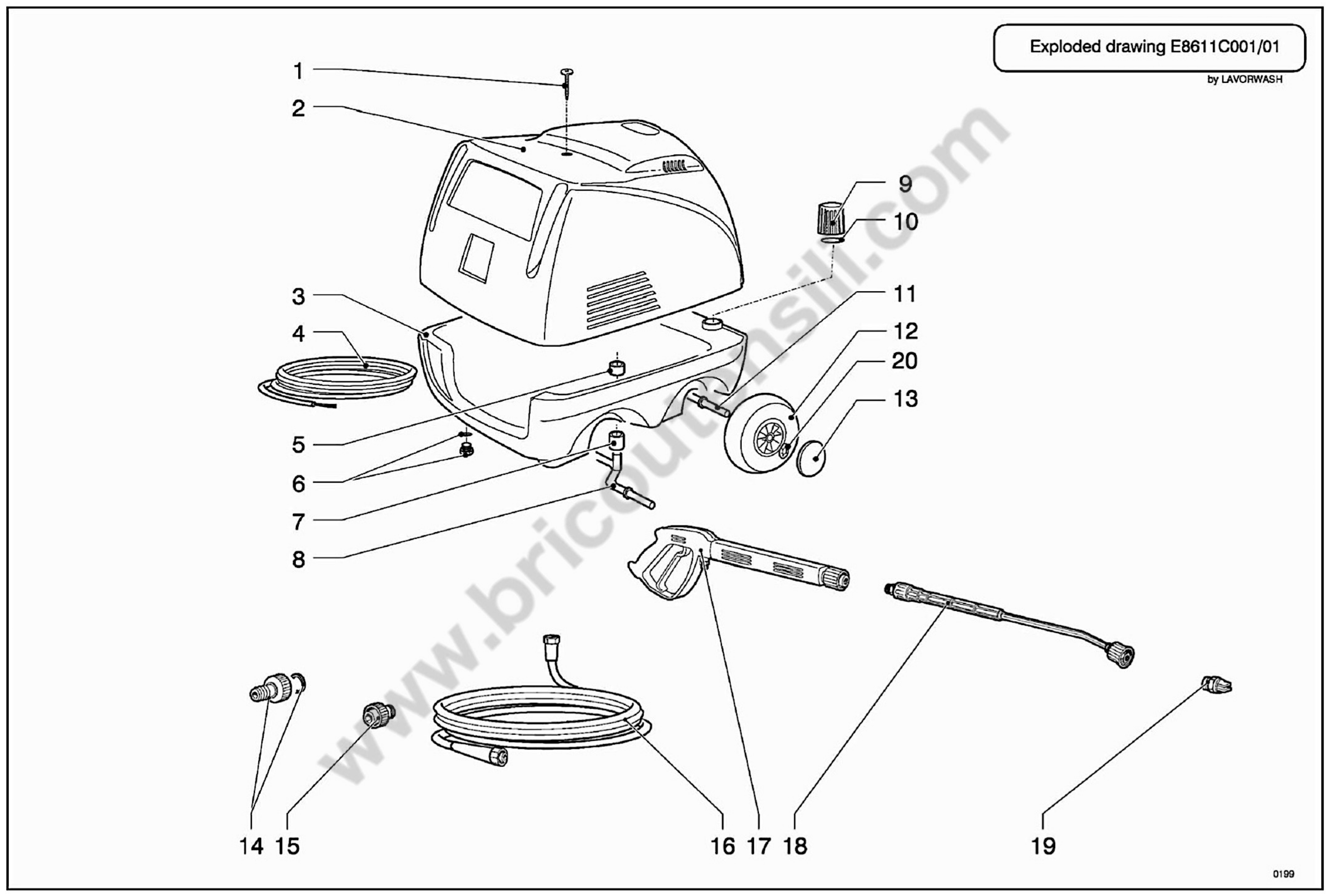

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3.002.0122 SCREW M6X12ZNT €1.68
2
 photo_cameraImage coming soon 4.613.0111 UPPER FAIRING JOLLY 5 / L KX YELLOW €228.54
3
 photo_cameraImage coming soon 4.608.0203 DIESEL / DETERGENT TANK J OLLY 5 / LKX €264.90
4
 photo_cameraImage coming soon 4.612.0046 POWER CABLE H05VV-F 3X1.5 L = 6000 WITHOUT / FASTON €29.75
5
 photo_cameraImage coming soon 4.608.0073 SHORT SPACER FOR TANK JOLLY 4/93 €1.74
6
 photo_cameraImage coming soon 5.009.0159 OIL CAP WITH O-RING 3/8G €9.28
7
 Fuel Tank Long Spacer for Pressure Washers Lavor NPX 1400 - NPX 1500 4.608.0074 Fuel Tank Long Spacer for Pressure Washers Lavor NPX 1400 - NPX 1500 €3.27
8
 photo_cameraImage coming soon 5.613.0096 BOILER AXLE JOLLY 4/93 €29.21
9
 photo_cameraImage coming soon 4.608.0082 GAS OIL-CHEM TANK CAP €15.27
10
 photo_cameraImage coming soon 3.200.0038 O-RING GASKET 53,65X2,62 REF.3212 €1.70
11
 photo_cameraImage coming soon 5.613.0115 REAR DRIVE AXLE JOLLY 5 / LKX €34.70
12
 photo_cameraImage coming soon 3.006.0026 WHEEL D.260X85 BLACK €28.65
13
 photo_cameraImage coming soon 3.099.0794 STUD D.135 WHEEL COVER BLACK WHEEL D.260 €14.38
14
 Quick Coupling for Pressure Washers Lavor NPX 1400 - NPX 1500 5.009.0340 Quick Coupling for Pressure Washers Lavor NPX 1400 - NPX 1500 €15.06
15
 Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500 3.100.0043 Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500 €17.59
16
 photo_cameraImage coming soon 4.618.0016 HOSE 5/16 210BAR MT.10 C/M AP1031 3/8 €136.52
17
 photo_cameraImage coming soon 6.001.0071 GUN RL200 3/8M+S4 +ATT.RAP30015060 €27.45
18
 700 mm Lance 1/8 "F High/Low Pressure for Pressure Washers Lavor 3.701.0015 700 mm Lance 1/8 "F High/Low Pressure for Pressure Washers Lavor €37.13
19
 Lavor Nozzle for ONTARIO 1211LP 3.103.0050 Lavor Nozzle for ONTARIO 1211LP €16.21
20
 photo_cameraImage coming soon 3.099.0019 BLOCK WHEEL D.250x55 D.20 €1.72
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

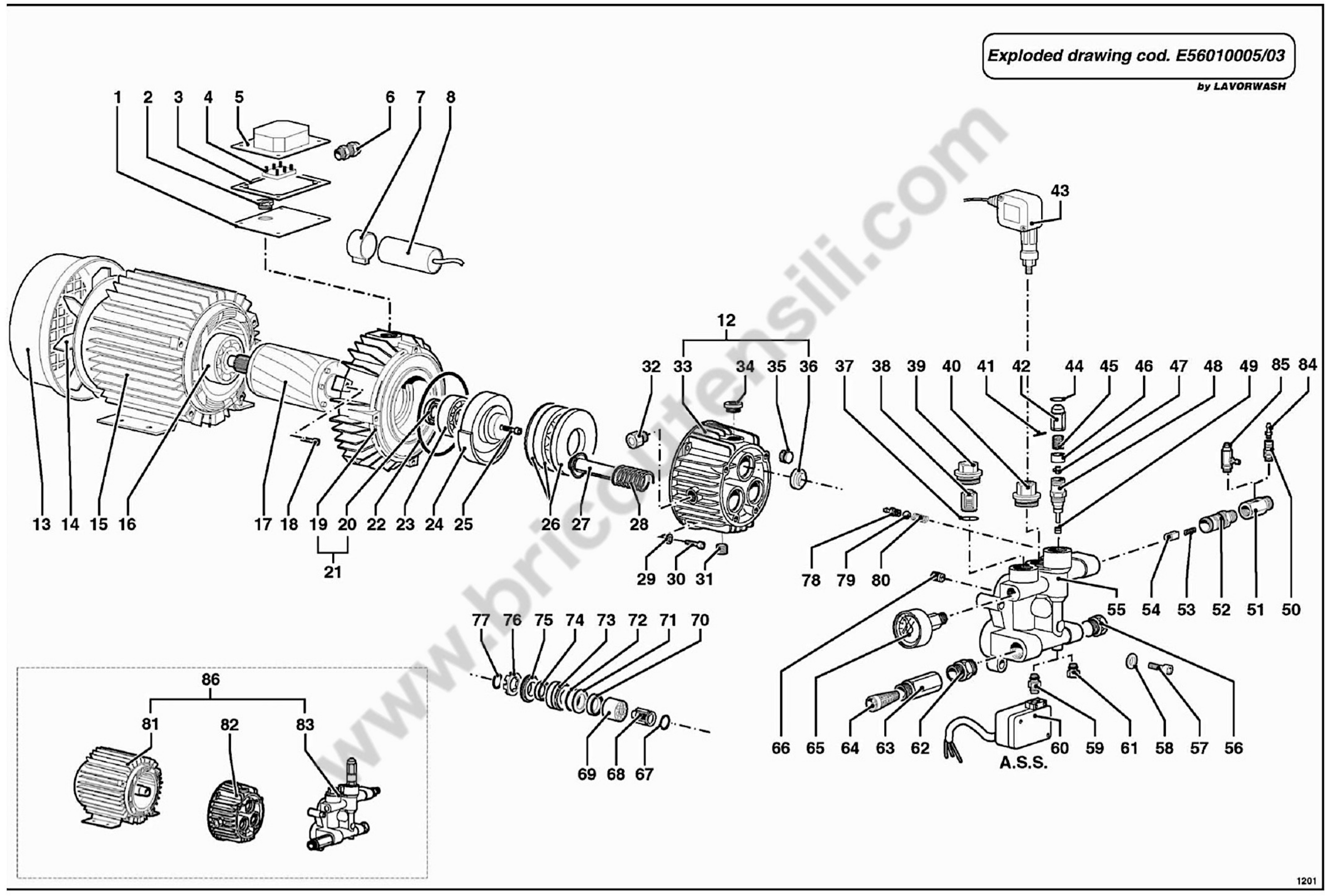

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
00
 photo_cameraImage coming soon 5.601.0150 MOTOR PUMP LWM 230/50 2P 135 H125 9.30' X HOT €81.67
12
 photo_cameraImage coming soon 5.009.0094 BEST FINNED GUIDE BODY ASSEMBLY WITH SEALS €87.38
13
 photo_cameraImage coming soon 4.608.0088 MOTOR FAN COVER D.135 €14.45
14
 photo_cameraImage coming soon 3.099.0108 LOWERED FAN D.150 90V3 WITH HOLE D.19 + CLAMP €14.61
15
 photo_cameraImage coming soon 5.606.0046 CASE LW.M 230/50 2P D.135H.125 THREADED HOLES €465.06
16
 photo_cameraImage coming soon 3.001.0001 BALL RADIAL BEARING 6204-2Z €14.95
17
 photo_cameraImage coming soon 5.605.0030 ROTOR SHAFT D.70 H125 FOR MOTOR. D.135 C/FINISHED GUIDE €98.88
18
 photo_cameraImage coming soon 3.002.0015 AUTOTAPPING SCREW TCEI M6X25 ZNT €3.32
19
 photo_cameraImage coming soon 5.609.0072 MOTOR FRONT FLANGE FOR BODY GUIDE €62.27
20
 photo_cameraImage coming soon 3.201.0019 OIL SEAL RING D.25X40X7 DOUBLELIP €14.52
21
 photo_cameraImage coming soon 5.609.0072 MOTOR FRONT FLANGE FOR BODY GUIDE €62.27
22
 photo_cameraImage coming soon 3.200.0002 O-RING GASKET 90X2,5 €1.70
23
 photo_cameraImage coming soon 3.001.0029 BEARING €29.76
24
 photo_cameraImage coming soon 4.605.0041 PLATE 9.30' €12.39
25
 photo_cameraImage coming soon 3.002.0003 HEXAGON SOCKET HEAD CAP SCREWM8X25 UNI 5931 ZNT €3.32
26
 photo_cameraImage coming soon 4.607.0208 AXIAL BEARING €25.19
27
 photo_cameraImage coming soon 5.009.0088 PISTON ASSY D.15 CERAMIC €36.40
28
 Piston Recall Spring for Pressure Washers Lavor NPX 1400 - NPX 1500 4.007.0011 Piston Recall Spring for Pressure Washers Lavor NPX 1400 - NPX 1500 €10.03
30
 photo_cameraImage coming soon 3.002.0032 SCREW TCEI M8X30 UNI 5931 ZNT €1.68
31
 STEI Screw 3/8" for Pressure Washers Lavor NPX 1400 - NPX 1500 3.002.0004 STEI Screw 3/8" for Pressure Washers Lavor NPX 1400 - NPX 1500 €1.70
32
 Lavor Oil Lever Indicator for NPX 1400 3.099.0003 Lavor Oil Lever Indicator for NPX 1400 €4.14
33
 Lavor Body Guide for NPX 1400 4.005.0184 Lavor Body Guide for NPX 1400 €66.79
34
 photo_cameraImage coming soon 3.099.0301 OIL CAP ZIGRIN. WITH HOLE GOLD €3.23
35
 photo_cameraImage coming soon 5.009.0207 CAP ASSY €14.27
36
 photo_cameraImage coming soon 3.201.0002 O-RINGBADSLSF 15X25,4X5 /7 €7.48
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

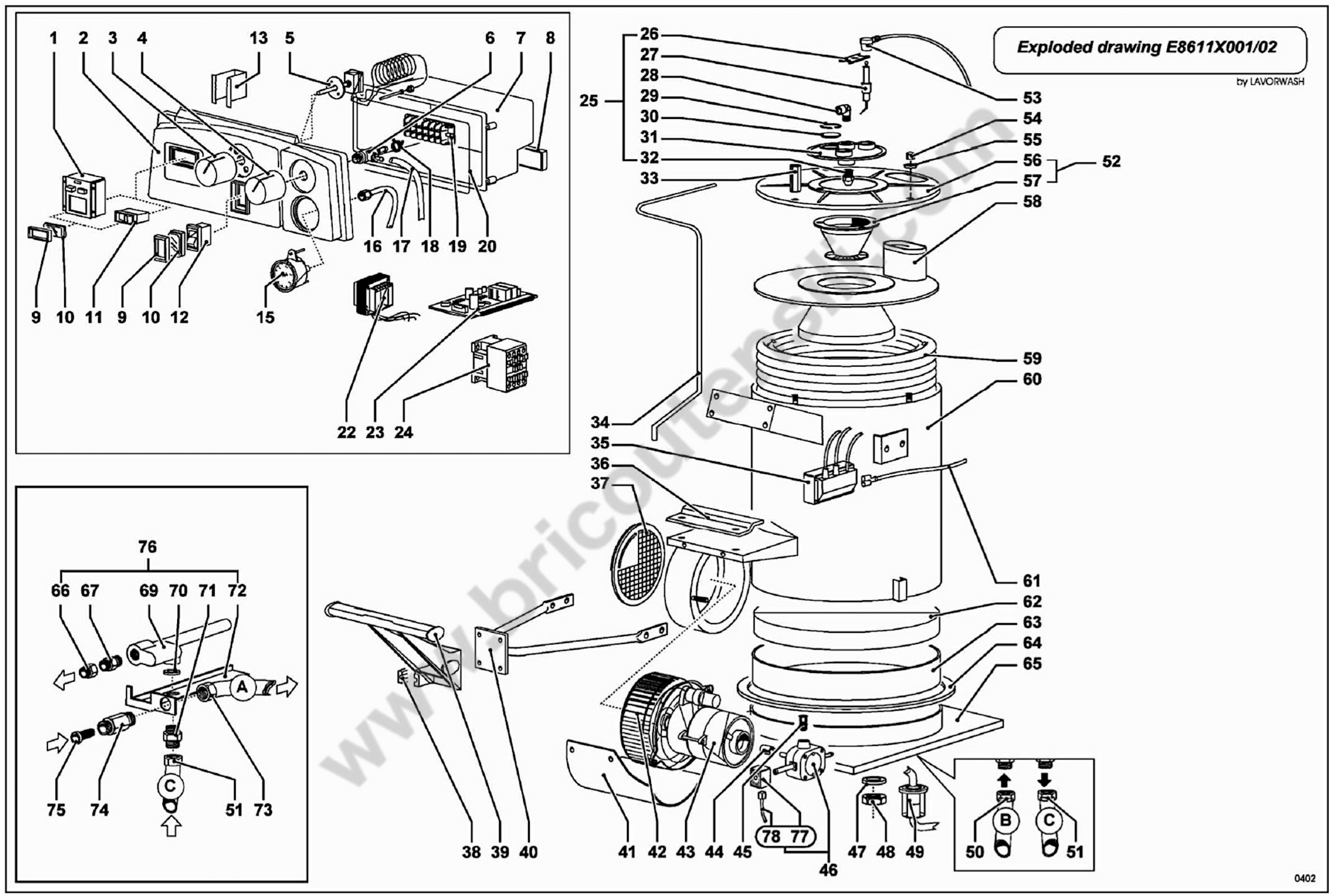

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 4.608.0079 DASHBOARD '93 WITH COMPLETE SILKSCREEN €45.18
3
 Thermostate Knob for Pressure Washers Lavor NPX 1400 - NPX 1500 4.608.0019 Thermostate Knob for Pressure Washers Lavor NPX 1400 - NPX 1500 €10.03
5
 Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500 3.403.0091 Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500 €40.24
6
 photo_cameraImage coming soon 3.105.0003 DETERGENT REGULATING COCK WITHRUBBER HOLDER D.7 €37.19
7
 photo_cameraImage coming soon 4.608.0065 BOX DASHBOARD '93 €29.21
8
 photo_cameraImage coming soon 4.608.0071 GUIDING CABLE COVER DASHBOARD '93 €6.66
9
 photo_cameraImage coming soon 5.009.0165 FRAME FOR SEALING SWITCH AND HOBBY €9.55
10
 photo_cameraImage coming soon 5.009.0165 FRAME FOR SEALING SWITCH AND HOBBY €9.55
11
 Micro Breaker for Pressure Cleaner Lavor NPX 1400 3.401.0025 Micro Breaker for Pressure Cleaner Lavor NPX 1400 €46.23
12
 photo_cameraImage coming soon 5.009.0213 EXT SWITCH WITH PROTECTION 12(10) €6.72
15
 Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500 3.107.0004 Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500 €33.35
16
 Pressure Gauge Pipe for Pressure Washers Lavor NPX 1500 4.618.0014 Pressure Gauge Pipe for Pressure Washers Lavor NPX 1500 €26.46
18
 photo_cameraImage coming soon 3.099.0282 TWO-WIRES WRAPPER FOR 6X12 HOSE (15126) €1.68
19
 photo_cameraImage coming soon 3.405.0023 JUNCTION BOX €28.64
20
 Dashboard Gasket for Pressure Cleaner Lavor NPX 1400 4.608.0078 Dashboard Gasket for Pressure Cleaner Lavor NPX 1400 €3.32
25
 photo_cameraImage coming soon 5.611.0002 BURNER FLANGE COMPLETE 1.25-45 RH €76.23
26
 photo_cameraImage coming soon 4.607.0001 GLOW PLUG RESTANT PLATE 15X32 €4.50
27
 photo_cameraImage coming soon 4.614.0004 STANDARDIZED ELECTRODES COUPLE WITH ROD €36.46
28
 photo_cameraImage coming soon 3.100.0017 ELBOW 4 1/8 COPPER TUBE €6.65
29
 photo_cameraImage coming soon 3.099.0015 RING SEEGER I D.21 SP1 DIN 472 €1.68
30
 photo_cameraImage coming soon 4.608.0002 SITE GLASS DIAM.20 SP.1,8 €1.68
31
 photo_cameraImage coming soon 4.605.0001 WROUGHT BURNER FLANGE €28.64
32
 photo_cameraImage coming soon 3.104.0004 Substituted by 3.104.0028 DIESEL NOZZLE 1,25 45-B €26.77
33
 photo_cameraImage coming soon 4.606.0064 COLUMN FIXING CARENATUR A LKX €10.10
34
 photo_cameraImage coming soon 4.616.0006 COPPER TUBE DIAM. 4 COMPACT €28.64
35
 photo_cameraImage coming soon 6.605.0102 IGNITION TRANSFORMER 230/50 818C / S €164.14
36
 photo_cameraImage coming soon 4.607.0011 ZNT MOTOR FOOT FIXING BRACKET €7.38
37
 photo_cameraImage coming soon 5.609.0023 VENTILATOR PROTECTION GRID ASSEMBLY €3.95
38
 photo_cameraImage coming soon 4.608.0036 FEEDING CABLE CONNECTOR €6.41
39
 photo_cameraImage coming soon 4.608.0068 GUIDING HANDLE COMPACT 4P €40.52
40
 photo_cameraImage coming soon 5.613.0119 LKX HANDLE SUPPORT -VERNICIAT O- €72.97
41
 photo_cameraImage coming soon 4.608.0103 CARTER FOR GASOLI OR LKX PUMP PROTECTION €29.21
42
 photo_cameraImage coming soon 3.099.0028 FAN 146x72 LH.HOLE DM 12.7 €29.49
43
 photo_cameraImage coming soon 3.300.0003 MOTOR X BRUC. 100W / 230-240 / 50H z IP55 €194.80
44
 photo_cameraImage coming soon 3.099.0012 Substituted by 6.605.0173 GASOIL PUMP PLASTIC COUPLING €28.23
45
 photo_cameraImage coming soon 3.100.0015 STRAIGHT CONNECT.1/8M. FOR COPP.TUBE D.4 €7.92
46
 Diesel Pump for Pressure Cleaner Lavor NPX 1400 3.551.0037 Diesel Pump for Pressure Cleaner Lavor NPX 1400 €113.24
47
 photo_cameraImage coming soon 3.004.0015 PLAIN WASHER D.22X39X2 UNI6592 €1.63
48
 photo_cameraImage coming soon 4.606.0013 COIL FIXING NUT 1/2 BRASS SPEC. €3.25
49
 Lavor LKX 31 Diesel Filter Unit 5.611.0067 Lavor LKX 31 Diesel Filter Unit €19.50
50
 photo_cameraImage coming soon 4.618.0035 TUBE R1 PUMP/COIL TG480 €28.57
51
 Lavor NPX 1400 Hose 4.618.0043 Lavor NPX 1400 Hose €27.71
52
 photo_cameraImage coming soon 5.611.0012 EXTERNAL BURNER COVER DIAM.341 €52.75
53
 Lavor NPX 1400 High Tension Cable 5.611.0099 Lavor NPX 1400 High Tension Cable €15.35
54
 photo_cameraImage coming soon 3.003.0010 BLIND NUT E. M6 UNI 5721 BRASS €1.68
55
 photo_cameraImage coming soon 3.004.0001 PLAIN WASHER D.6X11X0.8 UNI1736 €1.68
56
 photo_cameraImage coming soon 5.613.0147 INOX EXTERNAL BURNER COVER €35.06
57
 photo_cameraImage coming soon 5.610.0105 DEFLECTOR D.82 €29.76
58
 photo_cameraImage coming soon 5.613.0122 COVER INT.CAM.COMB. CHIMNEY L = 90 €123.31
59
 photo_cameraImage coming soon 4.604.0001 COIL TOP H.335 €472.90
60
 photo_cameraImage coming soon 5.613.0118 BOILER BODY JOLLY 5 / LKX VERN ICIATO €424.48
61
 photo_cameraImage coming soon 4.612.0048 COFI TRANSFORMER CABLE L=900 EXP.01 €7.55
62
 Lavor NPX 1500 Bottom Refractory 4.608.0116 Lavor NPX 1500 Bottom Refractory €42.11
63
 photo_cameraImage coming soon 4.607.0006 COIL FIXING STRIP PLATE 20/10 €46.76
64
 Lavor NPX1400 Insulating Rope 4.608.0162 Lavor NPX1400 Insulating Rope €35.27
65
 photo_cameraImage coming soon 5.613.0116 BOILER BASE JOLLY 5 / LKX -VERN ICIATA- €106.07
67
 photo_cameraImage coming soon 3.100.0018 RAPID COUPLING 3/8 M. 08 (465) €14.98
69
 photo_cameraImage coming soon 4.606.0087 BULB ASSY €49.01
70
 photo_cameraImage coming soon 3.004.0004 ALUMINIUM WASHER 21X30XSP 1,5 €1.74
71
 photo_cameraImage coming soon 3.100.0020 REDUCTION M.GAS/M.GAS 1/2-3/8 €8.03
72
 photo_cameraImage coming soon 5.613.0191 THERMOSTAT/ALARM BULB SUPPORT. NPX/LKX'04 €28.78
73
 photo_cameraImage coming soon 4.618.0030 TUBE B.P. D.20X10 3/8M-3/8M. L.450 €26.69
74
 photo_cameraImage coming soon 4.606.0019 SUCTION CONNECTOR M22 IDRO COMPACT €5.16
75
 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 4.008.0031 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 €2.07
76
 photo_cameraImage coming soon 5.609.0059 ASSEMBLY PROFESSIONAL BULB BODY LKX, NPX + SUPPORT €71.36
77
 Diesel Pump Coil for Pressure Cleaner Lavor NPX 1400 3.414.0002 Diesel Pump Coil for Pressure Cleaner Lavor NPX 1400 €40.38
78
 photo_cameraImage coming soon 4.612.0043 CABLE FOR DIESEL PUMP L=1000 STRIPPED TERMINALS €5.47

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Original Parts for Pressure Cleaner LKX 30 TS 8.611.0001

Fix Your Pressure Cleaner LKX 30 TS 8.611.0001. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee

In the following tables, look for the spare part and its respective code.
LKX 30 TS 8.611.0001

Pressure Cleaner LKX 30 TS 8.611.0001
Cover Pag.1
# Part Num Description
1 3.002.0122 WIDE BOWL HEAD SCREW CROSS TAG M6X12ZNT
2 4.613.0111 UPPER FAIRING JOLLY 5/LKX YELLOW
3 4.608.0203 DIESEL/DETERGENT TANK JOLLY 5/LKX EXP.04
4 4.612.0046 POWER CABLE H05VV-F 3X1.5 L=6000S/FASTON EXP.01
5 4.608.0073 SHORT SPACER FOR JOLLY TANK 4/93
6 5.009.0159 OIL CAP 3/8G COMPLETE WITH GASKET
7 4.608.0074 LONG SPACER FOR TANK JOLLY 4/93 mm575
8 5.613.0096 BOILER AXLE JOLLY 4/93 EXP.05
9 4.608.0082 DIESEL TANK CAP-CHEM
10 3.200.0038 OR SEAL 53.65x2.62 REF.3212
11 5.613.0115 REAR AXLE JOLLY 5/LKXPAINTED EXP.05
12 3.006.0026 WHEEL D.260X85 FULL BLACK
13 3.099.0794 STUD D.135 WHEEL COVER BLACK WHEEL D.260
14 5.009.0340 HOSE HOLDER ASSEMBLY SUCTION OT+OR + RING NUT
15 3.100.0043 ATT. QUICK SWIVEL 3/8 M MVG8 (461) 26075050
16 4.618.0016 TUBE 5/16 210BAR L=10000 C/M AP1031 3/8F
17 6.001.0071 GUN RL200 3/8M+S4 +ATT.RAP30015060
18 3.701.0015 LANCE L.700 COATED +ROS.+ATT. QUICK M22 41102850
19 3.103.0050 NOZZLE A.P.15045 1/8M
20 3.099.0019 WHEEL STOP DIAM.250 X 55D.20
Motor Pump Pag.2
00 5.601.0150 MOTOR PUMP LWM 230/50 2P 135 H125 9.30' X HOT
12 5.009.0094 ASS.BEST FINNED GUIDE BODY WITH SEALS
13 4.608.0088 ENGINE FAN COVER D.135 EXP.01
14 3.099.0108 LOWERED FAN D.150 90V3 WITH HOLE D.19 + CLAMP
15 5.606.0046 CASE LW.M 230/50 2P D.135H.125 THREADED HOLES
16 3.001.0001 RADIAL BALL BEARING 6204-2Z (X MOT.EL.150'C)
17 5.605.0030 ROTOR SHAFT D.70 H125 FOR MOT.D.135 WITH FINNED GUIDE
18 3.002.0015 TCEI SCREW M6X25 TRILOBATE ZNT
19 5.609.0072 MOT.FLANGE 135 FOR FINNED GUIDE BODY EXP.05
20 3.201.0019 OIL SEAL RING D.25X40X7 DOUBLE LIP
21 5.609.0072 ENGINE FRONT FLANGE 135 X FINNED GUIDE BODY
22 3.200.0002 OR SEAL 90 X 2.5
23 3.001.0029 ANGLE BALL BEARING 7305-BE (25X62X17)
24 4.605.0041 PLATE 9.30' FOR BALL BEARING EXP.03
25 3.002.0003 TCEI SCREW M8X25 UNI 5931 ZNT
26 4.607.0208 AXIAL BALL BEARING 30X73X18 FOR PLATE S0610 EXP.0
27 5.009.0088 ASSEMBLY OF STOP RING-PISTON-SPRING STOP D.15
28 4.007.0011 PISTON RECALL SPRING D.15 d.3 L.45 EXP.01
30 3.002.0032 TCEI SCREW M8X30 UNI 5931 ZNT
31 3.002.0004 STEI SCREW 3/8 G.DIN 906 (OIL CAP)
32 3.099.0003 OIL LEVEL INDICATOR SLNS-3/8 HOBBY
33 4.005.0184 BODY GUIDE -> with flaps <- '01ESP.03
34 3.099.0301 OIL LOAD CAP KNURLED WITH HOLE FOR
35 5.009.0207 ASS. CAP FOR BEST CAMP. OIL CAR.OVERT. + OR sh90
36 3.201.0002 BADSLSF SEALING RING 15X25,4X5/7
Base Pag.3
2 4.608.0079 DASHBOARD '93 WITH COMPLETE SILKSCREEN PRINTING
3 4.608.0019 THERMOSTAT KNOB-TAP BLACK 3079/1
5 3.403.0091 THERMOSTAT 30/150 BULB D.5 (2 FASTON)
6 3.105.0003 TAP REG.DET.W/HOLDER D.7 (DIS.N.6990A 3/4 TURN) ESP.02
7 4.608.0065 DASHBOARD BOX '93
8 4.608.0071 DASHBOARD CABLE GLAND COVER '93
9 5.009.0165 HOLDING FRAME FOR HOBBY SWITCH EXP.00
10 5.009.0165 HOBBY WATERPROOF SWITCH COVER ESP.02
11 3.401.0025 ABT WK 160 C0S/PROT. MICRODISCONNECTOR
12 5.009.0213 INT. BIP16(8)-12(10)A B412E112000 ON/OFF
15 3.107.0004 MANOMETER D.50 0/315 BAR 1/4 REAR+BRACKET
16 4.618.0014 MANOMETER PIPE 2X380 max630bar1/4 F/GIR-1/4 F/GIR
18 3.099.0282 DOUBLE-WIRE CLAMP FOR PIPE 6x12(15126)
19 3.405.0023 TERMINAL BLOCK PA/32 1730 9 POLES
20 4.608.0078 DASHBOARD GASKET '93 (3x900) EXP.02
25 5.611.0002 COMPLETE BURNER FLANGE 1.25-60A RH
26 4.607.0001 PLUG STOP PLATE 15x32 SP.3.5
27 4.614.0004 ELECTRODE 0772589000 EXP.04
28 3.100.0017 CONNECTOR ELBOW 4 1/8 COPPER PIPE
29 3.099.0015 SEEGER RING I D.21 SP1 DIN 472
30 4.608.0002 GLASS DIAM.20 SP.1.8
31 4.605.0001 MACHINED BURNER FLANGE EXP.03
32 3.104.0004 DIESEL NOZZLE 1.25 60/H
33 4.606.0064 LKX FAIRING FIXING COLUMN
34 4.616.0006 COPER PIPE DIAM.4 COMPACT EXP.02
35 6.605.0102 IGNITION TRANSFER 230/50 818C/S
36 4.607.0011 MOTOR FOOT FIXING BRACKET
37 5.609.0023 FAN PROTECTION GRILLE ASSEMBLY
38 4.608.0036 POWER CABLE TERMINAL
39 4.608.0068 COMPACT 4P GUIDE HANDLE
40 5.613.0119 LKX HANDLE SUPPORT -PAINTED-
41 4.608.0103 OIL PUMP PROTECTION CASING LKX EXP.01
42 3.099.0028 FAN 146x72 LEFT.HOLE DM 12.7
43 3.300.0003 X MOTOR BURNER 100W/230-240/50Hz IP55
44 3.099.0012 PLASTIC JOINT DIESEL PUMP (BLACK)
45 3.100.0015 STRAIGHT CONNECTOR 1/8 M. FOR COPPER PIPE D.4
46 3.551.0037 SINGLE PIPE DIESEL PUMP + ELECTRICITY 220V D DX
47 3.004.0015 FLAT WASHER D.22X39 Sp.3 UNI 6592 ZNT
48 4.606.0013 COOLING NUT 1/2 OT SPEC.
49 5.611.0067 DIESEL FILTER GROUP (PAPER)LKX EXP.02
50 4.618.0035 PIPE R1 PUMP/COOLER L=600 1/2F3/8F EXP.04
51 4.618.0043 TUBE R1 3/8 L=375 C.1/2F.GIR/C.3/8F GIR
52 5.611.0012 EXTERNAL COVER BOILER DRILLED CONE
53 5.611.0099 CABLE L=480 WITH PROTECTION
54 3.003.0010 BLANK NUT M6 UNI 5721 BRASS
55 3.004.0001 FLAT WASHER D.6X11 Sp.0.8 UNI1736 ZNT
56 5.613.0147 EXTERNAL COVER BOILER STAINLESS STEEL AISI 430 EXP.02
57 5.610.0105 DEFLECTOR WITH CONE D.82 W/HOLES
58 5.613.0122 INTERNAL COVER CAM.COMB. CAMINOL=90 EXP.04
59 4.604.0001 TOP COIL H.335 (FE. 35.2) EXP.03
60 5.613.0118 JOLLY 5/LKX PAINTED BOILER BODY EXP.02
61 4.612.0048 COFI TRANSFORMER CABLE L=900 EXP.01
62 4.608.0116 CEMENTED REFRACTORY D.290X20 FOR BOILER EXP.02
63 4.607.0006 COIL FIXING BAND IN 15/10 AISI 430 STAINLESS STEEL SHEET EXP.0
64 4.608.0162 BOILER BOTTOM GASKET EXP.04
65 5.613.0116 JOLLY 5/LKX BOILER BASE -PAINTED- EXP.04
67 3.100.0018 QUICK CONNECTOR 3/8 M. 08 (465) 26070050
69 4.606.0087 THERM. BULB BODY PROFESSIONAL ESP.04
70 3.004.0004 ALUMINUM WASHER 21x30xSP.1.5
71 3.100.0020 NIPPLE 1/2G-3/8G
72 5.613.0191 JOLLY THERMOSTAT BULB SUPPORT 4/93 ESP.03
73 4.618.0030 LP TUBE D.20X10 3/8M.-3/8M.L.450
74 4.606.0019 SUCTION CONNECTOR M22 IDRO COMPACT ESP.01
75 4.008.0031 H2O SUCTION FILTER D.16 CONICAL ESP.00
76 5.609.0059 PROFESSIONAL, LKX, NPX BULB BODY ASSEMBLY + SUPPORT
77 3.414.0002 220/50 COIL FOR FUEL PUMP
78 4.612.0043 CABLE FOR DIESEL PUMP L=1000STRIPPED TERMINALS ESP.01
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Lavor LKX30TS - 8.611.0001
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

Lavor LKX 30 TS Parts Diagram

Lavor LKX 30 TS Parts Diagram

Download (1.2MB)

You might also like

Lance 6.002.0340 Nozzle Head Holder for Trigger Guns Lavor
Lavorwash S.p.A. SKU: 6.002.0340
Lance 6.002.0340 Nozzle Head Holder for Trigger Guns Lavor
Lance 6.002.0340 Nozzle Head Holder for Trigger Guns Lavor Genuine Replacement part Lavor, Lance 6.002.0340 Nozzle Head Holder for Cold Water Pressure Washers Trigger Guns Lavor Fury 110 - Ride 110 - Race 125...
Last items in stock €10.11
Details
Head Turbo Nozzle Ø 1,025 for Lance Lavor
Lavorwash S.p.A. SKU: 6.002.0346
Head Turbo Nozzle Ø 1,025 for Lance Lavor
Head Turbo Nozzle Ø 1,025 for Lance Lavor Genuine Replacement part Lavor, Head cod. 6.002.0346 Turbo Nozzle Ø 1,025 for Lance Lavor 6.002.0340. Part suitable for the following high pressure...
Last items in stock €7.50
Details
Quick Coupling 3/4F for High Pressure Washers Lavor
Lavorwash S.p.A. SKU: 3.100.0082
Quick Coupling 3/4F for High Pressure Washers Lavor
Quick Coupling 3/4F  for High Pressure Washers Lavor Genuine Replacement part Lavor, Quick Coupling 3/4F 3.100.0082 for Cold Water High Pressure Washers Fury 110 - Ride 110 - Race 125...
AVAILABLE €1.63
Details
Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 4.008.0031
Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24
Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 Original replacement part Lavor, Inlet Water Filter H20 D.16 Conical for Pressurte Washers STORM II 17 - STORM II PLUS 21 - BEST 24.  Part for the following products: -...
AVAILABLE €2.07
Details
Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 6.005.0079
Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24
Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24 Original replacement part Lavor, Kit 79 LW Oil Seal for Partner D.12/Fibra per Pressure Washers ARMY 110 - MARINE 125 - NAVY 140 - ENDURO 145 COMP. Part for the following...
Usually Shipped on: 7/10 Business Days Approx. €14.50
Details
Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 6.005.0226
Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24
Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24 Original replacement part Lavor, Kit 209 O-Ring for PT'03 per Pressure Washers ARMY 110 - MARINE 125 - NAVY 140 - ENDURO 145 - BEST 24. Part for the following products: -...
Usually Ships in: 7/10 Business Days Approx. €11.43
Details
Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145
Lavorwash S.p.A. SKU: 5.008.0261
Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145
Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145 Original replacement part Lavor, Head PT'03 EVO D.12 for ENDURO 145 - ARMY 110 - MARINE 125 - NAVY 140 - RAPTOR 21 - STORM II 18 - STORM II PLUS 21. Part for the following...
AVAILABLE €28.99
Details
Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145
Lavorwash S.p.A. SKU: 6.005.0311
Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145
Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145 Original replacement part Lavor, Kit 283 LW Needle Bearing for Motorpump PT'03 (U76) for ENDURO 145 - ARMY 110 - MARINE 125 - NAVY 140 - RAPTOR 21 - STORM II. Part for...
AVAILABLE €5.50
Details
Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110
Lavorwash S.p.A. SKU: 6.005.0588
Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110
Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110 Original replacement part Lavor, Kit LW Intake Delivery Valves for High Pressure Washers ARMY 110 - MARINE 125 - NAVY 140. Part for the following products: - R80880029C -...
AVAILABLE €27.72
Details
Lance S'02V 1,00 (Blu) for Pressure Washer EXPRESS PLUS Sale
Lavorwash S.p.A. SKU: 6.002.0263
Lance S'02V 1,00 (Blu) for Pressure Washer EXPRESS PLUS
Lance S'02V 1,00 (Blu) for Pressure Washer EXPRESS PLUS Genuine Part Lavor, Lance S'02V 1,00 (Blu) for Pressure Washer 8.084.0006C Lavor IDRO EXPRESS PLUS 220-240/50Hz. Part suitable for the following high pressure washers: -...
AVAILABLE €13.00
Details
Capacitor 55mF 450V for Pressurte Washer Lavor GIANT 24
Lavorwash S.p.A. SKU: 3.404.0095
Capacitor 55mF 450V for Pressurte Washer Lavor GIANT 24
Capacitor 55mF 450V for Pressurte Washer Lavor GIANT 24 Original replacement part Lavor, Capacitor 55mF 450V D.50x94 F/M per Pressure Washers GIANT 24 - GIANT 28 - TEMPESTA 24 - TEMPESTA 28. Part for the following products: - 81050002...
AVAILABLE €20.13
Details
Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 3.107.0004
Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500
Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Pressure Gauge D.50 0/315 BAR - 1/4 Rear thread + Bracket (ref 129 939 81) for Pressure Washers NPX 1400 - NPX...
on 7/10 Business Days Approx. €33.35
Details
Quick Coupling for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 5.009.0340
Quick Coupling for Pressure Washers Lavor NPX 1400 - NPX 1500
Quick Coupling for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Quick Coupling Assy + O-Ring + Ring Nut for Pressure Washers NPX 1400 - NPX 1500. Part for the following products: - Pressure Washer Lavor...
Last items in stock €15.06
Details
Thermostate Knob for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 4.608.0019
Thermostate Knob for Pressure Washers Lavor NPX 1400 - NPX 1500
Thermostate Knob for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Black Thermostate Knob 3079/1t for Pressure Washers NPX 1400 - NPX 1500. Part for the following products: - Pressure Washer Lavor NPX 1400...
on 10 Business Days Approx €10.03
Details
Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 3.100.0043
Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500
Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, 3/8 M Rotating Quick Coupling for Pressure Washers NPX 1400 - NPX 1500. Part for the following products: - Pressure Washer Lavor NPX 1400 -...
AVAILABLE €17.59
Details
Piston Guide Body With Complete Valve Head for Lavor Missouri
Lavorwash S.p.A. SKU: 5.007.0231
Piston Guide Body With Complete Valve Head for Lavor Missouri
Piston Guide Body With Complete Valve Head for Lavor Missouri Genuine part Lavor, Piston Guide Body PT'03 - Ceramic Pistons Diameter 12 mm + Total-Stop, Turned With Complete Valve Head With Intake Springs 17K. Part for the following...
Usually Ships in: 7/10 Business Days Approx. €52.53
Details
Suction Valve Ass'y for Pressure Cleaner Lavor Missouri
Lavorwash S.p.A. SKU: 5.009.0534
Suction Valve Ass'y for Pressure Cleaner Lavor Missouri
Suction Valve Ass'y for Pressure Cleaner Lavor Missouri Genuine part Lavor, Suction Valve Ass'y for '03 Head for Pressure Cleaners MISSOURI - EAGLE 24. Part for the following products: -  86190601 - IDRO MISSOURI 230/50 TS -G- LWS -...
on 7/10 Business Days Approx €9.28
Details
Delivery Valve Brass Cap for Pressure Cleaner Lavor Missouri
Lavorwash S.p.A. SKU: 5.009.0745
Delivery Valve Brass Cap for Pressure Cleaner Lavor Missouri
Delivery Valve Brass Cap for Pressure Cleaner Lavor Missouri Genuine part Lavor, Delivery Valve Brass Cap with O-Ring for '03 Head for Pressure Cleaners MISSOURI - EAGLE 24. Part for the following products: -  86190601 - IDRO MISSOURI...
AVAILABLE €5.03
Details
Radial Ball Bearing 6203RS for Pressure Cleaner Lavor Missouri
Lavorwash S.p.A. SKU: 3.001.0020
Radial Ball Bearing 6203RS for Pressure Cleaner Lavor Missouri
Radial Ball Bearing 6203RS for Pressure Cleaner Lavor Missouri Genuine part Lavor, Radial Ball Bearing 6203RS for Pressure Cleaners MISSOURI - Giant 24 - Giant 28 - Tempesta 24 - Tormenta 28. Part for the following products: -...
on 7/10 Business Days Approx €13.71
Details
Transformer 230-240V for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 5.009.0686
Transformer 230-240V for Pressure Washer Lavor Missouri
Transformer 230-240V for Pressure Washer Lavor Missouri Genuine part Lavor, Ignition Transformer 230-240V/50-60Hz with Pipette for Pressure Washers Burner FKX-PARANA ' - RIO (EMC) + Cable Part for the following products: -  86190601...
Usually Ships in: 10/15 Business Days Approx. €100.43
Details
Diesel Filter Unit for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 5.611.0043
Diesel Filter Unit for Pressure Washer Lavor Missouri
Diesel Filter Unit for Pressure Washer Lavor Missouri Genuine part Lavor, Diesel Filter Unit JOLLY 4 '93 / MISSOURI / MEK for Pressure Washers Missouri - NPX 1400 - NPX 1500. Part for the following...
Usually Ships in: 10 Business Days Approx. €15.19
Details
Pressure Adjustment Valve for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 5.009.0304
Pressure Adjustment Valve for Pressure Washer Lavor Missouri
Pressure Adjustment Valve for Pressure Washer Lavor Missouri Genuine part Lavor, Pressure Adjustment Valve Ass'y for Pump ULKA (Spring L=20) for Pressure Washers MISSOURI FKX-PARANA' - MISSOURI - RIO (EMC) + Cable. Part for the...
on 7/10 Business Days Approx. €28.99
Details
Electrodes for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 4.614.0001
Electrodes for Pressure Cleaner Lavor NPX 1400
Electrodes for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Unified Electrodes with Bracket for Boilerfor Pressure Cleaners NPX 1400 - NPX 1500 - LKX 40 - NPX 1511 XP T...
on 10 Business Days Approx €36.16
Details
Diesel Pump for Pressure Cleaner Lavor NPX 1400 Sale
Lavorwash S.p.A. SKU: 3.551.0037
Diesel Pump for Pressure Cleaner Lavor NPX 1400
Diesel Pump for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Double Pipe Diesel Pump + Electrode 220V Right for Pressure Cleaners NPX 1400 - LKX 40 Part for the...
Last items in stock €113.24
Details
Diesel Pump Coil for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 3.414.0002
Diesel Pump Coil for Pressure Cleaner Lavor NPX 1400
Diesel Pump Coil for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Diesel Pump Coil 230V 50/60Hz 9W 100%  ED 25 Bar IP65 Delta Pump for Pressure Cleaners NPX 1400 - NPX 1500 Part for the following products: -...
on 10 Business Days Approx €40.38
Details
Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 6.605.0173
Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400
Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Diesel Pump Red Plastic Coupling Set for Engine EME/UNIELECTRICp for Pressure Cleaners NPX 1400 - NPX 1500 Part for the following products: -...
Last items in stock €29.06
Details
Washer SNHORt for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 3.004.0022
Washer SNHOR for Pressure Cleaner Lavor NPX 1400
Washer SNHOR for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Washer SNHOR D.8x13 sp.0.8 for Pressure Cleaners NPX 1400 - NPX 1500 Part for the following products: -  Pressure Cleaner Lavor NPX 1400 - 8.605.0048 -...
on 10 Business Days Approx €1.71
Details
Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 3.403.0091
Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500
Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Thermostat 30/150 Bulb d.6.5 (3 Faston) for Pressure Washers NPX 1400 - NPX 1500. Part for the following...
on 10 Business Days Approx €40.24
Details
Micro Breaker for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 3.401.0025
Micro Breaker for Pressure Cleaner Lavor NPX 1400
Micro Breaker for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Micro Breaker 3120 - F551-P7T1-W02D-16A for Pressure Cleaners NPX 1400 - NPX 1500. Part for the following products: -  Pressure Cleaner NPX 1400 230/50...
on 10 Business Days Approx €46.23
Details
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 4.608.0078
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Dashboard Gasket '93 (3x900) for Pressure Cleaners NPX 1400 - NPX 1500 - LKX 40. Part for the following products: -  Pressure Cleaner NPX 1400 230/50...
Last items in stock €3.32
Details
Pressure Switch for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 3.704.0006
Pressure Switch for Pressure Washer Lavor Missouri
Pressure Switch for Pressure Washer Lavor Missouri Genuine part Lavor, Pressure Switch 25 Bar 1/8 Red L.700 Faston F. for Pressure Washers  MISSOURI - YUKON 1310 - NPX 1500 - LKX 40. Part...
Last items in stock €30.90
Details
Diesel Nozzle for Pressure Washers Lavor NPX 1400
Lavorwash S.p.A. SKU: 3.104.0028
Diesel Nozzle for Pressure Washers Lavor NPX 1400
Diesel Nozzle for Pressure Washers Lavor NPX 1400 Genuine replacement part Lavor, Diesel Nozzle 1,25 45-B for Pressure Washers NPX 1400 - NPX 1500 - LKX 31 - LKX 40. Part for the following...
Last items in stock €28.36
Details
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1500
Lavorwash S.p.A. SKU: 4.618.0014
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1500
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Pressure Gauge Pipe 2x380 Max 630 Bar 1/4 F. Gir. 1/4 F Gir. for Pressure Washers NPX 1400 - NPX...
Usually Ships in: 10/15 Business Days Approx. €26.46
Details
Lavor LKX 31 Diesel Filter Unit
Lavorwash S.p.A. SKU: 5.611.0067
Lavor LKX 31 Diesel Filter Unit
Lavor LKX 31 Diesel Filter Unit Genuine replacement part Lavor, Diesel Filter Unit Assy (PAPER) for LKX 31 - 40 - 55 - 2015. Part for the following products: - 8.611.0160 - Pressure Washer LKX 31 TS AC 230/50 CM-G -...
Last items in stock €19.50
Details
Lavor Body Guide for NPX 1400
Lavorwash S.p.A. SKU: 4.005.0184
Lavor Body Guide for NPX 1400
Lavor Body Guide for Pressure Cleaner NPX 1400 Genuine replacement part Lavor, Piston Body Guide best whit wings 01' for Pressure Cleaner NPX 1400 - TANGO KW 24. Part for the following products: -  Pressure Cleaner Lavor NPX...
Last items in stock €66.79
Details
Lavor Nozzle for ONTARIO 1211LP
Lavorwash S.p.A. SKU: 3.103.0050
Lavor Nozzle for ONTARIO 1211LP
Lavor Nozzle for Pressure Washer ONTARIO 1211LP Genuine replacement part Lavor, High Pressure Nozzle 1/8M 15045 for Pressure Cleaner NPX1400 - LKX 31. Part for the following products: -  Pressure Cleaner ONTARIO 1211LP -...
Usually Ships in: 10/15 Business Days Approx. €16.21
Details
Lavor Pressure Washer NPX1400 Insulating Rope
Lavorwash S.p.A. SKU: 4.608.0162
Lavor NPX1400 Insulating Rope
Lavor Pressure Washer NPX1400 Insulating Rope Genuine replacement part Lavor, Insulating Rope For Boiler Base L=990 for Pressure Washer NPX1400 - LKX 31 - LKX 55. Part for the following products: - ...
Last items in stock €35.27
Details
Lavor NPX 1500 Bottom Refractory
Lavorwash S.p.A. SKU: 4.608.0116
Lavor NPX 1500 Bottom Refractory
Lavor Pressure Washer NPX 1500 Bottom Refractory Genuine replacement part Lavor, Kit Bottom Cement Refractory D.290 for Pressure Washer NPX 1500 - NPX 1400. Part for the following products: -  Pressure Washer...
Last items in stock €42.11
Details
Comments (0)
