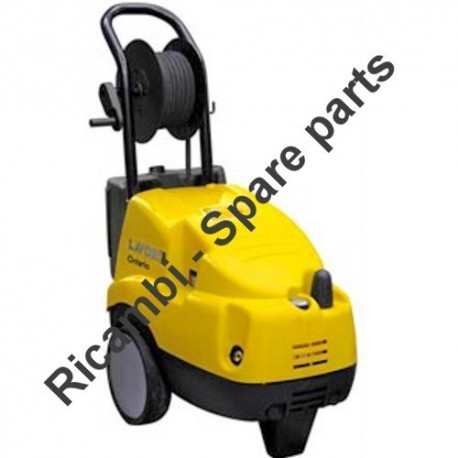

Lavor Pressure Cleaner ONTARIO 34 Parts

Name: Lavor Pressure Cleaner ONTARIO 34 Parts
Brand: Lavorwash S.p.A.
SKU: ONTARIO 34 - 86150004
Availability: InStock

SKU: ONTARIO 34 - 86150004

€15.13

VAT included

Lavor Original Parts for Pressure Cleaner ONTARIO 34

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner ONTARIO ONTARIO 34 230/50 TS C/AVVOLG.-G- LWS - 86150004.

Fix Your Pressure Cleaner ONTARIO 34. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Cold Water High Pressure Cleaner ONTARIO 34 230/50 TS C/AVVOLG.-G- LWS - 86150004

138 spare parts

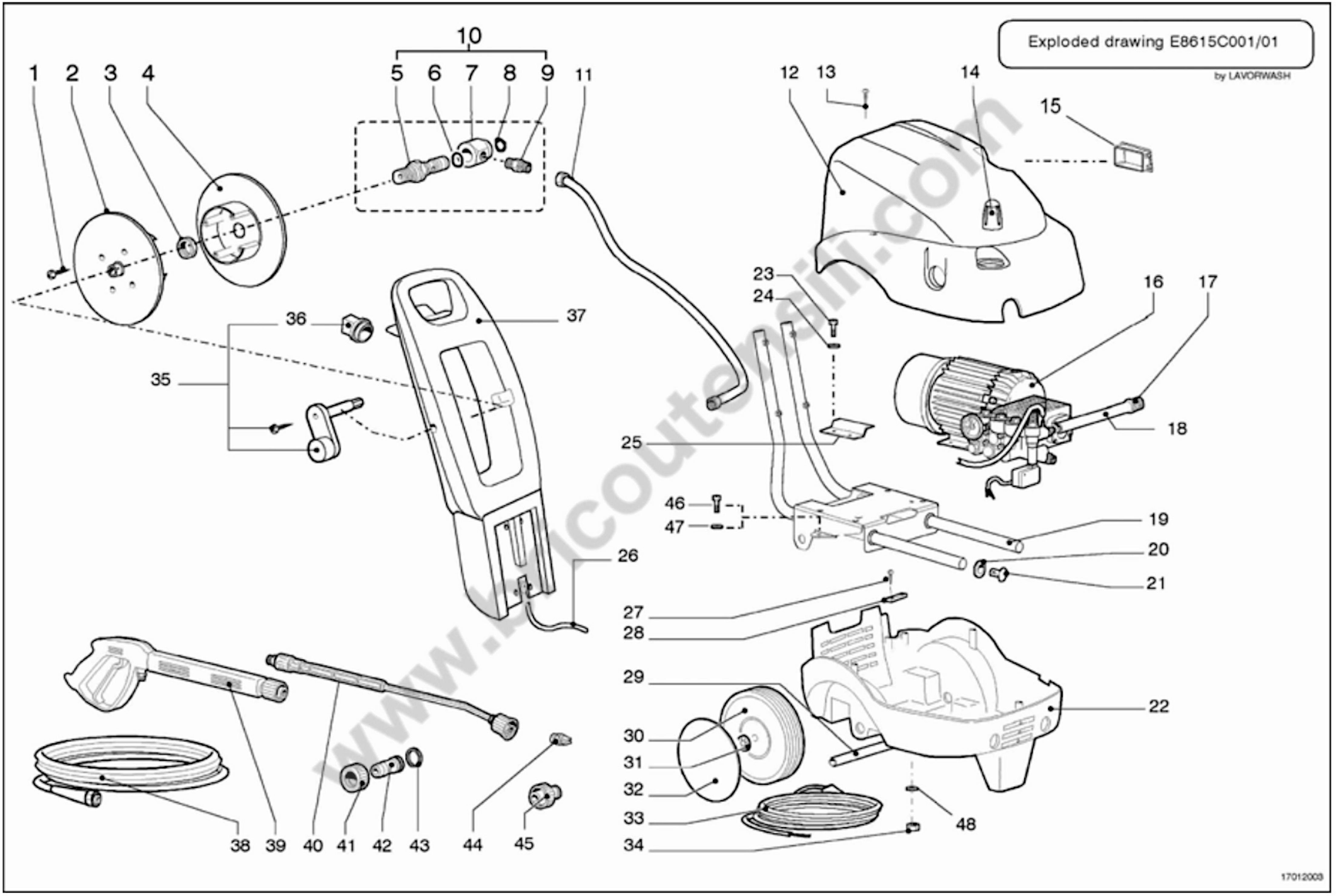

Page 1 View exploded Usually Ships in: 10 BUSYNESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
002		4.008.0517 Winding Reel Handle Side for Pressure Washer Lavor EAGLE 24	€15.55
003	Image coming soon	3.099.0158 3/8 BUSH	€3.32
004	Image coming soon	4.008.0607 SEMIAVV.LATE LOWERED INPUT SIDE EXP.01	€6.71
005	Image coming soon	4.606.0098 ROTATING BOLT	€11.76
006		3.200.0018 Gasket O-Ring 9.92X2.62 for Pressure Washer Lavor FKX 1018	€1.66
007	Image coming soon	4.606.0097 ROTATING COUPLUING BODY	€12.31
008	Image coming soon	3.099.0144 SEEGER RING FOR SHAFT	€1.68
009	Image coming soon	4.606.0096 COUPLING FOR HOSE WINDING	€3.45
011	Image coming soon	4.618.0080 H.P. PIPE 1/4" R1 210bar 3/8"F.GIR - 14x1.5mmF.GIR	€24.23
013	Image coming soon	3.002.0007 SELF TAPPING CROSS HEAD SCREW 3.9x25	€1.63
014	Image coming soon	4.608.0143 ADJUSTMENT KNOB NEW LTX	€3.23
015	Image coming soon	4.608.0151 SWITCH FRAME ONTARIO EXP.00	€14.27
019	Image coming soon	5.613.0171 COMPLETE FRAME FOR ONTARIO EXP.00	€98.53
020	Image coming soon	3.004.0033 SHIM WASHER 17.2X24X0.5 DIN988 ZNT	€1.68
021	Image coming soon	4.608.0089 PIPE CAP D.20 EXP.01	€5.94
022	Image coming soon	4.613.0157 LOWER COVER DANUBIO-ONTARIO-LTX-TUCSON	€68.60
023	Image coming soon	3.002.0044 SCREW TE M8X16 UNI 5739 ZNT	€1.63
024	Image coming soon	3.004.0011 ELECTRIC TOOTHED WASHER EX. D8X15 Sp0.8 DIN6798A ZNT	€1.63
025	Image coming soon	4.607.0011 ZNT MOTOR FOOT FIXING BRACKET	€7.38
026	Image coming soon	4.008.0379 TRANSPARENT TUBE D.6x9 L.730	€5.62
027	Image coming soon	3.002.0106 SELF-TAPPING SCREW TC-TC 3.9X16 UNI 6954 ZNT	€1.72
028	Image coming soon	4.008.0277 FIX PAD CABLE HOLDER	€1.72
029	Image coming soon	4.607.0246 AXLE-BAR FOR ONTARIO/DANUBIO	€5.38
030	Image coming soon	3.006.0032 WHEEL DIAM.220x55 HOLE 15 (L.WASH.)	€6.92
031	Image coming soon	3.099.0020 WHEEL LOCKING DIAMETER 150 D.15	€13.46
033	Image coming soon	4.612.0037 CABLE H05PVC	€25.74
034	Image coming soon	3.003.0011 HEXAGONAL NUT M6 MEDIUM UNI 5588 CL8ZNT	€1.72
036	Image coming soon	4.608.0027 BLACK PLUG D.30 FOR TANK	€10.03
037	Image coming soon	4.008.0610 UNIVERSAL HANDLE W/WINDOW W/SUCTION EXP.02	€82.84
038	Image coming soon	4.018.0056 TUBE 1/4 210BAR L=8000 R1 3/8""G-3/8"G 90' X	€67.06
039	Image coming soon	6.001.0053 HP SPRAY GUN S'02 3/8'	€40.24
040		3.701.0015 700 mm Lance 1/8 "F High/Low Pressure for Pressure Washers Lavor	€37.13
041	Image coming soon	3.100.0003 RING NUT 3/4 FOR HOSE HOLDER D.17 BRASS	€5.78
042	Image coming soon	3.100.0060 HOSE HOLDER D.17 3/4 NUT (BRASS)	€14.42
043	Image coming soon	3.004.0032 RUBBER WASHER 24,2X17X2 AS S.ASPIRAZ.	€1.68
044		3.103.0050 Lavor Nozzle for ONTARIO 1211LP	€16.21
046	Image coming soon	3.002.0040 SCREW TE M6X20 UNI 5739 ZNT	€3.23
047	Image coming soon	3.004.0035 SPRING WASHER GROWER D.6 DI N 127 TYPE B ZNT WHITE	€1.68
048	Image coming soon	3.004.0007 FLAT WASHER D.6X18 Sp.2 UNI6593 ZNT	€1.72
050	Image coming soon	3.103.0003 HIGH PRESSURE NOZZLE 1/8"M 15045	€8.52

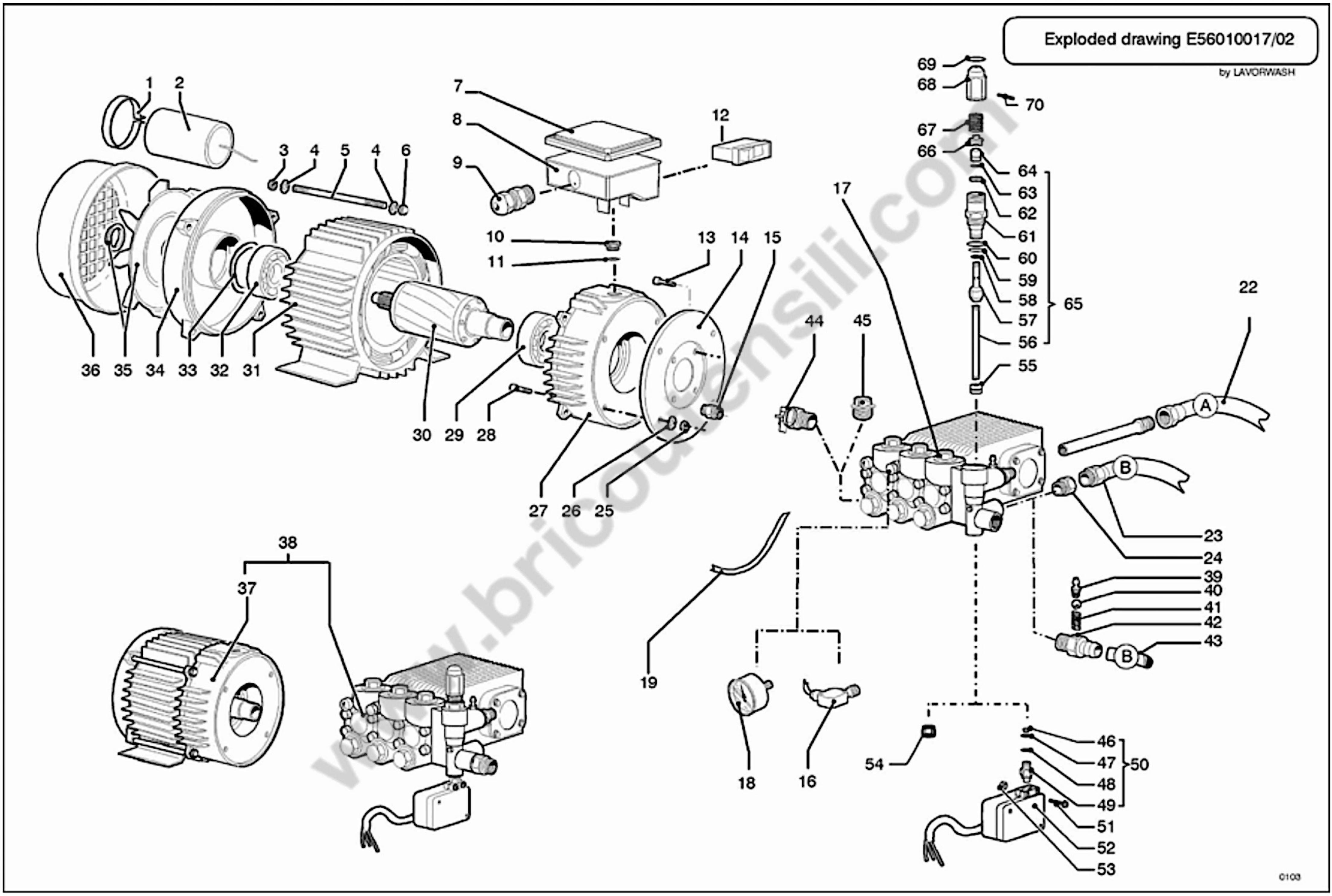

Page 2 View exploded Usually Ships in: 10 BUSYNESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
002	Image coming soon	3.404.0036 CAPACITOR 80mF 450V D.50 CABLE L300 S/FASTON	€24.31
004	Image coming soon	3.004.0010 PINK WASHER EX.D6X11 Sp0,7 DIN6798A ZNT	€1.72
005	Image coming soon	4.607.0008 TIE ROD LW MOTOR M6X171	€5.30
006	Image coming soon	3.003.0019 NUT	€1.68
007	Image coming soon	4.608.0138 ELECTRIC BOX LID XLMX	€12.99
008	Image coming soon	4.608.0139 ELECTRIC BOX FOR SINGLE-PHASE SWITCH LMX	€29.80
009	Image coming soon	3.406.0020 TIGHT ANTI-TEARING CABLE HOLDER PG.13,5	€3.23
010	Image coming soon	4.606.0117 CABLE GLAND PG 13.5 FIXING ELECTRIC BOX LMX EXP.00	€4.86
011	Image coming soon	3.200.0027 O-RING 2.62X20.24 FOR CAP 1210004800	€1.67
012	Image coming soon	3.401.0042 ETA 3120-N554-P7T1-W02D-20A MICRO CIRCUIT BREAKER WITH PROTECTION	€45.91
013	Image coming soon	3.002.0039 TE SCREW M6X16 UNI 5739 ZNT	€3.14
014	Image coming soon	4.607.0010 FLANGE COUPL. PUMP-MOTOR D. EXT. 145 FL.90 - FINISHED -	€20.97
017	Image coming soon	3.554.0016 LW-K PUMP 3025 S SX 1450 rpm (6300075100)	€564.84
018		3.107.0006 Lavor Ontario 1211LP Pressure Gauge D.40	€26.50
025	Image coming soon	3.003.0011 HEXAGONAL NUT M6 MEDIUM UNI 5588 CL8ZNT	€1.72
026	Image coming soon	3.004.0035 SPRING WASHER GROWER D.6 DI N 127 TYPE B ZNT WHITE	€1.68
027	Image coming soon	4.605.0003 MOTOR FRONT COVER LW D.150	€76.41
028	Image coming soon	3.002.0050 SCREW TE M6X25 UNI 5739 ZNT	€3.23
029	Image coming soon	3.001.0009 BEARING 6007-2Z	€14.39
031	Image coming soon	5.602.0029 CASING LW.T 400/50 2P D.135H.110 THREADED HOLES	€224.18
032	Image coming soon	3.001.0010 BEARING 6205-2Z	€10.22
033	Image coming soon	3.099.0017 UNLOADING RING D.51XD.42	€1.68
034	Image coming soon	4.605.0004 REAR CAP MOT.LW.V D.150 X CUSHION D.52	€30.20
035	Image coming soon	3.099.0018 FAN FA 100 VP D.24x168 C / F ASCETTA	€4.39
036	Image coming soon	4.607.0015 MEC 100 FAN COVER WITH HOLES-FINISHED- EXP.01	€21.64
037	Image coming soon	5.606.0050 LWM 230/50 MOTOR D.150 H1354P	€346.38
045	Image coming soon	3.100.0084 PLUG 1/2"G	€7.15
047	Image coming soon	3.200.0007 O-RING GASKET 3.69X1.78 NBR 70SH REF.2015	€1.62
048	Image coming soon	3.200.0010 O-RING 7,66X1,78	€1.63
049	Image coming soon	4.606.0122 1/8"G CONNECTOR FOR BOX MICRO HOLDER NEW	€3.95
051	Image coming soon	3.002.0173 TCB SCREW M3x16	€1.68
052	Image coming soon	5.609.0106 ASSEMBLY BOX + MICRO + CABLE 2X1.5 PERFORATED CAP TEST.OTT.'99	€39.47
053	Image coming soon	3.003.0004 NUT M3 UNI 5588 CL8 ZNT	€1.68
055	Image coming soon	5.609.0080 SEAL SEAT ASSY + OR	€14.80
056	Image coming soon	4.606.0108 CONTROL ROD FOR TS	€7.33
057	Image coming soon	4.607.0205 SEAL ROD AISI 420C-WESP.04	€23.03
058	Image coming soon	3.200.0020 OR 2.90X1.78 SHORE 90	€1.62
059	Image coming soon	3.200.0071 OR GASKET 11,1X1,78 SH 90	€1.62
060	Image coming soon	3.200.0005 SEAL OR 15.6 X 1.78 REF. 2062	€1.62
061	Image coming soon	4.606.0092 REGULATOR COUPLING	€9.79
064	Image coming soon	4.607.0204 D.11 PISTON esp.03	€8.51
065	Image coming soon	5.609.0104 SEAL ROD ASSEMBLY IN-LINE PUMP TS X CAP	€37.45
066	Image coming soon	4.607.0206 PLATE FOR SPRING	€3.33
067	Image coming soon	4.607.0207 PRESSURE REGULATION	€9.96
068	Image coming soon	4.606.0093 Substituted by 4.606.0206 PRESSURE REGULATION KNOB	€19.67
069	Image coming soon	3.200.0046 O-RING 21,95X1,78 REF.2087	€1.63
070	Image coming soon	3.099.0136 PIN 2X12 UNI 1708	€1.68

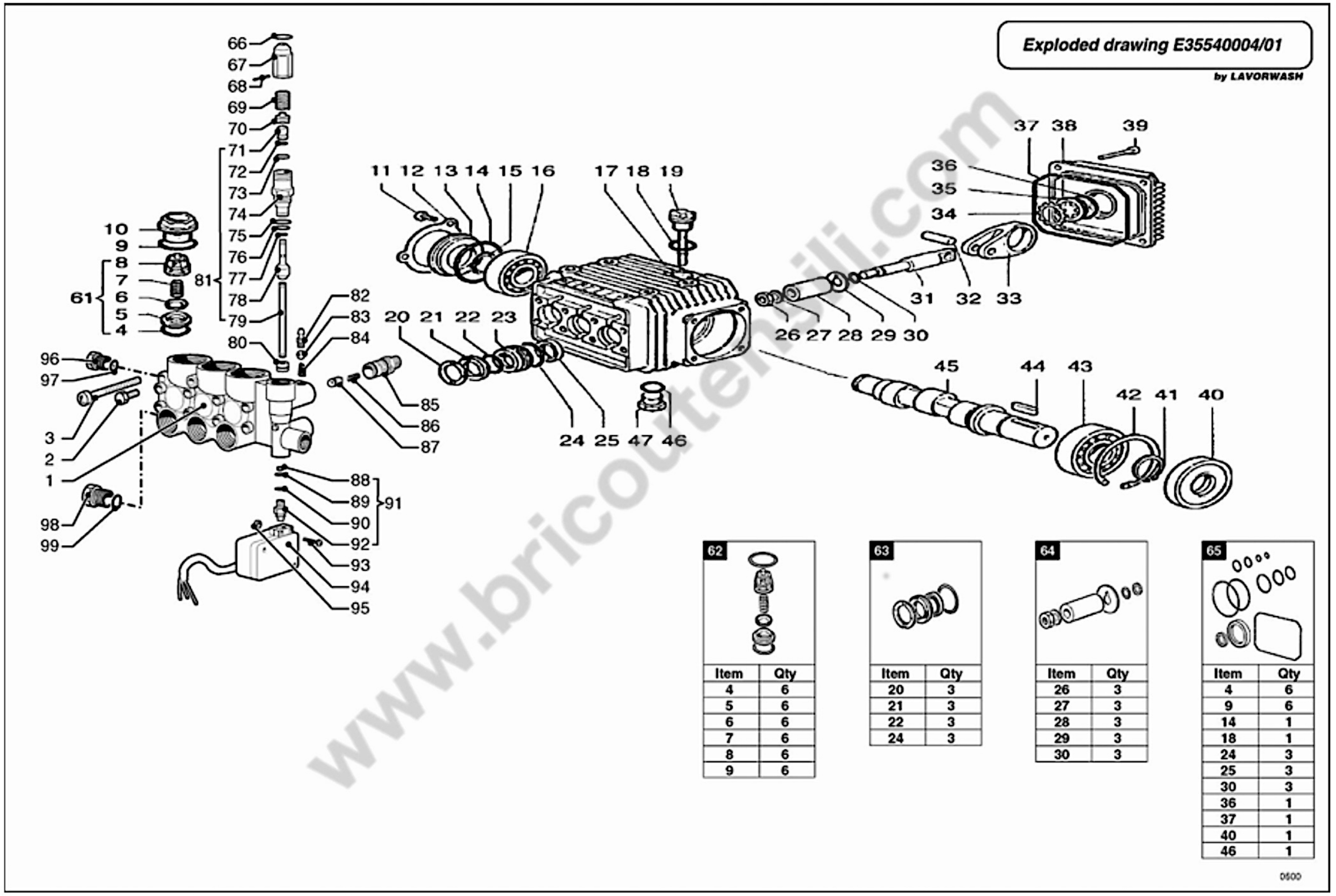

Page 3 View exploded Usually Ships in: 10 BUSYNESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
001	Image coming soon	3.555.0133 HEAD D.18 BRASS3218.0318.00	€423.43
002	Image coming soon	3.555.0076 HEAD CAP G1 / 8 3202.0018.00	€15.13
003	Image coming soon	3.555.0077 SCREW M6x553609.0152.00	€3.44
004	Image coming soon	3.555.0005 GASKET OR 2.62X17.13 1210004600	€1.00
005	Image coming soon	3.555.0006 SEAT FOR VALVE PLATE3009.0087.00	€5.26
006	Image coming soon	3.555.0007 STEEL PLATE FOR VALVE 3604001700	€10.49
008	Image coming soon	3.555.0009 VALVE CAGE1205.0025.00	€1.56
010	Image coming soon	3.555.0012 VALVE CAP 3202026700	€29.21
011	Image coming soon	3.555.0078 SCREW M5x103609.0088.00	€1.50
012	Image coming soon	3.555.0057 CLAMP FOR CAP 1004.0012.00	€5.93
013	Image coming soon	3.555.0056 COVER 0402017200	€6.12
014	Image coming soon	3.555.0055 OR 3.53X44.04 1210.0386.00	€1.63
015	Image coming soon	3.555.0079 SPACER 3019.0011.00	€3.32
016	Image coming soon	3.555.0054 BEARING 20X52X150438.0069.00	€17.69
017	Image coming soon	3.555.0053 PUMP CASING0403.0128.00	€66.49
019	Image coming soon	3.555.0080 OIL LEVEL DIPST3200.0051.00	€4.54
020	Image coming soon	3.555.0046 HEAD RING D.18 0009019300	€4.11
021	Image coming soon	3.555.0047 GASKET D.18 1241002200	€8.60
022	Image coming soon	3.555.0048 GASKET 18X25X5.5 (1241002800)	€17.66
023	Image coming soon	3.555.0049 SEAL RING D.18 0009019700	€29.21
024	Image coming soon	3.555.0085 OR 1.78X26.7 (SEAL) 1210022300	€3.23
025	Image coming soon	3.555.0051 OIL SEAL0019.0095.00	€7.39
026	Image coming soon	3.555.0059 NUT 0600004800	€9.79
027	Image coming soon	3.555.0060 WASHER 8.2X14X1.5 2811008000	€4.06
028	Image coming soon	3.555.0061 PISTON D.180202.0018.00	€22.48
029	Image coming soon	3.555.0062 PISTON BASE WASHER 2812003800	€10.58
031	Image coming soon	3.555.0064 PISTON GUIDES 2409.0044.00	€78.82
032	Image coming soon	3.555.0065 PIN3011.0014.00	€8.19
033	Image coming soon	3.555.0066 CONNECTING ROD 0205.0050.00	€47.20
034	Image coming soon	3.555.0067 GASKET 3019.0033.00	€5.24
036	Image coming soon	3.555.0069 OR 1.78X23.52 1210.0333.00	€14.70
037	Image coming soon	3.555.0070 OR 2.62X101.27 1210.0206.00	€4.21
038	Image coming soon	3.555.0087 CASES COVER0402.0142.00	€14.43
039	Image coming soon	3.555.0088 SCREW M6x25 3609.0041.00	€3.23
042	Image coming soon	3.555.0090 SELGER RING C723020.0012.00	€1.55
043	Image coming soon	3.555.0073 BEARING 25X62X170438.0071.00	€21.64
044	Image coming soon	3.555.0072 KEY 8X7X28 1602.0045.00	€5.50
045	Image coming soon	3.555.0071 SHAFT D.24 0001.0290.00	€222.82
048	Image coming soon	3.555.0016 CAP 3/8G	€30.22
049	Image coming soon	3.555.0015 SLICED WASHER 16,7X22X1,5 2811008400	€3.23
051	Image coming soon	3.555.0013 SLICED WASHER 21.2X27X1.5 2811008600	€3.25
061	Image coming soon	3.555.0045 ASSEMBLY ASP/MAN1220.0030.00	€8.70
062	Image coming soon	3.555.0028 SEAT FOR VALVE PLATE 3009008700	€87.20
063	Image coming soon	3.555.0024 WATER SEALS KIT FOR LW 3525 5019003700	€79.99
064	Image coming soon	3.555.0027 PISTON D.18 0202.0018.00	€174.30
065	Image coming soon	3.555.0025 OIL SEALS KIT FOR LW 5019004000	€50.98
082	Image coming soon	5.009.0561 Sobstitued by 5.609.Y154 CONNECTOR X DETERGENT SUCTION D.1 + OR	€6.03
083	Image coming soon	3.005.0001 BALL INOX 420 DIAM.5 (accuracy grade G 500)	€1.72
084	Image coming soon	4.007.0323 SPRING FOR DETERGENT VALVE De4.5-7 L=7 WIRE D.0.4 INOX	€3.14
085		5.609.0079 Lavor NPX1400 Outlet Coupling	€12.26
086	Image coming soon	4.607.0259 NO RETURN VALVE SPRING L=20	€3.23
087	Image coming soon	5.609.0041 SET OF CHECK VALVE + OR	€14.70
098	Image coming soon	3.555.0014 PLUG G1 / 2 BRASS 3202001500	€10.71

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Original Parts for Pressure Cleaner ONTARIO 34

Fix Your Cold Water High Pressure Cleaner ONTARIO ONTARIO 34 230/50 TS C/AVVOLG.-G- LWS - 86150004. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.

ONTARIO 34 230/50 TS C/AVVOLG.-G- LWS - 86150004
Pag.1
#	Part Num	Description
002	4.008.0517	SEMIAVV.LATE CRANK SIDE EXP.03
003	3.099.0158	NEUTRAL RING 3/8" CH20 REF.E4890003
004	4.008.0607	SEMIAVV.LATE LOWERED INPUT SIDE EXP.01
005	4.606.0098	SWIVEL PIN FOR HOSE REEL 3/8"G EXP.03
006	3.200.0018	OR GASKET 9.92X2.62 SHORE90
007	4.606.0097	BODY FOR SWIVEL CONNECTOR FOR HOSE REEL
008	3.099.0144	SEEGER RING FOR SHAFT D.15UNI 7435
009	4.606.0096	CONNECTOR FOR HOSE REEL 1/4"G M14X1.5 EXP.03
011	4.618.0080	H.P. PIPE 1/4" R1 210bar 3/8"F.GIR - 14x1.5mmF.GIR
012	4.613.0126	UPPER FAIRING ONTARIO W/HOSE REEL -G-
013	3.002.0007	SELF-LOCKING SCREW TC-TC 3.9X25 RAPIDFIX ZNT
014	4.608.0143	ADJUSTMENT KNOB NEW LTX
015	4.608.0151	SWITCH FRAME ONTARIO EXP.00
016	5.601.0182	MOTOR PUMP LWM 230/50 4P HP3 TSLW-K 3025 S SX X
019	5.613.0171	COMPLETE FRAME FOR ONTARIO EXP.00
020	3.004.0033	SHIM WASHER 17.2X24X0.5 DIN988 ZNT
021	4.608.0089	PIPE CAP D.20 EXP.01
022	4.613.0157	LOWER FAIRING ONTARIO -LTX -N- EXP.02
023	3.002.0044	SCREW TE M8X16 UNI 5739 ZNT
024	3.004.0011	ELECTRIC TOOTHED WASHER EX. D8X15 Sp0.8 DIN6798A ZNT
025	4.607.0011	MOTOR FOOT FIXING BRACKET ZNT
026	4.008.0379	TRANSPARENT TUBE D.6x9 L.730
027	3.002.0106	SELF-TAP SCREW TC-TC 3.9X16 UNI 6954 ZNT
028	4.008.0277	CABLE CLIP FIXED WALL (LWS) EXP.00
029	4.607.0246	AXLE FOR ONTARIO EXP.00
030	3.006.0032	WHEEL DIAM.220x55 HOLE 15 (L.WASH.)
031	3.099.0020	WHEEL STOP DIAM.150 D.15
032	3.099.0283	ANONYMOUS WHEEL COVER D220 YELLOWORAL 1018
033	4.612.0037	POWER CABLE H05VV-F 3X1.5 L=6000F/F+EYES EXP.03
034	3.003.0011	NUT E. M6 MEDIUM UNI 5588 CL8ZNT
036	4.608.0027	PLUG DIAM.30 FOR FIRE TANK 100 EXP.03
037	4.008.0610	UNIVERSAL HANDLE W/WINDOW W/SUCTION EXP.02
038	4.018.0056	TUBE 1/4 210BAR L=8000 R1 3/8""G-3/8"G 90' X
039	6.001.0053	GUN S'02C 3/8'-M22ESP.02
040	3.701.0015	LANCE L.700 +PL4/1 +ROS.+ATT.QUICK M22 41102850
041	3.100.0003	RING NUT 3/4 FOR HOSE HOLDER D.17 BRASS
042	3.100.0060	HOSE HOLDER D.17 BRASS FOR RING NUT 3/4"
043	3.004.0032	RUBBER WASHER 24.2X17X2 SUCTION ASS.
044	3.103.0050	NOZZLE A.P.15045 1/8M
046	3.002.0040	SCREW TE M6X20 UNI 5739 ZNT
047	3.004.0035	SPRING WASHER GROWER D.6 DIN 127 TYPE B ZNT
048	3.004.0007	FLAT WASHER D.6X18 Sp.2 UNI6593 ZNT
050	3.103.0003	HIGH PRESSURE NOZZLE 1/8"M 15045
Motor Pump Pag.2
002	3.404.0036	CONDENSER 80mF 450V D.50X121 W/CABLE L=300
004	3.004.0010	ELECTRIC TOOTHED WASHER EX.D6X11 Sp0.7 DIN6798A ZNT
005	4.607.0008	LW MOTOR TIE ROD M6X171ESP.02
006	3.003.0019	BLIND HEXAGON NUT M6 UNI 5721ZNT
007	4.608.0138	ELECTRIC BOX LID XLMX
008	4.608.0139	ELECTRIC BOX FOR SINGLE-PHASE SWITCH LMX
009	3.406.0020	WATERPROOF CABLE GLAND PG.13.5
010	4.606.0117	CABLE GLAND PG 13.5 FIXING ELECTRIC BOX LMX EXP.00
011	3.200.0027	OR GASKET 20.24 X 2.62 REF.3081
012	3.401.0042	MICRODISCONNECTOR ETA 3120-F554-P7T1-W02F 20A
013	3.002.0039	TE SCREW M6X16 UNI 5739 ZNT
014	4.607.0010	PUMP-MOTOR COUPLING FLANGE D.EXT. 145 FL.90 -
017	3.554.0016	LW-K PUMP 3025 S SX 1450 rpm (6300075100)
018	3.107.0006	PRESSURE GAUGE D.40 0/300 BAR 1/8 GLYCERINE
025	3.003.0011	NUT E. M6 MEDIUM UNI 5588 CL8ZNT
026	3.004.0035	GROWER SPRING WASHER D.6 DIN 127 TYPE B ZNT
027	4.605.0003	FRONT CAP LW MOTOR D.150ESP.08
028	3.002.0050	SCREW TE M6X25 UNI 5739 ZNT
029	3.001.0009	BEARING 6007-2RS 35x62x14 (X ELECTRIC MOTOR)
030	5.605.0025	ROTARY SHAFT 90X135 ALL.LW FOR SINGLE-PHASE MOTOR 30
031	5.602.0029	CASING LW.T 400/50 2P D.135H.110 THREADED HOLES
032	3.001.0010	BEARING 6205-2Z (52X25X15)
033	3.099.0017	COMPENSATION RING D.51.8X41X0.5 -52B-
034	4.605.0004	REAR CAP MOT.LW.V D.150 X CUSHION D.52
035	3.099.0018	FA 100 VP FAN D.24x168 W/CLAMP
036	4.607.0015	MEC 100 FAN COVER WITH HOLES-FINISHED- EXP.01
037	5.606.0050	LWM 230/50 MOTOR D.150 H1354P
038	5.601.0182	LWM 230/50 4P HP3 TSLW-K 3025 S SX X
045	3.100.0084	PLUG 1/2"G
046	4.608.0112	PLUG FOR EXP.02 CONNECTOR
047	3.200.0007	OR SEAL 3.69 X 1.78 REF.2015 NBR 70 sh
048	3.200.0010	OR SEAL 7.66 X 1.78 REF.2031 SH70
049	4.606.0122	1/8"G CONNECTOR FOR BOX MICRO HOLDER NEW
050	5.609.0105	ASSEMBLY 1/8"G CONNECTOR FOR TS DRILLED CAP
051	3.002.0173	TCB SCREW WITH SLOT 3X16 UNI6107
052	5.609.0106	ASSEMBLY BOX + MICRO + CABLE 2X1.5 CAP
053	3.003.0004	NUT E. M3 MEDIUM UNI 5588 CL8ZNT
055	5.609.0080	ASSEMBLY SEALING SEAT + OR
056	4.606.0108	MICRO CONTROL ROD FOR TS IN-LINE PUMP
057	4.607.0205	SEAL ROD AISI 420C-WESP.04
058	3.200.0020	OR GASKET 2.90X1.78 SHORE90
059	3.200.0071	OR GASKET 11.1X1.78 SH90
060	3.200.0005	OR GASKET 15.6 X 1.78 REF.2062
061	4.606.0092	EXP REGULATOR CONNECTOR 02
062	3.202.0001	PARBAK 8-011 N 300-90 x OR 2031 VAL.LAV. (PARKER)
064	4.607.0204	PISTON DIAM.11 EXP.02
065	5.609.0104	SEAL ROD ASSEMBLY IN-LINE PUMP TS X CAP
066	4.607.0206	PLATE FOR SPRING EXP.02
067	4.607.0207	PRESSURE REGULATOR SPRING L=37 WIRE D.3.6
068	4.606.0093	PRESSURE REGULATION KNOB EXP.03
069	3.200.0046	OR GASKET 21.95x1.78 REF.2087
070	3.099.0136	CYLINDRICAL PIN 2X12 INOXUNI 1707
Pump Pag.3
001	3.555.0133	HEAD D.18 BRASS3218.0318.00
002	3.555.0076	HEAD CAP G1/83202.0018.00
003	3.555.0077	SCREW M6x553609.0152.00
004	3.555.0005	OR SEAL 2.62X17.131210.0046.00
005	3.555.0006	SEAT FOR VALVE PLATE3009.0087.00
006	3.555.0007	STEEL PLATE FOR VALVE3604.0017.00
007	3.555.0008	SPRING FOR VALVE1802.0177.00
008	3.555.0009	VALVE CAGE1205.0025.00
009	3.555.0010	OR SEAL 2.62X20.24 FOR CAP 1210.0048.00
010	3.555.0012	VALVE CAP3202.0267.00
011	3.555.0078	SCREW M5x103609.0088.00
012	3.555.0057	FLANGE FOR COVER1004.0012.00
013	3.555.0056	COVER0402.0172.00
014	3.555.0055	O-RING 3.53X44.041210.0386.00
015	3.555.0079	SPACER RING3019.0011.00
016	3.555.0054	BEARING 20X52X150438.0069.00
017	3.555.0053	PUMP CASING0403.0128.00
019	3.555.0080	OIL LEVEL DIPST3200.0051.00
020	3.555.0046	HEAD RING D.180009.0193.00
021	3.555.0047	GASKET D.181241.0035.00
022	3.555.0048	GASKET 18X25X5.51241.0028.00
023	3.555.0049	STOP RING SEAL D.180009.0197.00
024	3.555.0085	OR (SEAL)1210.0223.00
025	3.555.0051	OIL SEAL0019.0095.00
026	3.555.0059	NUT0600.0048.00
027	3.555.0060	WASHER 8.2X14X1.52811.0080.00
028	3.555.0061	PISTON D.180202.0018.00
029	3.555.0062	PISTON BASE WASHER2812.0038.00
030	3.555.0063	O-RING 1.78X6.071210.0055.00
031	3.555.0064	PISTON GUIDES2409.0044.00
032	3.555.0065	PIN3011.0014.00
033	3.555.0066	CONNECTING ROD 0205.0050.00
034	3.555.0067	GASKET3019.0033.00
035	3.555.0068	LEVEL INDICATOR OIL3201.0010.00
036	3.555.0069	O-RING 1.78X23.521210.0333.00
037	3.555.0070	O-RING 2.62X101.271210.0206.00
038	3.555.0087	CASES COVER0402.0142.00
039	3.555.0088	SCREW M6x253609.0041.00
040	3.555.0074	CORTECO 25X62X10/70019.0094.00
041	3.555.0089	SELGER RING C723019.0006.00
042	3.555.0090	SELGER RING C723020.0012.00
043	3.555.0073	BEARING 25X62X170438.0071.00
044	3.555.0072	KEY 8X7X251602.0045.00
045	3.555.0071	SHAFT D.240001.0290.00
046	3.555.0052	O-RING 1.78X141210.0093.00
048	3.555.0016	PLUG 3/8 GAS3200.0007.00
049	3.555.0015	SHEARED WASHER 16.7X22X1.52811.0084.00
051	3.555.0013	SHEARED WASHER 21.2X27X1.52811.0086.00
061	3.555.0045	ASSEMBLY ASP/MAN1220.0030.00
062	3.555.0028	COMPLETE VALVE KIT FW-LW5025.0011.00
063	3.555.0024	WATER SEAL KIT FOR LW 35255019.0037.00
064	3.555.0027	PISTONS KIT FOR LW 35252409.0072.00
065	3.555.0025	OIL SEAL KIT FOR LW5019.0040.00
082	5.009.0561	HOSE HOLDER
083	3.005.0001	STAINLESS STEEL BALL
084	4.007.0323	SPRING VALVE CHECK DETERG. De4.5-7 L=7 WIRE D.0.3 STAINLESS STEEL
085	5.609.0079	ASSEMBLY OUTPUT FITTING TEST.OBB.'99 D.2 +OR
086	4.607.0259	SPRING CHECK VALVE D.4.8x5.8 L=20 WIRE 0.5 STAINLESS STEEL
087	5.609.0041	ASSEMBLY CHECK VALVE +OR
098	3.555.0014	PLUG G1/2 BRASS3202.0015.00

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference ONTARIO 34 - 86150004

Available 6 Items

Data sheet

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

Condition New

Download

Lavor ONTARIO 34 Parts Diagram

Download (1.19MB)

Lavorwash S.p.A. SKU: 3.700.0036

Gun AL 15 3/8 "- M22 for Hot Water Pressure Washers Lavor

Gun AL 15 3/8 "- M22 for Hot Water Pressure Washers Lavor Genuine Replacement part Lavor, Gun AL 15 3/8 "- M22 for Hot Water Pressure Washers Advanced 1108 - XTR 1007 - Rio 1108 - Mek 1108...

Last items in stock €30.90

Details

Lavorwash S.p.A. SKU: 3.701.0015

700 mm Lance 1/8 "F High/Low Pressure for Pressure Washers Lavor

700 mm Lance 1/8 "F High/Low Pressure for Pressure Washers Lavor Genuine Replacement part Lavor, 700 mm Lance 1/8 "F High/Low Pressure for Pressure washers XTR 1007 - Rio 1108 - Mek 1108...

Usually Ships in: 7/10 Business Days Approx. €37.13

Details

Lavorwash S.p.A. SKU: 3.200.0018

Gasket O-Ring 9.92X2.62 for Pressure Washer Lavor FKX 1018

Gasket O-Ring 9.92X2.62 for Pressure Washer Lavor FKX 1018 Genuine replacement part Lavor, Gasket O-Ring 9.92X2.62 SHORE 90 for Pressure Washer Pressure Washer FKX 1018 230/50 TS -R- (VAPORNOVA)- 8052001. Part for the following...

AVAILABLE €1.66

Details

Lavorwash S.p.A. SKU: 4.008.0517

Winding Reel Handle Side for Pressure Washer Lavor EAGLE 24

Winding Reel Handle Side for Pressure Washer Lavor EAGLE 24 Genuine replacement part Lavor, Winding Reel Handle Side (VERSION 2010) for Pressure Washer EAGLE 24 - 8.030.0807 - 8.030.0901 - YUKON 1310 - 8.618.0001 Part for the...

AVAILABLE €15.55

Details

Lavorwash S.p.A. SKU: 6.005.0120

Lavor MCHPV 1515LP Kit 111 LW

Lavor MCHPV 1515LP Kit 111 LW Genuine replacement part Lavor, Kit 111 LW Pressure Regulator For Brass Head Test.Oct.'99 for Pressure Cleaner MCHPV 1515LP 400-415/SC1 - 8.626.0002. Part for the following products:...

on 10 Business Days Approx. €28.38

Details

Lavorwash S.p.A. SKU: 6.005.0121

Lavor Ontario 1211LP Kit 112 LW

Lavor Ontario 1211LP Kit 112 LW Genuine replacement part Lavor, Kit 112 LW Complete By-Pass Lin. Pump Brass Head'99 W/O T/S for Pressure Cleaner Ontario 1211LP - 86590033. Part for the...

on 10 Business Days Approx. €71.07

Details

Lavorwash S.p.A. SKU: 3.107.0006

Lavor Ontario 1211LP Pressure Gauge D.40

Lavor Ontario 1211LP Pressure Gauge D.40 Genuine replacement part Lavor, Pressure Gauge D.40 0/300 BAR 1/8" Glycerine for Pressure Cleaner Ontario 1211LP - 86590033. Part for the following products: - ONTARIO 1211LP 220/60 -G- LWS...

on 10 Business Days Approx. €26.50

Details

Lavorwash S.p.A. SKU: 3.103.0050

Lavor Nozzle for ONTARIO 1211LP

Lavor Nozzle for Pressure Washer ONTARIO 1211LP Genuine replacement part Lavor, High Pressure Nozzle 1/8M 15045 for Pressure Cleaner NPX1400 - LKX 31. Part for the following products: - Pressure Cleaner ONTARIO 1211LP -...

Usually Ships in: 10/15 Business Days Approx. €16.21

Details

Lavorwash S.p.A. SKU: 5.609.0079

Lavor NPX1400 Outlet Coupling

Lavor Outlet Coupling for Pressure Washer NPX1400 Genuine replacement part Lavor, Outlet Coupling For Brass Head '99 D.1,9 +Or for Pressure Cleaner NPX1400 - LKX 55. Part for the following products: - ...

Last items in stock €12.26

Details

Comments (0)

Cart (0)

Subcategories

Subcategories

Subcategories

Power Tools Spare Parts

Garden Spare Parts

Air Compressor Spare Parts

Protezione & Edilizia

Impianti & Utensili

Casa & Giardino

Lavor Pressure Cleaner ONTARIO 34 Parts

Lavor Original Parts for Pressure Cleaner ONTARIO 34

Lavor Pressure Cleaner ONTARIO 34 Parts

Lavor Original Parts for Pressure Cleaner ONTARIO 34

Lavor Original Parts for Pressure Cleaner ONTARIO 34

Data sheet

Specific References

Download

Lavor ONTARIO 34 Parts Diagram

You might also like

Products

News

Notes

Our company
