Lavorwash S.p.A.

Lavor Pressure Washer HW24 - G Parts

SKU: Lavor HW24 230/50-G - 8.043.0001
€36.48
VAT included

Lavor Original Parts for Pressure Cleaner HW24 230/50 -G- EU LWS TS S/AVV. - 8.043.0001

Fix Your Hot Water High Pressure Cleaner HW24 230/50 -G- EU LWS TS S/AVV. - 8.043.0001. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee

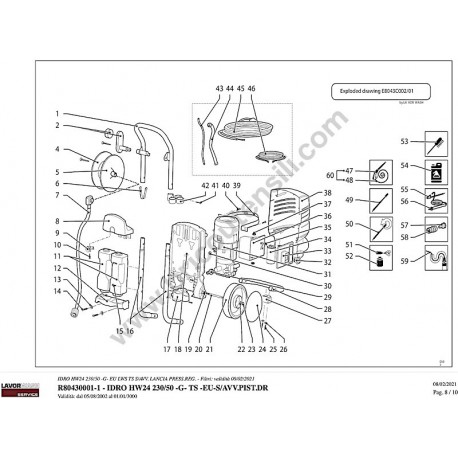

Lavor Pressure Washer HW24 230/50 -G Parts Diagram
  • Lavor Pressure Washer HW24 230/50 -G Parts Diagram
  • Lavor Pressure Washer HW24 230/50 -G Parts Diagram
Lavorwash S.p.A.

Lavor Pressure Washer HW24 - G Parts

SKU: Lavor HW24 230/50-G - 8.043.0001 Condition: New
€36.48
VAT included

Lavor Original Parts for Pressure Cleaner HW24 230/50 -G- EU LWS TS S/AVV. - 8.043.0001

Fix Your Hot Water High Pressure Cleaner HW24 230/50 -G- EU LWS TS S/AVV. - 8.043.0001. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee
settings 86 spare parts
description 2 exploded views
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
86 spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.007.0272 UPPER TUBE (HANDLE) HW €34.39 Available
6
 photo_cameraImage coming soon 4.007.0277 SPRING HOSE HOLDER FOR HANDLE HW €1.65 Available
8
 photo_cameraImage coming soon 4.008.0724 UPPER SUPPORT FOR HW TANKS €9.26 Available
9
 photo_cameraImage coming soon 3.105.0006 3-WAY TAP WITH KNOB -G- PANT.108C (HW) €12.13 Available
11
 photo_cameraImage coming soon 4.008.0725 HW NEUTRAL DETERGENT TANK €9.99 Available
12
 photo_cameraImage coming soon 4.008.0723 LOWER SUPPORT FOR HW TANKS €11.72 Available
16
 photo_cameraImage coming soon 5.011.0068 HW SIDE TUBE ASSEMBLY WITH SPRINGS INSERTED €27.82 Available
17
 photo_cameraImage coming soon 4.008.0732 HW UPPER LANCE HOLDER €4.49 Available
18
 photo_cameraImage coming soon 4.008.0722 HW PUMP SUPPORT €31.22 Available
19
 photo_cameraImage coming soon 3.003.0017 M8 SELF-LOCKING NUT HIGH ZNT DIN 982 €1.63 Available
20
 photo_cameraImage coming soon 4.007.0276 WHEEL PIN M8 D.12 X HW €14.27 Available
21
 photo_cameraImage coming soon 3.006.0033 WHEEL D.200 HOLE 12 X HW (SPG200) €16.63 Available
24
 photo_cameraImage coming soon 3.099.0095 WHEEL BOSS FOR SP200 -G- PANT.108C SMOOTH €13.97 Available
27
 photo_cameraImage coming soon 4.008.0730 FRONT FOOT FOR HW TUBE €3.49 Available
28
 photo_cameraImage coming soon 4.007.0271 LOWER TUBE (FOOT) HW €29.46 Available
29
 Quick Coupling 3/4F for High Pressure Washers Lavor 3.100.0082 Quick Coupling 3/4F for High Pressure Washers Lavor €1.63 Available
30
 photo_cameraImage coming soon 4.008.0036 SUPPORT PAD €3.14 Available
31
 photo_cameraImage coming soon 5.001.0494 MOTOR PUMP PT 230/50 D.12 9.16 125h110 W/REG.IN.D.1.8 TS(HW) €392.61 Available
32
 photo_cameraImage coming soon 5.009.0213 EXT SWITCH WITH PROTECTION 12(10) €6.72 Available
33
 photo_cameraImage coming soon 4.008.0728 ELECTRIC BOX LID HW €4.86 Available
34
 Capacitor 45mF 450V for Pressurte Washer Lavor BEST 24 3.404.0016 Capacitor 45mF 450V for Pressurte Washer Lavor BEST 24 €29.19 Available
36
 photo_cameraImage coming soon 4.008.0726 ELECTRIC BOX 2600W HW €15.54 Available
37
 photo_cameraImage coming soon 4.008.0581 RUBBER CABLE GLAND D.15.5 €1.63 Available
38
 photo_cameraImage coming soon 4.013.0372 HW FAIRING -G- PANT.108C €27.82 Available
39
 photo_cameraImage coming soon 4.007.0288 HW MOTOR PUMP FASTENING BAND €9.53 Available
40
 photo_cameraImage coming soon 3.002.0386 SELF-THREADING SCREW W/BORDER 6.3X50 UNI 6950 ZNT €1.63 Available
43
 photo_cameraImage coming soon 4.008.0172 TRANSPARENT TUBE D.6X9 L.510 €1.72 Available
44
 photo_cameraImage coming soon 4.008.0444 TRANSPARENT TUBE X CLEANER 6X9 L340mm ESP.01 €5.00 Available
45
 photo_cameraImage coming soon 4.012.0150 CABLE H05VV-F 3X1,5 MT.5,4 F/FSCHUKO PLUG €29.49 Available
47
 photo_cameraImage coming soon 6.001.0085 EXT GUN S'01DR METAL EXTENSION €53.68 Available
48
 High Pression Hose for Pressure Washer BEST 24 4.018.0061 High Pression Hose for Pressure Washer BEST 24 €30.00 Available
49
 photo_cameraImage coming soon 6.002.0183 SY'99 LANCE 1,05 A/B (GREY) €38.58 Available
61
 photo_cameraImage coming soon 4.007.0114 NOZZLE CLEANING PIN €1.65 Available
1
 photo_cameraImage coming soon 5.009.0213 EXT SWITCH WITH PROTECTION 12(10) €6.72 Available
2
 photo_cameraImage coming soon 3.406.0004 CABLE TERMINAL PG.11 €1.72 Available
4
 photo_cameraImage coming soon 3.002.0135 SELF-TAPPING CROSS HEAD SCREW2,9X13 UNI 6954 ZNT €1.68 Available
5
 Capacitor 45mF 450V for Pressurte Washer Lavor BEST 24 3.404.0016 Capacitor 45mF 450V for Pressurte Washer Lavor BEST 24 €29.19 Available
6
 photo_cameraImage coming soon 4.008.0768 ROUND GASKET D.4 EPDM L=525 €7.67 Available
7
 photo_cameraImage coming soon 4.008.0583 MOTOR FAN COVER '96 WITHOUT GRILL €15.13 Available
8
 photo_cameraImage coming soon 3.099.0049 LOCKING RING D.23 FAN FB80 €14.80 Available
9
 photo_cameraImage coming soon 4.008.0092 FAN FB80 WITH HOLE D.16,5 (PARTNER) €5.11 Available
11
 Radial Ball Bearing 6203RS for Pressure Cleaner Lavor Missouri 3.001.0020 Radial Ball Bearing 6203RS for Pressure Cleaner Lavor Missouri €13.71 Available
12
 photo_cameraImage coming soon 5.005.0029 ROTOR SHAFT 125'96 TAPERED H.110 230/50 €94.96 Available
13
 photo_cameraImage coming soon 3.002.0115 SCREW TC M5X35 SWAGEFORM ZNT €1.72 Available
14
 photo_cameraImage coming soon 5.009.0395 FRONT FLANGE FOR PARTNER PACCO H110 €44.88 Available
15
 Oil Seal 20-35-6-6.5 for Washer Lavor GIANT 24 3.201.0001 Oil Seal 20-35-6-6.5 for Washer Lavor GIANT 24 €2.76 Available
16
 photo_cameraImage coming soon 3.001.0031 ANTERIOR RADIAL FOR CASING 20X52X15 - 6304 €6.01 Available
17
 photo_cameraImage coming soon 4.005.0125 CONICAL PLATE INC. 9.16 CORS = 7,9-7,83 ROLLER BEARING €7.52 Available
18
 Lavor Disk As for KARJET PROFI130 3.001.0003 Lavor Disk As for KARJET PROFI130 €3.33 Available
19
 Lavor Needle Roller Cage for EQ18 3.001.0025 Lavor Needle Roller Cage for EQ18 €3.48 Available
20
 Lavor Thrust Shoe for LP 20 EHR 4.007.0001 Lavor Thrust Shoe for LP 20 EHR €5.83 Available
21
 Lavor Retaining Ring for EAGLE 24 5.009.0452 Lavor Retaining Ring for EAGLE 24 €8.85 Available
22
 Gasket O-Ring 85x2.5 for Pressure Washer Lavor NPX 1500 3.200.0014 Gasket O-Ring 85x2.5 for Pressure Washer Lavor NPX 1500 €3.27 Available
23
 Lavor Piston Recall Spring for FKX 1018 4.007.0025 Lavor Piston Recall Spring for FKX 1018 €2.12 Available
30
 photo_cameraImage coming soon 6.005.0078 ASSEMBLY ADJUSTMENT ROD COMPEN. VALVE FOR TS D.11 €31.77 Available
31
 photo_cameraImage coming soon 5.009.0283 ASSEMBLY MICRO+CABLE L=580 FOR TS VALVE COMP. + CABLE GLAND FOR HW €26.51 Available
32
 photo_cameraImage coming soon 4.006.0170 SEATED DISTANCE SPACER FOR OMNIA'97 HEADER €14.14 Available
33
 photo_cameraImage coming soon 5.609.0061 SEAT VALVE L2 COMPLETE WITH OR €6.91 Available
35
 photo_cameraImage coming soon 3.005.0009 BALL 11/32 INOX 420 B €1.72 Available
36
 photo_cameraImage coming soon 4.607.0095 SPRING D.8X16 WIRE 0.8 ESP.00 €3.87 Available
41
 photo_cameraImage coming soon 6.005.0030 KIT 28 LAVOR DETERGENT'S SUCTION €20.98 Available
42
 photo_cameraImage coming soon 3.005.0001 BALL INOX 420 DIAM.5 (accuracy grade G 500) €1.72 Available
43
 photo_cameraImage coming soon 4.007.0014 VALVE SPRING DETERGENT CHECK De4,5 / 6 L = 7 WIRE D.0,3 €2.50 Available
44
 photo_cameraImage coming soon 4.005.0207 GUIDE BODY D.12 FOR COMP. VALVE W/O ADJUSTMENT FINISHED WORK €64.70 Available
45
 photo_cameraImage coming soon 5.609.0041 SET OF CHECK VALVE + OR €14.70 Available
46
 photo_cameraImage coming soon 4.007.0324 SPRING FOR CHECK VALVE WIRE D.0.5 €1.72 Available
47
 photo_cameraImage coming soon 5.009.0334 INJECTOR FITTING D.1,8 PERTESTED IN €6.30 Available
48
 photo_cameraImage coming soon 5.009.0333 OUTLET COUPLING M22X1.5 COMPLETE OF OR €13.35 Available
49
 Gasket O-Ring 11,1x1,78 for Pressure Washer Lavor GIANT 24 3.200.0013 Gasket O-Ring 11,1x1,78 for Pressure Washer Lavor GIANT 24 €1.66 Available
50
 photo_cameraImage coming soon 3.201.0014 OIL SEAL RING D.12X20X5/7 €5.38 Available
51
 photo_cameraImage coming soon 3.002.0094 SCREW TCEI M6X30 ZNT €1.72 Available
53
 photo_cameraImage coming soon 4.006.0109 TAPERED 1/8 CAP €7.67 Available
54
 Gasket O-Ring 9.92X2.62 for Pressure Washer Lavor FKX 1018 3.200.0018 Gasket O-Ring 9.92X2.62 for Pressure Washer Lavor FKX 1018 €1.66 Available
55
 Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018 3.200.0019 Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018 €1.70 Available
56
 photo_cameraImage coming soon 5.009.0101 CAP VALVE SUCTION DELIVERY-ORMOUNTED €6.91 Available
57
 Delivery Suction Valve for Pressure Washer Lavor FKX 1018 5.009.0005 Delivery Suction Valve for Pressure Washer Lavor FKX 1018 €9.23 Available
58
 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 4.008.0031 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 €2.07 Available
62
 photo_cameraImage coming soon 4.008.0657 OIL SPACER D.12 €1.68 Available
63
 photo_cameraImage coming soon 4.006.0251 PIECE FOR SUPPORT PARTNER D.12 €10.21 Available
64
 photo_cameraImage coming soon 4.008.0695 ANTI-EXTRUSION RING 12x18x1 FOR PARTNER D.12 €1.68 Available
65
 photo_cameraImage coming soon 3.201.0020 WATER SEAL 12X18X5 €3.39 Available
66
 Complete Suction Valve for Pressure Washer Lavor FKX 1018 5.009.0015 Complete Suction Valve for Pressure Washer Lavor FKX 1018 €5.78 Available
67
 photo_cameraImage coming soon 4.005.0187 PARTNER HEAD '01 FOR PISTONS DIAM. 12 €16.43 Available
68
 photo_cameraImage coming soon 3.002.0130 HEXAGON SOCKET HEAD CAP SCREWM6X70 CL.12,9 UNI5931 DACROMET €1.68 Available
83
 photo_cameraImage coming soon 5.008.0160 PARTNER HEAD D.12 €40.03 Available
84
 photo_cameraImage coming soon 5.007.0148 GUIDE BODY PIST.D.12 +INJECTION D.1.8 V/COMP.S/REG.TS €113.36 Available
85
 photo_cameraImage coming soon 5.006.0157 MOTOR'99 D.125 H110 230/50 2P X PT. €288.36 Available
87
 photo_cameraImage coming soon 3.406.0011 BUSHING FOR PG.11 CABLE TERMINA €1.72 Available
90
 photo_cameraImage coming soon 4.008.0728 ELECTRIC BOX LID HW €4.86 Available
91
 photo_cameraImage coming soon 4.008.0726 ELECTRIC BOX 2600W HW €15.54 Available

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Original Parts for Pressure Cleaner HW24 230/50 -G- EU LWS TS S/AVV. - 8.043.0001

Fix Your Hot Water High Pressure Cleaner HW24 230/50 -G- EU LWS TS S/AVV. - 8.043.0001. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee

In the following tables, look for the spare part and its respective code.
Lavor Pressure Washer HW24 230/50 -G - 8.043.0001
Pressure Washer HW24 230/50 -G- EU LWS TS S/AVV. - 8.043.0001
Pag.1
# Part Num Description
1 4.007.0272 UPPER TUBE (HANDLE) HW
6 4.007.0277 HANDLE TUBE STOP SPRING HW
8 4.008.0724 UPPER SUPPORT FOR HW TANKS
9 3.105.0006 3-WAY TAP WITH KNOB -G- PANT.108C (HW)
11 4.008.0725 HW NEUTRAL DETERGENT TANK
12 4.008.0723 LOWER SUPPORT FOR HW TANKS
16 5.011.0068 HW SIDE TUBE ASSEMBLY WITH SPRINGS INSERTED
17 4.008.0732 HW UPPER LANCE HOLDER
18 4.008.0722 HW PUMP SUPPORT
19 3.003.0017 M8 SELF-LOCKING NUT HIGH ZNT DIN 982
20 4.007.0276 WHEEL PIN M8 D.12 X HW
21 3.006.0033 WHEEL D.200 HOLE 12 X HW (SPG200)
24 3.099.0095 WHEEL BOSS FOR SP200 -G- PANT.108C SMOOTH
27 4.008.0730 FRONT FOOT FOR HW TUBE
28 4.007.0271 LOWER TUBE (FOOT) HW
29 3.100.0082 QUICK CONNECTOR 3/4 BLACK WITH SEAL (THREAD L=11.5)
30 4.008.0036 HYDROCLEANING SUPPORT PAD L.PANNA P.V.C. Sh 70
31 5.001.0494 MOTOR PUMP PT 230/50 D.12 9.16 125h110 W/REG.IN.D.1.8 TS(HW)
32 5.009.0213 EXT SWITCH ASSEMBLY 0/1 BIP. 12(10)A + TRANSPARENT PROTECTION
33 4.008.0728 ELECTRIC BOX LID HW
34 3.404.0016 45mF 450V CAPACITOR D.45x90 F/M
36 4.008.0726 ELECTRIC BOX 2600W HW
37 4.008.0581 RUBBER CABLE GLAND D.15.5
38 4.013.0372 HW FAIRING -G- PANT.108C
39 4.007.0288 HW MOTOR PUMP FASTENING BAND
40 3.002.0386 SELF-THREADING SCREW W/BORDER 6.3X50 UNI 6950 ZNT
43 4.008.0172 TRANSPARENT TUBE 6x9 L=510mm
44 4.008.0444 TRANSPARENT TUBE 6X9 L=340mm
45 4.012.0150 H05VV-F CABLE 3X1.5 MT.5.4 SCHUKO SPLASH-PROOF THREAD F/F
47 6.001.0085 EXT GUN S'01DR METAL EXTENSION
48 4.018.0061 EXT TUBE 1/4 18MPa L=8000 1/4F.GIR./M22x1,5K15
49 6.002.0183 EXT LANCE SY'99 1,05 A/B (GREY)
61 4.007.0114 NOZZLE CLEANING NEEDLE D.0,8 ES P.04
Motor Pump Pag.2
1 5.009.0213 EXT SWITCH ASSEMBLY 0/1 BEEP. 12(10)A + TRANSPARENT PROTECTION
2 3.406.0004 CABLE GLAND PG.11 TEARPROOF
4 3.002.0135 SELF-TAPPING SCREW TC-TC 2.9X13 UNI 6 954 ZNT
5 3.404.0016 CAPACITATOR 45mF 450V D.45x90 F/M
6 4.008.0768 ROUND GASKET D.4 EPDM L=525
7 4.008.0583 FAN COVER FOR '96 MOTOR WITHOUT GRID
8 3.099.0049 STOP RING D.23 FOR FAN
9 4.008.0092 FB80 FAN WITH HOLE D.16.5 (PARTNER)
10 5.006.0197 '96 CASING D125 h110 230/50 2P 2800W
11 3.001.0020 BALL BEARING 6203 2RS
12 5.005.0029 ROTOR SHAFT D.65 H.110 (125'96)
13 3.002.0115 TCEI SCREW M5X35 TRILOBATE ZNT
14 5.009.0395 FRONT FLANGE MOTOR D.125 H110 FOR PARTNER
15 3.201.0001 SEAL RING 20/35/6/6.5 BABS L
16 3.001.0031 RADIAL BALL BEARING 6304 (20X52X15)
17 4.005.0125 TAPERED PLATE INC.9.16 CORS =7.9-7.83 ROLLER BEARING
18 3.001.0003 EXT AXIAL BEARING RING AS4565
19 3.001.0025 ROLLER CAGE TYPE AXK4565 - STEEL-
20 4.007.0001 EXT THRUST RING D.65x30x6 (C10Pb) FINISHED
21 5.009.0452 STOP/PISTON ASSEMBLY D.12 GROUND PARTNER
22 3.200.0014 OR SEAL 85 X 2.5 NITRILE
23 4.007.0025 RETURN SPRING FOR PISTON D.14- 12
30 6.005.0078 ASSEMBLY ADJUSTMENT ROD COMPEN. VALVE FOR TS D.11
31 5.009.0283 ASSEMBLY MICRO+CABLE L=580 FOR TS VALVE COMP. + CABLE GLAND FOR HW
32 4.006.0170 SEAL SEAT SPACER FOR OMNIA'97 VALVE
33 5.609.0061 SEAL SEAT L2 COMPLETE WITH OR
35 3.005.0009 BALL 11/32 INOX 420 B
36 4.607.0095 SPRING D.8X16 WIRE 0.8
41 6.005.0030 HOSE HOLDER FOR SUCTION DETERG. COMP. L. OF OR
42 3.005.0001 BALL INOX 420 DIAM.5 (precision grade G 500)
43 4.007.0014 EXT SPRING FOR CHECK VALVE DETERG. De4, 5/6 L=7 WIRE D.0.3 INOX
44 4.005.0207 GUIDE BODY D.12 FOR COMP. VALVE W/O ADJUSTMENT FINISHED WORK
45 5.609.0041 EXT CHECK VALVE ASSEMBLY + OR
46 4.007.0324 EXT SPRING FOR VALVE RETAINER D.4.8-6 L= 20 WIRE 0.6 STAINLESS STEEL
47 5.009.0334 INJECTOR CONNECTOR D.1.8 FOR ALUMINUM HEAD COMPLETE WITH OR
48 5.009.0333 OUTLET CONNECTOR M22x1.5 COMPLETE WITH OR
49 3.200.0013 OR SEAL 11.1 X 1.78 REF. 114
50 3.201.0014 OIL SEAL RING D.12x20X5/7
51 3.002.0094 TCEI SCREW M6X30 ZNT TRILOBATE
53 4.006.0109 PLUG 1/8 GAS CONICAL
54 3.200.0018 OR SEAL 9.92X2.62 SHORE 90
55 3.200.0019 OR SEAL 12.4X1.78 SH90
56 5.009.0101 SUCTION/DEMAND VALVE CAP WITH OR MOUNTED
57 5.009.0005 SUCTION VALVE DELIVERY WORK 1
58 4.008.0031 FILTER ASP.H2O D.16 CONICAL
62 4.008.0657 OIL SEAL SPACER D.12 PARTNER
63 4.006.0251 SEAL SUPPORT RING PARTNER D.12 LOW
64 4.008.0695 ANTI-EXTRUSION RING 12X18X1 FOR PARTNER D.12
65 3.201.0020 WATER SEAL D.12X18X5 NBR SH. 90 (SP2898N)
66 5.009.0015 COMPLETE SUCTION VALVE T OP
67 4.005.0187 HEAD PARTNER '01 FOR PISTONS D.12 FINISHED WORK
68 3.002.0130 SCREW TCEI M6X70 CL.12,9 UNI5931 DACROMET
83 5.008.0160 HEAD PARTNER D.12 S/IND.
84 5.007.0148 GUIDE BODY PIST.D.12 +INJECTION D.1.8 V/COMP.S/REG.TS
85 5.006.0157 MOTOR'99 D.125 H110 230/50 2P RIGID BEARING FOR PARTNER
87 3.406.0011 RING FOR PG.11 TEAR-PROOF
90 4.008.0728 ELECTRIC BOX LID HW
91 4.008.0726 ELECTRIC BOX 2600W HW
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Lavor HW24 230/50-G - 8.043.0001
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

You might also like

Quick Coupling 3/4F for High Pressure Washers Lavor
Lavorwash S.p.A. SKU: 3.100.0082
Quick Coupling 3/4F for High Pressure Washers Lavor
Quick Coupling 3/4F  for High Pressure Washers Lavor Genuine Replacement part Lavor, Quick Coupling 3/4F 3.100.0082 for Cold Water High Pressure Washers Fury 110 - Ride 110 - Race 125...
AVAILABLE €1.63
Details
Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 4.008.0031
Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24
Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 Original replacement part Lavor, Inlet Water Filter H20 D.16 Conical for Pressurte Washers STORM II 17 - STORM II PLUS 21 - BEST 24.  Part for the following products: -...
AVAILABLE €2.07
Details
Capacitor 45mF 450V for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 3.404.0016
Capacitor 45mF 450V for Pressurte Washer Lavor BEST 24
Capacitor 45mF 450V for Pressurte Washer Lavor BEST 24 Original replacement part Lavor, Capacitor 45mF 450V D.45x90 F/M per Pressure Washer HPC BEST 24 230/50 - Y - TS EU HOSE REEL 2 L LWS. Part for the following...
Usually Ships in: 7/10 Business Days Approx. €29.19
Details
High Pression Hose for Pressure Washer BEST 24
Lavorwash S.p.A. SKU: 4.018.0061
High Pression Hose for Pressure Washer BEST 24
High Pression Hose for Pressure Washer BEST 24 Genuine Part Lavor, High Pression Hose 1/4 18MPa L8000 1/4 Female Swivel M22x1,5K15 for Pressure Washer HPC BEST 24 230/50 - Y - TS EU HOSE REEL 2 L LWS. Part suitable for...
Last items in stock €30.00
Details
Oil Seal 20-35-6-6.5 for Washer Lavor GIANT 24
Lavorwash S.p.A. SKU: 3.201.0001
Oil Seal 20-35-6-6.5 for Washer Lavor GIANT 24
Oil Seal 20-35-6-6.5 for Washer Lavor GIANT 24 Original replacement part Lavor, Oil Seal 20/35/6/6,5 BABS L for Pressure Washers GIANT 24 - GIANT 28 - TEMPESTA 24 - TORMENTA 28 - VERTIGO 28 PLUS. Part for the following products: -...
AVAILABLE €2.76
Details
Complete Suction Valve for Pressure Washer Lavor FKX 1018
Lavorwash S.p.A. SKU: 5.009.0015
Complete Suction Valve for Pressure Washer Lavor FKX 1018
Complete Suction Valve for Pressure Washer Lavor FKX 1018 Genuine replacement part Lavor, Complete Suction Valve for Pressure Washer Pressure Washer FKX 1018 230/50 TS -R- (VAPORNOVA)- 8052001. Part...
on 10 Business Days Approx €5.78
Details
Gasket O-Ring 11,1x1,78 for Pressure Washer Lavor GIANT 24
Lavorwash S.p.A. SKU: 3.200.0013
Gasket O-Ring 11,1x1,78 for Pressure Washer Lavor GIANT 24
Gasket O-Ring 11,1x1,78 for Pressure Washer Lavor GIANT 24 Original replacement part Lavor, Gasket O-Ring 11,1x1,78 Rif.114 for Pressure Washers GIANT 24 - GIANT 28 - TEMPESTA 24 - MARSHALL 2300 - KARJET PROFI 130. Part for the...
AVAILABLE €1.66
Details
Gasket O-Ring 9.92X2.62 for Pressure Washer Lavor FKX 1018
Lavorwash S.p.A. SKU: 3.200.0018
Gasket O-Ring 9.92X2.62 for Pressure Washer Lavor FKX 1018
Gasket O-Ring 9.92X2.62 for Pressure Washer Lavor FKX 1018 Genuine replacement part Lavor, Gasket O-Ring 9.92X2.62 SHORE 90 for Pressure Washer Pressure Washer FKX 1018 230/50 TS -R- (VAPORNOVA)- 8052001. Part for the following...
AVAILABLE €1.66
Details
Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018
Lavorwash S.p.A. SKU: 3.200.0019
Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018
Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018 Genuine replacement part Lavor, Gasket O-Ring 12.4X1.78 SHORE 90 for Pressure Washer Pressure Washer FKX 1018 230/50 TS -R- (VAPORNOVA)- 8052001. Part for the following...
AVAILABLE €1.70
Details
Delivery Suction Valve for Pressure Washer Lavor FKX 1018
Lavorwash S.p.A. SKU: 5.009.0005
Delivery Suction Valve for Pressure Washer Lavor FKX 1018
Delivery Suction Valve for Pressure Washer Lavor FKX 1018 Genuine replacement part Lavor, Delivery Suction Valve for Pressure Washer Pressure Washer FKX 1018 230/50 TS -R- (VAPORNOVA)- 8052001. Part for...
Usually Ships in: 7/10 Business Days Approx. €9.23
Details
Radial Ball Bearing 6203RS for Pressure Cleaner Lavor Missouri
Lavorwash S.p.A. SKU: 3.001.0020
Radial Ball Bearing 6203RS for Pressure Cleaner Lavor Missouri
Radial Ball Bearing 6203RS for Pressure Cleaner Lavor Missouri Genuine part Lavor, Radial Ball Bearing 6203RS for Pressure Cleaners MISSOURI - Giant 24 - Giant 28 - Tempesta 24 - Tormenta 28. Part for the following products: -...
on 7/10 Business Days Approx €13.71
Details
Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 6.605.0173
Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400
Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Diesel Pump Red Plastic Coupling Set for Engine EME/UNIELECTRICp for Pressure Cleaners NPX 1400 - NPX 1500 Part for the following products: -...
Last items in stock €29.06
Details
Washer SNHORt for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 3.004.0022
Washer SNHOR for Pressure Cleaner Lavor NPX 1400
Washer SNHOR for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Washer SNHOR D.8x13 sp.0.8 for Pressure Cleaners NPX 1400 - NPX 1500 Part for the following products: -  Pressure Cleaner Lavor NPX 1400 - 8.605.0048 -...
on 10 Business Days Approx €1.71
Details
Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 3.403.0091
Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500
Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Thermostat 30/150 Bulb d.6.5 (3 Faston) for Pressure Washers NPX 1400 - NPX 1500. Part for the following...
on 10 Business Days Approx €40.24
Details
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 4.608.0078
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Dashboard Gasket '93 (3x900) for Pressure Cleaners NPX 1400 - NPX 1500 - LKX 40. Part for the following products: -  Pressure Cleaner NPX 1400 230/50...
Last items in stock €3.32
Details
Pressure Switch for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 3.704.0006
Pressure Switch for Pressure Washer Lavor Missouri
Pressure Switch for Pressure Washer Lavor Missouri Genuine part Lavor, Pressure Switch 25 Bar 1/8 Red L.700 Faston F. for Pressure Washers  MISSOURI - YUKON 1310 - NPX 1500 - LKX 40. Part...
Last items in stock €30.90
Details
Diesel Nozzle for Pressure Washers Lavor NPX 1400
Lavorwash S.p.A. SKU: 3.104.0028
Diesel Nozzle for Pressure Washers Lavor NPX 1400
Diesel Nozzle for Pressure Washers Lavor NPX 1400 Genuine replacement part Lavor, Diesel Nozzle 1,25 45-B for Pressure Washers NPX 1400 - NPX 1500 - LKX 31 - LKX 40. Part for the following...
Last items in stock €28.36
Details
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1500
Lavorwash S.p.A. SKU: 4.618.0014
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1500
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Pressure Gauge Pipe 2x380 Max 630 Bar 1/4 F. Gir. 1/4 F Gir. for Pressure Washers NPX 1400 - NPX...
Usually Ships in: 10/15 Business Days Approx. €26.46
Details
Thermal Switch MS 25 for Pressure Cleaner Lavor LKX 55 TS
Lavorwash S.p.A. SKU: 3.401.0049
Thermal Switch MS 25 for Pressure Cleaner Lavor LKX 55 TS
Thermal Switch MS 25 10/16 AMP for Pressure Cleaner Lavor LKX 55 TS Genuine replacement part Lavor, Thermal Switch MS 25 10/16 AMP (4006111101) for Pressure Cleaner LKX 55 TS 230/400-50 CM -G - 8.611.0084. Part...
on 10 Business Days Approx. €137.06
Details
Lavor LKX 31 Diesel Filter Unit
Lavorwash S.p.A. SKU: 5.611.0067
Lavor LKX 31 Diesel Filter Unit
Lavor LKX 31 Diesel Filter Unit Genuine replacement part Lavor, Diesel Filter Unit Assy (PAPER) for LKX 31 - 40 - 55 - 2015. Part for the following products: - 8.611.0160 - Pressure Washer LKX 31 TS AC 230/50 CM-G -...
Last items in stock €19.50
Details
Lavor Retaining Ring for EAGLE 24
Lavorwash S.p.A. SKU: 5.009.0452
Lavor Retaining Ring for EAGLE 24
Lavor Retaining Ring for Pressure Cleaner EAGLE 24 Original replacement part Lavorwash, Assembly Retaining Ring D.29/Piston D.12 for Pressure Cleaners EAGLE 24 - MACH 20. Part for the following products: -  Pressure Cleaner...
Usually Ships in: 10 Business Days Approx. €8.85
Details
Lavor Disk As for KARJET PROFI130
Lavorwash S.p.A. SKU: 3.001.0003
Lavor Disk As for KARJET PROFI130
Lavor Disk As for Pressure Cleaner KARJET PROFI130 Original replacement part Lavorwash, Disk As for Pressure Cleaners KARJET PROFI130 - FKX 1018. Part for the following products: -  Pressure Cleaner Lavor KARJET PROFI130 -...
Usually Ships in: 10 Business Days Approx. €3.33
Details
Lavor Bearing Washer for LP 20 EHR
Lavorwash S.p.A. SKU: 4.007.0001
Lavor Thrust Shoe for LP 20 EHR
Lavor Thrust Shoe for Pressure Cleaner LP 20 EHR Original replacement part Lavorwash, Thrust Shoe D.65x30x6 (C10pb) Finished for Pressure Cleaners LP 20 EHR - FKX 1018. Part for the following products: - ...
Usually Ships in: 10 Business Days Approx. €5.83
Details
Lavor Piston Recall Spring for FKX 1018
Lavorwash S.p.A. SKU: 4.007.0025
Lavor Piston Recall Spring for FKX 1018
Lavor Piston Recall Spring for Pressure Cleaner FKX 1018 Original replacement part Lavorwash, Piston Recall Spring D.14- 12 for Pressure Cleaners FKX 1018 - MACH 20. Part for the following products: - ...
Usually Ships in: 10 Business Days Approx. €2.12
Details
Lavor Needle Roller Cage for EQ18
Lavorwash S.p.A. SKU: 3.001.0025
Lavor Needle Roller Cage for EQ18
Lavor Needle Roller Cage for Pressure Cleaner EQ18 Original replacement part Lavorwash, Needle Roller Cage Type Axk4565 -STEEL- for Pressure Cleaners EQ18 - MISSOURI. Part for the following products: - ...
Usually Ships in: 10 Business Days Approx. €3.48
Details
Lavor Recall Spring for Pressure Cleaner FKX 1018
Lavorwash S.p.A. SKU: 00030-00517 ex 4.007.0014
Lavor Recall Spring for Pressure Cleaner FKX 1018
Lavor Recall Spring for Pressure Cleaner FKX 1018 Original replacement part Lavorwash, Detergent Stop Valve Spring De4, 5/6 L=7 FILO D.0,3 INOX for Pressure Cleaners FKX 1018 - NPX1400. Part for the following products:...
Usually Ships in: 10 Business Days Approx. €2.57
Details
Comments (0)
