Lavor Pressure Cleaner TEKNA 4 1515 Parts

SKU: TEKNA 4 1515 - 8.622.0901
€1,398.36
VAT included

Lavor Original Parts for Pressure Cleaner TEKNA 4 1515 400-415/50 TSLWS 8.622.0901

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner TEKNA4 1515 400-415/50 TSLWS 8.622.0901

Pressure Cleaner Pressure Washer TEKNA4 1515 - 8.622.0901

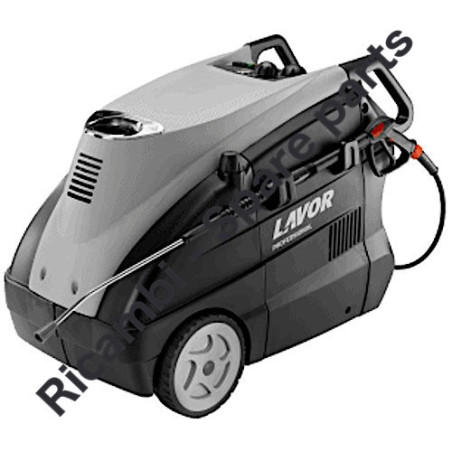

Lavor Pressure Cleaner TEKNA4 1515 Parts
  • Lavor Pressure Cleaner TEKNA4 1515 Parts
  • Lavor Pressure Cleaner TEKNA4 1515 Parts Diagram
  • Lavor Pressure Cleaner TEKNA4 1515 Parts Diagram - 1
  • Lavor Pressure Cleaner TEKNA4 1515 Parts Diagram - 2
  • Lavor Pressure Cleaner TEKNA4 1515 Parts Diagram - 3
  • Lavor Pressure Cleaner TEKNA4 1515 Parts Diagram - 4
Lavorwash S.p.A.

Lavor Pressure Cleaner TEKNA 4 1515 Parts

SKU: TEKNA 4 1515 - 8.622.0901 Condition: New
€1,398.36
VAT included

Lavor Original Parts for Pressure Cleaner TEKNA 4 1515 400-415/50 TSLWS 8.622.0901

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner TEKNA4 1515 400-415/50 TSLWS 8.622.0901

Pressure Cleaner Pressure Washer TEKNA4 1515 - 8.622.0901
settings 144 spare parts
description 6 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
144 spare parts
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
7
 photo_cameraImage coming soon 6.608.0010 HOSE REEL KIT LWS FOR TEKNA4 €154.11
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5.601.0353 MTP. R.A. 400/50 4P HP5.5 LW 1515 SX X HOT €1,318.10
2
 photo_cameraImage coming soon 5.606.0108 MOTOR LW R.A 400/50 D.152X125 €783.45
3
 photo_cameraImage coming soon 3.099.0805 RING 61x51x0,4 H.3,5 €1.72
4
 photo_cameraImage coming soon 3.001.0066 RADIAL SPHERE BEARING 6305 2RSKBC (25x62x17) €11.41
5
 photo_cameraImage coming soon 3.001.0009 BEARING 6007-2Z €14.39
6
 photo_cameraImage coming soon 4.605.0070 CABLEHOLDER M22 €5.83
7
 photo_cameraImage coming soon 4.618.0116 LP TUBE L=205 COIL-PUMP R.A. MOT. LW LINE €16.74
8
 Lavor Cooling Hose for LKX 2015LP 4.618.0126 Lavor Cooling Hose for LKX 2015LP €29.90
9
 photo_cameraImage coming soon 4.605.0072 MOTOR FRONT FLANGE D.152 X PUMP D.61 €44.82
10
 Lavor MCHPV 1515LP Water Cooled Motor Hose Kit 6.605.0071 Lavor MCHPV 1515LP Water Cooled Motor Hose Kit €9.26
12
 photo_cameraImage coming soon 5.699.0033 PUMP LW 200/15 1450 SX W/DRILLED CAPS €687.20
16
 photo_cameraImage coming soon 6.605.0078 VALVE KIT L3 W/TS W/IN.2.3 €152.99
20
 Lavor MCHPV 1515LP Join Hose-Holder 3.100.0235 Lavor MCHPV 1515LP Join Hose-Holder €44.03
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6.005.0220 KIT 203 LW VALVE GUIDE LWS18 €27.29
2
 photo_cameraImage coming soon 6.005.0200 KIT 186 MAX PRESSURE VALVE €28.10
3
 Body Valve for Pressure Cleaner Lavor MCHPV 1515LP 4.606.0192 Body Valve for Pressure Cleaner Lavor MCHPV 1515LP €100.68
4
 photo_cameraImage coming soon 4.607.0053 Substituted by 4.606.0213 SUCTION HOLED CONNECTION 1/2 €17.87
5
 photo_cameraImage coming soon 3.004.0037 WASHER 1/2 21X27 SP.1.5 €1.63
6
 photo_cameraImage coming soon 4.607.0052 Substituted by 4.606.0212 HOLED CONNECTION 3/8 €23.78
7
 photo_cameraImage coming soon 3.004.0036 COPPER WASHER 3/8 17X22 SP.1.5 €1.54
8
 photo_cameraImage coming soon 6.005.0130 KIT 121 LW COMPLETE BY-PASS PUMP INTEGRATED VALVE €70.70
9
 Lavor MCHPV 1515LP Kit 111 LW 6.005.0120 Lavor MCHPV 1515LP Kit 111 LW €28.38
10
 photo_cameraImage coming soon 4.006.0023 SCREW PLUG 1/8 EXAGONAL HEAD €1.63
12
 photo_cameraImage coming soon 5.609.0158 ASSEMBLY CONNECTOR 1/8 G + CAPM7 TS €14.85
13
 photo_cameraImage coming soon 5.609.0107 BOX+MICRO+CABLE 3X1 FOR TS BRASS HEAD '99 €38.32
20
 photo_cameraImage coming soon 6.605.0080 VALVE KIT L3 W/TS S/IN. €146.01
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
photo_cameraImage coming soon 5.699.0033 PUMP LW 200/15 1450 SX W/DRILLED CAPS €687.20
1
 photo_cameraImage coming soon 4.605.0059 BEARING FLANGE €28.65
2
 photo_cameraImage coming soon 6.605.0050 O-RINGS KIT €28.77
4
 photo_cameraImage coming soon 3.099.0510 FEATHER KEY 8X7X35 UNI 6604A €1.68
5
 photo_cameraImage coming soon 6.605.0029 LWB BEARINGS KIT €60.29
6
 photo_cameraImage coming soon 6.605.0051 PLUNGER RODS LWB KIT €72.39
7
 photo_cameraImage coming soon 6.605.0027 15LT PUMP SHAFT KIT LAVOR LINEA €57.40
8
 photo_cameraImage coming soon 4.605.0057 LWB CRANKCASE €91.04
9
 Lavor HYPER C 2021LP Piston Kit 6.605.0025 Lavor HYPER C 2021LP Piston Kit €43.16
10
 photo_cameraImage coming soon 6.605.0026 COMPLETE CONNECTING ROD L52 ZAMA FOR IN-LINE PUMP MACHINED €30.67
11
 photo_cameraImage coming soon 4.605.0058 LWB REAR CRANKCASE COVER ESP.00 €28.65
12
 Lavor Oil Lever Indicator for NPX 1400 3.099.0003 Lavor Oil Lever Indicator for NPX 1400 €4.14
13
 STEI Screw 3/8" for Pressure Washers Lavor NPX 1400 - NPX 1500 3.002.0004 STEI Screw 3/8" for Pressure Washers Lavor NPX 1400 - NPX 1500 €1.70
14
 photo_cameraImage coming soon 4.605.0060 BEARING FLANGE €28.65
15
 Lavor MCHPV 1515LP Water Seals + Bushes Kit 6.605.0041 Lavor MCHPV 1515LP Water Seals + Bushes Kit €129.35
16
 photo_cameraImage coming soon 6.605.0048 LWB BUSHES KIT €28.77
17
 Lavor MCHPV 1515LP Water Seals Kit 6.605.0047 Lavor MCHPV 1515LP Water Seals Kit €95.68
18
 photo_cameraImage coming soon 4.606.0161 G3/8 CAP €9.98
22
 photo_cameraImage coming soon 4.606.0149 SUCTION/DELIVERY VALVE CAP LWB €14.29
23
 photo_cameraImage coming soon 3.200.0185 O-RING GASKET 20.29X2.62 NBR 90 SH €1.63
24
 photo_cameraImage coming soon 6.605.0049 KIT 6 VALVE CAPS €51.70
25
 photo_cameraImage coming soon 6.605.0042 SUCTION/DELIVERY VALVES KIT LWB €28.77
26
 photo_cameraImage coming soon 3.099.0978 OIL CAP (L66 STICK) €14.38
27
 photo_cameraImage coming soon 6.605.0031 LWB PISTON BUSHES KIT €9.85
31
 photo_cameraImage coming soon 4.606.0162 HEAD PUMP LAVOR LINE WITHOUT/VALVE €232.46
33
 photo_cameraImage coming soon 3.699.0042 MULTITRACTOR STOU 15W40 OIL €65.97
37
 Lavor HYPER C 2021LP Kit Screw 6.605.0034 Lavor HYPER C 2021LP Kit Screw €26.78
38
 photo_cameraImage coming soon 6.605.0052 BEARING SPACER KIT LWB €37.04
39
 photo_cameraImage coming soon 3.704.0005 AIR PRESSURE SWITCH PR5 45BAR1/4 L.650 €36.43
40
 photo_cameraImage coming soon 4.606.0167 HOLED VALVE CAP 1/4 LWB €7.53
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5.613.0178 TEKNA FRAME '04 PAINTED EXP.04 €262.08
2
 photo_cameraImage coming soon 4.613.0177 TEKNA4 FAIRING -G- RAL 1018ESP.01 €84.67
3
 photo_cameraImage coming soon 4.608.0170 LEFT HANDLE NPX'04-GR-RAL.7021 €47.26
4
 photo_cameraImage coming soon 4.608.0169 RIGHT HANDLE NPX'04-GR-RAL.7021 €38.26
5
 photo_cameraImage coming soon 4.608.0171 WATER TANK FOR TEKNA4 (18lt) EXP.01 €141.09
6
 photo_cameraImage coming soon 4.607.0339 HOSE REEL SUPPORT BRACKET LEFT-RIGHT X €11.38
7
 photo_cameraImage coming soon 6.608.0010 HOSE REEL KIT LWS FOR TEKNA4 €154.11
8
 photo_cameraImage coming soon 4.612.0032 POWER CABLE H05VV-F 4X2.5 L=6700 €39.86
9
 photo_cameraImage coming soon 4.607.0339 HOSE REEL SUPPORT BRACKET LEFT-RIGHT X €11.38
10
 photo_cameraImage coming soon 3.006.0070 SWIVEL WHEEL D.150X40 ART.600/RW2ATT. A PLATE €77.35
11
 photo_cameraImage coming soon 5.611.0150 TEKNA4 RH SIDE PANEL - BLACK - W/HOOK €54.92
12
 photo_cameraImage coming soon 5.611.0149 TEKNA4 LH SIDE PANEL - BLACK - W/HOOKS €49.50
13
 photo_cameraImage coming soon 4.608.0172 RH TANK (DET.) FOR TEKNA4 EXP.01 €147.63
14
 photo_cameraImage coming soon 4.608.0173 LEF TANK (DIESEL) FOR TEKNA4 EXP.01 €141.08
15
 photo_cameraImage coming soon 5.611.0108 HINGE FOR TEKNA 4 HOOD COMPL. €29.21
16
 photo_cameraImage coming soon 4.607.0270 TANK JOINT BRACKET TEKNA4 EXP.00 €4.27
17
 Diesel Fuel Tank Cap for Pressure Washer Lavor RIO 1108 4.608.0180 Diesel Fuel Tank Cap for Pressure Washer Lavor RIO 1108 €14.99
18
 photo_cameraImage coming soon 3.006.0063 HI300 WHEEL HOLE D.25 BLACK €42.63
18
 photo_cameraImage coming soon 4.606.0161 G3/8 CAP €9.98
19
 photo_cameraImage coming soon 6.605.0087 KIT N.3 HOOKS WITH SCREWS €11.10
21
 photo_cameraImage coming soon 4.618.0143 HIGH PRESSURE HOSE 5/16 315BAR R2 L=10000 1/2 TWIST.-3/8 €142.39
22
 photo_cameraImage coming soon 3.708.0001 LANCE M22x1,5-1 / 8 F L = 700 MT6 S / ROSETTA €25.72
23
 photo_cameraImage coming soon 3.099.0717 WHEEL STUD FOR HI300 PAINTED SILVER RAL.9006 €13.97
24
 photo_cameraImage coming soon 3.749.0459 CONNECTOR D.14 M22 W/RING RING-3/8M 26025051 €16.31
25
 photo_cameraImage coming soon 3.103.0053 Hight Pressure Nozzle 0.60 €15.26
27
 photo_cameraImage coming soon 4.608.0184 WINDING SEAT CLOSURE CAP. NPX'04 BLACK €5.71
28
 photo_cameraImage coming soon 3.403.0110 FUEL LEVEL SENSOR WITH SUM CONNECT. W/MBK BLACK GASKET €64.10
29
 photo_cameraImage coming soon 3.002.0532 KNOB D.20 M5MX15 €3.23
30
 photo_cameraImage coming soon 7.701.1787 STICKER FAIRING HYPER T 409x783C PRESPACE €21.12
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 4.608.0332 DASHBOARD LKX4-TEKNA TS 2 BOARD -GR- RAL7021 C/TAMP.-EN- €34.58
3
 Lavor Adjustment Knob for MEK 1108 4.608.0164 Lavor Adjustment Knob for MEK 1108 €5.83
4
 Lavor Thermostat Knob for LKX 2015LP 5.611.0161 Lavor Thermostat Knob for LKX 2015LP €3.36
5
 Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500 3.403.0091 Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500 €40.24
7
 photo_cameraImage coming soon 4.608.0168 NPX4/LKX4/T4 ELECTRICAL BOX €26.96
9
 photo_cameraImage coming soon 3.401.0177 SWITCH 0/1 GREEN/RED PUSH/BUTTON IP55 12/10 €7.55
11
 photo_cameraImage coming soon 3.402.0044 THERMIC RELE' DPER14 7-10A €28.65
12
 photo_cameraImage coming soon 3.402.0050 CONTROLLER KN12 400/50HZ 5.5KW AC3 €28.65
13
 photo_cameraImage coming soon 3.403.0171 TOTAL STOP BOARD TS2 €186.29
14
 photo_cameraImage coming soon 3.403.0172 TS2 LED BOARD €15.75
15
 Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500 3.107.0004 Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500 €33.35
16
 photo_cameraImage coming soon 3.105.0003 DETERGENT REGULATING COCK WITHRUBBER HOLDER D.7 €37.19
22
 photo_cameraImage coming soon 4.614.0004 STANDARDIZED ELECTRODES COUPLE WITH ROD €36.46
23
 photo_cameraImage coming soon 3.100.0075 CONIC CONNECTION M 1/8 F D.4 CURVED FOR GASOIL HOSE VITON O- €14.98
24
 photo_cameraImage coming soon 3.099.0015 RING SEEGER I D.21 SP1 DIN 472 €1.68
25
 photo_cameraImage coming soon 4.608.0002 SITE GLASS DIAM.20 SP.1,8 €1.68
26
 photo_cameraImage coming soon 4.605.0045 BURNER FLANGE FOR FIXING PHOTORESISTANT €28.65
27
 photo_cameraImage coming soon 3.104.0004 Substituted by 3.104.0028 DIESEL NOZZLE 1,25 45-B €26.77
29
 Lavor NPX 1400 High Tension Cable 5.611.0099 Lavor NPX 1400 High Tension Cable €15.35
32
 Lavor LKX 2015LP External Cover 5.613.0200 Lavor LKX 2015LP External Cover €40.44
33
 photo_cameraImage coming soon 5.610.0104 DEFLECTOR WITH CONE D.81 WITHOUT HOLES €29.65
34
 photo_cameraImage coming soon 5.613.0056 INTERNAL COVER FOR COMBINATION CAM. CHIMNEY L=149 €113.63
35
 photo_cameraImage coming soon 5.611.0107 EXTERNAL COVER FOR BAND/THICKNESS 3mm €65.98
36
 photo_cameraImage coming soon 3.551.0040 DOUBLE-PIPE OIL PUMP RH 24V 50/60Hz (VERS.'06) €120.94
37
 photo_cameraImage coming soon 3.414.0009 24V-50Hz BOBBIN FOR GAS-OIL DANFOSS PUMP €59.19
38
 photo_cameraImage coming soon 3.099.0012 Substituted by 6.605.0173 GASOIL PUMP PLASTIC COUPLING €28.23
39
 photo_cameraImage coming soon 3.300.0023 MOTOR FOR BURNER 100W/230-240/50Hz IP55 WITHOUT FLANGE €153.42
40
 photo_cameraImage coming soon 4.608.0186 BOILER CONVEYOR COMM. MOTOR €31.76
41
 photo_cameraImage coming soon 3.099.0722 FAN 160x60 LEFT.HOLE DM 12.7 €27.82
42
 photo_cameraImage coming soon 4.608.0181 CONVEYOR COVER TEKNA4ESP.00 €12.26
43
 photo_cameraImage coming soon 4.604.0022 LOW COIL H.415 (F.E.35.2) FOR TEKNA '04 €513.17
44
 photo_cameraImage coming soon 5.613.0229 EXTERNAL CASING FOR BOILER COMPL. TEKNA4 €187.49
45
 photo_cameraImage coming soon 5.613.0230 INTERNAL CASING FOR BOILER COMPL. TEKNA4 -PAINTED- €111.56
46
 photo_cameraImage coming soon 3.099.0719 HEATING BAND/330/G8 FIXING OF HEATING COVER TEKNA'04 €19.89
47
 photo_cameraImage coming soon 4.608.0183 DIRECT GASKET FOR BOILER SNAIL €32.65
48
 photo_cameraImage coming soon 4.608.0021 SETTING THROTTLE GMV 150 €3.36
49
 photo_cameraImage coming soon 4.608.0022 SETTING THROTTLE LEVER GMV 150 €1.74
50
 photo_cameraImage coming soon 5.609.0119 COMPLETE ANTI-LIMESCALE ASSEMBLY EXP.00 €43.93
51
 photo_cameraImage coming soon 4.608.0210 RILSAN LKX 4 DIESEL DELIVERY PIPE L=800 €3.23
52
 photo_cameraImage coming soon 5.609.0126 ACCESS. TRANSFER. 220-240V 50/60Hz W/O CAV. €80.46
54
 photo_cameraImage coming soon 4.608.0218 INSULATION THICKNESS FOR TEKNA4 BOILER thk.3 €7.50
55
 photo_cameraImage coming soon 4.618.0123 LP PIPE L=800 TEKNA MOT.-TANK EXP.02 €41.81
56
 photo_cameraImage coming soon 3.004.0032 RUBBER WASHER 24,2X17X2 AS S.ASPIRAZ. €1.68
57
 photo_cameraImage coming soon 3.749.0458 VALVE 3/4M 29015008 €23.21
58
 photo_cameraImage coming soon 4.618.0095 LP PIPE 3/4G 90gr-F3/4G L=600 VAS./PUMP €26.30
59
 Water Inlet Filter 3/4F-3/4 M for High Pressure Washers Lavor 3.102.0011 Water Inlet Filter 3/4F-3/4 M for High Pressure Washers Lavor €9.96
70
 photo_cameraImage coming soon 3.004.0015 PLAIN WASHER D.22X39X2 UNI6592 €1.63
71
 photo_cameraImage coming soon 4.606.0013 COIL FIXING NUT 1/2 BRASS SPEC. €3.25
72
 photo_cameraImage coming soon 4.618.0093 HP PIPE 1/2G 90gr-3/8G 90gr3/8 R2 400bar TEKNA4 €29.83
73
 photo_cameraImage coming soon 4.618.0097 PIPE 3/8' R2 PUMP/COOLER L=510ESP.01 €27.89
74
 photo_cameraImage coming soon 5.611.0136 DIESEL FILTER GROUP TEKNA 4ESP.00 €17.92
75
 photo_cameraImage coming soon 4.606.0087 BULB ASSY €49.01
77
 photo_cameraImage coming soon 3.100.0018 RAPID COUPLING 3/8 M. 08 (465) €14.98
78
 photo_cameraImage coming soon 3.406.0023 LOCK NUT FOR PG 16 TEAR-PROOF CABLE GLAND €1.63
79
 photo_cameraImage coming soon 3.100.0090 NIPPLE 3/4 M-3/4 M STEEL €27.80
80
 photo_cameraImage coming soon 3.004.0004 ALUMINIUM WASHER 21X30XSP 1,5 €1.74
81
 photo_cameraImage coming soon 3.100.0020 REDUCTION M.GAS/M.GAS 1/2-3/8 €8.03
82
 photo_cameraImage coming soon 3.406.0022 PG 16 TEAR-PROOF CABLE GLAND WITHOUT RING €29.65
83
 photo_cameraImage coming soon 4.606.0134 INLET CONNECTOR 3/4F-3/4M EXP.01 €28.35
84
 photo_cameraImage coming soon 3.748.0021 QUICK CONNECTOR 3/4 F WATER INLET 00108210 €26.49
85
 photo_cameraImage coming soon 4.607.0006 COIL FIXING STRIP PLATE 20/10 €46.76
87
 photo_cameraImage coming soon 5.613.0181 DASHBOARD/TANK SUPPORT SHEET METAL TEKNA4 €137.15

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Original Parts for Pressure Cleaner TEKNA 4 1515 400-415/50 TSLWS 8.622.0901

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Washer TEKNA4 1515 400-415/50 TSLWS 8.622.0901

In the following tables, look for the spare part and its respective code.
TEKNA4 1515 - 8.622.0901

Pressure Washer TEKNA4 1515 400-415/50 TSLWS 8.622.0901
Motor Pump Pag.1
# Part Num. Description
1 5.601.0353 MTP. R.A. 400/50 4P HP5.5 LW 1515 SX X HOT
2 5.606.0108 LW R.A. 400/50 MOTOR D.152x125 LINE WORK
3 3.099.0805 COMPENSATION RING 61X51X0.4 H.3.5 -62d-
4 3.001.0066 RADIAL BALL BEARING 6305 2RS (25X62X17)
5 3.001.0009 BEARING 6007-2RS 35x62x14 (X ELECTRIC MOTOR)
6 4.605.0070 M22 CABLE GLAND FOR R.A. MOT. EXP.00
7 4.618.0116 LP TUBE L=205 COIL-PUMP R.A. MOT. LW LINE
8 4.618.0126 LP TUBE L=400 INPUT-COIL R.A. MOT. 3/8 M EXP.01
9 4.605.0072 FRONT FLANGE MOTOR D.152 FOR PUMP D.61
10 6.605.0071 KIT OF LOCKS FOR MOTOR PIPE R.A.
12 5.699.0033 PUMP LW 200/15 1450 SX W/DRILLED CAPS
16 6.605.0078 KIT VALVE L3 W/TS W/IN. 2.3
20 3.100.0235 CONNECTOR 45' 1/2M-PORTAG.3/4
Valve L3 Pag.2
1 6.005.0220 KIT 203 LW GUIDE VALVE-VALV.RIT.PORTAG. LWS18
2 6.005.0200 KIT 186 LW UNIVERSAL SAFETY VALVE X
3 4.606.0192 BODY VALVE LAVOR L3 EXP.02
4 4.607.0053 DRILLED CONNECTOR 1/2 ASP. V.L. BLIND AVP ZNT EXP.05
5 3.004.0037 COPPER WASHER 1/2 21X27 SP.1.5
6 4.607.0052 FOR. CONNECTOR 3/8 MAND.V.L.BLIND IPESP.01
7 3.004.0036 COPPER WASHER 3/8 17X22 SP.1.5
8 6.005.0130 KIT 121 LW COMPLETE BY-PASS LP PUMP X
9 6.005.0120 KIT 111 LW PRESSURE REGULATOR
10 4.006.0023 CLOSING CAP 1/8 OT HEX HEAD EXP.03
12 5.609.0158 FITTING ASSEMBLY 1/8 G W/PLUG M7 TS
13 5.609.0107 BOX ASSEMBLY + MICRO + CABLE 3X1 CAP
20 6.605.0080 VALVE KIT L3 W/TS S/IN.
Pump Pag.3
0 5.699.0033 PUMP LW 200/15 1450 SX W/DRILLED CAPS
1 4.605.0059 OPEN COVER FOR IN-LINE PUMP CASE
2 6.605.0050 O-RING KIT + SHAFT SEAL
4 3.099.0510 8X7X35 UNI 6604A KEY
5 6.605.0029 2 BEARINGS KIT LAVOR LINEA
6 6.605.0051 PISTON GUIDE PIN KIT LAVORLINEA
7 6.605.0027 15LT PUMP SHAFT KIT LAVOR LINEA
8 4.605.0057 IN-LINE PUMP CASE MACHINED EXP.04
9 6.605.0025 3 PISTONS KIT D.20 LAVOR LINEA
10 6.605.0026 COMPLETE CONNECTING ROD KIT LAVOR LINEA
11 4.605.0058 REAR COVER FOR IN-LINE PUMP CASE
12 3.099.0003 OIL LEVEL LIGHT SLNS-3/8 HOBBY
13 3.002.0004 SCREW STEI 3/8 G.DIN 906 (OIL CAP)
14 4.605.0060 CLOSED COVER FOR IN-LINE PUMP CASE
15 6.605.0041 KIT 3 COMPLETE SEAL PACKS + BUSHINGS
16 6.605.0048 KIT 3 BUSHINGS FOR SEALS
17 6.605.0047 KIT 3 COMPLETE SEAL PACKS LAVOR LINEA
18 4.606.0161 PLUG G3/8 EXP.00
22 4.606.0149 PLUG VALVE INLET/OUTLET LAVORLINEA EXP.00
23 3.200.0185 OR SEAL 20.29X2.62 NBR90 SH
24 6.605.0049 KIT 6 VALVE CAPS
25 6.605.0042 KIT VALVES INLET/OUTLET
26 3.099.0978 OIL LOADING CAP WITH PIPE AND BREATHER (ROD L=66)
27 6.605.0031 KIT 3 LAVORLINEA PISTON ROD GUIDES
31 4.606.0162 HEAD FOR IN-LINE PUMP LAVOR WITHOUT VALVE
33 3.699.0042 ENGINE OIL PRO 15W40
37 6.605.0034 KIT OF COMPLETE PISTON FIXING SCREWS LAVORLINEA
38 6.605.0052 KIT OF REGISTRATION SHIMS LAVORLINEA
39 3.704.0005 PRESSURE STRAINER PR5 45BAR 1/4 L.750 F.29008065
40 4.606.0167 PERFORATED VALVE CAP 1/4 ASP/MAND.LAVOR
Chassis Pag.4
1 5.613.0178 TEKNA FRAME '04 PAINTED EXP.04
2 4.613.0177 TEKNA4 FAIRING -G- RAL 1018ESP.01
3 4.608.0170 LEFT HANDLE NPX'04-GR-RAL.7021ESP.00
4 4.608.0169 RIGHT HANDLE NPX'04-GR-RAL.7021ESP.00
5 4.608.0171 WATER TANK FOR TEKNA4 (18lt) EXP.01
6 4.607.0339 HOSE REEL SUPPORT BRACKET LEFT-RIGHT X
7 6.608.0010 HOSE REEL KIT LWS FOR TEKNA4
8 4.612.0032 POWER CABLE H05VV-F 4X2.5 L=6000ESP.03
9 4.607.0339 HOSE REEL SUPPORT BRACKET LEFT-RIGHT X
10 3.006.0070 SWIVEL WHEEL D.150X40 ART.600/RW2ATT. A PLATE
11 5.611.0150 TEKNA4 RH SIDE PANEL - BLACK - W/HOOK
12 5.611.0149 TEKNA4 LH SIDE PANEL - BLACK - W/HOOKS
13 4.608.0172 RH TANK (DET.) FOR TEKNA4 EXP.01
14 4.608.0173 LEF TANK (DIESEL) FOR TEKNA4 EXP.01
15 5.611.0108 HINGE FOR TEKNA 4 HOOD COMPL.
16 4.607.0270 TANK JOINT BRACKET TEKNA4 EXP.00
17 4.608.0180 TANK CAP TEKNA4/RIO EXP.00
18 3.006.0063 HI300 WHEEL HOLE D.25 BLACK
19 6.605.0087 KIT N.3 HOOKS WITH SCREWS
20 3.700.0028 GUN 300bar 3/8M+S7+M22
21 4.618.0143 TUBE 5/16 310BAR L=10000 W/QUICK CONNECTOR 1/2 GIR.-3/8
22 3.708.0001 LANCE M22x1.5-1/8 F L=700 MT6S/WASHER
23 3.099.0717 WHEEL STUD FOR HI300 PAINTED SILVER RAL.9006
24 3.749.0459 CONNECTOR D.14 M22 W/RING RING-3/8M 26025051
25 3.103.0053 HIGH PRESSURE NOZZLE 1/8M 15060
27 4.608.0184 CLOSING CAP FOR WINDING SEAT NPX'04 BLACK
28 3.403.0110 FUEL LEVEL SENSOR P520NESP.03
29 3.002.0532 KNOB D.20 M5MX15
30 7.701.1787 STICKER FAIRING HYPER T 409x783C PRESPACE
31 7.700.0310 INSTRUCTION BOOKLET TEKNA4 (TS2) A5124F 12L +COP.4A
Boiler Pag.5
2 4.608.0332 DASHBOARD LKX4-TEKNA TS2 BOARD -GR-
3 4.608.0164 THERMOST ADJUSTMENT KNOB PARANA'
4 5.611.0161 THERMOST KNOB BLACK W/INSERT EXP.01
5 3.403.0091 THERMOSTAT 30/150 BULB D. 6.5 (3 FASTON
7 4.608.0168 ELECTRIC BOX NPX4/LKX4/T4ESP.03
9 3.401.0177 SWITCH 0/1 PULS. GREEN/RED PUSH/BUTTON
11 3.402.0044 THERMAL RELAY DPER14 7-10A (TELEM.)
12 3.402.0050 CONTROLLER KN12 400/50HZ 5.5KW AC3
13 3.403.0171 TOTAL STOP BOARD TS2
14 3.403.0172 LED BOARD TS2
15 3.107.0004 MANOMETER D.50 0/315 BAR 1/4 POST+BRACKET
16 3.105.0003 DET REG. TAP W/PORTAG. D.7 (DIS.N.6990A 3/4
22 4.614.0004 PAIR OF PROFESSIONAL STANDARD ELECTRODES W/BRACKET
23 3.100.0075 CONNECTOR M 1/8 CONICAL F D.4 CURVED
24 3.099.0015 CIRCUIT BREAKER D.21 SP1 DIN 472
25 4.608.0002 GLASS DIAM.20 SP.1.8
26 4.605.0045 BURNER FLANGE FOR FIXING PHOTORESISTANT
27 3.104.0004 OIL NOZZLE 1.25 60/H
28 5.611.0164 COMPL. BURNER FLANGE 1.25-60A (RILSAN) W/PRED.
29 5.611.0099 HIGH VOLTAGE CABLE L=480 FOR STANDARD ELECTRODES
32 5.613.0200 EXTERNAL BOILER COVER INOXAISI 430BA
33 5.610.0104 DEFLECTOR WITH CONE D.81 WITHOUT HOLES
34 5.613.0056 INTERNAL COVER FOR COMBINATION CAM. CHIMNEY L=149
35 5.611.0107 EXTERNAL COVER FOR BAND/THICKNESS 3mm
36 3.551.0040 DOUBLE-PIPE OIL PUMP RH 24V 50/60Hz (VERS.'06)
37 3.414.0009 COIL 24V/50Hz X PUMP
38 3.099.0012 PLASTIC JOINT DIESEL PUMP
39 3.300.0023 MOTOR FOR BURNER 100W/230-240/50Hz IP55 WITHOUT FLANGE
40 4.608.0186 BOILER CONVEYOR COMM. MOTOR
41 3.099.0722 FAN 160x60 LEFT.HOLE DM 12.7
42 4.608.0181 CONVEYOR COVER TEKNA4ESP.00
43 4.604.0022 LOW COIL H.415 (F.E.35.2) FOR TEKNA '04
44 5.613.0229 EXTERNAL CASING FOR BOILER COMPL. TEKNA4
45 5.613.0230 INTERNAL CASING FOR BOILER COMPL. TEKNA4 -PAINTED-
46 3.099.0719 ALZ/330/G8 BAND FIXING COVER
47 4.608.0183 DIRECT GASKET FOR BOILER SNAIL
48 4.608.0021 ADJUSTMENT BUTTERFLY FOR GMV 150
49 4.608.0022 LEVER FOR ADJUSTMENT BUTTERFLY GMV 150
50 5.609.0119 COMPLETE ANTI-LIMESCALE ASSEMBLY EXP.00
51 4.608.0210 RILSAN LKX 4 DIESEL DELIVERY PIPE L=800
52 5.609.0126 ACCESS. TRANSFER. 220-240V 50/60Hz W/O CAV.
53 4.608.0202 REFRACTORY D.299X20 TEKNA'04ESP.01
54 4.608.0218 INSULATION THICKNESS FOR TEKNA4 BOILER thk.3
55 4.618.0123 LP PIPE L=800 TEKNA MOT.-TANK EXP.02
56 3.004.0032 RUBBER WASHER 24.2X17X2 SUCTION ASS.
57 3.749.0458 FLOAT TAP (SHORT ROD) 3/4 M
58 4.618.0095 LP PIPE 3/4G 90gr-F3/4G L=600 VAS./PUMP
59 3.102.0011 WATER FILTER 3/4F-3/4M 80 micron
70 3.004.0015 FLAT WASHER D.22X39 Sp.3 UNI 6592 ZNT
71 4.606.0013 COOLER FIXING NUT 1/2 OT SPEC.
72 4.618.0093 HP PIPE 1/2G 90gr-3/8G 90gr3/8 R2 400bar TEKNA4
73 4.618.0097 PIPE 3/8' R2 PUMP/COOLER L=510ESP.01
74 5.611.0136 DIESEL FILTER GROUP TEKNA 4ESP.00
75 4.606.0087 THERM. BULB BODY PROFESS.ESP.04
77 3.100.0018 QUICK CONNECTOR 3/8 M. 08 (465) 26070050
78 3.406.0023 LOCK NUT FOR PG 16 TEAR-PROOF CABLE GLAND
79 3.100.0090 NIPPLE 3/4 M-3/4 M STEEL
80 3.004.0004 ALUMINUM WASHER 21x30xSP.1.5
81 3.100.0020 NIPPLE 1/2G-3/8G
82 3.406.0022 PG 16 TEAR-PROOF CABLE GLAND WITHOUT RING
83 4.606.0134 INLET CONNECTOR 3/4F-3/4M EXP.01
84 3.748.0021 QUICK CONNECTOR 3/4 F WATER INLET 00108210
85 4.607.0006 STEEL SHEET METAL TANK FIXING BAND 15/10 STAINLESS STEEL
87 5.613.0181 DASHBOARD/TANK SUPPORT SHEET METAL TEKNA4
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
TEKNA 4 1515 - 8.622.0901
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

Lavor TEKNA 4 1515 Parts Diagram

Lavor TEKNA 4 1515 Parts Diagram

Download (1.7MB)

You might also like

Body Valve for Pressure Cleaner Lavor MCHPV 1515LP
Lavorwash S.p.A. SKU: 4.606.0192
Body Valve for Pressure Cleaner Lavor MCHPV 1515LP
Body Valve for Pressure Cleaner Lavor MCHPV 1515LP Genuine replacement part Lavor, Body Valve Lavor L3 for Paranà for Pressure Cleaner MCHPV 1515LP 400-415/SC1 - 8.626.0002. Part...
Last items in stock €100.68
Details
Lavor MCHPV 1515LP Water Seals + Bushes Kit
Lavorwash S.p.A. SKU: 6.605.0041
Lavor MCHPV 1515LP Water Seals + Bushes Kit
Lavor MCHPV 1515LP Water Seals + Bushes Kit Genuine replacement part Lavor, Water Seals + Bushes Kit for Pressure Cleaner MCHPV 1515LP 400-415/SC1 - 8.626.0002. Part for the following products: - ...
on 10 Business Days Approx. €129.35
Details
Lavor MCHPV 1515LP Water Cooled Motor Hose Kit
Lavorwash S.p.A. SKU: 6.605.0071
Lavor MCHPV 1515LP Water Cooled Motor Hose Kit
Lavor MCHPV 1515LP Water Cooled Motor Hose Kit Genuine replacement part Lavor, Water Cooled Motor Hose Holder Kit (Buy 2 Pack) for Pressure Cleaner MCHPV 1515LP 400-415/SC1 - 8.626.0002. Part for the following...
on 10 Business Days Approx. €9.26
Details
Lavor MCHPV 1515LP L.P. Pipe Lenght 315 MM
Lavorwash S.p.A. SKU: 4.618.0136
Lavor MCHPV 1515LP L.P. Pipe Lenght 315 MM
Lavor MCHPV 1515LP L.P. Pipe Lenght 315 MM Genuine replacement part Lavor, L.P. Pipe L=315 Connection from Motor R.A. to Linear LW Pump inlet connection (Drawing #8) for Pressure Cleaner MCHPV 1515LP 400-415/SC1 -...
Last items in stock €13.63
Details
Lavor MCHPV 1515LP L.P. Pipe Lenght 300 MM
Lavorwash S.p.A. SKU: 4.618.0118
Lavor MCHPV 1515LP L.P. Pipe Lenght 300 MM
Lavor MCHPV 1515LP L.P. Pipe Lenght 300 MM Genuine replacement part Lavor, L.P. Pipe L=300 Connection from Engine to Machine Water Inlet Fitting 1/2F (Drawing #7) for Pressure Cleaner MCHPV 1515LP...
on 10 Business Days Approx. €28.33
Details
Lavor MCHPV 1515LP Join Hose-Holder
Lavorwash S.p.A. SKU: 3.100.0235
Lavor MCHPV 1515LP Join Hose-Holder
Lavor MCHPV 1515LP Join Hose-Holder Genuine replacement part Lavor, Join 45° 1/2M - Hose-Holder 3/4" for Pressure Cleaner MCHPV 1515LP 400-415/SC1 - 8.626.0002. Part for the following products: - ...
Usually Ships in: 10 Business Days Approx. €44.03
Details
Lavor MCHPV 1515LP Kit 111 LW
Lavorwash S.p.A. SKU: 6.005.0120
Lavor MCHPV 1515LP Kit 111 LW
Lavor MCHPV 1515LP Kit 111 LW Genuine replacement part Lavor, Kit 111 LW Pressure Regulator For Brass Head Test.Oct.'99 for Pressure Cleaner MCHPV 1515LP 400-415/SC1 - 8.626.0002. Part for the following products:...
on 10 Business Days Approx. €28.38
Details
Lavor Ontario 1211LP Pressure Gauge D.40
Lavorwash S.p.A. SKU: 3.107.0006
Lavor Ontario 1211LP Pressure Gauge D.40
Lavor Ontario 1211LP Pressure Gauge D.40 Genuine replacement part Lavor, Pressure Gauge D.40 0/300 BAR 1/8" Glycerine for Pressure Cleaner Ontario 1211LP - 86590033. Part for the following products: - ...
Last items in stock €26.50
Details
Lavor Oil Lever Indicator for NPX 1400
Lavorwash S.p.A. SKU: 3.099.0003
Lavor Oil Lever Indicator for NPX 1400
Lavor Oil Lever Indicator for Pressure Washer NPX 1500 Genuine replacement part Lavor, Oil Lever Indicator SLNS-3/8 HOBBY for Pressure Cleaner NPX 1400 - NPX 1500 - MCHPV 1515LP. Part for the following products: -  Pressure Cleaner...
Usually Ships in: 10/15 Business Days Approx. €4.14
Details
Lavor Cooling Hose for LKX 2015LP
Lavorwash S.p.A. SKU: 4.618.0126
Lavor Cooling Hose for LKX 2015LP
Lavor Cooling Hose for Pressure Washer LKX 2015LP Genuine replacement part Lavor, Reinforced Cooling Hose Low-Pressure Motor Circuit for Pressure Washer LKX 2015LP. Part for the following products: - Pressure Washer Lavor LKX2015LP...
Last items in stock €29.90
Details
Comments (0)
