Lavorwash S.p.A.

Lavor Pressure Cleaner Prime 165 Parts

SKU: Lavor Prime 165 - 80970002C
€28.03
VAT included

Lavor Pressure Cleaner Prime 165 Spare Parts

Fix Your Cold Water High Pressure Cleaner PRIME 165 220-240V~50/60Hz -N/GR-TS EU 2L +SP.ROT+L28 +SPURG.-LAVOR. 8.097.0002C. All Spares can be supplied at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

Lavor Prime 165 - 80970002C
Lavor Pressure Cleaner Prime 165 Parts
  • Lavor Pressure Cleaner Prime 165 Parts
  • Lavor Pressure Cleaner Prime 165 Parts Chassis Parts Diagram
  • Lavor Pressure Cleaner Prime 165 Parts Motor Parts Diagram
Lavorwash S.p.A.

Lavor Pressure Cleaner Prime 165 Parts

SKU: Lavor Prime 165 - 80970002C Condition: New
€28.03
VAT included

Lavor Pressure Cleaner Prime 165 Spare Parts

Fix Your Cold Water High Pressure Cleaner PRIME 165 220-240V~50/60Hz -N/GR-TS EU 2L +SP.ROT+L28 +SPURG.-LAVOR. 8.097.0002C. All Spares can be supplied at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

Lavor Prime 165 - 80970002C
settings 43 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
43 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

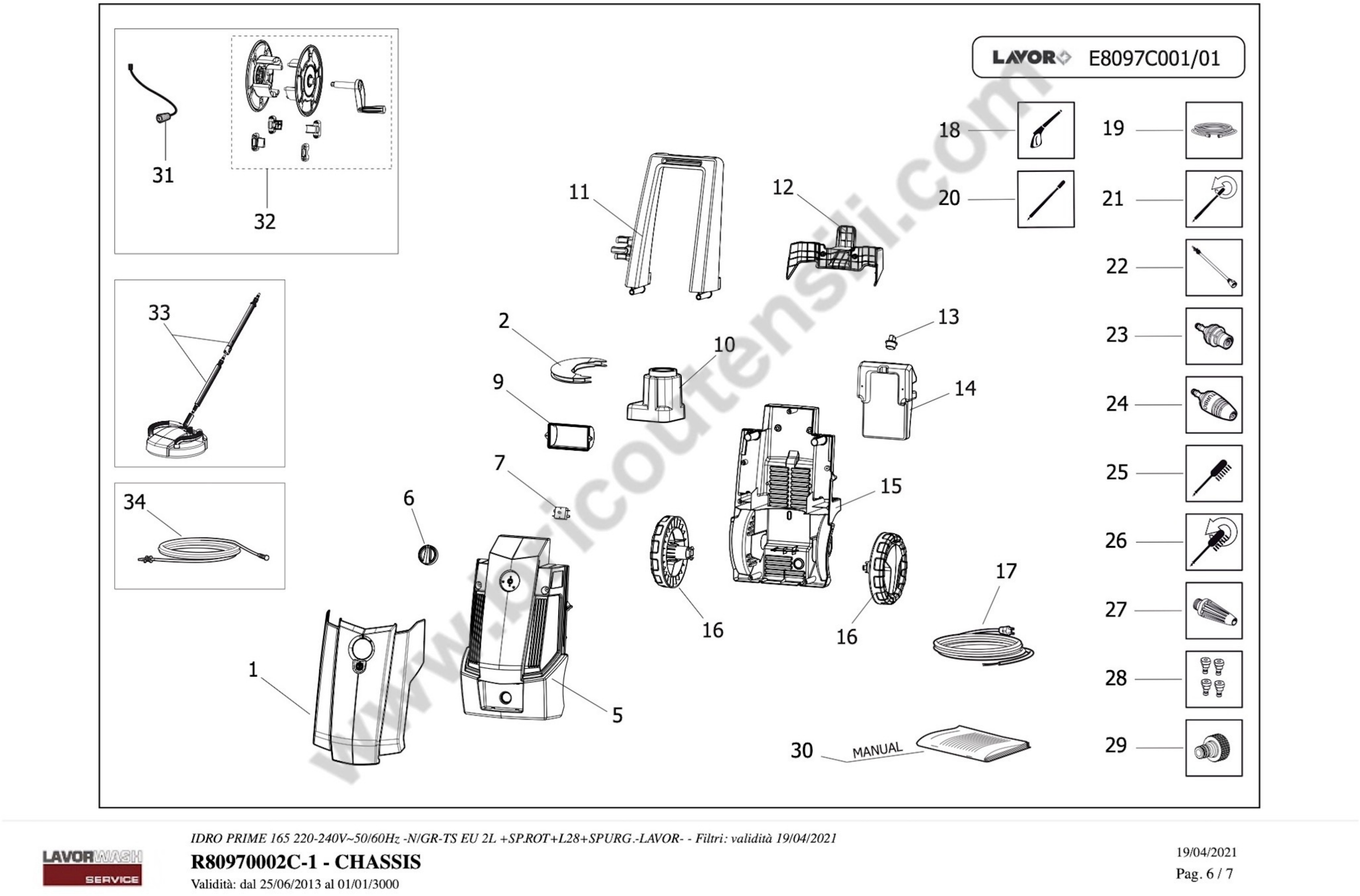

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
001
 photo_cameraImage coming soon 4.008.1607 PRIME FRONT COVER -GR- RAL.7046 €26.43
002
 photo_cameraImage coming soon 4.008.1539 ADAPTER FOR PRIME BRUSHED MOTOR €2.88
005
 photo_cameraImage coming soon 4.013.0640 BLACK FRONT SIDE CABINET VERTIGO €25.79
006
 photo_cameraImage coming soon 4.008.1432 BLACK SWITCH KNOB €3.23
007
 photo_cameraImage coming soon 3.401.0202 ROTARY SWITCH TWO GEARS BIPOLAR 16A (0-1) W/PIN 11.5 €5.55
009
 photo_cameraImage coming soon 4.008.1437 BLACK CAP FOR ELECTRICAL BOX VERTIGO €3.15
010
 photo_cameraImage coming soon 4.008.0721 DX MOTOR CONVEYER €5.74
011
 photo_cameraImage coming soon 4.008.1425 BLACK HANDLE FOR VERTIGO €25.47
012
 photo_cameraImage coming soon 4.008.1614 VERTIGO CABLE REEL - GR- RAL.7046 (PANT.430C) €11.83
013
 Einhell Tank Cap for RT-HP 1855 TR 4.008.0095 Einhell Tank Cap for RT-HP 1855 TR €7.41
014
 Lavor Tank for Vertigo 28 Plus 4.008.1431 Lavor Tank for Vertigo 28 Plus €13.68
015
 photo_cameraImage coming soon 4.013.0639 BLACK BACK SIDE CABINET VERTIGO €26.75
016
 photo_cameraImage coming soon 4.008.1433 BLACK WHEEL VERTIGO €12.82
017
 photo_cameraImage coming soon 4.012.0235 CABLE H05VV-F 2X1,5 5,4MT SCHUKO PLUG €28.64
018
 Trigger Gun S'09C 6.001.0073 for Pressure Washers Cold Water Lavor 6.001.0073 Trigger Gun S'09C 6.001.0073 for Pressure Washers Cold Water Lavor €20.60
019
 H.P. Hose 4.018.0096 8 m for Quick Coupling Trigger Gun Lavor S’09 4.018.0096 H.P. Hose 4.018.0096 8 m for Quick Coupling Trigger Gun Lavor S’09 €29.90
022
 Lance 6.002.0340 Nozzle Head Holder for Trigger Guns Lavor 6.002.0340 Lance 6.002.0340 Nozzle Head Holder for Trigger Guns Lavor €10.11
023
 Head with Fan Jet High Pressure Nozzle Ø 1.00 6.002.0343 6.002.0343 Head with Fan Jet High Pressure Nozzle Ø 1.00 6.002.0343 €7.30
024
 Head Turbo Nozzle Ø 1,025 for Lance Lavor 6.002.0346 Head Turbo Nozzle Ø 1,025 for Lance Lavor €7.50
026
 photo_cameraImage coming soon 3.601.0066 Substituted by 3.601.0074 1 ROTATING BRUSH WITH FIXED HAND €24.33
029
 Quick Coupling 3/4F for High Pressure Washers Lavor 3.100.0082 Quick Coupling 3/4F for High Pressure Washers Lavor €1.63
030
 photo_cameraImage coming soon 7.100.2136 MANUAL PRIME/PATROL LAVOR €11.82
032
 photo_cameraImage coming soon 6.005.0450 HOSE REEL KIT PRIME €37.39
033
 photo_cameraImage coming soon 3.601.0102 YELLOW/BLACK FLOOR BRUSH L28 W/EXTENSION (D.1,2) €48.89
034
 6 m Pipe Cleaning Hose 6.003.0037 for Pressure Washer Lavor 6.003.0037 6 m Pipe Cleaning Hose 6.003.0037 for Pressure Washer Lavor €57.27
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

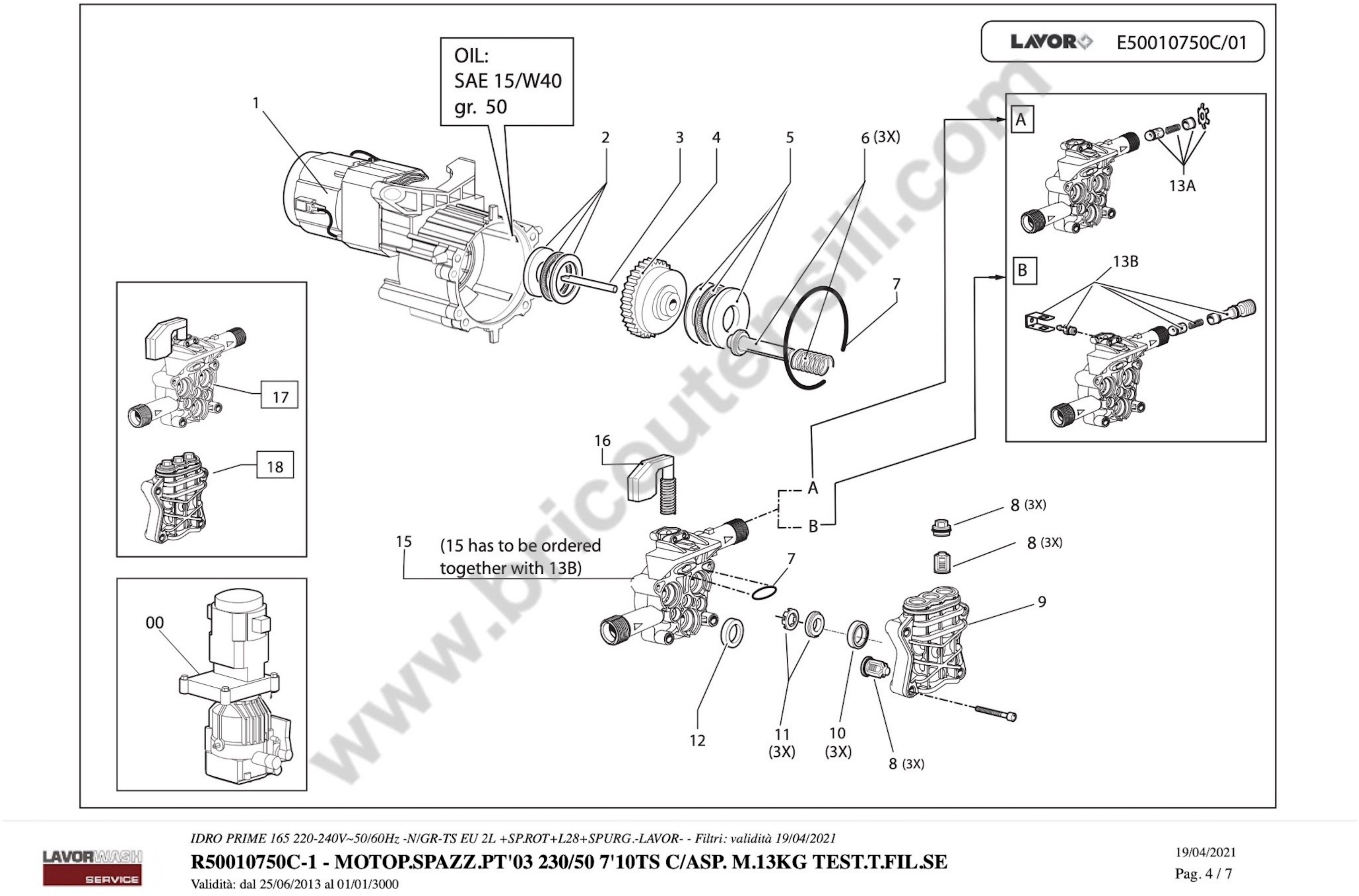

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
000
 Lavor Pressure Washer XTR 1007 Motor Pump Ass'y 5.001.I763C Lavor Pressure Washer XTR 1007 Motor Pump Ass'y €114.73
001
 photo_cameraImage coming soon 5.009.0582 BRUSH MOTOR '03 230/50 WITH CAPACITOR (8850) €91.57
002
 Kit 166 Footstep Bearing for Pressure Washer Lavor Predator 160 WPS 6.005.0180 Kit 166 Footstep Bearing for Pressure Washer Lavor Predator 160 WPS €13.79
003
 Pin 10x70 for Pressure Washer Lavor Predator 160 WPS 4.007.0205 Pin 10x70 for Pressure Washer Lavor Predator 160 WPS €7.68
004
 photo_cameraImage coming soon 5.009.0742 7'10 WOBBLE PLATE ASSEMBLY W/CROWNZ 50 (PT'03) €17.08
005
 photo_cameraImage coming soon 4.007.0328 THRUST BEARING 35X55X12 PT'03 €15.13
006
 Kit 167 LW 3 Pistons + Springs for Pressurte Washer Lavor BEST 24 6.005.0181 Kit 167 LW 3 Pistons + Springs for Pressurte Washer Lavor BEST 24 €25.98
007
 Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24 6.005.0226 Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24 €11.43
008
 photo_cameraImage coming soon 6.005.0449 KIT VALV.ASP./MAND.(P.O.M.)+PLUGS ALLUM.FIL.PT' 03 €11.50
009
 photo_cameraImage coming soon 4.005.0296 HEAD PT'03 WASHED W/THREAD FOR VALVE CAPS €4.67
010
 Kit 124 Water Seal Partner for Pressurte Washer Lavor BEST 24 6.005.0133 Kit 124 Water Seal Partner for Pressurte Washer Lavor BEST 24 €14.54
011
 Kit 257 LW Rings Support + Spacers for Washer Lavor ENDURO 145 6.005.0282 Kit 257 LW Rings Support + Spacers for Washer Lavor ENDURO 145 €14.54
012
 Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24 6.005.0079 Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24 €14.50
13B
 Kit 252 LW for High Pressure Washers ARMY 110 - MARINE 125 - NAVY 140 6.005.0277 Kit 252 LW for High Pressure Washers ARMY 110 - MARINE 125 - NAVY 140 €4.50
015
 Piston Body Guide for Pressure Washer Lavor BEST 24 4.005.0263 Piston Body Guide for Pressure Washer Lavor BEST 24 €25.65
016
 Kit Valve Total-Stop Automatic Stop System for Washers Lavor ARMY 110 5.009.0716 Kit Valve Total-Stop Automatic Stop System for Washers Lavor ARMY 110 €16.00
017
 Body Guide PT'03 for Pressure Washer Lavor RIO 1108 5.007.0187C Body Guide PT'03 for Pressure Washer Lavor RIO 1108 €57.11
018
 photo_cameraImage coming soon 5.008.0265C PT'03 HEAD W/ALUM.THREAD CAPS €25.73

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Pressure Cleaner Prime 165 Spare Parts

Fix Your Cold Water High Pressure Cleaner PRIME 165 220-240V~50/60Hz -N/GR-TS EU 2L +SP.ROT+L28 +SPURG.-LAVOR. 8.097.0002C. All Spares can be supplied at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
Lavor IDRO PRIME 165 220-240V

IDRO PRIME 165 220-240V~50/60Hz -N/GR-TS EU 2L +SP.ROT+L28 +SPURG.-LAVOR-
R80970002C-1 - CHASSIS Pag.1
Pos. Codice Description
001 4.008.1607 PRIME FRONT COVER -GR- RAL.7046
002 4.008.1539 ADAPTER FOR PRIME BRUSHED MOTOR
005 4.013.0640 VERTIGO BLACK FRONT FAIRING
006 4.008.1432 VERTIGO BLACK SWITCH KNOB
007 3.401.0202 ROTARY SWITCH BIPOLAR 16A (0-1) W/PIN L=11.5
009 4.008.1437 VERTIGO ELECTRIC BOX COVER - BLACK-
010 4.008.0721 RIGHT MOTOR CONVEYOR (NOT FOR U96 FL.ALL./9655)
011 4.008.1425 VERTIGO HANDLE - BLACK-
012 4.008.1614 VERTIGO CABLE REEL - GR- RAL.7046 (PANT.430C)
013 4.008.0095 BLACK DETERGENT TANK CAP WITH HOLE D.9
014 4.008.1431 TANK FOR VERTIGO
015 4.013.0639 VERTIGO BLACK REAR FAIRING
016 4.008.1433 VERTIGO BLACK WHEEL
017 4.012.0235 H05VV-F CABLE 2X1.5 MT.5.4 SP.SCHUKO ANTI-SPLASH F/F
018 6.001.0073 S'09 GUN W/INTEGR. QUICK CONNECTOR W/LEVER -G- PANT.108C LAVOR
019 4.018.0096 HOSE 1/4 180BAR L=8000 M22x1,5 D.15-RAPID FIX
022 6.002.0340 LANCE S'12 WITHOUT NOZZLE HEAD WITH QUICK COUPLING/COGETIL
023 6.002.0343 HEAD LANCE S'12 D.1.00 (LIGHT BLUE) W/RAP.ATT. (FAN JET)
024 6.002.0346 ROTOX NOZZLE HEAD LANCE S'12 D.1,025 WITH QUICK COUPLING
026 3.601.0066 ROTARY HYDRO BRUSH FIXED HANDLE COG.RINF.(5116 ECON.)
029 3.100.0082 QUICK CONNECTOR 3/4 BLACK WITH SEAL (THREAD L=11.5)
030 7.100.2136 SPECIFIC PRIME MANUAL + CE LAVOR 27L A5 16F
032 6.005.0450 KIT 380 PRIME HOSE REEL (W/HOSE)
033 3.601.0102 FLOOR BRUSH L28 WITH EXTENSION -G/N- (D.1,2)
034 6.003.0037 DRAIN CLEANING PROBE MT.6+COGET+NOZZLE
R50010750C-1 - MOTOP.SPAZZ.PT'03 230/50 7'10TS C/ASP. M.13KG TEST.T.FIL.SE Pag.2
Pos. Codice Description
000 5.001.I763C MTP.SP.PT'03 230/50 7GR10AL TS 13KG C/ASP. TEST.T.FIL.SEDE PL.(8850)
001 5.009.0582 ASS.MOT.A SPAZZ.'03 230/50 C/F L.INT.+PIGN.F.L=600 C/ANTID.(8850)
002 6.005.0180 KIT 166 FOOTSTEP BEARING 3047 PT' 03-SD
003 4.007.0205 PIN 10X70
004 5.009.0742 7'10 WOBBLE PLATE ASSEMBLY W/PLASTIC INSERT+RING GEAR Z 50
005 4.007.0328 BALL THRUST BEARING 35X55X12 FOR PT'03
006 6.005.0181 KIT 167 LW PISTON
007 6.005.0226 KIT 209 O-RING
008 6.005.0449 KIT VALV.ASP./MAND.(P.O.M.)+PLUGS ALLUM.FIL.PT' 03
009 4.005.0296 HEAD PT'03 WASHED W/THREAD FOR VALVE CAPS
010 6.005.0133 KIT 124 O-RING WATER SEAL PARTNER D.12
011 6.005.0282 KIT 257 O-RING SEA
012 6.005.0079 KIT 79 LW OIL SEALS
015 4.005.0263 PISTON BODY GUIDE PT'03 WITH SUCTION VALVE
016 5.009.0716 ASSEMBLY V.COMP. C/TS PT'03 CABLE L=530 SPRING 13KG (WHITE COVER)
017 5.007.0187C GUIDE BODY PT'03 PIST.D.12 C/ TS-ASP.-VALV.COMP.-M.13KG
018 5.008.0265C HEAD PT'03 D.12 C/PLUGS THREADED-VALVE SEAT
13B 6.005.0277 KIT 252
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
