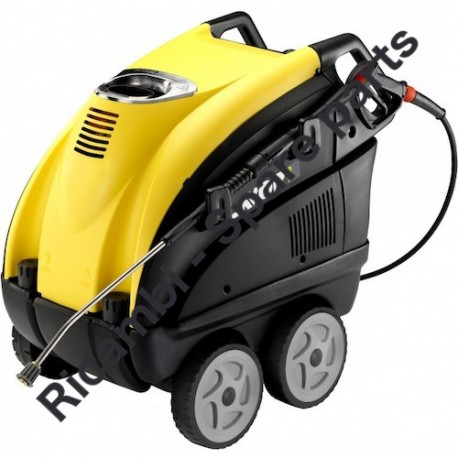

Lavor Pressure Cleaner LKX 2015LP Spare Parts

SKU: LKX2015LP 8.621.2935
€5.65
VAT included

Lavor Pressure Cleaner LKX 2015LP Spare Parts

Lavor original spare parts for to replace broken parts for to fix Hot Water High Pressure Cleaner LKX 2015LP T 400-415/50 -GR- -LAVOR- 8.621.2935.

Fix Your Pressure Cleaner LKX 2015LP T 400-415/50 -GR- -LAVOR. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

Lavor Pressure Cleaner LKX 2015LP Spare Parts
  • Lavor Pressure Cleaner LKX 2015LP Spare Parts
  • Lavor Pressure Cleaner LKX 2015LP Spare Parts - Drawing
  • Lavor Pressure Cleaner LKX 2015LP Spare Parts - Drawing 1
  • Lavor Pressure Cleaner LKX 2015LP Spare Parts - Drawing 2
  • Lavor Pressure Cleaner LKX 2015LP Spare Parts - Drawing 3
  • Lavor Pressure Cleaner LKX 2015LP Spare Parts - Drawing 4
  • Lavor Pressure Cleaner LKX 2015LP Spare Parts - Drawing 5
  • Lavor Pressure Cleaner LKX 2015LP Spare Parts - Drawing 6
  • Lavor Pressure Cleaner LKX 2015LP Spare Parts - Drawing 7
  • Lavor Pressure Cleaner LKX 2015LP Spare Parts - Drawing 8
  • Lavor Pressure Cleaner LKX 2015LP Spare Parts - Drawing 9
  • Lavor Pressure Cleaner LKX 2015LP Spare Parts - Drawing 10
  • Lavor Pressure Cleaner LKX 2015LP Spare Parts - Drawing 11
  • Lavor Pressure Cleaner LKX 2015LP Spare Parts - Drawing 12
Lavorwash S.p.A.

Lavor Pressure Cleaner LKX 2015LP Spare Parts

SKU: LKX2015LP 8.621.2935 Condition: New
€5.65
VAT included

Lavor Pressure Cleaner LKX 2015LP Spare Parts

Lavor original spare parts for to replace broken parts for to fix Hot Water High Pressure Cleaner LKX 2015LP T 400-415/50 -GR- -LAVOR- 8.621.2935.

Fix Your Pressure Cleaner LKX 2015LP T 400-415/50 -GR- -LAVOR. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

settings 145 Spare parts
description 12 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR: LAVOR S/N START WITH (8. ) and have 8 DIGITS
Machine Type: Pressure Washer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
145 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
.
 photo_cameraImage coming soon R8621X148 IDRO LKX4 2015LP 400/50 TS (CL3.5) R.A. B.D.F. (TS2) €0.11 Not available for order
.
 photo_cameraImage coming soon RW80SE6064 WIRING DIAGRAM €0.11 Not available for order
1
 photo_cameraImage coming soon 4.608.0184 WINDING SEAT CLOSURE CAP. NPX'04 BLACK €5.71
2
 photo_cameraImage coming soon 6.605.0087 KIT N.3 HOOKS WITH SCREWS €11.10
3
 photo_cameraImage coming soon 5.611.0285 LEFT SIDE SIDE NPX-LKX -BLACK- W/HOOKS W/PAD.-DEEP WORK- €53.69
4
 photo_cameraImage coming soon 4.613.0289 UPPER FAIRING NPX-LKX04 -GR- RAL.7046 €78.56
5
 photo_cameraImage coming soon 4.608.0082 GAS OIL-CHEM TANK CAP €15.27
6
 photo_cameraImage coming soon 3.200.0038 O-RING GASKET 53,65X2,62 REF.3212 €1.70
7
 photo_cameraImage coming soon 5.611.0286 RIGHT SIDE PANEL NPX-LKX -BLACK- W/HOOK W/PAD-DEEP WORK- €53.69
8
 photo_cameraImage coming soon 4.613.0182 REAR FAIRING NPX-LKX'04 -BLACK- €48.58
9
 photo_cameraImage coming soon 3.700.0030 GUN AL55 350bar 45l / min 160Â ° C + sw8 3 / 8M + S7 + M22 (30129100) €61.07
10
 photo_cameraImage coming soon 4.618.0143 HIGH PRESSURE HOSE 5/16 315BAR R2 L=10000 1/2 TWIST.-3/8 €135.42
11
 700 mm Lance 1/8 "F High/Low Pressure for Pressure Washers Lavor 3.701.0015 700 mm Lance 1/8 "F High/Low Pressure for Pressure Washers Lavor €37.13
12
 photo_cameraImage coming soon 5.612.0014 NOZZLE KIT 15045 HOSE HOLDER BRASS FOR 3/4 RING €37.48
14
 photo_cameraImage coming soon 7.700.0596 MANUAL LKX/HYPER L-LR/HLR LAVOR A5 196F 19L €6.94
15
 photo_cameraImage coming soon 4.607.0726 PROTECTIVE STAINLESS STEEL SHEET NPX/LKX CHIMNEY €15.98
Page 2 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
.
 photo_cameraImage coming soon R56010792 MTP. R.A. 400/50 4P HP7.5 SX X HOT (CL3.5) €0.11 Not available for order
..
 photo_cameraImage coming soon R56090128 THERMOSTAT BULB BODY ASSEMBLY LKX/NPX'04 EXIT.INN.RAP. ZNT BRASS €0.11 Not available for order
..
 photo_cameraImage coming soon R56110169 EXT. BOILER COVER FOR PERFORATED CONE BAND €0.11 Not available for order
..
 photo_cameraImage coming soon R56110192 COMPLETE BURN FLANGE 1.50-45B (RILSAN) C/PRED. CONTR. FLAME €0.11 Not available for order
.
 photo_cameraImage coming soon R56110221 ELECTRICAL SYSTEM ASSEMBLY TS2 KN12 400V RELAY BOARD 12-18 (internal mounting) €0.11 Not available for order
1
 Lavor LKX 2015 Ignition Transformer 5.609.0344 Lavor LKX 2015 Ignition Transformer €63.65
2
 photo_cameraImage coming soon 4.608.0271 ISOL.GASKET FOR H.T. TRANSFER PROF. €3.36
3
 Lavor LKX 2015 Burn Flange 5.611.0192 Lavor LKX 2015 Burn Flange €97.88
4
 photo_cameraImage coming soon 3.099.0719 HEATING BAND/330/G8 FIXING OF HEATING COVER TEKNA'04 €19.89
5
 photo_cameraImage coming soon 5.611.0169 EXT. BOILER COVER FOR PERFORATED CONE BAND €84.59
6
 photo_cameraImage coming soon 5.613.0028 INT. COVER CAM.COMB. CHIMNEY L=120 €146.74
7
 photo_cameraImage coming soon 4.604.0003 LOW COIL H.415 €519.25
8
 photo_cameraImage coming soon 5.613.0396 BOILER BODY LKX'04 MOT. R.A. CL4 PUMP FOR PAINTED BAND. €118.21
9
 photo_cameraImage coming soon 3.099.0028 FAN 146x72 LH.HOLE DM 12.7 €29.49
10
 MOTOR X BRUC. 100W / 230-240 / 50H z IP55 3.300.0003 MOTOR X BRUC. 100W / 230-240 / 50H z IP55 €194.80
11
 Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400 6.605.0173 Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400 €29.06
12
 photo_cameraImage coming soon 3.100.0075 CONIC CONNECTION M 1/8 F D.4 CURVED FOR GASOIL HOSE VITON O- €14.98
13
 photo_cameraImage coming soon 4.606.0088 RUBBER HOLDER 1/4 G M D.7 €3.36
14
 photo_cameraImage coming soon 4.612.0043 CABLE FOR DIESEL PUMP L=1000 STRIPPED TERMINALS €5.47
15
 photo_cameraImage coming soon 3.414.0009 24V-50Hz BOBBIN FOR GAS-OIL DANFOSS PUMP €59.19
16
 Lavor LKX 31 Double Pipe Diesel Pump 3.551.0063 Lavor LKX 31 Double Pipe Diesel Pump €103.22
17
 Lavor LKX 31 Diesel Filter Unit 5.611.0067 Lavor LKX 31 Diesel Filter Unit €19.50
18
 photo_cameraImage coming soon 3.102.0005 DIESEL FILTER FB15/P (AK3012) W/BRASS PLATE €7.55
19
 CEMENTED REFRACTORY D.290X20 FOR BOILER 6.605.0247 CEMENTED REFRACTORY D.290X20 FOR BOILER €44.52
20
 photo_cameraImage coming soon 4.607.0006 COIL FIXING STRIP PLATE 20/10 €46.76
21
 Lavor NPX1400 Insulating Rope 4.608.0162 Lavor NPX1400 Insulating Rope €35.27
22
 photo_cameraImage coming soon 5.613.0116 BOILER BASE JOLLY 5 / LKX -VERN ICIATA- €106.07
23
 photo_cameraImage coming soon 3.403.0078 INDICATED. DIESEL LEVEL L=185 W/CABLE L=1320 W/FASTON €54.88
24
 photo_cameraImage coming soon 4.608.0073 SHORT SPACER FOR TANK JOLLY 4/93 €1.74
25
 WHEEL D.260X85 FULL BLACK 6.605.0168 WHEEL D.260X85 FULL BLACK €25.73
26
 photo_cameraImage coming soon 5.613.0402 NPX/LKX FRONT AXLE €34.20
27
 photo_cameraImage coming soon 5.613.0403 REAR AXLE NPX/LKX €30.52
28
 photo_cameraImage coming soon 4.608.0203 DIESEL / DETERGENT TANK J OLLY 5 / LKX €264.90
29
 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 4.008.0031 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 €1.54
30
 photo_cameraImage coming soon 4.006.0088 INTAKE FITTING ADAPTER L=26 M22-3/4G €6.72
31
 photo_cameraImage coming soon 4.606.0019 SUCTION CONNECTOR M22 IDRO COMPACT €5.16
32
 Lavor NPX 1400 Hose 4.618.0043 Lavor NPX 1400 Hose €27.71
33
 photo_cameraImage coming soon 4.608.0448 LONG SPACER FOR TANK. JOLLY 4/93 mm57.5 €3.28
34
 photo_cameraImage coming soon 4.608.0448 LONG SPACER FOR TANK. JOLLY 4/93 mm57.5 €3.28
35
 photo_cameraImage coming soon 4.606.0013 COIL FIXING NUT 1/2 BRASS SPEC. €3.25
36
 photo_cameraImage coming soon 3.004.0015 PLAIN WASHER D.22X39X2 UNI6592 €1.63
37
 photo_cameraImage coming soon 5.609.0023 VENTILATOR PROTECTION GRID ASSEMBLY €3.95
38
 photo_cameraImage coming soon 4.606.0028 NIPPLE 1/2 M. 3/4 M. €6.37
39
 photo_cameraImage coming soon 4.618.0210 HOSE R1 250BAR L=600 W/CONNECTION 1/2-3/8F 90° (RACC.SFALS.60°)-PUMP/ SERP. €49.98
40
 photo_cameraImage coming soon 5.609.0128 THERMOSTAT BULB BODY ASSEMBLY LKX/NPX'04 EXIT.INN.RAP. ZNT BRASS €113.80
41
 Lavor Cooling Hose for LKX 2015LP 4.618.0126 Lavor Cooling Hose for LKX 2015LP €29.90
42
 photo_cameraImage coming soon 6.605.0220 L.P. HOSE L=400 SERP.-MOTOR PUMP. R.A. LW18 €24.97
43
 photo_cameraImage coming soon 6.605.0223 KIT STOPPERS FOR ENGINE HOSES. R.A. (46080480/482) €9.35
44
 THERMAL PROTECTOR L01.080.05.1000 CABLES * UL * 3.403.0003 THERMAL PROTECTOR L01.080.05.1000 CABLES * UL * €19.69
45
 photo_cameraImage coming soon 3.704.0009 PRESSURE SWITCH PS2 1/4M 25BAR RED P/N 4090000006 €37.87
46
 photo_cameraImage coming soon 4.608.0071 GUIDING CABLE COVER DASHBOARD '93 €6.66
47
 photo_cameraImage coming soon 4.612.0032 POWER CABLE H05VV-F 4X2.5 L=6700 €38.64
48
 photo_cameraImage coming soon 4.608.0199 BUSH THICKNESS NEW PROFILE HANDLES. €6.72
49
 photo_cameraImage coming soon 4.608.0170 LEFT HANDLE NPX'04-GR-RAL.7021 €47.26
50
 photo_cameraImage coming soon 4.608.0191 NPX'04 BLACK DASHBOARD FRAME €8.45
51
 photo_cameraImage coming soon 4.608.0169 RIGHT HANDLE NPX'04-GR-RAL.7021 €38.26
52
 photo_cameraImage coming soon 5.613.0192 DASHBOARD SUPPORT/HANDLES NPX/LKX'04 €141.62
Page 3 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
.
 photo_cameraImage coming soon R56060104 LW R.A. MOTOR 400/50 D.152x135 WORK LINE €0.11 Not available for order
.
 photo_cameraImage coming soon R57050001 PUMP LW CL3.5 200/15 1450 SX D.18CER.C/IN.-TS-USC.3/8 (X HOT) €0.11 Not available for order
1
 photo_cameraImage coming soon 5.606.0104 LW R.A. ENGINE 400/50 D.152x135 WORK LINE €817.06
2
 photo_cameraImage coming soon 4.605.0070 CABLEHOLDER M22 €5.62
3
 photo_cameraImage coming soon 4.605.0071 FRONT FLANGE MOTOR D.152 FOR PUMP D.90 WORKED €55.59
4
 Lavor Pump LW CL3.5 for LKX 2015LP 5.705.0001 Lavor Pump LW CL3.5 for LKX 2015LP €584.86
Page 4 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5.602.0084 CASING R.A.400/50 4P D.152 H135 €339.92
2
 photo_cameraImage coming soon 3.099.0805 RING 61x51x0,4 H.3,5 €1.72
3
 photo_cameraImage coming soon 3.001.0066 RADIAL SPHERE BEARING 6305 2RSKBC (25x62x17) €11.41
4
 photo_cameraImage coming soon 5.605.0055 ROTARY SHAFT 90X135 R.A. LAV.LIN EA €98.20
Page 5 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
.
 photo_cameraImage coming soon R50080364 OPTICAL HEAD LWS 1808 C/IN.2,0 OUTLET 3/8 C/TS (X HOT) €0.11 Not available for order
...
 photo_cameraImage coming soon R56090399 WORK PUMP GROUP KIT CL3.5 D.18CER. 1450rpm 15lt WITHOUT OIL AND WITHOUT BUSHES €0.11 Not available for order
1
 Lavor Brass Head for LKX 2015LP 5.008.0364 Lavor Brass Head for LKX 2015LP €251.09
2
 photo_cameraImage coming soon 6.605.0259 PUMP KIT CL3.5 D.18CER. 1450rpm 15lt €257.64
Page 6 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Lavor MCHPV 1515LP Kit 111 LW 6.005.0120 Lavor MCHPV 1515LP Kit 111 LW €28.38
2
 photo_cameraImage coming soon 6.005.0289 KIT 264 LW REPAIR. WORK BY-PASS. TS LINE €49.79
3
 photo_cameraImage coming soon 6.605.0123 KIT OF 3 PUMP BUSHINGS 1808 €29.29
4
 photo_cameraImage coming soon 6.005.0305 KIT 277 LW WATER SEALS LWS1808 €81.52
5
 photo_cameraImage coming soon 6.005.0571 2 WIRE MICRO BOX KIT + SCREWS (MICRO GRAY) €41.10
6
 photo_cameraImage coming soon 6.005.0219 KIT 202 LW 2.0 INJECT. - PORT.RET.VALVE (5609Y154) LWS18 €31.17
7
 photo_cameraImage coming soon 4.607.0311 WORK RETAINING VALVE SPRING 18 €1.72
8
 photo_cameraImage coming soon 5.609.0143 RETURN VALVE ASSEMBLY WITH/O-RING LAVOR 18 €14.71
9
 Lavor Head for Pressure Cleaner LKX 2015LP 4.606.0223 Lavor Head for Pressure Cleaner LKX 2015LP €140.00
10
 photo_cameraImage coming soon 5.609.Y154 HOSE ASSEMBLY D.1 C / OR-SPRING L7 wire D.0.4-BALL D.5.5 €6.53
11
 photo_cameraImage coming soon 3.100.0143 T FITTING 1/8G M/F/F (ART.466) €11.93
12
 photo_cameraImage coming soon 5.009.0101 CAP VALVE SUCTION DELIVERY-ORMOUNTED €6.91
13
 KIT 6 VALVES *AUTO SUCTION* (COMP.OR) TEST.OCT.'99 6.005.0578 KIT 6 VALVES *AUTO SUCTION* (COMP.OR) TEST.OCT.'99 €23.29
14
 photo_cameraImage coming soon 4.606.0160 T.E. PLUG 1/2 GAS €5.13
15
 photo_cameraImage coming soon 5.609.0064 VALVE CAP ASSY + OR €13.32
16
 SAFETY VALVE VLP 100-250bar - 12-17 l/min 110°C 1/8M (4073500019) 3.714.0071 SAFETY VALVE VLP 100-250bar - 12-17 l/min 110°C 1/8M (4073500019) €103.21
Page 7 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 7
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.605.0096 PUMP BEARING COVER 1808 €7.56
2
 photo_cameraImage coming soon 3.200.0219 GASKET OR 44,04X3,53 NBR SH.70 €1.70
3
 photo_cameraImage coming soon 3.001.0096 RADIAL BALL BEARING 6305 (25X62X17) -NSK- €23.94
4
 photo_cameraImage coming soon 4.606.0161 G3/8 CAP €9.98
5
 photo_cameraImage coming soon 4.605.0171C CL4-18 MACHINED IN-LINE PUMP CARTER for CERAMIC PISTONS €87.51
6
 photo_cameraImage coming soon 6.605.0258 KIT OF 3 CERAMIC PISTONS FOR CL3.5-18 PUMP €98.57
7
 photo_cameraImage coming soon 4.607.0826 PIN FOR CL4-15 PUMP PISTON GUIDE PIN €1.57
8
 photo_cameraImage coming soon 4.605.0156C ALUMINUM CONNECTING ROD FOR CL4-15 PUMP €9.40
9
 photo_cameraImage coming soon 3.200.0249 GASKET OR 98.02X3.53 NBR SH.70 €1.66
10
 photo_cameraImage coming soon 4.605.0174C POSTER COVER. CRANKCASE CL4-15 BLACK X GUARN.OR €18.92
11
 photo_cameraImage coming soon 3.099.1480 OIL CAP (L=58 STICK) €3.36
12
 photo_cameraImage coming soon 4.607.0533 PUMP SHAFT IN LINE C = 14.4 MACHINED X 1808 €97.20
13
 photo_cameraImage coming soon 3.001.0097 RADIAL BALL BEARING 6304 (20X52X15) HIGH QUALITY -NSK- €18.92
14
 photo_cameraImage coming soon 6.605.0113 SEEGER KIT D.25 €16.36
15
 photo_cameraImage coming soon 6.605.0114 SEEGER KIT D.62 €29.62
16
 photo_cameraImage coming soon 6.005.0306 KIT 278 LW OIL SEALS + OR LWS1508/1808 €28.93
17
 photo_cameraImage coming soon 6.005.0306 KIT 278 LW OIL SEALS + OR LWS1508/1808 €28.93
Page 8 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 8
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
.
 photo_cameraImage coming soon R56110155 DASHBOARD ASSEMBLY LKX4-T4 FOR TS2 (TAMP.-EN-) €0.11 Not available for order
1
 Lavor Replacement Kit TS2 Card Total Stop 6.605.0250 Lavor Replacement Kit TS2 Card Total Stop €175.13
2
 Lavor LKX1515LP AC Contactor KN22 3.402.0051 Lavor LKX1515LP AC Contactor KN22 €36.87
3
 photo_cameraImage coming soon 4.607.0230 DIN BAR FOR ELECTRICAL BOX L=50 €7.41
4
 Lavor LKX 2015LP Thermal Relay DPER 21 3.402.0045 Lavor LKX 2015LP Thermal Relay DPER 21 €29.65
5
 photo_cameraImage coming soon 3.403.0172 TS2 LED BOARD €15.75
6
 photo_cameraImage coming soon 4.608.0168 NPX4/LKX4/T4 ELECTRICAL BOX €26.96
Page 9 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 9
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.608.0332 DASHBOARD LKX4-TEKNA TS 2 BOARD -GR- RAL7021 C/TAMP.-EN- €34.58
2
 Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500 3.107.0004 Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500 €33.35
3
 photo_cameraImage coming soon 4.618.0003 PRESSURE GAUGE TUBE 2X630 70MPa(B.P.120MPa) 1/4 F/GIR-1/4 F/GIR €26.69
4
 photo_cameraImage coming soon 3.105.0003 DETERGENT REGULATING COCK WITHRUBBER HOLDER D.7 €37.19
5
 photo_cameraImage coming soon 3.401.0177 SWITCH 0/1 GREEN/RED PUSH/BUTTON IP55 12/10 €7.55
6
 Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500 3.403.0091 Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500 €35.00
7
 Lavor Thermostat Knob for LKX 2015LP 5.611.0161 Lavor Thermostat Knob for LKX 2015LP €3.36
8
 Lavor Adjustment Knob for MEK 1108 4.608.0164 Lavor Adjustment Knob for MEK 1108 €5.83
Page 10 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 10
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 BULB ASSY 4.606.0087 BULB ASSY €49.01
2
 photo_cameraImage coming soon 3.004.0004 ALUMINIUM WASHER 21X30XSP 1,5 €1.74
3
 photo_cameraImage coming soon 3.100.0020 REDUCTION M.GAS/M.GAS 1/2-3/8 €8.03
4
 photo_cameraImage coming soon 5.613.0191 THERMOSTAT/ALARM BULB SUPPORT. NPX/LKX'04 €28.78
5
 photo_cameraImage coming soon 3.100.0018 RAPID COUPLING 3/8 M. 08 (465) €14.98
Page 11 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 11
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Lavor LKX 2015LP External Cover 5.613.0200 Lavor LKX 2015LP External Cover €40.44
2
 photo_cameraImage coming soon 5.610.0105 DEFLECTOR D.82 €29.76
Page 12 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 12
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.614.0004 STANDARDIZED ELECTRODES COUPLE WITH ROD €36.46
2
 photo_cameraImage coming soon 3.100.0075 CONIC CONNECTION M 1/8 F D.4 CURVED FOR GASOIL HOSE VITON O- €14.98
3
 photo_cameraImage coming soon 3.555.1098 EXTERNAL SEEGER ZJ D.22 (3019003500) €1.63
4
 photo_cameraImage coming soon 3.555.1099 CAP D21,75X2 (3200007400) €4.50
5
 photo_cameraImage coming soon 4.605.0223 UNIFIED BURNER FLANGE €0.11 Not available for order
6
 photo_cameraImage coming soon 3.104.0027 DIESEL NOZZLE 1.50 45/B €25.28
Page 13 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 13
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Shipping and delivery information will be available shortly.

Lavor Pressure Cleaner LKX 2015LP Spare Parts

Fix Your Hot Water High Pressure Cleaner LKX 2015LP T 400-415/50 -GR- -LAVOR- 8.621.2935.. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee

In the following tables, look for the spare part and its respective code.
LKX 2015LP 8.621.2935

Pressure Cleaner LKX 2015LP T 400-415/50 -GR- -LAVOR- 8.621.2935 Pag.1
# Part Num. Description
. R8621X148 IDRO LKX4 2015LP 400/50 TS (CL3.5) R.A. B.D.F. (TS2)
. RW80SE6064 WIRING DIAGRAM
1 4.608.0184 WINDING SEAT CLOSURE CAP. NPX'04 BLACK
2 6.605.0087 KIT N.3 HOOKS WITH SCREWS
3 5.611.0285 LEFT SIDE SIDE NPX-LKX -BLACK- W/HOOKS W/PAD.-DEEP WORK-
4 4.613.0289 UPPER FAIRING NPX-LKX04 -GR- RAL.7046
5 4.608.0082 DIESEL TANK CAP-CHEM -N-
6 3.200.0038 OR GASKET 53.65x2.62 REF.3212
7 5.611.0286 RIGHT SIDE PANEL NPX-LKX -BLACK- W/HOOK W/PAD-DEEP WORK-
8 4.613.0182 REAR FAIRING NPX-LKX'04 -BLACK-
9 3.700.0030 AL55 GUN 350bar 45l/min 160°C+sw8 3/8M+S7+M22 (30129100)
10 4.618.0143 HOSE 5/16 R2 315BAR L=10000 C/ATT.RAP.1/2 ROUND-3/8
11 3.701.0015 STAINLESS STEEL LANCE L.700 COATED. +ROS.+ATT. RAP. M22 41102850
12 5.612.0014 NOZZLE KIT 15045 HOSE HOLDER BRASS FOR 3/4 RING
14 7.700.0596 MANUAL LKX/HYPER L-LR/HLR LAVOR A5 196F 19L
15 4.607.0726 PROTECTIVE STAINLESS STEEL SHEET NPX/LKX CHIMNEY
8621X148 - IDRO LKX4 2015LP 400/50 TS (CL3.5) R.A. B.D.F. (TS2) Pag.2
# part Num. Description
. R56010792 MTP. R.A. 400/50 4P HP7.5 SX X HOT (CL3.5)
. R56110221 ELECTRICAL SYSTEM ASSEMBLY TS2 KN12 400V RELAY BOARD 12-18 (internal mounting)
.. R56090128 THERMOSTAT BULB BODY ASSEMBLY LKX/NPX'04 EXIT.INN.RAP. ZNT BRASS
.. R56110169 EXT. BOILER COVER FOR PERFORATED CONE BAND
.. R56110192 COMPLETE BURN FLANGE 1.50-45B (RILSAN) C/PRED. CONTR. FLAME
1 5.609.0344 IGNITION TRANSF.220-240V 50/60Hz C/PIPET.NPX-LKX +CABLE (POWER)
2 4.608.0271 ISOL.GASKET FOR H.T. TRANSFER PROF.
3 5.611.0192 COMPLETE BURN FLANGE 1.50-45B (RILSAN) C/PRED. CONTR. FLAME
4 3.099.0719 HEATING BAND/330/G8 FIXING OF HEATING COVER TEKNA'04
5 5.611.0169 EXT. BOILER COVER FOR PERFORATED CONE BAND
6 5.613.0028 INT. COVER CAM.COMB. CHIMNEY L=120
7 4.604.0003 LOW COIL H.415 L=30m
8 5.613.0396 BOILER BODY LKX'04 MOT. R.A. CL4 PUMP FOR PAINTED BAND.
9 3.099.0028 FAN 146x72 LEFT. HOLE DM 12.7
10 3.300.0003 ENGINE FOR BURN. 100W/230-240/50Hz IP55
11 6.605.0173 PLASTIC JOINT KIT FOR DIESEL PUMP (3pcs.)
12 3.100.0075 FITTING M 1/8 CONICAL F D.4 CURVED CODE E2L39C02
13 4.606.0088 HOSE HOLDER 1/4 G M D.7
14 4.612.0043 CABLE FOR DIESEL PUMP L=1000 STRIPPED TERMINALS
15 3.414.0009 COIL 24V/50Hz FOR GAS PUMP. DANFOSS(071N006200)
16 3.551.0063 RIGHT DOUBLE PIPE DIESEL PUMP 24V 50/60Hz
17 5.611.0067 DIESEL FILTER GROUP (NYLON) TEKNA'95 -LKX
18 3.102.0005 DIESEL FILTER FB15/P (AK3012) W/BRASS PLATE
19 6.605.0247 PRO NPX/LKX BOILER REFRACTORY KIT
20 4.607.0006 SERP FIXING BAND. IN ERA 15/10 AISI 430 STAINLESS STEEL SHEETS
21 4.608.0162 INSULATING ROPE FOR BOILER BASE L=990
22 5.613.0116 JOLLY 5/LKX BOILER BASE -PAINTED-
23 3.403.0078 INDICATED. DIESEL LEVEL L=185 W/CABLE L=1320 W/FASTON
24 4.608.0073 SHORT SPACER FOR TANK. WILD 4/93
25 6.605.0168 WHEEL KIT 30060155 +STUD+LOCKING COLUMBIA-HYPER C-HYPER L
26 5.613.0402 NPX/LKX FRONT AXLE
27 5.613.0403 REAR AXLE NPX/LKX
28 4.608.0203 NPX4/LKX4 DIESEL/DETERGENT TANK
29 4.008.0031 H2O SUCTION FILTER D.16 CONICAL
30 4.006.0088 INTAKE FITTING ADAPTER L=26 M22-3/4G
31 4.606.0019 SUCTION CONNECTION L=60 M22 - 3/8G
32 4.618.0043 PIPE R1 3/8 L=375 C.1/2F.GIR 90' / C.3/8F GIR 90'
33 4.608.0448 LONG SPACER FOR TANK. JOLLY 4/93 mm57.5
34 4.608.0448 LONG SPACER FOR TANK. JOLLY 4/93 mm57.5
35 4.606.0013 SERPENT FIXING NUT. 1/2 O T SPEC.
36 3.004.0015 FLAT WASHER D.22X39 Th.3 ZNT UNI6592
37 5.609.0023 VENT PROTECTION GRILLE ASSEMBLY
38 4.606.0028 NIPPLE 1/2 M. 3/4 M.
39 4.618.0210 HOSE R1 250BAR L=600 W/CONNECTION 1/2-3/8F 90° (RACC.SFALS.60°)-PUMP/ SERP.
40 5.609.0128 THERMOSTAT BULB BODY ASSEMBLY LKX/NPX'04 EXIT.INN.RAP. ZNT BRASS
41 4.618.0126 L.P. HOSE R1 L=400 CONNECTION 3/8M-ELBOW (MOTOR R.A.-LKX INPUT)
42 6.605.0220 L.P. HOSE L=400 SERP.-MOTOR PUMP. R.A. LW18
43 6.605.0223 KIT STOPPERS FOR ENGINE HOSES. R.A. (46080480/482)
44 3.403.0003 THERMAL PROTECTOR L01.080.05. *UL* CABLES L=1200
45 3.704.0009 PRESSURE SWITCH PS2 1/4M 25BAR RED P/N 4090000006
46 4.608.0071 DASHBOARD CABLE COVER '93
47 4.612.0032 POWER CABLE H05VV-F 4X2.5 L=6700
48 4.608.0199 BUSH THICKNESS NEW PROFILE HANDLES.
49 4.608.0170 LEFT HANDLE NPX'04-GR-RAL.7021
50 4.608.0191 NPX'04 BLACK DASHBOARD FRAME
51 4.608.0169 RIGHT HANDLE NPX'04-GR-RAL.7021
52 5.613.0192 DASHBOARD SUPPORT/HANDLES NPX/LKX'04
56010792 - MTP. R.A. 400/50 4P HP7,5 SX X CALDO (CL3.5 Pag.3
# part Num. Description
. R56060104 LW R.A. MOTOR 400/50 D.152x135 WORK LINE
. R57050001 PUMP LW CL3.5 200/15 1450 SX D.18CER.C/IN.-TS-USC.3/8 (X HOT)
1 5.606.0104 LW R.A. ENGINE 400/50 D.152x135 WORK LINE
2 4.605.0070 CABLE GLAND M22 FOR MOTOR. R.A.
3 4.605.0071 FRONT FLANGE MOTOR D.152 FOR PUMP D.90 MACHINED
4 5.705.0001 PUMP LW CL3.5 200/15 1450 SX D.18CER.C/IN.-TS-USC.3/8 (X HOT)
56060104 - MOTOR LW R.A. 400/50 D.152x135 LAVOR LINEA Pag.4
# part Num. Description
1 5.602.0084 CASING R.A.400/50 4P D.152 H135
2 3.099.0805 COMPENSATION RING 61X51X 0.4 H.3.5 -62d-
3 3.001.0066 RADIAL BALL BEARING 6305 2RS (25X62X17) (KBC)
4 5.605.0055 ROTARY SHAFT 90X135 R.A. LAV.LIN EA
57050001 - PUMP LW CL3.5 200/15 1450 SX D.18CER.C/IN.-TS-USC.3/8 (X CALDO) Pag.5
# part Num. Description
. R50080364 OPTICAL HEAD LWS 1808 C/IN.2,0 OUTLET 3/8 C/TS (X HOT)
... R56090399 WORK PUMP GROUP KIT CL3.5 D.18CER. 1450rpm 15lt WITHOUT OIL AND WITHOUT BUSHES
1 5.008.0364 OPTICAL HEAD LWS 1808 C/IN.2,0 OUTLET 3/8 C/TS (X HOT)
2 6.605.0259 PUMP KIT CL3.5 D.18CER. 1450rpm 15lt
50080364 - HEAD BRASS LWS 1808 C/IN.2,0 USC.3/8 C/TS (X CALDO) Pag.6
# part Num. Description
1 6.005.0120 KIT 111 LW PRESSURE REGULATOR TEST OCT.'99
2 6.005.0289 KIT 264 LW REPAIR. WORK BY-PASS. TS LINE
003 6.605.0123 KIT OF 3 PUMP BUSHINGS 1808
4 6.005.0305 KIT 277 LW WATER SEALS LWS1808
5 6.005.0571 2 WIRE MICRO BOX KIT + SCREWS (MICRO GRAY)
6 6.005.0219 KIT 202 LW 2.0 INJECT. - PORT.RET.VALVE (5609Y154) LWS18
7 4.607.0311 WORK RETAINING VALVE SPRING 18
8 5.609.0143 RETURN VALVE ASSEMBLY WITH/O-RING LAVOR 18
9 4.606.0223 LAVOR HEADBOARD 1808 LINE
10 5.609.Y154 HOSE PORT ASSEMBLY D.1 W/OR-SPRING L=7 wire D.0.4-BALL D.5.5
11 3.100.0143 T FITTING 1/8G M/F/F (ART.466)
12 5.009.0101 SUCTION/DELIVERY VALVE CAP WITH O-RING FITTED
13 6.005.0578 KIT 6 VALVES *AUTO SUCTION* (COMP.OR) TEST.OCT.'99
14 4.606.0160 T.E. PLUG 1/2 GAS
15 5.609.0064 SUCTION DELIVERY VALVE CAP ASSEMBLY CAPILL +OR
16 3.714.0071 SAFETY VALVE VLP 100-250bar - 12-17 l/min 110°C 1/8M (4073500019)
56090399 - PUMP GROUP KIT LAVOR CL3.5 D.18CER. 1450rpm 15lt S/OLIO E WITHOUT/BUSH Pag.7
# part Num. Description
1 4.605.0096 PUMP BEARING COVER 1808
2 3.200.0219 O-RING 44.04x3.53 NBR SH.70
3 3.001.0096 RADIAL BALL BEARING 6305 (25X62X17) -NSK-
4 4.606.0161 T.E. PLUG 3/8 GAS
5 4.605.0171C CL4-18 MACHINED IN-LINE PUMP CARTER for CERAMIC PISTONS
6 6.605.0258 KIT OF 3 CERAMIC PISTONS FOR CL3.5-18 PUMP
7 4.607.0826 PIN FOR CL4-15 PUMP PISTON GUIDE PIN
8 4.605.0156C ALUMINUM CONNECTING ROD FOR CL4-15 PUMP
9 3.200.0249 OR GASKET 98.02x3.53 NBR SH.70
10 4.605.0174C REAR COVER. PUMP CASE CL4-15 BLACK FOR GUARN.OR
11 3.099.1480 OIL FILLER CAP W/PIPE AND VENT (ROD L=58)
12 4.607.0533 INLINE PUMP SHAFT C=14.4 WORKED X 1808
13 3.001.0097 RADIAL BALL BEARING 6304 (20X52X15) HIGH QUALITY -NSK-
14 6.605.0113 KIT 5 SEEGER D.25 FOR TREES
15 6.605.0114 KIT 3 SEEGER D.62
16 6.005.0306 SHAFT SEAL RING D.25X62X10 DIN AS
17 6.005.0306 KIT 278 LW OIL SEALS +OR LWS1508/1808
56110221 - ELECTRICAL SYSTEM BOARD ASSEMBLY TS2 KN12 400V RELE' 12-18 Pag.8
# part Num. Description
. R56110155 DASHBOARD ASSEMBLY LKX4-T4 FOR TS2 (TAMP.-EN-)
1 6.605.0250 TOTAL STOP TS2 BOARD
2 3.402.0051 AC CONTACTOR SWITCH KN22 400/50HZ 7.5 KW AC3
3 4.607.0230 DIN BAR FOR ELECTRICAL BOX L=50
4 3.402.0045 THERMAL RELAY DPER21 12-18A
5 3.403.0172 TS2 LED BOARD
6 4.608.0168 NPX4/LKX4/T4 ELECTRICAL BOX
56110155 - DASHBOARD ASSEMBLY LKX4-T4 PER TS2 (TAMP.-EN-) Pag.9
# part Num. Description
1 4.608.0332 DASHBOARD LKX4-TEKNA TS 2 BOARD -GR- RAL7021 C/TAMP.-EN-
2 3.107.0004 PRESSURE GAUGE D.50 0/315 BAR 1/4 POST+BRACKET
3 4.618.0003 PRESSURE GAUGE TUBE 2X630 70MPa(B.P.120MPa) 1/4 F/GIR-1/4 F/GIR
4 3.105.0003 TAP REG.DET.C/HOLDER D.7 (DIS.N.6990A 3/4 TURN)
5 3.401.0177 SWITCH 0/1 GREEN/RED PUSH/BUTTON IP55 12/10
6 3.403.0091 THERMOSTAT 30/150 BULB D. 6.5 (3 FASTONS CLOSED)
7 5.611.0161 BLACK THERMOSTAT KNOB WITH/INSERT
8 4.608.0164 THERMOSTAT ADJUSTMENT KNOB. -N- PARANA'
56090128 - THERMOSTAT BULB BODY ASSEMBLY LKX/NPX'04 BRASS QUICK COUPLING OUTLET ZNT Pag.10
# part Num. Description
1 4.606.0087 THERMOSTAT BULB BODY PROFESS.
2 3.004.0004 ALUMINUM WASHER 21x30xSP.1, 5
3 3.100.0020 NIPPLE 1/2G-3/8G
4 5.613.0191 THERMOSTAT/ALARM BULB SUPPORT. NPX/LKX'04
5 3.100.0018 QUICK COUPLING 3/8M-1/2M 08 ZNT
56110169 - BOILER EXTERNAL COVER FOR PERFORATED CONE BAND Pag.11
# part Num. Description
1 5.613.0200 EXTERNAL COVER OF AISI 430 BA TEKNA 4 STAINLESS STEEL BOILER
2 5.610.0105 DEFLECTOR WITH CONE D.82 WITH HOLES
56110192 - COMPLETE BURNER FLANGE 1.50-45B (RILSAN) WITH FLAME CONTROL PREPARATIO Pag.12
# part Num. Description
1 4.614.0004 PAIR OF PROFESSIONAL UNIFIED ELECTRODES WITH/BRACKET
2 3.100.0075 FITTING M 1/8 CONICAL F D.4 CURVED CODE E2L39C02
3 3.555.1098 EXTERNAL SEEGER ZJ D.22 (3019003500)
4 3.555.1099 CAP D21,75X2 (3200007400)
5 4.605.0223 UNIFIED BURNER FLANGE
6 3.104.0027 DIESEL NOZZLE 1.50 45/B
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
LKX2015LP 8.621.2935
4 Items

Data sheet

SHIPPING IN
Usually Ships in 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR
LAVOR S/N START WITH (8. ) and have 8 DIGITS
Machine Type
Pressure Washer

Specific References

New

Download

Lavor LKX 2015LP Drawing

Lavor LKX 2015LP Drawing

Download (777.88KB)

You might also like

Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 6.605.0173
Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400
Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Diesel Pump Red Plastic Coupling Set for Engine EME/UNIELECTRICp for Pressure Cleaners NPX 1400 - NPX 1500 Part for the following products: -...
on 10 Business Days Approx €29.06
Details
Washer SNHORt for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 3.004.0022
Washer SNHOR for Pressure Cleaner Lavor NPX 1400
Washer SNHOR for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Washer SNHOR D.8x13 sp.0.8 for Pressure Cleaners NPX 1400 - NPX 1500 Part for the following products: -  Pressure Cleaner Lavor NPX 1400 - 8.605.0048 -...
on 10 Business Days Approx €1.71
Details
Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 3.403.0091
Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500
Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Thermostat 30/150 Bulb d.6.5 (3 Faston) for Pressure Washers NPX 1400 - NPX 1500. Part for the following products: -  Pressure Washer Lavor NPX...
on 10 Business Days Approx €35.00
Details
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 4.608.0078
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Dashboard Gasket '93 (3x900) for Pressure Cleaners NPX 1400 - NPX 1500 - LKX 40. Part for the following products: -  Pressure Cleaner NPX 1400 230/50...
Last items in stock €3.32
Details
Pressure Switch for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 3.704.0006
Pressure Switch for Pressure Washer Lavor Missouri
Pressure Switch for Pressure Washer Lavor Missouri Genuine part Lavor, Pressure Switch 25 Bar 1/8 Red L.700 Faston F. for Pressure Washers  MISSOURI - YUKON 1310 - NPX 1500 - LKX 40. Part...
Usually Ships in: 10 Business Days Approx. €30.90
Details
Diesel Nozzle for Pressure Washers Lavor NPX 1400
Lavorwash S.p.A. SKU: 3.104.0028
Diesel Nozzle for Pressure Washers Lavor NPX 1400
Diesel Nozzle for Pressure Washers Lavor NPX 1400 Genuine replacement part Lavor, Diesel Nozzle 1,25 45-B for Pressure Washers NPX 1400 - NPX 1500 - LKX 31 - LKX 40. Part for the following...
Usually Ships in: 7/10 Business Days Approx. €28.36
Details
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1500
Lavorwash S.p.A. SKU: 4.618.0014
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1500
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Pressure Gauge Pipe 2x380 Max 630 Bar 1/4 F. Gir. 1/4 F Gir. for Pressure Washers NPX 1400 - NPX 1500. Part for the following...
Usually Ships in: 10/15 Business Days Approx. €26.46
Details
Thermal Switch MS 25 for Pressure Cleaner Lavor LKX 55 TS
Lavorwash S.p.A. SKU: 3.401.0049
Thermal Switch MS 25 for Pressure Cleaner Lavor LKX 55 TS
Thermal Switch MS 25 10/16 AMP for Pressure Cleaner Lavor LKX 55 TS Genuine replacement part Lavor, Thermal Switch MS 25 10/16 AMP (4006111101) for Pressure Cleaner LKX 55 TS 230/400-50 CM -G - 8.611.0084. Part...
on 10 Business Days Approx. €137.06
Details
Lavor LKX 31 Diesel Filter Unit
Lavorwash S.p.A. SKU: 5.611.0067
Lavor LKX 31 Diesel Filter Unit
Lavor LKX 31 Diesel Filter Unit Genuine replacement part Lavor, Diesel Filter Unit Assy (PAPER) for LKX 31 - 40 - 55 - 2015. Part for the following products: - 8.611.0160 - Pressure Washer LKX 31 TS AC 230/50 CM-G -...
Usually Ships in: 10/15 Business Days Approx. €19.50
Details
Lavor LKX 2015 Burn Flange
Lavorwash S.p.A. SKU: 5.611.0192
Lavor LKX 2015 Burn Flange
Lavor LKX 2015 Burn Flange Genuine replacement part Lavor, Cmplete Burn Flange 1.50-45B (RILSAN) With preparation for flame control for LKX 2015. Part for the following products: - 8.621.2935 - Pressure Washer LKX 2015LP T...
on 10 Business Days Approx. €97.88
Details
Lavor LKX 2015 Ignition Transformer
Lavorwash S.p.A. SKU: 5.609.0344
Lavor LKX 2015 Ignition Transformer
Lavor LKX 2015 Ignition Transformer Genuine replacement part Lavor, Ignition Transformer 220-240V 50/60Hz C/PIPET.NPX-LKX + CAVO (POTENZ.) for LKX 2015. Part for the following products: - 8.621.2935 - Pressure Washer LKX 2015LP T...
Usually Ships in: 10/15 Business Days Approx. €63.65
Details
Lavor Brass Head for LKX 2015LP
Lavorwash S.p.A. SKU: 5.008.0364
Lavor Brass Head for LKX 2015LP
Lavor Brass Head for Pressure Cleaner LKX 2015LP Original replacement part Lavorwash, Brass Head LWS 1808 C/IN.2,0 USC.3/8 C/TS (X HOT) for Pressure Washer LKX 2015LP. Part for the following products: -  High Pressure Cleaner LKX...
Usually Ships in: 10 Business Days Approx. €251.09
Details
Lavor Adjustment Knob for MEK 1108
Lavorwash S.p.A. SKU: 4.608.0164
Lavor Adjustment Knob for MEK 1108
Lavor Adjustment Knob for Pressure Cleaner MEK 1108 Genuine replacement part Lavorwash, Black Thermostat Adjustment Knob for Pressure Cleaner DAKOTA-R 2007XP - MISSOURI - MEK 1108. Part for the following products: -  PRESSURE CLEANER...
Usually Ships in: 10 Business Days Approx. €5.83
Details
Lavor Thermostat Knob for LKX 2015LP
Lavorwash S.p.A. SKU: 5.611.0161
Lavor Thermostat Knob for LKX 2015LP
Lavor Thermostat Knob for Pressure Cleaner LKX 2015LP Original replacement part Lavorwash, Black Thermostat Knob Whit Insert for Pressure Washer LKX 2015LP. Part for the following products: -  High Pressure Cleaner LKX 2015LP T...
Usually Ships in: 10 Business Days Approx. €3.36
Details
Lavor Head for Pressure Cleaner LKX 2015LP
Lavorwash S.p.A. SKU: 4.606.0223
Lavor Head for Pressure Cleaner LKX 2015LP
Lavor Head for Pressure Cleaner LKX 2015LP Original replacement part Lavorwash, Lavor Headboard 1808 Line for Pressure Washer LKX 2015LP. Part for the following products: -  High Pressure Cleaner LKX 2015LP T 400-415/50 -GR -...
Usually Ships in: 10/15 Business Days Approx. €140.00
Details
Lavor Replacement Kit TS2 Card Total Stop
Lavorwash S.p.A. SKU: 6.605.0250
Lavor Replacement Kit TS2 Card Total Stop
Lavor Replacement Kit TS2 Card 34030171 Total Stop Original replacement part Lavorwash, Replacement Kit TS2 Card 34030171 Total Stop for Pressure Washer LKX 2015LP. Part for the following products: -  High Pressure Cleaner LKX 2015LP...
Usually Ships in: 10 Business Days Approx. €175.13
Details
Lavor LKX 2015LP Thermal Relay DPER 21 12-18A
Lavorwash S.p.A. SKU: 3.402.0045
Lavor LKX 2015LP Thermal Relay DPER 21
Lavor Thermal Relay DPER 21 12-18A for  LKX 2015LP Original replacement part Lavorwash, Thermal Relay DPER 21 12-18Afor Pressure Washer LKX 2015LP. Part for the following products: -  High Pressure Cleaner LKX 2015LP T...
Usually Ships in: 10 /15Business Days Approx. €29.65
Details
Lavor LKX1515LP AC Contactor KN22
Lavorwash S.p.A. SKU: 3.402.0051
Lavor LKX1515LP AC Contactor KN22
Lavor AC Contactor KN22 400/50HZ 7,5 KW AC3 for LKX 1515LP Original replacement part Lavorwash, AC Contactor KN22 400/50HZ 7,5 KW AC3 for Pressure Washer LKX 1515LP - LKX 2015LP. Part for the following products: - High...
Usually Ships in: 10 Business Days Approx. €36.87
Details
Lavor LKX 31 Single Pipe Diesel Pump
Lavorwash S.p.A. SKU: 3.551.0063
Lavor LKX 31 Double Pipe Diesel Pump
Lavor LKX 31 Double Pipe Diesel Pump Genuine replacement part Lavor, Double Pipe Diesel Pump + 24V ELECTRODE. D DX for LKX 31 - 40 - 55 - 1515. Part for the following products: - 8.611.0160 - LKX 31 TS AC 230/50 CM-G -...
Usually Ships in: 10/15 Business Days Approx. €103.22
Details
Lavor LKX 2015LP External Cover
Lavorwash S.p.A. SKU: 5.613.0200
Lavor LKX 2015LP External Cover
Lavor LKX 2015LP External Cover Genuine replacement part Lavor, External Cover Of Aisi 430 Ba Tekna 4 Stainless Steel Boiler for Pressure Cleaner LKX 2015LP - NPX 1813XP. Part for the following products: - ...
Usually Ships in: 10/15 Business Days Approx. €40.44
Details
Lavor Pressure Cleaner LKX 2015LPT Parts
Lavorwash S.p.A. SKU: LKX 2015LPT- 8.621.2991
Lavor Pressure Cleaner LKX 2015LPT Parts
Lavor Pressure Cleaner LKX 2015LPT Parts Fix Your Hot Water High Pressure Cleaner LKX 2015LP T 400/50(COLL.220/50)-GR-C/VASCH+LANCIA A/B-LAVOR . All Spares are original and can be supplied at Low and discounted prices For...
build View Spare Parts
Lavor Pump LW CL3.5 for LKX 2015LP
Lavorwash S.p.A. SKU: 5.705.0001
Lavor Pump LW CL3.5 for LKX 2015LP
Lavor Pump LW CL3.5 for Pressure Cleaner LKX 2015LP Original replacement part Lavorwash, Pump LW CL3.5 200/15 1450 SX D.18CER.C/IN.-TS-USC.3/8 (X HOT) for Pressure Washer LKX 2015LP. Part for the following products: -  High Pressure...
Usually Ships in: 10/15 Business Days Approx. €584.86
Details
Lavor Pressure Washer NPX1400 Insulating Rope
Lavorwash S.p.A. SKU: 4.608.0162
Lavor NPX1400 Insulating Rope
Lavor Pressure Washer NPX1400 Insulating Rope Genuine replacement part Lavor, Insulating Rope For Boiler Base L=990 for Pressure Washer NPX1400 - LKX 31 - LKX 55. Part for the following products: - ...
Usually Ships in: 10 Business Days Approx. €35.27
Details
Lavor Cooling Hose for LKX 2015LP
Lavorwash S.p.A. SKU: 4.618.0126
Lavor Cooling Hose for LKX 2015LP
Lavor Cooling Hose for Pressure Washer LKX 2015LP Genuine replacement part Lavor, Reinforced Cooling Hose Low-Pressure Motor Circuit for Pressure Washer LKX 2015LP. Part for the following products: - Pressure Washer Lavor LKX2015LP...
AVAILABLE €29.90
Details
Comments (0)
No customer reviews for the moment.
