Lavorwash S.p.A.

Lavor Floor Scrubber Drier Fit 35B Li Parts

SKU: Lavor Fit 35B Li - 0.071.0001
€296.27
VAT included

Lavor Floor Scrubber Drier Fit 35B Li Parts

Lavor original spare parts for to replace broken parts for to fix Floor Scrubber Drier Fit 35B Li 0.071.0001.

Fix Your Floor Scrubber Drier Fit 35B Li Lavor Pro. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Lavor Floor Scrubber Drier Fit 35B Li Parts
  • Lavor Floor Scrubber Drier Fit 35B Li Parts
  • Lavor Floor Scrubber Drier Fit 35B Li Parts - Drawing
  • Lavor Floor Scrubber Drier Fit 35B Li Parts - Drawing - 1
  • Lavor Floor Scrubber Drier Fit 35B Li Parts - Drawing - 2
  • Lavor Floor Scrubber Drier Fit 35B Li Parts - Drawing - 3
  • Lavor Floor Scrubber Drier Fit 35B Li Parts - Drawing - 4
  • Lavor Floor Scrubber Drier Fit 35B Li Parts
  • Lavor Floor Scrubber Drier Fit 35B Li Parts
  • Lavor Floor Scrubber Drier Fit 35B Li Parts
  • Lavor Floor Scrubber Drier Fit 35B Li Parts
  • Lavor Floor Scrubber Drier Fit 35B Li Parts
  • Lavor Floor Scrubber Drier Fit 35B Li Parts
Lavorwash S.p.A.

Lavor Floor Scrubber Drier Fit 35B Li Parts

SKU: Lavor Fit 35B Li - 0.071.0001 Condition: New
€296.27
VAT included

Lavor Floor Scrubber Drier Fit 35B Li Parts

Lavor original spare parts for to replace broken parts for to fix Floor Scrubber Drier Fit 35B Li 0.071.0001.

Fix Your Floor Scrubber Drier Fit 35B Li Lavor Pro. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 47 spare parts
description 11 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: ATTENTION! FOR CODES NOT IN THE PRICE LIST, CONTACT US FOR A QUOTE
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
47 spare parts

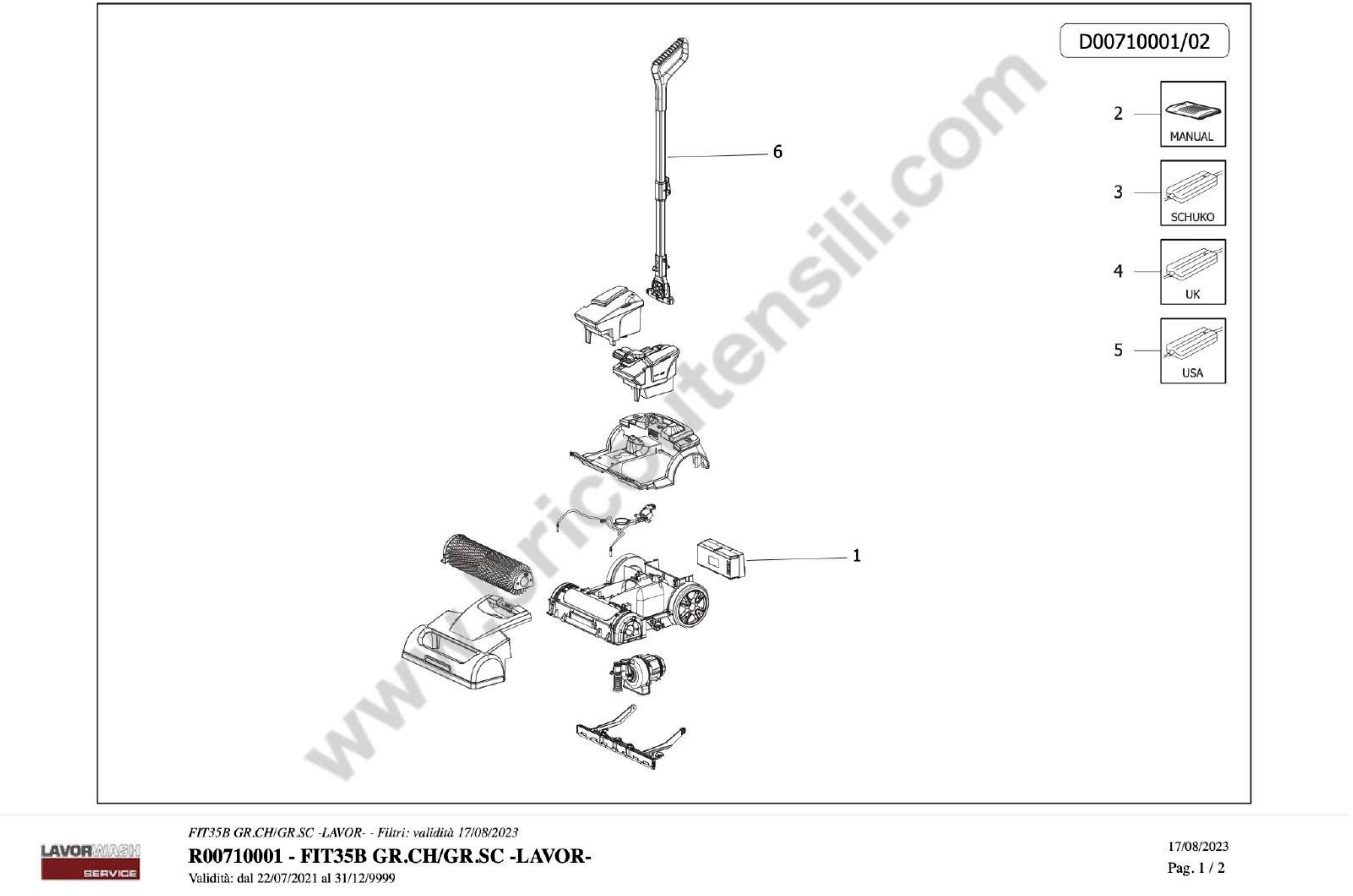

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
001
 photo_cameraImage coming soon 0.971.0071 BATTERY PACK 25.2V/161.28Wh/6400mAh Li €271.15
003
 photo_cameraImage coming soon 0.971.0135 BATTERY CHARGER 100-240V 50-60Hz 24V-4A FIT35B-CPS35BX SCHUKO (XD2092021A120) €103.44
004
 photo_cameraImage coming soon 0.971.0136 BATTERY CHARGER 100-240V 50-60Hz 24V-4A FIT35B-CPS35BX UK (XD2092021A1201) €66.40
005
 photo_cameraImage coming soon 0.971.0137 CHARGER 100-240V 50-60Hz 24V-4A FIT35B-CPS35BX USA (XD2092021A1202) €66.40
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

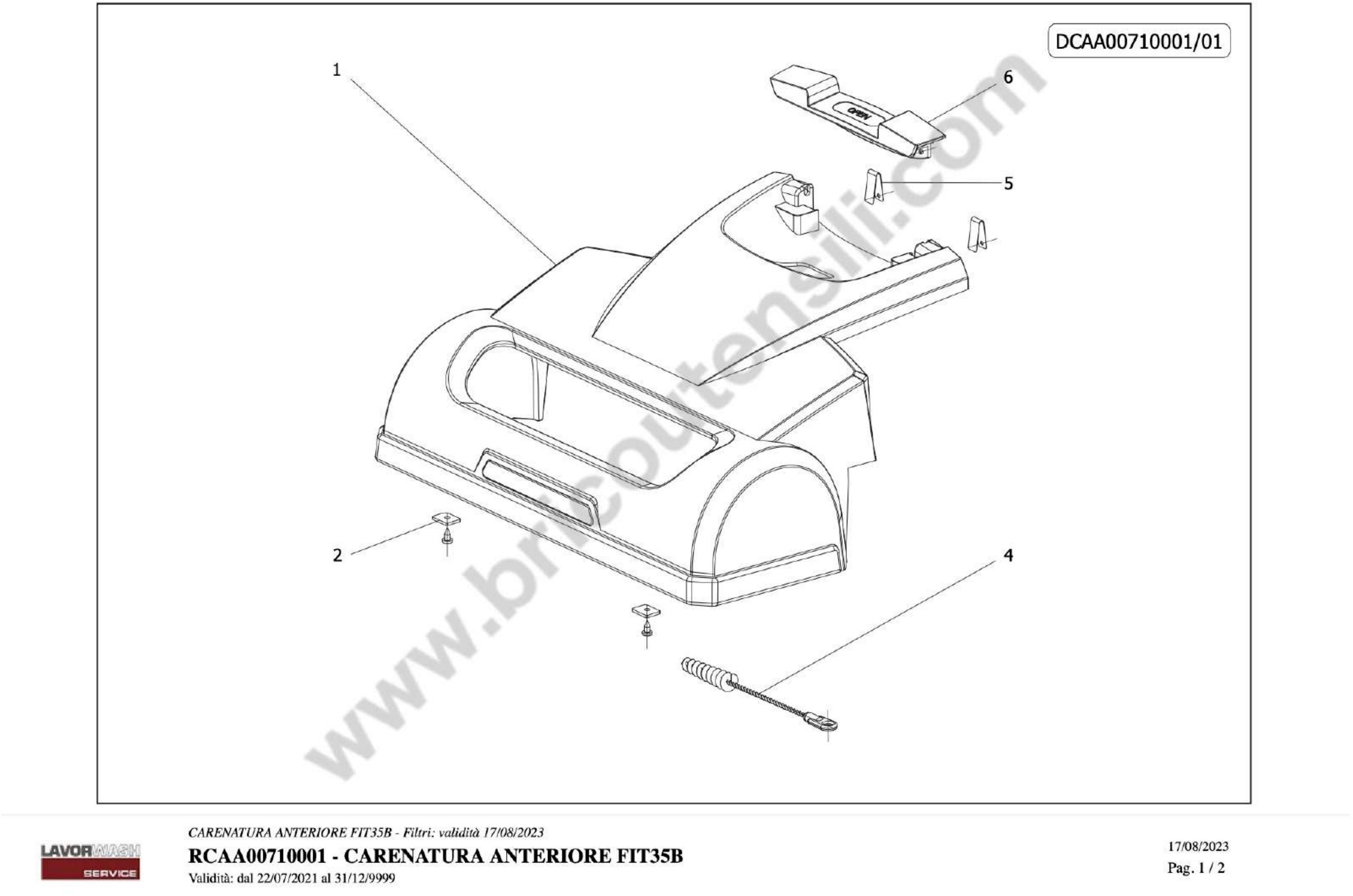

Esploso pagina 2
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

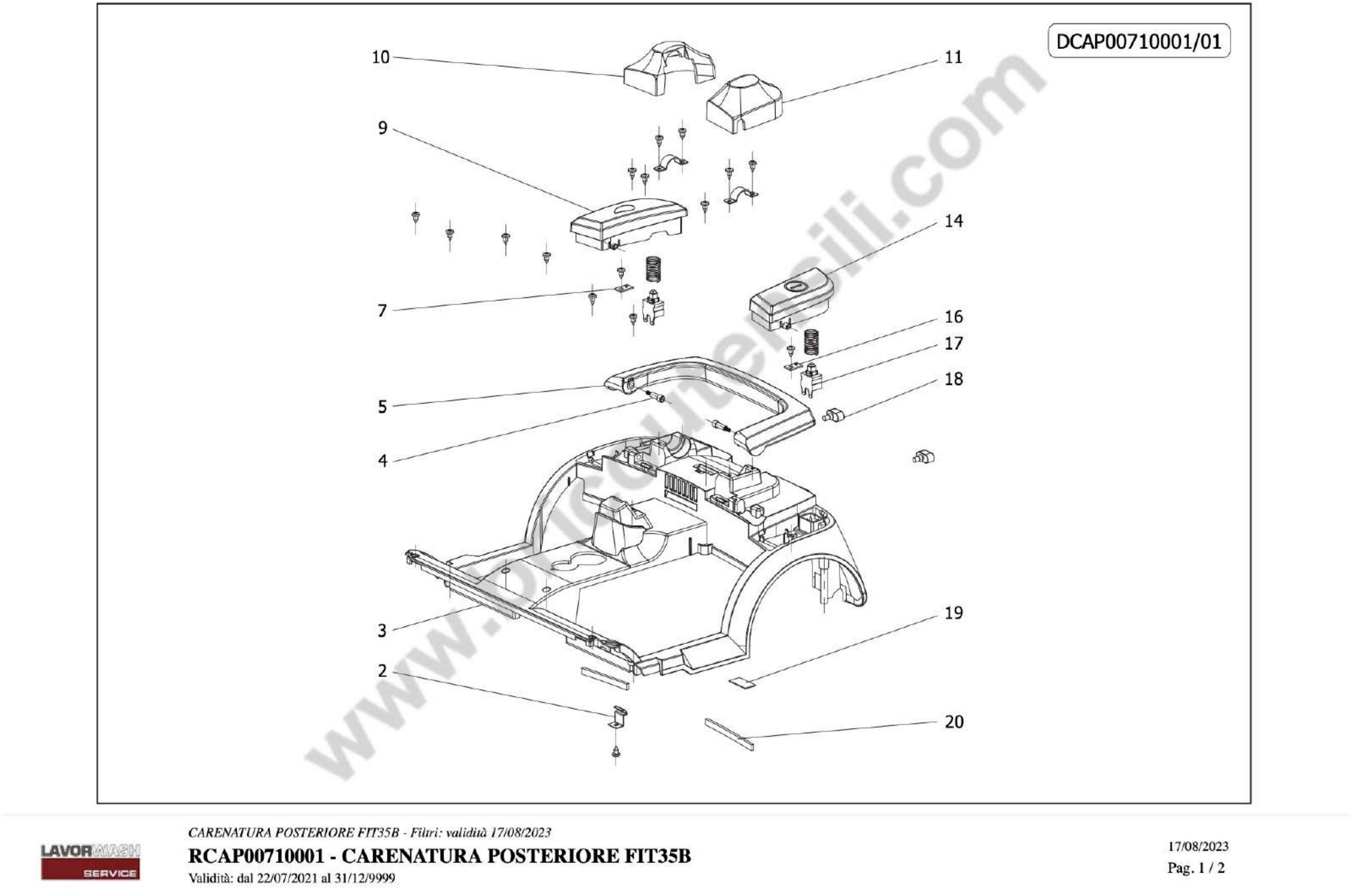

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
009
 photo_cameraImage coming soon 0.971.0077 WATER RELEASE BUTTON (XD2092021A0709) €4.82
014
 photo_cameraImage coming soon 0.971.0080 POWER SWITCH BUTTON (XD2092021A0714) €4.82
017
 photo_cameraImage coming soon 0.971.0082 POWER SWITCH (XD2092021A0717) €9.17

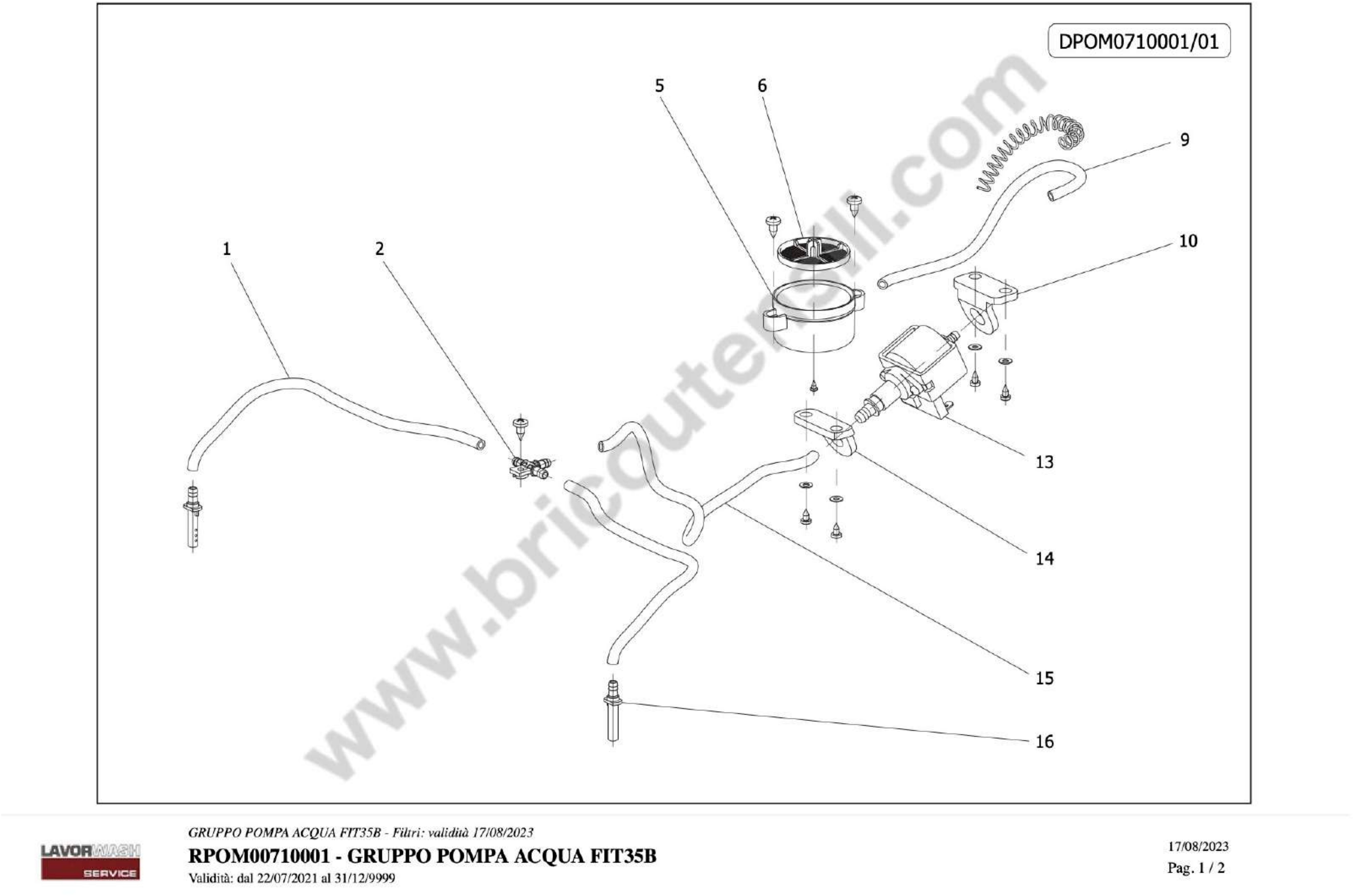

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
006
 photo_cameraImage coming soon 0.971.0128 WATER FILTER (XD2092021A1106) €1.38
013
 photo_cameraImage coming soon 0.971.0131 PUMP AC24V16W (XD2092021A1113) €21.67
015
 photo_cameraImage coming soon 0.971.0133 HOSE 2 (XD2092021A1115) €3.55

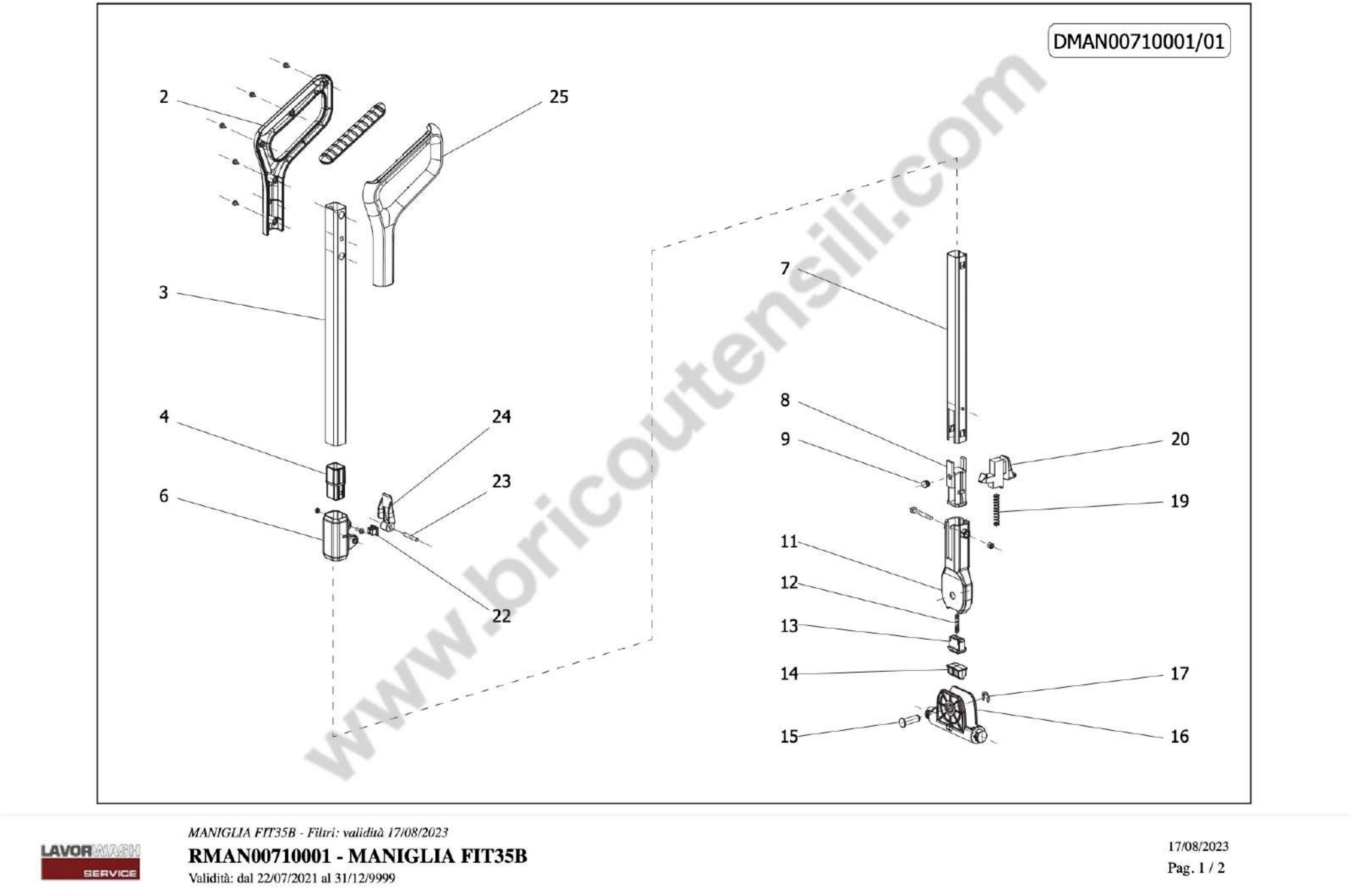

Page 5 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
006
 photo_cameraImage coming soon 0.971.0108 CONNECTOR FOR ALUMINUM TUBE (XD2092021A1006) €4.18
022
 photo_cameraImage coming soon 0.971.0121 POSITION LOCK (XD2092021A1022) €3.55
023
 photo_cameraImage coming soon 0.971.0122 AXIS CAPTURE BLOCK (XD2092021A1023) €4.18
024
 photo_cameraImage coming soon 0.971.0123 LOCK BLOCK (XD2092021A1024) €4.18
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

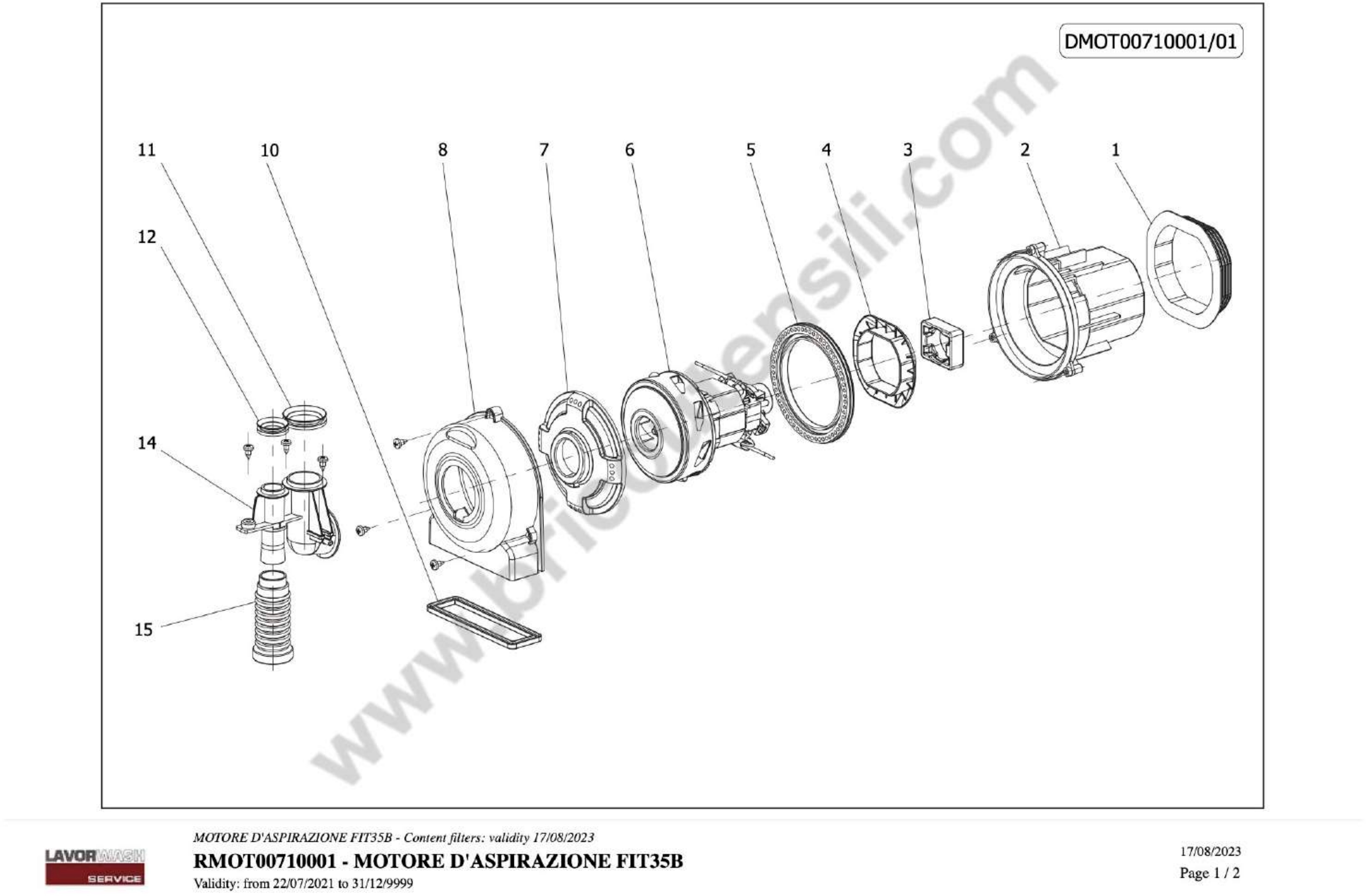

Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
006
 photo_cameraImage coming soon 0.971.0042 INTAKE MOTOR (XD2092021A0306) €153.31
010
 photo_cameraImage coming soon 0.971.0045 ENGINE COVER GASKET (XD2092021A0310) €13.07
011
 photo_cameraImage coming soon 0.971.0046 AIR INLET GASKET (XD2092021A0311) €6.19
012
 photo_cameraImage coming soon 0.971.0047 WATER INLET SEAL (XD2092021A0312) €6.19
014
 photo_cameraImage coming soon 0.971.0048 AIR DUCT CONNECTOR (XD2092021A0314) €3.55
015
 photo_cameraImage coming soon 0.971.0049 AIR SQUEEQE CHANNEL (XD2092021A0315) €30.93
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

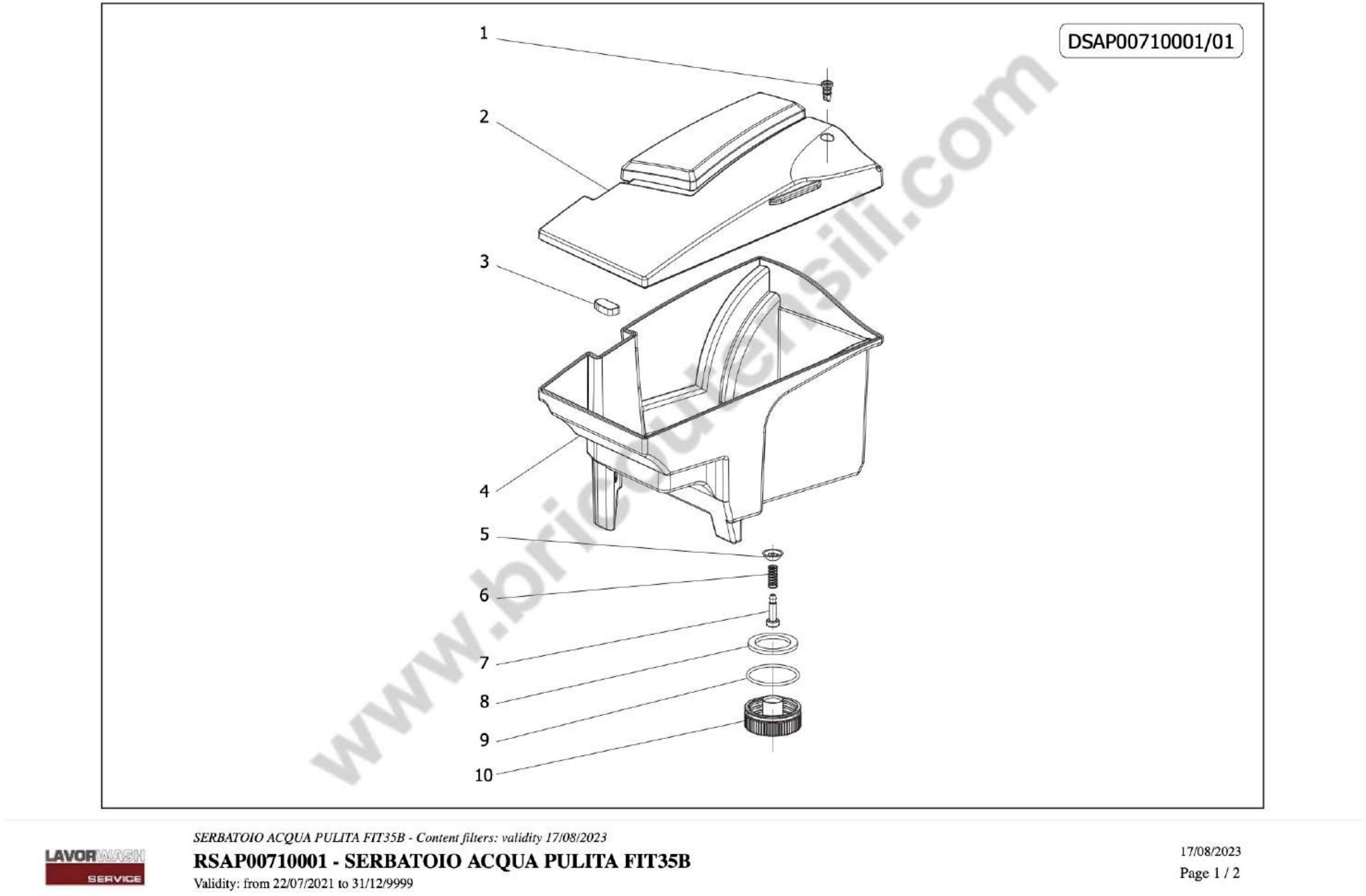

Esploso pagina 7
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
001
 photo_cameraImage coming soon 0.971.0050 CHECK VALVE (XD2092021A0401) €2.38
005
 photo_cameraImage coming soon 0.971.0054 WATER TANK CURSOR (XD2092021A0405) €26.72
006
 photo_cameraImage coming soon 0.971.0055 SPRING (XD2092021A0406) €1.83
007
 photo_cameraImage coming soon 0.971.0056 VALVE COIL (XD2092021A0407) €1.83
008
 photo_cameraImage coming soon 0.971.0057 SEALING SPACER (XD2092021A0408) €3.28
009
 photo_cameraImage coming soon 0.971.0058 SEALING RING (XD2092021A0409) €3.28
010
 photo_cameraImage coming soon 0.971.0059 SOLUTION TANK CAP (XD2092021A0410) €2.83

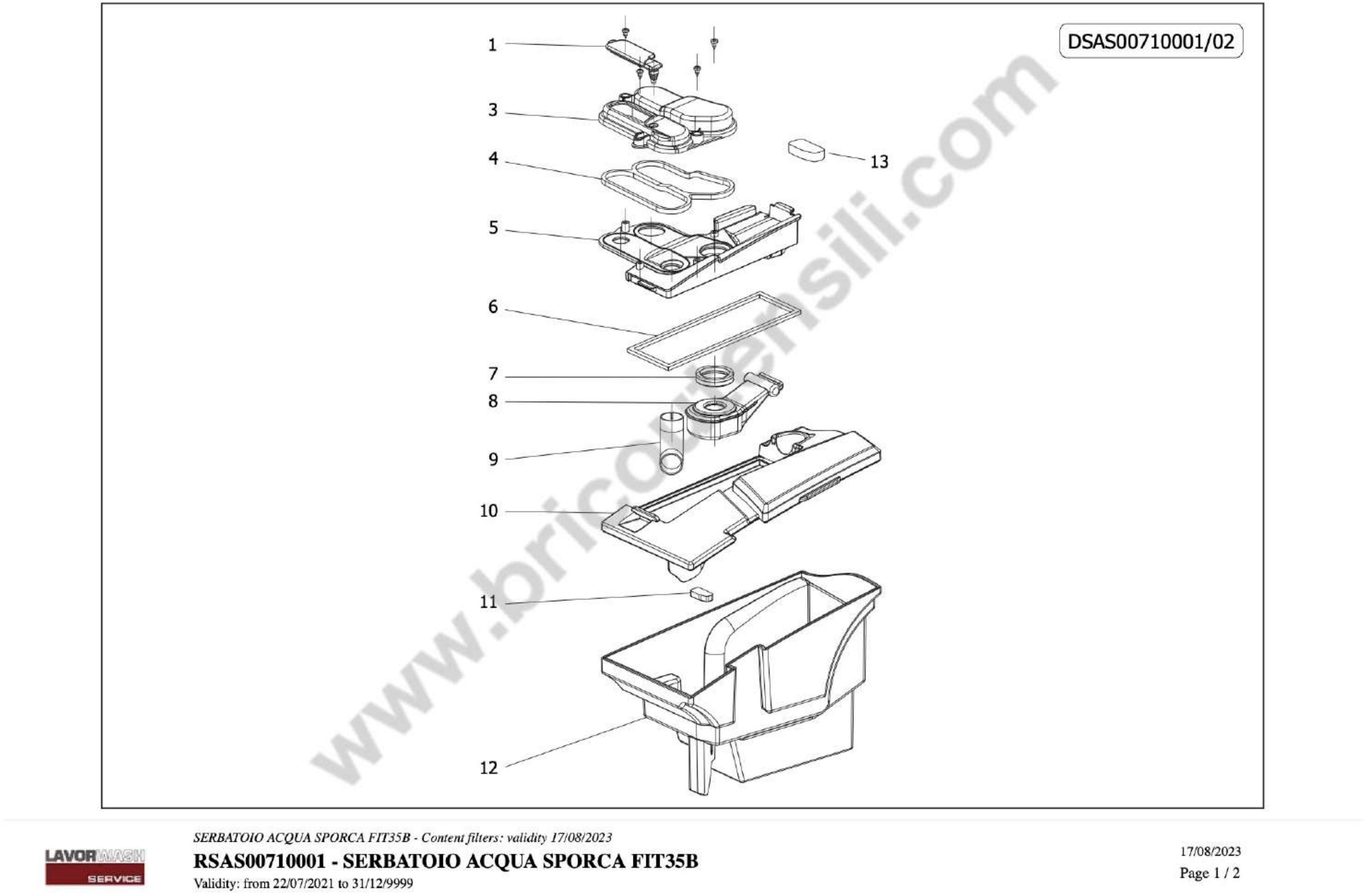

Page 8 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 8
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
003
 photo_cameraImage coming soon 0.971.0061 RECOVERY TANK SPONGE COVER (XD2092021A0503) €7.64
004
 photo_cameraImage coming soon 0.971.0062 SEALING DIRTY WATER TANK (UP) (XD2092021A0504) €8.99
006
 photo_cameraImage coming soon 0.971.0064 DIRTY WATER TANK SEAL (DOWN) (XD2092021A0506) €14.43
008
 photo_cameraImage coming soon 0.971.0066 WASTE WATER TANK FLOAT (XD2092021A0508) €14.43
013
 photo_cameraImage coming soon 0.971.0140 SPONGE FILTER €1.83
Page 9 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

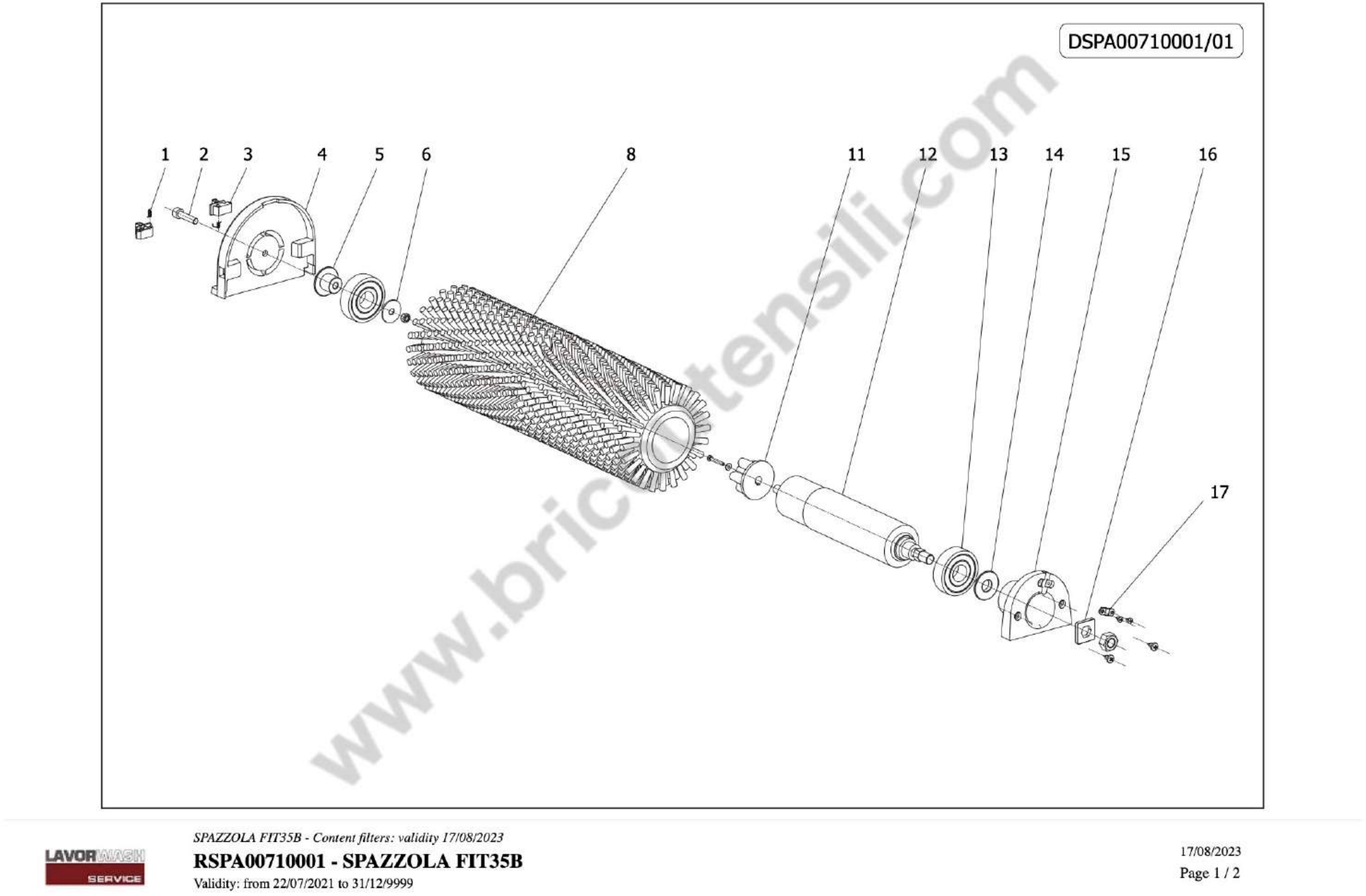

Esploso pagina 9
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
004
 photo_cameraImage coming soon 0.971.0027 BRUSH COVER (XD2092021A0204) €8.27
008
 photo_cameraImage coming soon 0.971.0030 BRUSH PP+30% CaCo2 (XD2092021A0208) €84.41
011
 photo_cameraImage coming soon 0.971.0031 MOTOR DRIVE CONNECTOR (XD2092021A0211) €2.73
012
 photo_cameraImage coming soon 0.971.0032 BRUSH MOTOR (XD2092021A0212) €589.91
013
 photo_cameraImage coming soon 3.001.0093 BALL BEARING 6303 2RS X ENG. EL. (17X47X14) €14.52
017
 photo_cameraImage coming soon 0.971.0033 BEARING SLEEVE (XD2092021A0214) 0.971.0033 €17.34

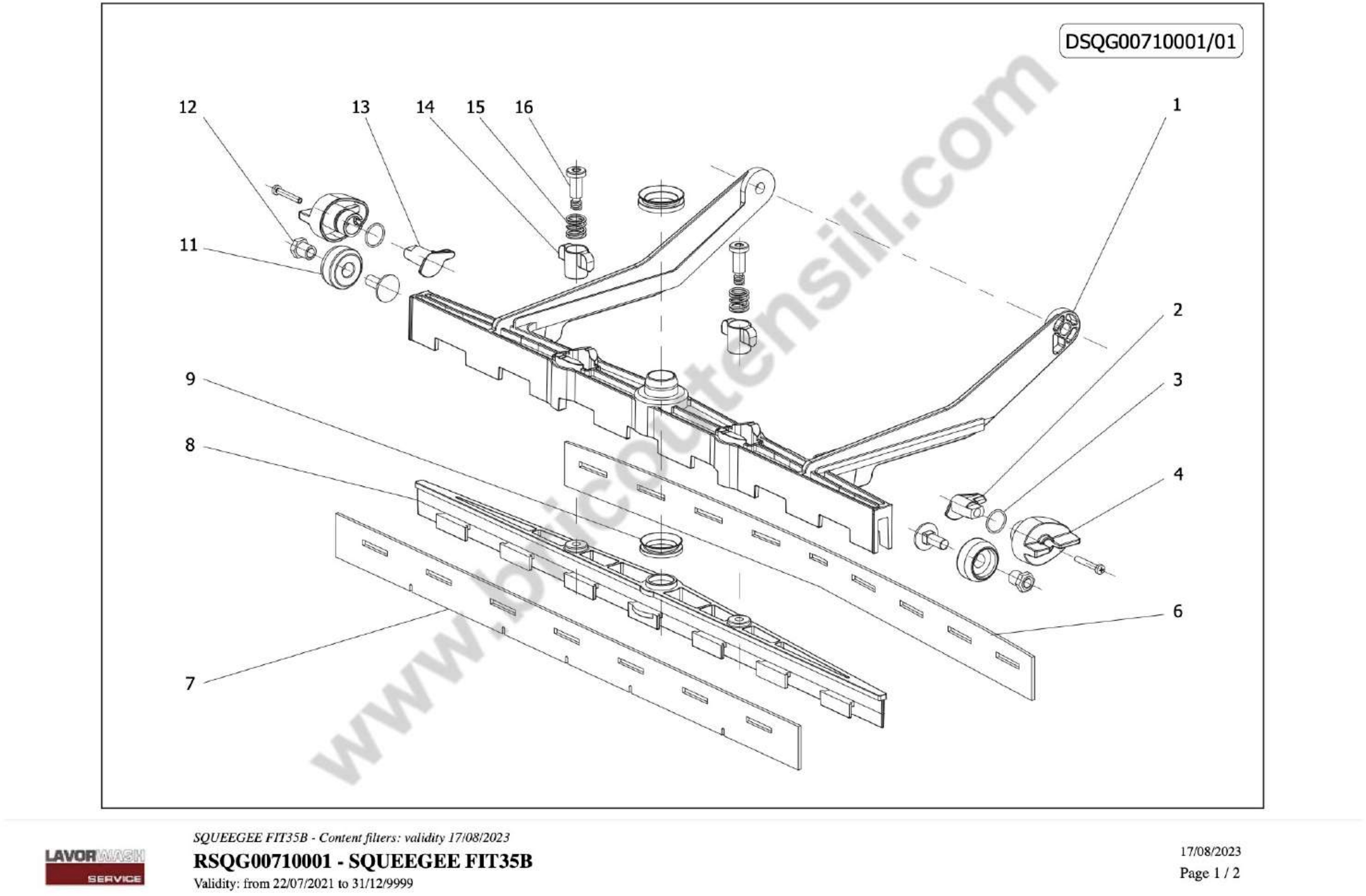

Page 10 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 10
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
002
 photo_cameraImage coming soon 0.971.0092 LEFT SQUEEGEE HEIGHT ADJUSTMENT (XD2092021A0902) €1.24
003
 photo_cameraImage coming soon 0.971.0093 SQUEEGEE HEIGHT ADJUSTMENT SEAL (XD2092021A0903) €2.28
004
 photo_cameraImage coming soon 0.971.0094 ROTARY SQUEEGEE KNOB (XD2092021A0904) €1.24
006
 photo_cameraImage coming soon 0.971.0095 FRONT BLADE (XD2092021A0906) €10.08
007
 photo_cameraImage coming soon 0.971.0096 REAR BLADE (XD2092021A0907) €10.08
008
 photo_cameraImage coming soon 0.971.0097 SQUEEGEE SEALING BRACKET (XD2092021A0908) €45.35
009
 photo_cameraImage coming soon 0.971.0098 SQUEEGEE SEAL (XD2092021A0909) €2.38

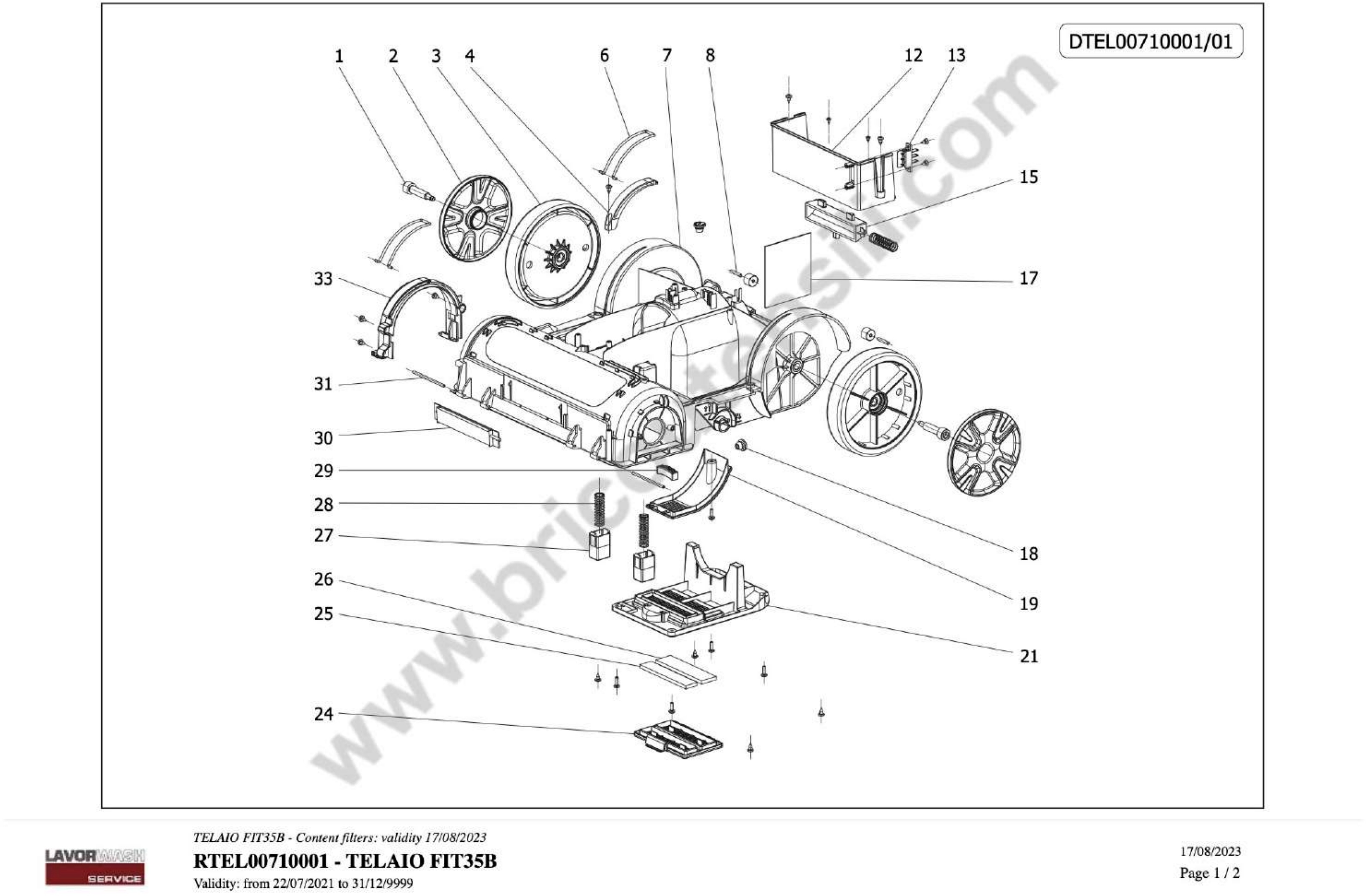

Page 11 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 11
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
003
 photo_cameraImage coming soon 0.971.0003 WHEEL (XD2092021A0103) €9.17
006
 photo_cameraImage coming soon 0.971.0005 ROUTE LIMIT ROUTE (XD2092021A0106) €3.10

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Floor Scrubber Drier Fit 35B Li Parts

Lavor original spare parts for to replace broken parts for to fix Floor Scrubber Drier Fit 35B Li 0.071.0001.

Fix Your Floor Scrubber Drier Fit 35B Li Lavor Pro. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
Floor Scrubber Drier Fit 35B Li 0.071.0001
Floor Scrubber Drier Fit 35B Li 0.071.0001
R00710001 - FIT35B GR.CH/GR.SC -LAVOR Pag.1
# Part Num. Description
. RCAA00710001 FIT35B FRONT CASING
. RCAP00710001 FIT35B REAR CASING
. RMAN00710001 FIT35B HANDLE
. RMOT00710001 FIT35B SUCTION MOTOR
. RPOM00710001 FIT35B WATER PUMP GROUP
. RSAP00710001 FIT35B CLEAN WATER TANK
. RSAS00710001 FIT35B WASTE WATER TANK
. RSPA00710001 FIT35B BRUSH
. RSQG00710001 SQUEEGEE FIT35B
. RTEL00710001 FIT35B DECK
001 0.971.0071 BATTERY PACK 25.2V/161.28Wh/6400mAh Li
002 7.700.0639 MANUAL FIT35B -WORK- 7L A5
003 0.971.0135 BATTERY CHARGER 100-240V 50-60Hz 24V-4A FIT35B-CPS35BX SCHUKO (XD2092021A120)
004 0.971.0136 BATTERY CHARGER 100-240V 50-60Hz 24V-4A FIT35B-CPS35BX UK (XD2092021A1201)
005 0.971.0137 CHARGER 100-240V 50-60Hz 24V-4A FIT35B-CPS35BX USA (XD2092021A1202)
006 0.971.0139 FIT35B COMPLETE HANDLE
RCAA00710001 - FRONT CASING FIT35B Pag.2
# Part Num. Description
001 0.971.0086 FRONT COVER (XD2092021A0801)
002 0.971.0087 SPACER (XD2092021A0802)
004 0.971.0088 SMALL BRUSH (XD2092021A0804)
005 0.971.0089 CROSSBOW (XD2092021A0805)
006 0.971.0090 FRONT COVER RELEASE BUTTON (XD2092021A0806)
RCAP00710001 - REAR CASING FIT35B Pag.3
# Part Num. Description
002 0.971.0072 GRIP LOCKING PLATE (XD2092021A0702)
003 0.971.0073 CENTRAL CASHIER (XD2092021A0703)
004 0.971.0074 SHAFTS FOR HANDLE (XD2092021A0704)
005 0.971.0075 CARRYING HANDLE (XD2092021A0705)
007 0.971.0076 WATER RELEASE INDICATOR (XD2092021A0707)
009 0.971.0077 WATER RELEASE BUTTON (XD2092021A0709)
010 0.971.0078 HANDLE COVER R (XD2092021A0710)
011 0.971.0079 HANDLE COVER L (XD2092021A0711)
014 0.971.0080 POWER SWITCH BUTTON (XD2092021A0714)
016 0.971.0081 POWER SWITCH INDICATOR (XD2092021A0716)
017 0.971.0082 POWER SWITCH (XD2092021A0717)
018 0.971.0083 RUBBER SUPPORT (XD2092021A0718)
019 0.971.0084 SEALING (XD2092021A0719)
020 0.971.0085 WATERPROOF SEAL (XD2092021A0720)
RPOM00710001 - WATER PUMP GROUP FIT35B Pag.4
# Part Num. Description
001 0.971.0125 HOSE 1 (XD2092021A1101)
002 0.971.0126 T-CONNECTOR (XD2092021A1102)
005 0.971.0127 WATER INLET CONNECTOR (XD2092021A1105)
006 0.971.0128 WATER FILTER (XD2092021A1106)
009 0.971.0129 PUMP PRE HOSE (XD2092021A1109)
010 0.971.0130 PRE PUMP BRACKET (XD2092021A1110)
013 0.971.0131 PUMP AC24V16W (XD2092021A1113)
014 0.971.0132 PUMP BRACKET (XD2092021A1114)
015 0.971.0133 HOSE 2 (XD2092021A1115)
016 0.971.0134 SPRAYER (XD2092021A1116)
RMAN00710001 - FIT35B HANDLE Pag.5
# Part Num. Description
002 0.971.0105 HANDLE (RIGHT) (XD2092021A1002)
003 0.971.0106 ALUMINUM TUBE (SU) (XD2092021A1003)
004 0.971.0107 ALUMINUM TUBE END (XD2092021A1004)
006 0.971.0108 CONNECTOR FOR ALUMINUM TUBE (XD2092021A1006)
007 0.971.0109 ALUMINUM TUBE (GIÙ) (XD2092021A1007)
008 0.971.0110 HANDLE LOCKING BRACKET (XD2092021A1008)
009 0.971.0111 SHOCK ABSORBER (XD2092021A1009)
011 0.971.0112 HANDLE HOLDER (DOWN) XD0301X20969163
012 0.971.0113 POSITION FIXING SPRING (XD2092021A1012)
013 0.971.0114 POSITION FIXING (L&R) (XD2092021A1013)
014 0.971.0115 POSITION FIXING (F&B) (XD2092021A1014)
015 0.971.0116 HANDLE SHAFT XD0307X20910005
016 0.971.0117 HANDLE CONNECTOR (DOWN) XD0301X20935163
017 0.971.0118 RETAINING RING (XD2092021A1017)
019 0.971.0119 SPRING (XD2092021A1019)
020 0.971.0120 HOOK HANDLE (XD2092021A1020)
022 0.971.0121 POSITION LOCK (XD2092021A1022)
023 0.971.0122 AXIS CAPTURE BLOCK (XD2092021A1023)
024 0.971.0123 LOCK BLOCK (XD2092021A1024)
025 0.971.0124 HANDLE (LEFT) (XD2092021A1025)
RMOT00710001 - SUCTION MOTOR FIT35B Pag.6
# Part Num. Description
001 0.971.0037 SHOCK ABSORBER (XD2092021A0301)
002 0.971.0038 ENGINE COVER (BOTTOM) (XD2092021A0302)
003 0.971.0039 VACUUM ENGINE MOUNT (X0305X20901205)
004 0.971.0040 AIR OUTLET SEAL (X0305X20901224)
005 0.971.0041 MOTOR FAN GASKET (XD2092021A0305)
006 0.971.0042 INTAKE MOTOR (XD2092021A0306)
007 0.971.0043 PRE ENGINE SEALING (XD2092021A0307)
008 0.971.0044 ENGINE COVER (UP) (XD2092021A0308)
010 0.971.0045 ENGINE COVER GASKET (XD2092021A0310)
011 0.971.0046 AIR INLET GASKET (XD2092021A0311)
012 0.971.0047 WATER INLET SEAL (XD2092021A0312)
014 0.971.0048 AIR DUCT CONNECTOR (XD2092021A0314)
015 0.971.0049 AIR SQUEEQE CHANNEL (XD2092021A0315)
RSAP00710001 - CLEAN WATER TANK FIT35B Pag.7
# Part Num. Description
001 0.971.0050 CHECK VALVE (XD2092021A0401)
002 0.971.0051 FRESH WATER TANK COVER (TOP) (XD2092021A0402)
003 0.971.0052 WATER TANK CAP (XD2092021A0403)
004 0.971.0053 FRESH WATER TANK COVER (BOTTOM) (XD2092021A0404)
005 0.971.0054 WATER TANK CURSOR (XD2092021A0405)
006 0.971.0055 SPRING (XD2092021A0406)
007 0.971.0056 VALVE COIL (XD2092021A0407)
008 0.971.0057 SEALING SPACER (XD2092021A0408)
009 0.971.0058 SEALING RING (XD2092021A0409)
010 0.971.0059 SOLUTION TANK CAP (XD2092021A0410)
RSAS00710001 - WASTE WATER TANK FIT35B Pag.8
# Part Num. Description
001 0.971.0060 WATER TANK CAP (XD2092021A0501)
003 0.971.0061 RECOVERY TANK SPONGE COVER (XD2092021A0503)
004 0.971.0062 SEALING DIRTY WATER TANK (UP) (XD2092021A0504)
005 0.971.0063 FLOAT BASE (XD2092021A0505)
006 0.971.0064 DIRTY WATER TANK SEAL (DOWN) (XD2092021A0506)
007 0.971.0065 FLOAT SEAL SER. OF DIRTY WATER (XD2092021A0507)
008 0.971.0066 WASTE WATER TANK FLOAT (XD2092021A0508)
009 0.971.0067 DIRTY WATER TANK WATER INLET (XD2092021A0509)
010 0.971.0068 WASTE WATER TANK (UP) (XD2092021A0510)
011 0.971.0069 WATER CAP (XD2092021A0511)
012 0.971.0070 WASTE WATER TANK (BOTTOM) (XD2092021A0512)
013 0.971.0140 SPONGE FILTER
RSPA00710001 - FIT35B BRUSH Pag.9
# Part Num. Description
001 0.971.0024 BRUSH COVER LOCK SPRING (XD2092021A0201)
002 0.971.0025 SCREW (XD2092021A0202)
003 0.971.0026 BRUSH COVER LOCK (XD2092021A0203)
004 0.971.0027 BRUSH COVER (XD2092021A0204)
005 0.971.0028 BRUSH BEARING SLEEVE (XD2092021A0205)
006 0.971.0029 LARGE WASHER (XD2092021A0206)
008 0.971.0030 BRUSH PP+30% CaCo2 (XD2092021A0208)
011 0.971.0031 MOTOR DRIVE CONNECTOR (XD2092021A0211)
012 0.971.0032 BRUSH MOTOR (XD2092021A0212)
013 3.001.0093 BALL BEARING 6303 2RS X ENG. EL. (17X47X14)
014 0.971.0034 BRUSH MOTOR SUPPORT (XD2092021A0215)
015 0.971.0035 CRANKSHAFT PRESS SUPPORT (XD2092021A0216)
016 0.971.0036 CABLE GLAND PLATE (XD2092021A0217)
017 0.971.0033 BEARING SLEEVE (XD2092021A0214) 0.971.0033
RSQG00710001 - SQUEEGEE FIT35B Pag.10
# Part Num. Description
001 0.971.0091 SQUEEGEE MAIN BRACKET (XD2092021A0901)
002 0.971.0092 LEFT SQUEEGEE HEIGHT ADJUSTMENT (XD2092021A0902)
003 0.971.0093 SQUEEGEE HEIGHT ADJUSTMENT SEAL (XD2092021A0903)
004 0.971.0094 ROTARY SQUEEGEE KNOB (XD2092021A0904)
006 0.971.0095 FRONT BLADE (XD2092021A0906)
007 0.971.0096 REAR BLADE (XD2092021A0907)
008 0.971.0097 SQUEEGEE SEALING BRACKET (XD2092021A0908)
009 0.971.0098 SQUEEGEE SEAL (XD2092021A0909)
011 0.971.0099 SQUEEGEE WHEEL (XD2092021A0911)
012 0.971.0100 SQUEEGEE WHEEL SLEEVE (XD2092021A0912)
013 0.971.0101 RIGHT SQUEEGEE HEIGHT ADJUSTMENT (XD2092021A0913)
014 0.971.0102 SQUEEGEE LOCK (XD2092021A0914)
015 0.971.0103 SQUEEGEE LOCKING SPRING (XD2092021A0915)
016 0.971.0104 SQUEEGEE LOCKING SCREW (XD2092021A0916)
RTEL00710001 - FIT35B DECK Pag.11
# Part Num. Description
001 0.971.0001 WHEEL PIN (XD2092021A0101)
002 0.971.0002 GLOSSY GRAY WHEEL COVER (XD2092021A0102)
003 0.971.0003 WHEEL (XD2092021A0103)
004 0.971.0004 FRONT COVER PATH LIMIT (XD2092021A0104)
006 0.971.0005 ROUTE LIMIT ROUTE (XD2092021A0106)
007 0.971.0006 DECK (XD2092021A0107)
008 0.971.0007 BEARING SPIDER (XD2092021A0108)
012 0.971.0008 COVER FOR BATTERY CABIN (XD2092021A0112)
013 0.971.0009 BATTERY PACK PLUG (XD2092021A0113)
015 0.971.0010 SLIDER (XD2092021A0115)
017 0.971.0011 PCB (XD2092021A0117)
018 0.971.0012 SUPPORT FOR CABLE OUTLET (XD2092021A0118)
019 0.971.0013 PUMP COVER (XD2092021A0119)
021 0.971.0014 ENGINE COVER (XD2092021A0121)
024 0.971.0015 AIR OUTLET COVER (XD2092021A0124)
025 0.971.0016 FILTER 2 (XD2092021A0125)
026 0.971.0017 FILTER 1 (XD2092021A0126)
027 0.971.0018 BRUSH HOLDER (XD2092021A0127)
028 0.971.0019 BRUSH HOLDER SPRING (XD2092021A0128)
029 0.971.0020 ENGINE COVER BUFFER (XD2092021A0129)
030 0.971.0021 LIGHT (XD2092021A0130)
031 0.971.0022 FRONT COVER ALIGNMENT SCREW (XD2092021A0131)
033 0.971.0023 FRAME FIXING PART (XD2092021A0133)

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Lavor Fit 35B Li - 0.071.0001
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
ATTENTION! FOR CODES NOT IN THE PRICE LIST, CONTACT US FOR A QUOTE
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

Lavorwash Fit 35B Li Drawing

Lavorwash Fit 35B Li Drawing

Download (728.91KB)

You might also like

Brush + Bearing Ass'y for Floor Scrubber Drier Lavor Pro Sprinter
Lavorwash S.p.A. SKU: 6.505.0041
Brush + Bearing Ass'y for Floor Scrubber Drier Lavor Pro Sprinter
Brush + Bearing Ass'y for Floor Scrubber Drier Lavor Pro Sprinter Genuine replacement part Lavor, Brush + Bearing Assembly for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following products: -  Floor Scrubber...
Usually Ships in: 7/10 Business Days Approx. €6.40
Details
Flexible Hose for Floor Scrubber Drier Lavor Pro Sprinter
Lavorwash S.p.A. SKU: 5.509.0008
Flexible Hose for Floor Scrubber Drier Lavor Pro Sprinter
Flexible Hose for Floor Scrubber Drier Lavor Pro Sprinter Genuine replacement part Lavor, Flexible Hose Ass'y L.800 MW for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following products:...
Last items in stock €29.49
Details
Squeegee + Support for Floor Scrubber Drier Lavor Pro Sprinter
Lavorwash S.p.A. SKU: 5.509.0010
Squeegee + Support for Floor Scrubber Drier Lavor Pro Sprinter
Squeegee + Support Ass'y for Floor Scrubber Drier Lavor Pro Sprinter Genuine replacement part Lavor, Squeegee + Support Assembly for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following products: -  Floor...
Usually Ships in: 7/10 Business Days Approx. €14.85
Details
Belt 336 RPP3-12 for Floor Scrubber Drier Lavor Pro Sprinter
Lavorwash S.p.A. SKU: 3.099.0278
Belt 336 RPP3-12 for Floor Scrubber Drier Lavor Pro Sprinter
Belt 336 RPP3-12 for Floor Scrubber Drier Lavor Pro Sprinter Genuine replacement part Lavor, Belt 336 RPP3-12 for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following...
Usually Shipped on: 10 Business Days Approx. €29.49
Details
Boiler Kit for Floor Scrubber Drier Lavor Crystal Clean
Lavorwash S.p.A. SKU: 6.505.0087
Boiler Kit for Floor Scrubber Drier Lavor Crystal Clean
Boiler Kit for Floor Scrubber Drier Lavor Crystal Clean Genuine replacement part Lavor, Boiler Kit for Floor Scrubber Drier Crystal Clean. Part for the following products: -  Floor Scrubber Drier Lavor...
Usually Shipped in 10/15 Business Days Approx. €87.31
Details
Suction Motor for Floor Scrubber Drier Lavor Crystal Clean
Lavorwash S.p.A. SKU: 6.505.0040
Suction Motor for Floor Scrubber Drier Lavor Crystal Clean
Suction Motor Kit for Floor Scrubber Drier Lavor Crystal Clean Genuine replacement part Lavor, Suction Motor Kit 230V/50-60Hz 800 W for Floor Scrubber Drier Crystal Clean. Part for the...
Usually Ships in: 7/10 Business Days Approx. €76.38
Details
Filter Ass'y for Floor Scrubber Drier Lavor Crystal Clean
Lavorwash S.p.A. SKU: 5.509.1838
Filter Ass'y for Floor Scrubber Drier Lavor Crystal Clean
Filter Ass'y for Floor Scrubber Drier Lavor Crystal Clean Genuine replacement part Lavor, Filter Assembly MW -R- RAL.3003 (Hole BY-PASS D.10) for Floor Scrubber Drier Crystal Clean. Part for the...
on 7/10 Business Days Approx. €54.85
Details
Comments (0)
