Lavor Original Parts for Pressure Cleaner Tomcat

Fix Your Cold Water High Pressure Cleaner 80680614 - Idro TOMCAT 220-240/50-60 -G/N- TS EU 2L (20L) LWS. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
Lavor TOMCAT - 80680614

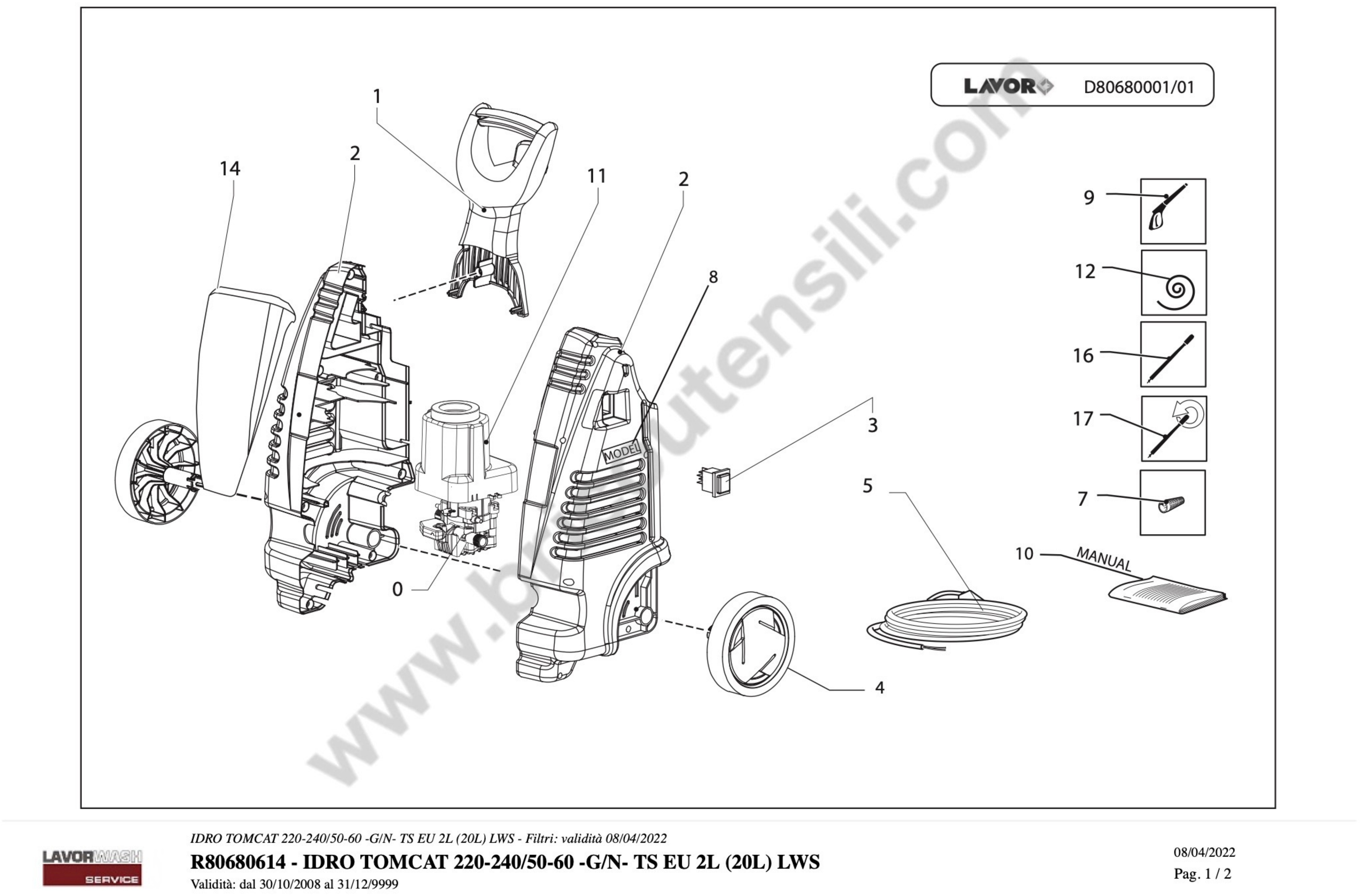

80680614 - IDRO TOMCAT 220-240/50-60 -G/N- TS EU 2L (20L) LWS pag.1
# Part Num. Description
. R50010717C MOTOP.SPAZZ.PT'03EVO 230/50 4'45 TS MOLLA 13KG (7630PF-ALL) -C-

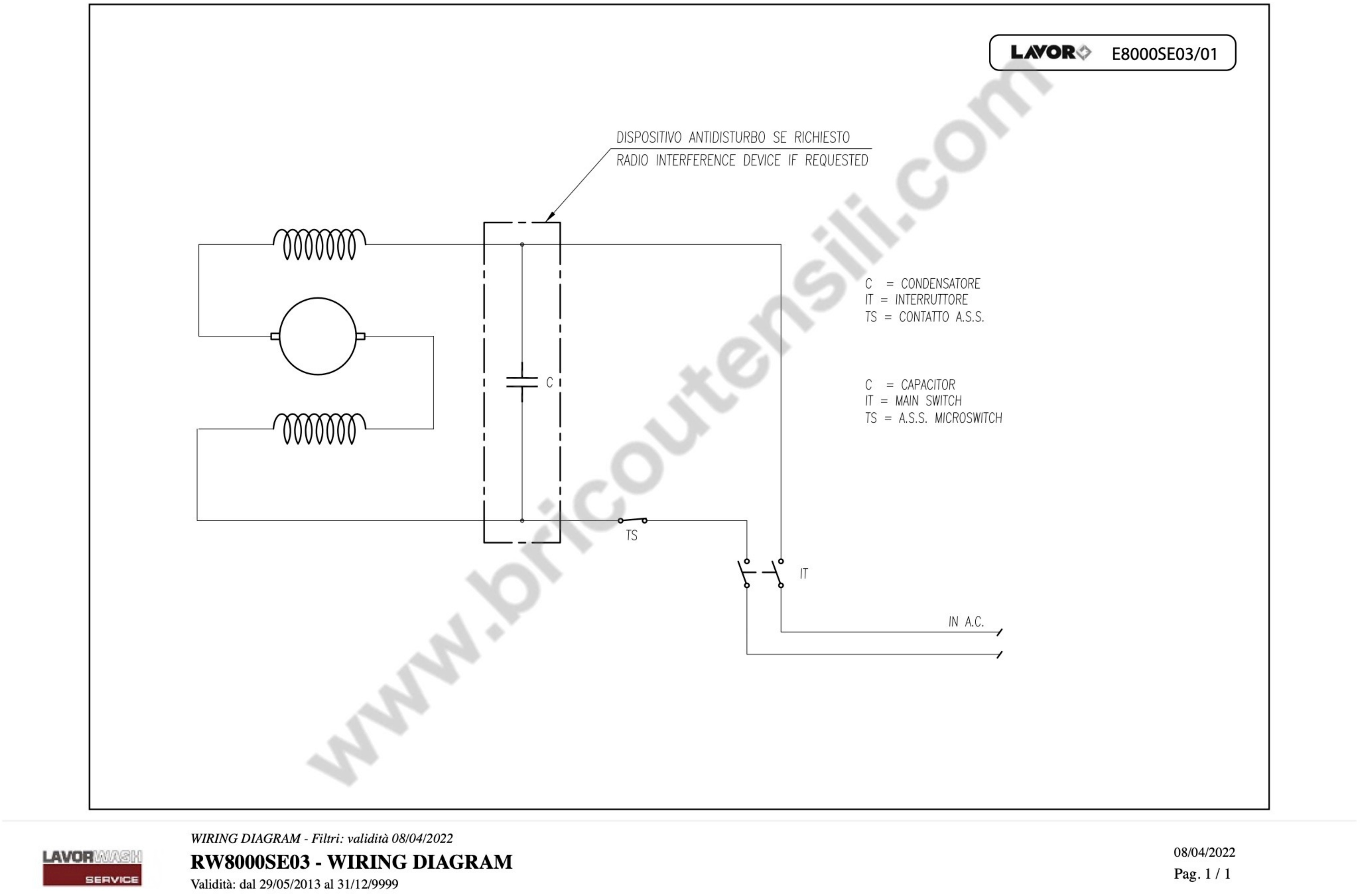

. RW8000SE03 WIRING DIAGRAM
000 5.001.I841C MOTORPUMP PT'03EVO 230/50 TS 4'45 (7630PF-AL)
001 4.008.1132 HANDLE
002 4.013.0553 LEFT+RIGHT COVER
003 5.009.0213 SWITCH WITH PROTECTION 12(10)
004 4.008.0791 BLACK WHEEL FOR TIGER
005 4.012.0174 CABLE H05VV-F 2X1 MT.5,4 F/F SCHUKO PLUG
007 4.008.0031 INLET WATER FILTER H2O D.16 CONICAL
008 7.102.0449 STICKER 'MADE IN ITALY' 37X48mm 3C (PVC)
009 6.001.0076 GUN S'09 WITH INTEGRAL QUICK JOINT LAVOR
010 7.100.1468 MANUALE GENERALE IDRO HOBBY 20L A5 96F
011 4.008.1172 AIR CONVEYOR FOR U76
012 4.018.0094 HOSE 1/4 180BAR L=4000 M22x1,5 D.15-RAPID FIX W/SPIRAL SLEEVE
014 4.008.1139 COPERTURA ESTETICA WASHER -G- C/TAMP.TOMCAT LAVOR (P80.0434)
016 6.002.0340 LANCE S'12 WITHOUT NOZZLE HEAD WITH QUICK COUPLING/COGETIL
016 6.002.0341 NOZZLE HEAD LANCE S'12 D.0,9 (PINK) W/QUICK COUPLING (FIXED FAN JET)
017 6.002.0346 ROTOX NOZZLE HEAD LANCE S'12 D.1,025 WITH QUICK COUPLING

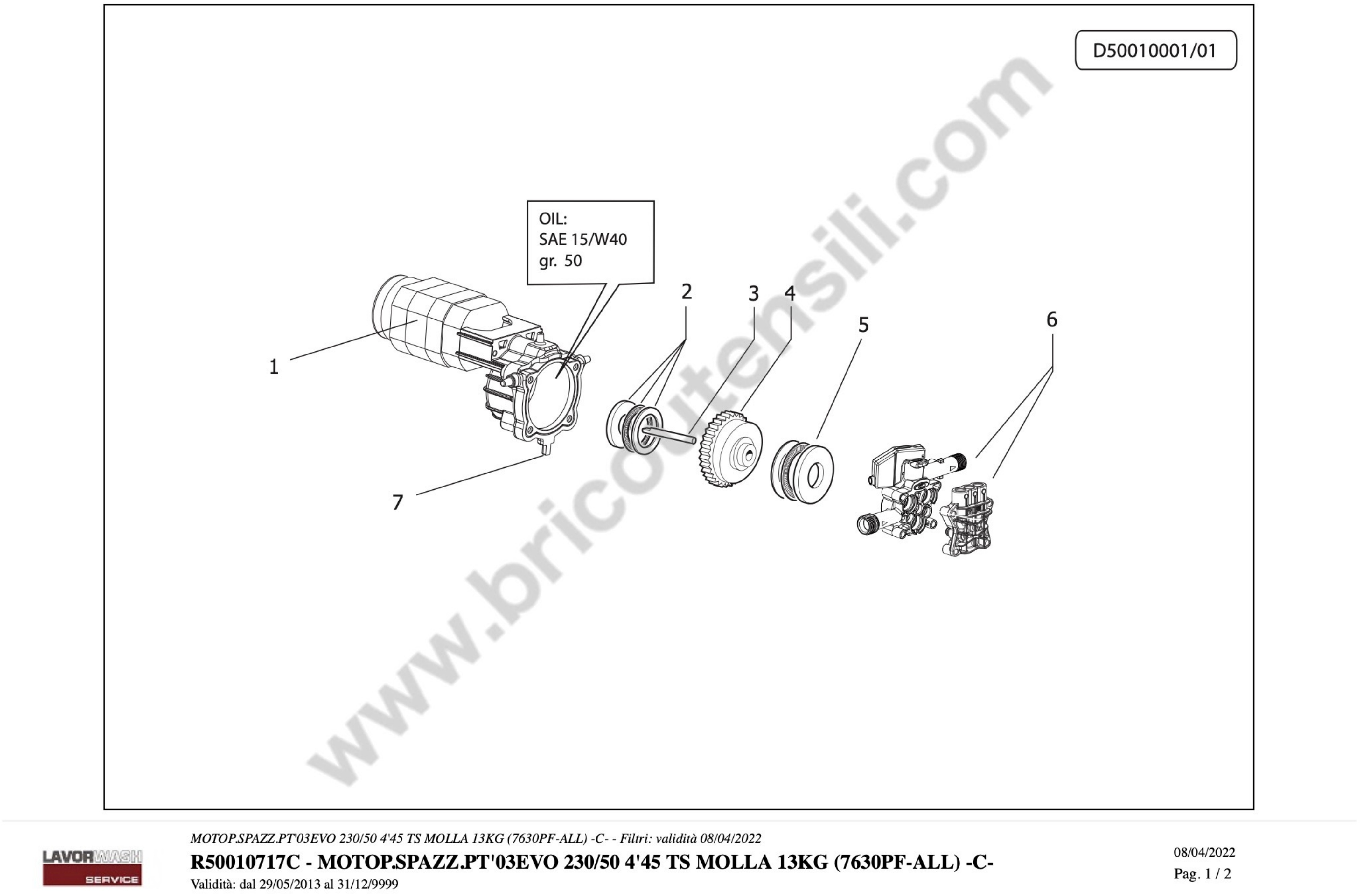

80680614 - IDRO TOMCAT 220-240/50-60 -G/N- TS EU 2L (20L) LWS pag.2
. R50090837C GRUPPO C.GUIDA C/TS 13KG +TESTATA (PT'03EVO)
001 5.009.0821 ASSEMBLY MOTOR PT'03 230/50 WITH CAPACITOR (U7630PF-ALL)
002 6.005.0311 THRUST RING KIT (PT'03 U76)
003 4.007.0205 PIN 10X70
004 5.009.0728 4'45 WOBBLE PLATE ASSEMBLY W/CROWN Z 62 (PT'03)
005 4.007.0328 THRUST BEARING 35X55X12 PT'03
006 5.009.0837C BODY GUIDE+HEAD ASSEMBLED TS WITHOUT SUCTION (SPRING 13KG) - PT'03EVO-

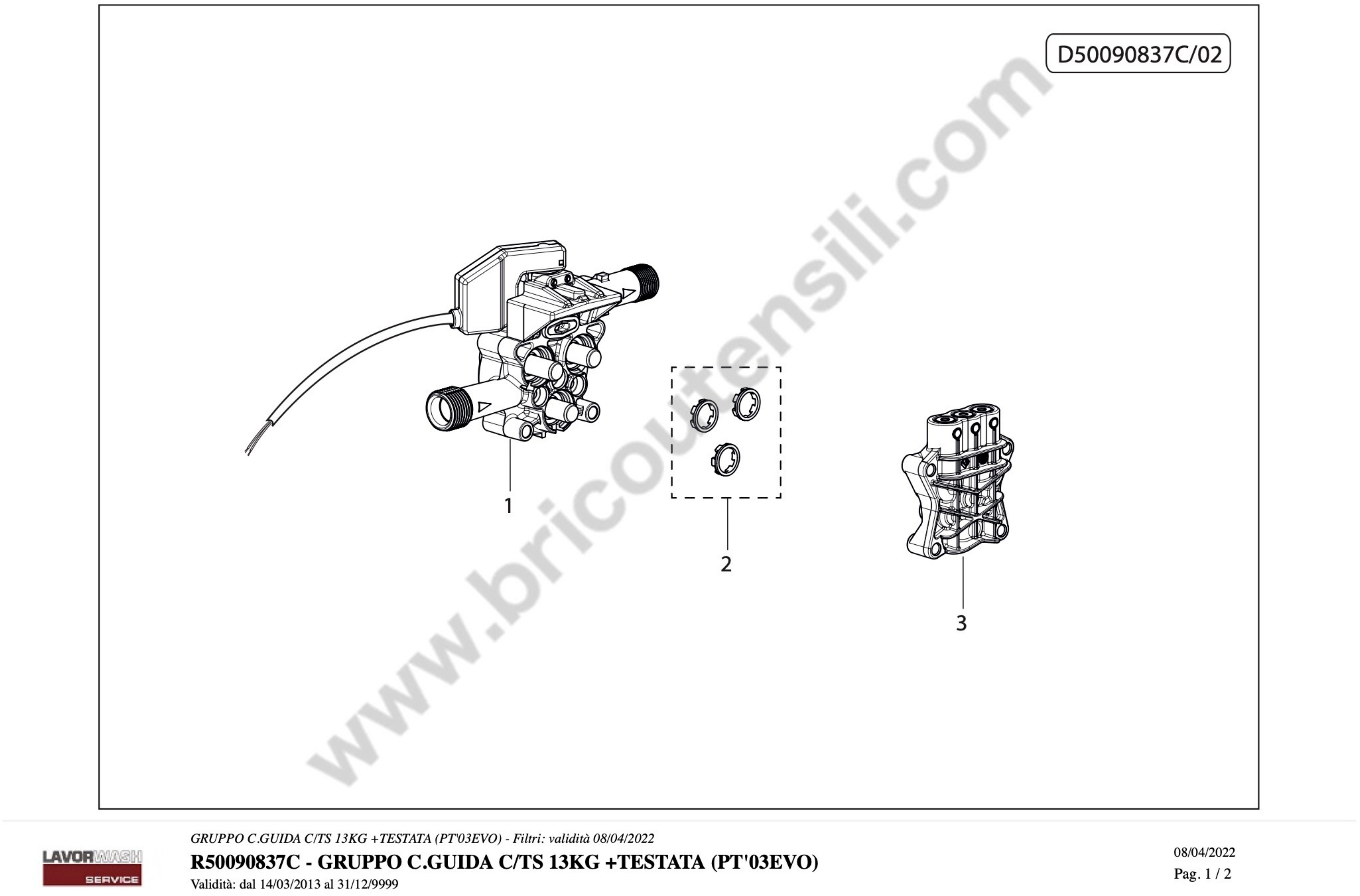

80680614 - IDRO TOMCAT 220-240/50-60 -G/N- TS EU 2L (20L) LWS pag.3
. R50070248 CORPO GUIDA PT'03EVO PIST.D.12 C/TS-VALV.COMP. S/ASP. MOLLA 13KG
.. R50080261 TESTATA PT'03EVO D.12
001 5.007.0248 BODY GUIDE ASSEMBLED PT'03EVO WITH TS/COMP.VALVE WITHOUT SUCTION S.13KG
002 6.005.0282 KIT 348 SPACER FOR WATER SEAL
003 5.008.0261 PT'03EVO HEAD D.12

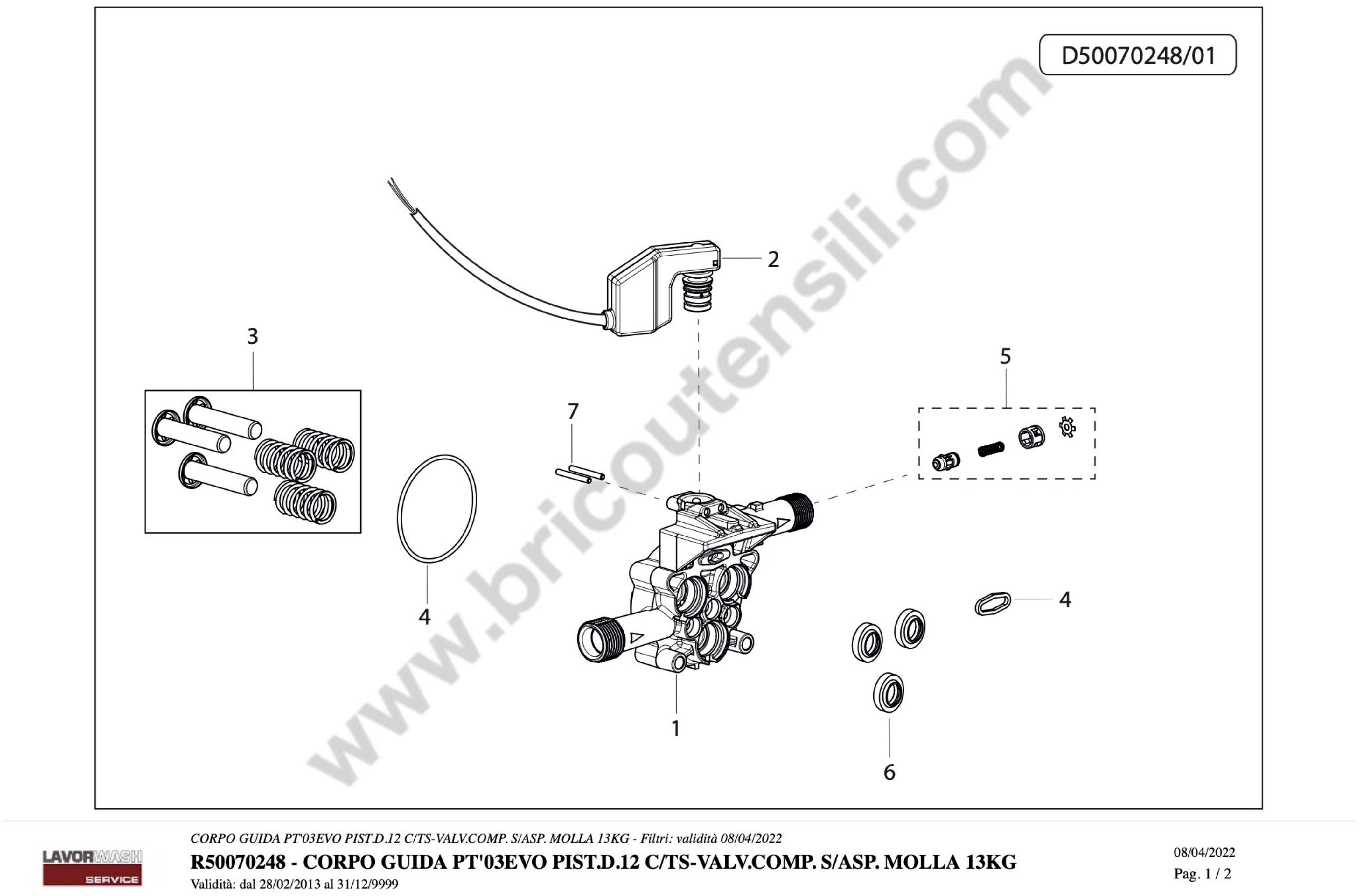

80680614 - IDRO TOMCAT 220-240/50-60 -G/N- TS EU 2L (20L) LWS pag.4
001 4.005.0299 PISTON BODY GUIDE PT'03EVO
002 5.009.0716 COMPLETED VALVE TS PT'03 CABLE L=530 SPRING 13KG (WHITE FASTON COVER)
003 6.005.0181 KIT 167 LW PISTON
004 6.005.0226 KIT 209 O-RING
005 6.005.0281 KIT 256 VALVE GUIDE RID. W/O SUCTION PT'03C
006 6.005.0079 KIT 79 LW OIL SEALS
007 4.007.0314 PIN 3,5x30 ZNT
80680614 - IDRO TOMCAT 220-240/50-60 -G/N- TS EU 2L (20L) LWS pag.5

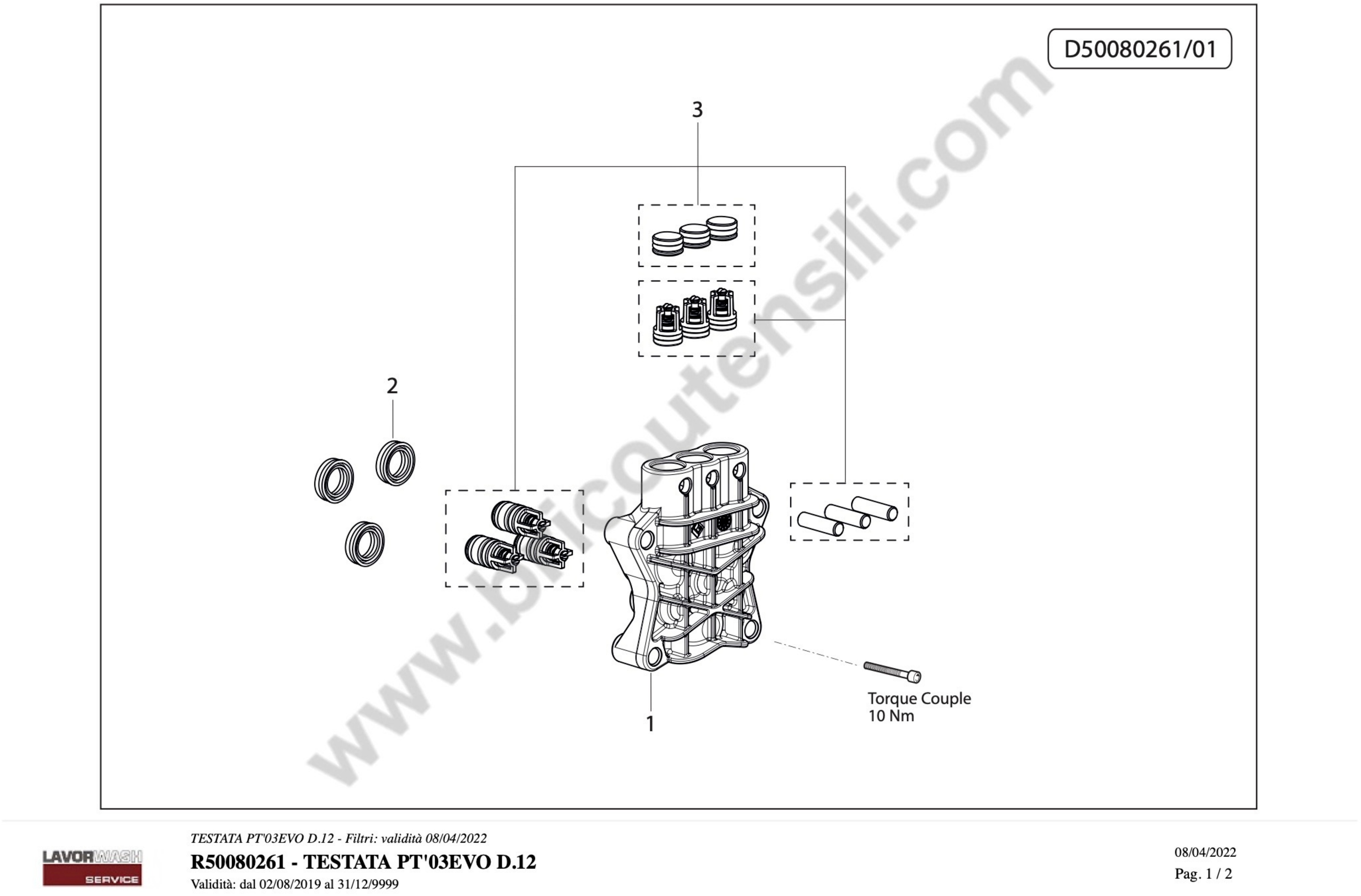

001 4.005.0298 PT''03EVO PARTNER HEAD
002 6.005.0133 KIT 124 O-RING WATER SEAL PARTNER D.12
003 6.005.0588 KIT LW VALV.ASP./MAND.+TAPPI PT' 03EVO
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
