Lavorwash S.p.A.

Lavor Original Parts for Pressure Cleaner LKX 31 TS 8.611.0160

SKU: Lavor LKX 31 - 8.611.0160
€448.56
VAT included

Lavor Original Parts for Pressure Cleaner LKX 31 TS 8.611.0160

Fix Your Pressure Cleaner IDRO LKX 31 TS. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Pressure Cleaner IDRO LKX 31 TS

Lavor Original Parts for Pressure Cleaner LKX 31 TS 8.611.0160
  • Lavor Original Parts for Pressure Cleaner LKX 31 TS 8.611.0160
  • Lavor Original Parts for Pressure Cleaner LKX 31 TS 8.611.0160
  • Lavor Original Parts for Pressure Cleaner LKX 31 TS 8.611.0160
  • Lavor Original Parts for Pressure Cleaner LKX 31 TS 8.611.0160
Lavorwash S.p.A.

Lavor Original Parts for Pressure Cleaner LKX 31 TS 8.611.0160

SKU: Lavor LKX 31 - 8.611.0160 Condition: New
€448.56
VAT included

Lavor Original Parts for Pressure Cleaner LKX 31 TS 8.611.0160

Fix Your Pressure Cleaner IDRO LKX 31 TS. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Pressure Cleaner IDRO LKX 31 TS

settings 187 Spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
Machine Type: Pressure Washer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
187 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

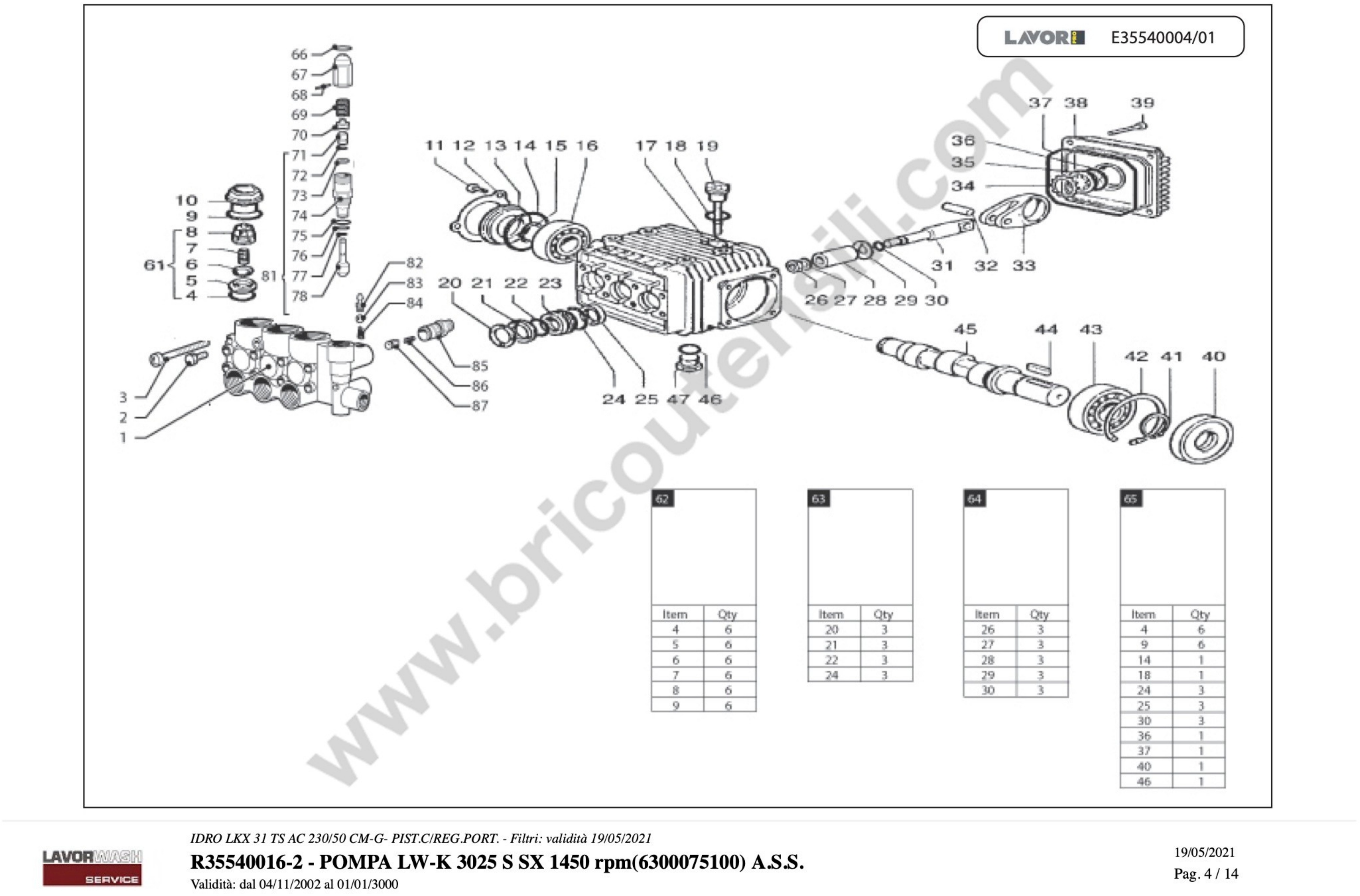

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3.555.0202 HEAD PIST.ONS D.18 X LW-K 3025 3218032600 €435.50
2
 photo_cameraImage coming soon 3.555.0076 HEAD CAP G1 / 8 3202.0018.00 €15.13
3
 photo_cameraImage coming soon 3.002.0455 SCREW M6x55 3609.0152.00 €1.68
4
 photo_cameraImage coming soon 3.555.0005 GASKET OR 2.62X17.13 1210004600 €0.98
5
 photo_cameraImage coming soon 3.555.0028 SEAT FOR VALVE PLATE 3009008700 €87.20
6
 photo_cameraImage coming soon 3.555.0007 STEEL PLATE FOR VALVE 3604001700 €10.49
7
 photo_cameraImage coming soon 3.555.0028 SEAT FOR VALVE PLATE 3009008700 €87.20
8
 photo_cameraImage coming soon 3.555.0028 SEAT FOR VALVE PLATE 3009008700 €87.20
9
 photo_cameraImage coming soon 3.200.0027 O-RING 2.62X20.24 FOR CAP 1210004800 €1.54
10
 photo_cameraImage coming soon 3.555.0012 VALVE CAP 3202026700 €29.21
11
 photo_cameraImage coming soon 3.002.0227 SCREW M5x10 3609.0088.00 €1.68
12
 photo_cameraImage coming soon 3.555.0057 CLAMP FOR CAP 1004.0012.00 €5.93
13
 photo_cameraImage coming soon 3.555.0056 COVER 0402017200 €6.12
14
 photo_cameraImage coming soon 3.200.0219 GASKET OR 44,04X3,53 NBR SH.70 €1.70
15
 photo_cameraImage coming soon 3.555.0079 SPACER 3019.0011.00 €3.32
16
 photo_cameraImage coming soon 3.001.0085 RADIAL BALL BEARING 6304 (20X52X15) HIGH QUALITY €28.64
17
 photo_cameraImage coming soon 6.605.0115 PUMP HOUSING 0403.0128.00 €166.14
18
 photo_cameraImage coming soon 3.099.1480 OIL CAP (L=58 STICK) €3.36
20
 photo_cameraImage coming soon 3.555.0046 HEAD RING D.18 0009019300 €4.00
21
 photo_cameraImage coming soon 3.555.0047 GASKET D.18 1241002200 €8.60
22
 photo_cameraImage coming soon 3.555.0048 GASKET 18X25X5.5 (1241002800) €17.66
23
 photo_cameraImage coming soon 3.555.0049 SEAL RING D.18 0009019700 €29.21
24
 photo_cameraImage coming soon 3.555.0085 OR 1.78X26.7 (SEAL) 1210022300 €3.23
25
 photo_cameraImage coming soon 6.605.0111 OIL GASKET KIT €12.20
26
 photo_cameraImage coming soon 3.555.0059 NUT 0600004800 €9.79
27
 photo_cameraImage coming soon 3.555.0060 WASHER 8.2X14X1.5 2811008000 €4.06
28
 photo_cameraImage coming soon 3.555.0027 PISTON D.18 0202.0018.00 €174.30
29
 photo_cameraImage coming soon 3.555.0062 PISTON BASE WASHER 2812003800 €10.58
30
 photo_cameraImage coming soon 3.200.0043 O-RING 1.78X6.07 1210.0055.00 €1.62
31
 photo_cameraImage coming soon 3.555.0064 PISTON GUIDES 2409.0044.00 €78.82
32
 photo_cameraImage coming soon 4.607.0534 WRIST PIN €1.68
33
 photo_cameraImage coming soon 3.555.0066 CONNECTING ROD 0205.0050.00 €47.20
34
 photo_cameraImage coming soon 3.555.0067 GASKET 3019.0033.00 €5.24
35
 photo_cameraImage coming soon 3.555.0143 OIL LEVEL INDICATOR 3201.0010.00 €8.32
36
 photo_cameraImage coming soon 3.555.0069 OR 1.78X23.52 1210.0333.00 €14.70
37
 photo_cameraImage coming soon 3.555.0070 OR 2.62X101.27 1210.0206.00 €4.21
38
 photo_cameraImage coming soon 6.605.0115 PUMP HOUSING 0403.0128.00 €166.14
39
 photo_cameraImage coming soon 3.555.0088 SCREW M6x25 3609.0041.00 €3.23
40
 photo_cameraImage coming soon 6.005.0306 KIT 278 LW OIL SEALS + OR LWS1508/1808 €28.93
41
 photo_cameraImage coming soon 6.605.0113 SEEGER KIT D.25 €16.36
42
 photo_cameraImage coming soon 6.605.0114 SEEGER KIT D.62 €29.62
43
 photo_cameraImage coming soon 3.001.0084 RADIAL SPHERE BEARING 25X62X17 €28.65
44
 photo_cameraImage coming soon 3.555.0072 KEY 8X7X28 1602.0045.00 €5.50
45
 photo_cameraImage coming soon 3.555.0071 SHAFT D.24 0001.0290.00 €222.82
50
 photo_cameraImage coming soon 3.555.0014 PLUG G1 / 2 BRASS 3202001500 €10.71
61
 photo_cameraImage coming soon 3.555.0028 SEAT FOR VALVE PLATE 3009008700 €87.20
62
 photo_cameraImage coming soon 3.555.0028 SEAT FOR VALVE PLATE 3009008700 €87.20
63
 photo_cameraImage coming soon 3.555.0024 WATER SEALS KIT FOR LW 3525 5019003700 €79.99
64
 photo_cameraImage coming soon 3.555.0027 PISTON D.18 0202.0018.00 €174.30
65
 photo_cameraImage coming soon 3.555.0025 OIL SEALS KIT FOR LW 5019004000 €50.98
86
 photo_cameraImage coming soon 4.607.0259 NO RETURN VALVE SPRING L=20 €3.23
87
 photo_cameraImage coming soon 5.609.0041 SET OF CHECK VALVE + OR €14.70
96
 photo_cameraImage coming soon 3.555.0016 CAP 3/8G €29.38
99
 photo_cameraImage coming soon 3.555.0013 SLICED WASHER 21.2X27X1.5 2811008600 €3.15
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

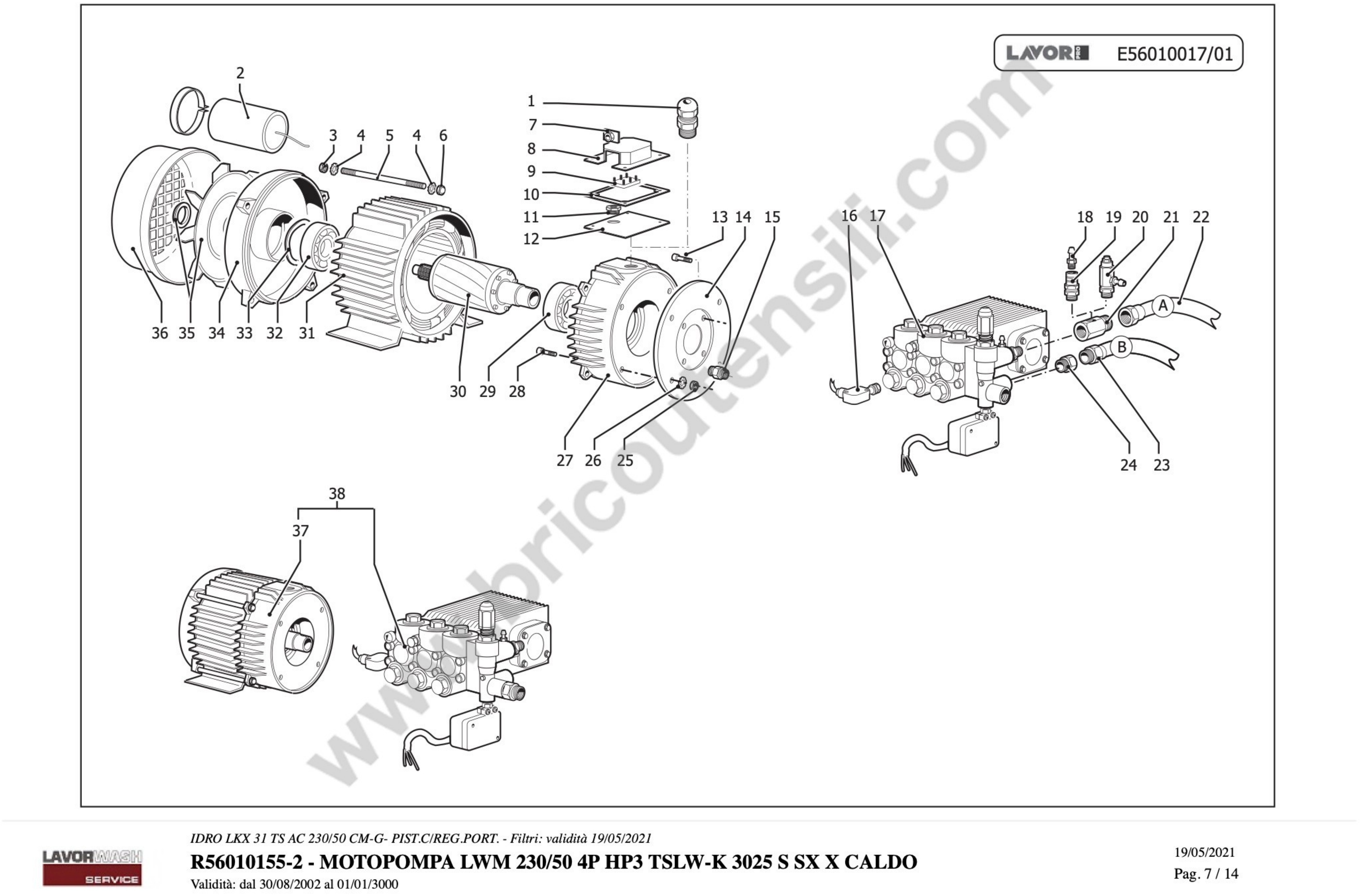

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 3.404.0036 CAPACITOR 80mF 450V D.50 CABLE L300 S/FASTON €24.31
4
 photo_cameraImage coming soon 3.004.0010 PINK WASHER EX.D6X11 Sp0,7 DIN6798A ZNT €1.72
5
 photo_cameraImage coming soon 4.607.0008 TIE ROD LW MOTOR M6X171 €5.30
6
 photo_cameraImage coming soon 3.003.0019 NUT €1.68
13
 photo_cameraImage coming soon 3.002.0131 SCREW TSPEI M8X16 CL.10.9 UNI59 33 ZNT €1.68
14
 photo_cameraImage coming soon 4.607.0010 FLANGE COUPL. PUMP-MOTOR D. EXT. 145 FL.90 - FINISHED - €20.97
15
 photo_cameraImage coming soon 3.100.0022 REDUCTION M.GAS/M.GAS 3/8 1/4 €5.86
16
 Pressure Switch for Pressure Washer Lavor Missouri 3.704.0006 Pressure Switch for Pressure Washer Lavor Missouri €30.90
17
 photo_cameraImage coming soon 3.554.0023 PUMP LWS-K 3025 S SX 1750 rpm -6301135100- €413.19
18
 photo_cameraImage coming soon 4.606.0088 RUBBER HOLDER 1/4 G M D.7 €3.36
19
 photo_cameraImage coming soon 3.106.0034 SAFETY VALVE G1 / 4 M D6 200BAR MTM (190031) €24.28
21
 photo_cameraImage coming soon 4.007.0181 3/8F+ ELBOW PIVOTTING CONNECTION FOR COIL €29.21
22
 photo_cameraImage coming soon 4.618.0035 TUBE R1 PUMP/COIL TG480 €28.57
23
 photo_cameraImage coming soon 4.618.0030 TUBE B.P. D.20X10 3/8M-3/8M. L.450 €26.69
24
 photo_cameraImage coming soon 3.100.0046 REDUCTION 3 / 8F CIL. 1 / 2M CIL.SV. ZNT €7.37
25
 photo_cameraImage coming soon 3.003.0007 NUT E. M6 MEDIUM UNI 5588 CL10 ZNT €1.68
26
 photo_cameraImage coming soon 3.004.0035 SPRING WASHER GROWER D.6 DI N 127 TYPE B ZNT WHITE €1.68
27
 photo_cameraImage coming soon 4.605.0003 MOTOR FRONT COVER LW D.150 €76.41
28
 photo_cameraImage coming soon 3.002.0050 SCREW TE M6X25 UNI 5739 ZNT €3.23
29
 photo_cameraImage coming soon 3.001.0009 BEARING 6007-2Z €14.39
30
 photo_cameraImage coming soon 5.605.0048 ROTOR SHAFT 90X135 ALL. LW FOR SINGLE-PHASE MOTOR 30 CAVE INCL. 1,5 €120.44
31
 photo_cameraImage coming soon 5.602.0031 HOUSING LWM 230/50 4P 150X90 H135 €349.56
32
 photo_cameraImage coming soon 3.001.0010 BEARING 6205-2Z €10.22
33
 photo_cameraImage coming soon 3.099.0017 UNLOADING RING D.51XD.42 €1.68
34
 photo_cameraImage coming soon 6.005.0194 REAR MOTOR COVER LW.V D.150 X BEARING D.52 TURNED €64.72
35
 photo_cameraImage coming soon 3.099.0018 FAN FA 100 VP D.24x168 C / F ASCETTA €4.39
36
 photo_cameraImage coming soon 4.607.0082 FAN COVER MEC100 EXHAUST IN F. -FINISHED- €35.86
37
 photo_cameraImage coming soon 5.606.0069 MOTOR LWM 230/50 D.150 H135 4P C / CLAMP €487.37
38
 photo_cameraImage coming soon 5.601.0228 MOTOR PUMP LWM 230/50 4P HP3 TS LW-K 3025 S SX X HOT €1,038.93
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

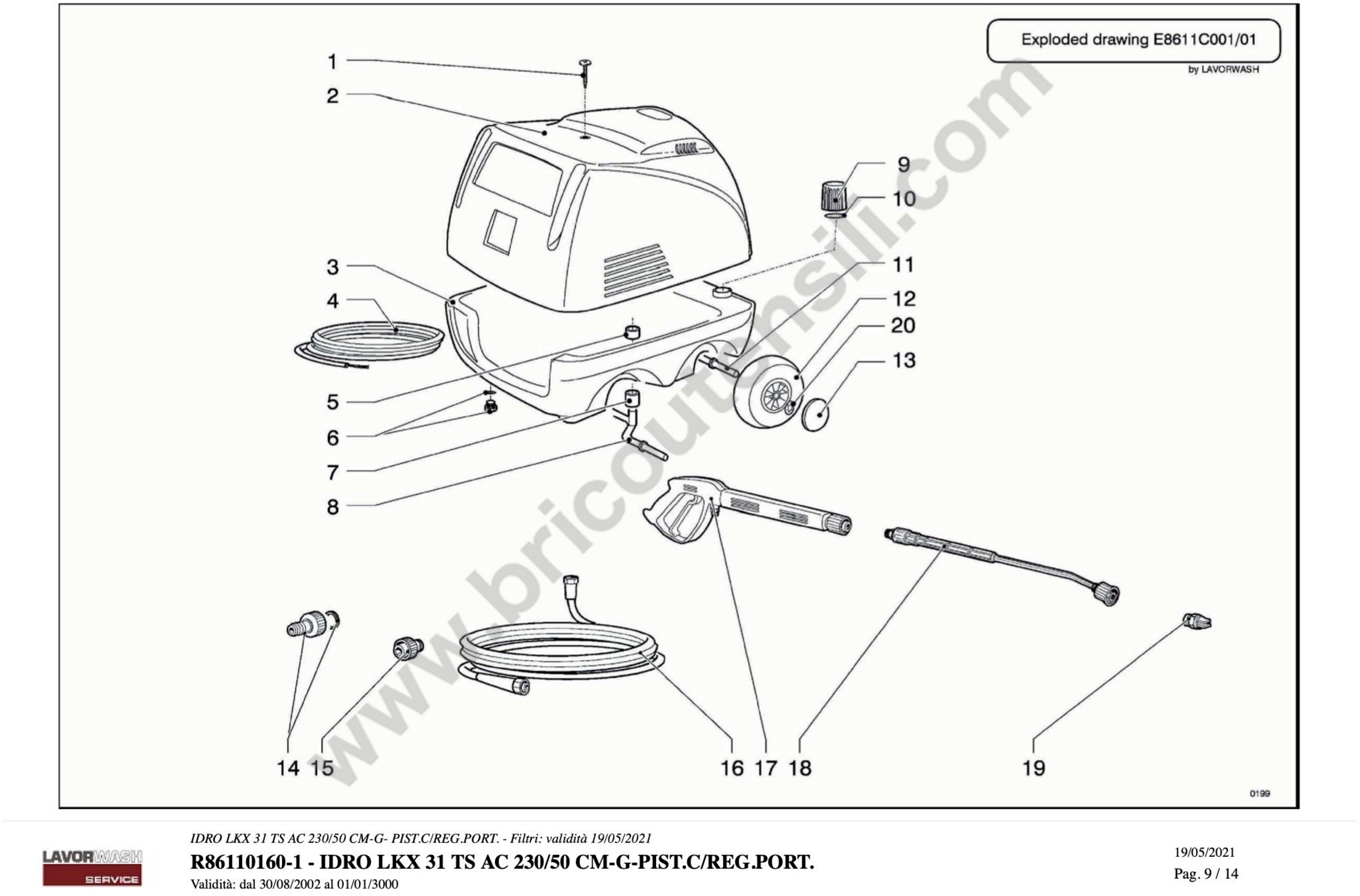

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3.002.0122 SCREW M6X12ZNT €1.68
2
 photo_cameraImage coming soon 4.613.0111 UPPER FAIRING JOLLY 5 / L KX YELLOW €228.54
3
 photo_cameraImage coming soon 4.608.0203 DIESEL / DETERGENT TANK J OLLY 5 / LKX €264.90
4
 photo_cameraImage coming soon 4.612.0046 POWER CABLE H05VV-F 3X1.5 L = 6000 WITHOUT / FASTON €29.75
5
 photo_cameraImage coming soon 4.608.0073 SHORT SPACER FOR TANK JOLLY 4/93 €1.74
6
 photo_cameraImage coming soon 5.009.0159 OIL CAP WITH O-RING 3/8G €9.28
7
 Fuel Tank Long Spacer for Pressure Washers Lavor NPX 1400 - NPX 1500 4.608.0074 Fuel Tank Long Spacer for Pressure Washers Lavor NPX 1400 - NPX 1500 €3.27
8
 photo_cameraImage coming soon 5.613.0096 BOILER AXLE JOLLY 4/93 €29.21
9
 photo_cameraImage coming soon 4.608.0082 GAS OIL-CHEM TANK CAP €15.27
10
 photo_cameraImage coming soon 3.200.0038 O-RING GASKET 53,65X2,62 REF.3212 €1.70
11
 photo_cameraImage coming soon 5.613.0115 REAR DRIVE AXLE JOLLY 5 / LKX €34.70
12
 WHEEL D.260X85 FULL BLACK 6.605.0168 WHEEL D.260X85 FULL BLACK €25.73
13
 photo_cameraImage coming soon 4.608.0434 STUD D.135 BLACK WHEEL COVER FOR D.260 WHEEL €12.82
14
 Quick Coupling for Pressure Washers Lavor NPX 1400 - NPX 1500 5.009.0340 Quick Coupling for Pressure Washers Lavor NPX 1400 - NPX 1500 €15.06
15
 Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500 3.100.0043 Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500 €17.59
16
 photo_cameraImage coming soon 4.618.0012 HOSE 5/16 R1 310BAR L = 10000 C / HOSES AND ATT. 3/8-3 / 8 €139.43
17
 photo_cameraImage coming soon 3.700.0029 TRIGGER GUN RL200 3 / 8M + S4 + QUICK COUPLING + FLOW REGULATOR 30015560 €120.84
18
 photo_cameraImage coming soon 3.708.0001 LANCE M22x1,5-1 / 8 F L = 700 MT6 S / ROSETTA €25.72
19
 photo_cameraImage coming soon 3.708.0001 LANCE M22x1,5-1 / 8 F L = 700 MT6 S / ROSETTA €25.72
20
 photo_cameraImage coming soon 3.099.0019 BLOCK WHEEL D.250x55 D.20 €1.72
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 4.608.0079 DASHBOARD '93 WITH COMPLETE SILKSCREEN €45.18
4
 Thermostate Knob for Pressure Washers Lavor NPX 1400 - NPX 1500 4.608.0019 Thermostate Knob for Pressure Washers Lavor NPX 1400 - NPX 1500 €10.03
5
 Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500 3.403.0091 Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500 €35.00
6
 photo_cameraImage coming soon 3.105.0003 DETERGENT REGULATING COCK WITHRUBBER HOLDER D.7 €37.19
7
 photo_cameraImage coming soon 4.608.0065 BOX DASHBOARD '93 €29.21
8
 photo_cameraImage coming soon 4.608.0071 GUIDING CABLE COVER DASHBOARD '93 €6.66
9
 photo_cameraImage coming soon 5.009.0165 FRAME FOR SEALING SWITCH AND HOBBY €9.55
10
 photo_cameraImage coming soon 5.009.0165 FRAME FOR SEALING SWITCH AND HOBBY €9.55
11
 Micro Breaker for Pressure Cleaner Lavor NPX 1400 3.401.0025 Micro Breaker for Pressure Cleaner Lavor NPX 1400 €46.23
12
 photo_cameraImage coming soon 5.009.0213 EXT SWITCH WITH PROTECTION 12(10) €6.72
13
 photo_cameraImage coming soon 5.613.0156 SWITCH BRACKET €29.21
15
 Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500 3.107.0004 Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500 €33.35
16
 Pressure Gauge Pipe for Pressure Washers Lavor NPX 1500 4.618.0014 Pressure Gauge Pipe for Pressure Washers Lavor NPX 1500 €26.46
17
 photo_cameraImage coming soon 4.008.0556 TRANSPARENT HOSE D.6x12 L=400 REINFORCED €3.23
18
 photo_cameraImage coming soon 3.099.0282 TWO-WIRES WRAPPER FOR 6X12 HOSE (15126) €1.68
19
 photo_cameraImage coming soon 3.405.0003 TERMINAL BLOCK 5 POLES 10mmq. / LA MELLA €5.74
20
 Dashboard Gasket for Pressure Cleaner Lavor NPX 1400 4.608.0078 Dashboard Gasket for Pressure Cleaner Lavor NPX 1400 €3.32
21
 photo_cameraImage coming soon 4.615.0003 ANTI-CALC ELECTRIC BOARD 2 4V €31.03
22
 photo_cameraImage coming soon 6.605.0172 TRANSFORMER 220-380V 24V 2A €84.98
23
 photo_cameraImage coming soon 3.403.0004 TOTAL STOP BOARD €190.04
24
 photo_cameraImage coming soon 3.402.0002 KN12 CONTACTOR 24V 50HZ 380 / 5,5KW AC3 €36.98
25
 photo_cameraImage coming soon 5.611.0002 BURNER FLANGE COMPLETE 1.25-45 RH €76.23
26
 photo_cameraImage coming soon 4.607.0001 GLOW PLUG RESTANT PLATE 15X32 €4.50
27
 photo_cameraImage coming soon 4.614.0004 STANDARDIZED ELECTRODES COUPLE WITH ROD €36.46
28
 photo_cameraImage coming soon 3.100.0017 ELBOW 4 1/8 COPPER TUBE €6.65
29
 photo_cameraImage coming soon 3.099.0015 RING SEEGER I D.21 SP1 DIN 472 €1.68
30
 photo_cameraImage coming soon 4.608.0002 SITE GLASS DIAM.20 SP.1,8 €1.68
31
 photo_cameraImage coming soon 4.605.0001 WROUGHT BURNER FLANGE €28.64
32
 Diesel Nozzle for Pressure Washers Lavor NPX 1400 3.104.0028 Diesel Nozzle for Pressure Washers Lavor NPX 1400 €28.36
33
 photo_cameraImage coming soon 4.606.0064 COLUMN FIXING CARENATUR A LKX €10.10
34
 photo_cameraImage coming soon 4.616.0006 COPPER TUBE DIAM. 4 COMPACT €28.64
35
 photo_cameraImage coming soon 6.605.0102 IGNITION TRANSFORMER 230/50 818C / S €164.14
36
 photo_cameraImage coming soon 4.607.0011 ZNT MOTOR FOOT FIXING BRACKET €7.38
37
 photo_cameraImage coming soon 5.609.0023 VENTILATOR PROTECTION GRID ASSEMBLY €3.95
38
 photo_cameraImage coming soon 4.608.0036 FEEDING CABLE CONNECTOR €6.41
39
 photo_cameraImage coming soon 4.608.0068 GUIDING HANDLE COMPACT 4P €40.52
40
 photo_cameraImage coming soon 5.613.0119 LKX HANDLE SUPPORT -VERNICIAT O- €72.97
41
 photo_cameraImage coming soon 4.608.0103 CARTER FOR GASOLI OR LKX PUMP PROTECTION €29.21
42
 photo_cameraImage coming soon 3.099.0028 FAN 146x72 LH.HOLE DM 12.7 €29.49
43
 MOTOR X BRUC. 100W / 230-240 / 50H z IP55 3.300.0003 MOTOR X BRUC. 100W / 230-240 / 50H z IP55 €194.80
44
 Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400 6.605.0173 Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400 €29.06
45
 photo_cameraImage coming soon 3.100.0015 STRAIGHT CONNECT.1/8M. FOR COPP.TUBE D.4 €7.92
46
 Lavor LKX 31 Double Pipe Diesel Pump 3.551.0063 Lavor LKX 31 Double Pipe Diesel Pump €103.22
47
 photo_cameraImage coming soon 3.004.0015 PLAIN WASHER D.22X39X2 UNI6592 €1.63
48
 photo_cameraImage coming soon 4.606.0013 COIL FIXING NUT 1/2 BRASS SPEC. €3.25
49
 photo_cameraImage coming soon 3.555.0015 SLICED WASHER 16,7X22X1,5 2811008400 €3.23
49
 Lavor LKX 31 Diesel Filter Unit 5.611.0067 Lavor LKX 31 Diesel Filter Unit €19.50
50
 photo_cameraImage coming soon 4.618.0035 TUBE R1 PUMP/COIL TG480 €28.57
51
 Lavor NPX 1400 Hose 4.618.0043 Lavor NPX 1400 Hose €27.71
52
 photo_cameraImage coming soon 5.611.0012 EXTERNAL BURNER COVER DIAM.341 €52.75
53
 Lavor NPX 1400 High Tension Cable 5.611.0099 Lavor NPX 1400 High Tension Cable €15.35
54
 photo_cameraImage coming soon 3.003.0010 BLIND NUT E. M6 UNI 5721 BRASS €1.68
55
 photo_cameraImage coming soon 3.004.0006 PLAIN WASHER D.6.4X12X1.6 UNI6592 €1.68
56
 photo_cameraImage coming soon 5.613.0147 INOX EXTERNAL BURNER COVER €35.06
57
 photo_cameraImage coming soon 5.610.0105 DEFLECTOR D.82 €29.76
58
 photo_cameraImage coming soon 5.613.0122 COVER INT.CAM.COMB. CHIMNEY L = 90 €123.31
59
 photo_cameraImage coming soon 4.604.0001 COIL TOP H.335 €472.90
60
 photo_cameraImage coming soon 5.613.0118 BOILER BODY JOLLY 5 / LKX VERN ICIATO €424.48
61
 CEMENTED REFRACTORY D.290X20 FOR BOILER 6.605.0247 CEMENTED REFRACTORY D.290X20 FOR BOILER €44.52
63
 photo_cameraImage coming soon 4.607.0006 COIL FIXING STRIP PLATE 20/10 €46.76
64
 Lavor NPX1400 Insulating Rope 4.608.0162 Lavor NPX1400 Insulating Rope €35.27
65
 photo_cameraImage coming soon 5.613.0116 BOILER BASE JOLLY 5 / LKX -VERN ICIATA- €106.07
66
 photo_cameraImage coming soon 5.609.0051 ASSEMBLY CONNECTOR + CABLE X ELECTRIC ANTIC. L = 1000 €24.95
67
 photo_cameraImage coming soon 3.412.0001 SOLENOID VALVE 1 / 8F - 1 / 8F D. 24V 50HZ COMPLETE €56.86
68
 photo_cameraImage coming soon 3.749.0024 TANK LT. 1 FOR ANTI-SCALE (14650100 box of 10pcs) €11.07
69
 photo_cameraImage coming soon 3.099.0281 TUBE CRISTAL SCREEN 6X12 (ROLL OF 100MT) €5.14
70
 photo_cameraImage coming soon 4.606.0004 HOSE HOLDER D.7 1/8 M (BRASS) €6.80
71
 photo_cameraImage coming soon 3.004.0024 ALUMINUM WASHER 10X14XSP.1, 5 €1.68
72
 photo_cameraImage coming soon 5.613.0120 LK X ANTI-SCALE TANK SUPPORT -PAINTED- €30.71
73
 photo_cameraImage coming soon 3.100.0047 NIPPLE 1/8 WITH. 1/8 CIL. SV. €5.80
74
 photo_cameraImage coming soon 4.618.0041 PIPE B.P. D.19X10 L = 470 C3 / 8 F GIR.-3 / 8M €31.72
75
 photo_cameraImage coming soon 3.749.0006 PLASTIC TRAY (MTM) €13.38
76
 photo_cameraImage coming soon 3.749.0005 FLOATING TAP OT 3/8 29016000 €44.50
77
 photo_cameraImage coming soon 3.749.0007 TANK COVER (MTM) €3.64
78
 photo_cameraImage coming soon 6804 CRISTAL TUBE 10X14 €12.17
79
 photo_cameraImage coming soon 4.618.0084 LOW PRESSURE HOSE 1/2 G L = 305 PUMP / V SHAFT LKX €13.45
80
 photo_cameraImage coming soon 5.609.0058 ASSEMBLY HOSE HOLDER - FILTER X TRAY €47.55
81
 photo_cameraImage coming soon 5.009.0007 NUT FOR HOSE HOSE D.17 BRASS €3.23
82
 photo_cameraImage coming soon 3.100.0060 HOSE HOLDER D.17 3/4 NUT (BRASS) €14.42
83
 photo_cameraImage coming soon 3.004.0032 RUBBER WASHER 24,2X17X2 AS S.ASPIRAZ. €1.68
84
 photo_cameraImage coming soon 4.606.0028 NIPPLE 1/2 M. 3/4 M. €6.37
85
 photo_cameraImage coming soon 3.004.0004 ALUMINIUM WASHER 21X30XSP 1,5 €1.74
86
 photo_cameraImage coming soon 3.749.0039 FILTER FOR TRAY G.1 / 2F. (28202723) €12.47
87
 photo_cameraImage coming soon 5.609.0059 ASSEMBLY PROFESSIONAL BULB BODY LKX, NPX + SUPPORT €71.36
88
 photo_cameraImage coming soon 4.608.0003 RING D.17xM22 RAPID ATT. JOB €4.76
89
 photo_cameraImage coming soon 3.100.0018 RAPID COUPLING 3/8 M. 08 (465) €14.98
90
 photo_cameraImage coming soon 4.606.0038 ADJUSTING SCREW FOR SAFETY VALVE €6.90
91
 BULB ASSY 4.606.0087 BULB ASSY €49.01
92
 photo_cameraImage coming soon 3.100.0020 REDUCTION M.GAS/M.GAS 1/2-3/8 €8.03
93
 photo_cameraImage coming soon 5.613.0282 RTHERMOSTAT BULB SUPPORT JOLLY 4/93 €74.21
94
 photo_cameraImage coming soon 4.606.0019 SUCTION CONNECTOR M22 IDRO COMPACT €5.16
95
 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 4.008.0031 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 €1.54
97
 photo_cameraImage coming soon 4.618.0030 TUBE B.P. D.20X10 3/8M-3/8M. L.450 €26.69
98
 photo_cameraImage coming soon 4.606.0080 DETERGENT SUCTION FITTING 1 / 2G €8.02

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Original Parts for Pressure Cleaner LKX 31 TS 8.611.0160

Fix Your Pressure Cleaner 8.611.0160 - IDRO LKX 31 TS AC 230/50 CM-G. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee

In the following tables, look for the spare part and its respective code.
8.611.0160 - IDRO LKX 31 TS AC 230/50 CM-G

8.611.0160 - IDRO LKX 31 TS AC 230/50 CM-G
35540016-2 - POMPA LW-K 3025 S SX 1450 rpm(6300075100) A.S.S Pag.1
# Part Num. Description
1 3.555.0202 HEAD PIST.ONS D.18 X LW-K 3025 3218032600
2 3.555.0076 HEAD CAP G1 / 8 3202.0018.00
3 3.002.0455 SCREW M6x55 3609.0152.00
4 3.555.0005 GASKET OR 2.62X17.13 1210004600
5 3.555.0028 SEAT FOR VALVE PLATE 3009008700
6 3.555.0007 STEEL PLATE FOR VALVE 3604001700
7 3.555.0028 SPRING FOR VALVE 1802017700
8 3.555.0028  VALVE CAGE 1205002500
9 3.200.0027 O-RING 2.62X20.24 FOR CAP 1210004800
10 3.555.0012 VALVE CAP 3202026700
11 3.002.0227 SCREW M5x10 3609.0088.00
12 3.555.0057 FLANGE FOR COVER 1004.0012.00
13 3.555.0056 COVER 0402017200
14 3.200.0219 GASKET OR 44,04X3,53 NBR SH.70
15 3.555.0079 SEEGER RING 3019.0011.00
16 3.001.0085 RADIAL BALL BEARING 6304 (20X52X15) HIGH QUALITY
17 6.605.0115 PUMP HOUSING 0403.0128.00
18 3.099.1480 OIL FILLING CAP C / HOSE AND BREATHER (ROD L = 58)
20 3.555.0046 HEAD RING D.18 0009019300
21 3.555.0047 GASKET D.18 1241002200
22 3.555.0048 GASKET 18X25X5.5 (1241002800)
23 3.555.0049 SEAL RING D.18 0009019700
24 3.555.0085 OR 1.78X26.7 (SEAL) 1210022300
25 6.605.0111 OIL SEALS KIT D.15 FOR PUMP LP 1507-1808
26 3.555.0059 NUT 0600004800
27 3.555.0060 WASHER 8.2X14X1.5 2811008000
28 3.555.0027 PISTON D.18 0202.0018.00
29 3.555.0062 PISTON BASE WASHER 2812003800
30 3.200.0043 O-RING 1.78X6.07 1210.0055.00
31 3.555.0064 PISTON GUIDES 2409.0044.00
32 4.607.0534 PIN FOR GUIDE PIN PISTON PUMP 1808
33 3.555.0066 CONNECTING ROD 0205.0050.00
34 3.555.0067 STOPPER FOR CAP 3019.0033.00
35 3.555.0143 OIL LEVEL INDICATOR 3201.0010.00
36 3.555.0069 O-RING 1.78X23.52 1210.0333.00
37 3.555.0070 O-RING 2.62X101.27 1210.0206.00
38 6.605.0115 HOUSING COVER 0402014200
39 3.555.0088 SCREW M6x25 3609.0041.00
40 6.005.0306 SHAFT OIL SEAL D.25X62X 10 DIN AS
41 6.605.0113 KIT 5 SEEGER D.25
42 6.605.0114 KIT 3 SEEGER D.62
43 3.001.0084 RADIAL BALL BEARING 6305 (25X62X17)
44 3.555.0072 KEY 8X7X25 1602.0045.00
45 3.555.0071 SHAFT D.24 0001.0290.00
49 3.555.0015 SLICED WASHER 16,7X22X1,5 2811008400
50 3.555.0014 PLUG G1 / 2 BRASS 3202001500
61 3.555.0028 INTAKE / DELIVERY VALVE ASSEMBLY 1220.0030.00
62 3.555.0028 KIT 6 COMPLETE VALVES FW-LW 5025.0011.00
63 3.555.0024 WATER SEALS KIT FOR LW 3525 5019003700
64 3.555.0027 PISTON KIT FOR LW 3525 2409.0072.00
65 3.555.0025 OIL SEALS KIT FOR LW 5019004000
86 4.607.0259 CHECK VALVE SPRING D.4,8x5, 8 L = 20 WIRE 0,5 INOX
87 5.609.0041 ASSEMBLY CHECK VALVE + OR
96 3.555.0016 CAP 3/8 GAS 3200.0007.00
99 3.555.0013 SLICED WASHER 21.2X27X1.5 2811008600
56010155-2 - MOTOPOMPA LWM 230/50 4P HP3 TSLW-K 3025 S SX X CALDO Pag.2
0 5.601.0070 MOTOR PUMP LWM 230/50 4P KW.3 LW3025
2 3.404.0036 CAPACITOR 80mF 450V D.50X121 C / CABLES L = 300 C / COVER REF.
4 3.004.0010 TOOTHED WASHER EX.D6X11 Sp0,7 DI N6798A ZNT
5 4.607.0008 TIE ROD LW MOTOR M6X171
6 3.003.0019 NUT M6 HEX.CIECO ZNT UNI 5721
13 3.002.0131 SCREW TSPEI M8X16 CL.10.9 UNI59 33 ZNT
14 4.607.0010 FLANGE COUPL. PUMP-MOTOR D. EXT. 145 FL.90 - FINISHED -
15 3.100.0022 REDUCTION M.GAS / M.GAS 3 / 8SV-1 / 4SV
16 3.704.0006 PRESSURE SWITCH PS2 1 / 8M 25BAR RED P / N 4090000008
17 3.554.0023 PUMP LWS-K 3025 S SX 1750 rpm -6301135100-
18 4.606.0088 HOSE HOLDER 1/4 G M D.7
19 3.106.0034 SAFETY VALVE G1 / 4 M D6 200BAR MTM (190031)
21 4.007.0181 CONNECTION X SAFETY VALVE
22 4.618.0035 HOSE R1 250BAR L = 600 WITH / CONNECTION 1 / 2-3 / 8F 90Â ° (CONNECTION OFFSET 180 °) -PUMP / SERP.
23 4.618.0030 HOSE LOW P. R1 L = 450 FITTING 3/8M-3 / 8M
24 3.100.0046 REDUCTION 3 / 8F CIL. 1 / 2M CIL.SV. ZNT
25 3.003.0007 NUT E. M6 MEDIUM UNI 5588 CL10 ZNT
26 3.004.0035 SPRING WASHER GROWER D.6 DI N 127 TYPE B ZNT WHITE
27 4.605.0003 MOTOR FRONT COVER LW D.150
28 3.002.0050 SCREW TE M6X25 UNI 5739 ZNT
29 3.001.0009 BALL BEARING 6007-2RS 35x62x14 (X MOT.EL.)
30 5.605.0048 ROTOR SHAFT 90X135 ALL. LW FOR SINGLE-PHASE MOTOR 30 CAVE INCL. 1,5
31 5.602.0031 HOUSING LWM 230/50 4P 150X90 H135
32 3.001.0010 BALL BEARING 6205-2Z (52X25X15)
33 3.099.0017 COMPENSATION RING D.51,8X41X0, 5 -52B-
34 6.005.0194 REAR MOTOR COVER LW.V D.150 X BEARING D.52 TURNED
35 3.099.0018 FAN FA 100 VP D.24x168 C / F ASCETTA
36 4.607.0082 FAN COVER MEC100 EXHAUST IN F. -FINISHED-
37 5.606.0069 MOTOR LWM 230/50 D.150 H135 4P C / CLAMP
38 5.601.0228 MOTOR PUMP LWM 230/50 4P HP3 TS LW-K 3025 S SX X HOT
86110160-1 - IDRO LKX 31 TS AC 230/50 CM-G-PIST.C/REG.PORT. Pag.3
1 3.002.0122 WIDE ROUNDED HEAD SCREW CROSS CUT M6X12ZNT
2 4.613.0111 UPPER CASING JOLLY 5 / L KX YELLOW
3 4.608.0203 DIESEL / DETERGENT TANK J OLLY 5 / LKX
4 4.612.0046 POWER CABLE H05VV-F 3X1.5 L = 6000 WITHOUT / FASTON
5 4.608.0073 SHORT SPACER FOR JOLLY TANK 4/93
6 5.009.0159 OIL CAP COMPLETE WITH GASKET 3 / 8G
7 4.608.0074 LONG SPACER FOR TANK JOLLY 4/93 63mm
8 5.613.0096 BOILER AXLE JOLLY 4/93
9 4.608.0082 FUEL TANK CAP-CHEM -N-
10 3.200.0038 GASKET OR 53.65x2.62 REF. 3212
11 5.613.0115 REAR AXLE JOLLY 5 / LKX PAINTED
12 6.605.0168 WHEEL D.260X85 FULL BLACK
13 4.608.0434 STUD D.135 BLACK WHEEL COVER FOR D.260 WHEEL
14 5.009.0340 QUICK COUPLING ASSEMBLY D.17 BRASS WITH / OR + RING
15 3.100.0043 SWIVEL QUICK COUPLING 3/8 M MV G8 (461) 26075050
16 4.618.0012 HOSE 5/16 R1 310BAR L = 10000 C / HOSES AND ATT. 3/8-3 / 8
17 3.700.0029 TRIGGER GUN RL200 3 / 8M + S4 + QUICK COUPLING + FLOW REGULATOR 30015560
18 3.708.0001 LANCE M22x1,5-1 / 8 F L = 700 MT6 S / ROSETTA
19 3.103.0050 HIGH PRESSURE NOZZLE 1 / 8M 15045
20 3.099.0019 RETAINER FOR WHEEL D.250X55 D.20
86110160-1 - IDRO LKX 31 TS AC 230/50 CM-G-PIST.C/REG.PORT. Pag.4
2 4.608.0079 DASHBOARD '93 WITH COMPLETE SERIGRAPHY
4 4.608.0019 THERMOSTAT-TAP KNOB BLACK 3079/1
5 3.403.0091 THERMOSTAT 30/150 BULB D.5 (2 FASTON)
6 3.105.0003 REGULATION VALVE DET.CON / HOSE HOLDER D.7 (DIS.N.6990A 3/4 TURN)
7 4.608.0065 DASHBOARD BOX '93
8 4.608.0071 DASHBOARD CABLE COVER '93
9 5.009.0165 FRAME FOR SEALING SWITCH AND HOBBY
10 5.009.0165 HOBBY WATERPROOF SWITCH COVER
11 3.401.0025 MICRO BREAKER 3120-N551-P7T1-W02D-16A WITHOUT / PROTECTION
12 5.009.0213  SWITCH 0/1 BIP16 (8) -12 (10) A
13 5.613.0156 SWITCH BRACKET
15 3.107.0004 PRESSURE GAUGE D.50 0/315 BAR 1/4 REAR + BRACKET
16 4.618.0014 PRESSURE GAUGE PIPE 2X380 max630bar 1/4 F / GIR-1/4 F / GIR
17 4.008.0556 TRANSPARENT TUBE D.6x12 L = 400 MESH
18 3.099.0282 TWO-WIRE CLAMP X TUBE 6x12 (15126)
19 3.405.0003 TERMINAL BLOCK 5 POLES 10mmq. / LA MELLA
20 4.608.0078 DASHBOARD GASKET '93 (3x 900)
21 4.615.0003 ANTI-CALC ELECTRIC BOARD 2 4V
22 6.605.0172 TRANSFORMER 220-380V 24V 2A
23 3.403.0004 TOTAL STOP TS1 BOARD
24 3.402.0002 KN12 CONTACTOR 24V 50HZ 380 / 5,5KW AC3
25 5.611.0002 COMPLETE BURNER FLANGE 1.25-45 RIGHT
26 4.607.0001 PLATE HOLDER SPARK PLUG 15x 32 TH.3.5
27 4.614.0004 ELECTRODE 0772589000
28 3.100.0017 ELBOW FITTING 4 1/8 COPPER PIPE
29 3.099.0015 SEEGER I RING D.21 SP1 DIN 472
30 4.608.0002 SLIDE DIAM. 20 TH.1,8
31 4.605.0001 MACHINED BURNER FLANGE
32 3.104.0028 DIESEL NOZZLE 1.25 45-B
33 4.606.0064 LKX CARENATUR FIXING COLUMN
34 4.616.0006 COPPER TUBE DIAM. 4 COMPACT
35 6.605.0102 IGNITION TRANSFORMER 230/50 818C / S
36 4.607.0011 BRACKET FOR FIXING THE ENGINE LOWER ZNT
37 5.609.0023 ASSEMBLY FAN PROTECTION GRID
38 4.608.0036 TERMINAL FOR POWER CABLE
39 4.608.0068 COMPACT 4P GUIDE HANDLE
040 5.613.0119 LKX HANDLE SUPPORT -PAINTED O-
41 4.608.0103 GASOLINE PUMP PROTECTION CASE OR LKX
42 3.099.0028 FAN 146x72 SX. HOLE DM 12.7
43 3.300.0003 MOTOR X BURNING 100W / 230-240 / 50H z IP55
44 6.605.0173 RED PLASTIC JOINT DIESEL PUMP EME / UNIELECTRIC MOTOR
45 3.100.0015 1/8 M. STRAIGHT FITTING FOR COPPER PIPE D.4
46 3.551.0063 DOUBLE PIPE DIESEL PUMP + 24V ELECTRODE. D DX
47 3.004.0015 FLAT WASHER D.22X39 Th.3 ZNT UNI6592
48 4.606.0013 SERPENT FIXING NUT. 1/2 O T SPEC.
49 5.611.0067 DIESEL FILTER UNIT (PAPER) LKX
50 4.618.0035 TUBE R1 250BAR L = 600 C / CONNECTION 1 / 2-3 / 8F 90Â ° (CONNECTION SFALS.180Â °) -PUMP / SERP.
51 4.618.0043 HOSE R1 3/8 L = 375 C.1 / 2F.GIR 90 '/ C.3 / 8F GIR 90'
52 5.611.0012 COVER EXT. BOILER
53 5.611.0099 CABLE L = 480 WITH PROTECTION
54 3.003.0010 NUT M6 HEXAGONAL BLIND BRASS UNI 5721
55 3.004.0006 FLAT WASHER D.6,4X12 Sp.1,6 ZNT UNI6592
56 5.613.0147 BOILER EXTERNAL COVER
57 5.610.0105 DEFLECTOR WITH CONE D.82 WITH HOLES
58 5.613.0122 COVER INNER COMB. CHIMNEY L = 90
59 4.604.0001 TOP COIL H.335 L = 20mt (F E. 35.2)
60 5.613.0118 PAINTED JOLLY 5 / LKX BOILER BODY
61 6.605.0247 CEMENTED REFRACTORY D.290X20 FOR BOILER
63 4.607.0006 SERP FIXING BAND. IN LAMI ERA 15/10 INOX AISI 430
64 4.608.0162 INSULATING ROPE X BOILER BASE L = 990
65 5.613.0116 JOLLY 5 / LKX BOILER BASE -PAINTED-
66 5.609.0051 ASSEMBLY CONNECTOR + CABLE X ELECTRIC ANTIC. L = 1000
67 3.412.0001 SOLENOID VALVE 1 / 8F - 1 / 8F D. 24V 50HZ COMPLETE
68 3.749.0024 TANK LT. 1 FOR ANTI-SCALE (14650100 box of 10pcs)
69 3.099.0281 TUBE CRISTAL SCREEN 6X12 (ROLL OF 100MT)
70 4.606.0004 HOSE HOLDER D.7 1/8 M (BRASS)
71 3.004.0024 ALUMINUM WASHER 10X14XSP.1, 5
72 5.613.0120 LK X ANTI-SCALE TANK SUPPORT -PAINTED-
73 3.100.0047 NIPPLE 1/8 WITH. 1/8 CIL. SV.
74 4.618.0041 PIPE B.P. D.19X10 L = 470 C3 / 8 F GIR.-3 / 8M
75 3.749.0006 PLASTIC TRAY (MTM)
76 3.749.0005 FLOATING TAP OT 3/8 29016000
77 3.749.0007 TANK COVER (MTM)
78 6804 CRISTAL TUBE 10X14
79 4.618.0084 LOW PRESSURE HOSE 1/2 G L = 305 PUMP / V SHAFT LKX
80 5.609.0058 ASSEMBLY HOSE HOLDER - FILTER X TRAY
81 5.009.0007 NUT FOR HOSE HOSE D.17 BRASS
82 3.100.0060 HOSE HOLDER D.17 3/4 NUT (BRASS)
83 3.004.0032 RUBBER WASHER 24,2X17X2 AS S.ASPIRAZ.
84 4.606.0028 NIPPLE 1/2 M. 3/4 M.
85 3.004.0004 ALUMINUM WASHER 21x30xSP.1, 5
86 3.749.0039 FILTER FOR TRAY G.1 / 2F. (28202723)
87 5.609.0059 ASSEMBLY PROFESSIONAL BULB BODY LKX, NPX + SUPPORT
88 4.608.0003 RING D.17xM22 RAPID ATT. JOB
89 3.100.0018 QUICK COUPLING 3 / 8M-1 / 2M 08 ZNT
90 4.606.0038 SAFETY VALVE ADJUSTMENT SCREW
91 4.606.0087 PROFESSIONAL THERMOSTAT BULB BODY
92 3.100.0020 NIPPLE 1 / 2G-3 / 8G
93 5.613.0282 RTHERMOSTAT BULB SUPPORT JOLLY 4/93
94 4.606.0019 SUCTION FITTING L = 60 M22 - 3 / 8G
95 4.008.0031 INTAKE FILTER D.16 CONICAL H2O
97 4.618.0030 LOW PRESSURE HOSE R1 L = 450 FITTING 3 / 8M-3 / 8M
98 4.606.0080 DETERGENT SUCTION FITTING 1 / 2G
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Lavor LKX 31 - 8.611.0160
6 Items

Data sheet

Machine Type
Pressure Washer
SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

Lavor LKX 31 TS Parts Diagram

Lavor LKX 31 TS Parts Diagram

Download (1.18MB)

You might also like

Head Turbo Nozzle Ø 1,025 for Lance Lavor
Lavorwash S.p.A. SKU: 6.002.0346
Head Turbo Nozzle Ø 1,025 for Lance Lavor
Head Turbo Nozzle Ø 1,025 for Lance Lavor Genuine Replacement part Lavor, Head cod. 6.002.0346 Turbo Nozzle Ø 1,025 for Lance Lavor 6.002.0340. Part suitable for the following high pressure...
AVAILABLE €8.32
Details
Quick Coupling 3/4F for High Pressure Washers Lavor
Lavorwash S.p.A. SKU: 3.100.0082
Quick Coupling 3/4F for High Pressure Washers Lavor
Quick Coupling 3/4F  for High Pressure Washers Lavor Genuine Replacement part Lavor, Quick Coupling 3/4F 3.100.0082 for Cold Water High Pressure Washers Fury 110 - Ride 110 - Race 125...
AVAILABLE €1.63
Details
Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 4.008.0031
Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24
Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 Original replacement part Lavor, Inlet Water Filter H20 D.16 Conical for Pressurte Washers STORM II 17 - STORM II PLUS 21 - BEST 24.  Part for the following products: -...
AVAILABLE €1.54
Details
Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 6.005.0079
Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24
Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24 Original replacement part Lavor, Kit 79 LW Oil Seal for Partner D.12/Fibra per Pressure Washers ARMY 110 - MARINE 125 - NAVY 140 - ENDURO 145 COMP. Part for the following...
Usually Shipped on: 7/10 Business Days Approx. €14.50
Details
Kit 167 LW 3 Pistons + Springs for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 6.005.0181
Kit 167 LW 3 Pistons + Springs for Pressurte Washer Lavor BEST 24
Kit 167 LW 3 Pistons + Springs for Pressurte Washer Lavor BEST 24 Original replacement part Lavor, Kit 167 LW 3 Pistons + Springs PT' 03 per Pressure Washers ARMY 110 - MARINE 125 - NAVY 140 - ENDURO 145 - BEST 24. Part for the...
Usually Ships in: 7/10 Business Days Approx. €17.00
Details
Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 6.005.0226
Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24
Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24 Original replacement part Lavor, Kit 209 O-Ring for PT'03 per Pressure Washers ARMY 110 - MARINE 125 - NAVY 140 - ENDURO 145 - BEST 24. Part for the following products: -...
Usually Ships in: 7/10 Business Days Approx. €11.10
Details
Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145
Lavorwash S.p.A. SKU: 5.008.0261
Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145
Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145 Original replacement part Lavor, Head PT'03 EVO D.12 for ENDURO 145 - ARMY 110 - MARINE 125 - NAVY 140 - RAPTOR 21 - STORM II 18 - STORM II PLUS 21. Part for the following...
AVAILABLE €28.99
Details
Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145
Lavorwash S.p.A. SKU: 6.005.0311
Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145
Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145 Original replacement part Lavor, Kit 283 LW Needle Bearing for Motorpump PT'03 (U76) for ENDURO 145 - ARMY 110 - MARINE 125 - NAVY 140 - RAPTOR 21 - STORM II. Part for...
AVAILABLE €5.50
Details
Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110
Lavorwash S.p.A. SKU: 6.005.0588
Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110
Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110 Original replacement part Lavor, Kit LW Intake Delivery Valves for High Pressure Washers ARMY 110 - MARINE 125 - NAVY 140. Part for the following products: - R80880029C -...
AVAILABLE €27.72
Details
Lance S'02V 1,00 (Blu) for Pressure Washer EXPRESS PLUS Sale
Lavorwash S.p.A. SKU: 6.002.0263
Lance S'02V 1,00 (Blu) for Pressure Washer EXPRESS PLUS
Lance S'02V 1,00 (Blu) for Pressure Washer EXPRESS PLUS Genuine Part Lavor, Lance S'02V 1,00 (Blu) for Pressure Washer 8.084.0006C Lavor IDRO EXPRESS PLUS 220-240/50Hz. Part suitable for the following high pressure washers: -...
AVAILABLE €13.00
Details
Capacitor 55mF 450V for Pressurte Washer Lavor GIANT 24
Lavorwash S.p.A. SKU: 3.404.0095
Capacitor 55mF 450V for Pressurte Washer Lavor GIANT 24
Capacitor 55mF 450V for Pressurte Washer Lavor GIANT 24 Original replacement part Lavor, Capacitor 55mF 450V D.50x94 F/M per Pressure Washers GIANT 24 - GIANT 28 - TEMPESTA 24 - TEMPESTA 28. Part for the following products: - 81050002...
AVAILABLE €19.52
Details
Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 3.107.0004
Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500
Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Pressure Gauge D.50 0/315 BAR - 1/4 Rear thread + Bracket (ref 129 939 81) for Pressure Washers NPX 1400 - NPX...
on 7/10 Business Days Approx. €33.35
Details
Quick Coupling for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 5.009.0340
Quick Coupling for Pressure Washers Lavor NPX 1400 - NPX 1500
Quick Coupling for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Quick Coupling Assy + O-Ring + Ring Nut for Pressure Washers NPX 1400 - NPX 1500. Part for the following products: - Pressure Washer Lavor...
on 10 Business Days Approx €15.06
Details
Thermostate Knob for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 4.608.0019
Thermostate Knob for Pressure Washers Lavor NPX 1400 - NPX 1500
Thermostate Knob for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Black Thermostate Knob 3079/1t for Pressure Washers NPX 1400 - NPX 1500. Part for the following products: - Pressure Washer Lavor NPX 1400...
on 10 Business Days Approx €10.03
Details
Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 3.100.0043
Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500
Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, 3/8 M Rotating Quick Coupling for Pressure Washers NPX 1400 - NPX 1500. Part for the following products: - Pressure Washer Lavor NPX 1400 -...
AVAILABLE €17.59
Details
Piston Guide Body With Complete Valve Head for Lavor Missouri
Lavorwash S.p.A. SKU: 5.007.0231
Piston Guide Body With Complete Valve Head for Lavor Missouri
Piston Guide Body With Complete Valve Head for Lavor Missouri Genuine part Lavor, Piston Guide Body PT'03 - Ceramic Pistons Diameter 12 mm + Total-Stop, Turned With Complete Valve Head With Intake Springs 17K. Part for the following...
Usually Ships in: 7/10 Business Days Approx. €72.11
Details
Suction Valve Ass'y for Pressure Cleaner Lavor Missouri
Lavorwash S.p.A. SKU: 5.009.0534
Suction Valve Ass'y for Pressure Cleaner Lavor Missouri
Suction Valve Ass'y for Pressure Cleaner Lavor Missouri Genuine part Lavor, Suction Valve Ass'y for '03 Head for Pressure Cleaners MISSOURI - EAGLE 24. Part for the following products: -  86190601 - IDRO MISSOURI 230/50 TS -G- LWS -...
on 7/10 Business Days Approx €9.28
Details
Delivery Valve Brass Cap for Pressure Cleaner Lavor Missouri
Lavorwash S.p.A. SKU: 5.009.0745
Delivery Valve Brass Cap for Pressure Cleaner Lavor Missouri
Delivery Valve Brass Cap for Pressure Cleaner Lavor Missouri Genuine part Lavor, Delivery Valve Brass Cap with O-Ring for '03 Head for Pressure Cleaners MISSOURI - EAGLE 24. Part for the following products: -  86190601 - IDRO MISSOURI...
AVAILABLE €5.03
Details
Radial Ball Bearing 6203RS for Pressure Cleaner Lavor Missouri
Lavorwash S.p.A. SKU: 3.001.0020
Radial Ball Bearing 6203RS for Pressure Cleaner Lavor Missouri
Radial Ball Bearing 6203RS for Pressure Cleaner Lavor Missouri Genuine part Lavor, Radial Ball Bearing 6203RS for Pressure Cleaners MISSOURI - Giant 24 - Giant 28 - Tempesta 24 - Tormenta 28. Part for the following products: -...
on 7/10 Business Days Approx €13.71
Details
Transformer 230-240V for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 5.009.0686
Transformer 230-240V for Pressure Washer Lavor Missouri
Transformer 230-240V for Pressure Washer Lavor Missouri Genuine part Lavor, Ignition Transformer 230-240V/50-60Hz with Pipette for Pressure Washers Burner FKX-PARANA ' - RIO (EMC) + Cable Part for the following products: -  86190601...
Usually Ships in: 10/15 Business Days Approx. €100.43
Details
Diesel Filter Unit for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 5.611.0043
Diesel Filter Unit for Pressure Washer Lavor Missouri
Diesel Filter Unit for Pressure Washer Lavor Missouri Genuine part Lavor, Diesel Filter Unit JOLLY 4 '93 / MISSOURI / MEK for Pressure Washers Missouri - NPX 1400 - NPX 1500. Part for the following products: -  86190601 - IDRO...
Usually Ships in: 10 Business Days Approx. €15.19
Details
Pressure Adjustment Valve for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 5.009.0304
Pressure Adjustment Valve for Pressure Washer Lavor Missouri
Pressure Adjustment Valve for Pressure Washer Lavor Missouri Genuine part Lavor, Pressure Adjustment Valve Ass'y for Pump ULKA (Spring L=20) for Pressure Washers MISSOURI FKX-PARANA' - MISSOURI - RIO (EMC) + Cable. Part for the...
on 7/10 Business Days Approx. €28.99
Details
Electrodes for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 4.614.0001
Electrodes for Pressure Cleaner Lavor NPX 1400
Electrodes for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Unified Electrodes with Bracket for Boilerfor Pressure Cleaners NPX 1400 - NPX 1500 - LKX 40 - NPX 1511 XP T...
on 10 Business Days Approx €36.16
Details
Diesel Pump for Pressure Cleaner Lavor NPX 1400 Sale
Lavorwash S.p.A. SKU: 3.551.0037
Diesel Pump for Pressure Cleaner Lavor NPX 1400
Diesel Pump for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Double Pipe Diesel Pump + Electrode 220V Right for Pressure Cleaners NPX 1400 - LKX 40 Part for the...
on 10 Business Days Approx €113.24
Details
Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 6.605.0173
Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400
Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Diesel Pump Red Plastic Coupling Set for Engine EME/UNIELECTRICp for Pressure Cleaners NPX 1400 - NPX 1500 Part for the following products: -...
on 10 Business Days Approx €29.06
Details
Washer SNHORt for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 3.004.0022
Washer SNHOR for Pressure Cleaner Lavor NPX 1400
Washer SNHOR for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Washer SNHOR D.8x13 sp.0.8 for Pressure Cleaners NPX 1400 - NPX 1500 Part for the following products: -  Pressure Cleaner Lavor NPX 1400 - 8.605.0048 -...
on 10 Business Days Approx €1.71
Details
Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 3.403.0091
Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500
Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Thermostat 30/150 Bulb d.6.5 (3 Faston) for Pressure Washers NPX 1400 - NPX 1500. Part for the following products: -  Pressure Washer Lavor NPX...
on 10 Business Days Approx €35.00
Details
Micro Breaker for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 3.401.0025
Micro Breaker for Pressure Cleaner Lavor NPX 1400
Micro Breaker for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Micro Breaker 3120 - F551-P7T1-W02D-16A for Pressure Cleaners NPX 1400 - NPX 1500. Part for the following products: -  Pressure Cleaner NPX 1400 230/50...
on 10 Business Days Approx €46.23
Details
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 4.608.0078
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Dashboard Gasket '93 (3x900) for Pressure Cleaners NPX 1400 - NPX 1500 - LKX 40. Part for the following products: -  Pressure Cleaner NPX 1400 230/50...
Last items in stock €3.32
Details
Pressure Switch for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 3.704.0006
Pressure Switch for Pressure Washer Lavor Missouri
Pressure Switch for Pressure Washer Lavor Missouri Genuine part Lavor, Pressure Switch 25 Bar 1/8 Red L.700 Faston F. for Pressure Washers  MISSOURI - YUKON 1310 - NPX 1500 - LKX 40. Part...
Usually Ships in: 10 Business Days Approx. €30.90
Details
Diesel Nozzle for Pressure Washers Lavor NPX 1400
Lavorwash S.p.A. SKU: 3.104.0028
Diesel Nozzle for Pressure Washers Lavor NPX 1400
Diesel Nozzle for Pressure Washers Lavor NPX 1400 Genuine replacement part Lavor, Diesel Nozzle 1,25 45-B for Pressure Washers NPX 1400 - NPX 1500 - LKX 31 - LKX 40. Part for the following...
Usually Ships in: 7/10 Business Days Approx. €28.36
Details
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1500
Lavorwash S.p.A. SKU: 4.618.0014
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1500
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Pressure Gauge Pipe 2x380 Max 630 Bar 1/4 F. Gir. 1/4 F Gir. for Pressure Washers NPX 1400 - NPX...
Usually Ships in: 10/15 Business Days Approx. €26.46
Details
Lavor LKX 31 Diesel Filter Unit
Lavorwash S.p.A. SKU: 5.611.0067
Lavor LKX 31 Diesel Filter Unit
Lavor LKX 31 Diesel Filter Unit Genuine replacement part Lavor, Diesel Filter Unit Assy (PAPER) for LKX 31 - 40 - 55 - 2015. Part for the following products: - 8.611.0160 - Pressure Washer LKX 31 TS AC 230/50 CM-G -...
Usually Ships in: 10/15 Business Days Approx. €19.50
Details
Lavor LKX 31 Single Pipe Diesel Pump
Lavorwash S.p.A. SKU: 3.551.0063
Lavor LKX 31 Double Pipe Diesel Pump
Lavor LKX 31 Double Pipe Diesel Pump Genuine replacement part Lavor, Double Pipe Diesel Pump + 24V ELECTRODE. D DX for LKX 31 - 40 - 55 - 1515. Part for the following products: - 8.611.0160 - LKX 31 TS AC 230/50 CM-G -...
Usually Ships in: 10/15 Business Days Approx. €103.22
Details
Lavor Nozzle for ONTARIO 1211LP
Lavorwash S.p.A. SKU: 3.103.0050
Lavor Nozzle for ONTARIO 1211LP
Lavor Nozzle for Pressure Washer ONTARIO 1211LP Genuine replacement part Lavor, High Pressure Nozzle 1/8M 15045 for Pressure Cleaner NPX1400 - LKX 31. Part for the following products: -  Pressure Cleaner ONTARIO 1211LP -...
Usually Ships in: 10/15 Business Days Approx. €15.76
Details
Lavor Pressure Washer NPX1400 Insulating Rope
Lavorwash S.p.A. SKU: 4.608.0162
Lavor NPX1400 Insulating Rope
Lavor Pressure Washer NPX1400 Insulating Rope Genuine replacement part Lavor, Insulating Rope For Boiler Base L=990 for Pressure Washer NPX1400 - LKX 31 - LKX 55. Part for the following products: - ...
Usually Ships in: 10 Business Days Approx. €35.27
Details
Lavor NPX 1500 Bottom Refractory
Lavorwash S.p.A. SKU: 4.608.0116
Lavor NPX 1500 Bottom Refractory
Lavor Pressure Washer NPX 1500 Bottom Refractory Genuine replacement part Lavor, Kit Bottom Cement Refractory D.290 for Pressure Washer NPX 1500 - NPX 1400. Part for the following products: -  Pressure Washer...
Usually Ships in: 10/15 Business Days Approx. €42.11
Details
Comments (0)
No customer reviews for the moment.
