Lavorwash S.p.A.

Lavor Original Parts for Pressure Cleaner MEK 1108

SKU: Lavor MEK 1108 - 86190610
€96.43
VAT included

Lavor Original Parts for Pressure Cleaner MEK 1108

Fix Your Hot Water High Pressure Cleaner MEK 1108 230/50 TS -G- LWS SP.SCHUKO - 86190610. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Lavor MEK 1108 - 86190610
Lavor Original Parts for Pressure Cleaner MEK 1108
  • Lavor Original Parts for Pressure Cleaner MEK 1108
  • Lavor Original Parts for Pressure Cleaner MEK 1108
  • Lavor Original Parts for Pressure Cleaner MEK 1108
  • Lavor Original Parts for Pressure Cleaner MEK 1108
  • Lavor Original Parts for Pressure Cleaner MEK 1108
  • Lavor Original Parts for Pressure Cleaner MEK 1108
  • Lavor Original Parts for Pressure Cleaner MEK 1108
  • Lavor Original Parts for Pressure Cleaner MEK 1108
  • Lavor Original Parts for Pressure Cleaner MEK 1108
  • Lavor Original Parts for Pressure Cleaner MEK 1108
Lavorwash S.p.A.

Lavor Original Parts for Pressure Cleaner MEK 1108

SKU: Lavor MEK 1108 - 86190610 Condition: New
€96.43
VAT included

Lavor Original Parts for Pressure Cleaner MEK 1108

Fix Your Hot Water High Pressure Cleaner MEK 1108 230/50 TS -G- LWS SP.SCHUKO - 86190610. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Lavor MEK 1108 - 86190610
settings 98 spare parts
description 9 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
88 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

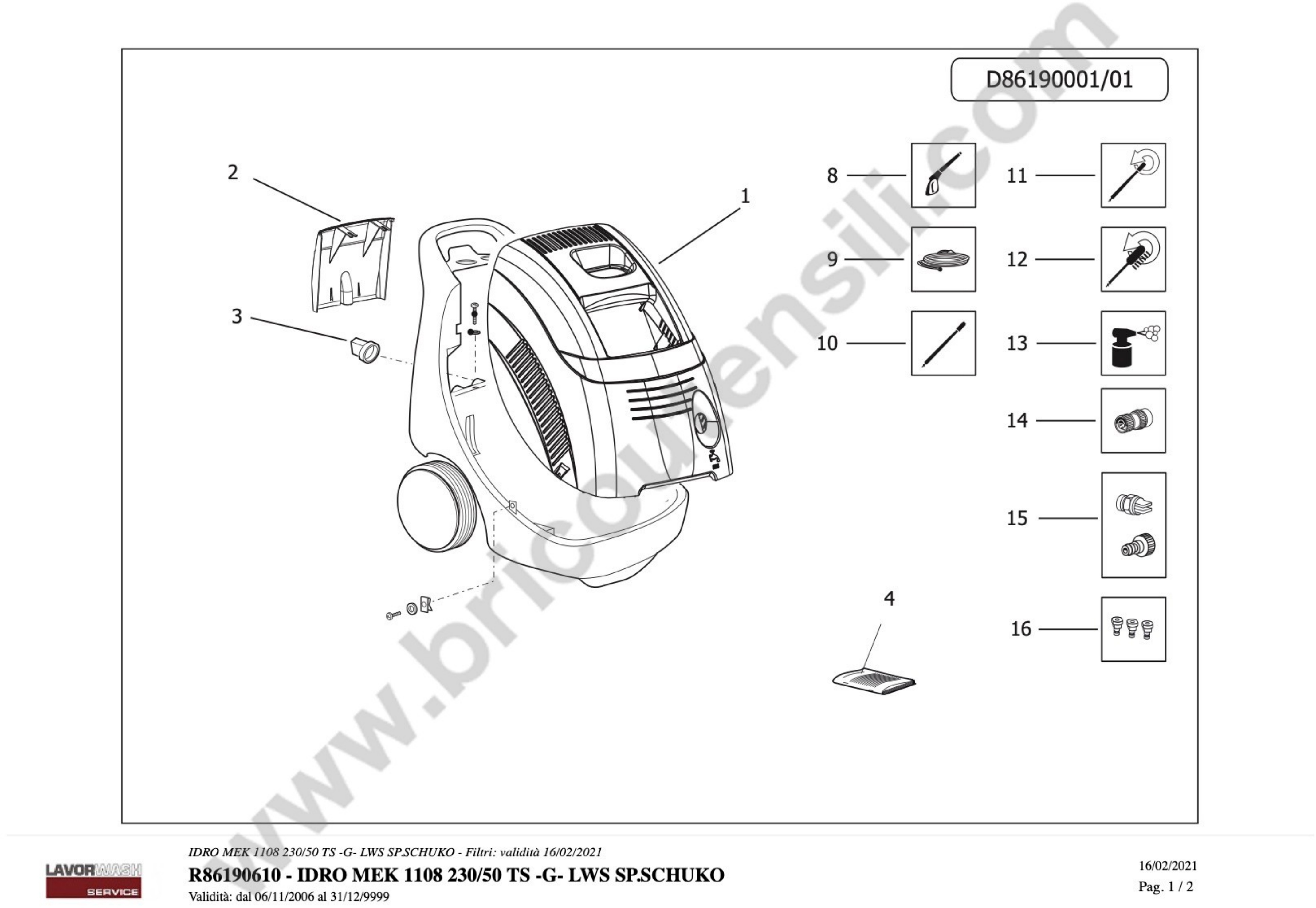

Esploso pagina 1
Pos. Item Price Buy
001
 photo_cameraImage coming soon 4.613.0175 YELLOW UPPER COVER FOR MUSSOURI €93.63
002
 photo_cameraImage coming soon 4.613.0299 REAR BLACK COVER €32.61
003
 photo_cameraImage coming soon 4.608.0027 BLACK PLUG D.30 FOR TANK €10.03
004
 photo_cameraImage coming soon 7.700.0473 INSTRUCTION MANUAL PARANA'/MEK/MISSOURI/MISSISSIPPI-R €5.50
008
 Gun AL 15 3/8 "- M22 for Hot Water Pressure Washers Lavor 3.700.0036 Gun AL 15 3/8 "- M22 for Hot Water Pressure Washers Lavor €30.90
009
 photo_cameraImage coming soon 4.618.0049 HOSE 1/4 R1 210BAR L=8000 3/8"F €55.11
010
 Lance for Pressure Washer ALASKA 1409XP 6.002.0322 Lance for Pressure Washer ALASKA 1409XP €39.34
014
 Inlet Quick Coupling for High Pressure Washers Lavor 3.100.0062 Inlet Quick Coupling for High Pressure Washers Lavor €4.25
016
 Set of 5 Nozzles for High Pressure Lance Lavor 5.012.0478 Set of 5 Nozzles for High Pressure Lance Lavor €39.62
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

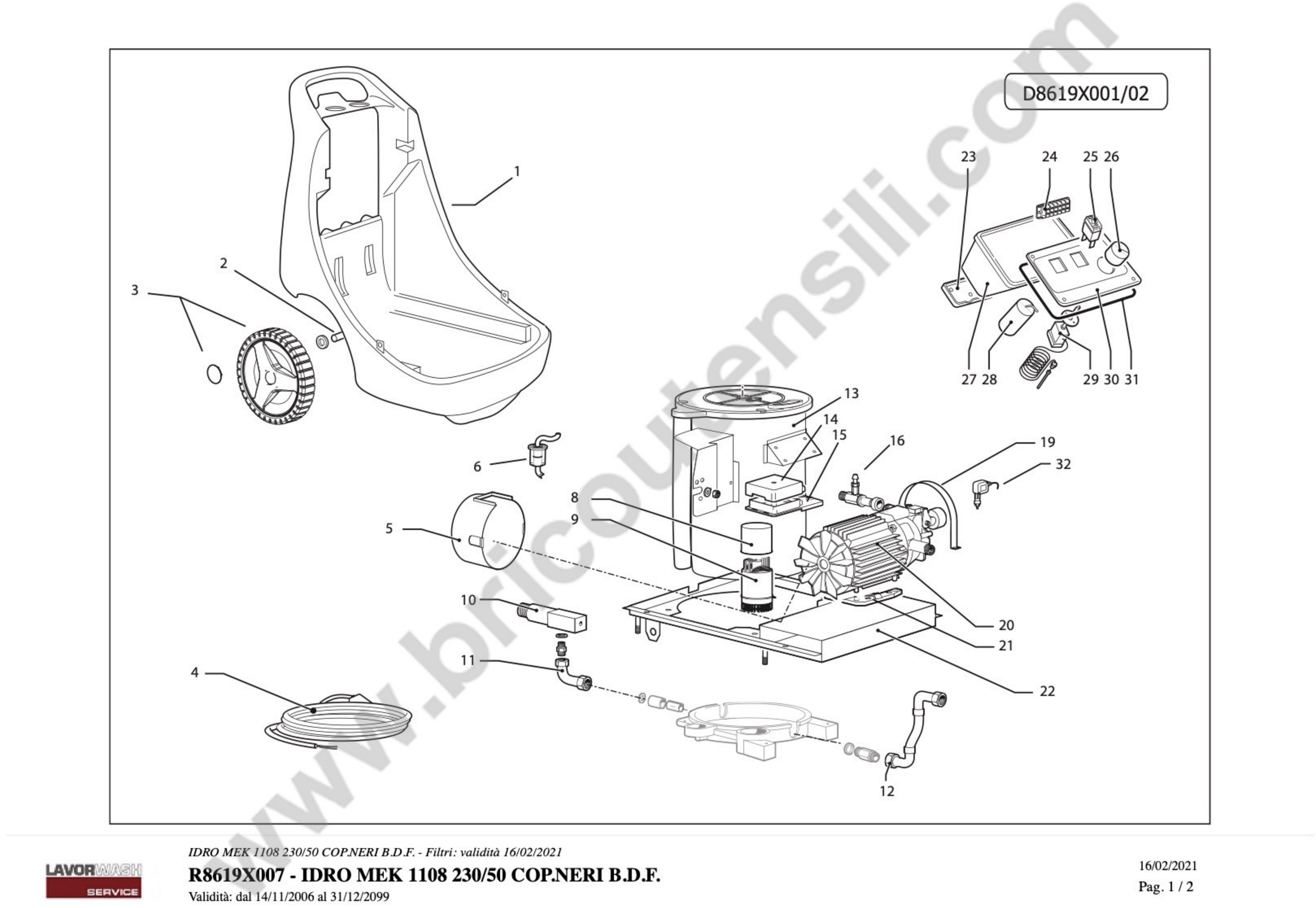

Esploso pagina 2
Pos. Item Price Buy
001
 photo_cameraImage coming soon 4.608.0142 PLASTIC BASE FOR PARANA' €290.48
002
 photo_cameraImage coming soon 4.607.0220 AXLE FOR VICTORIA-PARANA' €33.46
003
 photo_cameraImage coming soon 6.605.0018 WHEELS KIT + STUDSD.250 €36.83
004
 photo_cameraImage coming soon 5.009.0830 WIRING PARTN. 3X1,5 PVC MT 6 SCHUKO PLUG €29.98
005
 photo_cameraImage coming soon 4.008.0922 COVER FOR MOTOR FAN (MOTOR'96) €7.22
006
 Diesel Filter Unit for Pressure Washer Lavor Missouri 5.611.0043 Diesel Filter Unit for Pressure Washer Lavor Missouri €15.19
008
 photo_cameraImage coming soon 4.008.0470 FAN MOTOR COVER €1.72
009
 Burner Motor for Pressure Cleaner Lavor RIO 1108 3.304.0056 Burner Motor for Pressure Cleaner Lavor RIO 1108 €42.00
010
 Lavor Missouri Thermostat Body Bulb + Quick Joint 5.609.0327 Lavor Missouri Thermostat Body Bulb + Quick Joint €69.87
014
 photo_cameraImage coming soon 4.608.0140 ELECTRICAL BOX COVER FOR MOTOPUMP €5.44
015
 photo_cameraImage coming soon 4.608.0141 ELECTRICAL BOX BASE FOR MOTOPUMP €1.72
019
 photo_cameraImage coming soon 4.007.0287 FIXING CLAMP €7.98
020
 Motorpump Ass'y for Pressure Washer Lavor RIO 1108 5.001.0824 Motorpump Ass'y for Pressure Washer Lavor RIO 1108 €305.96
021
 photo_cameraImage coming soon 4.008.0514 BLACK EAGLE FOOT FOR MOTOR- PUMP SUPPORT €3.37
022
 photo_cameraImage coming soon 5.613.0154 MOTOPUMP-BOILER SUPPORT FOR PARANA' €110.90
023
 photo_cameraImage coming soon 4.608.0071 GUIDING CABLE COVER DASHBOARD '93 €6.66
024
 photo_cameraImage coming soon 3.405.0011 TERMINAL BOARD PA 32/6 €12.60
025
 photo_cameraImage coming soon 5.009.0538 SWITCH ASSY + PROTECTION COVER14 (14) €14.95
026
 Lavor Adjustment Knob for MEK 1108 4.608.0164 Lavor Adjustment Knob for MEK 1108 €5.83
027
 photo_cameraImage coming soon 4.608.0065 BOX DASHBOARD '93 €29.21
028
 photo_cameraImage coming soon 3.404.0094 CAPACITOR 32mF 450V €17.69
030
 Dashboard for Lavor Missouri 4.608.0207 Dashboard for Lavor Missouri €16.29
031
 Dashboard Gasket for Pressure Cleaner Lavor NPX 1400 4.608.0078 Dashboard Gasket for Pressure Cleaner Lavor NPX 1400 €3.32
042
 Lavor MISSOURI Hose 5/16 210BAR 4.618.0067 Lavor MISSOURI Hose 5/16 210BAR €26.99
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

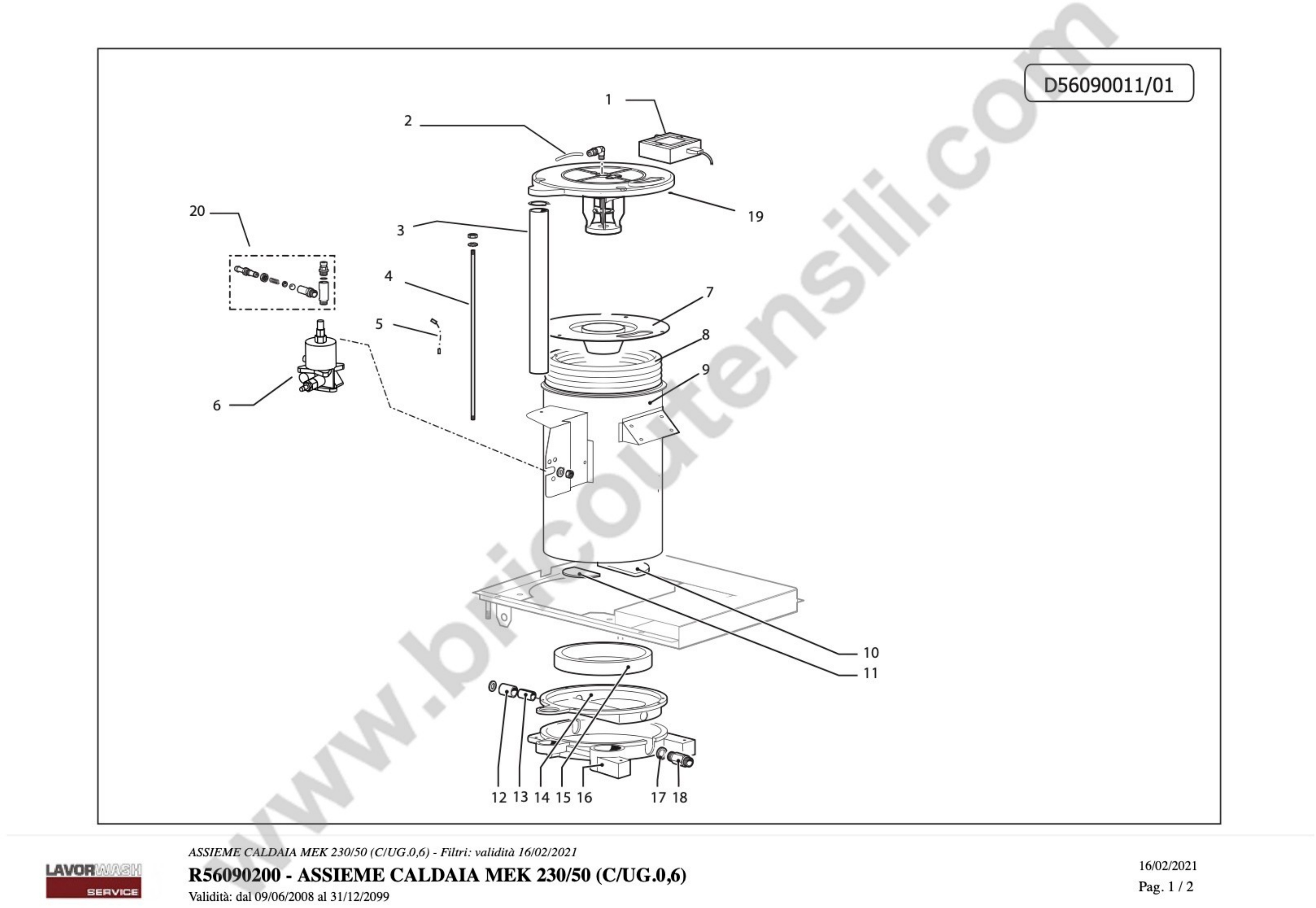

Esploso pagina 3
Pos. Item Price Buy
001
 Transformer 230-240V for Pressure Washer Lavor Missouri 5.009.0686 Transformer 230-240V for Pressure Washer Lavor Missouri €100.43
002
 photo_cameraImage coming soon 4.608.0145 RILSAN GASOIL HOSE X PARANA' L=500 €1.73
003
 photo_cameraImage coming soon 4.607.0236 HOSE D40 L=410 €12.14
004
 photo_cameraImage coming soon 4.607.0238 ROD FOR BOILER €6.48
005
 photo_cameraImage coming soon 4.012.0102 CABLE L=600 SEC.0,75 IEC227-3/1979 €5.83
006
 Pump ULKA EK2/M for Pressure Washer Lavor Missouri 3.551.0055 Pump ULKA EK2/M for Pressure Washer Lavor Missouri €68.85
007
 photo_cameraImage coming soon 5.013.0027 DISK HEAD HOLDER €77.49
008
 Coil D.202 for Pressure Washer Lavor PARANA' 4.604.0031 Coil D.202 for Pressure Washer Lavor PARANA' €284.00
009
 photo_cameraImage coming soon 5.613.0188 BOILER BODY €72.22
010
 Lavor MISSOURI Heat Resistant Felt Pad 4.008.0658 Lavor MISSOURI Heat Resistant Felt Pad €6.22
011
 Lavor MISSOURI Heat Resistant Pad 4.008.0450 Lavor MISSOURI Heat Resistant Pad €11.02
012
 photo_cameraImage coming soon 4.007.0184 COUPLING PIPE FOR PARANA' €1.68
013
 photo_cameraImage coming soon 4.008.0449 THERMORESISTANT COUPLING BOW 17X23XL40 €1.72
014
 photo_cameraImage coming soon 4.007.0158 BOILER PAD €65.73
015
 Lavor MISSOURI Ceramic Fiber Band 4.008.0503 Lavor MISSOURI Ceramic Fiber Band €19.00
016
 photo_cameraImage coming soon 4.605.0042 BASE FOR PARANA' BOILER €101.17
017
 photo_cameraImage coming soon 4.007.0200 WASHER20.2X26X3 €1.72
018
 photo_cameraImage coming soon 4.607.0237 RUBBER HOSE COUPLING FOR COIL €9.05
020
 Pressure Adjustment Valve for Pressure Washer Lavor Missouri 5.009.0304 Pressure Adjustment Valve for Pressure Washer Lavor Missouri €28.99
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

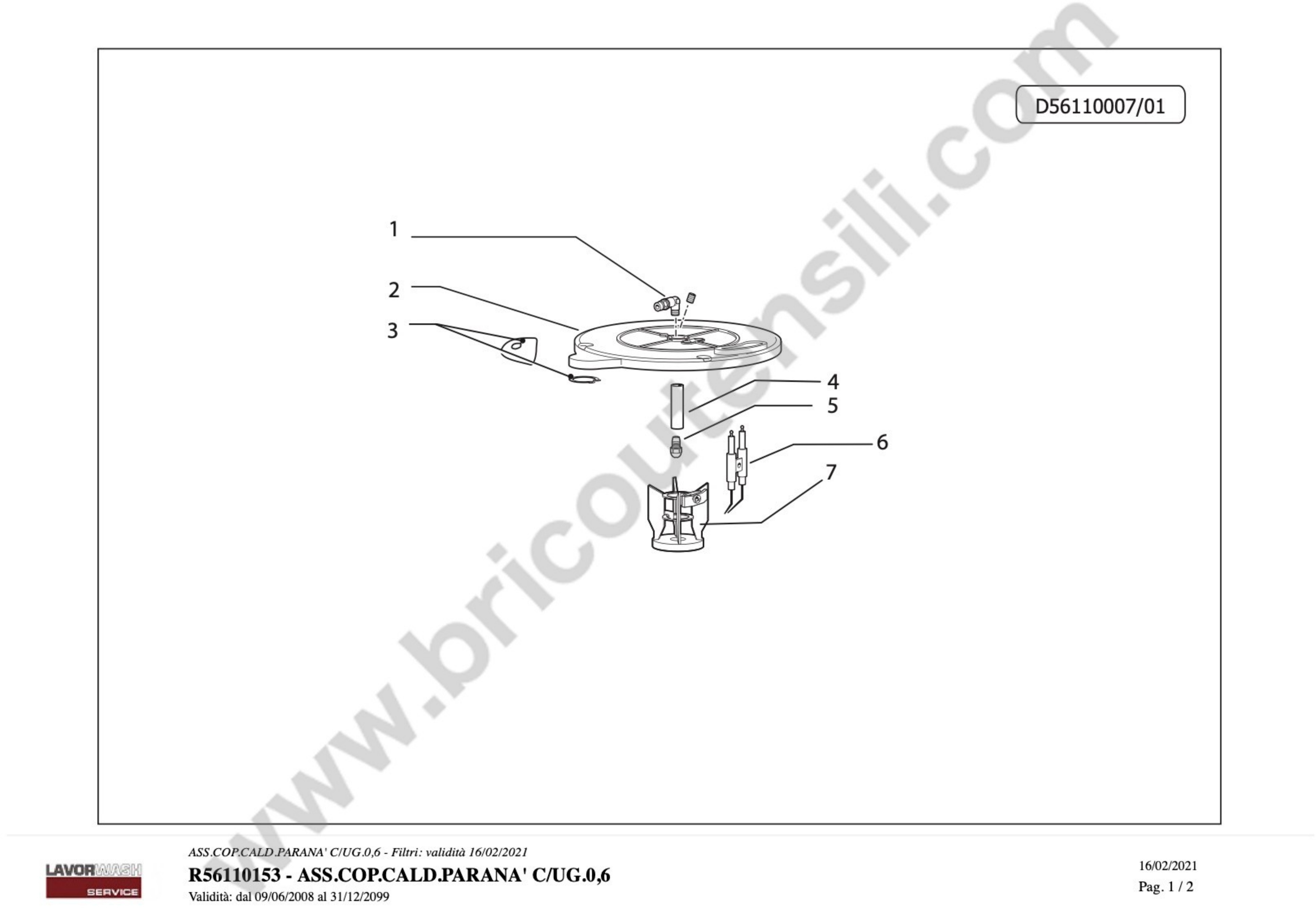

Esploso pagina 4
Pos. Item Price Buy
001
 photo_cameraImage coming soon 3.100.0075 CONIC CONNECTION M 1/8 F D.4 CURVED FOR GASOIL HOSE VITON O- €14.98
002
 Lavor MISSOURI Boiler Cover 4.005.0194 Lavor MISSOURI Boiler Cover €79.65
003
 photo_cameraImage coming soon 5.009.0637 BOILER CAP KIT €3.43
004
 photo_cameraImage coming soon 4.006.0187 NOZZLE HOLDER PIN €5.32
005
 Diesel Nozzle for Pressure Washer Lavor FKX 1018 3.104.0008 Diesel Nozzle for Pressure Washer Lavor FKX 1018 €29.49
006
 Lavor Electrode D.2 for YUKON 1310 4.614.0003 Lavor Electrode D.2 for YUKON 1310 €11.56
007
 photo_cameraImage coming soon 3.099.0297 COMPLETE DEFLECTOR €51.31
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

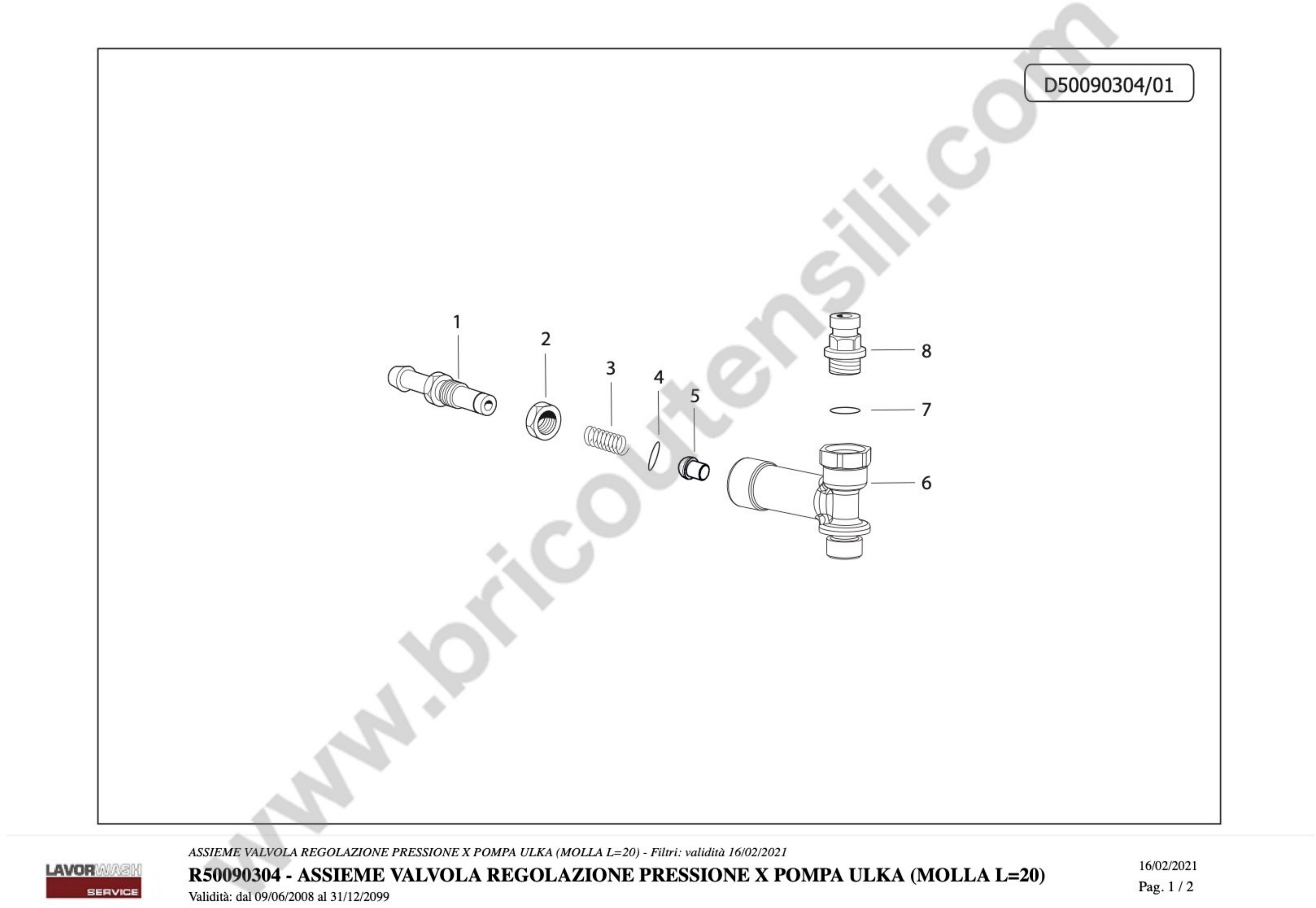

Esploso pagina 5
Pos. Item Price Buy
001
 photo_cameraImage coming soon 4.006.0259 SCREW HOSE HOLDER FOR ADJUSTMENT. DIESEL FKX €4.05
002
 photo_cameraImage coming soon 4.006.0260 NUT 10x1 EX.13 FOR ADJUSTMENT. DIESEL FKX €1.72
003
 photo_cameraImage coming soon 4.007.0306 SPRING FOR PRESS.REG.VALVE FKXD.5,4-7,8 L=20 WIRE 1,8 €1.72
004
 photo_cameraImage coming soon 3.200.0050 O-RING 5.28X1.78 €1.65
005
 photo_cameraImage coming soon 4.008.0856 BALL VALVE FOR BY-PASS REGULATION FKX-PARANA' €1.72
006
 photo_cameraImage coming soon 4.006.0254 BY-PASS DIESEL VALVE €6.01
007
 photo_cameraImage coming soon 3.200.0021 OR GASKET 6,75x1,78 RIF.106 €1.67
008
 photo_cameraImage coming soon 3.100.0057 CONNECTION D.4X1/8"M VITON O-RING €7.15
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

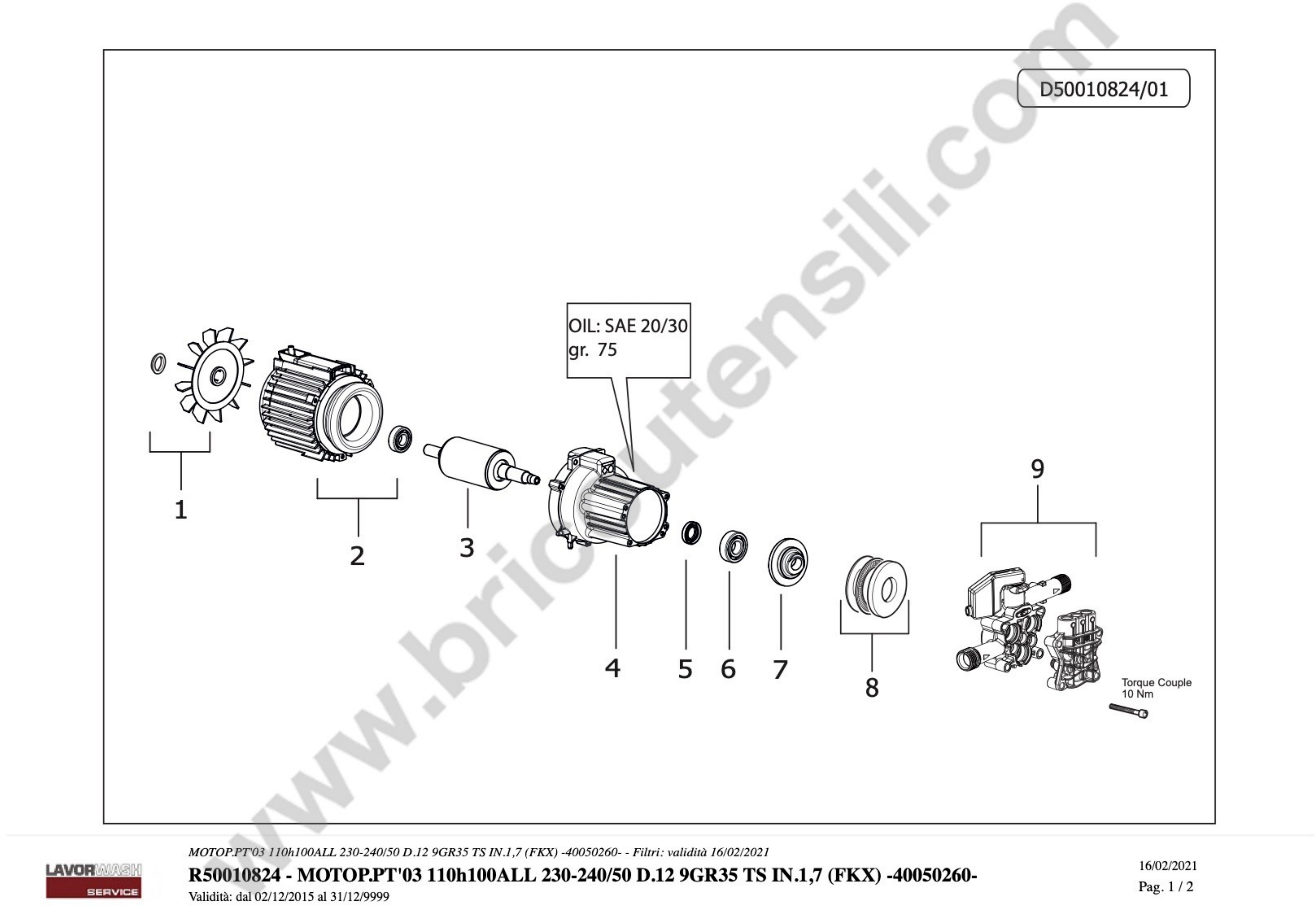

Esploso pagina 6
Pos. Item Price Buy
001
 photo_cameraImage coming soon 6.005.0253 KIT 236 LW FAN + RING €16.00
002
 Motor Housing for Pressure Washer Lavor RIO 1108 5.002.0151 Motor Housing for Pressure Washer Lavor RIO 1108 €273.18 Not available for order
003
 photo_cameraImage coming soon 5.005.0071 Substituted by 5.009.1015 ROTOR FOR 110H100AL €194.94
004
 photo_cameraImage coming soon 4.005.0219 FRONT FLANGE D.110 PT'03 €20.51
005
 Oil Seal 17X35X7 for Pressure Washer Lavor FKX 1018 3.201.0008 Oil Seal 17X35X7 for Pressure Washer Lavor FKX 1018 €7.21
006
 Ball Bearing 6303 for Pressure Washers Lavorwash 3.001.0030 Ball Bearing 6303 for Pressure Washers Lavorwash €5.97
007
 photo_cameraImage coming soon 4.005.0218 WOBBLE PLATE 9'35 PT'03 €8.55
008
 photo_cameraImage coming soon 6.005.0087 THRUST RING KIT (PT'03 INDUCTION/U88) €10.24
009
 Body Guide + Head Ass'y for Pressure Washer Lavor RIO 1108 5.009.0703C Body Guide + Head Ass'y for Pressure Washer Lavor RIO 1108 €63.27
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

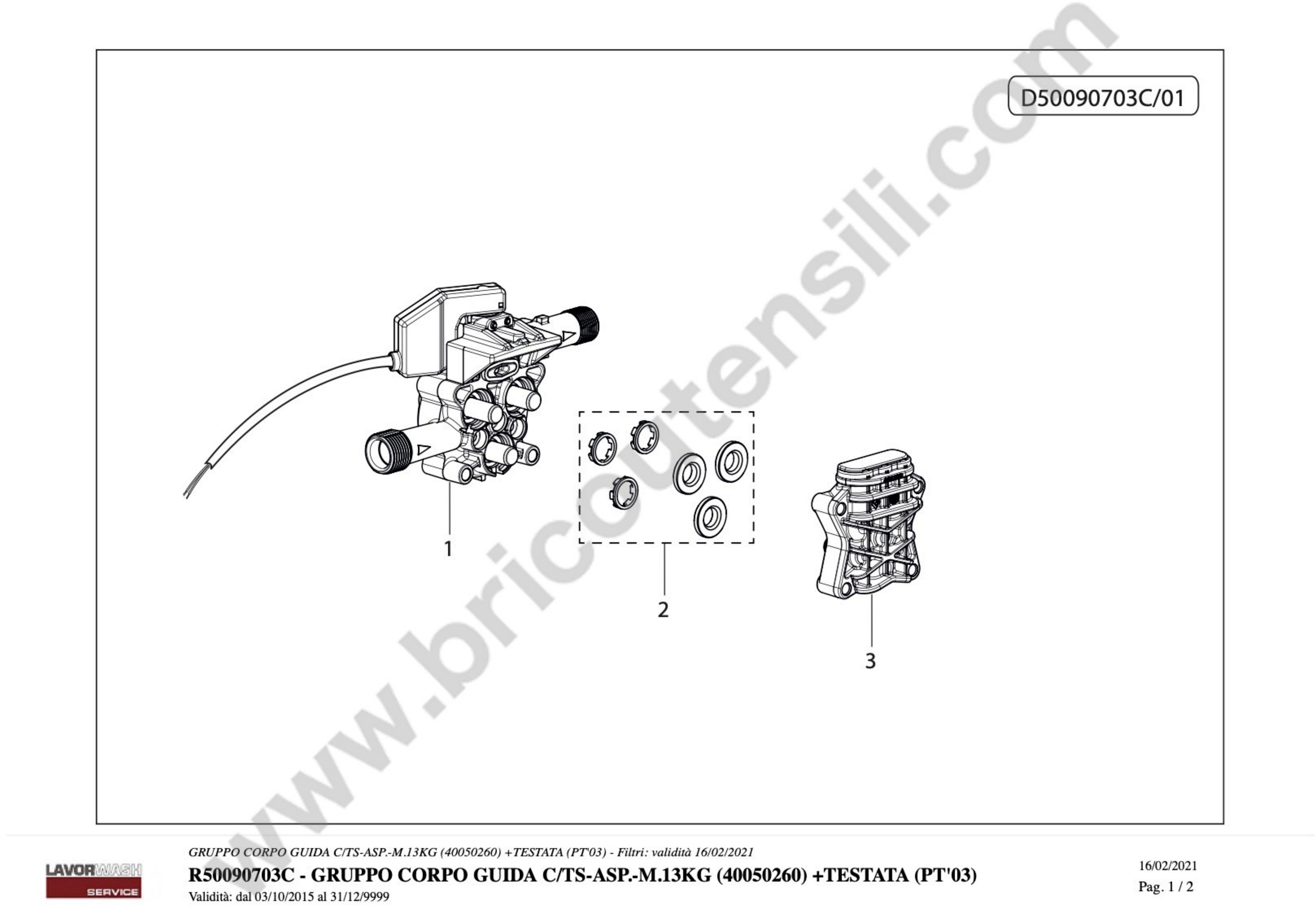

Esploso pagina 7
Pos. Item Price Buy
001
 Body Guide PT'03 for Pressure Washer Lavor RIO 1108 5.007.0187C Body Guide PT'03 for Pressure Washer Lavor RIO 1108 €57.11
002
 Kit 257 LW Rings Support + Spacers for Washer Lavor ENDURO 145 6.005.0282 Kit 257 LW Rings Support + Spacers for Washer Lavor ENDURO 145 €14.54
003
 Head PT'03 D.12 for Pressure Washer Lavor GIANT 24 5.008.0182C Head PT'03 D.12 for Pressure Washer Lavor GIANT 24 €32.89
Page 8 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

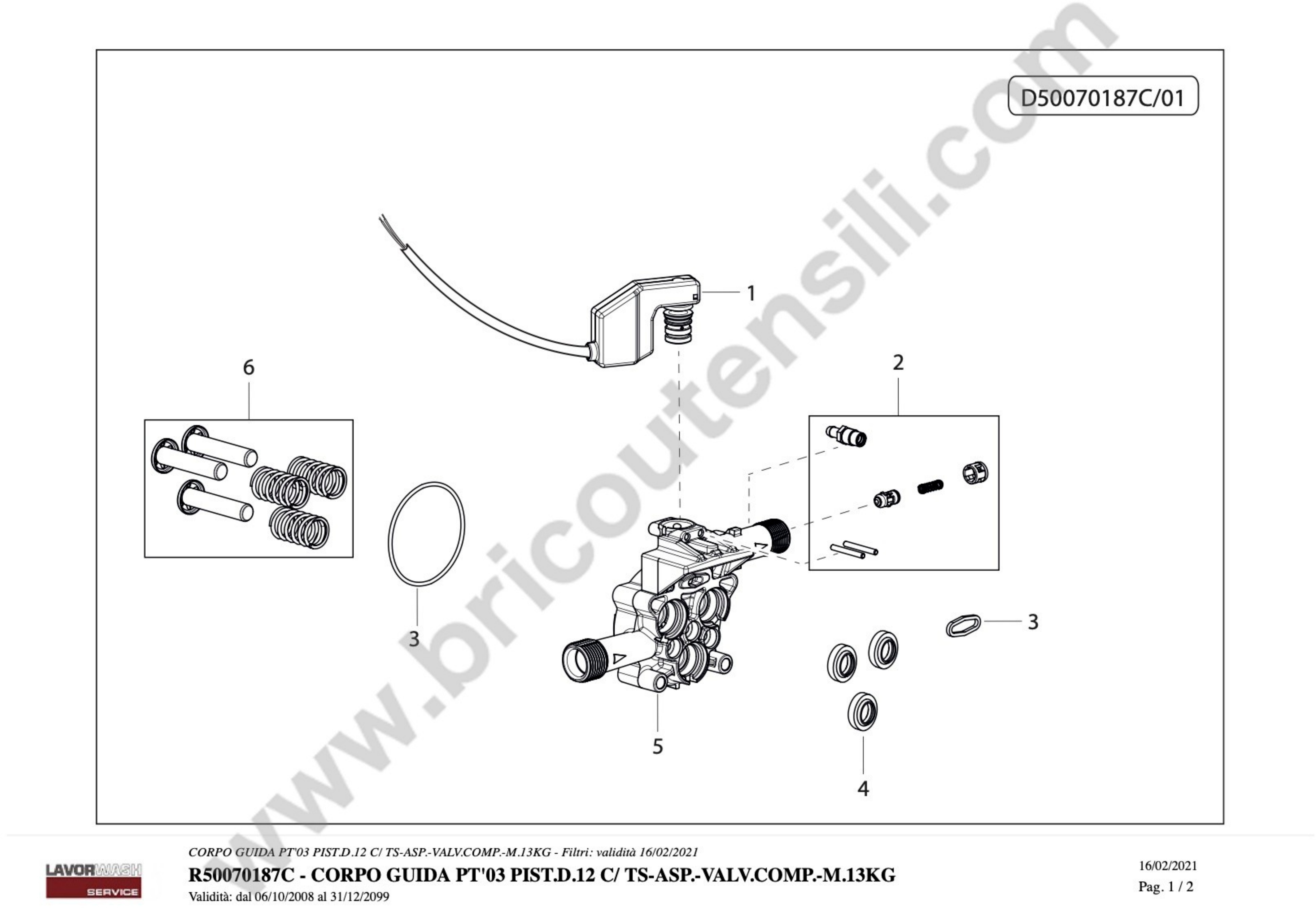

Esploso pagina 8
Pos. Item Price Buy
001
 Kit Valve Total-Stop Automatic Stop System for Washers Lavor ARMY 110 5.009.0716 Kit Valve Total-Stop Automatic Stop System for Washers Lavor ARMY 110 €27.86
002
 Kit 252 LW for High Pressure Washers ARMY 110 - MARINE 125 - NAVY 140 6.005.0277 Kit 252 LW for High Pressure Washers ARMY 110 - MARINE 125 - NAVY 140 €4.50
003
 Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24 6.005.0226 Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24 €11.43
004
 Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24 6.005.0079 Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24 €14.50
005
 photo_cameraImage coming soon 4.005.0263C 4.005.0263 PISTON BODY GUIDE PT'03 WITH SUCTION VALVE €8.74
006
 Kit 167 LW 3 Pistons + Springs for Pressurte Washer Lavor BEST 24 6.005.0181 Kit 167 LW 3 Pistons + Springs for Pressurte Washer Lavor BEST 24 €25.98
Page 9 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

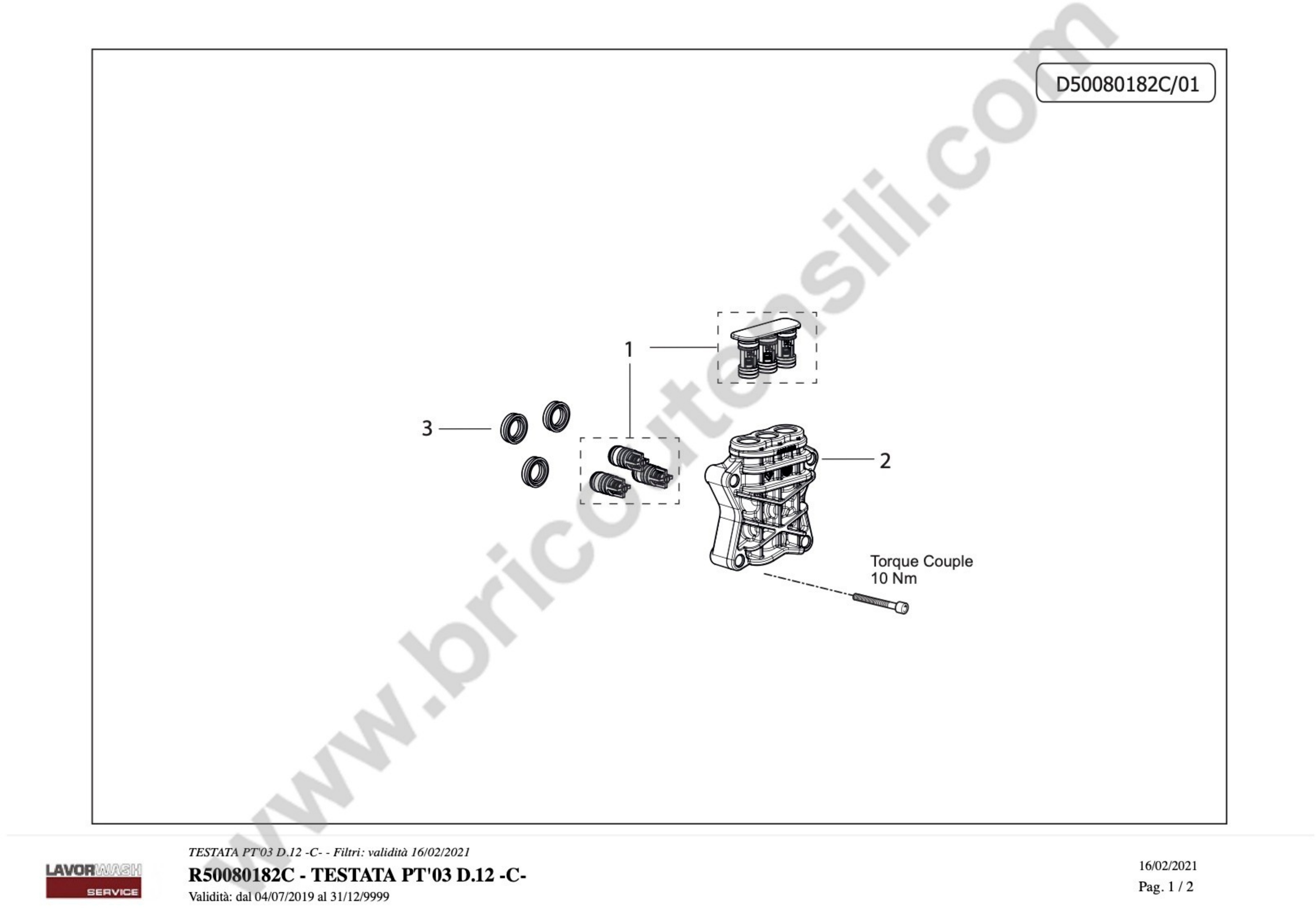

Esploso pagina 9
Pos. Item Price Buy
001
 Kit 170 LW Intake-Delivery Valve for Pressurte Washer Lavor BEST 24 6.005.0184 Kit 170 LW Intake-Delivery Valve for Pressurte Washer Lavor BEST 24 €15.19
002
 photo_cameraImage coming soon 4.005.0210C '03 PARTNER HEAD €12.51
003
 Kit 124 Water Seal Partner for Pressurte Washer Lavor BEST 24 6.005.0133 Kit 124 Water Seal Partner for Pressurte Washer Lavor BEST 24 €14.54

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Original Parts for Pressure Cleaner MEK 1108

Fix Your Hot Water High Pressure Cleaner MEK 1108 230/50 TS -G- LWS SP.SCHUKO - 86190610. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
Lavor MEK 1108 - 86190610

86190610 - IDRO MEK 1108 230/50 TS -G- LWS SP.SCHUKO Pag.1
# Part Num. Description
0 R8619X007 IDRO MEK 1108 230/50 COP.NERI B.D.F.
001 4.613.0175 YELLOW UPPER COVER FOR MUSSOURI
002 4.613.0299 REAR BLACK COVER
003 4.608.0027 BLACK PLUG D.30 FOR TANK
004 7.700.0473 INSTRUCTION MANUAL PARANA'/MEK/MISSOURI/MISSISSIPPI-R
008 3.700.0036 GUN 26Mpa-100°C-30lt/min G3/8M - M22
009 4.618.0049 HOSE R1 1/4 8MT 3/8F-M22 (MAX 21MPa)
010 6.002.0322 METAL LANCE NOZZLE HOLDER QUICK COUPLING-M22
014 3.100.0062 QUICK COUPLING WITH VALVE (3029)
016 5.012.0478 5 NOZZLES KIT OF D.1,15 FOR QUICK JOINT GR.0-15-25-40FOAM
8619X007 - IDRO MEK 1108 230/50 COP.NERI B.D.F Pag.2
0 R50010824 MOTOP.PT'03 110h100ALL 230-240/50 D.12 9GR35 TS IN.1,7 (FKX) -40050260-
0 R56090200 ASSIEME CALDAIA MEK 230/50 (C/UG.0,6)
001 4.608.0142 PLASTIC BASE FOR PARANA'
002 4.607.0220 AXLE FOR VICTORIA-PARANA'
003 6.605.0018 Substituted by 6.605.0168 WHEELS KIT + STUDSD.250
004 5.009.0830 WIRING PARTN. 3X1,5 PVC MT 6 SCHUKO PLUG
005 4.008.0922 COVER FOR MOTOR FAN (MOTOR'96)
006 5.611.0043 GAS OIL FILTER UNIT JOLLY 4/93
008 4.008.0470 FAN MOTOR COVER
009 3.304.0056 BURNER MOTOR 230/50 C/W FAN, FLANGE, CABLES AND COVER
010 5.609.0327 THERMOSTAT BODY BULB + QUICK JOINT 3/8 M
013 5.609.0200 ASSIEME CALDAIA MEK 230/50 (C/UG.0,6)
014 4.608.0140 ELECTRICAL BOX COVER FOR MOTOPUMP
015 4.608.0141 ELECTRICAL BOX BASE FOR MOTOPUMP
019 4.007.0287 FIXING CLAMP
020 5.001.0824 MTP PT'03 110h100AL 230-240/50 D.12 9GR35 TS W/SUCTION (FKX) -40050260-
021 4.008.0514 BLACK EAGLE FOOT FOR MOTOR- PUMP SUPPORT
022 5.613.0154 MOTOPUMP-BOILER SUPPORT FOR PARANA'
023 4.608.0071 GUIDING CABLE COVER DASHBOAR D '93
024 3.405.0011 TERMINAL BOARD PA 32/6
025 5.009.0538 SWITCH ASSY + PROTECTION COVER 14 (14)
026 4.608.0164 BLACK THERMOSTAT KNOB PARANA'
027 4.608.0065 BOX DASHBOARD '93
028 3.404.0094 CAPACITOR 32mF 450V
030 4.608.0207 DASHBOARD
031 4.608.0078 GASKET
042 4.618.0067 HOSE 5/16 R1 15DEG. 250 BAR 3/8 F ROT.-3/8 F ROT.
56090200 - ASSIEME CALDAIA MEK 230/50 (C/UG.0,6) Pag.3
0 R50090304 ASSIEME VALVOLA REGOLAZIONE PRESSIONE X POMPA ULKA (MOLLA L=20)
0 R56110153 ASS.COP.CALD.PARANA' C/UG.0,6
001 5.009.0686 CLA IGNITION TRANSFORMER WITH CABLES
Substituited by 5.009.1126 -> Rio/FKX
002 4.608.0145 RILSAN GASOIL HOSE X PARANA' L =500
003 4.607.0236 HOSE D40 L=410
004 4.607.0238 ROD FOR BOILER
005 4.012.0102 CABLE L=600 SEC.0,75 IEC227-3/1979
006 3.551.0055 PUMP 230/50
007 5.013.0027 DISK HEAD HOLDER
008 4.604.0031 COIL D.202 (1.5 GIRI) FOR PARANA'
009 5.613.0188 BOILER BODY
010 4.008.0658 THERMORESISTANT FELT BOTTOM PL ATE X FKX/PARANA'
011 4.008.0450 THERMORESISTANT PAD
012 4.007.0184 COUPLING PIPE FOR PARANA'
013 4.008.0449 THERMORESISTANT COUPLING BOW 17X23XL40
014 4.007.0158 BOILER PAD
015 4.008.0503 BAND IN CERAMIC FIBER
016 4.605.0042 BASE FOR PARANA' BOILER
017 4.007.0200 WASHER20.2X26X3
018 4.607.0237 RUBBER HOSE COUPLING FOR COIL
019 5.611.0153 ASS.COP.CALD.PARANA' C/UG.0,6
020 5.009.0304 ADJUSTING VALVE SET (SPRING L=20)
56110153 - ASS.COP.CALD.PARANA' C/UG.0,6 Pag.4
001 3.100.0075 CONIC CONNECTION M 1/8 F D.4 CURVED FOR GASOIL HOSE VITON O- RING
002 4.005.0194 BOILER COVER FKX
003 5.009.0637 BOILER CAP KIT
004 4.006.0187 NOZZLE HOLDER PIN
005 3.104.0008 DIESEL NOZZLE 0.60 60/A MONEL FILTER
006 4.614.0003 ELECTRODE D.2 FKX PARANA'
007 3.099.0297 Substituted by 6.005.0308 COMPLETE DEFLECTOR
50090304 - ASSIEME VALVOLA REGOLAZIONE PRESSIONE X POMPA ULKA Pag.5
001 4.006.0259 PORTAGOMMA A VITE X REGOLAZ. GASOLIO FKX
002 4.006.0260 DADO 10x1 ES.13 PER REGOLAZ. GASOLIO FKX
003 4.007.0306 SPRING FOR PRESS.REG.VALVE FKX D.5,4-7,8 L=20 WIRE 1,8
004 3.200.0050 O-RING 5.28X1.78
005 4.008.0856 VALVOLA SFERICA PER REGOLAZION E BY-PASS FKX-PARANA'
006 4.006.0254 BY-PASS DIESEL VALVE
007 3.200.0021 OR GASKET 6,75x1,78 RIF.106
008 3.100.0057 CONNECTION D.4X1/8'M VITON O-RING
50010824 - MOTOP.PT'03 110h100ALL 230-240/50 D.12 9GR35 TS IN.1,7 (FKX) Pag.6
0 R50090703C GRUPPO CORPO GUIDA C/TS-ASP.-M.13KG (40050260) +TESTATA (PT'03)
001 6.005.0253 KIT 236 LW FAN + RING
002 5.002.0151 Substituted by 5.006.0216 HOUSING '02 D110 H100AL 230-240/50 2P (FKX)
003 5.005.0071 Substituted by 5.009.1015 ROTOR FOR 110H100AL
004 4.005.0219 FRONT FLANGE D.110 PT'03
005 3.201.0008 OIL SEALING RING D. 17X35X7
006 3.001.0030 RADIAL
007 4.005.0218 WOBBLE PLATE 9'35 PT'03
008 6.005.0087 THRUST RING KIT (PT'03 INDUCTION/U88)
009 5.009.0703C BODY GUIDE+HEAD ASSEMBLED W/TS-SUCTION-13KG (40050260) PT'03
50090703C - GRUPPO CORPO GUIDA C/TS-ASP.-M.13KG (40050260) +TESTATA Pag.7
0 R50070187C CORPO GUIDA PT'03 PIST.D.12 C/ TS-ASP.-VALV.COMP.-M.13KG
0 R50080182C TESTATA PT'03 D.12 -C-
001 5.007.0187C PISTON BODY GUIDE PT'03 W/TS-SUCTION 13KG (40050260)
002 6.005.0282 KIT 257 O-RING SEAL
003 5.008.0182C PUMP HEAD PARTNER '03 D.12
50070187C - CORPO GUIDA PT'03 PIST.D.12 C/ TS-ASP.-VALV.COMP.-M.13KG Pag.8
001 5.009.0716 COMPLETED VALVE TS PT'03 CABLE L=530 SPRING 13KG (WHITE FASTON COVER)
002 6.005.0277 KIT 252
003 6.005.0226 KIT 209 O-RING
004 6.005.0079 KIT 79 LW OIL SEALS
005 4.005.0263C Substituted by 4.005.0263 PISTON BODY GUIDE PT'03 WITH SUCTION VALVE
006 6.005.0181 KIT 167 LW PISTON
50080182C - TESTATA PT'03 D.12 -C- Pag.9
001 6.005.0184 KIT 170 LW HEAD VALVE KIT
002 4.005.0210C '03 PARTNER HEAD
003 6.005.0133 KIT 124 O-RING WATER SEAL PARTNER D.12
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Lavor MEK 1108 - 86190610
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

Diagram Lavor MEK 1108

Diagram Lavor MEK 1108

Download (1.08MB)

You might also like

Set of 5 Nozzles for High Pressure Lance Lavor
Lavorwash S.p.A. SKU: 5.012.0478
Set of 5 Nozzles for High Pressure Lance Lavor
Set of 5 Nozzles for High Pressure Lance Lavor Genuine Replacement part Lavor, Set of 5 Nozzles for High Pressure Lance for Pressure Washers Vertigo 28 Plus - Independent 2700 - Tormenta 28. Part suitable for the following high...
AVAILABLE €39.62
Details
Inlet Quick Coupling for High Pressure Washers Lavor
Lavorwash S.p.A. SKU: 3.100.0062
Inlet Quick Coupling for High Pressure Washers Lavor
Inlet Quick Coupling for High Pressure Washers Lavor Genuine Replacement part Lavor, Inlet Quick Coupling 3.100.0062 for Cold Water High Pressure Washers Fury 110 - Ride 110 - Race 125 - Cross 140 - Army 120. Part suitable for the...
AVAILABLE €4.25
Details
Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 6.005.0079
Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24
Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24 Original replacement part Lavor, Kit 79 LW Oil Seal for Partner D.12/Fibra per Pressure Washers ARMY 110 - MARINE 125 - NAVY 140...
Usually Shipped on: 7/10 Business Days Approx. €14.50
Details
Lance for Pressure Washer ALASKA 1409XP
Lavorwash S.p.A. SKU: 6.002.0322
Lance for Pressure Washer ALASKA 1409XP
Lance for Pressure Washer ALASKA 1409XP Genuine Part Lavor, Lance L=430 S/Nozzle Holder with Quick Coupling for Nozzles - M22 for Pressure Washer ALASKA 1409XP 230/50 -G- TS LAVOR PRO. Part suitable for the following high pressure...
AVAILABLE €39.34
Details
Piston Body Guide for Pressure Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 4.005.0263
Piston Body Guide for Pressure Washer Lavor BEST 24
Piston Body Guide for Pressure Washer Lavor BEST 24 Original replacement part Lavor, Kit Piston Body Guide PT'03 for Pressure Washers Vertigo 28 - BEST 24. Part for the following products: -  Pressure Washer...
Last items in stock €25.65
Details
Motorpump Ass'y for Pressure Washer Lavor RIO 1108
Lavorwash S.p.A. SKU: 5.001.0824
Motorpump Ass'y for Pressure Washer Lavor RIO 1108
Motorpump Ass'y for Pressure Washer Lavor RIO 1108 Genuine part Lavor, Motorpump Ass'y PT'03 110h 100AL 230-240/50Hz D.12 9GR35 TS W/SUCTION (FKX) - 40050260 - with Pressure Switch for Pressure Washers RIO 1108 - MEK...
Last items in stock €305.96
Details
Motor Housing for Pressure Washer Lavor RIO 1108
Lavorwash S.p.A. SKU: 5.002.0151
Motor Housing for Pressure Washer Lavor RIO 1108
Motor Housing for Pressure Washer Lavor RIO 1108 Genuine part Lavor, Motor Housing '02 D110 H100 ALL 230-240/50Hz 2P (FKX) for Pressure Washers RIO 1108 - MEK 1108 Part for the following products: -...
Available in 7/10 days €273.18
Details
Body Guide PT'03 for Pressure Washer Lavor RIO 1108
Lavorwash S.p.A. SKU: 5.007.0187C
Body Guide PT'03 for Pressure Washer Lavor RIO 1108
Body Guide PT'03 for Pressure Washer Lavor RIO 1108 Genuine part Lavor, Body Guide PT'03 Pistons D.12 with ASS Detergent Suction for Pressure Washers RIO 1108 - MEK 1108 Part for the following products: -  Pressure Cleaner RIO 1108 -...
Last items in stock €57.11
Details
Diesel Nozzle for Pressure Washer Lavor FKX 1018
Lavorwash S.p.A. SKU: 3.104.0008
Diesel Nozzle for Pressure Washer Lavor FKX 1018
Diesel Nozzle for Pressure Washer Lavor FKX 1018 Genuine replacement part Lavor, Diesel Nozzle 0.60 60° HFD Kg/h 231 EN 6011 43281 for Pressure Washers FKX 1018 - RIO 1108 - MEK 1108 - XTR...
Last items in stock €29.49
Details
Body Guide + Head Ass'y for Pressure Washer Lavor RIO 1108
Lavorwash S.p.A. SKU: 5.009.0703C
Body Guide + Head Ass'y for Pressure Washer Lavor RIO 1108
Body Guide + Head Assembled for Pressure Washer Lavor RIO 1108 Genuine part Lavor, Body Guide + Head Assembled TS With Suction (SPRING 13KG) -PT for Pressure Washers RIO 1108 - MEK 1108 Part for the following products: -  Pressure...
Last items in stock €63.27
Details
Coil D.202 for Pressure Washer Lavor PARANA'
Lavorwash S.p.A. SKU: 4.604.0031
Coil D.202 for Pressure Washer Lavor PARANA'
Coil D.202 for Pressure Washer Lavor PARANA' Genuine replacement part Lavor, Coil D.202 (1.5 Round) for Paranà for Pressure Washers PARANA' - MISSOURI - MEK 1108 - HOT130 - YUKON 1310. Part for the following products: -  Pressure...
Last items in stock €284.00
Details
Pump ULKA EK2/M for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 3.551.0055
Pump ULKA EK2/M for Pressure Washer Lavor Missouri
Pump ULKA EK2/M for Pressure Washer Lavor Missouri Genuine part Lavor, Pump ULKA EK2/M 59W 230/50 C/OR R4 VITON for Pressure Washers  MISSOURI. Part for the following products: -  Pressure...
on 10 Business Days Approx €68.85
Details
Lavor Missouri Thermostat Body Bulb + Quick Joint
Lavorwash S.p.A. SKU: 5.609.0327
Lavor Missouri Thermostat Body Bulb + Quick Joint
Lavor Missouri Thermostat Body Bulb + Quick Joint Genuine part Lavor, Thermostat Body Bulb + Quick Joint 3/8" M for Pressure Washers  MEK/MISSOURI/MISSISSIPPI/ PARANA'. Part for the following products: - Pressure...
Last items in stock €69.87
Details
Lavor Adjustment Knob for MEK 1108
Lavorwash S.p.A. SKU: 4.608.0164
Lavor Adjustment Knob for MEK 1108
Lavor Adjustment Knob for Pressure Cleaner MEK 1108 Genuine replacement part Lavorwash, Black Thermostat Adjustment Knob for Pressure Cleaner DAKOTA-R 2007XP - MISSOURI - MEK 1108. Part for the following products: - ...
Last items in stock €5.83
Details
Lavor Electrode D.2 for YUKON 1310
Lavorwash S.p.A. SKU: 4.614.0003
Lavor Electrode D.2 for YUKON 1310
Lavor Electrode D.2 for Pressure Cleaner YUKON 1310 Original replacement part Lavorwash, Electrode D.2 for Pressure Cleaners YUKON 1310 - RIO 1108. Part for the following products: -  Pressure Cleaner Lavor YUKON 1310 - 86180001...
Last items in stock €11.56
Details
Lavor MISSOURI Hose 5/16 210BAR
Lavorwash S.p.A. SKU: 4.618.0067
Lavor MISSOURI Hose 5/16 210BAR
Lavor Hose 5/16 210BAR for Pressure Cleaner MISSOURI Original part Lavorwash, Hose 5/16 R1 150GR. 210 BAR 3/8 F GIR-3/8 F GIR L=250 for Pressure Cleaners MISSOURI - PARANA' -  YUKON 1310. ,Part for the following...
Last items in stock €26.99
Details
Lavor MISSOURI Boiler Cover
Lavorwash S.p.A. SKU: 4.005.0194
Lavor MISSOURI Boiler Cover
Lavor MISSOURI Boiler Cover Original part Lavorwash, Boiler Cover for Pressure Cleaners MISSOURI - PARANA' -  YUKON 1310. Part for the following products: - Lavor MISSOURI - Lavor HOT130 - Lavor PARANA' G-LWS - Lavor...
Last items in stock €79.65
Details
Lavor MISSOURI Heat Resistant Pad
Lavorwash S.p.A. SKU: 4.008.0450
Lavor MISSOURI Heat Resistant Pad
Lavor MISSOURI Heat Resistant Pad Original part Lavorwash, Heat Resistant Pad for Pressure Cleaners MISSOURI - PARANA' -  YUKON 1310. Part for the following products: - Lavor MISSOURI - Lavor HOT130 - Lavor PARANA'...
Usually Ships in: 10 Business Days Approx. €11.02
Details
Lavor MISSOURI Heat Resistant Felt Pad
Lavorwash S.p.A. SKU: 4.008.0658
Lavor MISSOURI Heat Resistant Felt Pad
Lavor MISSOURI Heat Resistant Felt Bottom Pad Original part Lavorwash, Heat Resistant Felt Bottom Pad (FKX/PARANA') for Pressure Cleaners MISSOURI - PARANA' -  YUKON 1310. Part for the following products: - Lavor...
Usually Ships in: 10 Business Days Approx. €6.22
Details
Lavor MISSOURI Ceramic Fiber Band
Lavorwash S.p.A. SKU: 4.008.0503
Lavor MISSOURI Ceramic Fiber Band
Lavor MISSOURI Ceramic Fiber Band Original part Lavorwash, Band in Ceramic Fiber 120X635 SP.4 for Pressure Cleaners MISSOURI - PARANA' -  YUKON 1310. Part for the following products: - Lavor MISSOURI - Lavor HOT130 -...
Usually Ships in: 10 Business Days Approx. €19.00
Details
Lavor Head for Pressure Washer Pascal 20
Lavorwash S.p.A. SKU: 00027-00688 ex 4.005.0210C
Lavor Head for Pressure Washer Pascal 20
Lavor Head for Pressure Washer Pascal 20 Genuine replacement part Lavor, Head Pt'03 for Pressure Washer Pascal 20 - Giant 20. Part for the following products: -  Pressure Washer FASA EXXEL20 - 8.062.0815...
Last items in stock €12.88
Details
Dashboard for Lavor Missouri
Lavorwash S.p.A. SKU: 4.608.0207
Dashboard for Lavor Missouri
Dashboard for Pressure Washer Lavor Missouri Genuine replacement part Lavor, Dashboard Grey Ral 9006 for Pressure Washer Missouri. Part for the following products: -  Pressure Washer Missouri - 86190601...
Last items in stock €16.29
Details
Comments (0)
