Lavorwash S.p.A.

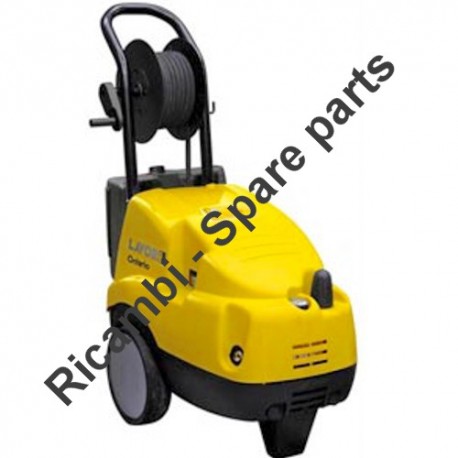

Lavor Original Parts for Pressure Cleaner ONTARIO 1211LP

SKU: ONTARIO 1211LP - 86590033
€41.74
VAT included

Lavor Original Parts for Pressure Cleaner ONTARIO 1211LP

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner ONTARIO 1211LP 220/60 -G- LWS - 86590033.

Fix Your Pressure Cleaner ONTARIO 1211LP. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Cold Water High Pressure Cleaner ONTARIO 1211LP 220/60 -G- LWS - 86590033
Lavor Original Parts for Pressure Cleaner ONTARIO 1211LP
  • Lavor Original Parts for Pressure Cleaner ONTARIO 1211LP
  • Lavor Original Parts for Pressure Cleaner ONTARIO 1211LP
  • Lavor Original Parts for Pressure Cleaner ONTARIO 1211LP
  • Lavor Original Parts for Pressure Cleaner ONTARIO 1211LP
  • Lavor Original Parts for Pressure Cleaner ONTARIO 1211LP
  • Lavor Original Parts for Pressure Cleaner ONTARIO 1211LP
  • Lavor Original Parts for Pressure Cleaner ONTARIO 1211LP
  • Lavor Original Parts for Pressure Cleaner ONTARIO 1211LP
  • Lavor Original Parts for Pressure Cleaner ONTARIO 1211LP
Lavorwash S.p.A.

Lavor Original Parts for Pressure Cleaner ONTARIO 1211LP

SKU: ONTARIO 1211LP - 86590033 Condition: New
€41.74
VAT included

Lavor Original Parts for Pressure Cleaner ONTARIO 1211LP

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner ONTARIO 1211LP 220/60 -G- LWS - 86590033.

Fix Your Pressure Cleaner ONTARIO 1211LP. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Cold Water High Pressure Cleaner ONTARIO 1211LP 220/60 -G- LWS - 86590033
settings 71 spare parts
description 8 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
71 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
001
 photo_cameraImage coming soon 5.613.0177 HANDLE WITHOUT HOSE REEL €37.10
002
 photo_cameraImage coming soon 4.007.0277 SPRING HOSE HOLDER FOR HANDLE HW €1.65
003
 photo_cameraImage coming soon 4.608.0027 BLACK PLUG D.30 FOR TANK €10.03
004
 photo_cameraImage coming soon 4.008.0094 LAVORJET DETERGENT TANK 120 €33.84
005
 photo_cameraImage coming soon 4.613.0295 YELLOW UPPER COVER ONTARIO FOR MOTORP UMP 1507 €42.44
006
 photo_cameraImage coming soon 4.608.0314 HANDLE REGOLATOR BLACK €3.72
010
 photo_cameraImage coming soon 4.618.0143 HIGH PRESSURE HOSE 5/16 315BAR R2 L=10000 1/2 TWIST.-3/8 €142.39
011
 Gun AL 15 3/8 "- M22 for Hot Water Pressure Washers Lavor 3.700.0036 Gun AL 15 3/8 "- M22 for Hot Water Pressure Washers Lavor €30.90
012
 700 mm Lance 1/8 "F High/Low Pressure for Pressure Washers Lavor 3.701.0015 700 mm Lance 1/8 "F High/Low Pressure for Pressure Washers Lavor €37.13
013
 photo_cameraImage coming soon 5.611.0078 HOSE FITTING €10.13
014
 Lavor Nozzle for ONTARIO 1211LP 3.103.0050 Lavor Nozzle for ONTARIO 1211LP €16.21
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
001
 photo_cameraImage coming soon 5.611.0078 HOSE FITTING €10.13
002
 Lavor Nozzle for ONTARIO 1211LP 3.103.0050 Lavor Nozzle for ONTARIO 1211LP €16.21
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
002
 photo_cameraImage coming soon 5.613.0251 COMPLETE FRAME (DANUBIO LP) €157.29
003
 photo_cameraImage coming soon 4.607.0072 Substituted by 6.605.0102 MOTOR CLAMP €8.32
004
 photo_cameraImage coming soon 6.605.0056 ELECTRICAL BOX KIT +COVER FOR MONOPHASE €25.84
005
 photo_cameraImage coming soon 3.401.0004 THERMAL SWITCH €45.90
006
 photo_cameraImage coming soon 3.404.0036 CAPACITOR 80mF 450V D.50 CABLE L300 S/FASTON €24.31
008
 photo_cameraImage coming soon 4.613.0157 LOWER COVER DANUBIO-ONTARIO-LTX-TUCSON €68.60
009
 photo_cameraImage coming soon 4.612.0037 CABLE H05PVC €25.74
010
 photo_cameraImage coming soon 4.607.0246 AXLE-BAR FOR ONTARIO/DANUBIO €5.38
011
 photo_cameraImage coming soon 6.605.0075 KIT WHEEL+STUD+STOP WHEEL (ONTARIO/TUCSON) €29.61
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
001
 photo_cameraImage coming soon 4.608.0294 MOTOR FAN COVER FOR D.135 €7.22
002
 photo_cameraImage coming soon 3.099.1763 FAN D.162 W/CLIP AND SCREWS €27.60
003
 photo_cameraImage coming soon 5.606.0149 MOTOR LWM 220/60 D.135 H130 4P €545.75
004
 photo_cameraImage coming soon 4.605.0105 MOTOR FLANGE D.135 €21.62
005
 photo_cameraImage coming soon 5.700.X035 LW PUMP CL3 200/11 1700 (RIGHT) €418.65
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
001
 photo_cameraImage coming soon 5.602.0068 HOUSING LWM 220/60 4P D.135 H.130 (CENTR. MASCHIO) €230.29
002
 photo_cameraImage coming soon 3.099.0002 UNLOADING RING 40X47 €77.91
003
 photo_cameraImage coming soon 3.001.0001 BALL RADIAL BEARING 6204-2Z €14.95
004
 photo_cameraImage coming soon 5.605.0065 ROTOR SHAFT D.80 H130 4P MONOPH. €85.32
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
001
 Lavor Ontario 1211LP Pressure Gauge D.40 3.107.0006 Lavor Ontario 1211LP Pressure Gauge D.40 €26.50
003
 photo_cameraImage coming soon 3.554.0035 KIT PUMP BOBY GUIDE 11lt 60hz SX 1700 KLWS3020S (6301140200) €281.17
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 7
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
024
 photo_cameraImage coming soon 3.555.0057 CLAMP FOR CAP 1004.0012.00 €5.93
025
 photo_cameraImage coming soon 3.555.0250 COVER 0402036000 €12.44
026
 photo_cameraImage coming soon 3.555.0055 OR 3.53X44.04 1210.0386.00 €1.63
027
 photo_cameraImage coming soon 3.555.0079 SPACER 3019.0011.00 €3.32
028
 photo_cameraImage coming soon 3.555.0251 BEARING 20X52X15 €29.65
029
 photo_cameraImage coming soon 6.605.0115 PUMP HOUSING 0403.0128.00 €166.14
030
 photo_cameraImage coming soon 3.099.1480 OIL CAP (L=58 STICK) €3.36
036
 photo_cameraImage coming soon 4.607.0460 Substituted by 6.605.0090 PISTON WITH CERAMIC D.15 FOR LAVOR LINE 1507 €90.06
037
 photo_cameraImage coming soon 4.607.0534 WRIST PIN €1.68
038
 photo_cameraImage coming soon 3.555.0252 CONNECTING ROD €21.66
039
 photo_cameraImage coming soon 3.555.0067 GASKET 3019.0033.00 €5.24
040
 photo_cameraImage coming soon 3.555.0246 OIL INDICATOR €2.00
041
 photo_cameraImage coming soon 3.555.0253 OR-GASKET 2X24 1210045100 €1.63
042
 photo_cameraImage coming soon 3.555.0240 O-RING 3X94 €13.20
044
 photo_cameraImage coming soon 6.605.0115 PUMP HOUSING 0403.0128.00 €166.14
045
 photo_cameraImage coming soon 3.200.0070 O-RING 14X2 €1.63
046
 photo_cameraImage coming soon 3.555.0016 CAP 3/8G €30.22
047
 photo_cameraImage coming soon 6.605.0111 OIL GASKET KIT €12.20
060
 photo_cameraImage coming soon 3.555.0071 SHAFT D.24 0001.0290.00 €222.82
061
 photo_cameraImage coming soon 3.555.0072 KEY 8X7X28 1602.0045.00 €5.50
062
 photo_cameraImage coming soon 3.555.0254 BEARING 25X62X17 €37.04
063
 photo_cameraImage coming soon 6.605.0114 SEEGER KIT D.62 €29.62
064
 photo_cameraImage coming soon 6.605.0113 SEEGER KIT D.25 €16.36
065
 photo_cameraImage coming soon 6.005.0306 KIT 278 LW OIL SEALS + OR LWS1508/1808 €28.93
Page 8 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 8
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
001
 Lavor MCHPV 1515LP Kit 111 LW 6.005.0120 Lavor MCHPV 1515LP Kit 111 LW €28.38
002
 Lavor Ontario 1211LP Kit 112 LW 6.005.0121 Lavor Ontario 1211LP Kit 112 LW €71.07
003
 photo_cameraImage coming soon 6.605.0089 BUSH KIT D.15 FOR PUMP LP 1507 €36.26
004
 photo_cameraImage coming soon 6.605.0088 SEALS KIT A.P. D.15 FOR LP 1507 PUMP €50.76
005
 photo_cameraImage coming soon 4.606.0196 HEAD LAVOR LINE 1507 €167.78
006
 photo_cameraImage coming soon 3.100.0079 REDUCTION 1/4 F 1/8 M €12.94
007
 photo_cameraImage coming soon 3.106.0023 BODY GUIDE THERMIC VALVE 1/4 NPT WITH CAP 50°C €10.21
008
 photo_cameraImage coming soon 3.100.0023 NIPPLE 3/8 CIL.SV. 3/8 CIL.SV €3.34
009
 photo_cameraImage coming soon 4.606.0019 SUCTION CONNECTOR M22 IDRO COMPACT €5.16
010
 photo_cameraImage coming soon 4.006.0088 INTAKE FITTING ADAPTER L=26 M22-3/4G €6.72
011
 photo_cameraImage coming soon 4.607.0046 STAINLESS STEEL FILTER DIAM.20 ASP. CONNECTOR €3.36
012
 photo_cameraImage coming soon 6.005.0219 KIT 202 LW 2.0 INJECT. - PORT.RET.VALVE (5609Y154) LWS18 €31.17
013
 photo_cameraImage coming soon 4.606.0001 1/4G CAP €3.36
014
 photo_cameraImage coming soon 6.005.0578 KIT 6 VALVES *AUTO SUCTION* (COMP.OR) TEST.OCT.'99 €23.29
015
 photo_cameraImage coming soon 6.005.0007 KIT 6 CAP VALVE €25.22
016
 photo_cameraImage coming soon 5.609.Y154 HOSE ASSEMBLY D.1 C / OR-SPRING L = 7 wire D.0.4-BALL D.5.5 €6.53
017
 photo_cameraImage coming soon 3.100.0025 ELBOW 1/8 M-1/8 F €7.32

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Original Parts for Pressure Cleaner ONTARIO 1211LP

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner ONTARIO 1211LP 220/60 -G- LWS - 86590033.

Fix Your Pressure Cleaner ONTARIO 1211LP. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
Cold Water High Pressure Cleaner ONTARIO 1211LP 220/60 -G- LWS - 86590033
86590033 - ONTARIO 1211LP 220/60 -G- LWS- Pag.1
# Part Num. Description
0 R56120014 CORREDO UGELLO 15045 PORTAGOM. OTTONE X GHIERA 3/4
0 R8659X019 DANUBIO 1211LP 220/60 B.D.F. C/VALV. TERM. MICROD. 16Amp.
001 5.613.0177 HANDLE WITHOUT HOSE REEL
002 4.007.0277 SPRING HOSE HOLDER FOR HANDLE HW
003 4.608.0027 BLACK PLUG D.30 FOR TANK
004 4.008.0094 LAVORJET DETERGENT TANK 120
005 4.613.0295 YELLOW UPPER COVER ONTARIO FOR MOTORP UMP 1507
006 4.608.0314 HANDLE REGOLATOR BLACK
010 4.618.0143 HIGH PRESSURE HOSE 5/16 315BAR R2 L=10000 1/2 TWIST.-3/8
011 3.700.0036 GUN 26Mpa-100°C-30lt/min G3/8M - M22
012 3.701.0015 LANCE INOX L.700 +PL4/1+WASHER+ QUICK CONN.M22
013 5.611.0078 HOSE FITTING
014 3.103.0050 HIGH PRESSURE NOZZLE 1/8''M 15045 (C25045)
015 7.700.0369 INSTRUCTION MANUAL
86590033 - ONTARIO 1211LP 220/60 -G- LWS- Pag.2
001 5.611.0078 HOSE FITTING
002 3.103.0050 HIGH PRESSURE NOZZLE 1/8''M 15045 (C25045)
86590033 - ONTARIO 1211LP 220/60 -G- LWS- Pag.3
0 R56010523 MOTOP.LWM 220/60 4P 1508 DX C/IN. S/TS VALV. TERM. INGR. 3/4
001 5.601.0523 MOTOP.LWM 220/60 4P 1508 DX C/IN. S/TS VALV. TERM. INGR. 3/4
002 5.613.0251 COMPLETE FRAME (DANUBIO LP)
003 4.607.0072 MOTOR CLAMP
004 6.605.0056 ELECTRICAL BOX KIT +COVER FOR MONOPHASE
005 3.401.0004 THERMAL SWITCH
006 3.404.0036 CAPACITOR 80mF 450V D.50 CABLE L300 S/FASTON
008 4.613.0157 LOWER COVER DANUBIO-ONTARIO-LTX-TUCSON
009 4.612.0037 CABLE H05PVC
010 4.607.0246 AXLE-BAR FOR ONTARIO/DANUBIO
011 6.605.0075 KIT WHEEL+STUD+STOP WHEEL (ONTARIO/TUCSON)
86590033 - ONTARIO 1211LP 220/60 -G- LWS- Pag.4
0 R56060149 MOTORE LWM 220/60 D.135 H130 4P ALB.CAVO PER D.90 (CENTR. MASCHIO)
0 R5700X035 POMPA LW CL3 200/11 1700 DX C/IN. S/TS INGR. LUNGO 3/4
001 4.608.0294 MOTOR FAN COVER FOR D.135
002 3.099.1763 FAN D.162 W/CLIP AND SCREWS
003 5.606.0149 MOTOR LWM 220/60 D.135 H130 4P
004 4.605.0105 MOTOR FLANGE D.135
005 5.700.X035 LW PUMP CL3 200/11 1700 (RIGHT)
86590033 - ONTARIO 1211LP 220/60 -G- LWS- Pag.5
001 5.602.0068 HOUSING LWM 220/60 4P D.135 H.130 (CENTR. MASCHIO)
002 3.099.0002 UNLOADING RING 40X47
003 3.001.0001 BALL RADIAL BEARING 6204-2Z
004 5.605.0065 ROTOR SHAFT D.80 H130 4P MONOPH.
86590033 - ONTARIO 1211LP 220/60 -G- LWS- Pag.6
0 R35540035 KIT CARTER POMPA 11lt 60hz SX 1700 KLWS3020S (6301140200)
0 R50080257 TESTATA OTT.LWS 1507 C/IN.2,0 USC.3/8 S/TS INGR.LUNGO 3/4 VALV. TERM.
001 3.107.0006 D.40 0/300 BAR 1/8 GLYCERIN MANOMETER
002 5.008.0257 TESTATA OTT.LWS 1507 C/IN.2,0 USC.3/8 S/TS INGR.LUNGO 3/4 VALV. TERM.
003 3.554.0035 KIT PUMP BOBY GUIDE 11lt 60hz SX 1700 KLWS3020S (6301140200)
86590033 - ONTARIO 1211LP 220/60 -G- LWS- Pag.7
024 3.555.0057 CLAMP FOR CAP 1004.0012.00
025 3.555.0250 COVER 0402036000
026 3.555.0055 OR 3.53X44.04 1210.0386.00
027 3.555.0079 SPACER 3019.0011.00
028 3.555.0251 BEARING 20X52X15
029 6.605.0115 KIT CORPO POMPA D.15 (1508)
030 3.099.1480 OIL CAP (L=58 STICK)
036 4.607.0460 Substituted by 6.605.0090 PISTON WITH CERAMIC D.15 FOR LAVOR LINE 1507
037 4.607.0534 WRIST PIN
038 3.555.0252 CONNECTING ROD
039 3.555.0067 GASKET 3019.0033.00
040 3.555.0246 OIL INDICATOR
041 3.555.0253 OR-GASKET 2X24 1210045100
042 3.555.0240 O-RING 3X94
044 6.605.0115 KIT CORPO POMPA D.15 (1508)
045 3.200.0070 O-RING 14X2
046 3.555.0016 CAP 3/8G
047 6.605.0111 OIL GASKET KIT
060 3.555.0071 SHAFT D.24 0001.0290.00
061 3.555.0072 KEY 8X7X28 1602.0045.00
062 3.555.0254 BEARING 25X62X17
063 6.605.0114 SEEGER KIT D.62
064 6.605.0113 SEEGER KIT D.25
065 6.005.0306 KIT 278 LW OIL SEALS + OR LWS1508/1808
86590033 - ONTARIO 1211LP 220/60 -G- LWS- Pag.8
001 6.005.0120 KIT 111 PRESSURE REGULATOR FOR BRASS HEAD
002 6.005.0121 KIT 112 LW COMPLETE BY-PASS LIN.PUMP BRASS HEAD'99 W/O T/S
003 6.605.0089 LP BUSHING SET
004 6.605.0088 LP WATER GASKET KIT
005 4.606.0196 LAVOR HEAD
006 3.100.0079 REDUCTION 1/4 F 1/8 M
007 3.106.0023 BODY GUIDE THERMIC VALVE 1/4 NPT WITH CAP 50°C
008 3.100.0023 NIPPLE 3/8 CIL.SV. 3/8 CIL.SV
009 4.606.0019 SUCTION CONNECTOR M22 IDRO COM PACT
010 4.006.0088 SUCTION ADAPTOR M.22 3/4
011 4.607.0046 INOX FILTER D.20 SUCTION CONN. 3/4
012 6.005.0219 KIT 202 LW 2.1 INJ.-NO RETURN VALVE-RUBBER HOLDER 5609Y154 LWS18
013 4.606.0001 1/4G CAP
014 6.005.0578 KIT VALVES *AUTO SUCTION*
015 6.005.0007 KIT 6 CAP VALVE
016 5.609.Y154 KIT HOSE HOLDER DETERG.SUCTION D.1 (spring L=7 wire D.0.4-ball D.5.5)
017 3.100.0025 ELBOW 1/8 M-1/8 F

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
ONTARIO 1211LP - 86590033
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

Diagram Lavor ONTARIO 1211LP

Diagram Lavor ONTARIO 1211LP

Download (1.08MB)

You might also like

Lavor MCHPV 1515LP Kit 111 LW
Lavorwash S.p.A. SKU: 6.005.0120
Lavor MCHPV 1515LP Kit 111 LW
Lavor MCHPV 1515LP Kit 111 LW Genuine replacement part Lavor, Kit 111 LW Pressure Regulator For Brass Head Test.Oct.'99 for Pressure Cleaner MCHPV 1515LP 400-415/SC1 - 8.626.0002. Part for the following products:...
on 10 Business Days Approx. €28.38
Details
Lavor Ontario 1211LP Kit 112 LW
Lavorwash S.p.A. SKU: 6.005.0121
Lavor Ontario 1211LP Kit 112 LW
Lavor Ontario 1211LP Kit 112 LW Genuine replacement part Lavor, Kit 112 LW Complete By-Pass Lin. Pump Brass Head'99 W/O T/S for Pressure Cleaner Ontario 1211LP - 86590033. Part for the...
on 10 Business Days Approx. €71.07
Details
Lavor Ontario 1211LP Pressure Gauge D.40
Lavorwash S.p.A. SKU: 3.107.0006
Lavor Ontario 1211LP Pressure Gauge D.40
Lavor Ontario 1211LP Pressure Gauge D.40 Genuine replacement part Lavor, Pressure Gauge D.40 0/300 BAR 1/8" Glycerine for Pressure Cleaner Ontario 1211LP - 86590033. Part for the following products: - ...
Last items in stock €26.50
Details
Lavor Nozzle for ONTARIO 1211LP
Lavorwash S.p.A. SKU: 3.103.0050
Lavor Nozzle for ONTARIO 1211LP
Lavor Nozzle for Pressure Washer ONTARIO 1211LP Genuine replacement part Lavor, High Pressure Nozzle 1/8M 15045 for Pressure Cleaner NPX1400 - LKX 31. Part for the following products: -  Pressure Cleaner ONTARIO 1211LP -...
Usually Ships in: 10/15 Business Days Approx. €16.21
Details
Comments (0)
