Lavorwash S.p.A.

STANLEY Parts for VACUUM ARGO 4in1 WET&DRY

SKU: STANLEY ARGO 4in1 82430016
€12.78
VAT included

STANLEY Parts for VACUUM ARGO 4in1 WET&DRY

Lavor original spare parts for to replace broken parts for to fix VACUUM ARGO 4in1 WET&DRY 220-240/50-60 STANLEY - 82430016.
STANLEY Parts for VACUUM ARGO 4in1 WET&DRY
  • STANLEY Parts for VACUUM ARGO 4in1 WET&DRY
Lavorwash S.p.A.

STANLEY Parts for VACUUM ARGO 4in1 WET&DRY

SKU: STANLEY ARGO 4in1 82430016 Condition: New
€12.78
VAT included

STANLEY Parts for VACUUM ARGO 4in1 WET&DRY

Lavor original spare parts for to replace broken parts for to fix VACUUM ARGO 4in1 WET&DRY 220-240/50-60 STANLEY - 82430016.
settings 20 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
20 spare parts

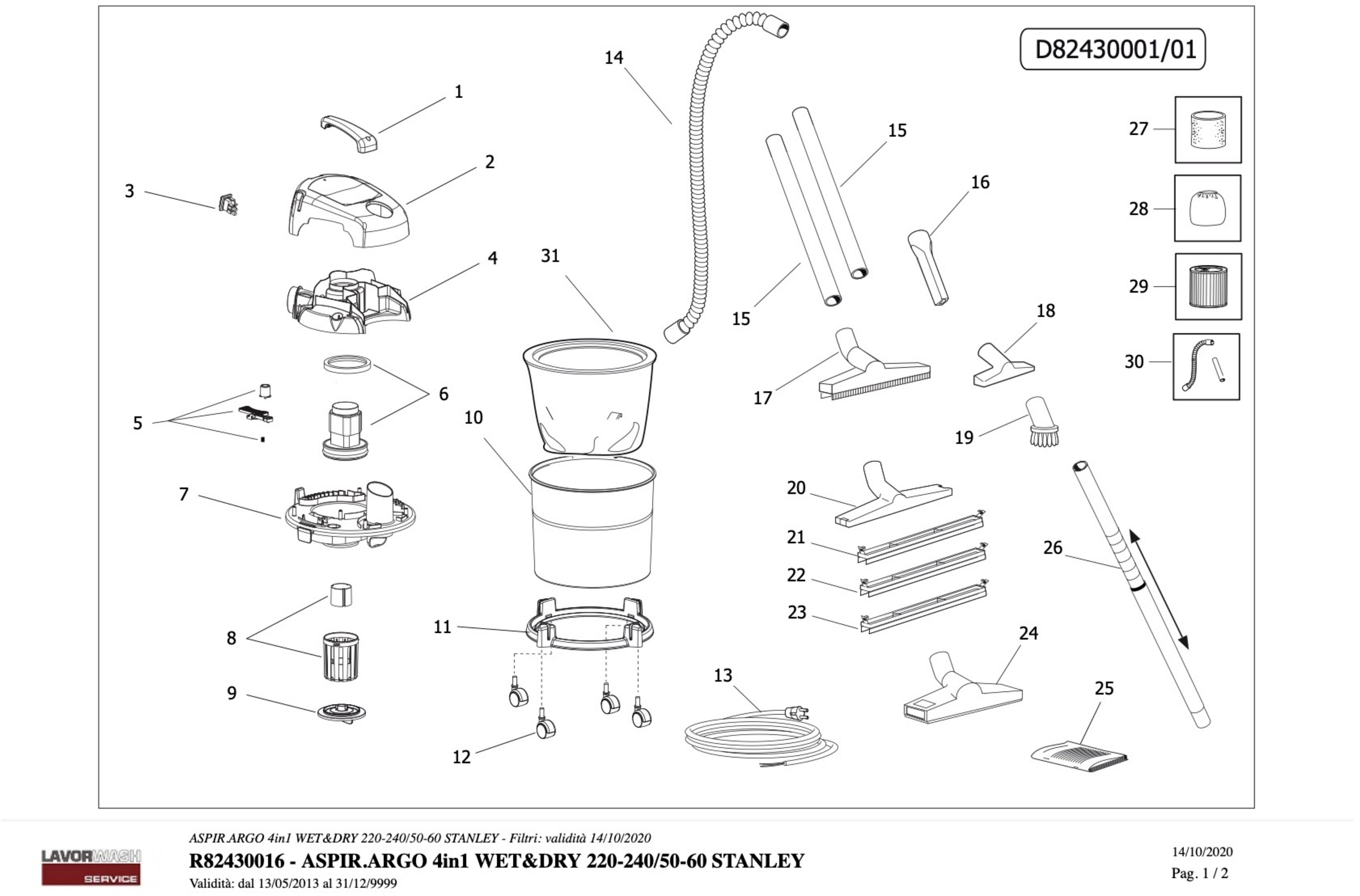

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
001
 photo_cameraImage coming soon 5.212.0104 ASSEMBLY HANDLE + SCREWS €11.70
002
 photo_cameraImage coming soon 4.208.0540 UPPER HEAD €14.32
003
 photo_cameraImage coming soon 5.009.0213 EXT SWITCH WITH PROTECTION 12(10) €6.72
004
 photo_cameraImage coming soon 4.208.0580 CONVEYOR FOR VAC -YELLOW - RIF.SY-01 P82.0531 €14.17
005
 photo_cameraImage coming soon 6.205.0146 FILTER SHAKER €12.96
006
 photo_cameraImage coming soon 6.205.0147 KIT MOTOR + GASKET €33.91
007
 photo_cameraImage coming soon 4.208.0645 BASE FOR MOTORS VACUUM CLEANER P82.0531 €21.12
008
 photo_cameraImage coming soon 6.205.0148 KIT BASKET + FLOAT €9.44
009
 Lavor Venti P Filter Disc Retaining 4.208.0359 Lavor Venti P Filter Disc Retaining €9.37
010
 photo_cameraImage coming soon 3.751.0063 TANK 20LT (YELLOW) €23.78
011
 photo_cameraImage coming soon 4.208.0531 WHEEL SUPPORT BASE FOR STEEL TANK €14.15
012
 photo_cameraImage coming soon 3.754.0199 BLACK TWINNED PIVOTING WHEEL D.40 STEEL PIN. €7.73
013
 photo_cameraImage coming soon 4.012.0091 CABLE H05VV-F 2X0,75 MT.4 SCHUKO PLUG (SPLASHPROOF RESISTANT) €11.03
014
 Stanley ARGO 4in1 Flex Hose 1mt 3.753.0083C Stanley ARGO 4in1 Flex Hose 1mt €27.21
015
 photo_cameraImage coming soon 3.753.0072 EXTENSIONS HOSE MT.0.48 D.35 (SP.EC) €10.11
016
 photo_cameraImage coming soon 3.754.0005 LANCE D.35 €3.00
017
 photo_cameraImage coming soon 3.754.0249 BRUSH DUST/LIQUID ECO D.35 €8.34
027
 photo_cameraImage coming soon 3.752.0175 Substituted by 5.212.0030 FOAM FILTER €7.43
029
 photo_cameraImage coming soon 3.752.0199 Substituted by 5.212.0154 WASHABLE FILTER EXTERNAL NET €16.12
030
 photo_cameraImage coming soon 6.205.0177 FLEXIBLE HOSE KIT AND LANCE (1,5mt) €20.53

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

STANLEY Parts for VACUUM ARGO 4in1 WET&DRY

Lavor original spare parts for to replace broken parts for to fix VACUUM ARGO 4in1 WET&DRY 220-240/50-60 STANLEY - 82430016.

In the following tables, look for the spare part and its respective code.
STANLEY ARGO 4in1 82430016
82430016 - VACUUM ARGO 4in1 WET&DRY 220-240/50-60 STANLEY
# Part Num. Description
001 5.212.0104 ASSEMBLY HANDLE + SCREWS
002 4.208.0540 COVER VACUUM CLEANER P82.0531
003 5.009.0213 SWITCH WITH PROTECTION 12(10)
004 4.208.0580 CONVEYOR FOR VAC -YELLOW - RIF.SY-01 P82.0531
005 6.205.0146 KIT SHACKER FILTER
006 6.205.0147 KIT MOTOR + GASKET
007 4.208.0645 BASE FOR MOTORS VACUUM CLEANER P82.0531
008 6.205.0148 KIT BASKET + FLOAT
009 4.208.0359 LOCKING DISC FOR VACUUM FILTER
010 3.751.0063 TANK 20LT (YELLOW)
011 4.208.0531 WHEEL SUPPORT BASE FOR STEEL TANK
012 3.754.0199 BLACK TWINNED PIVOTING WHEEL D.40 STEEL PIN.
013 4.012.0091 CABLE H05VV-F 2X0,75 MT.4 SCHUKO PLUG (SPLASHPROOF RESISTANT)
014 3.753.0083C Substituted by 6.205.0099 METAL HOSE 1mt COMPLETE OF 2 CONNECTIONS(1 S4992 +1 S4993)
015 3.753.0072 EXTENSIONS HOSE MT.0.48 D.35 (SP.EC)
016 3.754.0005 LANCE D.35
017 3.754.0249 BRUSH DUST/LIQUID ECO D.35
025 7.300.0464 INSTRUCTION MANUAL ARGO 4in1 STANLEY 9L A5 36F
027 3.752.0175 Substituted by 5.212.0030 FOAM FILTER
029 3.752.0199 Substituted by 5.212.0154 WASHABLE FILTER EXTERNAL NET
030 6.205.0177 FLEXIBLE HOSE KIT AND LANCE (1,5mt)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
STANLEY ARGO 4in1 82430016
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

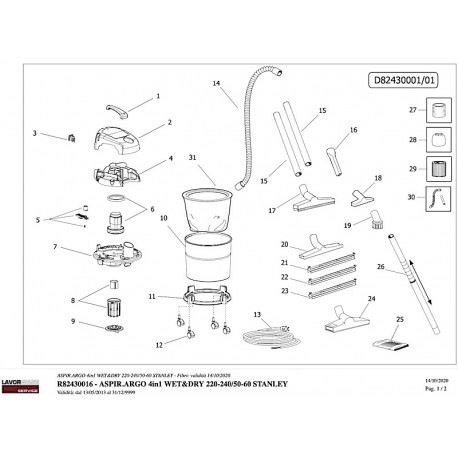

Drawing STANLEY ARGO 4in1

Drawing STANLEY ARGO 4in1

Download (236.13KB)
