Lavorwash S.p.A.

Lavor Parts for Pressure Cleaner SPEED 20

SKU: Lavor SPEED 20 - 8.062.0922
€12.94
VAT included

Lavor Parts for Pressure Cleaner SPEED 20

Lavor original spare parts for to replace broken parts for to fix Cold Water Pressure Cleaner 8.062.0922 - LAVOR SPEED 20 230-240V/50Hz -G- TS 2L (20L) LWS.

Fix Your Pressure Cleaner SPEED 20. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.
Lavor Parts for Pressure Cleaner SPEED 20
  • Lavor Parts for Pressure Cleaner SPEED 20
  • Lavor Parts for Pressure Cleaner SPEED 20
Lavorwash S.p.A.

Lavor Parts for Pressure Cleaner SPEED 20

SKU: Lavor SPEED 20 - 8.062.0922 Condition: New
€12.94
VAT included

Lavor Parts for Pressure Cleaner SPEED 20

Lavor original spare parts for to replace broken parts for to fix Cold Water Pressure Cleaner 8.062.0922 - LAVOR SPEED 20 230-240V/50Hz -G- TS 2L (20L) LWS.

Fix Your Pressure Cleaner SPEED 20. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 43 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
42 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

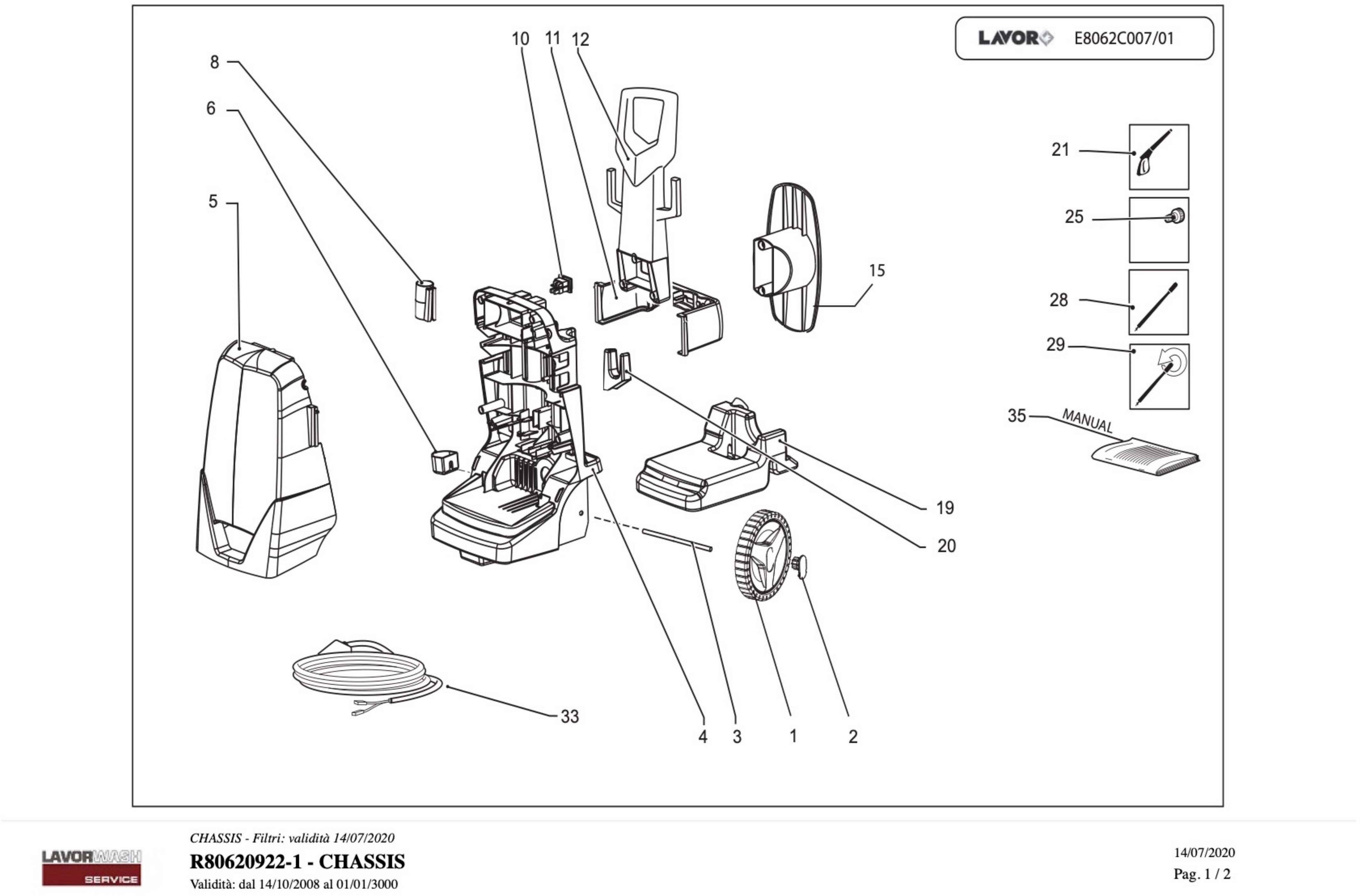

Esploso pagina 1
Pos. Item Price Buy
001
 Kit 296 Black Wheel for Cleaner Lavor SUPERWASH 160 4.008.0988 Kit 296 Black Wheel for Cleaner Lavor SUPERWASH 160 €28.90
002
 Wheel Cap for Pressure Cleaner Lavor SUPERWASH 160 4.008.0989 Wheel Cap for Pressure Cleaner Lavor SUPERWASH 160 €1.30
003
 photo_cameraImage coming soon 4.007.0290 FIXING AXLE FOR WHEEL €3.32
004
 photo_cameraImage coming soon 4.008.0986 BACK COVER MACH FOR WHEELS D.180 €30.33
005
 photo_cameraImage coming soon 4.013.0473 YELLOW FRONT CABINET MACH'05 (PANT.108C) €26.87
006
 photo_cameraImage coming soon 4.008.0967 LANCE SUPPORT FOR MACH €5.60
008
 Kit 218 Accessories Holder for Washer Lavor Superwash 160 4.008.0987 Kit 218 Accessories Holder for Washer Lavor Superwash 160 €28.98
010
 Switch 0/1 Black Button for Pressure Washers Lavor 3.401.0178 Switch 0/1 Black Button for Pressure Washers Lavor €6.91
011
 photo_cameraImage coming soon 4.008.0785 ACCESSORIES HOLDER €5.26
012
 photo_cameraImage coming soon 4.008.0947 HANDLE FOR TIGER'05 €30.18
015
 photo_cameraImage coming soon 4.008.0789 HOSE REEL TIGER €6.99
019
 Tank Assembly for Pressure Washer Lavor Superwash 160 5.011.0084 Tank Assembly for Pressure Washer Lavor Superwash 160 €29.39
020
 photo_cameraImage coming soon 4.008.0786 CABLE HOLDER €3.32
021
 photo_cameraImage coming soon 6.001.0067 Substituted by 6.001.0083 GUN S'01-EU-INTERM.SECURITY PIN YELLOW PANT.108C €32.07
025
 Quick Coupling 3/4F for High Pressure Washers Lavor 3.100.0082 Quick Coupling 3/4F for High Pressure Washers Lavor €1.63
028
 photo_cameraImage coming soon 6.002.0190C LANCE S'99 1.05 HIGH LOW PRESSURE €15.23
029
 photo_cameraImage coming soon 6.002.0230 ROTOX LANCE S01 1,10 (GREEN) €12.34
033
 photo_cameraImage coming soon 4.012.0149 CABLE H05VV-F 3X1 SCHUKO PLUGMT.5,4 F/F rev 04 €29.49
034
 High Pression Hose for Pressure Washer BEST 24 4.018.0061 High Pression Hose for Pressure Washer BEST 24 €30.00
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

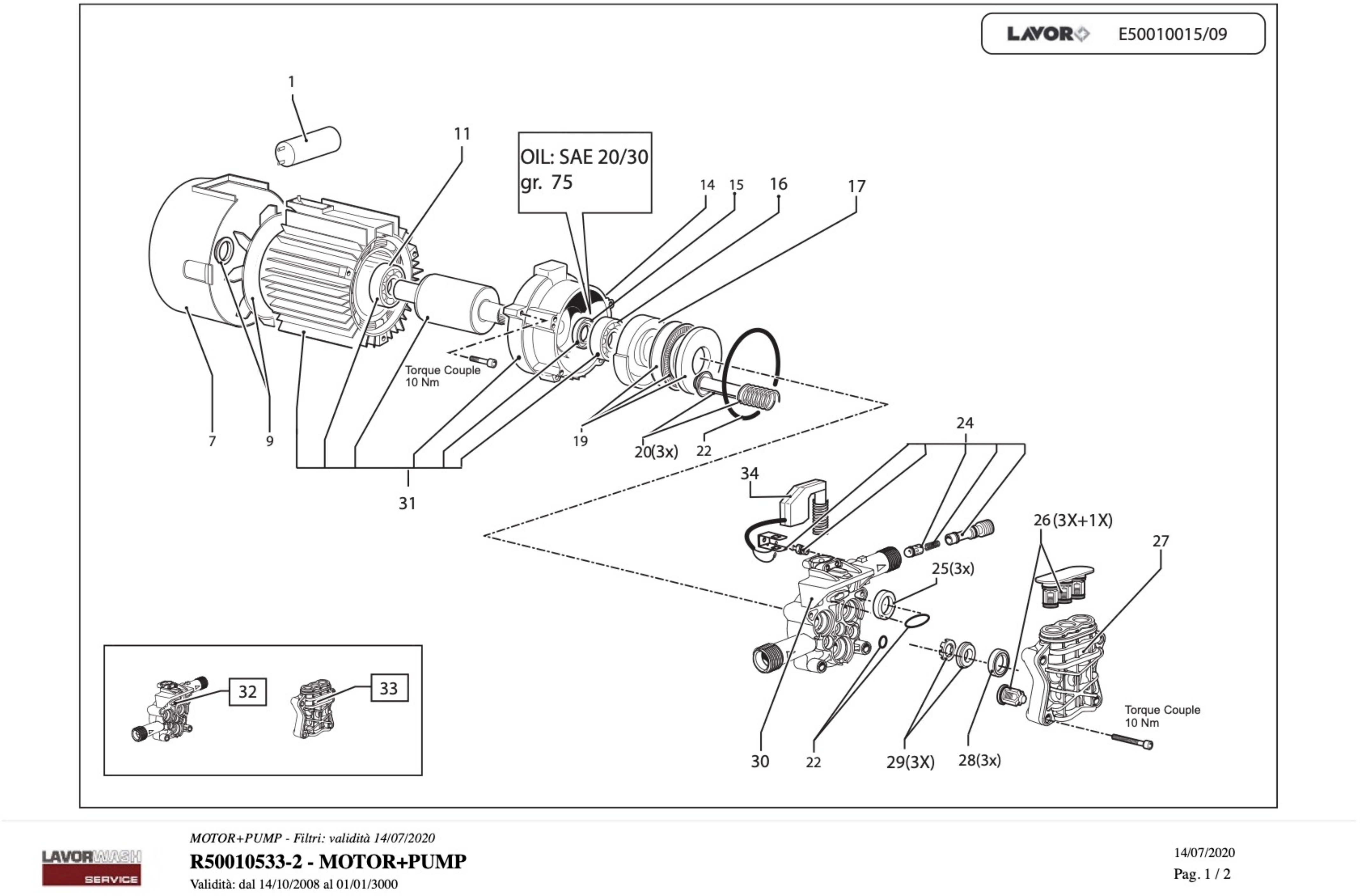

Esploso pagina 2
Pos. Item Price Buy
000
 photo_cameraImage coming soon 5.001.0533 MOTORPUMP PT'03 110h100 230-24 0/50 D.12 9'35 TS IN 1.78MACH €261.56
001
 photo_cameraImage coming soon 3.404.0017 CAPACITOR 25mF 450V D.39x94 F/M €11.18
007
 photo_cameraImage coming soon 4.008.0922 COVER FOR MOTOR FAN (MOTOR'96) €7.22
009
 photo_cameraImage coming soon 6.005.0253 KIT 236 LW FAN + RING €16.00
011
 photo_cameraImage coming soon 3.001.0033 BALL BEARING 6003 2RS (17x35x10) €3.43
014
 photo_cameraImage coming soon 5.009.0533 FRONT FLANGE '96 D.110 W/RING €20.16
015
 Oil Seal 17X35X7 for Pressure Washer Lavor FKX 1018 3.201.0008 Oil Seal 17X35X7 for Pressure Washer Lavor FKX 1018 €7.21
016
 Ball Bearing 6303 for Pressure Washers Lavorwash 3.001.0030 Ball Bearing 6303 for Pressure Washers Lavorwash €5.97
017
 photo_cameraImage coming soon 4.005.0218 WOBBLE PLATE 9'35 PT'03 €8.55
019
 photo_cameraImage coming soon 6.005.0087 THRUST RING KIT (PT'03 INDUCTION/U88) €10.24
020
 Kit 167 LW 3 Pistons + Springs for Pressurte Washer Lavor BEST 24 6.005.0181 Kit 167 LW 3 Pistons + Springs for Pressurte Washer Lavor BEST 24 €25.98
022
 Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24 6.005.0226 Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24 €11.43
024
 Kit 169 LW Injector D. 1.7 for Washers Lavor GIANT 20 - PASCAL 20 6.005.0183 Kit 169 LW Injector D. 1.7 for Washers Lavor GIANT 20 - PASCAL 20 €14.50
025
 Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24 6.005.0079 Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24 €14.50
026
 Kit 170 LW Intake-Delivery Valve for Pressurte Washer Lavor BEST 24 6.005.0184 Kit 170 LW Intake-Delivery Valve for Pressurte Washer Lavor BEST 24 €15.19
027
 photo_cameraImage coming soon 4.005.0210 '03 PARTNER HEAD €12.51
028
 Kit 124 Water Seal Partner for Pressurte Washer Lavor BEST 24 6.005.0133 Kit 124 Water Seal Partner for Pressurte Washer Lavor BEST 24 €14.54
029
 Kit 125 LW Rings Holding Brass Seal for Pressurte Washer Lavor BEST 24 6.005.0134 Kit 125 LW Rings Holding Brass Seal for Pressurte Washer Lavor BEST 24 €15.18
030
 photo_cameraImage coming soon 4.005.0211 PISTON BODY GUIDE PT'03 WITH HOLE FOR SUCTION €65.11
031
 photo_cameraImage coming soon 5.006.0178 MOTOR'03 D.110 H100 230-240/50 €147.90
032
 photo_cameraImage coming soon 5.007.0187 SUBSTITUITED BY 5.007.0187C BODY GUIDEPT'03 PISTONS D.12 W/ASS,DETERG.SUCTION €50.11
033
 photo_cameraImage coming soon 5.008.0182 Substituted by 5.008.0182C HEAD PT'03 PARTNER D.12 €28.37
034
 photo_cameraImage coming soon 5.009.0537 Substituited by 5.009.0716 COMPLETED VALVE TS PT'03 CABLE L=510 SPRING 13KG €27.05

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Parts for Pressure Cleaner SPEED 20

Lavor original spare parts for to replace broken parts for to fix Cold Water Pressure Cleaner 8.062.0922 - LAVOR SPEED 20 230-240V/50Hz -G- TS 2L (20L) LWS.

In the following tables, look for the spare part and its respective code.
Lavor SPEED 20 - 8.062.0922

8.062.0922 - Pressure Cleaner LAVOR SPEED 20 230-240V/50Hz -G- TS 2L (20L) Pag.1
Chassis
# Part Num. Description
001 4.008.0988 BLACK WHEEL COBRA D.180 FOR FI XING ATTACKS ESP.OO
002 4.008.0989 WHEEL CAP COBRA -YELLOW- FOR FIXING ATTACKS
003 4.007.0290 FIXING AXLE FOR WHEEL
004 4.008.0986 BACK COVER MACH FOR WHEELS D.1 80
005 4.013.0473 YELLOW FRONT CABINET MACH'05 (PANT.108C)
006 4.008.0967 LANCE SUPPORT FOR MACH
008 4.008.0987 LANCE SUPPORT MACH
010 3.401.0178 SWITCH 0/1 BLACK BOTTON IP55 12/10
011 4.008.0785 ACCESSORIES HOLDER
012 4.008.0947 HANDLE FOR TIGER'05
015 4.008.0789 HOSE REEL TIGER
019 5.011.0084 TANK COMPLETE MACH BLACK + TAP
020 4.008.0786 CABLE HOLDER
021 6.001.0067 GUN S'01-EU-INTERM.SECURITY PIN YELLOW PANT.108C
025 3.100.0082 QUICK COUPLING INLET CONNECTOR (THREAD=11.5)
028 6.002.0190C LANCE S'99 1.05 HIGH LOW PRESSURE
029 6.002.0230 ROTOX LANCE S01 1,10 (GREEN)
033 4.012.0149 CABLE H05VV-F 3X1 MT.5,4 SCHUKO PLUG F/F
034 4.018.0061 H.P.HOSE 1/4 180BAR L=8000 1/4F/M22x1,5K15
035 7.100.1492 MANUALE SPECIFICO SPEED +CE LA VOR 27L A5 20F
Motor-Pump Pag.2
000 5.001.0533 MOTORPUMP PT'03 110h100 230-24 0/50 D.12 9'35 TS IN 1.78MACH
001 3.404.0017 CAPACITOR 25mF 450V D.39x94 F/M
007 4.008.0922 COVER FOR MOTOR FAN (MOTOR'96)
009 6.005.0253 KIT 236 LW FAN + RING
011 3.001.0033 BALL BEARING 6003 2RS (17x35x10)
014 5.009.0533 FRONT FLANGE '96 D.110 W/RING
015 3.201.0008 OIL SEAL RING D. 17X35X7
016 3.001.0030 RADIAL BALL BEARING 6303
017 4.005.0218 WOBBLE PLATE 9'35 PT'03
019 6.005.0087 THRUST RING KIT (PT'03 INDUCTION/U88)
020 6.005.0181 KIT 167 LW PISTON
022 6.005.0226 KIT 209 O-RING
024 6.005.0183 KIT 169 LW INJECTOR 1,7
025 6.005.0079 KIT 79 LW OIL SEALS
026 6.005.0184 KIT 170 LW HEAD VALVE KIT
027 4.005.0210 '03 PARTNER HEAD
028 6.005.0133 KIT 124 O-RING WATER SEAL PARTNER D.12
029 6.005.0134 KIT 125 O-RING SEAL
030 4.005.0211 PISTON BODY GUIDE PT'03 WITH HOLE FOR SUCTION
031 5.006.0178 MOTOR'03 D.110 H100 230-240/50
032 5.007.0187 SUBSTITUITED BY 5.007.0187C BODY GUIDE PT'03 PISTONS D.12 W/ASS,DETERG.SUCTION
033 5.008.0182 SUBSTITUITED BY 5.008.0182C'03 PARTNER HEAD D.12
034 5.009.0537 SUBSTITUITED BY 5.009.0716 COMPLETED VALVE TS PT'03 CABLE L=510 SPRING 13KG
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Lavor SPEED 20 - 8.062.0922
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

Drawing Lavor SPEED 20

Drawing Lavor SPEED 20

Download (460.9KB)
