Lavorwash S.p.A.

Lavor Original Parts for Pressure Cleaner LKX 40 - 8.611.0002-1

SKU: Lavor LKX 40 - 86110002
€579.98
VAT included

Lavor Original Parts for Pressure Cleaner LKX 40 - 8.611.0002-1

Lavor original spare parts for to replace broken parts for to fix Hot Water High Pressure Cleaner 8.611.0002-1 - IDRO LKX 40 230/400-50 -G-.

Fix Your Pressure Cleaner IDRO LKX 40. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee
Lavor Original Parts for Pressure Cleaner LKX 40 - 8.611.0002-1
  • Lavor Original Parts for Pressure Cleaner LKX 40 - 8.611.0002-1
  • Lavor Original Parts for Pressure Cleaner LKX 40 - 8.611.0002-1
  • Lavor Original Parts for Pressure Cleaner LKX 40 - 8.611.0002-1
Lavorwash S.p.A.

Lavor Original Parts for Pressure Cleaner LKX 40 - 8.611.0002-1

SKU: Lavor LKX 40 - 86110002 Condition: New
€579.98
VAT included

Lavor Original Parts for Pressure Cleaner LKX 40 - 8.611.0002-1

Lavor original spare parts for to replace broken parts for to fix Hot Water High Pressure Cleaner 8.611.0002-1 - IDRO LKX 40 230/400-50 -G-.

Fix Your Pressure Cleaner IDRO LKX 40. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee
settings 145 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
144 spare parts

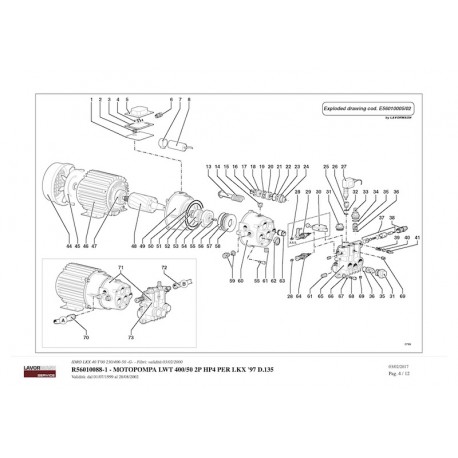

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
000
 photo_cameraImage coming soon 5.601.0075 MOTOR PUMP LBM 230/50 HP3 130/1 1 LKX TS'97 €546.69
001
 photo_cameraImage coming soon 4.607.0019 TERMINAL BLOCK PLATE X MOT HOUR GMV €9.92
002
 photo_cameraImage coming soon 4.606.0008 CABLE GLAND FOR GMV D.150 ENGINE €12.20
003
 photo_cameraImage coming soon 3.299.0004 GFP GASKET. 80 X TERMINAL COVER. FP.80 €3.14
004
 photo_cameraImage coming soon 3.405.0005 TERMINAL BOARD 50X32 €5.65
005
 photo_cameraImage coming soon 3.410.0008 TERMINAL COVER FP.80 X PIAST R.PRESSAC. 80/112 MP €3.14
006
 photo_cameraImage coming soon 3.406.0012 CABLE GLAND PLATE PG. 16 X COPRIM.FP80 €3.14
013
 photo_cameraImage coming soon 5.009.0089 Substituited by 5.009.0088 ASSEMBL.BOLT/PISTON D.15 CERAMIC €37.14
014
 Piston Recall Spring for Pressure Washers Lavor NPX 1400 - NPX 1500 4.007.0011 Piston Recall Spring for Pressure Washers Lavor NPX 1400 - NPX 1500 €10.03
015
 photo_cameraImage coming soon 5.009.0159 OIL CAP WITH O-RING 3/8G €9.28
016
 O-Ring 12.4x1.78 for Pressure Washers Lavor NPX 1400 - NPX 1500 3.200.0004 O-Ring 12.4x1.78 for Pressure Washers Lavor NPX 1400 - NPX 1500 €1.70
018
 photo_cameraImage coming soon 4.606.0041 SECOND SEALING HOLDER RING 130/8 ESP.1 €10.35
019
 Water Sealing Ring for Pressure Washers Lavor NPX 1400 - NPX 1500 3.201.0003 Water Sealing Ring for Pressure Washers Lavor NPX 1400 - NPX 1500 €5.27
020
 photo_cameraImage coming soon 4.606.0040 SECOND SEALING BUSHING 130/8 OT. ESP.4 €9.96
021
 O-Ring 25.12x1.78 for Pressure Washers Lavor NPX 1400 - NPX 1500 3.200.0003 O-Ring 25.12x1.78 for Pressure Washers Lavor NPX 1400 - NPX 1500 €1.70
023
 photo_cameraImage coming soon 3.201.0006 SEALING RING PDF 15X25X5 G1N84-1046 €8.40
024
 photo_cameraImage coming soon 4.008.0108 HEAD RING D.15 H.4 €9.74
025
 photo_cameraImage coming soon 3.200.0016 GASKET OR 8,73X1,78 REF. 108 SH70 €1.58
026
 photo_cameraImage coming soon 4.606.0054 PRESSURE SWITCH FITTING (sold out) 1/8 €7.70
027
 Pressure Switch for Pressure Washer Lavor Missouri 3.704.0006 Pressure Switch for Pressure Washer Lavor Missouri €30.90
028
 photo_cameraImage coming soon 3.002.0148 CONICAL SCREW STEI M6X6 DIN 906 SCREW €1.22
031
 photo_cameraImage coming soon 5.009.0101 CAP VALVE SUCTION DELIVERY-ORMOUNTED €6.91
032
 photo_cameraImage coming soon 3.200.0017 O-RING GASKET 9,13X2,62 REF.109 €1.66
033
 photo_cameraImage coming soon 4.606.0043 VALVE CAP ASP.MAND.CAPILL. 1/4 €12.07
034
 photo_cameraImage coming soon 3.200.0005 SEAL OR 15.6 X 1.78 REF. 2062 €1.62
035
 Delivery Suction Valve for Pressure Washer Lavor NPX 1500 5.009.0215 Delivery Suction Valve for Pressure Washer Lavor NPX 1500 €9.47
036
 Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018 3.200.0019 Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018 €1.70
037
 Lavor Bypass Valve Unloaded for NPX 1500 5.609.0018 Lavor Bypass Valve Unloaded for NPX 1500 €28.89
038
 photo_cameraImage coming soon 5.609.0022 COMPLETE INJECTOR FITTING D. 1.8 €27.24
039
 photo_cameraImage coming soon 4.007.0014 VALVE SPRING DETERGENT CHECK De4,5 / 6 L = 7 WIRE D.0,3 €2.50
040
 photo_cameraImage coming soon 3.005.0001 BALL INOX 420 DIAM.5 (accuracy grade G 500) €1.72
041
 photo_cameraImage coming soon 5.009.0164 HOSE DETERGENT COMPLETE WITH OR €20.18
044
 photo_cameraImage coming soon 4.608.0088 MOTOR FAN COVER D.135 €14.45
045
 photo_cameraImage coming soon 3.099.0108 LOWERED FAN D.150 90V3 WITH HOLE D.19 + CLAMP €14.61
046
 photo_cameraImage coming soon 5.602.0011 Replaced by 5.606.0027 CARCASSA LW.T 400/50 2P D.135 H.100 €283.39
047
 photo_cameraImage coming soon 3.001.0001 BALL RADIAL BEARING 6204-2Z €14.95
048
 photo_cameraImage coming soon 5.605.0019 Replaced by 5.606.0027 ROTARY SHAFT D.70 H100 ALB. O MNIA €1.61
049
 photo_cameraImage coming soon 4.605.0024 Replaced by 5.609.0036 ENGINE FLANGE D.135 FOR OMNIA €50.94
050
 Gasket O-Ring 117x2.5 for Pressure Washer Lavor NPX 1500 3.200.0015 Gasket O-Ring 117x2.5 for Pressure Washer Lavor NPX 1500 €3.78
051
 Gasket O-Ring 85x2.5 for Pressure Washer Lavor NPX 1500 3.200.0014 Gasket O-Ring 85x2.5 for Pressure Washer Lavor NPX 1500 €3.27
052
 Oil Seal 20-35-6-6.5 for Washer Lavor GIANT 24 3.201.0001 Oil Seal 20-35-6-6.5 for Washer Lavor GIANT 24 €2.76
053
 Oblique Ball Bearing for Pressure Washers Lavor GIANT 24 - 28 3.001.0002 Oblique Ball Bearing for Pressure Washers Lavor GIANT 24 - 28 €14.80
054
 photo_cameraImage coming soon 4.005.0125 CONICAL PLATE INC. 9.16 CORS = 7,9-7,83 ROLLER BEARING €7.52
055
 photo_cameraImage coming soon 3.002.0003 HEXAGON SOCKET HEAD CAP SCREWM8X25 UNI 5931 ZNT €3.32
056
 Lavor Disk As for KARJET PROFI130 3.001.0003 Lavor Disk As for KARJET PROFI130 €3.33
057
 Lavor Needle Roller Cage for EQ18 3.001.0025 Lavor Needle Roller Cage for EQ18 €3.48
058
 Lavor Thrust Shoe for LP 20 EHR 4.007.0001 Lavor Thrust Shoe for LP 20 EHR €5.83
059
 Lavor Oil Lever Indicator for NPX 1400 3.099.0003 Lavor Oil Lever Indicator for NPX 1400 €4.14
060
 Pistons Guide Body for Pressure Washer Lavor NPX 1500 4.005.0055 Pistons Guide Body for Pressure Washer Lavor NPX 1500 €94.47
061
 STEI Screw 3/8" for Pressure Washers Lavor NPX 1400 - NPX 1500 3.002.0004 STEI Screw 3/8" for Pressure Washers Lavor NPX 1400 - NPX 1500 €1.70
062
 photo_cameraImage coming soon 3.201.0002 O-RINGBADSLSF 15X25,4X5 /7 €7.48
063
 Hose Coupling Omnia for Pressure Washers Lavor NPX 1500 5.009.0136 Hose Coupling Omnia for Pressure Washers Lavor NPX 1500 €3.27
064
 photo_cameraImage coming soon 5.609.0052 Substituited by 6.005.0078 COMPENSATED VALVE ROD D.11 ASSEMBLY €32.42
065
 photo_cameraImage coming soon 4.606.0072 COMPENSATED VALVE HEAD €295.64
067
 Washer SNHOR for Pressure Cleaner Lavor NPX 1400 3.004.0022 Washer SNHOR for Pressure Cleaner Lavor NPX 1400 €1.71
068
 photo_cameraImage coming soon 3.002.0078 HEXAGON SOCKET HEAD CAP SCREW M8X40 UNI 5931 ZNT €1.68
069
 photo_cameraImage coming soon 4.006.0109 TAPERED 1/8 CAP €7.67
070
 photo_cameraImage coming soon 4.618.0030 TUBE B.P. D.20X10 3/8M-3/8M. L.450 €26.69
071
 photo_cameraImage coming soon 5.601.0088 Replaced by 5.601.0164 MOTOR PUMP LWT 400/50 2P HP4 FOR LKX '97 D.135 €769.57
072
 photo_cameraImage coming soon 4.618.0035 TUBE R1 PUMP/COIL TG480 €28.57
073
 photo_cameraImage coming soon 5.008.0101 BRASS HEAD '97 -COMPENSATED VALVE D.11 €436.67
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 2
Pos. Item Price Buy
001
 photo_cameraImage coming soon 3.002.0122 SCREW M6X12ZNT €1.68
002
 photo_cameraImage coming soon 4.613.0111 UPPER FAIRING JOLLY 5 / L KX YELLOW €228.54
003
 photo_cameraImage coming soon 4.608.0028 Replaced by 4.608.0203 DIESEL / DETERGENT TANK J OLLY 5 / LKX €244.47
004
 photo_cameraImage coming soon 4.612.0031 4.612.0046 FEEDING CABLE H05PVC 4X1,5 L=5000 €30.05
005
 photo_cameraImage coming soon 4.608.0073 SHORT SPACER FOR TANK JOLLY 4/93 €1.74
006
 photo_cameraImage coming soon 5.009.0032 PLASTIC OIL FILLER CAP 3/8 WITH GUARN. €3.09
007
 Fuel Tank Long Spacer for Pressure Washers Lavor NPX 1400 - NPX 1500 4.608.0074 Fuel Tank Long Spacer for Pressure Washers Lavor NPX 1400 - NPX 1500 €3.27
008
 photo_cameraImage coming soon 5.613.0096 BOILER AXLE JOLLY 4/93 €29.21
010
 photo_cameraImage coming soon 3.200.0038 O-RING GASKET 53,65X2,62 REF.3212 €1.70
011
 photo_cameraImage coming soon 5.613.0115 REAR DRIVE AXLE JOLLY 5 / LKX €34.70
012
 photo_cameraImage coming soon 3.006.0026 WHEEL D.260X85 BLACK €28.65
013
 photo_cameraImage coming soon 3.099.0096 WHEEL COVER €12.43
015
 Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500 3.100.0043 Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500 €17.59
017
 photo_cameraImage coming soon 3.700.0015 Substituited by 3.700.0036 GUN RL200 3/8+S4+QUICK CONN. 30015060 €39.46
018
 700 mm Lance 1/8 "F High/Low Pressure for Pressure Washers Lavor 3.701.0015 700 mm Lance 1/8 "F High/Low Pressure for Pressure Washers Lavor €37.13
019
 photo_cameraImage coming soon 3.103.0012 Replaced by 3.103.0049 HIGH PRESSURE NOZZLE 1 / 8M 1504 €15.13
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 3
Pos. Item Price Buy
001
 photo_cameraImage coming soon 3.401.0048 THERMAL SWITCH €129.92
002
 photo_cameraImage coming soon 4.608.0079 DASHBOARD '93 WITH COMPLETE SILKSCREEN €45.18
003
 Thermostate Knob for Pressure Washers Lavor NPX 1400 - NPX 1500 4.608.0019 Thermostate Knob for Pressure Washers Lavor NPX 1400 - NPX 1500 €10.03
004
 photo_cameraImage coming soon 4.608.0018 Substituited by 4.608.0019 BLACK COCK KNOB 3081/1 €9.98
005
 photo_cameraImage coming soon 3.403.0001 Substituted by 3.403.0091 THERMOSTAT 30/150 BULB 6,5 €37.73
006
 photo_cameraImage coming soon 4.606.0004 HOSE HOLDER D.7 1/8 M (BRASS) €6.80
007
 photo_cameraImage coming soon 4.608.0065 BOX DASHBOARD '93 €29.21
008
 photo_cameraImage coming soon 4.608.0071 GUIDING CABLE COVER DASHBOARD '93 €6.66
009
 photo_cameraImage coming soon 4.008.0122 Substituted by 5.009.0165 SWITCH SEALING SURROUND €9.02
010
 photo_cameraImage coming soon 4.008.0121 Substituted by 5.009.0165 TIN SWITCH COVER €9.02
012
 photo_cameraImage coming soon 3.401.0038 SWITCH €6.21
015
 Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500 3.107.0004 Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500 €32.87
016
 Pressure Gauge Pipe for Pressure Washers Lavor NPX 1500 4.618.0014 Pressure Gauge Pipe for Pressure Washers Lavor NPX 1500 €26.46
017
 photo_cameraImage coming soon 3.105.0002 Substituited by 3.105.0003 DETERGENT REGULATOR COCK 1/8 F.F.+ NUT €34.75
018
 photo_cameraImage coming soon 3.405.0023 JUNCTION BOX €28.64
020
 Dashboard Gasket for Pressure Cleaner Lavor NPX 1400 4.608.0078 Dashboard Gasket for Pressure Cleaner Lavor NPX 1400 €3.32
025
 photo_cameraImage coming soon 5.611.0002 BURNER FLANGE COMPLETE 1.25-45 RH €76.23
026
 photo_cameraImage coming soon 4.607.0001 GLOW PLUG RESTANT PLATE 15X32 €4.50
027
 Electrodes for Pressure Cleaner Lavor NPX 1400 4.614.0001 Electrodes for Pressure Cleaner Lavor NPX 1400 €36.16
028
 photo_cameraImage coming soon 3.100.0017 ELBOW 4 1/8 COPPER TUBE €6.65
029
 photo_cameraImage coming soon 3.099.0015 RING SEEGER I D.21 SP1 DIN 472 €1.68
030
 photo_cameraImage coming soon 4.608.0002 SITE GLASS DIAM.20 SP.1,8 €1.68
031
 photo_cameraImage coming soon 4.605.0001 WROUGHT BURNER FLANGE €28.64
032
 photo_cameraImage coming soon 3.104.0004 Substituted by 3.104.0028 DIESEL NOZZLE 1,25 45-B €26.77
033
 photo_cameraImage coming soon 4.606.0064 COLUMN FIXING CARENATUR A LKX €10.10
034
 photo_cameraImage coming soon 4.616.0006 COPPER TUBE DIAM. 4 COMPACT €28.64
035
 photo_cameraImage coming soon 3.400.0013 IGNITION TRANSFORMER 230/50 818C/S C/W WIRE L.600 €164.24
036
 photo_cameraImage coming soon 4.607.0011 ZNT MOTOR FOOT FIXING BRACKET €7.38
037
 photo_cameraImage coming soon 5.609.0023 VENTILATOR PROTECTION GRID ASSEMBLY €3.95
038
 photo_cameraImage coming soon 4.608.0036 FEEDING CABLE CONNECTOR €6.41
039
 photo_cameraImage coming soon 4.608.0068 GUIDING HANDLE COMPACT 4P €40.52
040
 photo_cameraImage coming soon 5.613.0119 LKX HANDLE SUPPORT -VERNICIAT O- €72.97
041
 photo_cameraImage coming soon 4.608.0103 CARTER FOR GASOLI OR LKX PUMP PROTECTION €29.21
042
 photo_cameraImage coming soon 3.099.0028 FAN 146x72 LH.HOLE DM 12.7 €29.49
043
 photo_cameraImage coming soon 3.300.0003 MOTOR X BRUC. 100W / 230-240 / 50H z IP55 €194.80
044
 photo_cameraImage coming soon 3.099.0012 Substituted by 6.605.0173 GASOIL PUMP PLASTIC COUPLING €28.23
045
 photo_cameraImage coming soon 3.100.0015 STRAIGHT CONNECT.1/8M. FOR COPP.TUBE D.4 €7.72
046
 photo_cameraImage coming soon 3.551.0002 Substituted by 3.551.0037 GAS OIL PUMP DOUBLE PIPE+ELECTRODE 220V €109.94
047
 photo_cameraImage coming soon 3.004.0015 PLAIN WASHER D.22X39X2 UNI6592 €1.74
048
 photo_cameraImage coming soon 4.606.0013 COIL FIXING NUT 1/2 BRASS SPEC. €3.36
049
 photo_cameraImage coming soon 5.611.0070 Replaced by 5.611.0067 DIESEL FILTER GROUP (PAPER) LKX €14.13
050
 photo_cameraImage coming soon 4.618.0035 TUBE R1 PUMP/COIL TG480 €28.57
051
 Lavor NPX 1400 Hose 4.618.0043 Lavor NPX 1400 Hose €27.71
052
 photo_cameraImage coming soon 5.611.0012 EXTERNAL BURNER COVER DIAM.341 €52.75
053
 photo_cameraImage coming soon 5.611.0016 Substituited by 5.611.0099 RUBBER COATED CABLE L=480 WITHPROTECT. €14.27
054
 photo_cameraImage coming soon 3.003.0010 BLIND NUT E. M6 UNI 5721 BRASS €1.68
055
 photo_cameraImage coming soon 3.004.0006 PLAIN WASHER D.6.4X12X1.6 UNI6592 €1.68
056
 photo_cameraImage coming soon 5.613.0047 Substituited by 5.613.0147 BOILER OUTWARD COVER €34.04
057
 photo_cameraImage coming soon 5.613.0080 Substituited by 5.610.0105 BUNCHER WITH TAPER D.82 WITH HOLES €27.82
058
 photo_cameraImage coming soon 5.613.0122 COVER INT.CAM.COMB. CHIMNEY L = 90 €123.31
059
 photo_cameraImage coming soon 4.604.0001 COIL TOP H.335 €472.90
060
 photo_cameraImage coming soon 5.613.0118 BOILER BODY JOLLY 5 / LKX VERN ICIATO €424.48
061
 photo_cameraImage coming soon 4.608.0012 Substituited by 4.608.0116 RIGID REFRACTORY BOTTOM D.290DENS.280 €25.97
062
 photo_cameraImage coming soon 4.608.0013 Substituited by 4.608.0116 CHEESY REFRACTORY BOTTOM D.290DENS.64 €25.97
063
 photo_cameraImage coming soon 4.607.0006 COIL FIXING STRIP PLATE 20/10 €46.76
064
 photo_cameraImage coming soon 4.608.0004 Substituited by 4.608.0162 GASKET WITHOUT AMIANTH. FOR BOILER ESP.2 €33.26
065
 photo_cameraImage coming soon 5.613.0116 BOILER BASE JOLLY 5 / LKX -VERN ICIATA- €106.07
067
 photo_cameraImage coming soon 3.100.0018 RAPID COUPLING 3/8 M. 08 (465) €14.98
068
 photo_cameraImage coming soon 4.606.0038 ADJUSTING SCREW FOR SAFETY VALVE €6.90
069
 photo_cameraImage coming soon 4.606.0039 Substituited by 4.606.0087 THERMOST.BULB BODY AND SAFETY VALVE €45.92
070
 photo_cameraImage coming soon 3.004.0004 ALUMINIUM WASHER 21X30XSP 1,5 €1.74
071
 photo_cameraImage coming soon 3.100.0020 REDUCTION M.GAS/M.GAS 1/2-3/8 €8.03
072
 photo_cameraImage coming soon 5.613.0093 Substituted by 5.613.0282 THERMOSTATE BULB HOLDER JOLLY4/93 €72.08
073
 photo_cameraImage coming soon 4.618.0030 TUBE B.P. D.20X10 3/8M-3/8M. L.450 €26.69
074
 photo_cameraImage coming soon 4.606.0019 SUCTION CONNECTOR M22 IDRO COMPACT €5.16
075
 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 4.008.0031 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 €2.07
076
 Thermostat Body for Pressure Washers Lavor NPX 1400 - NPX 1500 5.609.0013 Thermostat Body for Pressure Washers Lavor NPX 1400 - NPX 1500 €75.85

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Original Parts for Pressure Cleaner LKX 40 - 8.611.0002-1

Fix Your Hot Water High Pressure Cleaner 8.611.0002-1 - IDRO LKX 40 230/400-50 -G-. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee

In the following tables, look for the spare part and its respective code.
Lavor LKX 40 - 86110002

56010088-1 - MOTOPOMPA LWT 400/50 2P HP4 PER LKX '97 D.135 Pag.1
# Part Num. Description
000 5.601.0075 MOTOR PUMP LBM 230/50 HP3 130/1 1 LKX TS'97
001 4.607.0019 TERMINAL BLOCK PLATE X MOT HOUR GMV
002 4.606.0008 CABLE GLAND FOR GMV D.150 ENGINE
003 3.299.0004 GFP GASKET. 80 X TERMINAL COVER. FP.80
004 3.405.0005 TERMINAL BOARD 50X32
005 3.410.0008 TERMINAL COVER FP.80 X PIAST R.PRESSAC. 80/112 MP
006 3.406.0012 CABLE GLAND PLATE PG. 16 X COPRIM.FP80
013 5.009.0089 Replaced by 5.009.0088 STOP / PISTON ASSEMBLY D.15 CER AMICA
014 4.007.0011 PISTON RECALL SPRING D.15 d. 3 L.45
015 5.009.0159 OIL CAP COMPLETE WITH GASKET. 3 / 8G
016 3.200.0004 GASKET OR 12.4X1.78 REF. 2 050 SH70
018 4.606.0041 SEC. RING SUPPORT SEAL 130/8
019 3.201.0003 SEAL RING N.15X22X4 WATER
020 4.606.0040 BUSH SECOND SEAL 130/8 O T.
021 3.200.0003 GASKET OR 25.12 X 1.78 RI F.2100
022 4.008.0109 15X25X2 ANTI-EXTRUSION RING FOR SEAL
023 3.201.0006 SEAL RING PDF 15X25X5 G11046N3582
024 4.008.0108 HEAD RING D.15 H.4
025 3.200.0016 GASKET OR 8,73X1,78 REF. 108 SH70
026 4.606.0054 PRESSURE SWITCH FITTING (sold out) 1/8
027 3.704.0006 PRESSURE SWITCH PS2 25BAR 1/8 L = 700 (2 WIRES)
028 3.002.0148 STEI M6X6 TAPERED FLAT SCREW DIN 906
031 5.009.0101 ASP./MAND. VALVE CAP WITH OR MOUNTED
032 3.200.0017 GASKET OR 9,13X2,62 Sh.70 REF. 109
033 4.606.0043 VALVE CAP ASP.MAND.CAPILL. 1/4
034 3.200.0005 SEAL OR 15.6 X 1.78 REF. 2062
035 5.009.0215 SUCTION VALVE DELIVERY WITH STEEL P IATTELLO
036 3.200.0019 GASKET OR 12.4X1.78 SH90
037 5.609.0018 VALVE ASSEMBLY NON-RETURN V ALV. COMP.
038 5.609.0022 COMPLETE INJECTOR FITTING D. 1.8
039 4.007.0014 DETERGENT VALVE SPRING D4, 5/6 L = 7 WIRE D.0,3 INOX
040 3.005.0001 INOX BALL 420 DIAM.5 (precision grade G 500)
041 5.009.0164 Replaced by 6.005.0030 HOSE HOLDER DETERG.COMP L.DI OR
044 4.608.0088 MOTOR FAN COVER D.135
045 3.099.0108 LOWERED FAN D.150 90V3 WITH HOLE D.19 + CLAMP
046 5.602.0011 Replaced by 5.606.0027 CARCASSA LW.T 400/50 2P D.135 H.100
047 3.001.0001 RADIAL BALL BEARING 6204-2Z (X MOT.EL.150'C)
048 5.605.0019 Replaced by 5.606.0027 ROTARY SHAFT D.70 H100 ALB. O MNIA
049 4.605.0024 Replaced by 5.609.0036 ENGINE FLANGE D.135 FOR OMNIA
050 3.200.0015 GASKET OR 117 X 2,5
051 3.200.0014 GASKET OR 85 X 2,5 NITRIL ICA
052 3.201.0001 SEAL RING 20/35/6 / 6.5 BABS L
053 3.001.0002 BALL BEARING BEARING 20x52x15 7304 B
054 4.005.0125 CONICAL PLATE INC. 9.16 CORS = 7,9-7,83 ROLLER BEARING
055 3.002.0003 SCREW TCEI M8X25 UNI 5931 ZNT
056 3.001.0003 RALLA AXIAL BEARING AS4565
057 3.001.0025 ROLLER BEARING -STEEL- AXK4565
058 4.007.0001 THRUST BEARING RING D.65x30x6 (C10Pb) FINISHED
059 3.099.0003 SLNS-3/8 HOB BY OIL LEVEL INDICATOR
060 4.005.0055 PISTON GUIDE BODY OMNIA 130/8 ALUM.
061 3.002.0004 STEI SCREW 3/8 G.DIN 906 (OIL SCREW CAP)
062 3.201.0002 SEAL RING BADSLSF 15X25, 4X5 / 7
063 5.009.0136 JUNCTION SLEEVE OMNIA C OMPL.DI OR
064 5.609.0052 Replaced by 6.005.0078 VLV AUCTION ASSEMBLY COMPENSATED D.11 FOR BRASS HEAD
065 4.606.0072 Cylinder head OT 130/8 COMPE NSATA VALVE D.11
067 3.004.0022 SNHOR WASHER D.8X13 Th.0,8
068 3.002.0078 SCREW TCEI M8X40 UNI 5931 ZNT
069 4.006.0109 1/8 CONICAL CAP
070 4.618.0030 B.P. TUBE D.20X10 3 / 8M.-3 / 8M. L.450
071 5.601.0088 Replaced by 5.601.0164 MOTOR PUMP LWT 400/50 2P HP4 FOR LKX '97 D.135
072 4.618.0035 PIPE R1 PUMP / SERP. L = 600 1 / 2F GIR 90 '- 3 / 8F GIR 90'
073 5.008.0101 HEAD OCT. 97 VALVE COMPENSATED D.11 X HOT
86110002-1 - IDRO LKX 40 230/400-50 -G- Pag.2
001 3.002.0122 LARGE BOMB HEAD SCREW SIZE CROC AND M6X12ZNT
002 4.613.0111 UPPER FAIRING JOLLY 5 / L KX YELLOW
003 4.608.0028 Replaced by 4.608.0203 DIESEL / DETERGENT TANK J OLLY 5 / LKX
004 4.612.0031 Replaced by 4.612.0046 POWER CABLE H05VV-F 4X1.5 L = 6000
005 4.608.0073 SHORT SPACER FOR SERBAT. JOLLY 4/93
006 5.009.0032 PLASTIC OIL FILLER CAP 3/8 WITH GUARN.
007 4.608.0074 LONG SPACER FOR SERB. JOLLY 4/93 mm63
008 5.613.0096 AXLE BOILER JOLLY 4/93
010 3.200.0038 GASKET OR 53,65x2,62 REF. 3212
011 5.613.0115 REAR DRIVE AXLE JOLLY 5 / LKX
012 3.006.0026 WHEEL D.260X85 FULL BLACK
013 3.099.0096 Replaced by 4.608.0434 STUD D.135 BLACK WHEEL COVER X WHEEL D.260
015 3.100.0043 ATT. RAPIDO GIREVOLE 3/8 M MV G8 (461) 26075050
017 3.700.0015 Replaced by 3.700.0036 PISTOL RL200 3 / 8M + S4 + ATT.RAP 30015060
018 3.701.0015 STAINLESS STEEL LANCE L.700 COATED ROS +. + ATT. RAP. M22 41102850
019 3.103.0012 Replaced by 3.103.0049 HIGH PRESSURE NOZZLE 1 / 8M 1504
8611X002-1 - IDRO LKX 40 230/400-50 BASE DAFINIRE Pag.3
001 3.401.0048 THERMAL MS 25 6.3 / 10 AMP. NAKED
002 4.608.0079 DASHBOARD '93 WITH COMPLETE SCREEN PRINTING
003 4.608.0019 BLACK THERMOSTAT-TAP KNOB 3079/1
004 4.608.0018 Replaced by 4.608.0019 BLACK TAP KNOB 3081/1
005 3.403.0001 Replaced by 3.403.0091 THERMOSTAT 30/150 BULB D.5 (2 FASTON)
006 4.606.0004 HOSE HOLDER D.7 1/8 M (BRASS)
007 4.608.0065 DASHBOARD BOX '93
008 4.608.0071 DASHBOARD COVER DASHBOARD '93
009 4.008.0122 Replaced by 5.009.0165 FRAME FOR SEAL SWITCH AND HOBBY
010 4.008.0121 Replaced by 5.009.0165 COVER SWITCH COVER HOBB Y
012 3.401.0038 Replaced by 5.009.0213 SWITCH 0/1 BEEP16 (8) -12 (10) A
015 3.107.0004 PRESSURE GAUGE D.50 0/315 BAR 1/4 P OST + BRACKET (ref 129 939 81)
016 4.618.0014 PRESSURE GAUGE TUBE 2X380 max630bar 1/4 F / GIR-1/4 F / GIR
017 3.105.0002 Replaced by 3.105.0003 TAP REGOL.DETERG. 1/8 F.F. + NUT
018 3.405.0023 TERMINAL BLOCK PA / 32 1730 9 POLES
020 4.608.0078 DASHBOARD GASKET '93 (3x 900)
025 5.611.0002 BURNER FLANGE COMPLETE 1.25-45 RH
026 4.607.0001 CANDLE HOLDER PLATE 15x 32 TH. 3,5
027 4.614.0001 Replaced by 4.614.0004 ELECTRODE 0772589000
028 3.100.0017 ELBOW FITTING 4 1/8 COPPER PIPE
029 3.099.0015 SEEGER I RING D.21 SP1 DIN 472
030 4.608.0002 SLIDE DIAM. 20 TH. 1,8
031 4.605.0001 WORKED BURNER FLANGE
032 3.104.0004 Replaced by 3.104.0028 DIESEL NOZZLE 1.25 45-B
033 4.606.0064 COLUMN FIXING CARENATUR A LKX
034 4.616.0006 COPPER TUBE DIAM. 4 COMPACT
035 3.400.0013 Replaced by 6.605.0102 TRANSFER IGNITION 230/50 818C / S
036 4.607.0011 ZNT MOTOR FOOT FIXING BRACKET
037 5.609.0023 VENTILATOR PROTECTION GRID ASSEMBLY
038 4.608.0036 TERMINAL FOR POWER CORD
039 4.608.0068 COMPACT 4P GUIDE HANDLE
040 5.613.0119 LKX HANDLE SUPPORT -VERNICIAT O-
041 4.608.0103 CARTER FOR GASOLI OR LKX PUMP PROTECTION
042 3.099.0028 FAN 146x72 LH.HOLE DM 12.7
043 3.300.0003 MOTOR X BRUC. 100W / 230-240 / 50H z IP55
044 3.099.0012 Replaced by 6.605.0173 PLASTIC JOINT FOR DIESEL PUMP
045 3.100.0015 RACC. STRAIGHT 1/8 M. FOR COPPER PIPE D.4
046 3.551.0002 Replaced by 3.551.0037 DOUBLE PIPE DIESEL PUMP + ELECTR. 220V D DX
047 3.004.0015 FLAT WASHER D.22X39 Th.3 ZNT UNI6592
048 4.606.0013 SERPENT FIXING NUT. 1/2 O T SPEC.
049 5.611.0070 Replaced by 5.611.0067 DIESEL FILTER GROUP (PAPER) LKX
050 4.618.0035 PIPE R1 PUMP / SERP. L = 600 1 / 2F GIR 90 '- 3 / 8F GIR 90'
051 4.618.0043 TUBE R1 3/8 L = 375 C.1 / 2F.GIR 90 '/ C.3 / 8F GIR 90'
052 5.611.0012 COVER BOILER CONE FO RATO
053 5.611.0016 Replaced by 5.611.0099 CABLE L = 480 WITH PROTECTION
054 3.003.0010 NUT M6 BLIND HEX BRASS UNI 5721
055 3.004.0006 FLAT WASHER D.6,4X12 Th. 1,6 ZNT UNI6592
056 5.613.0047 Replaced by 5.613.0147 BOILER EXTERNAL COVER
057 5.613.0080 DEFLECTOR WITH CONE D.82 WITH HOLES
058 5.613.0122 COVER INT.CAM.COMB. CHIMNEY L = 90
059 4.604.0001 TOP COIL H.335 (F E. 35.2)
060 5.613.0118 BOILER BODY JOLLY 5 / LKX VERN ICIATO
061 4.608.0012 Replaced by 4.608.0489 RIGID REFRACTORY BOTTOM D.290 DENS.280
062 4.608.0013 Replaced by 4.608.0489 SOFT REFRACTORY BOTTOM D.29 0 DENS.64
063 4.607.0006 SERP. FIXING BAND IN LAMI ERA 15/10 INOX AISI 430
064 4.608.0004 Replaced by 4.608.0162 BOILER BOTTOM GASKET
065 5.613.0116 BOILER BASE JOLLY 5 / LKX -VERN ICIATA-
067 3.100.0018 QUICK COUPLING 3/8 M. 08 (465) 26070050
068 4.606.0038 SAFETY VALVE REGISTER SCREW
069 4.606.0039 Replaced by 4.606.0087 THERMOSTAT BULB BODY AND SAFETY VALVE BODY
070 3.004.0004 ALUMINUM WASHER 21x30xSP.1, 5
071 3.100.0020 NIPPLO 1 / 2G-3 / 8G
072 5.613.0093 Replaced by 5.613.0282 THERMOSTAT BULB SUPPORT JOLLY 4/93
073 4.618.0030 B.P. TUBE D.20X10 3 / 8M.-3 / 8M. L.450
074 4.606.0019 SUCTION FITTING L = 60 M22 - 3 / 8G
075 4.008.0031 ASP.H2O D.16 CONICAL FILTER
076 5.609.0013 Replaced by 5.609.0059 BULB BODY THERMOSTAT JOLLY 4 '93
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Lavor LKX 40 - 86110002
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

Drawing Cleaner LKX 40

Drawing Cleaner LKX 40

Download (844.78KB)

You might also like

Lance 6.002.0340 Nozzle Head Holder for Trigger Guns Lavor
Lavorwash S.p.A. SKU: 6.002.0340
Lance 6.002.0340 Nozzle Head Holder for Trigger Guns Lavor
Lance 6.002.0340 Nozzle Head Holder for Trigger Guns Lavor Genuine Replacement part Lavor, Lance 6.002.0340 Nozzle Head Holder for Cold Water Pressure Washers Trigger Guns Lavor Fury 110 - Ride 110 - Race 125...
Last items in stock €10.11
Details
Head Turbo Nozzle Ø 1,025 for Lance Lavor
Lavorwash S.p.A. SKU: 6.002.0346
Head Turbo Nozzle Ø 1,025 for Lance Lavor
Head Turbo Nozzle Ø 1,025 for Lance Lavor Genuine Replacement part Lavor, Head cod. 6.002.0346 Turbo Nozzle Ø 1,025 for Lance Lavor 6.002.0340. Part suitable for the following high pressure...
Last items in stock €7.50
Details
Quick Coupling 3/4F for High Pressure Washers Lavor
Lavorwash S.p.A. SKU: 3.100.0082
Quick Coupling 3/4F for High Pressure Washers Lavor
Quick Coupling 3/4F  for High Pressure Washers Lavor Genuine Replacement part Lavor, Quick Coupling 3/4F 3.100.0082 for Cold Water High Pressure Washers Fury 110 - Ride 110 - Race 125...
AVAILABLE €1.63
Details
Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24
Lavorwash S.p.A. SKU: 6.005.0079
Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24
Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24 Original replacement part Lavor, Kit 79 LW Oil Seal for Partner D.12/Fibra per Pressure Washers ARMY 110 - MARINE 125 - NAVY 140...
Usually Shipped on: 7/10 Business Days Approx. €14.50
Details
Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145
Lavorwash S.p.A. SKU: 5.008.0261
Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145
Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145 Original replacement part Lavor, Head PT'03 EVO D.12 for ENDURO 145 - ARMY 110 - MARINE 125 - NAVY 140 - RAPTOR 21 - STORM II 18 - STORM II PLUS 21. Part for the following...
Last items in stock €28.99
Details
Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145
Lavorwash S.p.A. SKU: 6.005.0311
Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145
Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145 Original replacement part Lavor, Kit 283 LW Needle Bearing for Motorpump PT'03 (U76) for ENDURO 145 - ARMY 110 - MARINE 125 - NAVY 140 - RAPTOR 21 - STORM II. Part for the...
Last items in stock €7.56
Details
Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110
Lavorwash S.p.A. SKU: 6.005.0588
Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110
Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110 Original replacement part Lavor, Kit LW Intake Delivery Valves for High Pressure Washers ARMY 110 - MARINE 125 - NAVY 140. Part for the following products: - R80880029C -...
AVAILABLE €27.72
Details
Lance S'02V 1,00 (Blu) for Pressure Washer EXPRESS PLUS Sale
Lavorwash S.p.A. SKU: 6.002.0263
Lance S'02V 1,00 (Blu) for Pressure Washer EXPRESS PLUS
Lance S'02V 1,00 (Blu) for Pressure Washer EXPRESS PLUS Genuine Part Lavor, Lance S'02V 1,00 (Blu) for Pressure Washer 8.084.0006C Lavor IDRO EXPRESS PLUS 220-240/50Hz. Part suitable for the following high pressure washers: -...
AVAILABLE €13.00
Details
Capacitor 55mF 450V for Pressurte Washer Lavor GIANT 24
Lavorwash S.p.A. SKU: 3.404.0095
Capacitor 55mF 450V for Pressurte Washer Lavor GIANT 24
Capacitor 55mF 450V for Pressurte Washer Lavor GIANT 24 Original replacement part Lavor, Capacitor 55mF 450V D.50x94 F/M per Pressure Washers GIANT 24 - GIANT 28 - TEMPESTA 24 - TEMPESTA 28. Part for the following products: - 81050002...
Last items in stock €20.13
Details
Piston Guide Body With Complete Valve Head for Lavor Missouri
Lavorwash S.p.A. SKU: 5.007.0231
Piston Guide Body With Complete Valve Head for Lavor Missouri
Piston Guide Body With Complete Valve Head for Lavor Missouri Genuine part Lavor, Piston Guide Body PT'03 - Ceramic Pistons Diameter 12 mm + Total-Stop, Turned With Complete Valve Head With Intake Springs 17K. Part for the following...
Last items in stock €52.53
Details
Suction Valve Ass'y for Pressure Cleaner Lavor Missouri
Lavorwash S.p.A. SKU: 5.009.0534
Suction Valve Ass'y for Pressure Cleaner Lavor Missouri
Suction Valve Ass'y for Pressure Cleaner Lavor Missouri Genuine part Lavor, Suction Valve Ass'y for '03 Head for Pressure Cleaners MISSOURI - EAGLE 24. Part for the following products: -  86190601 - IDRO MISSOURI 230/50 TS -G- LWS -...
Last items in stock €9.28
Details
Delivery Valve Brass Cap for Pressure Cleaner Lavor Missouri
Lavorwash S.p.A. SKU: 5.009.0745
Delivery Valve Brass Cap for Pressure Cleaner Lavor Missouri
Delivery Valve Brass Cap for Pressure Cleaner Lavor Missouri Genuine part Lavor, Delivery Valve Brass Cap with O-Ring for '03 Head for Pressure Cleaners MISSOURI - EAGLE 24. Part for the following products: -  86190601 - IDRO MISSOURI...
AVAILABLE €5.03
Details
Radial Ball Bearing 6203RS for Pressure Cleaner Lavor Missouri
Lavorwash S.p.A. SKU: 3.001.0020
Radial Ball Bearing 6203RS for Pressure Cleaner Lavor Missouri
Radial Ball Bearing 6203RS for Pressure Cleaner Lavor Missouri Genuine part Lavor, Radial Ball Bearing 6203RS for Pressure Cleaners MISSOURI - Giant 24 - Giant 28 - Tempesta 24 - Tormenta 28. Part for the following products: -...
on 7/10 Business Days Approx €13.71
Details
Transformer 230-240V for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 5.009.0686
Transformer 230-240V for Pressure Washer Lavor Missouri
Transformer 230-240V for Pressure Washer Lavor Missouri Genuine part Lavor, Ignition Transformer 230-240V/50-60Hz with Pipette for Pressure Washers Burner FKX-PARANA ' - RIO (EMC) + Cable Part for the following products: -  86190601...
Last items in stock €100.43
Details
Diesel Filter Unit for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 5.611.0043
Diesel Filter Unit for Pressure Washer Lavor Missouri
Diesel Filter Unit for Pressure Washer Lavor Missouri Genuine part Lavor, Diesel Filter Unit JOLLY 4 '93 / MISSOURI / MEK for Pressure Washers Missouri - NPX 1400 - NPX 1500. Part for the following...
Last items in stock €15.19
Details
Pressure Adjustment Valve for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 5.009.0304
Pressure Adjustment Valve for Pressure Washer Lavor Missouri
Pressure Adjustment Valve for Pressure Washer Lavor Missouri Genuine part Lavor, Pressure Adjustment Valve Ass'y for Pump ULKA (Spring L=20) for Pressure Washers MISSOURI FKX-PARANA' - MISSOURI - RIO (EMC) + Cable. Part for the...
Last items in stock €28.99
Details
Electrodes for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 4.614.0001
Electrodes for Pressure Cleaner Lavor NPX 1400
Electrodes for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Unified Electrodes with Bracket for Boilerfor Pressure Cleaners NPX 1400 - NPX 1500 - LKX 40 - NPX 1511 XP T...
Last items in stock €36.16
Details
Diesel Pump for Pressure Cleaner Lavor NPX 1400 Sale
Lavorwash S.p.A. SKU: 3.551.0037
Diesel Pump for Pressure Cleaner Lavor NPX 1400
Diesel Pump for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Double Pipe Diesel Pump + Electrode 220V Right for Pressure Cleaners NPX 1400 - LKX 40 Part for the...
Last items in stock €113.24
Details
Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 6.605.0173
Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400
Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Diesel Pump Red Plastic Coupling Set for Engine EME/UNIELECTRICp for Pressure Cleaners NPX 1400 - NPX 1500 Part for the following products: -...
Last items in stock €29.06
Details
Washer SNHORt for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 3.004.0022
Washer SNHOR for Pressure Cleaner Lavor NPX 1400
Washer SNHOR for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Washer SNHOR D.8x13 sp.0.8 for Pressure Cleaners NPX 1400 - NPX 1500 Part for the following products: -  Pressure Cleaner Lavor NPX 1400 - 8.605.0048 -...
on 10 Business Days Approx €1.71
Details
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 4.608.0078
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Dashboard Gasket '93 (3x900) for Pressure Cleaners NPX 1400 - NPX 1500 - LKX 40. Part for the following products: -  Pressure Cleaner NPX 1400 230/50...
Last items in stock €3.32
Details
Pressure Switch for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 3.704.0006
Pressure Switch for Pressure Washer Lavor Missouri
Pressure Switch for Pressure Washer Lavor Missouri Genuine part Lavor, Pressure Switch 25 Bar 1/8 Red L.700 Faston F. for Pressure Washers  MISSOURI - YUKON 1310 - NPX 1500 - LKX 40. Part...
Last items in stock €30.90
Details
Diesel Nozzle for Pressure Washers Lavor NPX 1400
Lavorwash S.p.A. SKU: 3.104.0028
Diesel Nozzle for Pressure Washers Lavor NPX 1400
Diesel Nozzle for Pressure Washers Lavor NPX 1400 Genuine replacement part Lavor, Diesel Nozzle 1,25 45-B for Pressure Washers NPX 1400 - NPX 1500 - LKX 31 - LKX 40. Part for the following...
Last items in stock €28.36
Details
Pistons Guide Body for Pressure Washer Lavor NPX 1500
Lavorwash S.p.A. SKU: 4.005.0055
Pistons Guide Body for Pressure Washer Lavor NPX 1500
Pistons Guide Body for Pressure Washer Lavor NPX 1500 Genuine replacement part Lavor, Pistons Guide Body OMNIA 130/8 Aluminium for Pressure Washers NPX 1400 - NPX 1500. Part for the following products:...
Last items in stock €94.47
Details
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1500
Lavorwash S.p.A. SKU: 4.618.0014
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1500
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Pressure Gauge Pipe 2x380 Max 630 Bar 1/4 F. Gir. 1/4 F Gir. for Pressure Washers NPX 1400 - NPX...
Last items in stock €26.46
Details
Lavor LKX 31 Diesel Filter Unit
Lavorwash S.p.A. SKU: 5.611.0067
Lavor LKX 31 Diesel Filter Unit
Lavor LKX 31 Diesel Filter Unit Genuine replacement part Lavor, Diesel Filter Unit Assy (PAPER) for LKX 31 - 40 - 55 - 2015. Part for the following products: - 8.611.0160 - Pressure Washer LKX 31 TS AC 230/50 CM-G -...
Last items in stock €19.50
Details
Lavor Oil Lever Indicator for NPX 1400
Lavorwash S.p.A. SKU: 3.099.0003
Lavor Oil Lever Indicator for NPX 1400
Lavor Oil Lever Indicator for Pressure Washer NPX 1500 Genuine replacement part Lavor, Oil Lever Indicator SLNS-3/8 HOBBY for Pressure Cleaner NPX 1400 - NPX 1500 - MCHPV 1515LP. Part for the following products: -  Pressure Cleaner...
Last items in stock €4.14
Details
Lavor Disk As for KARJET PROFI130
Lavorwash S.p.A. SKU: 3.001.0003
Lavor Disk As for KARJET PROFI130
Lavor Disk As for Pressure Cleaner KARJET PROFI130 Original replacement part Lavorwash, Disk As for Pressure Cleaners KARJET PROFI130 - FKX 1018. Part for the following products: -  Pressure Cleaner Lavor KARJET PROFI130 -...
Last items in stock €3.33
Details
Lavor Bearing Washer for LP 20 EHR
Lavorwash S.p.A. SKU: 4.007.0001
Lavor Thrust Shoe for LP 20 EHR
Lavor Thrust Shoe for Pressure Cleaner LP 20 EHR Original replacement part Lavorwash, Thrust Shoe D.65x30x6 (C10pb) Finished for Pressure Cleaners LP 20 EHR - FKX 1018. Part for the following products: - ...
Usually Ships in: 10 Business Days Approx. €5.83
Details
Lavor Needle Roller Cage for EQ18
Lavorwash S.p.A. SKU: 3.001.0025
Lavor Needle Roller Cage for EQ18
Lavor Needle Roller Cage for Pressure Cleaner EQ18 Original replacement part Lavorwash, Needle Roller Cage Type Axk4565 -STEEL- for Pressure Cleaners EQ18 - MISSOURI. Part for the following products: - ...
Usually Ships in: 10 Business Days Approx. €3.48
Details
Lavor Recall Spring for Pressure Cleaner FKX 1018
Lavorwash S.p.A. SKU: 00030-00517 ex 4.007.0014
Lavor Recall Spring for Pressure Cleaner FKX 1018
Lavor Recall Spring for Pressure Cleaner FKX 1018 Original replacement part Lavorwash, Detergent Stop Valve Spring De4, 5/6 L=7 FILO D.0,3 INOX for Pressure Cleaners FKX 1018 - NPX1400. Part for the following products:...
Usually Ships in: 10 Business Days Approx. €2.57
Details
Lavor Pressure Washer NPX1400 Insulating Rope
Lavorwash S.p.A. SKU: 4.608.0162
Lavor NPX1400 Insulating Rope
Lavor Pressure Washer NPX1400 Insulating Rope Genuine replacement part Lavor, Insulating Rope For Boiler Base L=990 for Pressure Washer NPX1400 - LKX 31 - LKX 55. Part for the following products: - ...
Last items in stock €35.27
Details
Lavor Bypass Valve Unloaded for NPX 1500
Lavorwash S.p.A. SKU: 5.609.0018
Lavor Bypass Valve Unloaded for NPX 1500
Lavor Bypass Valve Unloaded for NPX 1500 Genuine replacement part Lavor, Bypass Valve Unloaded for Pressure Washers NPX 1400 - NPX 1500. Part for the following products: - Pressure Washer LKX 40 - 8.611.0002-1...
Last items in stock €28.89
Details
Comments (0)
