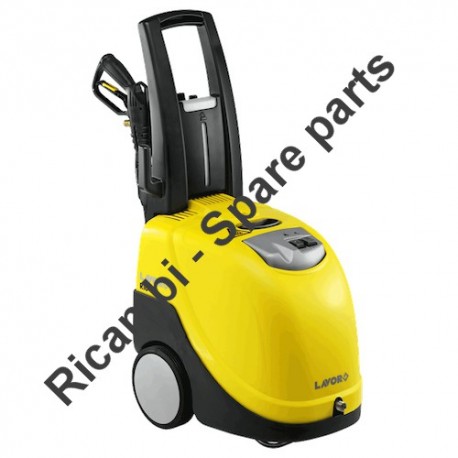

Lavorwash S.p.A.

Lavor Original Parts for Pressure Cleaner RIO 1108 - 8.052.0801

SKU: Lavor RIO 1108 - 8.052.0801
€75.47
VAT included

Lavor Original Parts for Pressure Cleaner RIO 1108 - 8.052.0801

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner RIO 1108 220-230/50 TS -G- -LAVOR - 8.052.0801.

Fix Your Pressure Cleaner EAGLE 24. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Lavor Original Parts for Pressure Cleaner RIO 1108 - 8.052.0801
  • Lavor Original Parts for Pressure Cleaner RIO 1108 - 8.052.0801
  • Lavor Original Parts for Pressure Cleaner RIO 1108 - 8.052.0801
  • Lavor Original Parts for Pressure Cleaner RIO 1108 - 8.052.0801
  • Lavor Original Parts for Pressure Cleaner RIO 1108 - 8.052.0801
  • Lavor Original Parts for Pressure Cleaner RIO 1108 - 8.052.0801
  • Lavor Original Parts for Pressure Cleaner RIO 1108 - 8.052.0801
  • Lavor Original Parts for Pressure Cleaner RIO 1108 - 8.052.0801
  • Lavor Original Parts for Pressure Cleaner RIO 1108 - 8.052.0801
Lavorwash S.p.A.

Lavor Original Parts for Pressure Cleaner RIO 1108 - 8.052.0801

SKU: Lavor RIO 1108 - 8.052.0801 Condition: New
€75.47
VAT included

Lavor Original Parts for Pressure Cleaner RIO 1108 - 8.052.0801

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner RIO 1108 220-230/50 TS -G- -LAVOR - 8.052.0801.

Fix Your Pressure Cleaner EAGLE 24. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 95 spare parts
description 7 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
95 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

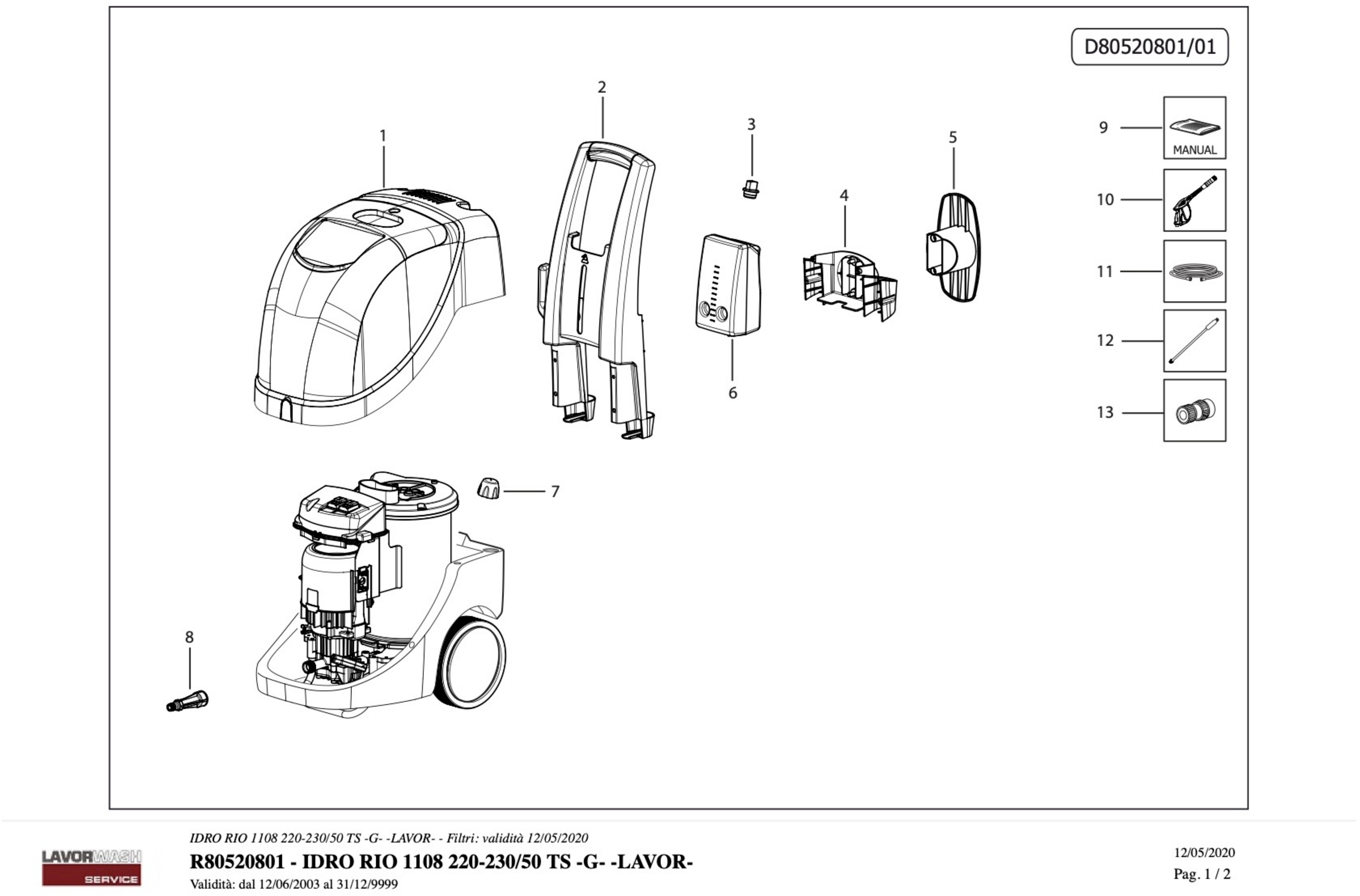

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
001
 photo_cameraImage coming soon 4.013.0305 YELLOW UPPER COVER FKX (PANT.108C) €73.96
002
 photo_cameraImage coming soon 4.008.0867 HANDLE €37.15
004
 photo_cameraImage coming soon 4.008.0869 LANCE HOLDER €6.01
005
 photo_cameraImage coming soon 4.008.0789 HOSE REEL TIGER €6.94
006
 photo_cameraImage coming soon 4.008.0868 DETERGENT TANK €31.21
007
 Diesel Fuel Tank Cap for Pressure Washer Lavor RIO 1108 4.608.0180 Diesel Fuel Tank Cap for Pressure Washer Lavor RIO 1108 €14.99
008
 photo_cameraImage coming soon 5.009.0611 INLET JOINT WITH GASKET €13.19
009
 photo_cameraImage coming soon 7.100.1726 INSTRUCTION MANUAL FKX-XTR-FUEGO LAVOR €4.56
010
 Gun AL 15 3/8 "- M22 for Hot Water Pressure Washers Lavor 3.700.0036 Gun AL 15 3/8 "- M22 for Hot Water Pressure Washers Lavor €30.90
011
 photo_cameraImage coming soon 4.618.0049 HOSE 1/4 R1 210BAR L=8000 3/8"F €55.11
012
 photo_cameraImage coming soon 6.002.0260 LANCE H/L PRESSURE 1.15-Y- €31.25
013
 Inlet Quick Coupling for High Pressure Washers Lavor 3.100.0062 Inlet Quick Coupling for High Pressure Washers Lavor €4.25
018
 photo_cameraImage coming soon 5.012.0222 FAST COUPLING KIT + CAP + ACCESSORY HOLDER €9.94
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

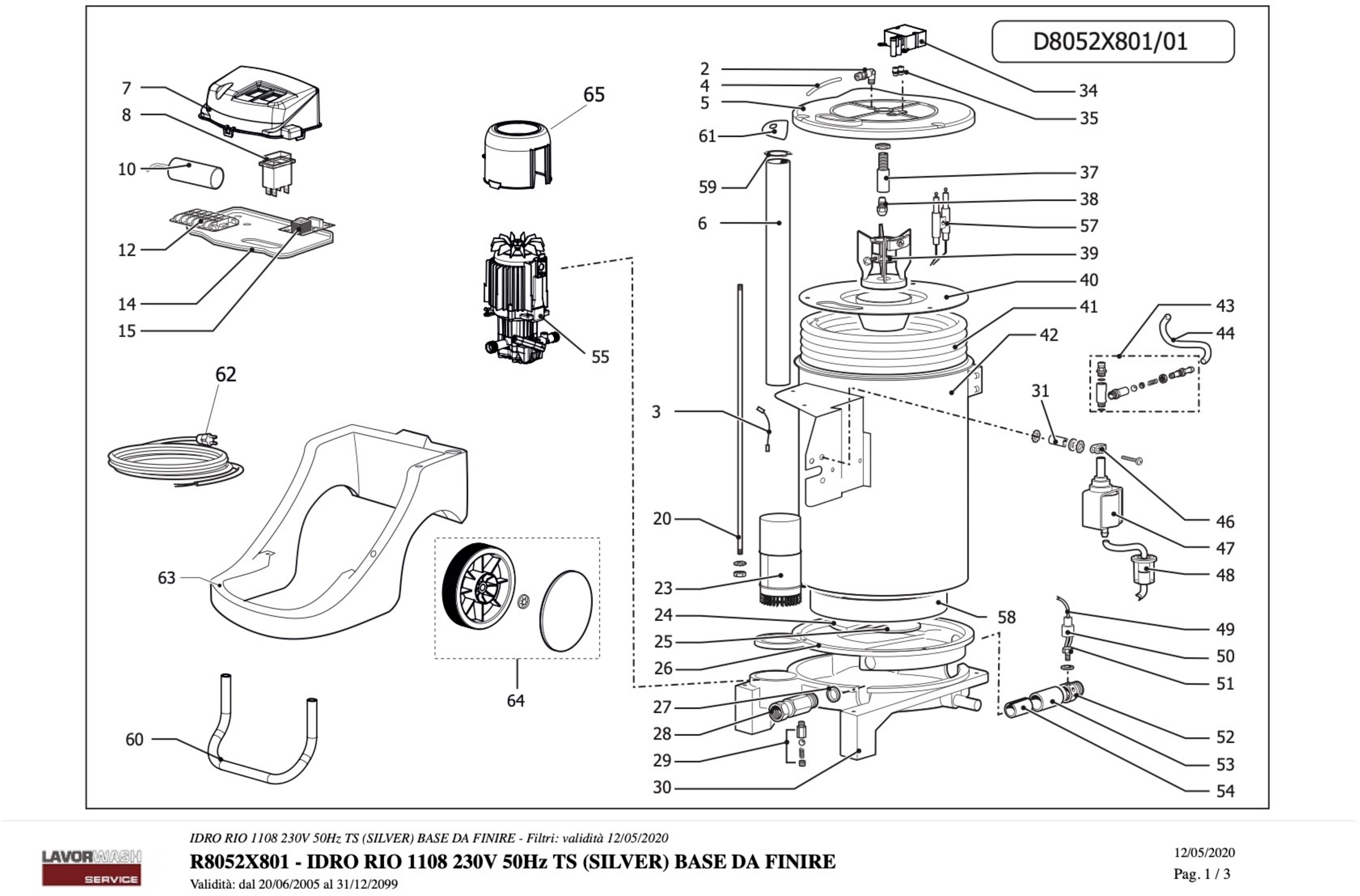

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
002
 photo_cameraImage coming soon 3.100.0075 CONIC CONNECTION M 1/8 F D.4 CURVED FOR GASOIL HOSE VITON O- €14.98
003
 photo_cameraImage coming soon 4.012.0102 CABLE L=600 SEC.0,75 IEC227-3/1979 €5.83
004
 photo_cameraImage coming soon 4.608.0145 RILSAN GASOIL HOSE X PARANA' L=500 €1.73
005
 Lavor MISSOURI Boiler Cover 4.005.0194 Lavor MISSOURI Boiler Cover €79.65
006
 photo_cameraImage coming soon 4.007.0303 TUBE D.40 L=325 FE 37 PREZINCED €11.85
007
 photo_cameraImage coming soon 4.008.1169 GREY CAP FOR ELECTRIC BOX FKX €5.15
008
 Switch 0/1 Black Button for Pressure Washers Lavor 3.401.0178 Switch 0/1 Black Button for Pressure Washers Lavor €6.91
010
 photo_cameraImage coming soon 3.404.0094 CAPACITOR 32mF 450V €17.69
012
 photo_cameraImage coming soon 3.405.0011 TERMINAL BOARD PA 32/6 €12.60
014
 photo_cameraImage coming soon 4.008.0446 ELECTRIC BOX BASE FKX ESP.03 €7.73
015
 Electronic Board for Pressure Washer Lavor FKX 1018 3.403.0012 Electronic Board for Pressure Washer Lavor FKX 1018 €36.22
020
 photo_cameraImage coming soon 4.007.0180 TIE ROD FOR BOILER FIRE '98M6X352 FIL.12-12 ZNT €6.99
023
 Burner Motor for Pressure Cleaner Lavor RIO 1108 3.304.0056 Burner Motor for Pressure Cleaner Lavor RIO 1108 €42.00
024
 Lavor MISSOURI Heat Resistant Felt Pad 4.008.0658 Lavor MISSOURI Heat Resistant Felt Pad €6.22
025
 Lavor MISSOURI Heat Resistant Pad 4.008.0450 Lavor MISSOURI Heat Resistant Pad €11.02
026
 photo_cameraImage coming soon 4.007.0158 BOILER PAD €65.73
027
 photo_cameraImage coming soon 4.007.0311 WASHER 16,6x26 €5.44
028
 photo_cameraImage coming soon 4.007.0307 JUNCTION €27.82
029
 photo_cameraImage coming soon 5.609.0260 MAX PRESSURE VALVE 250BAR 1/8 €24.79
030
 photo_cameraImage coming soon 4.005.0186 BOILER BASE FKX (DIE CAST) ESP.00 €128.72
031
 photo_cameraImage coming soon 4.007.0185 DISTANCE PIECE FASTENING FOR JET PUMP €3.94
034
 Transformer 230-240V for Pressure Washer Lavor RIO 1108 5.009.1126 Transformer 230-240V for Pressure Washer Lavor RIO 1108 €100.43
035
 photo_cameraImage coming soon 4.008.0848 GASKET NEW TRANSFORMER FKX €1.72
037
 photo_cameraImage coming soon 4.006.0187 NOZZLE HOLDER PIN €5.32
038
 Diesel Nozzle for Pressure Washer Lavor FKX 1018 3.104.0008 Diesel Nozzle for Pressure Washer Lavor FKX 1018 €29.49
039
 photo_cameraImage coming soon 3.099.0296 DEFLECTOR COMPLETE WITH ELECTRODE D.2 FKX €44.72
040
 photo_cameraImage coming soon 5.013.0027 DISK HEAD HOLDER €77.49
041
 Coil for Pressure Washer Lavor FKX 1018 4.604.0011 Coil for Pressure Washer Lavor FKX 1018 €342.49
042
 photo_cameraImage coming soon 5.013.0050 BODY BOILER €93.68
043
 Pressure Adjustment Valve for Pressure Washer Lavor Missouri 5.009.0304 Pressure Adjustment Valve for Pressure Washer Lavor Missouri €28.99
044
 photo_cameraImage coming soon 4.008.0465 BLACK ANTI-BENCH PVC TUBE D.9X6 L = 280 ESP.00 €1.72
046
 photo_cameraImage coming soon 3.099.0110 CLAMP D.12 CLAMP PAS 012X GAS PUMP FIXING. €1.72
047
 Diesel Pump for Pressure Washer Lavor FKX 1018 3.551.0014 Diesel Pump for Pressure Washer Lavor FKX 1018 €58.71
048
 photo_cameraImage coming soon 5.011.0043 DIESEL FILTER GROUP FKX (CARD 30 micron) €14.13
049
 photo_cameraImage coming soon 3.411.0001 ELECTRIC GLASS TUBE Di.4 (VSM040) €29.49
050
 photo_cameraImage coming soon 4.608.0038 RUBBER PROTECTION FOR THERMAL FIRE €1.72
051
 photo_cameraImage coming soon 3.403.0003 THERMAL PROTECTOR L01.080.05.1000 CABLES * UL * €19.69
052
 photo_cameraImage coming soon 4.606.0002 DELIVERY FITTING WITH HOLE FOR THERMAL ESP.03 €4.62
053
 photo_cameraImage coming soon 4.007.0322 TUBE FKX L=42 €1.72
054
 photo_cameraImage coming soon 4.008.0449 THERMORESISTANT COUPLING BOW 17X23XL40 €1.72
055
 Motorpump Ass'y for Pressure Washer Lavor RIO 1108 5.001.0824 Motorpump Ass'y for Pressure Washer Lavor RIO 1108 €305.96
057
 Lavor Electrode D.2 for YUKON 1310 4.614.0003 Lavor Electrode D.2 for YUKON 1310 €11.56
058
 Lavor MISSOURI Ceramic Fiber Band 4.008.0503 Lavor MISSOURI Ceramic Fiber Band €19.00
059
 photo_cameraImage coming soon 3.099.0124 SEEGER RING X TREE D.42UNI 7435 €1.72
060
 photo_cameraImage coming soon 4.007.0256 SHAPED FOOT SUPPORT FKXESP.01 €44.97
061
 photo_cameraImage coming soon 5.009.0637 BOILER CAP KIT €3.43
062
 photo_cameraImage coming soon 4.012.0392 Cable H05VV-F 3X1,5 MT.7,5 SP.SCHUKO ANTISPRUZZO F/F €34.74
063
 photo_cameraImage coming soon 4.008.0916 GASOIL TANK €270.01
063
 photo_cameraImage coming soon 6.005.0148 KIT 135 BLACK TANK FKX WITH CAP €209.84
064
 Lavor Wheel Kit for Pressure Washer Rio 1108 6.005.0190 Lavor Wheel Kit for Pressure Washer Rio 1108 €46.25
065
 photo_cameraImage coming soon 4.008.0922 COVER FOR MOTOR FAN (MOTOR'96) €7.22
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

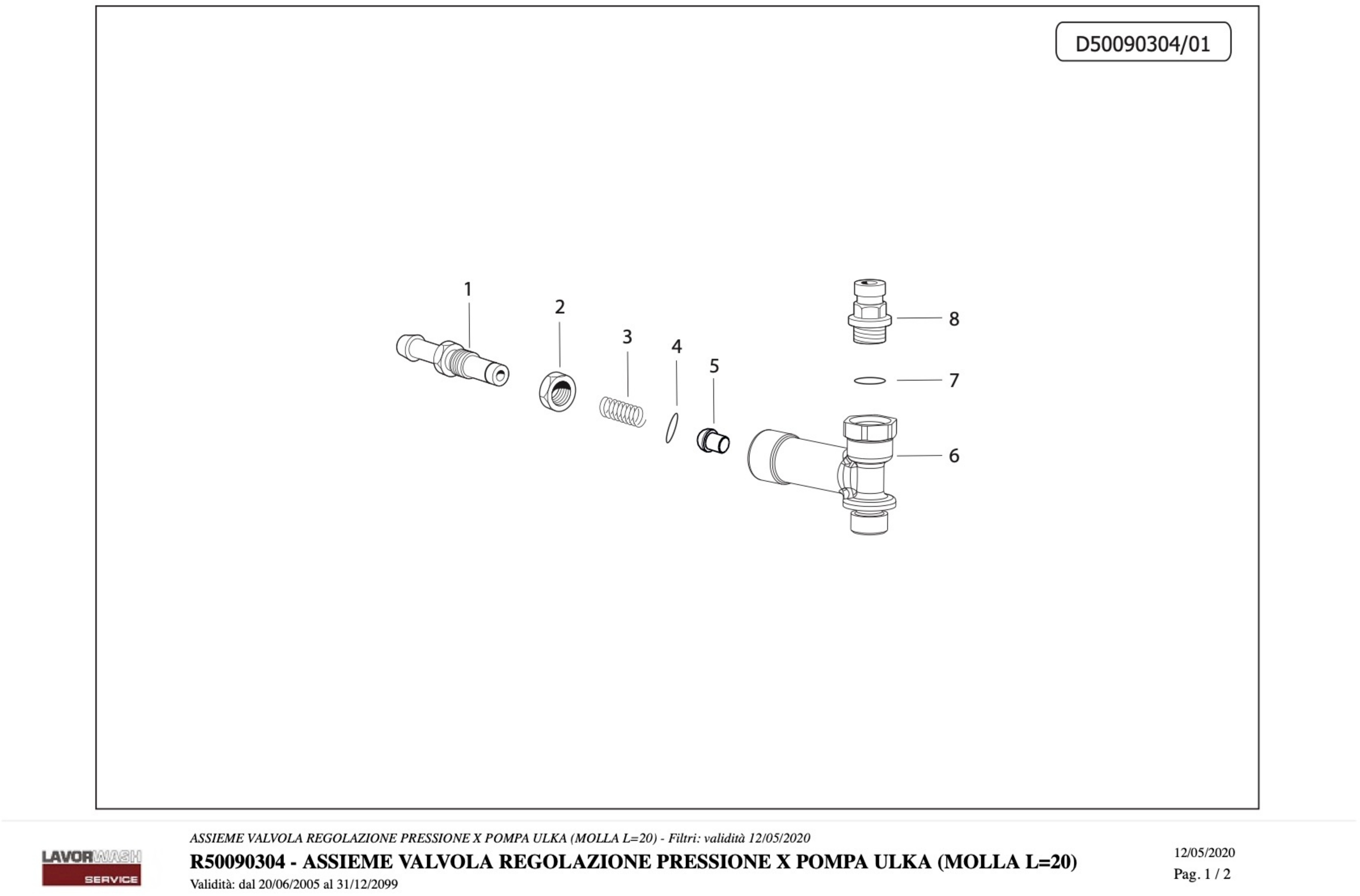

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
001
 photo_cameraImage coming soon 4.006.0259 SCREW HOSE HOLDER FOR ADJUSTMENT. DIESEL FKX €4.05
002
 photo_cameraImage coming soon 4.006.0260 NUT 10x1 EX.13 FOR ADJUSTMENT. DIESEL FKX €1.72
003
 photo_cameraImage coming soon 4.007.0306 SPRING FOR PRESS.REG.VALVE FKXD.5,4-7,8 L=20 WIRE 1,8 €1.72
004
 photo_cameraImage coming soon 3.200.0050 O-RING 5.28X1.78 €1.65
005
 photo_cameraImage coming soon 4.008.0856 BALL VALVE FOR BY-PASS REGULATION FKX-PARANA' €1.72
006
 photo_cameraImage coming soon 4.006.0254 BY-PASS DIESEL VALVE €6.01
007
 photo_cameraImage coming soon 3.200.0021 OR GASKET 6,75x1,78 RIF.106 €1.67
008
 photo_cameraImage coming soon 3.100.0057 CONNECTION D.4X1/8"M VITON O-RING €7.15
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

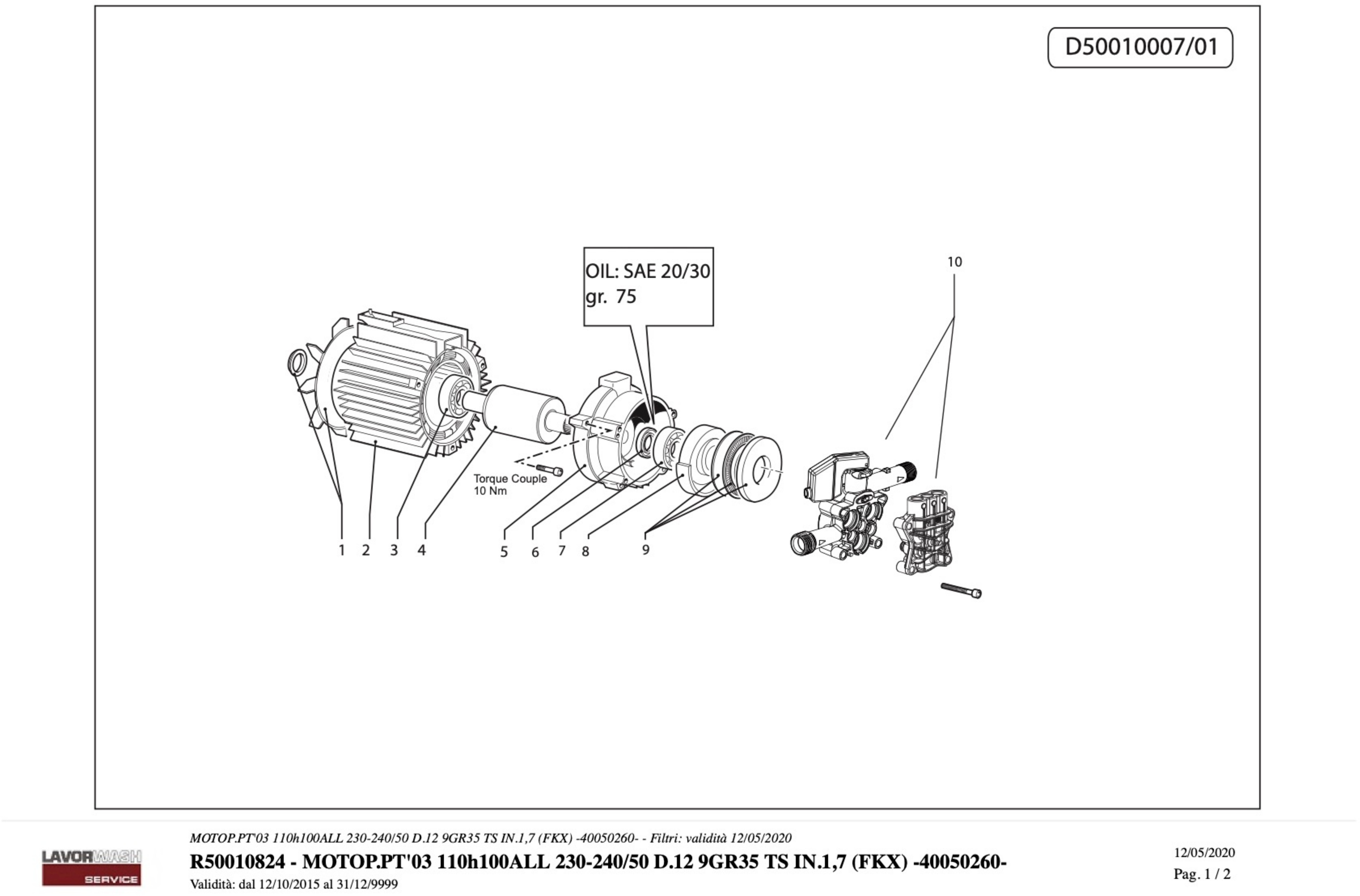

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
001
 photo_cameraImage coming soon 6.005.0387 KIT 353 LW FAN + RING €10.82
002
 Motor Housing for Pressure Washer Lavor RIO 1108 5.002.0151 Motor Housing for Pressure Washer Lavor RIO 1108 €273.18 Not available for order
003
 photo_cameraImage coming soon 3.001.0033 BALL BEARING 6003 2RS (17x35x10) €3.43
003
 photo_cameraImage coming soon 6.005.0087 THRUST RING KIT (PT'03 INDUCTION/U88) €10.24
004
 photo_cameraImage coming soon 5.005.0071 Substituted by 5.009.1015 ROTOR FOR 110H100AL €194.94
005
 photo_cameraImage coming soon 4.005.0219 FRONT FLANGE D.110 PT'03 €20.51
006
 Oil Seal 17X35X7 for Pressure Washer Lavor FKX 1018 3.201.0008 Oil Seal 17X35X7 for Pressure Washer Lavor FKX 1018 €7.21
007
 Ball Bearing 6303 for Pressure Washers Lavorwash 3.001.0030 Ball Bearing 6303 for Pressure Washers Lavorwash €5.97
008
 photo_cameraImage coming soon 4.005.0218 WOBBLE PLATE 9'35 PT'03 €8.55
009
 photo_cameraImage coming soon 6.005.0087 THRUST RING KIT (PT'03 INDUCTION/U88) €10.24
010
 Body Guide + Head Ass'y for Pressure Washer Lavor RIO 1108 5.009.0703C Body Guide + Head Ass'y for Pressure Washer Lavor RIO 1108 €63.27
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

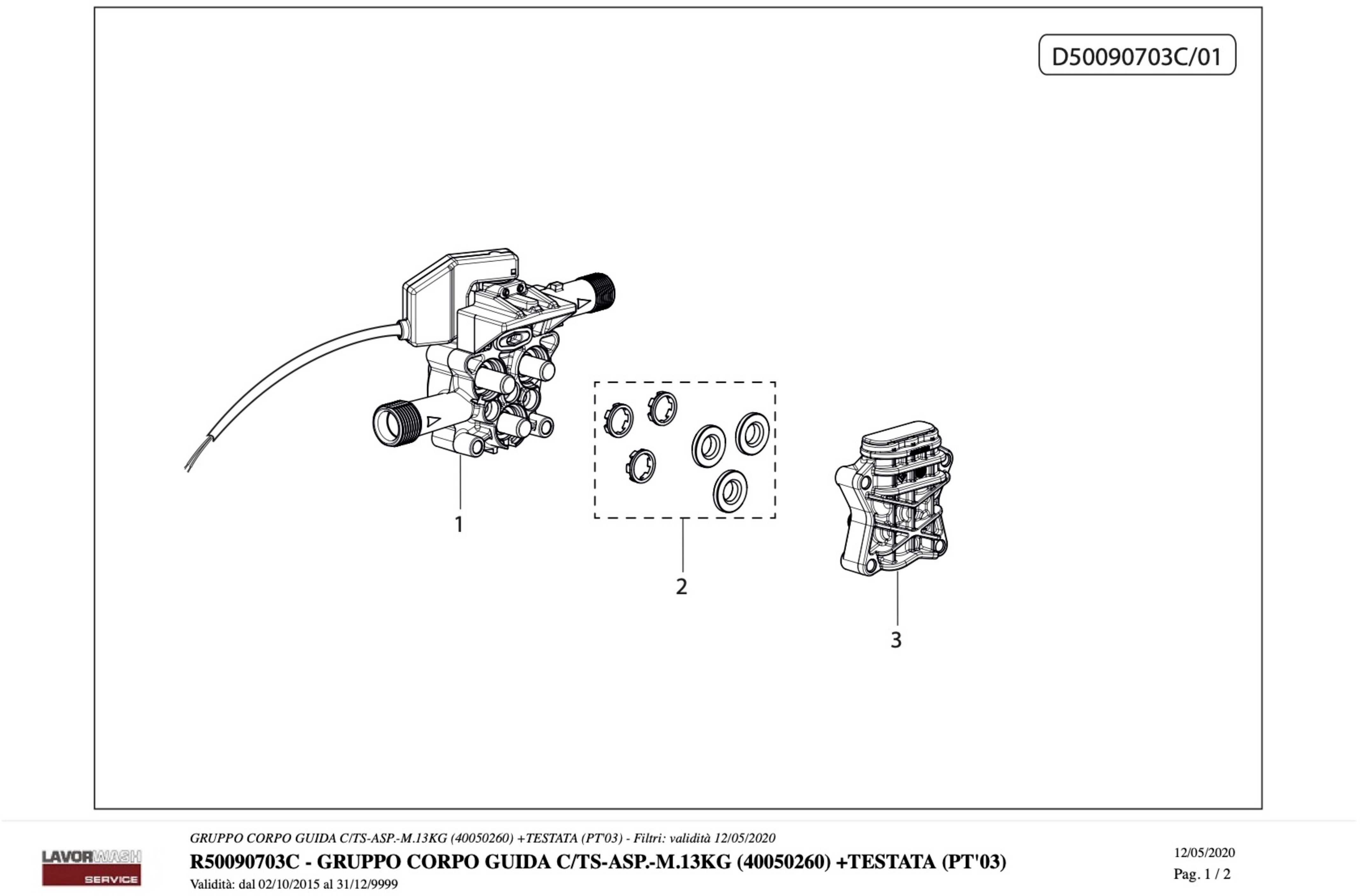

Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
001
 Body Guide PT'03 for Pressure Washer Lavor RIO 1108 5.007.0187C Body Guide PT'03 for Pressure Washer Lavor RIO 1108 €57.11
002
 Kit 257 LW Rings Support + Spacers for Washer Lavor ENDURO 145 6.005.0282 Kit 257 LW Rings Support + Spacers for Washer Lavor ENDURO 145 €14.54
003
 Head PT'03 D.12 for Pressure Washer Lavor GIANT 24 5.008.0182C Head PT'03 D.12 for Pressure Washer Lavor GIANT 24 €32.89
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

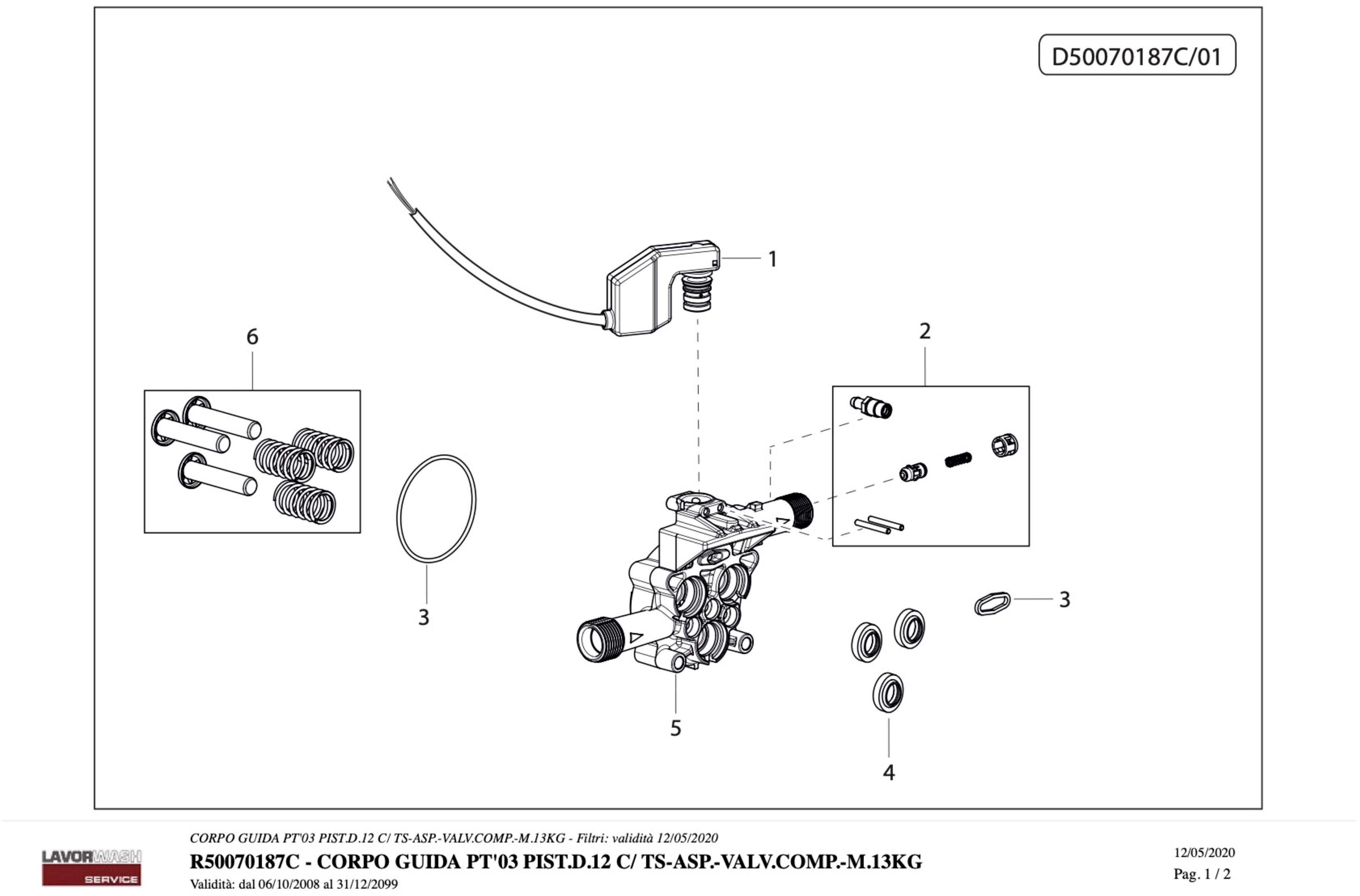

Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
001
 Kit Valve Total-Stop Automatic Stop System for Washers Lavor ARMY 110 5.009.0716 Kit Valve Total-Stop Automatic Stop System for Washers Lavor ARMY 110 €16.00
002
 Kit 252 LW for High Pressure Washers ARMY 110 - MARINE 125 - NAVY 140 6.005.0277 Kit 252 LW for High Pressure Washers ARMY 110 - MARINE 125 - NAVY 140 €4.50
003
 Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24 6.005.0226 Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24 €11.43
004
 Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24 6.005.0079 Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24 €14.50
005
 photo_cameraImage coming soon 4.005.0263C 4.005.0263 PISTON BODY GUIDE PT'03 WITH SUCTION VALVE €25.85
005
 photo_cameraImage coming soon 4.008.1176 GASKET PISTON BODY GUIDE-HEADPT'03 29.7X12.9X2.7 €1.65
006
 Kit 167 LW 3 Pistons + Springs for Pressurte Washer Lavor BEST 24 6.005.0181 Kit 167 LW 3 Pistons + Springs for Pressurte Washer Lavor BEST 24 €25.98
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

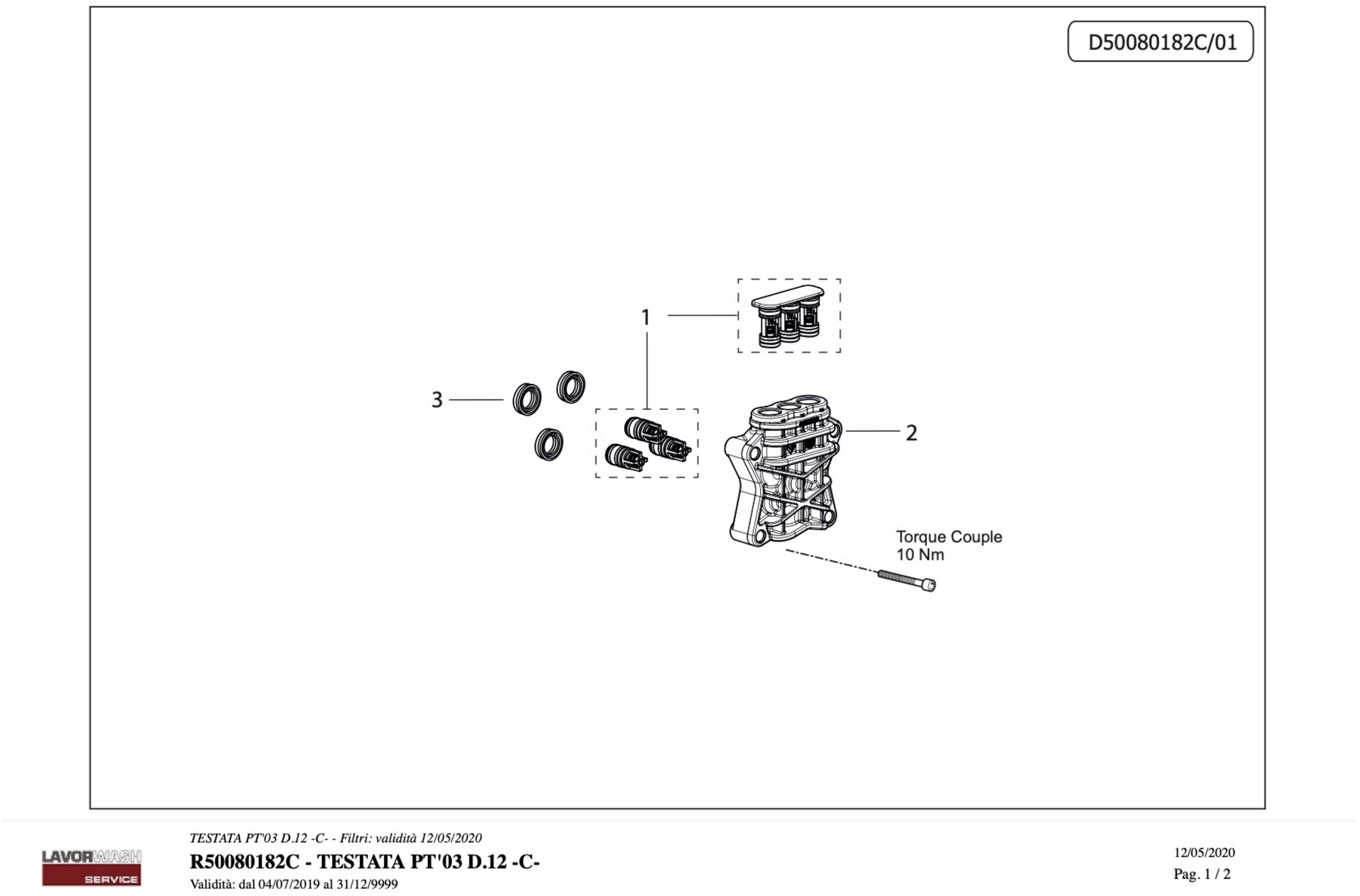

Esploso pagina 7
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
001
 Kit 170 LW Intake-Delivery Valve for Pressurte Washer Lavor BEST 24 6.005.0184 Kit 170 LW Intake-Delivery Valve for Pressurte Washer Lavor BEST 24 €15.19
002
 photo_cameraImage coming soon 4.005.0210C '03 PARTNER HEAD €12.51
003
 Kit 124 Water Seal Partner for Pressurte Washer Lavor BEST 24 6.005.0133 Kit 124 Water Seal Partner for Pressurte Washer Lavor BEST 24 €14.54

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Original Parts for Pressure Cleaner RIO 1108 - 8.052.0801

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner RIO 1108 220-230/50 TS -G- -LAVOR - 8.052.0801.

In the following tables, look for the spare part and its respective code.
Pressure Cleaner RIO 1108

80520801 - IDRO RIO 1108 220-230/50 TS -G- -LAVOR- Pag.1
# Part Num. Description
0 8052X801 IDRO RIO 1108 230V 50Hz TS (SILVER) BASE DA FINIRE
001 4.013.0305 YELLOW UPPER COVER FKX (PANT.108C)
002 4.008.0867 HANDLE
004 4.008.0869 LANCE HOLDER
005 4.008.0789 HOSE REEL TIGER
006 4.008.0868 DETERGENT TANK
007 4.608.0180 DIESEL TANK CAP
008 5.009.0611 INLET JOINT WITH GASKET
009 7.100.1726 INSTRUCTION MANUAL FKX-XTR-FUEGO LAVOR
010 3.700.0036 GUN 29Mpa-140°C-21lt/min G3/8M- M22
011 4.618.0049 HOSE 1/4 R1 210BAR L=8000 3/8"F
012 6.002.0260 LANCE H/L PRESSURE 1.15-Y-
013 3.100.0062 QUICK COUPLING WITH VALVE (3029)
018 5.012.0222 FAST COUPLING KIT + CAP + ACCESSORY HOLDER
8052X801 - IDRO RIO 1108 230V 50Hz TS (SILVER) BASE DA FINIRE - Pag.2
0 50010824 MOTOP.PT'03 110h100ALL 230-240/50 D.12 9GR35 TS IN.1,7 (FKX) -40050260-
0 50090304 ASSIEME VALVOLA REGOLAZIONE PRESSIONE X POMPA ULKA (MOLLA L=20)
002 3.100.0075 CONIC CONNECTION M 1/8 F D.4 CURVED FOR GASOIL HOSE VITON O-
003 4.012.0102 CABLE L=600 SEC.0,75 IEC227-3/1979
004 4.608.0145 RILSAN GASOIL HOSE X PARANA' L=500
005 4.005.0194 BOILER COVER FKX
006 4.007.0303 TUBE D.40 L=325 FE 37 PREZINCED
007 4.008.1169 GREY CAP FOR ELECTRIC BOX FKX
008 3.401.0178 SWITCH 0/1 BLACK BOTTON IP55 12/10
010 3.404.0094 CAPACITOR 32mF 450V
012 3.405.0011 TERMINAL BOARD PA 32/6
014 4.008.0446 ELECTRICAL BOX BASE
015 3.403.0012 ELECTRICAL BOARD
020 4.007.0180 BOILER STAY M6X352
023 3.304.0056 Burner MOTOR.230/50 W/FAN,FLANGE,CABLE L=850,NOISE SUPPRRESSOR,COVER
024 4.008.0658 THERMORESISTANT FELT BOTTOM PLATE X FKX/PARANA'
025 4.008.0450 THERMORESISTANT PAD
026 4.007.0158 BOILER PAD
027 4.007.0311 WASHER 16,6x26
028 4.007.0307 JUNCTION
029 5.609.0260 MAX PRESSURE VALVE 250BAR 1/8
030 4.005.0186 BOILER BASE PLATE X FKX (LIKEDIE CASTING )
031 4.007.0185 SPACER FOR FIXING CLAMP
034 5.009.1126 TRASF.ACC.230-240/50-60 C/PIPET.FKX-RIO (EMC) +CAVO C/TERRA ESTERNA+
035 4.008.0848 GASKET NEW TRANSFORMER FKX
037 4.006.0187 NOZZLE HOLDER PIN
038 3.104.0008 DIESEL NOZZLE 0.60 60/A MONEL FILTER
039 3.099.0296 COMPLETE ELECTRODE DEFLECTORDID.2 FKX
040 5.013.0027 DISK HEAD HOLDER
041 4.604.0011 COIL D.202
042 5.013.0050 BODY BOILER
043 5.009.0304 ADJUSTING VALVE SET (SPRING L=20)
044 4.008.0465 PVC PIPE
046 3.099.0110 D.12 CLAMP
047 3.551.0014 GASOIL PUMP
048 5.011.0043 GASOIL FILTER GROUP
049 3.411.0001 ELECTROLYTIC PIPE D.4
050 4.608.0038 RUBBER PROTECTION FOR THERMIC
051 3.403.0003 THERMAL PROTECTOR L01.090.05.700
052 4.606.0002 DELIVERY CONNECTION
053 4.007.0322 TUBE FKX L=42
054 4.008.0449 THERMORESISTANT COUPLING BOW 17X23XL40
055 5.001.0824 MOTORPUMP.PT'03 110h100AL 230-240/50 D.12 9°35 TS W/SUCTION
057 4.614.0003 ELECTRODE D.2 FKX PARANA'
058 4.008.0503 BAND IN CERAMIC FIBER
059 3.099.0124 RING LOCKER X SHAFT D.42 UNI 7435
060 4.007.0256 BASE FKX
061 5.009.0637 BOILER CAP KIT
062 4.012.0392 CAVO H05VV-F 3X1,5 MT.7,5 SP.SCHUKO ANTISPRUZZO F/F
063 4.008.0916 GASOIL TANK
063 6.005.0148 KIT 135 BLACK TANK FKX WITH CAP
064 6.005.0190 WHEEL KIT
065 4.008.0922 COVER FOR MOTOR FAN (MOTOR'96)
50090304 - ASSIEME VALVOLA REGOLAZIONE PRESSIONE X POMPA ULKA (MOLLA L=20) - Pag.3
001 4.006.0259 PORTAGOMMA A VITE X REGOLAZ. GASOLIO FKX
002 4.006.0260 DADO 10x1 ES.13 PER REGOLAZ. GASOLIO FKX
003 4.007.0306 SPRING FOR PRESS.REG.VALVE FKXD.5,4-7,8 L=20 WIRE 1,8
004 3.200.0050 O-RING 5.28X1.78
005 4.008.0856 VALVOLA SFERICA PER REGOLAZION E BY-PASS FKX-PARANA'
006 4.006.0254 BY-PASS DIESEL VALVE
007 3.200.0021 OR GASKET 6,75x1,78 RIF.106
008 3.100.0057 CONNECTION D.4X1/8"M VITON O-RING
50010824 - MOTOP.PT'03 110h100ALL 230-240/50 D.12 9GR35 TS IN.1,7 (FKX) -40050260- Pag.4
0 50090703C GRUPPO CORPO GUIDA C/TS-ASP.-M.13KG (40050260) +TESTATA (PT'03)
001 6.005.0387 KIT 353 LW FAN + RING
002 5.002.0151 HOUSING '02 D110 H100AL 230-240/50 2P (FKX)
003 6.005.0087 THRUST RING KIT (PT'03 INDUCTION/U88)
003 3.001.0033 BALL BEARING 6003 2RS (17x35x10)
004 5.005.0071 ROTOR FOR 110H100AL
005 4.005.0219 FRONT FLANGE D.110 PT'03
006 3.201.0008 OIL SEALING RING D. 17X35X7
007 3.001.0030 BALL BEARING
008 4.005.0218 WOBBLE PLATE 9'35 PT'03
009 6.005.0087 THRUST RING KIT (PT'03 INDUCTION/U88)
010 5.009.0703C BODY GUIDE+HEAD ASSEMBLED TS WITH SUCTION (SPRING 13KG) -PT
50090703C - GRUPPO CORPO GUIDA C/TS-ASP.-M.13KG (40050260) +TESTATA (PT'03) - Pag.5
0 50070187C CORPO GUIDA PT'03 PIST.D.12 C/ TS-ASP.-VALV.COMP.-M.13KG
0 50080182C TESTATA PT'03 D.12 -C-
001 5.007.0187C PISTON BODY GUIDE PT'03 WITH TS/COMP.VALVE/SPRING 13KG/SUCTI
002 6.005.0282 KIT 257 O-RING SEAL
003 5.008.0182C PUMP HEAD PARTNER '03 D.12
50070187C - CORPO GUIDA PT'03 PIST.D.12 C/ TS-ASP.-VALV.COMP.-M.13KG - Pag.6
001 5.009.0716 COMPLETED VALVE TS PT'03 CABLEL=530 SPRING 13KG (WHITE FAST
002 6.005.0277 KIT 252
003 6.005.0226 KIT 209 O-RING
004 6.005.0079 KIT 79 LW OIL SEALS
005 4.005.0263C PISTON BODY GUIDE PT'03 WITH SUCTION VALVE
005 4.008.1176 GASKET PISTON BODY GUIDE-HEADPT'03 29.7X12.9X2.7
006 6.005.0181 KIT 167 LW PISTON
50080182C - TESTATA PT'03 D.12 -C- Pag.7
001 6.005.0184 KIT 170 LW HEAD VALVE KIT
002 4.005.0210C '03 PARTNER HEAD
003 6.005.0133 KIT 124 O-RING WATER SEAL PARTNER D.12
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Lavor RIO 1108 - 8.052.0801
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

Drawing Lavor RIO 1108

Drawing Lavor RIO 1108

Download (1.25MB)

You might also like

Inlet Quick Coupling for High Pressure Washers Lavor
Lavorwash S.p.A. SKU: 3.100.0062
Inlet Quick Coupling for High Pressure Washers Lavor
Inlet Quick Coupling for High Pressure Washers Lavor Genuine Replacement part Lavor, Inlet Quick Coupling 3.100.0062 for Cold Water High Pressure Washers Fury 110 - Ride 110 - Race 125 - Cross 140 - Army 120. Part suitable for the...
AVAILABLE €4.25
Details
Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 3.107.0004
Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500
Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Pressure Gauge D.50 0/315 BAR - 1/4 Rear thread + Bracket (ref 129 939 81) for Pressure Washers NPX 1400 - NPX...
on 7/10 Business Days Approx. €33.35
Details
PVC Fan for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 4.608.0083
PVC Fan for Pressure Washers Lavor NPX 1400 - NPX 1500
PVC Fan for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, PVC Fan D.180 Lowered Hub for Pressure Washers NPX 1400 - NPX 1500. Part for the following products: - ...
Last items in stock €30.42
Details
Quick Coupling for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 5.009.0340
Quick Coupling for Pressure Washers Lavor NPX 1400 - NPX 1500
Quick Coupling for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Quick Coupling Assy + O-Ring + Ring Nut for Pressure Washers NPX 1400 - NPX 1500. Part for the following products: - Pressure Washer Lavor...
Last items in stock €15.06
Details
Thermostate Knob for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 4.608.0019
Thermostate Knob for Pressure Washers Lavor NPX 1400 - NPX 1500
Thermostate Knob for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Black Thermostate Knob 3079/1t for Pressure Washers NPX 1400 - NPX 1500. Part for the following products: - Pressure Washer Lavor NPX 1400...
on 10 Business Days Approx €10.03
Details
Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 3.100.0043
Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500
Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, 3/8 M Rotating Quick Coupling for Pressure Washers NPX 1400 - NPX 1500. Part for the following products: - Pressure Washer Lavor NPX 1400 -...
AVAILABLE €17.59
Details
Hose Coupling Omnia for Pressure Washers Lavor NPX 1500
Lavorwash S.p.A. SKU: 5.009.0136
Hose Coupling Omnia for Pressure Washers Lavor NPX 1500
Hose Coupling Omnia for Pressure Washers Lavor NPX 1500 Genuine replacement part  Lavor , Hose Coupling Omnia Complete with O-Rings for  Pressure Washer NPX 1500  - 8.605.0049. Part for the following products: -  Pressure Washer Lavor...
on 10 Business Days Approx €3.27
Details
Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018
Lavorwash S.p.A. SKU: 3.200.0019
Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018
Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018 Genuine replacement part Lavor, Gasket O-Ring 12.4X1.78 SHORE 90 for Pressure Washer Pressure Washer FKX 1018 230/50 TS -R- (VAPORNOVA)- 8052001. Part for the following...
AVAILABLE €1.70
Details
O-Ring 25.12x1.78 for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 3.200.0003
O-Ring 25.12x1.78 for Pressure Washers Lavor NPX 1400 - NPX 1500
O-Ring 25.12x1.78 for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, O-Ring Gasket 25.12x1.78 REF.2100 for Pressure Washers  NPX 1400  8.605.0048 - NPX 1500 8.605.0049. Part for the following products: -...
AVAILABLE €1.70
Details
Diesel Filter Unit for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 5.611.0043
Diesel Filter Unit for Pressure Washer Lavor Missouri
Diesel Filter Unit for Pressure Washer Lavor Missouri Genuine part Lavor, Diesel Filter Unit JOLLY 4 '93 / MISSOURI / MEK for Pressure Washers Missouri - NPX 1400 - NPX 1500. Part for the following...
Usually Ships in: 10 Business Days Approx. €15.19
Details
Transformer 230-240V for Pressure Washer Lavor RIO 1108
Lavorwash S.p.A. SKU: 5.009.1126
Transformer 230-240V for Pressure Washer Lavor RIO 1108
Transformer 230-240V for Pressure Washer Lavor RIO 1108 Genuine part Lavor, Ignition Transformer 230-240V/50-60Hz With Pipette for FKX-RIO (EMC) + Cable With External Ground for  Pressure Cleaner RIO 1108 220-230/50 TS Part for the...
Last items in stock €100.43
Details
Diesel Fuel Tank Cap for Pressure Washer Lavor RIO 1108
Lavorwash S.p.A. SKU: 4.608.0180
Diesel Fuel Tank Cap for Pressure Washer Lavor RIO 1108
Diesel Fuel Tank Cap for Pressure Washer Lavor RIO 1108 Genuine part Lavor, Diesel Fuel Tank Cap for Pressure Washers Tekna 4 - RIO 1108 - 8.052.0801 -GR- RAL.7021 Part for the following products: -  Cleaner RIO 1108 220-230/50 TS -G-...
Last items in stock €14.99
Details
Electronic Board for Pressure Washer Lavor FKX 1018
Lavorwash S.p.A. SKU: 3.403.0012
Electronic Board for Pressure Washer Lavor FKX 1018
Electronic Board for Pressure Washer Lavor FKX 1018 Genuine replacement part Lavor, Electronic Board for Pressure Washer Pressure Washers FKX 1018 230/50 TS -R- (VAPORNOVA)- 80520001 - Idropulitrice...
Usually Ships in: 10/15 Business Days Approx. €36.22
Details
Motorpump Ass'y for Pressure Washer Lavor RIO 1108
Lavorwash S.p.A. SKU: 5.001.0824
Motorpump Ass'y for Pressure Washer Lavor RIO 1108
Motorpump Ass'y for Pressure Washer Lavor RIO 1108 Genuine part Lavor, Motorpump Ass'y PT'03 110h 100AL 230-240/50Hz D.12 9GR35 TS W/SUCTION (FKX) - 40050260 - with Pressure Switch for Pressure Washers RIO 1108 - MEK...
Last items in stock €305.96
Details
Motor Housing for Pressure Washer Lavor RIO 1108
Lavorwash S.p.A. SKU: 5.002.0151
Motor Housing for Pressure Washer Lavor RIO 1108
Motor Housing for Pressure Washer Lavor RIO 1108 Genuine part Lavor, Motor Housing '02 D110 H100 ALL 230-240/50Hz 2P (FKX) for Pressure Washers RIO 1108 - MEK 1108 Part for the following products: -...
Out-of-Stock €273.18
Details
Switch 0/1 Black Button for Pressure Washers Lavor
Lavorwash S.p.A. SKU: 3.401.0178
Switch 0/1 Black Button for Pressure Washers Lavor
Switch 0/1 Black Button for Pressure Washers Lavor Genuine replacement part Lavor, Switch 0/1 Black Button IP55 12/10 for Pressure Washers Lavor Part for the following products: -  Pressure washer Ride 110...
Last items in stock €6.91
Details
Body Guide PT'03 for Pressure Washer Lavor RIO 1108
Lavorwash S.p.A. SKU: 5.007.0187C
Body Guide PT'03 for Pressure Washer Lavor RIO 1108
Body Guide PT'03 for Pressure Washer Lavor RIO 1108 Genuine part Lavor, Body Guide PT'03 Pistons D.12 with ASS Detergent Suction for Pressure Washers RIO 1108 - MEK 1108 Part for the following products: -  Pressure Cleaner RIO 1108 -...
on 10 Business Days Approx €57.11
Details
Diesel Nozzle for Pressure Washer Lavor FKX 1018
Lavorwash S.p.A. SKU: 3.104.0008
Diesel Nozzle for Pressure Washer Lavor FKX 1018
Diesel Nozzle for Pressure Washer Lavor FKX 1018 Genuine replacement part Lavor, Diesel Nozzle 0.60 60° HFD Kg/h 231 EN 6011 43281 for Pressure Washers FKX 1018 - RIO 1108 - MEK 1108 - XTR...
Usually Ships in: 10/15 Business Days Approx. €29.49
Details
Body Guide + Head Ass'y for Pressure Washer Lavor RIO 1108
Lavorwash S.p.A. SKU: 5.009.0703C
Body Guide + Head Ass'y for Pressure Washer Lavor RIO 1108
Body Guide + Head Assembled for Pressure Washer Lavor RIO 1108 Genuine part Lavor, Body Guide + Head Assembled TS With Suction (SPRING 13KG) -PT for Pressure Washers RIO 1108 - MEK 1108 Part for the following products: -  Pressure...
Usually Ships in: 10 Business Days Approx. €63.27
Details
Coil for Pressure Washer Lavor FKX 1018
Lavorwash S.p.A. SKU: 4.604.0011
Coil for Pressure Washer Lavor FKX 1018
Coil for Pressure Washer Lavor FKX 1018 Genuine replacement part Lavor, Coil D.202 L.15Mt for Pressure Washer FKX 1018 230/50 TS -R- (VAPORNOVA)- 80520001. Part for the following products: -  Pressure...
on 10 Business Days Approx €342.49
Details
Lavor Electrode D.2 for YUKON 1310
Lavorwash S.p.A. SKU: 4.614.0003
Lavor Electrode D.2 for YUKON 1310
Lavor Electrode D.2 for Pressure Cleaner YUKON 1310 Original replacement part Lavorwash, Electrode D.2 for Pressure Cleaners YUKON 1310 - RIO 1108. Part for the following products: -  Pressure Cleaner Lavor YUKON 1310 - 86180001...
Last items in stock €11.56
Details
Lavor MISSOURI Boiler Cover
Lavorwash S.p.A. SKU: 4.005.0194
Lavor MISSOURI Boiler Cover
Lavor MISSOURI Boiler Cover Original part Lavorwash, Boiler Cover for Pressure Cleaners MISSOURI - PARANA' -  YUKON 1310. Part for the following products: - Lavor MISSOURI - Lavor HOT130 - Lavor PARANA' G-LWS - Lavor...
Usually Ships in: 10 Business Days Approx. €79.65
Details
Lavor MISSOURI Heat Resistant Pad
Lavorwash S.p.A. SKU: 4.008.0450
Lavor MISSOURI Heat Resistant Pad
Lavor MISSOURI Heat Resistant Pad Original part Lavorwash, Heat Resistant Pad for Pressure Cleaners MISSOURI - PARANA' -  YUKON 1310. Part for the following products: - Lavor MISSOURI - Lavor HOT130 - Lavor PARANA'...
Usually Ships in: 10 Business Days Approx. €11.02
Details
Lavor MISSOURI Heat Resistant Felt Pad
Lavorwash S.p.A. SKU: 4.008.0658
Lavor MISSOURI Heat Resistant Felt Pad
Lavor MISSOURI Heat Resistant Felt Bottom Pad Original part Lavorwash, Heat Resistant Felt Bottom Pad (FKX/PARANA') for Pressure Cleaners MISSOURI - PARANA' -  YUKON 1310. Part for the following products: - Lavor...
Usually Ships in: 10 Business Days Approx. €6.22
Details
Lavor MISSOURI Ceramic Fiber Band
Lavorwash S.p.A. SKU: 4.008.0503
Lavor MISSOURI Ceramic Fiber Band
Lavor MISSOURI Ceramic Fiber Band Original part Lavorwash, Band in Ceramic Fiber 120X635 SP.4 for Pressure Cleaners MISSOURI - PARANA' -  YUKON 1310. Part for the following products: - Lavor MISSOURI - Lavor HOT130 -...
Usually Ships in: 10 Business Days Approx. €19.00
Details
Lavor Wheel Kit for Pressure Washer Rio 1108
Lavorwash S.p.A. SKU: 6.005.0190
Lavor Wheel Kit for Pressure Washer Rio 1108
Lavor Wheel Kit for Pressure Washer Rio 1108 Genuine replacement part Lavor, Wheel Kit for Pressure Washer Tomcat - One 120. Part for the following products: -  Pressure Washer Lavor RIO 1108 - 8.052.0801 -  Pressure...
Last items in stock €46.25
Details
Lavor Head for Pressure Washer Pascal 20
Lavorwash S.p.A. SKU: 00027-00688 ex 4.005.0210C
Lavor Head for Pressure Washer Pascal 20
Lavor Head for Pressure Washer Pascal 20 Genuine replacement part Lavor, Head Pt'03 for Pressure Washer Pascal 20 - Giant 20. Part for the following products: -  Pressure Washer FASA EXXEL20 - 8.062.0815...
Usually Ships in: 10/15 Business Days Approx. €12.88
Details
Lavor Missouri Inlet Joint
Lavorwash S.p.A. SKU: 10002-05285 ex 5.009.0611
Lavor Missouri Inlet Joint
Lavor Inlet Joint for Pressure Missouri Genuine replacement part Lavor, Inlet Joint With Gasket for Pressure Cleaner Missouri - Yukon 1310. Part for the following products:   -  Lavor YUKON 1310 -...
Last items in stock €10.30
Details
Comments (0)
