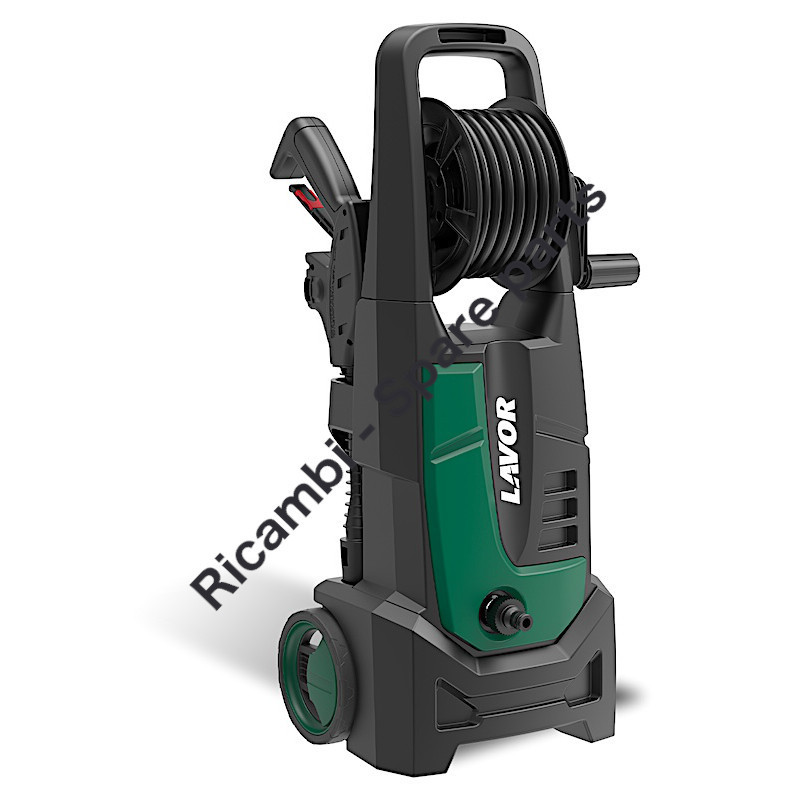

Lavor Parts for Pressure Cleaner LVR1 EXTRA 145

Name: Lavor Parts for Pressure Cleaner LVR1 EXTRA 145
Brand: Lavorwash S.p.A.
SKU: 36150-00019
Availability: InStock

SKU: 36150-00019

€0.10

VAT included

Lavor Original Parts for Pressure Cleaner LVR1 EXTRA 145

Lavor original spare parts for to replace broken parts for to fix Water High Pressure Cleaner - LVR1 EXTRA 145 220-240~50-60 -V/N- EU +SP.ROT.+L25

Lavor Parts for Pressure Cleaner LVR1 EXTRA 145

New
Out-of-Stock

Lavor Parts for Pressure Cleaner LVR1 EXTRA 145

SKU: 36150-00019 Condition: New

€0.10

VAT included

Lavor Original Parts for Pressure Cleaner LVR1 EXTRA 145

Lavor original spare parts for to replace broken parts for to fix Water High Pressure Cleaner - LVR1 EXTRA 145 220-240~50-60 -V/N- EU +SP.ROT.+L25

46 Spare parts

5 exploded views

Download Exploded PDF

Quantity

Out-of-Stock

SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS

CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

CHECK S/N LAVOR: LAVOR S/N START WITH (8. ) and have 8 DIGITS

Machine Type: Pressure Washer

Original Product Manufacturer warranty included

Technical Support Our team helps you choose

Secure and guaranteed payments

46 spare parts

Page 1 View exploded Usually Ships in 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
1	Image coming soon	10002-16702 ASS.COWL+FRONT COVER-N/V- LVR1 W/WORKING BUFFER -B-	€0.00	Not available for order
2	Image coming soon	00071-05949 FRONT TROLLEY BASE LVR1/COSMOS1 -N-	€0.00	Not available for order
3		4.008.0031 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24	€1.54
4	Image coming soon	5.001.0807C EXT MTP PT'03EVO 230/50 TSC-THERMAL 5'30 (7645PF-KC) SCHUKO PLUG	€150.17
5	Image coming soon	4.008.1186 AIR CONVEYOR FOR U76 (LIGHT)	€134.59
6	Image coming soon	4.008.1741 SPONGE FOR ONE	€0.11	Not available for order
7	Image coming soon	4.008.1803 SPONGE FOR ONE (MOTOR PROTECTION)	€0.11	Not available for order
8	Image coming soon	4.008.1731 UPPER HANDLE FOR REEL ONE BLACK	€18.29
9	Image coming soon	4.013.0731 BLACK BACK COVER ONE	€20.03
10	Image coming soon	4.008.0277 FIX PAD CABLE HOLDER	€1.72
11	Image coming soon	4.008.1729 REAR TROLLEY BASE ONE/SMART BLACK	€9.77
12	Image coming soon	10002-16706 WHEEL + HUB CAP ASSY -V- LVR1/COSMOS1	€0.00	Not available for order
13	Image coming soon	4.008.1721 BLACK ACCESSORY HOLDER ONE	€2.53
14	Image coming soon	6.005.0563 KIT HOSE REEL ONE/SMART (WITHOUT HOSE)	€11.26
16	Image coming soon	6.001.0106 Substituted by 6.001.0073 GUN S'16 WITH INTEGRAL QUICK JOINT	€29.04
17	Image coming soon	4.018.0098 HOSE 1/4 18MPA 5M SWIVEL M22X1.5 D15-QUICK COUPLING X S'09 W/SPRING MAN.	€31.06
18		6.002.0340 Lance 6.002.0340 Nozzle Head Holder for Trigger Guns Lavor	€9.52
19	Image coming soon	6.002.0259 Substituted by 6.002.0358 FOAM SPRAYER WITH TRANSPARENTTANK	€12.74
20	Image coming soon	3.100.0082C BLACK QUICK COUPLING INLET CONNECTOR (THREAD=9.5)	€1.50
21		6.002.0635 Head Nozzle Jet Adjustable Needle-Fan Ø 0.90 6.002.0635	€8.50
22		6.002.0346 Head Turbo Nozzle Ø 1,025 for Lance Lavor	€6.90
23		6.003.0037 6 m Pipe Cleaning Hose 6.003.0037 for Pressure Washer Lavor	€54.51
24	Image coming soon	3.601.0035 ROTATING HYDRO BRUSH W/HANDLE	€23.74
25	Image coming soon	00080-05292 PATIO CLEANER L25 + EXTENSION -V- PANT.342C (D.1.1)	€0.00	Not available for order
30	Image coming soon	22001-07046 SPECIFIC MANUAL LVR1/COSMOS1 (WITHOUT CE)	€0.00	Not available for order
31	Image coming soon	22001-07047 CE INSERT LVR1/COSMOS1/ARROWI LAVOR A4 F/R	€0.00	Not available for order

Page 2 View exploded Usually Ships in 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1		5.009.0979 Motor Assembly for Pressure Cleaner Lavor X-Ray Plus 140	€87.31
2		4.008.1164 Motor Flange Collar for Pressure Washers Lavor RIDE 110 - RACE 125	€8.73
3		6.005.0311 Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145	€5.50
4		4.007.0205 Pin 10x70 for Pressure Washer Lavor Predator 160 WPS	€7.42
5		5.009.0726 Plate Assembly with Crown for Pressure Washer Lavor ENDURO 145	€6.90
6		4.007.0328 THRUST BEARING 35X55X12 PT'03	€14.74
7	Image coming soon	5.009.0972C BODY GUIDE W/TSC-SCHUKO PLUG NO SUCTION +HEAD PT'03EVO	€55.71

Page 3 View exploded Usually Ships in 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	5.007.0264C BODY GUIDE PT'03EVO W/TSC-SCHUKO PLUG WITHOUT SUCTION	€33.89
2	Image coming soon	6.005.0380 Sostituito da 6.005.0282 KIT 348 SPACER FOR WATER SEAL	€13.17
3		5.008.0261 Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145	€28.99

Page 4 View exploded Usually Ships in 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	6.005.0590 KIT COMPLETE TS PT'03 (AH)	€24.00
2		6.005.0281 Kit 256 Check Valve for Washer Lavor Predator 160	€14.15
3		6.005.0226 Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24	€11.10
4	Image coming soon	4.005.0299 PISTON BODY GUIDE PT'03EVO	€22.92
5		6.005.0181 Kit 167 LW 3 Pistons + Springs for Pressurte Washer Lavor BEST 24	€17.00
6	Image coming soon	4.007.0314 PIN 3,5x30 ZNT	€1.59
7	Image coming soon	4.012.0174C CABLE H05VV-F 2X1 MT.5,4 F/F SCHUKO PLUG W/FASTON COVER	€21.99

Page 5 View exploded Usually Ships in 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	4.005.0298 PT''03EVO PARTNER HEAD	€28.92
2		6.005.0133 Kit 124 Water Seal Partner for Pressurte Washer Lavor BEST 24	€14.15
3		6.005.0588 Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110	€27.72

Shipping and delivery information will be available shortly.

Lavor Original Parts for Pressure Cleaner LVR1 EXTRA 145

Lavor original spare parts for to replace broken parts for to fix Water High Pressure Cleaner - LVR1 EXTRA 145 220-240~50-60 -V/N- EU +SP.ROT.+L25

Fix Your Pressure Cleaner. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective Part Num..

Lavor LVR1 EXTRA 145 - Chassis Pag.1
#	Part Num.	Description
1	10002-16702	ASS.COWL+FRONT COVER-N/V- LVR1 W/WORKING BUFFER -B-
2	00071-05949	FRONT TROLLEY BASE LVR1/COSMOS1 -N-
3	4.008.0031	WATER SUCTION FILTER D.16 CONICAL
4	5.001.0807C	MOTORPUMP PT03EVO 230/50 W/THERMAL-TSC-SCHUKO PLUG 5'30(7645PF-KC)
5	4.008.1186	MOTOR CONVEYOR U76 (LIGHT)
6	4.008.1741	AIR OUTLET SPONGE ONE
7	4.008.1803	MOTOR PROTECTION SPONGE ONE
8	4.008.1731	UPPER HANDLE FOR REEL ONE BLACK
9	4.013.0731	REAR COWL ONE BLACK
10	4.008.0277	FIXED WALL CABLE CLAMP
11	4.008.1729	REAR TROLLEY BASE ONE/SMART BLACK
12	10002-16706	WHEEL + HUB CAP ASSY -V- LVR1/COSMOS1
13	4.008.1721	ACCESSORY HOLDER ONE BLACK
14	6.005.0563	REEL KIT ONE/SMART (W/O HOSE)
16	6.001.0106	GUN S'16 WITH INTEGRATED QUICK COUPLING
17	4.018.0098	HOSE 1/4 18MPA 5M SWIVEL M22X1.5 D15-QUICK COUPLING X S'09 W/SPRING MAN.
18	6.002.0340	LANCE S'12 W/O NOZZLE W/QUICK COUPLING -COGETIL
19	6.002.0259	UNIFIED FOAM DIFFUSER (D.4) W/TRANSPARENT TANK
20	3.100.0082C	QUICK COUPLING 3/4 BLACK WITH GASKET (THREAD L=9.5)
21	6.002.0635	LANCE NOZZLE S'12 D.0.9 -PINK- W/QUICK COUPLING (JET/FAN)
22	6.002.0346	ROTOX NOZZLE LANCE S'12 D.1.025 -BLACK- W/QUICK COUPLING
23	6.003.0037	PIPE CLEANING HOSES MT6 + COGETIL + NOZZLE
24	3.601.0035	ROTATING BRUSH FIXED HANDLE COG.REINF. (5116 ECON.)
25	00080-05292	PATIO CLEANER L25 + EXTENSION -V- PANT.342C (D.1.1)
30	22001-07046	SPECIFIC MANUAL LVR1/COSMOS1 (WITHOUT CE)
31	22001-07047	CE INSERT LVR1/COSMOS1/ARROWI LAVOR A4 F/R
Motor Pump - Pag.2
#	Part Num.	Description
1	5.009.0979	MOTOR ASSY SP.03 230/50 W/ANTID.-THERM.17AM-D 140G (U7645PF-AL KC)
2	4.008.1164	COLLAR FOR MOTOR FLANGE BRUSH U96AF/U76
3	6.005.0311	KIT 283 LW NEEDLE ROLLER CAGES FOR MTP.PT03 (U76)
4	4.007.0205	PIN 10X70 FOR PARTNER-ED BRUSH '98
5	5.009.0726	WOBBLE PLATE ASSY 5'30 PT03 (U76) W/GEAR RING Z 62
6	4.007.0328	THRUST BALL BEARING 35X55X12 FOR PT03
7	5.009.0972C	GUIDE BODY ASSY W/TSC-SCHUKO PLUG M.13KG W/O SUCTION+HEAD (PT03EVO)
Guide Pag.3
#	Part Num.	Description
1	5.007.0264C	GUIDE BODY PT03EVO W/TSC W/O SUCTION 13KG SPRING W/CABLE SCHUKO PLUG
2	6.005.0380	KIT 348 LW OIL SEAL RINGS PT03 D.12
3	5.008.0261	PUMP HEAD PT'03EVO D.12
Guide - Pag.4
#	Part Num.	Description
1	6.005.0590	TS ASSY KIT PT03 13KG SPRING W/MICRO (AH)
2	6.005.0281	KIT 256 LW CHECK VALVE ASSY W/O SUCTION PT03C
3	6.005.0226	O-RING KIT FOR PT03
4	4.005.0299	PISTON GUIDE BODY PT'03EVO
5	6.005.0181	KIT 167 LW 3 PISTONS + SPRINGS PT03
6	4.007.0314	CYLINDRICAL PIN 3.5X30 ZNT
7	4.012.0174C	CABLE H05VV-F 2X1 MT.5.4 SCHUKO PLUG W/CABLE GLAND
Head - Pag.5
#	Part Num.	Description
1	4.005.0298	MACHINED PUMP HEAD PT03EVO
2	6.005.0133	KIT 124 WATER SEAL RINGS PARTNER D.12
3	6.005.0588	KIT LW SUCT./DELIV. VALVE + PLUGS PT 03EVO
