Lavorwash S.p.A.

Lavor Pressure Cleaner HYPER CR2021LP Parts

SKU: 8.654.0089
€0.11
VAT included

Lavor Pressure Cleaner IDRO HYPER CR 2021LP Parts

Lavor original spare parts for to replace broken parts for to fix IDRO HYPER CR 2021LP 400-415/50 -GR- TS C/GIUNTO - 8.654.0089.

IDRO HYPER CR 2021LP - 8.654.0089

Lavor Pressure Cleaner HYPER CR2021LP Parts
  • New
  • Out-of-Stock
  • Lavor Pressure Cleaner HYPER CR2021LP Parts
  • Lavor Esploso CR2021LP
  • Lavor Esploso CR2021LP - 1
  • Lavor Esploso CR2021LP - 2
  • Lavor Esploso CR2021LP - 3
  • Lavor Esploso CR2021LP - 4
  • Lavor Esploso CR2021LP - 5
Lavorwash S.p.A.

Lavor Pressure Cleaner HYPER CR2021LP Parts

SKU: 8.654.0089 Condition: New
€0.11
VAT included

Lavor Pressure Cleaner IDRO HYPER CR 2021LP Parts

Lavor original spare parts for to replace broken parts for to fix IDRO HYPER CR 2021LP 400-415/50 -GR- TS C/GIUNTO - 8.654.0089.

IDRO HYPER CR 2021LP - 8.654.0089

settings 90 Spare parts
description 6 exploded views
picture_as_pdf Download Exploded PDF
Quantity
Out-of-Stock

SHIPPING IN: Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR: LAVOR S/N START WITH (8. ) and have 8 DIGITS
Machine Type: Pressure Washer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
90 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS

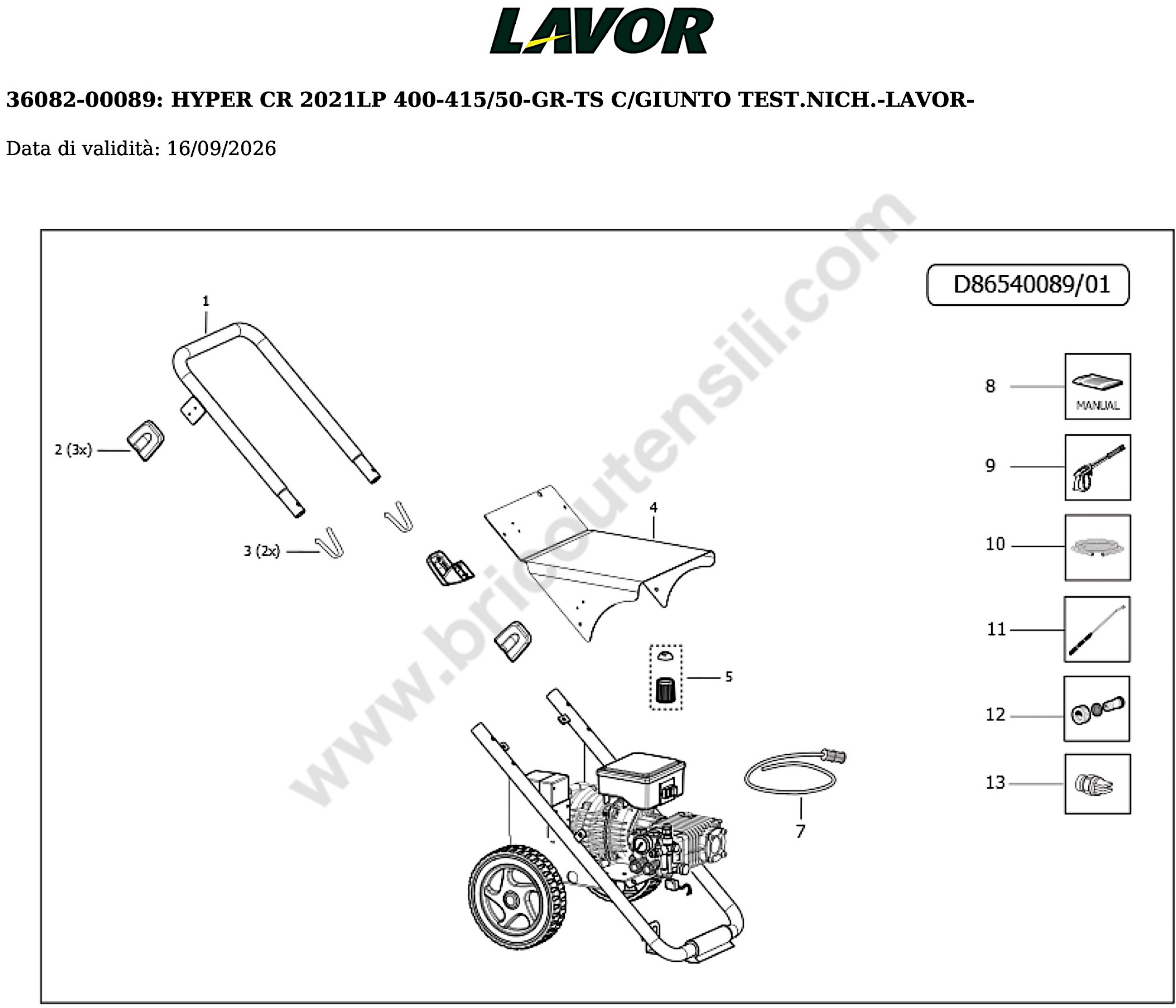

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5.613.0419 COLUMBIA HYDRO HANDLE (BIG'06) -PAINTED- (BLACK RAL.9005) €62.35
2
 photo_cameraImage coming soon 4.608.0245 CABLE REEL INSERT FOR VERTICAL (PP+20%TC) €3.20
3
 photo_cameraImage coming soon 4.007.0277 SPRING HOSE HOLDER FOR HANDLE HW €1.55
4
 photo_cameraImage coming soon 4.607.0456 HOOD FOR COLUMBIA STAINLESS STEEL 430 POLISHED €120.85
5
 photo_cameraImage coming soon 6.605.0076 DEEP ADJUSTMENT KNOB KIT €3.16
7
 photo_cameraImage coming soon 5.012.0003 ASS.DETERGENT SUCTION FILTER HOSE MT.1 €3.09
8
 photo_cameraImage coming soon 7.700.0246 COLUMBIA EXPLORER LP+CE LWS A5 130F 17L MANUAL €21.85
9
 photo_cameraImage coming soon 3.700.0030 GUN AL55 350bar 45l / min 160Â ° C + sw8 3 / 8M + S7 + M22 (30129100) €61.07
10
 photo_cameraImage coming soon 4.618.0143 HIGH PRESSURE HOSE 5/16 315BAR R2 L=10000 1/2 TWIST.-3/8 €135.42
11
 photo_cameraImage coming soon 3.701.0027 Replaced by 3.701.0015 LANCE ZNT L = 600 COVER + SW + ATT.RAP.M22 €26.11
12
 photo_cameraImage coming soon 5.612.0057 BRASS SUCTION HOSE HOLDER KIT 3/4 D.17+FILTER 32990009 €16.68
13
 photo_cameraImage coming soon 3.103.0055 Hight Pressure Nozzle 0.70 €15.26
Page 2 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS

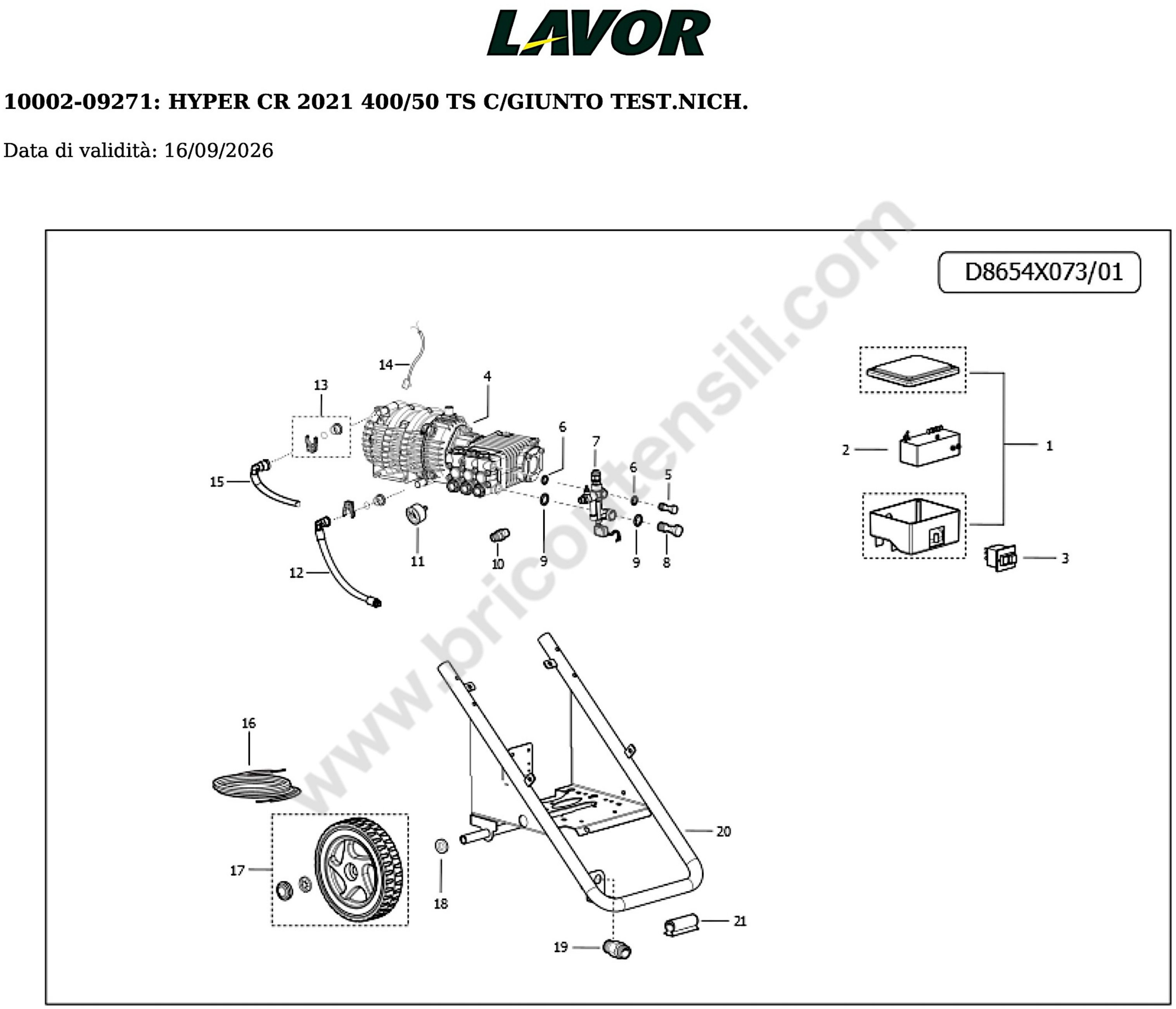

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6.605.0059 ELECTRIC BOX KIT + COVER FOR THREE-PHASE €20.12
2
 photo_cameraImage coming soon 3.402.0075 EXT RELAY TLR11FLW for 7.5KW €117.12
3
 photo_cameraImage coming soon 3.401.0122 EXT MICRO DISCONNECTOR ETA 3140-F260 -P7TI-SGRX-3AC415V-18A €87.96
4
 photo_cameraImage coming soon 5.601.2022 MOTOR R.A. 400/50 4P HP10 2021 SX NICH WITH JOINT FOR COLD WATER (CL6) €1,762.89
7
 photo_cameraImage coming soon 6.605.0078 VALVE KIT L3 W/TS W/IN.2.3 €152.99
10
 photo_cameraImage coming soon 3.100.0042 QUICK COUPLING 3/8 F €14.87
11
 Lavor Ontario 1211LP Pressure Gauge D.40 3.107.0006 Lavor Ontario 1211LP Pressure Gauge D.40 €30.56
12
 Lavor MCHPV 1515LP L.P. Pipe Lenght 300 MM 4.618.0118 Lavor MCHPV 1515LP L.P. Pipe Lenght 300 MM €27.15
13
 photo_cameraImage coming soon 6.605.0223 KIT STOPPERS FOR ENGINE HOSES. R.A. (46080480/482) €9.35
14
 THERMAL PROTECTOR L01.080.05.1000 CABLES * UL * 3.403.0003 THERMAL PROTECTOR L01.080.05.1000 CABLES * UL * €19.69
15
 Lavor MCHPV 1515LP L.P. Pipe Lenght 315 MM 4.618.0136 Lavor MCHPV 1515LP L.P. Pipe Lenght 315 MM €13.01
16
 photo_cameraImage coming soon 4.612.0032 POWER CABLE H05VV-F 4X2.5 L=6700 €38.64
17
 WHEEL D.260X85 FULL BLACK 6.605.0168 WHEEL D.260X85 FULL BLACK €25.73
18
 photo_cameraImage coming soon 4.608.0073 SHORT SPACER FOR TANK JOLLY 4/93 €1.74
19
 photo_cameraImage coming soon 4.606.0028 NIPPLE 1/2 M. 3/4 M. €6.37
20
 photo_cameraImage coming soon 5.613.0215 HYDRO FRAME COLUMBIA -PAINTED- (BLACK RAL.9005) €127.82
21
 photo_cameraImage coming soon 4.608.0055 FRONT RUBBER FOOT SMALL TROLLEY €8.85
Page 3 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS

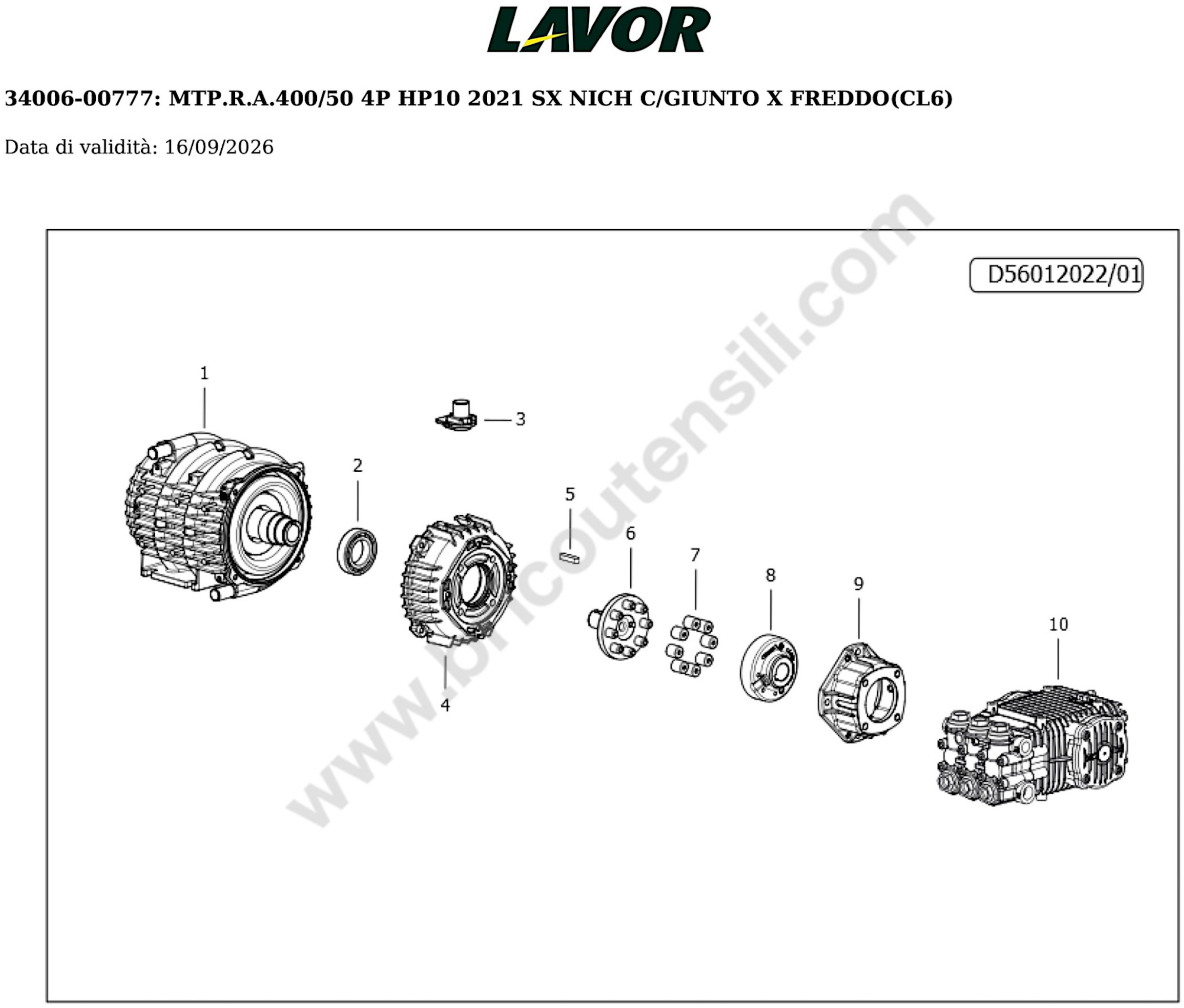

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5.609.0447 LW R.A. MOTOR 400/50 D.152x155 LINE €880.55
2
 photo_cameraImage coming soon 3.001.0009 BEARING 6007-2Z €14.39
3
 photo_cameraImage coming soon 4.605.0070 CABLEHOLDER M22 €5.62
4
 photo_cameraImage coming soon 4.605.0072 MOTOR FRONT FLANGE D.152 X PUMP D.61 €45.15
5
 photo_cameraImage coming soon 3.099.1501 FEATHER KEY €3.15
6
 photo_cameraImage coming soon 4.605.0081 JOINT DIAM.24 MOTOR SIDE €28.82
7
 photo_cameraImage coming soon 6.605.0084 KIT N 8 RUBBER ELASTIC COULING €11.20
8
 photo_cameraImage coming soon 4.605.0082 JOINT DIAM.24 PUMP SIDE 00 €28.82
9
 photo_cameraImage coming soon 4.605.0083 MOTOR/PUMP FLANGE €28.82
10
 photo_cameraImage coming soon 3.554.0085 FW2 5530S SX VR LAVOR NK HOT WATER €718.35
Page 4 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS

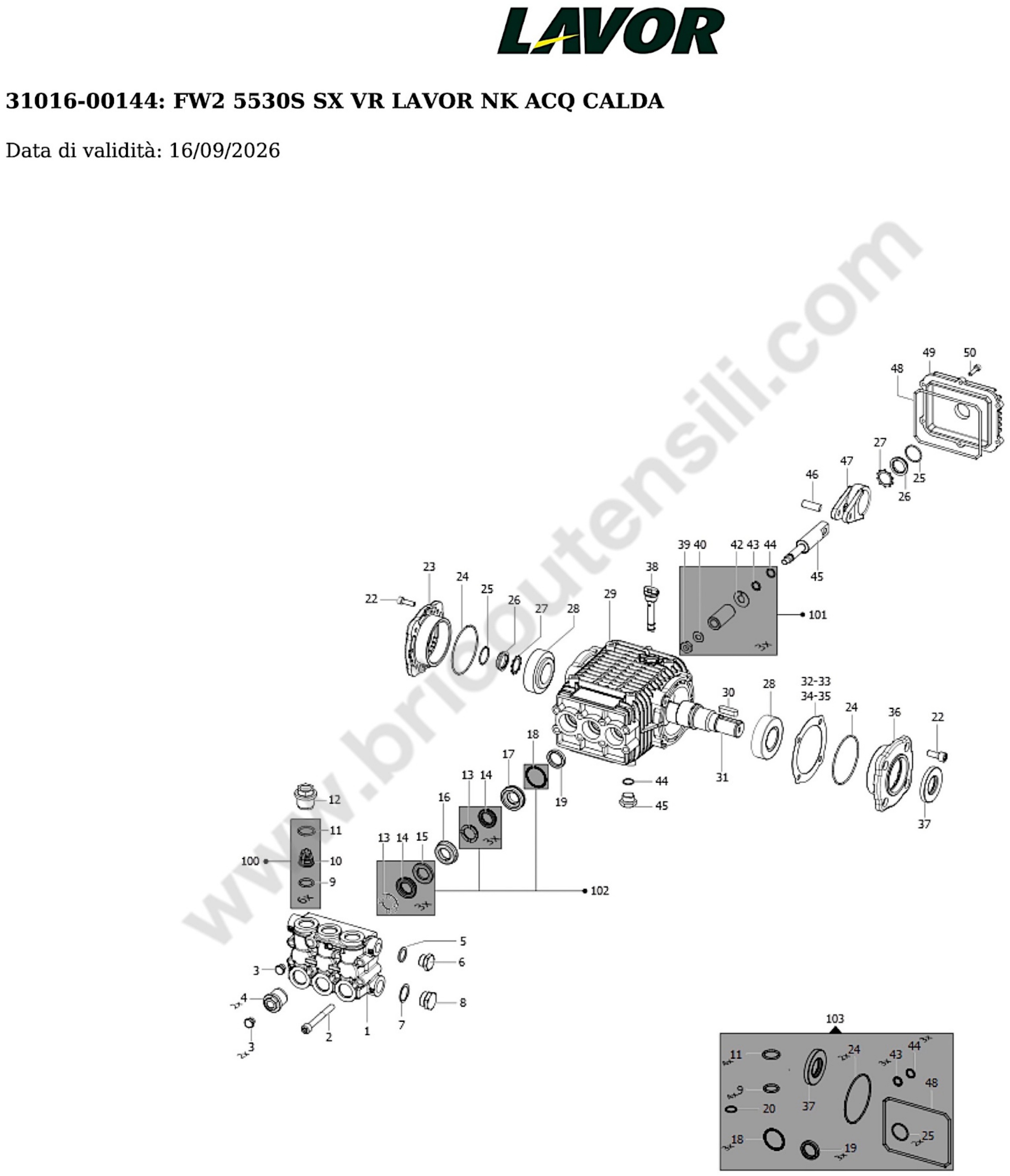

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 00027-00439 THREADED TEE OT FW D20 NICKEL PLATED, CHEMICAL €224.52
2
 photo_cameraImage coming soon 3.002.0252 SCREW TCEI M8X70 UNI 5931 STAINLESS STEEL €3.15
3
 photo_cameraImage coming soon 3.555.0004 PLUG G1/4 CONICAL BRASS €20.20
4
 photo_cameraImage coming soon 3.555.1678 VALVE PLUG LW/FW HOLE 1/4 NICKEL CHEMICAL €17.48
5
 photo_cameraImage coming soon 3.555.0620 BONDED SEAL WASHER M16 €1.27
7
 photo_cameraImage coming soon 3.555.0013 SLICED WASHER 21.2X27X1.5 2811008600 €3.15
8
 photo_cameraImage coming soon 00008-00649 PLUG G1/2 OT58 NICKEL PLATED CHEMICAL €0.12 Not available for order
10
 photo_cameraImage coming soon 3.555.1541 VALVE KIT HIGH FLOW FW2-RW €7.03
11
 photo_cameraImage coming soon 3.200.0027 O-RING 2.62X20.24 FOR CAP 1210004800 €1.54
12
 photo_cameraImage coming soon 00008-00633 VALVE PLUG LW NICKEL PLATED CHEMICAL €1.96
13
 photo_cameraImage coming soon 3.555.0140 SUPPORT RING D20 €3.76
15
 photo_cameraImage coming soon 3.555.0138 HEADER RING D20 €3.76
16
 photo_cameraImage coming soon 00001-00815 SUPPORT RING 1 PISTON GASKET D20 FW2 NICKEL €13.73
17
 photo_cameraImage coming soon 00001-00814 SUPPORT RING 2 PISTON GASKET D20 FW2 NICKEL €13.73
19
 photo_cameraImage coming soon 3.555.0005 GASKET OR 2.62X17.13 1210004600 €0.98
19
 photo_cameraImage coming soon 3.555.0373 OIL SEAL 20X28X5 VITON €5.83
20
 photo_cameraImage coming soon 3.555.0205 O-RING 2,0 X 14 NBR 70 SH €0.98
22
 photo_cameraImage coming soon 00049-00460 SOCKET HEAD CAP SCREW M 8X 18 UNI5931-A2 STAINLESS STEEL €0.12 Not available for order
23
 photo_cameraImage coming soon 3.555.1513 BEARING FLANGE CLOSED RW €26.74
24
 photo_cameraImage coming soon 3.555.0791 O-RING 2,0 X 65 €1.22
25
 photo_cameraImage coming soon 3.555.0253 OR-GASKET 2X24 1210045100 €1.59
26
 photo_cameraImage coming soon 3.555.0246 OIL INDICATOR €1.94
27
 photo_cameraImage coming soon 00002-00237 CIRCLIP TYPE ZJ D28 €1.51
28
 photo_cameraImage coming soon 3.555.0261 TAPERED ROLLER BEARING 30X62X21,25 32206 €16.90
29
 photo_cameraImage coming soon 3.555.1546 PUMP CRANKCASE FW2 €109.03
30
 photo_cameraImage coming soon 3.555.0044 KEY 8X7X30 UNI 6604-6.8 €2.29
31
 photo_cameraImage coming soon 3.555.1638 AXLE SHAFT FW3 D24 MALE ECCENTRIC 8 €72.55
32
 photo_cameraImage coming soon 3.555.0270 SHIM SPACER THICKNESS 0,05 €0.65
33
 photo_cameraImage coming soon 3.555.0394 SHIM SPACER THICKNESS 0,1 €0.65
34
 photo_cameraImage coming soon 3.555.0395 SHIM SPACER THICKNESS 0,19 €1.27
35
 photo_cameraImage coming soon 3.555.0396 SHIM SPACER THICKNESS 0,25 €1.27
36
 photo_cameraImage coming soon 3.555.0271 BEARING FLANGE OPEN RW €26.03
37
 photo_cameraImage coming soon 00003-00298 OIL SEAL 25X52X7 FW3 €2.27
38
 photo_cameraImage coming soon 10002-16144 OIL FILLER PLUG KIT WITH O-RING €0.12 Not available for order
39
 photo_cameraImage coming soon 3.555.0032 PISTON GUIDE FW M8 CH15 H5 €18.03
40
 photo_cameraImage coming soon 3.555.0033 WASHER 8,4X16X1,5 COPPER NON-ANNEALED €3.15
42
 photo_cameraImage coming soon 3.555.0546 EXPANSION WASHER €1.22
43
 photo_cameraImage coming soon 00005-00685 O-RING 1.78X 7.66 VT €0.12 Not available for order
44
 photo_cameraImage coming soon 3.555.0038 BACK-UP RING FOR O-RING 1,78X 7,66 €0.98
45
 photo_cameraImage coming soon 3.555.1280 PISTON GUIDE FW3 €18.45
46
 photo_cameraImage coming soon 3.555.1282 PISTON PIN D10X30 €2.92
47
 photo_cameraImage coming soon 3.555.1274 CONNECTING ROD FOR RW2 €17.48
48
 photo_cameraImage coming soon 3.555.1277 O-RING 3,0 X 108 €2.09
49
 photo_cameraImage coming soon 3.555.0144 CRANKCASE COVER FW €65.18
50
 photo_cameraImage coming soon 3.002.0218 SCREW TCEI M5X20 STAINLESS STEEL UNI 5931 €1.59
100
 photo_cameraImage coming soon 3.555.1554 VALVE KIT HIGH FLOW FW €35.93
101
 photo_cameraImage coming soon 3.555.1150 PISTON KIT RW D20 €67.65
102
 photo_cameraImage coming soon 3.555.1555 COMPLETE WATER SEAL KIT FW/FW2 D20 HOT WATER €69.91
103
 photo_cameraImage coming soon 3.555.1607 SEAL KIT FW2 HT €34.95
Page 5 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS

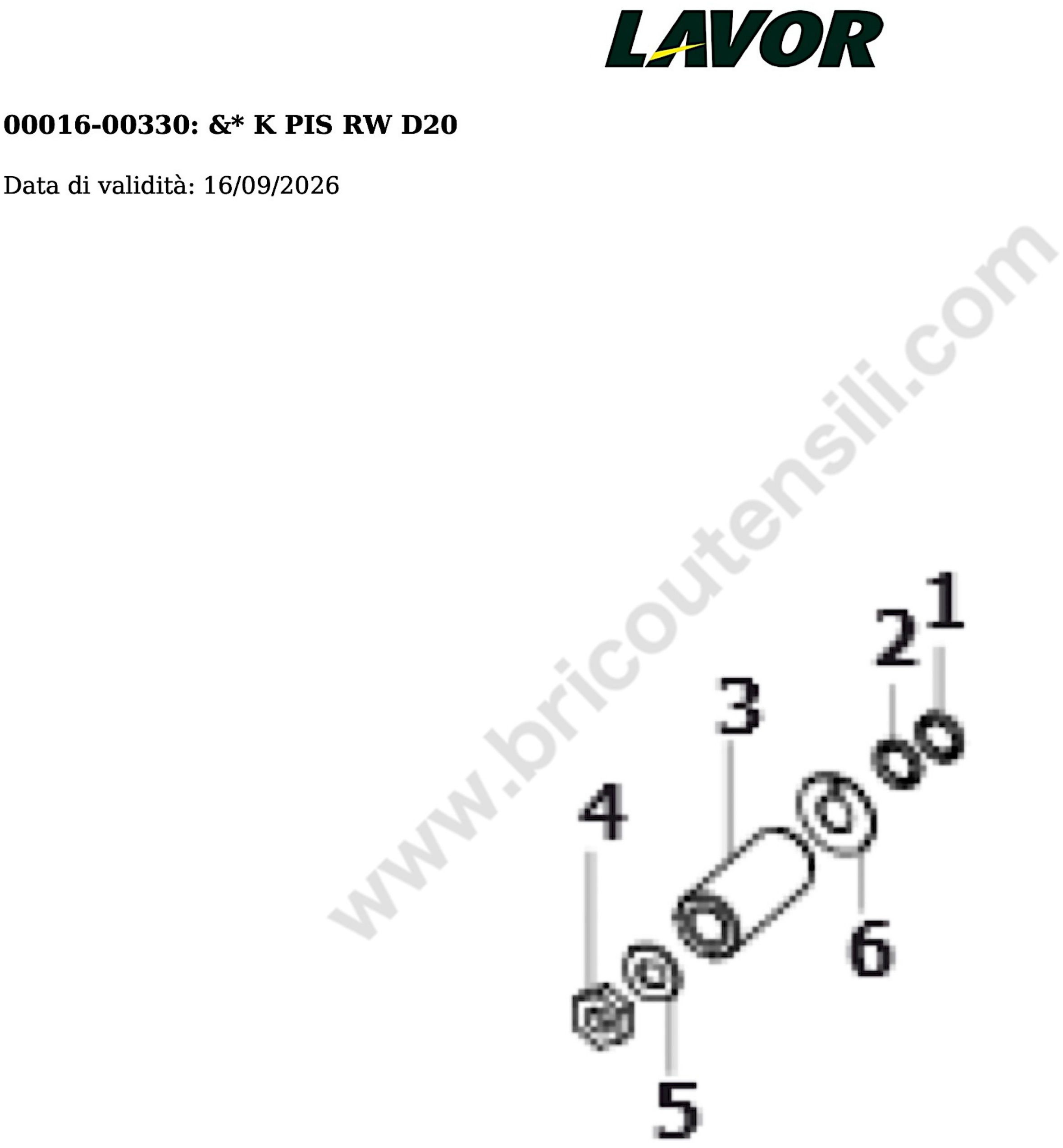

Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3.555.0038 BACK-UP RING FOR O-RING 1,78X 7,66 €0.98
2
 photo_cameraImage coming soon 00005-00685 O-RING 1.78X 7.66 VT €0.12 Not available for order
3
 photo_cameraImage coming soon 3.555.0142 CERAMIC BUSHING FW D20 €94.16
4
 photo_cameraImage coming soon 3.555.0032 PISTON GUIDE FW M8 CH15 H5 €18.03
5
 photo_cameraImage coming soon 3.555.0033 WASHER 8,4X16X1,5 COPPER NON-ANNEALED €3.15
6
 photo_cameraImage coming soon 3.555.0546 EXPANSION WASHER €1.22
Page 6 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS

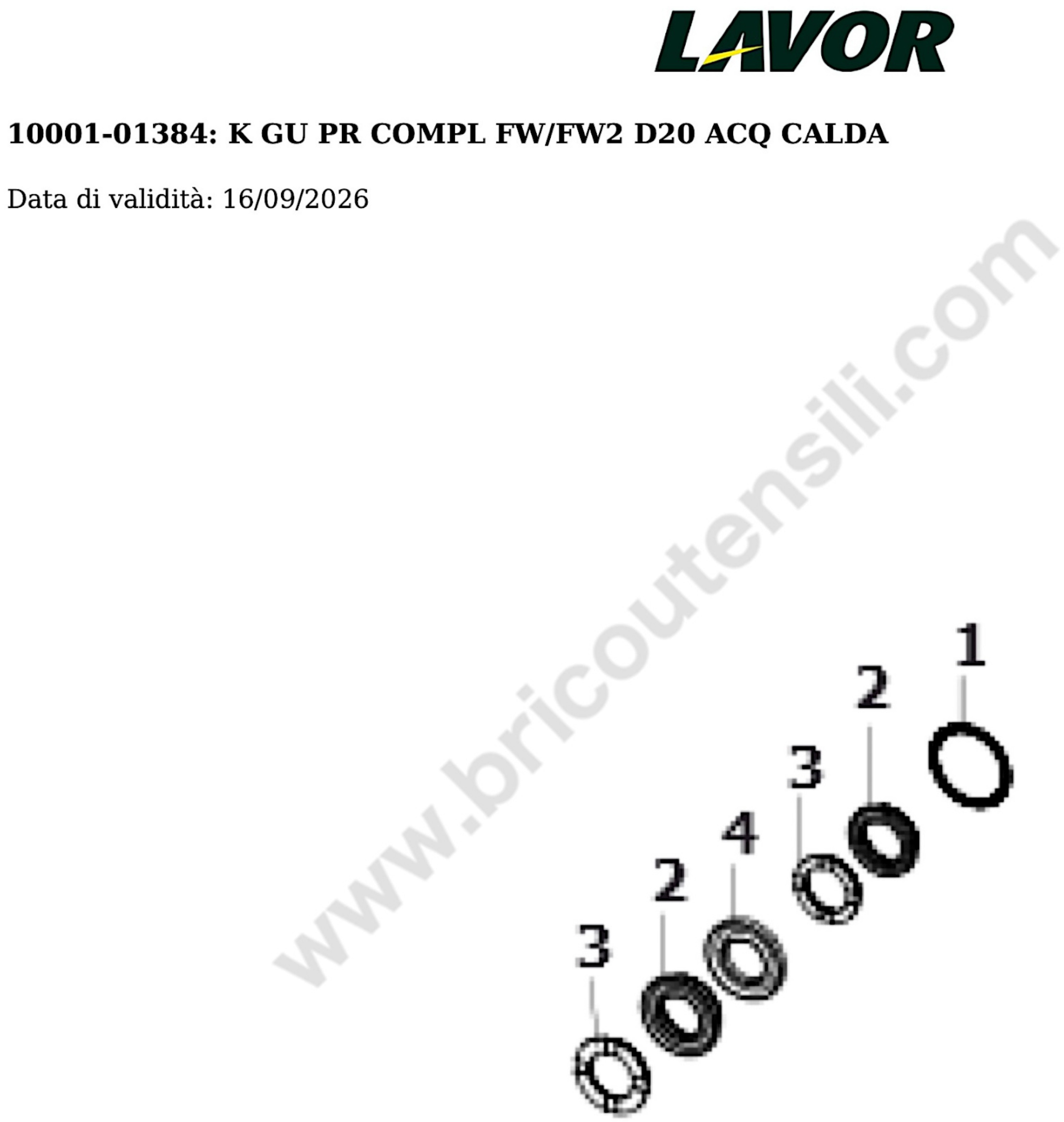

Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3.200.0186 O-RING 1,78X 31,47 €1.54
3
 photo_cameraImage coming soon 3.555.0140 SUPPORT RING D20 €3.76
4
 photo_cameraImage coming soon 3.555.0138 HEADER RING D20 €3.76

Shipping and delivery information will be available shortly.

Lavor Pressure Cleaner IDRO HYPER CR 2021LP Parts

Lavor original spare parts for to replace broken parts for to fix IDRO HYPER CR 2021LP 400-415/50 -GR- TS C/GIUNTO - 8.654.0089.

In the following tables, look for the spare part and its respective code.
Pressure Cleaner IDRO HYPER CR 2021LP - 8.654.0089

HYPER CR 2021LP 400-415/50-GR-TS WITH NIPPLE NICH. JOINT - LAVOR
# Part Num. Description
1 5.613.0419 HANDLE FOR COLUMBIA FOAM-PAINTED-BLACK RAL 9005
2 4.608.0245 CABLE REEL INSERT FOR VERTICAL (PP+20%TC)
3 4.007.0277 HANDLE TUBE RETAINER SPRING HW
4 4.607.0456 HOOD FOR COLUMBIA STAINLESS STEEL 430 POLISHED
5 6.605.0076 PRESSURE REGULATION KNOB KIT
7 5.012.0003 DETERGENT SUCTION FILTER HOSE LENGTH 1M
8 7.700.0246 MANUAL COLUMBIA/EXPLORER/DONEC LP 20L A5 188F
9 3.700.0030 GUN AL55 350BAR 45L/MIN 160GR+SW8 3/8M+S7+M22
10 4.618.0143 HOSE 5/16 R1-315 bar (31.5 MPa) 10M WITH FITTINGS 1/2 SWIVEL-3/8
11 3.701.0027 LANCE ZNT L 600 COVERED+NOZZLE+QUICK COUPLING M22
12 5.612.0057 PLASTIC HOSE TAIL SUCTION KIT 3/4 D.19 + FILTER
13 3.103.0055 HIGH PRESSURE NOZZLE 1/8M 15070
HYPER CR 2021 400/50 TS WITH NICK. TEST JOINT Pag.2
# Part Num. Description
1 6.605.0059 ELECTRICAL BOX + COVER KIT FOR THREE-PHASE
2 3.402.0075 CONTACTOR TLR11FLW FOR 7.5KW
3 3.401.0122 CIRCUIT BREAKER ETA 3140-F260-P7TI-SGRX-3AC415V-18A
4 5.601.2022 MOTOR R.A. 400/50 4P HP10 2021 SX NICH WITH JOINT FOR COLD WATER (CL6)
7 6.605.0078 VALVE KIT L3 WITH TS WITH INJECTOR 2.3
10 3.100.0042 QUICK COUPLING 3/8F 06
11 3.107.0006 PRESSURE GAUGE D.40 0/300 BAR 1/8 GLYCERIN
12 4.618.0118 LOW PRESSURE HOSE L=300 INLET-SERPENTINE MOTOR R.A. 1/2F
13 6.605.0223 TUBE RETAINER KIT MOTOR R.A.
14 3.403.0003 THERMAL PROTECTOR L01.080.05.CABLES L=1200
15 4.618.0136 LOW PRESSURE HOSE L=315 SERPENTINE-PUMP MOTOR R.A. LW LINE
16 4.612.0032 POWER CABLE H05VV-F 4X2.5 L=6700
17 6.605.0168 WHEEL KIT + HUB CAP + RETAINER COLUMBIA-HYPER C-HYPER L
18 4.608.0073 SHORT SPACER FOR JOLLY TANK 4/93
19 4.606.0028 NIPPLE 1/2 M. 3/4 M.
20 5.613.0215 CHASSIS COLUMBIA-PAINTED-(BLACK RAL 9005)
21 4.608.0055 FRONT RUBBER FOOT FOR TROLLEY SMALL
MTP.R.A.400/50 4P HP10 2021 SX NICH WITH JOINT FOR COLD WATER (CL6) Pag.3
# Part Num. Description
1 5.609.0447 ELECTRIC MOTOR ASSEMBLY LW R.A. 380-400V 50/60HZ 3PH D152x165 + PROTECTION
2 3.001.0009 BEARING 6007-2RS 35X62X14
3 4.605.0070 CABLE GLAND M22 FOR MOTOR R.A.
4 4.605.0072 FRONT MOTOR FLANGE D152 FOR PUMP D.61 MACHINED (ORANGE1)
5 3.099.1501 KEY 8X7X32 UNI 6604A
6 4.605.0081 HALF-COUPLING D.24 MOTOR SIDE MOTOR-PUMP COUPLING
7 6.605.0084 8-PIECE RUBBER BUFFER KIT FOR LWS COUPLING
8 4.605.0082 HALF-COUPLING D.24 PUMP SIDE MOTOR-PUMP COUPLING
9 4.605.0083 MOTOR-PUMP COUPLING FLANGE FL.61
10 3.554.0085 FW2 5530S SX VR LAVOR NK HOT WATER
FW2 5530S SX VR LAVOR NK HOT WATER Pag.4
# Part Num. Description
1 00027-00439 THREADED TEE OT FW D20 NICKEL PLATED, CHEMICAL
2 3.002.0252 SOCKET HEAD CAP SCREW M8X70 UNI 5931 STAINLESS STEEL
3 3.555.0004 CONICAL PLUG G1/4 BRASS
4 3.555.1678 VALVE PLUG LW/FW HOLE 1/4 NICKEL PLATED CHEMICAL
5 3.555.0620 BONDED SEAL M16 ALU
6 00008-00191 PLUG G3/8 OT58 NICKEL PLATED CHEMICAL
7 3.555.0013 WASHER 21.2X27X1.5 ALUMINUM
8 00008-00649 PLUG G1/2 OT58 NICKEL PLATED CHEMICAL
19 3.555.0005 O-RING 2.62X 17.13
10 3.555.1541 VALVE KIT HIGH FLOW FW2-RW
11 3.200.0027 O-RING 2.62X 20.24
12 00008-00633 VALVE PLUG LW NICKEL PLATED CHEMICAL
13 3.555.0140 SUPPORT RING D20
14 00004-00373 WATER SEAL V 20-32 HOT WATER
15 3.555.0138 HEADER RING D20
16 00001-00815 SUPPORT RING 1 PISTON GASKET D20 FW2 NICKEL
17 00001-00814 SUPPORT RING 2 PISTON GASKET D20 FW2 NICKEL
19 3.555.0373 SEAL RING 20X28X5 VT DICHTOMATIK
20 3.555.0205 O-RING 2.0 X 14 NBR 70 SH
22 00049-00460 SOCKET HEAD CAP SCREW M 8X 18 UNI5931-A2 STAINLESS STEEL
23 3.555.1513 BEARING FLANGE CLOSED RW
24 3.555.0791 O-RING 2.0 X 65
25 3.555.0253 O-RING 2.0 X 24
26 3.555.0246 OIL SIGHT GLASS LW-FW WITH RED LEVEL DOT
27 00002-00237 SEEGER CIRCLIP TYPE ZJ D28 GANDINI
28 3.555.0261 TAPERED ROLLER BEARING 30X62X21.25 32206
29 3.555.1546 CRANKCASE PUMP FW2 MALE
30 3.555.0044 PARALLEL KEY 8X7X30 UNI6604-6.8
31 3.555.1638 AXLE SHAFT FW3 D24 MALE ECCENTRIC 8
32 3.555.0270 SHIM THICKNESS 0.05
33 3.555.0394 SHIM THICKNESS 0.1
34 3.555.0395 SHIM THICKNESS 0.19
35 3.555.0396 SHIM THICKNESS 0.25
36 3.555.0271 BEARING FLANGE OPEN RW
37 00003-00298 OIL SEAL 25X52X7 FW3
38 10002-16144 OIL FILLER PLUG KIT WITH O-RING
39 3.555.0032 SPECIAL NUT FOR PISTON FW M8 CH15 H5
40 3.555.0033 WASHER 8.4X16X1.5 COPPER UNANNEALED
42 3.555.0546 EXPANSION WASHER RW
43 00005-00685 O-RING 1.78X 7.66 VT
44 3.555.0038 BACK-UP RING FOR O-RING 1.78X 7.66
45 3.555.1280 PISTON GUIDE FW3
46 3.555.1282 GUDGEON PIN D10X30
47 3.555.1274 CONNECTING ROD X RW2
48 3.555.1277 O-RING 3.0 X 108
49 3.555.0144 CRANKCASE COVER FW
50 3.002.0218 SOCKET HEAD CAP SCREW M5X20 STAINLESS STEEL UNI 5931
100 3.555.1554 VALVE KIT HIGH FLOW FW
101 3.555.1150 PISTON KIT RW D20
102 3.555.1555 COMPLETE WATER SEAL KIT FW/FW2 D20 HOT WATER
103 3.555.1607 GASKET KIT FW2 HT
PISTON KIT RW D20 Pag.5
# Part Num. Description
1 3.555.0038 BACK-UP RING FOR O-RING 1.78X 7.66
2 00005-00685 O-RING 1.78X 7.66 VT
3 3.555.0142 CERAMIC BUSHING FW D20
4 3.555.0032 SPECIAL NUT FOR PISTON FW M8 CH15 H5
5 3.555.0033 WASHER 8.4X16X1.5 COPPER UNANNEALED
6 3.555.0546 EXPANSION WASHER RW
COMPLETE WATER SEAL KIT FW/FW2 D20 HOT WATER Pag.6
# Part Num. Description
1 3.200.0186 O-RING 1.78X 31.47
2 00004-00373 WATER SEAL V 20-32 HOT WATER
3 3.555.0140 SUPPORT RING D20
4 3.555.0138 HEADER RING D20
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
8.654.0089

Data sheet

SHIPPING IN
Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR
LAVOR S/N START WITH (8. ) and have 8 DIGITS
Machine Type
Pressure Washer

Specific References

New

Download

Lavor CR2021LP Drawing

Lavor CR2021LP Drawing

Download (1.49MB)

You might also like

Set Trigger Gun 6.005.0322 + 6 mt. Hose for Pressure Washers Lavor
Lavorwash S.p.A. SKU: 6.005.0322
Set Trigger Gun 6.005.0322 + 6 mt. Hose for Pressure Washers Lavor
Set Trigger Gun 6.005.0322 + 6 mt. Hose for Pressure Washers Lavor Genuine Part Lavor, Set Trigger Gun S'09C 6.005.0322 + 6 mt. H.P. Hose for Cold Water High-Pressure Washers with Quick Hose Coupling Fury 110 - Ride 110 - Race 125 -...
on 7/10 Business Days Approx €61.82
Details
Head with Fan Jet High Pressure Nozzle Ø 0.95
Lavorwash S.p.A. SKU: 6.002.0342
Head with Fan Jet High Pressure Nozzle Ø 0.95 6.002.0342
Head with Fan Jet High Pressure Nozzle Ø 0.95 6.002.0342 Genuine Replacement part Lavor, Head with Fan Jet High Pressure Nozzle Ø 0.95 for Lance Lavor 6.002.0340. Part suitable for the following high pressure washers: - Lavor Ride 110...
AVAILABLE €7.30
Details
Head Nozzle Jet Adjustable Needle-Fan Ø 0.90 6.002.0636
Lavorwash S.p.A. SKU: 6.002.0636
Head Nozzle Jet Adjustable Needle-Fan Ø 0.90 6.002.0636
Head Nozzle Jet Adjustable Needle-Fan Ø 0.90 6.002.0636 Genuine Replacement part Lavor, Head Nozzle Jet Adjustable Needle-Fan Ø 0.95 6.002.0636 for Lance Lavor 6.002.0343. Part suitable for the following high pressure washers: -...
AVAILABLE €8.50
Details
Head Soap Nozzle 6.002.0634
Lavorwash S.p.A. SKU: 6.002.0634
Head Soap Nozzle 6.002.0634
Head Soap Nozzle 6.002.0634 Genuine Replacement part Lavor, Head Soap Nozzle 6.002.0634 for Lance Lavor 6.002.0343. Part suitable for the following high pressure washers: - Lavor Fury 110 - Lavor Race 125 - Lavor Cross 140 - Lavor...
AVAILABLE €5.87
Details
Head Turbo Nozzle Ø 1,025 for Lance Lavor
Lavorwash S.p.A. SKU: 6.002.0346
Head Turbo Nozzle Ø 1,025 for Lance Lavor
Head Turbo Nozzle Ø 1,025 for Lance Lavor Genuine Replacement part Lavor, Head cod. 6.002.0346 Turbo Nozzle Ø 1,025 for Lance Lavor 6.002.0340. Part suitable for the following high pressure washers: - Lavor Fury 110 - Lavor Ride 110...
AVAILABLE €6.90
Details
Lance S'02 V fan Jet Ø 0,9 for Pressure Washers Lavor
Lavorwash S.p.A. SKU: 6.002.0326
Lance S'02 V fan Jet Ø 0,9 for Pressure Washers Lavor
Lance S'02 V fan Jet Ø 0,9 for Pressure Washers Lavor Genuine Replacement part Lavor, Lance S'02 V fan Jet Ø 0,9 for pressure Washers Fury 110 - Ride 110 - Race 125 - Cross 140 - Army 120. Part suitable for the following high...
Usually Ships in: 7/10 Business Days Approx. €5.00
Details
Adjustable Lance 6.002.0286C S'99 High/Low Pressure Ø 0.95
Lavorwash S.p.A. SKU: 6.002.0286C
Adjustable Lance 6.002.0286C S'99 High/Low Pressure Ø 0.95
Adjustable Lance 6.002.0286C S'99 High/Low Pressure Ø 0.95 Genuine Replacement part Lavor, Adjustable Lance S'99 High/Low Pressure Ø 0.95 for Pressure Washers Fury 110 - Ride 110 - Race 125 - Cross 140 - Army 120. Part suitable for...
AVAILABLE €14.48
Details
Adjustable Lance 6.002.0208C S'99 High/Low Pressure Ø 1.00
Lavorwash S.p.A. SKU: 6.002.0208C
Adjustable Lance 6.002.0208C S'99 High/Low Pressure Ø 1.00
Adjustable Lance 6.002.0208C S'99 High/Low Pressure Ø 1.00 Genuine Replacement part Lavor, Adjustable Lance S'99 High/Low Pressure Ø 1.00 for Pressure Washers Ride 110 - Race 125 - Cross 140 - Army 120 - Marine 125. Part suitable for...
AVAILABLE €14.48
Details
Turbo Lance Ø 1.025 6.002.0329 for Pressure Washers Lavor
Lavorwash S.p.A. SKU: 6.002.0329
Turbo Lance Ø 1.025 6.002.0329 for Pressure Washers Lavor
Turbo Lance Ø 1.025 6.002.0329 for Pressure Washers Lavor Genuine Replacement part Lavor, Turbo Lance Ø 1.025 6.002.0329 for Pressure Washers Lavor Fury 110 - Ride 110 - Race 125 - Cross 140 -   Army 120 - Marine 125. Part suitable...
on 7/10 Business Days Approx €11.82
Details
Sand Blasting Lance 6.002.0177 for Pressure Washers Lavor
Lavorwash S.p.A. SKU: 6.002.0177
Sand Blasting Lance 6.002.0177 for Pressure Washers Lavor
Sand Blasting Lance 6.002.0177 for Pressure Washers Lavor Genuine Replacement part Lavor, Sand Blasting Lance 6.002.0177 for Cold Water Pressure Washers Race 125 - Cross 140 - Marine 125 - Navy 140 - Predator 160 - Enduro 145...
AVAILABLE €48.52
Details
Sand Blasting Lance 6.002.0177 for Pressure Washers Lavor
Lavorwash S.p.A. SKU: 6.003.0037
6 m Pipe Cleaning Hose 6.003.0037 for Pressure Washer Lavor
6 m Pipe Cleaning Hose 6.003.0037 for Pressure Washer Lavor Genuine Replacement part Lavor, 6 m Pipe Cleaning Hose 6.003.0037 for Cold Water Pressure Washers Fury 110 - Ride 110 - Race 125 - Cross 140 - Marine 125 - Navy 140 - Predator...
AVAILABLE €54.51
Details
10 m Pipe Cleaning Hose 6.003.0048 for Pressure Washer Lavor
Lavorwash S.p.A. SKU: 6.003.0048
10 m Pipe Cleaning Hose 6.003.0048 for Pressure Washer Lavor
10 m Pipe Cleaning Hose 6.003.0048 for Pressure Washer Lavor Genuine Replacement part Lavor, 10 m Pipe Cleaning Hose 6.003.0048 for Cold Water Pressure Washers Fury Race 125 - Cross 140 - Marine 125 - Navy 140 - Predator 160. Part...
AVAILABLE €65.01
Details
15 m Pipe Cleaning Hose 6.003.0052 for Pressure Washer Lavor
Lavorwash S.p.A. SKU: 6.003.0052
15 m Pipe Cleaning Hose 6.003.0052 for Pressure Washer Lavor
15 m Pipe Cleaning Hose 6.003.0052 for Pressure Washer Lavor Genuine Replacement part Lavor, 15 m Pipe Cleaning Hose 6.003.0052 for Cold Water Pressure Washers Cross 140 - Marine 125 - Navy 140 - Predator 160. Part suitable for the...
AVAILABLE €83.10
Details
Rotary Brush 3.601.0074 for Cold Water Pressure Washers Lavor
Lavorwash S.p.A. SKU: 3.601.0074
Rotary Brush 3.601.0074 for Cold Water Pressure Washers Lavor
Rotary Brush 3.601.0074 for Cold Water Pressure Washers Lavor Genuine Replacement part Lavor, Rotary Brush 3.601.0074 for Cold Water Pressure Washers Lavor Air 125 - Army 110 - ENDURO 145...
Usually Ships in: 7/10 Business Days Approx. €23.49
Details
Foam Lance + Bottle for High Pressure Washers Lavor
Lavorwash S.p.A. SKU: 6.002.0358
Foam Lance + Bottle for High Pressure Washers Lavor
Foam Lance + Bottle for High Pressure Washers Lavor Genuine Replacement part Lavor, Foam Lance + Bottle 6.002.0358 for Cold Water High Pressure Washers Fury 110 - Ride 110 - Race 125...
AVAILABLE €13.09
Details
Foam Lance + Bottle for High Pressure Washers Lavor
Lavorwash S.p.A. SKU: 4.006.0062
Foam Lance + Bottle for High Pressure Washers Lavor
Foam Lance + Bottle for High Pressure Washers Lavor Genuine Replacement part Lavor, Foam Lance + Bottle 6.002.0358 for Cold Water High Pressure Washers Fury 110 - Ride 110 - Race 125 - Cross 140 - Army 120. Part suitable for the...
AVAILABLE €3.30
Details
Quick Coupling 3/4F for High Pressure Washers Lavor
Lavorwash S.p.A. SKU: 3.100.0082
Quick Coupling 3/4F for High Pressure Washers Lavor
Quick Coupling 3/4F  for High Pressure Washers Lavor Genuine Replacement part Lavor, Quick Coupling 3/4F 3.100.0082 for Cold Water High Pressure Washers Fury 110 - Ride 110 - Race 125...
AVAILABLE €1.63
Details
Inlet Quick Coupling for High Pressure Washers Lavor
Lavorwash S.p.A. SKU: 3.100.0062
Inlet Quick Coupling for High Pressure Washers Lavor
Inlet Quick Coupling for High Pressure Washers Lavor Genuine Replacement part Lavor, Inlet Quick Coupling 3.100.0062 for Cold Water High Pressure Washers Fury 110 - Ride 110 - Race 125 - Cross 140 - Army 120. Part suitable for the...
AVAILABLE €4.25
Details
Water Inlet Hose 3 m for High Pressure Washers Lavor
Lavorwash S.p.A. SKU: 5.009.0134
Water Inlet Hose 3 m for High Pressure Washers Lavor
Water Inlet Hose 3 m for High Pressure Washers Lavor Genuine Replacement part Lavor, Inlet Quick Coupling 3.100.0062 for Cold Water High Pressure Washers Fury 110 - Ride 110 - Race 125 - Cross 140 - Army 120. Part suitable for the...
AVAILABLE €13.95
Details
Water Inlet Filter 3/4F-3/4 M for High Pressure Washers Lavor
Lavorwash S.p.A. SKU: 3.102.0011
Water Inlet Filter 3/4F-3/4 M for High Pressure Washers Lavor
Water Inlet Filter 3/4F-3/4 M for High Pressure Washers Lavor Genuine Replacement part Lavor, Quick Coupling 3/4 F with Built-in Filter 3.100.0405 for Cold Water High Pressure Washers Fury 110 - Ride 110 - Race 125 - Cross 140 - Army...
AVAILABLE €9.96
Details
Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 3.100.0043
Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500
Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, 3/8 M Rotating Quick Coupling for Pressure Washers NPX 1400 - NPX 1500. Part for the following products: - Pressure Washer Lavor NPX 1400 -...
AVAILABLE €17.59
Details
Lavor Ontario 1211LP Pressure Gauge D.40
Lavorwash S.p.A. SKU: 3.107.0006
Lavor Ontario 1211LP Pressure Gauge D.40
Lavor Ontario 1211LP Pressure Gauge D.40 Genuine replacement part Lavor, Pressure Gauge D.40 0/300 BAR 1/8" Glycerine for Pressure Cleaner Ontario 1211LP - 86590033. Part for the following products: -  ONTARIO 1211LP 220/60 -G- LWS...
on 10 Business Days Approx. €30.56
Details
Comments (0)
No customer reviews for the moment.
