Lavorwash S.p.A.

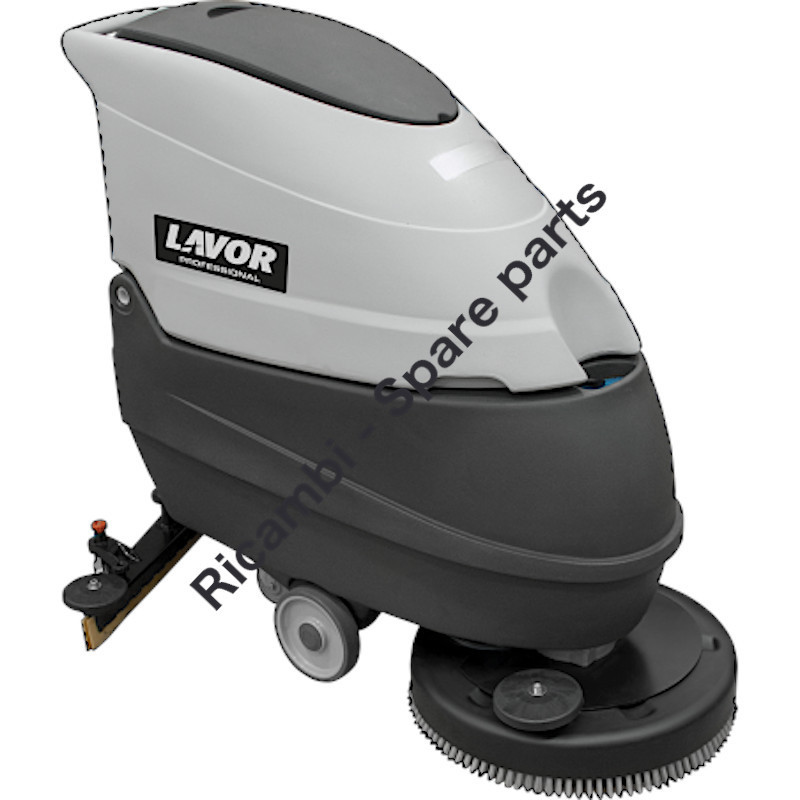

Lavor Floor Scrubber Drier SCL FREE EVO 50B Parts

SKU: 8.527.0004
€0.11
VAT included

Lavor Pro Original Parts for Floor Scrubber Drier LAVOR SCL FREE EVO 50B

Lavor original spare parts for to replace broken parts for to fix Floor Scrubber Drier LAVOR SCL FREE EVO 50B-8.527.0004.

Fix Your Floor Scrubber Drier LAVOR SCL FREE EVO 50B. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts.

Lavor Floor Scrubber Drier SCL FREE EVO 50B Parts
  • New
  • Out-of-Stock
  • Lavor Floor Scrubber Drier SCL FREE EVO 50B Parts
  • Lavor SCL FREE EVO 50B Drawing
  • Lavor SCL FREE EVO 50B Drawing - 1
  • Lavor SCL FREE EVO 50B Drawing - 2
  • Lavor SCL FREE EVO 50B Drawing - 3
  • Lavor SCL FREE EVO 50B Drawing - 4
  • Lavor SCL FREE EVO 50B Drawing - 5
  • Lavor SCL FREE EVO 50B Drawing - 6
  • Lavor SCL FREE EVO 50B Drawing - 7
  • Lavor SCL FREE EVO 50B Drawing - 8
  • Lavor SCL FREE EVO 50B Drawing - 9
  • Lavor SCL FREE EVO 50B Drawing - 10
  • Lavor SCL FREE EVO 50B Drawing - 11
  • Lavor SCL FREE EVO 50B Drawing - 12
  • Lavor SCL FREE EVO 50B Drawing - 13
  • Lavor SCL FREE EVO 50B Drawing - 14
Lavorwash S.p.A.

Lavor Floor Scrubber Drier SCL FREE EVO 50B Parts

SKU: 8.527.0004 Condition: New
€0.11
VAT included

Lavor Pro Original Parts for Floor Scrubber Drier LAVOR SCL FREE EVO 50B

Lavor original spare parts for to replace broken parts for to fix Floor Scrubber Drier LAVOR SCL FREE EVO 50B-8.527.0004.

Fix Your Floor Scrubber Drier LAVOR SCL FREE EVO 50B. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts.

settings 100 Spare parts
description 15 exploded views
picture_as_pdf Download Exploded PDF
Quantity
Out-of-Stock

SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR: LAVOR S/N START WITH (8. ) and have 8 DIGITS
Machine Type: Floor Scrubber Dryer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
100 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.508.0780 UPPER RECOVERY TANK GREY GR.CH.RAL.7040 €327.12
2
 photo_cameraImage coming soon 5.511.0673 BATTERY CONNECTION WIRING ASSEMBLY W/ EYELET CABLE €13.12
3
 photo_cameraImage coming soon 4.508.1554 BOOMPER FOR FREE/SWIFT EVO PLATE L=1470 H=30 €48.50
4
 photo_cameraImage coming soon 5.511.2238 SWEEPER ASSEMBLY Y21B MOD PP0.6 D483 €94.28
5
 photo_cameraImage coming soon 5.511.1886 FREE COVER ASSEMBLY €133.99
6
 photo_cameraImage coming soon 7.504.0219 MANUAL FREE/A5/SWIFT EVO+CE LAVOR 17L A5 260F €10.50
7
 FREE SQUEGEE ASSEMBLY 2.0 5.511.2268 FREE SQUEGEE ASSEMBLY 2.0 €177.27
Page 2 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5.509.2208 COMPACT FREE SUCTION TUBE ASSEMBLY WITH SLEEVES €55.95
2
 photo_cameraImage coming soon 4.507.0854 SQUEEGEE LIFT WIRE BRACKET €4.12
3
 photo_cameraImage coming soon 4.508.0803 TANK ROTATION SPACER €3.39
4
 photo_cameraImage coming soon 4.508.0738 TANK ROTATION TUBE €6.22
5
 photo_cameraImage coming soon 4.507.0701 TANK LOCKING PIN €15.40
6
 photo_cameraImage coming soon 4.507.0707 TANK LOCKING SPRING €3.32
7
 photo_cameraImage coming soon 3.099.0307 BLACK TIE ROD HANDLE MODEL MT/58/FFC-M6 €3.32
8
 photo_cameraImage coming soon 4.508.1064 DETERGENT TANK FILTER €1.68
Page 3 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5.511.2201 BIDIRECTIONAL BRUSH CONNECTOR ASSEMBLY WITH PRESSURES €17.92
Page 4 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.508.0552 PANDA BUTTON €59.39
2
 photo_cameraImage coming soon 3.099.0647 SUCTION LID SUPPORT BRACKET €3.32
3
 photo_cameraImage coming soon 4.507.0713 FREE SUCTION COVER GASKET KIT €14.01
4
 photo_cameraImage coming soon 6.505.0092 KIT GUARN. COP.ASP.FREE €30.32
Page 5 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5.511.1823 SQUEGEE WHEEL ASSEMBLY €39.17
3
 photo_cameraImage coming soon 3.099.1900 EXTENDED LOBE WHEEL D.52 M8X23 €6.34
4
 photo_cameraImage coming soon 3.099.0467 M8 THROUGH FLYWHEEL 177/30 €3.79
5
 photo_cameraImage coming soon 4.508.0224 BUMPER PROTECTION WHEEL €15.13
6
 photo_cameraImage coming soon 4.508.1544 BUSHING FOR BUMPER WHEEL €1.68
7
 photo_cameraImage coming soon 4.505.0886 SQG BODY DIE-CAST V L= 780MM DIRECT CONNECTION MACHINED €91.16
8
 photo_cameraImage coming soon 4.508.X468 FRONT BLADE €8.99
9
 photo_cameraImage coming soon 4.508.0505 RUBBER WIPER SUPPORT €41.86
10
 photo_cameraImage coming soon 4.508.X467 REAR BLADE €10.41
11
 photo_cameraImage coming soon 3.200.0168 SEAL OR 36.2X3.53 NBR SH.70 REF.4143 €1.67
12
 photo_cameraImage coming soon 3.099.1109 M8 THROUGH HANDWHEEL RED RAL3000-F177/30 €3.75
13
 photo_cameraImage coming soon 4.508.1556 SPRING GUIDE BUSH €7.55
14
 photo_cameraImage coming soon 4.507.0062 SQG SUSPENSION SPRING €3.26
15
 photo_cameraImage coming soon 4.507.1467 SQG WHEEL SUPPORT €14.25
16
 photo_cameraImage coming soon 3.006.0075 SQUEGEE WHEEL D.50X21 D.8 IN RUBBER €3.32
17
 photo_cameraImage coming soon 4.506.0132 SQUEEGE WHEEL BUSH €3.32
Page 6 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5.511.1656 FREE FLOAT BASKET ASSEMBLY €69.61
2
 photo_cameraImage coming soon 4.508.1652 MOTOR PROTECTION SPONGE €9.53
3
 photo_cameraImage coming soon 4.507.0700 TANK LOCKING BRACKET €10.32
4
 photo_cameraImage coming soon 5.511.1898 FREE BATTERY ASPIRATOR MOTOR ASSEMBLY €147.10
5
 photo_cameraImage coming soon 4.508.1323 MOTOR SPACER €1.63
6
 photo_cameraImage coming soon 5.511.1894 FREE PULLEY ASSEMBLY €49.75
7
 photo_cameraImage coming soon 5.511.1655 DRAIN PIPE ASSEMBLY WITH CAP AND CLAMP €52.39
8
 photo_cameraImage coming soon 3.099.0343 PIPE STOP CLIP DIAM.40 €3.09
9
 photo_cameraImage coming soon 5.511.1896 BRACKET ASSEMBLY WITH ANDERSON PLUG CABLE FREE €59.15
10
 photo_cameraImage coming soon 4.507.0699 CABLE PROTECTION €29.49
11
 photo_cameraImage coming soon 3.099.1329 STAINLESS STEEL CABLE D.2.5X133 L=670+SHEATH FOR SQG €14.96
12
 photo_cameraImage coming soon 5.511.1890 FREE PLATE LIFT LEVER ASSEMBLY / SQEEGEE €92.71
13
 photo_cameraImage coming soon 4.507.1174 MINIMONEY HOLDER SHEET METAL €34.49
14
 photo_cameraImage coming soon 5.511.0672 BFREE EVO WIRED ELECTRIC BOX €524.73
Page 7 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 7
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5.511.1891 FREE WATER CONTROL ASSEMBLY €55.53
2
 photo_cameraImage coming soon 4.508.0477 SWIFT/FREE SOLUTION LOWER TANK GR.SC.RAL.7021 €540.11
3
 photo_cameraImage coming soon 4.508.0739 SPONGE FILTER €1.63
4
 photo_cameraImage coming soon 5.511.1895 FREE TRACTION SPRING PLATE ASSEMBLY €17.48
5
 photo_cameraImage coming soon 5.509.2225 GR.BRUSH PLATE FREE EVO 50B-BT MAGNETIC PLATE WITH ELECTRIC VEHICLE B €748.60
6
 photo_cameraImage coming soon 5.511.0687 FREE /NOX COMPACT TAP ASSEMBLY €28.80
7
 photo_cameraImage coming soon 3.102.0026 WATER FILTER WITHOUT FLOW REGULATOR PORTAG.-PORTAG.D15 €47.08
8
 photo_cameraImage coming soon 4.507.0793 LEVER SUPPORT PLATE €1.72
9
 photo_cameraImage coming soon 5.511.0939 FREE NON-DRIVE AXLE ASSEMBLY €101.96
10
 photo_cameraImage coming soon 4.508.0689 FIXING WHEEL AXLE €1.73
11
 photo_cameraImage coming soon 5.511.1474 FREE/SWIFT SWIVEL WHEEL ASSEMBLY €87.08
12
 photo_cameraImage coming soon 5.511.1882 FREE/SWIFT EVO SQUEGEE SUPPORT ASSEMBLY €103.13
13
 photo_cameraImage coming soon 5.511.0937 TANK DRAIN CAP ASSEMBLY W/OR FREE/SWIFT €28.15
Page 8 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 8
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3.099.1109 M8 THROUGH HANDWHEEL RED RAL3000-F177/30 €3.75
2
 photo_cameraImage coming soon 4.508.1556 SPRING GUIDE BUSH €7.55
3
 photo_cameraImage coming soon 4.507.0062 SQG SUSPENSION SPRING €3.26
4
 photo_cameraImage coming soon 4.507.1467 SQG WHEEL SUPPORT €14.25
5
 photo_cameraImage coming soon 3.006.0075 SQUEGEE WHEEL D.50X21 D.8 IN RUBBER €3.32
6
 photo_cameraImage coming soon 4.506.0132 SQUEEGE WHEEL BUSH €3.32
Page 9 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 9
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5.513.0133 BRUSH LIFTER LEVER ASSEMBLY WITH PIN €48.67
2
 photo_cameraImage coming soon 5.513.0134 COMPLETE LEVER SUPPORT €30.96
3
 photo_cameraImage coming soon 4.507.0845 DISTANCE FOR LEVERS D.10X8 €1.72
4
 photo_cameraImage coming soon 5.513.0132 SQUEEGEE LIFTER LEVER ASSEMBLY WITH PIN €48.67
5
 photo_cameraImage coming soon 4.508.0971 SPECIAL LEVER HANDLE €7.04
Page 10 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 10
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3.099.0881 C.INX D.2.5X133 G2/B4+PR.L=685 €32.39
2
 photo_cameraImage coming soon 4.506.0141 CABLE RETURN PULLEY SQG €7.10
3
 photo_cameraImage coming soon 4.507.0708 PIN FOR PULLEY L=118 €6.41
4
 photo_cameraImage coming soon 3.099.1010 SWIFT B AXLE RETAINING TUBE L=25 €39.67
5
 photo_cameraImage coming soon 4.506.0142 PULLEY FORK €1.72
6
 photo_cameraImage coming soon 3.099.1010 SWIFT B AXLE RETAINING TUBE L=25 €39.67
Page 11 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 11
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.507.0635 ANDERSON SOCKET BRACKET 1 €29.49
2
 photo_cameraImage coming soon 5.511.0703 BATTERY CONNECTION CABLE SET €52.14
Page 12 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 12
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.507.0706 DEMAND LEVER €29.49
2
 photo_cameraImage coming soon 3.099.1529 HOLE COVER CAP D. 20 €1.72
3
 photo_cameraImage coming soon 7.503.0132 AD.SCL EASY-RB/COMPACT FREEB145X87MM CONTROLS POLYEST. €29.49
4
 photo_cameraImage coming soon 4.508.0396 ELECTRIC BOX COVER WASHER DRYER U.A.T. €30.24
5
 photo_cameraImage coming soon 3.401.0113 MICROSWITCH SXG02-88-J23 €14.13
6
 photo_cameraImage coming soon 3.401.0119 THERMAL CIRCUIT BREAKER 25A €11.22
7
 photo_cameraImage coming soon 3.402.0017 AUTOMOTIVE RELAY CB1AH-24V-70A €27.46
8
 photo_cameraImage coming soon 4.508.0397 ELECTRICAL BOX BASE WASHER DRYER U.A.T. €30.24
9
 photo_cameraImage coming soon 3.499.0135 60A TAPE FUSE CENTRE DISTANCE 30MM €1.59
10
 photo_cameraImage coming soon 6.505.0071 REPLACEMENT KIT TERMINAL BLOCK 34050045 COMPLETE €13.38
11
 photo_cameraImage coming soon 3.499.0276 DIODE TYPE 1N4007 €1.68
12
 photo_cameraImage coming soon 3.410.0022 RELAY HOLDER BASE €28.82
13
 photo_cameraImage coming soon 4.515.0002 24V CONTROL BOARD FUNCTION NO TRACTION W/BATTERY IND. €174.75
14
 photo_cameraImage coming soon 7.503.0131 AD. DISGIUN.SPAZZ.SCL B/ A9/A5 40.7X56MM POLYCARBON. €6.66
15
 photo_cameraImage coming soon 5.511.1841 WIRED KEY BLOCK KIT €49.97
Page 13 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 13
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Drain Hose Cap for Floor Scrubber Drier SCL QUICK 36B CBT 4.208.0274 Drain Hose Cap for Floor Scrubber Drier SCL QUICK 36B CBT €3.15
2
 photo_cameraImage coming soon 3.752.0060 FLEXIBLE EXHAUST TUBE RECUP. TANK D.31.5 L=550 1 €18.18
3
 photo_cameraImage coming soon 3.099.0742 METAL CLAMP 25-45 WIDE BAND 9MM WITH SLOTTED SCREW €3.32
Page 14 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 14
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6.505.0096 KRON ZERO/XS-R SUCTION MOTOR KIT 1 €159.83
2
 photo_cameraImage coming soon 4.508.0518 PROTECTION €3.17
3
 photo_cameraImage coming soon 3.099.0347 A-FLEX PVC-GLASS TUBE D.50 €11.60
Page 15 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 15
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3.099.1249 COMPLETE WATER CONTROL LEVER FREE €33.12
2
 photo_cameraImage coming soon 4.507.1172 LOWER SUPPORT FOR TAP 2 CABLES -FREE- €8.80
3
 photo_cameraImage coming soon 4.507.0709 TAP WIRE LOCKING PIN €4.06
4
 photo_cameraImage coming soon 4.507.1170 TAP LEVER 2 CABLES -FREE- €46.14

Shipping and delivery information will be available shortly.

Lavor Pro Original Parts for Floor Scrubber Drier LAVOR SCL FREE EVO 50B

Lavor original spare parts for to replace broken parts for to fix Floor Scrubber Drier LAVOR SCL FREE EVO 50B-8.527.0004.

In the following tables, look for the spare part and its respective code.
LAVOR SCL FREE EVO 50B-8.527.0004

Lavor SCL FREE EVO 50B - Pag. 1
# Part Num. Description
1 4.508.0780
UPPER RECOVERY TANK GREY GR.CH.RAL.7040
2 5.511.0673 BATTERY CONNECTION CABLE ASSEMBLY W/EYLET
3 4.508.1554 H=30 BOOMPER FOR FREE/SWIFT EVO L 1470 PLATFORM
4 5.511.2238 BRUSH ASSY. Y21B MOD PP0,6 D483
5 5.511.1886 LID ASSY.
6 7.504.0219 FREE/A5/SWIFT EVO+ WORKER 17L A5 260F MANUAL
7 5.511.2268 FLOOR SQUEEGEE ASSY. 2.0
LOWER+UPPER TANK ASSY. FREE B - Page. 2
# Part Num. Description
1 5.509.2208 COMPACT VACUUM HOSE ASSY. W/CUFF
2 4.507.0854 SQUEEGEE WIRE BRACKET
3 4.508.0803 TANKS ROTATION SPACER
4 4.508.0738 -B- TANKS ROTATION BUSH
5 4.507.0701 TANK LOCKING PIN
6 4.507.0707 TANK LOCKING SPRING
7 3.099.0307 BLACK HANDLE FOR TIE ROD MT/58/FFC-M6
8 4.508.1064 SWIFT/FLICK DETERGENT TANK FILTER
BRUSH ASSY. Y21B - Page. 3
# Part Num. Description
1 5.511.2201 BIDIRECTIONAL BRUSH COUPLING ASSY. WITH PRESSERS
LID ASSY. - Page. 4
Pos. Codice Descrizione
1 4.508.0552 RECOVERY TANK LID
2 3.099.0647 BLACK NYLON 7X2X15mm SHAFT RIVET
3 4.507.0713 SUCTION LID SUPPORT BRACKET
4 6.505.0092 VACUUM LID GASKET KIT
FLOOR SQUEEGEE ASSY. 2.0 - Page. 5
# Part Num. Description
1 5.511.1823 SQUEEGEE WHEEL ASSY.
3 3.099.1900 EXTENDED LOBI HANDWHEEL D.52 M8X23
4 3.099.0467 177/30 THROUGH M8 HANDWHEEL
5 4.508.0224 BUMPER PROTECTION WHEEL
6 4.508.1544 BUMPER WHEEL BUSH
7 4.505.0886 SOG PRESSOF.A BODY L 780MM DIRECT WORKING ATTACHMENT
8 4.508.X468 FRONT BLADE
9 4.508.0505 SQUEEGEE RUBBER SUPPORT
10 4.508.X467 REAR BLADE
11 3.200.0168 O.R. 36,2X3,53 NBR SH.70 REF.4143
12 3.099.1109 RED THROUGH M8 HANDWHEEL RAL3000-F177/30-
13 4.508.1556 SPRING GUIDE BUSH
14 4.507.0062 SOG SUSPENSION SPRING
15 4.507.1467 SOG WHEEL SUPPORT
16 3.006.0075 RUBBER SQUEEGEE WHEEL D.50X21 D.8
17 4.506.0132 SQUEEGEE CASTER BUSH
UPPER TANK COMPONENTS ASSY. FREE B - Page. 6
# Part Num. Description
1 5.511.1656 FREE FLOATING BASKET ASSY.
2 4.508.1652 MOTOR PROTECTION SPONGE
3 4.507.0700 TANK LOCKING BRACKET
4 5.511.1898 FREE BATTERY VACUUM MOTOR ASSY.
5 4.508.1323 MOTOR SPACER
6 5.511.1894 FREE REEL ASSY.
7 5.511.1655 DRAIN HOSE ASSY. W/CAP AND CLAMP
8 3.099.0343 DIA.40 TUBE HOLDER CLIP
9 5.511.1896 BRACKET ASSY. W/ANDERSON PLUG CABLE FREE
10 4.507.0699 CABLE PROTECTION
11 3.099.1329 STAINLESS STEEL CABLE D.2.5X133 L=670+SHEATH FOR SQG
12 5.511.1890 FLAT LIFTING LEVER ASSY./SQUEEGEE FREE
13 4.507.1174 MINIMONEY DOOR SHEET METAL
14 5.511.0672 BFREE EVO WIRED ELECTRICAL BOX
LOWER TANK ASSY. FREE B - Page. 7
# Part Num. Description
1 5.511.1891 FREE WATER CONTROL ASSY.
2 4.508.0477 INF. SOLUTION TANK SWIFT/FREE GR.SC.RAL.7021
3 4.508.0739 FILTER SPONGE
4 5.511.1895 SWIFT/FREE BRUSH TRACTION SPRING ASSY.
5 5.509.2225 BRUSH PLATE ASSY. FREE EVO 50B-BT MAGNETIC PLATE C/ELECTROV. BI
6 5.511.0687 COMPACT TAP ASSY./NOX
7 3.102.0026 WATER FILTER WITHOUT FLOW REGULATOR PORT.-PORTAG.D15
8 4.507.0793 LEVER SUPPORT PLATE
9 5.511.0939 NON-TRACTION AXLE ASSY. FREE/SWIFT
10 4.508.0689 WHEEL FIXING AXLE
11 5.511.1474 FREE/SWIFT PIVOTING WHEEL ASSY.
12 5.511.1882 FREE/SWIFT EVO SQUEEGEE SUPPORT ASSY.
13 5.511.0937 DRAIN TANK DRAIN CAP W/OR FREE/SWIFT
SQUEEGEE WHEEL ASSY. - Page. 8
# Part Num. Description
1 3.099.1109 RED THROUGH M8 HANDWHEEL RAL3000-F177/30-
2 4.508.1556 SPRING GUIDE BUSH
3 4.507.0062 SOG SUSPENSION SPRING
4 4.507.1467 SQG WHEEL SUPPORT
5 3.006.0075 RUBBER SQUEEGEE WHEEL D.50X21 D.8
6 4.506.0132 SQUEEGEE CASTER BUSH
BRUSH LIFTING LEVER ASSY. FREE - Page. 9
# Part Num. Description
1 5.513.0133 BRUSH LIFTING LEVER ASSY. WITH PIN
2 5.513.0134 COMPLETE LEVERS SUPPORT
3 4.507.0845 D.10X8 X LEVERS SPACER
4 5.513.0132 SQUEEGEE LIFTING LEVER ASSY. WITH PIN
5 4.508.0971 SPECIAL LEVERS HANDLE 15X4
REEL ASSY. - Page. 10
# Part Num. Description
1 3.099.0881 C.INX D.2,5X133 G2/B4+PR.L=685
2 4.506.0141 SQG LIFTING CABLE IDLER PULLEY
3 4.507.0708 PIN FOR REEL L 118
4 3.099.1010 RETAINING TUBE SWIFT AXIS B L=25
5 4.506.0142 REEL FORK
6 3.099.1010 RETAINING TUBE SWIFT AXIS B L=25
BRACKET ASSY. W/ANDERSON PLUG CABLE FREE - Page. 11
# Part Num. Description
1 4.507.0635 ANDERSON SOCKET BRACKET
2 5.511.0703 BATTERY CONNECTION CABLE ASSY.
BFREE EVO WIRED ELECTRICAL BOX - Page. 12
# Part Num. Description
1 4.507.0706 DEADMAN LEVER
2 3.099.1529 COVER CAP D. 20
3 7.503.0132 AD.COMMANDS SCL EASY-RB/COMPACT FREEB145X87MM POLYEST.
4 4.508.0396 SCRUBBER DRYER ELECTRICAL BOX COVER U.A.T.
5 3.401.0113 MICROSWITCH SXG02-88-J23
6 3.401.0119 25A THERMAL BREAKER
7 3.402.0017 AUTOMOTIVE RELAY CB1AH-24V-70A
8 4.508.0397 SCRUBBER DRYER ELECTRICAL BOX BASE
9 3.499.0135 60A TAPE FUSE 30MM PITCH
10 6.505.0071 34050045 COMPLETE TERMINAL BLOCK SPARE KIT
11 3.499.0276 1N4007 TYPE DIODE
12 3.410.0022 RELAY HOLDER SOCKET
13 4.515.0002 CONTROL BOARD 24V
14 7.503.0131 AD.DISGIUN.SPAZZ.SCL B/A9/A5 40,7X56MM POLYCARBONATE.
15 5.511.1841 WIRED KEY LOCK KIT
DRAIN HOSE ASSY. W/CAP AND CLAMP - Page. 13
# Part Num. Description
1 4.208.0274 D.32MM CAP X DRAIN TUBE WITH RETAINING RING
2 3.752.0060 FLEX RECOVERY TANK DRAIN HOSE D.31.5 L=550
3 3.099.0742 METAL CLAMP 25-45 WIDE BAND 9MM W/SLOT SCREW
BATTERY VACUUM MOTOR ASSY. - Page. 14
# Part Num. Description
1 6.505.0096 VACUUM MOTOR KIT, KRON ZERO/XS-R
2 4.508.0518 IMPELLER GUARD FOR HOLES D.44.
3 3.099.0347 A-FLEX PVC-GLASS TUBE D.50
WATER CONTROL ASSY. - Page. 15
# Part Num. Description
1 3.099.1249 COMPLETE WATER CONTROL
2 4.507.1172 2 HOSES TAP LOWER SUPPORT
3 4.507.0709 TAP CABLE HOLDER PIN
4 4.507.1170 TAP LEVER X 2 HOSES
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
8.527.0004

Data sheet

SHIPPING IN
Usually Ships in 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR
LAVOR S/N START WITH (8. ) and have 8 DIGITS
Machine Type
Floor Scrubber Dryer

Specific References

New

Download

Lavor SCL FREE EVO 50B

Lavor SCL FREE EVO 50B

Download (3.68MB)

You might also like

Brush + Bearing Ass'y for Floor Scrubber Drier Lavor Pro Sprinter
Lavorwash S.p.A. SKU: 5.509.0002
Brush + Bearing Ass'y for Floor Scrubber Drier Lavor Pro Sprinter
Brush + Bearing Ass'y for Floor Scrubber Drier Lavor Pro Sprinter Genuine replacement part Lavor, Brush + Bearing Assembly for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following products: -  Floor Scrubber...
Usually Ships in: 7/10 Business Days Approx. €35.95
Details
Brush + Bearing Ass'y for Floor Scrubber Drier Lavor Pro Sprinter
Lavorwash S.p.A. SKU: 6.505.0041
Brush + Bearing Ass'y for Floor Scrubber Drier Lavor Pro Sprinter
Brush + Bearing Ass'y for Floor Scrubber Drier Lavor Pro Sprinter Genuine replacement part Lavor, Brush + Bearing Assembly for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following products: -  Floor Scrubber...
Usually Ships in: 7/10 Business Days Approx. €6.40
Details
Flexible Hose for Floor Scrubber Drier Lavor Pro Sprinter
Lavorwash S.p.A. SKU: 5.509.0008
Flexible Hose for Floor Scrubber Drier Lavor Pro Sprinter
Flexible Hose for Floor Scrubber Drier Lavor Pro Sprinter Genuine replacement part Lavor, Flexible Hose Ass'y L.800 MW for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following products: -  Floor Scrubber Drier...
Usually Ships in: 7/10 Business Days Approx. €29.49
Details
Squeegee + Support for Floor Scrubber Drier Lavor Pro Sprinter
Lavorwash S.p.A. SKU: 5.509.0010
Squeegee + Support for Floor Scrubber Drier Lavor Pro Sprinter
Squeegee + Support Ass'y for Floor Scrubber Drier Lavor Pro Sprinter Genuine replacement part Lavor, Squeegee + Support Assembly for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following products: -  Floor...
Usually Ships in: 7/10 Business Days Approx. €14.85
Details
Belt 336 RPP3-12 for Floor Scrubber Drier Lavor Pro Sprinter
Lavorwash S.p.A. SKU: 3.099.0278
Belt 336 RPP3-12 for Floor Scrubber Drier Lavor Pro Sprinter
Belt 336 RPP3-12 for Floor Scrubber Drier Lavor Pro Sprinter Genuine replacement part Lavor, Belt 336 RPP3-12 for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following...
Usually Shipped on: 10 Business Days Approx. €29.49
Details
Detergent Pump for Floor Scrubber Drier Lavor Pro Sprinter
Lavorwash S.p.A. SKU: 3.551.0032
Detergent Pump for Floor Scrubber Drier Lavor Pro Sprinter
Detergent Pump for Floor Scrubber Drier Lavor Pro Sprinter Genuine replacement part Lavor, Detergent Pump CNS 05 220-240V 50Hz 16W for Floor Scrubber Drier Sprinter Lavor Pro - Crystal Clean - A0 30 HOT. Part for the following...
Usually Ships in: 10/15 Business Days Approx. €45.78
Details
Boiler Kit for Floor Scrubber Drier Lavor Crystal Clean
Lavorwash S.p.A. SKU: 6.505.0087
Boiler Kit for Floor Scrubber Drier Lavor Crystal Clean
Boiler Kit for Floor Scrubber Drier Lavor Crystal Clean Genuine replacement part Lavor, Boiler Kit for Floor Scrubber Drier Crystal Clean. Part for the following products: -  Floor Scrubber Drier Lavor...
Usually Shipped in 10/15 Business Days Approx. €87.31
Details
Suction Motor for Floor Scrubber Drier Lavor Crystal Clean
Lavorwash S.p.A. SKU: 6.505.0040
Suction Motor for Floor Scrubber Drier Lavor Crystal Clean
Suction Motor Kit for Floor Scrubber Drier Lavor Crystal Clean Genuine replacement part Lavor, Suction Motor Kit 230V/50-60Hz 800 W for Floor Scrubber Drier Crystal Clean. Part for the...
Usually Ships in: 7/10 Business Days Approx. €76.38
Details
Vac Motor Ass'y for Floor Scrubber Drier SCL QUICK 36B CBT
Lavorwash S.p.A. SKU: 5.511.1399
Vac Motor Ass'y for Floor Scrubber Drier SCL QUICK 36B CBT
Vac Motor FLICK/QUICK Ass'y for Floor Scrubber Drier SCL QUICK 36B CBT Genuine replacement part Lavor, Vac Motor FLICK/QUICK Assembly for Floor Scrubber Drier SCL QUICK 36B CBT - 85180003. Part for the following...
on 10 Business Days Approx. €165.21
Details
Front Squeegee Blade for Floor Scrubber Drier SCL QUICK 36B CBT
Lavorwash S.p.A. SKU: 4.508.1100
Front Squeegee Blade for Floor Scrubber Drier SCL QUICK 36B CBT
Front Squeegee Blade for Floor Scrubber Drier SCL QUICK 36B CBT Genuine replacement part Lavor, Front Squeegee Blade (NATURAL RUBBER) 537X50X1,5 for Floor Scrubber Drier SCL QUICK 36B CBT - 85180003. Part for the following products:...
Usually Ships in: 10 Business Days Approx. €8.75
Details
Rear Squeegee Blade for Floor Scrubber Drier SCL QUICK 36B CBT
Lavorwash S.p.A. SKU: 4.508.1101
Rear Squeegee Blade for Floor Scrubber Drier SCL QUICK 36B CBT
Rear Squeegee Blade for Floor Scrubber Drier SCL QUICK 36B CBT Genuine replacement part Lavor, Rear Squeegee Blade (NATURAL RUBBER) 590X50X3 for Floor Scrubber Drier SCL QUICK 36B CBT - 85180003. Part for the following products: -...
Usually Ships in: 10 Business Days Approx. €8.75
Details
Water Filter for Floor Scrubber Drier SCL QUICK 36B CBT
Lavorwash S.p.A. SKU: 3.102.0020
Water Filter for Floor Scrubber Drier SCL QUICK 36B CBT
Water Filter for Floor Scrubber Drier SCL QUICK 36B CBT Genuine replacement part Lavor, Water Filter G 1/2" D.13 SHURFLO 255-223 for Floor Scrubber Drier SCL QUICK 36B CBT - 85180003. Part for the following products: -  Floor...
Usually Ships in: 10/15 Business Days Approx. €53.43
Details
Vac Hose for Floor Scrubber Drier SCL QUICK 36B CBT
Lavorwash S.p.A. SKU: 3.752.0190
Vac Hose for Floor Scrubber Drier SCL QUICK 36B CBT
Vac Hose for Floor Scrubber Drier SCL QUICK 36B CBT Genuine replacement part Lavor, Vacuum Hose Squeegee D.25 with Sleeves for Floor Scrubber Drier SCL QUICK 36B CBT - 85180003. Part for the following products: -  Floor Scrubber...
Usually Ships in: 10 Business Days Approx. €22.41
Details
Drain Hose Cap for Floor Scrubber Drier SCL QUICK 36B CBT
Lavorwash S.p.A. SKU: 4.208.0274
Drain Hose Cap for Floor Scrubber Drier SCL QUICK 36B CBT
Drain Hose Cap for Floor Scrubber Drier SCL QUICK 36B CBT Genuine replacement part Lavor, Cap d.32MM for Drain Hose with Stop Ring for Floor Scrubber Drier SCL QUICK 36B CBT - 85180003. Part for the following products: -  Floor...
Usually Ships in: 10 Business Days Approx. €3.15
Details
Belt PJ762 for Floor Scrubber Drier SCL QUICK 36B CBT
Lavorwash S.p.A. SKU: 3.099.1394
Belt PJ762 for Floor Scrubber Drier SCL QUICK 36B CBT
POLY-V Belt PJ762 for Floor Scrubber Drier SCL QUICK 36B CBT Genuine replacement part Lavor, POLY-V Belt PJ762/300J EL H =7 Teeth for Floor Scrubber Drier SCL QUICK 36B CBT - 85180003. Part for the following products: -  Floor...
Usually Ships in: 10 Business Days Approx. €17.50
Details
Lavor SCL QUICK 36B CBT Pulley Assy
Lavorwash S.p.A. SKU: 5.511.1385
Lavor SCL QUICK 36B CBT Pulley Assy
Floor Scrubber Drier SCL QUICK 36B CBT Free Pulley Assembly Genuine replacement part Lavor, Free Pulley Assembly for Floor Scrubber Drier SCL QUICK 36B CBT - 85180003. Part for the following products: -  Floor Scrubber...
on 10 Business Days Approx. €106.77
Details
Lavor SCL QUICK 36B CBT Squeegee Lift Cable
Lavorwash S.p.A. SKU: 3.099.1459
Lavor SCL QUICK 36B CBT Squeegee Lift Cable
Lavor SCL QUICK 36B CBT Squeegee Lift Cable Complete Genuine replacement part Lavor, Squeegee Lift Cable Complete for Floor Scrubber Drier SCL QUICK 36B CBT - 85180003. Part for the following products: -  Floor Scrubber Drier SCL...
Usually Ships in: 10 Business Days Approx. €36.86
Details
Lavor SCL QUICK 36B CBT Exhaust Pipe
Lavorwash S.p.A. SKU: 3.752.0256
Lavor SCL QUICK 36B CBT Exhaust Pipe
Lavor SCL QUICK 36B CBT Exhaust Pipe Genuine replacement part Lavor, Exhaust Pipe for Floor Scrubber Drier SCL QUICK 36B CBT - 85180003. Part for the following products: -  Floor Scrubber Drier SCL QUICK 36B CBT - 85180003 - Code:...
AVAILABLE €24.90
Details
Comments (0)
No customer reviews for the moment.
