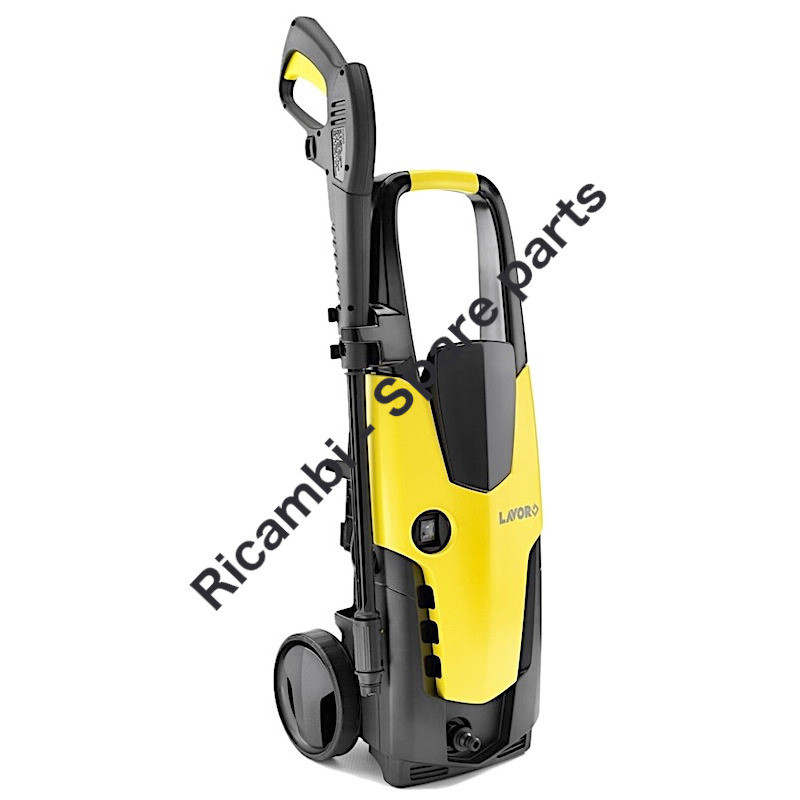

Lavor Parts for Pressure Cleaner STM 150

Name: Lavor Parts for Pressure Cleaner STM 150
Brand: Lavorwash S.p.A.
SKU: 8.086.0002C
Availability: InStock

SKU: 8.086.0002C

€0.10

VAT included

Lavor Original Parts for Pressure Cleaner STM 150

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner - IDRO Lavor 8.086.0002C - STM 150 220-240~50/60-G/N-TS EU 2L+SP.ROT.+L28-LAVOR

Idro STM 150

Lavor Parts for Pressure Cleaner STM 150

New
Out-of-Stock

Lavor Parts for Pressure Cleaner STM 150

SKU: 8.086.0002C Condition: New

€0.10

VAT included

Lavor Original Parts for Pressure Cleaner STM 150

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner - IDRO Lavor 8.086.0002C - STM 150 220-240~50/60-G/N-TS EU 2L+SP.ROT.+L28-LAVOR

Idro STM 150

41 Spare parts

5 exploded views

Download Exploded PDF

Quantity

Out-of-Stock

SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS

CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

CHECK S/N LAVOR: LAVOR S/N START WITH (8. ) and have 8 DIGITS

Machine Type: Pressure Washer

Original Product Manufacturer warranty included

Technical Support Our team helps you choose

Secure and guaranteed payments

41 spare parts

Page 1 View exploded Usually Ships in 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	5.011.0126 HANDLE + BADGE ASSEMBLY -G- (STM P80.0502)	€23.06
2		3.401.0178 Switch 0/1 Black Button for Pressure Washers Lavor	€6.80
3	Image coming soon	4.013.0595 FRONT COVER STM -G- PANT.108C C / TAMP.-LAVOR- (X SWEEP MOTOR)	€25.72
4	Image coming soon	4.013.0556C Substituted by 4.013.0556 1 Yes 1 BLACK FRONT CABINET FOR STM (P80.0425)	€21.32
5	Image coming soon	4.008.1172 AIR CONVEYOR FOR U76	€14.87
6	Image coming soon	4.008.1263 PROCESS BLACK C BACK CABINET STM (FOR UNIVERSAL MOTOR - P80.	€28.27
7	Image coming soon	4.008.1259 REAR ACCESSORIES HOLDER STM / i- CLEAN BLACK (P80.0502)	€4.30
8		4.008.1260 Wheel for Pressure Washers Lavor RIDE 110 - RACE 125	€8.19
9	Image coming soon	4.012.0174C CABLE H05VV-F 2X1 MT.5,4 F/F SCHUKO PLUG W/FASTON COVER	€21.99
10		6.001.0076 Trigger Gun S'09 6.001.0076 for Pressure Washers Cold Water Lavor	€23.90
11		4.018.0095 H.P. Hose 4.018.0095 6 m for Quick Coupling Trigger Gun Lavor S’09	€20.60
14		6.002.0340 Lance 6.002.0340 Nozzle Head Holder for Trigger Guns Lavor	€9.52
15		6.002.0635 Head Nozzle Jet Adjustable Needle-Fan Ø 0.90 6.002.0635	€8.50
16	Image coming soon	6.002.0632 ROTOX NOZZLE HEAD LANCE S'12 D.1,025 WITH QUICK COUPLING - P	€8.60
18	Image coming soon	3.601.0035 ROTATING HYDRO BRUSH W/HANDLE	€23.74
19	Image coming soon	6.002.0259 Substituted by 6.002.0358 FOAM SPRAYER WITH TRANSPARENTTANK	€12.74
20	Image coming soon	3.100.0082C BLACK QUICK COUPLING INLET CONNECTOR (THREAD=9.5)	€1.50
21	Image coming soon	7.100.1659 SPECIFIC MANUAL STM / TECHNO + CE LAVOR 27L A5 16F	€0.11
23	Image coming soon	3.601.0097 YELLOW/BLACK FLOOR BRUSH L28 D.1.1 W/EXTENSION	€59.16
27	Image coming soon	4.008.1264 FRONT COVER STM BLACK (P80.0502-U)	€22.08
31	Image coming soon	5.001.0841C MOTORPUMP PT'03EVO 230/50 TS W/THERMAL 5'30 (7645PF-KC)	€140.53

Page 2 View exploded Usually Ships in 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1		5.009.0979 Motor Assembly for Pressure Cleaner Lavor X-Ray Plus 140	€87.31
2		4.008.1164 Motor Flange Collar for Pressure Washers Lavor RIDE 110 - RACE 125	€8.73
3		6.005.0311 Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145	€5.50
4		4.007.0205 Pin 10x70 for Pressure Washer Lavor Predator 160 WPS	€7.42
5		5.009.0726 Plate Assembly with Crown for Pressure Washer Lavor ENDURO 145	€6.90
6	Image coming soon	4.007.0328 THRUST BEARING 35X55X12 PT'03	€14.74
7	Image coming soon	5.009.0837C BODY GUIDE+HEAD ASSEMBLED TS WITHOUT SUCTION (SPRING 13KG) -	€82.24

Page 3 View exploded Usually Ships in 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	5.007.0248 BODY GUIDE ASSEMBLED PT'03EVOWITH TS/COMP.VALVE WITHOUT SUC	€63.40
2	Image coming soon	6.005.0380 Sostituito da 6.005.0282 KIT 348 SPACER FOR WATER SEAL	€13.17
3		5.008.0261 Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145	€28.99

Page 4 View exploded Usually Ships in 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	4.005.0299 PISTON BODY GUIDE PT'03EVO	€22.92
2		5.009.0716 Kit Valve Total-Stop Automatic Stop System for Washers Lavor ARMY 110	€16.00
3		6.005.0181 Kit 167 LW 3 Pistons + Springs for Pressurte Washer Lavor BEST 24	€17.00
4		6.005.0226 Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24	€11.10
5		6.005.0281 Kit 256 Check Valve for Washer Lavor Predator 160	€14.15
6		6.005.0079 Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24	€14.50
7	Image coming soon	4.007.0314 PIN 3,5x30 ZNT	€1.59

Page 5 View exploded Usually Ships in 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	4.005.0298 PT''03EVO PARTNER HEAD	€28.92
2		6.005.0133 Kit 124 Water Seal Partner for Pressurte Washer Lavor BEST 24	€14.15
3		6.005.0588 Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110	€27.72

Shipping and delivery information will be available shortly.

Lavor Original Parts for Pressure Cleaner STM 150

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner - IDRO Lavor 8.086.0002C - STM 150 220-240~50/60-G/N-TS EU 2L+SP.ROT.+L28-LAVOR

Fix Your Pressure Cleaner. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.

STM 150 220-240~50/60-G/N-TS EU 2L+SP.ROT.+L28-LAVOR
#	Part Num.	Description
1	5.011.0126	HANDLE + BADGE ASSEMBLY -G- (STM P80.0502)
2	3.401.0178	0/1 SWITCH BLACK PUSH/BUTTON IP55 12/10
3	4.013.0595	FRONT COVER STM -G- PANT.108C W/PAD -LAVOR- (FOR BRUSH MOTOR)
4	4.013.0556C	FRONT HOUSING STM BLACK (P80.0425)
5	4.008.1172	MOTOR CONVEYOR U76
6	4.008.1263	REAR HOUSING STM BLACK (BRUSH MOTOR - P80.0502-U)
7	4.008.1259	REAR ACCESSORY HOLDER STM/I-CLEAN BLACK (P80.0502)
8	4.008.1260	WHEEL STM/I-CLEAN BLACK (P80.0502)
9	4.012.0174C	CABLE H05VV-F 2X1 MT.5.4 SCHUKO PLUG ANTISP. F/F W/COVER
10	6.001.0076	GUN S'09 W/INTEGRATED QUICK COUPLING W/LEVER -G- PANT.108C
11	4.018.0095	HOSE 1/4 18MPA 6M SWIVEL M22X1.5 D15 - QUICK COUPLING FOR S'09 W/SPIRAL MAN.
14	6.002.0340	LANCE S'12 W/O NOZZLE W/QUICK COUPLING - COGETIL
15	6.002.0635	LANCE NOZZLE S'12 D.0.9 - PINK - W/QUICK COUPLING (JET/FAN)
16	6.002.0632	ROTOX LANCE NOZZLE S'12 D.1.025 - N - W/QUICK COUPLING - PLASTIC SEAT
18	3.601.0035	ROTATING BRUSH FIXED HANDLE REINFORCED COG. (5116 ECON.)
19	6.002.0259	UNIFIED FOAM DIFFUSER (D.4) W/TRANSPARENT TANK
20	3.100.0082C	QUICK COUPLING 3/4 BLACK W/GASKET (THREAD L=9.5)
21	7.100.1659	SPECIFIC MANUAL STM/TECHNO LAVOR 28L A5 12F (WITHOUT CE)
23	3.601.0097	YELLOW/BLACK FLOOR BRUSH L28 D.1.1 W/EXTENSION
27	4.008.1264	FRONT FACEPLATE STM BLACK
31	5.001.0841C	MTP.SP.PT03EVO 230/50 W/THERMAL 5'30 TS SPRING 13KG (7645PF-KC)
Pump Group Pag.2
#	Part Num.	Description
1	5.009.0979	MOTOR ASSY SP.03 230/50 W/ANTI-CORR. - THERMAL 17AM-D 140G (U7645PF-AL KC)
2	4.008.1164	COLLAR REF. FOR BRUSH MOTOR FLANGE U96AF/U76
3	6.005.0311	KIT 283 LW NEEDLE ROLLER CAGES FOR MTP.PT03 (U76)
4	4.007.0205	PIN 10X70 FOR PARTNER-ED BRUSH '98
5	5.009.0726	SWASH PLATE ASSEMBLY 5'30 PT03 (U76) W/CROWN GEAR Z 62
6	4.007.0328	THRUST BALL BEARING 35X55X12 FOR PT03
7	5.009.0837C	GUIDE BODY ASSY W/TS 13KG + HEAD (PT03EVO)
Head Pag.3
#	Part Num.	Description
1	5.007.0248	GUIDE BODY PT03EVO PIST.D.12 W/TS - COMP.VALVE W/O SUCTION SPRING 13KG
2	6.005.0380	KIT 348 LW PT03 D.12 SEAL RETAINING RINGS
3	5.008.0261	HEAD PT'03EVO D.12
Guide Pag.4
#	Part Num.	Description
1	4.005.0299	PISTON GUIDE BODY PT'03EVO
2	5.009.0716	COMP.VALVE ASSY W/TS PT03 CABLE L=530 SPRING 13KG (WHITE COVER)
3	6.005.0181	KIT 167 LW 3 PISTONS + SPRINGS PT03
4	6.005.0226	KIT O-RING FOR PT03
5	6.005.0281	KIT 256 LW CHECK VALVE ASSY W/O SUCTION PT03C
6	6.005.0079	KIT 79 LW OIL SEAL RINGS FOR PARTNER D.12/FIBER
7	4.007.0314	CYLINDRICAL PIN 3.5X30 ZNT
Head Pag.5
#	Part Num.	Description
1	4.005.0298	HEAD PT03EVO LAV.
2	6.005.0133	KIT 124 PARTNER D.12 WATER SEAL RINGS
3	6.005.0588	KIT LW SUCTION/DELIVERY VALVE + PLUGS PT' 03EVO

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference 8.086.0002C

Data sheet

SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR: LAVOR S/N START WITH (8. ) and have 8 DIGITS
Machine Type: Pressure Washer

Specific References

Condition New

Download

Lavor STM 150 Drawing

Download (1.54MB)
