Lavorwash S.p.A.

Lavor Pressure Cleaner LKX4 1310M Spare Parts

SKU: 8.621.0001
€0.11
VAT included

Lavor Pressure Cleaner LKX4 1310M Spare Parts

Lavor original spare parts for to replace broken parts for to fix Hot Water High Pressure Cleaner LKX4 1310 M 230/50 LWS - 8.621.0001.

Fix Your Pressure Cleaner LKX4 1310 M 230/50 LWS. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

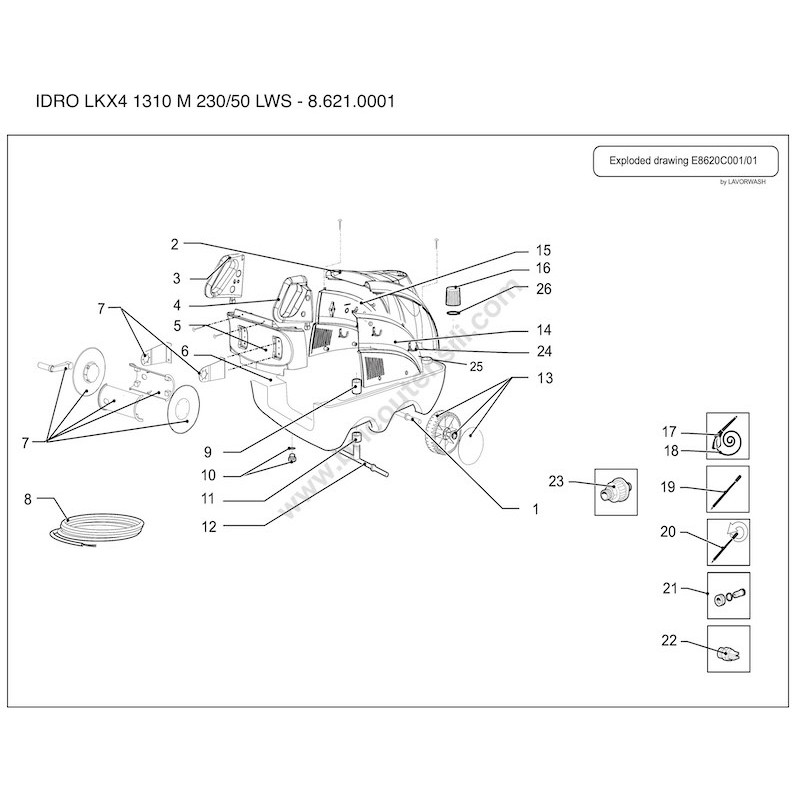

Lavor LKX4 1310M Drawing
  • New
  • Out-of-Stock
  • Lavor LKX4 1310M Drawing
  • Lavor LKX4 1310M Drawing - 1
  • Lavor LKX4 1310M Drawing - 2
  • Lavor LKX4 1310M Drawing - 3
Lavorwash S.p.A.

Lavor Pressure Cleaner LKX4 1310M Spare Parts

SKU: 8.621.0001 Condition: New
€0.11
VAT included

Lavor Pressure Cleaner LKX4 1310M Spare Parts

Lavor original spare parts for to replace broken parts for to fix Hot Water High Pressure Cleaner LKX4 1310 M 230/50 LWS - 8.621.0001.

Fix Your Pressure Cleaner LKX4 1310 M 230/50 LWS. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

settings 168 Spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
Quantity
Out-of-Stock

SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR: LAVOR S/N START WITH (8. ) and have 8 DIGITS
Machine Type: Pressure Washer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
168 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5.613.0115 REAR DRIVE AXLE JOLLY 5 / LKX €34.70
2
 photo_cameraImage coming soon 4.613.0181 UPPER FAIRING NPX-LKX04-G-PANT.108C €75.63
3
 photo_cameraImage coming soon 4.608.0170 LEFT HANDLE NPX'04-GR-RAL.7021 €47.26
4
 photo_cameraImage coming soon 4.608.0169 RIGHT HANDLE NPX'04-GR-RAL.7021 €38.26
5
 photo_cameraImage coming soon 4.613.0182 REAR FAIRING NPX-LKX'04 -BLACK- €48.58
6
 photo_cameraImage coming soon 4.608.0203 DIESEL / DETERGENT TANK J OLLY 5 / LKX €264.90
8
 photo_cameraImage coming soon 4.612.0037 CABLE H05PVC €25.74
9
 Fuel Tank Long Spacer for Pressure Washers Lavor NPX 1400 - NPX 1500 4.608.0074 Fuel Tank Long Spacer for Pressure Washers Lavor NPX 1400 - NPX 1500 €3.27
10
 photo_cameraImage coming soon 4.006.0132 OIL CAP €6.12
11
 photo_cameraImage coming soon 4.608.0073 SHORT SPACER FOR TANK JOLLY 4/93 €1.74
12
 photo_cameraImage coming soon 5.613.0096 BOILER AXLE JOLLY 4/93 €29.21
13
 photo_cameraImage coming soon 6.605.0021 WHEELS+BLOCK+COVER KIT X LKX'4-NPX'4 €37.64
14
 photo_cameraImage coming soon 4.613.0184 RIGHT SIDE PANEL NPX-LKX'04 G--PANT.108C €23.46
15
 photo_cameraImage coming soon 4.613.0183 LEFT SIDE PANEL NPX-LKX'04-G-PANT.108C €23.46
16
 photo_cameraImage coming soon 4.608.0082 GAS OIL-CHEM TANK CAP €15.27
17
 photo_cameraImage coming soon 3.700.0026 RL300 3/8M+S3+RF1 M22 GUN + FLOW REG. €86.73
18
 photo_cameraImage coming soon 4.618.0016 HOSE 5/16 210BAR MT.10 C/M AP1031 3/8 €136.52
19
 700 mm Lance 1/8 "F High/Low Pressure for Pressure Washers Lavor 3.701.0015 700 mm Lance 1/8 "F High/Low Pressure for Pressure Washers Lavor €37.13
21
 photo_cameraImage coming soon 5.611.0078 HOSE FITTING €10.13
22
 Lavor Nozzle for ONTARIO 1211LP 3.103.0050 Lavor Nozzle for ONTARIO 1211LP €15.76
23
 Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500 3.100.0043 Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500 €17.59
24
 photo_cameraImage coming soon 6.605.0019 3pcs LANCE SUPPORT KIT NPX'04 €17.31
25
 photo_cameraImage coming soon 3.403.0078 INDICATED. DIESEL LEVEL L=185 W/CABLE L=1320 W/FASTON €54.88
26
 photo_cameraImage coming soon 3.200.0038 O-RING GASKET 53,65X2,62 REF.3212 €1.70
Page 2 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3.555.0133 HEAD D.18 BRASS3218.0318.00 €423.43
2
 photo_cameraImage coming soon 3.555.0076 HEAD CAP G1 / 8 3202.0018.00 €15.13
3
 photo_cameraImage coming soon 3.555.0077 SCREW M6x553609.0152.00 €3.44
4
 photo_cameraImage coming soon 3.555.0005 GASKET OR 2.62X17.13 1210004600 €0.98
5
 photo_cameraImage coming soon 3.555.0006 SEAT FOR VALVE PLATE3009.0087.00 €5.26
6
 photo_cameraImage coming soon 3.555.0007 STEEL PLATE FOR VALVE 3604001700 €10.49
7
 photo_cameraImage coming soon 3.555.0008 SPRING FOR VALVE1802.0177.00 €0.00
8
 photo_cameraImage coming soon 3.555.0009 VALVE CAGE1205.0025.00 €1.56
9
 photo_cameraImage coming soon 3.555.0010 OR SEAL 2.62X20.24 FOR CAP 1210.0048.00 €0.11
10
 photo_cameraImage coming soon 3.555.0012 VALVE CAP 3202026700 €29.21
11
 photo_cameraImage coming soon 3.555.0078 SCREW M5x103609.0088.00 €1.50
12
 photo_cameraImage coming soon 3.555.0057 CLAMP FOR CAP 1004.0012.00 €5.93
13
 photo_cameraImage coming soon 3.555.0056 COVER 0402017200 €6.12
14
 photo_cameraImage coming soon 3.200.0219 GASKET OR 44,04X3,53 NBR SH.70 €1.70
15
 photo_cameraImage coming soon 3.555.0079 SPACER 3019.0011.00 €3.32
16
 photo_cameraImage coming soon 3.001.0085 RADIAL BALL BEARING 6304 (20X52X15) HIGH QUALITY €28.64
17
 photo_cameraImage coming soon 3.555.0053 PUMP CASING0403.0128.00 €66.49
18
 photo_cameraImage coming soon 3.099.1480 OIL CAP (L=58 STICK) €3.36
20
 photo_cameraImage coming soon 3.555.0046 HEAD RING D.18 0009019300 €4.00
21
 photo_cameraImage coming soon 3.555.0047 GASKET D.18 1241002200 €8.60
22
 photo_cameraImage coming soon 3.555.0048 GASKET 18X25X5.5 (1241002800) €17.66
23
 photo_cameraImage coming soon 3.555.0049 SEAL RING D.18 0009019700 €29.21
24
 photo_cameraImage coming soon 3.555.0085 OR 1.78X26.7 (SEAL) 1210022300 €3.23
25
 photo_cameraImage coming soon 6.605.0111 OIL GASKET KIT €12.20
26
 photo_cameraImage coming soon 3.555.0059 NUT 0600004800 €9.79
27
 photo_cameraImage coming soon 3.555.0060 WASHER 8.2X14X1.5 2811008000 €4.06
28
 photo_cameraImage coming soon 3.555.0061 PISTON D.180202.0018.00 €22.48
29
 photo_cameraImage coming soon 3.555.0062 PISTON BASE WASHER 2812003800 €10.58
30
 photo_cameraImage coming soon 3.555.0063 O-RING 1.78X6.071210.0055.00 €0.00
31
 photo_cameraImage coming soon 3.555.0064 PISTON GUIDES 2409.0044.00 €78.82
32
 photo_cameraImage coming soon 4.607.0534 WRIST PIN €1.68
33
 photo_cameraImage coming soon 3.555.0066 CONNECTING ROD 0205.0050.00 €47.20
34
 photo_cameraImage coming soon 3.555.0067 GASKET 3019.0033.00 €5.24
35
 photo_cameraImage coming soon 3.555.0068 LEVEL INDICATOR OIL3201.0010.00 €0.11 Not available for order
36
 photo_cameraImage coming soon 3.555.0069 OR 1.78X23.52 1210.0333.00 €14.70
37
 photo_cameraImage coming soon 3.555.0070 OR 2.62X101.27 1210.0206.00 €4.21
38
 photo_cameraImage coming soon 3.555.0087 CASES COVER0402.0142.00 €14.43
39
 photo_cameraImage coming soon 3.555.0088 SCREW M6x25 3609.0041.00 €3.23
40
 photo_cameraImage coming soon 3.201.0058 Replaced by 6.005.0306 RING SHAFT SEAL D.25X62X 10 DIN AS €25.22
41
 photo_cameraImage coming soon 6.605.0113 SEEGER KIT D.25 €16.36
42
 photo_cameraImage coming soon 6.605.0114 SEEGER KIT D.62 €29.62
43
 photo_cameraImage coming soon 3.001.0084 RADIAL SPHERE BEARING 25X62X17 €28.65
44
 photo_cameraImage coming soon 3.555.0072 KEY 8X7X28 1602.0045.00 €5.50
45
 photo_cameraImage coming soon 3.555.0071 SHAFT D.24 0001.0290.00 €222.82
47
 photo_cameraImage coming soon 3.555.0016 CAP 3/8G €29.38
61
 photo_cameraImage coming soon 3.555.0045 ASSEMBLY ASP/MAN1220.0030.00 €8.70
62
 photo_cameraImage coming soon 3.555.0028 SEAT FOR VALVE PLATE 3009008700 €87.20
63
 photo_cameraImage coming soon 3.555.0024 WATER SEALS KIT FOR LW 3525 5019003700 €79.99
64
 photo_cameraImage coming soon 3.555.0027 PISTON D.18 0202.0018.00 €174.30
65
 photo_cameraImage coming soon 3.555.0025 OIL SEALS KIT FOR LW 5019004000 €50.98
82
 photo_cameraImage coming soon 5.009.0561 Sobstitued by 5.609.Y154 CONNECTOR X DETERGENT SUCTION D.1 + OR €6.03
83
 photo_cameraImage coming soon 3.005.0001 BALL INOX 420 DIAM.5 (accuracy grade G 500) €1.72
84
 photo_cameraImage coming soon 4.007.0323 SPRING FOR DETERGENT VALVE De4.5-7 L=7 WIRE D.0.4 INOX €3.14
85
 Lavor NPX1400 Outlet Coupling 5.609.0079 Lavor NPX1400 Outlet Coupling €12.26
86
 photo_cameraImage coming soon 4.607.0259 NO RETURN VALVE SPRING L=20 €3.23
87
 photo_cameraImage coming soon 5.609.0041 SET OF CHECK VALVE + OR €14.70
99
 photo_cameraImage coming soon 3.555.0013 SLICED WASHER 21.2X27X1.5 2811008600 €3.15
Page 3 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3.099.0194 METAL BAND FOR CAPACITOR D.55 €5.49
2
 photo_cameraImage coming soon 3.404.0036 CAPACITOR 80mF 450V D.50 CABLE L300 S/FASTON €24.31
3
 photo_cameraImage coming soon 3.003.0011 HEXAGONAL NUT M6 MEDIUM UNI 5588 CL8ZNT €1.72
4
 photo_cameraImage coming soon 3.004.0010 PINK WASHER EX.D6X11 Sp0,7 DIN6798A ZNT €1.72
5
 photo_cameraImage coming soon 4.607.0008 TIE ROD LW MOTOR M6X171 €5.30
6
 photo_cameraImage coming soon 3.003.0019 NUT €1.68
9
 photo_cameraImage coming soon 3.406.0033 CABLE GLAND PG.21 NORMAL €28.82
16
 photo_cameraImage coming soon 3.704.0005 AIR PRESSURE SWITCH PR5 45BAR1/4 L.650 €36.43
17
 photo_cameraImage coming soon 4.606.0110 DRILLED CM VALVE PLUG 1/4 G €29.38
18
 photo_cameraImage coming soon 3.554.0016 LW-K PUMP 3025 S SX 1450 rpm (6300075100) €564.84
19
 photo_cameraImage coming soon 3.106.0001 Substituted by 3.106.0034 SECURITY VALVE G1/4 M D6 200 BAR €37.10
21
 photo_cameraImage coming soon 4.607.0263 Substituted by 4.007.0181 REVOLVING JOIN 3/8 F-3/8 M 1/4F €28.36
22
 photo_cameraImage coming soon 4.618.0035 TUBE R1 PUMP/COIL TG480 €28.57
23
 photo_cameraImage coming soon 4.618.0030 TUBE B.P. D.20X10 3/8M-3/8M. L.450 €26.69
24
 photo_cameraImage coming soon 3.100.0046 REDUCTION 3 / 8F CIL. 1 / 2M CIL.SV. ZNT €7.37
27
 photo_cameraImage coming soon 4.605.0052 FRONT MOTOR FLANGE LW D.150 FL.90 DIRECT DR. €63.82
30
 photo_cameraImage coming soon 5.605.0048 ROTOR SHAFT 90X135 ALL. LW FOR SINGLE-PHASE MOTOR 30 CAVE INCL. 1,5 €120.44
31
 photo_cameraImage coming soon 5.602.0031 HOUSING LWM 230/50 4P 150X90 H135 €349.56
32
 photo_cameraImage coming soon 3.001.0066 RADIAL SPHERE BEARING 6305 2RSKBC (25x62x17) €11.41
33
 photo_cameraImage coming soon 3.099.0805 RING 61x51x0,4 H.3,5 €1.72
34
 photo_cameraImage coming soon 4.605.0055 REAR MOTOR CAP LW.V D.150 W/BEARING D.62 €29.99
35
 photo_cameraImage coming soon 3.099.1045 FAN MEC100 ALU. HOLE D.28 W/BANDS+SCREWS €24.33
36
 photo_cameraImage coming soon 4.607.0082 FAN COVER MEC100 EXHAUST IN F. -FINISHED- €35.86
37
 photo_cameraImage coming soon 5.606.0069 MOTOR LWM 230/50 D.150 H135 4P C / CLAMP €487.37
38
 photo_cameraImage coming soon 5.601.0228 MOTOR PUMP LWM 230/50 4P HP3 TS LW-K 3025 S SX X HOT €1,038.93
49
 photo_cameraImage coming soon 3.555.0015 SLICED WASHER 16,7X22X1,5 2811008400 €3.23
50
 photo_cameraImage coming soon 3.555.0014 PLUG G1 / 2 BRASS 3202001500 €10.71
65
 photo_cameraImage coming soon 5.609.0152 Sealing rod assembly for in-line pump C/TS (fitting + seat) €27.32
66
 photo_cameraImage coming soon 4.607.0206 PLATE FOR SPRING €3.33
67
 photo_cameraImage coming soon 4.607.0207 PRESSURE REGULATION €9.96
68
 photo_cameraImage coming soon 4.606.0093 Substituted by 4.606.0206 PRESSURE REGULATION KNOB €19.67
69
 photo_cameraImage coming soon 3.200.0046 O-RING 21,95X1,78 REF.2087 €1.63
70
 photo_cameraImage coming soon 3.099.0136 PIN 2X12 UNI 1708 €1.68
Page 4 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.608.0191 NPX'04 BLACK DASHBOARD FRAME €8.45
2
 photo_cameraImage coming soon 4.608.0204 DASHBOARD NPX4/LKX4 SINGLE-PHASE-GR-W/PANT.PAD.877 €30.05
3
 Lavor Adjustment Knob for MEK 1108 4.608.0164 Lavor Adjustment Knob for MEK 1108 €5.83
5
 Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500 3.403.0091 Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500 €35.00
6
 photo_cameraImage coming soon 3.105.0003 DETERGENT REGULATING COCK WITHRUBBER HOLDER D.7 €37.19
7
 photo_cameraImage coming soon 4.608.0168 NPX4/LKX4/T4 ELECTRICAL BOX €26.96
8
 photo_cameraImage coming soon 3.102.0005 DIESEL FILTER FB15/P (AK3012) W/BRASS PLATE €7.55
9
 photo_cameraImage coming soon 3.401.0106 Double-pole switch with pilot light €12.21
10
 photo_cameraImage coming soon 3.414.0010 COIL 230/50HZ FOR DANFOSS GAS PUMP (071N1006) €59.71
11
 photo_cameraImage coming soon 3.401.0105 ETA MICRODISCONNECTOR 3120-N556-P7T1-W01D-18A W/PROT.W/LIGHT €42.53
12
 photo_cameraImage coming soon 3.402.0026 TLR4FC CONTACTOR €253.26
13
 photo_cameraImage coming soon 3.499.0129 LIGHT TYPE 81F 220V BLACK BODY RED GEM €4.79
15
 Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500 3.107.0004 Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500 €33.35
16
 photo_cameraImage coming soon 4.618.0003 PRESSURE GAUGE TUBE 2X630 70MPa(B.P.120MPa) 1/4 F/GIR-1/4 F/GIR €26.69
25
 photo_cameraImage coming soon 5.611.0113 Complete burner flange €78.41
27
 photo_cameraImage coming soon 4.614.0004 STANDARDIZED ELECTRODES COUPLE WITH ROD €36.46
29
 photo_cameraImage coming soon 3.099.0015 RING SEEGER I D.21 SP1 DIN 472 €1.68
30
 photo_cameraImage coming soon 4.608.0002 SITE GLASS DIAM.20 SP.1,8 €1.68
31
 photo_cameraImage coming soon 4.605.0001 WROUGHT BURNER FLANGE €28.64
32
 photo_cameraImage coming soon 3.104.0009 Diesel nozzle 1.50 60/H €20.20
34
 photo_cameraImage coming soon 4.608.0210 RILSAN LKX 4 DIESEL DELIVERY PIPE L=800 €3.23
35
 photo_cameraImage coming soon 5.609.0126 ACCESS. TRANSFER. 220-240V 50/60Hz W/O CAV. €80.46
36
 photo_cameraImage coming soon 4.607.0011 ZNT MOTOR FOOT FIXING BRACKET €7.38
37
 photo_cameraImage coming soon 5.609.0023 VENTILATOR PROTECTION GRID ASSEMBLY €3.95
39
 photo_cameraImage coming soon 5.613.0192 DASHBOARD SUPPORT/HANDLES NPX/LKX'04 €141.62
41
 photo_cameraImage coming soon 4.608.0103 CARTER FOR GASOLI OR LKX PUMP PROTECTION €29.21
42
 photo_cameraImage coming soon 3.099.0028 FAN 146x72 LH.HOLE DM 12.7 €29.49
43
 MOTOR X BRUC. 100W / 230-240 / 50H z IP55 3.300.0003 MOTOR X BRUC. 100W / 230-240 / 50H z IP55 €194.80
44
 photo_cameraImage coming soon 3.099.0012 Substituted by 6.605.0173 GASOIL PUMP PLASTIC COUPLING €28.23
45
 photo_cameraImage coming soon 3.100.0075 CONIC CONNECTION M 1/8 F D.4 CURVED FOR GASOIL HOSE VITON O- €14.98
46
 photo_cameraImage coming soon 3.551.0003 Diesel transfer pump, 220V/50Hz, right-hand delivery, with nozzle. €110.97
47
 photo_cameraImage coming soon 3.004.0015 PLAIN WASHER D.22X39X2 UNI6592 €1.63
48
 photo_cameraImage coming soon 4.606.0013 COIL FIXING NUT 1/2 BRASS SPEC. €3.25
49
 Lavor LKX 31 Diesel Filter Unit 5.611.0067 Lavor LKX 31 Diesel Filter Unit €19.50
50
 photo_cameraImage coming soon 4.618.0035 TUBE R1 PUMP/COIL TG480 €28.57
51
 Lavor NPX 1400 Hose 4.618.0043 Lavor NPX 1400 Hose €27.71
52
 photo_cameraImage coming soon 5.611.0012 EXTERNAL BURNER COVER DIAM.341 €52.75
56
 photo_cameraImage coming soon 5.613.0147 INOX EXTERNAL BURNER COVER €35.06
57
 photo_cameraImage coming soon 5.610.0105 DEFLECTOR D.82 €29.76
58
 photo_cameraImage coming soon 5.613.0028 INT. COVER CAM.COMB. CHIMNEY L=120 €146.74
59
 photo_cameraImage coming soon 4.604.0003 LOW COIL H.415 €519.25
60
 photo_cameraImage coming soon 5.613.0199 Painted LKX'04 boiler body €257.36
62
 Lavor NPX 1500 Bottom Refractory 4.608.0116 Lavor NPX 1500 Bottom Refractory €42.11
63
 photo_cameraImage coming soon 4.607.0006 COIL FIXING STRIP PLATE 20/10 €46.76
64
 Lavor NPX1400 Insulating Rope 4.608.0162 Lavor NPX1400 Insulating Rope €35.27
65
 photo_cameraImage coming soon 5.613.0116 BOILER BASE JOLLY 5 / LKX -VERN ICIATA- €106.07
85
 photo_cameraImage coming soon 3.004.0004 ALUMINIUM WASHER 21X30XSP 1,5 €1.74
87
 photo_cameraImage coming soon 5.609.0128 THERMOSTAT BULB BODY ASSEMBLY LKX/NPX'04 EXIT.INN.RAP. ZNT BRASS €113.80
91
 BULB ASSY 4.606.0087 BULB ASSY €49.01
92
 photo_cameraImage coming soon 3.100.0020 REDUCTION M.GAS/M.GAS 1/2-3/8 €8.03
93
 photo_cameraImage coming soon 5.613.0191 THERMOSTAT/ALARM BULB SUPPORT. NPX/LKX'04 €28.78
94
 photo_cameraImage coming soon 4.606.0019 SUCTION CONNECTOR M22 IDRO COMPACT €5.16
95
 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 4.008.0031 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 €1.54
96
 photo_cameraImage coming soon 4.006.0088 INTAKE FITTING ADAPTER L=26 M22-3/4G €6.72
97
 photo_cameraImage coming soon 4.618.0030 TUBE B.P. D.20X10 3/8M-3/8M. L.450 €26.69
98
 photo_cameraImage coming soon 3.100.0018 RAPID COUPLING 3/8 M. 08 (465) €14.98

Shipping and delivery information will be available shortly.

Lavor Pressure Cleaner LKX4 1310M Spare Parts

Lavor original spare parts for to replace broken parts for to fix Hot Water High Pressure Cleaner LKX4 1310 M 230/50 LWS - 8.621.0001.

In the following tables, look for the spare part and its respective code.
LKX4 1310M

Lavor Idro LKX4 1310 M
IdroLKX 1310M Pag.1
# Part Num. Description
1 5.613.0115 REAR AXLE JOLLY 5/LKX PAINTED
2 4.613.0181 UPPER FAIRING NPX-LKX04-G-PANT.108C
3 4.608.0170 LEFT HANDLE NPX'04-GR-RAL.7021
4 4.608.0169 RIGHT HANDLE NPX'04-GR-RAL.7021
5 4.613.0182 REAR FAIRING NPX-LKX'04 -BLACK-
6 4.608.0203 DIESEL/DETERGENT TANK NPX4/LKX4
8 4.612.0037 POWER CABLE H05VV-F 3X1.5 L=6000 F/F
9 4.608.0074 LONG SPACER FOR TANK JOLLY 4/93 mm 63
10 4.006.0132 OIL PLUG 3/8 G
11 4.608.0073 SHORT SPACER FOR TANK JOLLY 4/93
12 5.613.0096 BOILER AXLE JOLLY 4/93
13 6.605.0021 WHEEL + HUB CAP + RETAINER KIT
14 4.613.0184 RIGHT SIDE PANEL NPX-LKX'04 G--PANT.108C
15 4.613.0183 LEFT SIDE PANEL NPX-LKX'04-G-PANT.108C
16 4.608.0082 DIESEL-CHEM TANK PLUG
17 3.700.0026 RL300 3/8M+S3+RF1 M22 GUN + FLOW REG.
18 4.618.0016 HOSE 5/16 210BAR L=10000 W/M AP1031 3/8F
19 3.701.0015 LANCE L.700 COATED + NOZZLE + QUICK CONN. M22
21 5.611.0078 BRASS HOSE TAIL KIT ASP. 3/4 D.17
22 3.103.0050 HIGH PRESSURE NOZZLE 1/8M 15045
23 3.100.0043 SWIVEL QUICK CONN. 3/8 M MVG8 (461) 26075050
24 6.605.0019 3pcs LANCE SUPPORT KIT NPX'04
25 3.403.0078 DIESEL LEVEL INDICATOR L 185 W/CABLE L=1320
26 3.200.0038 GASKET O-RING 53.65x2.62 REF. 3212
Pump Group Pag.2
# Part Num. Description
1 3.555.0133 HEAD D.18 BRASS 3218.0318.00
2 3.555.0076 HEAD PLUG G1/8 3202.0018.00
3 3.555.0077 SCREW M6x55 3609.0152.00
4 3.555.0005 GASKET O-RING 2.62X17.13 1210.0046.00
5 3.555.0006 VALVE PLATE SEAT 3009.0087.00
6 3.555.0007 STEEL VALVE PLATE 3604.0017.00
7 3.555.0008 VALVE SPRING 1802.0177.00
8 3.555.0009 VALVE CAGE 1205.0025.00
9 3.555.0010 GASKET O-RING 2.62X20.24 FOR PLUG
10 3.555.0012 VALVE PLUG 3202.0267.00
11 3.555.0078 3. SCREW M5x10 3609.0088.00
12 3.555.0057 1 FLANGE FOR COVER 1004.0012.00
13 3.555.0056 1 SMALL COVER 0402.0172.00
14 3.200.0219 1 GASKET O-RING 44.04X3.53 NBR SH.70
15 3.555.0079 1 SEEGER RING 3019.0011.00
16 3.001.0085 1 RADIAL BALL BEARING 6304 (20X52X15)
17 3.555.0053 1 PUMP CRANKCASE 0403.0128.00
18 3.099.1480 1 OIL FILLER PLUG W/TUBE AND BREATHER (ROD L=58)
20 3.555.0046 3 HEAD RING D.18 0009.0193.00
21 3.555.0047 3 GASKET D.18 1241.0022.00
22 3.555.0048 3 GASKET 18X25X5.5 1241.0028.00
23 3.555.0049 3 SEAL RETAINING RING D.18 0009.0197.00
24 3.555.0085 O-RING (SEAL) 1210.0223.00
25 6.605.0111 OIL SEAL KIT D.15 FOR PUMP LP 1507-1808
26 3.555.0059 NUT 0600.0048.00
27 3.555.0060 3 WASHER 8.2X14X1.5 2811.0080.00
28 3.555.0061 3 PISTON D.18 0202.0018.00
29 3.555.0062 PISTON BASE WASHER 2812.0038.00
30 3.555.0063 3 O-RING 1.78X6.07 1210.0055.00
31 3.555.0064 PISTON GUIDES 2409.0044.00
32 4.607.0534 3 PUMP PISTON GUIDE PIN 4.607.0534
33 3.555.0066 3 CONNECTING ROD 0205.0050.00
34 3.555.0067 1 PLUG RETAINER 3019.0033.00
35 3.555.0068 1 OIL LEVEL INDICATOR 3201.0010.00
36 3.555.0069 1 O-RING 1.78X23.52 1210.0333.00
37 3.555.0070 1 O-RING 2.62X101.27 1210.0206.00
38 3.555.0087 1 CRANKCASE COVER 0402.0142.00
39 3.555.0088 4 SCREW M6x25 3609.0041.00
40 3.201.0058 1 SHAFT OIL SEAL D.25X62X10 DIN AS
41 6.605.0113 1 KIT 5 SEEGER D.25
42 6.605.0114 1 KIT 3 SEEGER D.62
43 3.001.0084 1 RADIAL BALL BEARING 6305 (25X62X17)
44 3.555.0072 1 KEY 8X7X25 1602.0045.00
45 3.555.0071 1 SHAFT D.24 0001.0290.00
47 3.555.0016 1 PLUG 3/8 GAS 3200.0007.00
49 3.555.0015 1 CUT WASHER 16.7X22X1.5 2811.0084.00
50 3.555.0014 1 BRASS PLUG G1/2 3202.0015.00
61 3.555.0045 6 SUCTION/DELIVERY VALVE ASSY 1220.0030.00
62 3.555.0028 1 KIT 6 COMPLETE VALVES FW-LW 5025.0011.00
63 3.555.0024 1 WATER SEAL KIT FOR LW 3525 5019.0037.00
64 3.555.0027 1 PISTON KIT FOR LW 3525 2409.0072.00
65 3.555.0025 1 OIL SEAL KIT FOR LW 5019.0040.00
82 5.009.0561 1 HOSE TAIL 5.009.0561
83 3.005.0001 1 STAINLESS STEEL BALL 420 DIAM.5 (precision grade G 500)
84 4.007.0323 1 DET. NON-RET. VALVE SPRING De4.5-7 L=7 WIRE D.0.4
85 5.609.0079 1 OUTLET FITTING ASSY HEAD BRASS '99 D.1.9
86 4.607.0259 1 NON-RET. VALVE SPRING D.4.8x5.8 L=20 WIRE 0.5
87 5.609.0041 1 NON-RET. VALVE ASSY + O-RING
99 3.555.0013 1 CUT WASHER 21.2X27X1.5 2811.0086.00
Pump Pag.3
# Part Num. Description
1 3.099.0194 METAL BAND FOR CAPACITOR D.55
2 3.404.0036 CAPACITOR 80mF 450V D.50X121 W/WIRES
3 3.003.0011 NUT E. M6 MEDIUM UNI 5588 CL8 ZNT
4 3.004.0010 TOOTHED WASHER EX. D6X11 Sp0.7 DIN 6798A ZNT
5 4.607.0008 MOTOR TIE ROD LW M6X171
6 3.003.0019 HEX CAP NUT M6 ZNT UNI 5721
9 3.406.0033 CABLE GLAND PG.21 NORMAL
16 3.704.0005 PRESSURE SWITCH PR5 45BAR 1/4 L.750 F.29008065
17 4.606.0110 DRILLED CM VALVE PLUG 1/4 G
18 3.554.0016 PUMP LW-K 3025 S SX 1450 rpm (6300075100)
19 3.106.0001 SAFETY VALVE G1/4 M D6 200BAR MTM
21 4.607.0263 SWIVEL FITTING 3/8 F -3/8 M1/4 F FOR VALVE
22 4.618.0035 R1 HOSE PUMP/COIL L=600 1/2F 3/8F
23 4.618.0030 L.P. HOSE D.20X10 3/8M.-3/8M. L.450
24 3.100.0046 REDUCTION F3/8 CYL. M1/2 CYL. SV. ZNT
27 4.605.0052 FRONT MOTOR FLANGE LW D.150 FL.90 DIRECT DR.
30 5.605.0048 ROT. SHAFT 90X135 ALU. LW 1ph 30 KEYWAYS 1.5
31 5.602.0031 HOUSING LWM 230/50 4P 150X90 H135
32 3.001.0066 RADIAL BALL BEARING 6305 2RS (25X62X17)
33 3.099.0805 COMPENSATION RING 61X51X0.4 H.3.5 -62d-
34 4.605.0055 REAR MOTOR CAP LW.V D.150 W/BEARING D.62
35 3.099.1045 FAN MEC100 ALU. HOLE D.28 W/BANDS+SCREWS
36 4.607.0082 FAN COVER MEC100 LOWER DISCHARGE -FINISHED-
37 5.606.0069 MOTOR LWM 230/50 D.150 H135 4P W/BAND
38 5.601.0228 MOTOR-PUMP LWM 230/50 4P HP3 TSLW-K3025 S SX
45 3.100.0022 REDUCTION M.GAS/M.GAS 3/8SV-1/4SV
49 5.609.0158 FITTING ASSY 1/8 G W/PLUG M7 TS
52 5.609.0107 BOX ASSY + MICRO + CABLE 3X1 PLUG
55 5.609.0080 SEAL SEAT ASSY + O-RING
65 5.609.0152 SEAL ROD ASSY FOR PUMP LINE
66 4.607.0206 PLATE FOR SPRING
67 4.607.0207 PRESSURE REGULATOR SPRING L=37 WIRE D.3.6
68 4.606.0093 PRESSURE REGULATION KNOB
69 3.200.0046 GASKET O-RING 21.95x1.78 REF. 2087
70 3.099.0136 CYLINDRICAL PIN 2X12 STAINLESS STEEL UNI 1707
Pag.4
# Part Num. Description
1 4.608.0191 DASHBOARD FRAME NPX'04 BLACK
2 4.608.0204 DASHBOARD NPX4/LKX4 SINGLE-PHASE -GR-
3 4.608.0164 THERMOSTAT REGULATION KNOB PARANA'
4 3.403.0098 GAS. ISOL. BOARD FOR FLOAT LKX4 -
5 3.403.0091 THERMOSTAT 30/150 BULB D. 6.5 (3 FASTON
6 3.105.0003 DET. REG. TAP W/HOSE TAIL D.7 (DIS. N.6990A 3/4
7 4.608.0168 ELECTRICAL BOX NPX4/LKX4/T4
8 3.102.0005 DIESEL LINE FB15/P (AK3012)
9 3.401.0106 BIPOLAR SWITCH W/PILOT LIGHT B438C1100G0+C IP65
10 3.414.0010 COIL 230/50Hz FOR PUMP
11 3.401.0105 MICRO-CIRCUIT BREAKER ETA 3120-F75N-P7T1-A20Q-18A
12 3.402.0026 CONTACTOR TLR4FC
13 3.499.0129 PILOT LIGHT TYPE 81F 220V BLACK BODY RED GEM
15 3.107.0004 PRESSURE GAUGE D.50 0/315 BAR 1/4 REAR+BRACKET (ref
16 4.618.0003 PRESSURE GAUGE HOSE 2X630 70MPa (L.P.120MPa) 1/4
25 5.611.0113 BURNER FLANGE COMPL. 1.50-45A DX (FOR HOSE
27 4.614.0004 UNIFIED PROFESSIONAL ELECTRODES PAIR W/BRACKET
29 3.099.0015 SEEGER RING I D.21 SP1 DIN 472
30 4.608.0002 SIGHT GLASS DIAM.20 SP.1.8
31 4.605.0001 MACHINED BURNER FLANGE
32 3.104.0009 DIESEL NOZZLE 1.50 60/H
34 4.608.0210 DIESEL DELIVERY HOSE RILSAN LKX 4 L=800
35 5.609.0126 IGNITION TRANSF. 220-240V 50/60Hz W/PIPETTE NPX-LKX
36 4.607.0011 MOTOR FOOT FIXING BRACKET ZNT
37 5.609.0023 FAN PROTECTION GRID ASSY
39 5.613.0192 DASHBOARD/HANDLE SUPPORT NPX/LKX'04
41 4.608.0103 DIESEL PUMP PROTECTION CASING LKX
42 3.099.0028 FAN 146x72 SX HOLE DM
43 3.300.0003 MOTOR FOR BURNER 100W/230-240/50Hz IP55
44 3.099.0012 DIESEL PUMP PLASTIC JOINT
45 3.100.0075 FITTING M 1/8 CONICAL F D.4 CURVED
46 3.551.0003 DIESEL PUMP W/ELEC. 220/50 D. DX BITU.
47 3.004.0015 FLAT WASHER D.22X39 Sp.3 UNI 6592 ZNT
48 4.606.0013 COIL FIXING NUT 1/2 OT SPEC.
49 5.611.0067 DIESEL FILTER GROUP (PAPER) TEKNA '95 -LKX
50 4.618.0035 R1 HOSE PUMP/COIL L=600 1/2F 3/8F
51 4.618.0043 R1 HOSE 3/8 L=375 C.1/2F.GIR/C.3/8F GIR
52 5.611.0012 EXT. BOILER COVER DRILLED CONE
56 5.613.0147 EXT. BOILER COVER STAINLESS STEEL AISI 430
57 5.610.0105 DEFLECTOR W/CONE D.82 W/HOLES
58 5.613.0028 INT. COMBUSTION CHAMBER COVER CHIMNEY L=120
59 4.604.0003 LOW COIL H.415 (FE.35.2)
60 5.613.0199 BOILER BODY LKX'04 PAINTED
62 4.608.0116 CEMENTED REFRACTORY D.290X20 FOR BOILER
63 4.607.0006 COIL FIXING STRIP IN SHEET METAL 15/10 STAINLESS STEEL
64 4.608.0162 INSULATING ROPE FOR BOILER BASE L=990
65 5.613.0116 BOILER BASE JOLLY 5/LKX-PAINTED-
85 3.004.0004 ALUMINUM WASHER 21x30xSP.1.5
87 5.609.0128 THERMOSTAT BULB BODY ASSY LKX/NPX'04
91 4.606.0087 THERMOSTAT BULB BODY PROFESS.
92 3.100.0020 NIPPLE 1/2G-3/8G
93 5.613.0191 THERMOSTAT/STARTER BULB SUPPORT NPX/LKX'04
94 4.606.0019 SUCTION FITTING M22 IDRO COMPACT
95 4.008.0031 WATER SUCTION WIRE D.16 CONICAL
96 4.006.0088 SUCTION ADAPTER M.22 3/4 L=26
97 4.618.0030 L.P. HOSE D.20X10 3/8M.-3/8M. L.450
98 3.100.0018 QUICK COUPLING 3/8 M. 08 (465) 26070050
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
8.621.0001

Data sheet

SHIPPING IN
Usually Ships in 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR
LAVOR S/N START WITH (8. ) and have 8 DIGITS
Machine Type
Pressure Washer

Specific References

New

Download

Lavoro LKX4 1310M Drawing

Lavoro LKX4 1310M Drawing

Download (3.81MB)

You might also like

Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 6.605.0173
Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400
Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Diesel Pump Red Plastic Coupling Set for Engine EME/UNIELECTRICp for Pressure Cleaners NPX 1400 - NPX 1500 Part for the following products: -...
on 10 Business Days Approx €29.06
Details
Washer SNHORt for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 3.004.0022
Washer SNHOR for Pressure Cleaner Lavor NPX 1400
Washer SNHOR for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Washer SNHOR D.8x13 sp.0.8 for Pressure Cleaners NPX 1400 - NPX 1500 Part for the following products: -  Pressure Cleaner Lavor NPX 1400 - 8.605.0048 -...
on 10 Business Days Approx €1.71
Details
Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 3.403.0091
Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500
Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Thermostat 30/150 Bulb d.6.5 (3 Faston) for Pressure Washers NPX 1400 - NPX 1500. Part for the following products: -  Pressure Washer Lavor NPX...
on 10 Business Days Approx €35.00
Details
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 4.608.0078
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Dashboard Gasket '93 (3x900) for Pressure Cleaners NPX 1400 - NPX 1500 - LKX 40. Part for the following products: -  Pressure Cleaner NPX 1400 230/50...
Last items in stock €3.32
Details
Pressure Switch for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 3.704.0006
Pressure Switch for Pressure Washer Lavor Missouri
Pressure Switch for Pressure Washer Lavor Missouri Genuine part Lavor, Pressure Switch 25 Bar 1/8 Red L.700 Faston F. for Pressure Washers  MISSOURI - YUKON 1310 - NPX 1500 - LKX 40. Part...
Usually Ships in: 10 Business Days Approx. €30.90
Details
Diesel Nozzle for Pressure Washers Lavor NPX 1400
Lavorwash S.p.A. SKU: 3.104.0028
Diesel Nozzle for Pressure Washers Lavor NPX 1400
Diesel Nozzle for Pressure Washers Lavor NPX 1400 Genuine replacement part Lavor, Diesel Nozzle 1,25 45-B for Pressure Washers NPX 1400 - NPX 1500 - LKX 31 - LKX 40. Part for the following...
Usually Ships in: 7/10 Business Days Approx. €28.36
Details
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1500
Lavorwash S.p.A. SKU: 4.618.0014
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1500
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Pressure Gauge Pipe 2x380 Max 630 Bar 1/4 F. Gir. 1/4 F Gir. for Pressure Washers NPX 1400 - NPX 1500. Part for the following...
Usually Ships in: 10/15 Business Days Approx. €26.46
Details
Thermal Switch MS 25 for Pressure Cleaner Lavor LKX 55 TS
Lavorwash S.p.A. SKU: 3.401.0049
Thermal Switch MS 25 for Pressure Cleaner Lavor LKX 55 TS
Thermal Switch MS 25 10/16 AMP for Pressure Cleaner Lavor LKX 55 TS Genuine replacement part Lavor, Thermal Switch MS 25 10/16 AMP (4006111101) for Pressure Cleaner LKX 55 TS 230/400-50 CM -G - 8.611.0084. Part...
on 10 Business Days Approx. €137.06
Details
Lavor LKX 31 Diesel Filter Unit
Lavorwash S.p.A. SKU: 5.611.0067
Lavor LKX 31 Diesel Filter Unit
Lavor LKX 31 Diesel Filter Unit Genuine replacement part Lavor, Diesel Filter Unit Assy (PAPER) for LKX 31 - 40 - 55 - 2015. Part for the following products: - 8.611.0160 - Pressure Washer LKX 31 TS AC 230/50 CM-G -...
Usually Ships in: 10/15 Business Days Approx. €19.50
Details
Lavor LKX 2015 Burn Flange
Lavorwash S.p.A. SKU: 5.611.0192
Lavor LKX 2015 Burn Flange
Lavor LKX 2015 Burn Flange Genuine replacement part Lavor, Cmplete Burn Flange 1.50-45B (RILSAN) With preparation for flame control for LKX 2015. Part for the following products: - 8.621.2935 - Pressure Washer LKX 2015LP T...
on 10 Business Days Approx. €97.88
Details
Lavor LKX 2015 Ignition Transformer
Lavorwash S.p.A. SKU: 5.609.0344
Lavor LKX 2015 Ignition Transformer
Lavor LKX 2015 Ignition Transformer Genuine replacement part Lavor, Ignition Transformer 220-240V 50/60Hz C/PIPET.NPX-LKX + CAVO (POTENZ.) for LKX 2015. Part for the following products: - 8.621.2935 - Pressure Washer LKX 2015LP T...
Usually Ships in: 10/15 Business Days Approx. €63.65
Details
Lavor Brass Head for LKX 2015LP
Lavorwash S.p.A. SKU: 5.008.0364
Lavor Brass Head for LKX 2015LP
Lavor Brass Head for Pressure Cleaner LKX 2015LP Original replacement part Lavorwash, Brass Head LWS 1808 C/IN.2,0 USC.3/8 C/TS (X HOT) for Pressure Washer LKX 2015LP. Part for the following products: -  High Pressure Cleaner LKX...
Usually Ships in: 10 Business Days Approx. €251.09
Details
Lavor Adjustment Knob for MEK 1108
Lavorwash S.p.A. SKU: 4.608.0164
Lavor Adjustment Knob for MEK 1108
Lavor Adjustment Knob for Pressure Cleaner MEK 1108 Genuine replacement part Lavorwash, Black Thermostat Adjustment Knob for Pressure Cleaner DAKOTA-R 2007XP - MISSOURI - MEK 1108. Part for the following products: -  PRESSURE CLEANER...
Usually Ships in: 10 Business Days Approx. €5.83
Details
Lavor Thermostat Knob for LKX 2015LP
Lavorwash S.p.A. SKU: 5.611.0161
Lavor Thermostat Knob for LKX 2015LP
Lavor Thermostat Knob for Pressure Cleaner LKX 2015LP Original replacement part Lavorwash, Black Thermostat Knob Whit Insert for Pressure Washer LKX 2015LP. Part for the following products: -  High Pressure Cleaner LKX 2015LP T...
Usually Ships in: 10 Business Days Approx. €3.36
Details
Lavor Head for Pressure Cleaner LKX 2015LP
Lavorwash S.p.A. SKU: 4.606.0223
Lavor Head for Pressure Cleaner LKX 2015LP
Lavor Head for Pressure Cleaner LKX 2015LP Original replacement part Lavorwash, Lavor Headboard 1808 Line for Pressure Washer LKX 2015LP. Part for the following products: -  High Pressure Cleaner LKX 2015LP T 400-415/50 -GR -...
Usually Ships in: 10/15 Business Days Approx. €140.00
Details
Lavor Replacement Kit TS2 Card Total Stop
Lavorwash S.p.A. SKU: 6.605.0250
Lavor Replacement Kit TS2 Card Total Stop
Lavor Replacement Kit TS2 Card 34030171 Total Stop Original replacement part Lavorwash, Replacement Kit TS2 Card 34030171 Total Stop for Pressure Washer LKX 2015LP. Part for the following products: -  High Pressure Cleaner LKX 2015LP...
Usually Ships in: 10 Business Days Approx. €175.13
Details
Lavor LKX 2015LP Thermal Relay DPER 21 12-18A
Lavorwash S.p.A. SKU: 3.402.0045
Lavor LKX 2015LP Thermal Relay DPER 21
Lavor Thermal Relay DPER 21 12-18A for  LKX 2015LP Original replacement part Lavorwash, Thermal Relay DPER 21 12-18Afor Pressure Washer LKX 2015LP. Part for the following products: -  High Pressure Cleaner LKX 2015LP T...
Usually Ships in: 10 /15Business Days Approx. €29.65
Details
Lavor LKX1515LP AC Contactor KN22
Lavorwash S.p.A. SKU: 3.402.0051
Lavor LKX1515LP AC Contactor KN22
Lavor AC Contactor KN22 400/50HZ 7,5 KW AC3 for LKX 1515LP Original replacement part Lavorwash, AC Contactor KN22 400/50HZ 7,5 KW AC3 for Pressure Washer LKX 1515LP - LKX 2015LP. Part for the following products: - High...
Usually Ships in: 10 Business Days Approx. €36.87
Details
Lavor LKX 31 Single Pipe Diesel Pump
Lavorwash S.p.A. SKU: 3.551.0063
Lavor LKX 31 Double Pipe Diesel Pump
Lavor LKX 31 Double Pipe Diesel Pump Genuine replacement part Lavor, Double Pipe Diesel Pump + 24V ELECTRODE. D DX for LKX 31 - 40 - 55 - 1515. Part for the following products: - 8.611.0160 - LKX 31 TS AC 230/50 CM-G -...
Usually Ships in: 10/15 Business Days Approx. €103.22
Details
Lavor LKX 2015LP External Cover
Lavorwash S.p.A. SKU: 5.613.0200
Lavor LKX 2015LP External Cover
Lavor LKX 2015LP External Cover Genuine replacement part Lavor, External Cover Of Aisi 430 Ba Tekna 4 Stainless Steel Boiler for Pressure Cleaner LKX 2015LP - NPX 1813XP. Part for the following products: - ...
Usually Ships in: 10/15 Business Days Approx. €40.44
Details
Lavor Pressure Cleaner LKX 2015LPT Parts
Lavorwash S.p.A. SKU: LKX 2015LPT- 8.621.2991
Lavor Pressure Cleaner LKX 2015LPT Parts
Lavor Pressure Cleaner LKX 2015LPT Parts Fix Your Hot Water High Pressure Cleaner LKX 2015LP T 400/50(COLL.220/50)-GR-C/VASCH+LANCIA A/B-LAVOR . All Spares are original and can be supplied at Low and discounted prices For...
build View Spare Parts
Lavor Pump LW CL3.5 for LKX 2015LP
Lavorwash S.p.A. SKU: 5.705.0001
Lavor Pump LW CL3.5 for LKX 2015LP
Lavor Pump LW CL3.5 for Pressure Cleaner LKX 2015LP Original replacement part Lavorwash, Pump LW CL3.5 200/15 1450 SX D.18CER.C/IN.-TS-USC.3/8 (X HOT) for Pressure Washer LKX 2015LP. Part for the following products: -  High Pressure...
Usually Ships in: 10/15 Business Days Approx. €584.86
Details
Lavor Pressure Washer NPX1400 Insulating Rope
Lavorwash S.p.A. SKU: 4.608.0162
Lavor NPX1400 Insulating Rope
Lavor Pressure Washer NPX1400 Insulating Rope Genuine replacement part Lavor, Insulating Rope For Boiler Base L=990 for Pressure Washer NPX1400 - LKX 31 - LKX 55. Part for the following products: - ...
Usually Ships in: 10 Business Days Approx. €35.27
Details
Lavor Cooling Hose for LKX 2015LP
Lavorwash S.p.A. SKU: 4.618.0126
Lavor Cooling Hose for LKX 2015LP
Lavor Cooling Hose for Pressure Washer LKX 2015LP Genuine replacement part Lavor, Reinforced Cooling Hose Low-Pressure Motor Circuit for Pressure Washer LKX 2015LP. Part for the following products: - Pressure Washer Lavor LKX2015LP...
AVAILABLE €29.90
Details
Comments (0)
No customer reviews for the moment.
