Lavorwash S.p.A.

Lavor Original Parts for Pressure Cleaner GALAXY 150 - 80860075C

SKU: Lavor GALAXY 150 - 80860075C
€15.74
VAT included

Lavor Original Parts for Pressure Cleaner GALAXY 150 - 80860075C

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner GALAXY 150 220-240/50-60 -G/N- TS EU 2L +SP.ROT. +SP.L25 - 80860075C.

Fix Your Pressure Cleaner. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Lavor Original Parts for Pressure Cleaner GALAXY 150 - 80860075C
  • Lavor Original Parts for Pressure Cleaner GALAXY 150 - 80860075C
  • Lavor Original Parts for Pressure Cleaner GALAXY 150 - 80860075C
  • Lavor Original Parts for Pressure Cleaner GALAXY 150 - 80860075C
  • Lavor Original Parts for Pressure Cleaner GALAXY 150 - 80860075C
  • Lavor Original Parts for Pressure Cleaner GALAXY 150 - 80860075C
  • Lavor Original Parts for Pressure Cleaner GALAXY 150 - 80860075C
Lavorwash S.p.A.

Lavor Original Parts for Pressure Cleaner GALAXY 150 - 80860075C

SKU: Lavor GALAXY 150 - 80860075C Condition: New
€15.74
VAT included

Lavor Original Parts for Pressure Cleaner GALAXY 150 - 80860075C

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner GALAXY 150 220-240/50-60 -G/N- TS EU 2L +SP.ROT. +SP.L25 - 80860075C.

Fix Your Pressure Cleaner. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 46 spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
41 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

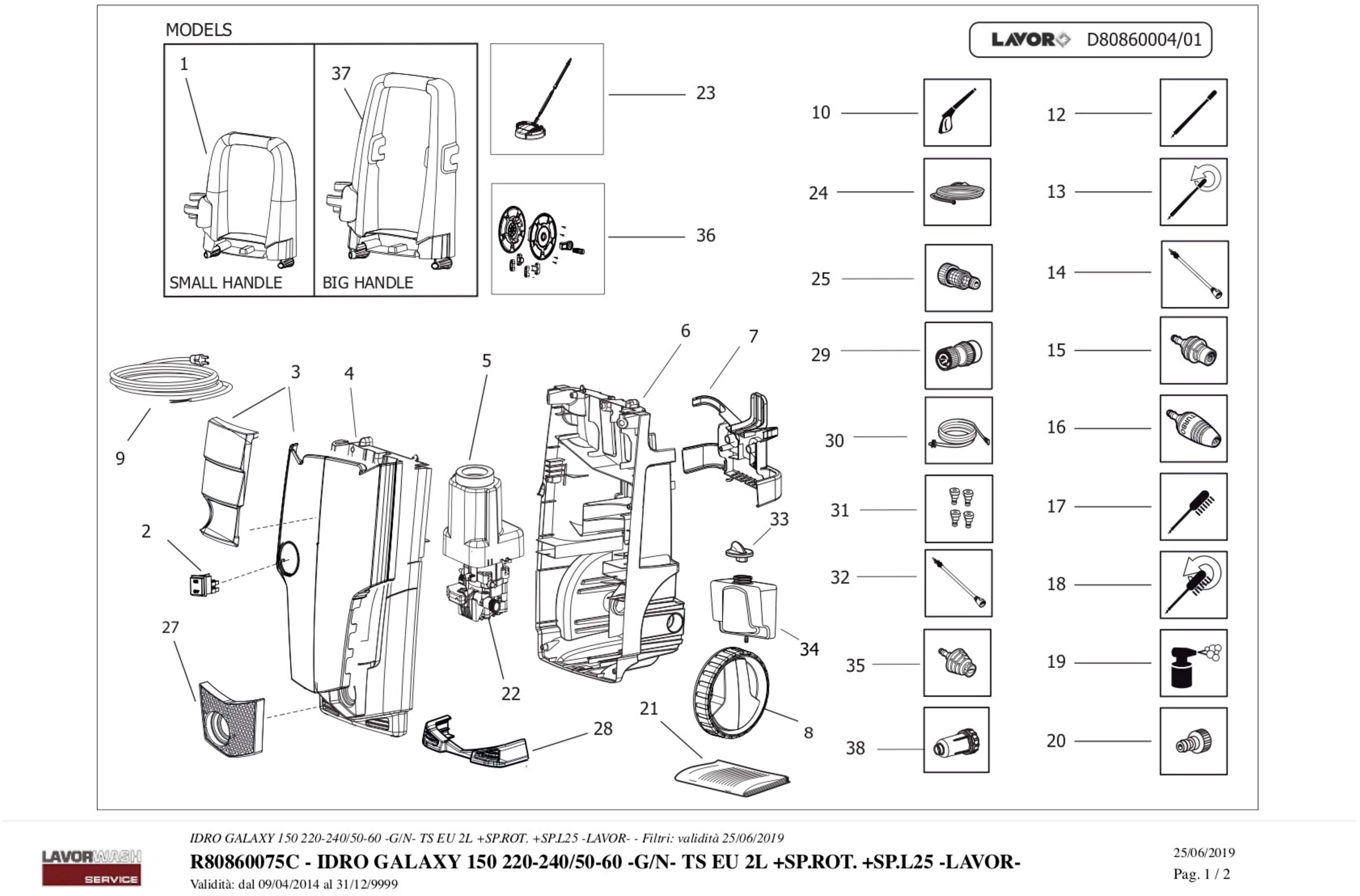

Esploso pagina 1
Pos. Item Price Buy
001
 photo_cameraImage coming soon 5.011.0183 HANDLE + SILVER GRIP (STM P80.0502) €13.60
002
 Switch 0/1 Black Button for Pressure Washers Lavor 3.401.0178 Switch 0/1 Black Button for Pressure Washers Lavor €6.91
003
 photo_cameraImage coming soon 5.011.0216 ASSEMBLY FRONTAL COVER GALAXYW/TAMP.LAVOR (YELLOW) €16.84
004
 photo_cameraImage coming soon 4.013.0556C Substituted by 4.013.0556 1 Yes 1 BLACK FRONT CABINET FOR STM (P80.0425) €21.32
005
 photo_cameraImage coming soon 4.008.1172 AIR CONVEYOR FOR U76 €14.87
006
 photo_cameraImage coming soon 4.008.1263 PROCESS BLACK C BACK CABINET STM (FOR UNIVERSAL MOTOR - P80. €27.84
007
 photo_cameraImage coming soon 4.008.1417 BLACK ACCESSORY HOLDER STORM STEAM B&S €10.37
008
 Wheel for Pressure Washers Lavor RIDE 110 - RACE 125 4.008.1260 Wheel for Pressure Washers Lavor RIDE 110 - RACE 125 €8.19
009
 photo_cameraImage coming soon 4.012.0174C CABLE H05VV-F 2X1 MT.5,4 F/F SCHUKO PLUG W/FASTON COVER €21.99
010
 Trigger Gun S'09C 6.001.0073 for Pressure Washers Cold Water Lavor 6.001.0073 Trigger Gun S'09C 6.001.0073 for Pressure Washers Cold Water Lavor €20.60
011
 H.P. Hose 4.018.0095 6 m for Quick Coupling Trigger Gun Lavor S’09 4.018.0095 H.P. Hose 4.018.0095 6 m for Quick Coupling Trigger Gun Lavor S’09 €20.60
014
 Lance S'12 6.002.0361 Nozzle Head Holder for Trigger Guns Lavor 6.002.0361 Lance S'12 6.002.0361 Nozzle Head Holder for Trigger Guns Lavor €11.82
015
 Head Nozzle Jet Adjustable Needle-Fan Ø 0.90 6.002.0635 6.002.0635 Head Nozzle Jet Adjustable Needle-Fan Ø 0.90 6.002.0635 €8.50
016
 photo_cameraImage coming soon 6.002.0632 ROTOX NOZZLE HEAD LANCE S'12 D.1,025 WITH QUICK COUPLING - P €8.60
018
 photo_cameraImage coming soon 3.601.0035 ROTATING HYDRO BRUSH W/HANDLE €23.63
019
 photo_cameraImage coming soon 6.002.0259 Substituted by 6.002.0358 FOAM SPRAYER WITH TRANSPARENTTANK €13.09
020
 photo_cameraImage coming soon 3.100.0082C BLACK QUICK COUPLING INLET CONNECTOR (THREAD=9.5) €1.60
022
 photo_cameraImage coming soon 5.001.0841C MOTORPUMP PT'03EVO 230/50 TS W/THERMAL 5'30 (7645PF-KC) €140.53
023
 photo_cameraImage coming soon 3.601.0111 YELLOW FLOOR BRUSH L25 WITH EXTENSION (D.1,1) €48.04
027
 photo_cameraImage coming soon 4.008.1310 GREY INLET COVER PANT.877C (metallic) PAINTED (STORM II PLUS €3.17
028
 photo_cameraImage coming soon 4.008.1325 STORM/STM BLACK BASEMENT €7.14
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

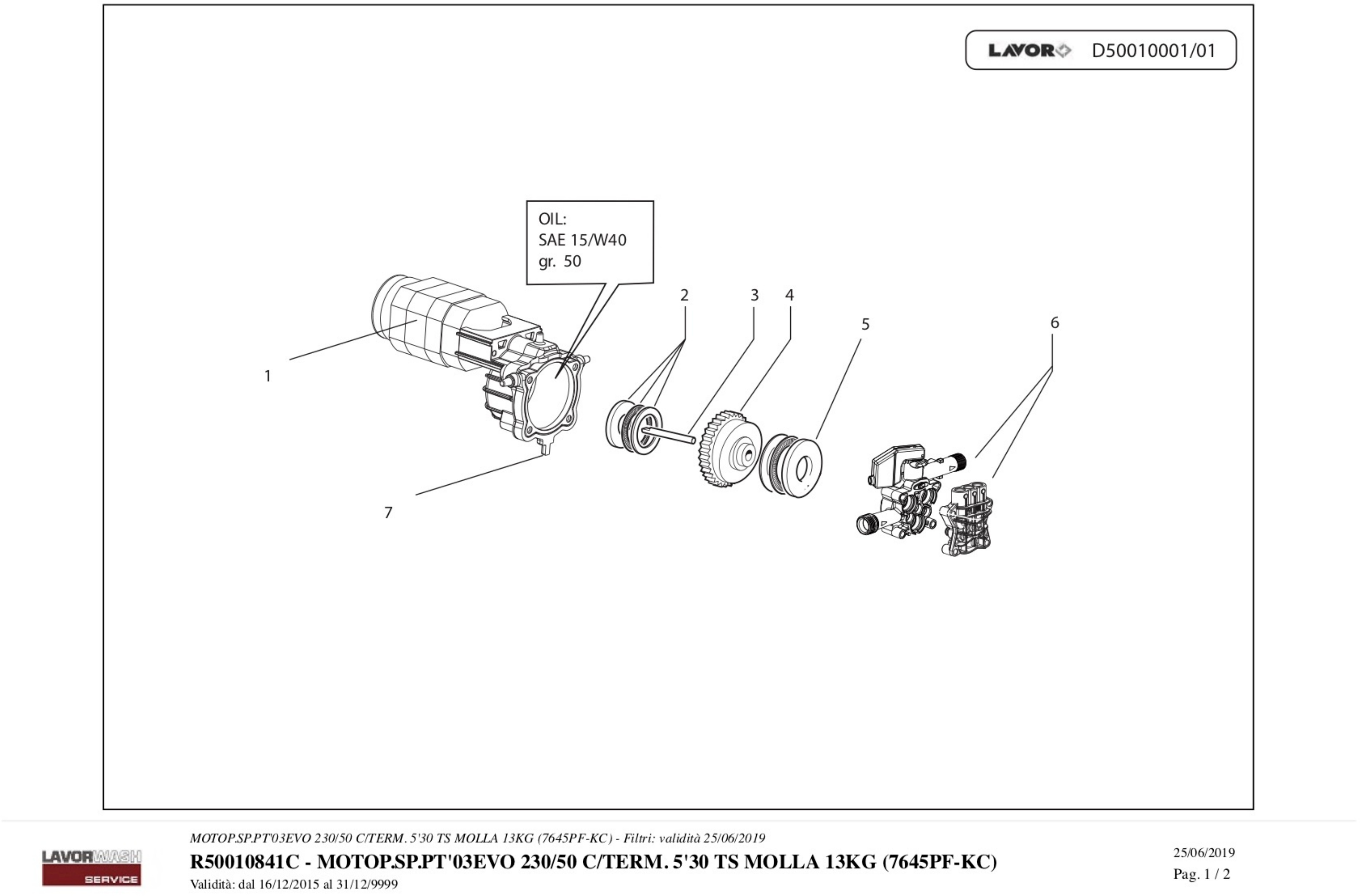

Esploso pagina 2
Pos. Item Price Buy
001
 Motor Assembly for Pressure Cleaner Lavor X-Ray Plus 140 5.009.0979 Motor Assembly for Pressure Cleaner Lavor X-Ray Plus 140 €87.31
002
 Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145 6.005.0311 Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145 €7.56
003
 Pin 10x70 for Pressure Washer Lavor Predator 160 WPS 4.007.0205 Pin 10x70 for Pressure Washer Lavor Predator 160 WPS €7.68
004
 Plate Assembly with Crown for Pressure Washer Lavor ENDURO 145 5.009.0726 Plate Assembly with Crown for Pressure Washer Lavor ENDURO 145 €7.46
005
 photo_cameraImage coming soon 4.007.0328 THRUST BEARING 35X55X12 PT'03 €15.13
006
 photo_cameraImage coming soon 5.009.0837C BODY GUIDE+HEAD ASSEMBLED TS WITHOUT SUCTION (SPRING 13KG) - €82.24
007
 Motor Flange Collar for Pressure Washers Lavor RIDE 110 - RACE 125 4.008.1164 Motor Flange Collar for Pressure Washers Lavor RIDE 110 - RACE 125 €8.73
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

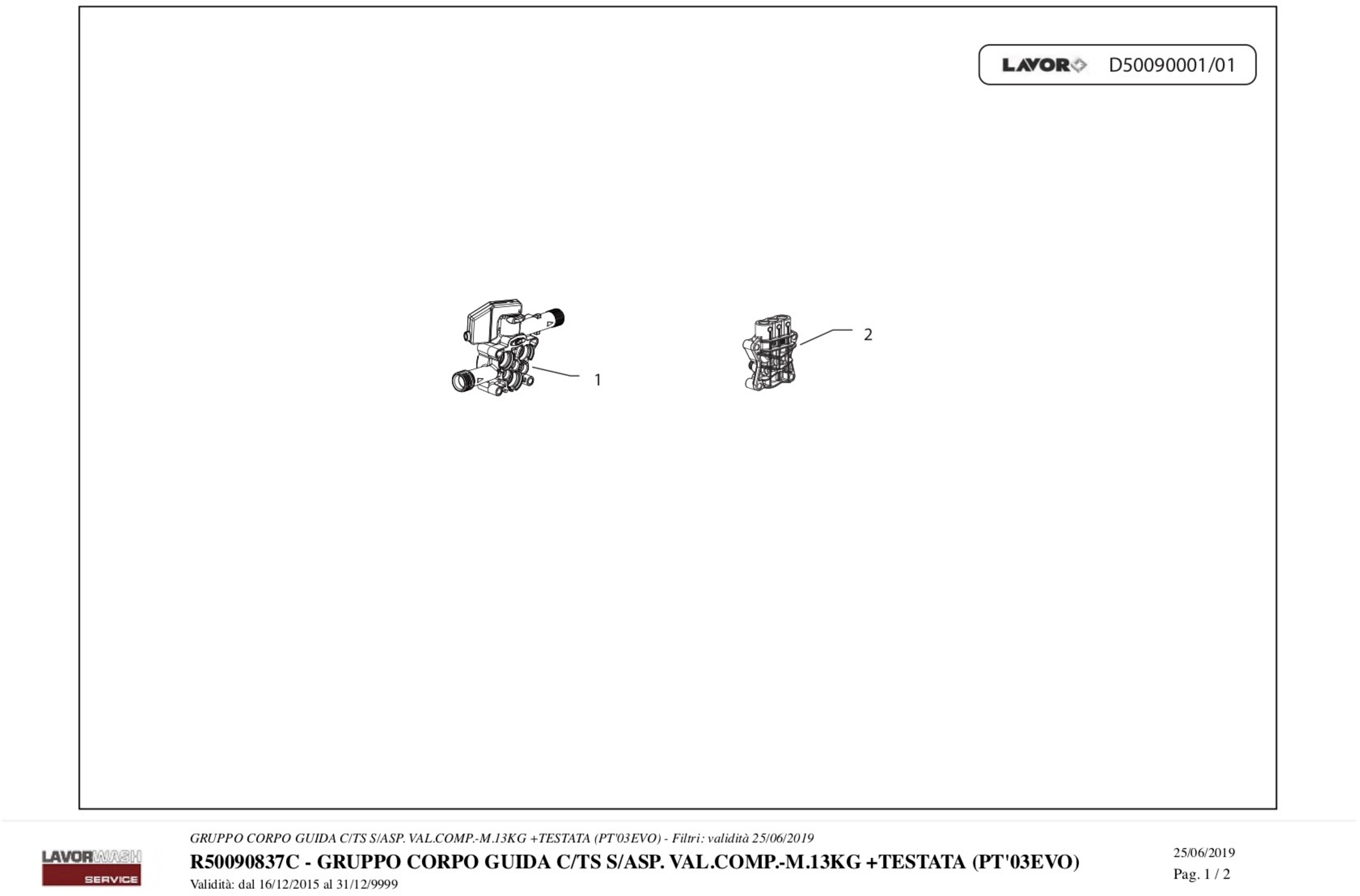

Esploso pagina 3
Pos. Item Price Buy
001
 photo_cameraImage coming soon 5.007.0248 BODY GUIDE ASSEMBLED PT'03EVOWITH TS/COMP.VALVE WITHOUT SUC €63.40
002
 Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145 5.008.0261 Head PT'03 EVO D.12 for Pressure Washer Lavor ENDURO 145 €28.99
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

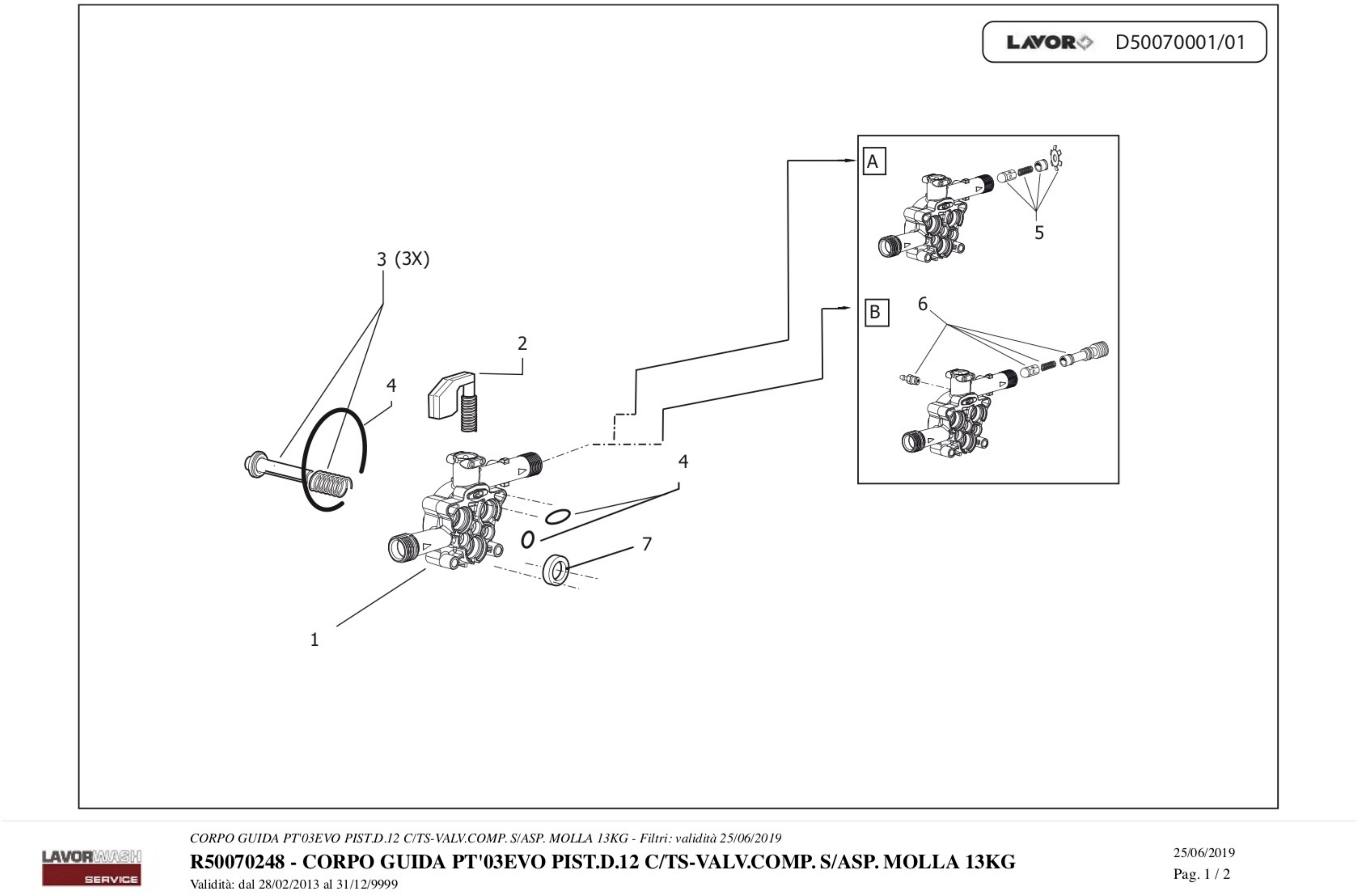

Esploso pagina 4
Pos. Item Price Buy
001
 photo_cameraImage coming soon 4.005.0299 PISTON BODY GUIDE PT'03EVO €22.92
002
 Kit Valve Total-Stop Automatic Stop System for Washers Lavor ARMY 110 5.009.0716 Kit Valve Total-Stop Automatic Stop System for Washers Lavor ARMY 110 €27.86
003
 Kit 167 LW 3 Pistons + Springs for Pressurte Washer Lavor BEST 24 6.005.0181 Kit 167 LW 3 Pistons + Springs for Pressurte Washer Lavor BEST 24 €25.98
004
 Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24 6.005.0226 Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24 €11.43
005
 Kit 256 Check Valve for Washer Lavor Predator 160 6.005.0281 Kit 256 Check Valve for Washer Lavor Predator 160 €15.93
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

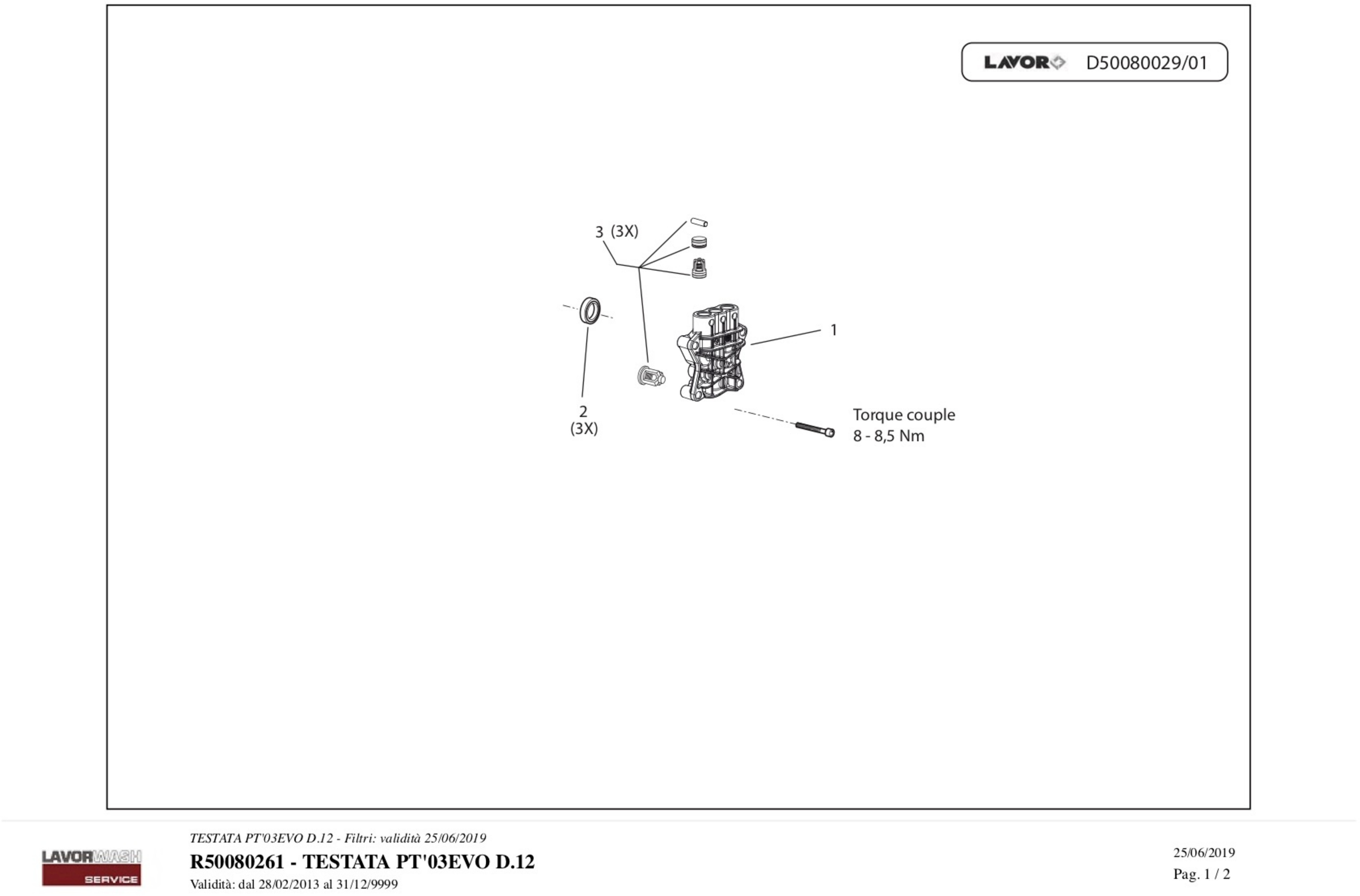

Esploso pagina 5
Pos. Item Price Buy
001
 photo_cameraImage coming soon 4.005.0298 PT''03EVO PARTNER HEAD €28.92
002
 Kit 124 Water Seal Partner for Pressurte Washer Lavor BEST 24 6.005.0133 Kit 124 Water Seal Partner for Pressurte Washer Lavor BEST 24 €14.54
003
 photo_cameraImage coming soon 6.005.0380 Sostituito da 6.005.0282 KIT 348 SPACER FOR WATER SEAL €13.17
003
 Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110 6.005.0588 Kit LW Intake Delivery Valves for High Pressure Washer ARMY 110 €27.72
004
 Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24 6.005.0079 Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24 €14.50
005
 Kit 358 LW Intake Delivery Valves for High Pressure Washer ARMY 110 6.005.0392 Kit 358 LW Intake Delivery Valves for High Pressure Washer ARMY 110 €23.00

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Original Parts for Pressure Cleaner GALAXY 150 - 80860075C

Fix Your Cold Water High Pressure Cleaner GALAXY 150 220-240/50-60 -G/N- TS EU 2L +SP.ROT. +SP.L25 - 80860075C.. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
Lavor GALAXY 150 - 80860075C

80860075C - IDRO GALAXY 150 220-240/50-60 -G/N- TS EU 2L +SP.ROT. +SP.L25 - Pag.1
# Part Num. Description
0 50010841C MOTOP.SP.PT'03EVO 230/50 C/TERM. 5'30 TS MOLLA 13KG (7645PF-KC)
001 5.011.0183 HANDLE + SILVER GRIP (STM P80.0502)
002 3.401.0178 SWITCH 0/1 BLACK BOTTON IP55 12/10
003 5.011.0216 ASSEMBLY FRONTAL COVER GALAXYW/TAMP.LAVOR (YELLOW)
004 4.013.0556C Substituted by 4.013.0556 1 Yes 1 BLACK FRONT CABINET FOR STM (P80.0425)
005 4.008.1172 AIR CONVEYOR FOR U76
006 4.008.1263 PROCESS BLACK C BACK CABINET STM (FOR UNIVERSAL MOTOR - P80.
007 4.008.1417 BLACK ACCESSORY HOLDER STORM STEAM B&S
008 4.008.1260 BLACK WHEEL STM/I-CLEAN (P80.0502)
009 4.012.0174C CABLE H05VV-F 2X1 MT.5,4 F/F SCHUKO PLUG W/FASTON COVER
010 6.001.0073 GUN S'09 WITH INTEGRAL QUICK JOINT LAVOR
011 4.018.0095 HOSE 1/4 180BAR L=6000 M22x1,5D.15-RAPID FIX
014 6.002.0361 LANCIA S'12 S/TESTINA C/ATT.RAP.-COGETIL + SPILLO
015 6.002.0635 NOZZLE HEAD LANCE S'12 D.0,9 (PINK) ADJUST.FAN JET W/QUICK C
016 6.002.0632 ROTOX NOZZLE HEAD LANCE S'12 D.1,025 WITH QUICK COUPLING - P
018 3.601.0035 Substituted by 3.601.0074 ROTATING HYDRO BRUSH W/HANDLE
019 6.002.0259 Substituted by 6.002.0358 FOAM SPRAYER WITH TRANSPARENTTANK
020 3.100.0082C BLACK QUICK COUPLING INLET CONNECTOR (THREAD=9.5)
021 7.100.2131 MANUALE SPECIFICO GALAXY/RUMBA +CE LAVOR 27L A5 16F
022 5.001.0841C MOTORPUMP PT'03EVO 230/50 TS W/THERMAL 5'30 (7645PF-KC)
023 3.601.0111 YELLOW FLOOR BRUSH L25 WITH EXTENSION (D.1,1)
027 4.008.1310 GREY INLET COVER PANT.877C (metallic) PAINTED (STORM II PLUS
028 4.008.1325 STORM/STM BLACK BASEMENT
50010841C - MOTOP.SP.PT'03EVO 230/50 C/TERM. 5'30 TS MOLLA 13KG Pag.2
0 50090837C GRUPPO CORPO GUIDA C/TS S/ASP. VAL.COMP.-M.13KG +TESTATA (PT'03EVO)
001 5.009.0979 7645PF-AL KC MOTOR 230/50 W/CAPACITOR-THERMAL
002 6.005.0311 THRUST RING KIT (PT'03 U76)
003 4.007.0205 PIN 10X70
004 5.009.0726 5'30 WOBBLE PLATE ASSEMBLY W/CROWN Z 62 (PT'03)
005 4.007.0328 THRUST BEARING 35X55X12 PT'03
006 5.009.0837C BODY GUIDE+HEAD ASSEMBLED TS WITHOUT SUCTION (SPRING 13KG) -
007 4.008.1164 RING FOR FLANGE X MOTOR U96AF/U76 -C-
50090837C - GRUPPO CORPO GUIDA C/TS S/ASP. VAL.COMP.-M.13KG +TESTATA Pag.3
0 50070248 CORPO GUIDA PT'03EVO PIST.D.12 C/TS-VALV.COMP. S/ASP. MOLLA 13KG
0 R50080261 TESTATA PT'03EVO D.12
001 5.007.0248 BODY GUIDE ASSEMBLED PT'03EVOWITH TS/COMP.VALVE WITHOUT SUC
002 5.008.0261 PT'03EVO HEAD D.12
50070248 - CORPO GUIDA PT'03EVO PIST.D.12 C/TS-VALV.COMP. S/ASP. Pag.4
001 4.005.0299 PISTON BODY GUIDE PT'03EVO
002 5.009.0716 COMPLETED VALVE TS PT'03 CABLEL=530 SPRING 13KG (WHITE FAST
003 6.005.0181 KIT 167 LW PISTON
004 6.005.0226 KIT 209 O-RING
005 6.005.0281 KIT 256 VALVE GUIDE RID. W/OSUCTION PT'03C
50080261 - TESTATA PT'03EVO D.12 Pag.5
001 4.005.0298 PT''03EVO PARTNER HEAD
002 6.005.0133 KIT 124 O-RING WATER SEAL PARTNER D.12
003 6.005.0380 KIT 348 SPACER FOR WATER SEAL
003 6.005.0588 KIT LW VALV.ASP./MAND.+TAPPI PT' 03EVO
004 6.005.0079 KIT 79 LW OIL SEALS
005 6.005.0392 KIT 358 LW HEAD VALVE KIT +CAPS PT'03EVO
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
