Lavorwash S.p.A.

Lavor SCL COMPACT FREE 45BT CBT Parts Rev. C

SKU: SCL COMPACT FREE 45BT CBT Rev C
€0.11
VAT included

Lavor Pro Original Parts for Floor Scrubber Drier SCL COMPACT FREE 45BT CBT Rev. C.

Lavor original spare parts for to replace broken parts for to fix Floor Scrubber Drier SCL COMPACT FREE 45BT CBT GRIGIO CH./GR SC. LWS - 8.515.1309 Rev. C.

Fix Your Floor Scrubber Drier SCL COMPACT FREE 45BT CBT. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts.

SCL COMPACT FREE 45BT CBT Parts Rev. C

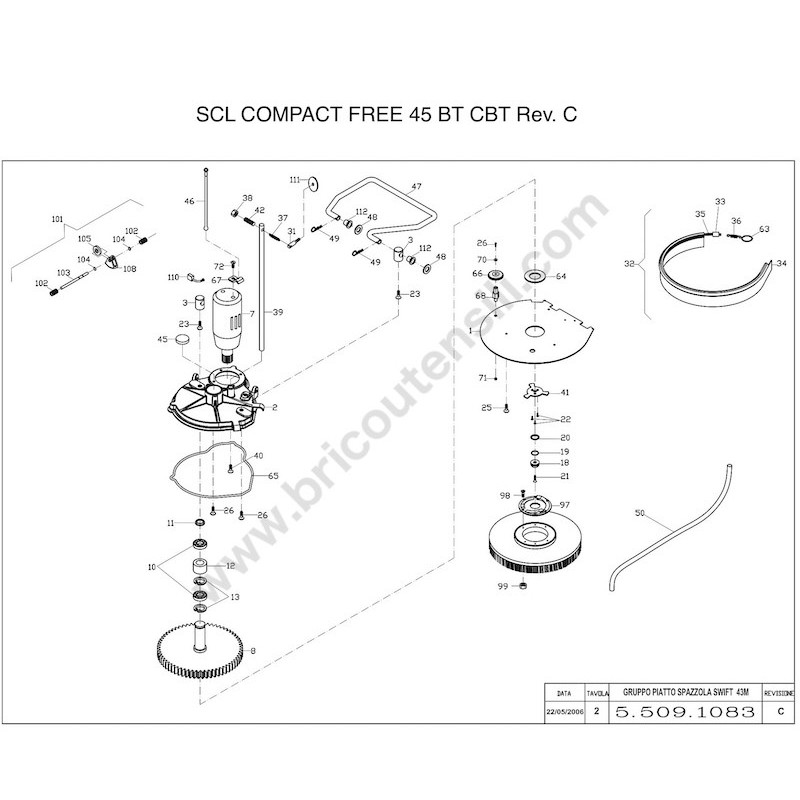

Lavor SCL COMPACT FREE 45BT CBT Rev. C Drawing
  • New
  • Out-of-Stock

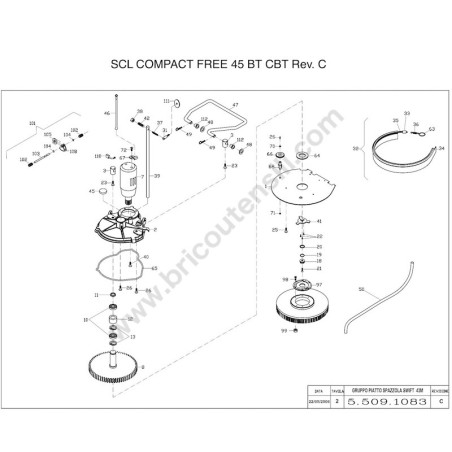

  • Lavor SCL COMPACT FREE 45BT CBT Rev. C Drawing
  • Lavor SCL COMPACT FREE 45BT CBT Rev. C Drawing - 1
  • Lavor SCL COMPACT FREE 45BT CBT Rev. C Drawing - 2
  • Lavor SCL COMPACT FREE 45BT CBT Rev. C Drawing - 3
  • Lavor SCL COMPACT FREE 45BT CBT Rev. C Drawing - 4
Lavorwash S.p.A.

Lavor SCL COMPACT FREE 45BT CBT Parts Rev. C

SKU: SCL COMPACT FREE 45BT CBT Rev C Condition: New
€0.11
VAT included

Lavor Pro Original Parts for Floor Scrubber Drier SCL COMPACT FREE 45BT CBT Rev. C.

Lavor original spare parts for to replace broken parts for to fix Floor Scrubber Drier SCL COMPACT FREE 45BT CBT GRIGIO CH./GR SC. LWS - 8.515.1309 Rev. C.

Fix Your Floor Scrubber Drier SCL COMPACT FREE 45BT CBT. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts.

SCL COMPACT FREE 45BT CBT Parts Rev. C

settings 229 Spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
Quantity
Out-of-Stock

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
Machine Type: Pressure Washer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
229 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.507.0918 FLAT WITH FORGED GEAR €106.27
3
 photo_cameraImage coming soon 4.508.0678 SWIFT B TIE ROD BAR -CTM0026- €10.52
7
 photo_cameraImage coming soon 5.501.0046 24V BRUSH MOTOR WITH GEAR €370.77
8
 photo_cameraImage coming soon 4.507.0872 DRIVEN WHEEL SWIFT B -CTM 0393- €99.77
10
 photo_cameraImage coming soon 3.001.0034 RADIAL BALL BEARING 6004 2RS (42x20x12) €4.82
11
 photo_cameraImage coming soon 3.099.0308 CIRCLIP D.20 UNI 7435 DIN 471 €1.68
12
 photo_cameraImage coming soon 4.507.0779 BEARING SPACER €3.72
13
 photo_cameraImage coming soon 3.099.0850 CIRCLIP D.42 UNI 7437 FOR HOLES €1.68
18
 photo_cameraImage coming soon 4.508.0290 HEMISPHOLE CENTERING CONNECTOR BRUSH €8.92
19
 photo_cameraImage coming soon 3.200.0127 OR CORD D=5.34 L=130 FOR VYTON BRUSH CONNECTOR €1.50
20
 photo_cameraImage coming soon 4.508.0314 SPLIT RING €10.25
21
 photo_cameraImage coming soon 3.002.0210 SCREW TCEI M6X25 STAINLESS STEEL UNI 5931 -BRNY006025 €1.59
22
 photo_cameraImage coming soon 3.002.0221 STAINLESS STEEL DIN 7991 M6X16 TSPEI SCREW €1.68
23
 photo_cameraImage coming soon 3.002.0638 SCREW TSPEI M10X20 UNI 5933 STAINLESS STEEL €3.32
25
 photo_cameraImage coming soon 3.002.0631 TRILOBULAR TORX SCREW TC M6X16 STAINLESS STEEL DIN 7500C €1.59
26
 photo_cameraImage coming soon 3.002.0204 TCEI SCREW M6X12 STAINLESS STEEL DIN 912 €1.68
31
 photo_cameraImage coming soon 4.506.0034 SPRING COUPLING PIN €3.23
32
 photo_cameraImage coming soon 5.511.0708 NEW SWIFT BOOMPER ASSEMBLY €99.71
34
 photo_cameraImage coming soon 5.511.1358 SWIFT 43 BUMPER ASSEMBLY €55.40
36
 photo_cameraImage coming soon 3.099.1022 EXP. B TENSION SPRING €3.23
37
 photo_cameraImage coming soon 4.507.0966 BRUSH PLATE TENSION SPRING €11.82
38
 photo_cameraImage coming soon 3.003.0034 SELF-LOCKING NUT M8 STAINLESS STEEL DIN 982 -D AAY008000- €1.59
39
 photo_cameraImage coming soon 4.507.0990 PLATE REACTION ROD €11.81
40
 photo_cameraImage coming soon 3.002.0329 SCREW TCEI M8X16 UNI 5931 €1.59
41
 photo_cameraImage coming soon 4.507.0300 BRUSH CONNECTOR €28.65
42
 photo_cameraImage coming soon 4.506.0203 PLATE ROD ADJUSTMENT PIN €5.62
45
 photo_cameraImage coming soon 3.099.0848 HOLE COVER CAPS D.42 SP7 SHAPE CC €14.38
46
 photo_cameraImage coming soon 3.099.0974 FIXED CABLE FOR BRUSH PLATE LIFTING SWIFT B €20.20
47
 photo_cameraImage coming soon 4.507.0961 PLATE LIFT LEVER BRUSH €35.60
48
 photo_cameraImage coming soon 3.004.0110 FLAT WASHER 14X24 Th. 2.5 STAINLESS STEEL UNI 6593 €0.98
49
 photo_cameraImage coming soon 3.099.0314 SPRING COTTAGE PIN DIAM. 2, LENGTH 50, WITH DOUBLE EYELET €3.89
50
 photo_cameraImage coming soon 3.099.0865 ARMONVILLE TUBE DIAM. 14 L=720mm €51.96
63
 photo_cameraImage coming soon 3.099.1082 OPENING EYELET (KEY RING MODEL) DIAMETER 25 €1.68
64
 photo_cameraImage coming soon 4.508.0859 PLATE SPLASH GUARD SEAL €8.76
65
 photo_cameraImage coming soon 4.508.1174 INLET BOX SEAL L=845 SWIFT B-E €3.26
66
 photo_cameraImage coming soon 4.508.0224 BUMPER PROTECTION WHEEL €15.53
67
 photo_cameraImage coming soon 4.507.0854 SQUEEGEE LIFT WIRE BRACKET €4.12
68
 photo_cameraImage coming soon 4.507.0308 BUMPER WHEEL SUPPORT 1 €8.31
70
 photo_cameraImage coming soon 3.004.0137 FLAT WASHER 6.4X24 UNI 6593 STAINLESS STEEL €1.59
71
 photo_cameraImage coming soon 3.003.0033 SELF-LOCKING NUT M10 STAINLESS STEEL DIN 985 -DAAY010000- €1.59
72
 photo_cameraImage coming soon 3.002.0241 SCREW TSPEI M5X16 STAINLESS STEEL DIN 7991 -BSVY005016- €1.59
97
 photo_cameraImage coming soon 4.508.1192 SYMMETRICAL BRUSH CONNECTOR PLATE EXP. A €15.09
98
 photo_cameraImage coming soon 3.002.0222 SCREW TSPEI M5X25 STAINLESS STEEL UNI 5933 -BSVY005025- €1.59
99
 photo_cameraImage coming soon 3.003.0035 SELF-LOCKING NUT M5 STAINLESS STEEL DIN 982 -D AAY005000- €1.59
101
 photo_cameraImage coming soon 5.511.0991 DIE-CAST SWIFT B DECK LIFT AXLE ASSEMBLY €36.26
102
 photo_cameraImage coming soon 4.508.0764 13x20 TUBE FOR SWIFT AXLE €3.68
103
 photo_cameraImage coming soon 4.507.1018 LONG PULLEY AXLE 1 €4.25
104
 photo_cameraImage coming soon 3.099.0311 SEEGER RING DIAM.8 UNI 7435 €1.59
105
 photo_cameraImage coming soon 4.506.0141 CABLE RETURN PULLEY SQG €7.10
108
 photo_cameraImage coming soon 4.506.0142 PULLEY FORK €1.72
110
 photo_cameraImage coming soon 3.499.0067 CHARCOAL BRUSH 7X14X19 EC40TERM 4.4 €27.30
112
 photo_cameraImage coming soon 3.099.1271 FLANGED BUSHING IGUS GFM-1517-20 €4.70
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.505.0105 DIE-CAST V-SHAPED SQUEEGEE BODY L=780mm €63.22
2
 photo_cameraImage coming soon 5.513.0197 FIXED SQUEEGEE SUPPORT €109.41
3
 photo_cameraImage coming soon 4.508.0505 RUBBER WIPER SUPPORT €41.86
4
 photo_cameraImage coming soon 4.505.0123 SQG ADJUSTMENT WHEEL HOLDER ARM €16.56
5
 photo_cameraImage coming soon 4.507.0829 DIE-CAST SQUEEGEE COUPLING PIN €38.28
6
 photo_cameraImage coming soon 3.006.0075 SQUEGEE WHEEL D.50X21 D.8 IN RUBBER €3.32
7
 photo_cameraImage coming soon 3.004.0047 FLAT WASHER D.6x12 Th.2 UNI 6592 STAINLESS STEEL -RONY061200- €1.68
8
 photo_cameraImage coming soon 3.002.0357 TCEI SCREW M6x50 UNI 5931 STAINLESS STEEL €1.68
9
 photo_cameraImage coming soon 3.099.0057 SEEGER RING E D.12 UNI 7435 €1.59
10
 photo_cameraImage coming soon 3.004.0052 FLAT WASHER D.12X24 Th. 2.5 UNI 6593 STAINLESS STEEL €1.68
11
 photo_cameraImage coming soon 3.003.0028 HIGH SELF-LOCKING NUT M6 STAINLESS STEEL DIN 982 -DAAY006000- €1.59
12
 photo_cameraImage coming soon 3.003.0054 NUT M8 UNI 5588 STAINLESS STEEL €1.59
13
 photo_cameraImage coming soon 3.002.0480 GRUB SCREW STEI M8X60 UNI 5923 STAINLESS STEEL €3.38
14
 photo_cameraImage coming soon 3.099.0467 M8 THROUGH FLYWHEEL 177/30 €3.98
15
 photo_cameraImage coming soon 4.508.0208 SQUEEGEE COUPLING BALL €1.68
16
 photo_cameraImage coming soon 3.099.1265 EXTENDED LOBE HANDWHEEL D.52M8 €4.71
18
 photo_cameraImage coming soon 3.004.0137 FLAT WASHER 6.4X24 UNI 6593 STAINLESS STEEL €1.59
19
 photo_cameraImage coming soon 4.508.0224 BUMPER PROTECTION WHEEL €15.53
20
 photo_cameraImage coming soon 4.507.0831 BUFFER WHEEL SUPPORT FOR DIE-CAST SQUEEGEE €10.28
21
 photo_cameraImage coming soon 3.002.0383 TRILOBULAR TORX SCREW TC M5X12 STAINLESS STEEL DIN 7500C €1.59
22
 photo_cameraImage coming soon 4.508.0617 V-SHAPED SQUEEGEE SIPHON COVER, INCLINED DEFLECTION SLEEVE €3.99
24
 photo_cameraImage coming soon 4.507.1076 REGISTER COMPRESSION SPRING €1.68
25
 photo_cameraImage coming soon 3.002.0271 TCEI SCREW M6x20 UNI 5931 STAINLESS STEEL -BRNY006020- €1.68
26
 photo_cameraImage coming soon 4.506.0132 SQUEEGE WHEEL BUSH €3.32
28
 photo_cameraImage coming soon 4.508.0468 BLADE L. 830 TH. 3 €8.97
29
 photo_cameraImage coming soon 4.507.1071 SQUEEGEE REGISTER €10.42
30
 photo_cameraImage coming soon 4.507.1070 MOBILE SQUEEGEE SUPPORT REV. B €93.93
31
 photo_cameraImage coming soon 4.506.0229 SQUEEGEE FULCRUM BUSHING €6.42
32
 photo_cameraImage coming soon 3.099.1189 LOBATED WASHER D. 40 M8 H12 RED COD16 €4.06
37
 photo_cameraImage coming soon 4.507.0854 SQUEEGEE LIFT WIRE BRACKET €4.12
38
 photo_cameraImage coming soon 3.002.0204 TCEI SCREW M6X12 STAINLESS STEEL DIN 912 €1.68
39
 photo_cameraImage coming soon 3.004.0094 FLAT WASHER D. 8X17 THICKNESS 1.6 UNI6592 STAINLESS STEEL -RONY081700- €1.59
40
 photo_cameraImage coming soon 5.511.0644 DIE-CAST SQUEEGEE CASTOR WHEEL ASSEMBLY WALK-BEHIND RIGHT €23.99
41
 photo_cameraImage coming soon 5.511.1122 DIE-CAST SQUEEGEE ASSEMBLY WALK-BEHIND F1 STEEL SUPP. €217.20
42
 photo_cameraImage coming soon 5.511.1446 ADJUSTMENT SQUEGEE SUPPORT ASSEMBLY SWIFT/FREE TRACTION €130.75
43
 photo_cameraImage coming soon 3.002.0215 TCEI SCREW M8X20 UNI 5931 STAINLESS STEEL €1.68
45
 photo_cameraImage coming soon 3.002.0495 3.002.0495 €1.59
46
 photo_cameraImage coming soon 3.003.0035 SELF-LOCKING NUT M5 STAINLESS STEEL DIN 982 -D AAY005000- €1.59
49
 photo_cameraImage coming soon 5.511.0696 5.511.0696 €25.12
52
 photo_cameraImage coming soon 3.002.0204 TCEI SCREW M6X12 STAINLESS STEEL DIN 912 €1.68
53
 photo_cameraImage coming soon 4.508.0467 BLADE L. 870 TH. 4 €10.25
56
 photo_cameraImage coming soon 4.505.0201 BALL-MOTOR LOCKING PLATE WITH TRACTION €28.65
57
 photo_cameraImage coming soon 3.099.1109 M8 THROUGH HANDWHEEL RED RAL3000-F177/30 €3.75
60
 photo_cameraImage coming soon 3.002.0214 M6X16 STAINLESS STEEL UNI 5931 SCREW €1.68
62
 photo_cameraImage coming soon 3.004.0052 FLAT WASHER D.12X24 Th. 2.5 UNI 6593 STAINLESS STEEL €1.68
64
 photo_cameraImage coming soon 3.200.0168 SEAL OR 36.2X3.53 NBR SH.70 REF.4143 €1.67
65
 photo_cameraImage coming soon 3.200.0172 3275 O-RING €1.63
66
 photo_cameraImage coming soon 4.507.1072 SQUEGEE ADJUSTMENT PIN €11.32
67
 photo_cameraImage coming soon 3.004.0137 FLAT WASHER 6.4X24 UNI 6593 STAINLESS STEEL €1.59
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5.513.0134 COMPLETE LEVER SUPPORT €30.96
2
 photo_cameraImage coming soon 3.004.0124 CONVEX SPRING WASHER 10.5X18X0.8 DIN 137A €1.68
3
 photo_cameraImage coming soon 4.507.0845 DISTANCE FOR LEVERS D.10X8 €1.72
4
 photo_cameraImage coming soon 4.507.0700 TANK LOCKING BRACKET €10.32
5
 photo_cameraImage coming soon 4.507.0701 TANK LOCKING PIN €15.40
6
 photo_cameraImage coming soon 4.507.0707 TANK LOCKING SPRING €3.32
7
 photo_cameraImage coming soon 3.099.0307 BLACK TIE ROD HANDLE MODEL MT/58/FFC-M6 €3.32
8
 photo_cameraImage coming soon 4.508.0739 SPONGE FILTER €1.63
9
 photo_cameraImage coming soon 4.508.0738 TANK ROTATION TUBE €6.22
10
 photo_cameraImage coming soon 5.513.0132 SQUEEGEE LIFTER LEVER ASSEMBLY WITH PIN €48.67
11
 photo_cameraImage coming soon 4.508.0971 SPECIAL LEVER HANDLE €7.04
12
 photo_cameraImage coming soon 3.099.1329 STAINLESS STEEL CABLE D.2.5X133 L=670+SHEATH FOR SQG €14.96
13
 photo_cameraImage coming soon 4.507.1207 M8 WHITE ZNT WIRE HOLDER PIN FOR SCL EASY Ext. 03 €14.38
14
 photo_cameraImage coming soon 3.002.0597 M4X10 UNI 5931 STAINLESS STEEL CAP SCREW €1.68
15
 photo_cameraImage coming soon 5.513.0133 BRUSH LIFTER LEVER ASSEMBLY WITH PIN €48.67
16
 photo_cameraImage coming soon 3.004.0094 FLAT WASHER D. 8X17 THICKNESS 1.6 UNI6592 STAINLESS STEEL -RONY081700- €1.59
17
 photo_cameraImage coming soon 3.099.0881 C.INX D.2.5X133 G2/B4+PR.L=685 €32.39
19
 photo_cameraImage coming soon 4.506.0141 CABLE RETURN PULLEY SQG €7.10
20
 Drain Hose Cap for Floor Scrubber Drier SCL QUICK 36B CBT 4.208.0274 Drain Hose Cap for Floor Scrubber Drier SCL QUICK 36B CBT €5.35
22
 photo_cameraImage coming soon 4.507.0708 PIN FOR PULLEY L=118 €6.41
23
 photo_cameraImage coming soon 3.099.1010 SWIFT B AXLE RETAINING TUBE L=25 €39.67
24
 photo_cameraImage coming soon 5.511.0937 TANK DRAIN CAP ASSEMBLY W/OR FREE/SWIFT €28.80
26
 photo_cameraImage coming soon 3.755.0060 MOTORE SPAZZ.ASPIR.BISTADIO 24 V €0.00 Not available for order
28
 photo_cameraImage coming soon 3.099.1011 SWIFTB AXLE HOLDER HOSE L=30 €44.73
29
 photo_cameraImage coming soon 4.507.0699 CABLE PROTECTION €29.49
30
 photo_cameraImage coming soon 3.099.0330 SLEEVE FOR INTAKE HOSE 32/38 €5.50
31
 photo_cameraImage coming soon 4.508.0770 RUBBER FILTER €9.22
33
 photo_cameraImage coming soon 4.508.0477 SWIFT/FREE SOLUTION LOWER TANK GR.SC.RAL.7021 €540.11
34
 photo_cameraImage coming soon 4.507.0709 TAP WIRE LOCKING PIN €4.06
37
 photo_cameraImage coming soon 3.099.0343 PIPE STOP CLIP DIAM.40 €3.26
38
 photo_cameraImage coming soon 3.002.0221 STAINLESS STEEL DIN 7991 M6X16 TSPEI SCREW €1.68
39
 photo_cameraImage coming soon 4.508.1298 SUCTION COVER GASKET FOR FREE AND STAINLESS STEEL €30.24
40
 photo_cameraImage coming soon 5.511.0698 COMPACT FLOAT ASSEMBLY €34.90
46
 photo_cameraImage coming soon 4.508.0936 1/2G NOX TANK DRAIN PLUG €10.46
47
 photo_cameraImage coming soon 4.408.0224 FLOAT BASKET ASSEMBLY AND VACUUM DRUM GV €4.33
48
 photo_cameraImage coming soon 4.508.0866 WHEEL SUPPORT SWIFT B -CTM0148 FOR WHEEL AXIS 160 €1.94
49
 photo_cameraImage coming soon 3.006.0128 PIVOT WHEEL D.80 POLYURETHANE 98SHA STAINLESS STEEL HOUSING+SCREW M12X80 €72.81
50
 photo_cameraImage coming soon 4.507.0917 SPONGE LOCKING PLATE -FREE- EXP.00 €13.62
51
 photo_cameraImage coming soon 4.508.0766 SEAL FOAM PPI20 €13.57
52
 photo_cameraImage coming soon 3.002.0542 M6X12 SCREW TE STAINLESS STEEL UNI 5739 €1.68
53
 photo_cameraImage coming soon 3.006.0118 WHEEL D160 POLYURETHANE 98 SH A WITH RIGHT FREEWHEEL d=17 €107.81
55
 photo_cameraImage coming soon 3.099.0519 CIRCLIP D.14 UNI 7435 €1.68
56
 photo_cameraImage coming soon 3.001.0034 RADIAL BALL BEARING 6004 2RS (42x20x12) €4.82
57
 photo_cameraImage coming soon 4.507.0988 MOTOR SHAFT SWIFT BATT. TRACTION DRIVE _ C €41.79
61
 photo_cameraImage coming soon 4.507.0793 LEVER SUPPORT PLATE €1.72
62
 photo_cameraImage coming soon 4.508.0768 CIRCULAR SEALING FOAM PPI20 €1.60
63
 photo_cameraImage coming soon 3.002.0326 SCREW TCEI M8X25 INOX UNI 5931 €1.59
64
 photo_cameraImage coming soon 5.509.0629 COMPACT INTAKE PIPE ASSEMBLY WITH SLEEVES €54.38
65
 photo_cameraImage coming soon 3.752.0167 AIR OUTLET TUBE D.51 L.300 mm €33.45
66
 photo_cameraImage coming soon 4.508.0803 TANK ROTATION SPACER €3.39
67
 photo_cameraImage coming soon 3.752.0060 FLEXIBLE EXHAUST TUBE RECUP. TANK D.31.5 L=550 1 €18.18
68
 photo_cameraImage coming soon 3.100.0339 HOSE CONNECTOR 3/8 €14.42
69
 photo_cameraImage coming soon 3.099.0868 BALL VALVE 3/8 €28.65
70
 photo_cameraImage coming soon 4.506.0150 THREADED PIPE G 3/8 €3.72
71
 photo_cameraImage coming soon 4.506.0137 WASHER FOR OR 4075 €3.83
72
 photo_cameraImage coming soon 3.200.0162 OR SEAL 18.64X3.53 NBRSH70 (4075) €1.63
74
 photo_cameraImage coming soon 4.508.0689 FIXING WHEEL AXLE €1.73
77
 photo_cameraImage coming soon 4.508.1253 FREE TANK GASKET €9.83
79
 photo_cameraImage coming soon 3.003.0433 M8 SELF-LOCKING NUT, LOW, STAINLESS STEEL UNI 7474 €1.68
81
 photo_cameraImage coming soon 4.508.0551 FREE UPPER RECOVERY TANK €211.62
82
 photo_cameraImage coming soon 4.508.0552 PANDA BUTTON €59.39
83
 photo_cameraImage coming soon 3.002.0681 M8X70 UNI7380 STAINLESS STEEL HEXAGON SOCKET BUTTON HEAD SCREW €10.59
85
 photo_cameraImage coming soon 3.002.0214 M6X16 STAINLESS STEEL UNI 5931 SCREW €1.68
87
 photo_cameraImage coming soon 3.002.0204 TCEI SCREW M6X12 STAINLESS STEEL DIN 912 €1.68
89
 photo_cameraImage coming soon 3.002.0665 SELF-TAPPING SCREW 4.8x16 €1.68
90
 photo_cameraImage coming soon 4.506.0142 PULLEY FORK €1.72
91
 photo_cameraImage coming soon 3.002.0673 SCREW TCEI M10X16 UNI 5931 STAINLESS STEEL €4.14
92
 photo_cameraImage coming soon 4.507.0713 FREE SUCTION COVER GASKET KIT €14.01
96
 photo_cameraImage coming soon 3.004.0052 FLAT WASHER D.12X24 Th. 2.5 UNI 6593 STAINLESS STEEL €1.68
98
 photo_cameraImage coming soon 3.004.0049 FLAT WASHER D.8X24X2 UNI 6593 STAINLESS STEEL €1.68
101
 photo_cameraImage coming soon 3.002.0367 GRUB SCREW STEI M6X40 UNI 5923 STAINLESS STEEL €1.06
102
 photo_cameraImage coming soon 3.003.0434 SELF-LOCKING NUT M6 ZNT PRESS, WIDE BASE D=14 €1.68
105
 photo_cameraImage coming soon 3.002.0537 TCEI SCREW M8X16 UNI 5931 STAINLESS STEEL €1.68
110
 photo_cameraImage coming soon 4.507.1147 LEFT SHAFT PIN FOR BRUSH MOTOR TRACTION DRIVE _ B €25.49
111
 photo_cameraImage coming soon 3.004.0137 FLAT WASHER 6.4X24 UNI 6593 STAINLESS STEEL €1.59
112
 photo_cameraImage coming soon 3.099.1066 CAP FOR WHEEL - GREY €14.80
113
 photo_cameraImage coming soon 3.004.0060 FLAT WASHER D.6X18 Th.1.6 UNI 6593 STAINLESS STEEL-RONY061800- €1.59
123
 photo_cameraImage coming soon 4.505.0160 LAMB EXTRACTOR LOCKING BRACKET €7.14
124
 photo_cameraImage coming soon 4.508.0163 EXTRACTOR MOTOR SEAL Thickness 19mm EXP. D €11.25
125
 photo_cameraImage coming soon 4.507.0893 BENT RETAINING BRACKET -FREE- Exp. 01 €12.31
140
 photo_cameraImage coming soon 3.099.1224 KEY 5X5X10 UNI 6604B FLAT ENDS €1.59
141
 photo_cameraImage coming soon 4.508.1161 DRILLED WHEEL CAP €3.26
142
 photo_cameraImage coming soon 4.506.0199 SHAFT SUPPORT BUSHING €3.89
143
 photo_cameraImage coming soon 4.506.0184 SHIM RING FOR GEARBOX €3.23
144
 photo_cameraImage coming soon 3.099.1123 STM RMI 28 PP GEARBOX I=1/10 PREDISPOSABLE FOR MOTOR ATTACHMENT €365.17
145
 photo_cameraImage coming soon 5.501.0048 S78L MOTOR 24V 8.5A 200W 1200RPM - COD. MMP3702 - €202.53
146
 photo_cameraImage coming soon 3.099.1116 KEY 5X5X50 UNI 6604A €1.68
147
 photo_cameraImage coming soon 4.507.1148 RIGHT SHAFT PIN FOR BRUSH MOTOR TRACTION DRIVE _ C €25.49
150
 photo_cameraImage coming soon 3.006.0117 WHEEL D160 POLYURETHANE 98 SH A WITH LEFT FREEWHEEL d=17 €107.81
151
 photo_cameraImage coming soon 3.099.0322 KEY 3X3X15 UNI 6604A €1.68
152
 photo_cameraImage coming soon 3.099.1230 SEEGER RING FOR SHAFT D.19 UNI 7435 €1.59
153
 photo_cameraImage coming soon 4.507.1159 VACUUM MOTOR ANTI-ROTATION PLATE _ 00 €6.43
154
 photo_cameraImage coming soon 3.002.0234 GRUB SCREW STEI M6X12 CONICAL STAINLESS STEEL DIN 914 -GTCY006012- €1.59
155
 photo_cameraImage coming soon 3.003.0051 SELF-LOCKING NUT M12 STAINLESS STEEL €1.59
156
 photo_cameraImage coming soon 3.099.1249 COMPLETE WATER CONTROL LEVER FREE €33.12
157
 photo_cameraImage coming soon 3.003.0028 HIGH SELF-LOCKING NUT M6 STAINLESS STEEL DIN 982 -DAAY006000- €1.59
158
 photo_cameraImage coming soon 4.507.1174 MINIMONEY HOLDER SHEET METAL €34.49
159
 photo_cameraImage coming soon 4.507.1172 LOWER SUPPORT FOR TAP 2 CABLES -FREE- €8.80
160
 photo_cameraImage coming soon 3.099.1193 BLACK RUBBER COVER CAP €1.59
161
 photo_cameraImage coming soon 4.507.1170 TAP LEVER 2 CABLES -FREE- €46.14
162
 photo_cameraImage coming soon 4.507.1207 M8 WHITE ZNT WIRE HOLDER PIN FOR SCL EASY Ext. 03 €14.38
163
 photo_cameraImage coming soon 3.499.0301 CARBON BRUSH FOR VACUUM MOTOR LAMB MOD 33494-1 €11.58
164
 photo_cameraImage coming soon 4.508.1292 FLOAT CLOSING TUBE FREE ESP.00 €3.40
165
 photo_cameraImage coming soon 4.508.0729 WATER LEVER SPACER SWIFT -CTM0225- €3.67
166
 photo_cameraImage coming soon 3.004.0115 FLAT WASHER D.5X15 UNI 6593 STAINLESS STEEL €1.01
167
 photo_cameraImage coming soon 3.002.0562 SELF-TAPPING SCREW TC-TC 2.9X19 UNI 6954 STAINLESS STEEL €1.59
168
 photo_cameraImage coming soon 3.004.0066 BELLEVILLE SPRING WASHER "BAUER" DIN2093 28X14.2X1.5 €1.59
169
 photo_cameraImage coming soon 3.003.0405 NUT M12 UNI 5588 STAINLESS STEEL €3.15
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
3
 photo_cameraImage coming soon 3.499.0144 FEMALE CONNECTOR FOR MALE TERMINAL 50A 6-WAY 428180612 €11.58
5
 photo_cameraImage coming soon 3.401.0075 THERMAL CIRCUIT BREAKER 35A SM7350 -DSG0350001 €15.40
6
 photo_cameraImage coming soon 3.401.0073 THERMAL CIRCUIT BREAKER 12A SM7120 -DSG0120001 €21.05
7
 photo_cameraImage coming soon 3.401.0113 MICROSWITCH SXG02-88-J23 €14.52
8
 photo_cameraImage coming soon 3.402.0017 AUTOMOTIVE RELAY CB1AH-24V-70A €28.10
11
 photo_cameraImage coming soon 4.507.0522 SPRING €3.49
12
 photo_cameraImage coming soon 4.507.0706 DEMAND LEVER €29.49
13
 photo_cameraImage coming soon 4.507.0659 4.507.0659 €6.75
14
 photo_cameraImage coming soon 4.508.0396 ELECTRIC BOX COVER WASHER DRYER U.A.T. €30.94
15
 photo_cameraImage coming soon 4.508.0397 ELECTRICAL BOX BASE WASHER DRYER U.A.T. €30.94
16
 photo_cameraImage coming soon 3.499.0029 RED SR50 CONNECTOR -CNP0AND 001- €14.10
17
 photo_cameraImage coming soon 3.099.0808 3.099.0808 €12.58
22
 photo_cameraImage coming soon 3.410.0022 RELAY HOLDER BASE €29.49
23
 photo_cameraImage coming soon 0.108.0025 ON-BOARD BATTERY CHARGER POWER CABLE EU SCHUKO PLUG €8.50
24
 photo_cameraImage coming soon 5.511.0703 BATTERY CONNECTION CABLE SET €52.14
25
 photo_cameraImage coming soon 4.507.0635 ANDERSON SOCKET BRACKET 1 €29.49
26
 photo_cameraImage coming soon 3.405.0045 MEC TERMINAL BLOCK 58470-45 -CNTO MOR001- €8.32
27
 photo_cameraImage coming soon 4.512.0013 4.512.0013 €7.26
28
 photo_cameraImage coming soon 4.512.0014 4.512.0014 €10.41
29
 photo_cameraImage coming soon 0.108.0042 CHARGER NE286-L 24V 10A €319.12
30
 photo_cameraImage coming soon 4.515.0001 24V FUNCTION AND TRACTION CONTROL BOARD WITH BATTERY INDICATOR €269.00
31
 photo_cameraImage coming soon 3.499.0406 3.499.0406 €53.22
32
 photo_cameraImage coming soon 5.511.0673 BATTERY CONNECTION WIRING ASSEMBLY W/ EYELET CABLE €13.12
33
 photo_cameraImage coming soon 5.509.0556 5.509.0556 €52.36
34
 photo_cameraImage coming soon 3.002.0260 STAINLESS STEEL M4X12 TCEI SCREW 5931 -BRNY004012- €1.68
37
 photo_cameraImage coming soon 3.499.0152 RING LUGGAGE LUGS L32 M8 FOR 10-25mm CABLES €1.68
38
 photo_cameraImage coming soon 7.503.0085 ADJUSTMENT CONANDI SCL EASY-R LV 146x88mm POLYESTER €14.38
39
 photo_cameraImage coming soon 7.503.0086 7.503.0086 €9.89
40
 photo_cameraImage coming soon 3.004.0083 EXTERNAL TOOTHED WASHER 6.4x12 ZNT UNI3703 €1.68
53
 photo_cameraImage coming soon 5.511.0986 COMPACT FREE TRACTION ELECTRIC BOX WITH WIRING €660.20
54
 photo_cameraImage coming soon 5.511.0986 COMPACT FREE TRACTION ELECTRIC BOX WITH WIRING €660.20
56
 photo_cameraImage coming soon 3.499.0135 60A TAPE FUSE CENTRE DISTANCE 30MM €1.72
60
 photo_cameraImage coming soon 4.007.0135 SPRING FOR VALVE PIST.D.8 L.24 THREAD D1.3 STEP 3.5 STAINLESS STEEL EXP.01 €3.23
61
 photo_cameraImage coming soon 3.099.0755 SEEGER RING DIAM.4 INTERNAL UNI 7435 €1.68
62
 photo_cameraImage coming soon 4.507.0497 SUPPORT FOR PIN TH.1.5 WHITE ZINC. FOR SCL DRAWING LEVER Exp.01 €4.98
63
 photo_cameraImage coming soon 4.507.0498 CONTRASTING PIN WHITE ZINC. FOR SCL DRAWING LEVER Exp.00 €1.68
64
 photo_cameraImage coming soon 3.004.0002 FLAT WASHER 4.3X9sp.0,8 UNI6592 ZNT €1.72
65
 photo_cameraImage coming soon 3.002.0517 3.002.0517 €1.59
66
 photo_cameraImage coming soon 3.004.0047 FLAT WASHER D.6x12 Th.2 UNI 6592 STAINLESS STEEL -RONY061200- €1.68
67
 photo_cameraImage coming soon 3.002.0271 TCEI SCREW M6x20 UNI 5931 STAINLESS STEEL -BRNY006020- €1.68
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 7.503.0157 7.503.0157 €21.85
3
 photo_cameraImage coming soon 7.503.0150 7.503.0150 €30.27

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Pro Original Parts for Floor Scrubber Drier SCL COMPACT FREE 45BT CBT Rev. C.

Lavor original spare parts for to replace broken parts for to fix Floor Scrubber Drier SCL COMPACT FREE 45BT CBT GRIGIO CH./GR SC. LWS - 8.515.1309 Rev. C.

In the following tables, look for the spare part and its respective code.
SCL COMPACT FREE 45BT CBT - 8.515.1309 Rev.C.

LAVOR SCL COMPACT FREE 45 BT CBT 8.515.1309 Rev. C
SWIFT 43M BRUSH PLATE GROUP
# Part Num. Description
1 4.507.0918 BRUSH PLATE FOR SWIFT B WITH FORGED GEAR _D
2 4.505.0149 SWIFT B BRUSH PLATE BOX
3 4.508.0678 SWIFT B TIE ROD BAR -CTM0026-
7 5.501.0046 BRUSH MOTOR 24V WITH GEAR -MMP3604-
8 4.507.0872 DRIVEN WHEEL SWIFT B -CTM 0393-
10 3.001.0034 DEEP GROOVE BALL BEARING 60042RS (42x20x12)
11 3.099.0308 SEEGER RING DIAM.20 UNI 7435 DIN 471 -ASAH020012-
12 4.507.0779 BEARING SPACER SWIFT B -CTM0277-
13 3.099.0850 SEEGER RING D.42 UNI 7437 FOR BORE
18 4.508.0290 BRUSH COUPLING CENTERING HALF-SPHERE -WIN0804-
19 3.200.0127 O-RING CORD D=5.34 L=113 FOR VITON BRUSH COUPLING
20 4.508.0314 SPLIT RING
21 3.002.0210 SCREW TCEI M6X25 STAINLESS STEEL UNI 5931 -BRNY006025
22 3.002.0221 SCREW TSPEI M6X16 STAINLESS STEEL DIN 7991 -BSVY006016-
23 3.002.0638 SCREW TSPEI M10X20 UNI 5933 STAINLESS STEEL
25 3.002.0631 TRILOBULAR TORX SCREW TC M6X16 STAINLESS STEEL DIN 7500C
26 3.002.0204 SCREW TCEI M6X12 STAINLESS STEEL DIN 912 -BRNY006012-
31 4.506.0034 SPRING HOOK PIN -WBR1107-
32 5.511.0708 SWIFT BUMPER ASSEMBLY NEW TYPE
34 5.511.1358 SWIFT 43 BUMPER ASSEMBLY
36 3.099.1022 TENSION SPRING POS. 26 CAT. CECCHI
37 4.507.0966 BRUSH PLATE TRACTION SPRING SWIFT BATT.
38 3.003.0034 SELF-LOCKING NUT M8 STAINLESS STEEL DIN 982 -D AAY008000-
39 4.507.0990 TIE ROD FOR BRUSH PLATE SWIFT BATT.
40 3.002.0329 SCREW TCEI M8X16 UNI 5931
41 4.507.0300 BRUSH COUPLING -WIN0803-
42 4.506.0203 ADJUSTMENT PIN FOR BRUSH PLATE TIE ROD SWIFT BATT. _A
45 3.099.0848 HOLE COVER CAP D.42 SP 7 SHAPE CC
46 3.099.0974 FIXED CABLE FOR BRUSH PLATE LIFTING SWIFT B
47 4.507.0961 BRUSH PLATE LIFTING LEVER SWIFT 43-48 B-E
48 3.004.0110 FLAT WASHER 14X24 Th. 2.5 STAINLESS STEEL UNI 6593
49 3.099.0314 COTTER PIN DIAM.2 LENGTH 50 SPRING WITH DOUBLE EYELET
50 3.099.0865 ARMONVILLE HOSE I.D.=14 L=580 FOR SWIFT BRUSH PLATE
63 3.099.1082 SPLIT KEYRING EYELET (KEYCHAIN TYPE) DIAMETER 25
64 4.508.0859 SPLASH GUARD GASKET FOR BRUSH PLATE SWIFT B _A
65 4.508.1174 GEAR BOX GASKET L=845 SWIFT B-E
66 4.508.0224 PROTECTION WHEEL DIAM. 110 GREY COLOR Exp.B
67 4.507.0854 SQUEEGEE LIFTING WIRE BRACKET EXP.C
68 4.507.0308 BUMPER WHEEL SUPPORT FOR LAV 45-50-55 Exp.A
70 3.004.0137 FLAT WASHER 6.4X24 UNI 6593 STAINLESS STEEL
71 3.003.0033 SELF-LOCKING NUT M10 STAINLESS STEEL DIN 985 -DAAY010000-
72 3.002.0241 SCREW TSPEI M5X16 STAINLESS STEEL DIN 7991 -BSVY005016-
97 4.508.1192 BRUSH COUPLING PLATE SYMMETRICAL Exp.A
98 3.002.0222 SCREW TSPEI M5X25 STAINLESS STEEL UNI 5933 -BSVY005025-
99 3.003.0035 SELF-LOCKING NUT M5 STAINLESS STEEL DIN 982 -D AAY005000-
101 5.511.0991 DIE-CAST SWIFT B BRUSH PLATE LIFTING AXIS ASSEMBLY
102 4.508.0764 HOSE 13x20 SWIFT AXIS
103 4.507.1018 LIFTING PULLEY SHAFT SWIFT BATT. BRUSH PLATE
104 3.099.0311 SEEGER RING DIAM.8 UNI 7435
105 4.506.0141 SQUEEGEE LIFTING CABLE GUIDE PULLEY SWIFT B -CTM0171- Exp.A
108 4.506.0142 PULLEY FORK SWIFT B -CTM0170-
110 3.499.0067 CARBON BRUSH -CRB0000007- BRUSH 7X14X19 EC40 TERM 4.4
112 3.099.1271 FLANGED BUSHING IGUS GFM-1517-20
Pag.2
ADJUSTABLE DIE-CAST SQUEEGEE GROUP STEEL SUPPORT FREE TRAZIONATE
# Part Num. Description
1 4.505.0105 DIE-CAST SQUEEGEE BODY "V" SHAPE L=780mm WALK-BEHIND SCRUBBER Exp.00
2 5.513.0197 FIXED SQUEEGEE SUPPORT F1 _00
3 4.508.0505 NYLON SQUEEGEE BLADE HOLDER SUPPORT
4 4.505.0123 WHEEL HOLDER ARM REGULATION AND SQG
5 4.507.0829 COUPLING PIN FOR DIE-CAST SQUEEGEE WALK-BEHIND
6 3.006.0075 RUBBER WHEEL FOR SQUEEGEE D.50X21 d.8
7 3.004.0047 FLAT WASHER D.6X12 Th.2 UNI 6592 STAINLESS STEEL -RONY061200-
8 3.002.0357 SCREW TCEI M6X50 UNI 5931 STAINLESS STEEL
9 3.099.0057 SEEGER RING E D.12 UNI 7435
10 3.004.0052 FLAT WASHER D.12X24 Th.2.5 UNI 6593 STAINLESS STEEL -RONY122400-
11 3.003.0028 HIGH SELF-LOCKING NUT M6 STAINLESS STEEL DIN 982 -DAAY006000-
12 3.003.0054 NUT M8 UNI 5588 STAINLESS STEEL
13 3.002.0480 GRUB SCREW STEI M8X60 UNI 5923 STAINLESS STEEL
14 3.099.0467 THROUGH HANDWHEEL M8 177/30
15 4.508.0208 SQUEEGEE COUPLING BALL Exp.D
16 3.099.1265 EXTENDED LOBE HANDWHEEL D.52 M8
18 3.004.0137 FLAT WASHER 6.4X24 UNI 6593 STAINLESS STEEL
19 4.508.0224 PROTECTION WHEEL DIAM. 110 GREY COLOR Exp.B
20 4.507.0831 BUMPER WHEEL SUPPORT FOR DIE-CAST SQUEEGEE
21 3.002.0383 TRILOBULAR TORX SCREW TC M5X12 STAINLESS STEEL DIN 7500C
22 4.508.0617 SQUEEGEE SIPHON COVER "V" SHAPE INCLINED DEFLECTOR SLEEVE EXP.00
24 4.507.1076 ADJUSTMENT COMPRESSION SPRING F1-F2 _00
25 3.002.0271 SCREW TCEI M6X20 UNI 5931 STAINLESS STEEL - BRNY006020-
26 4.506.0132 SQUEEGEE WHEEL BUSHING KRON Z ERO -CTM0283-
28 4.508.0468 SQUEEGEE BLADE L.830 THICKNESS 3
29 4.507.1071 SQUEEGEE ADJUSTMENT REGISTER F1 _00
30 4.507.1070 MOBILE SQUEEGEE SUPPORT F1 _00
31 4.506.0229 SQUEEGEE FULCRUM BUSHING
32 3.099.1189 7-POINT HANDWHEEL D40 M8 H26 MECCANOPLASTICA 12000300
37 4.507.0854 SQUEEGEE LIFTING WIRE BRACKET EXP.C
38 3.002.0204 SCREW TCEI M6X12 STAINLESS STEEL DIN 912 -BRNY006012-
39 3.004.0094 FLAT WASHER D. 8X17 THICKNESS 1.6 UNI6592 STAINLESS STEEL -RONY081700-
40 5.511.0644 DIE-CAST SQUEEGEE CASTOR WHEEL ASSEMBLY WALK-BEHIND RIGHT
41 5.511.1122 DIE-CAST SQUEEGEE ASSEMBLY WALK-BEHIND F1 STEEL SUPP.
42 5.511.1446 ADJUSTABLE SQUEEGEE SUPPORT ASSEMBLY FREE TRAZIONATE
43 3.002.0215 SCREW TCEI M8X20 STAINLESS STEEL UNI 5931 -BRNY008020-
44 4.508.0843 RIGHT LOCKING BLOCK FOR DIE-CAST SQG
45 3.002.0495 SCREW TSPEI M5X30 STAINLESS STEEL UNI 5933
46 3.003.0035 SELF-LOCKING NUT M5 STAINLESS STEEL DIN 982 -D AAY005000-
49 5.511.0696 DIE-CAST SQUEEGEE CASTOR WHEEL ASSEMBLY WALK-BEHIND LEFT
50 4.508.0844 LEFT LOCKING BLOCK FOR DIE-CAST SQG
52 3.002.0204 SCREW TCEI M6X12 STAINLESS STEEL DIN 912 -BRNY006012-
53 4.508.0467 SQUEEGEE BLADE L.870 THICKNESS 4
56 4.505.0201 BALL-MOTOR LOCKING PLATE
57 3.099.1109 THROUGH HANDWHEEL M8 RED RAL3000 -F177/30-
60 3.002.0214 SCREW TCEI M6X16 STAINLESS STEEL UNI 5931 -BRNY006016-
62 3.004.0052 FLAT WASHER D.12X24 Th.2.5 UNI 6593 STAINLESS STEEL -RONY122400-
64 3.200.0168 O-RING GASKET 4143 NBR
65 3.200.0172 O-RING GASKET 3275
66 4.507.1072 SQUEEGEE ADJUSTMENT PIN F1 _00
67 3.004.0137 FLAT WASHER 6.4X24 UNI 6593 STAINLESS STEEL
Pag.3
TANKS GROUP COMPACT FREE TRAZIONATE YELLOW/DARK GREY
# Part Num. Description
1 5.513.0134 SQUEEGEE LIFTING/BRUSH LIFTING SUPPORT -FREE- Exp.01
2 3.004.0124 CONVEX SPRING WASHER 10.5X18X0.8 DIN 137A
3 4.507.0845 SPACER FOR LEVER D.10X8 - FREE-
4 4.507.0700 TANK LOCKING BRACKET -FREE- ESP.02
5 4.507.0701 TANK LOCKING PIN -FREE- ESP.00
6 4.507.0707 TANK LOCKING SPRING -FREE- ESP.00
7 3.099.0307 HANDLE FOR TIE ROD WITH BLACK KNOB MODEL MT/58/FFC-M6
8 4.508.0739 FILTERING SPONGE FOR FREE
9 4.508.0738 TANK ROTATION SLEEVE -FREE- ESP.00
10 5.513.0132 SQUEEGEE LIFTING LEVER ASSEMBLY WITH PIN -FREE- _02
11 4.508.0971 SPECIAL LEVER GRIP (15X4) _ A
12 3.099.1329 SQUEEGEE LIFTING CABLE WITH STAINLESS STEEL EYELET (FREE)
13 4.507.1207 M8 REAR STUDBOLT PIN WHITE ZNT X FREE _00
14 3.002.0597 SCREW TCEI M4X10 UNI 5931 STAINLESS STEEL
15 5.513.0133 BRUSH LIFTING LEVER ASSEMBLY WITH PIN -FREE- _02
16 3.004.0094 FLAT WASHER D. 8X17 THICKNESS 1.6 UNI6592 STAINLESS STEEL -RONY081700-
17 3.099.0881 STAINLESS STEEL CABLE D.2.5x133 WITH M6/B4 TERMINAL WITH PROTECTION L=685 FOR BRUSH LIFT.
19 4.506.0141 SQUEEGEE LIFTING CABLE GUIDE PULLEY SWIFT B -CTM0171- Exp.A
20 4.208.0274 PLUG DIAM.32mm FOR DRAIN HOSE WITH RETAINING RING ESP.00
22 4.507.0708 PIN FOR CASTOR WHEEL L=118 -FREE- ESP.00
23 3.099.1010 SWIFT B AXIS RETAINING TUBE L=25
24 5.511.0937 TANK DRAIN PLUG ASSEMBLY WITH ENLARGED GRIP
26 3.755.0060 VACUUM MOTOR 24 V 2-STAGE
28 3.099.1011 SWIFT B AXIS RETAINING TUBE L=30
29 4.507.0699 CABLE PROTECTION -FREE- Esp.02
30 3.099.0330 SUCTION HOSE SLEEVE 32/38 -MNC0323801-
31 4.508.0770 RUBBER FILTER FOR SWIFT B/E
33 4.508.0477 LOWER SOLUTION TANK SWIFT B DARK GREY
34 4.507.0709 TAP CABLE LOCKING PIN -FREE- Esp.B
37 3.099.0343 PIPE CLAMP CLIP Diam.40 -CLP 0400001-
38 3.002.0221 SCREW TSPEI M6X16 STAINLESS STEEL DIN 7991 -BSVY006016-
39 4.508.1298 SUCTION COVER GASKET FOR FREE AND STAINLESS STEEL
40 5.511.0698 COMPACT FLOAT ASSEMBLY
45 3.200.0182 O-RING GASKET 4061
46 4.508.0936 1/2G TANK DRAIN PLUG STAINLESS STEEL-FREE ESP.00
47 4.408.0224 FLOAT BASKET ASSEMBLY AND VACUUM DRUM GV
48 4.508.0866 WHEEL SUPPORT SWIFT B -CTM0148 FOR WHEEL AXIS 160
49 3.006.0128 PIVOT WHEEL D.80 POLYURETHANE 98SHA STAINLESS STEEL HOUSING+SCREW M12X80
50 4.507.0917 SPONGE LOCKING PLATE -FREE- ESP.00
51 4.508.0766 SEALING SPONGE PP120 -FREE- ESP.00
52 3.002.0542 SCREW TE M6X12 UNI 5739 STAINLESS STEEL
53 3.006.0118 WHEEL D160 POLYURETHANE 98 SH A WITH RIGHT FREE WHEEL d=17
55 3.099.0519 SEEGER RING D.14 UNI 7435
56 3.001.0034 DEEP GROOVE BALL BEARING 60042RS (42x20x12)
57 4.507.0988 MOTOR SHAFT SWIFT BATT. TRACTION DRIVE _ C
61 4.507.0793 LEVER SUPPORTING PLATE SWIFT B -CTM0186-
62 4.508.0768 ROUND SEALING SPONGE PPI 20 ESP.00
63 3.002.0326 SCREW TCEI M8X25 INOX UNI 5931
64 5.509.0629 COMPACT SUCTION TUBE ASSEMBLY WITH SLEEVES Exp.02
65 3.752.0167 AIR OUTLET TUBE D.51 L.300 mm
66 4.508.0803 TANK ROTATION SPACER -FREE- ESP.00
67 3.752.0060 FLEXIBLE RECOVERY TANK DRAIN HOSE D.32 L.535 -TBU00RE001-
68 3.100.0339 HOSE CONNECTOR G3/8" D16
69 3.099.0868 BALL VALVE 3/8"
70 4.506.0150 THREADED TUBE G 3/8" SWIFT E _ A
71 4.506.0137 WASHER FOR O-RING 4075 SWIFT + KRON ZERO -CTM0179- 1
72 3.200.0162 O-RING GASKET 4075
74 4.508.0689 SWIFT B LOWER WHEELS FIXING AXIS -CTM0227-
77 4.508.1253 FREE TANK GASKET
79 3.003.0433 LOW STAINLESS STEEL SELF-LOCKING NUT M8 UNI 7474
81 4.508.0551 UPPER RECOVERY TANK COMPACT FREE YELLOW ESP.00
82 4.508.0552 RECOVERY TANK COVER COMPACT FREE DARK GREY ESP.00
83 3.002.0681 HEXAGON SOCKET BUTTON HEAD SCREW M8X70 UNI7380 STAINLESS STEEL
85 3.002.0214 SCREW TCEI M6X16 STAINLESS STEEL UNI 5931 -BRNY006016-
86 3.004.0111 FLAT WASHER D.6X14 UNI 6593 STAINLESS STEEL
87 3.002.0204 SCREW TCEI M6X12 STAINLESS STEEL DIN 912 -BRNY006012-
89 3.002.0665 SELF-TAPPING SCREW TC-TC 4.8x16 UNI 6954 STAINLESS STEEL
90 4.506.0142 PULLEY FORK SWIFT B -CTM0170-
91 3.002.0673 SCREW TCEI M10X16 UNI 5931 STAINLESS STEEL
92 4.507.0713 SUCTION COVER SUPPORT BRACKET -FREE- ESP.01
96 3.004.0052 FLAT WASHER D.12X24 Th.2.5 UNI 6593 STAINLESS STEEL -RONY122400-
98 3.004.0049 FLAT WASHER D. 8X24X2 UNI 6593 STAINLESS STEEL -RONY082400-
101 3.002.0367 GRUB SCREW STEI M6X40 UNI 5923 STAINLESS STEEL
102 3.003.0434 SELF-LOCKING NUT M6 WITH WIDE BASE STAINLESS STEEL D=14
105 3.002.0537 SCREW TCEI M8X16 UNI 5931 STAINLESS STEEL
110 4.507.1147 LEFT SHAFT PIN FOR BRUSH MOTOR TRACTION DRIVE _ B
111 3.004.0137 FLAT WASHER 6.4X24 UNI 6593 STAINLESS STEEL
112 3.099.1066 GREY HUB CAP G-48 FOR POLYURETHANE WHEEL DIAMETER 16
113 3.004.0060 FLAT WASHER D.6X18 Th.1.6 UNI 6593 STAINLESS STEEL-RONY061800-
123 4.505.0160 VACUUM LOCKING BRACKET LAMB
124 4.508.0163 SUCTION MOTOR GASKET Th.16mm -AGG0005-
125 4.507.0893 BENT LOCKING BRACKET -FREE- Esp.01
140 3.099.1224 KEY 5X5X10 UNI 6604B FLAT ENDS
141 4.508.1161 WHEEL DRILL CAP
142 4.506.0199 WHEEL SHAFT SUPPORT BUSHING SWIFT BATT. TRACTION DRIVE
143 4.506.0184 REDUCED SPACING RING SWIFT TRACTION DRIVE
144 3.099.1123 STM REDUCTOR RMI 28 PP I=1/10 FOR MOTOR COUPLING 56B14
145 5.501.0048 MOTOR S78L 24V 8.5A 200W 1200RPM - CODE MMP3702 -
146 3.099.1116 KEY 5X5X50 UNI 6604A
147 4.507.1148 RIGHT SHAFT PIN FOR BRUSH MOTOR TRACTION DRIVE _ C
148 4.508.1187 BRUSH MOTOR CLUTCH RUBBER SWIFT BATT. TRACTION DRIVE
150 3.006.0117 WHEEL D160 POLYURETHANE 98 SH A WITH LEFT FREE WHEEL d=17
151 3.099.0322 KEY 3X3X15 UNI 6604A -CH IK030315-
152 3.099.1230 SEEGER RING FOR SHAFT D.19 UNI 7435
153 4.507.1159 VACUUM MOTOR ANTI-ROTATION PLATE _ 00
154 3.002.0234 GRUB SCREW STEI M6X12 CONICAL STAINLESS STEEL DIN 914 -GTCY006012-
155 3.003.0051 SELF-LOCKING NUT M12 STAINLESS STEEL
156 3.099.1249 COMPLETE WATER CONTROL LEVER FREE
157 3.003.0028 HIGH SELF-LOCKING NUT M6 STAINLESS STEEL DIN 982 -DAAY006000-
158 4.507.1174 MINIMONEY DOOR SHEET METAL
159 4.507.1172 LOWER SUPPORT FOR TAP 2 CABLES -FREE-
160 3.099.1193 BLACK RUBBER COVER CAP
161 4.507.1170 TAP LEVER 2 CABLES -FREE-
162 4.507.1207 M8 REAR STUDBOLT PIN WHITE ZNT X FREE _ 00
163 3.499.0301 CARBON BRUSH FOR VACUUM MOTOR LAMB MOD 33494-1
164 4.508.1292 FLOAT CLOSING TUBE FREE ESP.00
165 4.508.0729 WATER LEVER SPACER SWIFT -CTM0225-
166 3.004.0115 FLAT WASHER D.5X15 UNI 6593 STAINLESS STEEL
167 3.002.0562 SELF-TAPPING SCREW TC-TC 2.9X19 UNI 6954 STAINLESS STEEL
168 3.004.0066 BELLEVILLE SPRING WASHER "BAUER" DIN2093 28X14.2X1.5
169 3.003.0405 NUT M12 UNI 5588 STAINLESS STEEL
Pag.4
CONTROLS GROUP COMPACT FREE TRAZIONATE
# Part Num. Description
3 3.499.0144 FEMALE CONNECTOR FOR MALE TERMINALS 50A 6-WAY 428180612
5 3.401.0075 THERMAL CIRCUIT BREAKER 35A SM7350 -DSG0350001
6 3.401.0073 THERMAL CIRCUIT BREAKER 12A SM7120 -DSG0120001
7 3.401.0113 SAIA-BURGESS MICROSWITCH XGO2-88-J23
8 3.402.0017 AUTOMOTIVE RELAY CB1AH-24V-70A -RLE0240001-
11 4.507.0522 SPRING FOR TRACTION LEVER EASY-MID I'04 ESP.00
12 4.507.0706 DEAD MAN SWITCH LEVER -FREE- CNC161455-03 Esp.01
13 4.507.0659 BRACKET FOR DRIVE LEVER EA SY-R ESP.00
14 4.508.0396 ELECTRIC BOX COVER FOR SCRUBBER-DRYER EXP.00
15 4.508.0397 ELECTRIC BOX BASE FOR SCRUBBER-DRYER EXP.00
16 3.499.0029 RED SR50 CONNECTOR -CNP0AND 001-
17 3.099.0808 SOCKET FOR RED CONNECTOR COMPLETE WITH TWO SCREWS
22 3.410.0022 RELAY SOCKET FOR CB1AH -RLZ0000002-
23 0.108.0025 POWER SUPPLY CABLE FOR BATTERY CHARGER LWS 5 EU SCHUKO PLUG 3x0.75x1500
24 5.511.0703 FREE BATTERY CONNECTION CABLE ASSEMBLY
25 4.507.0635 BRACKET FOR ANDERSON PLUG SPEED 45 _04
26 3.405.0045 TERMINAL BLOCK MEC 58470-45 -CNT0 MOR001-
27 4.512.0013 RED BATTERY POWER CABLE L.790 mm
28 4.512.0014 BLACK BATTERY POWER CABLE L.960 mm
29 0.108.0042 BATTERY CHARGER CBHD 124V 10A IUIa-Gel
30 4.515.0001 24V CONTROL BOARD FOR FUNCTIONS AND TRACTION WITH BATTERY INDICATOR
31 3.499.0406 WIRED KEY SWITCH ASSEMBLY
32 5.511.0673 BATTERY CONNECTION WIRING ASSEMBLY WITH EYELETS D. M6
33 5.509.0556 STOP PIN ASSEMBLY FOR CONTROL LEVER ELECTRICAL BOX SCL
34 3.002.0260 SCREW TCEI M4X12 STAINLESS STEEL UNI 5931 -BRNY004012-
37 3.499.0152 EYELET TERMINAL L32 M8 FOR CABLES 10-25mm
38 7.503.0085 CONTROL LABEL EASY-R BT 146x 88mm POLYESTER
39 7.503.0086 LABEL FOR CIRCUIT BREAKER COMPARTMENT BRUSH & TRACTION SCL BT/A9T/A5T 40.7x56mm POLIC.
40 3.004.0083 EXTERNAL TOOTHED LOCK WASHER 6.4X12 ZNT UNI3703
53 5.511.0986 WIRED ELECTRICAL BOX COMPACT FREE TRACTION DRIVE
54 3.002.0357 SCREW TCEI M6X50 UNI 5931 STAINLESS STEEL
56 3.499.0135 STRIP FUSE 60A
60 4.007.0135 VALVE PISTON SPRING D.8.8 L.24 WIRE D1.3 PITCH 3.5 STAINLESS STEEL ESP.01
61 3.099.0755 SEEGER RING DIAM.4 INTERNAL UNI 7435
62 4.507.0497 SUPPORT FOR PIN Th.1.5 WHITE ZINC-PLATED FOR DRIVE LEVER SCL Esp.01
63 4.507.0498 WHITE ZINC-PLATED STOP PIN FOR DRIVE LEVER SCL ESP.00
64 3.004.0002 FLAT WASHER 4.3X9X0.8 UNI 6592 ZNT
65 3.002.0517 SELF-TAPPING SCREW 4.8X19 UNI 6954 ZNT T
66 3.004.0047 FLAT WASHER D.6X12 Th.2 UNI 6592 STAINLESS STEEL -RONY061200-
67 3.002.0271 SCREW TCEI M6X20 UNI 5931 STAINLESS STEEL - BRNY006020-
Pag.5
LABELS AND CATALOGUE GROUP COMPACT FREE WITH BATTERIES
# Part Num. Description
2 7.503.0157 FAIRING LABEL SCL COMPACT FREE45 POLYESTER 1C L=16cm
3 7.503.0150 FAIRING LABEL LAVOR PRO POLYESTER 3C L=300x73R18
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
SCL COMPACT FREE 45BT CBT Rev C

Data sheet

Machine Type
Pressure Washer
SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

Lavor SCL 45BT CBT-C Drawing

Lavor SCL 45BT CBT-C Drawing

Download (1.94MB)

You might also like

Brush + Bearing Ass'y for Floor Scrubber Drier Lavor Pro Sprinter
Lavorwash S.p.A. SKU: 5.509.0002
Brush + Bearing Ass'y for Floor Scrubber Drier Lavor Pro Sprinter
Brush + Bearing Ass'y for Floor Scrubber Drier Lavor Pro Sprinter Genuine replacement part Lavor, Brush + Bearing Assembly for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following products: -  Floor Scrubber...
Usually Ships in: 7/10 Business Days Approx. €35.95
Details
Brush + Bearing Ass'y for Floor Scrubber Drier Lavor Pro Sprinter
Lavorwash S.p.A. SKU: 6.505.0041
Brush + Bearing Ass'y for Floor Scrubber Drier Lavor Pro Sprinter
Brush + Bearing Ass'y for Floor Scrubber Drier Lavor Pro Sprinter Genuine replacement part Lavor, Brush + Bearing Assembly for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following products: -  Floor Scrubber...
Usually Ships in: 7/10 Business Days Approx. €6.40
Details
Flexible Hose for Floor Scrubber Drier Lavor Pro Sprinter
Lavorwash S.p.A. SKU: 5.509.0008
Flexible Hose for Floor Scrubber Drier Lavor Pro Sprinter
Flexible Hose for Floor Scrubber Drier Lavor Pro Sprinter Genuine replacement part Lavor, Flexible Hose Ass'y L.800 MW for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following products: -  Floor Scrubber Drier...
Usually Ships in: 7/10 Business Days Approx. €29.49
Details
Squeegee + Support for Floor Scrubber Drier Lavor Pro Sprinter
Lavorwash S.p.A. SKU: 5.509.0010
Squeegee + Support for Floor Scrubber Drier Lavor Pro Sprinter
Squeegee + Support Ass'y for Floor Scrubber Drier Lavor Pro Sprinter Genuine replacement part Lavor, Squeegee + Support Assembly for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following products: -  Floor...
Usually Ships in: 7/10 Business Days Approx. €14.85
Details
Belt 336 RPP3-12 for Floor Scrubber Drier Lavor Pro Sprinter
Lavorwash S.p.A. SKU: 3.099.0278
Belt 336 RPP3-12 for Floor Scrubber Drier Lavor Pro Sprinter
Belt 336 RPP3-12 for Floor Scrubber Drier Lavor Pro Sprinter Genuine replacement part Lavor, Belt 336 RPP3-12 for Floor Scrubber Drier Sprinter Lavor Pro - 8.501.0501 Part for the following...
Usually Shipped on: 10 Business Days Approx. €29.49
Details
Detergent Pump for Floor Scrubber Drier Lavor Pro Sprinter
Lavorwash S.p.A. SKU: 3.551.0032
Detergent Pump for Floor Scrubber Drier Lavor Pro Sprinter
Detergent Pump for Floor Scrubber Drier Lavor Pro Sprinter Genuine replacement part Lavor, Detergent Pump CNS 05 220-240V 50Hz 16W for Floor Scrubber Drier Sprinter Lavor Pro - Crystal Clean - A0 30...
Usually Ships in: 10/15 Business Days Approx. €45.78
Details
Boiler Kit for Floor Scrubber Drier Lavor Crystal Clean
Lavorwash S.p.A. SKU: 6.505.0087
Boiler Kit for Floor Scrubber Drier Lavor Crystal Clean
Boiler Kit for Floor Scrubber Drier Lavor Crystal Clean Genuine replacement part Lavor, Boiler Kit for Floor Scrubber Drier Crystal Clean. Part for the following products: -  Floor Scrubber Drier Lavor...
Usually Shipped in 10/15 Business Days Approx. €87.31
Details
Suction Motor for Floor Scrubber Drier Lavor Crystal Clean
Lavorwash S.p.A. SKU: 6.505.0040
Suction Motor for Floor Scrubber Drier Lavor Crystal Clean
Suction Motor Kit for Floor Scrubber Drier Lavor Crystal Clean Genuine replacement part Lavor, Suction Motor Kit 230V/50-60Hz 800 W for Floor Scrubber Drier Crystal Clean. Part for the...
Usually Ships in: 7/10 Business Days Approx. €76.38
Details
Vac Motor Ass'y for Floor Scrubber Drier SCL QUICK 36B CBT
Lavorwash S.p.A. SKU: 5.511.1399
Vac Motor Ass'y for Floor Scrubber Drier SCL QUICK 36B CBT
Vac Motor FLICK/QUICK Ass'y for Floor Scrubber Drier SCL QUICK 36B CBT Genuine replacement part Lavor, Vac Motor FLICK/QUICK Assembly for Floor Scrubber Drier SCL QUICK 36B CBT - 85180003. Part for the following...
on 10 Business Days Approx. €165.21
Details
Front Squeegee Blade for Floor Scrubber Drier SCL QUICK 36B CBT
Lavorwash S.p.A. SKU: 4.508.1100
Front Squeegee Blade for Floor Scrubber Drier SCL QUICK 36B CBT
Front Squeegee Blade for Floor Scrubber Drier SCL QUICK 36B CBT Genuine replacement part Lavor, Front Squeegee Blade (NATURAL RUBBER) 537X50X1,5 for Floor Scrubber Drier SCL QUICK 36B CBT - 85180003. Part for the following products:...
Usually Ships in: 10 Business Days Approx. €8.75
Details
Rear Squeegee Blade for Floor Scrubber Drier SCL QUICK 36B CBT
Lavorwash S.p.A. SKU: 4.508.1101
Rear Squeegee Blade for Floor Scrubber Drier SCL QUICK 36B CBT
Rear Squeegee Blade for Floor Scrubber Drier SCL QUICK 36B CBT Genuine replacement part Lavor, Rear Squeegee Blade (NATURAL RUBBER) 590X50X3 for Floor Scrubber Drier SCL QUICK 36B CBT - 85180003. Part for the following products: -...
Usually Ships in: 10 Business Days Approx. €8.75
Details
Water Filter for Floor Scrubber Drier SCL QUICK 36B CBT
Lavorwash S.p.A. SKU: 3.102.0020
Water Filter for Floor Scrubber Drier SCL QUICK 36B CBT
Water Filter for Floor Scrubber Drier SCL QUICK 36B CBT Genuine replacement part Lavor, Water Filter G 1/2" D.13 SHURFLO 255-223 for Floor Scrubber Drier SCL QUICK 36B CBT - 85180003. Part for the following products: -  Floor...
Usually Ships in: 10/15 Business Days Approx. €53.43
Details
Vac Hose for Floor Scrubber Drier SCL QUICK 36B CBT
Lavorwash S.p.A. SKU: 3.752.0190
Vac Hose for Floor Scrubber Drier SCL QUICK 36B CBT
Vac Hose for Floor Scrubber Drier SCL QUICK 36B CBT Genuine replacement part Lavor, Vacuum Hose Squeegee D.25 with Sleeves for Floor Scrubber Drier SCL QUICK 36B CBT - 85180003. Part for the following products: -  Floor Scrubber...
Usually Ships in: 10 Business Days Approx. €22.41
Details
Drain Hose Cap for Floor Scrubber Drier SCL QUICK 36B CBT
Lavorwash S.p.A. SKU: 4.208.0274
Drain Hose Cap for Floor Scrubber Drier SCL QUICK 36B CBT
Drain Hose Cap for Floor Scrubber Drier SCL QUICK 36B CBT Genuine replacement part Lavor, Cap d.32MM for Drain Hose with Stop Ring for Floor Scrubber Drier SCL QUICK 36B CBT - 85180003. Part for the following products: -  Floor...
Usually Ships in: 10 Business Days Approx. €5.35
Details
Belt PJ762 for Floor Scrubber Drier SCL QUICK 36B CBT
Lavorwash S.p.A. SKU: 3.099.1394
Belt PJ762 for Floor Scrubber Drier SCL QUICK 36B CBT
POLY-V Belt PJ762 for Floor Scrubber Drier SCL QUICK 36B CBT Genuine replacement part Lavor, POLY-V Belt PJ762/300J EL H =7 Teeth for Floor Scrubber Drier SCL QUICK 36B CBT - 85180003. Part for the following products: -  Floor...
Usually Ships in: 10 Business Days Approx. €17.50
Details
Lavor SCL QUICK 36B CBT Pulley Assy
Lavorwash S.p.A. SKU: 5.511.1385
Lavor SCL QUICK 36B CBT Pulley Assy
Floor Scrubber Drier SCL QUICK 36B CBT Free Pulley Assembly Genuine replacement part Lavor, Free Pulley Assembly for Floor Scrubber Drier SCL QUICK 36B CBT - 85180003. Part for the following products: -  Floor Scrubber...
on 10 Business Days Approx. €106.77
Details
Lavor SCL QUICK 36B CBT Squeegee Lift Cable
Lavorwash S.p.A. SKU: 3.099.1459
Lavor SCL QUICK 36B CBT Squeegee Lift Cable
Lavor SCL QUICK 36B CBT Squeegee Lift Cable Complete Genuine replacement part Lavor, Squeegee Lift Cable Complete for Floor Scrubber Drier SCL QUICK 36B CBT - 85180003. Part for the following products: -  Floor...
Usually Ships in: 10 Business Days Approx. €36.86
Details
Lavor SCL QUICK 36B CBT Exhaust Pipe
Lavorwash S.p.A. SKU: 3.752.0256
Lavor SCL QUICK 36B CBT Exhaust Pipe
Lavor SCL QUICK 36B CBT Exhaust Pipe Genuine replacement part Lavor, Exhaust Pipe for Floor Scrubber Drier SCL QUICK 36B CBT - 85180003. Part for the following products: -  Floor Scrubber Drier SCL QUICK 36B CBT - 85180003 - Code:...
AVAILABLE €24.90
Details
Lavor Traction Spring Lever for SCL QUICK 36B CBT
Lavorwash S.p.A. SKU: 00030-00682 ex 4.507.0522
Lavor Traction Spring Lever for SCL QUICK 36B CBT
Lavor Traction Spring Lever for Floor Scrubber Drier SCL QUICK 36B CBT Original replacement part Lavorwash, Traction Lever Spring for Floor Scrubber Drier SCL QUICK 36B CBT - L1 36B CBT. Part for the following products: -  Floor...
Usually Ships in: 10 Business Days Approx. €3.09
Details
Comments (0)
No customer reviews for the moment.
