Lavorwash S.p.A.

Lavor Parts for Pressure Cleaner IDRO KW24

SKU: Lavor IDRO KW24 80210609
€0.10
VAT included

Lavor Original Parts for Pressure Cleaner IDRO KW24

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner - IDRO Lavor KW24 240/50 -G- GB LWS TS 8.021.0609.

IDRO KW24

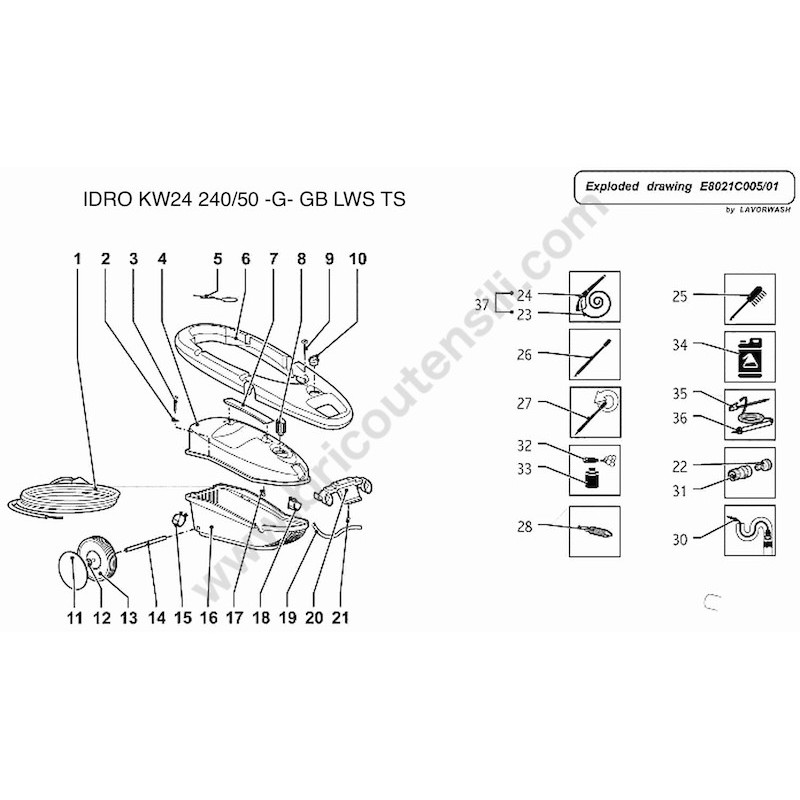

Lavor Idro KW24 Drawing
  • New
  • Out-of-Stock
  • Lavor Idro KW24 Drawing
  • Lavor Idro KW24 Drawing - 1
Lavorwash S.p.A.

Lavor Parts for Pressure Cleaner IDRO KW24

SKU: Lavor IDRO KW24 80210609 Condition: New
€0.10
VAT included

Lavor Original Parts for Pressure Cleaner IDRO KW24

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner - IDRO Lavor KW24 240/50 -G- GB LWS TS 8.021.0609.

IDRO KW24

settings 95 Spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
Quantity
Out-of-Stock

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
95 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
photo_cameraImage coming soon 5.001.0226 5.001.0226 €540.18
1
 photo_cameraImage coming soon 4.012.0161 ELECTRIC CABLE H05VV-F 3G1,5 MT.5,4 F/F GB PLUG €27.64
3
 photo_cameraImage coming soon 3.002.0145 SCREW 3,9X30 €1.52
4
 photo_cameraImage coming soon 5.011.0035 YELLOW UPPER FAIRING SPACE PRE-ASSEMBLED €28.82
5
 photo_cameraImage coming soon 4.007.0114 NOZZLE CLEANING PIN €1.65
6
 photo_cameraImage coming soon 4.008.0276 Substituted by 5.011.0073 TANK HANDLE KW €47.95
7
 photo_cameraImage coming soon 4.008.0284 HANDLE €7.15
8
 photo_cameraImage coming soon 4.008.0281 ADJUSTING KNOB €1.72
9
 photo_cameraImage coming soon 3.002.0129 Substituted by 3.002.0145 SCREW 3,9X35 HI-LO €1.59
10
 photo_cameraImage coming soon 4.608.0027 BLACK PLUG D.30 FOR TANK €10.03
11
 photo_cameraImage coming soon 3.099.0095 WHEEL BOSS FOR SP200 -G- PANT.108C SMOOTH €13.97
12
 photo_cameraImage coming soon 3.099.0020 WHEEL LOCKING DIAMETER 150 D.15 €13.46
13
 photo_cameraImage coming soon 4.008.0296 WHEEL D.200 HAB D.15 SPI200 STRAIGHT TREAD €15.28
14
 photo_cameraImage coming soon 4.007.0134 AXLE FOR KW (SPACE) €8.57
15
 photo_cameraImage coming soon 4.008.0282 LEFT HOLDER FOR LANCE €5.24
16
 photo_cameraImage coming soon 5.011.0034 YELLOW LOWER FAIRING SPACE PRE-ASSEMBLED €44.65
17
 photo_cameraImage coming soon 3.002.0104 SCREW TC TORX T15 3,9X16 ZNT €1.52
18
 photo_cameraImage coming soon 4.008.0283 RIGHT HOLDER FOR LANCE €1.52
19
 photo_cameraImage coming soon 4.008.0444 TRANSPARENT TUBE X CLEANER 6X9 L340mm ESP.01 €5.00
20
 photo_cameraImage coming soon 4.008.0280 LANCE HOLDER FOR SPACE €5.05
21
 photo_cameraImage coming soon 3.002.0128 SCREW TCB-TC M5X10 ZNT €1.52
22
 Quick Coupling 3/4F for High Pressure Washers Lavor 3.100.0082 Quick Coupling 3/4F for High Pressure Washers Lavor €1.63
23
 High Pression Hose for Pressure Washer BEST 24 4.018.0061 High Pression Hose for Pressure Washer BEST 24 €30.00
24
 photo_cameraImage coming soon 6.001.0038 Substituted by 6.001.0085 S'99 GUN METAL EXTENSION €56.95
26
 Lance SY'99 1,20 A/B (RED) for Pressure Washer BEST 24 6.002.0186 Lance SY'99 1,20 A/B (RED) for Pressure Washer BEST 24 €30.00
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5.009.0213 EXT SWITCH WITH PROTECTION 12(10) €6.72
2
 photo_cameraImage coming soon 3.406.0004 CABLE TERMINAL PG.11 €1.72
3
 photo_cameraImage coming soon 3.406.0011 BUSHING FOR PG.11 CABLE TERMINA €1.72
4
 photo_cameraImage coming soon 4.008.0356 ELECTRICAL BOX €7.53
5
 photo_cameraImage coming soon 3.002.0111 SCREW TC-TORX M4X10 ZNT €1.72
6
 Capacitor 45mF 450V for Pressurte Washer Lavor BEST 24 3.404.0016 Capacitor 45mF 450V for Pressurte Washer Lavor BEST 24 €29.19
7
 photo_cameraImage coming soon 4.008.0613 ELECTRIC-BOX SEAL €3.32
8
 photo_cameraImage coming soon 3.002.0003 HEXAGON SOCKET HEAD CAP SCREWM8X25 UNI 5931 ZNT €3.32
11
 photo_cameraImage coming soon 5.009.0207 CAP ASSY €14.27
12
 photo_cameraImage coming soon 3.201.0002 O-RINGBADSLSF 15X25,4X5 /7 €7.48
13
 O-Ring 12.4x1.78 for Pressure Washers Lavor NPX 1400 - NPX 1500 3.200.0004 O-Ring 12.4x1.78 for Pressure Washers Lavor NPX 1400 - NPX 1500 €1.70
15
 O-Ring 25.12x1.78 for Pressure Washers Lavor NPX 1400 - NPX 1500 3.200.0003 O-Ring 25.12x1.78 for Pressure Washers Lavor NPX 1400 - NPX 1500 €1.70
16
 Water Sealing Ring for Pressure Washers Lavor NPX 1400 - NPX 1500 3.201.0003 Water Sealing Ring for Pressure Washers Lavor NPX 1400 - NPX 1500 €5.27 Not available for order
17
 Oil Seal Spacer D.19 for Pressure Washers Lavor NPX 1400 - NPX 1500 4.008.0391 Oil Seal Spacer D.19 for Pressure Washers Lavor NPX 1400 - NPX 1500 €1.70
18
 photo_cameraImage coming soon 4.006.0108 BRASS COVER FOR WATER SEALING €9.03
19
 photo_cameraImage coming soon 4.006.0107 BRASS BUSH WATER SEALING €9.10
26
 photo_cameraImage coming soon 5.009.0159 OIL CAP WITH O-RING 3/8G €9.28
28
 Lavor Body Guide for NPX 1400 4.005.0184 Lavor Body Guide for NPX 1400 €66.79
29
 Lavor Oil Lever Indicator for NPX 1400 3.099.0003 Lavor Oil Lever Indicator for NPX 1400 €4.14
30
 STEI Screw 3/8" for Pressure Washers Lavor NPX 1400 - NPX 1500 3.002.0004 STEI Screw 3/8" for Pressure Washers Lavor NPX 1400 - NPX 1500 €1.70
31
 Piston Recall Spring for Pressure Washers Lavor NPX 1400 - NPX 1500 4.007.0011 Piston Recall Spring for Pressure Washers Lavor NPX 1400 - NPX 1500 €10.03
32
 photo_cameraImage coming soon 5.009.0086 PISTON ASSY €11.03
33
 Lavor Thrust Shoe for LP 20 EHR 4.007.0001 Lavor Thrust Shoe for LP 20 EHR €5.83
34
 Lavor Needle Roller Cage for EQ18 3.001.0025 Lavor Needle Roller Cage for EQ18 €3.48
35
 Lavor Disk As for KARJET PROFI130 3.001.0003 Lavor Disk As for KARJET PROFI130 €3.33
36
 photo_cameraImage coming soon 3.002.0011 SCREW TCEI M8X22 UNI 5931 ZNT €3.32
37
 photo_cameraImage coming soon 4.005.0005 DIE CASTED PLATE G.7.15' €10.52
38
 Oblique Ball Bearing for Pressure Washers Lavor GIANT 24 - 28 3.001.0002 Oblique Ball Bearing for Pressure Washers Lavor GIANT 24 - 28 €14.80
39
 photo_cameraImage coming soon 3.200.0002 O-RING GASKET 90X2,5 €1.70
40
 Oil Seal 20-35-6-6.5 for Washer Lavor GIANT 24 3.201.0001 Oil Seal 20-35-6-6.5 for Washer Lavor GIANT 24 €2.76
41
 photo_cameraImage coming soon 4.005.0100 Substituted by 5.009.0168 FRONT FLANGE 125 '96 H110 €32.25
42
 photo_cameraImage coming soon 3.002.0115 SCREW TC M5X35 SWAGEFORM ZNT €1.72
43
 photo_cameraImage coming soon 5.005.0029 ROTOR SHAFT 125'96 TAPERED H.110 230/50 €94.96
44
 Radial Ball Bearing 6203RS for Pressure Cleaner Lavor Missouri 3.001.0020 Radial Ball Bearing 6203RS for Pressure Cleaner Lavor Missouri €13.71
45
 photo_cameraImage coming soon 5.002.0123 CASING '96 D125 h110 240/50 2P 2800W €133.58
46
 photo_cameraImage coming soon 4.008.0092 FAN FB80 WITH HOLE D.16,5 (PARTNER) €5.11
47
 photo_cameraImage coming soon 3.099.0049 LOCKING RING D.23 FAN FB80 €14.80
48
 photo_cameraImage coming soon 4.008.0583 MOTOR FAN COVER '96 WITHOUT GRILL €15.13
49
 Lavor FKX 1018 Kit 78 LW Compensated Valve TS 5.009.0277 Lavor FKX 1018 Kit 78 LW Compensated Valve TS €41.00
50
 photo_cameraImage coming soon 5.009.0283 ASSEMBLY MICRO+CABLE L=580 FOR TS VALVE COMP. + CABLE GLAND FOR HW €26.51
54
 photo_cameraImage coming soon 5.009.0101 CAP VALVE SUCTION DELIVERY-ORMOUNTED €6.91
55
 Delivery Suction Valve for Pressure Washer Lavor FKX 1018 5.009.0005 Delivery Suction Valve for Pressure Washer Lavor FKX 1018 €9.23
56
 Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018 3.200.0019 Gasket O-Ring 12.4X1.78 for Pressure Washer Lavor FKX 1018 €1.70
59
 photo_cameraImage coming soon 3.200.0012 OR 10,78X2,62 RIF.3043 €1.52
60
 photo_cameraImage coming soon 4.007.0014 VALVE SPRING DETERGENT CHECK De4,5 / 6 L = 7 WIRE D.0,3 €2.50
61
 photo_cameraImage coming soon 3.005.0001 BALL INOX 420 DIAM.5 (accuracy grade G 500) €1.72
62
 photo_cameraImage coming soon 5.009.0164 HOSE DETERGENT COMPLETE WITH OR €20.18
64
 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 4.008.0031 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 €1.54
70
 photo_cameraImage coming soon 3.002.0001 SCREW STEI M6X8 P.P. UNI 5923 €1.52
71
 photo_cameraImage coming soon 3.107.0009 GAUGE 1/8'' €29.49
72
 photo_cameraImage coming soon 4.006.0109 TAPERED 1/8 CAP €7.67
73
 photo_cameraImage coming soon 5.009.0271 PRESSURE REGULATOR €28.10
74
 photo_cameraImage coming soon 3.200.0036 O-RING 4X2,5 SH.70 VITON €1.67
75
 photo_cameraImage coming soon 4.606.0056 Substituted by 5.609.0041 CHECK VALVE €13.60
76
 photo_cameraImage coming soon 4.607.0105 VALVE SPRING CHECK D.4.8-6 L = 20 WIRE 0.6 STAINLESS STEEL €1.65
77
 photo_cameraImage coming soon 4.006.0172 INJECTOR DIAMITER 2X OMNIA 97 €3.11
78
 photo_cameraImage coming soon 3.200.0022 O-RING 9,25X1,78 €1.67
79
 photo_cameraImage coming soon 3.200.0070 O-RING 14X2 €1.63
80
 photo_cameraImage coming soon 4.006.0168 OUTLET CONNECTION M22X15 €6.66
81
 photo_cameraImage coming soon 4.607.0095 SPRING D.8X16 WIRE 0.8 ESP.00 €3.87
82
 photo_cameraImage coming soon 3.005.0002 BALL 11/32 "INOX 420 B €1.57
83
 photo_cameraImage coming soon 4.607.0098 VALVE L2 SEAL SEAT €5.28
84
 photo_cameraImage coming soon 3.200.0071 OR GASKET 11,1X1,78 SH 90 €1.62
85
 photo_cameraImage coming soon 4.006.0170 SEATED DISTANCE SPACER FOR OMNIA'97 HEADER €14.14
87
 photo_cameraImage coming soon 4.005.0124 ALLUMINIUM HEAD €118.54
88
 photo_cameraImage coming soon 3.002.0139 SCREW TCEI M8X35 ZNT €1.72
89
 photo_cameraImage coming soon 4.006.0011 SUCTION VALVE SPACER €6.99
95
 photo_cameraImage coming soon 5.008.0107 PUMP HEAD C/W COMP.VALVE,FRONT PRESS.GAUGE X T.S. €224.25
97
 photo_cameraImage coming soon 5.006.0104 MOTOR '96 HIGH D.125 H110 240/50 2P €251.71
99
 photo_cameraImage coming soon 5.007.0008 PIST. BOBY GUIDE BEST'01 €89.49

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Original Parts for Pressure Cleaner IDRO KW24

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner - IDRO Lavor KW24 240/50 -G- GB LWS TS 8.021.0609.

Fix Your Pressure Cleaner. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
Lavor STM 160 WPS PLUS

IDRO KW24 240/50 -G- GB LWS TS
Chassis
# Part Num. Description
1 4.012.0161 CABLE H05VV-F 3X1.5 MT.5.4 PLUG GB F/F
3 3.002.0145 SCREW HI-LO/TMT 6 LOBES +FALSE FLAT WASHER 3.9X30
4 5.011.0035 YELLOW UPPER FAIRING SPACE PRE-ASSEMBLED
5 4.007.0114 NOZZLE CLEANING PIN D.0.8
6 4.008.0276 TANK HANDLE KW (SPACE)
7 4.008.0284 HANDLE FOR KW (SPACE)
8 4.008.0281 REGULATOR KNOB FOR KW (SPACE)
9 3.002.0129 SCREW HI-LO TORX 3.9X35 AESTHETIC HEAD BLACK ZNT
10 4.608.0027 PLUG DIAM.30 FOR TANK FIRE 100 -N-
11 3.099.0095 WHEEL STUD FOR SP200 -G- PANT.108C SMOOTH
12 3.099.0020 WHEEL RETAINER De.28.3 FOR AXLE D.15
13 4.008.0296 WHEEL D.200 HUB D.15 SPI200 STRAIGHT TREAD
14 4.007.0134 AXLE FOR KW (SPACE)
15 4.008.0282 LH LANCE SUPPORT FOR KW (SPACE)
16 5.011.0034 YELLOW LOWER FAIRING SPACE PRE-ASSEMBLED
17 3.002.0104 SCREW TC TORX T15 3.9X16 WHITE ZNT
18 4.008.0283 RH LANCE SUPPORT FOR KW (SPACE)
19 4.008.0444 TRANSPARENT HOSE 6X9 L=340mm
20 4.008.0280 LANCE HOLDER WITH FOOT FOR SPA CE
21 3.002.0128 SCREW TCB-TC M5X10 ZNT
22 3.100.0082 QUICK COUPLING 3/4 BLACK WITH GASKET (THREAD L=11.5)
23 4.018.0061 HOSE 1/4 18MPa L=8000 1/4F.SWIVEL/M22x1.5K15
24 6.001.0038 GUN S'01D METAL EXTENSION
26 6.002.0186 LANCE SY'99 1.20 A/B (RED)
Pag.2
Motorpump
# Part Num. Description
0 5.001.0226 MOTORPUMP OMNIA'97 230/50 H110 FLAT TT.7,20 + T.S. FRONT HANDLE
1 5.009.0213 SWITCH ASSY 0/1 BIP. 12(10)A + TRANSPARENT PROTECTION
2 3.406.0004 CABLE GLAND PG.11 WATERPROOF ANTI-STRAIN
3 3.406.0011 NUT FOR PG.11 ANTI-STRAIN
4 4.008.0356 ELECTRICAL BOX PARTNER'96 FOR SWITCH WITH FRAME
5 3.002.0111 SCREW TC-TORX M4X10 TRILOBATE Z
6 3.404.0016 CAPACITOR 45mF 450V D.45x90 F/M
7 4.008.0613 ELECTRICAL BOX GASKET PARTNER
8 3.002.0003 SCREW TCEI M8X25 UNI 5931 ZNT
11 5.009.0207 PLUG ASSY FOR PUMP BEST CAR. VERT. OIL + OR sh90
12 3.201.0002 OIL SEAL RING BADSLSF 15x25,4X5/7
13 3.200.0004 O-RING GASKET 12,4x1,78 SH.70 REF.2050
15 3.200.0003 O-RING GASKET 25,12x1,78 REF.2100
16 3.201.0003 WATER SEAL RING N.15x22x4
17 4.008.0391 OIL SEAL SPACER
18 4.006.0108 BRASS COVER SECOND WATER SEAL
19 4.006.0107 BRASS BUSHING SECOND WATER SEAL
26 5.009.0159 OIL PLUG 3/8G COMPLETE WITH GASKET
28 4.005.0184 FINNED BEST GUIDE BODY '01
29 3.099.0003 OIL LEVEL INDICATOR SLNS-3/8 HOBBY
30 3.002.0004 SCREW STEI 3/8 G.DIN 906 (OIL DRAIN PLUG)
31 4.007.0011 PISTON RETURN SPRING D.15 d.3 L.45
32 5.009.0086 RETAINER/PISTON ASSY D.15 OMNIA RECT.
33 4.007.0001 THRUST WASHER D.65x30x6 (C10Pb) FINISHED
34 3.001.0025 NEEDLE ROLLER CAGE TYPE AXK4565 -STEEL-
35 3.001.0003 AXIAL BEARING WASHER AS4565
36 3.002.0011 SCREW TCEI M8X22 CL 8.8 ZNT WHITE NCA UNI 5931
37 4.005.0005 DIE-CAST FLANGE G.7.20'
38 3.001.0002 ANGULAR CONTACT BALL BEARING 20x52x15 7304 B
39 3.200.0002 O-RING GASKET 90x2,5
40 3.201.0001 SEAL RING 20/35/6/6,5 BABS L
41 4.005.0100 FRONT FLANGE 125'96 H110 HIGH
42 3.002.0115 SCREW TCEI M5X35 TRILOBATE ZNT
43 5.005.0029 ROTOR SHAFT D.65 H.110 (125'96)
44 3.001.0020 RADIAL BALL BEARING 6203 2RS
45 5.002.0123 CASING '96 D125 h110 240/50 2P 2800W
46 4.008.0092 FAN FB80 WITH HOLE D.16.5 (PARTNER)
47 3.099.0049 RETAINING RING D.23 FOR FAN
48 4.008.0583 FAN COVER FOR MOTOR '96 WITHOUT GRID
49 5.009.0277 ADJUSTMENT ROD ASSY COMPEN. VALVE FOR TS D.11
50 5.009.0283 MICROSWITCH ASSY + CABLE L=580 FOR TS COMP. VALVE WITHOUT CABLE GLAND
54 5.009.0101 SUCTION/DELIVERY VALVE CAP WITH OR ASSEMBLED
55 5.009.0005 SUCTION DELIVERY VALVE LAVOR 1
56 3.200.0019 O-RING GASKET 12.42x1.78 SH.90
59 3.200.0012 O-RING GASKET 10.78x2.62 SH.70 REF.3043
60 4.007.0014 EXT HOSE CHECK VALVE SPRING De4.5/6 L=7 STAINLESS STEEL WIRE D.0.3
61 3.005.0001 STAINLESS STEEL BALL D.5 420 (PRECISION GRADE G 500)
62 5.009.0164 DETERGENT SUCTION HOSE CONNECTOR COMPLETE WITH OR
64 4.008.0031 CONICAL WATER SUCTION FILTER ORD D.16
70 3.002.0001 SCREW STEI M6X8 P.P. UNI 5923
71 3.107.0009 PRESSURE GAUGE WITH GLYCERIN 1/8 D.40 COLORED DIAL
72 4.006.0109 CONICAL GAS PLUG 1/8 L=6.5
73 5.009.0271 PRESSURE REGULATOR FOR OMNIA '97
74 3.200.0036 O-RING GASKET 4x2.5 SH.70 VITON
75 4.606.0056 EXT HEXAGONAL BRASS CHECK VALVE
76 4.607.0105 EXT CHECK VALVE SPRING D.4.8-6 L=20 STAINLESS STEEL WIRE 0.6
77 4.006.0172 INJECTOR DIAM.2 FOR PARTNER/ OMNIA
78 3.200.0022 O-RING GASKET 9.25x1.78 REF.2037
79 3.200.0070 O-RING GASKET 14X2 SH.70
80 4.006.0168 OUTLET FITTING M22X1.5 FOR OMNIA'97
81 4.607.0095 SPRING D.8X16 WIRE 0.8
82 3.005.0002 STAINLESS STEEL BALL 11/32 420B
83 4.607.0098 STAINLESS STEEL VALVE RETAINING SEAT L2
84 3.200.0071 O-RING GASKET 11.1x1.78 SH.90
85 4.006.0170 RETAINING SEAT SPACER FOR HEAD OMNIA'97
87 4.005.0124 OMNIA '97 ALUMINUM IMPREGNATED HEAD
88 3.002.0139 SCREW TCEI M8X35 ZNT
89 4.006.0011 SPACER FOR SUCTION VALVE
95 5.008.0107 HEAD OMNIA'97 WITH COMPEN. VALVE FRONT HANDLE WITH T.S. INJECTOR D.2
97 5.006.0104 MOTOR '96 HIGH D.125 H110 240/50 2P
99 5.007.0008 BEST'01 GUIDE BODY ACC. PISTONS FINNED WITH INDICATOR
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Lavor IDRO KW24 80210609

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

Lavor Idro KW24 Drawing

Lavor Idro KW24 Drawing

Download (852.3KB)

You might also like

Set Trigger Gun 6.005.0322 + 6 mt. Hose for Pressure Washers Lavor
Lavorwash S.p.A. SKU: 6.005.0322
Set Trigger Gun 6.005.0322 + 6 mt. Hose for Pressure Washers Lavor
Set Trigger Gun 6.005.0322 + 6 mt. Hose for Pressure Washers Lavor Genuine Part Lavor, Set Trigger Gun S'09C 6.005.0322 + 6 mt. H.P. Hose for Cold Water High-Pressure Washers with Quick Hose Coupling Fury 110 - Ride 110 - Race 125 -...
on 7/10 Business Days Approx €61.82
Details
Head with Fan Jet High Pressure Nozzle Ø 0.95
Lavorwash S.p.A. SKU: 6.002.0342
Head with Fan Jet High Pressure Nozzle Ø 0.95 6.002.0342
Head with Fan Jet High Pressure Nozzle Ø 0.95 6.002.0342 Genuine Replacement part Lavor, Head with Fan Jet High Pressure Nozzle Ø 0.95 for Lance Lavor 6.002.0340. Part suitable for the following high pressure washers: - Lavor Ride 110...
AVAILABLE €7.30
Details
Head Nozzle Jet Adjustable Needle-Fan Ø 0.90 6.002.0636
Lavorwash S.p.A. SKU: 6.002.0636
Head Nozzle Jet Adjustable Needle-Fan Ø 0.90 6.002.0636
Head Nozzle Jet Adjustable Needle-Fan Ø 0.90 6.002.0636 Genuine Replacement part Lavor, Head Nozzle Jet Adjustable Needle-Fan Ø 0.95 6.002.0636 for Lance Lavor 6.002.0343. Part suitable for the following high...
AVAILABLE €9.09
Details
Head Soap Nozzle 6.002.0634
Lavorwash S.p.A. SKU: 6.002.0634
Head Soap Nozzle 6.002.0634
Head Soap Nozzle 6.002.0634 Genuine Replacement part Lavor, Head Soap Nozzle 6.002.0634 for Lance Lavor 6.002.0343. Part suitable for the following high pressure washers: - Lavor Fury 110 - Lavor Race 125 - Lavor Cross 140 - Lavor...
AVAILABLE €5.87
Details
Head Turbo Nozzle Ø 1,025 for Lance Lavor
Lavorwash S.p.A. SKU: 6.002.0346
Head Turbo Nozzle Ø 1,025 for Lance Lavor
Head Turbo Nozzle Ø 1,025 for Lance Lavor Genuine Replacement part Lavor, Head cod. 6.002.0346 Turbo Nozzle Ø 1,025 for Lance Lavor 6.002.0340. Part suitable for the following high pressure...
AVAILABLE €8.32
Details
Lance S'02 V fan Jet Ø 0,9 for Pressure Washers Lavor
Lavorwash S.p.A. SKU: 6.002.0326
Lance S'02 V fan Jet Ø 0,9 for Pressure Washers Lavor
Lance S'02 V fan Jet Ø 0,9 for Pressure Washers Lavor Genuine Replacement part Lavor, Lance S'02 V fan Jet Ø 0,9 for pressure Washers Fury 110 - Ride 110 - Race 125 - Cross 140 - Army 120. Part suitable for the following high...
Usually Ships in: 7/10 Business Days Approx. €7.53
Details
Adjustable Lance 6.002.0286C S'99 High/Low Pressure Ø 0.95
Lavorwash S.p.A. SKU: 6.002.0286C
Adjustable Lance 6.002.0286C S'99 High/Low Pressure Ø 0.95
Adjustable Lance 6.002.0286C S'99 High/Low Pressure Ø 0.95 Genuine Replacement part Lavor, Adjustable Lance S'99 High/Low Pressure Ø 0.95 for Pressure Washers Fury 110 - Ride 110 - Race 125 - Cross 140 - Army 120. Part suitable for...
AVAILABLE €14.48
Details
Adjustable Lance 6.002.0208C S'99 High/Low Pressure Ø 1.00
Lavorwash S.p.A. SKU: 6.002.0208C
Adjustable Lance 6.002.0208C S'99 High/Low Pressure Ø 1.00
Adjustable Lance 6.002.0208C S'99 High/Low Pressure Ø 1.00 Genuine Replacement part Lavor, Adjustable Lance S'99 High/Low Pressure Ø 1.00 for Pressure Washers Ride 110 - Race 125 - Cross 140 - Army 120 - Marine 125. Part suitable for...
AVAILABLE €14.48
Details
Turbo Lance Ø 1.025 6.002.0329 for Pressure Washers Lavor
Lavorwash S.p.A. SKU: 6.002.0329
Turbo Lance Ø 1.025 6.002.0329 for Pressure Washers Lavor
Turbo Lance Ø 1.025 6.002.0329 for Pressure Washers Lavor Genuine Replacement part Lavor, Turbo Lance Ø 1.025 6.002.0329 for Pressure Washers Lavor Fury 110 - Ride 110 - Race 125 - Cross 140 -   Army 120 - Marine 125. Part suitable...
on 7/10 Business Days Approx €11.82
Details
Sand Blasting Lance 6.002.0177 for Pressure Washers Lavor
Lavorwash S.p.A. SKU: 6.002.0177
Sand Blasting Lance 6.002.0177 for Pressure Washers Lavor
Sand Blasting Lance 6.002.0177 for Pressure Washers Lavor Genuine Replacement part Lavor, Sand Blasting Lance 6.002.0177 for Cold Water Pressure Washers Race 125 - Cross 140 - Marine 125 - Navy 140 - Predator 160 - Enduro 145...
AVAILABLE €48.52
Details
Sand Blasting Lance 6.002.0177 for Pressure Washers Lavor
Lavorwash S.p.A. SKU: 6.003.0037
6 m Pipe Cleaning Hose 6.003.0037 for Pressure Washer Lavor
6 m Pipe Cleaning Hose 6.003.0037 for Pressure Washer Lavor Genuine Replacement part Lavor, 6 m Pipe Cleaning Hose 6.003.0037 for Cold Water Pressure Washers Fury 110 - Ride 110 - Race 125 - Cross 140 - Marine 125 - Navy 140 - Predator...
AVAILABLE €54.51
Details
10 m Pipe Cleaning Hose 6.003.0048 for Pressure Washer Lavor
Lavorwash S.p.A. SKU: 6.003.0048
10 m Pipe Cleaning Hose 6.003.0048 for Pressure Washer Lavor
10 m Pipe Cleaning Hose 6.003.0048 for Pressure Washer Lavor Genuine Replacement part Lavor, 10 m Pipe Cleaning Hose 6.003.0048 for Cold Water Pressure Washers Fury Race 125 - Cross 140 - Marine 125 - Navy 140 - Predator 160. Part...
AVAILABLE €65.01
Details
15 m Pipe Cleaning Hose 6.003.0052 for Pressure Washer Lavor
Lavorwash S.p.A. SKU: 6.003.0052
15 m Pipe Cleaning Hose 6.003.0052 for Pressure Washer Lavor
15 m Pipe Cleaning Hose 6.003.0052 for Pressure Washer Lavor Genuine Replacement part Lavor, 15 m Pipe Cleaning Hose 6.003.0052 for Cold Water Pressure Washers Cross 140 - Marine 125 - Navy 140 - Predator 160. Part suitable for the...
AVAILABLE €83.10
Details
Foam Lance + Bottle for High Pressure Washers Lavor
Lavorwash S.p.A. SKU: 6.002.0358
Foam Lance + Bottle for High Pressure Washers Lavor
Foam Lance + Bottle for High Pressure Washers Lavor Genuine Replacement part Lavor, Foam Lance + Bottle 6.002.0358 for Cold Water High Pressure Washers Fury 110 - Ride 110 - Race 125...
AVAILABLE €13.09
Details
Foam Lance + Bottle for High Pressure Washers Lavor
Lavorwash S.p.A. SKU: 4.006.0062
Foam Lance + Bottle for High Pressure Washers Lavor
Foam Lance + Bottle for High Pressure Washers Lavor Genuine Replacement part Lavor, Foam Lance + Bottle 6.002.0358 for Cold Water High Pressure Washers Fury 110 - Ride 110 - Race 125 - Cross 140 - Army 120. Part suitable for the...
AVAILABLE €3.30
Details
Quick Coupling 3/4F for High Pressure Washers Lavor
Lavorwash S.p.A. SKU: 3.100.0082
Quick Coupling 3/4F for High Pressure Washers Lavor
Quick Coupling 3/4F  for High Pressure Washers Lavor Genuine Replacement part Lavor, Quick Coupling 3/4F 3.100.0082 for Cold Water High Pressure Washers Fury 110 - Ride 110 - Race 125...
AVAILABLE €1.63
Details
Inlet Quick Coupling for High Pressure Washers Lavor
Lavorwash S.p.A. SKU: 3.100.0062
Inlet Quick Coupling for High Pressure Washers Lavor
Inlet Quick Coupling for High Pressure Washers Lavor Genuine Replacement part Lavor, Inlet Quick Coupling 3.100.0062 for Cold Water High Pressure Washers Fury 110 - Ride 110 - Race 125 - Cross 140 - Army 120. Part suitable for the...
AVAILABLE €4.25
Details
Water Inlet Hose 3 m for High Pressure Washers Lavor
Lavorwash S.p.A. SKU: 5.009.0134
Water Inlet Hose 3 m for High Pressure Washers Lavor
Water Inlet Hose 3 m for High Pressure Washers Lavor Genuine Replacement part Lavor, Inlet Quick Coupling 3.100.0062 for Cold Water High Pressure Washers Fury 110 - Ride 110 - Race 125 - Cross 140 - Army 120. Part suitable for the...
AVAILABLE €13.95
Details
Water Inlet Filter 3/4F-3/4 M for High Pressure Washers Lavor
Lavorwash S.p.A. SKU: 3.102.0011
Water Inlet Filter 3/4F-3/4 M for High Pressure Washers Lavor
Water Inlet Filter 3/4F-3/4 M for High Pressure Washers Lavor Genuine Replacement part Lavor, Quick Coupling 3/4 F with Built-in Filter 3.100.0405 for Cold Water High Pressure Washers Fury 110 - Ride 110 - Race 125 - Cross 140 - Army...
AVAILABLE €9.96
Details
Plate Assembly with Crown for Pressure Washer Lavor ENDURO 145
Lavorwash S.p.A. SKU: 5.009.0726
Plate Assembly with Crown for Pressure Washer Lavor ENDURO 145
Plate Assembly with Crown for Pressure Washer Lavor ENDURO 145 Original replacement part Lavor, Plate Assembly 5'30 PT'03 (U76) with Crown Z 62 for ENDURO 145 - ARMY 110 - MARINE 125 - NAVY 140 - RAPTOR 21 - STORM II 18. Part for the...
Usually Ships in: 7/10 Business Days Approx. €6.90
Details
Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145
Lavorwash S.p.A. SKU: 6.005.0311
Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145
Kit 283 LW Needle Bearing for Pressure Washer Lavor ENDURO 145 Original replacement part Lavor, Kit 283 LW Needle Bearing for Motorpump PT'03 (U76) for ENDURO 145 - ARMY 110 - MARINE 125 - NAVY 140 - RAPTOR 21 - STORM II. Part for...
AVAILABLE €5.50
Details
Pin 10x70 for Pressure Washer Lavor Predator 160 WPS
Lavorwash S.p.A. SKU: 4.007.0205
Pin 10x70 for Pressure Washer Lavor Predator 160 WPS
Pin 10x70 for Pressure Washer Lavor Predator 160 WPS Genuine replacement part Lavor, Pin 10x70 for Drive Wooble Plate Assembly with Crown for Pressure Washer Predator 160 WPS 220-240~50/60 -V/N- TS EU C/AVV. LWS 8.101.0012. Part for...
AVAILABLE €7.42
Details
Switch 0/1 Black Button for Pressure Washers Lavor
Lavorwash S.p.A. SKU: 3.401.0178
Switch 0/1 Black Button for Pressure Washers Lavor
Switch 0/1 Black Button for Pressure Washers Lavor Genuine replacement part Lavor, Switch 0/1 Black Button IP55 12/10 for Pressure Washers Lavor Part for the following products: -  Pressure washer Ride 110...
Usually Ships in: 10 Business Days Approx. €6.80
Details
Motor Assembly for Pressure Cleaner Lavor X-Ray Plus 140
Lavorwash S.p.A. SKU: 5.009.0979
Motor Assembly for Pressure Cleaner Lavor X-Ray Plus 140
Motor Assembly for Pressure Cleaner Lavor X-Ray Plus 140 Genuine replacement part Lavor, Motor Assembly 03 230/50 Flangia Interna + Pignone F.L=600 Con/ANTID(U7645PF-ALL) for Pressure Cleaner PLUS 21 X-Ray Plus 140. Part for the...
on 10 Business Days Approx €87.31
Details
Body Guide + Head Assy for Pressure Cleaner PLANET 140
Lavorwash S.p.A. SKU: 5.009.0839C
Body Guide + Head Assy for Pressure Cleaner PLANET 140
Body Guide + Head Assy for Pressure Cleaner PLANET 140 Genuine part Lavor, Body Guide + Head (PT'03EVO) Assembled TS With Suction (SPRING 13KG) for Pressure Cleaners PLANET 140 - CROSS 140 - NAVY 140. Part for the following products:...
on 7/10 Business Days Approx. €83.81
Details
Lavor PLANET 140 Grey Wheel
Lavorwash S.p.A. SKU: 4.008.1773
Lavor PLANET 140 Grey Wheel
Lavor PLANET 140 Grey Wheel With Black Coat Genuine replacement part Lavor, Grey Wheel With Black Coat for SPACE for PLANET 140 - PLANET 160 - FASA INDIE 140. Part for the following products: -  LAVOR PLANET 140 81100005C...
on 7/10 Business Days Approx. €12.21
Details
Comments (0)
No customer reviews for the moment.
