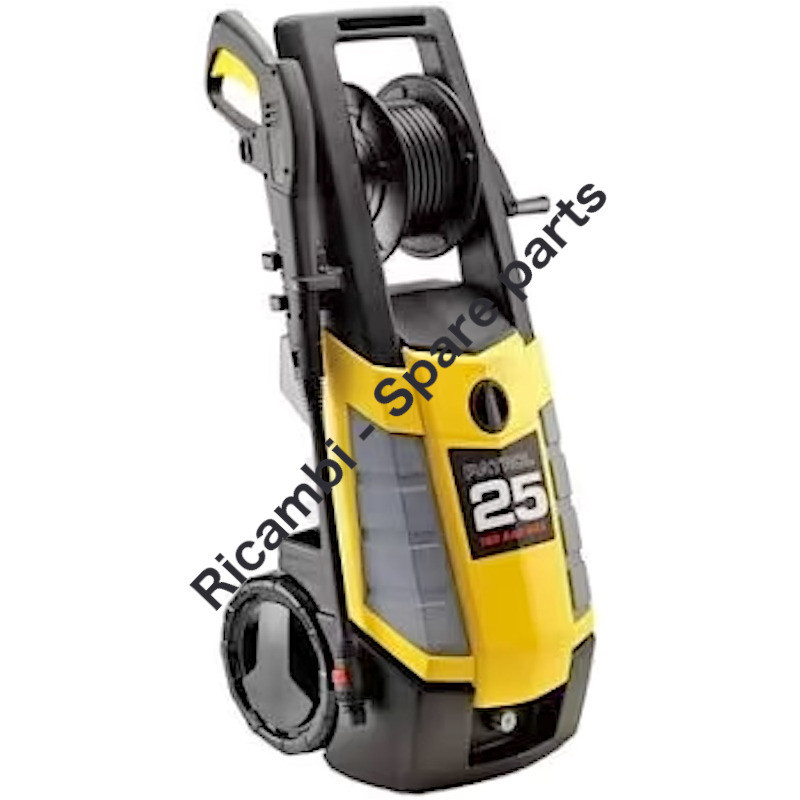

Lavor Parts for Pressure Cleaner PATROL 25

Name: Lavor Parts for Pressure Cleaner PATROL 25
Brand: Lavorwash S.p.A.
SKU: Lavor PATROL 25 80980005c
Availability: InStock

SKU: Lavor PATROL 25 80980005c

€0.10

VAT included

Lavor Original Parts for Pressure Cleaner PATROL 25

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner - IDRO Lavor PATROL 25 220-240~50/60 -GR/G- TS EU +2SP+L28+SPURG. LAVOR

Idro PATROL 25

Lavor Parts for Pressure Cleaner PATROL 25

New
Out-of-Stock

Lavor Parts for Pressure Cleaner PATROL 25

SKU: Lavor PATROL 25 80980005c Condition: New

€0.10

VAT included

Lavor Original Parts for Pressure Cleaner PATROL 25

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner - IDRO Lavor PATROL 25 220-240~50/60 -GR/G- TS EU +2SP+L28+SPURG. LAVOR

Idro PATROL 25

46 Spare parts

6 exploded views

Download Exploded PDF

Quantity

Out-of-Stock

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS

CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS

Original Product Manufacturer warranty included

Technical Support Our team helps you choose

Secure and guaranteed payments

46 spare parts

Page 1 View exploded Usually Ships in: 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
6	Image coming soon	4.008.1432 BLACK SWITCH KNOB	€3.23
7	Image coming soon	3.401.0202 ROTARY SWITCH TWO GEARS BIPOLAR 16A (0-1) W/PIN 11.5	€5.55
9	Image coming soon	4.008.1437 BLACK CAP FOR ELECTRICAL BOX VERTIGO	€3.15
11	Image coming soon	4.008.1425 BLACK HANDLE FOR VERTIGO	€25.47
12	Image coming soon	4.008.1614 VERTIGO CABLE REEL - GR- RAL.7046 (PANT.430C)	€11.83
13		4.008.0095 Einhell Tank Cap for RT-HP 1855 TR	€7.41
14		4.008.1431 Lavor Tank for Vertigo 28 Plus	€13.68
15	Image coming soon	4.013.0639 BLACK BACK SIDE CABINET VERTIGO	€26.75
16	Image coming soon	4.008.1433 BLACK WHEEL VERTIGO	€12.82
17	Image coming soon	4.012.0235 CABLE H05VV-F 2X1,5 5,4MT SCHUKO PLUG	€28.82
18		6.001.0076 Trigger Gun S'09 6.001.0076 for Pressure Washers Cold Water Lavor	€23.90
19		4.018.0096 H.P. Hose 4.018.0096 8 m for Quick Coupling Trigger Gun Lavor S’09	€37.03
22		6.002.0340 Lance 6.002.0340 Nozzle Head Holder for Trigger Guns Lavor	€9.52
23		6.002.0637 Head Nozzle Jet Adjustable Needle-Fan Ø 1.00 6.002.0637	€9.65
24		6.002.0346 Head Turbo Nozzle Ø 1,025 for Lance Lavor	€8.32
25		6.002.0634 Head Soap Nozzle 6.002.0634	€5.87
26		3.601.0033 Fixed Brush 3.601.0033 for Cold Water Pressure Washers Lavor	€15.41
27	Image coming soon	3.601.0035 ROTATING HYDRO BRUSH W/HANDLE	€23.74
30	Image coming soon	3.100.0082C BLACK QUICK COUPLING INLET CONNECTOR (THREAD=9.5)	€1.50
31	Image coming soon	7.100.2136 MANUAL PRIME/PATROL LAVOR	€11.82
33	Image coming soon	6.005.0450 HOSE REEL KIT PRIME	€37.39
34	Image coming soon	5.001.X763C MOTORPUMP PT'03 230/50 TS W/THERM.-SUCTION 7'10 (8850) W/CON	€208.16
35		6.003.0037 6 m Pipe Cleaning Hose 6.003.0037 for Pressure Washer Lavor	€54.51
36	Image coming soon	3.601.0102 YELLOW/BLACK FLOOR BRUSH L28 W/EXTENSION (D.1,2)	€49.25

Page 2 View exploded Usually Ships in: 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
4	Image coming soon	4.013.0640 BLACK FRONT SIDE CABINET VERTIGO	€29.90

Page 3 View exploded Usually Ships in: 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1		5.009.0924 Motor Ass'y for Pressure Washer Lavor WASHER 19	€80.34
2		6.005.0180 Kit 166 Footstep Bearing for Pressure Washer Lavor Predator 160 WPS	€11.08
3		4.007.0205 Pin 10x70 for Pressure Washer Lavor Predator 160 WPS	€7.42
4		5.009.1020 Wobble Plate Assembly for Pressure Washer Lavor Predator 160 WPS	€13.76
5	Image coming soon	4.007.0328 THRUST BEARING 35X55X12 PT'03	€14.74
6	Image coming soon	5.009.0997C BODY GUIDE+HEAD(TPAV) W/TS 14.5KG-SUCT.-THREAD CAPS-PL.CHECK VALVE SEAT	€52.44
7	Image coming soon	4.008.1026 MOTOR CONVEYER RIGHT+LEFT 2100W	€7.98
8	Image coming soon	4.008.1077 LOW COVER FOR CONVEYOR IN 2 PARTS (8850)	€4.95

Page 4 View exploded Usually Ships in: 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	5.007.0281C PISTON BODY GUIDE PT'03 W/TS 14.5KG-SUCTION	€30.46
2		6.005.0282 Kit 257 LW Rings Support + Spacers for Washer Lavor ENDURO 145	€14.15
3	Image coming soon	5.008.0298C PT'03 HEAD D.12 W/THREAD CAPS(TPAV - ALUM.CAPS)	€18.45

Page 5 View exploded Usually Ships in: 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	6.005.0595 KIT HEAD VALVE KIT +CAPS PT'03	€14.20
2	Image coming soon	4.005.0302 PT'03 HEAD WITH THREAD FOR VALVE CAPS (TPAV)	€5.94
3		6.005.0133 Kit 124 Water Seal Partner for Pressurte Washer Lavor BEST 24	€14.15

Page 6 View exploded Usually Ships in: 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1		5.009.1022 Lavor GALAXY 160 TSS Valve Assy	€17.04
2		6.005.0277 Kit 252 LW for High Pressure Washers ARMY 110 - MARINE 125 - NAVY 140	€4.79
3		6.005.0079 Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24	€14.50
4		6.005.0226 Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24	€11.10
5	Image coming soon	4.005.0263C 4.005.0263 PISTON BODY GUIDE PT'03 WITH SUCTION VALVE	€8.71
6		6.005.0181 Kit 167 LW 3 Pistons + Springs for Pressurte Washer Lavor BEST 24	€17.00
7	Image coming soon	4.007.0314 PIN 3,5x30 ZNT	€1.59

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Original Parts for Pressure Cleaner PATROL 25

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner - IDRO Lavor PATROL 25 220-240~50/60 -GR/G- TS EU +2SP+L28+SPURG. LAVOR

Fix Your Pressure Cleaner. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.

PATROL 25 220-240~50/60 -GR/G- TS EU +2SP+L28+SPURG. LAVOR
#	Part Num.	Description
5	5.011.0214	FAIRING ASSY+SIDE PANELS-N/G/GR-PATROL W/PAD.-LAVOR-
6	4.008.1432	BLACK VERTIGO SWITCH KNOB
7	3.401.0202	ROTARY BIPOLAR SWITCH 16A(0-1)W/PIN L=11.5
9	4.008.1437	BLACK VERTIGO ELECTRICAL BOX COVER
11	4.008.1425	BLACK VERTIGO HANDLE
12	4.008.1614	VERTIGO CABLE REEL-GR-RAL.7046(PANT.430C)
13	4.008.0095	DETERGENT TANK CAP W/HOLE D.9 -N-
14	4.008.1431	VERTIGO TANK
15	4.013.0639	REAR FAIRING VERTIGO BLACK
16	4.008.1433	VERTIGO WHEEL BLACK
17	4.012.0235	CABLE H05VV-F 2X1.5 MT.5.4 SCHUKO PLUG ANTISP.F/F+CABLE COVER
18	6.001.0076	GUN S'09 W/QUICK COUPL. INTEGR.W/LEVER-G-PANT.108C
19	4.018.0096	HOSE 1/4 18MPA 8M SWIVEL M22X1.5 D15-QUICK COUPL. X S'09 W/PROT.MAN.
22	6.002.0340	LANCE S'12 W/NOZZLE HOLDER W/QUICK COUPL.-COGETIL
23	6.002.0637	LANCE HEAD S'12 D.1.00-LIGHT BLUE-W/QUICK COUPL.(PIN JET)
24	6.002.0346	ROTATIVE NOZZLE HEAD LANCE S'12 D.1.025 -BLACK- W/QUICK COUPL.
25	6.002.0634	SOAP LANCE HEAD WITH QUICK COUPLING
26	3.601.0033	FIXED WATER BRUSH WITH LARGE COGETIL COUPLING
27	3.601.0035	ROT.WATER BRUSH FIXED HANDLE COG.REINF.(5116 ECON.)
30	3.100.0082C	QUICK COUPLING 3/4 BLACK WITH GASKET (THREAD L=9.5)
31	7.100.2136	MANUAL PRIME/PATROL LAVOR
33	6.005.0450	KIT 380 PRIMING WATER SUCTION (W/O HOSE)
34	5.001.X763C	MOTORPUMP PT'03 230/50 TS W/THERM.-SUCTION 7'10 (8850) W/CON
35	6.003.0037	PIPE CLEANING HOSES MT6+COGETIL+ NOZZLE
36	3.601.0102	FLOOR BRUSH L28+EXTENS.-G/N-(D.1,2)
Pag.2
#	Part Num.	Description
1	4.008.1463	GREY LATERAL LEFT SHELL VERTIGO -PANT.430C-
2	4.008.1613	FRONT COVER VERTIGO-G-PANT.108C W/PAD.-LAVOR-
3	4.008.1462	GREY LATERAL RIGHT SHELL VERTIGO -PANT.430C-
4	4.013.0640	FRONT FAIRING VERTIGO BLACK
Pag.3
#	Part Num.	Description
1	5.009.0924	MOTOR BRUSH ASSY 03 230/50 W/THERMAL PROT. 17AM-D 140G(8850)
2	6.005.0180	KIT 166 LW HUB+ROLLER CAGE INI 3047 PT03-SD
3	4.007.0205	PIN 10X70 X PARTNER-ED BRUSHES '98
4	5.009.1020	PLATE ASSY 7'10 PT03 W/PLASTIC INSERT+CROWN Z 50
5	4.007.0328	THRUST BALL BEARING 35X55X12 FOR PT03
6	5.009.0997C	GUIDE UNIT C/TS 14.5KG-MACHINED SEATS-+TEST.PT03-TPAV
7	4.008.1026	BRUSH CONVEYOR 2100W RH-LH
8	4.008.1077	LOWER COVER FOR CONVEYOR IN 2 PIECES(8850)
Pag.4
#	Part Num.	Description
1	5.007.0281C	GUIDE C. PT03 C/TS 14.5KG-SUCTION
2	6.005.0282	KIT 257 LW RINGS BACKUP GASKET ALL.+SPACERS PT D.12
3	5.008.0298C	HEAD PT'03 (TPAV) D.12 W/THREADED PLUGS ALL.
Pag.5
#	Part Num.	Description
1	6.005.0595	KIT SUCTION/DELIVERY VALVE+PLUGS ALL.THREAD PT' 03
2	4.005.0302	HEAD PT03 WASH.C/FIL.X VALVE PLUGS(TPAV)
3	6.005.0133	KIT 124 WATER SEAL RINGS PARTNER D.12
Pag.6
#	Part Num.	Description
1	5.009.1022	VALVE COMP.ASSY C/TS PT03 CABLE L=530 SPRING 14.5KG(WHITE CABLE COV.)
2	6.005.0277	INJECTOR KIT 1.7 FILTER HOLDER THREAD+CHECK VALVE PT'03
3	6.005.0079	KIT 79 LW OIL SEAL RINGS X PARTNER D.12/FIBER
4	6.005.0226	O-RING KIT FOR PT03
5	4.005.0263C	PISTONS GUIDE C. PT03 W/HOLE SUCTION DET.THREAD
6	6.005.0181	KIT 167 LW 3 PISTONS+SPRINGS PT03
7	4.007.0314	CYLINDRICAL PIN 3.5X30 ZNT

Product description

Find all original spare parts and accessories for the Lavor PATROL 25 cold water pressure washer in its specific 220-240V~50/60Hz TS EU configuration, equipped with the extended +2SP+L28+SPURG kit. This official parts lineup covers both the dual-frequency electrical/motor components and the pump assembly with Total Stop (TS) system. It includes wear-and-tear components such as water seals, valves, and pistons, alongside the specialized attachments unique to this version: the two washing brushes (+2SP), the standard lance with L28 nozzle (+L28), and the drain cleaning/pipe unclogging hose (+SPURG). Choosing exclusive genuine Lavor parts ensures perfect restoration of operating pressure, prevents leaks, and maintains the tool's built-in safety features when cleaning pipes, vehicles, and outdoor areas.

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Lavor PATROL 25 80980005c

Data sheet

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

Condition New

Download

Lavor Patrol 25 Drawing

Download (1.67MB)
