Lavorwash S.p.A.

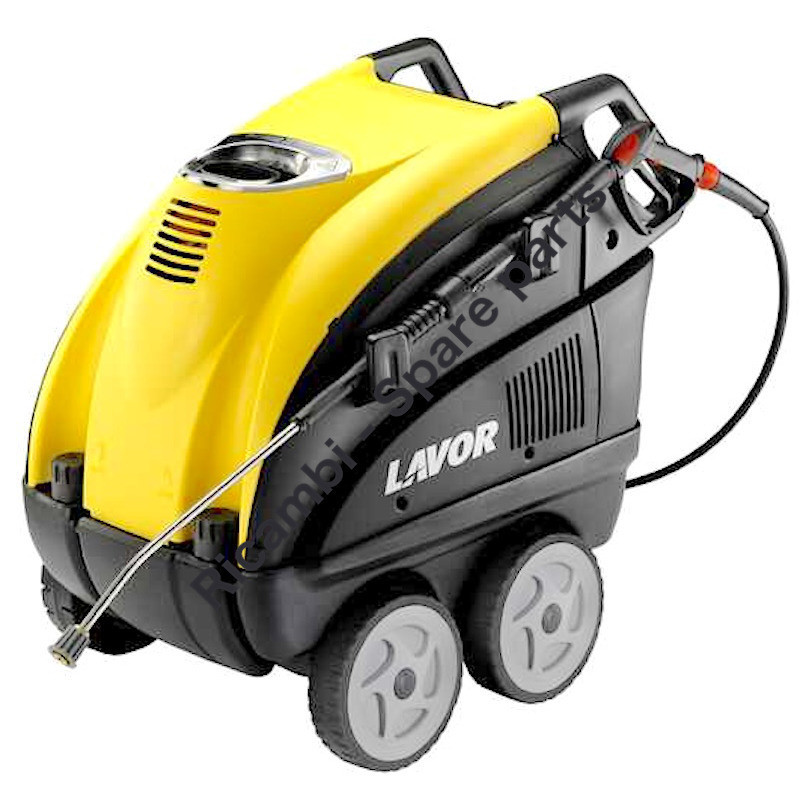

Lavor Pressure Cleaner LKX 1515XP Spare Parts

SKU: LKX1515XP 86210802
€0.11
VAT included

Lavor Pressure Cleaner LKX 1515XP Spare Parts

Lavor original spare parts for to replace broken parts for to fix Hot Water High Pressure Cleaner LKX 1515XP T 400-415/50 LWS18 - 8.621.0802.

dropulitrice LKX 1515XP T 400-415/50 LWS18

Lavor Pressure Cleaner LKX 1515XP Spare Parts
  • New
  • Out-of-Stock
  • Lavor Pressure Cleaner LKX 1515XP Spare Parts
  • Lavor LKX 1515XP Drawing
  • Lavor LKX 1515XP Drawing - 1
  • Lavor LKX 1515XP Drawing - 2
Lavorwash S.p.A.

Lavor Pressure Cleaner LKX 1515XP Spare Parts

SKU: LKX1515XP 86210802 Condition: New
€0.11
VAT included

Lavor Pressure Cleaner LKX 1515XP Spare Parts

Lavor original spare parts for to replace broken parts for to fix Hot Water High Pressure Cleaner LKX 1515XP T 400-415/50 LWS18 - 8.621.0802.

dropulitrice LKX 1515XP T 400-415/50 LWS18

settings 113 Spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
Quantity
Out-of-Stock

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
113 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.606.0140 BRASS MANIFOLD HEAD LAVOR 18 €262.08
3
 photo_cameraImage coming soon 3.099.0805 RING 61x51x0,4 H.3,5 €1.72
4
 photo_cameraImage coming soon 3.001.0066 RADIAL SPHERE BEARING 6305 2RSKBC (25x62x17) €11.41
6
 photo_cameraImage coming soon 3.406.0033 CABLE GLAND PG.21 STANDARD €28.82
9
 photo_cameraImage coming soon 5.609.0175 FRONT FLANGE WITH OIL SEAL FOR WATER-COOLED MOTOR LW 18 €57.18
11
 photo_cameraImage coming soon 3.001.0065 ANGULAR CONTACT BALL BEARING 7307-B (35X80X21) €72.53
12
 photo_cameraImage coming soon 4.607.0295 STEEL WOBBLE PLATE GR.15 FOR THRUST BEARING €42.79
13
 photo_cameraImage coming soon 4.607.0299 AXIAL THRUST BALL BEARING 55X90X25 FOR LAVOR 18 €29.38
14
 photo_cameraImage coming soon 6.005.0201 KIT 187 LW PISTONS D.18 LWS 18 €152.37
15
 photo_cameraImage coming soon 6.005.0218 KIT 201 PISTON RETURN SPRINGS LAVOR 18 €9.47
16
 photo_cameraImage coming soon 6.005.0320 KIT 292 LW OIL SIGHT GLASS HOBBY €28.27
17
 photo_cameraImage coming soon 4.605.0073 PISTON GUIDE BODY D.18 FOR VERTICAL HIGH-PRESSURE WASHER LAVOR 18 €43.24
18
 photo_cameraImage coming soon 5.609.0158 ASSEMBLY CONNECTOR 1/8 G + CAPM7 TS €14.85
19
 photo_cameraImage coming soon 5.609.0145 SUCTION/DELIVERY VALVE PLUG ASSEMBLY WITH O-RING LAVOR 18 €9.36
20
 photo_cameraImage coming soon 6.005.0203 KIT 189 LW OIL SEALS KIT LWS 18 €39.59
21
 photo_cameraImage coming soon 3.200.0154 O-RING GASKET 18.72X2.62 NBR 90 SHORE €1.54
22
 photo_cameraImage coming soon 6.005.0198 KIT 184 LW SUCTION/DELIVERY VALVES LWS 18 €51.33
25
 Lavor MCHPV 1515LP Kit 111 LW 6.005.0120 Lavor MCHPV 1515LP Kit 111 LW €28.38
27
 photo_cameraImage coming soon 4.606.0144 PLUG FOR SUCTION/DELIVERY VALVE LAVOR 18 €5.26
40
 photo_cameraImage coming soon 6.005.0197 KIT 183 LW WATER SEALS + BUSHINGS LWS 18 €98.58
41
 photo_cameraImage coming soon 6.005.0221 KIT 204 LW WATER SEALS LWS 18 €67.00
42
 photo_cameraImage coming soon 6.005.0222 KIT 205 LW BUSHINGS LWS 18 €31.51
50
 photo_cameraImage coming soon 6.005.0219 KIT 202 LW 2.0 INJECT. - PORT.RET.VALVE (5609Y154) LWS18 €31.17
51
 photo_cameraImage coming soon 5.609.X154 ASSEMBLY HOSE NOZZLE D.1 WITH O-RING - SPRING L=7, thread D.0.3 - BALL D.5 €4.58
52
 photo_cameraImage coming soon 5.609.0107 BOX+MICRO+CABLE 3X1 FOR TS BRASS HEAD '99 €38.32
56
 photo_cameraImage coming soon 5.007.0202 PISTON GUIDE BODY D.18 CERAMIC FOR HORIZONTAL USE €165.77
57
 photo_cameraImage coming soon 5.008.0190 BRASS HEAD LWS 18 TOTAL STOP WITH INJECTOR 2.0 OUTLET 3/8 €564.69
58
 photo_cameraImage coming soon 6.005.0200 KIT 186 MAX PRESSURE VALVE €28.10
59
 photo_cameraImage coming soon 3.699.0057 BIO GEAR EP OIL 220 (TECNOLUBE) €132.33
61
 photo_cameraImage coming soon 6.005.0129 COMPLETE BY-PASS KIT TEST.OCT.'99 TS €75.88
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5.613.0115 REAR DRIVE AXLE JOLLY 5 / LKX €34.70
2
 photo_cameraImage coming soon 4.613.0181 UPPER FAIRING NPX-LKX04-G-PANT.108C €75.63
3
 photo_cameraImage coming soon 4.608.0170 LEFT HANDLE NPX'04-GR-RAL.7021 €47.26
4
 photo_cameraImage coming soon 4.608.0169 RIGHT HANDLE NPX'04-GR-RAL.7021 €38.26
5
 photo_cameraImage coming soon 4.613.0182 REAR FAIRING NPX-LKX'04 -BLACK- €48.58
6
 photo_cameraImage coming soon 4.608.0203 DIESEL / DETERGENT TANK J OLLY 5 / LKX €264.90
7
 photo_cameraImage coming soon 3.002.0532 KNOB D.20 M5MX15 €3.23
8
 photo_cameraImage coming soon 4.612.0046 POWER CABLE H05VV-F 3X1.5 L = 6000 WITHOUT / FASTON €29.75
9
 Fuel Tank Long Spacer for Pressure Washers Lavor NPX 1400 - NPX 1500 4.608.0074 Fuel Tank Long Spacer for Pressure Washers Lavor NPX 1400 - NPX 1500 €3.27
11
 photo_cameraImage coming soon 4.608.0073 SHORT SPACER FOR TANK JOLLY 4/93 €1.74
12
 photo_cameraImage coming soon 5.613.0096 BOILER AXLE JOLLY 4/93 €29.21
13
 photo_cameraImage coming soon 6.605.0021 WHEELS+BLOCK+COVER KIT X LKX'4-NPX'4 €37.64
14
 photo_cameraImage coming soon 5.611.0142 RH SIDE PANEL NPX-LKX-BLACK-W/HOOK €54.79
15
 photo_cameraImage coming soon 5.611.0141 LEF SIDE PANEL NPX-LKX-BLACK-W/HOOKS €54.79
16
 photo_cameraImage coming soon 4.608.0082 GAS OIL-CHEM TANK CAP €15.27
18
 photo_cameraImage coming soon 4.618.0016 HOSE 5/16 210BAR MT.10 C/M AP1031 3/8 €136.52
19
 700 mm Lance 1/8 "F High/Low Pressure for Pressure Washers Lavor 3.701.0015 700 mm Lance 1/8 "F High/Low Pressure for Pressure Washers Lavor €37.13
21
 photo_cameraImage coming soon 5.611.0078 HOSE FITTING €10.13
22
 photo_cameraImage coming soon 3.103.0053 Hight Pressure Nozzle 0.60 €15.26
23
 Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500 3.100.0043 Rotating Quick Coupling for Washers Lavor NPX 1400 - NPX 1500 €17.59
24
 photo_cameraImage coming soon 6.605.0087 KIT N.3 HOOKS WITH SCREWS €11.10
25
 photo_cameraImage coming soon 3.403.0078 INDICATED. DIESEL LEVEL L=185 W/CABLE L=1320 W/FASTON €54.88
26
 photo_cameraImage coming soon 3.200.0038 O-RING GASKET 53,65X2,62 REF.3212 €1.70
27
 photo_cameraImage coming soon 4.608.0184 WINDING SEAT CLOSURE CAP. NPX'04 BLACK €5.71
28
 photo_cameraImage coming soon 7.701.1137 CASING STICKER LKX4 PRESP.100x42 1C €30.27
29
 photo_cameraImage coming soon 7.700.0183 INSTRUCTION MANUAL LKX4 I-GB-F-D-E -NL-GR +CE A5 88F €21.85
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4.608.0191 NPX'04 BLACK DASHBOARD FRAME €8.45
2
 photo_cameraImage coming soon 4.608.0205 DASHBOARD NPX4/LKX4 THREE-PHASE-GR-W/PAMPOGR. €30.33
3
 Lavor Adjustment Knob for MEK 1108 4.608.0164 Lavor Adjustment Knob for MEK 1108 €5.83
5
 Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500 3.403.0091 Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500 €40.24
6
 photo_cameraImage coming soon 3.105.0003 DETERGENT REGULATING COCK WITHRUBBER HOLDER D.7 €37.19
7
 photo_cameraImage coming soon 4.608.0168 NPX4/LKX4/T4 ELECTRICAL BOX €26.96
8
 photo_cameraImage coming soon 3.102.0005 DIESEL FILTER FB15/P (AK3012) W/BRASS PLATE €7.55
9
 photo_cameraImage coming soon 3.401.0106 BIPOLAR SWITCH WITH PILOT LIGHT B438C1100G0+C IP65 €12.21
10
 photo_cameraImage coming soon 3.414.0010 COIL 230/50HZ FOR DANFOSS GAS PUMP (071N1006) €59.71
11
 photo_cameraImage coming soon 3.401.0063 MICRODISCONNECTOR ETA 3140-F230-P7TI-SGRX-3AC415V-16A €102.75
12
 photo_cameraImage coming soon 3.402.0026 TLR4FC CONTACTOR €253.26
13
 photo_cameraImage coming soon 3.499.0129 LIGHT TYPE 81F 220V BLACK BODY RED GEM €4.79
15
 Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500 3.107.0004 Pressure Gauge for Pressure Washers Lavor NPX 1400 - NPX 1500 €33.35
16
 photo_cameraImage coming soon 4.618.0003 PRESSURE GAUGE TUBE 2X630 70MPa(B.P.120MPa) 1/4 F/GIR-1/4 F/GIR €26.69
25
 photo_cameraImage coming soon 5.611.0113 BURNER FLANGE COMPL. 1.50-45 A RIGHT (FOR RILSAN HOSE) €78.41
27
 photo_cameraImage coming soon 4.614.0004 STANDARDIZED ELECTRODES COUPLE WITH ROD €36.46
28
 photo_cameraImage coming soon 3.100.0075 CONIC CONNECTION M 1/8 F D.4 CURVED FOR GASOIL HOSE VITON O- €14.98
29
 photo_cameraImage coming soon 3.099.0015 RING SEEGER I D.21 SP1 DIN 472 €1.68
30
 photo_cameraImage coming soon 4.608.0002 SITE GLASS DIAM.20 SP.1,8 €1.68
31
 photo_cameraImage coming soon 4.605.0001 WROUGHT BURNER FLANGE €28.64
32
 photo_cameraImage coming soon 3.104.0027 DIESEL NOZZLE 1.50 45/B €25.28
34
 photo_cameraImage coming soon 4.608.0210 RILSAN LKX 4 DIESEL DELIVERY PIPE L=800 €3.23
35
 photo_cameraImage coming soon 5.609.0126 ACCESS. TRANSFER. 220-240V 50/60Hz W/O CAV. €80.46
36
 photo_cameraImage coming soon 4.607.0011 ZNT MOTOR FOOT FIXING BRACKET €7.38
37
 photo_cameraImage coming soon 5.609.0023 VENTILATOR PROTECTION GRID ASSEMBLY €3.95
39
 photo_cameraImage coming soon 5.613.0192 DASHBOARD SUPPORT/HANDLES NPX/LKX'04 €141.62
42
 photo_cameraImage coming soon 3.099.0028 FAN 146x72 LH.HOLE DM 12.7 €29.49
43
 photo_cameraImage coming soon 3.300.0003 MOTOR X BRUC. 100W / 230-240 / 50H z IP55 €194.80
44
 photo_cameraImage coming soon 3.099.0012 Substituted by 6.605.0173 GASOIL PUMP PLASTIC COUPLING €28.23
45
 photo_cameraImage coming soon 3.100.0015 STRAIGHT CONNECT.1/8M. FOR COPP.TUBE D.4 €7.92
46
 Diesel Pump for Pressure Cleaner Lavor NPX 1400 3.551.0037 Diesel Pump for Pressure Cleaner Lavor NPX 1400 €113.24
47
 photo_cameraImage coming soon 3.004.0015 PLAIN WASHER D.22X39X2 UNI6592 €1.63
48
 photo_cameraImage coming soon 4.606.0013 COIL FIXING NUT 1/2 BRASS SPEC. €3.25
49
 Lavor LKX 31 Diesel Filter Unit 5.611.0067 Lavor LKX 31 Diesel Filter Unit €19.50
50
 photo_cameraImage coming soon 4.618.0035 TUBE R1 PUMP/COIL TG480 €28.57
51
 Lavor NPX 1400 Hose 4.618.0043 Lavor NPX 1400 Hose €27.71
52
 photo_cameraImage coming soon 5.611.0012 EXTERNAL BURNER COVER DIAM.341 €52.75
56
 photo_cameraImage coming soon 5.613.0147 INOX EXTERNAL BURNER COVER €35.06
57
 photo_cameraImage coming soon 5.610.0105 DEFLECTOR D.82 €29.76
58
 photo_cameraImage coming soon 5.613.0028 INT. COVER CAM.COMB. CHIMNEY L=120 €146.74
59
 photo_cameraImage coming soon 4.604.0003 LOW COIL H.415 €519.25
60
 photo_cameraImage coming soon 5.613.0231 PAINTED LKX'04 BOILER BODY W/ WATER COOL. MOT. €288.47
62
 Lavor NPX 1500 Bottom Refractory 4.608.0116 Lavor NPX 1500 Bottom Refractory €42.11
63
 photo_cameraImage coming soon 4.607.0006 COIL FIXING STRIP PLATE 20/10 €46.76
64
 Lavor NPX1400 Insulating Rope 4.608.0162 Lavor NPX1400 Insulating Rope €35.27
65
 photo_cameraImage coming soon 5.613.0116 BOILER BASE JOLLY 5 / LKX -VERN ICIATA- €106.07
74
 photo_cameraImage coming soon 3.704.0009 PRESSURE SWITCH PS2 1/4M 25BAR RED P/N 4090000006 €37.87
85
 photo_cameraImage coming soon 3.004.0004 ALUMINIUM WASHER 21X30XSP 1,5 €1.74
87
 photo_cameraImage coming soon 5.609.0128 THERMOSTAT BULB BODY ASSEMBLY LKX/NPX'04 EXIT.INN.RAP. ZNT BRASS €113.80
91
 photo_cameraImage coming soon 4.606.0087 BULB ASSY €49.01
92
 photo_cameraImage coming soon 3.100.0020 REDUCTION M.GAS/M.GAS 1/2-3/8 €8.03
93
 photo_cameraImage coming soon 5.613.0191 THERMOSTAT/ALARM BULB SUPPORT. NPX/LKX'04 €28.78
94
 photo_cameraImage coming soon 4.606.0019 SUCTION CONNECTOR M22 IDRO COMPACT €5.16
95
 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 4.008.0031 Inlet Water Filter Conical for Pressurte Washer Lavor BEST 24 €1.54
96
 photo_cameraImage coming soon 4.006.0088 INTAKE FITTING ADAPTER L=26 M22-3/4G €6.72
97
 Lavor Cooling Hose for LKX 2015LP 4.618.0126 Lavor Cooling Hose for LKX 2015LP €29.90
98
 photo_cameraImage coming soon 3.100.0018 RAPID COUPLING 3/8 M. 08 (465) €14.98

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Pressure Cleaner LKX 1515XP Spare Parts

Lavor original spare parts for to replace broken parts for to fix Hot Water High Pressure Cleaner LKX 1515XP T 400-415/50 LWS18 - 8.621.0802.

Fix Your Pressure Cleaner LKX 1515XP T 400-415/50 LWS18. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.
LKX 1515XP 8.621.0802

IDRO LKX 1515XP T 400-415/50 LWS18
# Part Num. Description
1 4.606.0140 BRASS MANIFOLD HEAD LAVOR 18
2 5.606.0107 WATER-COOLED MOTOR LW 400/50 D.152x12.5 LAVOR 18
3 3.099.0805 SHIM RING / COMPENSATION RING 61X51X0.4 H3.5
4 3.001.0066 RADIAL BALL BEARING 6305 2RS (25X62X17) FOR ELECTRIC MOTOR
6 3.406.0033 CABLE GLAND PG.21 STANDARD
9 5.609.0175 FRONT FLANGE WITH OIL SEAL FOR WATER-COOLED MOTOR LW 18
11 3.001.0065 ANGULAR CONTACT BALL BEARING 7307-B (35X80X21)
12  4.607.0295 STEEL WOBBLE PLATE GR.15 FOR THRUST BEARING
13  4.607.0299 AXIAL THRUST BALL BEARING 55X90X25 FOR LAVOR 18
14  6.005.0201 KIT 187 LW PISTONS D.18 LWS 18
15  6.005.0218 KIT 201 PISTON RETURN SPRINGS LAVOR 18
16  6.005.0320 KIT 292 LW OIL SIGHT GLASS HOBBY
17  4.605.0073 PISTON GUIDE BODY D.18 FOR VERTICAL HIGH-PRESSURE WASHER LAVOR 18
18  5.609.0158 FITTING ASSEMBLY 1/8 G WITH PLUG M7 TOTAL STOP BRASS HEAD '99
19  5.609.0145 SUCTION/DELIVERY VALVE PLUG ASSEMBLY WITH O-RING LAVOR 18
20 6.005.0203 KIT 189 LW OIL SEALS KIT LWS 18
21  3.200.0154 O-RING GASKET 18.72X2.62 NBR 90 SHORE
22  6.005.0198 KIT 184 LW SUCTION/DELIVERY VALVES LWS 18
25  6.005.0120 KIT 111 LW PRESSURE REGULATOR BRASS HEAD '99
27  4.606.0144 PLUG FOR SUCTION/DELIVERY VALVE LAVOR 18
40 6.005.0197 KIT 183 LW WATER SEALS + BUSHINGS LWS 18
41  6.005.0221 KIT 204 LW WATER SEALS LWS 18
42  6.005.0222 KIT 205 LW BUSHINGS LWS 18
50 6.005.0219 KIT 202 LW INJECTOR 2.0 - CHECK VALVE HOSE BARB LWS 18
51  5.609.X154 HOSE BARB ASSEMBLY D.1 WITH O-RING, SPRING L=7, BALL D.5
52  5.609.0107 SWITCH BOX ASSEMBLY -N- WITH MICROSWITCH & CABLE 3X1 HOLLOW PLUG BRASS HEAD '99
56  5.007.0202 PISTON GUIDE BODY D.18 CERAMIC FOR HORIZONTAL USE
57  5.008.0190 BRASS HEAD LWS 18 TOTAL STOP WITH INJECTOR 2.0 OUTLET 3/8
58  6.005.0200 KIT 186 LW UNIVERSAL SAFETY VALVE FOR BYPASS L3
59  3.699.0057 BIO GEAR EP OIL 220 (TECNOLUBE)
61 6.005.0129 KIT 120 LW COMPLETE BYPASS VALVE BRASS HEAD '99 TS FOR HOT WATER
Pag.2
# Part Num. Description
1 5.613.0115 PAINTED REAR AXLE JOLLY 5/LKX
2 4.613.0181 UPPER CASING NPX-LKX04 -G- PANTONE 108C
3 4.608.0170 LEFT HANDLE NPX'04 GREY RAL 7021
4 4.608.0169 RIGHT HANDLE NPX'04 GREY RAL 7021
5 4.613.0182 REAR CASING NPX-LKX'04 -BLACK-
6 4.608.0203 DIESEL/DETERGENT TANK NPX4/LKX4
7 3.002.0532 KNOB D.20 M5X15
8 4.612.0046 POWER CABLE H05VV-F 4X1.5 L=6000 WITH FASTON WITHOUT PLUG
9 4.608.0074 LONG SPACER FOR TANK JOLLY 4/93 63mm
11 4.608.0073 SHORT SPACER FOR TANK JOLLY 4/93
12 5.613.0096 BOILER AXLE JOLLY 4/93
13 6.605.0021 WHEEL + HUB CAP + RETAINER KIT LKX'04 -NPX'04-INDEPENDENT 2300
14 5.611.0142 RIGHT SIDE PANEL NPX-LKX -BLACK- WITH HOOK
15 5.611.0141 LEFT SIDE PANEL NPX-LKX -BLACK- WITH HOOK
16 4.608.0082 DIESEL-CHEM TANK CAP -BLACK-
17 3.700.0028 SPRAY GUN 300bar 3/8M + S7 + M22
18 4.618.0016 HIGH-PRESSURE HOSE L=10000 250BAR WITH COUPLINGS 5/16
19 3.701.0015 STAINLESS STEEL LANCE L.700 COATED WITH NOZZLE HOLDER + QUICK COUPLING M22 41102850
21 5.611.0078 BRASS SUCTION HOSE BARB KIT 3/4 D.17
22 3.103.0053 HIGH-PRESSURE NOZZLE 1/8M 15060
23 3.100.0043 SWIVEL QUICK COUPLING 3/8 M MV G8 (461) 26075050
24 6.605.0087 KIT N.3 HOOKS WITH SCREWS
25 3.403.0078 DIESEL LEVEL INDICATOR L=185 WITH CABLE L=1320 WITH FASTON
26 3.200.0038 O-RING GASKET 53.65X2.62 REF. 3212
27 4.608.0184 HOSE REEL SEAT CLOSING CAP NPX'04 BLACK
28 7.701.1137 CASING STICKER LKX4 PRESP.100x42 1C
29 7.700.0183 INSTRUCTION MANUAL LKX4 I-GB-F-D-E -NL-GR +CE A5 88F
Pag.3
# Part Num. Description
1 4.608.0191 BLACK DASHBOARD FRAME NPX'04
2 4.608.0205 THREE-PHASE DASHBOARD NPX4/LKX4 -GREY- WITH PAD PRINTING
3 4.608.0164 THERMOSTAT REGULATION KNOB -BLACK-
5 3.403.0091 THERMOSTAT 30/150 BULB D. 6.5 (3 CLOSED FASTONS)
6 3.105.0003 DETERGENT REGULATION COCK WITH HOSE BARB D.7 (3/4 TURN)
7 4.608.0168 ELECTRIC BOX NPX4/LKX4/T4
8 3.102.0005 DIESEL FILTER FB15/P (AK3012) WITH BRASS PLATE
9 3.401.0106 BIPOLAR SWITCH WITH PILOT LIGHT B438C1100G0+C IP65
10 3.414.0010 SOLENOID COIL 230V 50Hz FOR DANFOSS FUEL PUMP (071N001000)
11 3.401.0063 CIRCUIT BREAKER / MICRODISCONNECTOR ETA 3140-F230 -P7TI-SGRX-3AC415V-16A
12 3.402.0026 CONTACTOR TLR4FC
13 3.499.0129 INDICATOR LIGHT TYPE 81F 220V BLACK BODY RED LENS
15 3.107.0004 PRESSURE GAUGE D.50 0/315 BAR 1/4 P REAR CONNECTION + BRACKET
16 4.618.0003 PRESSURE GAUGE HOSE 2X630 70MPa (L.P. 120MPa) 1/4 F/SWIVEL - 1/4 F/SWIVEL
25 5.611.0113 BURNER FLANGE COMPL. 1.50-45 A RIGHT (FOR RILSAN HOSE)
27 4.614.0004 PAIR OF UNIFIED PROFESSIONAL ELECTRODES WITH BRACKET
28 3.100.0075 CONICAL ELBOW FITTING M 1/8 F D.4 COD.E2L39C02
29 3.099.0015 SEEGER RING / CIRCLIP I D.21 SP1 DIN 472
30 4.608.0002 SIGHT GLASS DIAM.20 THICKNESS 1.8
31 4.605.0001 MACHINED BURNER FLANGE
32 3.104.0027 DIESEL NOZZLE 1.50 45/B
34 4.608.0210 DIESEL RILSAN DELIVERY HOSE LKX 4 L=800
35 5.609.0126 IGNITION TRANSFORMER 220-240V 50/60Hz WITH BOOT NPX-LKX + CABLE
36 4.607.0011 MOTOR FOOT FIXING BRACKET ZNT
37 5.609.0023 FAN PROTECTION GRILLE ASSEMBLY
39 5.613.0192 DASHBOARD/HANDLE SUPPORT NPX/LKX'04
42 3.099.0028 FAN WHEEL 146x72 LEFT-HAND HOLE DM 12.7
43 3.300.0003 BURNER MOTOR 100W/230-240V/50Hz IP55
44 3.099.0012 RED PLASTIC FLEXIBLE COUPLING EME/UNIELECTRIC FUEL PUMP
45 3.100.0015 STRAIGHT FITTING 1/8 M. FOR COPPER TUBE D.4
46 3.551.0037 TWO-PIPE DIESEL PUMP RIGHT 230/50-60 (VERS.'06) BFA013L2 071N1221
47 3.004.0015 FLAT WASHER D.22X39 Th.3 ZNT UNI6592
48 4.606.0013 HEATING COIL FIXING NUT 1/2 BRASS SPECIAL
49 5.611.0067 DIESEL FILTER GROUP (NYLON) TEKNA'95 -LKX
50 4.618.0035 HOSE R1 250BAR L=600 WITH FITTINGS 1/2-3/8F 90° (STAGGERED 180°) PUMP/COIL
51 4.618.0043 HOSE R1 3/8 L=375 WITH 1/2F. SWIVEL 90° / 3/8F SWIVEL 90°
52 5.611.0012 BOILER OUTER COVER WITH HOLLOW CONE
56 5.613.0147 STAINLESS STEEL BOILER OUTER COVER AISI 430
57 5.610.0105 DEFLECTOR / BAFFLE WITH CONE D.82 WITH HOLES
58 5.613.0028 COMBUSTION CHAMBER INNER COVER FLUE L=120
59 4.604.0003 LOW HEATING COIL H.415 L=30mt
60 5.613.0231 PAINTED BOILER BODY LKX'04 FOR WATER-COOLED MOTOR
62 4.608.0116 CEMENTED REFRACTORY DISK D.290X20 FOR BOILER
63 4.607.0006 HEATING COIL FIXING STRAP IN STAINLESS STEEL SHEET ERA 15/10 AISI 430
64 4.608.0162 INSULATION ROPE FOR BOILER BASE L=990
65 5.613.0116 PAINTED BOILER BASE JOLLY 5/LKX
74 3.704.0009 PRESSURE SWITCH PR5 25BAR 1/4 L.750 F .29008000
85 3.004.0004 ALUMINUM WASHER 21x30xTHICKNESS 1.5
87 5.609.0128 THERMOSTAT BULB BODY ASSEMBLY LKX/NPX'04 BRASS ZNT QUICK COUPLING OUTLET
91 4.606.0087 PROFESSIONAL THERMOSTAT BULB BODY
92 3.100.0020 NIPPLE 1/2G-3/8G
93 5.613.0191 THERMOSTAT BULB/PRESSURE SWITCH SUPPORT NPX/LKX'04
94 4.606.0019 SUCTION FITTING L=60 M22 - 3/8G
95 4.008.0031 CONICAL WATER SUCTION FILTER D.16
96 4.006.0088 SUCTION FITTING ADAPTER L=26 M22 - 3/4G
97 4.618.0126 LOW PRESSURE HOSE R1 L=400 FITTINGS 3/8M-ELBOW (FOR WATER-COOLED MOTOR INLET LKX)
98 3.100.0018 QUICK COUPLING 3/8M-1/2M 08 BRASS ZNT

Product description

Maximize the efficiency and lifespan of your heavy-duty hot water pressure washer by choosing only genuine Lavor spare parts for the LKX 1515 XP. This three-phase professional machine requires high-precision components to withstand demanding operating pressures and extreme water temperatures.

The genuine spare parts catalog covers every vital section of your equipment:

  •     Linear Pump & Boiler Assembly: High-temperature water/oil seals, ceramic pistons, suction/delivery valves, burner nozzles, and regulation thermostats.
  •     Electrical & Safety Systems: Pressure switches, contactors for the three-phase motor, electronic control boards, and Delayed Total Stop safety components.
  •     High-Pressure Accessories: Heat-resistant armored hoses, professional trigger guns with swivel couplings, stainless steel lances, and calibrated nozzles.

Using official Lavor parts ensures seamless technical compatibility, prevents unexpected downtime, and preserves the professional safety certifications of your pressure washer.

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
LKX1515XP 86210802

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:
LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

New

Download

Lavor LKX1515XP Drawing

Lavor LKX1515XP Drawing

Download (1.44MB)

You might also like

Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 6.605.0173
Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400
Plastic Coupling Set for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Diesel Pump Red Plastic Coupling Set for Engine EME/UNIELECTRICp for Pressure Cleaners NPX 1400 - NPX 1500 Part for the following products: -...
on 10 Business Days Approx €29.06
Details
Washer SNHORt for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 3.004.0022
Washer SNHOR for Pressure Cleaner Lavor NPX 1400
Washer SNHOR for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Washer SNHOR D.8x13 sp.0.8 for Pressure Cleaners NPX 1400 - NPX 1500 Part for the following products: -  Pressure Cleaner Lavor NPX 1400 - 8.605.0048 -...
on 10 Business Days Approx €1.71
Details
Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500
Lavorwash S.p.A. SKU: 3.403.0091
Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500
Thermostat for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Thermostat 30/150 Bulb d.6.5 (3 Faston) for Pressure Washers NPX 1400 - NPX 1500. Part for the following...
on 10 Business Days Approx €40.24
Details
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400
Lavorwash S.p.A. SKU: 4.608.0078
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400
Dashboard Gasket for Pressure Cleaner Lavor NPX 1400 Genuine replacement part Lavor, Dashboard Gasket '93 (3x900) for Pressure Cleaners NPX 1400 - NPX 1500 - LKX 40. Part for the following products: -  Pressure Cleaner NPX 1400 230/50...
Last items in stock €3.32
Details
Pressure Switch for Pressure Washer Lavor Missouri
Lavorwash S.p.A. SKU: 3.704.0006
Pressure Switch for Pressure Washer Lavor Missouri
Pressure Switch for Pressure Washer Lavor Missouri Genuine part Lavor, Pressure Switch 25 Bar 1/8 Red L.700 Faston F. for Pressure Washers  MISSOURI - YUKON 1310 - NPX 1500 - LKX 40. Part...
Usually Ships in: 10 Business Days Approx. €30.90
Details
Diesel Nozzle for Pressure Washers Lavor NPX 1400
Lavorwash S.p.A. SKU: 3.104.0028
Diesel Nozzle for Pressure Washers Lavor NPX 1400
Diesel Nozzle for Pressure Washers Lavor NPX 1400 Genuine replacement part Lavor, Diesel Nozzle 1,25 45-B for Pressure Washers NPX 1400 - NPX 1500 - LKX 31 - LKX 40. Part for the following...
Usually Ships in: 7/10 Business Days Approx. €28.36
Details
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1500
Lavorwash S.p.A. SKU: 4.618.0014
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1500
Pressure Gauge Pipe for Pressure Washers Lavor NPX 1400 - NPX 1500 Genuine replacement part Lavor, Pressure Gauge Pipe 2x380 Max 630 Bar 1/4 F. Gir. 1/4 F Gir. for Pressure Washers NPX 1400 - NPX...
Usually Ships in: 10/15 Business Days Approx. €26.46
Details
Thermal Switch MS 25 for Pressure Cleaner Lavor LKX 55 TS
Lavorwash S.p.A. SKU: 3.401.0049
Thermal Switch MS 25 for Pressure Cleaner Lavor LKX 55 TS
Thermal Switch MS 25 10/16 AMP for Pressure Cleaner Lavor LKX 55 TS Genuine replacement part Lavor, Thermal Switch MS 25 10/16 AMP (4006111101) for Pressure Cleaner LKX 55 TS 230/400-50 CM -G - 8.611.0084. Part...
on 10 Business Days Approx. €137.06
Details
Lavor LKX 31 Diesel Filter Unit
Lavorwash S.p.A. SKU: 5.611.0067
Lavor LKX 31 Diesel Filter Unit
Lavor LKX 31 Diesel Filter Unit Genuine replacement part Lavor, Diesel Filter Unit Assy (PAPER) for LKX 31 - 40 - 55 - 2015. Part for the following products: - 8.611.0160 - Pressure Washer LKX 31 TS AC 230/50 CM-G -...
Usually Ships in: 10/15 Business Days Approx. €19.50
Details
Lavor LKX 2015 Burn Flange
Lavorwash S.p.A. SKU: 5.611.0192
Lavor LKX 2015 Burn Flange
Lavor LKX 2015 Burn Flange Genuine replacement part Lavor, Cmplete Burn Flange 1.50-45B (RILSAN) With preparation for flame control for LKX 2015. Part for the following products: - 8.621.2935 - Pressure Washer LKX 2015LP T...
on 10 Business Days Approx. €97.88
Details
Lavor LKX 2015 Ignition Transformer
Lavorwash S.p.A. SKU: 5.609.0344
Lavor LKX 2015 Ignition Transformer
Lavor LKX 2015 Ignition Transformer Genuine replacement part Lavor, Ignition Transformer 220-240V 50/60Hz C/PIPET.NPX-LKX + CAVO (POTENZ.) for LKX 2015. Part for the following products: - 8.621.2935 - Pressure Washer LKX...
Usually Ships in: 10/15 Business Days Approx. €63.65
Details
Lavor Brass Head for LKX 2015LP
Lavorwash S.p.A. SKU: 5.008.0364
Lavor Brass Head for LKX 2015LP
Lavor Brass Head for Pressure Cleaner LKX 2015LP Original replacement part Lavorwash, Brass Head LWS 1808 C/IN.2,0 USC.3/8 C/TS (X HOT) for Pressure Washer LKX 2015LP. Part for the following products: -  High Pressure Cleaner LKX...
Usually Ships in: 10 Business Days Approx. €251.09
Details
Lavor Adjustment Knob for MEK 1108
Lavorwash S.p.A. SKU: 4.608.0164
Lavor Adjustment Knob for MEK 1108
Lavor Adjustment Knob for Pressure Cleaner MEK 1108 Genuine replacement part Lavorwash, Black Thermostat Adjustment Knob for Pressure Cleaner DAKOTA-R 2007XP - MISSOURI - MEK 1108. Part for the following products: -  PRESSURE CLEANER...
Usually Ships in: 10 Business Days Approx. €5.83
Details
Lavor Thermostat Knob for LKX 2015LP
Lavorwash S.p.A. SKU: 5.611.0161
Lavor Thermostat Knob for LKX 2015LP
Lavor Thermostat Knob for Pressure Cleaner LKX 2015LP Original replacement part Lavorwash, Black Thermostat Knob Whit Insert for Pressure Washer LKX 2015LP. Part for the following products: -  High Pressure Cleaner LKX 2015LP T...
Usually Ships in: 10 Business Days Approx. €3.36
Details
Lavor Head for Pressure Cleaner LKX 2015LP
Lavorwash S.p.A. SKU: 4.606.0223
Lavor Head for Pressure Cleaner LKX 2015LP
Lavor Head for Pressure Cleaner LKX 2015LP Original replacement part Lavorwash, Lavor Headboard 1808 Line for Pressure Washer LKX 2015LP. Part for the following products: -  High Pressure Cleaner LKX 2015LP T 400-415/50 -GR -...
Usually Ships in: 10 Business Days Approx. €140.00
Details
Lavor Replacement Kit TS2 Card Total Stop
Lavorwash S.p.A. SKU: 6.605.0250
Lavor Replacement Kit TS2 Card Total Stop
Lavor Replacement Kit TS2 Card 34030171 Total Stop Original replacement part Lavorwash, Replacement Kit TS2 Card 34030171 Total Stop for Pressure Washer LKX 2015LP. Part for the following products: -  High Pressure Cleaner LKX 2015LP...
Usually Ships in: 10 Business Days Approx. €175.13
Details
Lavor LKX 2015LP Thermal Relay DPER 21 12-18A
Lavorwash S.p.A. SKU: 3.402.0045
Lavor LKX 2015LP Thermal Relay DPER 21
Lavor Thermal Relay DPER 21 12-18A for  LKX 2015LP Original replacement part Lavorwash, Thermal Relay DPER 21 12-18Afor Pressure Washer LKX 2015LP. Part for the following products: -  High Pressure Cleaner LKX 2015LP T...
Usually Ships in: 10 /15Business Days Approx. €29.65
Details
Lavor LKX1515LP AC Contactor KN22
Lavorwash S.p.A. SKU: 3.402.0051
Lavor LKX1515LP AC Contactor KN22
Lavor AC Contactor KN22 400/50HZ 7,5 KW AC3 for LKX 1515LP Original replacement part Lavorwash, AC Contactor KN22 400/50HZ 7,5 KW AC3 for Pressure Washer LKX 1515LP - LKX 2015LP. Part for the following products: - High...
Usually Ships in: 10 Business Days Approx. €36.87
Details
Lavor LKX 31 Single Pipe Diesel Pump
Lavorwash S.p.A. SKU: 3.551.0063
Lavor LKX 31 Double Pipe Diesel Pump
Lavor LKX 31 Double Pipe Diesel Pump Genuine replacement part Lavor, Double Pipe Diesel Pump + 24V ELECTRODE. D DX for LKX 31 - 40 - 55 - 1515. Part for the following products: - 8.611.0160 - LKX 31 TS AC 230/50 CM-G -...
Usually Ships in: 10/15 Business Days Approx. €103.22
Details
Lavor LKX 2015LP External Cover
Lavorwash S.p.A. SKU: 5.613.0200
Lavor LKX 2015LP External Cover
Lavor LKX 2015LP External Cover Genuine replacement part Lavor, External Cover Of Aisi 430 Ba Tekna 4 Stainless Steel Boiler for Pressure Cleaner LKX 2015LP - NPX 1813XP. Part for the following products: - ...
Usually Ships in: 10/15 Business Days Approx. €40.44
Details
Lavor Pressure Cleaner LKX 2015LPT Parts
Lavorwash S.p.A. SKU: LKX 2015LPT- 8.621.2991
Lavor Pressure Cleaner LKX 2015LPT Parts
Lavor Pressure Cleaner LKX 2015LPT Parts Fix Your Hot Water High Pressure Cleaner LKX 2015LP T 400/50(COLL.220/50)-GR-C/VASCH+LANCIA A/B-LAVOR . All Spares are original and can be supplied at Low and discounted prices For...
build View Spare Parts
Lavor Pump LW CL3.5 for LKX 2015LP
Lavorwash S.p.A. SKU: 5.705.0001
Lavor Pump LW CL3.5 for LKX 2015LP
Lavor Pump LW CL3.5 for Pressure Cleaner LKX 2015LP Original replacement part Lavorwash, Pump LW CL3.5 200/15 1450 SX D.18CER.C/IN.-TS-USC.3/8 (X HOT) for Pressure Washer LKX 2015LP. Part for the following products:...
Usually Ships in: 10 Business Days Approx. €584.86
Details
Lavor Pressure Washer NPX1400 Insulating Rope
Lavorwash S.p.A. SKU: 4.608.0162
Lavor NPX1400 Insulating Rope
Lavor Pressure Washer NPX1400 Insulating Rope Genuine replacement part Lavor, Insulating Rope For Boiler Base L=990 for Pressure Washer NPX1400 - LKX 31 - LKX 55. Part for the following products: - ...
Usually Ships in: 10 Business Days Approx. €35.27
Details
Lavor Cooling Hose for LKX 2015LP
Lavorwash S.p.A. SKU: 4.618.0126
Lavor Cooling Hose for LKX 2015LP
Lavor Cooling Hose for Pressure Washer LKX 2015LP Genuine replacement part Lavor, Reinforced Cooling Hose Low-Pressure Motor Circuit for Pressure Washer LKX 2015LP. Part for the following products: - Pressure Washer Lavor LKX2015LP...
AVAILABLE €29.90
Details
Comments (0)
No customer reviews for the moment.
