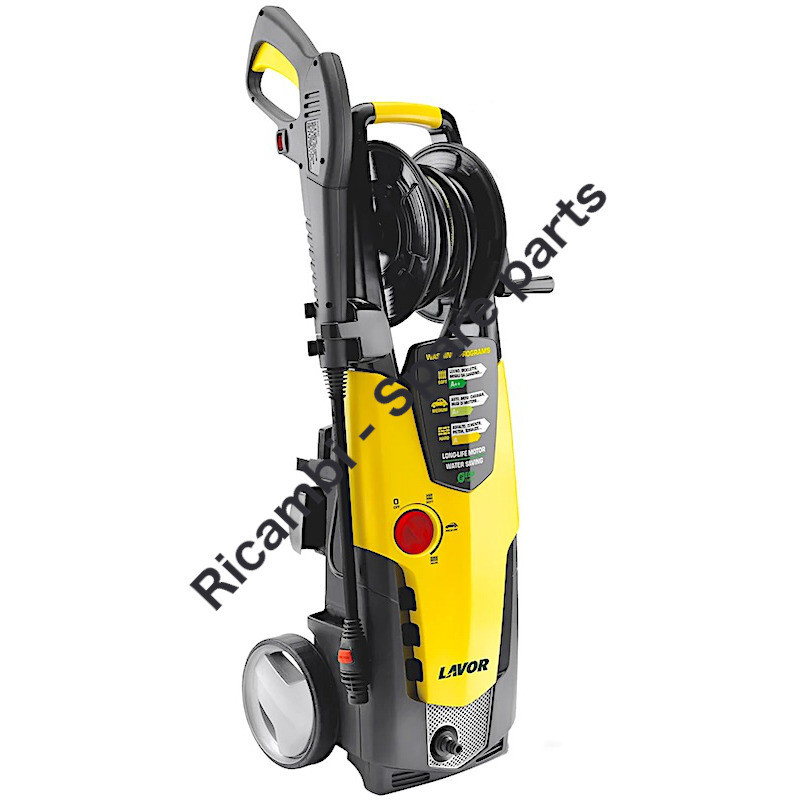

Lavor Parts for Pressure Cleaner STM 160 WPS PLUS

Name: Lavor Parts for Pressure Cleaner STM 160 WPS PLUS
Brand: Lavorwash S.p.A.
SKU: Lavor STM 160 WPS PLUS 80860171C
Availability: InStock

SKU: Lavor STM 160 WPS PLUS 80860171C

€0.10

VAT included

Lavor Original Parts for Pressure Cleaner STM 160 WPS PLUS

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner - IDRO Lavor 8.086.0171C - STM 160 WPS PLUS 220-230~50-60 -G/N-TS +2SP.+L28 LAVOR

Idro STM 160 WPS PLUS

Lavor Parts for Pressure Cleaner STM 160 WPS PLUS

New
Out-of-Stock

Lavor Parts for Pressure Cleaner STM 160 WPS PLUS

SKU: Lavor STM 160 WPS PLUS 80860171C Condition: New

€0.10

VAT included

Lavor Original Parts for Pressure Cleaner STM 160 WPS PLUS

41 Spare parts

5 exploded views

Download Exploded PDF

Quantity

Out-of-Stock

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS

CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS

Original Product Manufacturer warranty included

Technical Support Our team helps you choose

Secure and guaranteed payments

41 spare parts

Page 1 View exploded Usually Ships in: 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	4.008.1264 FRONT COVER STM BLACK (P80.0502-U)	€22.08
3	Image coming soon	4.013.0781 BLACK FRONT CABINET FOR STM WPS	€19.51
4	Image coming soon	3.401.0235 Switch ROTATIVO for REG.3 VELOCITA' IDRO 230V (new)	€11.60
6	Image coming soon	4.008.0721 DX MOTOR CONVEYER	€5.69
7	Image coming soon	5.011.0127 ASSEMBLY HANDLE X WINDER + PLATE -G- (STM P80.0502)	€28.82
8	Image coming soon	6.005.0576 KIT HOSE REEL STM/GALAXY	€46.52
9	Image coming soon	4.008.1417 BLACK ACCESSORY HOLDER STORM STEAM B&S	€10.48
10	Image coming soon	4.008.1311 PROCESS BLACK C/GREY PANT.877C(metallic)PAINTED COATED WHEEL	€11.83
11	Image coming soon	4.008.1263 PROCESS BLACK C BACK CABINET STM (FOR UNIVERSAL MOTOR - P80.	€28.27
12	Image coming soon	5.001.0893C MOTORPUMP 8850-WPS PT'03 230/50 TS W/THERMAL 7'10	€122.63
13		3.403.0374 Lavor Predator 160 Electronic Board	€46.10
14	Image coming soon	4.012.0235 CABLE H05VV-F 2X1,5 5,4MT SCHUKO PLUG	€28.82
17	Image coming soon	3.601.0102 YELLOW/BLACK FLOOR BRUSH L28 W/EXTENSION (D.1,2)	€49.25
19	Image coming soon	3.100.0082C BLACK QUICK COUPLING INLET CONNECTOR (THREAD=9.5)	€1.50
20		6.001.0076 Trigger Gun S'09 6.001.0076 for Pressure Washers Cold Water Lavor	€29.50
21		4.018.0096 H.P. Hose 4.018.0096 8 m for Quick Coupling Trigger Gun Lavor S’09	€37.03
22		6.002.0340 Lance 6.002.0340 Nozzle Head Holder for Trigger Guns Lavor	€9.52
23	Image coming soon	6.002.0643 NOZZLE HEAD LANCE S'12 D.1,05 (GREY) ADJUST.FAN JET W/QUICK COUPLING	€9.36
24		6.002.0347 Head Turbo Nozzle Ø 1,1 for Lance Lavor	€8.56
25	Image coming soon	6.002.0371 LANCE NOZZLE S'12-V-D.1.2-RED-C/QUICK CONN.(FAN JET)	€7.32
26		3.601.0033 Fixed Brush 3.601.0033 for Cold Water Pressure Washers Lavor	€15.41
28	Image coming soon	6.002.0259 Substituted by 6.002.0358 FOAM SPRAYER WITH TRANSPARENTTANK	€12.74

Page 2 View exploded Usually Ships in: 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	5.009.1077 8850 MOTOR (WPS) 230/50 W/THERMAL 17AM-D 140G	€80.34
2		6.005.0180 Kit 166 Footstep Bearing for Pressure Washer Lavor Predator 160 WPS	€11.08
3		4.007.0205 Pin 10x70 for Pressure Washer Lavor Predator 160 WPS	€7.42
4		5.009.1020 Wobble Plate Assembly for Pressure Washer Lavor Predator 160 WPS	€13.76
5	Image coming soon	4.007.0328 THRUST BEARING 35X55X12 PT'03	€14.74
6	Image coming soon	5.009.1024C BODY GUIDE+HEAD(TPAV) W/TS 14.5KG-SUCT.-THREAD CAPS-PL.CHECK VALVE SEAT	€75.63

Page 3 View exploded Usually Ships in: 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	5.007.0280C BODY GUIDE PT'03 W/TS 14.5KG/COMP.VALVE WITHOUT SUCTION	€34.28
2		6.005.0282 Kit 257 LW Rings Support + Spacers for Washer Lavor ENDURO 145	€14.15
3	Image coming soon	5.008.0298C PT'03 HEAD D.12 W/THREAD CAPS(TPAV - ALUM.CAPS)	€18.45

Page 4 View exploded Usually Ships in: 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1		5.009.1022 Lavor GALAXY 160 TSS Valve Assy	€17.04
2		6.005.0281 Kit 256 Check Valve for Washer Lavor Predator 160	€14.15
3		6.005.0226 Kit 209 O-Ring for PT'03 for Pressurte Washer Lavor BEST 24	€11.10
4		6.005.0079 Kit 79 LW Oil Seal for Pressurte Washer Lavor BEST 24	€15.53
5	Image coming soon	4.005.0234 PISTON BODY GUIDE PT'03 WITHOUT HOLE FOR SUCTION	€14.41
6		6.005.0181 Kit 167 LW 3 Pistons + Springs for Pressurte Washer Lavor BEST 24	€17.75
7	Image coming soon	4.007.0314 PIN 3,5x30 ZNT	€1.59

Page 5 View exploded Usually Ships in: 10/15 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
1	Image coming soon	6.005.0595 KIT HEAD VALVE KIT +CAPS PT'03	€14.20
2	Image coming soon	4.005.0302 PT'03 HEAD WITH THREAD FOR VALVE CAPS (TPAV)	€5.94
3		6.005.0133 Kit 124 Water Seal Partner for Pressurte Washer Lavor BEST 24	€14.15

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Lavor Original Parts for Pressure Cleaner STM 160 WPS PLUS

Lavor original spare parts for to replace broken parts for to fix Cold Water High Pressure Cleaner - IDRO Lavor 8.086.0171C - STM 160 WPS PLUS 220-230~50-60 -G/N-TS +2SP.+L28 LAVOR

Fix Your Pressure Cleaner. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following tables, look for the spare part and its respective code.

STM 160 WPS PLUS 220-230~50-60 -G/N-TS +2SP.+L28 LAVOR
#	Part Num.	Description
1	4.008.1264	FRONT COVER STM BLACK
2	4.013.0838	FRONT PLASTIC COVER WITH SWITCH
3	4.013.0781	FRONT CASING STM WPS BLACK
4	3.401.0235	ROTARY SWITCH 3-SPEED 230V
5	4.008.1872	ELECTRICAL BOX COVER STM WPS BLACK
6	4.008.0721	MOTOR RIGHT DUCT
7	5.011.0127	HANDLE WITH HOSE REEL GRIP
8	6.005.0576	KIT HOSE REEL STM/GALAXY
9	4.008.1417	REAR ACCESSORY HOLDER BLACK STORM
10	4.008.1311	WHEEL STM/I-CLEAN WITH BLACK TREAD
11	4.008.1263	REAR CASING STM BLACK
12	5.001.0893C	MOTOR+PUMP STM160 WPS 230/50
13	3.403.0374	ELECTRONIC SPEED REGULATOR BOARD 230V
14	4.012.0235	CABLE H05VV-F 2X1.5 MT.5.4 SCHUKO PLUG
15	4.008.1213	WATER INLET COVER STORM II PLUS
16	4.008.2033	SWITCH KNOB STM WPS RED RAL 3020
17	3.601.0102	FLOOR BRUSH L28 WITH EXTENSION
18	7.100.2117	MANUAL STM 160 WPS + CE LAVOR
19	3.100.0082C	QUICK COUPLING 3/4 BLACK WITH GASKET
20	6.001.0076	TRIGGER GUN S'09 INTEGRATED QUICK COUPLING
21	4.018.0096	H.P. HOSE 1/4 18MPa 8M M22X1.5-QUICK COUPLING X S'09
22	6.002.0340	LANCE S'12 WITHOUT NOZZLE HEAD WITH QUICK COUPLING
23	6.002.0643	LANCE HEAD S'12 D.1.05 GREY QUICK COUPLING (PIN SHOT)
24	6.002.0347	ROTOX NOZZLE HEAD LANCE S'12 D.1.1 GREEN QUICK COUPLING
25	6.002.0371	LANCE HEAD S'12 D.1.2 RED QUICK COUPLING (FAN SHOT)
26	3.601.0033	FIXED BRUSH WITH COGETIL ADAPTER LARGE
27	3.601,0035	ROTATING WASH BRUSH REINFORCED FIXED HANDLE
28	6.002.0259	FOAM DIFFUSER WITH TRANSPARENT TANK
Pag.2
#	Part Num.	Description
1	5.009.1077	MOTOR ASSEMBLY 03 230/50 WITH THERMAL PROTECTION
2	6.005.0180	KIT 166 LW BEARING+ROLLER CAGE 3047 PT03-SD
3	4.007.0205	PIN 10X70 PARTNER
4	5.009.1020	PLATE ASSEMBLY 7'10 PT03 WITH PLASTIC INSERT+CROWN Z 50
5	4.007.0328	BALL THRUST BEARING 35X55X12 FOR PT03
6	5.009.1024C	GUIDE CASING WITH TS 14.5KG+PLUG HEAD PT'03
Pag.3
#	Part Num.	Description
1	5.007.0280C	PISTON GUIDE CASING PT03 D.12 WITH TS 14.5KG
2	6.005.0282	KIT 257 LW RESTRAINING RINGS ALUMINUM+SPACERS D.12
3	5.008.0298C	CYLINDER HEAD PT'03 D.12 WITH ALUMINUM PLUGS
Pag.4
#	Part Num.	Description
1	5.009.1022	BYPASS VALVE ASSEMBLY PT03 CABLE L=530 SPRING 14.5KG
2	6.005.0281	KIT 256 LW CHECK VALVE ASSEMBLY PT03C
3	6.005.0226	KIT 'O-RING FOR PT03'
4	6.005.0079	KIT 79 LW OIL SEAL RINGS D.12 FIBER
5	4.005.0234	PISTON GUIDE CASING PT03 WITHOUT DETERGENT SUCTION HOLE
6	6.005.0181	KIT 167 LW 3 PISTONS+SPRINGS PT03
7	4.007.0314	CYLINDRICAL PIN 3.5X30 ZNT
Pag.5
#	Part Num.	Description
1	6.005.0595	KIT SUCTION/DELIVERY VALVES+ALUMINUM PLUGS PT 03
2	4.005.0302	CYLINDER HEAD PT03 WITH VALVE PLUGS THREAD
3	6.005.0133	KIT 124 WATER SEAL RINGS PARTNER D.12

Product description

Keep your Lavor STM 160 WPS PLUS pressure washer running like new by choosing only genuine Lavor spare parts. Engineered and manufactured to the highest factory standards, these components guarantee perfect compatibility and maximum safety.

The complete range includes everything you need for routine maintenance and repairs:

Pump Assembly & Seals: O-ring kits, valves, and oil seals to prevent pressure loss.
Accessories & Lances: High-pressure hoses, guns, specific nozzles, and foam lance systems.
Electrical & Motor Components: Switches, capacitors, and parts compatible with the WPS (Washing Program System).

Using original spare parts extends the lifespan of your machine, optimizes water and power consumption, and protects your product warranty.

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s LAVOR websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to LAVOR brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Lavor STM 160 WPS PLUS 80860171C

Data sheet

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N LAVOR:: LAVOR S/N START WITH (8. ) and have 8 DIGITS

Specific References

Condition New

Download

Lavor STM 160 WPS PLUS Drawing

Download (1.31MB)
